USER MANUAL AT&T EP5995 AT&T

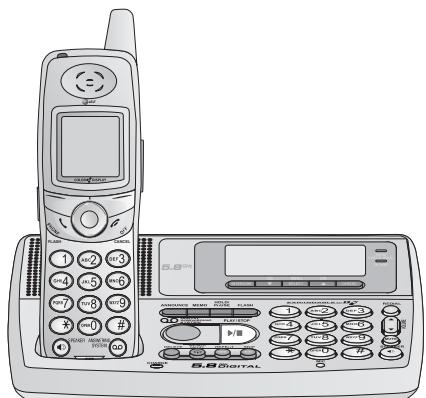

Telephone/Speakerphone Answering System EP5995

Congratulations on your purchase of this AT&T product.

Before using this telephone system, you must read Important safety information on pages 75-77 of this manual.

NEED HELP?

Our representatives are here to help you with any questions concerning the operation of this product, available accessories, or any other related issues.

Call toll free1 (800) 222- 3111In Canada, call1 (866) 288- 4268or visit our website atwww.telephones ATT.com

Model No.: AT&T EP5995

Product Name: 5.8 GHz Cordless Telephone

Serial No.: SN:

(found at the bottom of the telephone base)

Purchase Date:

Place of Purchase:

IMPORTANT

Information about Caller ID with Call Waiting

This product has a Caller ID with Call Waiting feature that works with services from your local telephone service provider.

Caller ID with Call Waiting lets you see the name of the caller before you answer the telephone, even when you're on another call.

You may need to change your phone service to use this feature. Contact your telephone service provider if:

• you have both Caller ID and Call Waiting, but as separate services (you may need combined service).
• you have only Caller ID service, or only Call Waiting service.
• you don't subscribe to any Caller ID or Call Waiting services.

You can use this product with regular Caller ID service, or you can use this product's other features without subscribing to either Caller ID or combined Caller ID with Call Waiting service.

There are fees for Caller ID services, but these may not be available in all areas.

Depending on your service subscription, you may see the caller's number, or the caller's name and number. This product can provide information only if both you and the caller are in areas offering Caller ID service, and if both telephone companies use compatible equipment. The time and date are sent by the service provider along with the call information.

You must install and charge the battery before using the telephone.

STOP!

See page 8 for easy instructions.

For customer service or product information, visit our website at www.telephones ATT.com or call 1 [phone]. In Canada, call 1 [phone].

Caution: To reduce the risk of fire or injury to persons or damage to their phone, read and follow these instructions carefully:

• Use only the supplied rechargeable battery (Model 102) or AT&T replacement battery (Model 103).
• Do not dispose of the battery in a fire; it could explode. Check with local codes for special disposal instructions.
• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
• Exercise care in handling batteries in order not to create a short circuit with conductive materials such as rings, brackets, and keys. The battery or conductor may overheat and cause harm.
• Charge the battery provided with or identified for use with this product only in accordance with the instructions and limitations specified in this manual.
• Observe proper polarity orientation between the battery and battery charger.

Do not disassemble your telephone. There are no user-serviceable parts inside. Refer to qualified service personnel for servicing.

Add new handsets to make your telephone more versatile (see page 65)

Your telephone can accommodate up to eight cordless handsets. You can add new handsets (AT&T EP590-3, purchased separately) anytime, but each must be registered with the telephone base before use.

The handset provided with your telephone is automatically registered as Handset 1. Additional handsets will be assigned numbers in the order they are registered (2, 3, 4, 5, 6, 7, and 8). You can register a maximum of eight handsets.

Handset 1

Telephone base

Handset 2

Handset 3

Handset 4

Handset 5

Handset 6

Handset 7

Handset 8

NOTE: A maximum of three handsets and the telephone base can be on a call at the same time.

NOTE: The EP5995 has one pre-registered handset. You can purchase and register seven additional handsets (EP590-3) to the telephone base of EP5995.

User's manual

5.8 GHz Cordless

Telephone/Speakerphone

Answering System EP5995

with Caller ID & Call Waiting

Table of Contents

Getting Started

Quick reference guide. 2

Parts checklist 5

Before you begin. 6

Telephone base installation. 7

Battery installation & charging......8

Wall mounting. 9

Belt clip & optional headset 10

Telephone Setup

Handset screen images.

Handset sounds. 12

Handset messages 14

Handset settings. 15

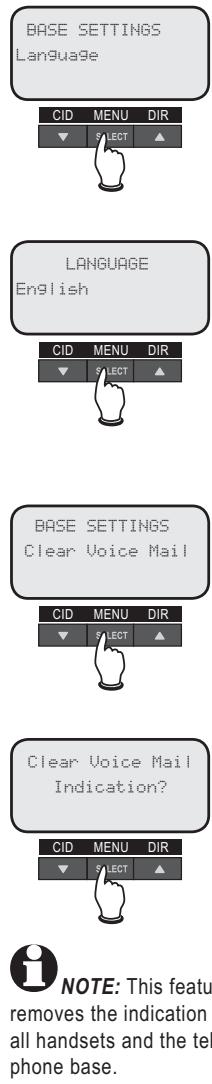

Base settings 19

Telephone Operation

Basic handset operation. 23

Basic base operation. 25

Options while on calls.. 27

Intercom calls 28

Handset Directory

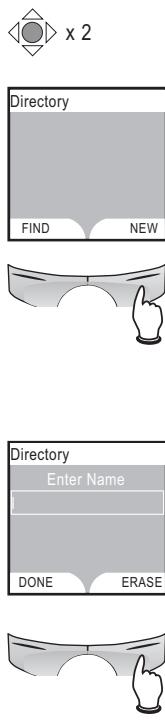

New directory entries. 30

Directory search. 32

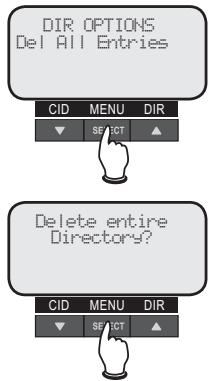

Editing or deleting an entry. 33

Base Directory

New directory entries. 36

Directory search. 38

Editing or deleting an entry. 39

Handset Call Log and Redial

Reviewing your call log. 42

Dialing a call log entry 44

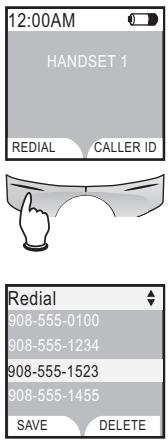

Reviewing your radial log. 45

Reviewing voice messages 47

Base Call Log & Redial

Reviewing your call log. 49

Dialing a call log entry. 51

Reviewing your radial log. 52

Answering System Operation

Setting answering system. 55

Outgoing announcements. 58

Message playback. 59

Recording and playing memos.....60

Message window displays.. 61

Remote access 62

Appendix

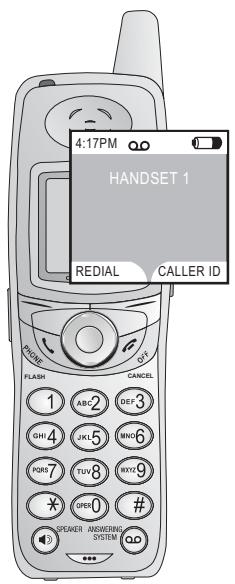

Display screen status icons. 63

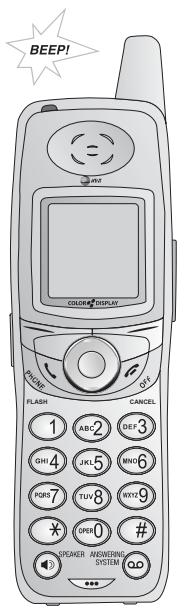

Alert tones and indicator lights.....64

Adding new handsets.. 65

Replacing a handset. 66

Charging spare battery pack... 68

Troubleshooting 69

Important safety information. 75

FCC Part 68 and ACTA. 78

FCC Part 15. 80

Limited warranty 81

Index. 84

Technical specifications. 86

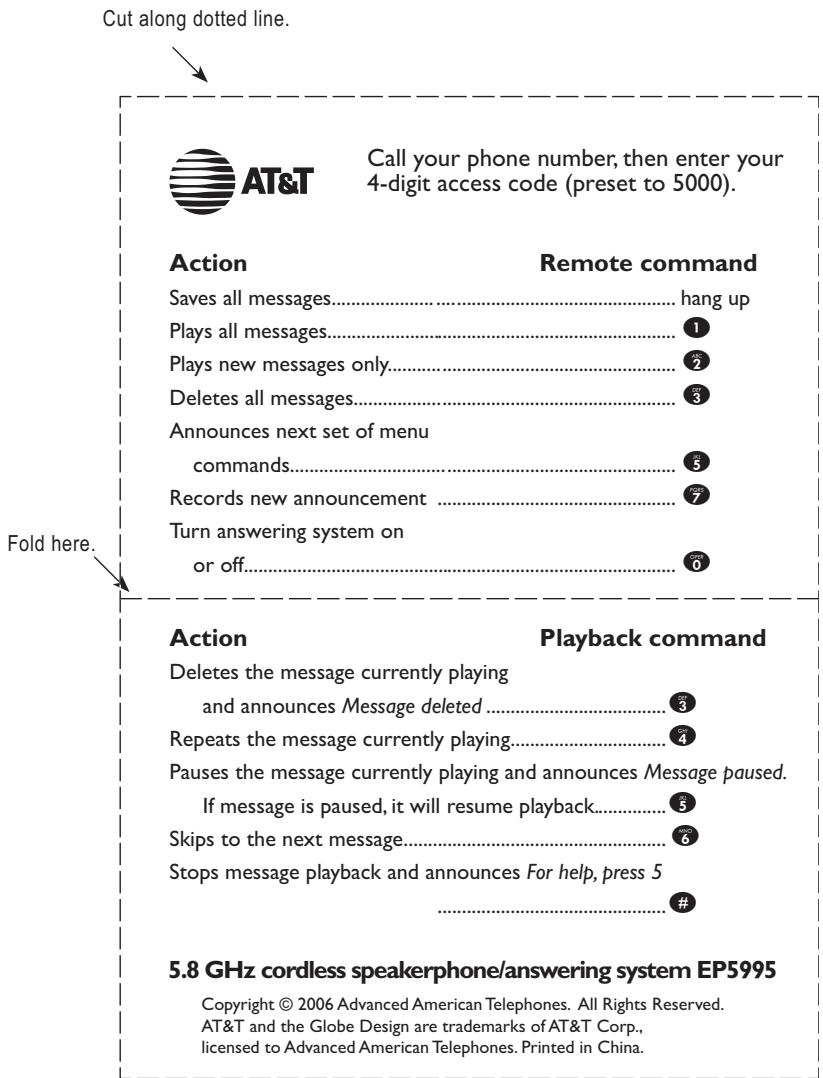

Remote access wallet card. 87

Quick reference guide

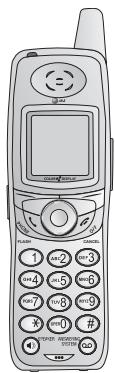

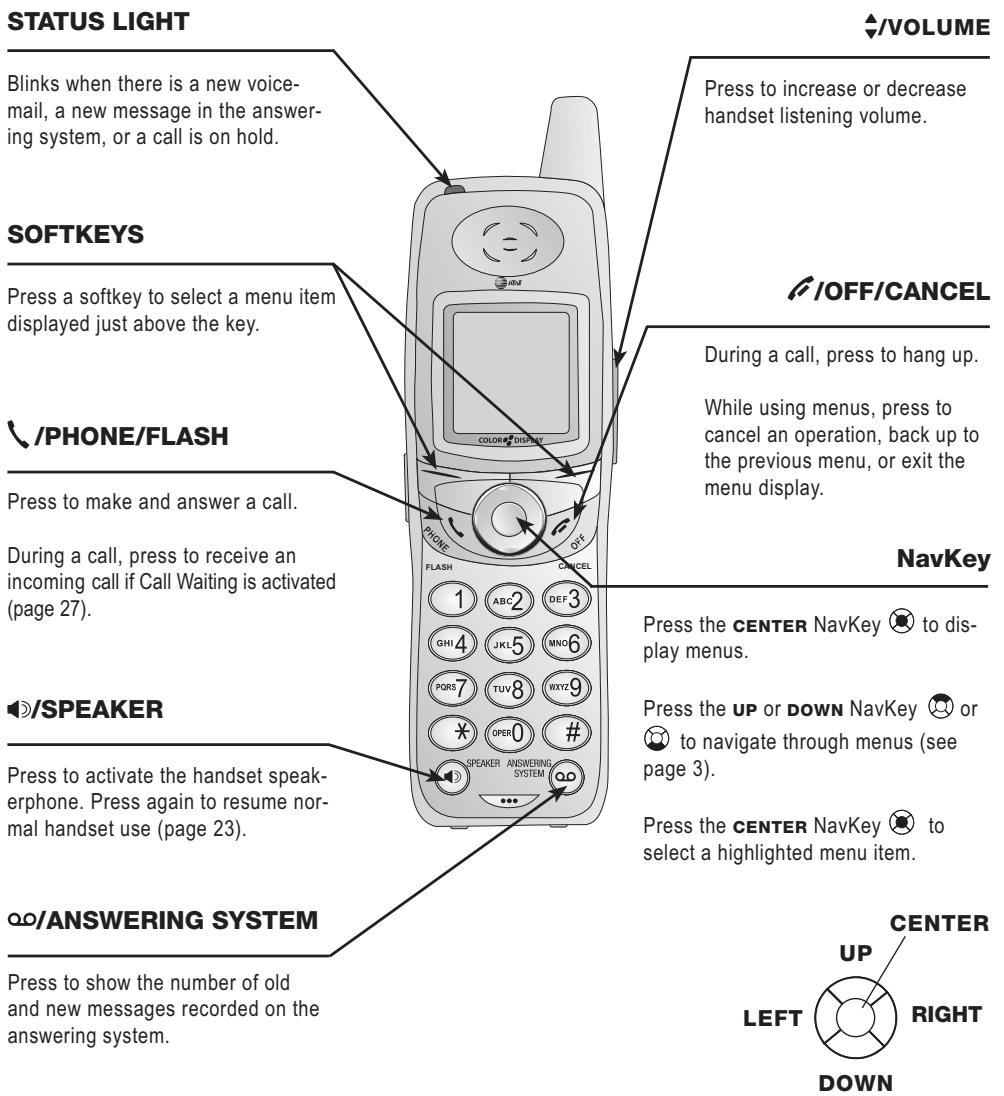

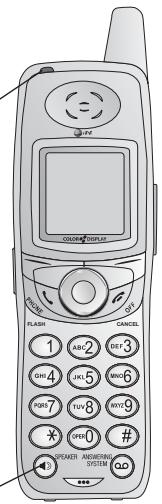

Handset

Quick reference guide

Main menu

Quick reference guide

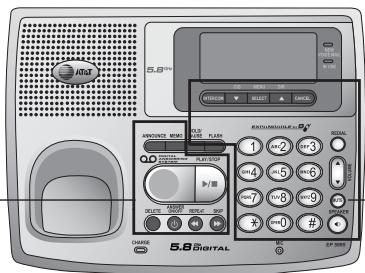

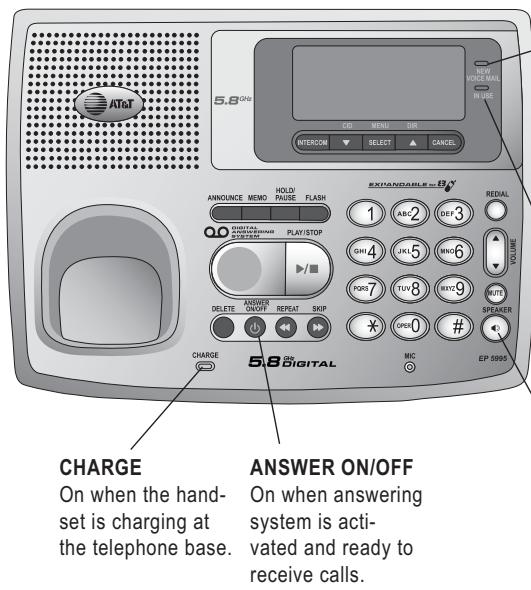

Telephone base

Answering system function keys

Telephone function keys

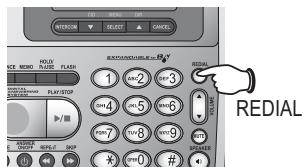

REDIAL Press to access the radial log.

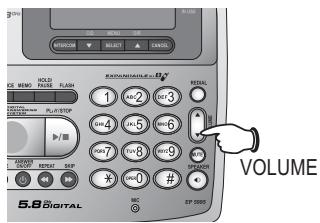

VOLUME ...... Press to adjust listening volume on speakerphone.

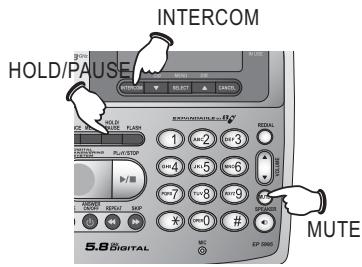

MUTE.... Press to silence microphone; press again to resume.

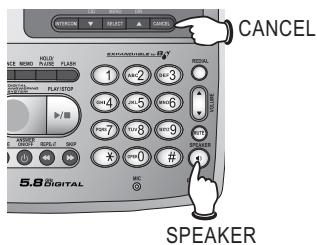

SPEAKER..... Press to turn speakerphone on or off (begin or end a call).

DELETE ....... Press to delete current message playing. When idle, press to bring up menu to delete all messages.

Telephone function keys (see pages 25-28)

INTERCOM.... Press to locate handset(s) or to initiate an intercom conversation.

CID.... Press to scroll down while in menus. Press to display Caller ID information. While entering names or numbers, press to move the cursor to the left. (See page 49.)

SELECT/MENU.... Press to enter the base menu and select menu item displayed on line 2 of the screen.

DIR.... Press to scroll up while in menus. Press to display directory entries. While entering names, press to advance cursor. (See pages 36-38.)

CANCEL Press to cancel an operation, back up to the previous menu, or exit the menu display. Press to make corrections when entering digits in the dialing screen.

HOLD/PAUSE...... While on a call, press to place a call on hold. To resume the telephone conversation, press SPEAKER. Press to insert a dialing pause when entering digits in the dialing screen.

FLASH ........ During a call, press to receive an incoming call if Call Waiting is activated.

Answering system controls (see pages 54-62)

Press to play or stop playing messages.

Press to repeat message.

Press to skip to next message.

ANNOUNCER Press to listen to current outgoing announcement on the answering system. Press to access the ANNOCNcEMENT menu which can also record new outgoing message or delete the user-recorded outgoing message, and restore the factory-preset outgoing announcement.

MEMO ......Press to record a memo on the answering system.

ANSWER ON/OFF. Press to turn the call answering feature on or off.

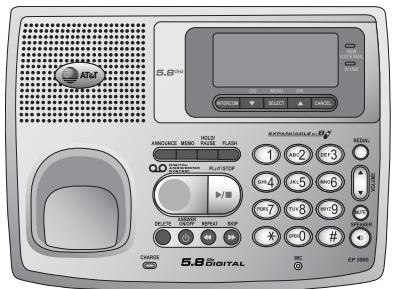

Parts checklist

Remember to save your sales receipt and original packaging in case it is necessary to ship your telephone for warranty service. Check to make sure the telephone package includes the following:

a. Telephone base
b. Cordless telephone handset
c. Base adapter
d. Wall mount bracket

e. Telephone line cord
f. Battery pack
q. Belt clip
h. Battery compartment cover

a. Telephone base

b. Cordless telephone handset

c. Base adapter

d. Wall mount bracket

e. Telephone line cord

f. Battery pack

g. Belt clip

h. Battery compartment cover

Before you begin

About caller identification (CID)

The Caller ID with Call Waiting features in this telephone let you see who's calling before you answer the phone, even when you're on another call. These features require services provided by your local telephone company.

Contact your telephone service provider if:

• you have both Caller ID and Call Waiting, but as separate services (you may need combined service),
• you have only Caller ID service, or only Call Waiting service, or
• you do not subscribe to any Caller ID or Call Waiting services but wish to try them now.

You can use this telephone with regular Caller ID service, and you can use its other features without subscribing to either Caller ID or combined Caller ID with Call Waiting service. There may be fees for these services, and these services may not be available in all areas.

The Caller ID features will work only if both you and the caller are in areas offering Caller ID service, and if both telephone companies use compatible equipment.

Telephone operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset and telephone base can communicate over only a certain distance — which can vary with the locations of the telephone base and handset, the weather, and the layout of your home or office.

If there is a call while the handset is out of range, it might not ring — or if it does ring, the call might not connect well when you press /PHONE/FLASH . Move closer to the telephone base, then press /PHONE/FLASH to answer the call.

If the handset moves out of range during a telephone conversation, there might be interference. To improve reception, move closer to the base.

If you move out of range without pressing OFF/CANCEL, the telephone will be disconnected after five seconds.

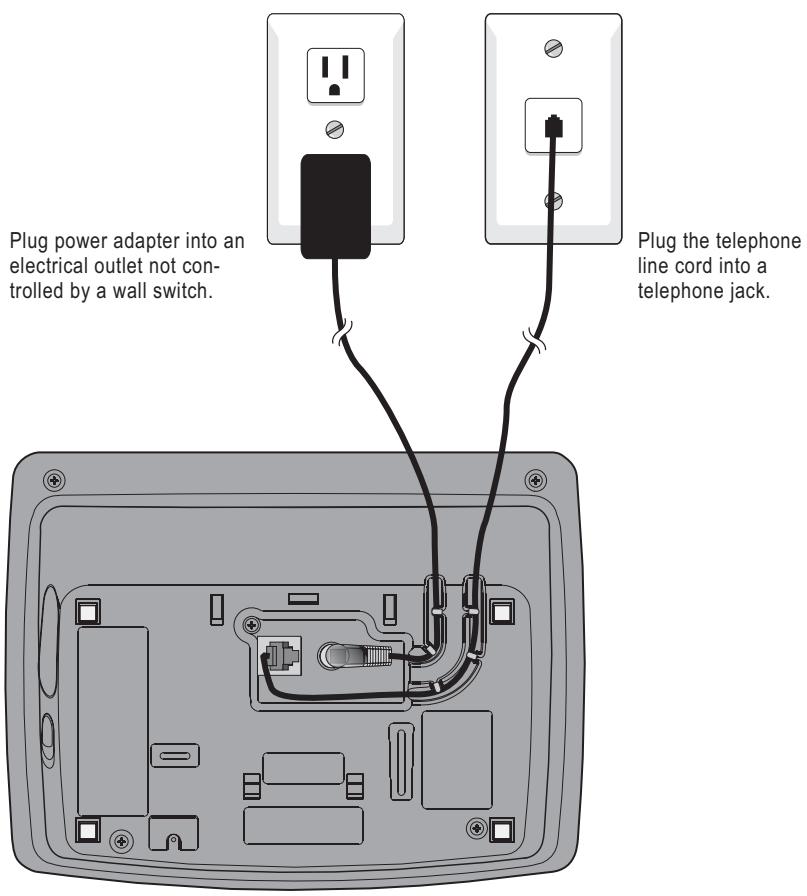

Telephone base installation

Install the telephone base as shown below. Choose a central location within the home, away from any electronic equipment and appliances such as personal computers, computer routers, television sets, microwave ovens, and refrigerators. Avoid excessive heat, cold, dust or moisture.

NOTE: Use only the power adapter supplied with this product. If you need a replacement,

call 1 [phone]. In Canada, call 1 [phone]. Be sure to use an electrical outlet not

controlled by a wall switch.

Battery installation & charging

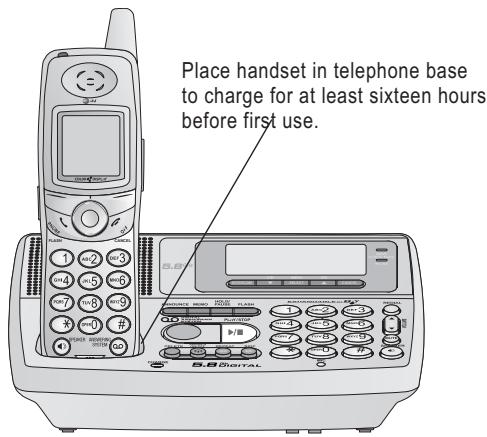

After installation, place the handset in the telephone base and allow the battery to charge for sixteen hours before use. You can keep battery charged by returning the handset to the telephone base after each use. When the battery power is fully depleted, a full recharge takes about sixteen hours.

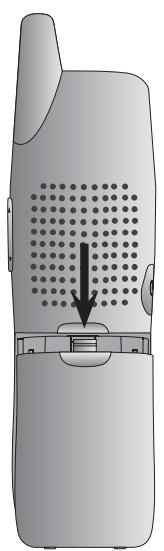

Press tab and slide cover away from the battery compartment.

Low battery indicator

Return handset to telephone base to recharge when this symbol flashes.

(Handset will beep when battery is low.)

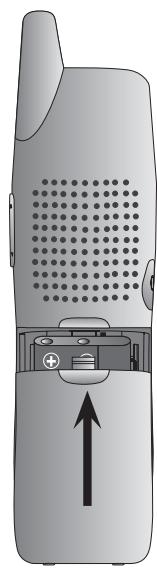

Insert supplied battery as indicated. Insert the top edge (contacts and tab) first, then push down on the lower portion.

Replace battery compartment cover.

Caution: Use only supplied rechargeable battery or AT&T replacement battery Model 103 (SKU 00249).

NOTE: When fully charged, the battery in the handset can provide 5 hours of talk time or 3 days of standby time (when idle and away from the telephone base).

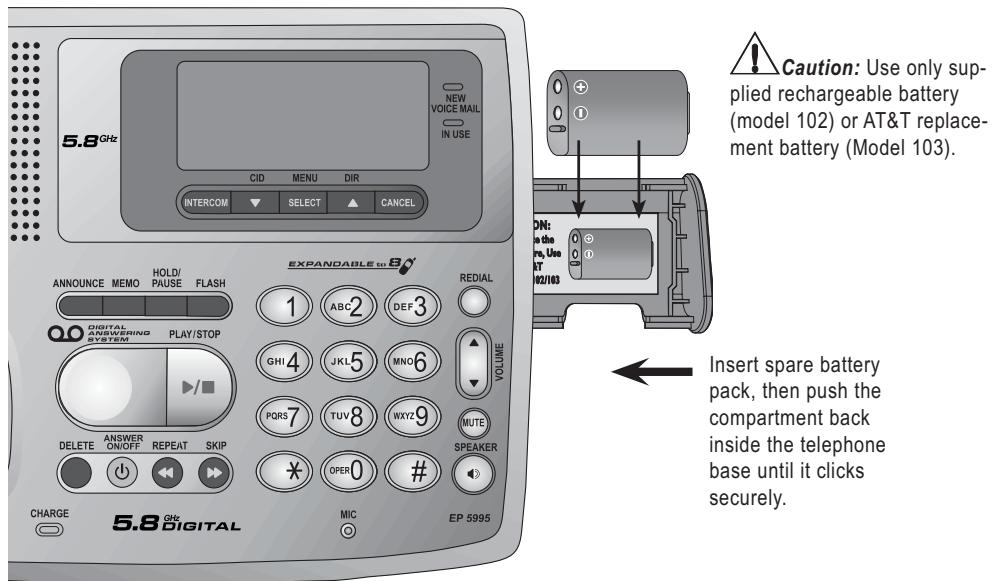

NOTE: For installation of the spare battery into the spare bat
tery compartment on the telephone base, please see page 68.

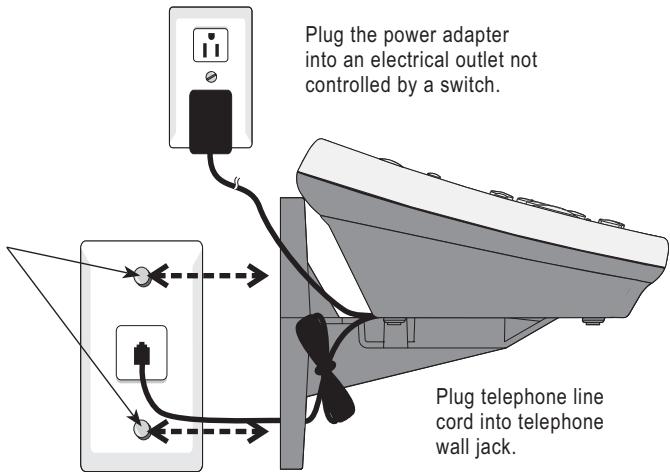

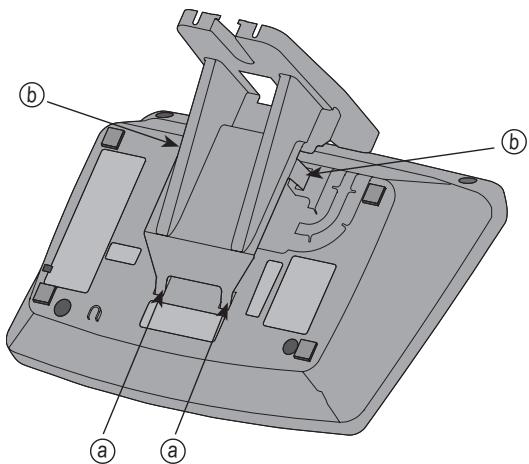

Wall mounting

The telephone base can be installed on any standard telephone outlet as shown below. Choose a central location within the home, away from any electronic equipment such as personal computers, computer routers, television sets or microwave ovens. Avoid excessive heat, cold, dust or moisture.

1) Connect telephone line cord and AC power cord to telephone jacks and wall jacks, as shown on page 7.
2) Install wall mount bracket onto set.
(a) First put the two front wall-mount bracket tabs into the front notches on the bottom of the telephone base.
(b) Squeeze the rear tabs of the wall mount bracket when inserting them into the rear notches on the bottom of the telephone base.

3) Position the wallmount bracket over the wall outlet mounting pegs, then press and slide the wall-mount bracket down firmly so it is held securely on the outlet mounting pegs.

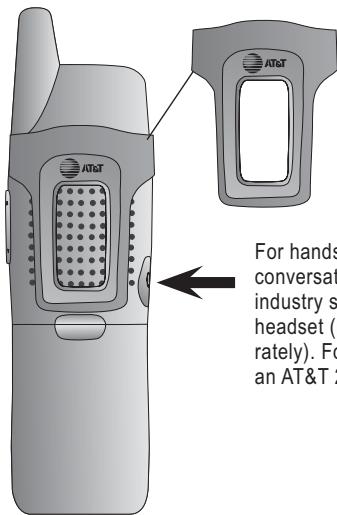

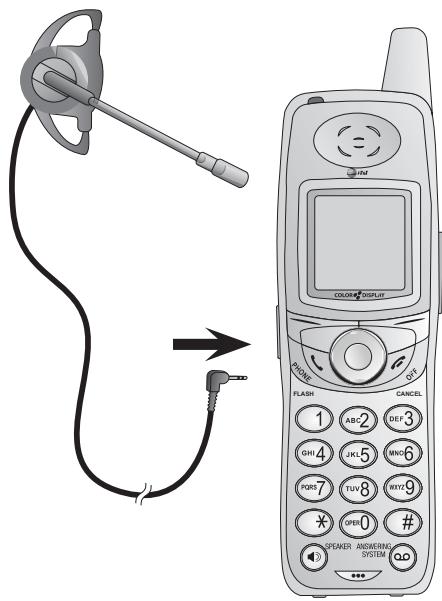

Belt clip & optional headset

Install belt clip as shown below if desired.

Snap the belt clip into the notches on the side of the handset. Rotate and pull to remove.

For hands-free telephone conversations, use any industry standard 2.5mm headset (purchased separately). For best result, use an AT&T 2.5mm headset.

Plug the 2.5mm handset into the jack on the side of the handset (beneath the small rubber cap).

Browse through listings.

Press the softmax SET to select the desired image.

Telephone Setup

Handset screen images

The Pictures and Animations settings allow you to select an image or design as wallpaper for the background of the handset screen.

These images can also be programmed for individual callers in the directory so that different images will show when different callers phone (see page 31).

Press the CENTER NavKey to display the menu. Use the UP or DOWN NavKey or to highlight Animations or Pictures, then press the CENTER NavKey again to select this option.

Browse through the options using the UP or DOWN NavKey or , then press the softkey SET or CENTER NavKey to select an image.

To change the wallpaper display, repeat the above steps.

Telephone Setup

Handset sounds

Press the CENTER NavKey to enter the main menu, and press the UP NavKey three times to reach the Sounds menu item, then press the CENTER NavKey to start the menu.

After selecting any option, press the CENTER NavKey or the softkey SET to confirm your choice.

Ringer volume

At this menu, the default ringer volume can be set between levels 1 and 5, or set the ringer off so the phone does not ring at all with incoming calls. When the ringer on the handset is turned off, the icon is shown on the screen of the handset.

Press the LEFT or RIGHT NavKey or to adjust the ringer volume. Press the softkey SET to confirm your choice. Press /OFF/CANCEL twice until the screen returns to the SOUNDs screen.

Ringer melody

This feature allows you to customize the ringers. The menu includes options for eight ringer styles and 13 musical passages. You will hear an example of each ringer melody when scrolling through the choices. Press the UP or DOWN NavKey or to change the ringer melody. Press the softkey SET to confirm your choice.

Record ringer

You can also customize the ringer by recording tunes or messages up to 15 seconds in length.

Press the softkey RECORD to start recording. The screen will show Record ringer after tone.

Telephone Setup

Handset sounds

NOTE: The microphone

used when recording a ringer is located at the bottom of the handset. If recording a tune, place the microphone about twelve inches from the music source. If recording a message, speak clearly from about twelve inches.

Start recording the new ringer after the tone.

When finished recording, press the softkey STOP. Press the softkey PLAY to listen to the recorded ringer. Then press the softkey SAVE to enter the name of this recording using the table on page 30.

Enter up to ten alphanumeric characters for the name of this recording (See table on page 30). Press the softkey SAVE to save this ringer. The recording with the programmed name will then be added to the list of ringer melodies.

More than one record ringer can be recorded as long as there is recording time remaining. The total recording time can be extended if some of the preset musical ringers are deleted.

Keypad tone

The handset is preset to beep with the pressing of each key. The keypad tones can be turned on or off in this menu.

Press the UP or DOWN NavKey or to select whether you want the keypad tone to be on or off. Then press the softkey SET or the CENTER NavKey to confirm.

X2

NOTE: All in ing telephone mes are played in rever chronological orde newest message i first.

Telephone Setup

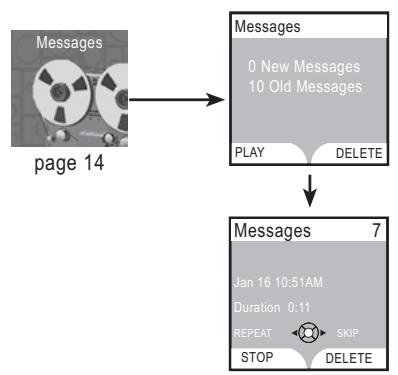

Handset messages

This allows you to listen to messages on the answering system using the cordless handset.

When there are new messages on the answering system, New Message will be displayed on the handset screen, and the status light at the top left corner of the handset will begin to flash. The number in the message window of the telephone base will also flash.

• Press the QO/ANSWERING SYSTEM on the handset and the screen will show the number of old and new messages. Press the softkey PLAY to play all new messages.

OR

• Press the CENTER NavKey to enter the main menu.
• Press the DOWN NavKey twice to bring out the Messages menu.
• Press the CENTER NavKey to confirm.
• The screen will show the number of new messages and old messages.
• Press the softmax to play the new messages and memos.

The day and time the message was recorded will be announced by the voice prompt. The screen on the handset will show the date and time the memo and incoming messages are recorded (but not for telephone messages), the length of the message, and a diagram of the NavKey illustrating how to repeat or skip a message. If it is a memo recorded at the answering machine, the word Memo will be shown on the screen.

Pressing the softkey STOP will exit to the Messages screen. Pressing the softkey DELETE when a message is playing will delete that particular message and advance to the next one.

When no message is being played, pressing the softkey DELETE will bring out the question whether you wish to delete all messages. Press the softkey NO if you prefer to keep all messages. Press the softkey YES if you wish to delete all messages, including those which have not been reviewed.

Telephone Setup

Handset settings

Press the CENTER NavKey to enter the main menu, then press the UP NavKey four times to reach the Settings menu item. Press the CENTER NavKey to start the menu.

After selecting any option below, press the CENTER NavKey to confirm your choice.

Set time

Select this menu to set the time displayed on screen. You must enter four digits to input the time (e.g. 09:23). Using the dial pad, set the current time using the 12-hour clock format, or use the UP and DOWN NavKey or to enter the time, then use the LEFT or RIGHT NavKey or to advance to the next digit. Use the UP or DOWN NavKey or or the 2 or 7 on the dial pad to change the AM/PM entry. Press the CENTER NavKey to confirm the setting and the correct time will be displayed on the screen.

NOTE: The time is automatically set and updated with incoming ID information if you have this service (see page 6).

NOTE: The date information is not available on the handsets.

Edit handset name

In the Settings menu, press the DOWN NavKey once to select this menu to set the handset name displayed on screen. Enter up to fifteen alphanumeric characters including spaces for the name of this handset. Use the RIGHT NavKey to insert a space (see page 30). After entering the name of the handset, press the softkey SAVE or the CENTER NavKey A confirmation tone will sound.

Telephone Setup

Handset settings

Show handset name

This menu allows you to decide whether the handset name should be shown on the screen of the handset.

From the idle mode, press the CENTER NavKey to enter the main menu.

Press the DOWN NavKey four times to reach the SETTINGS menu. Press the CENTER NavKey to confirm selection.

When the Settings menu is displayed, press the DOWN NavKey twice to reach Show Handset Name. Press the CENTER NavKey to confirm.

Use the UP or DOWN NavKey or to toggle between On and Off. Press the softkey SET or the CENTER NavKey to confirm selection. The screen will show Choice saved and return to the SETTINGS menu.

Language

At this menu, you can select the language used in all menus and screen displays. Choices are English, Espanol and Français.

From the idle mode, press the CENTER NavKey to enter the main menu. Press the DOWN NavKey four times to reach the SETTINGS menu and press the CENTER NavKey to confirm. Press the DOWN NavKey three times to highlight Language. Press the CENTER NavKey to confirm and the three languages (English, Espanol and Frangais) are displayed. Use the UP and DOWN NavKey or to scroll through all the languages. When the desired language is highlighted, press the softkey SET or the CENTER NavKey to confirm and the screen will show Choice saved.

NOTE: This procedure only turns off the displayed message, and it does not delete your voicemail message(s). This feature allows you to correct a voicemail indication that is out of sync with the local telephone company. If there actually is a new voice message, the local telephone company will continue to send the message which will then turn the display message back on.
NOTE: Clearing the voicemail indication on the handset also turns off the voicemail indicator light on the telephone base.

Telephone Setup

Handset settings

Contrast

At this menu, you can adjust screen contrast to one of eight levels to suit different lighting conditions. Press the CENTER NavKey to activate the menu from the idle screen.

Press the UP NavKey four times to reach the Settings screen menu and press the CENTER NavKey to activate it.

Press the DOWN NavKey four times to reach Contrast and press the CENTER NavKey to activate the Contrast setting. Press the LEFT or RIGHT NavKey or to adjust the level of screen contrast from level 1 to level 8. Press the softkey SET or CENTER NavKey to confirm.

Clear voicemail

If you subscribe to voicemail services provided by the local telephone company, you will receive a text message on the handset when there is a new voicemail. After you have listened to these messages, the text message on the display should disappear automatically. In the event that the indication remains after you have listened to your local telephone company's voicemail messages, you can remove the indication according to the following steps.

• Press the CENTER NavKey to enter the main menu.
• Press the DOWN NavKey four times to enter the Settings menu. Press the CENTER NavKey to confirm.
• Press the UP NavKey three times to select Clear Voice Mail. Press the CENTER NavKey to confirm.
• Press the softmax to delete voicemail indication.

Telephone Setup

Handset settings

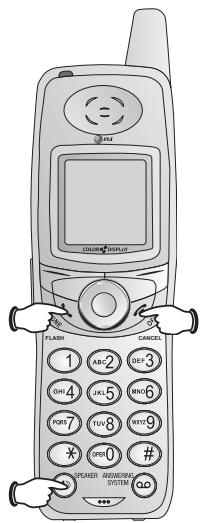

Default settings

This menu allows you to restore the factory-set default Settings for all menu settings on the cordless handset. It will NOT clear the directory, call log, handset name, or messages.

• Enter the main menu by pressing the CENTER NavKey.
• Reach the Settings menu by pressing the DOWN NavKey four times. Press the CENTER NavKey to confirm.
• Press the UP NavKey twice to go to Default Settings. Press the CENTER NavKey to confirm.
• You will be prompted to Restore Default Settings. Select by pressing the softkeys YES or NO.
• If you select YES, Default Settings loaded will appear on the screen.

NOTE: This procedure

also sets the time and date on the answering system.

The incoming Caller ID also updates the day and time on the telephone base.

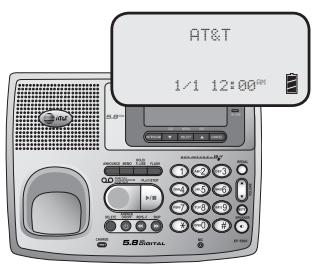

Telephone Setup

Base settings

Setting date and time

Press SELECT/MENU.
- Press ①cid twice to scroll to Base Settings.
- Press SELECT/MENU.
- When Set Date is displayed, press SELECT/MENU.
- Use the keypad to enter the appropriate digits for the current year, and the cursor will automatically advance to the next digit to the right for entering the month and date. The system uses the YYYY/MM/DD format to enter the date.
- Press SELECT/MENU to save the settings and a confirmation tone will sound. The correct date will be displayed briefly on the screen.
- Press ①CID to set the time. Press SELECT/MENU to confirm. The system uses the 12-hour clock format.
- Use the keypad to enter the appropriate digits for the current hour, and the cursor will automatically advance to the next digit to the right for entering the minutes. Use 0 DIR to toggle between AM and PM, or press 2 for AM and press 7 for PM.
- Press ①cID to bring the cursor one space to the left to correct any mistakes.
- Press SELECT/MENU to save the setting. A confirmation tone will sound and the correct time will be displayed briefly on the screen.

Ringer volume

At this menu, you can set a default ringer volume level (1 - 4), or turn off the ringer.

• In the Base Settings menu, press ①c1d twice to reach Ringer Volume.

Telephone Setup

Base settings

• Press SELECT/MENU and a volume indication with four levels appears. Adjust the volume by pressing ①CD to decrease or ①DIR to increase the volume or /VOLUME to increase or decrease the volume.
• Press SELECT/MENU to confirm your selection and the screen will show Choice saved. The icon will be displayed on the screen of the telephone base if its ringer is turned off.

Ringer melody

This feature allows you to customize the ringer on the base. The menu includes options for eight ringer melodies. You will hear a sample of each ringer melody as you scroll through the choices.

• Press SELECT/MENU to enter the main menu. Press CID twice to reach the Base Settings menu and press SELECT/MENU to confirm.
• From the Base Settings menu, Press cid three times to enter the Ringer Melody menu. Press SELECT/MENU to confirm.
• The system will start by showing the name and a sample tune of the current ringer melody.
• Use OCID or ODIR keys to scroll through the eight ringer melodies.
• Press SELECT/MENU to confirm your selection. A confirmation tone will sound and Choice saved will be displayed briefly.

Keypad tone

The base is preset to beep with the pressing of each key. The keypad tones can be turned on or off in this menu.

• Press SELECT/MENU to enter the main menu. Press CID twice to reach the Base Settings menu and press SELECT/MENU to confirm.

Telephone Setup

Base settings

• From the base settings menu, press O_CID four times to enter the Keypad Tone menu and press SELECT/MENU to confirm.
• Use the OCID or ODIR keys to select whether you prefer the keypad tone to be On or Off.
• Press SELECT/MENU to confirm your selection.
• The screen will show Choice saved to confirm the new setting.

Language

At this menu, you can select the language used in all menus and screen displays. Choices are English, Espanol or Français.

• From the base settings menu, press DIR four times to enter the Language menu and press SELECT/MENU to confirm.
• Use the OCID or ODIR keys to scroll through the languages available: English, Espanol and Français.
• Press SELECT/MENU to confirm your selection.
• The screen will show Choice saved to confirm the new setting.

Clear voicemail

If you subscribe to voicemail services provided by your local telephone company, you will receive a text message on the handset and the New Voicemail Indicator light on the telephone base will light when there is new voicemail. To manually remove the new voicemail indication:

• Press SELECT/MENU to enter the main menu. Press cid twice to reach the Base Settings menu and press SELECT/MENU to confirm.
• From the Base Settings menu, press 0DIR three times to enter the Clear Voice Mail menu. Press SELECT/MENU to confirm.

Telephone Setup

Base settings

• Press SELECT/MENU to confirm, or press CAN-CEL to abort.

Default settings

This menu allows you to restore the factory-set default settings for all menu and answering system settings. It will NOT clear the directory, call log, or messages menu.

BASE SETTINGS Default Setting

Restore Default Settings?

• Press SELECT/MENU to enter the main menu. Press ①cid twice to reach the Base Settings and press SELECT/MENU to confirm.

• From the Base Settings menu, press DIR twice to enter the Default Settings menu and press SELECT/MENU to confirm.

• Press SELECT/MENU to confirm, or press CANCEL to abort and keep all settings.

Telephone Operation

Basic handset operation

Making, answering and ending calls

To make a call, press /PHONE/FLASH or SPEAKER, then dial the number. Press /OFF/CANCEL to hang up. To answer a call, press PHONE/FLASH or /SPEAKER or any dial pad key.

To preview numbers before dialing, enter numbers first, then press /PHONE/FLASH or /SPEAKER to dial. Press the LEFT NavKey or OFF/CANCEL to delete the last digit when entering numbers. Press the softkey PAUSE to generate a two-second delay.

Hands-free speakerphone calls

To make a call using the handsfree speakerphone, press /SPEAKER, then dial a number.

To answer an incoming call, press /SPEAKER.

During a call, press /SPEAKER to toggle between hands-free speakerphone and the normal handset use. Press OFF/CANCEL to hang up.

Mute

Press the softkey MUTE to silence the microphone. Microphone Muted is displayed on the handset. You will be able to hear, but your caller will not be able to hear you until you press the softkey UNMUTE to resume the conversation.

Telephone Operation

Basic handset operation

Hold

Press the softkey HOLD to place a call on hold. Press /PHONE/FLASH or /SPEAKER to resume the call. Placing a call on hold cancels the MUTE feature.

When a call is put on hold, the status light on the top left corner of the cordless handsets will flash and the IN USE light on the telephone base will also flash.

NOTE: Any digits currently in the display will be dialed out when HOLD is released.

Caution: If the call is not resumed in 15 minutes, the originating handset will ring and the display will show CALL ON HOLD RING BACK. If the RING BACK is not answered in 30 seconds, the call will be disconnected.

You can send an external call to the telephone base or to another handset if additional handsets are registered for use with the system.

• Press the softmax to put the call on hold.
• Press the CENTER NavKey to enter the Main Menu.
• Press the DOWN NavKey three times to reach the Intercom listing.
• Press the CENTER NavKey to enter the Intercom menu.
• Select from the list of destinations: Global page, BASE, or one of the registered handsets. Press the CENTER NavKey to confirm selection.

Caution: If the base or handset does not answer the intercom call in one minute, the intercom ring stops and the call remains on hold until it times out in fifteen minutes.

Telephone Operation

Basic base operation

Making, answering and ending calls

To make a call, press 1 /SPEAKER, then dial a number. Press 2 /SPEAKER again to hang up.

To answer an incoming call, press /SPEAKER.

To preview numbers before dialing, enter numbers first, then press /SPEAKER to dial. Press CANCEL anytime to correct any wrong numbers. Pressing Hold/PAUSE generates a two-second delay.

Last number redial

Press REDIAL to display a list of ten numbers recently dialed. Use the DIR or CID to select a number, then press SPEAKER to dial (see pages 52-53 to delete the entry, or save it to your directory).

In use light

When a cordless handset, the telephone base, or another telephone connected to the same telephone line is in use, the IN USE light will be on.

When the handset or the telephone base is on hold, the IN USE light will flash.

New voicemail light

When there is new voicemail at your local telephone company which have not been reviewed, the NEW VOICE MAIL light on the telephone base will flash and the status light on the top left corner of the handset will also flash.

In the event the indication remains after you have listened to your local telephone company's voicemail messages, you can remove the indication according to the instruction on pages 21-22.

Telephone Operation

Basic base operation

Mute

Press MUTE to silence the microphone and the screen will show Microphone Muted. The icon MUTE will also be shown while the call is muted. You will be able to hear, but your caller will not be able to hear you until you press MUTE again to resume the conversation.

Hold

Press HOLD/PAUSE to place a call on hold. Press SPEAKER to resume the call. Placing a call on hold cancels the MUTE feature.

When a call is put on hold, the IN USE light on the telephone base flashes slowly and the status light at the top left corner of the cordless handsets will also flash.

You can send an external call to one of the cordless handsets registered for use with the system.

Caution: If the call is not resumed in fifteen minutes the set will ring. The display will show CALL ON HOLD RING BACK!. If the RING BACK is not answered in 30 seconds, the call will end.
NOTE: Any digits currently in the display will be dialed when Hold is released.
Caution: If a handset does not answer the intercom call in one minute, the intercom ring stops and the call remains on hold until it times out in fifteen minutes.

• Press HOLD/PAUSE to put the call on hold.
• Press INTERCOM to enter the Intercom menu.
• Select from the list of destinations: Global page, or one of the registered handsets. Press ①DIR or ①CID to highlight the destination handset. Press SELECT/MENU to confirm.
• When the destination handset starts to ring, press /PHONE/FLASH or /SPEAKER on the destination handset to pick up the intercom call.
• Press /SPEAKER on the telephone base to terminate the intercom call, then the destination handset can go off-hook to pick up the call on hold to start the conversation.

Telephone Operation

Options while on calls

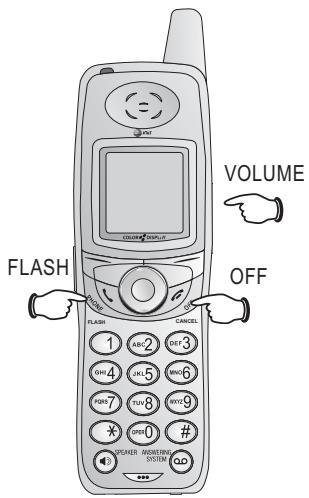

Volume control

Press /VOLUME on the handset or the telephone base to adjust the listening volume. Each time the button is pressed, the volume is raised or lowered by one level.

Call Waiting

If you have Call Waiting service, you will hear a beep if there is an incoming call during a telephone conversation. Press PHONE/FLASH on the handset or press FLASH on the telephone base to put the current call on hold and pick up the new call. Press PHONE/FLASH anytime to switch back and forth between calls.

Ringer silencing

Press OFF/CANCEL or the softkey SILENCE while the handset is ringing (or CANCEL or MUTE on the base) to silence the ringer temporarily. You can choose to answer the call, or let the caller leave a message. The ringer silencing function automatically cancels when the current call terminates. The next incoming call will ring normally.

3-way conference calls

During an outside call, both the handset and the telephone base (or up to three handsets and the the telephone base) can be used to have a threeparty conversation.

While a call is in progress, others can press PHONE/FLASH or SPEAKER on the handset (or SPEAKER at the telephone base) to join the conference call. Press /OFF/CANCEL on the handset (or SPEAKER at the telephone base) to quit the conference call. The call will not end until all parties hang up.

Caution: The ringer silencing function automatically cancels when this call terminates.

Press INTERCOM on the telephone base.

OR

Telephone Operation

Intercom calls

Intercom calls

The intercom feature allows conversation between the handset and the telephone base, or between handsets if additional handsets are registered for use with the system.

From the idle mode, press INTERCOM on the telephone base to initiate an intercom call.

From the idle mode, press the CENTER NavKey to enter the main menu. Press the DOWN NavKey three times to reach the Intercom menu. Press the CENTER NavKey to confirm selection.

Press the UP or DOWN NavKey or to scroll down to select Global page to page all handsets, or select BASE or one of the registered handsets. Press the CENTER NavKey (or SELECT at the telephone base) to page the selected handsets or the telephone base.

On the selected handset or the telephone base, press /PHONE/FLASH, /SPEAKER or INTERCOM to answer an intercom page. The telephone base will ring until /SPEAKER is pressed or until the page is cancelled by pressing CANCEL.

When your intercom call is finished, press OFF/CANCEL on the handset (or SPEAKER or INTERCOM at the telephone base) to end the call.

Handling incoming calls

During an intercom conversation, the telephone will beep if there is an incoming external call.

• On the handset, press OFF/CANCEL to terminate the intercom call. The handset will ring normally. Press /PHONE/FLASH, or SPEAKER to answer the incoming call.

• At the telephone base, press / SPEAKER or INTERCOM to terminate the intercom call. The telephone base will ring normally. Press / SPEAKER again to answer the incoming call.

Handset directory

Memory capacity

There are separate directories in the handset and the base. The directory in the handset can store up to one hundred entries. Each entry can store a number up to thirty-two digits, and a name up to sixteen alphanumeric characters (including spaces).

If you subscribe to Caller ID service from your local telephone company, you can select a picture or an animation to be displayed with each directory entry. You can also select a distinctive ringer melody for each entry, the caller's identity is known as soon as the telephone rings. A convenient search feature can help you find and dial numbers quickly (see page 32).

If additional handsets are registered, all handsets and the telephone base will have separate directories and call logs.

Timeouts and error tones

If you pause over sixty seconds while inputting an entry, the procedure will time-out and you will have to begin again.

If all memory locations are in use, an error tone will sound when you attempt to enter a new number. This means the memory is full, and you will not be able to store a new number until an existing one is deleted.

NOTE: Up to 16 alphanumeric characters (including spaces) can be used for each name.

Handset Directory

New directory entries

• Press the CENTER NavKey to enter the main menu.
• When the directory is shown on the screen, press the CENTER NavKey to enter the directory menu.
• Press the softmax to insert a new entry.

Entering a name

Use the dial pad and the table below to enter a name (up to sixteen characters). Each press of a particular key will cause characters to be displayed in the following order:

Dial key	Characters by number of key presses
	1	2	3	4	5	6	7	8	9
1	space	1
2	A	B	C	2	a	b	c
3	D	E	F	3	d	e	f
4	G	H	I	4	g	h	i
5	J	K	L	5	j	k	l
6	M	N	O	6	m	n	o
7	P	Q	R	S	7	p	q	r	s
8	T	U	V	8	t	u	v
9	W	X	Y	Z	9	w	x	y	z
0	0
*	*	?	!	/	(	)
#	#	'	,	-	.	&

The cursor moves to the right automatically after two seconds or when you press another dial pad key or the RIGHT NavKey (press twice to enter a space). When the name is complete, press the softkey DONE.

• Press the softkey ERASE or the LEFT NavKey if you make a mistake.

NOTE: When custom

izing the ringer or picture, and the ringer or picture is highlighted, pressing the

CENTER NavKey would move to the Ringer option or Picture option using the full screen. Once selected, it would go back to the customizing screen.

Handset Directory

New directory entries

Entering a number

Use the dial pad to enter up to thirty-two digits. When finished entering, press the softkey DONE.

• Press the softmax if you make a mistake.
• To insert a two-second dialing pause, press and hold until P appears to replace the on the screen.

Use the dial pad and the table on page 30 to enter a name (up to sixteen characters). Each press of a particular key will cause characters to be displayed in the order as shown in the table on page 30.

Customizing entries

Press the DOWN NavKey to scroll down to Ringer selection, then the LEFT or RIGHT NavKey or to assign a distinctive RINGER (see page 12). If you have Caller ID service, the designated ringer will alert you when this person calls.

Press the DOWN NavKey to scroll down to Picture selection, then the LEFT or RIGHT NavKey or to assign a Picture or an Animation into this entry (see page 11).

Press the softkey SAVE to save your new entry (or press OFF/CANCEL to discard changes and exit).

Handset Directory

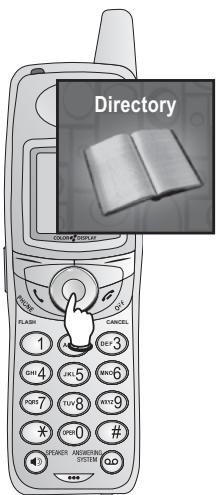

Directory search

There are two ways to enter the directory:

• Using the UP and DOWN NavKey or from the idle mode can enter the directory search. OR
• Press the CENTER NavKey to enter the main menu.
• When the directory is shown on the screen, press the CENTER NavKey to enter the directory menu.

Browsing through the directory

To browse, press the UP or DOWN NavKey or to scroll through all entries one by one.

Searching alphabetically

To shorten your search, press the softkey FIND, then use the dial pad on the handset to enter the first letter of a name. When you press the softkey SET, the first name beginning with that letter will be displayed.

Press the appropriate dial pad key once for the first letter, twice for the second, three times for the third, as shown on page 30.

Alphabetical search can also be done directly from the directory listing by entering the first character of the name. The first name beginning with that letter will immediately be shown.

For example, press 5 (JKL) once to find Jenny, twice to find Kristen, or three times to find Linda.

Calling a displayed number

When you find the entry desired, press /PHONE/ FLASH (or /SPEAKER) to dial.

NOTE: If the entry does not exist, the closest alphabetic matching the entry will be selected.

Editing or deleting an entry

Editing a listing

When any directory entry is displayed, press the softkey EDIT to modify the entry. You can change the name, number, distinct ringer or picture setting by following the steps on pages 30-31.

• Press the CENTER NavKey to enter the main menu.
• When the directory screen is displayed, press the CENTER NavKey to confirm.
• When the directory listing is displayed, use the UP and DOWN NavKey or to scroll through the list and highlight the desired entry.
• Press the CENTER NavKey to confirm selection.
• When all the information for that entry is displayed on the screen, press the UP or DOWN NavKey or to highlight the category to be edited.
• Press the LEFT or RIGHT NavKey or to move the cursor one space to the left or right.
• Use the table on page 30 to enter the appropriate letter or digit.
• Use the softmax to delete any mistake.
• When finished editing, press the softkey SAVE and the screen will show Entry saved to Directory.
• Press _OFF CANCEL three times to return to the idle mode.

Handset Directory

Editing or deleting an entry

Deleting an entry

Delete Options

Delete Entry

Delete All Entries

When the directory name or an entire directory entry is displayed, use the UP or DOWN NavKey or to highlight that entry and press the CENTER NavKey to select the entry.

• Press the softmax DELETE.
• Press the CENTER NavKey.

A confirmation tone will sound and the next entry in the directory will be shown.

Deleting all entries

NOTE: Once deleted,

entries cannot be recov

ered.

• To delete all entries in the directory, press the softkey DELETE to see all the delete options.
• Use the UP or DOWN NavKey or to select Delete All Entries.
• Press the CENTER NavKey to confirm selection.
• You will then be prompted to delete the entire directory. Press the softkey YES or NO to confirm your selection.

Base directory

Memory capacity

There are separate directories in the handset and the base. The directory in the base can store up to fifty entries. Each entry can contain a number up to thirty-two digits, and a name up to sixteen alphanumeric characters. A convenient search feature can help you find and dial numbers quickly (see page 38).

Timeouts and error tones

If you pause for over sixty seconds while making an entry, the procedure will time out and you will have to begin again.

If all memory locations are in use, an error tone will sound when you attempt to enter a new number. This means the memory is full, and you will not be able to store a new number until you delete an existing one.

Enter name, then press MENU/ SELECT to confirm.

Base Directory

New directory entries

• Press SELECT/MENU to bring up directory on the screen.
• Press SELECT/MENU to enter the directory.
• Press ①cɪd and the screen shows Add New Entry.
• Press SELECT/MENU to confirm selection.

Entering a name

Use the dial pad and the table below to enter a name (up to sixteen characters). Each press of a particular key will cause characters to be displayed in the following order:

Dial key	Characters by number of key presses
	1	2	3	4	5	6	7	8	9
1	space	1
2	A	B	C	2	a	b	c
3	D	E	F	3	d	e	f
4	G	H	I	4	g	h	i
5	J	K	L	5	j	k	l
6	M	N	O	6	m	n	o
7	P	Q	R	S	7	p	q	r	s
8	T	U	V	8	t	u	v
9	W	X	Y	Z	9	w	x	y	z
0	0
*	*	?	!	/	(	)
#	#	'	,	-	.	&

The cursor moves to the right when you press another dial pad key or the 0DIR. Press 1 to insert a space between words.

• Press OCID to move the cursor one space to the left, or ODIR to move the cursor to the right until the character to be edited is blinking.
• Press DELETE to erase letters.
• Press SELECT/MENU to save your new directory entry. To change it later, see page 39.

Base Directory

New directory entries

Entering a number

Use the dial pad to enter up to thirty-two digits.

Enter Number 555-1234

Enter number, then press MENU/SELECT to confirm.

• Press HOLD/PAUSE or press and hold # to insert a dialing pause. "F" will appear on the screen to indicate a dialing pause.
• Move the cursor one space to the right by pressing O_DIR to insert an extra number.
• Move the cursor one space to the left by pressing 0 to insert an extra number.
• Press DELETE on the telephone base to delete any wrong input.
• Press SELECT/MENU to save when finished.

Use DIR or CID to search for the desired entry.

NOTE: Alphabetical search and browsing can be combined.

Base Directory

Directory search

• Press SELECT/MENU to bring up the directory on the screen.
• Press SELECT/MENU to enter the directory.
• When Review Entries is shown on the screen, press SELECT/MENU.

Browsing through the directory

Use the DIR or Cid buttons to browse through the directory, or search to find a specific entry. Press CANCEL anytime to exit the directory.

Searching alphabetically

From idle, press the DIR key.
- Enter the first letter of the desired name. The first name beginning with that letter will be displayed.

OR

• When the screen shows Review Entries, press DIR to bring up Find Entry. Press SELECT/MENU to confirm.
• When the screen shows Search for, use the telephone base dial pad to enter the first letter of a name. Press SELECT/MENU to start the search.
• Press the dial pad keys once for the first letter, twice for the second, three times for the third, as shown on page 36.

For example, press 5 (JKL) once to find Jenny, twice to find Kristen, or three times to find Linda. If an entry does not exist, the closest alphabetical match preceding that entry will be selected.

Calling a displayed number

When you find the desired entry, press SPEAKER to dial. Or press SELECT/MENU to modify the entry (see next page).

Base Directory

Editing or deleting an entry

Editing a listing

• Press SELECT/MENU to bring up the directory on the screen.
• Press SELECT/MENU to enter the directory.
• When Review Entries is shown on the screen, press SELECT/MENU.
• Use ODIR or OCID to scroll through the listing to find the desired entry.

NOTE: When in the editing

mode, the cursor is on the first letter of the name. A new letter is placed before the cursor and does not replace the letter under the cursor.

Editing a name

• Press SELECT/MENU to enter the directory options. When Edit Name is shown, press SELECT/MENU.
• When the name is displayed, press ①cID to move the cursor one space to the left, or press ①DIR to move the cursor one space to the right.
• Use the table on page 36 to enter the appropriate letter.
• When finished editing the name, press SELECT/ MENU and the screen will show Entry saved to Directory and a confirmation tone will sound.

Editing a number

• To edit the telephone number, when the screen shows Edit Name, press ① to reach the Edit Number screen.
• Press SELECT/MENU to confirm selection.
• When the number is displayed, press OCD to move the cursor one space to the left, or press ODIR to move the cursor one space to the right.

NOTE: The DELETE keys and its subsequent menu can also be used to delete an entry or all entries.

NOTE: Once deleted, entries cannot be recovered.

Base Directory

Editing or deleting an entry

• Use the dial pad keys to enter the correct number.
• Press SELECT/MENU to confirm and save the edited entry.

Deleting an entry

• Press SELECT/MENU to bring up directory on the screen.
• Press SELECT/MENU to enter the directory.
• When Review Entries is shown on the screen, press SELECT/MENU.
• Use ODIR or OCID to scroll through the listing to find the desired entry.
• Press SELECT/MENU to bring up the DIR OPTIONS menu.
• Press DIR twice and the screen will show Delete Entry.
• Press SELECT/MENU to delete that entry, and a confirmation tone will sound.

Deleting all entries

• Press SELECT/MENU to bring up directory menu on the screen.
• Press SELECT/MENU to enter the directory.
• When Review Entries is shown on the screen, press SELECT/MENU.
• When any entry is displayed, press SELECT/ MENU to bring up the DIR OPTIONS menu.
• Press DIR to reach the Delete All Entries screen.
• Press SELECT/MENU and you will be prompted to delete the entire directory.
• Press SELECT/MENU to confirm, or press CANCEL to keep the entire directory.

Handset call log & redial

How Caller ID works

If you subscribe to the Caller ID service, information about each caller will be displayed after the first or second ring.

You can review the call log to find out who has called, return the call by pressing PHONE/FLASH, or copy the caller's name and number into your directory.

The call log can store up to 100 entries. Calls are displayed in reverse chronological order (the latest first). When the log is full, the earliest entry is deleted to make room for new incoming call information.

If you answer a call before the information appears on the screen, the Caller ID information will not be saved in the call log.

Clear call log

Use the softmax DELETE to clear a single entry or all entries in the call log.

Review redial

This screen shows a list of the last twenty numbers dialed from this handset. You can redial any number, delete it from the radial log, or copy it to your directory.

Clear redial

Use the softmax DELETE to delete a single entry or all twenty recently called numbers from your radial list.

NOTE: Names of callers are displayed only if the information is provided by your local telephone company. If the telephone number of the caller matches an entry in the directory, the name shown on screen will match the name entered into the directory. (Example: If "Christine Smith" calls, her name will appear as "Chris" if this is how you entered it.)

Handset Call Log & Redial

Reviewing your call log

Reviewing your call log

The call log keeps track of the last 100 calls received, and lets you check voice messages from your handset.

• Press the CENTER NavKey to enter the main menu.
• Press the DOWN NavKey once to reach call log, then press the CENTER NavKey to confirm.
• Use the UP or DOWN NavKey or to scroll through and review in the call log entries. The call log can also be entered directly by pressing the softmax Caller ID in the idle mode.

Missed Calls

For calls with Caller ID information, each cordless handset will log the Caller ID information and keep a running counter of the number of unanswered calls. The number of unanswered calls is shown on the handset idle screen as Missed Calls along with the current time.

XX MISSED CALLS are calls that have not been reviewed at that handset. When a NEW call log entry is reviewed, the number of missed calls at that handset decrease by one. The number of MISSED CALLS on the other cordless handset(s) remain unchanged until they are reviewed on those cordless handsets.

If there are no NEW call log entries, the Missed Calls indication will not be shown.

To quickly clear the Missed Calls indication on the screen, press and hold OFF/CANCEL when in the idle and the handset will display MISSED CALLS cleared. After the Missed Calls indication is cleared, the NEW indication on the Call Log entries will also be cleared.

Reviewing your call log

Returning a call

Press /PHONE/FLASH or SPEAKER to call the number currently displayed.

Saving or deleting an entry

Press the softkey SAVE to copy the displayed information into the handset's directory (see page 29).

This will enter the directory entry feature in edit mode for you to edit a name, or number and customize a ringer and picture. Once you have completed a new entry and pressed the softkey SAVE, the screen will return to the call log entry.

Press the softmax DELETE to delete this entry from your call log.

Deleting all entries

To clear all the call log entries, return to the call log listing, then press the softkey DELETE to bring out the Delete Options menu. Select Delete All Entries and you will be prompted to delete all entries. To confirm, press the softkey YES. To keep the call log, press the softkey NO.

Handset Call Log & Redial

Dialing a call log entry

When any Caller ID screen is displayed, press /PHONE/FLASH or SPEAKER to dial the number on the screen.

Playback options

From the idle screen, press the softkey CALLER ID to enter the call log.
- Press the UP or DOWN NavKey or to scroll through the call log entries.
- Press the RIGHT NavKey to play the message.

To delete a message, press the softmax DELETE while the message is playing. Press OFF/CANCEL to stop playback and exit the Call Log menu.

Dialing options

Caller ID numbers may appear with an area code that may not be required for local calls. If the number displayed is not in the correct format, you can change how it is dialed.

Press the CENTER NavKey to see a list of dialing options. Press the UP or DOWN NavKey or to select the desired option. To dial the number, press /PHONE/FLASH or SPEAKER, or the softkey DIAL.

Reviewing your redial log

About the radial log

You can review the radial log to see the last twenty numbers recently called, radial, or copy the number into your directory.

When there are already twenty entries in the radial memory, the earliest entry is deleted to make room for the new one.

Reviewing your radial log

The latest call is displayed first. Press the UP and DOWN NavKey or to scroll through the list.

Dialing an entry

Press the softmax to display a list of twenty numbers recently dialed. Use the UP or DOWN NavKey or to highlight a number, then press /PHONE/FLASH or /SPEAKER to dial.

Saving an entry

• Press the softmax to bring out the softmax memory listing.
• Use the UP or DOWN NavKey or to highlight the desired entry.
• Press the softmax to store the number in the directory.
• Enter the name of the directory entry using the table on page 30.
• Press the softmax done when finished, or press the softmax ERASE to delete any mistake.

Reviewing your redial log

Deleting an entry

• Press the softkey REDIAL to bring out the radial memory listing.
• Use the UP or DOWN NavKey or to highlight the entry to be deleted.
• Press the softkey DELETE to bring up the Delete Options menu.
• When Delete Entry is highlighted, press the CENTER NavKey to confirm deletion. A confirmation tone will sound.

Deleting all entries

• To clear the radial log of all entries, return to the radial log listing, then press the softkey DELETE to bring out the Delete Options menu.
• Select Delete All Entries and you will be prompted to delete all Redial numbers.
  To confirm, press the softmax YES. To keep the radial log, press the softmax NO.

Handset Call Log & Redial

Reviewing voice messages

At this menu, you can use your handset to listen to your memos or voice messages left in your answering system on the telephone base (see pages 59-60). A total of 99 messages or 15 minutes of recording can be stored in the answering system, with each message not exceeding 4 minutes.

Playback options

At the Messages screen, use the NavKey to control message playback:

• Press the LEFT NavKey to repeat the message currently playing. Press twice to hear the previous message.
• Press the RIGHT NavKey to skip to the next message.

On the handset, voice messages are played through the speakerphone. If you prefer to listen privately, you can press /SPEAKER to switch to handset playback.

To delete a message, press the softkey DELETE while the message is playing.

Press the softkey STOP or /OFF/CANCEL to stop playback and exit the Messages menu.

Base call log & radial

Call log

There are separate call logs in the handset and the telephone base. The call log in the telephone base can store up to 50 entries, with each entry containing a name up to 16 alphanumeric characters and a number up to 16 digits.

If you have Caller ID service, press ①CID to enter the call log menu. Then press ①CID or ①DIR to review the call log to find out who has called, return the call by pressing /SPEAKER, or copy the caller's name and number into the directory of the telephone base.

Reviewing radial log

This screen shows a list of the 10 most recently dialed numbers. You can call one of the numbers again by pressing /SPEAKER, or copy the number into the directory of the telephone base.

NOTE: Names of call

ers are displayed only if the information is provided by your local telephone company. If the telephone number of the caller matches an entry in the directory of that handset, the name shown on screen will match the name in the directory. (Example: If "Christine Smith" calls, her name will appear as "Chris" if this is how you entered it.)

Base Call Log & Redial

Reviewing your call log

How Caller ID works

If you subscribe to Caller ID service, information about each caller will be displayed after the first or second ring.

You can review the call log to find out who has called, return the call by pressing /SPEAKER, or copy the caller's name and number into your directory.

The call log can store up to 50 entries. Calls are displayed in reverse chronological order (the latest first). When the log is full, the earliest entry is deleted to make room for new incoming call information.

If you answer a call before the information appears on the screen, the Caller ID will not be saved in the call log.

Reviewing your call log

• Press ①CID on the telephone base once to enter the call log.
• Use OCID or ODIR to scroll through the list. The latest call is displayed first.

Returning a call

• Press ①CID once to enter the call log.
• Use OCID or ODIR to scroll through the list until the desired entry is displayed.
  Press /SPEAKER to call the number currently displayed (see page 51).

Reviewing your call log

Saving an entry

Call Log OPTIONS Save to Dir

Call Log OPTIONS
Dial Number

Call Log OPTIONS Delete Entry

NOTE: The telephone

base can also delete entries if the DELETE key is pressed while displaying a call record. Press SELECT/Menu to delete the entry. This shows the DELETE menu with Delete Entry as the first option.

Call Log OPTIONS Delete ALL Entries

• Press ①CID once to enter the call log.
• Use 1CID or 0DIR to scroll through the list until the desired entry is displayed.
• Press SELECT/MENU to bring out the Call Log OPTIONS.
• When the screen shows Save to Dir, press SELECT/MENU to save that number in the directory.
• A confirmation tone will sound and the screen will show Entry saved to Directory.

Deleting an entry

• Press ①CID once to enter the call log.
• Use 1CID or 0DIR to scroll through the list until the desired entry is displayed.
• Press SELECT/MENU to bring out the Call Log OPTIONS.
• Press CID twice to reach the Delete Entry screen.
• Press SELECT/MENU to confirm deletion.
• A confirmation tone will sound after that entry is deleted.

Deleting all entries

• Press OCID once to enter the call log.
• Press SELECT/MENU to bring out the Call Log OP-TIONS.
• Press O_DIR to reach the Del All Entries screen.
• Press SELECT/MENU to confirm deletion.
• The screen will ask whether you want to delete all calls.
• Press SELECT/MENU to confirm deletion, or press CANCEL to keep all call log entries.

NOTE: All entries can also be deleted using the delete menu shown when DELETE is pressed while moving the call log. When in idle mode, press OCID to activate the call log. Press DELETE to bring up the SELECT OPTIONS. Press OCID once to show Del All Entries. Press MENU/SELECT and the screen will display all Calls, then press MENU/SELECT.

Base Call Log & Redial

Dialing a call log entry

When any Caller ID screen is displayed, press /SPEAKER to dial the exact number on the screen.

Dialing options

Caller ID numbers may appear with an area code which may not be required for local calls. If the number displayed is not in the correct format, change it by pressing the # key on and off to view different options.

Reviewing your radial log

About the radial memory

REDIAL 266-4794

You can review the radial log to see the last 10 numbers recently dialed, radial or save the number into your directory.

When there are already 10 entries in the radial memory, the earliest entry is deleted to make room for the new one. Each time you make a call, the earliest entry is deleted to make room for the latest one.

Reviewing your redial log

• Press REDIAL to enter the radial log. The latest call is displayed first.
  Use the 1CID or 0DIR to scroll through the list.

Dialing a number from the radial log

• Press REDIAL to enter the radial log. The latest call is displayed first.
• Use the 1CID or 0DIR to scroll through the list until the desired entry is shown.
  Press /SPEAKER to directly redial the displayed number.

Saving an entry

• Press REDIAL to enter the radial log.
• Use the 1CID or 0DIR to scroll through the list until the desired entry is shown.
• Press SELECT/MENU to enter REDIAL OPTIONS menu.
• When the screen shows Save to Dir, press SELECT/MENU.
• Enter the caller's name using the table on page 36.
• Press SELECT/MENU to confirm the name. A confirmation tone will sound and the screen will show Entry saved to Directory.

REDIAL OPTIONS

Save to Dir

REDIAL OPTIONS

Dial Number

Reviewing your redial log

Deleting an entry

REDIAL OPTIONS Delete Entry

NOTE: A single radial

entry or all entries can also be deleted using the delete menu shown when DELETE is pressed while reviewing the radial log.

REDIAL OPTIONS Delete ALL Entries

• Press REDIAL to enter the radial log.
• Use the 1CID or 1DIR to scroll through the list until the entry to be deleted is shown.
• Press SELECT/MENU to enter the REDIAL OPTIONS. Press 0 DIR twice to reach the Delete Entry screen.
• Press SELECT/MENU to confirm deletion.
• A confirmation tone will sound after that entry is deleted.

Deleting all entries

• Press REDIAL to enter the radial log.
• Press SELECT/MENU to enter the REDIAL OPTIONS. Press DIR once to reach the Del All Entries screen.
• Press SELECT/MENU and you will be prompted to Delete all Redial numbers.
• Press SELECT/MENU to delete the entire radial log, or press CANCEL to keep the radial log.

Message window

Number of messages waiting (or, during playback, message number currently playing).

Answering system operation

Message capacity

The answering system can record up to 99 messages, depending on how long each message is. Individual messages can be up to 4 minutes long, but the total maximum recording time is 15 minutes. Messages will remain available for replay until they are deleted.

Handset access

In addition to the features described in this section, you can also use your handset to review or delete messages (see pages 14 and 47).

Activating the answering system

Press the / NsWER ON/OFF button to turn the answering system on.

When the answering system is on, the button is lit up in red.

Press to listen to current outgoing announcement or record a new announcement.

Shows the number of new messages on the answering system. Shows the elapsed time when recording an announcement or memo.

Press to delete current message playing. When idle, press to bring up menu to delete all messages.

Press to turn the answering system on or off.

Setting answering system

Setting number of rings

This feature allows you to select how many times the phone will ring before the system answers. You can choose from two, four or six rings or toll saver. With toll saver active, the system answers after two rings when there are new messages and after four rings when there are no new messages.

ANSWERING SYSTEM Number of Rings

Answer Call after 4 rings

Answer Call using Toll Saver

ANSWERING SYSTEM Msg Alert Tone

MSG ALERT TONE Off

• Press select/MENU to select the main menu.
• Press DIR twice to enter the Answering System.
• Press SELECT/MENU to activate the answering system menu.
• When Number of Rings is shown on screen, press SELECT/MENU to confirm, then press ①CID or ①DIR to scroll through the list of options.
• Press SELECT/MENU to choose the desired option.
• A confirmation tone will sound and the screen will show Choice saved.

Setting message alert tone

This function programs the system to beep every 10 seconds to alert you of new messages. The beep will stop when you have listened to all new messages and 0 is displayed on the message window.

• Press select/MENU to enter the main menu.
• Press DIR twice to select the Answering System.
• Press SELECT/MENU to activate the Answering System menu.
• Press DIR to bring up the Message Alert Tone menu. Press SELECT/MENU to confirm selection.
• When MsgAlert Tone is shown on screen, press 1CID or 0DIR to select On or Off.
• Press SELECT/MENU after choosing ON or OFF.
• A confirmation tone will sound and the screen will show Choice saved.

Setting answering system

Setting remote access code

A four-digit security code is required to access your answering system from any touch tone phone. This code is 5000 by default.

To change this code,

ANSWERING SYSTEM
Remote Code

REMOTE CODE 5000

• Press select/MENU to enter the main menu.
• Press DIR twice to select the Answering System.
• Press SELECT/MENU to activate the Answering System menu.
• Press DIR twice to bring up the Remote Access Code menu. Press SELECT/MENU to confirm selection.
• Use the dial pad to enter the desired four-digit remote code.
• Press SELECT/MENU to confirm the desired code.
• A confirmation tone will sound and the screen will show Choice saved.

Setting answering system

Setting call screening

ANSWERING SYSTEM

Call Screening

CALL SCREENING

On

This feature allows you to listen to the caller's messages while the caller is leaving them. If you wish to take the call, press PHONE/FLASH or

SPEAKER on the handset or SPEAKER on the telephone base when the caller is leaving the message.

• Press SELECT/MENU to enter the Main menu.
• Press DIR twice to reach the Answering System and then press SELECT/MENU to confirm.
• Press DIR three times to reach the Call Screening screen and press SELECT/MENU to confirm selection.
• When CALL SCREENING is shown on screen, press ①cID or ①DIR to select On or Off.
• Press SELECT/MENU after selecting ON or OFF.
• A confirmation tone will sound and the screen will show Choice saved.

Elapsed recording time (in seconds).
Press to stop recording.

NOTE: If your own recorded announcement is deleted, the factory preset announcement will be used.

NOTE: Once the customized announcement is deleted, the answering system will take the default announcement.

Answering System Operation

Outgoing announcements

Outgoing announcements is the message callers hear when calls are answered by the answering system.

The phone is preset with an announcement that answers calls with "Hello. Please leave a message after the tone." You can use this announcement, or replace it with your own recording.

Recording your announcement

Press ANNounce.
- Press ①cid once to reach the Record screen.
- Press SELECT/MENU.
- When the screen shows Record after tone, speak facing the MIC at the bottom front of the telephone base from about nine inches away.
- The elapsed time (in seconds) will be shown in the message window when recording. The announcement is limited to a maximum of 90 seconds in duration.
- When finished recording, press / /PLAY/STOP.
- A confirmation tone will sound and the recorded message is played back.
- Press CANCEL and exit the Record option menu.

Playing your announcement

Press ANNounce.
- Press SELECT/MENU when Review is shown on the screen.

Deleting your announcement

Press ANNounce.
- Press O DIR so that the screen shows Delete.
Press SELECT/MENU.
- A confirmation tone will sound and the screen will show Announcement Deleted.

Number of messages waiting (or, during playback, message number currently playing).

Press /PLAY/stop to begin or end message playback.

(Play/Stop)

"You have [xx] new messages."

(Play/Stop)

Message playback ends.

NOTE: If PLAY/STOP is pressed immediately aft

deleting a message, the following message will be classified as old.

NOTE: Messages deleted cannot be retrieved again.

NOTE: Even though a message has been deleted, CID record for the call will state that a message was left.

NOTE: The answering system automatically disacts the line after seven cutive seconds of silence; either the handset or the goes off hook.

Answering System Operation

Message playback

If there are new messages, the screen on the handset will show new message, and the red light at the top left corner of the handset will flash, and the number in the message window on the telephone base will flash, indicating the number of new messages. Press /PLAY/STOP to listen to the recorded messages. The system announces the number of messages, then begins playback.

If there are new messages waiting, you will hear only the new messages in reverse chronological order, with the latest one first. If there are no new messages, the system will play back all messages in reverse chronological order.

Announcements

When playback begins, you will hear the total number of messages. You will hear the date and time when the message was received before it is played.

Options during playback

Press VOLUME to adjust the speaker volume.
Press SKIP to skip to the next message.
- Press REPEAT to repeat the message currently playing. Press twice to hear the previous message.
- Press DELETE to delete the current message. The system will advance to the next message.
- Press /PLAY/STOP to stop playback.

Deleting all messages

To delete all messages, press DELETE while the phone is idle (not during a call, or during message playback). You will be prompted to delete all messages. Press SELECT/MENU to confirm and press CANCEL to exit.

NOTE: This operation deletes both the old messages and unreviewed messages.

Elapsed recording time (in seconds).
Press to stop recording.

2. Speak into microphone.

Answering System Operation

Recording and playing memos

Memos are your own recorded messages used as a reminder to yourself or for others in the household who use the same answering system. They are saved, played back and deleted exactly like incoming messages.

Recording a memo

You can record a memo up to four minutes. The elapsed time (in seconds) is shown in the message window when recording.

• Press MEMO and the screen will show Record memo after tone. After the record start tone, the screen will show Press STOP to end recording.
• Speak facing the MIC at the bottom front of the telephone base from about nine inches away.
• The elapsed time (in seconds) will be shown in the message window when recording. Only memos shorter than four minutes can be recorded.
  If the elapsed time exceeds ninety-nine seconds, a flashing 99 will be shown.
• When finished recording, press / /PLAY/STOP.
• A confirmation tone will sound and the screen will show Memo recorded.

Playing back a memo

Press /PLAY/stop to listen to messages and memos (see previous page for other options).

Answering System Operation

Message window displays

The message window usually displays the total number of memos and incoming messages. See the list below for explanations of other displays in this window.

Message window displays

□	No messages.
1-99	Number of messages/memos, or message currently playing (page 59).
1-99 (in increments)	Elapsed time while recording a memo (page 60) or an announcement (page 58).
1-99 (flashing)	Number of unreviewed messages (page 59)
99 (flashing)	Memo recording time has exceeded 99 seconds.
--	System is in use.

Remote access

1. Dial your telephone number from any touch tone phone.
2. When system answers, enter 4-digit Remote Access Code (5000 unless it has been changed).
3. Enter remote commands (see list at right).
4. Hang up to end call and save all undeleted messages.

A four-digit security code is required to access your answering system from any touch tone phone. This code is 5000 by default; see page 56 to change it. The system will wait up to 10 seconds for each digit entry.

If you reach the system via remote access, enter the four-digit remote access code when the outgoing message is playing.

After hearing a double beep, enter one of the following commands.

Commands in remote standby mode:

Hang up	Saves all messages
1	Plays all messages
2	Plays new messages only
3	Deletes all messages
5	Announces next set of menu com-mands
7	Records new announcement
0	Turns answering system on or off

Commands during playback mode:

3	Deletes the message currently playing and announces "Message deleted"
4	Repeats the message currently playing
5	Pauses the message currently playing and announces "Message paused". If message is paused, it will resume play back.
6	Skipping to the next message
#	Stops message playback and announces For "help, press 5"

NOTE: If the answering system is turned off or if the memory is full, the system will pick up the next incoming call after 10 rings and ask for the remote access code. If the correct code is not entered after 3 tries, the call will be disconnected.

NOTE: If you pause for more than five seconds during remote access, you will hear a voice prompt to press 3 for help. The system will repeat this message every five seconds. After it announces it for the third time and no valid command is issued, the call will disconnect.

NOTE: Pressing when listening to messages will stop the playback process and all unreviewed messages will continue to be classified as new.

NOTE: Disconnecting the

line during message without pressing playback will cause all unreviewed messages to be classified as old.

Display screen status icons

Handset status icons

Line in use and call on hold indicator.

Steady icon indicates line in use.

Flashing icon indicates call on hold.

New messages in Answering System.

New voicemail indicator.

Flashes to indicate when there is a new voicemail.

Battery power level; animated display when charging.

Ringer off.

Record displayed has not been reviewed.

Base status icons

Spare battery charging.

Ringer off.

Microphone muted.

Message playing back has not been reviewed.

A message was left by this caller.

Alert tones and indicator lights

Alert tones

Beep-Beep-Beep (3 quick beeps)	Handset battery is low. Place handset in tele- phone base or charger to charge the battery.
Confirmation tone	Handset registration or programming com- mand successfully completed.
Out of Range tone	The handset is out of range. Move it closer to the base.
Beeeeeeeeep	Error tone (current operation has been unsuccessful; try again).
Beep (beeps every 10 seconds on telephone base)	There are new messages in the answering system (only applies if the Message Alert Tone feature is turned on).

Indicator lights

NEW VOICEMAIL

Flashes when there are new messages which have not been reviewed.

STATUS LIGHT

Blinks when there is a new voicemail, a new message in the answering system, or a call is on hold.

IN USE

On when either the handset or the telephone base, or both are on line (Flashes when call is on hold).

SPEAKER

On when speakerphone is in use.

Appendix

Adding new handsets

Your telephone can accommodate up to eight cordless handsets. You can add new handsets (AT&T model EP590-3, purchased separately) anytime. Up to three handsets can be on a call at the same time.

12:00AM

Register handset:

Press SELECT/MENU

key on the base. Find

"Register Handset" in

the main menu. Press

SELECT/MENU again.

12:00AM

Registration in progress...

The handset provided with your telephone system is automatically registered as Handset I. Additional handsets will be assigned in numerical order (2, 3, 4, etc.) when they are registered.

Before using a separately purchased handset, it must be registered with the telephone base. Put the new handset on the telephone base. Press SELECT/MENU, followed by 0 DIR once to reach the Register Handset screen. Press SELECT/MENU to confirm.

When the handset has synchronized with the telephone base, the screen on the handset will show Registration in progress.

When the handset is successfully registered to the telephone base, the telephone base will generate a confirmation tone. The newly registered handset will be assigned the lowest extension telephone number which has not previously been assigned to another system handset (2-8).

The newly registered handset will sound a confirmation tone.

NOTE: The maximum number of handsets for use at any time is three, and the possible combinations include:

Three handsets and the base on an external call.
- Two handsets and the base on an external call, and one handset accessing the answering system.
One handset and the base are on an external call, and two handsets are on intercom.

Appendix

Replacing a handset

If you are replacing a handset on a system that has the maximum number of registered handsets (eight) or wish to change the assigned handset number of your registered handsets, you must first de-register the handsets, and then re-register all handsets again.

De-registering a handset

A handset must be de-registered first before it can be registered to another telephone base. To de-register a handset, perform the following procedures on the handset:

• Press the CENTER NavKey on the handset to bring up main menu.
• Press the UP or DOWN NavKey 品 or 品 four times for settings.
• Press the CENTER NavKey to enter into settings menu.
• Press the UP NavKey once or DOWN NavKey seven times to select delete registration.
• Press the CENTER NavKey © and you will be prompted to select YES/NO for handset de-registration.
• Press the softmax to proceed with de-registration or NO to cancel.
• After pressing the softmax, the screen will remain blank for a while.
• When the screen shows Not Registered, the de-registration process is complete. There will not be a confirmation tone.
• If you have to de-register more than one handset, but not all, at one time, please repeat the above steps for each handset to be de-registered.

De-registering all handsets

To de-register all the handsets currently registered to the telephone base, perform the following procedures on the telephone base:

• Press SELECT/MENU.
• Press ①cid twice to reach the Base Settings option.
• Press SELECT/MENU.
• Press DIR once to reach the Delete Handsets screen.
• Press SELECT/MENU.
• Display shows Del Registration of all handsets.
• Press SELECT/MENU to confirm.

Replacing a handset

Re-registering a handset

You can re-register handsets after de-registering them from the telephone base, or you can re-register them to a new telephone base if you have replaced your telephone base for any reason.

• Make sure your handset battery pack is properly installed and charged.
• The screen on the handset will initially show Not Registered.
• Put the handset in the telephone base.
• Press SELECT/MENU on the telephone base to bring up the main menu.
• On the telephone base, press DIR once and the screen will show Register Handset.
• Press SELECT/MENU to confirm and the screen on the telephone base will show Registering Handset. After a while, the handset will show Registration in progress, followed by Handset x registered (x is the number of the handset currently being registered) when the entire process is complete.

NOTE: The new handset will be assigned the next available handset number. A maximum of eight handsets can be registered to each telephone base.

Charging spare battery pack

Optional spare battery pack (AT&T model 103, purchased separately) can be kept charged in the telephone base for quick replacement when the handset battery pack is depleted.

• To insert the spare battery pack, slide the latch to the left on the side of the telephone base to open the spare battery compartment.
• Insert the battery pack according to the instruction provided.
• Push the compartment back inside the telephone base until it clicks securely.

In the event of a power failure, the charged battery pack in the base will allow you to make and receive calls from the cordless handset for up to three hours.

A spare battery pack requires at least 20 hours to reach full charge.

Slide latch left to open the spare battery compartment on the side of the telephone base.

Appendix

Troubleshooting

If you have difficulty with your telephone, please try the suggestions below. For Customer Service, visit our website at www.telephones ATT.com, or call I [phone]; in Canada, call I [phone].

My telephone does not work at all.

• Make sure the battery pack is installed and charged correctly (see page 8). For optimum daily performance, return the cordless handset to the telephone base after use.
• Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.
• Make sure the telephone line cord is plugged firmly into the telephone base and the modular wall jack.
• Reset the telephone base. Unplug the unit's electrical power. Wait for approximately 15 seconds, then plug it back in. Allow up to one minute for the cordless handset and base to reset.
• Remove and re-insert the battery pack. If that still does not work, it may be necessary to purchase a new battery pack.

Low Battery is displayed on screen.

• Place the handset in the base or charger for recharging.
• Remove and re-install the battery pack and use it normally until fully discharged, then recharge the handset on the base or charger for 16 hours.
• If the above measures do not correct the problem, the battery pack may need to be replaced.

The battery does not charge in the handset or the handset battery does not accept charge.

• Make sure the handset is placed in the charger correctly. The CHARGE light on the charger should be on.
• Remove the battery from the handset and install it in the spare battery compartment on the side of the telephone base and let it charge for 16 hours. Then re-install the charged battery pack into the handset.
• If the cordless handset is in the charger or in the telephone base but the CHARGE light is not on, refer to The charge light is off in the section below.
• It may be necessary to purchase a new battery. Please refer to the battery section of this user's manual.
• The telephone might be malfunctioning. Please refer to the warranty section of this user's manual for further instruction.

The CHARGE light is off.

• Clean the charging contacts on the cordless handset(s) and telephone base each month using a pencil eraser or a dry non-abrasive fabric.

Appendix

Troubleshooting

• Make sure the power adapter and telephone line cords are plugged in correctly and securely.
• Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one minute for the cordless handset and telephone base to reset.
• The telephone might be malfunctioning. Please refer to the warranty section of this user's manual for further instruction.

There is no dial tone.

• First, try all the above suggestions.
• Move the cordless handset closer to the telephone base. It might be out of range.
• The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
• Disconnect the telephone base from the telephone jack and connect a different telephone. If there is no dial tone on the telephone either, the problem is in your wiring or local service. Contact your local telephone company.

The telephone does not ring when there is an incoming call.

• Make sure the ringer is on. (See page 12 for handset and page 19 for telephone base).
• Make sure the telephone line cord and power adapter are plugged in properly (see page 7).
• The cordless handset may be too far from the telephone base. Move it closer to the telephone base.
• There may be too many extension phones on the telephone line to allow all of them to ring simultaneously. Try unplugging some of them.
• If the other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact the local telephone company (charges may apply).
• Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away as possible from the following electronic devices: wireless routers, radios, radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors, televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
• Test a working telephone at the telephone jack. If another telephone has the same problem, the problem is in the telephone jack. Contact your local telephone company (charges may apply).
• The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
• Re-install the battery pack and place the cordless handset in the telephone base.
• Wait for the cordless handset to synchronize with the telephone base. To be safe, allow up to one minute for this to take place.

Troubleshooting

I cannot dial out.

• Make sure there is a dial tone before dialing. It is normal if the cordless handset takes a second or two to synchronize with the telephone before producing a dial tone. Wait an extra second before dialing.
• If the other telephones in your home are having the same problem, the problem is in the wiring or local service. Contact your local telephone company (charges may apply).
• Eliminate any background noise. Noise from a television, radio, or other appliances may cause the telephone to not dial out properly. If you cannot eliminate the background noise, first try muting the cordless handset before dialing, or dialing from another room in your home with less background noise.

There is noise or interference during a telephone conversation.

My calls fade out or cut in and out when I am using the cordless handset.

• The handset may be out of range. Move it closer to the telephone base.
• Appliances or other cordless telephones plugged into the same circuit as the telephone base can cause interference. Try moving the appliances or telephone base to another outlet.
• Other electronic products can cause interference to your cordless telephone. Try installing your telephone as far away as possible from the following electronic devices: wireless routers, radios, radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors, televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
• Microwave ovens operate on the same frequency as your telephone. It is normal to experience static on your telephone while the microwave oven is operating. Do not install this telephone in the same outlet or near a microwave oven.
• If your telephone is plugged in with a modem or a surge protector, plug the telephone (or modem/surge protector) into a different location. If this solves the problem, re-locate your telephone or modem farther apart from each other, or use a different surge protector.
• The layout of your home or office might be limiting the operating range. Trying moving the base to another location, preferably a higher location for better reception.
• Disconnect the telephone base from the modular jack and plug in a corded telephone. If calls are still not clear, the problem is probably in the wiring or local service. Contact your local service company (charges may apply).
• Do you have DSL service? If yes, you need to have a DSL filter installed at every telephone jack that has a telephone connected to it. Contact your DSL service provider for filter information.

Appendix

Troubleshooting

I hear other calls when using the telephone.

• Disconnect the telephone base from the telephone jack. Plug in a different telephone. If you still hear other calls, the problem is probably in the wiring or local service. Call your local telephone company.

I hear noise in the cordless handset, and none of the keys or buttons work.

• Make sure the telephone line cord is plugged in securely.

My Caller ID features are not working properly.

• Caller ID is a subscription service. You must subscribe to this service from your local telephone company for this feature to work on your telephone.
• The caller may not be calling from an area which supports Caller ID.
• Both you and the caller's telephone companies must use equipment which are compatible with Caller ID service.
• If you subscribe to DSL service, install a noise filter to the telephone line between the telephone base and the telephone line jack. Contact your DSL service provider for filter information.

The system does not receive Caller ID or the system does not display Caller ID during Call Waiting.

• Make sure you subscribe to Caller ID with Call Waiting features services provided by the local telephone company.
• The caller may not be calling from an area which supports Caller ID.
• Both you and the caller's telephone companies must use equipment which are compatible with Caller ID service.
• If you subscribe to DSL service, install a noise filter to the telephone line between the telephone base and the telephone line jack. Contact your DSL service provider for filter information.

The answering system does not answer after the correct number of rings.

• Make sure the answering system is on. When the answering system is on, the red light on the ANSWER ON/OFF key should be lit.
• If Toll Saver is activated, the number of rings changes to two when there are new messages waiting (see page 55).
• If the memory is full or if the answering system is off, the system will answer after ten rings.
• In some cases, the answering system may be affected by the ringing system used by the local telephone company.

Appendix

Troubleshooting

The announcement message is not clear.

• When recording the announcement, make sure you speak in a normal tone of voice about nine inches from the telephone base.
• Make sure there is no background noise (television, music, traffic, etc.) when recording.

The answering system does not record message.

• Make sure the answering system is on.
• Make sure the memory of the answering system is not full.

The messages on the answering system are incomplete.

• If a caller leaves a very long message, part of it may be lost when the system disconnects the call after four minutes.
• If the caller pauses for more than seven seconds, the system stops recording and disconnects the call.
• If the memory on the system becomes full during a message, the system stops recording and disconnects the call.
• If the caller's voice is very soft, the system may stop recording and disconnect the call.

The messages on the system are very difficult to hear.

• Press volume on the side of the handset or on the telephone base to increase the speaker volume.

The answering system does not respond to remote commands.

• Make sure your Remote Access Code is correct (see page 56).
• Make sure you are calling from a touch tone telephone. When dialing a number, you should hear tones. If you hear clicks, then it is not a touch tone telephone and cannot activate the answering system.
• The answering system may not detect the Remote Access Code when your announcement is playing. Wait until the announcement is over before entering the code.
• There may be interference on the telephone line you are using. Press the dial pad keys firmly when dialing.

Troubleshooting

Common cure for electronic equipment.

• If the telephone is not responding normally, try putting the cordless handset in the telephone base or the charger. If it does not seem to respond, try the following (in the order listed):
• Disconnect the power to the telephone base.
• Disconnect the battery on the cordless handset and the spare battery in the telephone base.
• Wait a few minutes before connecting power to the telephone base.
• Re-install the battery pack and place the cordless handset into the telephone base or charger.
• Wait for the cordless handset to synchronize its connection with the telephone base. To be safe, allow up to one minute for this to take place.

Important safety information

This symbol is to alert you to important operating or servicing instructions that may appear in this user's manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock.

Safety Information

• Read and understand all instructions in the user's manual. Observe all markings on the product.
• Avoid using a telephone during a thunderstorm. There may be a slight chance of electric shock from lightning.
• Do not use a telephone in the vicinity of a gas leak. If you suspect a gas leak, report it immediately, but use a telephone away from the area where gas is leaking. If this product is a cordless model, make sure the telephone base is also away from the area.
• Do not use this product near water, or when you are wet. For example, do not use it in a wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquids, unplug any line or power cord immediately. Do not plug the product back in until it has dried thoroughly.
• Install this product in a protected location where no one can trip over any line or power cords. Protect cords from damage or abrasion.
• If this product does not operate normally, read Troubleshooting on pages 69-74 of this user's manual. If you cannot solve the problem, or if the product is damaged, refer to the limited warranty on pages 81-83. Do not open this product except as may be directed in your user's manual. Opening the product or reassembling it incorrectly may expose you to hazardous voltages or other risks.
• Replace batteries only as described in your user's manual. Do not burn or puncture batteries — they contain caustic chemicals.

Caution: Use only the power adapter provided with this product. To obtain a replacement, call 1 [phone].

Important safety information

Especially about cordless telephones

• Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between the telephone base and the handset by radio waves, so there is a possibility that your cordless telephone conversations could be intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless telephone conversations as being as private as those on corded telephones.
• Electrical power: The telephone base of this cordless telephone must be connected to a working electrical outlet which is not controlled by a wall switch. Calls cannot be made from the handset if the telephone base is unplugged or switched off, or if the electrical power is interrupted.
• Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.
• Rechargeable batteries: This product contains either nickel-cadmium or nickel-metal hydride rechargeable batteries. Exercise care in handling batteries in order not to create a short circuit with conductive material such as rings, bracelets, and keys. The battery or conductor may overheat and cause harm. Observe proper polarity between the battery and the battery charger.
• Nickel-cadmium rechargeable batteries: Must be recycled or disposed of properly. Do not dispose of them in household garbage. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.

The RBRC™ Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle nickel-cadmium rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement

batteries or recycling center. Or you may call 1-800-8-BATTERY for locations accepting spent nickel-cadmium batteries.

Important safety information

Precautions for users of implanted cardiac pacemakers

Cardiac pacemakers (applies only to digital cordless telephones):

Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S.

Food and Drug Administration, WTR recommends to physicians that:

PACEMAKER PATIENTS

• Should keep wireless telephones at least six inches from the pacemaker.
• Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it is turned ON.
• Should use the wireless telephone at the ear opposite the pacemaker.

WTR's evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless telephones.

Especially about telephones answering systems

Two-way recording: This unit does not sound warning beeps to let the other party know that the call is being recorded. To ensure that you are in compliance with any federal or state regulations regarding recording a telephone call, you should start the recording process and then inform the other party that you are recording the conversation.

SAVE THESE INSTRUCTIONS

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US: AAAEQ##TXXXX. This identifier must be provided to your local telephone company upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the user's manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03, the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact your local telephone company.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer.

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the limited warranty.

If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

Appendix

FCC Part 68 and ACTA

If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency numbers, please:

• Remain on the line and briefly explain the reason for the call before hanging up.
• Perform such activities in off-peak hours, such as early morning or late evening.

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user's body other than the hands are maintained at a distance of approximately 20 cm (8 inches) or more. If you choose to use a clipping device, please make sure to only use the supplied AT&T belt clip.

Appendix

Limited warranty

The AT&T brands are used under license. Any repair, replacement or warranty service, and all questions about this product should be directed to: Advanced American Telephones, I [phone] or www.telephones ATT.com. In Canada, call I (866)-288-4268.

What does this limited warranty cover?

The manufacturer of this AT&T-branded product, Advanced American Telephones ("AAT"), warrants to the holder of a valid proof of purchase ("CONSUMER" or "YOU") that the product and all accessories provided by AAT in the sales package ("PRODUCT") are free from material defects in material and workmanship, pursuant to the following terms and conditions, when installed and used normally and in accordance with operation instructions. This limited warranty extends only to the Consumer for Products purchased and used in the United States of America.

2 What will AAT do if the Product is not free from material defects in materials and workmanship during the limited warranty period ("MATERIALLY DEFECTIVE PRODUCT")?

During the limited warranty period, AAT's authorized service representative will repair or replace, at AAT's option, without charge, a materially Defective Product. If AAT repairs this product, AAT may use new or refurbished replacement parts. If AAT chooses to replace this product, AAT may replace it with a new or refurbished product of the same or similar design. AAT will return repaired or replacement products to you in working condition.

AAT will retain defective parts, modules, or equipment. Repair or replacement of Product, at AAT's option, is your exclusive remedy. You should expect the repair or replacement to take approximately 30 days.

3 How long is the limited warranty period?

The limited warranty period for the Product extends for ONE (I) YEAR from the date of purchase.

If AAT repairs or replaces a materially Defective Product under the terms of this limited warranty, this limited warranty also applies to repaired or replacement Products for a period of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year limited warranty, whichever is longer.

Limited warranty

4 What is not covered by this limited warranty?

This limited warranty does not cover:
- Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or handling, neglect, inundation, fire, water, or other liquid intrusion; or
- Product that has been damaged due to repair, alteration, or modification by any one other than an authorized service representative of AAT; or
- Product to the extent that the problem experienced is caused by signal conditions, network reliability or cable or antenna systems; or
- Product to the extent that the problem is caused by use with non-AAT accessories; or
- Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered illegible; or
- Product purchased, used, serviced, or shipped for repair from outside the United States, or used for commercial or institutional purposes (including but not limited to Products used for rental purposes); or
Product returned without valid proof of purchase (see 6 below); or
- charges for installation or setup, adjustment of customer controls, and installation or repair of systems outside the unit.

5 How do you get warranty service?

To obtain warranty service in the United States of America, call I [phone] for instructions regarding where to return the Product. Before calling for service, please check the user's manual. A check of the Product controls and features may save you a service call.

Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery or handling charges incurred in the transport of Product(s) to the service location. AAT will return repaired or replaced Product under this limited warranty to you, transportation, delivery or handling charges prepaid. AAT assumes no risk for damage or loss of the Product in transit.

If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty, AAT will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.

Appendix

Limited warranty

6 What must you return with the Product to get warranty service?

You must:

a return the entire original package and contents including the Product to the AAT service location along with a description of the malfunction or difficulty;
b include "valid proof of purchase" (sales receipt) identifying the Product purchased (Product model) and the date of purchase or receipt (keep a copy for your records); and
c provide your name, complete and correct mailing address, and telephone number.

7 Other limitations

This warranty is the complete and exclusive agreement between you and AAT. It supersedes all other written or oral communications related to this Product. AAT provides no other warranties for this product. The warranty exclusively describes all of AAT's responsibilities regarding the product. There are no other express warranties. No one is authorized to make modifications to this limited warranty and you should not rely on any such modification.

State Law Rights: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Limitations:

Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the product is fit for ordinary use) are limited to one year from date of purchase.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

In no event shall AAT be liable for any indirect, special, incidental, consequential, or similar damages (including, but not limited to lost profits or revenue, inability to use the product, or other associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use of this product.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please retain your receipt as your proof of purchase.

Appendix

Index

A

ACadapter,7

Access code, 56, 62

Alert tones, 64

Answering calls, 23, 25

Answering system, 54

announcement, 58, 59

delete messages, 59

feature options, 54

handset access, 54

outgoing announcement, 58

memos, 60

message window, 61

play messages, 59

record announcement, 58

remote access, 62

remote access code, 56, 62

Antenna, 80, 82

B

Battery charging, 8, 68

Battery installation, 8, 68

Belt clip, 10

C

Call logs, 42, 49

Caller ID,6,41,49

add entries to phone directory, 43, 50

delete entries, 43, 50

dial entries, 43, 49

Call screening, 57

CID,6,41,49

Conference calls, 27

D

Date/time, setting, 19

Delete call log entries, 43, 50

Delete radial entries, 46, 53

De-registeringhandsets,66

Dialing,

manual dialing, 23, 25

phonebook dialing, 32, 38

Display screen, 63

Distinctive ringer, 12-13, 31

Directory,

base directory, 35

handset directory, 29

dial number, 32, 38

editentries,33,39

name search, 32, 38

new entries, 30, 36

E

Elapsed time, 58, 60

Ending calls, 23, 25

Error tones, 29, 35

F

Flash (switchhook flash), 27

H

Hands-free use, 23

Headphone, 10

Hold, 24, 26

1

Incoming call log, 42, 49

Incoming calls, answering, 23, 25

Incoming messages, 59

Indicator lights, 64

Intercom, 28

L

Last number redial, 25

Low battery, 8

M

Making calls, 23, 25

Memos, 60

Menu, 3

Message alert, 55

Messages, 59

Microphone, 23, 26

Mute, 23, 26

Appendix

Index

N

Names, enter into phonebook, 30, 36 search for, 32, 38

New handsets, adding, 65
Number of rings, setting, 55

0

On/off button, answering system, 54
Operating range, 6
Outgoing announcement, 58
Out of range, 6, 64

P

Pictures, handset, I1
Playback (messages), 14, 59

Q

Quick reference guide, 2-4

R

Receiving calls, 23, 25
Recharging, 8, 68
Redial, 45, 52
Repeat, message playback, 59
Re-registering handsets, 67
Return calls, 43, 49
Ringer silencing, 27
Ringer melody options, 12, 20

s

Search for names, 32, 38
Security codes, 56, 62
Skip, message, 59
Sounds & alerts, 64
Spare batteries, 68
Speakerphone, 23

T

Technical specifications, 86
Time, setting, 19
Timers, recording announcement, 58
recording memo, 60
Toll saver (number of rings), 55
Tones, alert tones, 64
keypad tones, 13
message alert tones, 55
Troubleshooting, 69-74

V

Voicemail, 17, 21
Volume controls, handset ringer, 12 base ringer, 19 listening, 27

Technical specifications

RF frequency band (Handset to base)	2400 MHz — 2483.5 MHz
RF frequency band (Base to handset)	5725 MHz — 5850 MHz
Telephone base voltage (AC voltage, 60Hz)	96 — 127 Vrms
Telephone base voltage (AC adapter output)	9 V DC @ 600mA
Handset voltage	3.6 V DC NiMH battery pack 800mAh

Remote access wallet card

Use the wallet card below to help you remember commands to control your answering system from any touch tone telephone.

If you misplace this card, just clip and save the card below.

AT&T

www.telephones ATT.com
