Product Type	High Speed Pedestal Fan
Brand	KAZ
Model	HT-9700
Power Supply	120 V AC, 60 Hz, polarized plug
Number of Speeds	2 (High II, Low I)
Main Functions	Cooling air circulation summer/winter, adjustable angle, carrying handle
Material	Plastic and metal
Usage	Household only, floor use
Warranty	Limited 3-year warranty
Care and Cleaning	Unplug before cleaning; use a soft, damp cloth; do not immerse; do not use chemicals
Safety	Polarized plug; do not use with transistorized speed control; do not operate without grill; keep out of reach of children
Spare Parts and Repairability	Removable front grill for cleaning; do not attempt to open motor; contact customer service
Included Accessories	Power cord with cord winder, handle
Certifications	Polarized plug for safety

Frequently Asked Questions - HT-9700 KAZ

How to adjust the speed of the HT-9700 fan?

The HT-9700 fan has 2 speeds. Turn the control knob to the desired position: II for high speed, I for low speed, and O for off.

Can I use the fan outdoors?

No, this fan is designed for household use ONLY and must not be used outdoors. Also avoid humid environments.

How to clean the fan?

Before cleaning, unplug the fan. Use a soft, damp cloth to gently wipe the appliance. Never immerse the fan in water and do not use chemicals like gasoline.

What to do if the fan does not work?

First check that the fan is plugged in and the outlet works. Make sure the knob is on a speed position. If the problem persists, contact Kaz customer service. Do not attempt to open the motor yourself.

What is the electrical power of the fan?

The fan operates on 120 V AC, 60 Hz power supply. The exact wattage is not specified in the instructions, but it is a high-speed type fan.

Can the fan be used in winter?

Yes, in winter, place the fan in an open area to circulate warm air upward. Use low speed to dislodge warm air from the ceiling and redistribute it in the room, which can improve heating efficiency.

How to disassemble the front grill for cleaning?

Before removing the grill, unplug the fan and turn it off. Lay the fan on a table, front face down. Remove the screws using a Phillips screwdriver. Then lift the housing by the handle to separate it from the front grill. Note: the screws remain attached to the housing.

What is the height of the fan?

The exact height is not mentioned in the instructions. It is a pedestal fan designed to be placed on the floor. It can be estimated at about 130 cm, but please refer to the product for exact dimensions.

Is the fan under warranty?

Yes, the HT-9700 fan has a limited 3-year warranty from the original purchase date, covering defects in materials and workmanship. Keep your proof of purchase.

Can I use a speed controller with this fan?

No, it is strongly advised not to use a transistorized speed control with this fan, as it could cause a risk of fire or electric shock. Use only the provided control knob.

USER MANUAL HT-9700 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.
2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.
4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
5. Close supervision is necessary when any appliance is used by or near children.
6. Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving the fan from one location to another, before cleaning and before removing the fan grille.

TECH FORCE POWERHIGH VELOCITY FANS

HT-380 Series HT-8800 Series HT-9700 Series

1. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.
2. Do not operate the fan in the presence of explosive and/or flammable fumes.
3. Do not place the fan or any parts near an open flame, cooking or other heating appliance.
4. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).
5. Avoid contact with moving fan parts.
6. The use of attachments not recommended by the manufacturer may be hazardous.
7. Place the fan on a dry level surface.
8. Do not operate if the fan housing is removed or damaged. Do not operate the fan if the grille is removed or not properly assembled.
9. Do not operate on desktops or tabletops. This fan is intended for use on floors only.
10. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace a loose or worn outlet.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

INTRODUCTION

The Tech Force High Velocity Air Circulator Fans are aerodynamically designed to give you the versatility of changing this fan's angular direction simply by adjusting the fan to ANY desired angular output (Fig.1). Upon using this fan, you will feel a strong and powerful air stream that will quickly move air in order to cool an area rapidly and efficiently.

TECH FORCE

FOR ENERGY SAVINGS ALL YEAR

Honeywell Air Circulator Fans can help save energy and can lower monthly utility bills all year round. Our air circulators increase distribution of cooler air from your air conditioner or warmer air from your heating system creating a vortex of air flow for increased comfort. Increased air flow allows the air conditioning and heating systems to be used at lower settings to help save you money.

Lower Your Energy Bills!

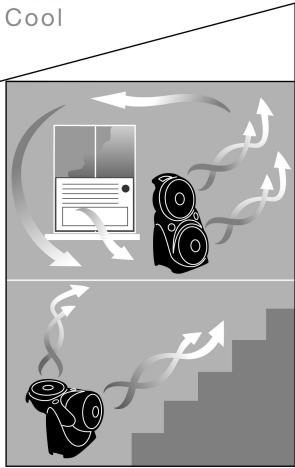

In the summer:

Circulate cool air by using with window or central air conditioning.

Circulate cool air upstairs.

SUMMER

WINTER

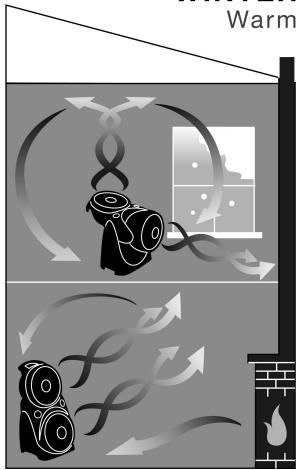

In the winter:

Circulate warm air. Position your air circulator in an open location for upward air movement. Run it on a low setting to move the hotter air from the ceiling and circulate the warmer air throughout the room.

Increase Heating Source Efficiency: Use with other heat sources, such as wood stoves, baseboard heaters, and or vents to help circulate the warm air throughout the room.

Be sure the fan is in the OFF position.

• Place your fan on a dry, level surface.
• Plug the power cord into a polarized 120 volt AC wall outlet.
• To operate your Tech Fan, press the control button once to turn the fan on in high speed (III), press a second time to change to medium speed (II), press a third time to change fan to the low speed (I), press a fourth time to turn the fan off (Fig. 2a & 2b).
• Adjust the fan to the desired position (Fig. 3).
• To move the fan, turn the fan OFF and pick it up by the handle (Fig. 4).

Fig. 2a

Fig. 2b

Fig. 3

Fig. 4

• Be sure the fan is in the OFF position.
• Place your fan on a dry, level surface.
• Plug the power cord into a polarized 120 volt AC wall outlet.
• Each fan is independently operated. To operate the fans, turn the control knob to the desired fan speed: HT-9700 series-2 speeds, High (II) or Low (I) or HT-8800 series-3 speeds, High (III), Medium (II), or Low (I) (Fig. 5).
• Adjust the fans to the desired position (Fig. 6).
• To move the fan, turn the fan OFF (O) and pick it up by the reach through handle (Fig. 7).

Fig. 5

Fig. 6

Fig. 7

CLEANING AND STORAGE

Unplug the fan before cleaning.

• These fans are equipped with a cord wrap feature for storage on the bottom of the fan (Fig. 8).
• Use only a soft, damp cloth to gently wipe the fan clean.
• DO NOT immerse the fan in water and never allow water to drip into the motor housing.
• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

REMOVAL OF THE FRONT GRILLE FOR CLEANING

DO NOT remove the fan grille unless the fan's power is turned off and the power cord is unplugged.

• Gently lay the fan face down on a table (Fig. 9).
• Remove the front grille by unscrewing the screws located on the back of the fan head using a standard phillips head screw driver.

NOTE: The screws will remain attached to the rear housing to ensure they are not lost. Do not try to force the removal of the screws.

• Lift the rear housing by the handle to separate from the front grille.
• Re-assemble the fan by replacing the front grille and aligning the screw holes between the front grille and the fan body. Gently tighten the screws.
• For storage, clean the fan carefully as instructed. Store the fan in the original packaging or cover the product to protect it from dust.

Fig. 8

Fig. 9

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN THE FAN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

5 year limited warranty for HT-8800BPC and HT-380BPC series
3 year limited warranty for HT-9700C series

KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to:

In U.S.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.
