Product Type	Electric Sharpener
Brand	BARTSCHER
Model	50066
Usage	Domestic
Sharpening Technology	Diamond interlocking wheels (Gourmet Edge™) and triangular ceramic stones
Supported Blade Types	Straight edge knives, serrated blades, scissors (right and left handed)
Power Supply	Mains (power cord)
Thermal Protection	Integrated thermostat, automatic shut-off in case of overheating
Maintenance	Periodic cleaning of residues, turning of ceramic stones, possible replacement of diamond wheels
Warranty	3 years (excluding wear of grinding wheels)
Safety	Do not use lubricant, do not insert tip first
Included Accessories	Magnetic band for collecting filings
Wheel Material	Monocrystalline diamond (wheels), ceramic (stones)
Country of Manufacture	PRC (China)
Patents	US Patent No. 6101898

Frequently Asked Questions - 50066 BARTSCHER

How to sharpen a straight edge knife?

Insert the blade into the electric sharpening slot (diamond wheels) and pull from heel to tip. Lift the handle at the end to sharpen the tip. Then pass into the ceramic finishing slot. Repeat until desired sharpness is achieved.

How to sharpen a serrated blade?

Do not use the diamond wheels for serrated blades. Use only the ceramic finishing slot (manual slot). Insert the blade and pull from heel to tip, lifting the handle at the end. The triangular ceramic stones follow the shape of the teeth.

How to sharpen scissors?

Pull the scissors sharpening module until it locks. Turn the selector for right or left handed. Open the scissors, insert them, close with slight pressure and pull (or push) through the sharpener. 3 to 4 passes are sufficient.

What to do if the sharpener does not start?

Check that the outlet works. If the cord is damaged, have it replaced by a professional. If the problem persists, return the appliance to the place of purchase with the receipt.

What to do if the diamond wheels no longer cut?

This is normal: the diamond wheels undergo a break-in period. The initial cutting speed slows down but the quality improves. The wheels do not wear out, but if performance decreases after a long time, contact customer service for a possible replacement.

How to clean the ceramic stones?

Remove the finishing module, open it and take out the stones. Scrub with a small nylon brush, scouring powder and water. You can also turn the stones over to use a new face.

Can I use oil or water with the sharpener?

No, do not use any lubricant, water or sharpening oil. The sharpener is designed to operate dry. Using lubricants can damage the appliance.

How to replace the diamond wheels?

Replacement of the diamond wheels must be done by the manufacturer. Contact customer service at ([phone] or visit smithsedge.com to obtain a return. Allow 3 to 4 weeks.

What is the warranty on the sharpener?

The warranty is 3 years against defects in materials and workmanship for domestic use. It does not cover normal wear of the wheels. Keep the original receipt. For any repairs, contact customer service.

What to do in case of overheating and shutdown of the sharpener?

The sharpener is equipped with a safety thermostat. Unplug it and wait about 1 hour for it to cool down. It will restart automatically. If the problem persists, return it to the place of purchase.

USER MANUAL 50066 BARTSCHER

1700 Sleepy Valley Road • Hot Springs, Arkansas 71901-9017 USA
Phone [phone] • Fax [phone]

WWW.SMITHSEDGE.COM

PATENTS - US Patent # 6101898 Other Patents Pending BREVETS - Brevet US no 6101898 Autres brevets en instance PATENTES - Patente de Estados Unidos #6101898 Otras patentes esta pendentes PATENTE - US Patent 6101898 Weitere Patente sind angemeldet BREVETTI - Brevetto USA n. 6101898 Altri brevetti in corso di APPROVAzione

Smith's Model # 50066 • Made in PRC
Modèle Smith no 50066 • Fabrique en RPC
Modelo de Smith's #50066 • Hecho en RPC
Smith's Modelln. 50066 • Hergestellt in der VRC
Modello Smith's n. 50066 • Prodotto nella RPC

Smith's, The Edge Experts, Precision Machined Edge™, and Gourmet Edge™ Technology are registrations and trademarks of Smith Abrasives, Inc.
Smith's, The Edge Experts, Precision Machined Edge™, et Gourmet Edge™ Technology font l'objet de dépôts légaux et de marques de commerce de Smith Abrasives, Inc.
La technología Smith's, The Edge Experts, Precision Machined Edge™, y Gourmet Edge™ son registros y MARCAS registRADAS de Smith Abrasive, Inc.
Smith's, The Edge Experts, Precision Machined Edge™ und Gourmet Edge™ Technology sind Marken und eingetragene Marken von Smith Abrasives, Inc.
Smith's, The Edge Experts, Precision Machined Edge™, e Gourmet Edge™ Technology sono marchi registrati e commerciali di Smith Abrasives, Inc.

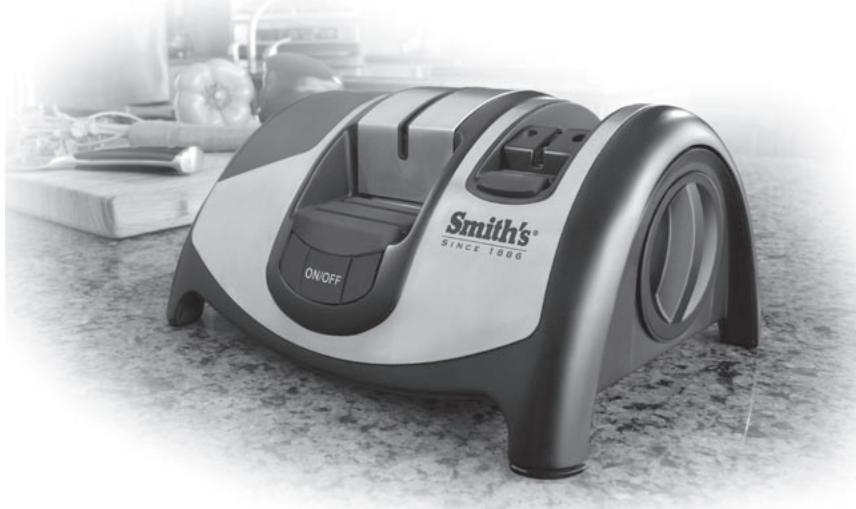

DIAMOND EDGE ELECTRIC KNIFE & SCISSORS SHARPENER

Affuteur diamant electrique pour couteaux et ciseaux
Afilador electrico de cuchillos y tijeras con borde de diamante
Diamond Edge elektrischer Messer- und Scherenschärfer
Affilatore elettrico diamantato per coltelli e forbici

BENUTZERHANDBUCH

1700 Sleepy Valley Road

Hot Springs, Arkansas 71901-9017 USA

([phone]

www.smithsedge.com

DREI JAHRE BESCHRANKTE GARANTIE

MODELL 50066

GEWÄHRLEISTUNG

1700 Sleepy Valley Rd. Hot Springs, Arkansas 71901-9017 USA

MODELL 50066

REGISTRIERUNGSKARTE

Hier abtrennen

Smith's®, The Edge Experts®, Precision Machined Edge™, and Gourmet Edge™ Technology are registrations and trademarks of Smith Abrasives, Inc.

CAUTION: Read Owner's Manual Before Using This Sharpener.

This is a listed appliance. It is intended for household use only. When using electrical appliances, the following basic safety precautions should always be followed:

1. Do not use appliance for other than intended use.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Unplug from outlet when not in use or when cleaning.
5. Switch off the appliance before changing accessories or approaching parts which move in use.
6. The use of attachments not recommended or sold by the manufacturer may cause fire, electrical shock or injury.
7. Do not use outdoors.
8. This sharpener is designed to sharpen knives. Do not try to sharpen any other type of blade on this machine.
9. Do not attempt to sharpen knife or tool edges that do not fit freely into the blade guide slots.
10. Do not use with lubricants, water or honing oil.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid hazard.

Smith's® Model 50066 - Diamond Edge Electric Knife & Scissors Sharpener with Gourmet Edge™ Technology

Smith's, a world leader in innovative sharpening, is proud to introduce an electric knife sharpener with Gourmet Edge™ Technology featuring Interlocking Diamond Wheels that produce a commercial quality edge in combination with manual sharpening elements. With this one product, you can easily sharpen extremely dull blades, maintain razor sharp edges on both straight and serrated blades, and sharpen common household scissors.

Your Diamond Edge Electric Knife and Scissors Sharper will sharpen straight edge knives of alloy, carbon, or steel in the electric sharpening slot. It is designed to sharpen your finest cutlery and other common kitchen knives. Do not attempt to sharpen any blade that does not fit freely into the electric sharpening slot. Listed below are the unique features of your Diamond Edge Electric Knife and Scissors Sharper.

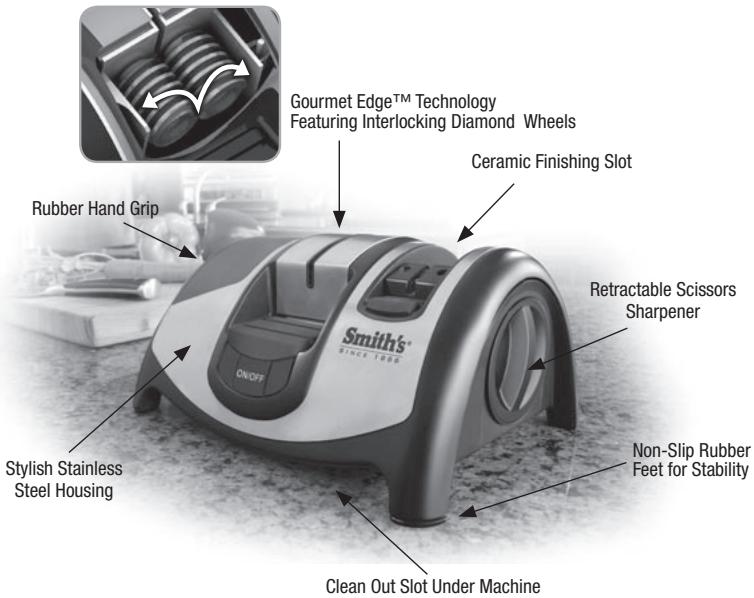

Gourmet Edge™ Technology Featuring Interlocking Diamond Wheels

Unlike other electric sharpeners that only sharpen one side of the blade at a time, Smith's patented Gourmet Edge™ Technology features Interlocking Diamond Wheels that deliver fast and precise sharpening of both sides of your blade at the same time with each pass through the sharpening slots.

Smith's is proud to be the first manufacturer to offer the retail consumer a quality electric knife sharpener that operates under the same principles and uses the same technology as a high-tech commercial grade sharpener.

The sharpening wheels used in your Diamond Edge Electric Knife and Scissors Sharperer are coated with "micron-sized" monocrystalline diamonds. Our wheels are manufactured in the United States according to strict tolerances in order to ensure the same high quality and performance of each and every wheel that we use. This protects your blade from damage or de-tempering when using this sharpener.

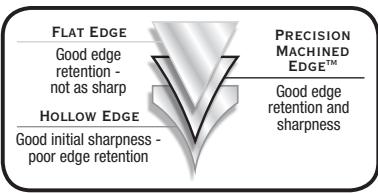

The Interlocking wheels produce a Precision Machined Edge™, which offers the perfect combination of excellent edge retention, edge performance, and sharpness.

NOTE - Diamond Break-In Period - The initial aggressive cutting speed of the Diamond Sharpening Wheels will slow with use. At the same time, the abrasive finish will improve. Do not be confused by this break in process because it is normal and should be expected. The diamond wheels are breaking in, NOT wearing out.

Ceramic Finishing Slot/Serrated Blade Sharpener -

Triangular shaped, extra-fine ceramic stones put the final, finished edge on your blade. Smith's recommends that you always use the ceramic stones for final edge honing each time after you finish sharpening with the interlocking diamond wheels.

Because of their unique triangular shape, these crossed ceramic stones will properly sharpen serrated blades without damaging the serrations. The special shape of the stone follows the shape of the serrations and ensures proper and consistent sharpening for all types of serrations.

You should also use the ceramic finishing slot for a quick touch up of already sharp knives. Again, just a few quick strokes is all it takes.

Pull-2-Lock Scissors Sharpener -

Smith's patented scissors sharpener sharpens both sides of your scissors at the same time on both left and right-handed scissors. The "floating" ceramic rod adjusts to the proper sharpening angle for your scissors. Usually, three or four strokes are all it takes to keep your scissors cutting sharp.

Magnetic Collection Strip -

A magnetic collection strip located in the bottom of the sharpener collects the metal filings that are generated during the sharpening process for safe and easy disposal.

OPERATING INSTRUCTIONS

Read all IMPORTANT SAFEGUARDS and OPERATING INSTRUCTIONS thoroughly before using this product.

CAUTION:

Always sharpen your knife blade from the heel to the tip of the blade, never back and forth.
- Never insert the tip of the knife blade into the sharpening slot first, or push your knife blade through the sharpening slot. This could damage the knife sharpener and/or your knife.
- In order to get the best results and to reduce excessive diamond wheel wear, it is important that you keep the proper orientation of the knife blade to the wheels. Always keep the knife blade parallel to the counter top, so that the blade contacts both diamond wheels equally. It should be straight up and down in the center of the sharpening slot at all times. Hold your knife securely but comfortably in your hand and use light downward pressure to contact the wheels.
- Due to some handle designs, you may not be able to sharpen the entire length of the blade using the diamond sharpening wheels. In these limited cases, Smith's recommends using the manual sharpening slot to sharpen these small areas of your blade.

Sharpening Straight Edge Blades

Step 1
Insert blade and pull through slot from heel to tip

Step 2
Lift knife handle at end to sharpen tip

Step 3
Pull through finishing slot
Repeat process until sharp.

Sharpening Serrated Blades

The characteristic scallops of a serrated blade are usually only ground on one side of the knife blade. For this reason, it is not recommended that serrated blades be sharpened using the Interlocking Diamond Wheels in the electric sharpening slot. These wheels are designed to sharpen both sides of any blade at the same time. For proper sharpening of your serrated blade, Smith's strongly recommends manual sharpening in the ceramic finishing slot as the preferred way to lightly hone a serrated edge. The manual sharpening slot has triangular shaped ceramic stones that are designed to follow the shape of your serrations and ensure proper and consistent sharpening for all types of serrations.

Step 1

Insert blade and pull through slot from heel to tip

Step 2

Lift knife handle at end to sharpen tip

Repeat process until sharp.

Sharpening Scissors

Step 1
Pull out until it locks into place

Step 2
Rotate for right or left-handed scissors

Step 3
Open scissors and insert into the sharpener

Step 4
Close scissors with light pressure and pull (or push) scissors through sharpener

Repeat process until sharp.

SHARPENER MAINTENANCE AND CARE GUIDE

Follow these easy tips and instructions to keep your Diamond Edge sharpener in prime condition for years to come:

DO's

• Read the instruction manual thoroughly before using the sharpener.
• Clean all dirt and food from knives before sharpening.
• Always hold knife parallel to the tabletop so the knife contacts both wheels equally.
• Always pull the knife blade through the wheels, never push your knife blade into the sharpening wheels.
• Use light downward pressure to establish contact with the wheels.
• Use the Ceramic Finishing Slot for finishing or a light touch up of already sharp knives.
• Unplug sharpener when not in use and during cleaning.

DON'Ts

• Never use lubricants on the wheels.
• This sharpener is designed to sharpen knives and scissors. Do not try to sharpen any other types of blades on this sharpener.
• Never insert the tip of the knife into the wheels or damage to the knife will occur.
• Never use the sharpener if cord is damaged.
• Do not use excessive force when sharpening your knife or scissors.

TROUBLE SHOOTING GUIDE

Symptom: Sharpener stops running while in use.

Cause: Sharpener has a built in motor thermostat as a safety feature. It protects sharpener from overheating if left on accidentally for a long period or is being used improperly.

Solution: If the thermostat shuts down the motor, unplug the sharpener and wait about one hour for the motor to cool down, and the sharpener will restart. If motor still will not re-start, return sharpener to place of purchase.

Symptom: Interlocking Diamond Wheels stop removing metal.

Cause: Diamond Break-In Period - The initial aggressive cutting speed of the Diamond Sharpening Wheels will slow with use. At the same time, the abrasive finish will improve. Do not be confused by this break in process because it is normal and should be expected. The diamond wheels are breaking in, NOT wearing out. If after extended periods of use you feel like the diamond coated wheels have completely lost their aggressive cutting ability, you can replace the diamond wheels.

Solution: For replacement wheels, see "Replacement of Interlocking Diamond Wheels" section in this manual.

Symptom: Ceramic stones stop sharpening.

Cause: The ceramic stones will lose their sharpening ability over time, thus reducing their effectiveness.

Solution: Ceramic stones are reversible and can be cleaned. Clean and reverse stones as shown in Owner's Manual to restore original sharpening capabilities. See "Reversing, Cleaning, and Replacement of Triangular Shaped Ceramic Stnoes" section in this manual.

Symptom: The sharpener will not start when initially plugged into electrical socket.

Cause: Sharpener or electrical cord could be damaged or malfunctioning.

Solution: Return your sharpener and receipt to the place of purchase for replacement.

Maintenance

• Do not use any lubricant or water on the abrasive wheels
• Periodically, the clean out door on the bottom of the sharpener should be opened and cleaned.

Replacement of the Interlocking Diamond Wheels

To replace the diamond sharpening wheels, you must return your Diamond Edge Electric Knife & Scissors Sharper to Smith's. Please contact our Customer Service Department at ([phone], or visit our website, www.smithsedge.com, for return shipping information. PLEASE ALLOW 3-4 WEEKS FOR DIAMOND WHEEL REPLACEMENT.

Reversing, Cleaning, and Replacement of Triangular Shaped Ceramic Stones

The module that holds the manual sharpening materials can easily be removed from the top of the machine (Fig 1) and opened so that the ceramic stones can be reversed, cleaned, and/or replaced.

The white ceramic darkens with use as the metal dust collects on the working corners of the triangular stones, thus decreasing their sharpening capabilities. The ceramic stones can be removed and rotated to expose an unused section of ceramic or cleaned to refresh their abrasive quality (Fig 2.). Use a small, nylon brush to scrub the surface of the ceramic stones with kitchen cleansing powder and water. After all possible working surfaces of the ceramic stones have been well used and cleaning the stones does not increase their effectiveness, you should replace the stones.

Fig.1

Fig. 2

Warranty Service

In the event service or warranty work is needed on your Diamond Edge Electric Knife & Scissors Sharpener, please contact Customer Service at the address or phone number listed below for a return authorization.

All returns must be accompanied by name, current shipping address, telephone number or e-mail address, and a brief description of the problem or damage.

Send to:

Smith's

CS Dept. 50066

1700 Sleepy Valley Road

Hot Springs, Arkansas 71901-9017 USA

(+1)501321 - 2244

www.smithsedge.com

THREE YEAR LIMITED USE

MODEL 50066

WARRANTY

This Smith's sharpener is guaranteed against defective material or workmanship for a period of three (3) full years from the date of purchase if the product is used for non-industrial or non-commercial purposes only. Smith's or its distributors will repair or replace, at our option, any product or part that is defective in material or workmanship without charge if the product is returned to us within the three (3) year warranty period. The limited warranty DOES NOT cover replacement of diamond wheels or ceramic stones necessitated by use of the product or product damage resulting from misuse. For warranty repairs, return the complete product, postage prepaid, directly to the address shown below. Be sure to include a copy of your sales slip to establish warranty eligibility.

ALL IMPLIED WARRANTYES, INCLUDING IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY LIMITED TO THE PERIOD OF THREE (3) YEARS FROM THE DATE OF PURCHASE. SMITH'S AND ITS DISTRIBUTORS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from country to country.

THIS WARRANTY APPLIES ONLY TO NON-INDUSTRIAL OR NON-COMMERICAL USE. KEEP ORIGINAL RECEIPT AS PROOF OF PURCHASE FOR WARRANTY PURPOSES.

For warranty registration, complete the owner registration card on the following page, detach, and mail to:

Smith's

1700 Sleepy Valley Rd. Hot Springs, Arkansas 71901-9017 USA

OWNER REGISTRATION CARD MODEL 50066
Detach here
Owner Registration :

Name	Phone # (＿)
Address
Postal Code	City	Country
E-mail	Date of Purchase	Amount Paid $
Store Name
Store Address
Postal Code	City	Country

1700 Sleepy Valley Road • Hot Springs, Arkansas 71901-9017 USA
Phone [phone] • Fax [phone]

WWW.SMITHSEDGE.COM

PATENTS - US Patent # 6101898 Other Patents Pending BREVETS - Brevet US no 6101898 Autres brevets en instance PATENTES - Patente de Estados Unidos #6101898 Otras patentes esta pendentes PATENTE - US Patent 6101898 Weitere Patente sind angemeldet BREVETTI - Brevetto USA n. 6101898 Altri brevetti in corso di approvazione

Smith's Model # 50066 • Made in PRC
Modèle Smith no 50066 • Fabrique en RPC
Modelo de Smith's #50066 • Hecho en RPC
Smith's Modelln. 50066 • Hergestellt in der VRC
Modello Smith's n. 50066 • Prodotto nella RPC

Smith's, The Edge Experts, Precision Machined Edge™, and Gourmet Edge™ Technology are registrations and trademarks of Smith Abrasives, Inc.
Smith's, The Edge Experts, Precision Machined Edge™, et Gourmet Edge™ Technology font l'objet de dépôts légaux et de marques de commerce de Smith Abrasives, Inc.
La technología Smith's, The Edge Experts, Precision Machined Edge™, y Gourmet Edge™ son registros y MARCAS registRADAS de Smith Abrasive, Inc.
Smith's, The Edge Experts, Precision Machined Edge™ und Gourmet Edge™ Technology sind Marken und eingetragene Marken von Smith Abrasives, Inc.
Smith's, The Edge Experts, Precision Machined Edge™, e Gourmet Edge™ Technology sono marchi registrati e commerciali di Smith Abrasives, Inc.

DIAMOND EDGE ELECTRIC KNIFE & SCISSORS SHARPENER

Affuteur diamant electrique pour couteaux et ciseaux
Afilador electrico de cuchillos y tijeras con borde de diamante
Diamond Edge elektrischer Messer- und Scherenschärfer
Affilatore elettrico diamantato per coltelli e forbici

MANUEL DE L'UTILISATEUR

IMPORTANT MESURES DE PROTECTION

1700 Sleepy Valley Road

Hot Springs, Arkansas 71901-9017 USA

([phone]

www.smithsedge.com

GARANTIE LIMITÉE DE TROIS ANS D'UTILISATION

MODELE 50066

GARANTIE

1700 Sleepy Valley Rd. Hot Springs, Arkansas 71901-9017 USA

Other Patents Pending

BREVETS - Brevet US no 6101898

Smith's, The Edge Experts, Precision Machined Edge™, and Gourmet Edge™ Technology are registrations and trademarks of Smith Abrasives, Inc.

Smith's®, The Edge Experts®, Precision Machined Edge ™,et Gourmet Edge ™ Technology font

1700 Sleepy Valley Road

Hot Springs, Arkansas 71901-9017 USA

(+1)501321 - 2244

www.smithsedge.com

DRIE JAAR BEPERKTE GARANTIE

MODEL 50066

WAARBORG

1700 Sleepy Valley Rd. Hot Springs, Arkansas 71901-9017 USA

Hier afscheuren

REGISTRATIEKAART MODEL 50066

Other Patents Pending

BREVETS - Brevet US no 6101898

Smith's, The Edge Experts, Precision Machined Edge™, and Gourmet Edge™ Technology are registrations and trademarks of Smith Abrasives, Inc.

Smith's®, The Edge Experts®, Precision Machined Edge™,et Gourmet Edge™ Technology font

Smith's®, The Edge Experts®, Precision Machined Edge™ i Gourmet Edge™ Technology

to marki i zarejestrowane marki firmy Smith Abrasives, Inc.

Smith's®, The Edge Experts®, Precision Machined Edge™, e Gourmet Edge™

PRAWIDŁOWE POSTEPOWANIE

1700 Sleepy Valley Road

Hot Springs, Arkansas 71901-9017 USA

(+1)501321 - 2244

www.smithsedge.com

TRZY LATA OGRANICZONEJ GWARANCJI

MODEL 50066

GWARANCJA

1700 Sleepy Valley Rd. Hot Springs, Arkansas 71901-9017 USA

Tutajodciac

KARTA REJESTRACYJNA MODEL 50066
