Product Type	Turbo Force High Velocity Fan
Model	HT-8002
Brand	KAZ
Supply Voltage	120 V AC, 60 Hz
Plug	Polarized
Speeds	3 (High, Medium, Low)
Oscillation	Yes (on select models)
Adjustable Tilt Angle	Yes
Wall Mountable	Possible (HT-800, HT-900, HFT-114B/HFT-114BC and HFT-311B/HFT-311BC series)
Concealed Carry Handle	Yes
Materials	Plastic, metal grille
Cleaning and Maintenance	Soft cloth, vacuum cleaner, cotton swab; do not immerse in water
Warranty	1 year limited
Customer Service	1-800-477-0457 (toll-free), [e-mail]
Intended Use	Household use only
Dimensions (approximate)	Approximately 45 cm grille diameter
Weight (approximate)	Approximately 3.5 kg
Certifications	Complies with safety standards (polarized plug, warnings)

Frequently Asked Questions - HT-8002 KAZ

How to clean the HT-8002 fan?

Turn off and unplug the fan. Use a soft cloth, vacuum cleaner, or cotton swab to gently wipe. For the grilles, use a pipe cleaner or compressed air. Never immerse the appliance in water or use solvents.

Can the fan be mounted on a wall?

Yes, for models from the HT-800, HT-900, HFT-114B/HFT-114BC and HFT-311B/HFT-311BC series. Attach two screws (not included) into a wall stud, leaving about 10 mm protruding, then hang the fan. Avoid oscillation in wall mode for the HFT-114B/HFT-114BC series.

How to activate oscillation?

On models with oscillation (HFT-114B and HFT-314 series), press the oscillation button located under the fan head to activate or deactivate it.

Can I adjust the fan speed?

Yes, turn the speed control knob to one of three positions: High (III), Medium (II) or Low (I). On some models, a child safety switch is present: press and turn.

What to do if the plug does not insert fully into the outlet?

The plug is polarized. Try reversing it. If it still does not insert, contact a qualified electrician. Do not attempt to bypass this safety feature.

How to disassemble the front grille for thorough cleaning?

Turn off and unplug the fan. Place it face down on a table. Unscrew the screws located at the back of the head with a Phillips screwdriver. The screws remain attached to the housing to prevent loss. Lift the rear housing to separate the front grille.

What to do in case of malfunction?

First contact KAZ customer service at 1-800-477-0457 or visit www.kaz.com. Do not return the appliance to the store. Do not open the motor housing yourself; this will void the warranty.

Can this fan be used outdoors?

No, this fan is designed for household use only and should not be used outdoors, or in a commercial or industrial environment.

What is the warranty for the HT-8002 fan?

Kaz offers a 1-year limited warranty against defects in materials and workmanship. It does not cover damage due to misuse or unauthorized repairs. For repair, return the product with proof of purchase and a fee of $10 US or $15.50 CAN.

How can I reduce my electricity bill with this fan?

Use the fan to circulate air: in summer, create a breeze from the window or air conditioner; in winter, place it on the floor at low speed to push warm air from the ceiling down into the room. This allows you to set heating or cooling systems to a more economical temperature.

USER MANUAL HT-8002 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS FAN

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Use this fan only as described in this manual. Other use not recommended, may cause fire, electric shock or injury to persons.
2. This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
3. To protect against electric shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.
4. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
5. Close supervision is necessary when any appliance is used by or near children.
6. Turn the fan to the OFF position and unplug the fan from the outlet when not in use, when moving the fan from one location to another and before cleaning.

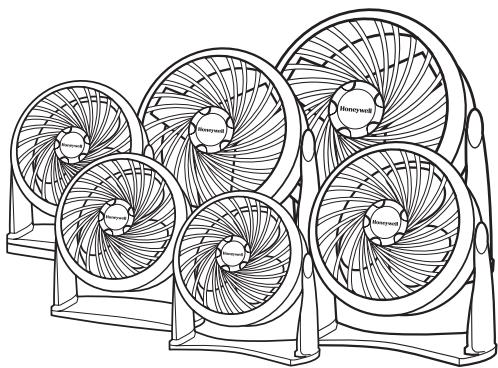

TURBO FORCE®/TECH FORCE HIGH VELOCITY CIRCULATORS

HT-800 Series, HT-900 Series, HT-900C Series, HFT-114B Series, HFT-311B Series, HFT-314 Series, and HT-9004C

HFT-3108B/HFT-3108BC

Combo Package of HFT-311B/HFT-311BC and HT-800/HT-809 Fans

HFT-3112B

Twin Package of 2 HFT-311B Series Fans

HFT-3114B/HFT-3114BC

Combo Package of HFT-311B/HFT-311BC and HFT-114B/HFT-114BC Fans

HFT-8108B

Combo Package of HT-800/HT-809 and HF-810/HF-819 Fans

HT-8002/HT-8002C

Twin Package of 2 HT-800/HT-809 Fans

1. To disconnect the fan, first turn control to the OFF position, grip the plug and pull it from the wall outlet. Never pull by the cord.
2. Do not operate the fan in the presence of explosive and/or flammable fumes.
3. Do not place the fan or any parts near an open flame, cooking or other heating appliance.
4. Do not operate the fan with a damaged cord or plug or if the product malfunctions, is dropped or damaged in any manner (see warranty).
5. Avoid contact with moving fan parts.
6. The use of attachments not recommended by the manufacturer may be hazardous.
7. Place the fan on a dry level surface.
8. Do not hang or mount fan on ceiling. Do not operate HFT-114B/HFT-114BC series in oscillation mode when wall-mounted. The HF-810/HF-819 series cannot be wall mounted.
9. Do not operate if the fan housing is removed or damaged.
10. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control Device.

INTRODUCTION

The Turbo Force® High Velocity Air Circulator Fans are aerodynamically designed to give you the versatility of changing this fan's angular direction simply by adjusting the fan to ANY desired angular output (Fig.1). Upon using this fan, you will feel a strong and powerful air stream that will quickly move air in order to cool an area rapidly and efficiently.

FOR ENERGY SAVINGS ALL YEAR

Honeywell Air Circulator Fans can help save energy and can lower monthly utility bills all year round. Our air circulators increase distribution of cooler air from your air conditioner or warmer air from your heating system creating a vortex of air flow for increased comfort. Increased air flow allows the air conditioning and heating systems to be used at lower settings to help save you money.

Lower Your Energy Bills!

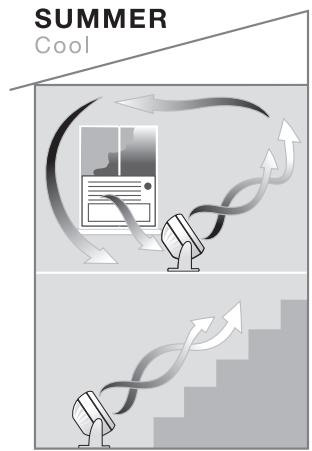

In the summer:

Circulate cool air by using with window or central air conditioning.

Circulate cool air upstairs.

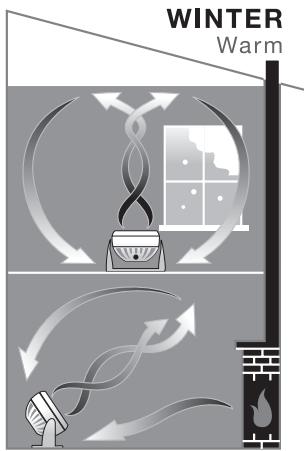

In the winter:

Circulate warm air. Position your air circulator in an open location for upward air movement. Run it on a low setting to move the hotter air from the ceiling and circulate the warmer air throughout the room.

Increase Heating Source Efficiency: Use with other heat sources, such as wood stoves, baseboard heaters, and or vents to help circulate the warm air throughout the room.

Box, packaging materials and all plastic parts are recyclable.

Contact your local recycler for more details.

OPERATION

• Be sure the fan is in the OFF position.
• Place your fan on a dry, level surface.
• Plug the power cord into a polarized 120 volt AC wall outlet.
• To operate, turn the control knob to the desired fan speed: HIGH (III), MEDIUM (II) or LOW (I) (Fig. 2).

NOTE: The HF-810/HF-819 Series fans are equipped with a child-resistant speed control.

To operate, push in and turn the child-resistant switch to the desired speed (Fig. 2A).

• Adjust the fan to the desired angular air output direction.
• To start or stop the oscillation feature (HFT-114B Series and HFT-314 Series), press the OSCILLATE button on the base of the fan (Fig. 3).
• To move the fan, turn the fan OFF and pick it up by the concealed handle that is located on the outside rim of the fan (Fig. 4).

WALL MOUNTING (HT-800, HT-900, HFT-114B/HFT-114BC Series and HFT-311B/HFT-311BC Series Only)

• Locate and mark the position on the wall where the fan will be mounted (preferably at a wall stud).
• Insert two screws into the wall stud. (Screws are not included and can be purchased at a hardware store)
• Leave approximately 3/8 of the screws (bolts) exposed.
• Line up the openings on the base of the fan with the screws (bolts) and hang the fan on the wall.

NOTE: Do not operate HFT-114B/HFT-114BC Series in oscillation mode when the fan is wall-mounted. The HF-810/HF-819 Series and HFF-561U Series cannot be wall-mounted.

CLEANING AND STORAGE

• Turn the fan off and unplug it before cleaning.
• Use only a soft cloth or cotton swab to gently wipe the fan clean.
• To clean between the grilles, we recommend using a pipe cleaner, vacuum cleaner, flexible dustwand or compressed air to gently remove the dust.
• DO NOT immerse the fan in water and never allow water to drip into the motor housing.
• DO NOT use gasoline, paint thinner or other chemicals to clean the fan.

REMOVAL OF THE FRONT GRILLE FOR CLEANING

DO NOT remove the fan grille unless the fan's power is turned off and the power cord is unplugged.

• Gently lay the fan face down on a table (Fig. 5).
• Remove the front grille by unscrewing the screws located on the back of the fan using a standard phillips head screw driver () .

NOTE: The screws will remain attached to the rear housing to ensure they are not lost. Do not try to force the removal of the screws

• Lift the rear housing by the handle to separate from the front grille.
• Re-assemble the fan by replacing the front grille and aligning the screw holes between the front grille and the fan body. Gently tighten the screws.
• For storage, clean the fan carefully as instructed. Store the fan in the original packaging or cover the product to protect it from dust.

Fig. 5

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY Void YOUR WARRANTY AND CAUSE DAMAGE TO THE FAN OR PERSONAL INJURY.

1 YEAR LIMITED WARRANTY

You should first read all instructions before attempting to use this product.

A. This 1 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

C. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number.

You must prepay shipping charges. We suggest having tracking or delivery confirmation. Send to:

In U.S.A.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz Canada Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Please go to www.kaz.com and register your product under the Customer Care Center and receive product information updates and new promotional offers.
