HP1000-9-3P - Heating pad KAZ - Free user manual and instructions

Product Type	Heating Pad / Heating Belt for Back
Brand	KAZ
Model	HP1000-9-3P
Dimensions (adjustable)	Up to 120 cm (47 in) waist circumference
Weight	Approximately 0.5 kg (estimated)
Power supply	120 V, 60 Hz, AC
Power consumption	Approximately 50 W (estimated)
Maximum temperature	Complies with UL standards, reached in less than 10 minutes
Heat settings	Multiple levels (control knob)
Auto shut-off	Yes, after 60 minutes of use
Shut-off indicator	Flashing red light
Therapy types	Dry heat and moist heat
Method for moist heat	Moisten one side of the pad (do not immerse)
Recommended uses	Back, shoulders, neck, hips, menstrual cramps, arthritis, muscles
Care and cleaning	Machine wash gentle cycle warm water, tumble dry low heat
Dry clean	Do not dry clean
Bleach	Do not use
Wring	Do not wring
Removable connector	Yes, with locking/unlocking system
Safety	Do not sit or lie on the pad; leave one side exposed to air
Material	Contains natural rubber latex (may cause allergies)
Warranty	5 years against defects in materials and workmanship
Customer service	1 800 477-0457 (7:30 AM-7:00 PM EST) / [e-mail]
Manufacturer	Kaz, Incorporated / Kaz Canada, Inc.

Frequently Asked Questions - HP1000-9-3P KAZ

Why did my heating pad turn off and the light is flashing?

This is normal: the auto shut-off feature turns off the power after 60 minutes of use. To turn it back on, set the control to Off then select the desired heat setting again.

How long does it take for the pad to heat up?

The pad reaches the highest heat level (High) in less than 10 minutes. The maximum temperature complies with UL safety standards.

The pad doesn't seem hot enough, what should I do?

Our pad is designed to reach the maximum temperature allowed by UL. Make sure you have selected the highest setting and that the pad is in good contact with the area to be treated.

Can I sit or lie on the heating pad?

No, this could damage the internal wires and cause burns. The pad must always have one side exposed to air for heat circulation.

The heating belt is too big for my waist, how do I adjust it?

Place the care label facing you, wrap the elastic belt around your waist and attach the belt end fastener to the pad (see figure 2 in the manual).

How to wash the heating pad?

First unplug the cord by pressing the connector locking tabs. Machine wash the pad in warm water gentle cycle, then tumble dry on medium heat. Do not leave the pad in the dryer. Do not plug in until dry.

Can I use the pad with moist heat?

Yes, unplug the pad, moisten one side with a spray bottle or sponge (do not immerse or wet the connector). Then follow the same steps as for dry heat.

What is the warranty on this product?

The heating pad is warranted for 5 years against defects in materials or workmanship. Shipping costs are the responsibility of the consumer.

Does the pad contain latex?

Yes, the heating belt contains natural rubber latex which may cause allergic reactions in some individuals.

Can I use the pad for other body parts besides the back?

Yes, the heating belt can also relieve shoulders, neck, hips and menstrual cramps. See figures 6A to 6D in the manual.

USER MANUAL HP1000-9-3P KAZ

Heating Pad Almondolla Elctrica Coussin Chauffant

CAUTION: The back heat wrap model contains natural rubber latex which may cause allergic reactions.

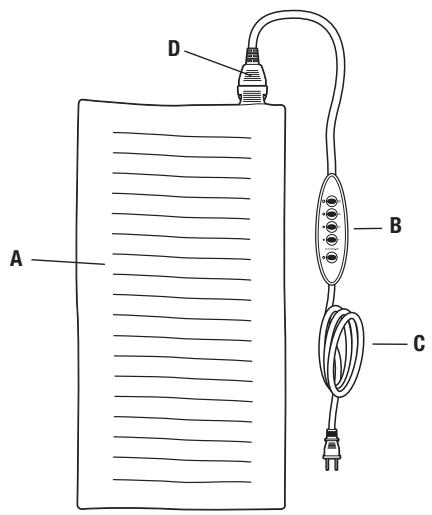

FULL AND KING SIZE HEATING PADS

ALMOHADILLAS CALENTADORAS REGULARES Y KING-ZICE COUSSINS CHAUFFANTS PLEINE DIMENSION ET GRAND FORMAT

2

BACK HEAT WRAP

CINTURON ELECTRICO PARA LA ESPALDA

CEINTURE CHAUFFANTE POUR LE DOS

IMPORTANT SAFETY INSTRUCTIONS

DO NOT DESTROY

DANGER: TO REDUCE THE RISK OF SEVERE BURNS, ELECTRIC SHOCK AND FIRE, THIS PRODUCT MUST BE USED IN ACCORDANCE WITH THE FOLLOWING INSTRUCTIONS.

1. READ ALL INSTRUCTIONS.
2. DO NOT USE WHILE SLEEPING.
3. DO NOT USE ON AN INFANT.
4. THIS PAD IS NOT TO BE USED ON OR BY AN INVALID, SLEEPING OR UNCONSCIOUS PERSON, OR A PERSON WITH POOR BLOOD CIRCULATION OR DIABETES UNLESS CAREFULLY ATTENDED.
5. DO NOT USE A HEATING PAD WHEN SYMPTOMS OF APPENDICITIS ARE PRESENT. CONSULT WITH YOUR PHYSICIAN.
6. DO NOT USE AREAS OF INSENSITIVE SKIN.
7. BURNS CAN OCCUR REGARDLESS OF CONTROL SETTING. CHECK SKIN UNDER PAD FREQUently.
8. DO NOT USE IN AN OXYGEN RICH ENVIRONMENT.
9. DO NOT USE PINS OR OTHER METALLIC MEANS TO FASTEN THIS PAD IN PLACE.
10. DO NOT SIT ON OR CRUSH PAD – AVOID SHARP FOLDS. ALWAYS PLACE PAD ON TOP OF AND NOT UNDER YOUR BODY. NEVER PLACE PAD BETWEEN YOURSELF AND CHAIR, SOFA, BED OR PILLOW.
11. NEVER PULL THIS PAD BY THE SUPPLY CORD. DO NOT USE THE CORD AS A HANDLE. UNPLUG WHEN NOT IN USE.
12. DO NOT USE OUTDOORS.
13. DO NOT USE PAD WITH LINIMENT, SALVE OR OINTMENT PREPARATIONS THAT CONTAIN HEAT-PRODUCING INGREDIENTS. SKIN BURNS COULD RESULT.
14. CAREFULLY EXAMINE PAD BEFORE EACH USE. DISCARD IF PAD SHOWS ANY SIGN OF DETERIORATION.
15. WHEN NOT IN USE, STORE THE PAD IN THIS BOX, IN A COOL, DRY PLACE.
16. DO NOT IMMERSE CONTROLLER IN WATER, PLACE UNDER RUNNING WATER OR PUT IN WASHING MACHINE OR DRYER.
17. SAVE THESE INSTRUCTIONS.

THIS APPLIANCE HAS A POLARIZED PLUG (ONE BLADE IS WIDER THAN THE OTHER). AS A SAFETY FEATURE, THIS PLUG FITS A POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG DOES NOT FIT FULLY IN THE OUTLET, REVERSE THE PLUG. IF IT STILL DOES NOT FIT, CONTACT A QUALIFIED ELECTRICIAN. DO NOT ATTEMPT TO DEFEAT THIS SAFETY FEATURE.

OPERATING INSTRUCTIONS

Heat therapy relaxes muscles and relieves joint pain and soreness. By increasing blood flow to the injury area, heat therapy can help accelerate healing. Finally, heat can effectively warm and loosen stiff muscles before exercise.

Ultra's advanced moist or dry technology delivers the best heat control and timed-release moisture technology for physician recommended moist heat. Simply dampen the pad for moist heat. Moist heat provides deeper heat penetration than dry heat alone.

Kaz Ultra products are also UltraSoft and easy to clean – just disconnect the controller and machine wash and dry the entire pad.

Ultra therapy products provide relief from back, menstrual, arthritis and muscle pain. Please note that the pad must be placed on the injured area, but not under your body, for safe operation. See Figures 5A-D.

The Kaz adjustable back heat wrap is designed to contour to your back for therapy. One size fits all*. The heat wrap can also be used for menstrual pain, shoulder and neck pain and hip pain. See Figures 6A-D.

• Fits up to a 47 waist.

IMPORTANT

Please do not return this product to the store. Contact Kaz Consumer Relations – we can help you.

Call: 1-800-477-0457 weekdays 7:30am - 7:00pm EST

Email: [e-mail]

Write:

Kaz, Incorporated
Consumer Relations Dept.
250 Turnpike Rd.
Southborough, MA 01772 USA

Kaz Canada, Incorporated 510 Bronte Street South Milton, ON L9T 2X6 CANADA

FULL AND KING SIZE HEATING PADS

5A-Back

5B - Menstrual

5C - Shoulder

5D-Leg

BACK HEAT WRAP

6A-Back

6B - Menstrual

6C - Shoulder and Neck

6D - Hip

Dry Heat Therapy

1. Plug the power cord into a 120 volt AC electrical outlet.
2. Set the controller to desired setting. See Figure 3.
3. Place heating pad on the area needing heat. See Figures 5A-D or 6A-D.
4. Press the OFF Button and unplug power cord when finished.

Moist Heat Therapy

1. Unplug pad from wall outlet.
2. dampen one side of the heating pad with a spray bottle, sponge or cloth.

a. DO NOT immerse heating pad in water or place under running water.

b. DO NOT spray water on the connector (See Figure 1 and 2).

1. Follow Dry Heat Therapy steps 1 and 2 above.
2. Place dampened side of heating pad on the area needing heat. See Figures 5A-D or 6A-D.
3. Press the OFF Button and unplug power cord when finished.

Automatic Shut-off

Your heating pad is equipped with a special safety feature designed to shut the heating pad off after 60 minutes of use. When the automatic shut-off feature turns the pad off, the red indicator light on the controller flashes slowly to let you know the pad has shut off. To restart the pad, just reselect the desired heat setting. See Figure 3.

CARE AND CLEANING

DO NOT DRY CLEAN! DO NOT USE BLEACH! DO NOT USE WRINGER!

1. Set controller to OFF. Unplug pad from wall outlet.
2. Squeeze the locking clips on connector and disconnect power cord. See Figure 4. DO NOT pull by the cord.
3. Machine wash pad in warm water on gentle cycle; tumble dry on medium heat. Remove promptly from the dryer. Or, hand wash in warm water and line dry.
4. DO NOT plug in pad until it is dry.

COMMONLY ASKED QUESTIONS

Q: I was using my heating pad and now it isn't producing heat and the controller is flashing.
A: This heating pad is equipped with an automatic shut-off safety feature to shut itself off after 60 minutes. To restart the pad, just reselect your desired heat setting. See Figure 3.
Q: How fast should my heating pad heat-up?
A: Your heating pad is specially designed for the fastest heat-up allowed by Underwriters Laboratories (UL), the independent testing lab that the electronics industry relies on for safety testing. Your heating pad should reach the high temperature setting in less than 10 minutes.
Q: My heating pad doesn't feel hot enough?
A: Your heating pad is specially designed for the highest heat allowed by Underwriters Laboratories (UL), the independent testing lab that the electronics industry relies on for safety testing.
Q: How come I can't lay or sit on my heating pad?
A: Laying or sitting on the pad could damage the wires in the pad. It's also very important to avoid folding or creasing the pad. Additionally, the pad needs to have one side exposed to the open air at all times so it can breathe for safe operation. Using the pad any other way could cause damage to the pad or cause severe burns.
Q: I have a small waist the back heat wrap doesn't fit.
A: With the washing label facing your body, wrap the elastic strap around your waist and attach the fastening location on the tip of elastic strap to the heating pad. See Figure 2, callouts A, F and G.

WARRANTY

This heating pad is warranted against defective material or workmanship from the date of purchase. The length of the warranty is 5 years.

Any defective part will be repaired or replaced at no charge as long as it has not been repaired or tampered with and was used according to these printed instructions. Any charges incurred to ship the product back for replacement are the sole responsibility of the consumer. This warranty gives you specific legal rights as well as other rights, which vary from state to state.

CONTACT US

If you experience unsatisfactory operation or have any questions or comments, call the Kaz Consumer Relations Department at 800-477-0457 or write to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772 USA

Kaz Canada, Inc.

510 Bronte Street South

Milton, ON L9T 2X6 Canada

You can also email Kaz at [e-mail].

Please be sure to include the model number of the unit, as well as a detailed description of how the pad is operating.

Do not return product to store.

ENGLISH

IMPORTANT INSTRUCCIONES DE SEGURIDAD

NO DESTRUIR

PELIGRO: PARA EVITAR QUEMADURAS GRAVES, CHOQUES ELECTRICOS E INCENDIOS, DEBE USAR ESTE PRODUCTO RESPETANDO LAS SIGUIENTES INSTRUCCIONES.

1. LEA TODAS LAS IBSTRUCCIONES.
2. NO UTILICE LA ALMOPHADILLA MIENTRAS DUERME.
3. NO APLIQUE LA ALMOHADILLA A UN BEBÉ.
4. LA ALMOHADILLA NO DEBE SER APLICADA A PERSONAS DISCAPACIDADAS, DORMIDAS, EN ESTADO INCONSCIENTE O QUE PADECEN DE MALA CIRCULACION O DIABETES, AL MENOS QUE SEAN SUPERVISADAS CUIDADOSAMENTE.
5. NO UTILICE LA ALMOHADILLA ELECTRICA CUANDO HAYAN SINTOMAS DE UNA APENDICITIS. CONSULTE AL MEDICO.
6. NO UTILICE LA ALMOHADILLA EN PARTES DEL CUERPO DONDE LA PIEL CAREZCA DE SENSIBILIDAD.
7. PUEDEN PRODUCIRSE QUEMADURAS SEA CUAL FUERE LA TEMPERATURA SELECTIONADA. REVISE CON FRECUENCIA LA PIEL QUE SE ENCUESTRA DEBAJO DE LA ALMOHADILLA.
8. NO UTILICE LA ALMOHADILLA EN UN AMBIENTE DONDE ES ABUNDANTE EL OXIGENO.
9. NO UTILICE ALFILERES U OTROS OBJECTOS METÁLICOS PARA SUJETAR LA ALMOHADILLA.
10. NO SE SIENTESOBRELA ALMOHADILLA NI LA APLASTE. NO LA DOBLE EN DOS. SIempre COLOQUE LA ALMOHADILLA SOBRE EL CUERPO, NUNCA DEBAJO DE EL. NUNCACOLOQUE LA ALMOHADILLA ENTRE EL CUERPO Y UNA SILLA, UN SOFÁ, UNA CAMA O UNA ALMOHADA.
11. JAMAS TIRE DEL CABLE DE ELECTRICIDAD NI LO UTILICE PARA ASIR LA ALMOHADILLA. DESENCHUFE LA ALMOHADILLA CUANDO NO LA ESTÉ UTILIZANDO.
12. NO UTILICE LA ALMOHADILLA AL AIRE LIBRE.
13. NO UTILICE LA ALMOHADILLA CON LINIMENTOS BÁLSAMOS O UNGÜENTOS QUE CONTENGAN INGREDIENTES GENERADOS DE CALOR, YA QUE PUEDEN PRODUCIRSE QUEMADURAS EN LA PIEL.
14. COMPRUEBE CUIDADOSAMENTE LA ALMOHADILLA ANTES DE CADA USO. BOTELA SI PRESENTA LA MINIMA MUESTRA DE DETERIORO.
15. CUANDO NO LA ESTÉ UTILIZANDO, GUARDE LA ALMOHADILLA EN ESTA CAJA Y COLÓQUELA EN UN LUGAR FRESCO Y SECO.
16. NO DEBE SUMERGIR EL CONTROL EN EL AGUA, NI METERLO BAJO EL GRIFO, NI EN LA LAVADORA NI EN LA SECADORA.
17. CONSERVE ESTAS INSTRUCCIONES.

UTILICE UNICAMENTE EL DISPOSITIVO DE ALIMENTACION SUMINISTRADO CON LA ALMOHADILLA,DE LO CONTRARIO PUEDE DANAR LA ALMOHADILLA O PROVOCAR UNA SITUACION PELIGROSA.

Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772 USA

Kaz Canada, Inc.

510 Bronte Street South

Milton, ON L9T 2X6 CANADA

ALMOHADILLAS CALENTADORAS REGULARES Y KING-ZICE

5A - Espalda

5B - Dolores menstruales

5C - Hombre

5D - Pierna

CINTURON ELECTRICO PARA LA ESPALDA

6A - Espalda

6B - Dolores menstruales

Consumer Relations Dept.

250 Tumpike Rd.

Southborough, MA 01772 USA

Kaz Canada, Inc.

510 Bronte Street South

Milton, ON L9T 2X6 Canada

Tambien peutescribirnos por correaelectricona:[e-mail].

Consumer Relations Dept.

250 Turnpike Rd.

Southborough, MA 01772 USA

Kaz Canada, Incorporated 510 Bronte Street South

Milton, ON L9T 2X6 CANADA

COUSSINS CHAUFFANTS PLEINE DIMENSION ET GRAND FORMAT

5A - Dos

QUESTIONS FREQUEMMENT POSÉES

Consumer Relations Dept.

510 Bronte Street South

250 Tumpike Rd.

Milton, ON L9T 2X6 Canada

Southborough, MA 01772 USA

Manufacturing Quality Healthcare Products for Over 75 Years

© 2006 Kaz, Incorporated

www.kaz.com

Patent Pending

Made in China / Hecho en China/ Fabrique en Chine
