Product Type	Air Purifier
Brand	KAZ
Model	HFD-120
Filtration System	3 stages: washable pre-filter, permanent washable IFDMC filter, electronic ionizer
Main Filter Type	IFDMC (washable)
Oscillation	Vertical, can be turned on/off by button
Filter Indicator	Red LED light, resettable with a pen
Power Supply	Polarized plug (125 V AC), do not use with a speed controller
Power Consumption	Not specified
Dimensions (approx.)	Height: about 45 cm, width: about 25 cm, depth: about 20 cm
Weight (approx.)	About 3.5 kg
Noise Level	Not specified, quiet operation at low speed
Recommended Room Size	Medium-sized room, doors and windows closed
Continuous Operation	Recommended 24/7 for optimal filtration
IFDMC Filter Cleaning	Vacuum then wash with warm soapy water, dry completely before reassembly
Pre-filter Cleaning	Rinse with hot water, dry completely
Cleaning Frequency	Every 4 weeks or as needed based on dirt accumulation
Replacement Parts	Pre-filter (ref. T.3024) and IFDMC filter
Warranty	5 years (excluding filters)
Safety	Polarized plug, do not use with dimmer, do not cover openings, do not immerse
Ozone Production	No (ionizer without harmful ozone generation)
Customer Service	1 800 477-0457 (North America) or www.kaz.com

Frequently Asked Questions - HFD-120 KAZ

How do I clean the IFD^MC filter on my KAZ HFD-120?

Unplug the unit, remove the front grille then the filter. Vacuum both sides, then wash in warm water with a few drops of mild detergent. Rinse, shake off excess water, and let dry completely on a towel for several hours. Never reassemble a damp filter.

How often should I clean the filter?

It is recommended to clean the IFD^MC filter about every 4 weeks, or when the red light comes on. The pre-filter can be rinsed with hot water at the same interval.

How do I reset the filter indicator?

With the unit running, insert the tip of a ballpoint pen or paperclip into the hole next to the LED and press for about 5 seconds until the light turns off.

Can I use the air purifier in a bathroom or humid area?

No, avoid using it in humid rooms like bathrooms, laundry rooms, or near water to reduce the risk of electric shock.

Does the KAZ HFD-120 produce ozone?

No, unlike ozone generators, this unit uses an electronic ionizer that does not produce harmful amounts of ozone. The EPA considers it safe for household use.

How do I activate oscillation?

Press the oscillation button (marked O) to turn it on. Press again to stop. The oscillation is vertical to better distribute purified air.

What should I do if the red filter light stays on after cleaning?

Perform a reset as described above. If the light persists, check that the filter is dry and properly installed. Contact customer service if the issue continues.

What is the lifespan of the IFD^MC filter?

The IFD^MC filter is permanent and washable. Its lifespan depends on air quality and maintenance. Regular monthly cleaning can keep it for several years.

Can I order replacement filters?

Yes, you can order the washable pre-filter (ref. T.3024) and the IFD^MC filter on the website www.kaz.com or by calling 1 800 477-0457.

Can the unit run continuously 24/7?

Yes, it is designed for 24/7 operation to ensure continuous filtration. For maximum efficiency, use it in a room with doors and windows closed.

USER MANUAL HFD-120 KAZ

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS AIR PURIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read all instructions before operating the air purifier.
2. Place air purifier where it is not easily knocked over by persons in the household.
3. Always turn the air purifier controls to the OFF position and unplug from the wall outlet when not in use.
4. To disconnect the model HFD-120 series air purifier, press the Power button to turn the unit off, grip the plug and pull it from the wall outlet. Never pull by the cord.
5. Do not use any product with a damaged cord or plug or if product malfunctions, is dropped or damaged in any manner. Keep the cord away from heated surfaces.
6. Do not use air purifier outdoors.
7. Never use air purifier unless it is fully assembled.
8. Do not run power cord under carpets, and do not cover with throw rugs. Arrange cord such that it will not be tripped over.

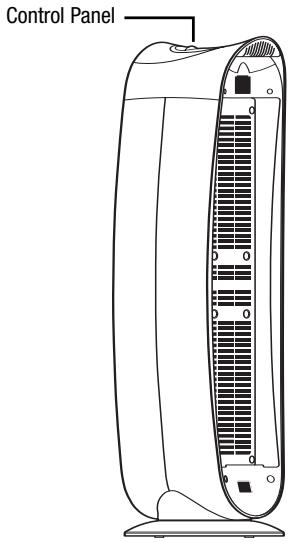

OSCILLATING IFD™ TOWER AIR PURIFIER

For Model Series HFD-120

1. Do not use air cleaner where combustible gases or vapors are present.
2. Do not expose the air purifier to rain, or use near water, in a bathroom, laundry area or other damp location.
3. The air purifier must be used in its upright position.
4. Do not allow foreign objects to enter ventilation or exhaust opening as this may cause electric shock or damage to the air purifier. Do not block air outlets or intakes.
5. Locate air purifier near the outlet and avoid using an extension cord.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
7. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
8. Do not sit, stand or place heavy objects on the air purifier.
9. Disconnect power supply before servicing.

WARNING: To Reduce The Risk of Fire or Electric Shock, Do Not Use This Air Purifier With Any Solid-State Speed Control Device.

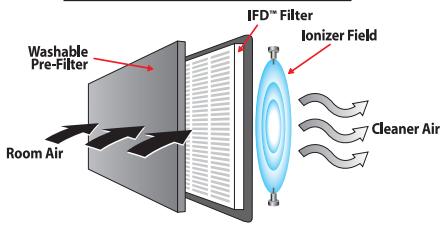

HOW YOUR AIR PURIFIER WORKS

This model air purifier incorporates a 3-stage cleaning system to help clean the air that passes through the filter in the unit (Fig. 1).

Stage 1: Washable Pre-Filter

Stage 2: Permanent Washable IFD™ Filter

Stage 3: Electronic lonizer

Fig.1 3-Stage Cleaning System

SET-UP

• Select a firm, level and flat location. For proper airflow, locate the unit at least 3 feet (1 M) from any wall or furniture.
• When operating, large volumes of air are drawn toward the air purifier. Surrounding areas should be cleaned and/or vacuumed frequently to prevent build-up of dust and other contaminants. This may also help prolong the life of the filter. If the unit is placed on a light colored carpet, a small mat or rug should be used underneath to prevent permanent staining. This is especially important in homes with contamination from smoking or fireplaces.

OPERATION

• Ensure the air purifier is plugged into a working electrical outlet.
• Press the power button ( ) once. The unit will start at medium speed for a few seconds and then automatically change to low speed (Fig. 2).
• Press the power button again to select a different cleaning level.

It is recommended you run your air purifier 24 hours a day to ensure continuous cleaning. Portable air purifiers are more effective in rooms where all doors and windows are closed.

ELECTRONIC FILTER CLEAN REMINDER

This model air purifier has an electronic filter check to remind you when to check and clean the washable IFD™ filter based on the air purifier's hours of use.

When the IFD™ filters need to be cleaned, the light will remain on until it is RESET. You may unplug the air cleaner without interrupting the filter check.

A red LED light will illuminate when it is time to clean the filter.

You should periodically check the filter. Depending on operating conditions, the filters should be cleaned at least once a month.

To RESET the Electronic Filter Check:

When the filter monitor light remains on, it is time to check/clean the IFD™ filters and reset the filter monitor, if needed. With the unit powered on, insert the tip of a ball-point pen or paperclip next to the LED filter check light and hold for approximately 5 seconds until the light turns off (Fig. 3). Depending upon your individual usage (environment and hours used), you may need to check and clean the filters more or less frequently. If the IFD™ filters are cleaned before the filter monitor light turns on, the filter monitor should be reset at the same time.

These cleaning intervals are intended as guidelines only. Performance of any filter media is dependent upon the concentration of contaminants going through the system. High concentrations of contaminants such as dust, pet dander and smoking will reduce the useful performance of the filter.

OSCILLATION FEATURE

To help circulate fresher, cleaner air through the room, this unit has an oscillation feature.

• To turn Oscillation on, simply press the Oscillation button ( ) (Fig. 4).
• To turn Oscillation Off, press the button again.

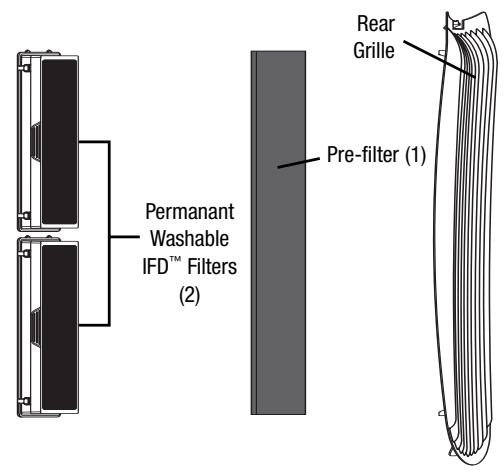

REMOVING THE FILTERS

The IFD™ filters are supplied within the air purifier.

• Turn-off and unplug the air purifier. While pressing on the notches along the rear grille, pull the grille towards you and remove it (See Fig. 5). Gently push along the edge of the filter frame and pull forward. Repeat for the second filter.
• Place back into the air purifier housing and snap filter grille into place.

CLEANING THE IFD™ FILTERS

To clean the IFD™ filter:

• After removing the IFD™ Filter from the air purifier, lay the filter on a flat surface and run a vacuum cleaner with a nozzle or brush attachment along the filter to pick-up tiny particles. Repeat on both sides (Fig. 6).

If your IFD^TM filter appears to have dirt that has not been removed by tapping and vacuuming, please follow the steps below to wash the IFD^TM filter.

• Turn the power off and unplug the air purifier.
• Remove the IFD™ filter from the unit.
• Fill a sink with lukewarm water and add a few drops of mild dish soap.
• Gently swish the filter in the soap solution to clean.
• Soak the filter for 2-3 minutes. Do not leave for an extended period of time.
• Rinse the filter with clean tap water (Fig. 7).
• Shake the filter to remove any excess water.
• Place the filter with the honeycomb side down on a plush towel.
• Note that the filter may still be discolored even after washing. This is acceptable and will not affect performance.
• Allow the IFD™ filter to dry for a few hours or overnight.
• When the IFD^TM filter is completely dry, place back into the air purifier.

CAUTION:

• Never place a wet IFD^TM filter in your air purifier.
• The IFD™ Filter is NOT dishwasher safe. Do not place the IFD™ filter in a dishwasher or subject it to other extreme hot water conditions.
• Do not use any solvents, strong cleaning agents or flammable liquids to clean the IFD™ filter.

CLEANING THE PRE-FILTER

The particle pre-filter helps pick-up large airborne particles that enter the rear grille. This pre-filter can be removed and rinsed by hand under warm water (Fig. 8). Let the pre-filter dry completely before inserting it back into the unit.

CLEANING AND STORAGE

We recommend that you clean the air purifier at least once a month and before extended storage. Use only a dry cloth to wipe the external surfaces of the air purifier. DO NOT USE WATER, WAX POLISH, OR ANY CHEMICAL SOLUTION.

FREQUENTLY ASKED QUESTIONS

How often is cleaning required?

About every four weeks depending on the air quality of the room. You should clean your IFD™ filter regularly by gently running a vacuum attachment over it. We recommend washing the IFD™ filter when needed but not more than once a month.

How long should I run my Air Purifier?

For best results, you should operate your Air Purifier 24 hours a day. This unit will be more effective when doors and windows are closed.

ACCESSIONS AND REPLACEMENT FILTERS

To order replacement filters, visit our website at: www.kaz.com or call us at 1-800-477-0457.

Washable Pre-Filter (T.3024): $5.25

CONSUMER RELATIONS

Mail questions or comments to:

Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Call us toll-free at: 1-800-477-0457

E-mail: [e-mail]

Or visit our website at: www.kaz.com

Please be sure to specify a model number.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE CONTACT CONSUMER RELATIONS FIRST OR SEE YOUR WARRANTY. DO NOT RETURN TO THE ORIGINAL PLACE OF PURCHASE. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF, DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE AIR PURIFIER OR PERSONAL INJURY.

You should first read all instructions before attempting to use this product.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.

D. This warranty does not cover the IFD™ filter or pre-filter except for material or workmanship defects.
E. Return defective product to Kaz, Inc. with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to:

In U.S.A.:
Kaz, Inc.
Attn: Returns Department
4755 Southpoint Drive
Memphis, TN 38118
USA

In Canada:
Kaz, Inc.
Attn: Returns Department
510 Bronte Street South
Milton, ON L9T 2X6
Canada

IMPORTANT INSTRUCTIONS DE SECURITÉ

LIRE ET CONSERVER CES INSTRUCTIONS DE SECURITE AVANT D'UTILISER LE PURIFICATEUR D'AIR

ACCESSIONS ET FILTRES DE REMPLACEMENT

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Composez sans frais le 1 800 477-0457

Courriel: [e-mail]

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

Au Canada :

Kaz, Inc.

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

IMPORTANTSE INSTRUCCIONES DE SEGURIDAD

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

En Canadá:

Kaz, Incorporated

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada
