USER MANUAL MHS75 UNIDEN

Making a Distress Call For future reference, write your boat’s name & call sign here: Speak slowly -- clearly -- calmly.

Make sure your radio is on. Press the 16/9-Tri button to switch to Channel 16 (156.800 MHz). (If the corner of the display does not show 16, press the 16/9-Tri button again until it does.) Press the Push to talk button and say,

“MAYDAY --MAYDAY-- MAYDAY.”

Say, “THIS IS {name or call sign of your boat}.” Say, “MAYDAY{name or call sign of your boat}.” Tell where you are (what navigational aids or land-marks are near, or give your position from a GPS). State the nature of your distress (e.g. sinking, medical emergency, man overboard, fire, adrift, etc.). Give the number of persons aboard and describe the condition of any injured persons. Estimate present seaworthiness of your ship (e.g. how immediate is the danger due to flooding or fire or proximity to shore). Briefly describe your ship (length, type, color, hull). Say, “I WILL BE LISTENING ON CHANNEL 16.” End message by saying, “THIS IS {name or call sign of your boat} OVER.” Release the Push to talk button and listen for a response. If you do not get an answer after 30 seconds, repeat your call, beginning at step 3, above. Faire un appel de détresse Pour toute référence ultérieure, transcrivez ci-dessous le nom et l’indicatif d’appel de votre bateau : Parlez lentement – clairement – calmement.

Vérifiez si votre radio est en marche. Appuyez sur la touche 16/9-Tri afin de commuter au canal 16 (156,800 MHz). (Si le canal 16 n’apparaît pas dans le coin de l’affichage, appuyez de nouveau sur 16/9-Tri jusqu’à ce qu’il soit affiché.) Appuyez sur le bouton Push to talk et dites : “MAYDAY – MAYDAY – MAYDAY”. Donnez l’identité de votre navire en disant : “ICI {nom ou indicatif d’appel de votre bateau}.” Dites : “MAYDAY {nom ou indicatif d’appel de votre bateau}.” Donnez votre emplacement : (quels sont les points de repère se trouvant près de vous ou lisez les coordonnées de longitude et de latitude apparaissant sur votre dispositif GPS). Révélez la nature de votre détresse, par exemple, êtesvous en train de couler, est-ce une urgence médicale, y a-t-il un homme à la mer, êtes-vous aux prises avec un incendie, êtes-vous à la dérive, etc.? Donnez le nombre de personnes à bord et les conditions des blessés, s’il y en a. Donnez la condition de navigabilité actuelle de votre navire, quel est le degré de l’urgence par rapport à l’inondation, à l’incendie ou à votre proximité de la côte? Donnez une brève description de votre navire (métrage, type, couleur, coque). Dites : “JE VAIS ÉCOUTER SUR LE CANAL 16”. Terminez le message en disant “ICI {nom ou indicatif d’appel de votre bateau} À VOUS.” Relâchez le bouton Push to talk et écoutez. Si vous n’obtenez pas de réponse après 30 secondes, répétez l’appel en commençant à l’étape 3 ci-dessus. Table of Contents Making a Distress Call................. (inside front cover) Introduction................................. E-1 Features....................................... E-1 Getting Started............................ E-2 What’s included............................ E-2 Parts of the MHS75...................... E-3 Front view.................................... E-3 Back view.................................... E-3 DC Charger................................. E-4 Reading the display...................... E-5 Display icons and what they mean....................................... E-5 How It Works............................... E-6 Normal mode operation................ E-7 Normal mode with Weather Alert Watch...................................... E-7 Normal mode with Triple Watch or Dual Watch.............................. E-8 Normal mode with Quad Watch.. E-8 Scan mode operation................... E-9 Using the radio in scan mode .... E-9 Scan mode with Weather Alert Watch.................................... E-10 Scan mode with Triple Watch or Dual Watch............................ E-10 Both Weather Alert and Triple/Dual Watch in scan mode.............. E-10 Weather mode.............................E-11 Using the radio in weather mode......................................E-11 Weather mode with Weather Alert Watch.....................................E-11 Weather mode with Triple Watch or Dual Watch....................... E-12 Setting Up the Hardware.......... E-12 Attaching the antenna................. E-12 Installing the battery................... E-12 Charging the battery................... E-13 Connecting the charger............. E-13 Important notes on charging the battery................................... E-13 Disconnecting the charger........ E-14 Attaching the belt clip................. E-14 Using Your Radio...................... E-15 Changing the volume ................ E-15 Setting the squelch level............. E-15 Changing the channel................. E-15 Making a transmission................ E-16 Boosting the transmission power.................................... E-16 Setting the UIC channel mode.... E-17 Maintenance and Troubleshooting..................... E-17 Common questions..................... E-17 Specifications........................... E-18 Channels and Frequencies......... E-19 US channel frequencies and names................................... E-19 Canadian channel frequencies and names................................... E-21 International channel frequencies and names............................ E-23 Weather channel frequencies and names................................... E-25 Regulations and Safety Warnings................................ E-26 Maritime radio services operation.................................. E-26 Basic radio guidelines................. E-26 FCC/Industry Canada information............................... E-27 FCC RF exposure information.... E-27 Lithium ion battery warning......... E-28 Three Year Limited Warranty Statement............................... E-29 Uniden MHS75 Radio Owner’s Manual Introduction Features The MHS75 provides the following key features:

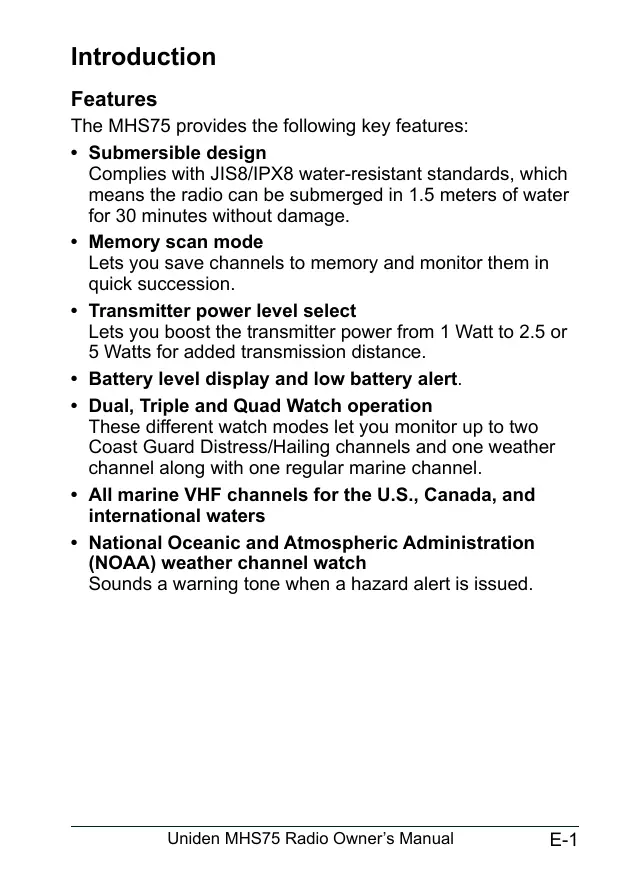

• Submersible design Complies with JIS8/IPX8 water-resistant standards, which means the radio can be submerged in 1.5 meters of water for 30 minutes without damage.
• Memory scan mode Lets you save channels to memory and monitor them in quick succession.
• Transmitter power level select Lets you boost the transmitter power from 1 Watt to 2.5 or 5 Watts for added transmission distance.
• Battery level display and low battery alert.
• Dual, Triple and Quad Watch operation These different watch modes let you monitor up to two Coast Guard Distress/Hailing channels and one weather channel along with one regular marine channel.
• All marine VHF channels for the U.S., Canada, and international waters
• National Oceanic and Atmospheric Administration (NOAA) weather channel watch Sounds a warning tone when a hazard alert is issued. Uniden MHS75 Radio Owner’s Manual E-1 Getting Started What’s included MHS75 Radio Antenna DC Charger Lithium Ion Battery Belt Clip Wrist Strap If any pieces are missing or damaged, contact Uniden Customer Service (see back cover for contact information). For information on available accessories, visit www.uniden.com. E-2 Uniden MHS75 Radio Owner’s Manual Parts of the MHS75 Squelch knob (Turn clockwise to decrease channel noise.) Front view Volume-power knob (Turn clockwise to increase volume.) Antenna LCD display WX-Alert (weather-alert) button Wrist strap anchor Push to talk button UIC-Lock button 16/9-Tri (16/9- triple watch) button Channel up button 1/5W-2.5W button Channel down button Scan-Dual (scan-dual watch) button Mem (memory) button Microphone Speaker Back view Battery Battery charging Battery latch contacts Belt clip Uniden MHS75 Radio Owner’s Manual E-3 Knob VolumePower Squelch Turn clockwise to...: Turn on the radio or increase the volume. Raise the squelch level to reduce channel noise. Turn counter-clockwise to...: Decrease the volume or turn off the radio. Lower the squelch level to hear weaker signals. Button Press to... Push to talk NA 1st press: Go to channel 16. 2nd press: Go to channel 9. 16/9-Tri 3rd press: Go back to the starting channel. Save a channel into memory Mem or delete a channel from memory. Switch from US to Canadian UIC-Lock or international channels. Move up one channel at a Channel Up time. Channel Move down one channel at Down a time. Listen to the weather WX-Alert channels. Start scanning the channels Scan-Dual saved in memory. Switch the transmit power 1/5W-2.5W between 1 Watt and 5 Watts. DC Charger Power LED Press and hold to... Transmit on a channel Turn Triple Watch on and off. Lock the keys; press and hold again to unlock. Move quickly up the channels. Move quickly down the channels. Turn Weather Alert Watch on and off. Turn Dual Watch on and off. Change the transmit power to 2.5 Watts. Battery charging contacts 12 V DC (”cigarette lighter”) plug Release tabs E-4 Uniden MHS75 Radio Owner’s Manual Reading the display The LCD display shows different information depending on what you are doing. This sample screen shows some of this information. The table below shows all the possible icons and what they mean. The radio is transmitting Battery status icon Transmit power level (1, 2.5, or 5 Watts)

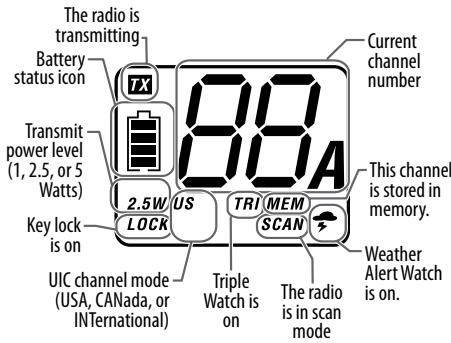

Key lock is on UIC channel mode (USA, CANada, or INTernational) Triple radio Watch is The is in scan mode Current channel number This channel is stored in memory. Weather Alert Watch is on. Display icons and what they mean Icon What it means You are currently transmitting.

The transmitter power is set to 1 Watt, 5 Watts, or

The keys are locked. The radio is set to use US channels, CANadian channels, or INTernational channels. TRIple Watch or DUAL Watch is turned on. The current channel is saved in memory. The radio is in Scan mode. The radio is in Weather Mode Weather Alert Watch is turned on. The battery is fully charged, mostly charged, half charged, mostly empty, or completely empty. Uniden MHS75 Radio Owner’s Manual E-5 How It Works The MHS75 radio has three main operation modes: normal mode, scan mode, and weather mode. Mode What it does Use it when you want to...: Monitors a single marine Normal Monitor a channel or channel and lets you talk mode talk to another radio. on that channel. Check a small group Scan Monitors all the channels of regularly-used mode you save into memory. channels for traffic. You want to hear the Weather Monitor the selected current or forecasted mode NOAA weather channel. weather. To turn it on/off (default mode) Press ScanDual. Press WXAlert. In addition to the three operation modes, the MHS75 provides four different watch modes which you can activate during any operation mode. In the watch modes, the radio briefly checks for activity on a specific channel, then returns to its previous operation. Watch mode What it does Checks the last-used weather Weather Alert channel for hazard alerts Watch every 7 seconds. Checks channel 16 for activity Dual Watch every 2 seconds. Checks channels 16 and 9 for Triple Watch activity every 2 seconds. Checks channels 16 and 9 for activity every 2 seconds, and Quad Watch checks the last-used weather channel every 7 seconds. To turn it on/off Press and hold WX-Alert for 2 seconds. Press and hold ScanDual for 2 seconds. Press and hold 16/9-Tri for 2 seconds. Turn on Triple Watch, then turn on Weather Alert Watch. Note: Private boats must monitor channel 16 whenever they are underway. Water-going vessels should have either Triple Watch or Dual Watch on at all times. E-6 Uniden MHS75 Radio Owner’s Manual Normal mode operation

• To transmit, remove the radio from the charger, then press and hold the Push to Talk button. Release the button when you are finished talking.
• For the best sound quality, hold the microphone about two inches from your mouth while you’re talking.
• Press the Channel Up button to move up one channel at a time. Press and hold the button to scroll quickly up the channels.
• Press the Channel Down button to move down one channel at a time. Press and hold the button to scroll quickly down the channels.
• To change the transmit power, press the 1/5W-2.5W button. The transmit power switches between 1 Watt and 5 Watts each time you press the 1/5W-2.5W button.
• To change the transmit power to 2.5 Watts, press and hold the 1/5W-2.5W button for 2 seconds. Press and hold the button again to change back to the previous transmit power (either 1 Watt or 5 Watts). Normal mode with Weather Alert Watch If you activate Weather Alert Watch while operating in normal mode, the radio Monitoring Channel 25 checks the most recently used weather channel every seven seconds. If it detects a weather Every 7 seconds, or other hazard alert, the radio checks wx it will switch to that the last-used weather channel. (If weather channel. you are actively WX Alert transmitting, the radio Watch on waits until you finish your transmission before checking the weather channel.) Uniden MHS75 Radio Owner’s Manual E-7 Normal mode with Triple Watch or Dual Watch If you activate Triple Watch while operating in normal mode, the radio checks channels 16 and 9 every two seconds; with Dual Watch turned on, the radio only checks channel 16. The radio will not check channels 16 or 9 while you are actively transmitting; it waits until your transmission is finished and then checks the channels. Monitoring Channel 25

Every 2 seconds, the radio checks channels 9 & 16.

Triple Watch on Normal mode with Quad Watch You can activate Weather Alert Watch and Triple Watch at the same time to monitor four channels at once (Quad Watch). The radio performs the Triple Watch and Weather Alert Watch checks at their scheduled time: Monitoring Channel 25

Every 2 seconds, the radio Every 7 seconds, checks channels 9 & 16. the radio checks wx the last-used Triple Watch on weather channel. WX Alert Watch on E-8 Uniden MHS75 Radio Owner’s Manual Scan mode operation You can save channels into memory and then use scan mode to monitor those channels from lowest to highest. If the radio detects a signal on a channel, it stays on that channel as long as the signal is received; when the signal stops, the radio continues scanning. When it detects a signal, the radio stays on the channel until you press the Channel Up button or the signal stops.

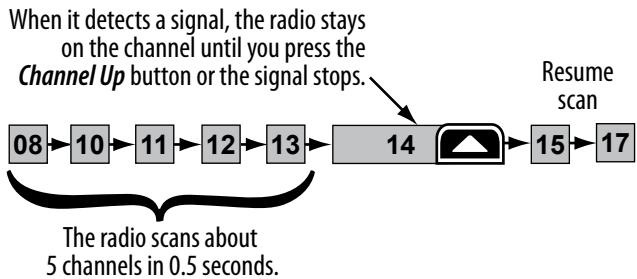

The radio scans about 5 channels in 0.5 seconds. Using the radio in scan mode

• To activate scan mode, press Scan-Dual.
• You must have at least two channels in memory to start a scan.
• You cannot transmit while in scan mode.
• To save a channel into memory, select the channel, then press the Mem button. The Mem icon shows on the display whenever you tune to that channel.
• To remove a channel from memory, set the radio to that channel, then press the Mem button. The Mem icon no longer shows on the display.
• When the radio stays on a channel, press Channel Up to leave that channel and resume scanning.
• To end the scan, press the Scan-Dual button again; the radio remains on the last scanned channel. Uniden MHS75 Radio Owner’s Manual E-9 Scan mode with Weather Alert Watch If you activate Weather Alert Watch while in scan mode, the radio checks the most recently-used weather channel every seven seconds, then continues scanning the next channel in memory: Memory Channel Scan

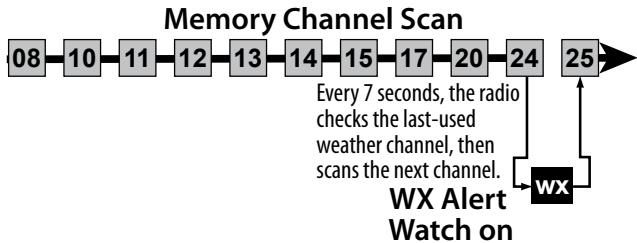

Every 7 seconds, the radio checks the last-used weather channel, then scans the next channel.

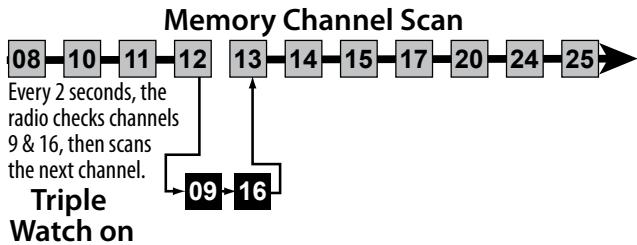

WX Alert Watch on Scan mode with Triple Watch or Dual Watch If you activate Triple Watch while operating in scan mode, the radio checks channels 16 and 9 every two seconds, then goes on to scan the next channel; with Dual Watch turned on, the radio only checks channel 16: Memory Channel Scan

Every 2 seconds, the radio checks channels 9 & 16, then scans the next channel. Triple

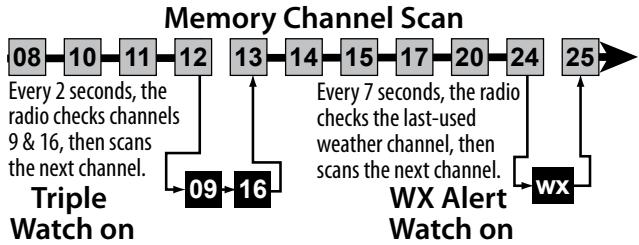

Watch on Both Weather Alert and Triple/Dual Watch in scan mode You can activate Weather Alert Watch and Triple/Dual Watch at the same time. The radio performs both checks at their scheduled time: E-10 Uniden MHS75 Radio Owner’s Manual Memory Channel Scan Every 2 seconds, the Every 7 seconds, the radio radio checks channels checks the last-used 9 & 16, then scans weather channel, then the next channel. scans the next channel. Triple WX Alert wx Watch on Watch on Weather mode The NOAA weather channels now cooperate with the FCC to alert you of other hazards besides weather (child abduction alerts, nuclear, biological, etc.). In weather mode, the radio monitors one of the ten NOAA weather channels. If any type of alert is received, the radio sounds an alert tone and the display blinks. Using the radio in weather mode

• You cannot transmit while in weather mode.
• To enter weather mode, press the WX-Alert button.
• To turn off the radio’s alert tone, press any button.
• To cancel weather mode and return to the previous marine channel, press the WX-Alert button again. Weather mode with Weather Alert Watch Because weather mode already monitors the weather channels, you don’t need Weather Alert Watch to check the weather channel every seven seconds. If you activate Weather Alert Watch while operating in weather mode, it operates as a type of “sleep mode”: the radio stays on the weather channel and mutes the speaker. If an alert is detected, the radio sounds an alert tone and turns the speaker back on. This mode is very useful when you are anchoring for the night but want to keep informed of hazards. Uniden MHS75 Radio Owner’s Manual E-11 Weather mode with Triple Watch or Dual Watch If you activate Triple Monitoring Weather Channel WX08 Watch while operating in weather mode, the radio checks channels

16 and 9 every two Every 2 seconds, the radio checks seconds; with Dual channel 9, then channel 16 Watch turned on, the with Triple Watch on radio only checks channel 16. Setting Up the Hardware Attaching the antenna The antenna detaches from the radio for easy shipping or storage. To attach the antenna to your radio, screw it tightly onto the anchor post at the top of the radio. Installing the battery Your MHS75 comes with a rechargeable Lithium Ion battery; for shipping safety, the battery is not installed at the factory.

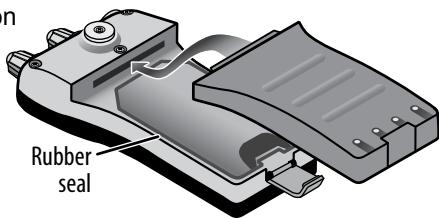

1. Insert the hook on

the battery into the notch at the top of the battery compartment. Rubber Note: Each seal time you remove the battery, check the rubber seal around the battery compartment. Make sure the seal is seated in the groove and there is no dirt or debris on it. If the seal looks worn or damaged, contact customer service to order a replacement (see back cover page for contact information). E-12 Uniden MHS75 Radio Owner’s Manual

2. Lower the battery until it rests

flat in the compartment.

3. Bring the battery latch up and

snap it into place. Charging the battery Connecting the charger Align the charger with the battery (on the rear side of the radio). Slide the radio into the charger until it clicks into place. Connect the other end of the charger to any standard 12 volt DC “cigarette lighter” style outlet. The power LED on the top of the plug should turn orange and remain lit. CAUTION: If the LED blinks, immediately disconnect the charger from the DC outlet. Reseat the radio in the charger before reconnecting the charger to power. CAUTION: Use only the battery and charger supplied with this radio. Using a different charger or battery can damage the radio and create a risk of fire or shock. Important notes on charging the battery

• Charge the battery fully before using the radio.
• When the battery is completely charged, the power LED turns green.
• Don’t use the charger when the ambient temperature is below 0º C (32º F) or above 45º C (113º F).
• If the radio is powered down, the battery can charge in about three and a half hours. (If the radio is powered on, the battery takes longer to charge.)
• If the battery is empty, the radio can’t transmit, even if it’s in the charger. Uniden MHS75 Radio Owner’s Manual E-13

• Be careful moving the charger cord. If you have to move the cord while the radio is charging, pick up the radio first so you don’t drop it. Disconnecting the charger Squeeze in on the release tabs at the base of the charger, and slide the radio out. Attaching the belt clip To attach the belt clip:

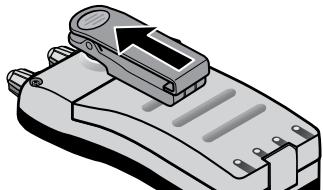

1. Rotate the belt clip so that the

finger indentation is towards the top of the radio.

2. Align the center of the clip with

3. Place the clip on the post

and slide the clip upwards until it clicks into place. To remove the belt clip:

1. Rotate the clip so that

the finger indentation is towards the bottom of the radio.

2. Slide the clip up until it comes free of the anchor post.

E-14 Uniden MHS75 Radio Owner’s Manual Using Your Radio Changing the volume To increase the speaker volume, turn the Volume-Power knob clockwise; turn it counter-clockwise to decrease the volume. Setting the squelch level The squelch feature reduces static on the Strong signals speaker by filtering out any background Weak signals channel noise. At the lowest squelch level, the speaker plays all Noise signals, including any channel noise. Setting the squelch Medium High level higher filters out Squelch Squelch Squelch noise and lets only actual radio transmissions through. While listening to a channel, adjust the SQUELCH knob until the noise is filtered and you can hear only the transmission. If you switch to a channel with a lot of noise or a weak transmission, you may need to readjust the squelch level again. Note: Setting the squelch level too high may prevent you from hearing weaker transmissions. If you are having difficulty hearing a transmission, try setting the squelch level lower. Changing the channel Press the Channel Up and Channel Down buttons briefly to scroll through the channels one channel at a time. Press and hold the Channel Up or Channel Down button to quickly scroll through the channels. Uniden MHS75 Radio Owner’s Manual E-15 Making a transmission Select the channel you want to transmit on, then press and hold the Push to Talk button. Release the Push to Talk button when you’re finished talking to let the other party respond.

• To prevent stuck microphone problems or situations where the Push to Talk button is pushed accidentally, the radio limits your talk time to 5 minutes in a single transmission.
• For the best sound quality, hold the microphone about two inches away from your mouth.
• See the channel lists starting on page 19 for a list of receive-only channels. Boosting the transmission power In most situations, the 1 Watt transmission power is all you need. If you find yourself far away from other stations and have trouble getting a response, you may need to boost the transmission power from 1 Watt to 2.5 Watts or 5 Watts:
• Press the 1/5W-2.5W button to switch from 1 Watt to 5 Watts. Press the button again to switch back to 1 Watt.
• To switch to 2.5 Watts, press and hold the 1/5W-2.5W button for about two seconds. Press and hold the button again to switch back to 1 Watt or 5 Watts (whichever you were on when you switched to 2.5 Watts).
• The transmit power remains at the new setting until you change it again. The transmit power icon always shows the current transmission power. Note: Don’t forget to change the transmission setting back to 1 Watt when you move close to other stations.
• Some channels (for example, channels 13 and 67) limit the transmission power to 1 Watt. When you tune to a limited-power channel, the radio automatically switches to 1 Watt. See the channel lists starting on page 19 for a list of power-restricted channels. E-16 Uniden MHS75 Radio Owner’s Manual Setting the UIC channel mode The radio comes preset to use the channels assigned for the US. If your current area uses Canadian or international channel assignments, press the UIC-Lock key to rotate through the US, Canadian, and international channels. Maintenance and Troubleshooting Due to its rugged design, the MHS75 requires very little maintenance. However, it is a precision electronic instrument, so you should follow a few precautions:
• If the antenna has been damaged, do not transmit except in an emergency situation. Transmitting with a defective antenna may cause further radio damage.
• You are responsible for continued FCC technical compliance of your radio.
• You should arrange for periodic performance checks with your Uniden dealer. Common questions Problem Things to Try The radio won’t turn on. Charge the battery. –– Replace the fuse inside the charger. (Contact The power LED on the customer service for a replacement fuse and charger doesn’t turn on. instructions on changing it. –– Replace the battery. –– Make sure you are not in weather or scan mode. –– Make sure you are not trying to transmit on a receive-only channel or transmit at the wrong power level for this channel (see the channel The radio won’t lists starting on page 19). transmit. –– Check the battery power level; if it’s low, charge the battery before trying to transmit. –– Make sure the duration of each transmission is less than 5 minutes. Uniden MHS75 Radio Owner’s Manual E-17 Problem I can’t hear anything from the speaker. Noise comes out of the speaker all the time I can transmit, but no one can hear me. I’m not getting hazard alerts. Things to Try Adjust the squelch level; it is probably too high. Adjust the squelch level; it is probably too low. Check your UIC channel settings: does the area you are in use different channel assignments? Make sure Weather Alert Watch is turned on. The channel number on the display will flash if the radio is in a watch mode or in scan mode. Try turning off scanning, Weather Alert Watch, Triple Watch, or Dual Watch (see page 6). Where can I find my The serial number is on a plate inside the radio’s serial number? battery compartment. The display flashes, and I don’t know why. Specifications General Channels Freq. Control Freq. Tol. Oper. Temp. Antenna Microphone Display Speaker Power Source Size (without antenna) Weight E-18 All US/International/Canada marine channels 10 Weather channels PLL Transmit: 1.5 PPM (at 25°C) Receive: 1.5 PPM (at 25°C) -4°F (-20°C) to +122°F(+50°C) Flexible Whip Built-in Electret type Liquid Crystal Display 8Ω 0.5 Watt Rechargeable Lithium Ion Battery 7.4V 1040 mAh

4.57 (H) x 2.49 (W) x 1.53 (D) inch

116.2 (H) x 63.3 (W) x 39 (D) mm

10.2 oz (290g) (w/battery and antenna)

Uniden MHS75 Radio Owner’s Manual Transmitter Frequency Range Frequency Stability Power Output Spurious Emissions Current Drain 156~158 MHz ±10 PPM

70 dBc 1400 mA (5W) Receiver Double Conversion Super Heterodyne Phase Locked Loop system for Local Oscillator Frequency Range 156~164 MHz Sensitivity

Squelch Sensitivity Threshold 0.12μV Audio Frequency Response +5 dB @ 500 Hz; -6 dB @ 2000Hz Adjacent Channel Selectivity 75 dB @ ±25 kHz Audio Output Power

Current Drain Squelched: 55 mA; Max. Audio: 210 mA Type Channels and Frequencies US channel frequencies and names

US Marine Channels Status Name Simplex Vessel traffic system/commercial Simplex Vessel traffic system/commercial Simplex Inter-ship safety Simplex Commercial Simplex Commercial Simplex Non commercial Simplex Commercial Simplex Vessel traffic system Simplex Vessel traffic system Simplex, 1W Bridge to bridge Uniden MHS75 Radio Owner’s Manual E-19

US Marine Channels Status Name Simplex Vessel traffic system Receive only Environmental Simplex Distress, safety, and calling Simplex, 1W Govt maritime control Simplex Commercial Simplex Commercial Duplex Port operation Simplex Port operation Simplex Coast guard only Simplex Coast guard Simplex Coast guard only Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Simplex Vessel traffic system Simplex Port operation Simplex Port operation Simplex, 1W Bridge To Bridge Simplex Non Commercial Simplex Non Commercial Receive only Digital Selective Calling Simplex Non Commercial Simplex Non Commercial (Ship-Ship) Simplex Port Operation Simplex Port Operation Simplex, 1W Port Operation Simplex, 1W Port Operation Simplex, 1W Port Operation (Ship-Ship) Simplex Non Commercial Uniden MHS75 Radio Owner’s Manual

156.200 Simplex Canadian Coast Guard

156.650 Simplex, 1W Bridge To Bridge

156.700 Simplex Vessel Traffic System

156.750 Simplex, 1W Environmental

Canadian Marine Channels TX Freq Status Name

156.900 Simplex Commercial

156.950 Simplex Canadian Coast Guard

157.000 Duplex, 1W Port Operation

157.050 Simplex Canadian Coast Guard

157.100 Simplex Canadian Coast Guard

Duplex Canadian Coast Guard Duplex Marine Operator Duplex Marine Operator Duplex Marine Operator Duplex Marine Operator Duplex Marine Operator Duplex Marine Operator

156.075 Simplex Canadian Coast Guard

156.125 Simplex Canadian Coast Guard

156.175 Simplex Port Operation

Duplex Marine Operator

156.225 Simplex Port Operation

156.275 Simplex Port Operation

156.325 Simplex, 1W Port Operation

156.375 Simplex Bridge To Bridge

156.425 Simplex Non Commercial

156.475 Simplex Non Commercial

Inhibit Receive only Digital Selective Calling

156.725 Simplex Port Operation

156.775 Simplex, 1W Port Operation

156.825 Simplex, 1W Port Operation

156.875 Simplex, 1W Port Operation

156.925 Simplex Inter Ship

Uniden MHS75 Radio Owner’s Manual

Canadian Marine Channels TX Freq Status Name

156.975 Simplex Inter Ship

157.025 Simplex Inter Ship

157.075 Simplex Canadian Coast Guard

157.125 Simplex Canadian Coast Guard

Duplex Canadian Coast Guard

157.175 Simplex Canadian Coast Guard

Duplex Marine Operator Duplex Marine Operator Duplex Marine Operator

157.375 Simplex Port Operation

157.425 Simplex Port Operation

International channel frequencies and names

International Marine Channels TX Freq Status Name Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator

156.300 Simplex Inter-ship safety

Duplex Marine operator

156.400 Simplex Commercial (ship-ship)

156.450 Simplex Boater calling channel

156.500 Simplex Commercial

156.550 Simplex Vessel traffic system

156.600 Simplex Vessel traffic system

156.650 Simplex Bridge to bridge

156.700 Simplex Vessel traffic system

156.750 Simplex, 1W Environmental

156.850 Simplex, 1W Govt maritime control

Duplex Port operation Duplex Commercial Duplex Port operation Duplex Port operation Duplex Port operation Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator Duplex Marine operator

156.375 Simplex Bridge to bridge

156.425 Simplex Non commercial

156.475 Simplex Non commercial

Inhibit Receive only Digital Selective Calling

156.725 Simplex Port operation

156.775 Simplex, 1W Port operation

156.825 Simplex, 1W Port operation

156.875 Simplex Port operation (ship-ship)

Duplex Port operation Uniden MHS75 Radio Owner’s Manual

International Marine Channels TX Freq Status Name Duplex Port operation Duplex Port operation Duplex Port operation Duplex Port operation Duplex Port operation Duplex Marine operator Duplex Marine operator Duplex Marine operator

157.375 Simplex Marine operator

157.425 Simplex Marine operator

Weather channel frequencies and names Channel WX01 WX02 WX03 WX04 WX05 WX06 WX07 WX08 WX09 WX10

Uniden MHS75 Radio Owner’s Manual E-25 Regulations and Safety Warnings WARNING! Read this information before using the radio. Maritime radio services operation Warning! This transmitter will operate on channels/ frequencies that have restricted use in the United States. The channel assignments include frequencies assigned for exclusive use of the U.S. Coast Guard, use in Canada, and use in international waters. Operation on these frequencies without proper authorization is strictly forbidden. See pages 19 through 25 for tables of the available channels and their uses. If you are still not certain which channels to use, see the FCC maritime radio page at the FCC website (http://wireless.fcc.gov/marine/) or contact the FCC Call Center at 1-888-CALL-FCC. For individuals requiring a license, such as commercial users, you should obtain a license application from your nearest FCC field office (for US users) or Industry Canada (for Canadian users). Basic radio guidelines You should familiarize yourself with the rules on marine radios and be aware of which rules apply to your boat. Complete guidelines for all ship and marine radio types can be found at the US Coast Guard website under the topic Radio Info for Boaters (the direct link is http://www.navcen.uscg.gov/marcomms/boater.htm). Here are a few guidelines that affect nearly all boaters.

• If you have a VHF radio on your boat, you must maintain a watch on channel 16 (156.800 MHz) whenever the radio is not being used to communicate. Starting in 2004, if a radio is carried, it must be on and set to channel 16 whenever your boat is underway.
• If you hear a distress call, wait a few minutes to let a shore station or Coast Guard vessel respond. If no other station has responded after 5 minutes, you must respond to the distress call. E-26 Uniden MHS75 Radio Owner’s Manual

• Do not make false mayday or distress calls as a prank or to test your radio. (This is essentially like making a false 91-1 call; you may be subject to fines.) FCC/Industry Canada information
• Transmitter Frequency Range: 156.025-157.425 MHz This device complies with Part 80 of the FCC Rules, as well as Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Unauthorized changes or modifications to this equipment may void compliance with the FCC Rules. Any change or modification must be approved in writing by Uniden. Changes or modifications not approved by Uniden could void the user’s authority to operate the equipment. FCC RF exposure information In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of the radio complies with the FCC guidelines and these international standards. Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines. WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the following: Uniden MHS75 Radio Owner’s Manual E-27

• Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the radio, or violate FCC regulations.
• Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Lithium ion battery warning This equipment contains a rechargeable Lithium Ion battery. The rechargeable Lithium Ion battery contained in this equipment may explode if disposed of in a fire. Do not short-circuit the battery. Do not charge the rechargeable battery used in this equipment in any charger other than the one specified in the owner’s manual. Using another charger may damage the battery or cause the battery to explode. Li-Ion batteries must be recycled or disposed of properly. Avoid exposing the battery (whether attached to the radio or not) to direct sunlight, heated cars, or temperatures below -4°F (-20°C) or above +140°F (+60°C). Exposing the chemical contained within the battery pack to temperatures above +140°F (+60°C) may cause the battery to rupture, fail, or reduce performance. In case of exposure to the cell contents, wash the affected area thoroughly, and seek medical attention. E-28 Uniden MHS75 Radio Owner’s Manual Three Year Limited Warranty Statement WARRANTOR: UNIDEN AMERICA CORP. (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for three years, to the original retail owner, this Uniden Product to be free from defects in materials and craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate and be of no further effect 36 months after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits, subassemblies, or any configurations not sold by Uniden, (C) improperly installed, (D) serviced or repaired by someone other than an authorized Uniden service center for a defect or malfunction covered by this warranty, (E) used in any conjunction with equipment or parts or as part of any system not manufactured by Uniden, or (F) installed or programmed by anyone other than as detailed by the Operating Guide for this product. STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will repair the defect and return it to you without charge for parts, service, or any other cost (except shipping and handling) incurred by warrantor or its representatives in connection with the performance of this warranty. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,

WHETHER EXPRESS, IMPLIED OR ARISING BY

OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE

REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR

Uniden MHS75 Radio Owner’s Manual E-29 CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you. LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is void outside the United States of America.

PROCEDURE FOR OBTAINING PERFORMANCE OF
