USER MANUAL 290000 GENERAL ELECTRIC

Vanguardt Gaseous Vanguardt Gaseous

Model 300000 Model 350000 Vanguardt Gaseous Vanguardt Gaseous Briggs & Stratton is a registered trademark of Briggs & Stratton Corporation E 2011 Briggs & Stratton Corporation, Milwaukee, WI, USA. All rights reserved. English Español Français

Form No. 279766TRI Revision: A

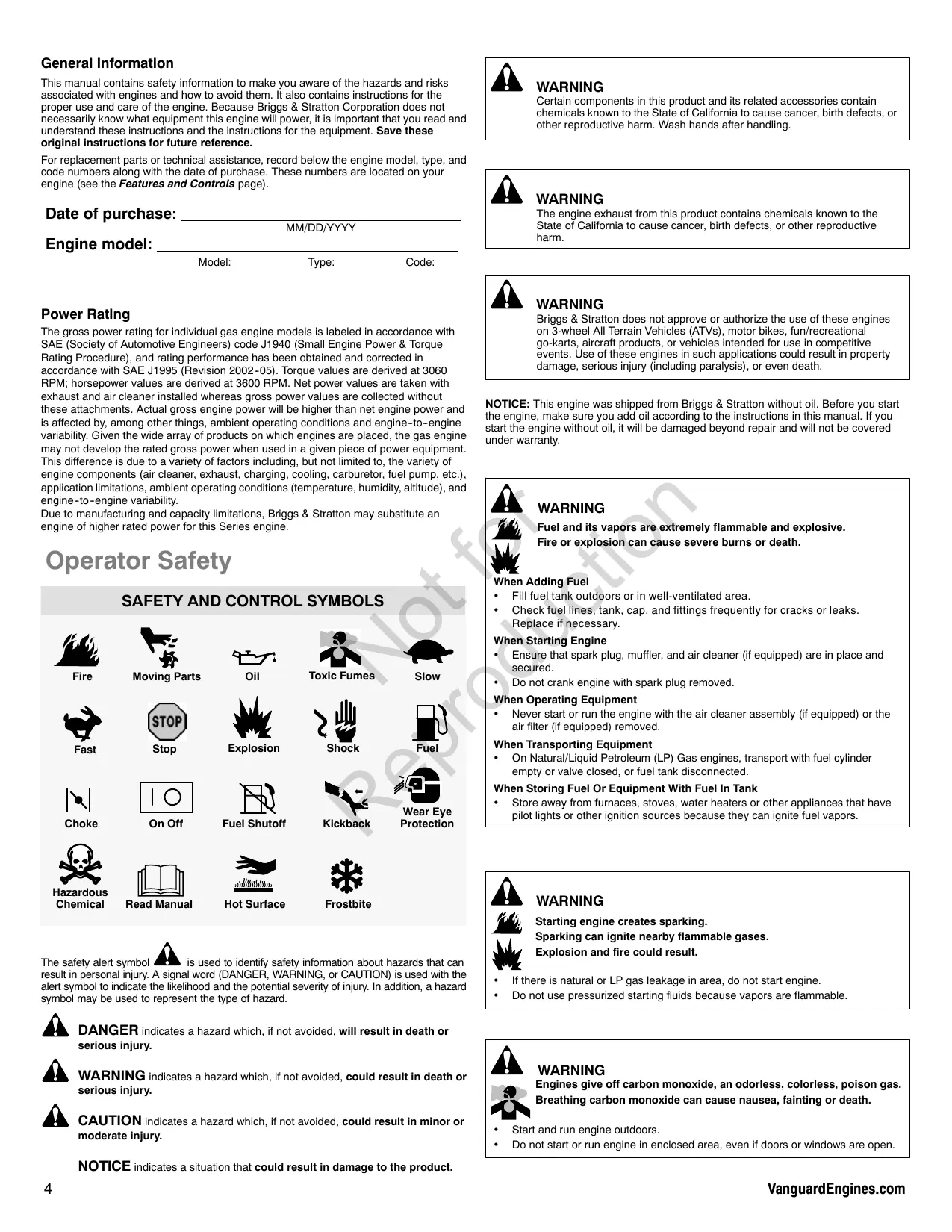

General Information This manual contains safety information to make you aware of the hazards and risks associated with engines and how to avoid them. It also contains instructions for the proper use and care of the engine. Because Briggs & Stratton Corporation does not necessarily know what equipment this engine will power, it is important that you read and understand these instructions and the instructions for the equipment. Save these original instructions for future reference. WARNING Certain components in this product and its related accessories contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Wash hands after handling. For replacement parts or technical assistance, record below the engine model, type, and code numbers along with the date of purchase. These numbers are located on your engine (see the Features and Controls page). WARNING Date of purchase: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

MM/DD/YYYY

Engine model: Model: Type: Code: WARNING Power Rating Operator Safety Moving Parts NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty. WARNING Toxic Fumes Oil Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Adding Fuel Fill fuel tank outdoors or in well-ventilated area. Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.

SAFETY AND CONTROL SYMBOLS

Fire Briggs & Stratton does not approve or authorize the use of these engines on 3-wheel All Terrain Vehicles (ATVs), motor bikes, fun/recreational go-karts, aircraft products, or vehicles intended for use in competitive events. Use of these engines in such applications could result in property damage, serious injury (including paralysis), or even death. The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and corrected in accordance with SAE J1995 (Revision 2002--05). Torque values are derived at 3060 RPM; horsepower values are derived at 3600 RPM. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine--to--engine variability. Given the wide array of products on which engines are placed, the gas engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine--to--engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine. Slow When Starting Engine Ensure that spark plug, muffler, and air cleaner (if equipped) are in place and secured. Do not crank engine with spark plug removed. When Operating Equipment Never start or run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed. Choke Hazardous Chemical On Off Read Manual Explosion Shock

Stop Fast Fuel Shutoff Kickback Hot Surface Frostbite Fuel Wear Eye Protection The safety alert symbol is used to identify safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard. When Transporting Equipment On Natural/Liquid Petroleum (LP) Gas engines, transport with fuel cylinder empty or valve closed, or fuel tank disconnected. When Storing Fuel Or Equipment With Fuel In Tank Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or other ignition sources because they can ignite fuel vapors. WARNING Starting engine creates sparking. Sparking can ignite nearby flammable gases. Explosion and fire could result.

If there is natural or LP gas leakage in area, do not start engine. Do not use pressurized starting fluids because vapors are flammable. DANGER indicates a hazard which, if not avoided, will result in death or serious injury. WARNING WARNING indicates a hazard which, if not avoided, could result in death or Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death. serious injury. CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.

Start and run engine outdoors. Do not start or run engine in enclosed area, even if doors or windows are open. NOTICE indicates a situation that could result in damage to the product.

WARNING WARNING Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. Gaseous fuels are extremely flammable and readily form explosive air-vapor mixtures at ambient temperatures. When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Remove all external equipment/engine loads before starting engine. Direct-coupled equipment components such as, but not limited to, blades, impellers, pulleys, sprockets, etc., must be securely attached.

WARNING WARNING Rotating parts can contact or entangle hands, feet, hair, clothing, or accessories. Traumatic amputation or severe laceration can result.

Operate equipment with guards in place. Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. Do not wear loose-fitting clothing, dangling drawstrings or items that could become caught. Wear eye protection when doing repair work. Frostbite can result from skin/eye contact with leaking LP liquid.

WARNING Missing or inoperative “fuel lock-off” valve can cause a fire or explosion. Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in

Section 4442, maintained in effective working order. Other states or federal

jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine. WARNING Installation, adjustment and repair work should be done by a qualified technician. Regularly check flexible supply line. Make sure they are in good condition. Replace damaged or leaking components. WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire.

Do not start the engine. Do not actuate any electrical switches. Do not use a phone in the vicinity. Evacuate the area. Contact the gas supplier or fire department.

Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative.

Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard Before performing adjustments or repairs: Disconnect the spark plug wire and keep it away from the spark plug. Disconnect battery at negative terminal (only engines with electric start.) Use only correct tools. Do not tamper with governor spring, links or other parts to increase engine speed. Replacement parts must be of the same design and installed in the same position as the original parts. Other parts may not perform as well, may damage the unit, and may result in injury. Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation. When testing for spark: Use approved spark plug tester. Do not check for spark with spark plug removed.

Features and Controls Fuel Recommendations Compare the illustration 1 with your engine to familiarize yourself with the location of various features and controls.

Engine Identification Model Type Code

Oil Filter (optional)

Oil Drain Plug WARNING Missing or inoperative “fuel lock-off” valve can cause a fire or explosion.

Fuel must meet these requirements: Use clean, dry fuel, free of moisture or any particulate material. Using fuels outside the following recommended values may cause performance problems. In engines set up to run on LPG, commercial grade HD5 LPG is recommended. Recommended fuel composition is fuel with a minimum fuel energy of 2500 BTU’s/ft3 with maximum propylene content of 5% and butane and heavier gas content of 2.5% and minimum propane content of 90%. NG or LPG engines are certified to operate on natural or liquid propane gas. The emissions control system for this engine is EM (Engine Modifications). G. Oil Pressure Sensor

Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative. Oil Cooler (optional)

WARNING:

The equipment on which this engine is mounted is equipped with an automatic safety gas “fuel lock-off” valve. Do not operate the equipment if the “fuel lock-off” valve is missing or inoperative. Operation Oil capacity (see the Specifications section) How To Add Fuel Oil Recommendations We recommend the use of Briggs & Stratton Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives. WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected. When Adding Fuel Fill fuel tank outdoors or in well-ventilated area. Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary. For information on refueling natural or LP gas engines, read the operating instructions supplied by the equipment manufacturer. How To Start The Engine - Figure 3 5W-30 Synthetic 5W-30 10W-30

WARNING Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. Below 40°F (4°C) the use of SAE 30 will result in hard starting.

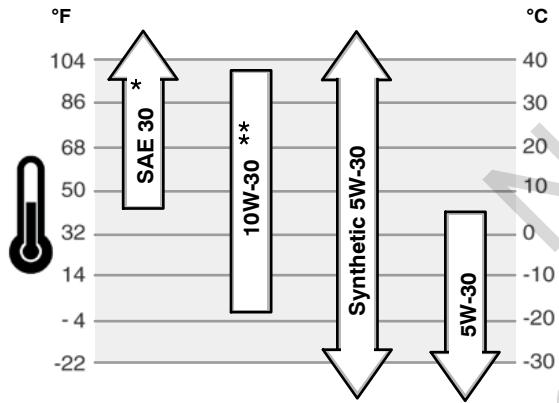

** Above 80°F (27°C) the use of 10W-30 may cause increased oil consumption. Check oil level more frequently.

When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Remove all external equipment/engine loads before starting engine. Direct-coupled equipment components such as, but not limited to, blades, impellers, pulleys, sprockets, etc., must be securely attached. How To Check/Add Oil - Figure 2 Before adding or checking the oil Place engine level. Clean the oil fill area of any debris.

1. Remove the dipstick (A) and wipe with a clean cloth (Figure 2).

WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

2. Fully insert the dipstick.

3. Remove the dipstick and check the oil level. It should be at the top of the full indicator

(B) on the dipstick.

4. If low, add oil slowly into the engine oil fill (C). Do not overfill. After adding oil, wait

one minute and then recheck the oil level.

5. Fully insert the dipstick.

When Starting Engine Ensure that spark plug, muffler, and air cleaner (if equipped) are in place and secured. Do not crank engine with spark plug removed. Oil Pressure WARNING If the oil pressure is too low, a pressure switch (if equipped) will either stop the engine or activate a warning device on the equipment. If this occurs, stop the engine and check the oil level with the dipstick. If the oil level is below the ADD mark, add oil until it reaches the FULL mark. Start the engine and check for proper pressure before continuing to operate. If the oil level is between the ADD and FULL marks, do not start the engine. Contact an Authorized Briggs & Stratton Dealer to have the oil pressure problem corrected.

Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting or death.

Start and run engine outdoors. Do not start or run engine in enclosed area, even if doors or windows are open. VanguardEngines.com NOTICE: This engine was shipped from Briggs & Stratton without oil. Before you start the engine, make sure you add oil according to the instructions in this manual. If you start the engine without oil, it will be damaged beyond repair and will not be covered under warranty.

WARNING: Rapid retraction of the starter cord (kickback) will pull your

hand and arm toward the engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. Note: Some engines and equipment have remote controls. See the equipment manual for location and operation of remote controls.

1. Check the oil level. See the How To Check/Add Oil section.

2. Make sure equipment drive controls, if equipped, are disengaged.

3. Turn the fuel shut-off valve (A), if equipped, to the on position (Figure 3).

4. Push the stop switch (F), if equipped, to the on position.

5. Move the throttle control (B) to the fast

position. Operate the engine in the fast position. How To Stop The Engine - Figure 3

6. Rewind Start: Turn the key switch (D), if equipped, to the run position.

7. Rewind Start: Firmly hold the starter cord handle (E). Pull the starter cord handle

slowly until resistance is felt, then pull rapidly. We recommend that you see any Briggs & Stratton Authorized Dealer for all maintenance and service of the engine and engine parts. NOTICE: All the components used to build this engine must remain in place for proper operation. Emissions Control

1. With the throttle control (B) in the slow

position, turn the key switch (D) to the off position (Figure 3). Remove the key and keep in a safe place out of the reach of children.

2. Push the stop switch (F) to the off position.

3. After the engine stops, turn the fuel shut-off valve (A), if equipped, to the closed

position. Note: If the engine does not start after repeated attempts, go to VanguardEngines.com or call 1-800-999-9333 (in USA). Maintenance

8. Electric Start: Turn the electric start switch (D) to the on/start position.

Note: If the engine does not start after repeated attempts, go to VanguardEngines.com or call 1-800-999-9333 (in USA). NOTICE: To extend the life of the starter, use short starting cycles (five seconds maximum). Wait one minute between starting cycles. Maintenance Chart First 5 Hours

Every 8 Hours or Daily Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. However, to obtain “no charge” emissions control service, the work must be performed by a factory authorized dealer. See the Emissions Warranty.

Clean or change air filter * Change engine oil and filter Replace spark plug Check muffler and spark arrester Every 250 Hours or Annually

When testing for spark: Use approved spark plug tester. Do not check for spark with spark plug removed. Check engine oil level Clean area around muffler and controls Every 100 Hours or Annually Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration. Fire hazard Before performing adjustments or repairs: Disconnect the spark plug wire and keep it away from the spark plug. Disconnect battery at negative terminal (only engines with electric start.) Use only correct tools. Do not tamper with governor spring, links or other parts to increase engine speed. Replacement parts must be of the same design and installed in the same position as the original parts. Other parts may not perform as well, may damage the unit, and may result in injury. Do not strike the flywheel with a hammer or hard object because the flywheel may later shatter during operation. Change oil Check valve clearance. Adjust if necessary. Every 400 Hours or Annually

Clean air cooling system * Clean oil cooler fins * In dusty conditions or when airborne debris is present, clean more often. How To Replace The Spark Plug - Figure 4 Check the gap (A, Figure 4) with a wire gauge (B). If necessary, reset the gap. Install and tighten the spark plug to the recommended torque. For gap setting or torque, see the Specifications section. Note: In some areas, local law requires using a resistor spark plug to suppress ignition signals. If this engine was originally equipped with a resistor spark plug, use the same type for replacement.

Inspect Muffler And Spark Arrester - Figure 5

How To Service The Air Filter - Figure 6 WARNING WARNING Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in

Section 4442, maintained in effective working order. Other states or federal

jurisdictions may have similar laws. Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine. Remove accumulated debris from muffler area and cylinder area. Inspect the muffler (A, Figure 5) for cracks, corrosion, or other damage. Remove the spark arrester (B), if equipped, and inspect for damage or carbon blockage. If damage is found, install replacement parts before operating.

WARNING: Replacement parts must be of the same design and installed

in the same position as the original parts. Other parts may not perform as well, may damage the unit, and may result in injury.

Never start or run the engine with the air cleaner assembly (if equipped) or the air filter (if equipped) removed. NOTICE: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter. See the Maintenance Chart for service requirements.

1. Open the latches (A) and remove the cover (B). See Figure 6.

2. Remove the nut (D) and the retainer (E)..

3. Remove the air filter (F).

4. Remove the pre-cleaner (G), if equipped, from the air filter.

5. To loosen debris, gently tap the air filter on a hard surface. If the air filter is

excessively dirty, replace with a new air filter.

6. Wash the pre-cleaner in liquid detergent and water. Then allow it to thoroughly air

dry. Do not oil the pre-cleaner.

7. Assemble the dry pre-cleaner to the air filter.

8. Install the air filter and secure with retainer and nut.

9. Install and secure the cover.

How To Clean The Air Cooling System - Figure 7

WARNING How To Change The Oil - Figure 8 Used oil is a hazardous waste product and must be disposed of properly. Do not discard with household waste. Check with your local authorities, service center, or dealer for safe disposal/recycling facilities. Remove Oil

1. With engine off but still warm, disconnect the spark plug wire (A) and keep it away

from the spark plug (Figure 8).

2. Remove the oil drain plug (B, Figure 9). Drain the oil into an approved container.

3. After the oil has drained, install and tighten the oil drain plug.

Change The Oil Filter (if equipped) Add Oil

Some models are equipped with oil filter. For replacement intervals, see the Maintenance chart.

1. Drain the oil from the engine. See Remove Oil section.

2. Remove the oil filter (C) and dispose of properly. See Figure 10.

3. Before you install the new oil filter, lightly lubricate the oil filter gasket with fresh,

4. Install the oil filter by hand until the gasket contacts the oil filter adapter, then tighten

the oil filter 1/2 to 3/4 turns.

5. Add oil. See Add Oil section.

6. Start and run the engine. As the engine warms up, check for oil leaks.

7. Stop the engine and check the oil level. It should be at the top of the full indicator (F)

on the dipstick. Place engine level. Clean the oil fill area of any debris. See the Specifications section for oil capacity. Remove the dipstick (D) and wipe with a clean cloth (Figure 11). Pour the oil slowly into the engine oil fill (E). Do not overfill. After adding oil, wait one minute and then check the oil level.

3. Install and tighten the dipstick.

4. Remove the dipstick and check the oil level. It should be at the top of the full indicator

(F) on the dipstick.

5. Install and tighten the dipstick.

Running engines produce heat. Engine parts, especially muffler, become extremely hot. Severe thermal burns can occur on contact. Combustible debris, such as leaves, grass, brush, etc. can catch fire.

Allow muffler, engine cylinder and fins to cool before touching. Remove accumulated debris from muffler area and cylinder area. NOTICE: Do not use water to clean the engine. Water could contaminate the fuel system. Use a brush or dry cloth to clean the engine. This is an air cooled engine. Dirt or debris can restrict air flow and cause the engine to overheat, resulting in poor performance and reduced engine life. Use a brush or dry cloth to remove debris from the finger guard (A). Keep linkage, springs and controls (B) clean. Keep the area around and behind the muffler (C) free of any combustible debris (Figure 7). Make sure that the oil cooler fins (D) are free of dirt and debris. Storage WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. When Storing Fuel Or Equipment With Fuel In Tank Store away from furnaces, stoves, water heaters or other appliances that have pilot lights or other ignition sources because they can ignite fuel vapors. Engine Oil While the engine is still warm, change the engine oil. Troubleshooting Need Assistance? Go to VanguardEngines.com or call 1-800-999-9333. VanguardEngines.com Specifications Engine Specifications Engine Specifications Model

29.23 ci (479 cc)

34.78 ci (570 cc)

2.677 in (68 mm)

2.835 in (72 mm)

2.598 in (66 mm)

2.756 in (70 mm)

Oil Capacity 46 -- 48 oz (1.36 -- 1.42 L) Oil Capacity 46 -- 48 oz (1.36 -- 1.42 L) Engine Specifications Engine Specifications Model

29.23 ci (479 cc)

38.26 ci (627 cc)

2.677 in (68 mm)

2.972 in (75.5 mm)

2.598 in (66 mm)

2.756 in (70 mm)

Oil Capacity 46 -- 48 oz (1.36 -- 1.42 L) Oil Capacity 46 -- 48 oz (1.36 -- 1.42 L) Tune-up Specifications * Tune-up Specifications * 290000, 300000 Model 350000, 380000 Spark Plug Gap

0.020 in (0.51 mm)

0.020 in (0.51 mm)

Spark Plug Torque 180 lb-in (20 Nm) Spark Plug Torque 180 lb-in (20 Nm) Armature Air Gap Armature Air Gap Intake Valve Clearance Intake Valve Clearance Exhaust Valve Clearance Exhaust Valve Clearance

• Engine power will decrease 3.5% for each 1,000 feet (300 meters) above sea level and 1% for each 10 F (5.6 C) above 77 F (25 C). The engine will operate satisfactorily at an angle up to 15. Refer to the equipment operator’s manual for safe allowable operating limits on slopes. Common Service Parts n Service Part Part Number Service Part Part Number Air Filter -- model 290000, 300000

Oil Filter -- 9 cm long

Air Filter -- model 350000, 380000

Oil -- SAE 30 Oil Filter -- 6 cm long Resistor Spark Plug

Air Filter Pre-cleaner n We recommend that you see any Briggs & Stratton Authorized Dealer for all maintenance and service of the engine and engine parts.

LIMITED WARRANTY Briggs & Stratton Corporation will repair or replace, free of charge, any part(s) of the engine that is defective in material or workmanship or both. Transportation charges on product submitted for repair or replacement under this warranty must be borne by purchaser. This warranty is effective for and is subject to the time periods and conditions stated below. For warranty service, find the nearest Authorized Service Dealer in our dealer locator map at BRIGGSandSTRATTON.COM, or by calling 1-800-233-3723, or as listed in the ‘Yellow Pages’. There is no other expressed warranty. Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from purchase, or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion is permitted by law. Some states or countries do not allow limitations on how long an implied warranty lasts, and some states or countries do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state and country to country. Extended Life Seriest; I/C®; Intekt I/C®; Intekt Pro; Commercial Turf Seriest Professional Seriest with Dura-Boret Cast Iron Sleeve; 850 Seriest with Dura-Boret Cast Iron Sleeve; Snow Series MAXt with Dura-Boret Cast Iron Sleeve All Other Briggs & Stratton Engines Featuring Dura-Boret Cast Iron Sleeve 2 years 1 year All Other Briggs & Stratton Engines 2 years 90 days These are our standard warranty terms, but occasionally there may be additional warranty coverage that was not determined at time of publication. For a listing of current warranty terms for your engine, go to BRIGGSandSTRATTON.COM or contact your Authorized Briggs & Stratton Service Dealer.

Home Standby Generator applications: 2 years consumer warranty only. No commercial warranty. This warranty does not apply to engines on equipment used for prime power in place of a utility. Engines used in competitive racing or on commercial or rental tracks are not warranted.

Vanguard installed on standby generators: 2 years consumer use, no warranty commercial use. Vanguard installed on utility vehicles: 2 years consumer use, 2 years commercial use. Vanguard 3-cylinder liquid cooled: see Briggs & Stratton 3/LC Engine Owner Warranty Policy. The warranty period begins on the date of purchase by the first retail consumer or commercial end user, and continues for the period of time stated in the table above. “Consumer use” means personal residential household use by a retail consumer. “Commercial use” means all other uses, including use for commercial, income producing or rental purposes. Once an engine has experienced commercial use, it shall thereafter be considered as a commercial use engine for purposes of this warranty. No warranty registration is necessary to obtain warranty on Briggs & Stratton Products. Save your proof of purchase receipt. If you do not provide proof of the initial purchase date at the time warranty service is requested, the manufacturing date of the product will be used to determine the warranty period. About Your Warranty

Briggs & Stratton welcomes warranty repair and apologizes to you for being inconvenienced. Any Authorized Service Dealer may perform warranty repairs. Most warranty repairs are handled routinely, but sometimes requests for warranty service may not be appropriate. If a customer differs with the decision of the Service Dealer, an investigation will be made to determine whether the warranty applies. Ask the Service Dealer to submit all supporting facts to his Distributor or the Factory for review. If the Distributor or the Factory decides that the claim is justified, the customer will be fully reimbursed for those items that are defective. To avoid misunderstanding which might occur between the customer and the Dealer, listed below are some of the causes of engine failure that the warranty does not cover. Normal wear: Engines, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part or an engine. Warranty would not apply if engine damage occurred because of misuse, lack of routine maintenance, shipping, handling, warehousing or improper installation. Similarly, warranty is void if the serial number of the engine has been removed or the engine has been altered or modified. Improper maintenance: The life of an engine depends upon the conditions under which it operates, and the care it receives. Some applications, such as tillers, pumps and rotary mowers, are very often used in dusty or dirty conditions, which can cause what appears to be premature wear. Such wear, when caused by dirt, dust, spark plug cleaning grit, or other abrasive material that has entered the engine because of improper maintenance, is not covered by warranty.

Leaking carburetors, clogged fuel pipes, sticking valves, or other damage, caused by using contaminated or stale fuel.

Parts which are scored or broken because an engine was operated with insufficient or contaminated lubricating oil, or an incorrect grade of lubricating oil (check and refill when necessary, and change at recommended intervals). OIL GARD may not shut down running engine. Engine damage may occur if oil level is not properly maintained.

Repair or adjustment of associated parts or assemblies such as clutches, transmissions, remote controls, etc., which are not manufactured by Briggs & Stratton.

Damage or wear to parts caused by dirt, which entered the engine because of improper air cleaner maintenance, re-assembly, or use of a non-original air cleaner element or cartridge. At recommended intervals, clean and/or replace the filter as stated in the Operator’s Manual.

Parts damaged by over-speeding, or overheating caused by grass, debris, or dirt, which plugs or clogs the cooling fins, or flywheel area, or damage caused by operating the engine in a confined area without sufficient ventilation. Clean engine debris at recommended intervals as stated in the Operator’s Manual.

Engine or equipment parts broken by excessive vibration caused by a loose engine mounting, loose cutter blades, unbalanced blades or loose or unbalanced impellers, improper attachment of equipment to engine crankshaft, over-speeding or other abuse in operation.

A bent or broken crankshaft, caused by striking a solid object with the cutter blade of a rotary lawn mower, or excessive v-belt tightness. This warranty covers engine related defective material and/or workmanship only, and not replacement or refund of the equipment to which the engine may be mounted. Nor does the warranty extend to repairs required because of: 10 Routine tune-up or adjustment of the engine.

Problems caused by parts that are not original Briggs & Stratton parts.

Equipment controls or installations that prevent starting, cause unsatisfactory engine performance, or shorten engine life. (Contact equipment manufacturer.) Warranty service is available only through authorized service dealers by Briggs & Stratton Corporation. Locate your nearest Authorized Service Dealer in our dealer locator map on BRIGGSandSTRATTON.COM or by calling 1-800-233-3723, or as listed in the ‘Yellow Pages’.

VanguardEngines.com California, U.S. EPA, and Briggs & Stratton Corporation Emissions Control Warranty Statement Your Warranty Rights And Obligations The California Air Resources Board, U.S. EPA, and Briggs & Stratton (B&S) are pleased to explain the emissions control system warranty on your Model Year 2011--2012 engine/equipment. In California, new small off-road engines and large spark ignited engines less than or equal to 1.0 liter must be designed, built, and equipped to meet the State’s stringent anti-smog standards. B&S must warrant the emissions control system on your engine/equipment for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of your engine or equipment. Your emissions control system may include parts such as the carburetor or fuel injection system, fuel tank, ignition system, and catalytic converter. Also included may be hoses, belts, connectors, sensors, and other emissions-related assemblies. Where a warrantable condition exists, B&S will repair your engine/equipment at no cost to you including diagnosis, parts, and labor. Manufacturer’s Warranty Coverage: Small off-road engines and large spark ignited engines less than or equal to 1.0 liter are warranted for three years. If any emissions-related part on your engine/equipment is defective, the part will be repaired or replaced by B&S. January 2011 Owner’s Warranty Responsibilities:

As the engine/equipment owner, you are responsible for the performance of the required maintenance listed in your owner’s manual. B&S recommends that you retain all receipts covering maintenance on your engine/equipment, but B&S cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance. As the engine/equipment owner, you should however be aware that B&S may deny you warranty coverage if your engine/equipment or a part has failed due to abuse, neglect, improper maintenance, or unapproved modifications. You are responsible for presenting your engine/equipment to a B&S distribution center, servicing dealer, or other equivalent entity, as applicable, as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact B&S at (414) 259-5262. Briggs & Stratton Emissions Control Warranty Provisions

The following are specific provisions relative to your Emissions Control Warranty Coverage. It is in addition to the B&S engine warranty for non-regulated engines found in the Operator’s Manual. The warranty on emissions-related parts is as follows:

1. Warranted Emissions Parts

Coverage under this warranty extends only to the parts listed below (the emissions Any warranted part that is not scheduled for replacement as required control systems parts) to the extent these parts were present on the engine maintenance in the owner’s manual supplied, is warranted for the warranty purchased. period stated above. If any such part fails during the period of warranty coverage, the part will be repaired or replaced by B&S at no charge to the a. Fuel Metering System owner. Any such part repaired or replaced under the warranty will be warranted Cold start enrichment system (soft choke) for the remaining warranty period. Carburetor and internal parts Any warranted part that is scheduled only for regular inspection in the owner’s Fuel pump manual supplied, is warranted for the warranty period stated above. Any such Fuel line, fuel line fittings, clamps part repaired or replaced under warranty will be warranted for the remaining Fuel tank, cap and tether warranty period. Carbon canister Any warranted part that is scheduled for replacement as required maintenance b. Air Induction System in the owner’s manual supplied, is warranted for the period of time prior to the Air cleaner first scheduled replacement point for that part. If the part fails prior to the first Intake manifold scheduled replacement, the part will be repaired or replaced by B&S at no Purge and vent line charge to the owner. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled c. Ignition System replacement point for the part. Spark plug(s) Magneto ignition system Add on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non exempted add on or modified parts by the d. Catalyst System owner will be grounds for disallowing a warranty claim. The manufacturer will Catalytic converter not be liable to warrant failures of warranted parts caused by the use of a non Exhaust manifold exempted add on or modified part. Air injection system or pulse valve Consequential Coverage e. Miscellaneous Items Used in Above Systems Vacuum, temperature, position, time sensitive valves and switches Coverage shall extend to the failure of any engine components caused by the Connectors and assemblies failure of any warranted emissions parts.

2. Length of Coverage

4. Claims and Coverage Exclusions

For a period of three years from date of original purchase, B&S warrants to the Warranty claims shall be filed according to the provisions of the B&S engine original purchaser and each subsequent purchaser that the engine is designed, built, warranty policy. Warranty coverage does not apply to failures of emissions parts and equipped so as to conform with all applicable regulations adopted by the Air that are not original equipment B&S parts or to parts that fail due to abuse, neglect, Resources Board; that it is free from defects in material and workmanship that could or improper maintenance as set forth in the B&S engine warranty policy. B&S is not cause the failure of a warranted part; and that it is identical in all material respects to liable for warranty coverage of failures of emissions parts caused by the use of the engine described in the manufacturer’s application for certification. The warranty add-on or modified parts. period begins on the date the engine is originally purchased. Look For Relevant Emissions Durability Period and Air Index Information On Your Small Off-Road Engine Emissions Label Engines that are certified to meet the California Air Resources Board (CARB) small off-road Emissions Standard must display information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information available to the consumer on our emissions labels. The engine emissions label will indicate certification information. The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The following categories are used: Moderate: Engine is certified to be emissions compliant for 125 hours of actual engine running time. Intermediate: Engine is certified to be emissions compliant for 250 hours of actual engine running time. Extended: Engine is certified to be emissions compliant for 500 hours of actual engine running time. For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability Period of an engine with an intermediate rating would equate to 10 to 12 years.

Briggs & Stratton engines are certified to meet the United States Environmental Protection Agency (USEPA) Phase 2 emissions standards. For Phase 2 certified engines, the Emissions Compliance Period referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emissions requirements. For engines less than 225 cc displacement. Category C = 125 hours, Category B = 250 hours, Category A = 500 hours For engines of 225 cc or more displacement. Category C = 250 hours, Category B = 500 hours, Category A = 1000 hours
