USER MANUAL MADRAS M18 DYNACORD

IMPORTANT SAFETY INSTRUCTIONS 3

IMPORTANT SERVICE INSTRUCTIONS 3

DESCRIPTION 4

UNPACKING & WARRANTY 4

CONTROLS 5

INPUT/OUTPUT 5

LEVEL 5

STATUS ANZEIGEN 6

POWER SCHALTER 6

NETZEINGANG 6

SPECIFICATIONS/TECHNISCHE DATEN 13

DIMENSIONS/ABMESSAGENGEN 14

BLOCKDIAGRAM 15

INHALT

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVIS: RISQUÉ DE CHOC ELECTRIQUE. NE PAS OUVRIR.

WARNING: CONNECT ONLY TO MAINS SOCKET WITH PROTECTIVE EARTHING CONNECTION.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.
8. Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or the grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for a long period of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.
4. To completely disconnect this equipment from the AC Mains, disconnect the power plug from the AC receptacle.
5. The mains plug of the power supply cord shall remain readily operable.

Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the European Union and other European countries with individual national policies on the management of WEEE) The symbol on the product or on its packaging indicates that this product may not be treated as regular household waste, but has to be disposed through returning it at a Telex dealer.

IMPORTANT SERVICE INSTRUCTIONS

CAUTION:

These servicing instructions are for use by qualified personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the Operating Instructions unless you are qualified to do so. Refer all servicing to qualified service personnel.

1. Security regulations as stated in the EN 60065 (VDE 0860 / IEC 65) and the CSA E65 - 94 have to be obeyed when servicing the appliance.
2. Use of a mains separator transformer is mandatory during maintenance while the appliance is opened, needs to be operated and is connected to the mains.
3. Switch off the power before retrofitting any extensions, changing the mains voltage or the output voltage.
4. The minimum distance between parts carrying mains voltage and any accessible metal piece (metal enclosure), respectively between the mains poles has to be 3mm and needs to be minded at all times. The minimum distance between parts carrying mains voltage and any switches or breakers that are not connected to the mains (secondary parts) has to be 6mm and needs to be minded at all times.
5. Replacing special components that are marked in the circuit diagram using the security symbol (Note) is only permissible when using original parts.
6. Altering the circuitry without prior consent or advice is not legitimate.
7. Any work security regulations that are applicable at the location where the appliance is being serviced have to be strictly obeyed. This applies also to any regulations about the work place itself.
8. All instructions concerning the handling of MOS - circuits have to be observed.

NOTE:

SAFETY COMPONENT ( MUST BE REPLACED BY ORIGINAL PART )

Congratulations! Your new DYNACORD MADRAS M18 is an active loudspeaker cabinet incorporating state-of-the-art technology.

The MADRAS M18 is an active, optimally vented subwoofer with integrated controller and ElectroVoice EVX180B woofer.

The integrated controller with 124 Hz, 24dB/octave and Linkwitz-Riley characteristics and the electronically balanced XLRF-type connectors allow easy installing an active 3-way system configuration using active top-parts like for example the MADRAS M18 (in mid-high position). Frequency and phase responses of the MADRAS M18 also provide the possibility for direct parallel operation with suitable full-range cabinets. Achieving this is possible by simply feeding the MADRAS M18 Sub with a line level audio signal from a separate mixer output. Balance between MADRAS M18 Sub and top-parts can be established from the mixing console.

An 800W high-efficiency class-H power amplifier provides ample power. Consequential use of class-H technology reduces power dissipation, power consumption as well as the power amp's weight noticeably. The power amplifier is convection-cooled, resulting in no disturbing noise from running fans.

The fully electronic VOICE COIL TRACKING PROTECTION prevents the EVX180B woofer from being damaged by thermal overload, which make the MADRAS M18 especially suitable for a wide range of demanding applications in the rental business. The birch multi-plywood enclosure is sealed with black, extremely shock-resistant structural lacquer finish. A robust, powder-coated steel grille protects the woofer against mechanical damage.

Mains connection is provided via lockable PowerCon connector. Also provided is a PowerCon mains output. Audio signal connection is provided via XLRF-type connector. An additional XLRF-type connector allows feeding the signal to another cabinet. The electronically balanced input features a level control for matching the volume. Four stable carrying handles as well as four professional-type castors allow for comfortable transport. Snap-in drillings allow trouble-free, stables stacking while an integrated polemount flange permits space-saving installation with top-parts.

UNPACKING & WARRANTY

Open the packaging and carefully take out the MADRAS M18. In addition to the appliance itself and this owner's manual, the package also includes mains cord, level control cover and warranty certificate. Please make sure to keep warranty certificate and original invoice, stating the date of purchase, at a safe place.

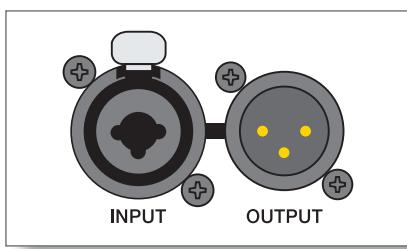

INPUT

Electronically balanced input for the connection of high-level signal sources like mixing consoles or signal processors. Connections can be established using phone or alternatively XLR-type connectors.

Caution: Preventing the occurrence of spurious noise. Prior to connecting/disconnecting the input, set the level control to its counterclockwise stop.

OUTPUT

This connector is connected in parallel to the input allowing the through connection of the input audio signal.

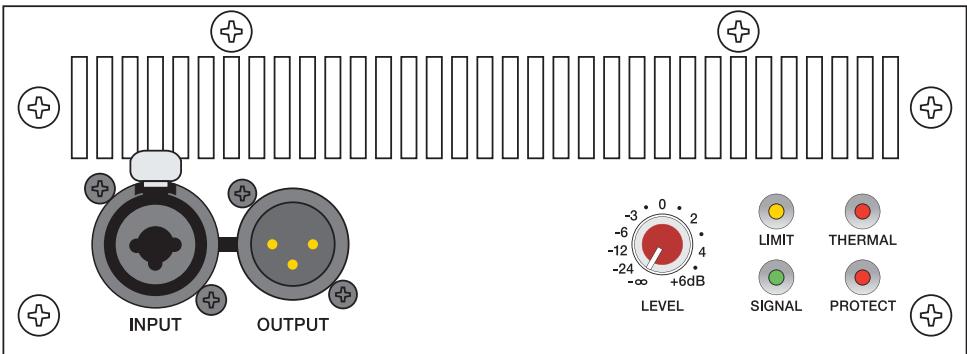

LEVEL

dB-scaled level control for adjusting the power amp's overall amplification. To prevent distortion and clipping of pre-linked mixing consoles, the control should generally be set to a value between 0dB and +6dB.

LIMIT brief blinking indicates that the power amplifier is operated at its limits. Short-term blinking is uncritical, because the integrated limiter compensates minor distortion. Constant lighting of the LED indicates that the sound is negatively affected. Reducing the output volume is strongly recommended.

SIGNAL indicates the presence of an input signal.

THERMAL lights, when the power amp's output power is reduced to prevent thermal overload.

PROTECTION lights, when one of the power amp's comprehensive protections against e.g. thermal overload, HF or DC at the output, and Back-EMF has been activated. The speaker outputs are deactivated and the input gain is reduced when in Protect Mode, to protect the power amplifier from damage.

The PROTECT LED lights for approximately 2 seconds during power-on operation. This is normal, indicating that all protections are working.

POWER-switch

Mains switch for powering the appliance on or off. With the power amplifier being switched on, the mains switch is backlit. If, after switching the power on, the switch is not backlit, please first check whether the mains cord is correctly connected. In case the cord has been connected correctly and the switch still fails to light (no function), please contact your specialist dealer.

MAINS FUSE

Under normal circumstance the mains fuse only blows in case of failure. Always use an identical type with the same current, voltage and blow characteristics when replacing the mains fuse. If the mains fuse blows more often, please contact your specialist dealer.

MAINS IN

Mains connector is carried out as PowerCon-type socket. A fitting mains cord (5m) with PowerCon-type plug is supplied.

MAINS OUT

This PowerCon mains out socket allows the connection of additional MADRAS cabinets, e.g. M15 or M18, using special cords (PC150 or PC800).

To prevent mains network overload, connecting more than three MADRAS cabinets to a single mains outlet (10A-16A) is not recommended.

POWERED SUBWOOFER 18"

800 WATTS AMPLIFIER OUTPUT POWER

HIGH EFFICIENCY POWER TRACKING SUPPLY

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

AVIS: RISQUÉ DE CHOC ELECTRIQUE. NE PAS OUVRIR.

WARNING: CONNECT ONLY TO MAINS SOCKET WITH PROTECTIVE EARTHING CONNECTION.

Technical Specifications: M18

Internal amplifier at rated conditions, all power ratings at minimum speaker impedance (6 ohms), unless otherwise specified.

System and Cabinet Specifications:

SPL 1W/1m

98dB

Max. SPL 1m (Calculated)

127dB

Frequency Range (-10dB)

35Hz.....145Hz

Woofer

Electro-Voice EVX180B (349397)

Dimensions (W× H× D)

505× 805× 698mm

Weight

54 kg

Power Amplifier -, Inputs - and Crossover - Specifications:

Max. Dynamic Output Power (IHF-A)

800W

Max. Continuous Output Power (THD=1%, 100Hz)

540W

Power Amplifier Design

High Efficiency, Class H

THD+N, rated

< 0.05%

Input Impedance (balanced)

20kohms

Level Control

-00...+6dB

Cooling

Convection cooled, passive

Protection

Audio limiter, High temperature, DC,

HF, Back-EMF, Peak-current limiters,

Inrush current limiter, Turn-on delay,

Thermal (Speaker & Amplifier)

Internal Crossover

24dB/Octave, Linkwitz-Riley, 124Hz,

positive polarity (from serial # 10211)

Power Requirements

100V, 120V, 230V, 240V, 50Hz/60Hz

Power Consumption

200W

Warranty

36 months

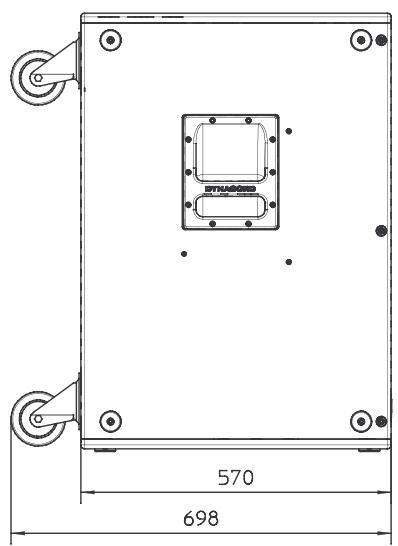

LEFT SIDE

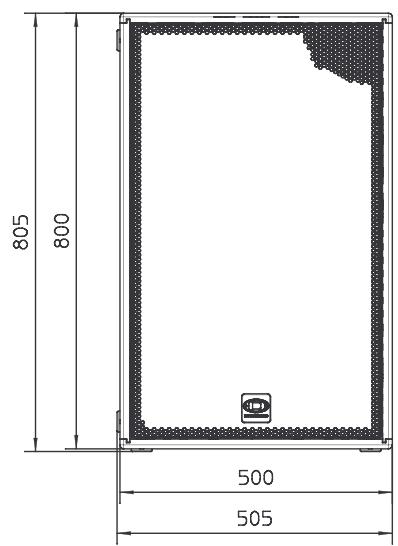

FRONT

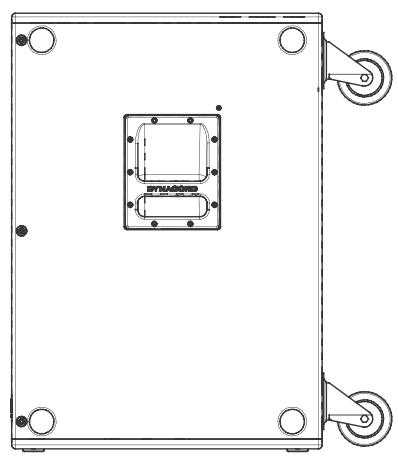

RIGHT SIDE

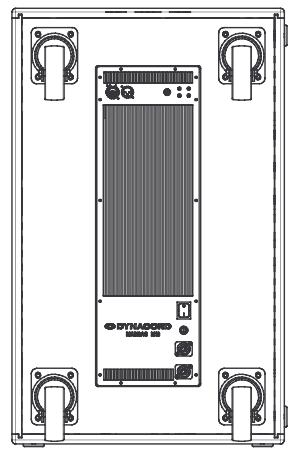

REAR

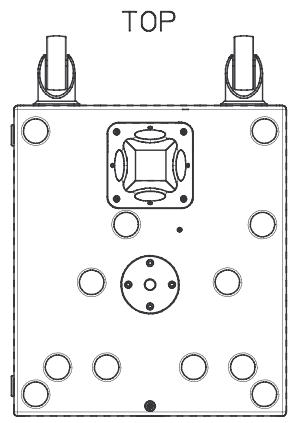

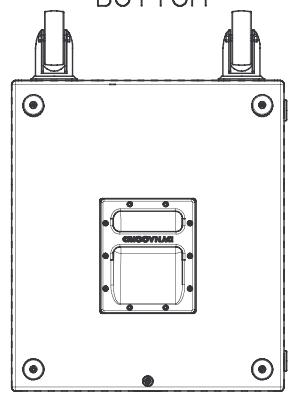

BOTTOM

EVIAUDIO

USA Telex Communications Inc., 12000 Portland Ave. South, Burnsville, MN 55337, Phone: [phone], FAX: [phone]

Germany EVI AUDIO GmbH, Hirschberger Ring 45, D 94315, Straubing, Germany Phone: [phone], FAX: [phone]

Subject to change without prior notice.

Printed in Germany

10/01/2004/D361999
