Product Type	Bluetooth Amplified Speaker
Brand	TANGENT
Model	AMPSTER BT
Bluetooth Connectivity	Yes, standard range
Audio Inputs	Optical, AUX (3.5mm), RCA (L/R), Bluetooth
Audio Outputs	Speakers L/R (binding posts), Subwoofer (SUB)
Remote Control Included	Yes, with power on/off, source selection, volume, playback, mute
Power Supply	Mains via included power cable
Thermal Protection	Automatic shutdown if temperature > 85°C, restart when < 60°C
Indicator Lights	Power (red standby), Bluetooth, OPT, LINE, AUX
Safety	Do not expose to moisture, unplug during storms, maintenance by qualified technician
Cleaning	With a dry cloth only
Repairability	Do not open yourself, refer to a professional
Included Accessories	Remote control, user manual
Auto Standby Function	Yes, after 30 minutes of inactivity
Operating Temperature	0°C to 40°C (estimated)
Intended Use	Domestic use, audio amplification and playback

Frequently Asked Questions - AMPSTER BT TANGENT

How to connect my phone via Bluetooth?

Press Bluetooth on the remote control or input selector. Turn on Bluetooth on your phone, search for Tangent Ampster BT and select it. The connection is automatic.

What to do if the speaker does not turn on?

Check that the power cable is plugged into the back and the wall outlet. Make sure the Power button at the back is set to On. If the power indicator does not light up, try another outlet.

How to use the optical input?

Connect an optical cable between your source (TV, CD player) and the Optical input at the back. Press OPT on the remote control or select the optical input via the volume button.

Why does the power indicator turn orange?

The orange light indicates excessive internal temperature (above 85°C). The device automatically shuts off to protect itself. Let it cool down, it will restart when the temperature drops below 60°C.

How to wake the speaker from standby mode?

Press the Standby button on the remote control or turn/push the Volume/Selector knob. The device exits standby after about 2 seconds. You can also send a Bluetooth signal.

Can I connect a subwoofer?

Yes, connect your subwoofer to the SUB output at the back. No additional settings are needed, the bass sound will be transmitted.

How to clean the device?

Use a soft dry cloth. Never use liquid or abrasive products. Unplug the device before cleaning.

What to do if the sound is distorted?

Check the volume level: reduce it if too high. Make sure the speaker cables are properly connected (observe polarity +/- and left/right). If distortion persists, try another source.

How to switch between sources?

Use the remote control: press Bluetooth, OPT, LINE, or AUX according to the source. You can also push the Volume/Selector knob to cycle through the inputs.

Can the device be left on for a long time?

It is not recommended to leave it on unattended for long periods (overnight, holidays). Use auto standby after 30 minutes of inactivity or turn it off manually.

USER MANUAL AMPSTER BT TANGENT

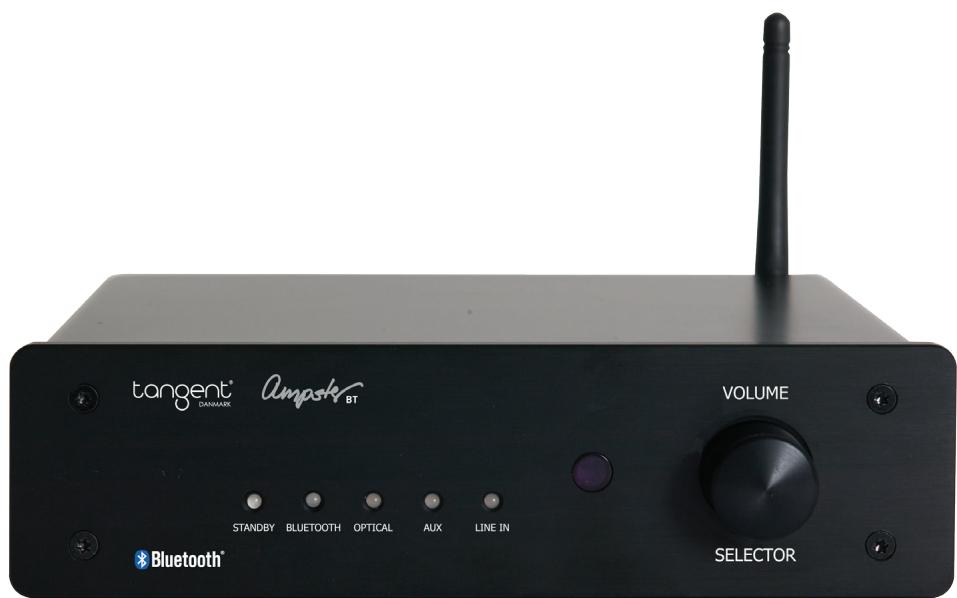

Ampster Mini stereo amplifier

User's manual

Brugermanual

Mode d'emploi

Bedienungsanleitung

Bruksanvisning

Käytöopas

Manual del usuario

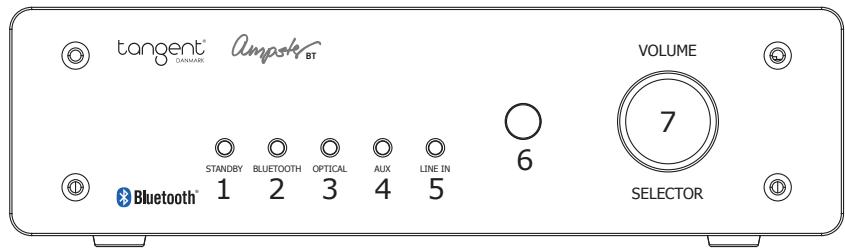

Amplifier:

1. Power Indicator
2. Bluetooth Indicator
3. OPT Indicator
4. Line In Indicator
5. AUX Indicator
6. Remote Sensor
7. Volume Knob/Input Selector
8. Antenna
9. RCA L/R
10. SUB Out
11. AUX In
12. Optical Input
13. Speaker Output - L/R
14. Speaker Output + L/R
15. Power Input
16. On/Off Switch

Including in the package:

Remote Control

Instruction Manual

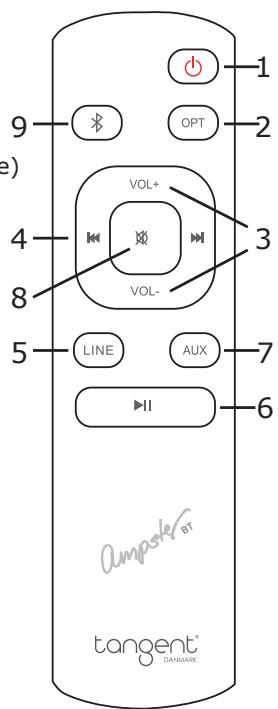

Remote control:

1. On/Off Button
2. Optical Source
3. Volume +/-
4. Previous/Next (BT mode)
5. Line In Source
6. Play/Pause (BT mode)
7. AUX Source
8. Mute
9. Bluetooth Source

Connect:

1. Connect the power cord to the back of the amplifier then connect it to a wall outlet.
2. Connect your devices to the desired input.
3. Turn the power button to the On position, after two seconds the unit will enter working status and the input indicator will lit up.
4. Press the Bluetooth, OPT, LINE or AUX button on the remote or the volume knob to choose the desired audio source.

Control the playback via the remote control by pressing the buttons.

Note: The amplifier will shut off automatically if the temperature exceeds 85^ , to indicate this the Power indicator will turn orange. The amplifier will re-start automatically when the temperature has dropped below 60 ± 10^ .

Bluetooth Pairing:

1. Press the Bluetooth on the remote (or push the selector button) to activate the Bluetooth source.
2. Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices.
3. When you phone/tablet finds the Tangent Ampster BT, choose this unit and begin pairing up.

(UK)

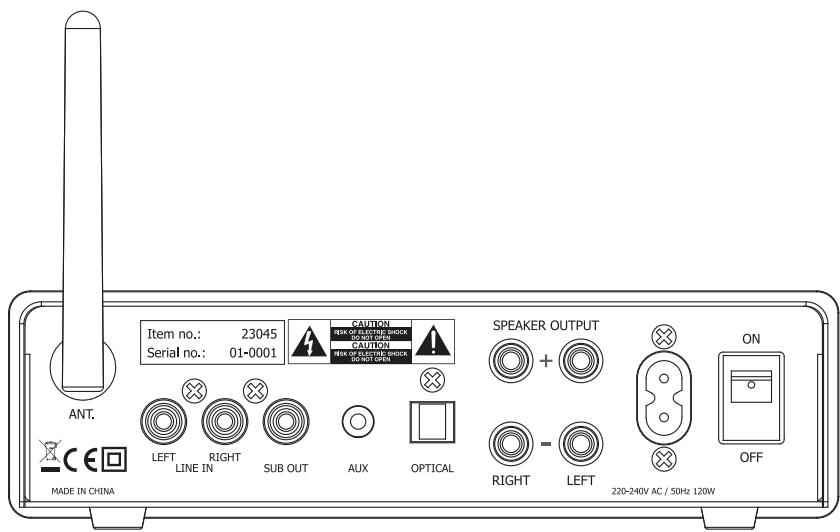

Connect Your Device:

Connect your loudspeakers to the Speaker Output.

Make sure you connect the - / + and the L/R cables to the correct input.

Connect your subwoofer to SUB out.

Connect a CD player or other device via its RCA cable to the RCA L/R input.
Make sure you connect the "L" plug to the left input channel and the "R" plug to the right input channel.

Connect your phone/tablet/MP3 via an AUX cable to AUX Input.

Use the optical input by connecting a device using a optical fiber cable to the Optical Input.

Note:

Remember to change into the desired source on the amplifier.

(UK)

Indicator Function

Power/Standby indicator

Power: Power on-The product in power off status, then push the power source button on rear panel at "ON" position the LED indicator blinks one time and the startup sound from electric relay in the unit, after about 2 seconds the amplifier will be in working status. Note that the unit will not remember the settings from before it was powered off.

Power off:

Push the power source button at "OFF" position, then the close sound from the electric relay and unit go into power off status.

Standby:

Press the standby button on the remote control, or push the Volume/selector button. then the unit will go into standby, and the standby LED will be red color. The unit is in standby status.

(When the Ampster goes into auto standby when inactive in 30min, you can wake it up via bluetooth signal)

Power on (from standby mode): Press standby on the remote control or push the Volume/selector button. And after about 2 seconds the amplifier will be in last time working status before standby.

Bluetooth input indicator

Press to select Bluetooth as your audio source.

Optical input indicator

Press to select input method as optical fiber wired audio source.

AUX input indicator

Press to select input method as 3.5mm audio jack line in.

Line-in input indicator

Press to select input method as wired RCA Line-in.

Volume and input switch button

This selector can adjust volume (turn left or right) and also switch the input mode (push) (For standby push and hold the button)

(UK)

Important Safety Instructions:

To reduce the risk of electrical shock, fire, etc.:

1. Do not place unit near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
2. Do not block any ventilation openings of unit.
3. The unit shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the unit.
4. Do not place any heavy loads onto the unit, and do not step on it, the load may fall and cause serious injury to the unit.
5. Never unplug your unit by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
6. Repair or replace all electric service cords that have become frayed or otherwise damaged immediately. Do not use a cord that shows cracks or abrasion damage along its length, the plug, or the connector end.
7. To prevent fire or shock hazard, do not expose unit to rain or moisture.
8. During lightning or raining days, unplug the unit for additional protection during thunderstorms or when the unit is not used for prolonged periods. This will prevent damage to the unit from lightning and power surges.
9. Do not attempt to carry out any service work yourself. By opening or removing the cabinet, you may be exposed to dangerous voltage or other hazards. Any service work should be carried out by qualified technicians.
10. In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it off and disconnect the mains plug from the mains socket.
11. Clean only with dry cloth
12. Please pay attention to the environmental aspects of battery disposal. Battery must be recycled or disposed of properly. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

(UK)

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,. Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Amplificateur :

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(F)

Veränderker:

m = 311 ;

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

Förstärkare:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(S)

Vahvistin:

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

(FIN)

Amplificador:

1. Indicador de energia
2. Indicador Bluetooth
3. Indicador OPT
4. Indicador de entrada de linea
5. Indicador AUX
6. Sensor remot
7. Selector de volumen/Selector de entrada
8. Antena
9. RCA L/R
10. Salida SUB
11. Entrada AUX
12. Entrada optica
13. Salida de alto - L/R
14. Salida de.altavoz ^+ I/D
15. Entrada de energia
16. Interruption On/Off

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks is under license. Other trademarks and trade names are those of their respective owners.

WWW.TANGENT-AUDIO.COM

CE

Product name:

Power supply:

Frequency response:

Impendance:

Bluetooth range:

Dimensions:

Weight:

Tangent Ampster BT

AC 220V 240V / 50Hz

20Hz ~ 20KHz

4ohm

10 meters

190 × 139 × 52 mm

1,3 kg
