COLOREDGE CG242W - Professional Monitor EIZO - Free user manual and instructions
Find the device manual for free COLOREDGE CG242W EIZO in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Professional 24.1-inch LCD color monitor |
| Native resolution | 1920 × 1200 pixels (widescreen) |
| Color space | 97% of Adobe RGB space |
| Video inputs | DVI-I (HDCP compatible) × 1, DisplayPort (v1.1a compatible, HDCP) × 1 |
| Scan frequencies (analog) | Horizontal: 24-130 kHz; Vertical: 47.5-120 Hz |
| Scan frequencies (digital) | Horizontal: 26-78 kHz; Vertical: 23.75-63 Hz |
| Viewing angle | Horizontal and vertical: 178° (contrast ≥ 10) |
| Recommended brightness | 120 cd/m² (for color temperature 5000-6500 K) |
| Dimensions (with stand) | 566 mm (W) × 456-538 mm (H) × 230 mm (D) |
| Weight (with stand) | Approximately 10.7 kg |
| Power supply | 100-120 / 200-240 V AC, 50/60 Hz, 1.05/0.5 A |
| Power consumption (max.) | 105 W (with USB load) |
| Power consumption (standby) | ≤ 1.5 W (single DVI-I input, without USB) |
| Main functions | ColorNavigator, Auto EcoView, FineContrast (Custom, sRGB, EMU, CAL), height/pivot/rotation adjustment, portrait/landscape mode, USB hub (1 upstream, 2 downstream) |
| Maintenance and cleaning | Soft cloth (gauze, cotton, optical paper); stains: ScreenCleaner or warm water with mild detergent; do not use solvents |
| Safety | Effective pixels ≥ 99.9994%; do not press on the screen; do not use sharp objects; condensation: wait for it to disappear before turning on power |
| Spare parts and repairability | Option: EIZO arm or stand compliant with VESA (100×100 mm, plate thickness ≤ 2.6 mm); backlight with limited lifespan (contact dealer if dimming) |
| General information | Brand: EIZO; model: ColorEdge CG242W; ENERGY STAR energy class; warranty: consult dealer |
Frequently Asked Questions - COLOREDGE CG242W EIZO
What to do if the screen does not turn on?
Check that the power cord is plugged in and the main switch is on. Press the power button. If the indicator light is orange, the monitor is in power saving mode: use the mouse or keyboard. If the indicator light flashes orange, the DisplayPort device may be faulty: turn the monitor off and on again.
How to adjust brightness and color?
Use the Mode button to select a FineContrast mode (Custom, sRGB, EMU or CAL). In Custom mode, press Enter to access the menu and adjust Brightness, Temperature, Gamma, Saturation, Hue and Gain. Allow the screen to warm up for at least 30 minutes before making any adjustments.
Why is the displayed image too small or too large?
This is due to a resolution mismatch. Use the Resolution function in the Screen menu to adjust the displayed resolution to the input resolution. Make sure your PC resolution is set to 1920×1200 (recommended).
How to clean the screen without damaging it?
Use a soft cloth (gauze, cotton or optical paper). For stains, lightly dampen the cloth with water or use the supplied ScreenCleaner. Never use thinner, benzene, alcohol or abrasive products. Do not spray directly on the screen.
Can I use the monitor in portrait mode?
Yes, the monitor can be rotated 90° to the right. To do this, set the menu orientation in Other Functions > Orientation to Portrait. Note: your video card must support portrait mode.
How to save energy with this monitor?
Enable PowerManager mode in the PowerManager menu (set to On). The monitor will go into standby (orange light) after computer inactivity. You can also use the Off timer function for a programmed automatic standby (1 to 23 hours).
What to do if vertical bars appear on the screen?
This indicates a clock setting problem (analog input). Use the Clock function in the Screen menu to eliminate the bars. First perform an automatic adjustment with the Auto button (analog input only).
How to calibrate the monitor for color accuracy?
Use the ColorNavigator software provided on the CD-ROM. Connect a USB cable between the PC and the monitor (upstream port). The software can generate ICC profiles (Windows) or ColorSync profiles (Mac). The EMU and CAL modes are dedicated to calibration.
Can I connect two computers at the same time?
Yes, thanks to the DVI-I connector and the DisplayPort connector. Use the Input signal selection button to switch between signals. In the Other Functions > Input Signal menu, choose Auto for automatic switching or Manual for manual selection.
What to do in case of image retention (ghost image)?
Image retention is normal on LCDs after prolonged static display. Use a screen saver or put the monitor to sleep. If marks persist, display a white or black screen for a few minutes to clear them.
User questions about COLOREDGE CG242W EIZO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Professional Monitor in PDF format for free! Find your manual COLOREDGE CG242W - EIZO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. COLOREDGE CG242W by EIZO.
USER MANUAL COLOREDGE CG242W EIZO
5-5. Specifications 30
5-6. Glossaire 34
- APPENDIX/ANHANG/ANNEXE 36
About TCO'03 38
FCC Declaration of Conformity 39
[Résolution] 1920 points x 1200 lines
Ajustages avances [Menu ajustage]
[Procedure de restauration]
[Procedure de restauration]
[Procedure de restauration]
Appuyez sur ⑨.
Note
DVI DMPM (DVI Digital Monitor Power Management)
HDCP (High-bandwidth Digital Contents Protection)
TMDS (Transition Minimized Differential Signaling)
| Mode | Dot Clock MHz | Frequencies Horizontal:kHz Vertical:Hz | Sync Polarity | |
| VGA 640x480@60Hz | 25.2 MHz | Horizontal | 31.47 | Negative |
| Vertical | 59.94 | Negative | ||
| VGA TEXT 720x400@70Hz | 28.3 MHz | Horizontal | 31.47 | Negative |
| Vertical | 70.09 | Positive | ||
| Macintosh 832x624@75Hz | 57.3 MHz | Horizontal | 49.72 | Negative |
| Vertical | 74.55 | Negative | ||
| Macintosh 1280x960@75Hz | 126.2 MHz | Horizontal | 74.76 | Positive |
| Vertical | 74.76 | Positive | ||
| VESA 640x480@72Hz | 31.5 MHz | Horizontal | 37.86 | Negative |
| Vertical | 72.81 | Negative | ||
| VESA 640x480@75Hz | 31.5 MHz | Horizontal | 37.50 | Negative |
| Vertical | 75.00 | Negative | ||
| VESA 640x480@85Hz | 36.0 MHz | Horizontal | 43.27 | Negative |
| Vertical | 85.01 | Negative | ||
| VESA 800x600@56Hz | 36.0 MHz | Horizontal | 35.16 | Positive |
| Vertical | 56.25 | Positive | ||
| VESA 800x600@60Hz | 40.0 MHz | Horizontal | 37.88 | Positive |
| Vertical | 60.32 | Positive | ||
| VESA 800x600@72Hz | 50.0 MHz | Horizontal | 48.08 | Positive |
| Vertical | 72.19 | Positive | ||
| VESA 800x600@75Hz | 49.5 MHz | Horizontal | 46.88 | Positive |
| Vertical | 75.00 | Positive | ||
| VESA 800x600@85Hz | 56.3 MHz | Horizontal | 53.67 | Positive |
| Vertical | 85.06 | Positive | ||
| VESA 1024x768@60Hz | 65.0 MHz | Horizontal | 48.36 | Negative |
| Vertical | 60.00 | Negative | ||
| VESA 1024x768@70Hz | 75.0 MHz | Horizontal | 56.48 | Negative |
| Vertical | 70.07 | Negative | ||
| VESA 1024x768@75Hz | 78.8 MHz | Horizontal | 60.02 | Positive |
| Vertical | 75.03 | Positive | ||
| VESA 1024x768@85Hz | 94.5 MHz | Horizontal | 68.68 | Positive |
| Vertical | 85.00 | Positive | ||
| VESA 1152x864@75Hz | 108.0 MHz | Horizontal | 67.50 | Positive |
| Vertical | 75.00 | Positive | ||
| VESA 1280x960@60Hz | 108.0 MHz | Horizontal | 60.00 | Positive |
| Vertical | 60.00 | Positive | ||
| VESA 1280x1024@60Hz | 108.0 MHz | Horizontal | 63.98 | Positive |
| Vertical | 60.02 | Positive | ||
| VESA 1280x1024@75Hz | 135.0 MHz | Horizontal | 79.98 | Positive |
| Vertical | 75.03 | Positive | ||
| VESA 1600x1200@60Hz | 162.0 MHz | Horizontal | 75.00 | Positive |
| Vertical | 60.00 | Positive | ||
| VESA 1600x1200@65Hz | 175.0 MHz | Horizontal | 81.30 | Positive |
| Vertical | 65.00 | Positive | ||
| VESA 1600x1200@70Hz | 189.0 MHz | Horizontal | 87.50 | Positive |
| Vertical | 70.00 | Positive | ||
| VESA 1600x1200@75Hz | 202.5 MHz | Horizontal | 93.75 | Positive |
| Vertical | 75.00 | Positive | ||
| VESA CVT 1680 x 1050@60Hz | 146.3 MHz | Horizontal | 65.29 | Negative |
| Vertical | 59.95 | Positive |
| Mode | Dot Clock MHz | Frequencies | Sync Polarity | ||
| Horizontal:kHz Vertical:Hz | |||||
| VESA CVT 1920×1200@60Hz | 193.25 MHz | Horizontal | 74.56 | Negative | |
| Vertical | 59.89 | Positive | |||
| VESA CVT RB 1920×1200 60Hz | 154.00 MHz | Horizontal | 74.04 | Positive | |
| Vertical | 59.95 | Negative | |||

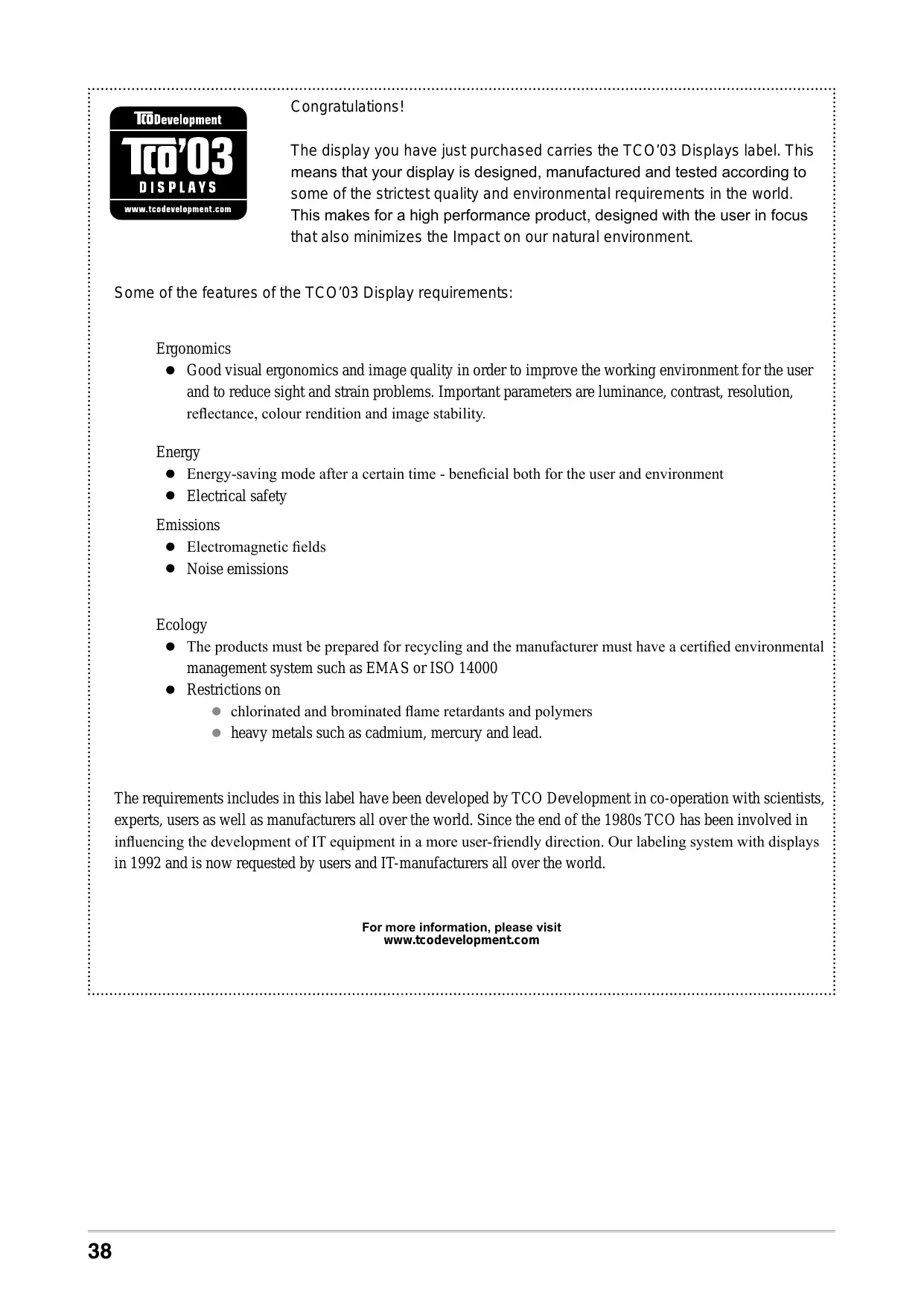

Congratulations!
The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.
Some of the features of the TCO'03 Display requirements:
Ergonomics
- Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.
Energy
- Energy-saving mode after a certain time - beneficial both for the user and environment
- Electrical safety
Emissions
- Electromagnetic fields
- Noise emissions
Ecology
- The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000
-
Restrictions on
-
chlorinated and brominated flame retardants and polymers
- heavy metals such as cadmium, mercury and lead.
The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.
For more information, please visit www.tcodevelopment.com
| For U.S.A., Canada, etc. (rated 100-120 Vac) Only | |
| FCC Declaration of Conformity | |
| We, the Responsible Party | EIZO NANAO TECHNOLOGIES INC. |
| 5710 Warland Drive, Cypress, CA 90630 | |
| Phone: (562) 431-5011 | |
| declare that the product | Trade name: EIZO |
| Model: ColorEdge CG242W | |
| is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. | |
| This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. | |
| * Reorient or relocate the receiving antenna. | |
| * Increase the separation between the equipment and receiver. | |
| * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. | |
| * Consult the dealer or an experienced radio/TV technician for help. | |
| Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. | |
| Note | |
| Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. | |
| - AC Cord | |
| - Shielded Signal Cable (Enclosed) | |
| Canadian Notice | |
| This Class B digital apparatus complies with Canadian ICES-003. | |
| Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada. | |
