Product Type	24.1-inch (61 cm) LCD Professional Monitor
Native Resolution	1920 x 1200 pixels
Pixel Pitch	0.270 mm
Viewing Angle (Horizontal/Vertical)	178° / 178° (contrast ≥ 10)
Response Time	Approx. 16 ms
Displayable Colors	16.77 million (max.)
Input Connectors	2 x DVI-I (HDCP compatible)
USB Hub	USB 2.0: 1 upstream port, 2 downstream ports (500 mA/port max.)
Dimensions (with stand)	566 x 456 ~ 538 x 230 mm
Weight (with stand)	11.0 kg
Power Supply	100-120 / 200-240 V AC, 50/60 Hz, 1.1 A / 0.55 A
Power Consumption (max.)	110 W (with USB)
Power Consumption in Sleep Mode	Less than 2 W (single input without USB)
Main Functions	ColorNavigator CE, UniColor Pro, FineContrast (4 modes), BrightRegulator, setting lock, portrait/landscape display, power management (VESA DPMS / DVI DMPM)
Maintenance and Cleaning	Soft cloth and mild detergent for the cabinet; non-woven cloth or ScreenCleaner for the screen. Avoid alcohol, solvents.
Safety	Do not disassemble, avoid liquids and small objects, use a grounded outlet, unplug if abnormality occurs.
Spare Parts and Repairability	Contact an authorized EIZO dealer.
General Information	Warranty and support: refer to the manual or EIZO website. Software included on CD-ROM.

Frequently Asked Questions - COLOREDGE CG241W EIZO

How do I calibrate the colors of my EIZO ColorEdge CG241W?

Use the ColorNavigator CE software included on the CD-ROM. Connect the monitor to the computer via the USB cable, then launch the software to calibrate and generate ICC profiles (Windows) or ColorSync (Mac).

Can I connect two computers to this monitor?

Yes, the monitor has two DVI-I inputs. Connect each PC to an input, then use the input selection button to switch between signals. You can also configure input priority in the ScreenManager menu.

How do I activate the power saving mode?

In the ScreenManager menu, go to PowerManager. For analog input, select VESA DPMS; for digital input, select DVI DMPM. Also configure the power saving settings on your computer.

What should I do if the screen stays black and the indicator is orange?

The monitor is in sleep mode. Move the mouse or press a key on the keyboard to wake it. If the problem persists, check that the computer is on and the signal cable is properly connected.

How do I automatically adjust the brightness according to ambient light?

Enable the BrightRegulator function in the ScreenManager menu. The front sensor detects ambient light and adjusts the screen brightness automatically. This function is not available in EMU and CAL modes.

How do I clean the LCD screen without damaging it?

Use a soft cloth (gauze, cotton, or optical paper). For stubborn stains, lightly moisten the cloth or use the supplied ScreenCleaner. Never use alcohol, benzene, or strong solvents.

Can I mount the monitor on an articulated arm?

Yes, remove the stand by unscrewing the four screws, then attach a VESA-compatible arm (100 x 100 mm pitch) that supports at least 7.4 kg (weight of the monitor without stand). Use the screws provided with the arm.

How do I lock the settings to prevent accidental changes?

Press the lock button (⑥) for at least 2 seconds to lock the menu. To unlock, repeat the same action. The input selection and power buttons remain active.

Why is my image too small or too large?

Adjust the resolution in the ScreenManager menu via the Size option. Choose Full Screen, Enlarged, or Normal according to your input resolution. Also use the Resolution setting to match the input resolution.

How do I use the USB hub of the monitor?

Connect the USB cable from the monitor to your computer (upstream port). The two downstream ports on the front of the monitor then become active for connecting USB devices. Make sure your OS supports USB 2.0.

USER MANUAL COLOREDGE CG241W EIZO

FCC Declaration of Conformity 40

[Résolution] 1920 points x 1200 lines

[Procedure de restauration]

[Procedure de restauration]

[Procedure de restauration]

Appuyez sur

Note

DVI DMPM (DVI Digital Monitor Power Management)

HDCP (High-bandwidth Digital Contents Protection)

TMDS (Transition Minimized Differential Signaling)

Mode	Dot Clock MHz		Frequencies Horizontal:kHz Vertical:Hz	Sync Polarity
VGA 640x480@60Hz	25.2 MHz	Horizontal	31.47	Negative
		Vertical	59.94	Negative
VGA TEXT 720x400@70Hz	28.3 MHz	Horizontal	31.47	Negative
		Vertical	70.09	Positive
Macintosh 640x480@67Hz	30.2 MHz	Horizontal	35.00	Negative
		Vertical	66.67	Negative
Macintosh 832x624@75Hz	57.3 MHz	Horizontal	49.73	Negative
		Vertical	74.55	Negative
Macintosh 1152x870@75Hz	100.0 MHz	Horizontal	68.68	Negative
		Vertical	75.06	Negative
Macintosh 1280x960@75Hz	126.2 MHz	Horizontal	74.76	Positive
		Vertical	74.76	Positive
VESA 640x480@72Hz	31.5 MHz	Horizontal	37.86	Negative
		Vertical	72.81	Negative
VESA 640x480@75Hz	31.5 MHz	Horizontal	37.50	Negative
		Vertical	75.00	Negative
VESA 640x480@85Hz	36.0 MHz	Horizontal	43.27	Negative
		Vertical	85.01	Negative
VESA 800x600@56Hz	36.0 MHz	Horizontal	35.16	Positive
		Vertical	56.25	Positive
VESA 800x600@60Hz	40.0 MHz	Horizontal	37.88	Positive
		Vertical	60.32	Positive
VESA 800x600@72Hz	50.0 MHz	Horizontal	48.08	Positive
		Vertical	72.19	Positive
VESA 800x600@75Hz	49.5 MHz	Horizontal	46.88	Positive
		Vertical	75.00	Positive
VESA 800x600@85Hz	56.3 MHz	Horizontal	53.67	Positive
		Vertical	85.06	Positive
VESA 1024x768@60Hz	65.0 MHz	Horizontal	48.36	Negative
		Vertical	60.00	Negative
VESA 1024x768@70Hz	75.0 MHz	Horizontal	56.48	Negative
		Vertical	70.07	Negative
VESA 1024x768@75Hz	78.8 MHz	Horizontal	60.02	Positive
		Vertical	75.03	Positive
VESA 1024x768@85Hz	94.5 MHz	Horizontal	68.68	Positive
		Vertical	85.00	Positive
VESA 1152x864@75Hz	108.0 MHz	Horizontal	67.50	Positive
		Vertical	75.00	Positive
VESA 1280x960@60Hz	108.0 MHz	Horizontal	60.00	Positive
		Vertical	60.00	Positive
VESA 1280x1024@60Hz	108.0 MHz	Horizontal	63.98	Positive
		Vertical	60.02	Positive
VESA 1280x1024@75Hz	135.0 MHz	Horizontal	79.98	Positive
		Vertical	75.03	Positive
VESA 1280x1024@85Hz	157.5 MHz	Horizontal	91.15	Positive
		Vertical	85.03	Positive
VESA 1600x1200@60Hz	162.0 MHz	Horizontal	75.00	Positive
		Vertical	60.00	Positive
VESA 1600x1200@65Hz	175.0 MHz	Horizontal	81.30	Positive
		Vertical	65.00	Positive

Mode	Dot Clock MHz		Frequencies		Sync Polarity
			Horizontal:kHz Vertical:Hz
VESA 1600×1200@70Hz	189.0 MHz	Horizontal	87.50		Positive
		Vertical	70.00		Positive
VESA 1600×1200@75Hz	202.5 MHz	Horizontal	93.75		Positive
		Vertical	75.00		Positive
VESA CVT 1680×1050 60Hz	146.3 MHz	Horizontal	65.29		Negative
		Vertical	59.95		Positive
VESA CVT 1920×1200 60Hz	193.3 MHz	Horizontal	74.56		Negative
		Vertical	59.89		Positive
VESA CVT RB 1920×1200 60Hz	154.0 MHz	Horizontal	74.04		Positive
		Vertical	59.95		Negative

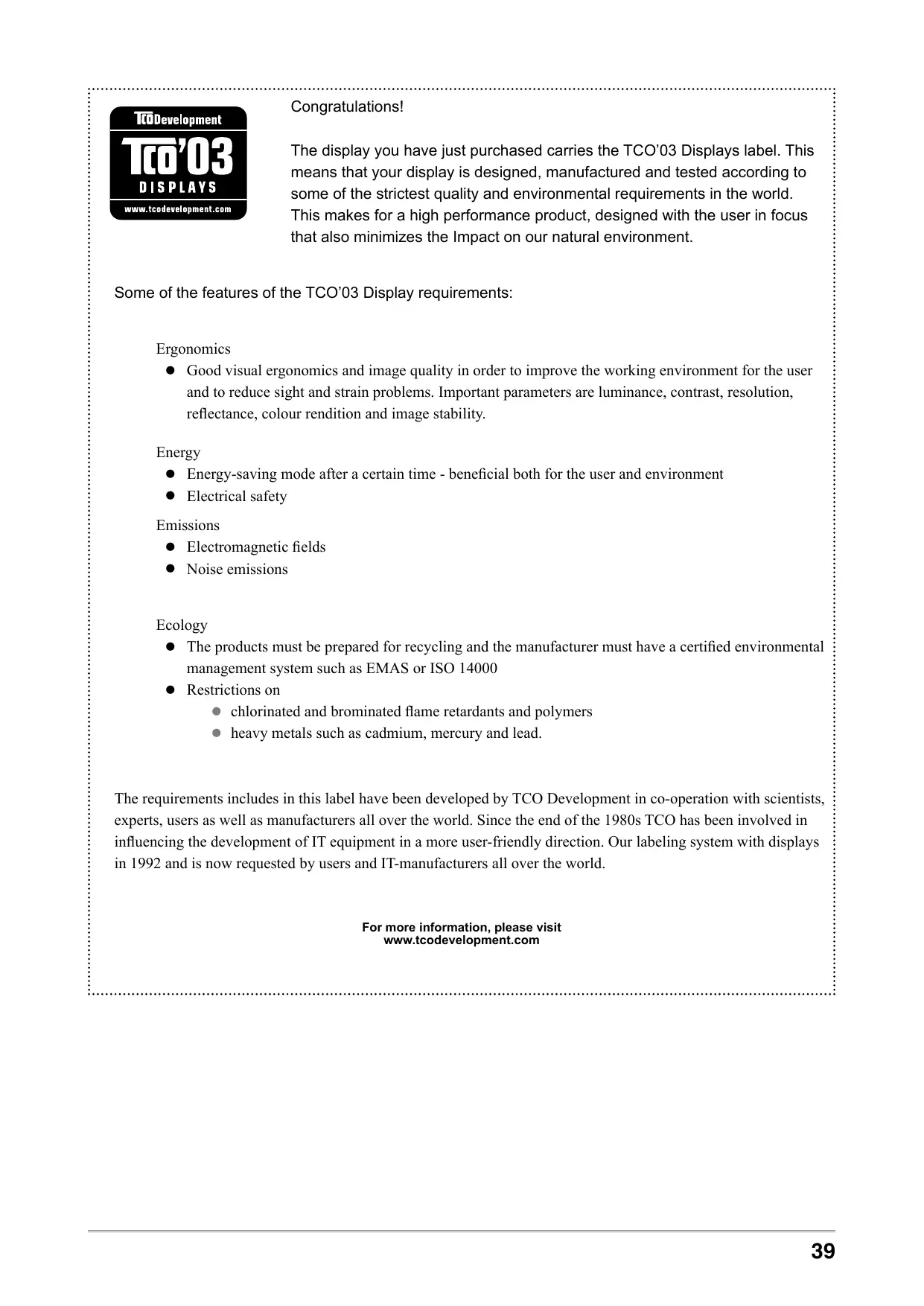

Congratulations!

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG241W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada.
