USER MANUAL WIRELESS N150 COMPACT USB 2.0 ADAPTER BUFFALO

Chapter 3 - Connect to a Wireless Network... 13

WLI-UC-GNM User Manual

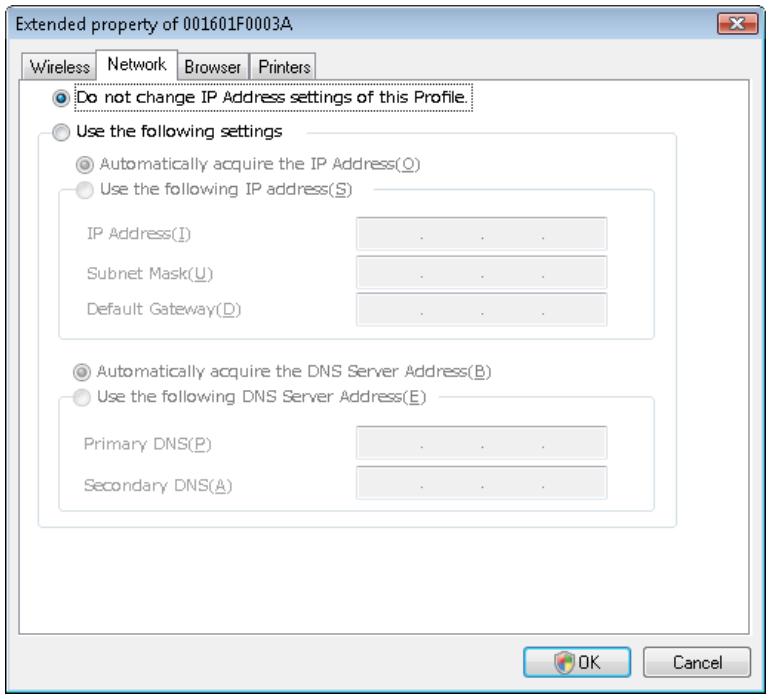

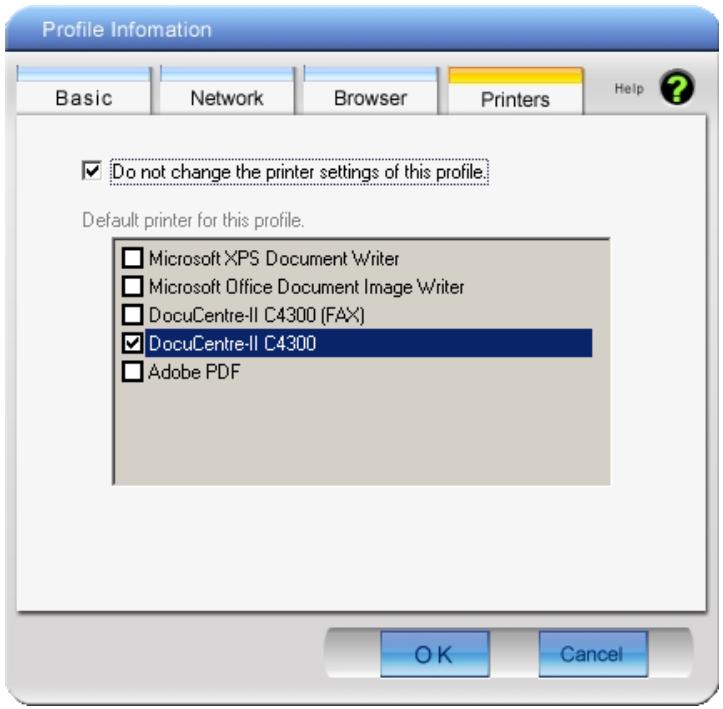

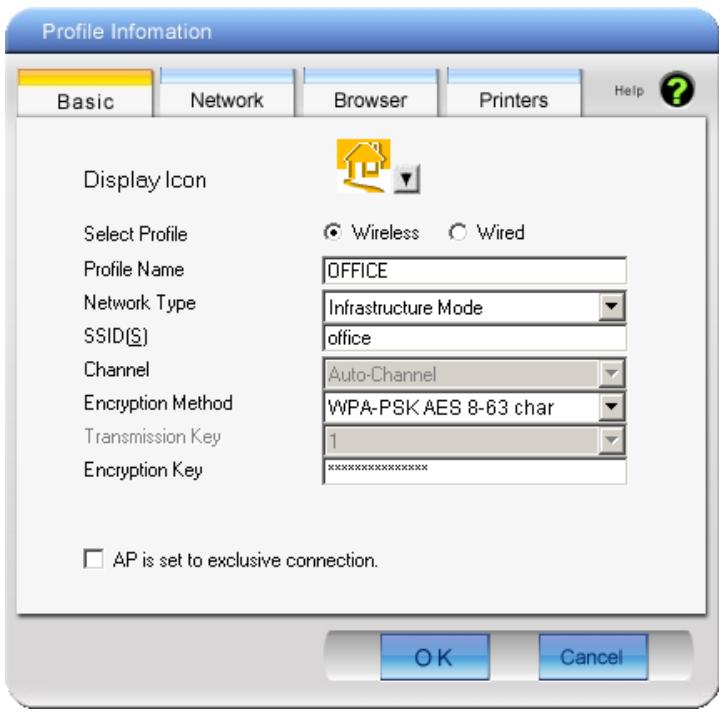

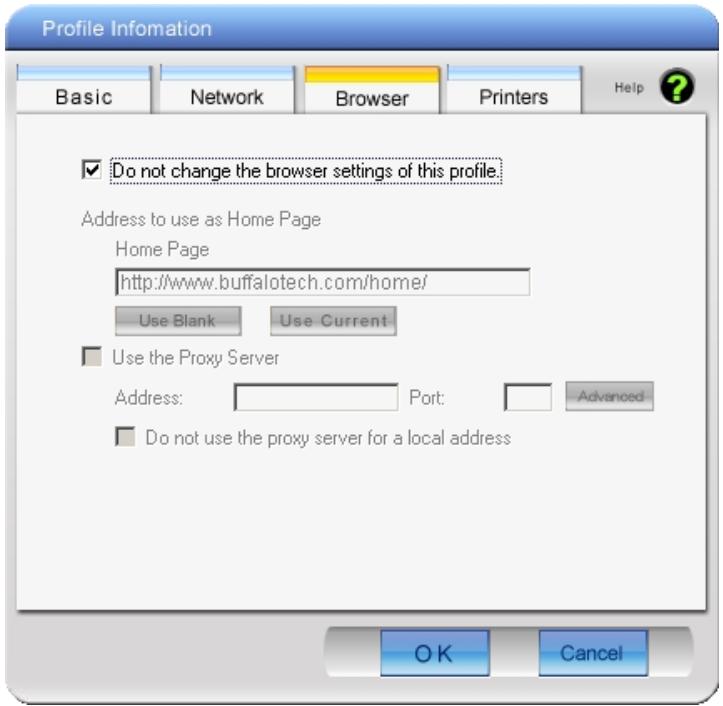

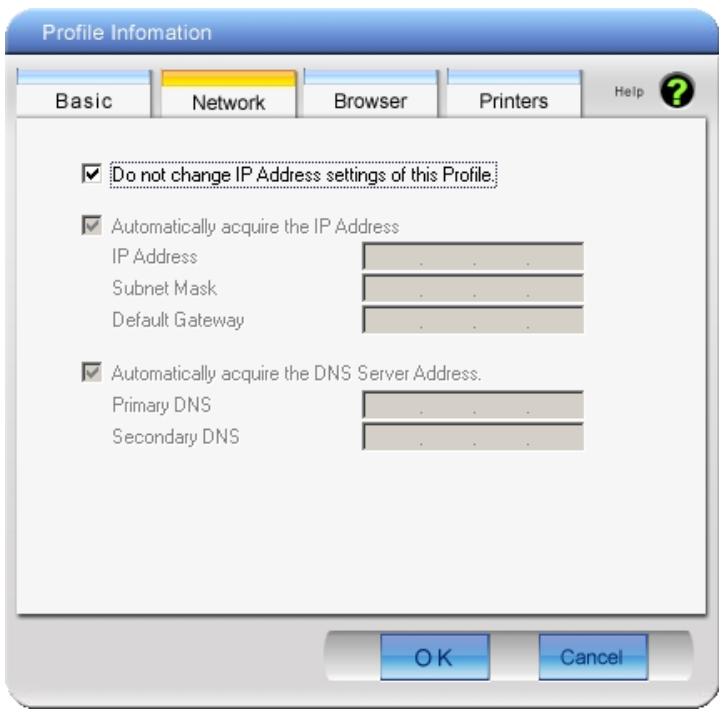

Profile Information (Basic)... Profile Information (Network). Profile Information (Browser) Profile Information (Printers) System Tray Menu. Option Menu

WLI-UC-GNM User Manual

Chapter 5 - Troubleshooting Common Problems... 60 The Computer does not recognize the Wireless Adapter... 60 Cannot connect to the network wirelessly. .… 60 You forgot the AP's SSID, Encryption KEY, or Password... 60 The link speed is slower than 150 Mbps. .… 61 Other Tips... 61

APPENIX nnnnrnnrnnnnrnnnnnnenennmmmmmmmmmnmn meme rene esesssnsnnnne 64 150 Mbps Mode settings... 64 Specifications... 65 Uninstalling the Software 66 Uninstalling the Drivers 66 TCP/IP Settings in Windows 67

Windows 7... 67 Windows Vista .68 Windows XP... … 69 Compliance Information... 70 Environmental Information... 77 Warranty Information... 78 Contact Information (USA / Canada)... 79 Contact Information (Europe)... 80

WLI-UC-GNM User Manual

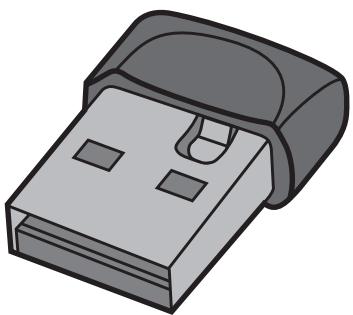

Chapter 1 - Product Overview

Features With support for current Wireless-N, Wireless-G, and Wireless-B standards, the AirStation wireless client can transfer data to and from all standard 2.4 GHz wireless network devices.

This device includes support for AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi Protected Setup), making connection with other wireless devices easier.

AirStation is equipped with following security features. + WPA-PSK (TKIP/AES) + WPA2-PSK (TKIP/AES) + WEP (128/64bit)

150 Mbps High Speed Mode

150 Mbps is the link speed when using 2 channel Wireless-N mode. It represents actual wireless data speeds, including overhead. Because the overhead is not available for user data transfer, usable wireless throughput will be substantially slower.

WLI-UC-GNM User Manual 4

Chapter 1 Product Overview

Computer should be IBM/PC compatible (DADG specification) with a USB 2.0 port and a CD-ROM drive. *

*This product does not support computers equipped with dual processors (computers with two physical CPUs). Computers with dual core CPUs are supported.

*AirStation does not support Windows’standby mode.

Compatible OS: Windows 7 (32 bit / 64 bit), Vista (32 bit / 64 bit), XP (32 bit)* * Service Pack 2 or later is required for Windows XP.

The following items are included with your AirStation. If any of the items are missing, please contact your vender.

- Air Navigator CD. - Quick Setup Guid

©)— ACT LED Flashes when sending or receiving data

WLI-UC-GNM User Manual 5

Chapter 2 - Installation

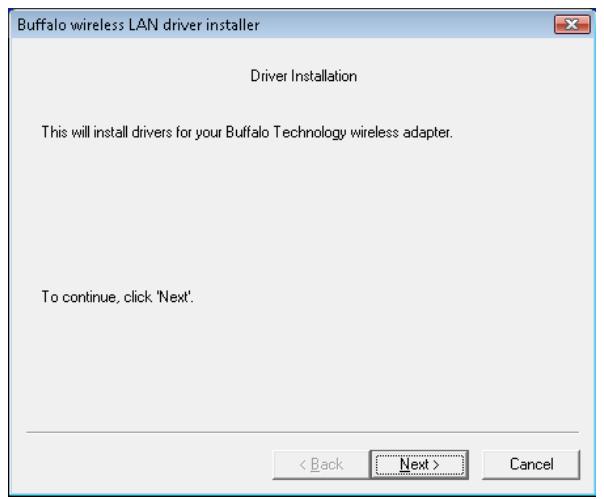

Installing Wireless Drivers

Follow the instruction below to install drivers. Do not connect the unit to your computer yet.

1 Boot your computer and insert AirNavigator CD. The AirNavigator Setup Wizard will launch automatically.

Note: If the AirNavigator Setup Wizard doesn't launch, double click [My Computer] > CD-ROM drive icon > [AirNavi.exe] to launch manually.

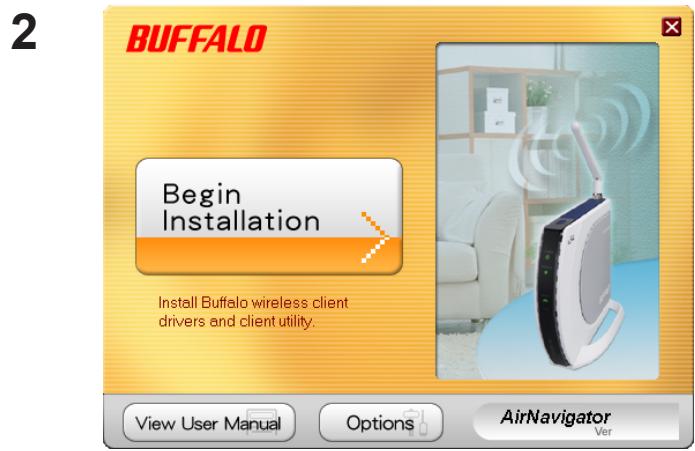

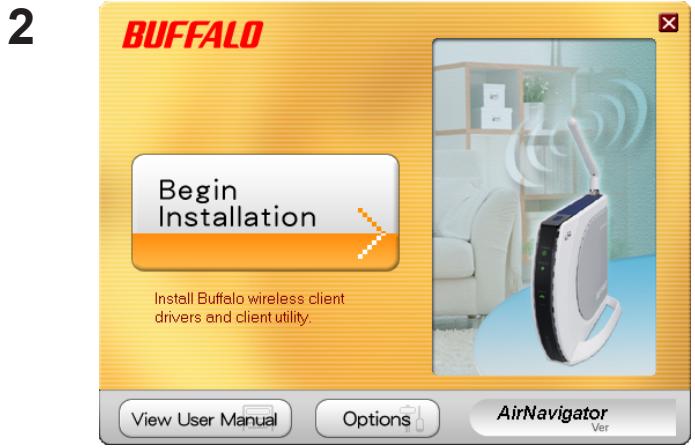

Click [Begin Installation].

ireless LAN Adapters

CRMETE ET WLI-UC-GNM User Manual 6

Chapter 2 Installation

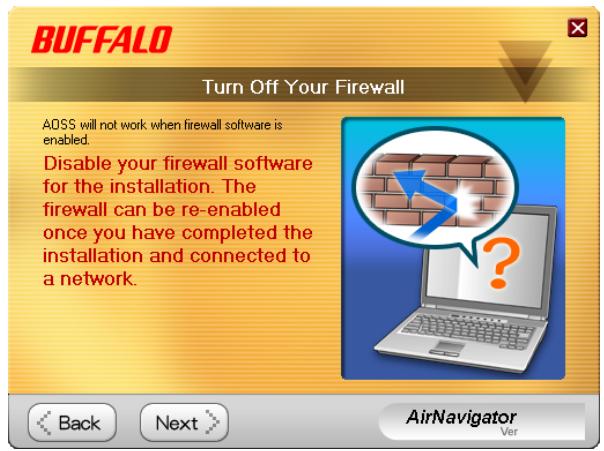

Tum Off Your Firewall

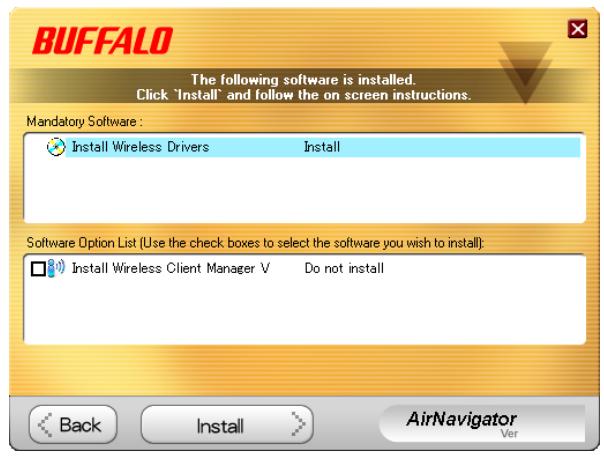

The folosing software is installed

Disable any firewalls, and click [Next].

Note: _- If you insert the check mark into the check box for Install Wireless Client Manager, you can install Client Manager as well as drivers.

- Refer to the instructions on page 10 to install Client Manager after installing drivers.

WLI-UC-GNM User Manual

Chapter 2 Installation

7 Buffalo wireless LAN driver installer

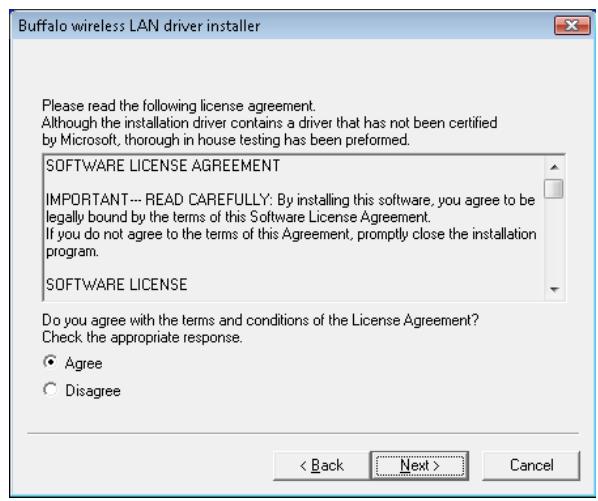

Read the license agreement, select [Agreel], then click [Next].

Please read the foloming icerse agreement Alhough the instalaion diver contains a diver that has not been certfied by Microsoft tharcugh in house testing has been prefamed.

SOFTWARE LICENSE AGREEMENT 2

IMPORTANT READ CAREFULLY. By instaling this software, pou agree to be legal bound by te terme of is Software License Agrsement.

you do not ages to the tems of this Ageement, promplh close the installation program.

SOFTWARE LICENSE Do you agree mihthe terms and condliors of the License Agrsenent? Chéckthe appropiale resporre.

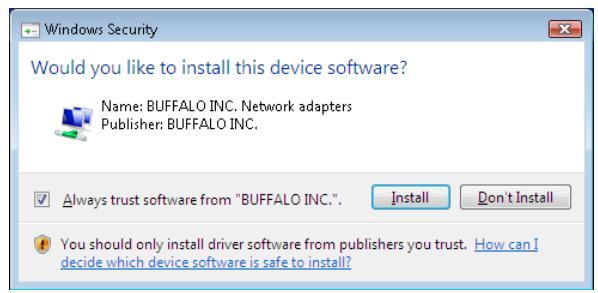

8 Bis Es When the screen to the left is displayed, put Would you like to install this device software? a check mark next to “Always trust softwa re ie BALOE from BUFFALO INC! and click [Install].

IN] Aayz trust sofruare from "BUFFALO INC." install] (° Dontinstall

@ You shoula only install driver software from publishers you us How can

decidewhien device software ir rafete install?

9 Buffalo wireless LAN driver installer

When the screen to the left is displayed, attach Plsse atach ie prod. the AirStation to your computer. Drivers will Once the product is atteched please wait. be insta led automatical ly.

“IE uing an adapter other than a bufalo ireless LAN adapter. please click the cancel buton.

WLI-UC-GNM User Manual 8

Chapter 2 Installation

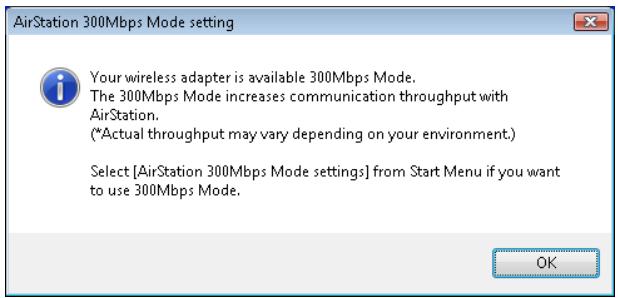

10 ERRRES Click [OKI

À Your wireless aéapter is aille 300Mbps Mode. The B00Mbps Mode increases communication threughput with AStation:

Cactual threughput may vary depending on your environment)

Select[AiStation 110Mbps Mode setting:] from Start Menu you want 4e use 200Mbp: Mode

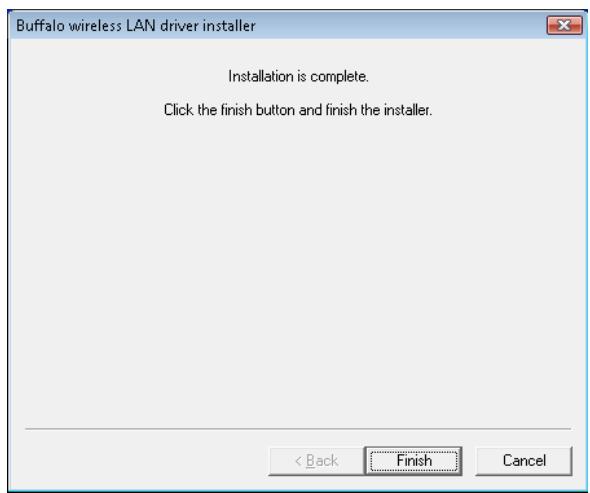

11 EE) After the drivers are installed, the screen at

Me fSnibe left will be displayed. Click [Finish].

Cick he Iish buiton and iish he imtaler.

Note: If you checked the box to Install Wireless Client Manager (page 10), then the installation screen for Client Manager will be displayed after this screen. Follow the instructions on the screen to install Client Manager.

Drivers are now installed.

WLI-UC-GNM User Manual 9

Chapter 2 Installation

Installing Client Manager

Follow the procedure below to install Client Manager.

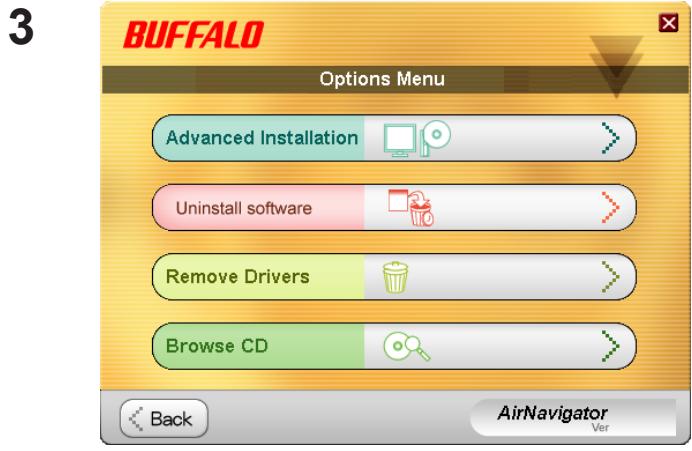

1 Boot your computer and insert the AirNavigator CD. The AirNavigator Setup Wizard will launch automatically.

Note: If AirNavigator Setup Wizard is not displayed, double click [My Computer] icon > CD-ROM drive icon >

WLI-UC-GNM User Manual

Chapter 2 Installation

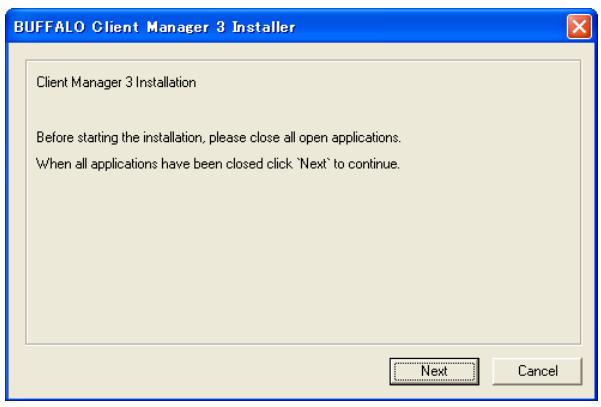

Clert Manager station

Bcfoo catimgtho haaläienpisaeo lee al opon spplpaions

‘Wen al apgcaions have been clsed ich Nex lo continue.

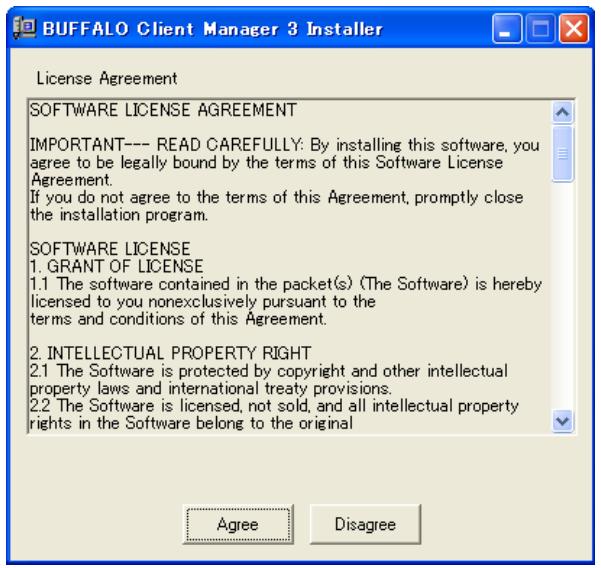

6 ff BUFFALO Client Manager 3 Installer MEA)

License Agreement (SOFTWARE LICENSE AGREEMENT a

(IMPORTANT-—- READ GAREFULLY: By installing this software, you {agree to be legally bound by the terms of this Softmare License (Agreement.

(you do not agree to the terms of this Agreement, promptly close (he installation program

(SOFTWARE LICENSE 1. GRANT OF LICENSE

(11 The software contained in the packet(s) (The Software) is hereby licensed ta you nonexclusively pursuant ta the

terms and conditions of this Agreement

(2. INTELLECTUAL PROPERTY RIGHT. (21 The Software is protected by copyrieht and other intellectuel (property laws and international treaty provisions.

(22 The Software is licensed, nat sold, and all intellectual property rights in the Software belong to the original

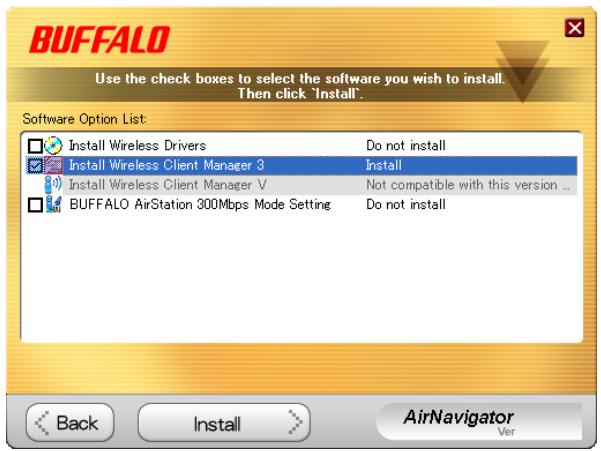

Check the box for [Install Wireless Client Manager] and click [Install].

Note: Use Client Manager V with Windows Vista or

Client Manager 3 with Windows XP.

Read the license agreement and select [Agreel.

WLI-UC-GNM User Manual

Chapter 2 Installation

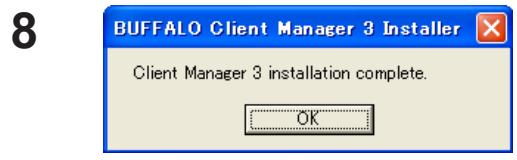

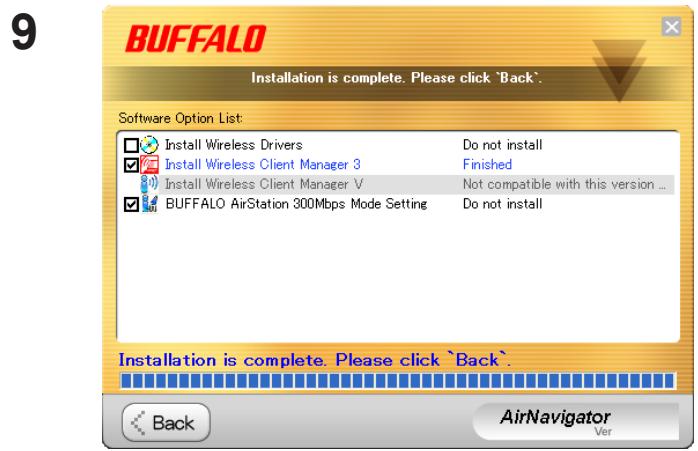

8 BUFFALO Client Manager 3 Installer [X]

Glient Manager 3 installation complete.

Installation is complete. Please click ‘Back

DIS Hstal Wireless Dre Do nt al BI beta inless Glen: Manage 3 Fine

Client Manager is now installed.

Click [X] at the top right corner of the window

WLI-UC-GNM User Manual

Chapter 3 - Connect to a Wireless Network

Automatic Secure Setup (AOSS/WPS)

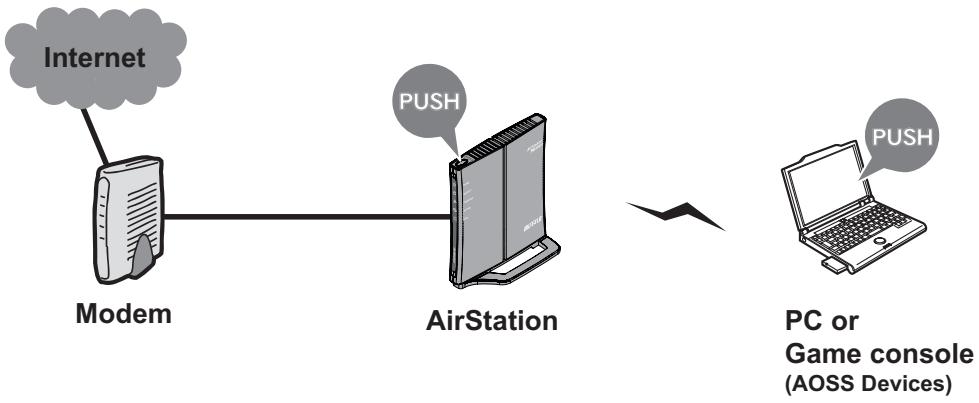

AOSS and WPS are systems which enable you to automatically configure wireless LAN settings. Just pressing the buttons will connect your wireless devices securely. Use these systems to connect to computers, game machines, or any wireless devices which support AOSS or WPS.

(C [ D) AOSS (AirStation One-Touch Secure System) is technology developed by Buffalo Technology. 4055) WPS was created by the Wi-Fi Alliance.

Modem AirStation PC or Game console (AOSS Devices)

Before using AOSS or WPS, install Client Manager software from the CD. See chapter 2 for instructions on installing Client Manager software.

WLI-UC-GNM User Manual 13

Chapter 3 Connect to a Wireless Network

Windows 7 or Vista (Client Manager V) If you are using Windows 7 or Vista, use the included Client Manager V software to connect wirelessly

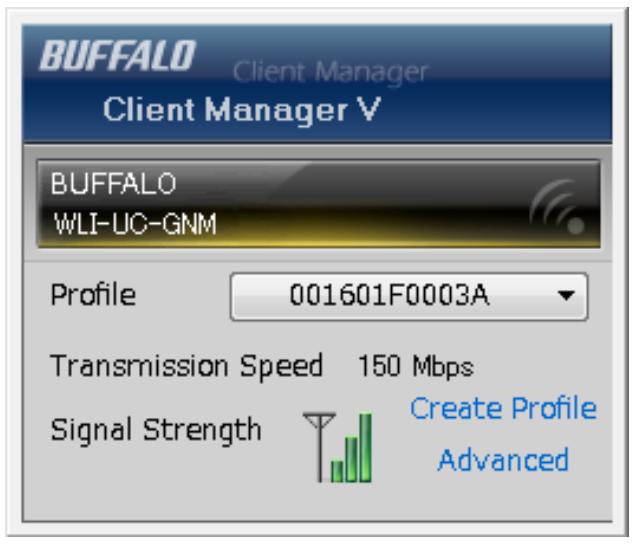

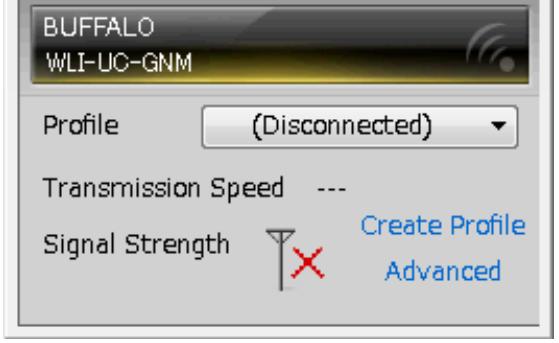

BUFFALO Client Manager V BUFFALO JC-GNM Proîle

Transmission Speed --- Create Profile

Signal Strength Tx advanced

3 The User Account Control screen is displayed. Click [Yes] or [Continue].

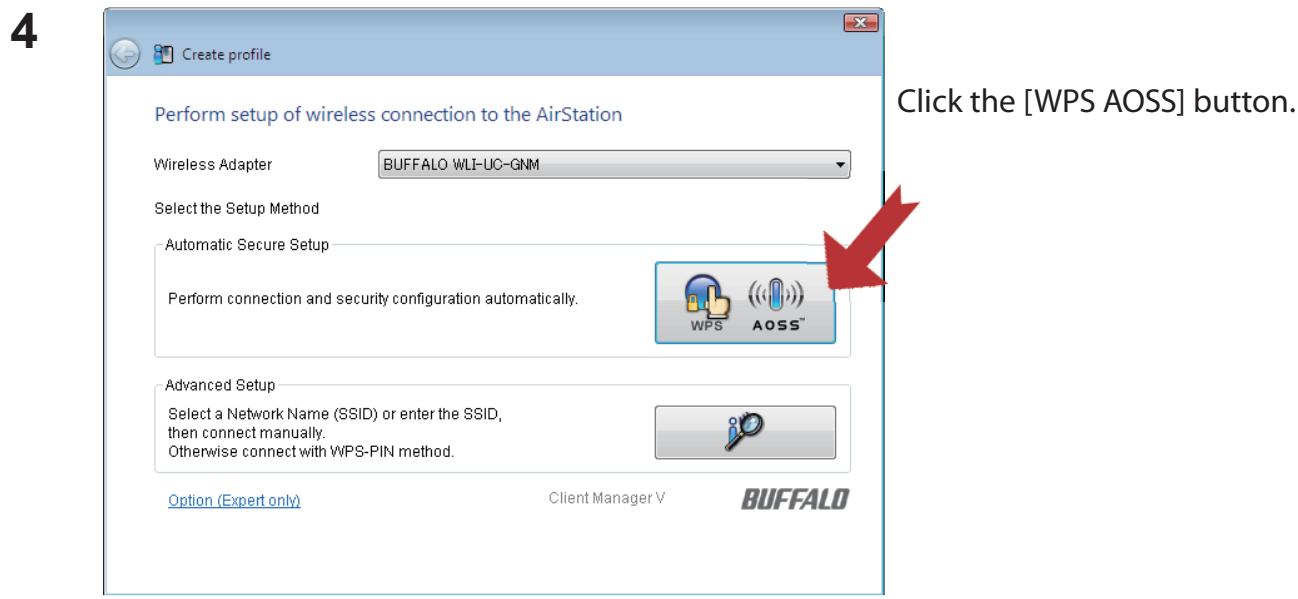

CIS) 4 () 87 Cresteprfie

Click the [WPS AOSS] button.

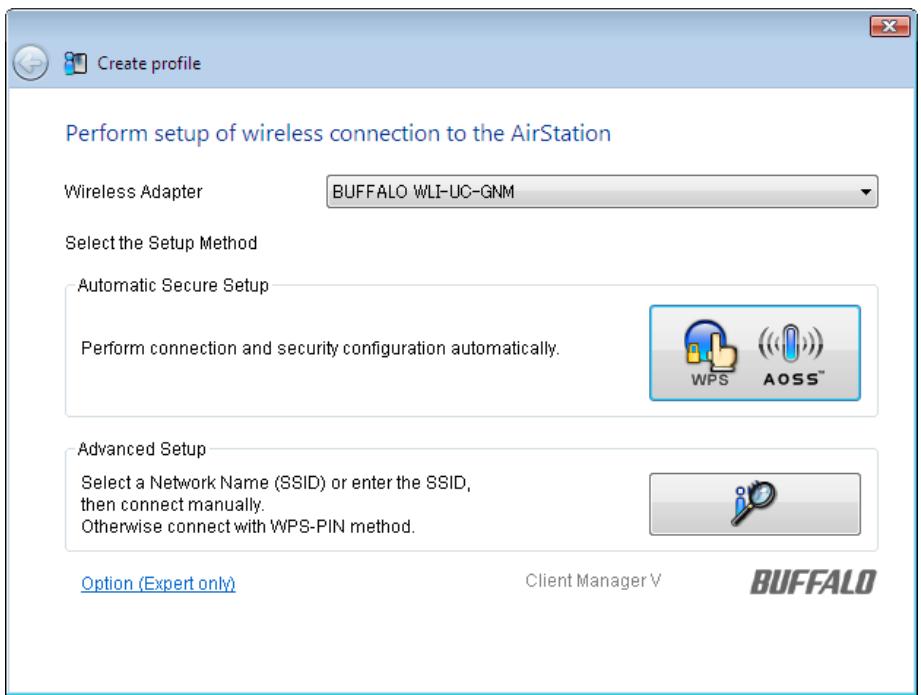

Perform setup of wireless connection to the AirStation

Perform connection and securi configuration automatically:

Select a Network Name (531D) or enterthe SSID, then connest manual. Ohomviso cannoctwithWPS-PIN method

Ontion (Expert ant? Client Manager V BUFFALO When "Connection has been Completed" is displayed in Client Manager V, your connection is complete. If “Set Network Location” is displayed, select “Home”, “Work”, or “Public location” depending on the environment in which the AirStation will be used.

WLI-UC-GNM User Manual 14

Chapter 3 Connect to a Wireless Network

Windows XP (Client Manager 3)

If you are using Windows XP, use the included Client Manager 3 software to connect wirelessly with

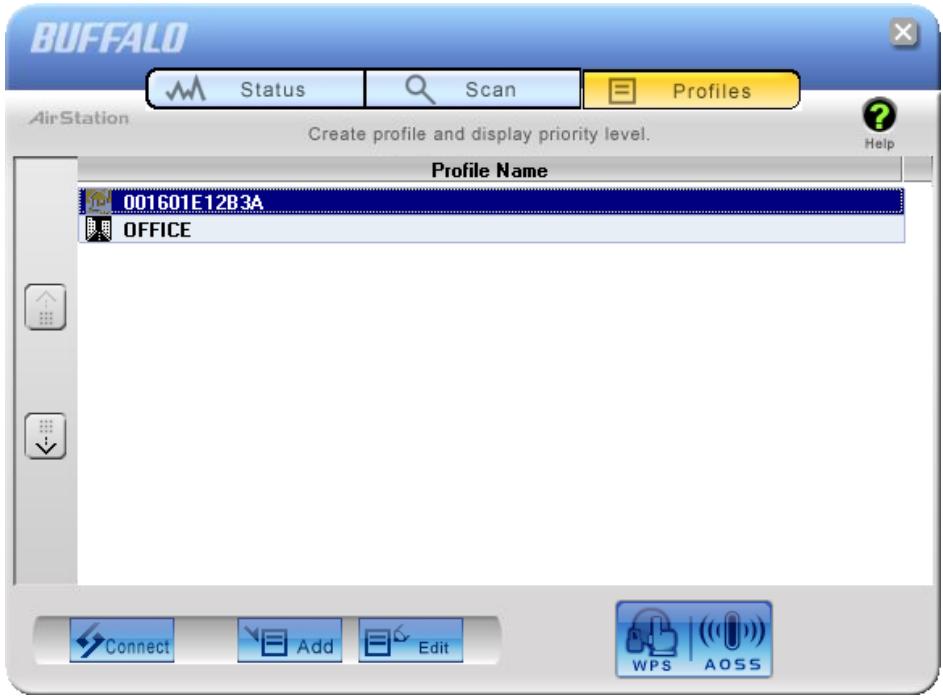

1 Right-click the ?T icon in the system tray and select [Profile].

Your connection is complete when the message "Security setup and connection have been completed" is displayed.

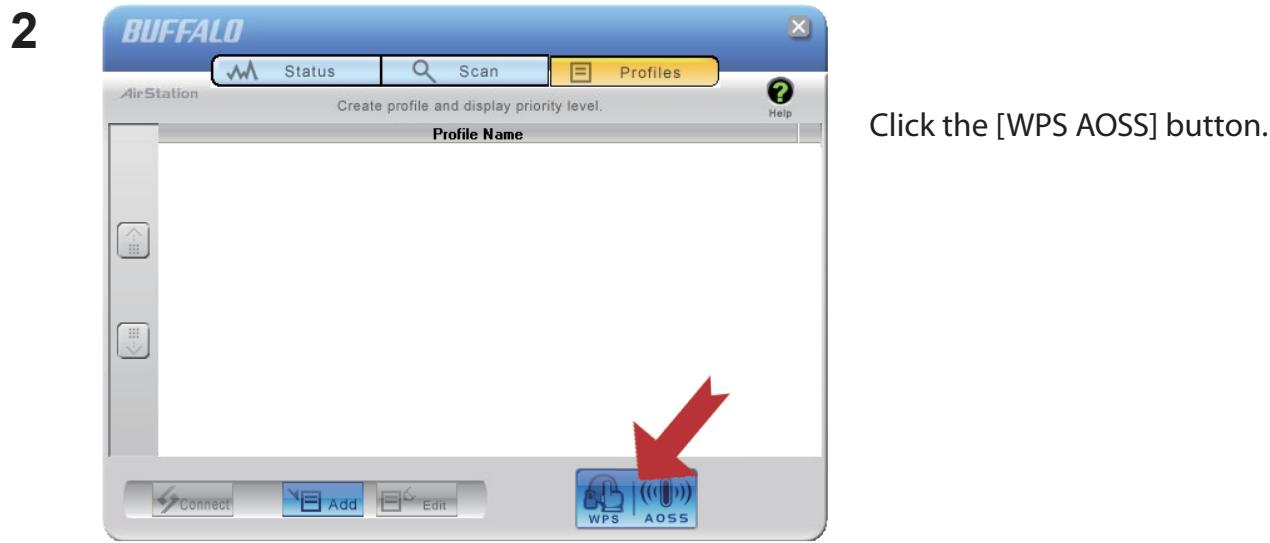

(21 Piofie Name Em Clickthe [WPS AOSS] button.

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

Automatic Secure Setup (WPS PIN)

WPS can use à PIN generated by the Client Manager utility to easily connect to an access point that supports WPS PIN.

To use WPS PIN, first install Client Manager software on your computer. See chapter 2 for instructions on installing Buffalo Client Manager software.

Windows 7 or Vista (Client Manager V)

If you are using Windows 7 or Vista, use your Client Manager V software to connect wirelessly with WPS PIN.

2 BUFFALO Click [Create Profile].

Transmission Speed --- Create Profile

Signal Strength Tx ad : vance:

3 The User Account Control screen is displayed. Click [Yes] or [Continue].

WLI-UC-GNM User Manual 16

Chapter 3 Connect to a Wireless Network

Perform setup of wireless connection to the AirStation

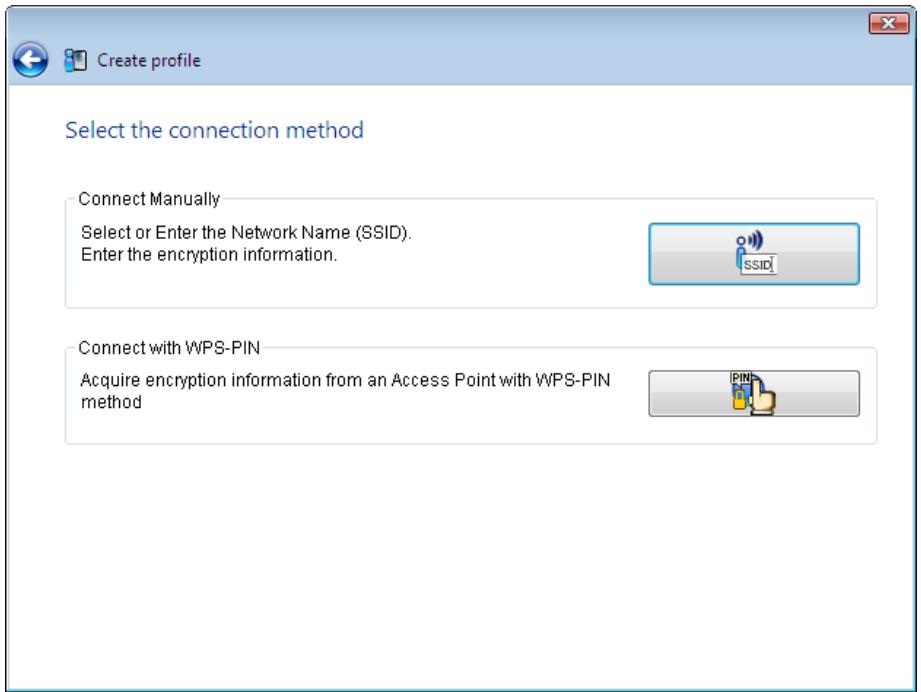

Cent anacer BUFFALO Select the connection method

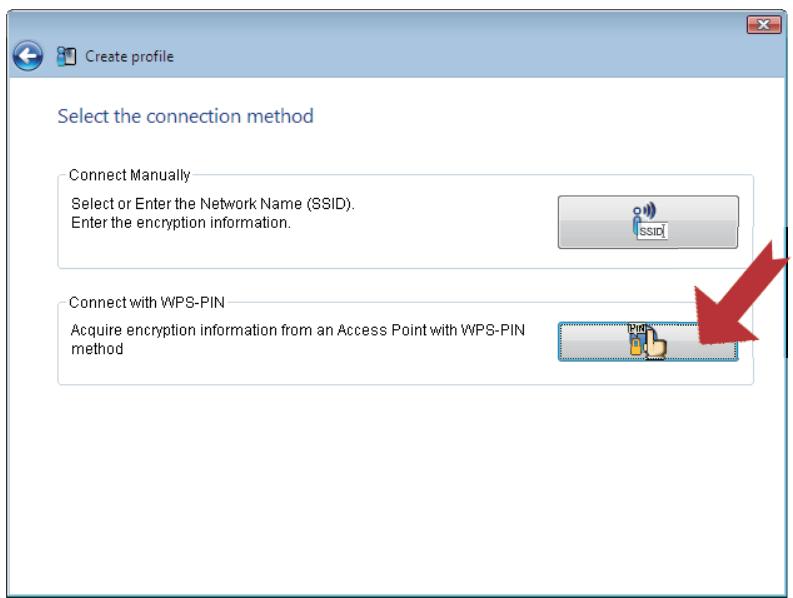

Click the [WPS-PIN] button. Select or Enter the Network Name (SSID).

Enterthe encrplion information.

Cennectwih WiPS-PIN Acquire encryption infamnation from an Access Point with WPE-PIN metnag

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

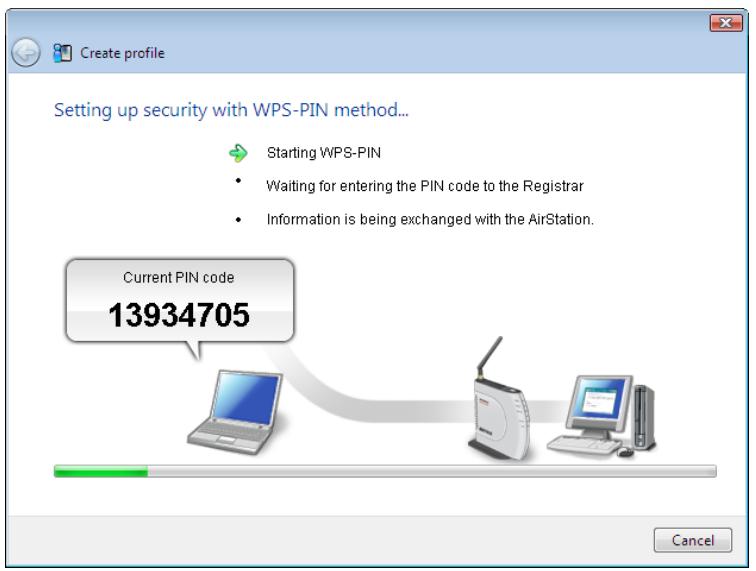

Setting up security with WPS-PIN method. This screen will be displayed.

D Sins WPE-PIN Wang for entering the PIN soc to he Recietrar

Information is being changed vitre ArStaon

WLI-UC-GNM User Manual 18

Chapter 3 Connect to a Wireless Network

8 Use a PC with a wired Ethernet connection to log in to the access point's management utility.

Note: Ifthe access point you are trying to connect is a Buffalo AirStation, click Wireless Config > WPS from the home page of the configuration interface. The screen to enter the PIN code will be displayed.

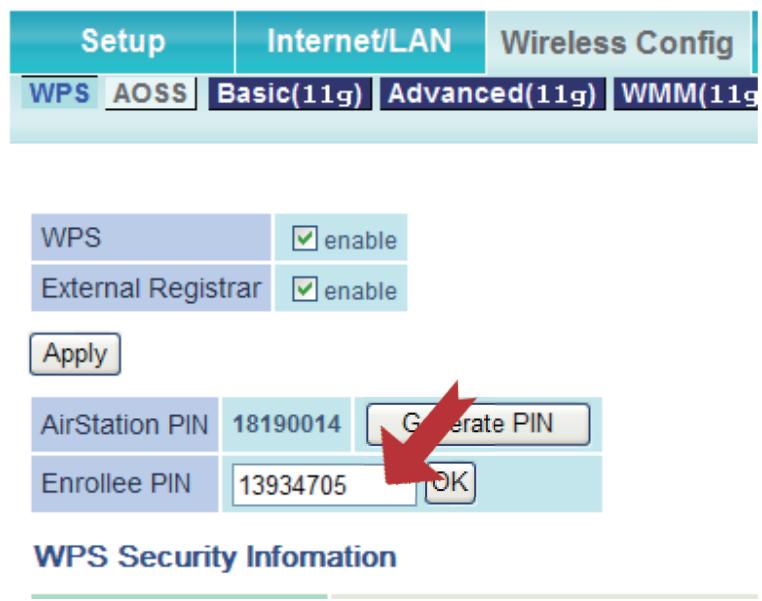

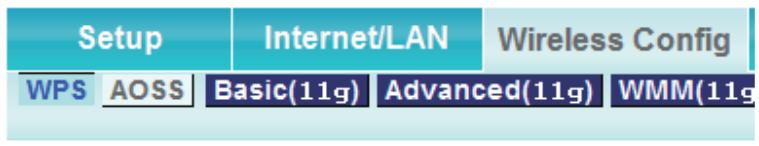

9 (UC PL Wireless Config Navigate to the WPS Fa — configuration screen, then enter pos AgVanceg (OS) MAMIE the PIN code you write down in step 6. WPS CES Note: Ifthe access point you are

trying to connect is a Buffalo AirStation, enter the PIN code in [Enrollee PIN] and click [OK].

AïirStation PIN 18190014 Enrollee PIN. |13934705

WPS Security Infomation

When "Connection has been Completed" is displayed in Client Manager V, your connection is complete. If “Set Network Location” is displayed, select “Home”, “Work”, or “Public location” depending on the environment in which the AirStation will be used.

WLI-UC-GNM User Manual 19

Chapter 3 Connect to a Wireless Network

Windows XP (Client Manager 3)

If you are using Windows XP, use your Client Manager 3 software to connect wirelessly with WPS PIN.

1 Right click on the 7 icon in the system tray and select [Easy Connection] > [WPS PIN Code

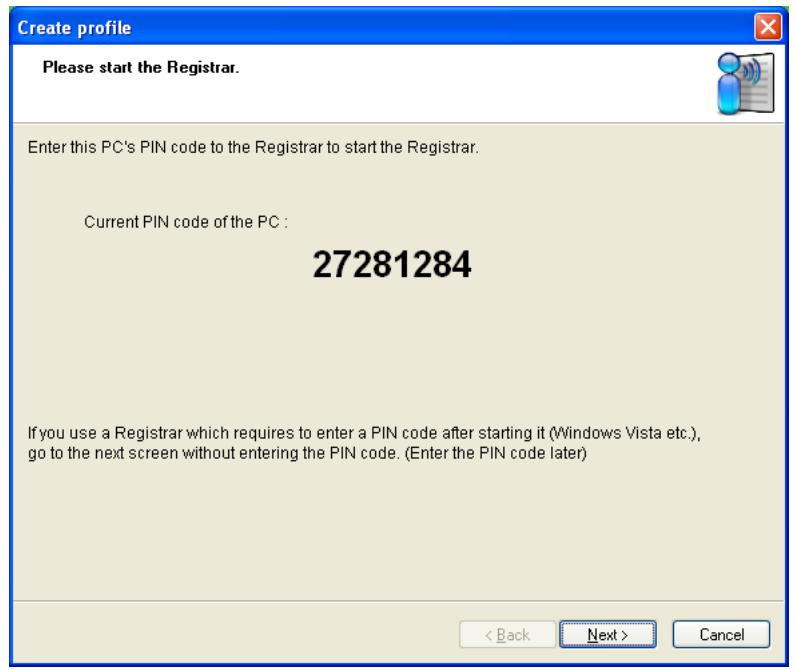

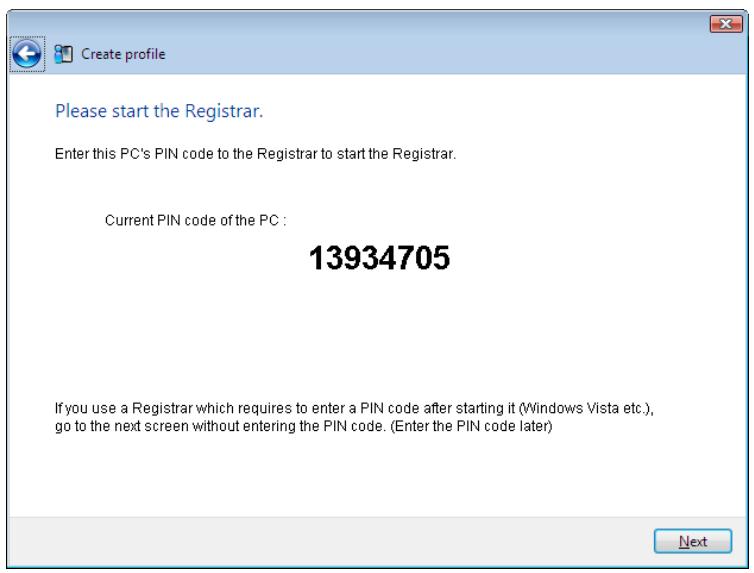

type]. 2 Please stat the Registrar. æ] When the PIN code is displayed, Enter this PC'S PIN code to the Registrar to startthe Registrar. write it down. Then, click [Next].

Current PIN code ofthe PC

Iyou use a Registrar which requires to enter a PIN code after starting it (Windows Vista etc), go to the next screen without entering the PIN code. (Enter the PIN code later)

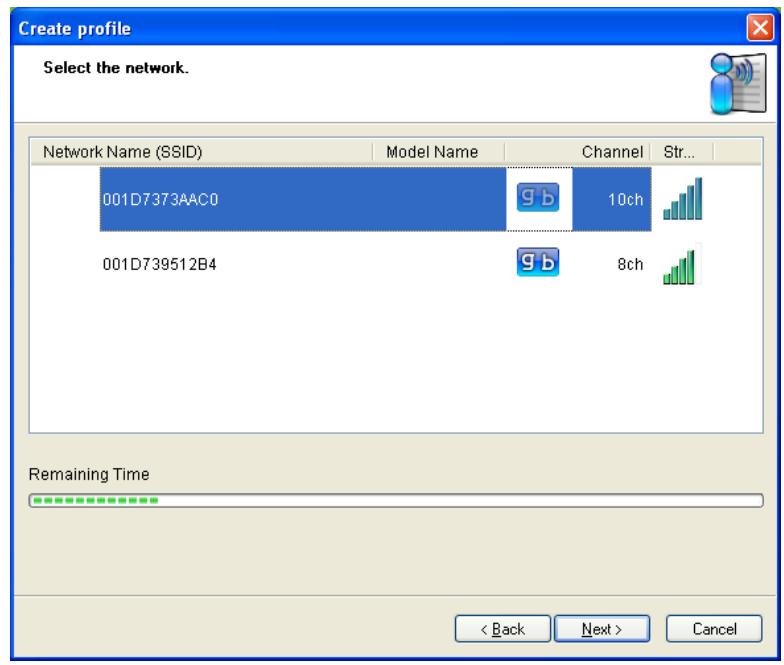

Select the network æ

Select the access point you are

Newark Name (B81D) EEE Gene Et going to connect to, then click ll INext]. d01Dra251284 ES « jf

Chapter 3 Connect to a Wireless Network

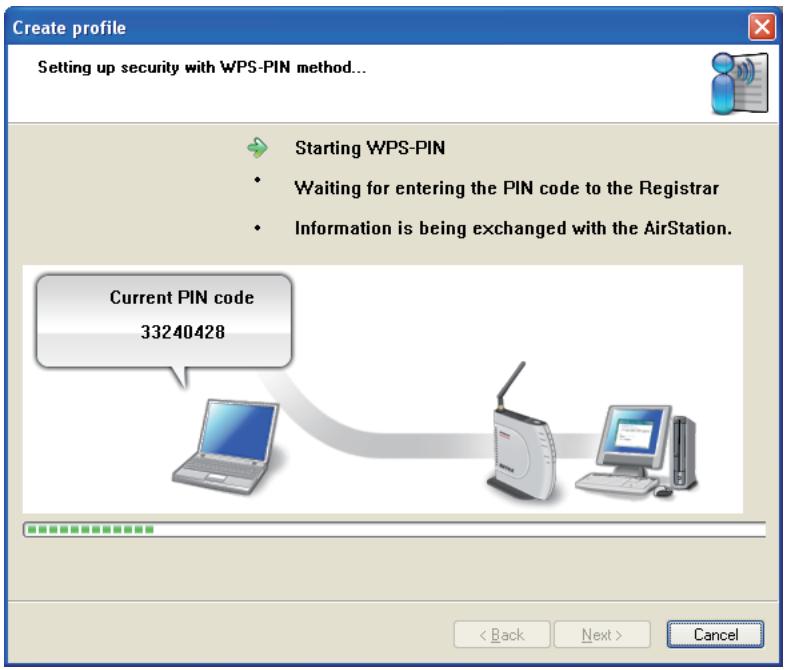

Setting up security with WPS-PIN method…

* Waiting for entering the PIN code to the Registrar + Information is being exchanged with the AirStation.

Current PIN code 33240428

This screen will be displayed.

4 Use a computer with a wired Ethernet connection to log in to the access point. The screen to

enter the PIN code will be displayed.

If the access point you are trying to connect is a Buffalo AirStation, click Wireless Config > WPS from the

home page configuration interface. The screen to enter the PIN code will be displayed.

5 HOuCIEUS Wireless Config WPS AoSs

WPS enable External Registrar enable

AirStation PIN 18190014 [, Gdrate PIN Enrollee PIN [1354705 fox

WPS Security Infomation

On the configuration screen of the access point, enter the PIN code you wrote down in step 2.

Note: Ifthe access point you are trying to connect is a Buffalo AirStation, enter the PIN code in

[Enrollee PIN] and click [OK].

Your connection is complete when the message "Security setup and connection have been

completed" is displayed.

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

Manual Setup (Client Manager)

You may also connect to an access point manually, without using AOSS or WPS. The procedure varies

depending on the version of Windows used.

First, install Client Manager from the included CD. See chapter 2 for instructions on installing Client

Windows 7 or Vista (Client Manager V)

With Windows 7 or Vista, use Client Manager V to connect wirelessly.

1 Click [Start] > [AI Programs] > [BUFFALO] > [AirStation Utility] > [Client Manager V].

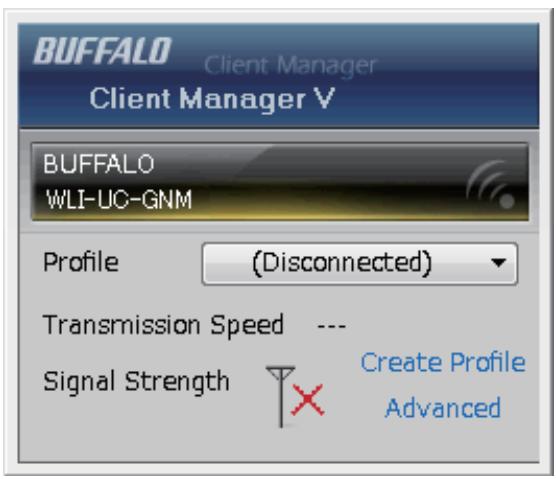

2 BUFFALO Client Manager Y Proîle

Transmission Speed --- Create Profile

Signal Strength Tx ad : vance:

Click [Create Profile].

3 The User Account Control screen is displayed. Click [Yes] or [Continue].

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

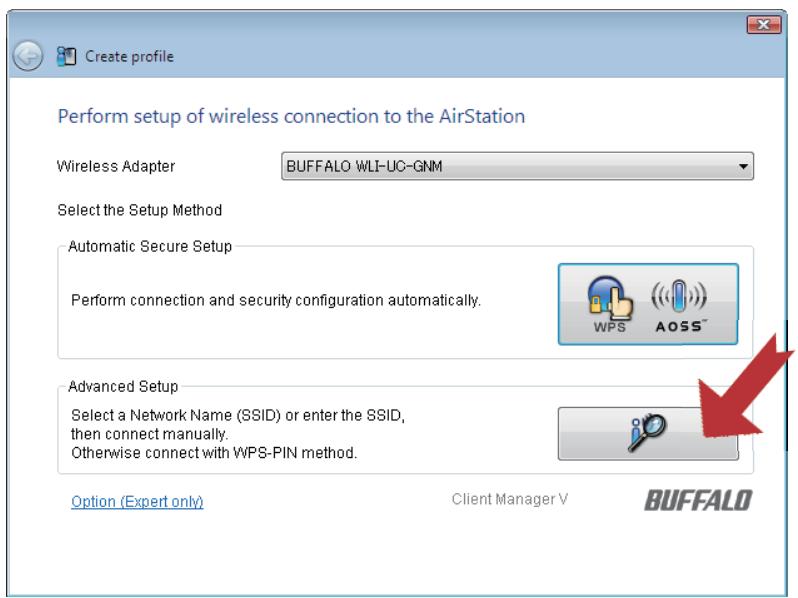

Perform setup of wireless connection to the AirStation

Adranced Setup Select a Network Name (531D) or enterthe SSID,

Onion (Expert ont Gien Manager BUFFALO Select the connection method

Connectwitn WIPS-PIN Acquire ancryption infornation from an Acces Point with WPS-PIN Lo

mas LS Click the [Advanced Setup] button.

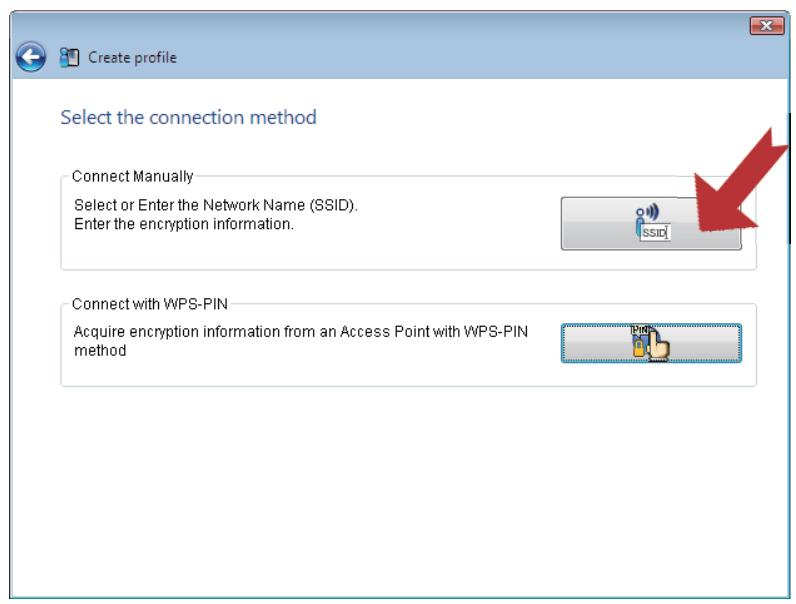

Click the [Connect Manually] button.

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

Connectia a netarkwnic does not broadcastthe S8ID. dt danger

lectinis option, his PC privaeymay be 0

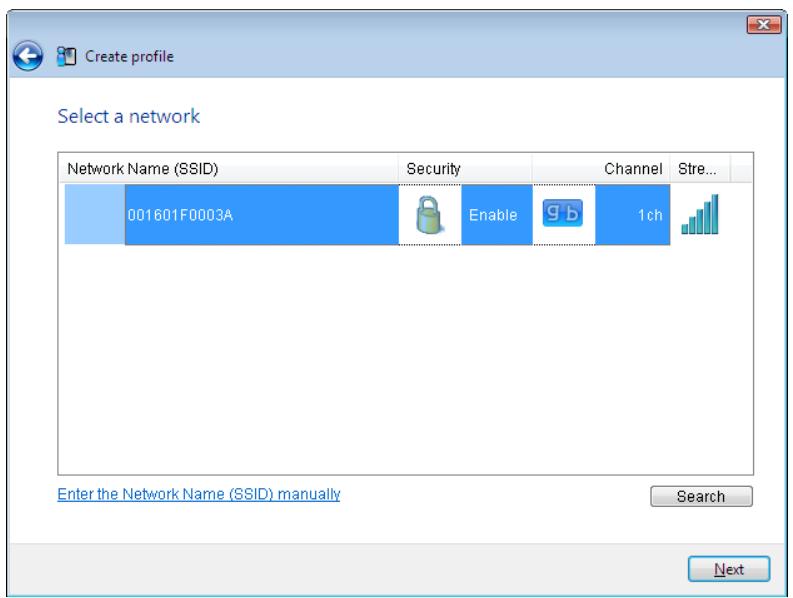

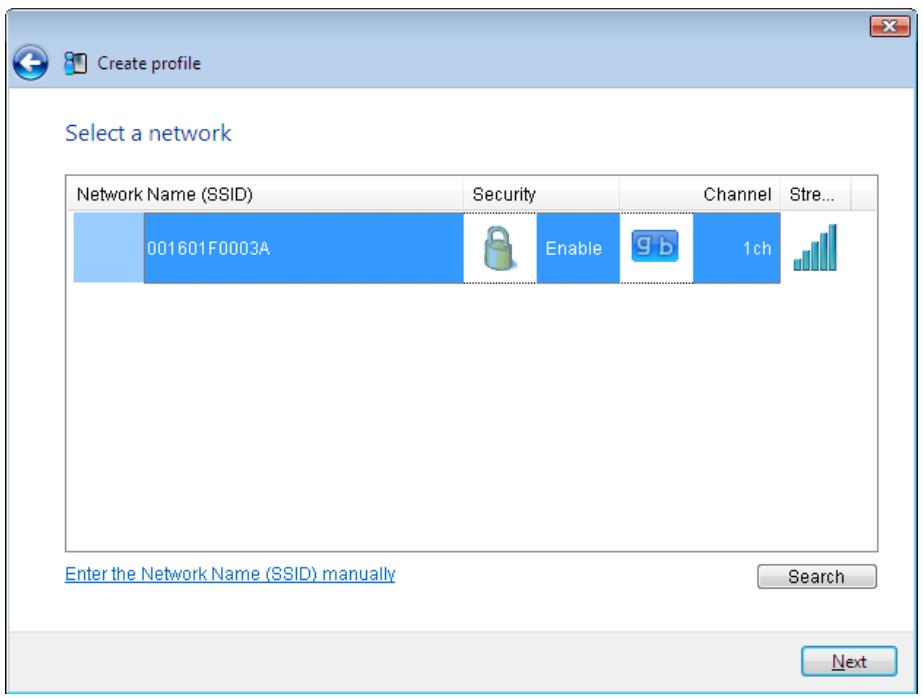

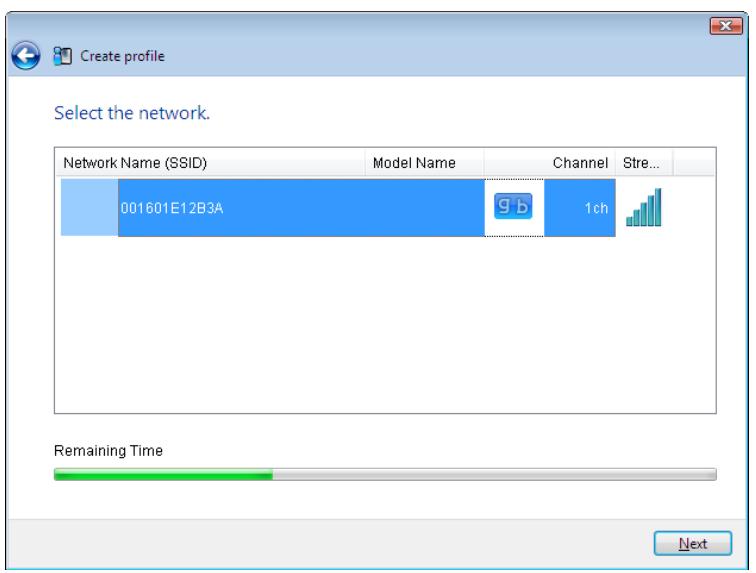

Select your access point, then click [Next].

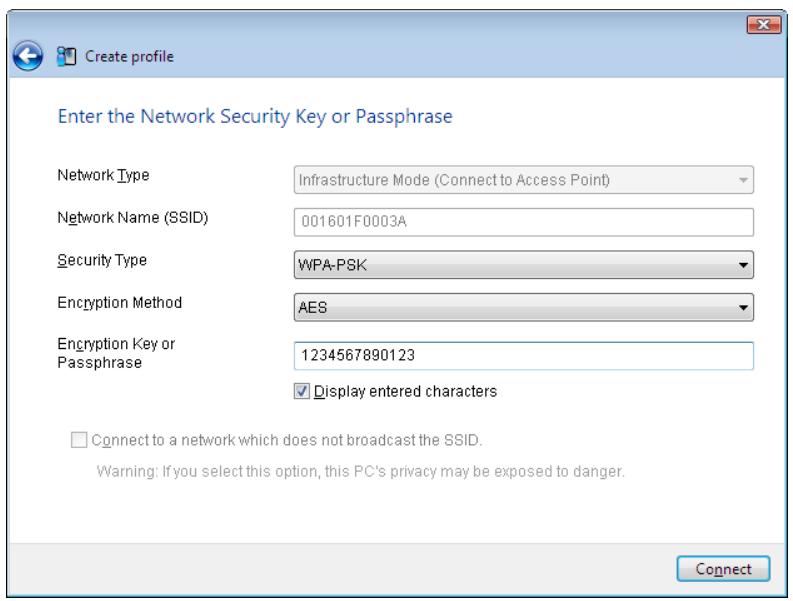

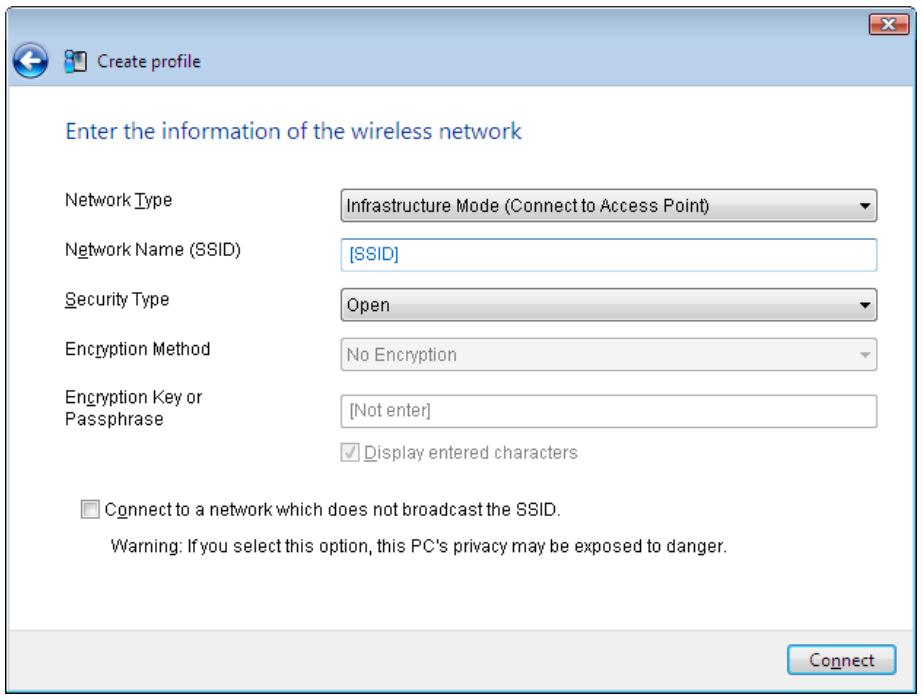

Enter your Network Type, Security Type, Encryption Method, and Encryption Key (passphrase), then click [Connect].

When "Connection has been completed" is displayed, your connection is complete. If"Set Network Location” is displayed, select “Home”, “Work”, or “Public location”, depending on the environment in which the AirStation will be used.

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

Windows XP (Client Manager 3)

Client Manager 3 is a wireless connection utility for Windows XP.

TS Follow the instructions on the screen to connect.

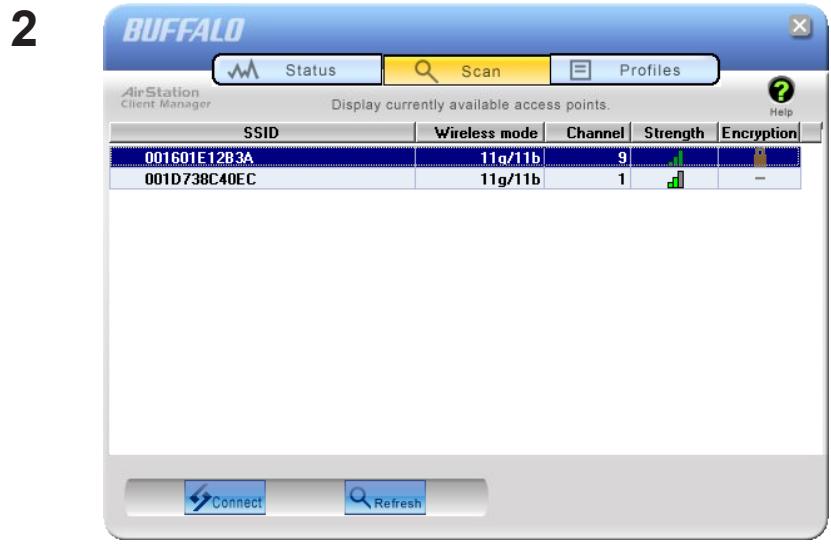

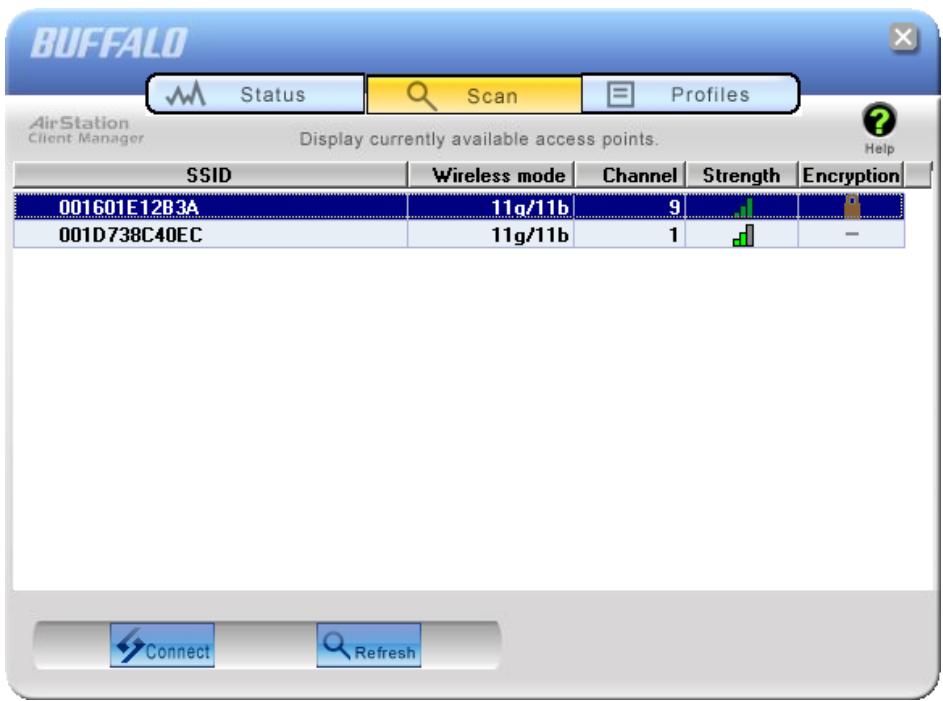

icon in the system tray, then select [Scan].

Select the access point to connect to and click [Next].

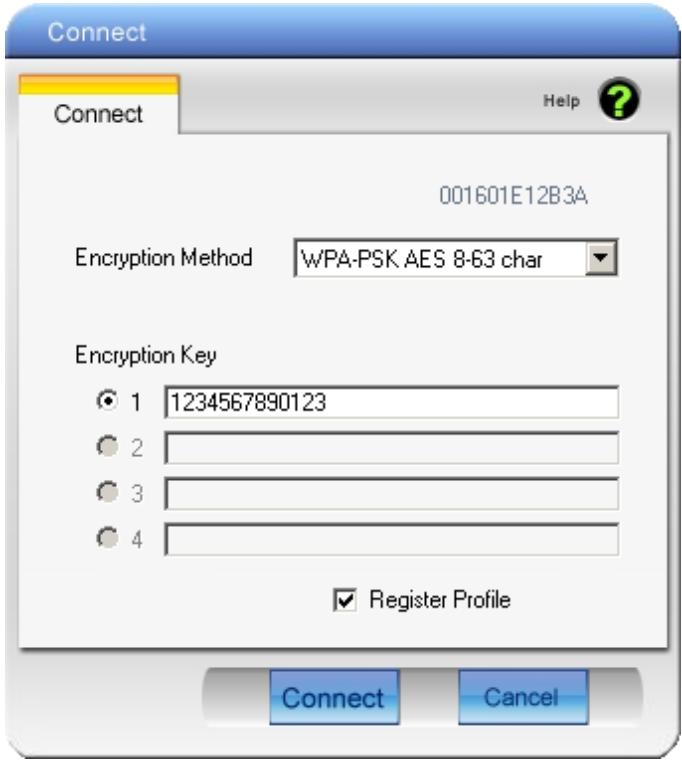

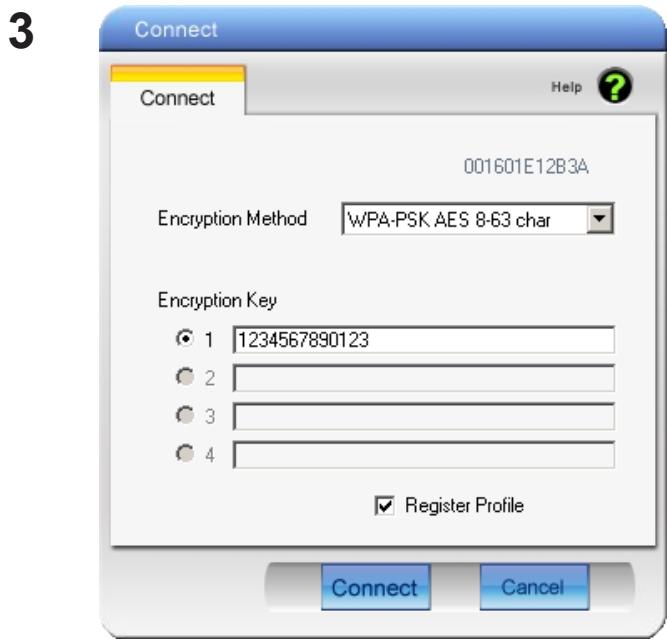

Choose your Encryption Method and enter an Encryption Key. Click [Connect].

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

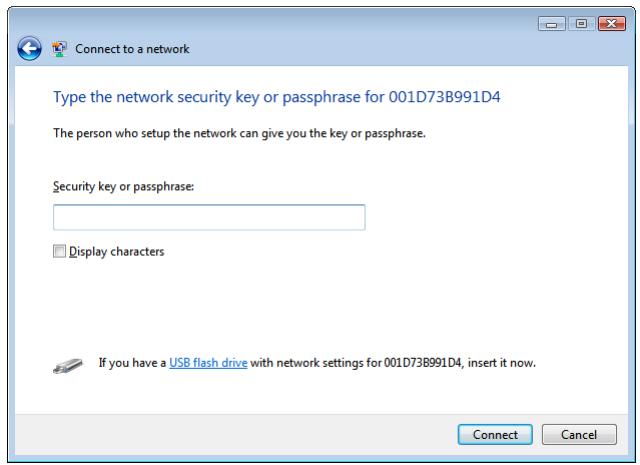

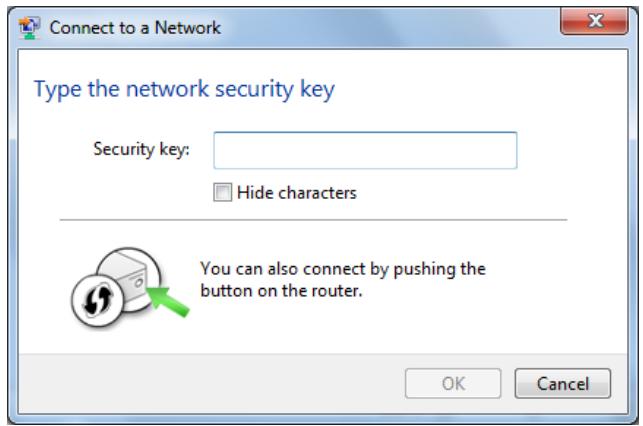

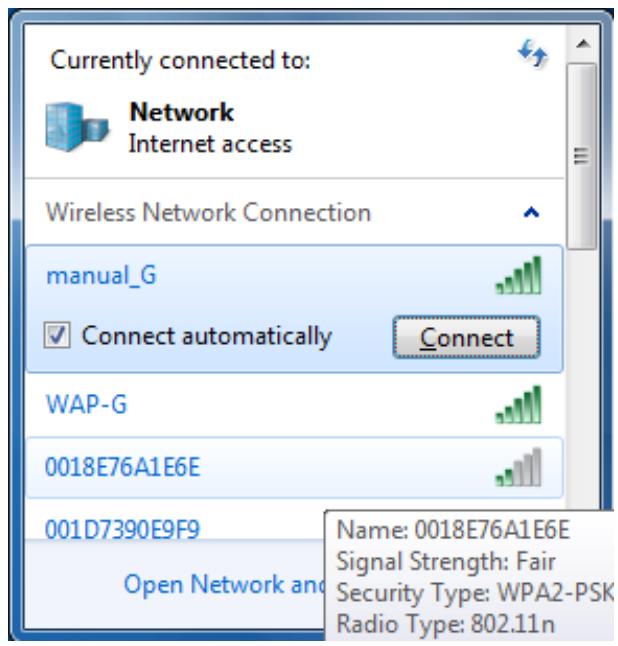

Manual Setup (Windows Utility)

You can connect to an access point without installing or using Client Manager. Windows includes a

built-in wireless utility. The procedure varies depending on the version of Windows used.

Windows 7 (WLAN AutoConfig)

With Windows 7, use WLAN AutoConfig to connect to the AirStation.

1 Click on the network icon in the system tray.

Currently connected to:

Do rires Internet access

Wireless Network Connection ñ

device in the future, checking [Connect automatically] is recommended.

si Connect automatically WAP-G ae

Name: 0018E76A1E6E Signal Strength: Fair Open Network and Security Type: WPA2-PSK Radio Type: 802.11n

3 & omtvetor EU ES) Enterthe encryption key and click [OK].

Type the network security key

You can also connect by pushing the button on the router.

Follow the instructions on the screen to connect.

Select the target AirStation's name and click [Connect]. If you will be connecting to this

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

Windows Vista (WLAN AutoConfig)

You can use WLAN AutoConfig to connect to a wireless Access Point:

1 Right click on the network icon in the system tray.

2 Click [Connect to a network].

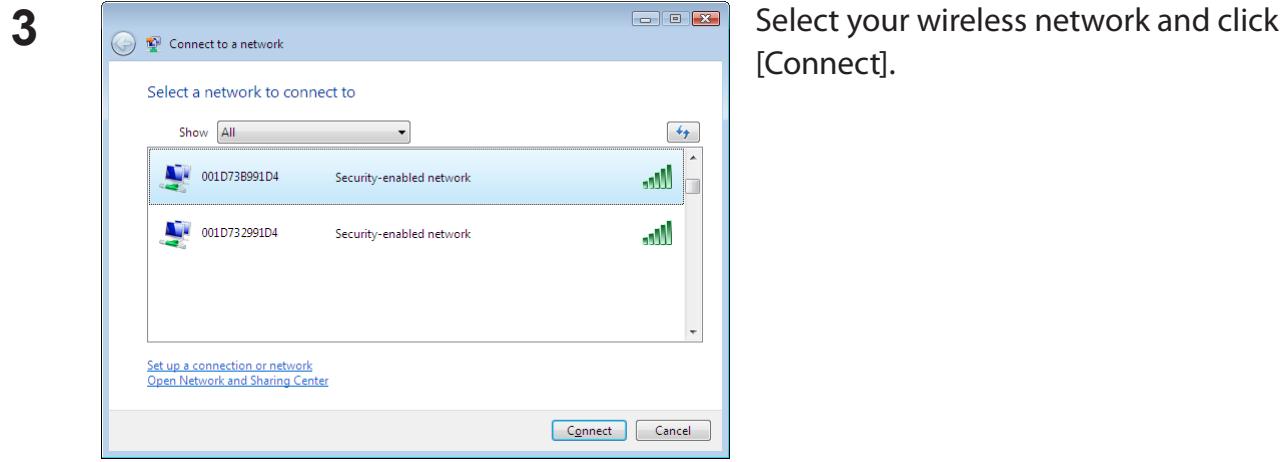

3 D = mener Li Select your wireless network and click [Connect]. Select a network to connect to See PE er Sauna sl, CRE sil

WLI-UC-GNM User Manual

Chapter 3 Connect to a Wireless Network

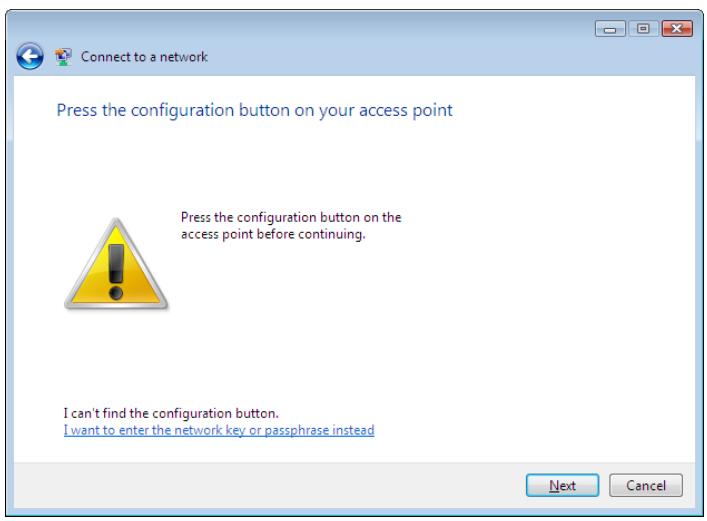

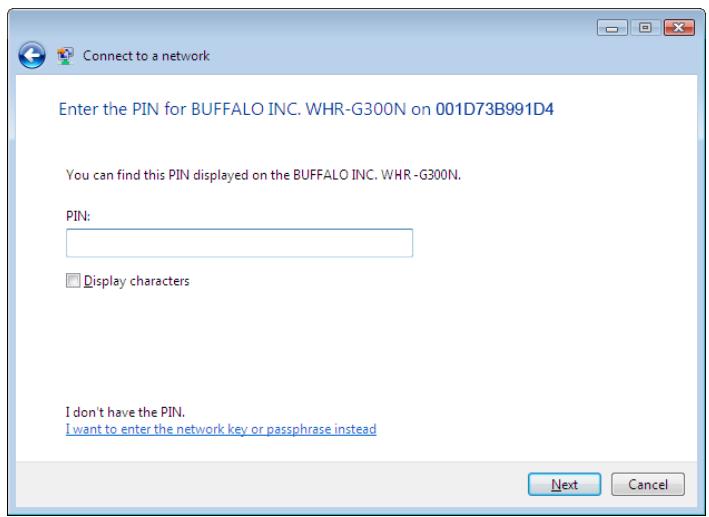

Ifthe screen below is displayed, click [l want to enter the network key or passphrase instead]. Go to step 4.

Press the configuration button on your access point

Pressthe configuration Button ontne l sccee point baiere contains.

Leanitfindthe corfiguretion button. nt ects ne nent or pass pra in

Wu esnfindthiz PIN displayed on the BUFFALO INC. WAR -G200N, Pit

WLI-UC-GNM User Manual 28

Chapter 3 Connect to a Wireless Network

4 ONCE Enter the encryption key and click [Connect].

Type the network security Key or passphrase for 0010739914

Step through the wizard to complete configuration. If the "Set Network Location” screen is displayed, select “Home”, “Work', or “Public location” depending where you're using the AirStation.

WLI-UC-GNM User Manual 29

Chapter 3 Connect to a Wireless Network

Windows XP (Wireless Zero Configuration)

Windows XP includes a built-in utility to connect to your wireless access point.

If Client Manager 3 is installed on your computer, then Wireles Zero Configuration is disabled. Uninstall Client Manager 3 to use Wireless Zero Configuration, or just use Client Manager 3 to connect to the AirStation.

Right click on the wireless network icon æ) in the system tray.

Click [View Available Wireless Networks].

Wireless Network Connection

‘The network'001D738991D4' requires a network key (also called a WEP key or WPA key). AA network key helps prevent unknown intruders from connecting to this network.

‘Type the key, and then cick Connect.

Network key: [ m network ke: [

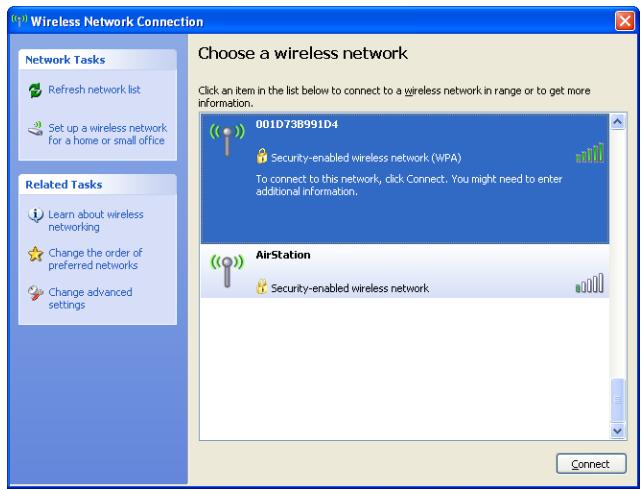

Æ Select a wireless network, then click [Connect].

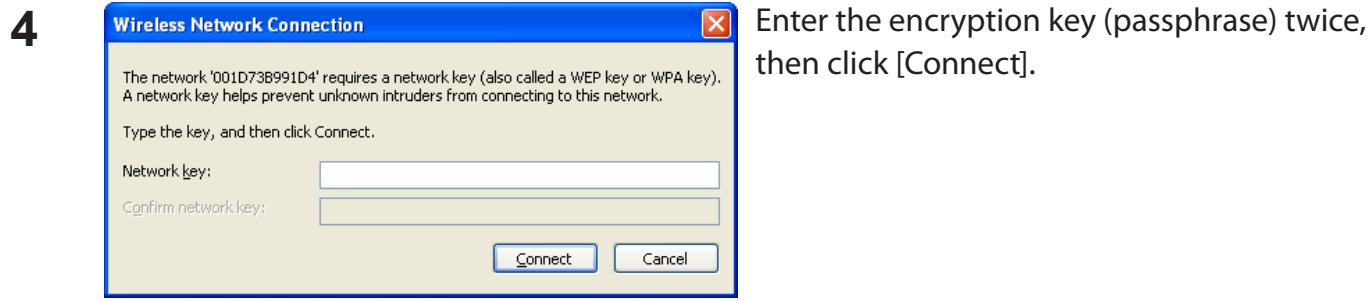

Enter the encryption key (passphrase) twice, then click [Connect].

When the connection is complete, the word “Connected”will be displayed to the right ofthe network's SSID. Click the "X"in the top right corner of the window to close the utility.

WLI-UC-GNM User Manual

Chapter 4 - Client Manager

Client Manager is utility software used to connect to an access point on the network or to verify the connection between an access point and your computer. It is included with your AirStation.

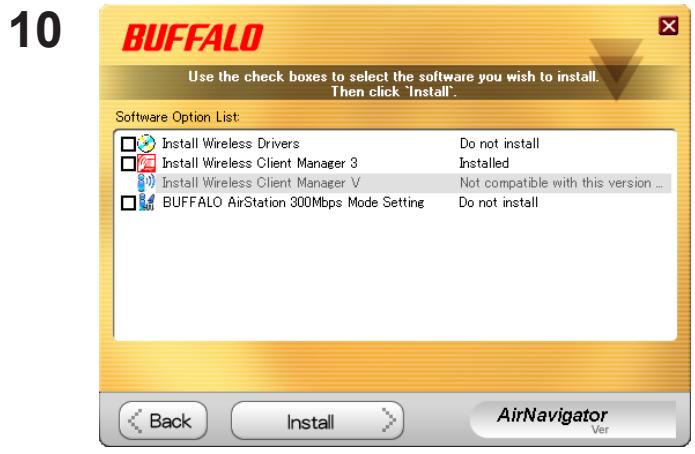

Note: Two versions of Client Manager are included on your AirNavigator CD. Client Manager V supports Windows 7 and Vista. Client Manager 3 supports Windows XP. The installation program will install the correct version for your operating system.

Using Client Manager V with Windows 7 and Vista

+ When you install Client Manager, it will be added to your Startup folder and will automatically launch with Windows. If Client Manager does not launch automatically, click [Start] > [AÏl Programs ]1> [BUFFALO] > [AirStation Utility] > [ClientManager V] to launchit.

- To close Client Manager, right-click on its icon in the system tray and choose [Exit].

- The appearance of the Client Manager icon varies according to its connection status:

w : lo No wireless connection.

Tl Communicating via an access point.

WLI-UC-GNM User Manual 31

Chapter 4 Client Manager

The Main screen displays the current connection status. You can perform the following operations from this screen.

Profile Displays information about the current connection points. If you have multiple connection points, you can switch among them.

Transmission Speed Displays the current connection speed.

Signal Strength Displays the current signal strength.

Create Profile Click this to display the Automatic Secure Setup and Advanced

Setup screen (next page).

Advanced Click this to display the Wireless Status screen.

WLI-UC-GNM User Manual 32

Chapter 4 Client Manager

Automatic Secure Setup and Advanced Setup

There are two ways to connect to an access point: automatic or manual. In the following wizard, automatic setup will be referred to as"AOSS/WPS" and manual setup will be referred to as "Advanced Setup”.

[e) 89 Create profile

Perform setup of wireless connection to the AirStation

Selectthe Setup Method

Perform connection and security configuration automatically. @ (@) wi

Select a Network Name (SSID) or enter the SSID, then connect manual. ÿ Otnerwise connect vdth WPS-PIN method

Oution (Expert an} Client Manager BUFFALO Parameter Meaning

Wireless Adapter Displays the names of currently used wireless devices.

Automatic Secure Setup Clicking this will search for an AOSS or WPS compatable access point to connect to automatically.

Advanced Setup Click this to display the SSID/WPS-PIN selection screen (next page). Option (Expert only) Click this to specify whether you use AOSS or WPS (PBC) for

connection in Automatic Secure Setup. It displays the WPS-PBC/ AOSS selection screen.

WLI-UC-GNM User Manual 33

Chapter 4 Client Manager

SSID / WPS-PIN selection

This screen lets you select whether to connect to an access point by specifying the SSID or by enter- ring a WPS PIN.

G 89 Create profile Select the connection method Connect Manually Select or Enter the Network Name (SSID). Enter the encryption information. re Connect with WPS-PIN Acquire encryption information from an Access Point with WPS-PIN method Parameter Meaning Connect Manually Displays the “Searching Wireless Access Points” screen and lets you enter connection settings manually.

Connect with WPS-PIN Click this to connect to a wireless access point by entering its WPS PIN.

WLI-UC-GNM User Manual 34

Chapter 4 Client Manager

Searching Wireless Access Points

This screen lists available wireless access points in your area. You can select an access point and enter network information manually to connect.

Es) G 1 cunepae Select a network Network Name (SSID) Security Channel Stre. Q-Ù F 14 nualh Search Parameter Meaning Network Name (SSID) Displays the SSID of each available access point. Security Displays whether or not the access point uses encryption. Channel Displays the wireless channel used by an access point. Strength Displays the signal strength of an access point. Enter the Network Name (SSID) Click this to display the Wireless Network Information screen, where manually you can enter an SSID manually. [Search] Click here to search for available access points again. [Next] Click this to display the Wireless Network Information screen.

WLI-UC-GNM User Manual 35

Chapter 4 Client Manager

Wireless Network Information

Configure wireless connection settings.

G 89 Create profile Enter the information of the wireless network Network Type [Infrastructure Mode (Connectto Access Paint) dl Network Name (SSID) ISO] Security Type [open =| Encyption Method No Encryption Encryption Key or tent Passphrase enter Display entered characters [f] Connect to a network which does not broadcast the SSID. Warning: you selectthis option, this PC's privacy may be exposed to danger.

Encryption Method Encryption Key or Passphrase

Connect to a network which does not

broadcast the SSID Connect

Select a type of connection.

Enter the SSID of an access point.

Select the security type of the selected access point. Select the encryption method of the selected access point. Enter the encryption key for the access point.

Check this box to connect to a hidden SSID that is not broadcast.

Connect to the access point.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

WPS-PBC / AOSS selection

You may automatically connect to an access point by just pushing or clicking two buttons with WPS

G 89 Create profile Select option item. Automatic Secure Setup WPS-PBC method

Perform automatic Secure Setup by WPS-PEC.

Automatic Secure Setup AOSS method Perform automatic Secure Setup by AOBS.

Click this to automatically connect to an access point that supports

Click this to automatically connect to an access point that supports

WLI-UC-GNM User Manual

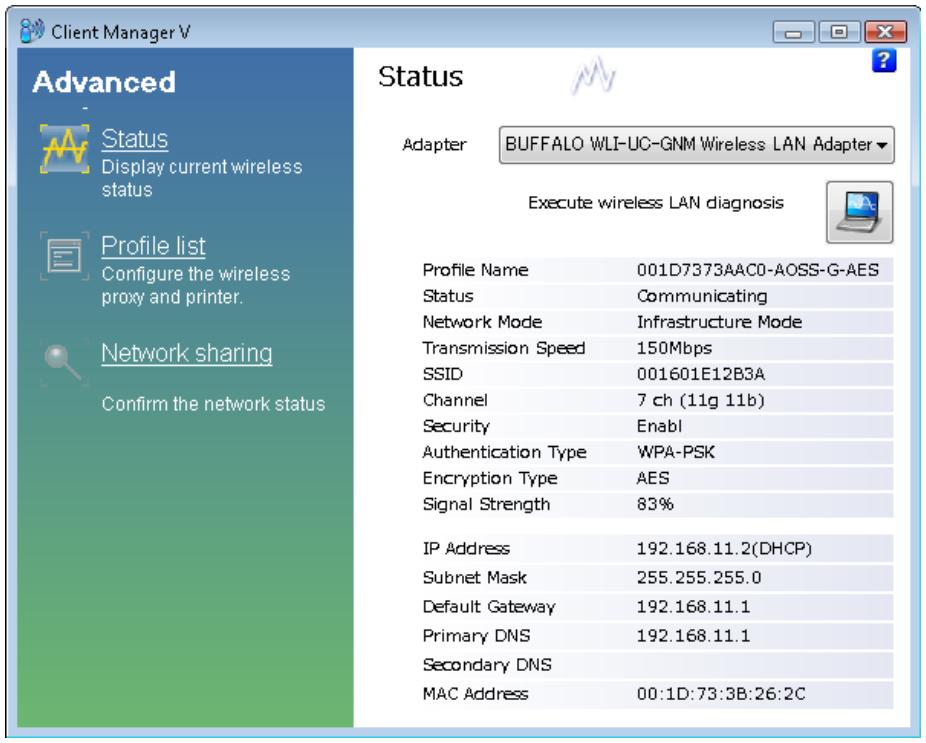

Status "y Adapter BUFFALO WLI- Execute wireless LAN diagnosis

Secondary DNS MAC Address 00:1D:73:3B:26:2C Parameter Meaning Adapter Displays the name of the current wireless client. Execute wireless LAN diagnostics Opens the Wireless LAN Diagnostics wizard. Profile Name Displays the current profile name. Status Displays the current transmission status. Network Mode Displays the current network mode.

Displays the current transmission speed. Displays the SSID of the currently connected access point.

Displays the wireless channel currently used.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Security Displays whether encryption is currently enabled or not. Authentication Type Displays the type of authenticaltion currently used. Encryption Type Displays the type of encryption currently used.

Signal Strength IP Address Subnet Mask Default Gateway

Primary DNS Secondary DNS MAC Address

Displays the current signal strength.

Displays the IP address assigned to your wireless client.

Displays the subnet mask assigned to your wireless client.

Displays the default gateway address. Displays the primary DNS address. Displays the secondary DNS address.

Displays the MAC address of your wireless client.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

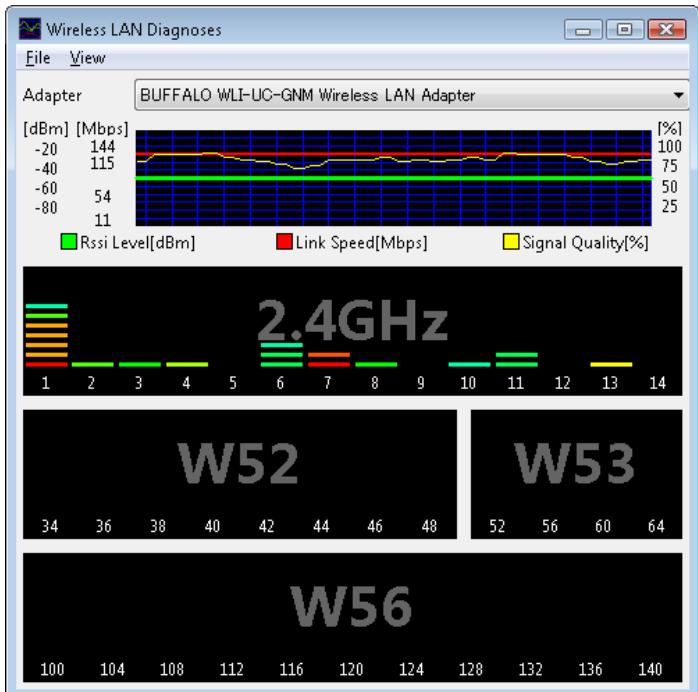

On the Wireless LAN Diagnostic screen, you can check signal strength and quality.

Bwirciess LAN Disgnoses Elle View

adspter (BUFFALO WUUG-GH css LAN Adeter

[dBm] [Mbos] -20 184

Usage of each channel

Displays the name of the wireless client currently in use.

Displays signal strength (dBm), link rate (Mbps), and signal quality (%) at 1 minute intervals. Possible restrictions: -+ Some wireless devices may not be displayed. - Signal strength and quality displays may vary. These graphs should not be used to compare different wireless devices. Only use them to compare information for the same wireless device.

The 11b/119 displays usage of each channel on 2.4 GHz.

This unit does not display 11a usage, as it does not support 5 GHz. The color expresses the signal strength of an access point. Redder means a stronger signal, bluer means a weaker signal.

WLI-UC-GNM User Manual

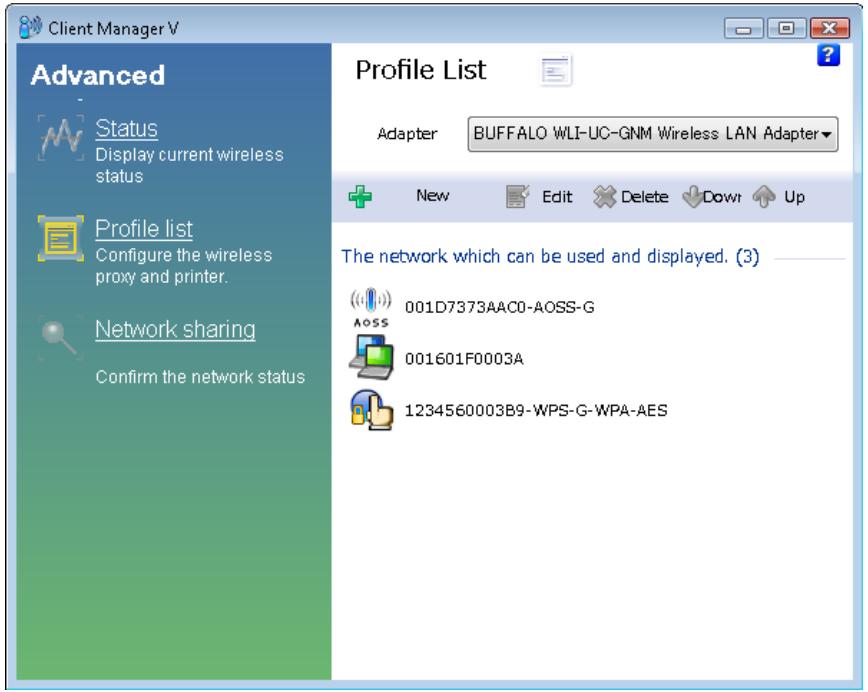

Advanced Profile List E]

Adapter Displays the name of the current wireless client.

New Create a new profile. This displays the Automatic Secure Setup and Advanced Setup screen.

Edit Edit the selected profile. This displays the Extended properties (Wireless) screen.

Delete Delete the selected profile.

Down Lower the priority of the selected profile.

Up Raise the priority of the selected profile.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

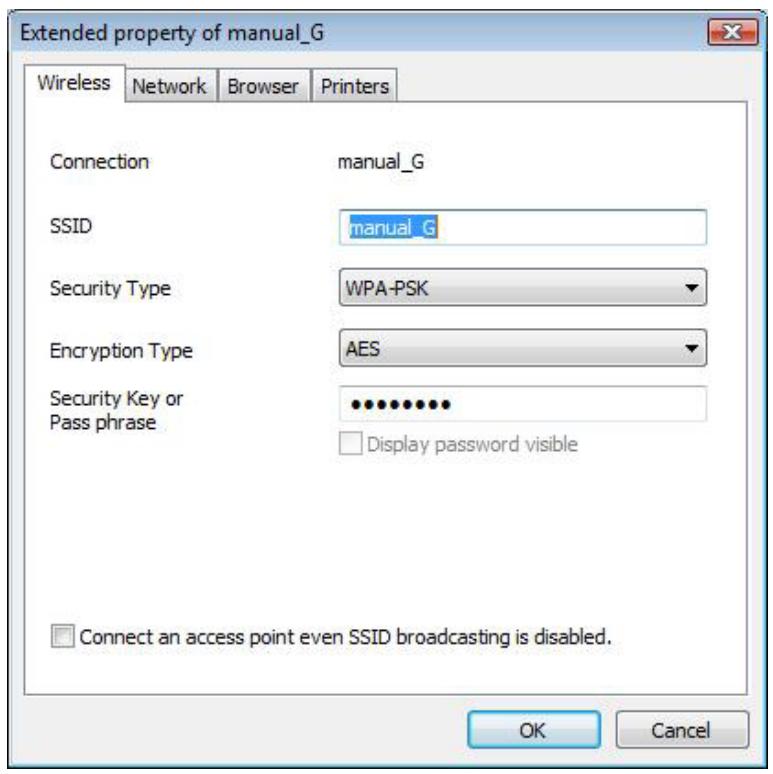

Current wireless settings.

Security Key or Pass phrase

[f] Connect an access point even SSID broadcasting is disabled.

Connection Displays the current profile name.

SSID Displays the SSID of the current connection.

Security Type Displays the security type you are using for the current connection. Encryption Type Displays the encryption type you are using for the current connection. Security key or Pass phrase Displays the security key or pass phrase if [Display password

visible] is checked.

Connect an access point even SSID Check to connect to a wireless network that doesn't broadcast broadcasting is disabled. its SSID.

WLI-UC-GNM User Manual 42

Chapter 4 Client Manager

By default, your client's IP address is set automatically by DHCP. You may configure it manually from

Extended property of 001601F00034

Wieless| Network | Biowser | Prnters]

Use the following settings

© automatically acquire the IP Address(O)

Use the following IP ad

© Automatically acquire the DN:

Use the following DNS Se:

Do not change IP Address settings of this Profile

Use the following settings

Select to keep your current TCP/IP network setting without any changes. This is the recommended setting.

Select this option to change your TCP/IP network settings. For expert users only.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

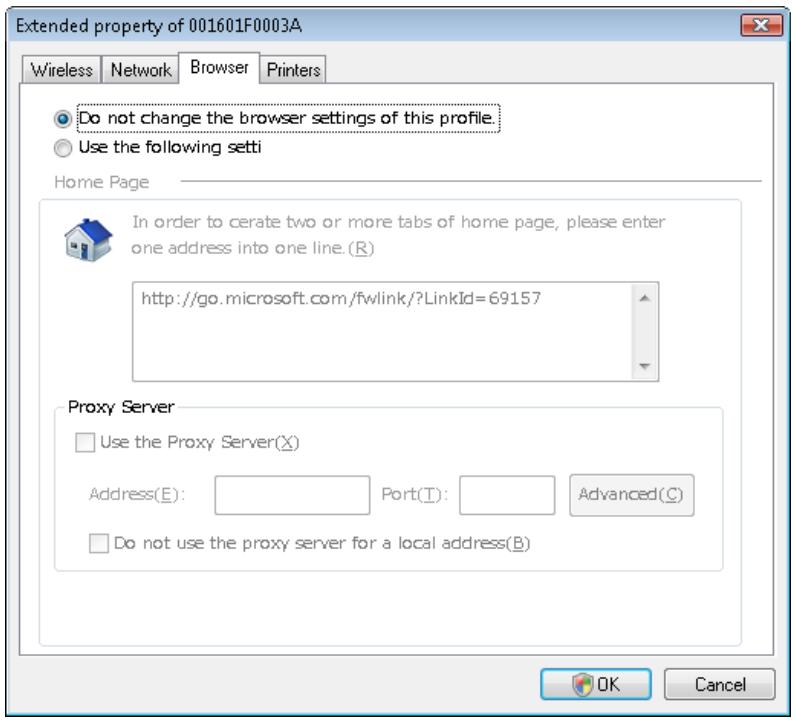

Configure Internet Explorer settings for wireless connections.

Extended property of 001601F00034

Wireless | Network | Browser | Printers|

© Do not change the browser settings of this profil} ©) Use the following setti

Proxy Server Use the Proxy ) Advanced(C) 2 not use the proxy server for à local address(B Parameter Meaning

Do not change the browser settings Select to keep the current Internet Explorer settings. of this Profile

Use the following settings Select this option to use different Internet Explorer Home Page and

Proxy Server settings while connected wirelessly.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

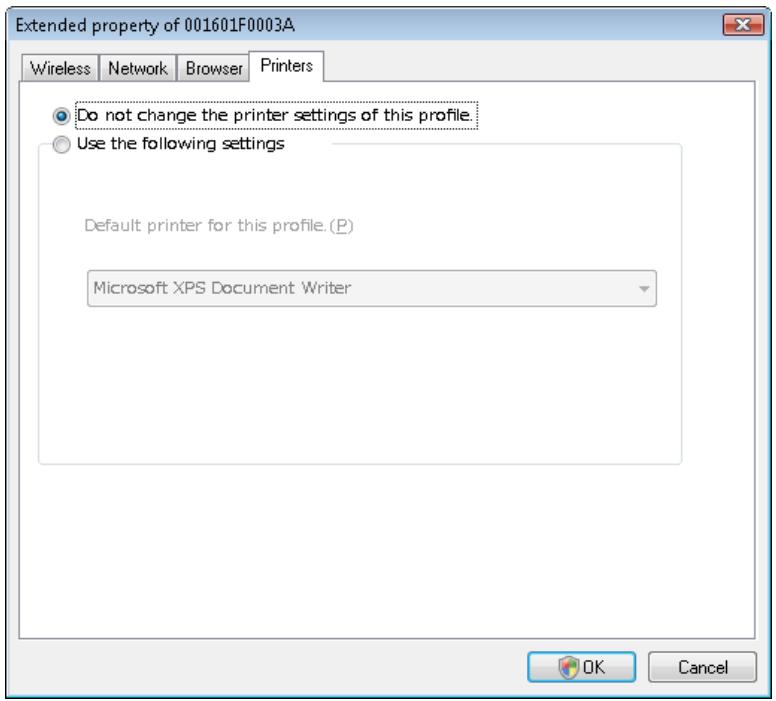

Configure the printer used while connected to an access point wirelessly.

Wireless | Network | Browser] Printers

@ Do not change the printer settings of this profile. Use the following settings

Do not change the printer settings of Select to keep your current printer settings.

Use the following settings

Select to use a different default printer while connected wirelessly.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Using Client Manager 3 with Windows XP

+ When you install Client Manager, it will be added to your Startup folder and will automatically start with Windows. To launch Client Manager manually, click [Start] > [AIl Programs] > [BUFFALO] > [AirStation Utility] > [ClientManager3].

- Right click on the Client Manager icon in the system tray and click [Exit] to close Client Manager. The Client Manager icon will change appearance according to its connection status:

: No wireless client installed

: Not connected to an access point

: Transmitting to an access point with TKIP/AES encryption

: Transmitting to an access point with WEP or not encrypted

: Transmitting in ad-hoc mode (not supported with this wireless client)

WLI-UC-GNM User Manual 46

Chapter 4 Client Manager

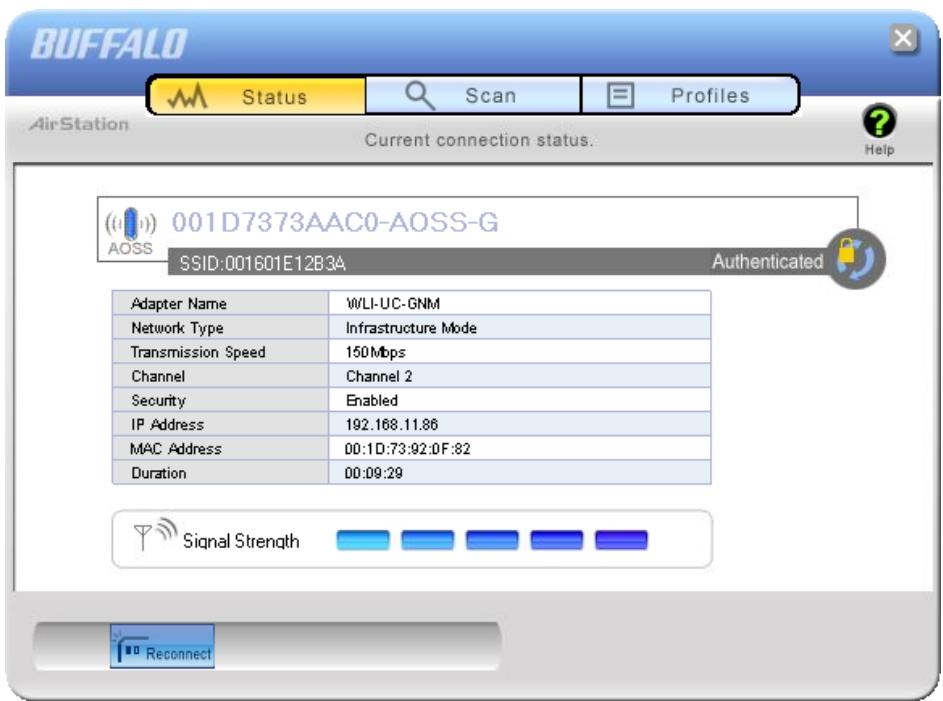

The Status screen displays the status of the current connection.

Current connection status.

MAC Address Duration

SSID:001801E 12834 Authenticated

TN simelsterah C9 C0 0 =

PE WLI-UC-GNM Infrastructure Mode 160bbps

Enabled 192.168.1188 00:10:73:02:0F 82 00:09:29

Profile Current connection profile name.

SSID SSID of the currently connected access point. Adapter Name Name of the wireless client currently in use. Network Type Current network mode.

Transmission Speed Channel Security

Current transmission speed. Current wireless channel. Displays whether security is currently enabled or not.

The IP address assigned to this unit.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Parameter Meaning MAC Address MAC address of this unit. Duration Elapsed duration of the current wireless connection.

Current signal strength.

Click to reconnect to the most recent connection.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Scan and display nearby access points.

Display currently available access points.

SSID {_ Wireless mode | Channel|_Strength |Encryption| _! 001601E12B3A 11a/11b| El 001D738C40EC Tig/1b 1 d =

à Parameter Meaning SSID SSID of access point. Wireless mode Type of access point (11a or 11g). Channel Wireless channel of the access point. Strength Reception strength of each access point. Encryption Lock symbol is shown if the access point uses encryption. Connect Click to display the Connect page. Refresh Click to refresh the list of available access points.

Chapter 4 Client Manager

Configure connection to an access point.

7 Parameter Meaning Encryption Method Type of encryption used by the access point.

Enter one or more encryption keys.

Check to register this connection as a profile.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Connect to an access point or edit a profile.

Connect Selecting a profile and clicking this button will connect to an access point using its stored profile information.

Add Click to add a new profile. Edit Click to edit or delete information in a profile. WPS AOSS Click to have AOSS/WPS (PBC) automatically set security.

After connection, a profile based on these settings will be created.

802.1x Profiles This button is displayed when Client Manager is operating in Business Mode. Click to configure 802.1x authentication.

WLI-UC-GNM User Manual 51

Chapter 4 Client Manager

Profile Information (Basic)

Configure your profile settings.

Profile Infomat ( l |

Basic Network | Browser ] Printers ] “ Q Display leon Le. a

Select Profile & Wieless © Wired

F° AP is set to exclusive connection.

Select an icon to display for this profile.

Connection may be wireless or wired (Ethernet). For use with the AirStation, select Wireless.

Enter a name for the profile. Select infrastructure mode to connect to an access point (recommended), or ad-hoc mode to connect directly to another

Select the SSID of the wireless access point that the profile will connect to.

Choose the wireless channel. In Infrastructure Mode, the channel is automatically configured.

WLI-UC-GNM User Manual

AP is set to exclusive connection

Select the encryption method used by the wireless access point.

If WEP is used for the Encryption Method, up to 4 passphrases may be entered. Choose the number of passphrases.

Enter the encryption key(s) for the access point.

Check if the access point's SSID is not broadcast.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Profile Information (Network)

The profiles IP address and subnet mask may be manually assigned.

Profile Infomation | l |

Basic | Network Browser ] Printers ] “ Q F Do not change IP Address settings of this Profile}

Do not change IP Address settings of Check to keep using current TCP/IP network settings. this Profile

Automatically acquire the IP Address Check to automatically acquire the IP address from a DHCP server when connecting wirelessly.

Automatically acquire the DNS Server Check to automatically aquire the DNS server address from a DHCP Address server when connecting wirelessly.

WLI-UC-GNM User Manual 54

Chapter 4 Client Manager

Configure your Internet Explorer settings when connecting wirelessly.

Basic | Network | Browser Printers ] “ Q F Do not change the browser settings of this profile}

M Do not use the proxy server for a local address

Do not change the browser settings Check to use current Internet Explorer settings when connecting of this Profile wirelessly. Uncheck to use any of the settings below.

Address to use as Home Page To use a different home page in Internet Explorer when connecting wirelessly, enter it here.

Use the Proxy Server To use a proxy server for Internet Explorer when connecting wirelessly, enter its IP address and a port number and check the box.

Do not use the proxy server for a local lfchecked, the proxy server will not be used for local addresses. address

WLI-UC-GNM User Manual 55

Chapter 4 Client Manager

Profile Information (Printers)

Configure the printer that your computer uses when connected wirelessly.

Profile Infomation | } } Basic | Network ] Browser ] Printers sé o

F Do not change the printer settings of this profile}

Do not change the printer settings of Select this option to use a different printer when connecting this Profile wirelessly.

WLI-UC-GNM User Manual

Chapter 4 Client Manager

Right-click on the Client Manager icon in the system tray to display the following choices.

Scan Displays the Scan screen.

Profile Displays the Profiles screen.

Easy Connection Runs Automatic Secure Setup, using one of the following

connection methods: AOSS, WPS(PBC), or WPS(PIN).

Help Displays Client Manager Help.

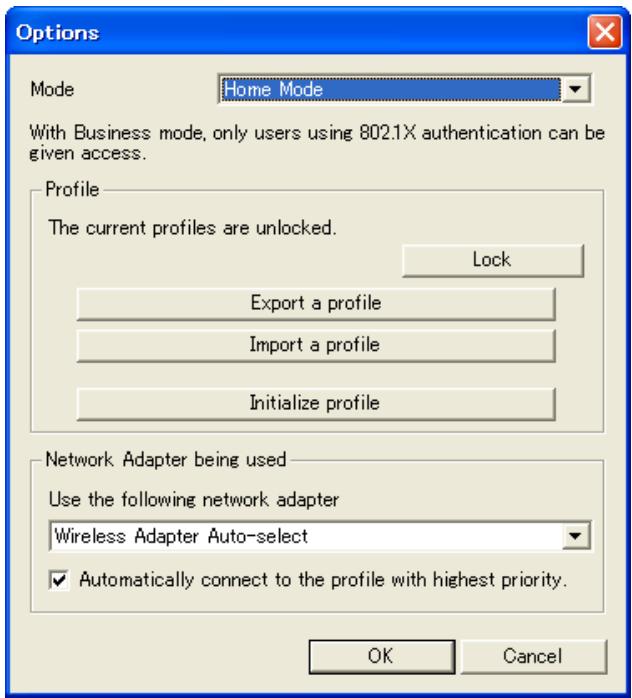

Option Displays the Options menu screen.

given access. Profile The current profiles are unlocked.

Network Adapter being used Use the following network adapter

[Wireless Adapter Auto-select

F Automatically connect to the profile with highest priority.

Mode Switch between Client Manager's operating modes. If you select [Business Mode], the button to configure 802.1x authentication appears on the Profiles screen. [Home Model] is recommended for most users.

Lock If you click this, a password will be required to add new profiles or

edit existing profiles. To lock or unlock, enter the password (8 - 63 characters).

Click this to save the currently registered profile information. To save profile information, enter the password (8-63 characters).

Click this to import a saved profile into Client Manager. You'll need to enter the password for the profile to continue.

WLI-UC-GNM User Manual

Use the following network adapter

Automatically connect to the profile with highest priority

Click this to initialize profile information. Before initializing profile information, unlock the unit.

Select a network adaptor to use in Client Manager. [Wireless Adapter Auto-select] is recommended for most users.

If checked, it will attempt to connect to the profile with highest priority as assigned on the Profile screen (page 51). Checked is recommended for most users.

WLI-UC-GNM User Manual

Chapter 5 - Troubleshooting Common Problems

The Computer does not recognize the Wireless Adapter.

- Make sure the wireless adapter is connected to a USB port on your computer.

- Ifyour computer has multiple USB ports, try connectting to a different USB port.

- Refer to Chapter 2 to reinstall drivers for this unit.

Cannot connect to the network wirelessly.

- Refer to chapter 3 for several different ways to connect this unit to an access point wirelessly.

+ Configure the same SSID, encryption method, and encryption key for each wireless device. These settings must match those of your wireless access point.

+ Move your wireless devices closer to the access point.

-_ Restart your access point.

You forgot the AP's SSID, Encryption KEY, or Password.

- Ask your network administrator about your SSID and encryption settings. These settings must match the SSID and encryption settings of the access point.

- Ifyour access point supports AOSS or WPS, try using them to connect to the access point. Instructions for connecting with AOSS or WPS are in chapter 3.

WLI-UC-GNM User Manual 60

Chapter 5 Troubleshooting Common Problems

The link speed is slower than 150 Mbps.

The default setting for 150 Mbps mode on the AirStation is off. Refer to "150 Mbps Mode settings" in page 64 to turn on 150 Mbps mode.

When using the Windows wireless connection manager, | cannot connect to my wireless router. | receive a "Cannot configure wireless network" error message when scanning for available wireless networks.

Another wireless client software may be installed on your computer that is taking control of the wireless client adapter away from the Windows connection manager. Either switch to the other software or use Add/Remove Programs to remove the conflicting client software. Then the Windows connection manager should be able to connect to any available wireless networks.

When | attempt to connect to my wireless router, | receive an error message indicating that security settings on my computer do not match the settings on the router.

Manually enter the correct security key and encryption type into the Windows connection manager.

To enter the security key in Windows XP:

Go to Wireless Networks Connection Status and click on View Wireless Networks. There will be a list of networks to which you have previously connected. Highlight the network name (SSID) of the wireless router and click on Connect. Enter the correct encryption key and click on Connect.

WLI-UC-GNM User Manual 61

Chapter 5 Troubleshooting Common Problems

What can | do if my wireless connection drops randomly or seems slow?

There are many environmental factors that may affect this behavior. First, ensure the issue is not range related by moving the access point and the wireless client closer together. Check whether the connection drops continue.

In some cases, interference from other wireless networks or sources such as 2.4 GHz wireless phones may impact performance. Try changing the wireless channel used by your wireless router.

Log in to the wireless router with your browser. Click on the [Wireless Configuration]. If an Auto- Channel option is available, use it. Otherwise, manually select an alternate channel.

Though | am able to successfully make a connection with my wireless router, | am unable to access the Internet with my web browser.

First, power off the Cable or DSL modem, the wireless router, and then your computer. Pressing the power button or simply unplugging the devices can power off the modem and wireless router devices. Then after verifying that the modem is connected to the wireless router with a cable to the WAN port, power on the modem and wait two minutes. Turn on the wireless router and then the computer. Verify whether an Internet connection is available.

If, after these steps, an Internet connection is still unavailable, power off the Cable or DSL modem and computer again and directly connect your computer to the Cable or DSL modem with a cable between the computer and the port on the modem. Power on the modem and wait two minutes. Power on the computer and again check for an Internet connection.

If an Internet connection is not available with a direct connection to the computer, please call the Internet Service Provider who installed the modem.

If an Internet connection is available with a direct connection to the computer, please call our customer support line.

WLI-UC-GNM User Manual 62

Chapter 5 Troubleshooting Common Problems

Issue: Where can | download the latest drivers, firmware and instructions for my Buffalo wireless products?

Answer: The latest drivers and firmware with installation instructions are available online at www.buffalotech.com

WLI-UC-GNM User Manual 63

Click [Start] > [AI Programs] > [BUFFALO] > [AirStation Utility] > [AirStation Bandwidth 20 or 40MHZz Select Tool] and launch the utility software.

If you are using Windows 7 or Vista and see the message "A program needs your permission to continue", click [Yes] or [Continue].

When the message "Now start the setup wizard of Bandwidth Select Tool" is displayed, click [Next].

3. Click [Next]. 4. 5 6.

When the message "Select wireless adapter" appears, select this unit and click [Next].

. Select [Use 150Mbps Mode (40MHz)], and click [Next]. . When the message "Wireless adapter setting is completed" is displayed, click [Exit to setup].

If you still cannot establish a 150 Mbps connection, check the settings for your access point.

WLI-UC-GNM User Manual 64

Standard Compliance IEEE802.11b / IEEE802.11g /IEEE802.11n

Transmission Method Direct Sequence Spread Spectrum (DSSS), OFDM, SISO Frequency Range 2,412 - 2,462 MHz (Channels 1 -11) Transmission Rate 802.11b/g: 54,48, 36, 24,18, 12,9, 6, 11, 5.5, 2, 1 Mbps 802.11n 20 MHz BW

(Long Gl) 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps (1 stream)

(Short Gl) 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 Mbps (1 stream) 40 MHz BW

(Long Gl) 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps (1 stream)

(Short Gl) 150, 135, 120, 90, 60, 45, 30, 15 Mbps (1 stream)

Access Mode Infrastructure Mode, Adhoc Mode

Security WPA2-PSK (TKIP/AES), WPA-PSK (TKIP/AES), 128/64bit WEP CCE Power Supply 5.0 V Bus-powered

Power Consumption 2500 mW (Max)

Dimensions 15 mm x 8 mm x 20 mm (0.59 x 0.31 x0.79 in.)

Weight 3 g (0.1 ounces)

Operating Environment |0-40°C(32-104°F), 20 - 80% (non-condensing)

WLI-UC-GNM User Manual 65

Uninstalling the Software

To uninstall the software, follow the procedure described below.

1. Insert AirNavigator CD. When you insert CD, AirNavigator Setup Wizard will launch automatically. To launch it manually, double click [My Computer], then your CD-ROM, then [AirNavi.exe].

2. Click [Options]. 3. Click [Uninstall software]. 4. Step through the wizard to uninstall the software.

Uninstalling the Drivers

To remove the AirStation wireless client drivers, follow the procedure described below.

3. Click [Remove Drivers].

4. Follow the instructions on the screen to remove drivers.

WLI-UC-GNM User Manual

To configure TCP/IP in Windows 7, follow the procedure below.

Click [Start] > [Control Panel] > [Network and Internet].

Click [Network and Sharing Center].

Click [Change Adapter Settings] on the left side menu.

Right click on [Local Area Connection], then click [Properties].

Ifthe message “Windows needs your permission to continue” appears, click [Continue].

Select [Internet Protocol Version 4 (TCP/IPv4)] then click [Properties].

To have DHCP set your IP address settings automatically, check [Obtain an IP address auto- matically] and [Obtain DNS server address automatically].

To set your |P address settings manually, enter values for each settings. Example: Ifthe router's IP address is 192.168.11.1,

WLI-UC-GNM User Manual

2 Double click [Network and Sharing Center].

3 Click [Manage network connections] on the left side menu.

4 Right click on [Local Area Connection], then click [Properties].

5 When the message [Windows needs your permission to continue], click [Continue].

6 Select [Internet Protocol Version 4 (TCP/IPv4)], then click [Properties].

7 Tohave DHCP set your IP address settings automatically, check [Obtain an IP address auto- matically] and [Obtain DNS server address automatically].

To set your |P address settings manually, enter values for each setting. Example: Ifthe router's IP address is 192.168.11.1,

IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway 192.168.11.1

Preferred DNS server 192.168.11.1 Alternate DNS server blank

WLI-UC-GNM User Manual

Select [internet Protocol (TCP/IP)], then click [Properties].

To have DHCP set your IP address settings automatically, check [Obtain an IP address auto- matically] and [Obtain DNS server address automatically].

To set your IP address settings manually, enter values for each setting. Example:. If the router's IP address is 192.168.11.1,

IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway 192.168.11.1

Preferred DNS server 192.168.11.1 Alternate DNS server blank

WLI-UC-GNM User Manual

Compliance Information

Federal Communication Commission Interference Statement:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

+ Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Important Note - FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instructions as documented in this manual. This device and its antenna(s) must not be co- located or operating in conjunction with any other antenna or transmitter.

SAR compliance has been established in typical laptop computers with USB slot, and product could be used in typical laptop computer with USB slot. Other applications like handheld PCs or similar devices have not been verified and may not comply with related RF exposure rule and such use shall be prohibited.

The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. This firmware setting is not accessible by the end user.

WLI-UC-GNM User Manual 70

Industry Canada Statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

Important Note - Radiation Exposure Statement:

This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with Canada RF exposure compliance requirements, please follow operation instruction as documented in this manual.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Europe - EU Declaration of Conformity:

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The follow- ing test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC.

A copy of the Declaration of Conformity can be downloaded by selecting this product from the list

at http://www.buffalo-technology.com/support/downloads/

+ EN60950-1:2006 Safety of Information Technology Equipment

*-EN 62311:2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz).

+ EN 300 328 V1.7.1 (2006-10)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive.

WLI-UC-GNM User Manual 71

+ EN 301 489-1 V1.8.1: (2008-04) Electromagnetic compatibility and Radio spectrum Matters (ERM) — ElectroMagnetic Compatibility (EMO) standard for radio equipment and services — Part 1: Common technical requirements.

+ EN 301 489-17 V2.1.1 (2009-05)

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMO) standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems

This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in all EU and EFTA member states.

EU Countries intended for use

This device is intended for indoor home and office use in the following countries: Austria, Belgium, Germany, Denmark, Spain, Greece, France, Finland, Italy, Ireland, Luxembourg, The Netherlands, Portugal, Sweden, United Kingdom, Cyprus, Czech Republic, Estonia, Hungry, Latvia, Lithuania, Malta, Poland, Slovak Republic and Slovenia. The device is also authorised for use in all EFTA member states Iceland, Liechtenstein, Norway and Switzerland.

EU countries not intended for use: None

Potential restrictive use:

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain an authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

In Belgium there is a restriction in outdoor use. The frequency range in which outdoor operation in Belgium is permitted is 2460 - 2483.5 MHz.

This device may not be used for setting up outdoor radio links in France and in some areas the

RF ourput power may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.

WLI-UC-GNM User Manual 72

Taiwan: SAR compliance has been established in typical laptop computer(s) with CardBus slot, and product could be used in typical laptop computer with CardBus slot. Other application like handheld PC or

similar device has not been verified, may not comply with related RF exposure rules, and such use shall be prohibited.

FRE NCC (EDR RES TEMENRE :

C Tested to comply With FCC Standards

Complies with IDA Standards DA103412

No. : ESD-1004378C WLI-UC-GNM User Manual

English Hereby, Buffalo Technology Inc. declares that this AirStation WLI-UC-GNM is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

WLI-UC-GNM User Manual 75

WLI-UC-GNM User Manual 76

Environmental Information

+ The equipment that you have purchased has required the extraction and use of natural resources for its production.

+ The equipment may contain hazardous substances that could impact health and the environment.

-_In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems.

+ The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way.

+ The crossed-out wheeled bin symbol invites you to use those systems. LL

+ If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration.

WLI-UC-GNM User Manual 77

Warranty Information

This Buffalo Technology (Buffalo Inc.) product comes with a two-year limited warranty from the date of purchase. Buffalo Technology (Buffalo Inc.) warrants to the original purchaser the product; good operating condition for the warranty period. This warranty does not include non-Buffalo Technology (Buffalo Inc.) installed components. If the Buffalo product malfunctions during the warranty period, Buffalo Technology/(Buffalo Inc.) will replace the unit, provided the unit has not been subjected

to misuse, abuse, or non-Buffalo Technology/(Buffalo Inc.) authorized alteration, modifications or repair.

All expressed and implied warranties for the Buffalo Technology (Buffalo Inc) product line including, but not limited to, the warranties of merchantability and fitness of a particular purpose are limited in duration to the above period.

Under no circumstances shall Buffalo Technology/(Buffalo Inc.) be liable in any way to the user for damages, including any lost profits, lost savings or other incidental or consequential damages arising out of the use of, or inability to use the Buffalo products.

In no event shall Buffalo Technology/(Buffalo Inc.) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. Buffalo Technology (Buffalo Inc.) does not offer refunds for any product.

@ 2003-2010 Buffalo Technology (Buffalo, Inc.)

WLI-UC-GNM User Manual 78

Contact Information (USA / Canada)

GENERAL INQUIRIES Monday through Friday

8:30am-5:30pm CST Direct: 512-794-8533 | Toll-free: 800-456-9799 | Fax: 512-794-8520 | Email: sales@buffalotech.com

TECHNICAL SUPPORT North American Technical Support by phone is available 24 hours a day, 7 days a week. (USA and Canada). Toll-free: (866) 752-6210 | Email: info@buffalotech.com

WLI-UC-GNM User Manual

Buffalo Technology UK LTD 176 Backingham Avenue, Slough, Berkshire, SL1 4RD United Kingdom

GENERAL INQUIRIES Email: sales@buffalo-technology.com

TECHNICAL SUPPORT Buffalo Technology provides technical support in English, German, French, Italian, and Spanish. UK 0845 3511005 Austria 08101 0251552 Belgium 0787 99917 Denmark 70150919

WLI-UC-GNM User Manual
