USER MANUAL CDX-04 GEMINI

professional dual deck CD player

PROFESSIONELLER DOPPEL-CD-PLAYER

REPRODUCTOR DOBLE DE CD PROFESIONAL

DOUBLE LECTUER CD PROFESSIONNEL

OPERATIONS MANUAL

BEDIENUNGSHANDBUCH

MANUAL DEL OPERADOR

MANUEL D'INSTRUCTIONS

PLEASE READ BEFORE USING APPLIANCE, IMPORTANT WARNING & SAFETY INSTRUCTIONS!

CAUTION

RISK OF ELECTRICAL SHOCK DO NOT OPEN!

CAUTION: THIS PRODUCT SATISFIES FCC REGULATIONS WHEN SHIELDED CABLES AND CONNECTORS ARE USED TO CONNECT THE UNIT TO OTHER EQUIPMENT. TO PREVENT ELECTROMAGNETIC INTERFERENCE WITH ELECTRIC APPLIANCES SUCH AS RADIOS AND TELEVISIONS, USE SHIELDED CABLES AND CONNECTORS FOR CONNECTIONS.

THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED "DANGEROUS VOLTAGE" WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.

READ INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.

REtain INSTRUCTIONS: The safety and operating instructions should be retained for future reference.

HEED WARNINGS: All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.

CLEANING: The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE: Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

CART: A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. See Figure A.

VENTILATION: Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

POWER SOURCES: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION: The appliance should be installed in a stable location.

NON-USE PERIODS: The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

GROUNDING OR POLARIZATION:

• If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

• If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

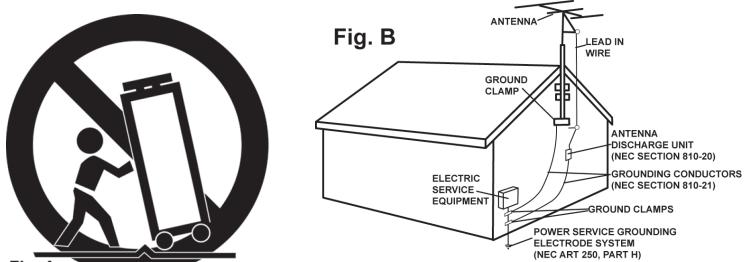

OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure B.

LIGHTNING: For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

SERVICING: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power-supply cord or plug is damaged.
  If liquid has been spilled, or objects have fallen into the product.
  If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
  If the product has been dropped or damaged in any way.
• When the product exhibits a distinct change in performance, this indicates a need for service.

REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

WALL OR CEILING MOUNTING: The product should not be mounted to a wall or ceiling.

HEAT: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

NEC-NATIONAL ELECTRICAL CODE

UX-U4

Control unit

Main unit

Control unit

Main unit

(MIXER)

(DIGITAL TAPE, CD REORDER ETC.)

(ELECTRICAL OUTLET)

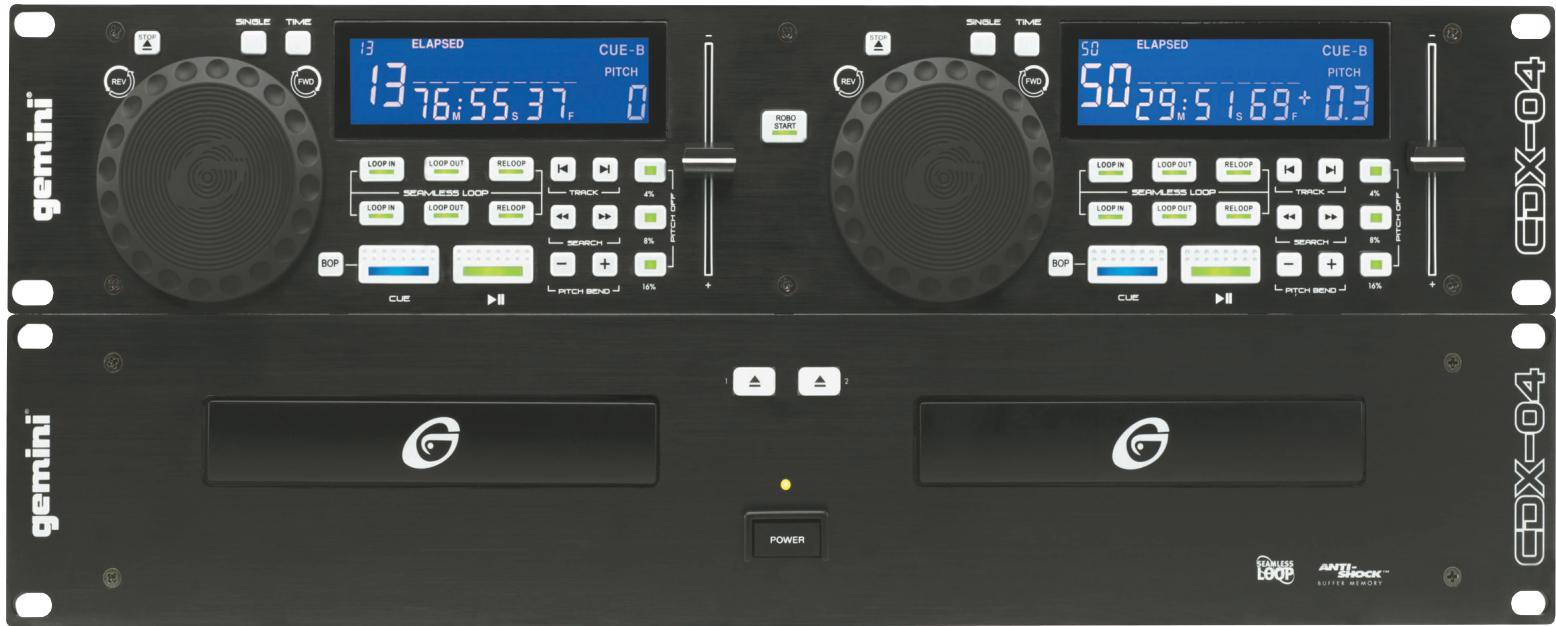

Front Panels

Back Panels

INTRODUCTION:

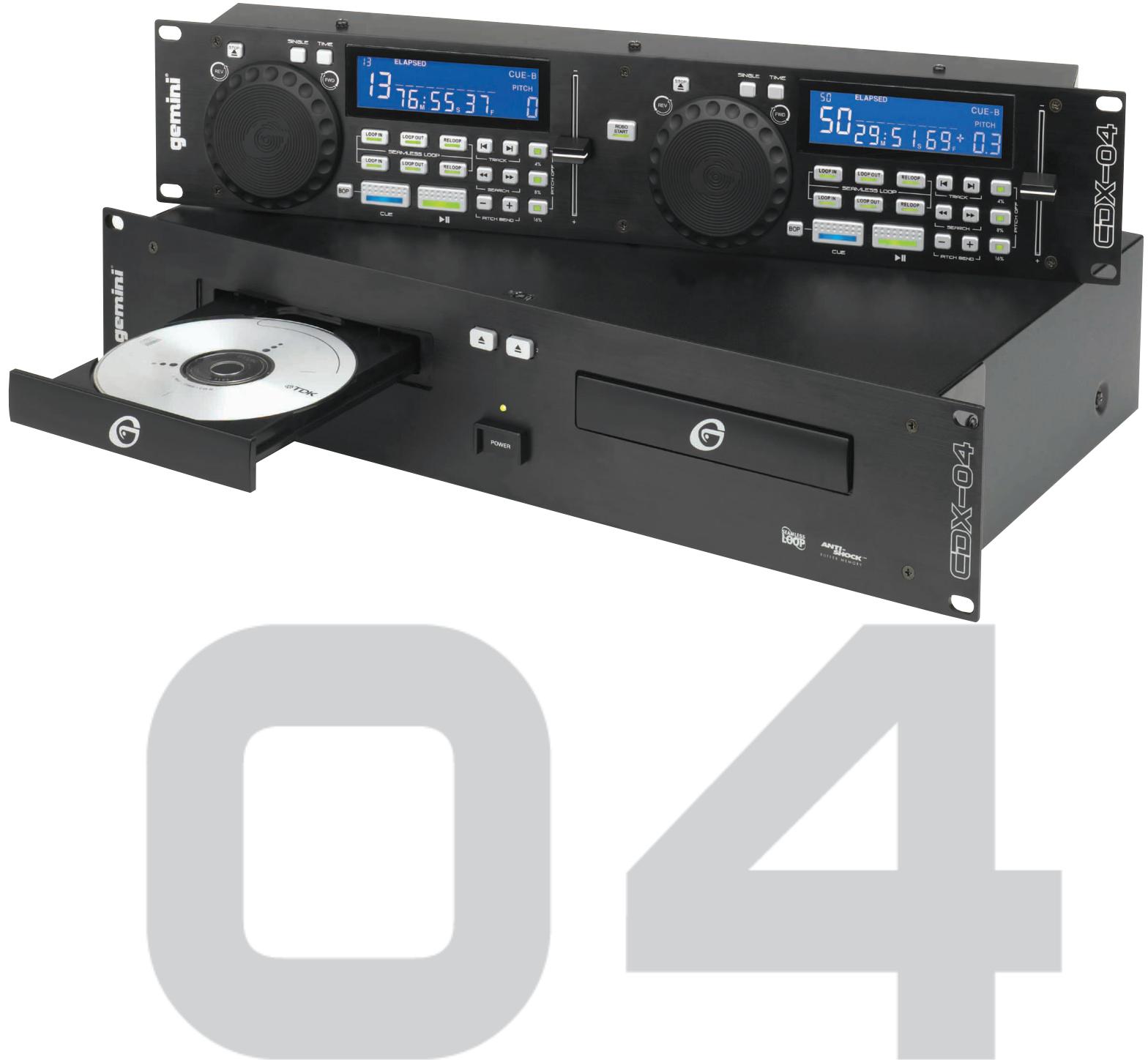

Congratulations on purchasing a Gemini CDX-04 professional 2U dual deck CD player. Your state-of-the-art CD player includes the latest features for club mixing. Your Gemini CDX-04 CD Player comes equipped with Seamless Loop and Anti-Shock RAM buffer memory skip protection for unique mixing capabilities even in the midst of a boisterous dance floor. This CD player is backed by a three year warranty that excludes lasers, which are covered by a separate one year warranty. Prior to use, we suggest that you carefully review this manual.

FEATURES:

• Two seamless loops per side with re-loop
• Anti-Shock™ RAM buffer memory skip protection
  Large blue backlit LCD display
  Three-way time selection
• Single/auto-continuous play modes
• Precise rubber jog wheels with finger grips
• Robotic start for automatic relay play between 2 CDs
• Instant-start & cue with preview
• Three variable pitch settings ± 4, 8 & 16% with pitch OFF
• Pitch bend with jog wheel or buttons
• Stutter play for accurate cue point selection
• BOP button for instant cue replay
• Fast track & song searching
  CD-R compatible
  Coaxial RCA digital output

SAFETY CERTIFICATIONS:

Laser Diode Properties

Material: Ga - Al - As

Wavelength: 755 - 815 nm (25 C)

Laser Output: Continuous Wave, max 5mV

CAUTIONS:

1. Do not use this CD player at temperatures below 41^ / 5^ or higher than 95^ / 35^ .
2. The apparatus should not be exposed to dripping or splashing, and no objects filled with liquids such as vases should be placed on the apparatus.
3. Place the unit in a clean and dry location.
4. Do not place the unit in an unstable location.
5. When disconnecting the power cord from the AC outlet, always grasp it by the plug. Never pull the power cord.
6. To prevent electric shock, do not remove the cover or the bottom screws.
7. There are NO USER SERVICEABLE PARTS INSIDE. Please refer to a qualified technician.
8. Do not use chemical solvents to clean the unit.
9. Keep the laser pickup clean by keeping the tray closed.
10. Keep this manual in a safe place for future reference.

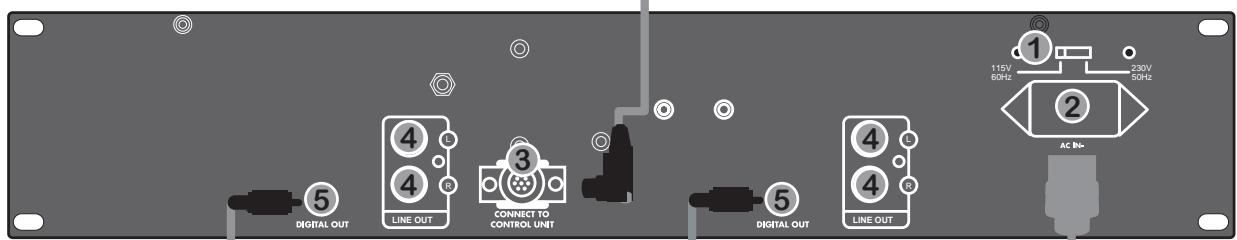

LINE VOLTAGE SELECTION:

The Gemini CDX-04 CD player is a dual voltage unit operating at 115 or 230 volts. Be sure to set the proper voltage:

1. Place the flat head of your screwdriver in the center of the VOLTAGE SELECTOR(1) switch found on the rear panel.
2. Slide the switch to 115 or 230 volts.
3. Do not force or twist the switch. Excessive force may cause damage. If the switch does not move smoothly, contact a qualified technician.

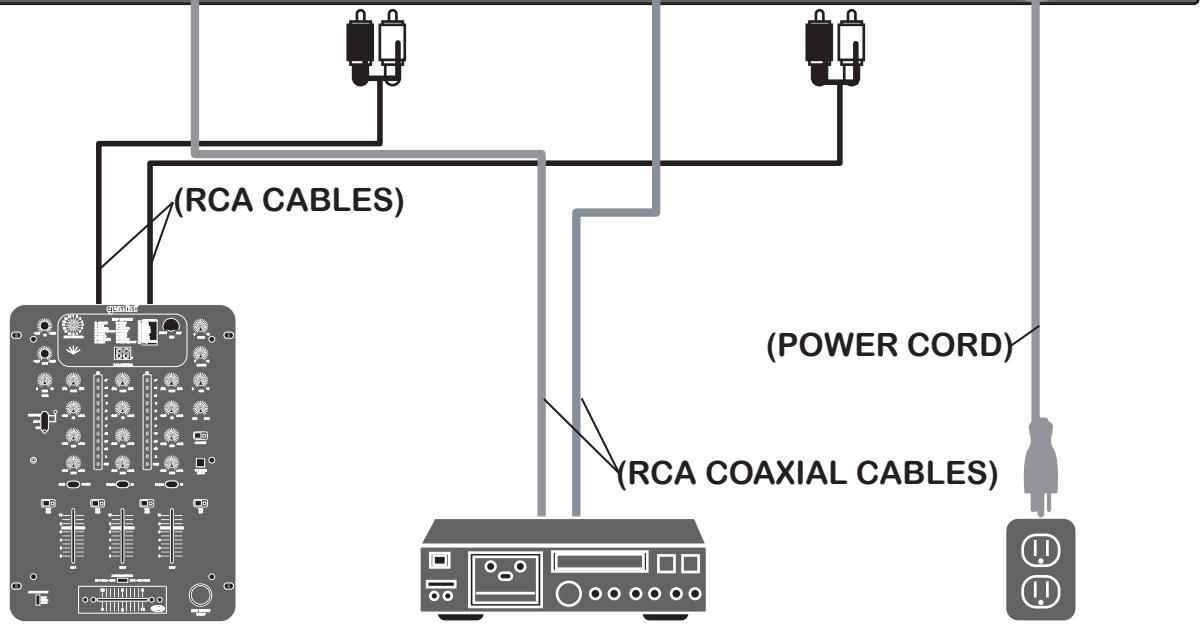

CONNECTIONS:

1. Connect the power plug into the AC IN(2) electrical input.

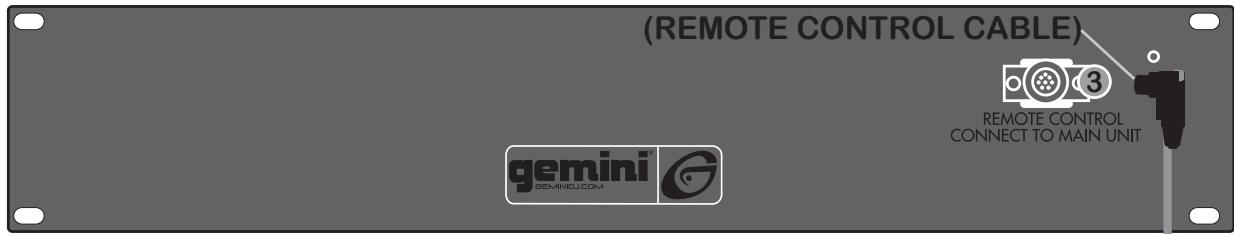

2. Using the included cable, plug one end into the REMOTECONTROL(3) connector and the other end into the MAIN UNIT(3) connector.

3. Plug one end of a set of the included RCA cable connectors into each of the LINE OUTPUT JACKS (4).

4. Plug the other end of the RCA connectors into any available line level input jacks on your mixer. If you are connecting the CDX-04 through a receiver, you can plug the RCA connectors into the CD or AUX INPUT JACKS on your receiver. If there are no CD or AUX INPUTS, use any line level (not phono) inputs.
5. Connect any type of device that will accept a DIGITAL signal, such as DAT, MD, HARD DRIVE, ETC to the DIGITAL (5) OUTPUTS on the rear panel of the main unit to record a DIGITAL signal.

NOTE: SINCE THE CDX-04 IS A DUAL CD PLAYER, MOST OF THE FUNCTIONS AND CONTROLS ARE DUPLICATED ON BOTH SIDE OF THE CD PLAYER. TO ELIMINATE CONFUSION AND TO MAKE THE DRAWINGS EASIER TO UNDERSTAND, WE WILL ONLY NUMBER THE LEFT SIDE FUNCTIONS AND CONTROLS.

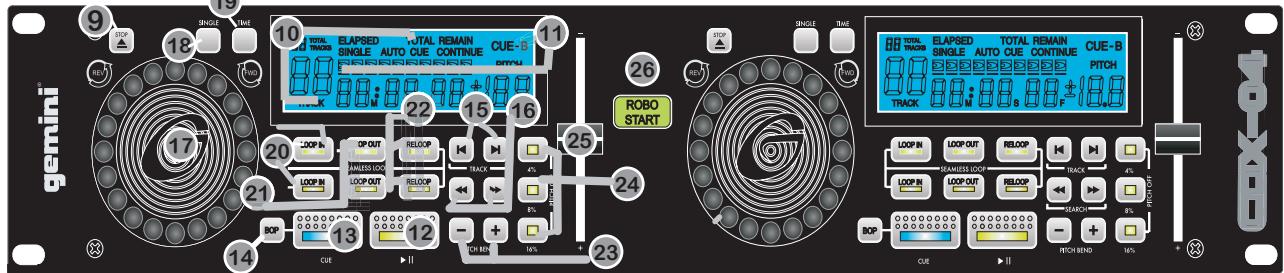

FUNCTIONS:

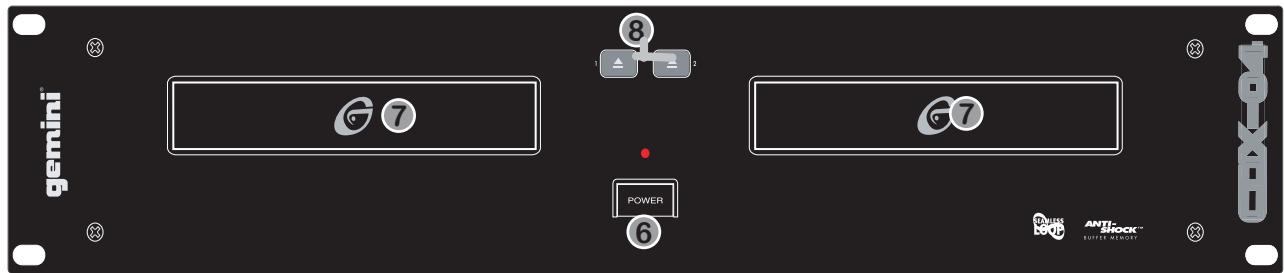

POWER: After adjusting the VOLTAGE selector(1) to the proper setting, plug in power cord into the AC IN (2) to the unit in making the proper audio connections, press the POWER(6) button. The unit will turn on and the LCD DISPLAY(10) will light up. Pushing POWER(6) a second time turns the unit off.
DISC TRAY: The DISC TRAY(7) is where the CD is held during loading, unloading, and playback. The DISC TRAY(7) holds both 12 cm and 8 cm CDs and automatically closes after remaining open for three minutes.
NOTE: DO NOT FORCE THE DISC TRAY TO CLOSE, EXCESSIVE FORCE WILL DAMAGE THE CD-MECHANISM, USE THE EJECT (8) OR STOP/EJECT (9) BUTTONS ONLY.
OPEN/CLOSE: Pressing OPEN/CLOSE(8) opens or closes the DISC TRAYS(7) for loading and unloading CDs while the CDX-04 is not playing.
STOP/EJECT STOP: The STOP/EJECT(9) button has a multi function. Press STOP/EJECT(9) in PLAY/PAUSE(12) mode to end CD play. Press it again to open the tray. After loading another CD you may press the STOP/EJECT(9) button to close the tray. NOTE: DISC TRAY WILL NOT OPEN WHILE THE CDX-04 IS IN PLAY MODE.
DISPLAY: The LCD DISPLAY(10) shows total tracks, track number, pitch value, single-auto cue, continue (continuous play), three different time displays, track time elapsed, track time remaining and total time remaining on disc. Time is measured in minutes, seconds, and frames.
PLAYBACK DISPLAY BAR: The PLAYBACK DISPLAY BAR(11) displays the play time elapsed and remaining for each track. The display flashes slowly when the track has 30 seconds remaining and pulses rapidly when play time is down to 15 seconds.
PLAY/PAUSE: Each press of PLAY/PAUSE(12) causes the operation to change from PLAY to PAUSE or PAUSE to PLAY. When in PAUSE mode the PLAY/PAUSE LED(12) will flash. To enable the stutter mode enter PAUSE mode and use the JOG SEARCH WHEEL(17) to select a CUE(13) position. Push the PLAY/PAUSE(12) button again to initiate a CUE(13) point, the BLUE CUE LED(13) will turn on when a CUE(13) is selected
CUE: With the unit in the PLAY mode and after a CUE POINT(13) has been programmed, pressing CUE (13) will cause the CD player to enter the PAUSE mode at the CUE POINT(13). Holding down the CUE (13) button activates PREVIEW mode and starts playback from the CUE POINT(13). Releasing the CUE(13) button will return the CUE(13) to the preset CUE POINT. The CUE(13) will stay in memory until a new CUE POINT is selected or the CD is ejected from the unit. The BLUE LED(13) will flash while selecting a new CUE POINT after the first one has been made.
BOP: Once your selected track has a CUE point, press BOP(14) in order to begin the track in PLAY mode. Press the BOP(14) again and the track will instantly begin again at the selected CUE point.

TRACK SKIP: The TRACK SKIP(15) buttons let you scan forward or in reverse through the CD to select a track to play. Holding the button will increase the speed of scanning.

SEARCH: The SEARCH (16) buttons are used to move forward or reverse while in play or pause mode, SEARCH (16) can also be used to find a CUE POINT. Hold down either button for ultra fast searching.

SEARCH JOG WHEEL: The SEARCH JOG WHEEL(17) has two functions. Use the SEARCH JOG WHEEL(17) to fast forward or rewind to a precise location for CUE in PAUSE (STUTTER) mode. Use the SEARCH JOG WHEEL(17) to bend the pitch for precise synchronization when beat matching in PLAY mode, clockwise for fast forward to speed up, or counter clock wise for slow motion to speed down play according to the PITCH(25) selected (see PITCH below).

SINGLE AUTO CUE/CONTINUOUS: Pressing SINGLE(18) activates the SINGLE-AUTO CUE function. SINGLE(18) allows you to begin and end play on only one selected track. AUTO CUE places the selected track in pause at the exact moment when the music starts with no "dead" space in between songs. Once this track has completed playing the SINGLE-AUTO CUE function will pause the CD at the exact moment when the next track begins playing. Pressing SINGLE(18) a second time will activate the CONTINUOUS function. CONTINUOUS allows the CD to play out each track on the CD respectively and will start over at the beginning, repeating the CD again, until the SINGLE(18) function is pressed a third time. This will return these playback functions to normal mode and play the CD once through as recorded.

TIME: The TIME(19) button switches the time display between the three modes. ELAPSED refers to the time past on a track, REMAINING refers to the time remaining on the track, and TOTAL REMAINING refers to the time remaining on the CD. Time is measured in minutes, seconds and frames.

LOOP-IN: LOOP-IN (20) activates a CUE POINT for the beginning of a SEAMLESS LOOP. When pressed the GREEN LED on the button will blink during saving and stays lit during playback or storage. These CUE POINTS can be selected at any point in the track to begin a loop.

LOOP-OUT: Use LOOP-OUT (21) to set an EXIT POINT for a SEAMLESS LOOP after using LOOP-IN (20) to start the loop. The GREEN LED for LOOP-OUT (21) flashes and the CUE-B notification will be visible in the upper right hand corner of the DISPLAY (10) for that side. Press LOOP-OUT (21) again to exit the SEAMLESS LOOP.

RE-LOOP: RE-LOOP (22) will reactivate a SEAMLESS LOOP during playback and starts playback from the LOOP-IN (20) CUE POINT similar to the BOP (14) button when a loop is not in memory.

NOTE: YOU CAN ONLY USE YOUR LOOP WITH THE CURRENT CD. ONCE YOU OPEN THE TRAY TO CHANGE CDS, YOUR LOOPS WILL BE AUTOMATICALLY DELETED.

PITCH: Pushing a PITCH(24) button, 4% , 8% , or 16% , activates the PITCH(24) section of the unit. The PITCH is located at the bottom right LCD DISPLAY(10). To accurately adjust the pitch, change the position of the PITCH CONTROL SLIDE(25). Pushing 4% and 16% PITCH(24) buttons simultaneously will turn off the PITCH.

PITCH BEND - +: Pushing the PITCH BEND (23) buttons will automatically raise the pitch up to +4% or lower the pitch down to -4% from the existing setting. Releasing the buttons returns pitch to the original setting. Use this function to match the pitch bend when mixing from one song to another. Or use SEARCH JOG WHEEL (17) see above.

4% , 8% , and 16% (24): Use the 4% , 8% , and 16% buttons to assign the percent the pitch control slide will have. When a pitch setting is selected, the GREEN LED will light for that button. The 4% button will assign +/- 4% to the PITCH CONTROL SLIDE(25). The 8% button will assign +/- 8% to the PITCH CONTROL SLIDE(25). The 16% button will assign +/- 16% to the PITCH CONTROL SLIDE(25). The PITCH must be ON for the 4% , 8% , and 16% to work.

PITCH CONTROL SLIDE: Moving the PITCH CONTROL SLIDE (25) up or down will lower or raise the pitch percentage depending on which pitch level is selected.

ROBO START: Press the ROBO START (26) button to activate the ROBO START function. Use ROBO START(26) with the SINGLE (18) buttons different modes to initiate alternate play between the two sides of the CD player, using one track from each side. The GREEN LED will light up when this function is active. See the ROBO START(26) instructions section for detailed instructions.

DIGITAL OUTPUT JACK(5): Connecting any type of DAT, MD, HARD DRIVE, or other such items which accept digital signals to the BNC output connector on the rear panel of your CDX-04 CD player allows you to record a digital signal from CD.

OPERATING INSTRUCTIONS:

1. Make sure that the VOLTAGE SELECTOR(1) found on the rear panel, is set for the proper voltage. Plug the unit in and press POWER(6). The unit is ON. Pushing Power a second time turns the unit OFF.
2. Press and place a CD on the opened DISC TRAY(7). Press EJECT(8) again. The tray will close and the CD will load.
3. Push TRACK SKIP(15) to select the track you wish to play.
4. Press PLAY/PAUSE(12) and the unit will instantly play.

CUE INSTRUCTIONS:

1. To preprogram a CUE POINT (the spot on a CD at which you want to start) select the proper track and push PLAY/PAUSE(12) so the unit enters play mode as the PLAY/PAUSE LED(12) glows green. When the CD reaches the approximate musical spot you wish to make your cue, push PLAY/PAUSE so the unit enters the PAUSE (STUTTER) mode and the PLAY/PAUSE LED(12) blinks. Move the SEARCH JOG WHEEL(17) or SEARCH(16) buttons forward or in reverse until the precise spot at which you want CD play to begin is located. Push PLAY/PAUSE(12). The CUE(13) point is now programmed and the CUE LED(13) will glow BLUE. Press CUE(13) to return to this pre-programmed cue point at any time. Push PLAY/PAUSE(12) and the unit will instantly play from the pre-selected spot.
2. To fine tune your pre-programmed point, push PLAY/PAUSE(12) so the unit enters the PLAY mode. Push the CUE(13) button and the CD will return to the CUE point you programmed in step #1, hold down CUE(13) begin a PREVIEW from that point. If you decide to keep this CUE point, leave the unit alone until you are ready to mix in from the CUE point.
3. If the CUE POINT spot is not exactly where you want it to be press CUE(13) and repeat steps 1 & 2.

NOTE: DURING FINE TUNING USE STUTTER MODE IS TO HELP YOU FIND THE BEAT. STUTTER MODE WILL END WHEN YOU PRESS PLAY/PAUSE (12) TO SAVE THE CUE POINT.

SEAMLESS LOOPS:

1. To start a SEAMLESS LOOP press a LOOP-IN(20) button for both loops on top or bottom on either side during playback. When you press LOOP-IN(20), the GREEN LED will flash and stay solid after a CUE-POINT is selected. CUE POINTS for SEAMLESS LOOPS can be selected on the FLY, with any of the LOOP-IN(20) buttons.
2. To select the EXIT POINT use LOOP-OUT(21) to initiate the SEAMLESS LOOP. The GREEN LEDs for LOOP-IN(20), LOOP-OUT(21), RELOOP(22) & the CUE-B notification in the DISPLAY will blink. Press LOOP-OUT(21) again to exit the SEAMLESS LOOP, CUE-B will remain solid.
3. Use RE-LOOP(22) to reactivate a SEAMLESS LOOP during playback or start playback from the LOOP-IN(20) CUE POINT just like the BOP(14) feature when a SEAMLESS LOOP is not in memory.

ROBO START INSTRUCTIONS:

IN SINGLE-AUTO CUE MODE:

Use ROBO START(26) in SINGLE-AUTO CUE MODE(18) to alternate play between the CDX-04's two CD players (one track from one side, then one from the other). In SINGLE-AUTO CUE MODE(18) play starts immediately with no blank or "dead" space. ROBO START(26) causes one side of the CD player to play when the other side is paused.

1. Engage SINGLE AUTO CUE MODE(18) with the SINGLE(18) button.
2. Press the ROBO START(26) button to activate ROBO START. Play will alternate between the two CD players. At the end of a track, the playing side pauses and the other CD deck plays a track. At the end of this track, the playing side pauses and the first deck resumes play.

IN CONTINUOUS MODE OR DURING NORMAL PLAY:

If you use the ROBO START(26) function without SINGLE-AUTO CUE MODE (in CONTINUOUS MODE or during normal play), CD deck does not alternate automatically. The PLAY/PAUSE(12) button must be pressed on the playing deck for the second track to play.

1. During normal play, set a CUE POINT on the other side of the CD player.
2. Press the ROBO START (26) button to activate ROBO START (the button will blink).
3. Press PLAY/PAUSE (12) button on the playing side to begin play from the cue point on the other side.

NOTE: IF PAUSED DURING PLAYBACK, IN THE MIDDLE OF A TRACK. WHEN THAT TRACK ENDS, PLAY WILL BEGIN FROM THE MIDDLE OF THE TRACK WHERE PLAY WAS PAUSED.

TROUBLESHOOTING:

• If the disk will not play, check to see if the disc was loaded correctly (label side up). Also, check the disc for excessive dirt, scratches, etc.
• If the disc turns but there is no sound, check the cable connections. If they are okay, check your amplifier or receiver.
• If the CD skips, check the CD for dirt or scratches. Do not assume that the CD player is defective. CDs that are recorded improperly tend to skip on most or all CD players. Before sending the unit in for repair playa CD that you are sure plays properly.

SPECIFICATIONS:

GENERAL:

Type........... Compact Disc Player
Disc Type. Standard Compact discs (12 cm & 8 cm)
Time Display.......Track Elapsed, Track Remain, or Total remain
Variable Pitch. ±4,8,16 %Slider with Resume Switch Pitch Bend. ± 4% Maximum
Instant Start. Within 0.03 seconds
Track Selection. 1 to 99 Tracks
Installation 19" each
Dimensions. 19" x 3.5" x 10"
Weight entire Unit. 13.69 lbs. (6.21 kg)

AUDIO SECTION:

Quantization. 1 Bit Linear/Channel, 3 Beam Laser
Oversampling Rate. 8 Times
Sampling Frequency. 44.1 kHz
Frequency Response. 20 Hz to 20 kHz
Digital Output. IEC958
Total Harmonic Distortion. Less Than 0.05%
Signal to Noise Ratio 85~86 dB
Dynamic Range. 85~90 dB
Channel Separation. 85~86 dB
Output Level. 2.0 +/- 0.2 VR.M.S.
Power Supply.. AC 115/230V, 60/50 Hz

SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE FOR PURPOSE OF IMPROVEMENT.

IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT, PLEASE CALL 1 [phone] FOR

GEMINI CUSTOMER SERVICE. DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.

EINFUHRUNG:

CONTINUOUS ODER PLAY:

DESCRIPTIONS DES FONCTIONS:

IN THE USA: IF YOU EXPERIENCE PROBLEMS WITH THIS UNIT, CALL 1-732-738-9003 FOR GEMINI CUSTOMER SERVICE. DO NOT ATTEMPT TO RETURN THIS EQUIPMENT TO YOUR DEALER.

Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Gemini Sound Products Corp. shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express written permission of Gemini Sound Products Corp. It is recommended that all maintenance and service on this product is performed by Gemini Sound Products Corp. or its authorized agents. Gemini Sound Products Corp. will not accept liability for loss or damage caused by maintenance or repair performed by unauthorized personnel.

Worldwide Headquarters • 120 Clover Place, Edison, NJ 08837 • USA Tel: [phone] • Fax: [phone]
