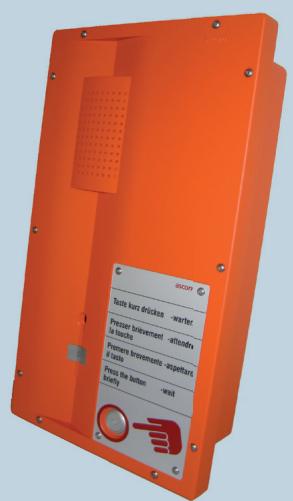

Product: Dranos 3 GSM-based call station for communication and data transfer Sector: Traffic SAFETY EVERYWHERE Communicating without limits of place or Dranos 3 is virtually unlimited time. No need for fixed or other networks. The Do you need to transmit emergency calls, data or control signals reli- Dranos 3 call station makes communication and ably to a central station? Do you need mobile emergency call and informa- data transfer possible via GSM networks, allow- tion stations that can be put into operation at short notice? Do you want ing it to operate even in remote areas. to control and monitor decentralised systems in an environment without fixed network connections, or provide visitor information terminals or emer- gency call stations? These are just a few of the situations where Dranos 3 is the perfect solution! The call station is ideal, for example, wherever there is no landline connection or it would be prohibitively expensive to lay a cable: “ For emergency telephones on motorways, in parks, public areas, recreational facilities and remote regions. “As provisional emergency telephones along motorway construc- tion sites. “As a checking-in terminal at building sites. “As call stations for operating and monitoring entrance doors and gates. “As mobile announcement and information terminals at trade fairs and exhibitions. “As voice output modules for remote access to data via telephone (e.g. temperature, depth of snow etc.) = GSM-R compatible

C PRODUCT SHEET: DRANOS 3 ]

WIRELESS, DEPENDABLE DATA TRANSMISSION

In the Dranos 3, communication and data transfer are routed via GSM. Just how reliable this wireless solution is, is shown by the following secu- rity features: ". GSMtri-band technology 900 / 1800 / 1900 for voice and data connections. “ _ Redundant message transmission via text message (SMS) if voice channel cannot be established. “Integrated voice memory for local audio output of instructions, reassurance messages or general information. “ User-definable configuration of multiple numbers for each call key. LED for visual display of call status. “ A sabotage detection feature automatically triggers a call if an attempt is made to break open or dismantle the device. “Status messages regularly report the status of the call station. The interval between messages is freely configurable. “ A periodic self-test of all main components quickly identifies possible malfunctions. “_ Withits solar-panel power supply and an intelligent power management system, the call station operates entirely autonomously. “A robust, multi-functional casing with a high protection class guarantees simple installation and operation even under adverse conditions. System overview Calls from Dranos 3 call stations are routed to the GSM network. Any analogue or ISDN telephone or GSM mobile phone can be used to receive the calls. On larger systems, however, it makes sense to use a central station. This offers additional functions such as visualisation and evaluation of in- coming calls, regular monitoring of call stations, and centralised configura- tion of call stations. One for all The following features make the Dranos 3 call station particularly at- tractive: “Thanks to GSM technology, intelligent power management and an electricity supply via solar panel, the Dranos 3 call station is completely independent of fixed-line networks. “_ Withits versatile configuration options, Dranos 3 call station functions can be optimally tailored to customer requirements. “A robust casing with a high protection class guarantees reliable operation even in a harsh environment. “A comprehensive PC software package is available to configure, operate and monitor Dranos 3 call stations. « Key parameters can be configured and modified by text message

C PRODUCT SHEET: DRANOS 3 ] 3

Network Front panel Casing Temperature range Voice messages Power supply Antenna Configuration Telecontrol Standards/Specifications Operation

• Optional features. GSM network must be in place GSMR optional GMS 900 Class 4 /2W GSM 1800/1900 Class 1 /1W sms For redundant cal level, monitoring and configuration GSM Data / GPRS Optional* Dual SIM Optional: 2 providers for the highest redundancy* Loudspeaker Volume adjustable up to 100 dB / 0.3m Microphone Configurable sensitivity Dialing keys SRETTE Optionally up to 4 illuminated keys, with up to 4 different call Visual display. LED for call status display. Dimensions 240 x 445 x 101mm (WxHXD) Weight 33kg Material Polyurethane / PUR Protection 1P65 Mounting On wall in niche or flush-mounted (screws from front or back) Standard —30 to +60°C (direct insolation) Memory capacity approx. 460 seconds Organisation Any number of messages can be defined; output either individually or in combination Internal battery Capacity 6V / 3Ah Autonomy Up to several months in normal operation Battery charging With solar panel or ext. DC source 8 to 45V DC, 1 mA to 1.5 A external Internal antenna Integrated omni-directional antenna External antenna SMA connection (optional*) Download of configuration, voice messages, firmware and to read device status Cable With USB interface, casing open Wireless With SRD interface, range approx. 5m Data interface USB, Ethernet (Video available as an option) Outputs 2 potential-free contacts, max. 50 V DC / 0.5 À Inputs 2 analogue 1-5 V DC or digital inputs Gsensor 3D positional sensor (position receiver) Temperature measurement _ from -30C to +65C 1S0 9001/150 1400 SQS certificate EN 60950 Safety of information technology equipment EN 50082-1 EMV interference resistance CTR 19/CTR 20 ETSI GSM standards Via USB interface with casing open, or wirelessly with SRD link Individual parameters (call numbers, etc.) also via SMS SIM card Standard mobile contract or prepaid card, PIN-protected Configuration
