USER MANUAL TWINTOUCH PLUS OPTICAL GENIUS

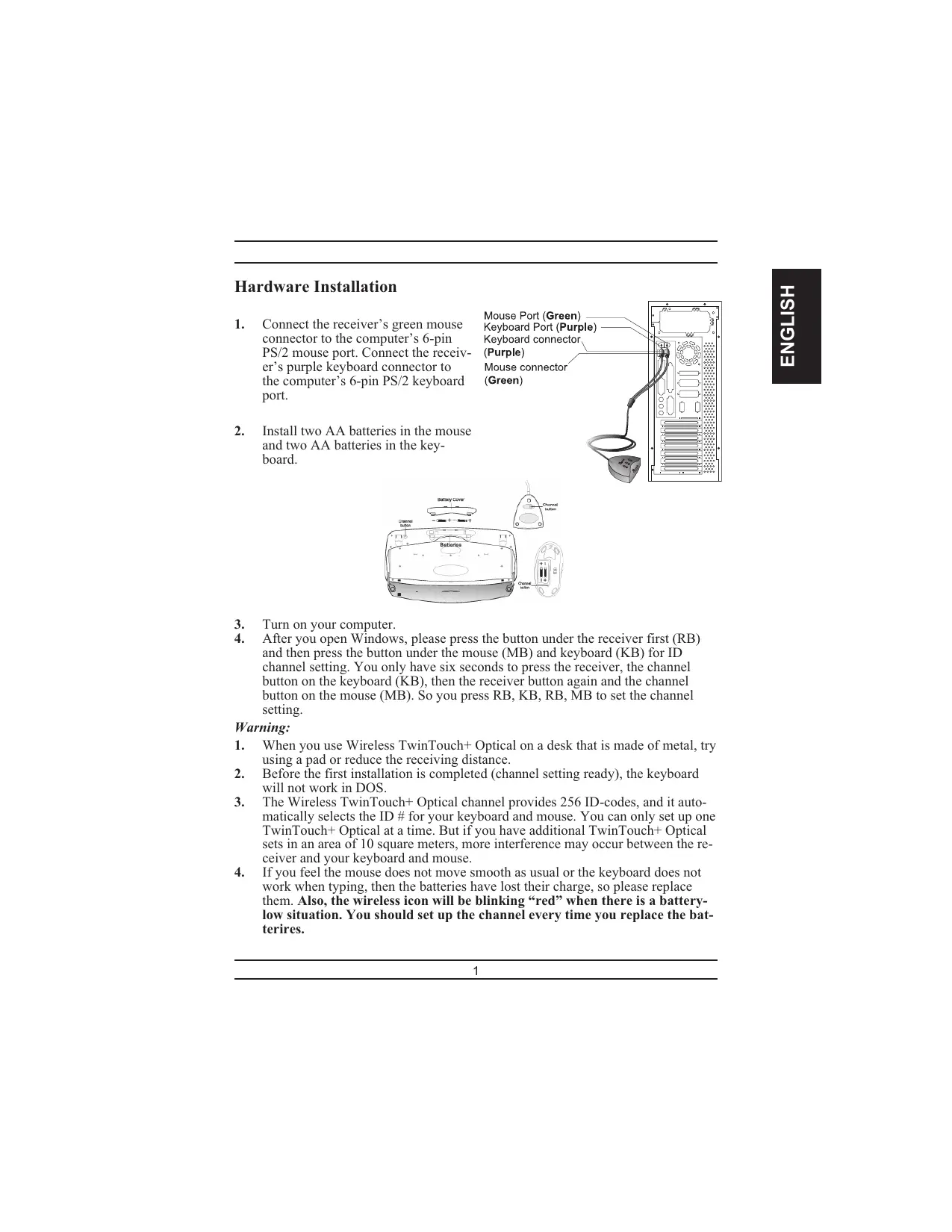

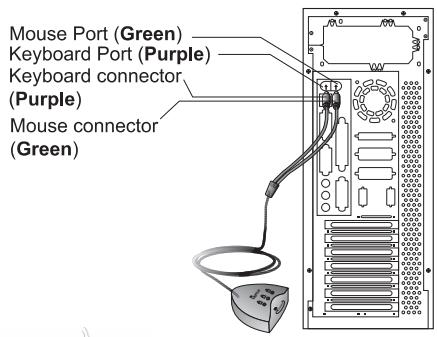

1. Connect the receiver’s green mouse Keyboard Port (Purple) ——

connector to the computer’s 6-pin Keyboard connector, PS/2 mouse port. Connect the receiv- (Purple) er’s purple keyboard connector to Mouse connector the computer’s 6-pin PS/2 keyboard (Green) port.

2. Install two AA batteries in the mouse

and two AA batteries in the key- board.

3. Turn on your computer.

4. After you open Windows, please press the button under the receiver first (RB)

and then press the button under the mouse (MB) and keyboard (KB) for ID channel setting, You only have six seconds to press the receiver, the channel button on the keyboard (KB), then the receiver button again and the channel button on the mouse (MB). So you press RB, KB, RB, MB to set the channel setting.

1. When you use Wireless TwinTouch+ Optical on a desk that is made of metal, try

using à pad or reduce the receiving distance.

2. Before the first installation is completed (channel setting ready), the keyboard

will not work in DOS.

3. The Wireless TwinTouch+ Optical channel provides 256 ID-codes, and it auto-

matically selects the ID # for your keyboard and mouse. You can only set up one TwinTouch+ Optical at a time. But if you have additional TwinTouch+ Optical ets in an area of 10 square meters, more interference may oceur between the re- ceiver and your keyboard and mouse.

4. If you feel the mouse does not move smooth as usual or the keyboard does not

work when typing, then the batteries have lost their charge, so please replace them. Also, the wireless icon will be linking “red” when there is a battery- low situation. You should set up the channel every time you replace the bat- terires. ENGLISH

5. The TwinTouch+Optical with radio frequency gives you free movement and an

enjoyable experience. For optimal performance, place the receiver at least 8 inches (about 20 em) away from the mouse and other electrical devices, such as the computer, monitor, and etc.

6. Please do not use this optical mouse on a desk which is made of glass, mirror,

iron, or black velvet. Also, a flat surface is necessary or the optical sensor will not Work properly. Software Installation

1. Make sure the mouse and keyboard is connected to the computer.

2. Put the Setup disk (or CD) into the disk drive.

3. Follow the instructions on the screen to finish the software installation.

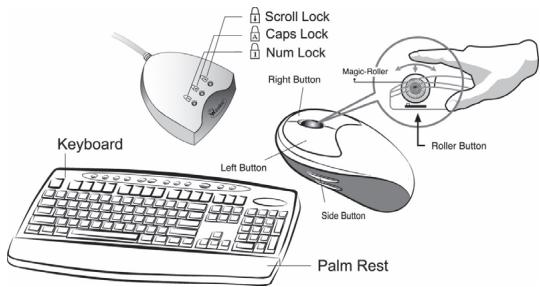

r— À Scroll Lock {8 Caps Lock ne LC ( ff nooun “E 4 l

Keyboard : . = TA ET 7 ramres Button Assignments The Button Assignment feature lets you work in a more efficient way because you can assign the most frequently used commands in Windows to the mouse buttons. Magic-Roller Press the “Magic-Roller” to surf the Internet and Windows docu- ments Left Button Provides traditional mouse functions such as click, double click and drag. Right Button You can assign this button frequently used keyboard and mouse func- tions in addition to features like EasyJump, Auto-Panning, Zoom, etc.

Roller Button You can assign this button frequently used keyboard and mouse func- tions in addition to features like EasyJump, Auto-Panning, Zoom, ete. Side Buttons You can assign certain functions (Application/Document, Horizontal Scrol, Last/Next Page, and Zoom in/out) to the upper or lower side button with the roller.

1. Rewind: Previous track of audio or video CD’s

4. Forward: Next track of audio or video CD's DS

5. Vol.-& +: decrease or increase volume Fame

6. My favorite: Open my favorite folder Me Fee Ee

10. Forward: Go to next page when viewing the Internet

11. Sleep: Turn system into wake up mode

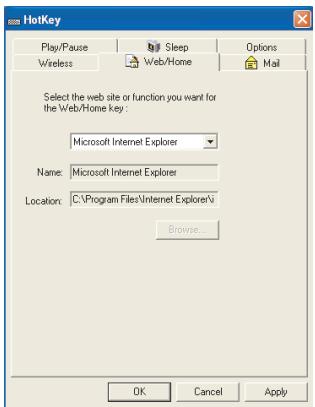

MouseMate Software Features cu | | Browsing Speed You can adjust the browsing él speed when you surf the Internet or Windows documents. Browsing Move the “Magic-Roller” forward and the screen will Direction browse to the top of the document. Move it in reverse and the document will go in the opposite direction ŒS Button Find Automatically positions the cursor on the default button, usually the OK button, when the dialog box appears on your screen. Trails This option makes it easier to find the cursor when using an LCD monitor, This option cannot be used if your monitor does not support it. ENGLISH

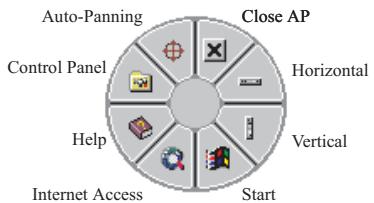

cel When you move the cursor to the top (or bottom) of the screen, it Will automatically move the cursor to the bot- tom (or top) of the screen. This function lets you adjust the speed at which the pointer moves across the screen. Use this function to set the double click speed of the mouse. Swap Left/Right Select this option if you want to have the mouse operate with the right mouse button as the primary button. Pointers Folders _ This lets you change the shape of the cursor. Office Mode Genius Mode About Orientation Only supports Microsoft Office along with some new ap- plications. Features include zoom, scrolling and Auto- Scrolling features. Its similar to Microsoft s IntelliM- ouse. Supports all applications that use scrollbars, including Of- fice, with zoom, Auto-panning, and scrolling functions. Click here to open the Genius Homepage “www.genius- net.com.tw” This function lets you set the angle when you move the mouse upward. It gives you a more comfortable angle when holding the mouse. This function works best with a portable trackball. EasyJump for Windows EasyJump lets you open eight special functions quickly. Close AP Horizontal Vertical Start Auto-Panning en Internet Access Start Close the application you are using. Moves the eursor to the horizontal scroll bar. Moves the eursor to the vertical scroll bar. Activates the Windows Start menu.

Internet Access This function opens Browser to access the Internet. Help This opens the Help menu. Control Panel Opens the mouse control panel. Auto-Panning Move the mouse, and the document will move in the di- rection you move the mouse. ENGLISH Switch Applications When the right-button or Magic-Roller is set to “Switch AP”, you can quickly switch from one open application to another without moving the mouse. To switch to a spe- cific application, press the the right button or the Magic-Roller to select the applica- tion. Zoom function for Office and IE Applications Press the “Ctrl” key and move the “Magic-Roller” forward (or backward) to set the Zoom In/Out function. You can also use just one hand to Zoom In/Out: set the right button to be the “Ctrl” function, press the right button and move the “Magic-Roller” forward (or backward) to enlarge (or decrease) the document window. Auto-Panning You can set this function in the Button Assignment menu. Move the mouse, and the document moves in the direction you just moved. Uninstall the Software Follow these instructions to remove the software from your hard disk. In Windows, click on the Start button, select Programs and move to the mouse software. Then click on Uninstall software. Customize the Software This section shows you how to customize the software. To open the software control panel, you can double-click on the icon in the task bar or select the “Software” icon from the program group. Close the Software Click the right button on the taskbar, and select “Close Software” to close the soft- ware.
