USER MANUAL P713 GENIUS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1). This device may not cause harmful interference, and
(2). This device must accept any interference received, including interference that may cause undesired operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Product Information

1. Product design and specifications are subject to change without notice. This includes primary product specifications, software, software drivers, and user's manual. This User

Manual is a general reference guide for the product.

1. The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightly different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.
2. The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera.
3. The manufacturer assumes no liability for any errors or discrepancies in this user manual.
4. For driver updates, you can check the "Download" section of our website, www.geniusnet.com.tw.

SAFETY INSTRUCTIONS

Read and understand allWarnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power OFF and remove the batteries.

Continued use in this state might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power OFF and remove the batteries.

Continued use in this state might cause fire or electric shock. Consult the store of purchase

• Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the shore.

Do not place the camera on inclined or unstable surfaces.

This might cause the camera to fall or tilt over, causing injury.

• Keep the batteries out of the reach of children.

Swallowing batteries might cause poisoning. If the battery is accidentally swallowed, immediately consult a physician.

• Do not use the camera while you are walking, driving or riding a motorcycle.

This might cause you to fall over or result in a traffic accident.

Cautions

Insert the batteries paying careful attention to the polarity (+ or -) of the terminals.

Inserting the batteries with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone's eyes.

This might cause damage to the person's eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid enters your eyes or comes into contact with your body or clothes, rinse with fresh water.

If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

• Do not remove the battery immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

• Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place.

• Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

Notes on Battery Usage

When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:

• Different battery types and surrounding temperatures may affect the battery performance.
• Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce camera performance.
  Using the new rechargeable battery or rechargeable battery that has not been used for an extended period of time (the battery that passed the expiry date is an exception) might affect the number of pictures that can be taken. Therefore, to maximize its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use.
  The battery may feel warm after long period of continuous use of the camera or the flash. This is normal and not a malfunction.
  The camera may feel warm after long period of continuous use. This is normal and not a malfunction.

If the battery is not to be used for a long period of time, remove it from the camera to prevent leakage or corrosion.
If the battery is not to be used for a long period of time, store it after no battery power left. If the battery is stored for a long time in a fully charged state, its performance may be impaired.
Always keep the battery terminals in a clean state.
Risk of explosion if battery is replaced by an incorrect type.
- Dispose of used batteries according to the instructions.

CONTENTS

INTRODUCTION. 8-9

Overview

Package contents

COMPONENTS GUIDE.....10-16

Front view

Rear view

LED Indicators

Scene Modes

LCD Monitor Information

PREPARING YOUR

CAMERA 17-21

Inserting the Battery

Charging the Battery

Loading an SD Memory Card (Optional)

Accessory)

Setting the Date and Time

Choosing the Language

Attaching the Camera Strap

BASIC FUNCTIONS 21-29

Turning the Power On

Turning the Power Off

Using the LCD Monitor

Using the Normal Mode

Adjusting the Zoom

Using the Flash

Using the Self-Timer

Using the Macro Mode

Setting Image Resolution and Quality

SELECTING PHOTOGRAPHY

MODE 29-34

Auto Mode

Sports Mode

Night Scene Mode

Portrait Mode

Landscape Mode

Backlight Mode

MOVIE MODE 35

IMAGE PLAYBACK 35-40

Single Image Playback

Magnifying Images

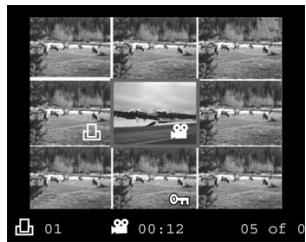

Viewing Nine Images At A Time

Viewing Video Clips

AutomatedPlayback(SlideShow)

Protecting Images

DELETING IMAGES. 40-43

Deleting Images/Video Clips Singly

Deleting All Images/Video Clips

Formatting an SD Memory Card or

Internal Memory

SETTING THE DPOF. 43-44

PictBridge Function 44-46

TRANSFERRING FILES FROMYOURDIGITAL STILL CAMERA TO

COMPUTER 46-49

Step 1: Installing the USB Driver (Windows 98/98SE users only)
Step 2: Connecting the digital still Camera to your computer
Step 3: Downloading Images, video clips or voice recording files

SOFTWARE

INSTALLATION 49-50

Installing Photo Explorer

Installing Photo Express

USING THE DIGITAL STILLCAMERA AS A

PCCAMERA 51-53

Step 1: Installing the PC camera Driver
Step 2: Connecting the digital still Camera to your computer
Step 3: Run your application software (i.e. Windows NetMeeting)

LIST OF MENU

OPTIONS. 53-63

Capture Menu

Playback Menu

Video Menu

Setup Menu

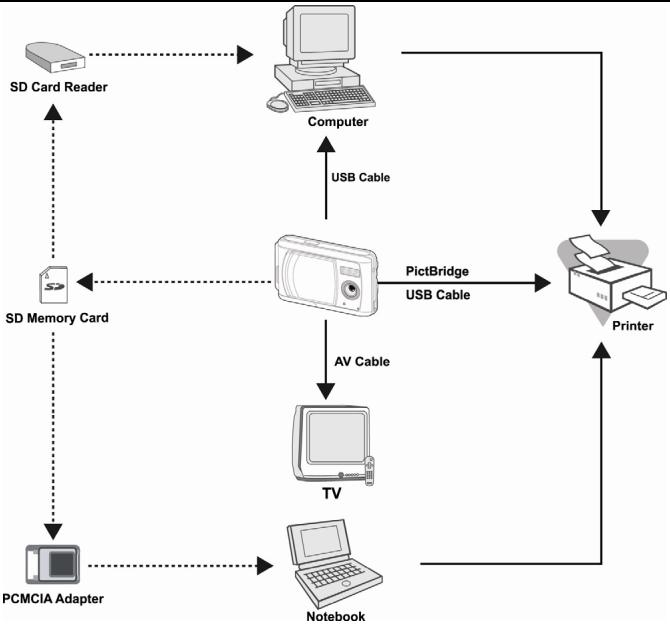

CONNECTING YOUR

CAMERA TO OTHER

DEVICES 63

SPECIFICATIONS. 64-65

TROUBLESHOOTING. 65-69

INTRODUCTION

Overview

Your new stylish digital camera delivers high quality, 2560 x 1920 resolution images using a 5.0 Mega pixels CCD sensor. Using the 1.7" TFT color image LCD monitor, you can compose images and then examine them in detail. An auto-flash sensor automatically detects the shooting (lighting) conditions and determines whether the flash should be used. This feature helps ensure that your images turn out right.

16 MB internal memory (14 MB available for image storage) lets you capture and store images without the need for an additional memory card. However, you may wish to expand the memory capacity by using an external memory card.

In addition to still images, you can record short videos by using the movie function.

Images you have taken can be downloaded to your computer using the USB cable. You can enhance and retouch your images on your computer by using the provided editing software, or image editing software you may already own. You may share your images with your friends via e-mail, in a report, or on a website.

DPOF functionality allows you to print your images on a DPOF compatible printer by simply inserting the memory card.

Package contents

Carefully unpack your package and make sure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer.

Digital still camera
User's manual
Quick guide
AC Plug Adaptor for EU to US
One Lithium Ion rechargeable Battery

USB cable
Software CD-ROM
Camera strap
Camera pouch
AC Power Adapter

NOTE

■ Accessory and components may vary by different retailer.

COMPONENTS GUIDE

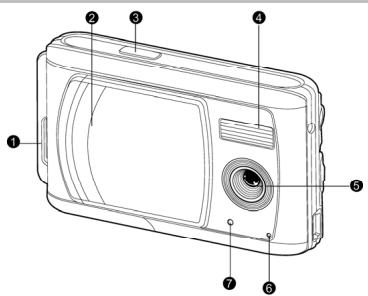

Front view

1. Strap eyelet
2. Lens cover
   3.Shutter button
3. Flash
4. Lens
5. Microphone
6. Self-timer LED

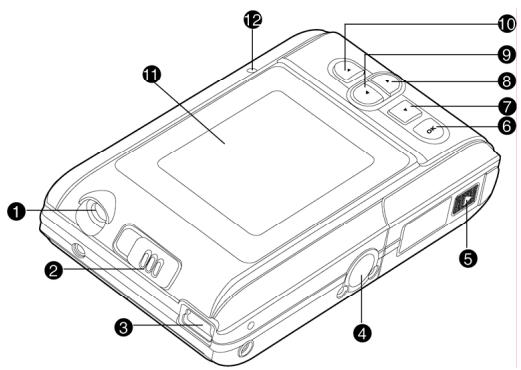

Rear view

1. DC IN 5V terminal
2. Focus switch

Macro mode

Normal mode

1. USB terminal
2. Tripod socket
3. Battery/SD Card
4. OK OK button

Zoom button

7.

Arrow button

(Down)

MODE Mode button

1. Arrow button (Right)

Flash button

1. Arrow button (Left)

Self-timer button

1. Arrow button (Up)

MENUMenuibutton

1. LCD monitor
2. Status LED

LED Indicators

Indicator	Status	Description/Activity	Sound
Status LED	None	The camera is powering up	Yes *(1)
Status LED	Solid green	The camera is powered and ready	No
Status LED	Blinking green	Charging the flash	No
Status LED	Blinking green	Image is being recorded to the memory card	No
Status LED	Solid green	USB communication/transfer in progress	No
Status LED	Solid green	The camera is ready to record images (or movies)	Yes *(1)
Self-timer LED	Blinking red	The self-timer function is activated	Yes *(Sec)
----	----	Button event	Yes *(1)

• (1) The camera sounds one beep.
• (Sec) The self-timer sounds 10 beeps for 10 seconds, 5 beeps for 5 seconds.

Scene Modes

Select the scene mode suitable for the occasion or situation.

Mode		Description
1.	[A] Auto mode	Select this option to leave all the adjustments to the camera and take images casually.
2.	[ ] Sports mode	Select this option to capture fast-moving subjects.
3.	[ ] Night Scene mode	Select this option to take images of people against dark or nighttime background.
4.	[ ] Portrait mode	Select this option to make people stand out with the background out-of-focus.

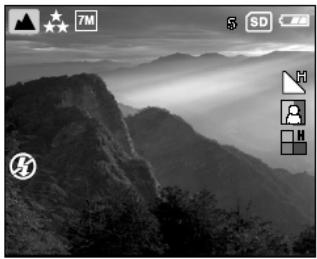

5.	[ ] Landscape mode	Select this option to capture images of distant scenery or landscapes.

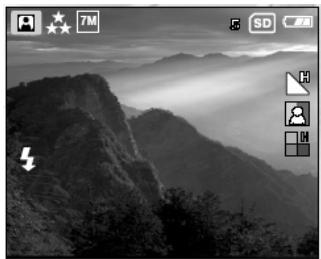

6.	[ ] Backlight mode	Select this option to brighten subjects that are backlit and would come out dark if no flash was used.

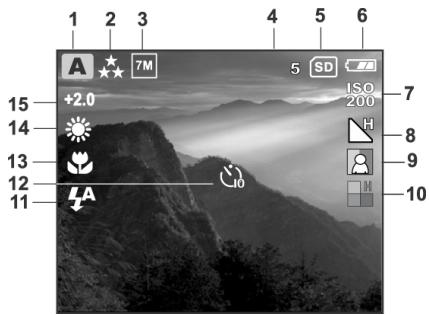

LCD Monitor Icons

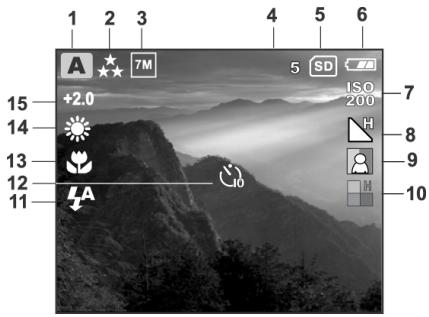

These indicators are displayed when recording still images:

1. Scene mode

[A] Auto mode

] Sports mode

] Night Scene mode

] Portrait mode

] Landscape mode

]Backlightmode

2. Image quality

Fine

Normal

Economy

3. Image size

3072x2304

2560x1920

2048x1536

1280x960

640x480

4. Remaining pictures

5. [SD]Card indicator

6. Battery Level

Full battery level

Fairly consumed

Nearly exhausted

Virtually no battery power

7. ISO speed

[No icon] Auto

ISO

[100] 100

ISO

[200] 200

8. Sharpness

High

Medium

Low

9. Color

Full Color

Black & White

Sepia

1. Saturation

High

Medium

Low

These indicators are displayed when recording still images:

1. Flash mode

Fill flash (on)

Flash off

Automatic flash

Red-eye reduction

Self-timer mode

Macro mode icon

1. White balance

[ No icon] Auto

Daylight

Cloudy

Tungsten

Fluorescent

1. EV compensation

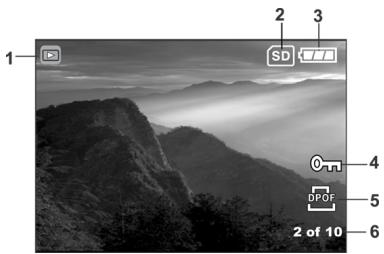

These indicators are displayed when playing images back:

1. Playback mode
2. Card indicator
3. Battery level

[√] Full battery level
Fairly consumed
[ ] Nearly exhausted
[ ] Virtually no battery power

1. Protect indicator
2. DPOF icon

These indicators are displayed when recording video clips:

1. Movie mode
2. Recording indicator
3. Video counter
4. Card indicator
5. Battery level

[ ] Full battery level
Fairly consumed
[ ] Nearly exhausted
[ ] Virtually no battery power

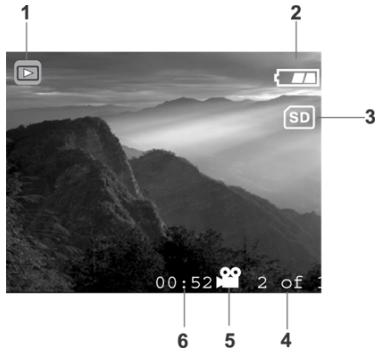

These indicators are displayed when playing video clips back:

1. Playback mode
2. Battery level

[ ] Full battery level
[Fairly consumed
[ ] Nearly exhausted
[ ] Virtually no battery power

1. Card indicator
2. Index number of total number
3. Movie mode
4. Elapsed time
5. Elapsed playback indicator

PREPARING YOUR CAMERA

Installing the Battery

We highly recommend you to use the specified rechargeable lithium-ion battery to realize the full capability of your digital still camera. Make sure that the power of the digital still camera is off before inserting or removing the battery.

1. Make sure your camera is off.
2. Slide the battery/SD card cover lock.
3. Insert the battery in the correct orientation shown.

Tilt the battery lock lever in the direction of the arrow and orient the battery so that its label is facing to the front side of the camera, and then insert the battery.

1. Close the battery/SD card cover lock firmly.

Removing the Battery

Open the battery/SD card cover and then release the battery lock lever. When the battery has come out a little, slowly pull it out the rest of the way.

NOTE

■ Be careful not to drop the batteries when opening or closing the battery cover.

Charging the Battery

Using the optional AC power adapter may charge the battery or operate the camera as power supply. Make sure that the power of the camera is off and then insert the battery before starting.

1. Insert one end of the AC power adapter into the DC IN terminal of the camera.
2. Insert the other end of the AC power adapter into a wall outlet.

The status LED flashes green when charging is started and lights green when charging is completed.
It is recommended to fully discharge or exhaust the battery before being charged.
Charging time varies according to the ambient temperature and the status of battery.

NOTE

This camera must be used with specified AC power adapter. Damage caused by the use of an incorrect adapter is not covered under the warranty.
- When the charging is not started even if following the above procedure, turn the power on at any mode after LCD monitor turns on, and then turn the power off.
The battery may feel warm after it has been charged or immediately after being used. This is normal and not a malfunction.
- When using the camera in cold areas, keep the camera and battery warm by holding them inside your outer cloth.
If you open the battery cover without removing the battery, the power will not be terminated. If you remove the battery, you have to insert the battery again in a period of 2 hours in order to make sure that the date and time will not be reset.
We recommend the battery should be charged 8 hours for first time use.

Inserting and Removing an SD Memory Card (Optional Accessory)

Your camera comes with 16 MB of internal memory (14 MB available for image storage), allowing you to store images and video clips in the camera. However, you can also expand the memory capacity by using the SD memory card. Optional SD memory card

provide removable, reusable storage for images and video clips.

1. Make sure your camera is off.
2. Slide the SD card/battery cover lock.
3. Insert the SD memory card.

If the card cannot be inserted, check the orientation.

1. Close the SD card/battery cover lock firmly.

NOTE

• To prevent valuable data from being accidentally deleted from an SD memory card you can slide the write protect tab (on the side of the SD memory card) to "LOCK".
  To save, edit, or delete data on an SD memory card, you must unlock the card.
  ■ Be sure to format the memory card with this camera before its initial usage.

Removing the SD card

1. Make sure your camera is off.
2. Slide the SD card/battery cover lock.
3. Press lightly on the edge of the memory card and it will eject.

NOTE

• Be sure to format an SD memory card with this digital still camera before using it. Refer to section in the manual titled “ Formatting an SD Memory Card or Internal

Memory" for further details.

• To prevent valuable data from being accidentally erased from an SD card, you can slide the write protect tab (on the side of the SD memory card) to "LOCK".
  To save, edit, or erase data on an SD memory card, you must unlock the card.

Setting the Date and Time

The Date/Time screen will be presented if/when:

The camera is turned on for the first time.
The camera is turned on after removing the batteries for a long period of time.

1. Select the item field by using the button.

To increase the value, press the button.

To decrease the value, press the button.

1. Press the OK button after all fields are set.

Choosing the Language

Follow the steps below to set the OSD (On-Screen Display) language.

1. Press the MENU.
2. Press the button to select [Setup] menu.
3. Press the / button to select [Language], and press the OK button.

4. Select a language that you prefer by using the / button.

5. Press the OK button after all fields are set.

NOTE

The language setting will be retained even if the camera is turned off.

Attaching the Camera Strap

To prevent accidental slippage during the use, always use the camera strap.

Attach the camera strap as follows:

1. Thread the small loop of the strap through the strap eyelet on the camera.
2. Pull the large loop through the small loop until the strap is firmly secured.

BASIC FUNCTIONS

Turning the Power On

1. Slide the lens cover to turn the camera on.
2. The camera sounds one beep when it is initiated.

Turning the Power Off

Slide the lens cover back to turn the camera off.

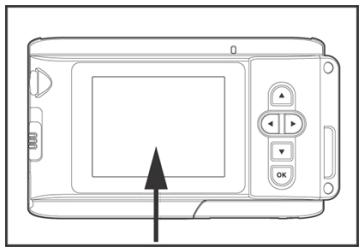

Using the LCD Monitor

Using the LCD monitor can help you to confirm an image while taking pictures, to replay

recorded images/video clips or to adjust

menu settings.

The mode icons, text and numbers that are displayed on the LCD monitor may vary according to the current settings.

1. Slide the lens cover to turn the camera on.
2. Set the scene mode in the Capture menu based on the desired scenery.

(Auto/Sports/Night Scene/Portrait/Landscape/Backlight).

1. Compose your image on the LCD monitor.
2. Press the shutter button.

NOTE

The LCD monitor darkens in strong sunlight or bright light. This is not a malfunction.

Using the Normal Mode

Normal mode is used to take images where the distance to the subject 1.0m to infinity.

Select this mode for general shooting, including portraits and

scenery.

1. Set the focus to the [] position.
2. Compose your image.
3. Press the shutter button.

NOTE

LCD monitor will display [A] as indicating Normal mode.

Adjusting the Zoom

Using digital zoom, images appear closer. Whereas digital zoom is a compelling feature, the more an image is enlarged (zoomed), the more pixilated (grainier) the image will

appear.

1. Set the scene mode in the Capture menu based on the desired scenery.

(Auto/Sports/Night

Scene/Portrait/Landscape/Backlight).

1. Press the Q button to activate the zoom function.

Digital zoom's range is from 1x to 2x to 4x.
To exit the digital zoom, press the button again and return to the capture status.

1. Press the shutter button to capture a "zoomed" image.

NOTE

• You can only set the digital zoom at the resolution of 2560 × 1920 pixels; digital zoom is not available at the resolution of 3072 × 2304 pixels, 2048 × 1536 pixels, 1280 × 960 pixels or 640 × 480 pixels.
  Digital zoom cannot be used in [ ] Movie mode.

Using the Flash

The flash is designed to function automatically when lighting conditions warrant the use of

flash. You can take an image using a suitable flash mode to your circumstances.

1. Set the scene mode in the Capture menu based on the desired scenery.

(Auto/Sports/Night Scene/Portrait/Landscape/Backlight).

1. Press the button located on the rear side of the

camera repeatedly until your desired flash mode

appears on the LCD monitor.

1. Compose your image and press the shutter button.

The camera has four flash modes: Fill flash (on), Flash off, Automatic flash and Red-eye reduction.

The table below will help to choose the appropriate flash

mode:

Flash mode	Description
Fill flash (on)	The flash will always fire regardless of the surrounding brightness. Select this mode for recording images with high contrast (backlighting) and deep shadows.
Flash off	The flash will not fire. Select this mode when taking images in a place where flash photography is prohibited, or when the distance to the subject is beyond the effective range of the flash.
Automatic flash	The flash fires automatically according to the ambient lighting conditions. Select this mode for general photography.

Red-eye

reduction

The flash emits a precursor-flash before the main flash fires. This causes the pupil in the human eye to constrict, reducing the red-eye phenomenon.

Select this mode when taking images of people and animals in low-light conditions.

NOTE

In [ ] Macro mode and [ ] Landscape mode, flash photography is not possible.
In [ ] Night Scene mode, flash photography will automatically detect the ambient lighting. If the surrounding brightness is low, the flash will fire to [ ] Red-eye reduction.
In [ ] Sports mode, Flash mode is automatically set to [ ] Flash off.

Using the Self-Timer

By using the [ ] self-timer you can join in the screen when taking group shots. According to your preferences you can take pictures with the self-timer in any scene mode (Auto/Sports/Night Scene/Portrait/Landscape/Backlight).

Self-timer duration can be set as 10 seconds or 5 seconds. Self-timer mode appears

cyclically as [10 s] [5 s] [Self-Timer Off]. After the self-timer is set, the shutter automatically releases after 10 seconds or 5 seconds. The self-timer lamp starts blinking relatively slow for the first 7 seconds or the first 2 seconds and then blinking rapidly for the last 3 seconds.

1. Secure the camera to a tripod or place it on a stable

surface.

1. Slide the lens cover to turn the camera on.
2. Set the scene mode in the Capture menu based on the desired scenery.

(Auto/Sports/Night Scene/Portrait/Landscape/Backlight).

1. Press the button to select the desired self-timer mode.
2. Compose your image.
3. Press the shutter button.

To cancel the self-timer photography at any time, press the button to disrupt the sequence.

NOTE

After one shot is taken, the self-timer mode is turned to OFF.

Using the Macro Mode

Use [ ] Macro mode to capture a close-up of the subject, such as flowers or insects. The effective range is between 0.6m to 1.0m.

1. Set the focus switch to the [ ] position.
   LCD monitor will display [ ] as Macro mode.
2. Compose your image.
3. Press the shutter button.

To disable macro photography, slide the focus switch back to the [ ] Normal mode.

NOTE

In [ ] Macro mode, EV compensation, Scene mode and ISO speed cannot be set.
In [ ] Macro mode, Flash mode is automatically set to [ ] Flash off.
After a macro shot is taken DO NOT FORGET to reset the lens to the [ ] Normal position.

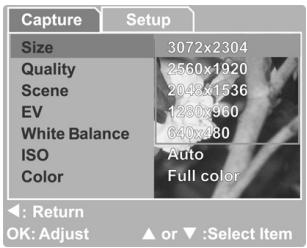

Setting the Image Resolution and Quality

Resolution and quality settings determine the pixel size (dimension), image file size, and compression ratio for your images. These settings affect the number of images that can be stored in memory, or on an SD memory card. As you get to know the camera, it is recommended that you try each quality and resolution setting to get an appreciation for the effects that these settings will have on your images. Higher resolution and higher quality images offer the best photographic results but produce large files sizes. Therefore, fewer images will take up more memory space.

High resolution and quality settings are recommended for printed output and situations requiring the finest detail.

Lower resolution/quality images take up less memory space and may be quite suitable for sharing images via e-mail, in a report, or on a

web page.

To change image resolution or quality settings perform the steps below:

1. Press the MENU button to enter the

[Capture] menu and select [Size] or [Quality]

by using the / button. Press the OK

button to enter the sub-menu.

1. After entering the sub-menu, select your option by using the / button.

Press the OK button to confirm the setting.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

Number of Recordable Images

The frame counter indicates the approximate number of images that can be stored on the internal memory or the SD memory card at the camera's image quality and size settings. The number of recordable images may vary depending on the recorded subject and the capacity of the memory card, or if there are files other than images, or when the recording is made while switching the picture quality/resolution.

Resolution	Quality	16 MB Internal Memory (14 MB available for image storage)	SD Memory Card
			32MB	64MB	128MB	256MB	512MB	1 GB
7M	★	9	20	42	86	172	347	693
2304 x 1728	★	12	25	52	106	213	429	856
	★	19	41	85	172	345	695	1387
5M	★	11	24	51	103	207	417	832
2560x1920	★	14	30	62	127	255	515	1027
	★	23	42	102	206	414	835	1664
3M	★	18	38	79	161	323	652	1300
2048x1536	★	30	63	130	264	530	1068	2131
	★	37	77	159	322	647	1304	2601
1.2 M	★	47	99	204	413	828	1670	3329
1280x960	★	71	149	306	620	1243	2505	4994
	★	95	198	408	826	1657	3340	6659
0.3 M 640x480	★	191	397	816	1653	3315	6680	9999
	★	287	596	1224	2480	4973	9999	9999
	★	383	794	1632	3307	6630	9999	9999

• The above data shows the standard testing results. The actual capacity varies according to the shooting conditions and settings.

SELECTING PHOTOGRAPHY MODE

Auto Mode

Using [A] Auto mode the majority of the settings are adjusted by the camera. Simply point the subject and then shoot.

1. Press the MENU button to enter the [Capture] menu and select [Scene] by using the / button. Press the OK button to enter the sub-menu.
2. After entering the sub-menu, select [Auto] by using the / button. Press the OK button to confirm the setting.

LCD monitor will display [A] as Auto mode icon.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

Camera original status is set in [A] Auto mode.
- For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

Sports Mode

For dynamic action choose [ ] Sports mode. This feature lets you capture moving subjects continuously.

1. Press the MENU button to enter the

[Capture] menu and select [Scene] by using the / button. Press the OK button to enter the sub-menu.

1. After entering the sub-menu, select [Sports] by using the / button.

Press the OK button to confirm the setting.

LCD monitor will display [ ] as Sports mode icon.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

In [ ] Sports mode, ISO speed cannot be set.
In [1] Sports mode, Flash mode is automatically set to [2] Flash off.
For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

Night Scene Mode

Capturing human subjects by using [ ] Night Scene mode helps to provide a natural balance between the main subject and the background. The people in an evening sky or night scene are illuminated with lights from the flash while the background is captured at a slow shutter speed to prevent blurring and let the

both (people and the background) appear according to the exposure.

1. Press the MENU button to enter the

[Capture] menu and select [Scene] by using

the / button. Press the OK button

to enter the sub-menu.

1. After entering the sub-menu, select [Night Scene] by using the / button. Press the OK button to confirm the setting.

LCD monitor will display [ ] as Night Scene icon.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

In [ ] Night Scene mode, Flash mode will automatically detect the ambient lighting. If the surrounding brightness is low, the flash will fire for [ ] Red-eye reduction.
In [ ] Night Scene mode, ISO speed cannot be set.
- For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

Portrait Mode

Taking pictures by selecting [ ] Portrait mode helps you to construct portraits in which the main subject stands out sharply and clearly with indistinct background's details.

1. Press the MENU button to enter the

[Capture] menu and select [Scene] by using the / button. Press the OK button to enter the sub-menu.

1. After entering the sub-menu, select [Portrait] by using the / button.

Press the OK button to confirm the setting.

LCD monitor will display [ ] as Portrait mode icon.

1. 1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

In [ ] Portrait mode, ISO speed cannot be set.
In [ ] Portrait mode, in a dark or night-time background, Flash mode defaults for [ 4A] Red-eye reduction.
For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

Landscape Mode

Taking images by choosing [ ] Landscape mode helps you to capture vivid and expansive landscape pictures with the enhancement of image's color and saturation. [ ] Landscape mode is used when the distance to the subject is between 1.0m to infinity.

1. Press the MENU button to enter the [Capture] menu and select [Scene] by using the / button. Press the OK button to enter the sub-menu.
2. After entering the sub-menu, select [Landscape] by using the / button.

Press the OK button to confirm the setting.

LCD monitor will display [ ] as Landscape mode icon.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

In [Landscape mode, ISO speed cannot be set.
In [ ] Landscape mode, Flash mode is automatically set for [ ] Flash off.
- For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

Backlight Mode

Use [ ] Backlight mode when light is coming from behind your subject, throwing their features into shadow, or when your subject is in the shade but the background is brightly lit.

1. Press the MENU button to enter the [Capture] menu and select [Scene] by using the / button. Press the OK button to enter the sub-menu.
2. After entering the sub-menu, select [Backlight] by using the / button.

Press the OK button to confirm the setting.

LCD monitor will display [ ] as Backlight mode icon.

1. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

NOTE

In [ ] Backlight mode, Flash mode defaults to [ ] Fill flash (on).
In [Backlight mode, ISO speed cannot be set.
For other settings like Language, Power Off time or others, choose [Setup] in Capture/Video/Playback menu.

MOIVE MODE

Using [ 🚤 ] Movie mode allows you to record video clips at a resolution of 320 x 240 pixels.

1. Press the MODE button to enter the I

Movie mode.

1. You can start recording a video clip by pressing the shutter button.
2. To stop recording, press the shutter button again.

NOTE

In [ ] Movie mode, resolution/quality, self-timer cannot be set or activated.
In [ ] Movie mode, the flash mode is automatically set to [ ] Flash off.
To set [EV] or [White Balance], you may use the [Video] menu.

IMAGE PLAYBACK

In [ ]Playback mode, you can view, magnify your images or play video clips back. This mode even provides thumbnail images display and slide show, allowing you to quickly search for the image that you want or play the images back one by one automatically.

Single Image Playback

Play back still images one at a time.

1. Press the MODE button twice to enter [ ]

Playback mode.

The last recorded image appears on the LCD monitor.

1. View and select your recorded images by using the / button.

To view the previous image, press the button.
To view the next image, press the button.

NOTE

To exit [ ] Playback mode, press the MODE button.
The [DPOF] print indicator only appears on the LCD monitor when the image is set to print out.
If there is no image stored in the internal memory or on the memory card, [No Image] message will appear on the LCD monitor.
During playback, the recorded image appears to be larger than the one on preview in capture mode.

Magnifying Images

While reviewing your images, you may enlarge a selected portion of an image. This magnification allows you to view fine details.

1. Press the MODE button twice to enter [▶] Playback mode.
   The last image frame appears on the LCD monitor.
2. View and select your images by using the / button.
3. Enlarge the image by pressing the OK button.
   Pressing the OK button once magnifies the image to 2X.

4. Use the / / / button to select the area to enlarge.

5. To return to the regular display from 4X-enlarged status, press the OK button.

NOTE

Each press of the OK button, the modes switch cyclically: 1X 2X 3X 4X 1X.

Viewing Nine Images At A Time

This function allows you to view nine thumbnail images on the LCD monitor simultaneously so that you can quickly scan for a particular image.

1. Press the MODE button twice to enter [ ] Playback mode.
2. Press the MENU button.

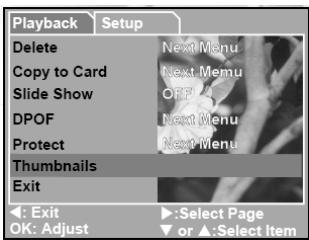

3. Use the / button to select [Thumbs nails].
4. Press the OK button and nine thumbnail images appear on the LCD monitor. (Assuming there are nine or more recorded images in the memory.)
5. Use the / / / button to move the cursor to select the image to be displayed at regular size.
6. Press the OK button to display the selected image on the full screen.

Viewing Video Clips

To view the recorded video clips, follow the steps below:

1. Press the MODE button twice to enter [ ] Playback mode.
2. Select the video clip that you want to view by using the / button.

AutomatedPlayback (Slide Show)

Slide show function enables you to play your images back automatically in sequential order as a slide show. This is a very useful and entertaining feature for reviewing recorded images and for presentations.

1. Press the MODE button twice to enter [ ] Playback mode. Then press the MENU button to enter the Playback menu.

2. Select [Slide Show] by using the / button then press the OK button to enter the sub-menu.

3. Set the playback interval by using the

/ button and press the OK

button to confirm.

The slide-show starts displaying your images on the LCD monitor, one by one, with the interval that you set.
To stop the slide-show display, press the OK button.

NOTE

To not set automated playback (slide show) you may press the MENU button to exit.

Protecting Images

This feature allows you to prevent recorded images from being accidentally erased.

1. Press the MODE button twice to enter [▶] Playback mode. Then press the MENU button to enter the Playback menu.
2. Select [Protect] by using the / button, and press the OK button.
3. You can select to protect single image or all images at one time by using the / button, and press the OK button.

[Single]: Protect one image at one time
[All]: Protect all images at once

1. Select [Unlock] or [Lock] by using the / button.

[Unlock]: Unlock the protected image.
[Lock]: Protect the selected image or all images.

1. Press the OK button again to confirm the setting.

DELETING IMAGES

Deleting Images/Video Clips Singly

You can delete a captured image or a recorded video clip at a time.

1. Press the MODE button continuously to enter [ ] Playback mode.
   The last image frame appears on the LCD monitor.
2. View and select unwanted images by using the / button, then press the MENU button.
3. Select [Delete] by using the / button, and press the OK button.
4. Use the / button to select [Single], and press the OK button.

1. Use the / button to select [Execute] and press the OK button to confirm the deletion. To cancel the action, select [Cancel].
2. Continue the deletion if necessary.

If all images are deleted, [No Image] will pop up.
To exit the deletion, press the MODE button again.

NOTE

Please be aware of that deleted images cannot be recovered. Exercise adequate caution before deleting a file.
Protected images cannot be deleted with the delete function.

Deleting All Images/Video Clips

1. Press the MODE button twice to enter [ ] Playback mode. Then press the MENU button to enter the Playback menu.
2. Select [Delete] by using the / button, and press the OK button.
3. Use the / button to select [All Images], and press the OK button.
4. Use the / button, then select [Execute] and press the OK button to confirm the deletion. To cancel the action, select [Cancel].

NOTE

Please be aware of that deleted images cannot be recovered. Exercise adequate caution before deleting a file.
Protected images cannot be deleted with the delete function.
If SD memory card is inserted; images and video clips recorded on the memory card will be deleted first.

Formatting an SD Memory Card or Internal Memory

This utility formats the internal memory (or memory card) and deletes all stored images and data.

1. Press the MENU button to enter [Setup] in any mode.
2. Select [Format] by using the / button. Press the OK button to enter the sub-menu.

1. If you want to format the SD memory card or

the internal memory choose [Execute] by pressing the / button, then press the OK button to confirm.

To cancel the action, select [Cancel].
- [No Image] pops up after the SD memory card or the internal memory has been formatted.

NOTE

■ Be sure the SD memory card is properly inserted into the camera before formatting it.

• To format images or video clips recorded in the internal memory, be sure to remove your SD memory card first.
  For complete compatibility, be sure NOT to select FAT 32 as the file system when you format the SD card on your computer. Memory cards formatted in FAT 32 file system will not be recognized by this camera.

SETTING THE DPOF

DPOF (Digital Print Order Format) allows you to embed printing information on your SD memory card.

By using DPOF, you can select an image to be printed and then specify how many prints or which image you would like. Take your SD memory card to a DPOF enabled printer or through laboratory printing services that accept memory cards.

The DPOF/card-compatible printer will read the embedded information on the memory card and print your images as specified.

To Set DPOF:

1. Press the MODE button twice to enter [ ] Playback mode. Then press the MENU button to enter the Playback menu.
2. Select [DPOF] by using the / button, and press the OK button.

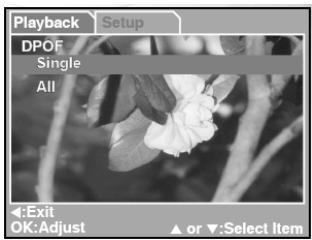

3. Select [Single] or [All] with the / button, and press the OK button. The DPOF sub-menu options: [Single]: Sets DPOF for each individual image. [All]: Sets DPOF for all images at once.

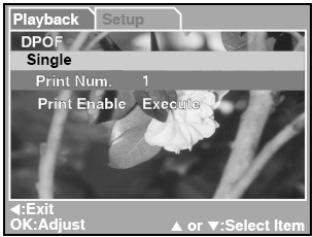

4. Select [Print Num.] with the / button, and press the OK button.

5. Set the number of prints with the / button, and press the OK button. You can set up to 9 prints for each image.

6. Select [Print Enable Execute] with the / button, and press the OK button.

This creates a file containing the DPOF information. When the operation is finished, the screen returns to the playback screen.

NOTE

To print out images recorded in the internal memory, it is necessary to copy your images to an SD memory card first.
DPOF Print-order icon will also display on the LCD monitor to indicate selected images for printing.

PictBridge Function

Even if you do not have a computer, you can connect the camera directly to a printer that supports PictBridge to perform image selection and printings using the camera monitor screen and controls. DPOF support also lets you specify which images you want to print and how many copies of each should be printed.

Connecting the camera to the printer

Connect one end of the USB cable to a PictBridge compliant printer. Connect the other end of the USB cable to the USB terminal on the camera. Then turn on the printer and your camera. The [USB] mode screen is displayed.

Settings and printing image

1. Use the / button to select [PictBridge], then press the OK button.
2. For downloading images to your computer, select [Disk Drive] at this step.
3. To select the image you want to print, choose [Images] from the PictBridge menu and press the OK button.
4. If you want to print one image, choose [Single] and press the OK button. Then choose the image by using the / button and press the OK button to confirm.
5. If you want to print all images, choose [All] and press the OK button to confirm.
6. Select [Print Size] to set the size of image you wish to print. The options may vary depending on the type of printer being used. Press the OK button to confirm.

1. Select [Paper Type] to choose the type of paper you wish to use. The options may vary depending on the type of printer being used. Press the OK button to confirm.
2. Select [Paper Size] to set the size of paper you wish to use. The options may vary depending on the type of printer being used. Press the OK button to confirm.
3. After all settings are confirmed, select [Print] to begin printing. If you want to cancel during printing, press the OK button. When the printing is completed, the message "Printing complete" will appear on the screen. To return to PictBridge menu, press the OK button.

TRANSFERRING RECORDED IMAGES TO YOUR COMPUTER

You can share recorded images/video clips with your family or friends via e-mail or post them on the Web. Before doing these things, you need to connect the camera to your computer using the USB cable and then transfer the images/video clips.

To transfer images/video clips from the camera to your computer, follow the steps below:

Step 1: Installing the USB driver

Step 2: Connecting the camera to your computer

Step 3: Downloading images/video clips

	System requirements (Windows)	System requirements (Macintosh)
CPU	Pentium III 600 MHz processor or higher	PowerPC G3/G4
OS	OS Windows 98/98SE/ME/2000/XP	9.0 or higher
Memory	32MB (64MB RAM recommended)	32MB (64MB RAM recommended)
Free Space on Hard Disk	128MB hard disk space	128MB hard disk space
Required Devices	A CD-ROM Drive, An available USB port	A CD-ROM Drive, An available USB port
Display	Color Monitor (800x600, 24-bit or higher recommended)	Color Monitor (800x600, 24-bit or higher recommended)

Step 1: Installing the USB driver on Windows computers

Installation on Windows 98 & 98SE

The USB driver on the supplied CD-ROM is exclusively for Windows 98 and 98SE. Windows 2000/ME/XP users need not install the USB driver.

1. Insert the enclosed CD-ROM into your CD-ROM drive.
2. When the welcome screen appears, click "Install USB driver". Follow the on-screen instructions to complete the installation.
3. After the USB driver has been installed, restart your computer.

Installation on MAC OS 9.0

For Mac OS 9.0 or higher, the computer will automatically recognize the digital camera and load its own USB drivers.

Step 2: Connecting the digital still camera to your computer

1. Turn the camera on.
2. Connect one end of the USB cable to an available USB port on your computer.
3. Connect the other end of the USB cable to the USB terminal on the camera.
4. The [USB] mode screen is displayed. Use the /

button to select [Disk Drive], then press the OK button.

1. Look for a new "Removable Disk" icon

appearing in the "My Computer" window.

Your recorded images/video clips will be in a folder on this "removable disk".

(For Mac users, double-click the "untitled" disk on the desktop.)

Mac users: Double-click the "untitled" or "unlabeled" disk drive icon on our desktop.

iPhoto may automatically launch.

NOTE

While transferring images to your computer, the other buttons on your digital still camera will not perform any functions.

Step 3: Downloading images/video clips

When the camera is turned on and connected to your computer, it is considered as a disk drive, just like a floppy disk or CD. You can download (transfer) images/video clips by

copying them from the "removable disk" ("untitled" disk on a Macintosh) to your computer hard drive or to another kind of disk.

For computers running Windows

Open the "removable disk" by double-clicking on it. Double-click on the folder that contains your recorded images/video clips. Select the images/video clips that you prefer and choose "Copy" from the "Edit" menu. After that, open the destination location and choose "Paste" from the "Edit" menu.

For computers running Mac OS

Open the "untitled" disk window and the hard disk or the destination location. Drag and drop from the camera disk to the desired destination.

NOTE

Memory card users may prefer to use a memory card reader (highly recommended).

SOFTWARE INSTALLATION

Installing Photo Explorer

Ulead® Photo Explorer provides a simple and efficient way to transfer, browse, modify and distribute digital media. Acquire photos, video or sound clips from various digital device types and easily browse or add personal descriptions; make timely modifications; or distribute the media through the medium of your choice: E-mail, Print, Slideshow Presentations. It is an indispensable all-in-one tool for owners of digital cameras, WebCams, DV camcorders, scanners, or anyone who strives to effectively organize a large collection of digital media.

1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen appears, click "Install Ulead® Photo Explorer". Follow the on-screen instructions to complete the installation.

NOTE

For more information about the operation of Photo Explorer application software, refer to its respective help documentation.
For Windows 2000/XP users, please make sure to install and use the Photo Explorer in "Administrator" mode.
Photo Explorer is not supported on the Mac. iPhoto or iPhoto2is recommended.

Installing Photo Express

Ulead® Photo Express is complete photo project software for digital images. The step-by-step workflow, visual program interface, and in-program help assist users in creating exciting photo projects. Acquire digital photos effortlessly from digital cameras or scanners. Organize them conveniently with the Visual Browse mode. Use hundreds of ready-to-use templates such as albums, cards, posters, slideshows, and more. Edit and enhance images with photo editing tools, photographic filters, and special effects.

Embellish projects by adding creative design elements such as frames, callouts, and stamp objects.

Share results with family and friends via e-mail and multiple print options.

1. Insert the enclosed CD-ROM into your CD-ROM drive.
2. When the welcome screen appears, click "Install Ulead® Photo Express". Follow the on-screen instructions to complete the installation.

NOTE

For information on how to use Photo Express to edit and retouch your recorded images, please refer to its online help.
For Windows 2000/XP users, make sure to install and use the Photo Express while logged in as a user with an Administrator account.
Photo Express is not supported on the Mac.

USING THE DIGITAL STILL CAMERA AS A PC CAMERA

Your digital still camera can act as a PC camera, which allows you to videoconference with business associates, or have a real-time conversation with friends or family. To use the digital still camera for videoconferencing, your computer system must include the items as below:

Microphone
Sound card
■ Speakers or headphones
Network or Internet connection

NOTE

Video conferencing (or video editing) software is not included with the digital still camera.
This mode is not supported for Mac.

Step 1: Install the PC camera driver (same as USB driver)

The PC-camera driver included in the CD-ROM is exclusively for Windows. The PC camera function is not supported for Mac platforms.

1. Insert the enclosed CD-ROM into your CD-ROM drive.
2. When the welcome screen appears, click "Install PC Cam driver". Follow the on-screen instructions to complete the installation.
3. After the driver installation is completed, restart your computer.

NOTE

The USB driver bundled on the CD-ROM is designed in a form 2 in 1 (USB & PC camera driver).

a) On Windows 98, the Windows OS will install both USB & PC camera drivers.
b) On Windows 2000/ME/XP, it will only install PC camera driver.

Step 2: Connect the digital still camera to your computer.

1. Turn on the power of the camera.
2. Connect one end of the USB cable to an available USB port on your computer.
3. Connect the other end of the USB cable to the USB terminal on the camera.
4. The [USB] mode screen is displayed.
5. Use the / button to select [Pc Cam], then press the OK button.
6. The message "Connected to computer" will appear on the screen. Wait for the message to disappear before the using application software

• The LCD monitor will turn off automatically for the purpose of power-saving.

• Position the digital still camera steadily on top of your computer monitor or use a tripod.

NOTE

• When using this digital still camera as a PC camera, it is necessary to install the battery into the digital still camera.

Step 3: Run your application software (i.e. Windows NetMeeting)

To use Windows NetMeeting for videoconferencing:

1. Go to Start Programs Accessories Communications NetMeeting to launch the NetMeeting program.
2. Click the Start Video button to view live video.
3. Click the Place Call button.
4. Type the e-mail address or the network address of the computer that you are calling.
5. Click Call. The person that you are calling must also have Windows NetMeeting running and be willing accept your call to start the videoconference.

NOTE

The video resolution for videoconferencing applications is generally 320 × 240 .
For more information about the operation of videoconference application software, refer to its respective help documentation.

LIST OF MENU OPTIONS

Capture Menu

This menu is for the basic settings to be used when taking still images.

1. Press the MENU button and then scroll through the options by using the /

button.

1. Press the OK button to enter the sub-menu.
2. After entering the sub-menu, select your option by using the / button.
3. Press the OK button to confirm the setting.
4. To exit from the menu mode, use the / button to select [Exit] and press the OK button.

Size

This sets the size of the image that will be photographed.

[3072 x 2304]: 3072 x 2304 pixels

[2560 x 1920]: 2560 x 1920 pixels

[2048 x 1536]: 2048 x 1536 pixels

[1280 x 960]: 1280 x 960 pixels

[640 x 480]: 640 x 480 pixels

Quality

This sets the quality (compression rate) at which the image is taken.

[Fine]: Low compression rate

[Economy]: High compression rate

Scene

This sets the scene mode for capturing images.

[Auto]: The camera automatically adjusts the focus and exposure settings to take photographs.

[Sports]: Select this option to take photographs of fast-moving subjects.

[Night Scene]: Select this option to take photographs of people against a dusk or night-time background.

[Portrait]: Select this option to make people stand out with the background out-of-focus.

[landscape]: Select this option to take photographs of distant scenery or landscapes.

[Backlight]: Select this option when you want to capture images when the light comes behind the object.

EV

Your camera adjusts the exposure of each scene automatically. However, when the subject is too dark or too bright, the camera adjusts the brightness or darker. This is called EV compensation.

The EV compensation of your camera can be adjusted from [-2.0 EV] to [+2.0 EV] (0.5 EV step).

To adjust EV, press the / button and

press the OK button to confirm.

Effective Subjects and Set Values

Positive (+) Compensation

• Copying of printed text (black characters on white paper)
  Backlit portraits
  Very bright scenes (such as snowfields) and highly reflective subjects
  Shots made up predominantly of sky

Negative (-) Compensation

Spot lighted subjects, particularly against dark backgrounds
Imaging of printed text (white characters on black paper)
- Scenes with low reflectivity, such as shots of green or dark foliage

White Balance

When the brightness of the light changes, our eyes adapt the difference so that the white object remains white. For digital still cameras, they can also see the white object as white by averaging the light around the subject.

The camera determines the white balance by averaging the various kinds of light that actually enters the lens. You may set in advance the white balance when taking photographs under specific lighting conditions.

[Auto]: Automatically adjusts the white balance.

[Daylight]: For recording outdoors on a bright day.

[Cloudy]: For recording overcast, shaded, twilight or evening skies.

[Tungsten]: For recording under tungsten lighting condition.

[Fluorescent]: For recording under fluorescent lighting condition.

ISO

Select the photographic ISO to be used when a photograph is taken.

The higher the ISO sensitivity value, the greater the sensitivity, and the greater the noise. With a higher sensitivity selected, bright photographs can be taken with less light.

[Auto]: Automatic adjustment

[100]: Sensitivity equivalent to ISO100

[200]: Sensitivity equivalent to ISO200

Color

To capture an image, the camera offers three types of color (Full color/ Black & White/

Sepia) for you to match as your wish. Your images will demonstrate different impression by choosing different types of color.

[Full color]: Bright colors

Saturation

To capture an image, the camera offers you three different degrees of color

(High/Medium/Low) to match your preference.

Your images will give a different impression by choosing the different degrees of color.

This is called Saturation.

Sharpness

Your camera will automatically emphasize the borders between light and dark areas of the image. This will make the image's edges look sharper.

[High]: Hard touch

[Medium]: Normal touch

[Low]: Soft touch

Quick View

Set to display a photographed image on LCD monitor immediately after you have taken the shot.

[ON]: Display quick view

[OFF]: Do not display quick view

Date Imprint

If you set imprint function, your image will be displayed with the date on it.

[ON]: Date will be showed on the captured image.

[OFF]: Date will not be showed on the captured image.

Exit

Select this option if you wish to exit from the menu mode.

Playback Menu

Use the Playback menu you can create an on-camera slide show or configure DPOF

settings. You may also delete or protect one or all stored images.

1. Press the MODE button twice to enter [ ]

Playback mode.

Then press the MENU button to enter

Playback menu.

Scroll through the options by using the / button.

1. To enter the sub-menu, press the OK button. After settings are set, press the OK button to confirm.

Delete

Delete still images and video clips that have not come out right.

Refer to the section in this manual titled "Deleting Images/Video Clips" in DELETING IMAGES for further details.

Copy to Card

This feature allows you to copy your images/video clips from the camera's memory. This function is enabled when the SD memory card is loaded and the internal memory contains images/video clips.

Slide Show

Automatically plays back still images in order one image at a time.

Refer to the section in this manual titled "AutomatedPlayback (Slide Show)" in IMAGE PLAYBACK for further details.

DPOF

Set the number of prints in the DPOF format to images that you want to print. (This function is available for still images only.)

You can print images easily just by inserting the SD card to a DPOF-compatible printer or a print shop.

Refer to the section in this manual titled "SETTING THE DPOF" for further details.

Protect

Set the data to read-only to prevent images from being erased by mistake.

Refer to section in this manual titled "Protecting Images" in IMAGE PLAYBACK for further details.

Thumbsils

This feature allows you to view 9 thumbnail images on the LCD monitor at the same time.

Exit

Select this option if you wish to exit from the menu mode.

Video Menu

This menu is for the basic settings to be used when recording video clips.

EV

Refer to the section in this manual titled "Capture Menu" in LIST OF MENU OPTIONS for further details.

White Balance

Refer to the section in this manual titled "Capture Menu" in LIST OF MENU OPTIONS for further details.

Exit

Select this option if you wish to exit from the menu mode.

Setup Menu (in Capture/Video/Playback Menu)

You can select according to your preference for the camera settings in Setup of Capture/Video/Playback Menu.

Navigate the options you wish to configure by using the / button.

Date/Time

This sets the date and the time.

Refer to the section in this manual titled "Setting the Date and Time" for further details.

Format

This utility formats the internal memory (or memory card) and erases all stored images and data.

Refer to the section in this manual titled " Formatting an SD Memory Card or Internal Memory" for further details.

Beeper

Specify whether or not beeps are to be generated when buttons are pressed.

[ON]: Beeps are generated

[OFF]: Beeps are not generated

Language

Specify in which language menus and messages are to be displayed on the LCD monitor.

Power Off

If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful to reduce battery wear.

[3 Min], [5 Min], [10 Min], [OFF]

Set to Default

This function will restore all the parameters to the default settings.

[Cancel]: Remain the current settings

[Execute]: Reset to default settings

Exit

Select this option if you wish to exit from the menu mode.

CONNECTING THE CAMERA TO OTHER DEVICES

CAMERA SPECIFICATIONS

Item	Description
Image Sensor	CCD
Effective pixels	Approx. 5.0 Mega pixels
Image resolution Still image	3072 x 2304 (7MP, by interpolation) 2560 x 1920 (5MP, native resolution) 2048 x 1536 1280 x 960 640 x 480
Video clip	320 x 240
Image quality	Fine/Normal/Economy
Recording media	16 MB internal memory (14 MB available for image storage) SD memory card (optional, up to 1 GB)
File format	EXIF 2.2, DCF 1.0, DPOF 1.0, MPEG-1
Lens	Aperture: 3.0 Focal length: 6.22mm Range of focus Macro: 0.6m - 1.0m Normal: 1.0m - infinity
LCD monitor	1.8" TFT color LCD
Self-timer	5-second/10-second delay
Zoom	4X digital zoom
Exposure compensation	Automatic exposure with manual EV compensation +/-2.0EV in 0.5EV steps
White balance	Automatic with presets for Daylight, Cloudy, Tungsten, Fluorescent
Interface	DC IN 5V terminal
	USB terminal
Operating environment	Operation: -5oC ~40oC, 15% ~90% humidity Storage: -20oC ~60oC, 10 %~95% humidity
Power supply	Lithium ion rechargeable battery (650mA) AC-DC Adapter
Dimension	Approx. 89.5 x 56 x 24mm (without protruding parts)
Weight	Approx. 80g (without batteries and the SD memory card)

• Design and specifications are subject to change without notice.

TROUBLESHOOTING

Refer to the symptoms and measures listed below before sending the camera for repairs. If the problem persists, contact your local reseller or service center.

Power Supply

Symptom	Cause	Measure
The power does not come on.	The battery is not loaded.	Load the battery correctly.
	The battery is exhausted.	Recharge or use the AC power adapter.
The power cuts out during use.	The camera was left unattended and unused, so the auto powers off cuts it off.	Turn the power back on.
	The battery is exhausted.	Recharge or use the AC power adapter.
The power does not go off.	Camera malfunction.	Reload the battery. If using the AC power adapter, reconnect it.
The battery runs out quickly.	It is being used in extreme low temperature.
	Many shots are being captured in dark places inside, requiring flash.
	The battery is not fully charged. The battery is not used for an extended period of time after charged.	Fully charge the battery and discharge it for at least one complete cycle before use to maximize its performance and lifetime.
The battery or camera feels warm.	Long period of continuous use of the camera or the flash.

Shooting

Symptom	Cause	Measure
Even if I press the shutter button, the camera does not shoot.	The battery is running low.	Recharge or use the AC power adapter.
	The power is not on.	Turn the power on.
	The camera is not in shooting mode.	Toggle the MODE button to shooting mode.
	The shutter button is not pressed all the way.	Press the shutter button all the way.
	The internal memory or	Load a new card, or delete

memory card does not have
unwanted files.

	any free space.
	End of memory card life.	Load a new memory card.
	The flash is recharging.	Wait until the flash recharging process is completed.
	The memory card is unrecognized by the camera.	Format the memory card in this camera before its first use or when it was used other than this camera.
	The auto power off function is activated.	Turn the power on again.
Images do not appear on the LCD monitor.	The power is not on.	Turn the power on.
The camera does not focus.	The lens is dirty.	Wipe clean with a soft, dry cloth or lens paper.
	The distance to the subject is smaller than the effective range.	Get your subject within the effective focus range.
The flash does not fire. The flash cannot recharge.	The camera is set to mode.	Switch to another mode other than one of those.
	The flash is set to no flash.	Set the flash to auto flash.
Even though the flash fired, the image is dark.	The distance to the subject is greater than flash effective range.	Get closer to your subject and shoot.
The image is too dark.	The image was captured in a dark place while set to no flash.	Set the flash to auto flash.
	It is under-exposed.	Set the exposure compensation to a larger value.
The image is too bright.	It is over-exposed.	Set the exposure compensation to a smaller value.
The image lacks natural color.	The image was captured in conditions that are hard for Auto White Balance to adjust to.	Add a white object to the composition.

Playback

Symptom	Cause	Measure
Cannot playback.	It is not set to playback mode.	Toggle the MODEbutton to playback mode.
The contents of memory card cannot be replayed.	You played back a memory card that was not formatted by this device.	Loaded a card that was formatted and stored on by this device.
Files cannot be deleted.	You played back a memory card that was not formatted by this device.	Loaded a card that was formatted and stored on by this device.
Cannot format a memory card.	The memory card is write-protected.	Remove the write-protection.
	End of memory card life.	Load a new memory card.

Other Problem

Symptom	Cause	Measure
Cannot load the memory card.	The card is facing the wrong way.	Load correctly.
Even when the camera's buttons are pressed, it does not operate.	The battery is running low.	Recharge or use the AC power adapter.
	Camera malfunction.	Turn the power off and remove the battery once, and try again.
The date and time is wrong.	The correct date and time is not set.	Set the correct date and time.

About connecting to your computer/software

Symptom	Cause	Measure
Cannot download images.	The free space on the hard disk in your computer may be insufficient.	Check whether the hard disk has a space for running Windows, and if the drive for loading image files has a capacity at least that of the memory card inserted in the camera.
	The USB driver is not installed (for Windows 98/98SE).	Install USB driver.
