Brand	FALMEC
Model	QUASAR MURALE
Product type	Wall-mounted hood
Use version	Extracting (external evacuation) or recirculating (recycling)
Number of speeds	4 (speeds 1-3 + timed intensive speed 15 min)
Control	Push buttons; optional remote control (range 5 m)
Lighting	Halogen, max 20 W, 12 V, G4 socket
Timer	Yes, automatic shut-off after 15 minutes of operation
Filter saturation alarm	Yes, after approximately 30 hours of operation (metal filters)
Anti-grease metal filters	Dishwasher-safe or hand wash (monthly)
Activated carbon filters	Replacement every 3-4 months depending on use
Material	Stainless steel, glass front
Minimum safety distance (gas hob)	65 cm (25.6 inches)
Electrical connection	220-240 V ~ 50 Hz, mandatory grounding
Warranty	Yes, conditions on the back of the manual
Exterior maintenance	Damp cloth with mild detergent or denatured alcohol
Interior maintenance	Do not clean electrical/motor parts with liquids
Installation	Wall-mounted, by a qualified installer; fixing holes Ø8 mm and Ø4 mm
Maximum weight of suspended objects	1.5 kg
Included accessories	Cleaning wipes, metal filters, mounting kit

Frequently Asked Questions - QUASAR MURALE FALMEC

How to install the QUASAR MURALE hood?

Installation must be carried out by a qualified installer. First, fix the support bar to the wall at a height of X+517.8 mm above the hob. Hang the hood, adjust the alignment using the screws on the brackets, then secure the hood to the wall with a dowel to prevent falling. Connect the exhaust duct if you choose the extracting version.

What is the minimum distance between the hood and the gas hob?

The minimum safety distance between the highest part of the cooking appliance and the lowest part of the hood is at least 65 cm (25.6 inches). Also check the instructions of your gas hob.

How to clean the metal filters?

Remove the metal filters by activating handle A (see figure H3). Wash them monthly in hot water with a little detergent, without bending them. They can also be washed in the dishwasher. Dry them well before reinstalling.

When should the activated carbon filters be replaced?

Activated carbon filters cannot be washed. They should be replaced on average every 3 to 4 months, depending on use. To replace them, first remove the metal filters, then unclip the carbon filters located on each side of the conveyor.

How to use the optional remote control?

The remote control allows you to turn the light on/off, increase/decrease speed (+ and - buttons), and activate the timer. The maximum range is 5 meters. Avoid electromagnetic interference. If necessary, you can change the code by modifying the levers under the remote control cover.

What to do if the hood does not turn on?

First, check the electrical supply: is the plug connected? Is the circuit breaker on? Make sure the cable is not damaged. If the problem persists, contact the Authorized after-sales service FALMEC.

How to set the timer?

Press the timer button (clock symbol). The hood will turn off automatically after 15 minutes of operation at the set speed. An indicator flashes on the screen or button to confirm activation.

What does the red alarm on the timer button mean?

The red alarm indicates that the anti-grease metal filters need cleaning. It activates after approximately 30 hours of operation. To deactivate the alarm, press the timer button for a few seconds until the red light turns off, then turn the hood off and on again.

Can I use the hood in recirculation (filtering) mode?

Yes, the hood can operate in recirculation mode. In this case, install the activated carbon filters (if not already mounted) and remove the non-return valve on the motor connection. The purified air will be recirculated back into the kitchen. Remember to replace the carbon filters regularly.

How to replace the light bulb?

First, unplug the appliance. Fully open the panel by pressing PUSH. Replace the lamp with a halogen bulb of max 20 W, 12 V, G4 socket. Close the panel. If closing is difficult, repeat the opening.

USER MANUAL QUASAR MURALE FALMEC

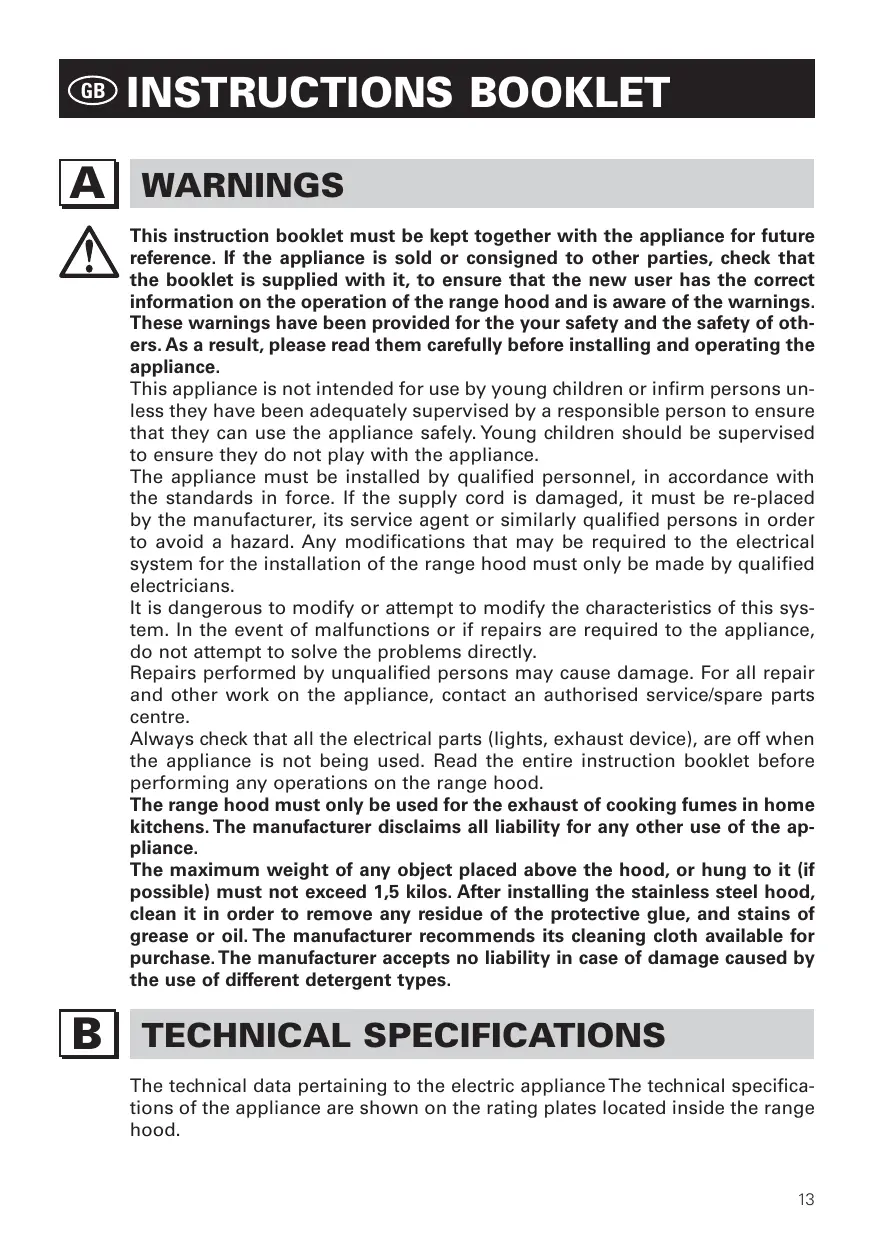

INSTRUCTIONS BOOKLET

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorized service/spare parts center.

Always check that all the electrical parts (lights, exhaust device) are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1.5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance. The technical specifications of the appliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

Minimum distance: distance between the pan supports of the cooker and the bottom-most section of the hood. When the hood is positioned above a gas equipment this minimum distance must be at least 65 cm (see picture C1) or even more, if this is specified in the instructions for use of the gas cooker.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere. If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, "standardised" plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue/white wire must be used for the neutral,
• The brown/black wire must be used for the phase; the cable must not come into contact with hot parts (over 75°C).
• Fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug, please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE

DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE

HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor's outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption.

The range hood should be switched on when starting to cook, and left on until the odours disappear.

OPERATION

1. ELECTRONIC CONTROL PANEL (Quasar Top)

Light pushbutton

• ON: light on (the pushbutton is lit);
• OFF: light off;

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns the hood motor on and off.

The "desired speed" function enables the motor to start at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

• and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Instructions for changing the code (only in case of malfunctions caused by interferences):

Disconnect the hood from the power supply.

Remove the cover of the remote control, change the code with the levers.

Connect the hood to the power supply and make sure the lights and the motors are off.

Press the timer pushbutton for 2 seconds. When the red LED of the control panel lights up, press any of the buttons on the control panel.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

2. ELECTRONIC CONTROL PANEL (Quasar Glass)

Mode push-button

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Push-button -

Press to reduce motor speed

Display

It indicates the current speed

Push-button +

Press to increase motor speed

Timer

This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the display shows a flickering light).

Light pushbutton

• ON: light on
• OFF: light off

Note: In order to maintain the correct functionality of the hood, we recommend you to clean periodically the front part of the glass. To rinse and dry carefully, use a soft cloth. Chemical and abrasive products are strictly forbidden.

FILTERS REMOVING AND REPLACING INSTRUCTIONS

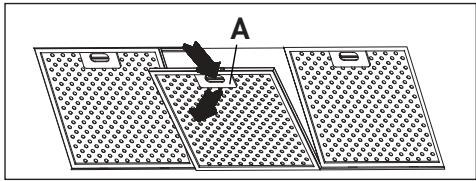

1. METAL FILTERS

Open the panel (see fig. H3). Use handle A to remove the metal grease filter.

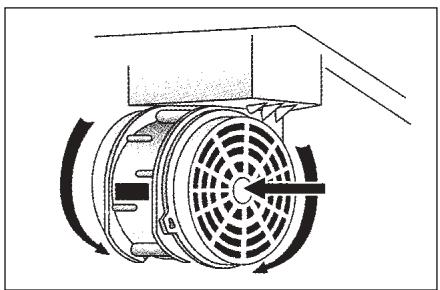

2. CHARCOAL FILTERS

To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed.

To install the new filters, see picture.

To order new filters, use the coupon enclosed with this booklet or provided by the distributor.

3. INSTRUCTION FOR REMOVABLE PANEL

Follow the instructions on fig. H3 to remove the panel.

LIGHTING ASSEMBLY AND REPLACEMENT

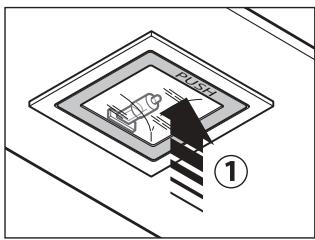

SPOTLIGHT

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply. b) Open the panel completely till 90° (see figure) pressing the PUSH button. c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection). d) Close the panel. If the panel does not close correctly, repeat the operation at point b.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them. To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

The outside of the range hood should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough

cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with. Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products.

All the above operations must be performed after having disconnected the appliance from the mains power supply.

SAFETY WARNINGS

CE

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm.

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

• Ensure there is adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
• Do not flambé under the range hood.
• The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

MOUNTING INSTRUCTIONS, RANGE HOODS WITH BOX

Step 1

• Rest the support bar against the wall (A-Fig. O1) at a height from the cooktop determined by the sum of the distance X + 517.8 mm.
• Check the horizontal alignment with a spirit level and mark the 2 holes to be drilled at the ends of the bar.
• Drill the holes, insert 2 x 8 mm dia. screw anchors, and fasten the bar using the corresponding screws.

Step 2

• Hook the range hood to the support bar (Fig. O2).
• Adjust the alignment of the range hood using the screws on the brackets (Fig. O2). The top screw (B) adjusts the distance from the wall, the bottom screw (C) adjusts the height.

Step 3

• To prevent the range hood from detaching due to pressure from below, fasten it to the wall using a screw anchor and screw, through the corresponding hole (Fig. O3) on the rotor box or inside the hood.
• Insert the duct (E) on the ducting connection (D). Hood assembly instructions.

Step 4 (optional)

Place element (G) onto the chimney until it is fully inserted.

• Fix the extension (H) to element (G), sliding it to the desired height.
• Once having found the optimum position, rest the bracket (L) against the wall, check the horizontal alignment using a spirit level and mark the 2 holes to be drilled at the ends.
• Drill the holes, insert 2 x 4mm dia. screw anchors and fasten the bracket (L) using the corresponding screws.
• Tighten the extension (H) to the bracket (L) using the screws (M).

NOTES

1. ELECTRONIC CONTROL PANEL (Quasar Top)

Light button

1. ELECTRONIC CONTROL PANEL (Quasar Glass)

Mode push button

EXTRACTOR WITH EXTERNAL AIR DISCHARGE

In this model, fumes and steam from cooking are discharged outside through a pipe. The discharge pipe, which protrudes from the upper part of the hood, must be connected to the pipe that carries fumes and steam outside, see fig. In this model, the filters are removed at the activated charcoal filter, if they are installed; how to remove them, see paragraph. If the hood is used simultaneously with other appliances operating on gas or other fuel, the room must have adequate ventilation.

EXTRACTOR WITH RECIRCULATION OF AIR (FILTERING)

In this model, air passes through the filters with activated charcoal, then is returned to the kitchen.

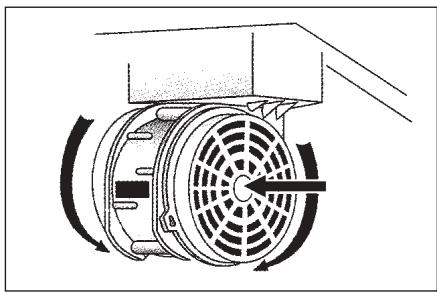

Make sure that the charcoal filters are installed on the motor, fig. 6, otherwise install them as indicated in the installation instructions.

It is recommended to use the third speed for intense cooking odors or large amounts of steam, the second speed for normal conditions, and the first speed for air purification at low energy consumption.

Pull out the drawer when you start preparing and leave the work area free of strong odors.

OPERATION

1. BUTTON WITH ELECTRONIC CONTROL (Quasar Top)

Light button

• ON: lighting on (button lights up); OFF: lighting off;

Button -

Button illuminated briefly: light on/off.

Button -/+: decrease/increase speed (motor speed can be set with both + and - buttons).

Timer button: see instructions below.

For installation/replacement.

For activated carbon filters, use the accessories supplied with the manual or contact the dealer.

3. REPLACEMENT GROUP

Follow the instructions in fig. H3 to remove the group.

LIGHTING INSTALLATION REPLACEMENT

HALOGEN LIGHTING

To replace the lamp "Square halogen light", it is necessary to: a) Make sure that the appliance is disconnected from the electrical power supply;

b) Fully open the panel at 90° (see figure) by pressing on PUSH. c) Replace the lamp with an equivalent one (halogen, max. 20 W, 12 V, socket G4). d) Close the panel. If the panel does not close correctly, repeat step b.

CLEANING AND MAINTENANCE

Proper maintenance guarantees good operation and a long service life. Particular attention must be paid to the metal filters for grease capture and the activated carbon filters. Regularly, the filters and their supports must be cleaned to ensure that grease is collected and does not accumulate due to the risk of fire.

1. METAL FILTERS FOR GREASE RETENTION

They are designed to capture grease particles. They must be washed once a month with a cleaning product and then rinsed. Before reinstalling, wait until they are completely dry.

To remove the filter and install it back, see instructions, point I. It is recommended to perform this operation regularly.

For safety, the distance from the cooking surface to the hood must be at least 65 cm.

Never cook with an open flame under the hood. Watch over the fryers: overheated oil can catch fire.

• Make sure that the room has sufficient ventilation if the hood is used together with other appliances operating on gas or other fuels.
• Do not leave open windows above the hood.
• Do not connect the appliance to pipes that evacuate fumes from combustion of fuels (boilers, fireplaces, etc.).
• Make sure to comply with all applicable standards for air discharge outside the premises before using the hood.

Before performing any cleaning or maintenance operation, switch off the appliance and unplug it from the socket or use the main switch. The manufacturer is not responsible for any damage, direct or indirect, caused to people, objects, or domestic animals due to failure to comply with the instructions given in the user manual, especially regarding the installation and use of the appliance and its maintenance.

WARRANTY

The device is selected according to the warranty.

The warranty conditions are fully stated on the last page of this edition.
