IPEL EVOLUTION 350 VA - Inverter INFOSEC - Free user manual and instructions

Product Type	UPS
Brand	INFOSEC
Model	IPEL EVOLUTION 350 VA
Technology	Line-interactive with automatic voltage regulation (AVR)
Output waveform	Pseudo sine wave
Apparent power	350 VA
Power factor	0.6
Dimensions (W x D x H)	100 x 330 x 140 mm
Weight	4.8 kg
Input voltage	110-120 V or 220-240 V (selectable)
Input voltage range	85-140 V (110V mode) or 162-290 V (230V mode)
Input frequency	45-65 Hz (auto-sensing)
Output voltage (battery mode)	Nominal voltage ±10%
Output frequency (battery mode)	50/60 Hz ±1%
Battery type	Sealed lead-acid, maintenance-free
Typical runtime	8 to 30 minutes (depending on load)
Recharge time	8 hours to 90%
Output outlets	3 battery backup outlets + 1 surge-only outlet + 2 RJ11 jacks
Surge protection rating	125 joules
Noise level	< 40 dB at 1 m
Operating environment	0°C to 40°C, 0-90% RH (non-condensing)
Communication interface	USB
Management software	UPSurfer Pro (free download)
Special functions	Cold start, energy saver, automatic restart
Safety	Overload, undervoltage, and overvoltage protection

Frequently Asked Questions - IPEL EVOLUTION 350 VA INFOSEC

How to start the UPS when there is no mains power?

Use the cold start function: press and hold the on/off button (switch). The UPS will start on battery, provided it is sufficiently charged.

What to do if the audible alarm sounds continuously?

This indicates a fault or overload. Check that the connected load does not exceed the UPS capacity (350 VA). If it does, disconnect non-essential equipment and restart the UPS. If the problem persists, contact customer service.

What is the battery runtime?

The runtime varies from 8 to 30 minutes depending on the connected load. For example, for a light load (single PC), the runtime will be longer than for a heavy load.

Can I connect a laser printer to this UPS?

No, it is not recommended to connect a laser printer because it consumes too much power and may cause an overload. The UPS is designed for standard computing equipment.

How to protect my telephone line or modem?

Connect the incoming telephone line to the IN (RJ11) jack on the back of the UPS, then connect the OUT jack to your equipment (phone, fax, modem) using the provided cable. Caution: do not install this connection during a thunderstorm.

Why is the orange (yellow) indicator on while mains power is normal?

This may indicate a blown fuse, a poorly connected power cord, or no mains power. Check the fuse and replace it if necessary with a fuse of the same type. Ensure the power cord is properly plugged into the mains outlet.

How to recharge the battery after a deep discharge?

Connect the UPS to mains power for 24 hours to fully recharge the battery. A recharge time of 8 hours reaches 90% charge. For a long lifespan, avoid frequent deep discharges.

Where can I download the UPSurfer Pro software?

The UPSurfer Pro software is available for free download from the official Infosec website: www.infosec.fr. It allows you to monitor the UPS status via the USB port.

What are the essential safety precautions?

Never disassemble the UPS, it contains dangerous voltages. Do not connect medical equipment, motors, or vacuum cleaners. Do not place liquids nearby. In case of emergency, turn off and unplug the mains cord. Maintenance must be performed by qualified personnel.

How to replace the UPS fuse?

First, unplug the UPS from mains. Locate the fuse on the back of the unit (see diagram in the manual). Replace it with a fuse of the same type (a spare fuse is provided). Never use a different rating fuse.

USER MANUAL IPEL EVOLUTION 350 VA INFOSEC

To ensure good installation and maximum use of this product, we highly advise you to read this user's guide very carefully.

1. INTRODUCTION

This UPS is specially designed for multimedia Personal Computers. Its light weight and compact design perfectly fit with limited working environments. IPEL evolution range is equipped with boost and buck AVR to stabilize input voltage range. It is also built-in with DC start function. This function enables the UPS to be started up without AC power supplied. Although it's a small UPS, it's equipped with USB communication port to offer users more benefits. The software helps users monitor UPS status. Main features of iPEL evolution are listed below.

2. MAIN CHARACTERISTICS

• Microprocessor control guarantees high reliability.
• Equipped with boost and buck AVR.
  Built-in USB Communication Port.
• Green Power Function for energy saving.
  DC Start Function.
• Auto restart while AC recovery.
• Compact size, light weight.
• Provides modem / phone line surge protection.

3. SAFETY INSTRUCTIONS - Security

The UPS unit is potentially using hazardous voltages. Do not take this equipment apart. It does not contain accessible components to be repaired by users.
All repairs should be performed by qualified technicians only.
The UPS has its own internal power supply (battery). There is a risk that output sockets may still be live after the UPS has been disconnected from the mains power supply.
The UPS has been designed for power computers. It should not be used with power electronic equipment with inductive loads such as motors or fluorescent lights.
Do not connect any non-computer units to the UPS, such as medical equipment for artificial life handling, microwave, vacuum cleaner etc.
Laser printers should not be connected to the UPS as they consume too much power.
Make sure that the power supply required does not exceed the UPS's capacity. We recommend using an optimum power load equivalent to half or one third of the nominal power for longer backup functioning and longer battery life.
Do not leave any container with liquid on the UPS or close to it.
Unplug the UPS before proceeding to its cleaning. Do not use directly any liquid detergent or sprays.
The UPS should not be used in a damp place, nor exposed to direct sunlight or heat-emitting sources. Do not cover the ventilation grills.

In case of emergency, put the UPS on "OFF" position, then unplug the power cord from the power socket to disable the UPS completely.
Should the UPS fail to operate correctly, please refer to section 11: Trouble Shooting.

4. STORAGE INSTRUCTIONS

The UPS should be stored with its battery fully recharged. Storage temperatures above 20^ should be avoided as this will significantly shorten battery life. The UPS should be recharged once every 3 months. This is done by leaving it connected to the mains power supply for 24 hours. Batteries kept in storage should be recharged every 3 months, failure to do so, it could result in battery damage.

5. AFTER SALES SERVICE

IMPORTANT!

When calling the After-Sales Department, please have the following information ready, it will be required anyway: UPS model, serial number and date of purchase.

Accurate description of the problem providing the following details : type of equipment powered by the UPS, indicator led status, alarm status, installation and environmental conditions.

You will find the technical information you require on your guarantee or on the identification plate on the back of the unit. If convenient you may write down the details in the following box.

Model	Serial number	Date of purchase

! Please keep the original packaging. In case of return to the After-Sales Department, it will be required.

IMPORTANT :

UPS are part of electronic and electric equipments category. At the end of their lives, they have to be collected separately.

6.DESCRIPTION

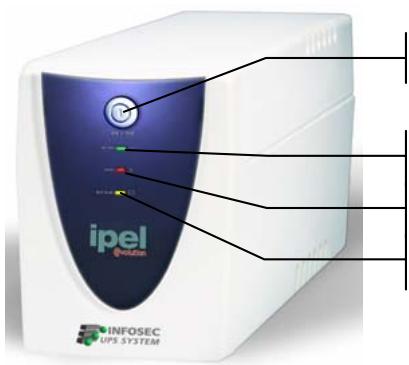

FRONT PANEL

On/Off switch

Green led lighting : AC mode

Red led lighting : Fault

Yellow led lighting : Battery mode

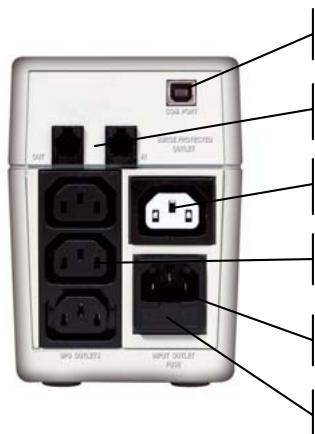

BACK PANEL

USB communication port

RJ11 connectors (Modem/Phone Line Surge)

Surge protected outlet for auxiliary peripheral

3 protected UPS outlets

Input socket

Fuse

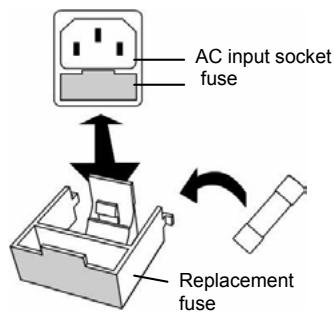

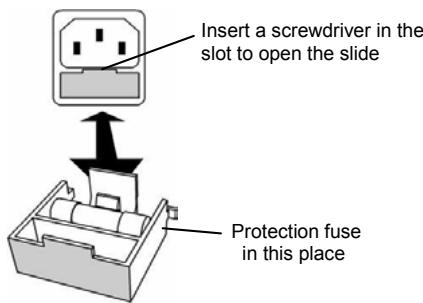

FUSE REPLACEMENT

7. INSTALLATION AND OPERATION

1. Control

When you receive your equipment, open the packaging and check that your UPS has not been damaged. The packaging includes : a UPS unit, a user's guide, a power cable, 3 IEC output cables, 1 RJ11 cable. In case of damage, please submit a standard claim to the after-sales service.

2. Charging

This unit is shipped from the factory with its internal battery fully charged, however, some charge may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an appropriate power supply and allow the UPS to charge fully by leaving it plugged-in for at least 8 hours with no load.

3. Place and installation

The UPS has been designed to operate in a protected environment, at temperatures between 0^ C and 40^ C and at a rate of humidity ranging between 0% and 90% (no condensation).

Do not obstruct the ventilation grills. Install the unit in an environment which is free from dust, chemical vapours and conductors.

Moreover, in order to avoid any interference, keep the UPS at least 20~cm away from the CPU (central processing unit).

4. Connection

Plug the UPS into a 2-pole, 3-wire grounded receptacle. Then connect one computer-related device into each of the power receptacles supplied on the back of the UPS.

You can also connect a device which does not require backup time, like a printer for example, into the surge protected and filtered outlet.

5. Turn On/Off

To turn on the UPS unit, press the power switch lightly. To turn off the UPS unit, press the power switch again.

6. DC Start

All of the iPEL evolution units are equipped with an integrated DC start function. To start the UPS in absence of power supply and with a full battery, press the button.

7. Green Power Function

All iPEL is equipped with Green Power Function. If no load connects to the UPS, it will automatically shut down in 2 minutes for energy saving while power failure. The Power switch must be kept in the 'ON' position, otherwise, the UPS will be disabled and your equipment will not be protected during a power failure.

8.Free Download Software -UPSurf Control

Go to Web sit: www.infosec.fr

8. COMPUTER INTERFACE

The interface USB at the back of the UPS may be connected to the computer. This port enables the computer to control the UPS status. The main functions are as follows :

• Transmission of a visual alarm in case of power failure
  Automatic file closure prior to battery running out
  UPS shutdown

9. PROTECTION FAX/MODEM LINE

If you wish to protect a fax or a modem, connect the telephone cable from the wall outlet to the "IN" jack. Connect the telephone cable (provided) from the "OUT" jack to the fax or modem.

Caution: The telephone line current lightning feature could be rendered inoperable if improper installed. This surge protection device is for indoor use only and never install telephone wiring during a lightning storm.

Note: This connection is optional. It is not necessary to use this UPS.

10. BATTERY

The battery is the only UPS component which is not in permanent use. It has a product life of approximately 3 to 5 years. However, frequent major discharges or exposure to temperatures over 20^ will shorten its product life. We therefore recommend that users recharge the battery once every 3 months when the unit is not in use in order to compensate for natural discharging. UPS back-up functioning time will depend on the load powered, the age and the condition of the batteries.

WARNING!

Batteries should always be replaced by qualified technicians. Batteries have a very high short circuit current : connection errors could cause electric arcs resulting in serious burns.

11. TROUBLE SHOOTING

Should the UPS fail to function correctly we recommend you to perform the following tests before calling the After Sales Department.

Check list :

• Is the main switch in the « ON » position?
  Is the UPS plugged into a powered mains?
• Does the power supply fall within specified unit values?
• Has the fuse gone in the mains plug?
  Is the UPS overloaded?
  Is the battery low or defective?

SYMPTOM	POSSIBLE CAUSE	SOLUTIONS
No LED display on the front panel.	1. Missing battery.	1. Charge battery up to 8 hours.
	2. Battery defect.	2. Replace with the same type of battery.
	3. Power switch is not pressed at least 5 seconds.	3. Press and Hold power switch for at least 5 seconds.
Alarm buzzer beeps continuously when AC supply is normal.	1. Overload of the UPS.	1. Verify that the load matches the UPS capability specified in the specs.
When power failure, back-up time is shorten.	1. Overload of the UPS.	1. Remove some non critical load.
	2. Battery voltage is too low.	2. Charge battery 8 hours or more.
	3. Battery defect due to high temperature operation environment, or improper operation to battery.	3. Replace with the same type of battery.
Mains normal but LED is flashing.	1. Fuse is blown.	1. Replace the same type of fuse.
	2. Power cord is loose.	2. Reconnect the power cord properly.
	3. No main or UPS is not on	3. Reconnect the power cord properly

12. TECHNICAL SPECIFICATIONS

		iPEL e 350	iPEL e 500	iPEL e 700	iPEL e 1000
TECHNOLOGY	Technology	Line interactive with Auto Voltage Regulation
	Output form	Modified sine wave
	Protection	discharge / overcharge and overload protection + fax modem line
	Power	350 VA	500 VA	700 VA	1000 VA
	Power factor	0,6	0,6	0,6	0,5
PHYSICAL	Dimensions WxDxH	100 X 330 X 140 (mm)
	Weight kg	4,8	5	6	6,5
	Output connectors	3 UPS protected outlets / 1 surge protected outlet / 2 surge protected RJ11
INPUT	Voltage	[110-115-120 V] or [220 - 230 - 240 V]
	Voltage range	[85 - 140 V] [162 - 290 V]
	Frequency	45 - 65 Hz auto detection
OUTPUT	Voltage	[110-115-120 V] or [220 - 230 - 240 V]
	Regulation	+ / - 10 % (battery mode)
	Frequency	Battery mode : 50 - 60 Hz +/- 1 Hz
BATTERY	Type	Sealed maintenance free
	Backup time	8 to 30 minutes (depending on the load)
	Recharge time	8 hours to 90 % after a complete discharge
FILTER	Spike protection	125 joules
ENVIRONMENT	Noise level	< 40 dB at 1 meter
	Operating environment	0° C - 40° C, 0 to 90 % humidity rate (non condensing)
INDICATOR	AC Mode	Green led lighting
	Backup Mode	Yellow led flashing
	Fault	Red led lighting
AUDIBLE ALARM	Battery Mode	Sounding every 10 seconds
	Battery replacement	Sounding every 2 seconds
	Low battery	Sounding second until automatic stop
	Overload or defect	Every 0,5 second
	Fault	Continuously sounding
INTERFACE	Communication port	USB
MANUFACTURING	Security / Standard	CE - ISO 9001 - PCT
