Brand	LA SOMMELIERE
Model	CVD131V
Product type	Wine cellar (sommelier)
Climate class	N (ambient temperature 16 °C to 32 °C)
Adjustable temperature range	4 °C to 18 °C (± 3 °C)
Default temperatures	Red wine: 12-16 °C, white wine: 6-10 °C
Refrigerant	R600a (isobutane), flammable
Electrical supply	220-240 V / 50 Hz (grounded outlet)
Display	Digital, average temperature
Thermostat adjustment	By SET, ▲, ▼ buttons; automatic confirmation after 10 s
Display in °C or °F	Yes, switching by long press on button
Interior lighting	Bulb E14, max power 15 W
Defrosting	Automatic (defrost cycle after compressor stop)
Door	Tempered glass with magnetic seal
Shelves	Chrome, height-adjustable, removable
Adjustable feet	Yes, at the front for leveling
Defrost water outlet	Groove and hole at the bottom of the cooling plate
Safety	Grounding mandatory; instructions against child entrapment
Cleaning	Warm water and vinegar; do not use abrasive cleaners
Bulb replacement	Unplug, unscrew cover, replace with max 15 W bulb
Extended shutdown	Unplug, clean, leave door slightly open
Installation	Back space ≥ 8 cm, sides ≥ 10 cm, distance from heat sources ≥ 5 cm
Noise	Compressor and refrigerant circulation normal; excessive noise often due to unstable installation

Frequently Asked Questions - CVD131V LA SOMMELIERE

How do I adjust the temperature of my wine cellar?

Press the SET button for about 2 seconds until you hear a beep. Use the ▲ and ▼ buttons to increase or decrease the temperature by 1 °C increments. Press SET again to confirm or wait 10 seconds for automatic validation.

Why does the appliance not work after plugging in?

Check that the cable is properly plugged into the wall outlet. Make sure the outlet is powered (no blown fuse or power outage). If the problem persists, contact an authorized repairer.

How do I change the interior bulb?

Unplug the appliance from the power supply. Use a screwdriver to remove the screw from the bulb cover. Unscrew the bulb counterclockwise and replace it with a bulb of max power 15 W. Screw the cover back on.

What should I do if ice forms on the back wall?

Automatic defrosting occurs normally. If the ice layer exceeds 3 to 5 mm, defrost manually: unplug the appliance, leave the door open. Never use an electrical appliance or sharp object. Once defrosted, plug back in and adjust the thermostat.

Why is there water leaking from the appliance?

The water is likely due to a blocked defrost outlet or groove. Clean the defrost hole. If ice is excessive, defrost manually (see previous question).

The appliance makes an unusual noise, is this normal?

A noise of liquid or compressor is normal. If the noise is very loud, check that the appliance is level, installed on a stable base, and not touching any wall or furniture. Make sure interior accessories are properly in place and bottles are not touching each other.

How do I clean the interior of the wine cellar?

Unplug the appliance. Remove removable accessories and clean them with water and liquid detergent. Wash the interior with warm water mixed with one or two tablespoons of vinegar. Do not use abrasive cleaners. Dry and plug back in.

What is the ideal temperature for red wine and white wine?

For red wine, the optimal temperature is between 12 °C and 16 °C. For white wine, it is between 6 °C and 10 °C. Use the RED or WHITE buttons to select the corresponding default temperature.

Can I install the appliance near a cooker?

The appliance must be installed at least 5 cm from a gas or electric cooking appliance, and at least 30 cm from a coal or oil stove. A space of 8 cm at the back and 10 cm on the sides is necessary for proper ventilation.

How can I save energy with my wine cellar?

Do not open the door too often and close it quickly. Check that ventilation at the back is sufficient. Set the thermostat as low as possible according to the contents. Replace the door seal if damaged to ensure good sealing.

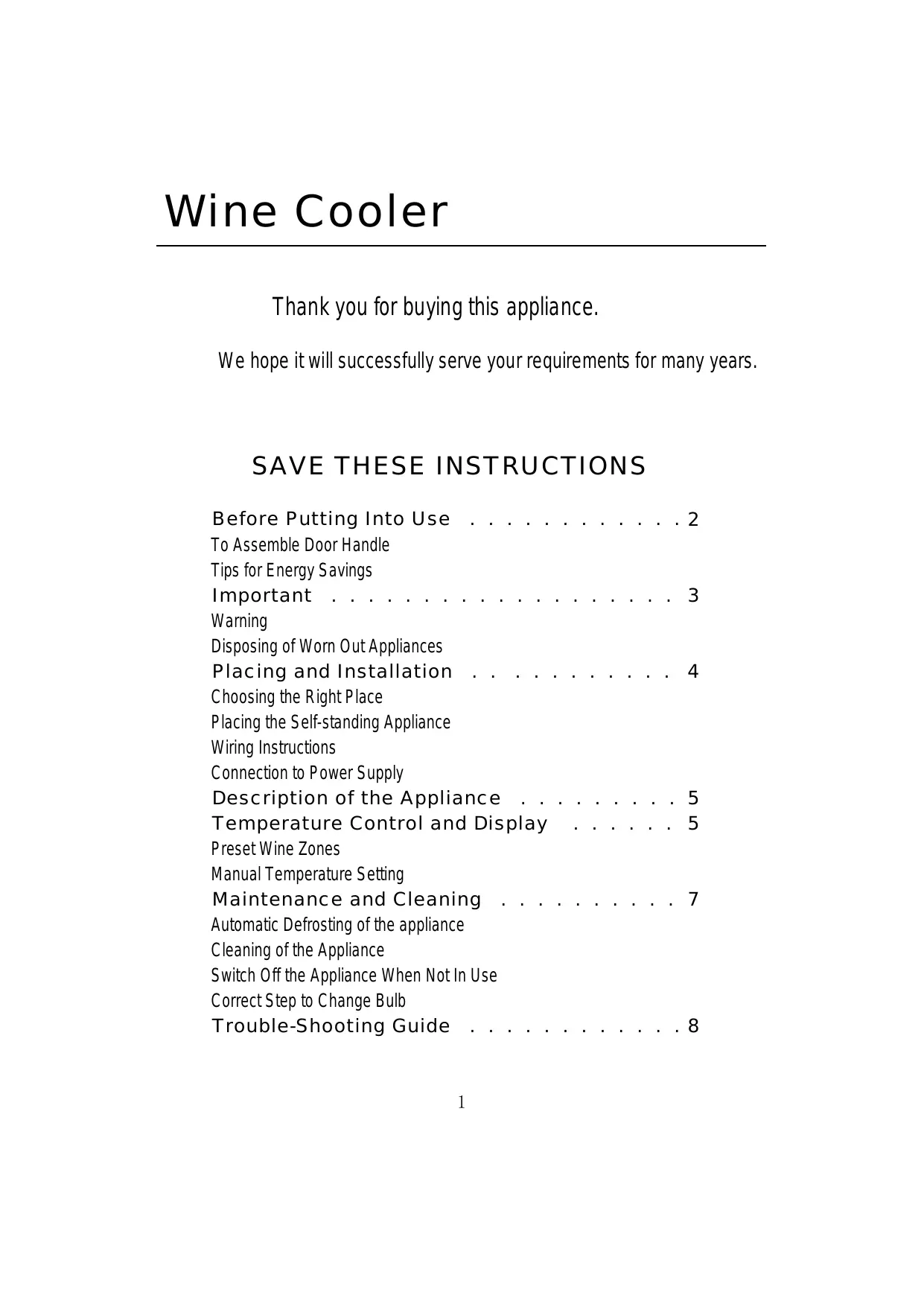

USER MANUAL CVD131V LA SOMMELIERE

. Before Putting Into Use 2
.Important 3
. Placing and Installation 4
. Description of the Appliance 5
. Temperature Control 5
. Maintenance and Cleaning 7
. Trouble Shooting Guide 8

CAUTION:

Read and follow all safety rules and operating instructions before first use of this product.

Thank you for buying this appliance.

We hope it will successfully serve your requirements for many years.

SAVE THESE INSTRUCTIONS

Before Putting Into Use 2

To Assemble Door Handle

Tips for Energy Savings

Important 3

Warning

Disposing of Worn Out Appliances

Placing and Installation 4

Choosing the Right Place

Placing the Self-standing Appliance

Wiring Instructions

Connection to Power Supply

Description of the Appliance 5

Temperature Control and Display 5

Preset Wine Zones

Manual Temperature Setting

Maintenance and Cleaning 7

Automatic Defrosting of the appliance

Cleaning of the Appliance

Switch Off the Appliance When Not In Use

Correct Step to Change Bulb

Trouble-Shooting Guide 8

Before Putting Into Use

To Assemble Door Handle

To save shipping space and avoid damage of the unit during transportation, the door handle of this unit is shipped unassembled. Before putting the unit into use you are kindly asked to assemble the door handle as follows:

• Locate the door handle and 2 screws attached inside the cabinet, and prepare an appropriate screwdriver.
  With the 2 screws attached, fasten the door handle onto the frame of the door panel as illustrated. Be sure that the screws must point to the holes on the frame of the door panel when doing so.

• Before connecting the appliance to electrical power supply, leave it to stand for about 4 hours, which will reduce the possibility of malfunctions in the cooling system due to transport handling.
• Clean the appliance thoroughly, especially in the interior (See Cleaning and Maintenance).
• In case the interior accessories are not correctly placed, rearrange them as described in chapter "Description of the Appliance".

Instructions for Use

These instructions for use are intended for the user. They describe the appliance and correct operating procedures for safe use.

SAVE THESE INSTRUCTIONS:

Tips for Energy Saving

• Try not to open the door too often, especially when the weather is hot and humid. Once you open the door, close it as soon as possible. This is especially important if you have an upright model.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
• Set the thermostat from higher to lower settings as soon as possible (depends on how loaded the appliance is, ambient temperatures etc.).
• If the gasket is damaged or the door seal is poor, energy consumption is substantially higher. To restore efficiency, replace the gasket.
• Always consider instructions stated in sections Positioning and Energy Saving Tips, otherwise the energy consumption is substantially higher.

Important

• If you have bought this appliance to replace an old one equipped with a door lock that cannot be opened from the inside (lock, bolt), make sure that the lock is removed, disabled or destroyed before discarding. This will make it impossible for children to accidentally lock themselves inside the appliance and suffocate
• To avoid risk of child entrapment, leave the shelves in place so children can not easily climb inside even when the appliance is in routine use or not in use at home.
• The appliance must be properly connected to an electrical power supply. (See: Connection to Power Supply).
• Do not use an extension cord.
• Always disconnect the appliance from the power supply before cleaning the appliance, or attempting repairs.

WARNING:

• This unit is supplied with flammable refrigerant ISO BUTANE (R600a). It must be transported and installed with the utmost care since any excessive knocking or shaking could damage the refrigerating circuit.
• Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
• Do not use mechanical devices or other means to accelerate defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliance inside the food storage compartments of the appliance, unless they of the type recommended by the manufacturer.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Disposing of Worn Out Appliances

DANGER OR WARNING: Risk of child entrapment. Before you throw away your old appliance:
-Take off the doors
- Leave the shelves in place so children may not easily climb inside.
- The cooling system of the appliance is filled with refrigerant and insulating substances which should be separately treated and processed. Call your nearest authorised service agent. If you are unable to locate one, contact your local authorities or your distributor. Be careful not to damage the tubes on the rear wall of the appliance (danger of pollution).
- DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Placing and Installation

CHOOSING THE RIGHT PLACE

WARNING

This appliance is intended to be used in the ambient temperature of climate class "N".

Place the appliance in a dry and regularly ventilated room. Never place the appliance near heat emitting devices (e.g. cooking appliances, radiators, water heaters or similar devices) and do not expose to direct sunlight.

The appliance should be positioned at least 2in. away from electric or gas cooking appliances and at least 30cm away from oil or coal fired stoves. If this is not possible, use an appropriate insulation barrier.

Behind the appliance there should be a free space of at least 8cm. Kitchen units (cupboards) should be at least 5cm away from the appliance in order to assure adequate ventilation. There should be 10cm between both size of the chiller and other article.

Placing the Self-standing Appliance

Place the appliance firmly on a solid base. Some appliances have adjustable feet on the front side; use them to level the appliance.

Instructions to avoid to the risk of fire, electric shock, or injury to persons.

WIRING INSTRUCTIONS

For your personal safety, this appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having an earthing conductor. The plug must be plugged into an appropriate wall outlet that is installed and wired in accordance with all existing local codes and ordinances. Consult a qualified electrician or serviceman if the wiring instruction are not clearly understood, or if doubt exists as to whether the appliance is properly earthed.

CONNECTION TO POWER SUPPLY

Connect the appliance power cord and plug to a properly earthed wall outlet. The required nominal voltage and frequency are indicated on the rating plate (inside the unit or on the exterior rear wall of the unit).

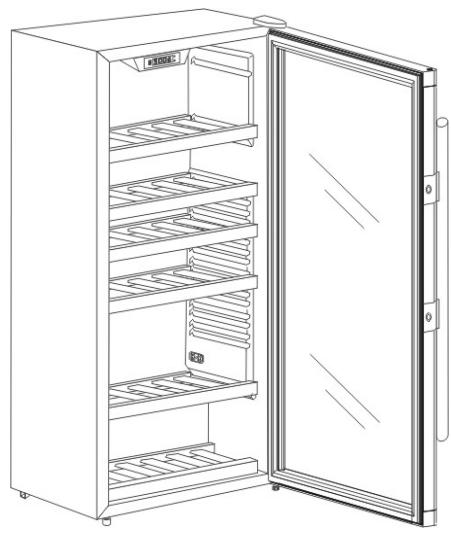

Description of the appliance

Adjustable Wire Shelves

Shelves can be optionally placed on the guides inside the appliance where appropriate.

Defrost Water Outlet

The interior of the appliance is cooled with a cooling plate mounted in the rear wall. Under the plate there is a channel and an outlet for defrost water. Regularly check the defrost water outlet and the drain channel for blockage. They should always be kept free and clean of particles.

WE RESERVE THE RIGHT TO ALTER THE SPECIFICATIONS WITH NO EFFECT ON THE OPERATION OF THE APPLIANCE.

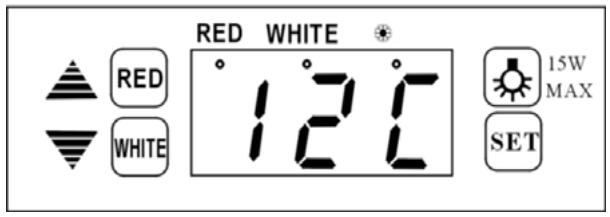

Temperature Control and Display

• The temperature range of the wine cooler is intended for 4^ C to 18^ C (+ / - 3^ C) .
  . Average temperature for red wine is 12^ C to 16^ C .
  . Average temperature for white wine is 6^ C to 10^ C .
  . The display usually shows the average temperature of the appliance at that moment.

PRESET WINE ZONES:

Press the [Red] or [White] pads to choose preset storage conditions for Red or White Wine. (The indicator 'RED' or 'WHITE' will light accordingly.) The programmed Temperature for red or white wine will be displayed for a few seconds.

MANUAL TEMPERATURE SETTING:

The temperature of the wine cooler can be set anywhere between 4^ to 18^ by the temperature up and temperature down pads as follows:

(1) Press the [SET] pad until you hear a "beep" sound (approximately 2 seconds).
(2) Press the pads to increase or decrease the desired temperature in increments of one degree.
(3) Press the [SET] pad to confirm your choice - if no pad is pressed within 10 seconds your choice will be automatically confirmed.

NOTES:

. The temperature display can be changed between Celsius and Fahrenheit by pressing and holding the pad for approximately 2 seconds.
. The indicator indicates status of the refrigeration cycle as follows:

(1) It remains ON during the refrigeration cycle; (2) It remains OFF during the idle cycle.

. To switch the interior light on/off, simply press the pad.

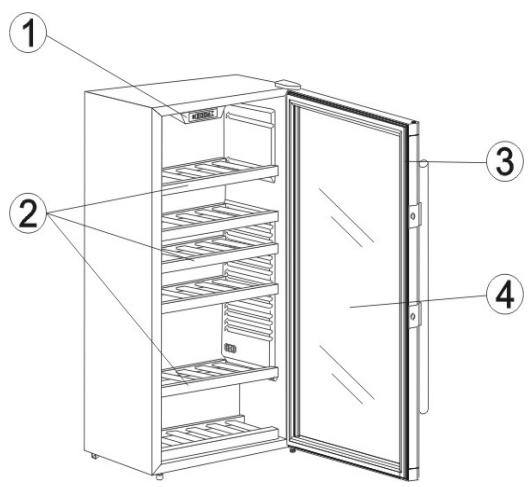

ILLUSTRATION OF THE APPLIANCE

1. THERMOSTAT:

For controlling the temperature inside the wine cooler.

1. CHROME PLATED SHELVES:

Removable for easy cleaning.

1. MAGNETIC GASKET: Tight fitting door seal keeps all the cooling power locked inside. No hooks or latches.
2. TEMPERED GLASS DOOR:

Allows easy interior visibility.

Maintenance and Cleaning

Automatic Defrosting of the Appliance

There is no need to defrost the cooler, because ice depositing on the inner back wall is defrosted automatically.

Ice build-up on the inner back wall during the compressor operation will defrost automatically (when the compressor has cycled off). Defrost water will drain out passing through the drain outlet in the inner back wall into a drain pan situated above the compressor, from where it evaporates.

Cleaning the Appliance

Disconnect the power supply before cleaning the appliance.

Do not use coarse or aggressive cleaning agents as you may damage the surface.

Clean the exterior with water and detergent. Remove the detachable accessories in the interior of the appliance and clean with water and liquid detergent. Plastic parts cannot be washed in dishwashers.

• Wash the interior of the appliance with lukewarm water, adding one or two spoonfuls of vinegar. After cleaning, connect the appliance to power supply and reload it.

Switch Off the Appliance When Not In Use

If you do not intend to use the appliance for long periods of time, disconnect the power supply, take out the contents and defrost and clean the appliance. Leave the door slightly open.

Correct Step to Change Bulb:

1.Pull out the power plug from wall socked. Use a screw driver to loose the screw that holds the bulb protective cover and then remove the cover.
2.Screw out the old bulb counter-clockwise.
3.Screw on a new bulb ( max. power 15W) clockwise.
4. Replace the bulb protective cover.

Very important:

Be sure to disconnect power supply before you change bulb.

• Sometimes you may come across minor problems that in most cases do not require a service call and can be easily eliminated. The problem may have resulted from improper handling and / or installation of the appliance. Please refer to the below trouble-shooting guide to assist you in identifying the possible cause and solution to your problem. Should the problem still persist after completing these checkpoints, contact the closest authorized service agent in your area for assistance.

The Appliance Fails to Operate After Connecting to Electrical Power Supply

• Check the power cord is properly connected.
• Check the power supply in the electrical outlet. (blown fuse / circuit breaker).

Continuous Operation of the Cooling System

• The door is frequently opened or left open for too long.
• The door is not properly closed (the door may sag, the gasket may be polluted or damaged).
  Perhaps you may have overloaded the appliance.
• The reason may be inadequate ventilation of the compressor (assure adequate air circulation).

Ice Formation on the Inner Rear Wall

As long as the defrost water runs to the channel and through the outlet to the drain pan on the compressor, automatic defrosting of the appliance is assured.

In case the ice formation on the inner back wall is increased (3-5mm.), ice should be manually defrosted.

Disconnect the power supply, leave the door open and defrost the ice. Never use electric devices for defrosting and do not scrape the ice or frost layer with sharp objects.

After defrosting is complete, close the door, connect the power supply and set the temperature as desired. The cause of increased ice formation may be one of the following:

• the door does not seal well (clean the gasket if it is contaminated, or replace it if it is damaged);
• the door is frequently opened or left open too long;
• the content stored in the appliance was warm;
• the contents are touching the inner back wall.

Water is Leaking From the Appliance

If the discharge water outlet is clogged, or the defrost water drips over the channel, water will leak from the appliance.

Clean the clogged outlet.
. Manually defrost the increased ice layer ( see Ice Formation on the Inner Rear Wall ).

Noise

Cooling in this appliance is made possible by cooling the system using a compressor, which will produce certain noise levels. How noisy the appliance is depends on where it is placed, how it is used and how old the appliance is.

During the operation of the compressor the noise of the liquid is heard and when the compressor is not operating, the refrigerant flow is heard. This is a normal condition and it has no influence whatsoever on the lifetime of the appliance.
After starting the appliance, the operation of the compressor and the refrigerant flow may be louder, which does not mean that something is wrong with the appliance and it has no influence on the lifetime of the appliance. Gradually the noise will reduce.
Sometimes unusual and louder noise may be heard. This noise is often a consequence of inadequate installation.
- The appliance must be level and installed on a firm solid base/floor.
- The appliance should not touch the wall or kitchen units standing next to it.

Check the accessories on the interior of the appliance, they should be placed correctly in their positions; also check bottles, tins, and other vessels are not touching each other causing rattling and/or vibrations.

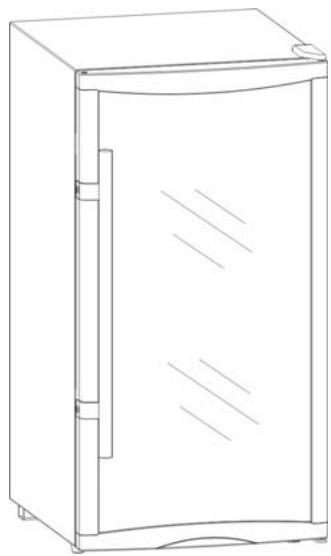

Weinkühler
