USER MANUAL INCOGNITO SS10 CAMBRIDGE AUDIO

6.5” Passive Ceiling Speakers

CONTENTS Introduction

Preparing the location

Painting the frame and grille .

Care and maintenance …

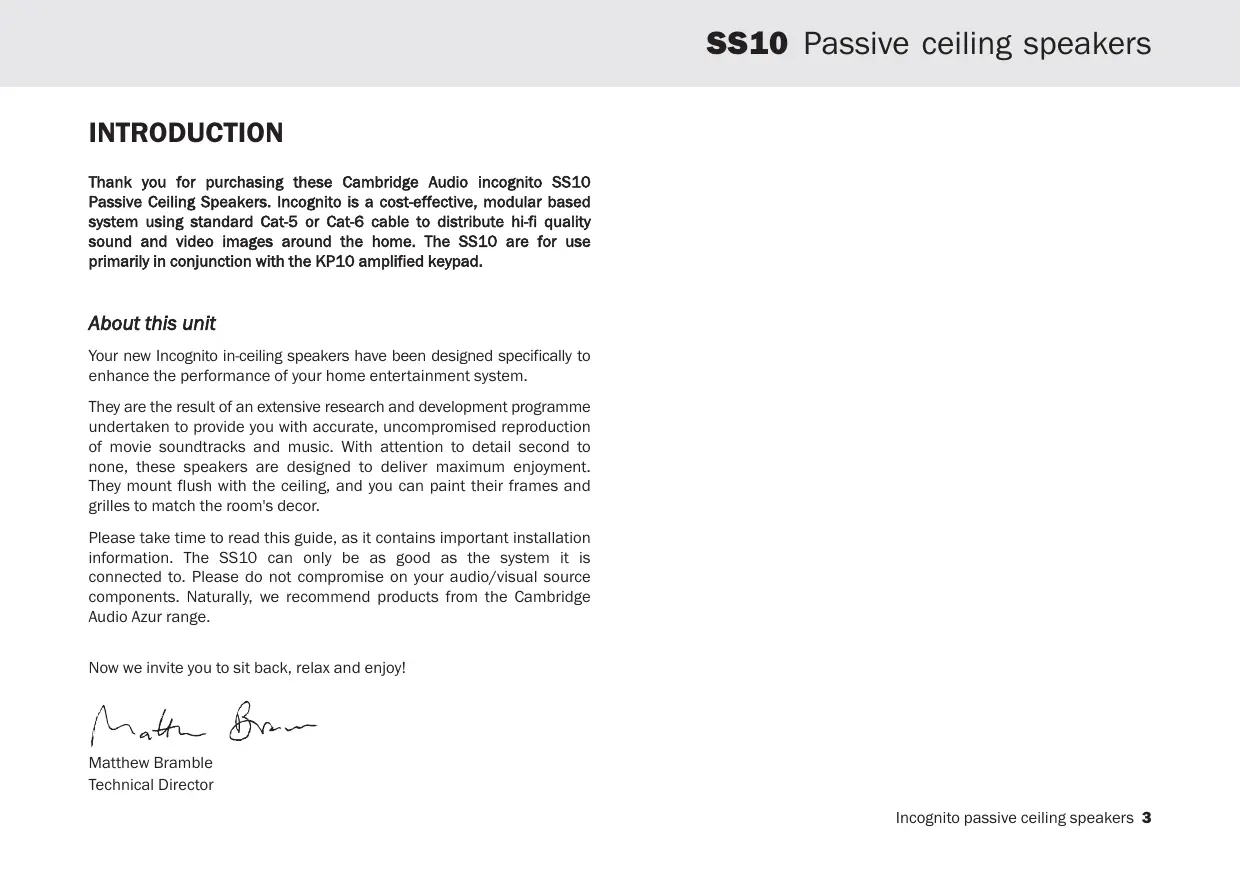

INTRODUCTION Thank you for purchasing these Cambridge Audio incognito SS10 Passive Ceiling Speakers. Incognito is a cost-effective, modular based system using standard Cat-5 or Cat-6 cable to distribute hi-fi quality sound and video images around the home. The SS10 are for use primarily in conjunction with the KP10 amplified keypad.

Your new Incognito in-ceiling speakers have been designed specifically to enhance the performance of your home entertainment system.

They are the result of an extensive research and development programme undertaken to provide you with accurate, uncompromised reproduction of movie soundtracks and music. With attention to detail second to none, these speakers are designed to deliver maximum enjoyment. They mount flush with the ceiling, and you can paint their frames and grilles to match the room's decor.

Please take time to read this guide, as it contains important installation information. The SS10 can only be as good as the system it is connected to. Please do not compromise on your audio/visual source components. Naturally, we recommend products from the Cambridge Audio Azur range.

Now we invite you to sit back, relax and enjoy!

Matthew Bramble Technical Director

SS210 Passive ceiling speakers

Incognito passive ceiling speakers 3

PREPARING THE LOCATION It is advisable to plan all aspects of installation in advance of work beginning, preferably with the house/flat building schematics if available. Great care should be taken to ensure that all building regulations are followed. fin doubt consult an expert.

When placing the SS10 speakers, thought should be given to positions which give the best desired sound coverage throughout a room, while not interfering with existing or planned light fittings or joists. Also, locate speakers taking into account location of furnishings for optimal stereo reproduction.

Follow these steps to prepare the mounting location:

1. Remove the round cardboard pad from inside the supplied template (see below).

207mm diameter 1 \ mounting hole

4 incognito passive ceiling speakers

Use the template to mark the position for the mounting hole at the selected location.

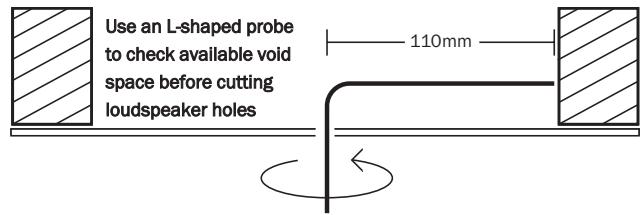

Before cutting ceiling speaker holes, it is suggested that the area is tested for clearance by making an Lshaped probe from strong wire (see illustration below), driling a small hole in the target area, inserting the probe and slowly turning. Any obstructions will be immediately obvious, and the target area can be moved to a more suitable position.

Use an L-shaped probe

to check available void From

space before cutting loudspeaker holes

Cutthe mounting hole with a drywall or keyhole saw.

Be sure the mounting surface is between 10 and 30mm thick, and that there is at least 80mm of clearance behind the mounting surface. Also, be sure no wall studs or other objects block the back ofthe speaker.

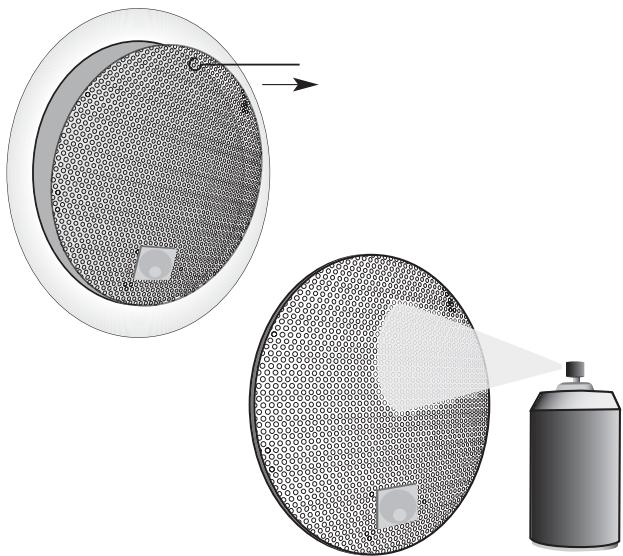

PAINTING THE FRAME AND GRILLE Remove grille by inserting a small hook or similar small implement into one ofthe grille openings, then pulling on the grille.

Fit the clear plastic painting mask provided when painting the speaker surround to avoid getting paint getting on the speaker cone.

SS210 Passive ceiling speakers

CARE AND MAINTENANCE Your speakers are an example of superior design and craftsmanship. These suggestions will help you care for them so you can enjoy them for years.

Keep the speakers dry. If they get wet dry immediately. Liquids can contain minerals that can corrode electronic components.

Keep the speakers away from dust or dirt, which can cause premature wear of parts.

Wipe the speaker frame occasionall with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

Incognito passive ceiling speakers 5

Before mounting, ensure that the four fixing screws are slackened off so 2. Separate about 100 mm of speaker cable at each end.

that the red mounting dog-legs can move freely.

3. Using a wire stripper, remove about 10mm of insulation from both ends of each conductor, and then twist the strands of each conductor (fig.1).

Move each red dog-leg foot to the LEFT into it's holding slot, and then insert the speaker into the mounting hole.

Using a cross-head screwdriver, slowly turn each fixing screw clockwise.

This will move the mounting dog'legs out of their slots. 4. Observing polarity is of the utmost importance while connecting

Tighten each fixing screw until the mounting dog-legs grip the ceiling. your speakers. Ensure that the red (+) terminals on your amplification system are connected to the red (+) on the speakers, and black (-) on your amplification system to black (-) on your speakers (fig.2).

CONNECTING THE SS10 The speaker cable is coded with a bead or stripe down one

lead's insulation, or has differentiy coloured wires.

Press the springloaded red or black tab back to reveal the

connecting hole. Insert the stripped end of the speaker wire,

then release the tab.

Do not compromise the performance of your system by using inferior quality speaker cables. We recommend that high quality cables of 16 gauge or higher be used. Your professional dealer will give you good advice. Always unplug all A.C. powered components before making any loudspeaker or component connections. This will avoid the risk of electric shock or damage to your equipment.

5. If your speakers are wired incorrectiy they will be out of phase and sound hollow and indistinct, with a weak bass. Re-check your connections for correct polarity and reverse the connections

if necessary. Follow these steps to connect the speaker to your amplification system:

1. Route the speaker cable from your amplification system to the speakers.

+ Avoid routing the speaker cable near electrical wires + Do not nail or staple the cable 100mm

6 incognito passive ceiling speakers

TROUBLESHOOTING There is no sound Ensure that the amplifier is set correctiy.

Check that the interconnects are inserted correctly.

The sound is distorted or garbled

Check aerial connections and placements.

There is a hum coming from the speaker

Ensure that all cable connections are secure.

There is unwanted background noise and interference Move the tuner (or other source) away from any other electrical equipment that may be likely to cause interference.

The remote handset will not function

Check that the batteries have not expired.

Ensure that nothing is blocking the remote sensor.

SS210 Passive ceiling speakers

SPECIFICATIONS Frequency response G0Hz-20kHZz (+/- 2dB)

Operational efficiency 90dB for 2.83V Weight 11kg /2.41bs

Dimensions 240 x 75mm (9.4 x 3")

The crossed-out wheeled bin is the European Union symbol for indicating separate collection for electrical and electronic equipment. This product contains electrical and electronic equipment which should be reused, recycled or recovered and should not be disposed of with unsorted regular waste. Please return the unit or contact the authorised dealer from whom you purchased this product for more information.

Incognito passive ceiling speakers 7

LIMITED WARRANTY Cambridge Audio warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below). Cambridge Audio will repair or replace (at Cambridge Audio's option) this product or any defective parts in this product. Warranty periods may vary from country to country. If in doubt consult your dealer and ensure that you retain proof of purchase.

To obtain warranty service, please contact the Cambridge Audio authorised dealer from which you purchased this product. If your dealer is not equipped to perform the repair of your Cambridge Audio product, it can be returned by your dealer to Cambridge Audio or an authorised Cambridge Audio service agent. You will need to ship this product in either its original packaging or packaging affording an equal degree of protection.

Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service.

This warranty is invalid if (a) the factory-applied serial number has been altered or removed from this product or (b) this product was not purchased from a Cambridge Audio authorised dealer. You may call Cambridge Audio or your local country Cambridge Audio distributor to confirm that you have an unaltered serial number and/or you purchased from a Cambridge Audio authorised dealer.

This warranty does not cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of, or to any part of, the product. This warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than Cambridge Audio or a Cambridge

8 Incognito passive deckenlautsprecher

Audio dealer, or authorised service agent which is authorised to do Cambridge Audio warranty work. Any unauthorised repairs will void this warranty. This warranty does not cover products sold AS IS or WITH ALL FAULTS.

REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER INCLUDING, BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.

Some countries and US states do not allow the exclusion or limitation of incidental or consequential damages or implied warranties so the above exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other statutory rights, which vary from state to state or country to country.
