Brand	DEWALT
Model	DW160V
Product Type	Angle drill
Rated Voltage	230 V
Power Consumption	350 W
No-load Speed	1 200 min⁻¹
Drilling Capacity (steel)	10 mm
Drilling Capacity (soft wood)	20 mm
Minimum Chuck Capacity	0.8 mm
Maximum Chuck Capacity	10 mm
Chuck Type	3/8 x 24 UNF
Weight	1.7 kg
Recommended Fuse	10 A (230 V)
Sound Pressure Level	82.5 dB(A)
Sound Power Level	90.5 dB(A)
Vibration (acceleration)	5.2 m/s²
Double Insulation	Yes (class II)
Package Contents	Drill, chuck key, side handle, manual, exploded view, purchase certificate
Maintenance	Regular cleaning of ventilation slots, no lubrication required
Warranty	1 year (manufacturing defects) + 30 days satisfaction
Available Spare Parts	Chuck, chuck key, side handle
Intended Use	Drilling in hard-to-reach places

Frequently Asked Questions - DW160V DEWALT

How to change the drill bit on the DEWALT DW160V?

To change the bit, insert the chuck key into one of the chuck holes and turn counterclockwise to loosen the jaws. Remove the old bit, insert the new one, then tighten by turning the key clockwise in each hole. Ensure the bit is securely tightened before use.

What safety instructions should be followed?

Wear safety glasses and a dust mask if necessary. Do not wear loose clothing or jewelry. Keep the work area clean and well lit. Use a residual current device (RCD) outdoors. Always disconnect the tool before any adjustment or maintenance.

What type of extension cord should be used?

Use an approved three-conductor extension cord with a minimum cross-section of 1.5 mm², suitable for the tool's power (350 W). If using a reel, unwind the cable completely.

How to clean and maintain the drill?

Regularly clean the ventilation slots with a soft cloth to prevent overheating. The drill does not require any additional lubrication. Periodically check the condition of the power cord and have it replaced by an authorized service center if damaged.

What accessories are compatible?

Only use accessories recommended in the manual, such as drill bits with diameters between 0.8 mm and 10 mm, with a suitable chuck shank (3/8 x 24 UNF). Contact your dealer for specific accessories.

What is the supply voltage?

The drill operates at 230 V. Check that your mains supply matches this voltage. The tool is double insulated, so no grounding connection is needed.

Is the drill double insulated?

Yes, the DEWALT DW160V is double insulated according to prEN 50144 (class II). This means it does not require a ground connection for safe use.

How to remove the chuck?

To remove the chuck, insert the chuck key into one of the holes and tap the key with a hammer to loosen it. Then unscrew the chuck by hand. Caution: always disconnect the tool before this operation.

What to do if the drill does not start?

First, check that the plug is properly connected and the switch is in the on position. If the problem persists, check the mains fuse (10 A recommended) and the condition of the power cord. If necessary, have the tool repaired by an authorized DeWALT service center.

What warranty is offered?

DeWALT offers a 1-year warranty against manufacturing defects, along with a 30-day satisfaction guarantee. Keep the proof of purchase. Repairs must be carried out at an authorized service center.

USER MANUAL DW160V DEWALT

Technical diagram of a handheld electric shaver with numbered parts labeled for identification.

A

B

Technical diagram showing mechanical assembly with labeled parts 1 and 5, including a downward arrow indicating motion or assembly.

C

Technical diagram showing three labeled mechanical components with arrows indicating assembly or connection points.

D

KRAFTIG VINKELBOREMASKINE DW160

Tillykke!

You have chosen a DeWALT Power Tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional Power Tool users.

Table of contents

Technical data	en - 1
Declaration of conformity	en - 1
Safety instructions	en - 2
Package contents	en - 3
Description	en - 3
Electrical safety	en - 3
Mains plug replacement (U.K. & Ireland only)	en - 3
Using an extension cable	en - 3
Assembly and adjustment	en - 4
Instructions for use	en - 4
Maintenance	en - 4
Guarantee	en - 4

Technical data

		DW160
Voltage	V	230
(U.K. & Ireland only)	V	240/115
Power input	W	350
No load speed	min^-1	1,200
Maximum drilling range in steel/softwood	mm	10/20
Chuck spindle thread size	UNF	3/8 x 24
Minimum chuck capacity	mm	0.8
Maximum chuck capacity	mm	10
Weight	kg	1.7

Fuses:

Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	240 V tools	13 Amperes, in plugs
	115 V tools (< 1500 W)	15 Amperes, mains

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

Declaration of conformity

DW160

DeWALT declares that these Power Tools have been designed in compliance with: 89/392/EEC, 89/336/EEC, 73/23/EEC, prEN 50144, EN 55014.

Level of sound pressure according to 86/188/EEC & 89/392/EEC, measured according to prEN 50144:

		DW160
L_pA (sound pressure)	dB(A)*	82.5
L_WA (acoustic power)	dB(A)	90.5

* at the operator's ear

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is exceeded.

Radio and TV suppression in compliance with 76/889/EEC & 82/499/EEC.

Weighted root mean square acceleration value according to prEN 50144:

	DW160
	5.2 m/s ^2

European Director

Product Planning & Development David Wilson

$$ \dot {x} $$

DeWALT, Idstein, Germany

Safety instructions

When using Power Tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions before attempting to operate this product.

Keep these instructions in a safe place!

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose Power Tools to humidity. Keep work area well lit. Do not use Power Tools in the presence of inflammable liquids or gases.

3 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). For use under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.) electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

4 Keep children away

Do not let children come into contact with the tool or extension cord. Keep all people away from the work area.

5 Extension cords for outdoor use

When the tool is used outdoors, always use extension cords intended for outdoor use and marked accordingly.

6 Store idle tools

When not in use, Power Tools must be stored in a dry place and locked up securely, out of reach of children.

7 Dress properly

Do not wear loose clothing or jewellery. They can be caught in moving parts. Preferably wear rubber gloves and non-slip footwear when working outdoors. Wear protective hair covering to keep long hair out of the way.

8 Wear safety goggles

Also use a face or dust mask in case the operations produce dust or flying particles.

9 Beware of maximum sound pressure

Take appropriate measures for the protection of hearing if the sound pressure of 85 dB(A) is

exceeded.

10 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

11 Do not overreach

Keep proper footing and balance at all times.

12 Avoid unintentional starting

Do not carry the plugged-in tool with a finger on the switch. Be sure that the switch is released when plugging in.

13 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

14 Disconnect tool

Shut off power and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before servicing or changing accessories.

15 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

16 Use appropriate tool

The intended use is laid down in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended.

Warning! The use of any accessory or attachment or performance of any operation with this tool, other than those recommended in this instruction manual may present a risk of personal injury.

17 Do not abuse cord

Never carry the tool by its cord or pull it to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Inspect the tool cords at regular intervals and, if damaged, have them repaired by an authorized DeWALT repair agent. Inspect the extension cords periodically and replace them if damaged. Keep all controls dry, clean and free from oil and grease.

19 Check for damaged parts

Before using the tool, carefully check it for

damage to ensure that it will operate properly and perform its intended function. Check for misalignment and seizure of moving parts, breakage of parts and any other conditions that may affect its operation. Have damaged guards or other defective parts repaired or replaced as instructed.

Do not use the tool if the switch is defective. Have the switch replaced by an authorized DeWALT repair agent.

20 Have your tool repaired by an authorized DeWALT repair agent

This Power Tool is in accordance with the relevant safety regulations. To avoid danger, electric appliances must only be repaired by qualified technicians.

Package contents

The package contains:

1 Heavy duty right angle drill
1 Chuck key
1 Chuck key holder
1 Instruction manual
1 Exploded drawing
1 Registration card

- Check for damage to the tool, parts or accessories which may have occurred during transport.

• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

Your DeWALT Heavy Duty Right Angle Drill is a professional Power Tool that has been designed especially for drilling in confined spaces.

1 Chuck
2 Paddle switch
3 Tool housing
4 Chuck key holder
5 Chuck key
6 Pilot hole
7 Chuck guard
8 Chuck jaws

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DeWALT tool is double insulated in accordance with prEN 50144; therefore no earth wire is required.

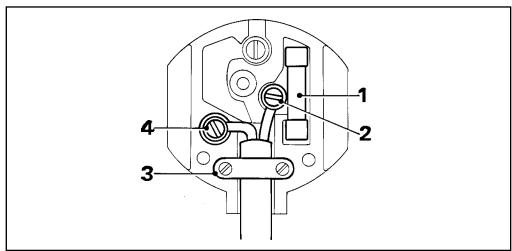

Mains plug replacement (U.K. & Ireland only)

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DeWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

1 2 3 4

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or 12 .

For 115 V tools, use plugs to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved triple-core extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2)			Cable rating (Amperes)
0.75			6
1.00			10
1.50			15
2.50			20
4.00			25
Cable length (m)
			7.5	15	25	30	45	60
Voltage	Amperes		Cable rating (Amperes)
115	0 - 2.0		6	6	6	6	6	10
	2.1 - 3.4		6	6	6	6	15	15
	3.5 - 5.0		6	6	10	15	20	20
	5.1 - 7.0		10	10	15	20	20	25
	7.1 - 12.0		15	15	20	25	25	-
	12.1 - 20.0		20	20	25	-	-	-
220/240	0 - 2.0		6	6	6	6	6	6
	2.1 - 3.4		6	6	6	6	6	6
	3.5 - 5.0		6	6	6	6	10	15
	5.1 - 7.0		10	10	10	10	15	15
	7.1 - 12.0		15	15	15	15	20	20
	12.1 - 20.0		20	20	20	20	25	-

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

Inserting and removing a bit (fig. A)

• Align the pilot hole (6) in the chuck (1) with an opening in the chuck guard (7).
• Insert the chuck key into the pilot hole (6).
• Open the chuck jaws (8) by turning counterclockwise.
• Insert the shank of a bit into the chuck.
• Tighten the chuck using all three holes.
• To remove the bit, proceed in reverse order.

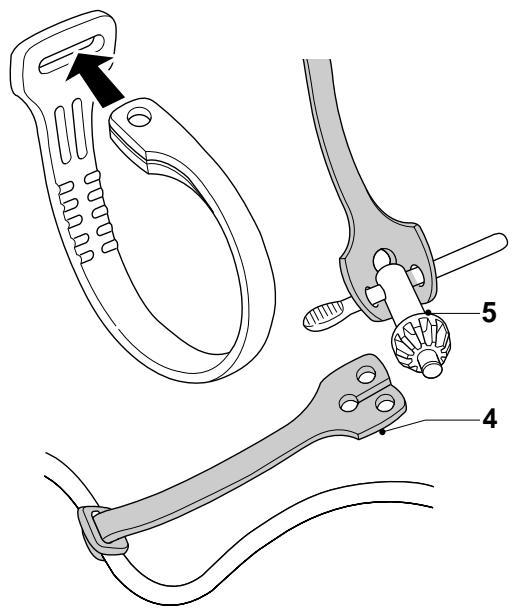

Chuck key holder (fig. D)

Your DeWALT Heavy Duty Right Angle Drill is supplied with a chuck key holder.

- Fit the chuck key (5) to the chuck key holder (4) as shown.

Instructions for use

Always observe the safety instructions and applicable regulations.

Prior to operation:

• Insert the appropriate bit.
• Mark the spot where the hole is to be drilled.

Switching ON and OFF (fig. A)

• To run the tool, press the paddle switch (2).
• To stop the tool, release the paddle switch.

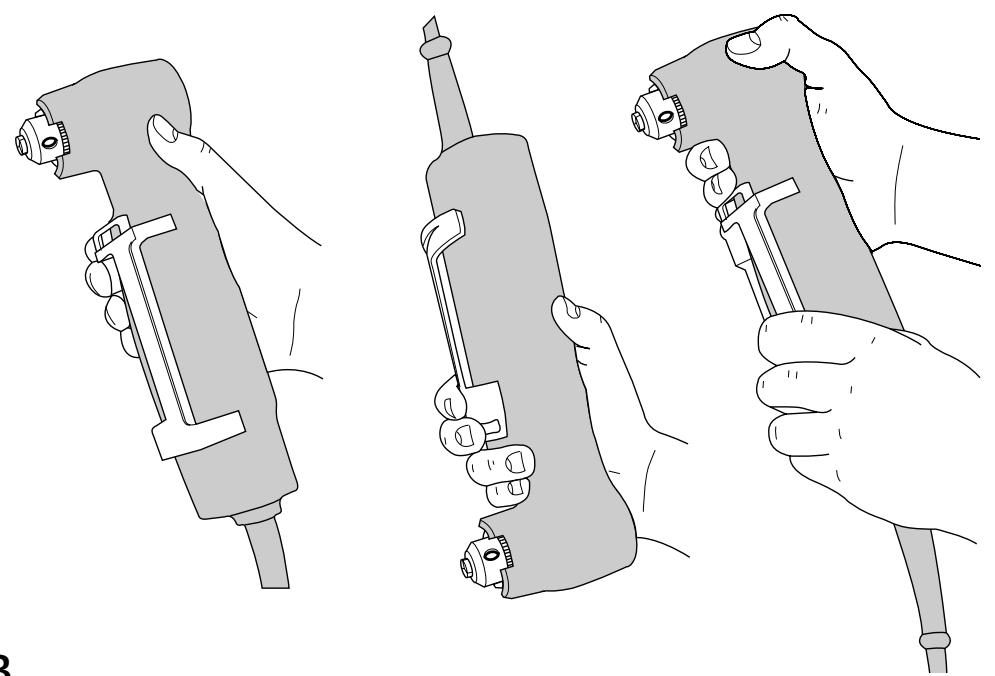

Tool handling (fig. B)

Thanks to the paddle switch the drill can be used in various positions as illustrated for optimum control and comfort.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DeWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

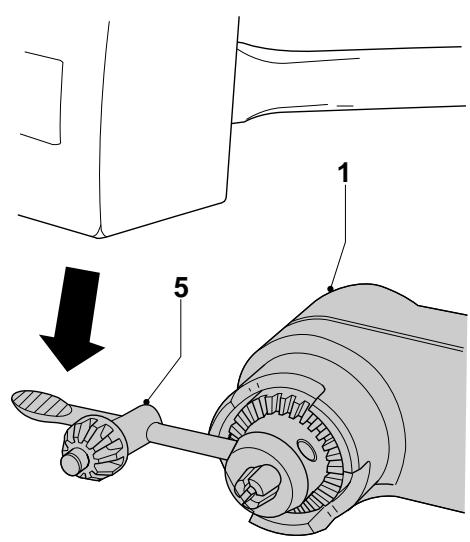

Chuck removal (fig. C)

• Insert the straight end of the chuck key handle into the chuck (1).
• Strike the key (5) sharply in a counterclockwise direction using a wooden mallet or similar object to loosen the chuck.
• Unscrew the chuck by hand.

Lubrication

Your Power Tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DeWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •
If you are not completely satisfied with the performance of your DeWALT tool, simply return it within 30 days, complete as purchased, to a participating Dealer, or an authorized DeWALT repair agent, for a full refund or exchange. Proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DeWALT tool, in the twelve months following purchase, it will be undertaken free of charge at an authorized DeWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DeWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
- Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DeWALT repair agent, please use the appropriate telephone number on the back of this manual.
