USER MANUAL D21008 DEWALT

Technical diagram of a drill putter with numbered parts for identification

A

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing the internal structure.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows, including a magnified inset showing the internal structure.

B

Technical line drawing of a mechanical assembly with a rotating shaft and gear mechanism (no text or symbols)

Diagram of a mechanical device with a lever and shaft, showing internal components (no text or symbols)

C
D

ROTATIONSBOR D21002/D21008

Tillykke!

You have chosen a DeWALT tool. Years of experience, thorough product development and innovation make DeWALT one of the most reliable partners for professional power tool users.

Technical data

		D21002	D21008
Voltage	V	230	230
(U.K. & Ireland only)	V		230/115
Power input	W	550	550
No-load speed	min ^-1	0-2,500	0-2,500
Maximum drilling capacity	mm	10	10
Chuck spindle thread size	UNF	1/2" x 20	1/2" x 20
Maximum chuck capacity	mm	10	10
Weight	kg	1.4	1.4

Fuses:
Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs
U.K. & Ireland	115 V tools	5 Amperes, mains

The following symbols are used throughout this manual:

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Denotes risk of electric shock.

EC-Declaration of conformity

D21002/D21008

DEWALT declares that these power tools have been designed in compliance with: 98/37/EEC, 89/336/EEC, 73/23/EEC, EN 50144, EN 55014-2, EN 55014-1, EN 61000-3-2 & EN 61000-3-3.

For more information, please contact DEWALT at the address below, or refer to the back of the manual.

Level of sound pressure according to 86/188/EEC & 98/37/EEC, measured according to EN 50144:

		D21002	D21008
L_pA (sound pressure)	dB(A)*	87	87
L_WA (acoustic power)	dB(A)	96	96

* at the operator's ear

Take appropriate measures for the protection of hearing.

Weighted root mean square acceleration value according to EN 50144:

	D21002	D21008
	< 2.5 m/s^2	< 2.5 m/s^2

Director Engineering and Product Development Horst Großmann

$$ \chi . f o p s m a n $$

When using power tools, always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury.

Read all of this manual carefully before operating the tool.

Save this manual for future reference.

General

1 Keep work area clean

Cluttered areas and benches can cause accidents.

2 Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit (250 - 300 Lux). Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

3 Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool or the mains cable.

4 Dress properly

Do not wear loose clothing or jewellery, as these can be caught in moving parts. Wear protective hair covering to keep long hair out of the way. When working outdoors, preferably wear suitable gloves and non-slip footwear.

5 Personal protection

Always use safety glasses. Use a face or dust mask whenever the operations may produce dust or flying particles. If these particles might be considerably hot, also wear a heat-resistant apron. Wear ear protection at all times.

6 Guard against electric shock

Prevent body contact with earthed surfaces (e.g. pipes, radiators, cookers and refrigerators). When using the tool under extreme conditions (e.g. high humidity, when metal swarf is being produced, etc.), electric safety can be improved by inserting an isolating transformer or a (FI) earth-leakage circuit-breaker.

7 Do not overreach

Keep proper footing and balance at all times.

8 Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

9 Secure workpiece

Use clamps or a vice to hold the workpiece. It is safer and it frees both hands to operate the tool.

10 Connect dust extraction equipment

If devices are provided for the connection of dust extraction and collection facilities, ensure that these are connected and properly used.

11 Remove adjusting keys and wrenches

Always check that adjusting keys and wrenches are removed from the tool before operating the tool.

12 Extension cables

Before use, inspect the extension cable and replace if damaged. When using the tool outdoors, only use extension cables intended for outdoor use and marked accordingly.

13 Use appropriate tool

The intended use is described in this instruction manual. Do not force small tools or attachments to do the job of a heavy-duty tool. The tool will do the job better and safer at the rate for which it was intended. Do not force the tool.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

14 Check for damaged parts

Before use, carefully check the tool and mains cable for damage. Check for misalignment and seizure of moving parts, breakage of parts, damage to guards and switches and any other conditions that may affect its operation. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective. Do not use the tool if the switch does not turn it on and off. Have any damaged or defective parts replaced by an authorised DEWALT repair agent. Never attempt any repairs yourself.

15 Unplug tool

Switch off and wait for the tool to come to a complete standstill before leaving it unattended. Unplug the tool when not in use, before changing any parts of the tools, accessories or attachments and before servicing.

16 Avoid unintentional starting

Do not carry the tool with a finger on the switch. Be sure that the tool is switched off before plugging in.

17 Do not abuse cord

Never carry the tool by its cord. Never pull the cord to disconnect from the socket. Keep the cord away from heat, oil and sharp edges.

18 Store idle tools

When not in use, tools must be stored in a dry place and locked up securely, out of reach of children.

19 Maintain tools with care

Keep the tools in good condition and clean for better and safer performance. Follow the instructions for maintenance and changing accessories. Keep all handles and switches dry, clean and free from oil and grease.

20 Repairs

This tool is in accordance with the relevant safety regulations. Have your tool repaired by an authorised DEWALT repair agent. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Package contents

The package contains:

1 Rotary drill
1 Chuck key (D21002)
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.

Description (fig. A)

1 Variable speed switch
2 Lock-on button
3 Forward/reverse slider
4 Keyed chuck (D21002) Keyless chuck (D21008)
5 Sleeve
6 Chuck key (D21002)

Electrical safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DeWALT tool is double insulated in accordance with EN 50144; therefore no earth wire is required.

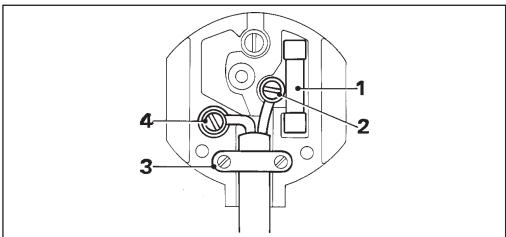

Mains plug replacement (U.K. & Ireland only)

1 2 3 4

• Should your mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact an authorized DEWALT repair agent or a qualified electrician.
• Disconnect the plug from the supply.
• Cut off the plug and dispose of it safely; a plug with bared copper conductors is dangerous if engaged in a live socket outlet.
• Only fit 13 Amperes BS1363A approved plugs fitted with the correctly rated fuse (1).
• The cable wire colours, or a letter, will be marked at the connection points of most good quality plugs. Attach the wires to their respective points in the plug (see below). Brown is for Live (L) (2) and Blue is for Neutral (N) (4).
• Before replacing the top cover of the mains plug ensure that the cable restraint (3) is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

Never use a light socket.

Never connect the live (L) or neutral (N) wires to the earth pin marked E or ± .

For 115 V units with a power rating exceeding 1500 W, we recommend to fit a plug to BS4343 standard.

Using an extension cable

If an extension cable is required, use an approved extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm^2 .

When using a cable reel, always unwind the cable completely.

Also refer to the table below.

Conductor size (mm2)	Cable rating (Amperes)
0.75	6
1.00	10
1.50	15
2.50	20
4.00	25

Cable length (m)
			7.5	15	25	30	45
Voltage	Amperes		Cable rating (Amperes)
115	0 - 2.0		6	6	6	6	6
	2.1 - 3.4		6	6	6	6	15
	3.5 - 5.0		6	6	10	15	20
	5.1 - 7.0		10	10	15	20	20
	7.1 - 12.0		15	15	20	25	25
	12.1 - 20.0		20	20	25	-	-
230	0 - 2.0		6	6	6	6	6
	2.1 - 3.4		6	6	6	6	6
	3.5 - 5.0		6	6	6	6	10
	5.1 - 7.0		10	10	10	10	15
	7.1 - 12.0		15	15	15	15	20
	12.1 - 20.0		20	20	20	20	25

Assembly and adjustment

Prior to assembly and adjustment always unplug the tool.

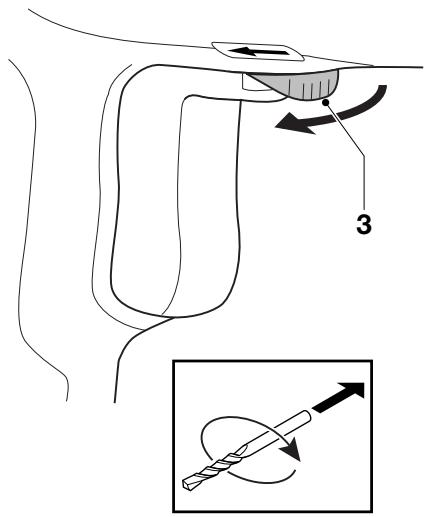

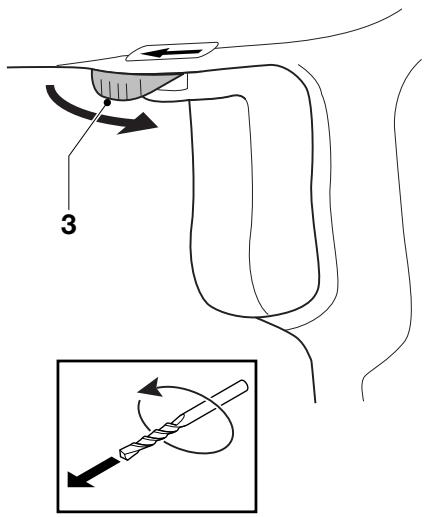

Forward/reverse slider (fig. B)

- To select forward or reverse rotation, use the forward/reverse-switch (3).

Always wait until the motor has come to a complete standstill before changing the direction of rotation.

Inserting and removing a drill bit (fig. A)

Keyed chuck

• Open the chuck by turning the sleeve (5) counterclockwise and insert the bit shank.
• Put the chuck key (6) into each hole in the side of the chuck and turn clockwise until tight.
• To remove the bit, proceed in reverse order.

Keyless chuck

- Open the chuck by turning the sleeve (5) counterclockwise and insert the bit shank.

• Tighten firmly by turning the sleeve clockwise.
• To remove the bit, proceed in reverse order.

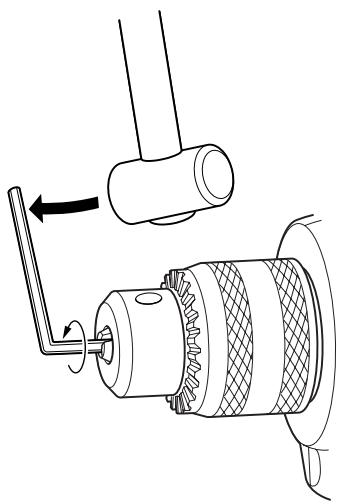

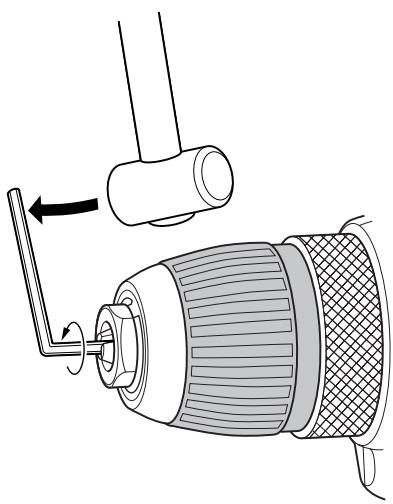

Chuck removal (fig. C & D)

• Open the chuck jaws as far as possible.
• Tighten an Allen key into the chuck and strike it with a hammer as shown.

Instructions for use

• Always observe the safety instructions and applicable regulations.
• Be aware of the location of pipework and wiring.
• Apply only a gentle pressure to the tool. Excessive force does not speed up drilling but decreases tool performance and may shorten tool life.

Prior to operation:

• Insert the appropriate bit.
• Mark the spot where the hole is to be drilled.

Switching on and off (fig. A)

• To run the tool, press the variable speed switch (1). The pressure exerted on the variable speed switch determines the tool speed.
• For continuous operation, press and hold down the variable speed switch, press the lock-on button (2) and release the switch.
• To stop the tool, release the switch.
• To stop the tool in continuous operation, press the switch briefly and release it. Always switch off the tool when work is finished and before unplugging.

Consult your dealer for further information on the appropriate accessories.

Maintenance

Your DEWALT Power Tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Lubrication

Your power tool requires no additional lubrication.

Cleaning

Keep the ventilation slots clear and regularly clean the housing with a soft cloth.

Unwanted tools and the environment

Take your tool to an authorized DEWALT repair agent where it will be disposed of in an environmentally safe way.

GUARANTEE

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DeWALT tool, simply return it within 30 days, complete as purchased, to the point of purchase, for a full refund or exchange. Proof of purchase must be produced.

- ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, it will be undertaken free of charge at an authorized DEWALT repair agent. Proof of purchase must be produced. Includes labour and spare parts for Power Tools. Excludes accessories.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, we guarantee to replace all defective parts free of charge or, at our discretion, replace the unit free of charge provided that:

• The product has not been misused.
• Repairs have not been attempted by unauthorized persons.
• Proof of purchase date is produced. This guarantee is offered as an extra benefit and is additional to consumers statutory rights.

For the location of your nearest authorized DEWALT repair agent, please use the appropriate telephone number on the back of this manual. Alternatively, a list of authorized DEWALT repair agents and full details on our after-sales service are available on the Internet at

www.2helpU.com.
