Product Type	PC Power Supply
Brand	CORSAIR
Model	CX750M 80PLUS BRONZE
Certification	80PLUS Bronze
Form Factor	ATX12V v2.3
Total Power	750 W
Dimensions (L x W x H)	140 mm x 150 mm x 86 mm
Fan	120 mm ultra silent
Energy Efficiency	≥ 80% at 20%, 50% and 100% load
Power Factor Correction	Active, > 0.99
+12V Rails	Single Rail
Protections	Overvoltage, overload, undervoltage, short circuit
AC Input	90 - 264 V AC, 47 - 63 Hz
Modular Connectors	Yes, modular cables
Main ATX Connector	24-pin (detachable 20+4)
CPU EPS12V Connector	8-pin (detachable 4+4)
PCIe Connectors	4 x 6+2-pin (typical estimate)
SATA Connectors	8 (typical estimate)
Peripheral Connectors	4 (Molex) (typical estimate)
Warranty	3 years
MTBF	100,000 hours
Package Contents	Power supply unit, AC cable, ties, screws
Maintenance and Cleaning	Regularly dust the grills with a dry cloth
Spare Parts and Repairability	No user-serviceable parts. Contact customer service in case of defect.

Frequently Asked Questions - CX750M 80PLUS BRONZE CORSAIR

How to connect the CX750M power supply?

Make sure the AC cable is unplugged. Install the power supply in the case using the provided screws. Connect the 24-pin ATX cable to the motherboard (if your motherboard has a 20-pin connector, detach the 4-pin section). Connect the 8-pin EPS12V cable (detachable 4+4) to the CPU connector. Then connect PCIe cables for the graphics card, SATA cables for hard drives, and peripheral cables. Finally, plug in the AC cable and turn on the switch (position I).

What to do if the computer does not power on after installation?

Check that the power supply switch is in the on position (I). Ensure all cables are fully inserted. Verify that the AC cable is plugged into the wall outlet. Test with another outlet. If the problem persists, contact CORSAIR technical support.

Is the CX750M modular?

Yes, the CX750M is a modular power supply, allowing you to connect only the necessary cables to reduce clutter and improve airflow in the case.

What is the real power of the CX750M?

The total continuous power is 750 watts on the +12V rail. The unit can deliver this power continuously at the specified operating temperature.

What protections are integrated in the CX750M?

The CX750M is equipped with protections against overvoltage (OVP), overload (OPP), undervoltage (UVP), and short circuits (SCP), ensuring the safety of system components.

How to clean my power supply?

For cleaning, first unplug the AC cable. Use a dry cloth or a can of compressed air to remove dust from the ventilation grills. Never open the power supply casing.

Can I use this power supply with a UPS?

Yes, the CX750M is compatible with standard UPS systems. Ensure that the UPS can provide the required power (750 W) and supports active power factor correction (PFC).

What to do in case of power supply failure?

If the power supply is defective, first contact CORSAIR technical support via their website. During the warranty period (3 years), you can request a replacement or repair. Keep the proof of purchase.

How to claim the warranty for the CX750M?

For a warranty claim, contact CORSAIR support. If the purchase is less than 30 days old, return the product to the point of sale. After that, CORSAIR will handle the request directly. You will need to provide proof of purchase.

Is this power supply compatible with my motherboard?

The CX750M is compatible with all ATX, micro ATX, and ITX motherboards using a 24-pin main power connector. The 8-pin EPS12V CPU connector (detachable into 4+4) is suitable for motherboards with an 8-pin or 4-pin CPU connector.

USER MANUAL CX750M 80PLUS BRONZE CORSAIR

B U I L D E R S E R I E S

CX430V2

CX500V2

CX600V2

CXV2 POWER SUPPLY

MANUAL · MANUEL · MANUALE · MANUELLE

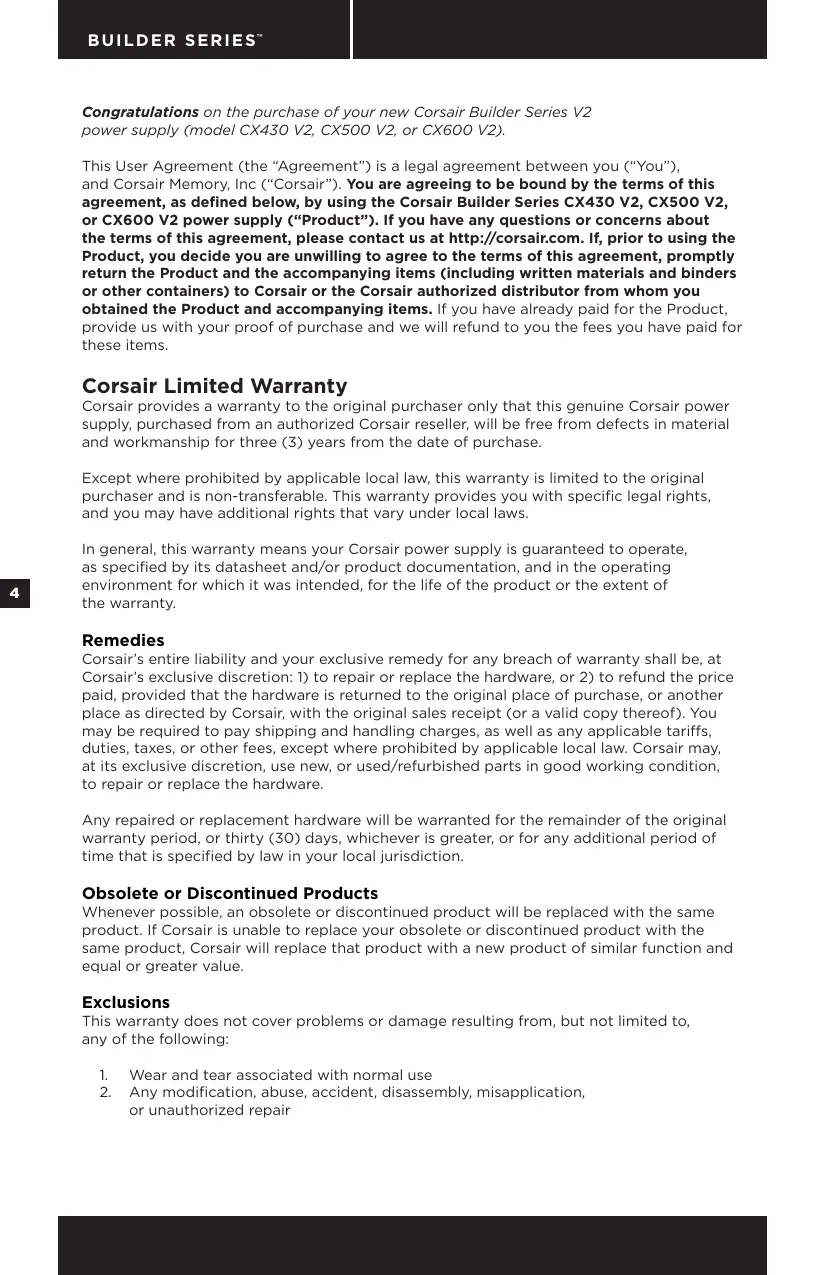

Congratulations on the purchase of your new Corsair Builder Series V2 power supply (model CX430 V2, CX500 V2, or CX600 V2).

This User Agreement (the "Agreement") is a legal agreement between you ("You"), and Corsair Memory, Inc ("Corsair"). You are agreeing to be bound by the terms of this agreement, as defined below, by using the Corsair Builder Series CX430 V2, CX500 V2, or CX600 V2 power supply ("Product"). If you have any questions or concerns about the terms of this agreement, please contact us at http://corsair.com. If, prior to using the Product, you decide you are unwilling to agree to the terms of this agreement, promptly return the Product and the accompanying items (including written materials and binders or other containers) to Corsair or the Corsair authorized distributor from whom you obtained the Product and accompanying items. If you have already paid for the Product, provide us with your proof of purchase and we will refund to you the fees you have paid for these items.

Corsair Limited Warranty

Corsair provides a warranty to the original purchaser only that this genuine Corsair power supply, purchased from an authorized Corsair reseller, will be free from defects in material and workmanship for three (3) years from the date of purchase.

Except where prohibited by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal rights, and you may have additional rights that vary under local laws.

In general, this warranty means your Corsair power supply is guaranteed to operate, as specified by its datasheet and/or product documentation, and in the operating environment for which it was intended, for the life of the product or the extent of the warranty.

Remedies

Corsair's entire liability and your exclusive remedy for any breach of warranty shall be, at Corsair's exclusive discretion: 1) to repair or replace the hardware, or 2) to refund the price paid, provided that the hardware is returned to the original place of purchase, or another place as directed by Corsair, with the original sales receipt (or a valid copy thereof). You may be required to pay shipping and handling charges, as well as any applicable tariffs, duties, or other fees, except where prohibited by applicable local law. Corsair may, at its exclusive discretion, use new, or used/refurbished parts in good working condition, to repair or replace the hardware.

Any repaired or replacement hardware will be warranted for the remainder of the original warranty period, or thirty (30) days, whichever is greater, or for any additional period of time that is specified by law in your local jurisdiction.

Obsolete or Discontinued Products

Whenever possible, an obsolete or discontinued product will be replaced with the same product. If Corsair is unable to replace your obsolete or discontinued product with the same product, Corsair will replace that product with a new product of similar function and equal or greater value.

Exclusions

This warranty does not cover problems or damage resulting from, but not limited to, any of the following:

1. Wear and tear associated with normal use

2. Any modification, abuse, accident, disassembly, misapplication, or unauthorized repair

3. Removal of any manufacturer label(s) or sticker(s)

4. Any improper operation, including any use not in accordance with any supplied product instructions
5. Connection to any improper voltage supply
6. Use of consumables, such as replacement batteries, not supplied by Corsair, except where such restriction is prohibited by applicable local law.
7. Any other cause which does not relate to a product defect in materials or workmanship

Also excluded from this warranty are counterfeit products; that is, products that Corsair, at its sole discretion, determines were not manufactured by Corsair or any of its authorized manufacturing partners.

Limitation of Liability

CORSAIR SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE, OR DATA (WHETHER DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF CORSAIR HAS BEEN ADVISED PREVIOUSLY OF THE POSSIBILITY OF SUCH DAMAGES. Some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so this limitation or exclusion may not apply in your jurisdiction.

Duration of Implied Warranties

EXCEPT AS PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED WARRANTY PERIOD FOR YOUR PRODUCT. Some local laws do not allow limitations on how long an implied warranty may last, so this limitation may not apply in your jurisdiction.

National Statutory Rights

Consumers may have legal rights under applicable national legislation governing the sale of consumer goods. Such rights are not affected by the warranties in this Limited Warranty.

No Other Warranties

No Corsair employee, dealer, or other agent is authorized to make any modification, extension, or addition to this warranty.

How to Make a Warranty Claim

Before submitting a warranty claim, we suggest you contact our technical support group or visit corsair.com and review the support section for technical assistance. A simple fix for your problem may be found there.

Generally, valid warranty claims should be processed through your original point of purchase during the first thirty (30) days after purchase. This period may vary depending on where you purchased your product; please verify the return policy with the retailer where you purchased your product. Any warranty claims that cannot be processed through your original point of purchase should be addressed directly to Corsair. Our customer service contact information can be found on the web at corsair.com/contact or in the documentation included with your product.

Introduction

Ideal for Home and Office Use

The Corsair Builder Series of PSUs are designed for worry-free compatibility for your home desktop PC system build or upgrade. With features usually reserved for premium power supplies, it's a great choice for systems where continuous and reliable power delivery and low noise are essential.

Corsair Advantages

Your Corsair Builder Series power supply is packed with the latest technology and features:

It supports the latest ATX12V 2.3 standard and is backward compatible with ATX12V 2.2 and ATX12V 2.01 systems.
- An ultra-quiet 120mm fan delivers excellent airflow at an exceptionally low noise level by varying fan speed in response to temperature.
- 80%+ energy efficiency at 20% , 50% and 100% load conditions means less heat generation and lower energy bills.
0.99 Active Power Factor Correction provides clean and reliable power.
Universal AC input from 90-264V. No more hassle of flipping that tiny red switch to select the voltage input!
- A dedicated single +12V rail offers maximum compatibility with the latest components.
Over-voltage and over-power protection, under-voltage protection, and short circuit protection provide maximum safety to your critical system components.
- Extra long fully-sleeved cables support full tower chassis. A three year warranty and lifetime access to Corsair's legendary technical support and customer service.

Power Supply Specifications

Dimensions: 150mm (W) x 86mm (H) x 140mm (L)
MTBF: 100,000 hours

MODEL	CX430 V2		CX500 V2		CX600 V2
	AC Input Rating
AC Input	90-264V
Input Current	6-3A		8-4A		10-5A
Frequency	47Hz-63Hz
	DC Output Rating
	Max Load	Max Output	Max Load	Max Output	Max Load	Max Output
+3.3V	20A	120W	25A	130W	25A	150W
+5V	20A		20A		25A
+12V	28A	336W	34A	408W	40A	480W
-12V	0.8A	9.6W	0.8A	9.6W	0.8A	9.6W
+5Vsb	3A	15W	3A	15W	3A	15W
Total Power	430W		500W		600W

Package Contents

• Corsair Builder Series power supply unit
  AC power cord
  Cable ties
  Mounting screws

Corsair Cable Configuration

MODEL		CX430 V2	CX500 V2		CX600 V2
ATX Cable (24-pin)	Qty.	1	1		1
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
EPS12V CPU Cable (8-pin)	Qty.	1	1		1
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
PCI-E Cable	Qty.	1	2		2
	Connectors per Cable	1	1		1
	Length	600mm	600mm		600mm
SATA Cable	Qty.	2	1	1	2
	Connectors per Cable	2	2	3	3
	Length	550mm	550mm	700mm	550mm
Peripheral Cable	Qty.	1	1		1
	Connectors per Cable	4	5		5
	Length	850mm	1050mm		1050mm

Notes:

• Floppy connectors are attached to the end of the peripheral cable.
• The ATX power connector has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
• The EPS12V power connector has a detachable 4-pin mechanism in order to support either an 8-pin socket or a 4-pin "P4/12V" socket on the motherboard.

Installation

Before proceeding with installation, please read this manual in its entirety.

Step A: Removing your existing power supply

If you are building a new system, skip to Step B.

1. Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.
2. Disconnect all the power cables from your video card, motherboard and all other peripherals.
3. Follow the directions in your chassis manual and uninstall your existing power supply.
4. Proceed to Step B.

Step B: Installing the Corsair Builder Series power supply

1. Make sure the power supply's AC power cable is not connected.
2. Follow the directions in your chassis manual and install the power supply with the screws provided.
3. Connect the main 24-pin power cable. The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.

a. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
b. If your motherboard has a 20-pin socket, you must detach the 4-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the 4-pin connector.

1. Connect the 8-pin +12V (EPS12V) cable.

a. If your motherboard has an 8-pin +12V socket, connect the 8-pin cable directly to your motherboard.
b. If your motherboard has a 4-pin socket, detach the 4-pin from the 8-pin cable, and then plug this 4-pin cable directly to your motherboard.

WARNING: The detachable 4-pin from the 24-pin main connector is not a "P4" or "+" connector. Serious damage can be caused if you use it in place of a "P4" or "+" connector.

1. Connect the peripheral cables, PCI-Express cables, and SATA cables.

a. Connect the peripheral cables to your hard drive and CD-ROM/DVD-ROM power sockets.
b. Connect the SATA cables to your SATA SSD or hard drive's power sockets.
c. Connect the PCI-Express cables to the power sockets of your PCI-Express video cards if required.
d. Connect the peripheral cables to any peripherals requiring a small 4-pin connector.
e. Make sure all the cables are tightly connected.

1. Connect the AC power cord to the power supply and turn it on by pushing the switch to the ON position (marked with "I").

Congratulations! You have completed installation of your new Corsair Builder Series power supply and your system is ready to go!

Important Safety Information CAUTION ELECTRIC SHOCK HAZARD!

1. Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
2. High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
3. This product is designed for indoor use only.
4. Do not use the power supply near water, or in high temperature or high humidity environments.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
6. Do not insert any objects into the open ventilation or fan grill area of the power supply.
7. Do not modify the cables and/or connectors included with this power supply.
8. If this power supply uses modular cables, use only manufacturer supplied cables. Other cables might not be compatible and could cause serious damage to your system and power supply.
9. The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
10. Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.

Safety and Agency Approvals

FCC FCC Rules Part 15, Class B

ICES ICES-003

CE EN 55022:2006 + A1:2007, Class B

EN61000-3-2:2006 Class D

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

CSA C22.2 NO.60950-1

C-TICK AS/NZS CISPR 22:2006,CLASS B

TUV EN 60950-1

CB IEC 60950-1

CCC GB4943

GB9254

GB17625.1

BSMI CNS14336

CNS13438

GOST R IEC 60950-1-2005

R 51318.22-99

R 51318.24-99

R 51317.3.2-2006

R 51317.3.3-99

ROHS 2002/95/EC, Restriction of Hazardous Substances Directive

WEEE 2002/96/EC, Waste Electrical and Electronic Equipment Directive

ROHS China Order No.39, Administration on the Control of Pollution

(China) Caused By Electronic Information Products

ROHS 2002/95/EC, Restriction of Hazardous Substances Directive

2002/96/EC, Waste Electrical and Electronic Equipment Directive

ROHS China Order No. 39, ,Administration on the Control of Pollution

CpeICTBaOpuIuYeCKo3aunTbI

O6uIOn o6bEM OTBETCTBEHNOCTKOMNaHn Corsair n BAwe nCKLIouHTeNbHOe cpeCTBO
UOpDInuecko 3aunTb I CNYaHae HAPUeHnraPapaHTn COCTABJAE, NO yCMOTpeHnIO KOMNaHn
Corsair, cIeJeIoUee: 1) peMOHT nIII ZAMHeA annpaTHoro OBeCnepeHn EINI 2) BO3BPaT
BbIlnaueHHo CEhBi, npy UcNoBN B03BPATA annapaTHoro OBeCnepeHn BOUPrNtBHO MeCTO
NOKyPKn, INI dpyroE MeCTO, Yka3aHHeO KOMNaHnei Corsair, C opRnHaJIbHbIM TOBaHPbIM YeKOM
(nIIN erO deIeCTBntbHoH KOJIne).OT Bac MOxET notpe6oBaTcB ONlATA CTOnMocTn DOCTaBKn
IN6pa6OTKn, a TAKKE liIObEx pinnmuEmMbIX TapNΦOB, nooiHN, HAnLOB INI dpyrNX BblnAT, 3a
NCKLIouHem CnyaEB, KORda 3TO 3aNPseHOb MEChTBm 3aKOHOJaTeNbCTBOM. KOMNaHn Corsair
MOxET IO CBOemy NCKLIouHTeNbHOMY UCMOTpeHnIO NCIOJIb3OBAbTB HOBBe INI NCIOJIb3OBAHbHe/
BOcCTaHOBLeHbIe DetanAI B xopoWem pa6OeHM CoCToAHn DJIpe MOHTa INI 3aMeHbI
annapathoro o6ecneueHn.

Ha OtpeMoHTnpOBaHHoe nIIN 3aMeHeHHOe aIcapaTHoe o6ecneHHe npEocTabIaeTcraPahTnHa OCTaBUNsIC cKpO npRnHbHLBOr rApAHTO HO rEPNOda IIN HA cPoK 30 (TpNduTaB)DNeH, 3aBACMOCtN OT TOR, YTO 6oNbIse, IIN Ha IIO6oDonOpONHTelbHbI nepNoD BpeMeHN, ONpeDeEHNB 3aKOHOaTeNbCTOB BaSeH MeCTHoI IOPMCNkU.

YctapeBwne nn ChraTbIe c npOn3BoDCTBa npOdyKtbl

EcnI 3TO BO3MOJXHO, yCTapeBWHne IINI CHTbIe C pONU3BOIDCTBA pOpyKtbl 6ydy T3aMeHeHbI pOpyKTAMToT Jx Me MOJIEN. EcnI KOMPNAHnCorsair He MoJxET 3AmEHITb Bau yCTapeBWHn IINI CHrTbIC pONU3BOIDCTBA pOpyKT DpyfIM mPOpyKTOM ToJ Xe MOJIEN, OHa 3aMeHNT 3OT pOpyKT HOBMbI pOpyKTOM CO xOxDHBIMI fHyHKUHOHaNbHbIMN BO3MOJXHOCTAMn n paBHOn IINI 60lee BBICOKO CTOnMOCTbIO.

MckloueHna

Hactoia rapaHTna He pacnpoctpaHReTcHa npObIeMbI nII NOBpeJdeHn, Bo3Nkaioune, B qactHOCTn, NO cJeDyIOUIM pRnuHnAM:

1. n3HOC BCJeCTBnE HopMaJIbHOJ 3KcIpyaTuN;
2. IIO6oe N3MeHeHne, HApUeHne NcIPOb3OBAHnA, abApN, pa36OpKa, He npBaUNbHOe IOKJIIOUeHne INI peMOHT HeyIPOHOMOeHHbIMN JINiAmM;
   3.ydaJIeHHe MapKnpOBKn HnHaKJIeEe N3rTOBNTeJIa;
3. lioble clyaHneppaBnBHOJ EKcPnyaTaun, BKJIIOyA NcNoIb3OBaHne C hapyuHHeM npInIoXeHHbIX K pOdykTy INHCTpykUn;
4. NOdkIIOUeHHe N KIOCTOUYHKy TOKa C HecOOBTBeTCTByIOUIM HAnpRJaKeHMe;
5. Исторыней расховдьх матерпалов, Наширем сменыб 6атураек, He посторыней сkomпаней Сortsair, за лений сfluуав, korда ТAKOE орразнueleпизларпсим Роститяп.
6. liobbIe npyIe cIyau, KOtOpBIE He CBa3aHbI C haJIuNcIeΦeKToB B MaTePnIaX IINI pON3BODCTBe npOdykTa.

Kpome TOrO, daHnHa rapaHTnHa he paCnpocTpaHneTcHa KOHTpaKaTKhIe IpOdyKTb,TO eCTb Ha npOdyKtB, KOTpbIe KOMnHaHna Corsair nCBOemy co6CTBeHHOMy yCMOTpeHIO ONpeJEnET KaK He n3rOToBLeHHBe Corsair nIN IIO6bIM 3 ee aBTOpN3OBaHHbIX NapTHePOB NO pON3BOdCTBy.

OrpaHnueHne OTBeTCTBehHOCTn

KOMNAHRA CORSAIR HE HECET OTBETCTBEHHOCTN 3A CNEUANbHbIE, CUYAHbIE, KOCBEHbIE IJIN NOCLEYIOUIE YbIbTKIJIHO5OToPODA,B TOM YICNE BKIOUAY UTPATY INbIIN, DOXOEIA JIN DAHNbIX (BbJb TO PIPMUYIIN KOCBEHHU) IJIN KOMMEPCKEKN YbIbTKI, Bbl3BAHHbIE HAPUJEHEMI JOBOI RBOH IINI IOPA3UMEBAEMOI IAPAHTMN HA BAII PNOyKT, DAXE ECNI KOMNAHRA CORSAIR BbIa 3APAHEE PDEyIPKDEHA O BO3MOXHOCTN TAKNX YbIbTKOB. HeKOTOpbIMn

MeCTbIMn 3aKoHOaTeBbAMn He OJrOyCKaTcN IckIIOueHMe IIN OPGaHueHne CNEuAIBbIX, KOCBeHHbX, cIyuaHbIX NIOPOLeNyUOxN y6bITKOB, PO3OMy DAHHe ORpaHueHne IIN NCKIOueHne MOKet 6bTb HENPIMeHbIMN B VAuei JOpCIMKn.

Cpok deiCTBnnoDpa3yMaebbIX rapaTni

3A NCKJIOUOHEHEM CUYAEB, KOGDA 3TO 3ANPEUHEO PPIMEHUMbIM
3AKOHODATENBCTBOM, JIOBIE IIOPA3YMEBAEMBIE TAPAHTNI UIN YCNOBIA
TOBAPHORO COCTOBHNI INI INPINOHOCTN DIKOHKPETHO NOIOL3OBAHNA
DAHHTOPOANAPATHOIOPOJNYKT OPRAMHMBAOTCR B TEECHNE CPOKA DEJECTBNA
IPIMEHMOI ORPAHNUEHHO FAHPAHNTN HA BAW PIOJYKT. HeKOTOpBMIM MecTHbIMN

3aKHOATEbCTBAMn HE IONYCKaTcI ORpaHnueHeN pIOJOLNXITbHOCHT cPoKa DeIcTBnIOpaZymeBaemO rapaHTm, NToTOMy DaHnoe OpRaHnueHne MOKeT 6bTb HENpIMMeHMo B VaSeIUPcnDmKnU.

Ppaba no HaunohalbHomy 3aKoHodaTeNbCTBy

Iotpe6nteMnMOrT mMeT bOpnduueckne npaba nO npimEmHmomy HaaioHaJIbHOMy 3aKoHOnaTeBcTBy, pernynpuyouemmy npodaxy noptpe6ntbcknx Tobapob. Hactoiaa OrganuueHHa rapaHTn He 3atparnaBaet TaKne npaba.

OTka3 OT dpyrnx rapaHTn

Hn Ondn n3 cOTpydNkOB, dIJIePob NnI dpyrNX aERHTOB KOMpaHnn Corsair He IMeET nonHomOChy BHOcITb n3MeHeHn, paCUnpeHn nn DoabNeHn B Hactoayu rapaHTIO.

Otnpabka Tpe6oBaHn no rapaHTm

Ipepe OTnpabKoTpe6oBaHnNo rapaHTmMb peKOMeHdyem Bam CBra3aTbcS C haWe cnyk60B texHnuecko NpOdepKKn IIN NoCetNTb Be6-caITcorsair.com IN3yUHTb MaTePnaJIbIo TExHnuecko npOdepKKe. Bo3MOxHNO, 3TO NOMoXeT Bam hAItn pnoCToe peSeHne BO3HNKJeu npo6JIeMbl.

Kak npabuHIO, Tpe6obAHnI NO rapaHTmN DoJXhbl 6bItb Opa6oTaHbI MecTOM opunHaHbHO npOdaJx npOduKTA B TeueHne nepBbIX 30 (TpuiDAtM) dHe c MOMeTApno6pTeHnI.

IpoJOnKInTeJIbHocTb 3TOrO nepiNoa MoKeT I3MeHrTaBc B 3aBcNcMOnCTn O MeCTa npNo6peTeHHa npOyKTa.Y3HaHTe Y npOdaBa?PpABNa B03BaPTa pOdyKTa. Bce Tpe6oBaHAn no rapaHtNi, KOTOpBle He mOryt 6bItb o6paOtaHb B MeCTe opUInHaNbHo N pOdoXn, DOnJXbI b6Itb nepeDaHb HeNoCeDCTBeHHo KOMMaHm Corsair. KOHTAKTHyIOHΦOpMaUHn HsAe Cnyk6bI npOdeRzkx MOxHO Na HBe-6-caTe corsair.com/contact nIN B DOkUMeHtAunn K BaWemy npOdyKTy.

BVeJeHne

IdeaneHdIuNCnOJb3OBAHnI Doma nHa pa6oTe

Пи разрабове блкови патаня сери Corsair Builder ocoboe bHMaHne ydЯлocьnx COBMeCTMOCNT npi co3dAnHи nIIMоDEpHn3aunH NaToIbHbIX PK. O6naJAR xapaKTePrcNtKAMn, 06bIHyCBOICTBeHNbIMn NIIb6IbOKam IpiemuaJIbHO rKnacca, OHI RAJIYOTcR nJaEaJIbHbIM Bbl6OpOM ДЯСNTeM, Гд Вaxны HeNPpepbIBHoe И nadeXHoe 3eKTpOPITaHne n Hn3Kn ypoBeHb Wyma.

PpenmyeCTBa 6JOKOB nHTaHna Corsair

BLOK ПИТАнЯ Corsair cepin Builder co3dAn ha ochobe HOBeIshux TexHOLorn I o6laaet cambIMN COBepWeHHbIMx xapaKTePncTnKaMn.

Подэржka НовшeroстадраТ ATS12V 2.3иобразная COBMECTIMOCt b Cсntemamn ATS12V 2.2и ATS12V 2.01.
- Празнтугески Збшунь 120mм В entиятор с и ретулремо Ксорoctьврашени NB.MH.N.ЗачимостOTТeпмератypы,обсеньчыюши OTЛMHьшдун рпснклочиьно ИИЗКOMурбЕшУMa.
3Hepeo3phiekTmbocb 60nee 80% npi pa6ote c 20%, 50% n 100% harpy3ko, Mehbwn HapeB o6OpyObaHn, Mehbwn 3aTaPbHa onnAty 3neKtpo3eprn.
- Aktubhaj Koppekuzia kaKtopa moUHcTn (APFC) c K03ΦmIeHTom O.99, 06ecneuBaIOUa cTa6MbHyIO nHaJeXHyIO pOauy nITAHIN.
- YnHbepcaIbHa nOdEpeKka BxOndHO nHaPjaKeHn: 90-264B. BoJIbe HnKaKnx KpaChbIX nepeKlIoUaTeNe!
- Bыдениная сенийшини петашия +12В Ддя мakсимально COBmecTmocTn C HOБЕШИМN KOMПОHEHTAMN.
MakImaHnA 3a6InbHOCTb 3HePrcOHa6KHeHn KPIHTueCKn BAXKbIX CNTeMHbIX KOMNoHETOB, 3aUHTa OT pReBbIeHn HAprrKeHn IIN MOuHcToN, NOHNKeHn HAprrKeHn IN KOPOTKO r3AmbKaHn.
CbepxdHnHbIe Ka6eJI nIa IcNoIb3OBAHnC IOnHopa3MePbIMn KopNycamn full tower.
Tpno ropaHTn n IocTy n K yCnyram OTnUHO 3apeKoMeHDoBaIwe Ce6b cnJy6b TeHNueckoN noDpejXKn n NocJe npOdaJxHorO oClyJxNbHaNn KOMNaHn Corsair.

TexHnueckne xapaKTepeNtuk6Ioka nHTaHna

Pa3Mepbl: 150mm (L) x 86mm (B) x 140mm (F)
CpeDHee Bpem 6e30Ka3HOn pa6oTbI:100,000 yacOB

MOДЕЛь	СX430 V2		СX500 V2		СX600 V2
	Вховский ток (перем.)
Вховские наразожения (перем.)	90-264В
Вхов. ток	6-3A		8-4A		10-5A
Частota	47Гц-63Гц
	Выховский ток (пост.)
	Мakс. Нагузka	Мakс. мошноctь	Мakс. Нагузka	Мakс. мошноctь	Мakс. Нагузka	Мakс. мошноctь
+3.3B	20A	120Вt	25A	130Вt	25A	150Вt
+5B	20A		20A		25A
+12B	28A	336Вt	34A	408Вt	40A	480Вt
-12B	0.8A	9.6Вt	0.8A	9.6Вt	0.8A	9.6Вt
+5B (разерваяшина)	3A	15Вt	3A	15Вt	3A	15Вt
Полная мошноctь	430Вt		500Вt		600Вt

KomiJIeKtaUra

Blok nitaHn Corsair cepnn Builder
Ka6eJIb nITaHnI nepemHeHOro ToKa
CTaKKnIpaKa6eNei
MOHTIPOBOUHbIe 60NTbl

KoHnrgpauqna Ka6ene Corsair

UarA:IV3BLeueHHe cIaporo 6noka nITaHnI

Ecnn Bbl co6npaete HObyu cntemy, nepeiDnTe K wary B.

1. OToCoeHNHTe ⅢHyp nITaHnI nepeMeHHOrO ToKa OT hAcTeHHoN 3NeKtpnueckoP03eTKn IIN IV5I, a TaKke OT IMeUJIeROc 6NoKa PtAnHnI.
2. OToeHNHe BCE Ka6eHn, NoBDOJMaIe NtAHaNc K BnDEOKApTe, MaTeHNCKo INaTe n npOuHM nepiΦepiHbIM yCTpOCTBaM.
3. Cnéduy yka3aHnM pykoBODCTBa nO 3KcπIyatauIN CNTeMHORO 6LOKa, demoHTnpyTe 6NOK NITAHIA.
   4.ПершдenteкшагуБ.

War 5: YctahOBka 6Ioka nITaHnca cepnn Corsair Builder

1. Y6eIntecb, yTo Ka6eIb IpeMeHHoro Toka 6Ioka NITaHn He NoDKlIOueH.
2. Cnedy yka3aHm pykoBODCTBa IIO kCPIyatauIN CNCTEMHO 6Ioka, yCTaHOBNTe 6NOK nITAHn 3akpenTe npINOKeHHbIM BINTAMN.
3. Поклочпe 24-КоHTaKTHbIй Ka6eJIb ПИТАнЯ. OСHOBHOI 24-КОHTaKTHbIй Ka6eJIb ПИТАнЯ OСHацЕн CBemHBIM 4-KOHTaKTHbIM MEXAHIN3MOM, 6narOДячМу o6eCeyuBaTeTcOBMeCTmIOmCTb KaK c 24-KOHTaKTHbIM, TAK n c 20-KOHTaKTHbIMn pa3bEMAMHa N MaTEpHNCxN pIIaTak.

a. EcnHa MaTePNHCKoI PnATE IMeETc24-KoHTaKTHbI pa3beM, K Hei MOxHO HApRMyIO NpOKnIOuHTb 24-KoHTaKTHbI OCHOBHO Ka6eJIb IITaNHe 0fNOKaPiTaNHa
b. Ecnn MaTePHNCKaI PnATo OChAeHa 20-KoTHaKTHbIM pa3bEMOM, CneNyET OTOeDnHnTb 4-KoTHaKTHbIK Ka6eJIb OT 24-KoTHaKTHORO pa3bEMA n 3aTEM NODKnIOUHTb 4-KoTHaKTHbIK Ka6eJIb K MaTePHNCKO pIaTe, He NODKnIOUaY4-KoTHaKTHORO pa3bEMA.

1. Пдклочп Te-КонтakThbий Ka6eNB +12V (EPS12V).

a. Ecni MaTePnHCKa PIIATA OCHaIeHa 8-KOHTaKTHbIM UTeINCeBbIM pa3bEMOM +12B, cIeYET OIOKnIOuNTb Ka6eBc 8-KOHTaKTHbIM pa3bEMOM HENOCpeDCTBeHHo K MaTePnHCKOIN PIIATE.
b. Ecn MaTePnHcKa ⅡIaTc OChaSeHa 4-KoHTaKTHbIM pa3bEMOM, CneJyET OTCoeDInHtB 4-KoHTaKTHbI Ka6eIb OT-8-KoHTaKTHOrO pa3bEma N 3aTEM NOkIIouHTb 4-KoHTaKTHbI Ka6eIb HEnOCpeICTBeHHO K MaTePnHcKoi PnTaTe.

PNEyPEXEHENc: CbemHb4-KoHTaKTbHpa3bemKa6eJc 24-KoHTaKTbHbIM OCHOBHbIM pa3bemOM HeYBJIaTcR pa3bemOM TnPa "P4" nn +12B". Ero nCNoIb3OBAHne BMeCTO pa3bemaTnPa "P4" nn +12B" MoKET BbIbTaBcepeBe3HbcHe HenoJaKn.

1. Пожклочи Te Ka6eIи ДЯпегпсерньх устpoctВ, Ka6eIи PCI-Express n SATA.

a. ПодключиTe Ka6eJIи ДЯп перифериньх устpoистВ К разьемam питаняжecтКOrOДИСКА И CD-ROM/DVD-ROM.
b. Поблочи Кабел SATA к раьемам петаня ќестою дисka SATA.
c. Пин HeobxodmocTи ПОДКЛIOUHTe COOTBeTCTBByIuJIne Ka6eIIN PCI-Express K pa3bemy NiTaHnHa BvIeOKeApTe PCI-Express.
d. Пожклочи TE ka6elen NiTuHnIe nepuфepinHbIx yctpoiCTB K liO6bIM nepuфepinHbIM yctpoiCTBaM C MaJIeHbKIM 4-KoHTaKTHbIM pa3beMOM.
e. Y6eIITcB, yTO Bce Ka6eIIN 6bIIN HApExJHO NOkJIIOUeHbI.

1. Пдклочи TE ka6eь NTaHЯперемногToka K 6ILOKу NTaHЯИ BKlOчte erO,пегевая bblkliouateBJ B nOLOXeHne ON (OHO OTMeueHo 3HaKOM "I").

Iozdpabnem! UcmaHOBka 6Ioka numaHua Corsair cepuu Builder 3abepeueHa, menepb moKHO BkIouyamb cucmemy!

Baxkhna HhΦopMaζη O 6e3oNaCHOCTN ONACHOCTb NOPAXEΗ ΘJEKTPUÇECKΜ TOKOM!

1. UctahOBka DoJnxH OcUyIeCTBnTbC oRJaCHO yKa3aHnM n3rOToBnteY I npEynPpeKdENm No 6e3oNaCHocTn. HecobJIOJeHe peKOMEnaui MoKet T pNBeCT N KOBpeKdEHNIO bIoKa NiTuHAnu NII KOMNbIOTepHO CnCTeMb I MOKeT Bbl3BaTb CepbE3HbIyeBvHu NII CMeptb.
2. B 6Ioke nITaHn IeCTBye TJIeKtpUeCKn TOK C BbICOKM HaprrKeHEm. 3AnpeuAeTc ONtKpBaTb KOpNc 6Ioka nITaHn IIN npEepnHmAtb nonbITkn peMOHTa 6Ioka nITaHn. B Hem He coedePjNTc KOMnoHeTob, 06CnykuaBembIX NON3ObaTeNeL.
3. TOT npOdyKT npEHa3HaueH ToIbKO dIe npImHeHn B NOMEueHn.
4. He nCnoJIb3yIte 6JIoK nITaHnI NIO6II3OCTN OT BOIbI, a TAKKe Ipi N BcOKoI TemnepaType INBIAxHOCHTN BO3Dyxa.
5. He yctaHaBnBaIte npOdyKT no6n3OCTOn ot nctOHTNkoB TeIIa, HapPIMep padnatorpoB oToIeHn, o6OrpeBaTeJe, neey n dpynx np6bOpob, n3nyuaOuixn TeIIO.
6. Henb3B BCTaBnTb IIObIe npEIMTeB B OTKpbITbE BeHTnJIaONHbIe OTBepCTnI IN BpeWetKBy BEHTnJIaCIN 6Noka NITAHIN.
7. He mehrajte ka6eJn n/nil pa3bembl, BXOJaIeB V KOMPJIeKT noCTaBKn 6Joka nITaHna.
8. EcnB 3TOM 6IKe NITaHnN IcNoJIb3yIOTc MoUJNbHbIe Ka6eN, IcNoJIb3yIte TOLbKO Ka6eN, NOCTaBJIbWIIeNCsI N3rTOBtIeMeI. DpyRne Ka6eN MOrYt OKa3aTbCHe HECOBMeCTIMbIMN IN BbI3BaTb CepBe3HbIe NOBpeXdEHN CnCTEmbl N 6IOKa NITaHnN.
9. 24-KoHTaKTHbI pa3bEm OCHOBHOro Ka6eI IITaHIN OCHAuE H CbeMHbIM 4-KoHTaKTHbIM pa3bEMOM. 3OT 4-KoHTaKTHbI pa3bEm He RAJIHeTcpa3BeMOM Tnna P4 nI IN ATX 12V. HE nbITaIeTcB NOkJIOUHTb 3OT Ka6eJI K pa3bEmAM P4 nII IN ATX 12V Na MATEpIMCKI pIate.
10. Heco6nOeHHe nHCTpyKuI n3rTOBtEna n/nn HactoIuxn HNCTpyKcuI no 6e3oNaChocTn He3aMeIInTebHo aHHyInpyet BCE rapaHTn.

CeptnfukatbI 6e3onacchoctn n attectaun

FCC PpaBna FCC, 15, knacc B

ICES ICES-003

CE EN 55022:2006 + A1:2007, Knacc B

EN61000-3-2:2006 Knacc D

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

CSA C22.2 NO.60950-1

C-TICK AS/NZS CISPR 22:2006, KJIACC B

TUV EN 60950-1

CB IEC 60950-1

CCC GB4943

GB9254

GB17625.1

BSMI CNS14336

CNS13438

GOST R IEC 60950-1-2005

R 51318.22-99

R 51318.24-99

R 51317.3.2-2006

R 51317.3.3-99

ROHS 1npeKtNbA o6 orpaHnueHm coepKaHnO anChbX BeueCTB 2002/95/EC

WEEE DnpeKtNa 6yTuNn3aunn 3NeKtpnueckoro n 3NeKtpoHnoro 6OpynobHa 2002/96/EC

ROHS Yka3 KHP N39, YnpabneHne KOHTpOra 3a 3arpa3HeHnA M, Bbl3BaHHbIMN

(KHP) 3NeKToPOHHo-IIIΦOpMaUHOHHbIMN npOyKTAMN

Safety and Agency Approvals

FCC FCC规则第15部分，B类

ICES ICES-003

CE EN55022:2006+A1:2007,B类

EN61000-3-2:2006 D类

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

FCC FCC Rules Part 15, Class B

ICES ICES-003

CE EN 55022:2006 + A1:2007, Class B

EN61000-3-2:2006 Class D

EN61000-3-3: 1995 + A1:2001 + A2:2005

EN55024:1998 + A1:2001 + A2:2003

IEC61000-4-2:1995 + A1:1998 + A2:2000

IEC61000-4-3:2006

IEC61000-4-4:2004

IEC61000-4-5:2005

IEC61000-4-6:2003 + A1:2004 + A2:2006

IEC61000-4-8:1993 + A1:2000

IEC61000-4-11:2004

UL/CUL UL60950-1

CSA C22.2 NO.60950-1

C-TICK AS/NZS CISPR 22:2006,CLASS B

TUV EN 60950-1

CB IEC 60950-1

CCC GB4943

GB9254

GB17625.1

BSMI CNS14

CNS13438

GOST R IEC 60950-1-2005

R 51318.22-99

R 51318.24-99

R 51317.3.2-2006

R 51317.3.3-99

ROHS 2002/95/EC,特定有害物质除去|閲る指令

WEEE 2002/96/EC, 廢電氣·電子製品|閲る指令

EMAIL: [e-mail]

FACEBOOK: facebook.com/corsair

BLOG: blog.corsair.com

FORUM: forum.corsair.com

TWITTER: twitter.com/corsairmemory

AUDIO PAGE: corsair.com/audio

USA and CANADA: [phone]

INTERNATIONAL: [phone]

FAX: [phone]

CORSAIR

46221 Landing Parkway • Fremont • California • 94538 • USA
