The Solo6 Be and Twin6 Be use a tweeter equipped with a Beryllium dome, allowing a frequency range extending beyond 40kHz.

In its solid form, Beryllium is harmless. However, due to its nature, certain special precautions should be observed to

avoid exposure to unnecessary risk:

• Under no circumstances should the Beryllium dome be subjected to any form of abrasive action. To ensure no accidental damage to the tweeter dome it is advised to carefully replace the protection covers while not in use.
• In the unlikely case of damage to the dome, of any form, a wide piece of adhesive tape should be immediately used to seal the whole front surface of the tweeter. The protective cover should then be replaced and also taped securely in place. You should then inform the dealer from whom you purchased the product so that the tweeter can be removed by a professional and returned to the product distributor for replacement.
• If the dome is broken in any way giving rise to loose particles of Beryllium, these should be carefully collected with the use of an adhesive tape and sealed in a zip-top bag to be returned with the tweeter.

For further information, please contact Focal-JMlab directly:

[e-mail]

Thank you for choosing the FOCAL Solo6 Be - Sub 6 - and/or Twin6 Be.

The Solo6, Twin6 Be, and the Sub6 are world class Professional Monitoring Systems.

They have been designed to offer superior imaging, outstanding precision and extended frequency range, in a compact format suitable for near field monitoring.

Unpacking

In addition to one loudspeaker and a user manual (such as this one), each Solo6 or Twin6 carton should contain:

A power cord.
- A guarantee card.
- A protection grille for the Beryllium tweeter (you are advised to remove it before listening to the speakers).
- A plastic bag containing an information note "Beryllium inverted dome tweeter", and some adhesive tape to affix on the tweeter in the unlikely event of the dome being damaged.

In addition to one subwoofer and a user manual each Sub6 carton include:

A power cord.
- A guarantee card.
- A grille protecting the drive unit (which it is advisable to remove whenever possible).

Please check that none of these items are missing, and remove all accessories from the carton.

To remove the loudspeaker from its carton without damage, open the end flaps fully and bend them right back. Then remove the upper cushion and lift the loudspeaker out gently. Inspect the speaker for signs of any possible damage.

In the unlikely event of this having occurred please inform the carrier and supplier. It is a good practice to keep the packaging in case of future transportation.

Preliminary recommendations

We would like to give a word of warning about the high sound pressure levels that can be generated by these loudspeakers, especially in a 5.1 configuration. Because of their low levels of distortion, and the minimal fatigue incurred by the user, it is not always obvious to realise the actual sound pressure level while working.

Please bear in mind that exposure to excessive levels over a sustained period of time may lead to permanent hearing loss.

Warranty

These products are guaranteed against defects in components and workmanship only, for a period of two years from the date of shipment to the end user for countries of the European Union. For other countries, please refer to the law in effect.

During the warranty period Focal will, at their discretion, either repair or replace products which prove to be defective, provided that the product is returned, shipping prepaid, to an authorised Focal service facility.

Defects caused by unauthorised modifications, accident, negligence or any misuse are not covered by this warranty.

For further information please contact your dealer or the distributor in your country.

SOLO6 BE - TWIN 6 BE - SUB6 BE USER MANUAL: PRODUCT OVERVIEW

Professional Digital Monitoring System

Solo6 Be

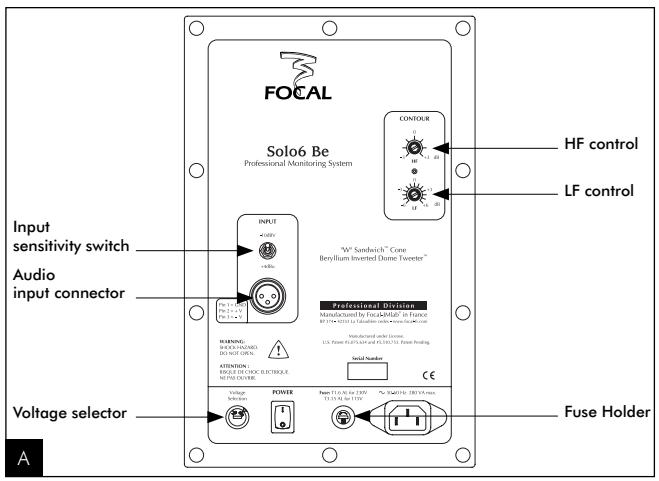

The Solo6 Be is a two-way active loudspeaker (2 internal amplifiers channels), comprising one "W" cone 6.5" low/mid unit, loaded with a large cross-section laminar port, and an inverted pure Beryllium dome (fig. A).

Twin6 Be

The Twin6 Be is a three-way active loudspeaker (3 internal amplifiers channels), comprising two "W" cone 6.5" low/mid units, loaded with two large cross-section laminar ports, and an inverted pure Beryllium dome. The two 6.5" drive units operate at low frequencies but only one of them (either can be selected) will reproduce the midrange (fig. B).

Sub6

The Subó is an active subwoofer (1 integral amplifier) designed for professional monitoring systems. It uses a 11" drive unit equipped with a "W" composite cone, and loaded by a large cross-section laminar port (fig. G).

The Sub6 may be used :

• For bass or sub-bass enhancement in stereo + sub setups (2.1 or 2.2). The rear panel of the Sub6 allows for the connection of a traditional stereo source (Left In / Right In), while providing hi-passed outputs intended to feed the main speakers (satellites),
• As a LFE channel (Low Frequency Effects) in a multi-channel installation (5.1, 5.2, 6.1...), via a dedicated input of the rear panel.

Installing

Mains voltage

After having unpacked the unit, first check that the operating voltage is correctly set (see location on rear panel). If it is not, adjust the selector to the appropriate position. Also check and if necessary replace the fuse, which rating depends on the operating voltage (please refer to technical specifications).

The Solo6 and Twin6 must be earthed using the power cord supplied.

Audio connections: general

The audio signal is to connect to the XLR inlet. This is a balanced input, which use the standard cabling scheme, namely:

Pin 1 = Ground (shield)

Pin 2 = In phase voltage ("hot")

Pin 3 = Out-of-phase voltage ("cold")

If the audio source is unbalanced, common practice is to link "cold" and ground pins (pins 3 and 1 respectively). This is generally achieved within the cable.

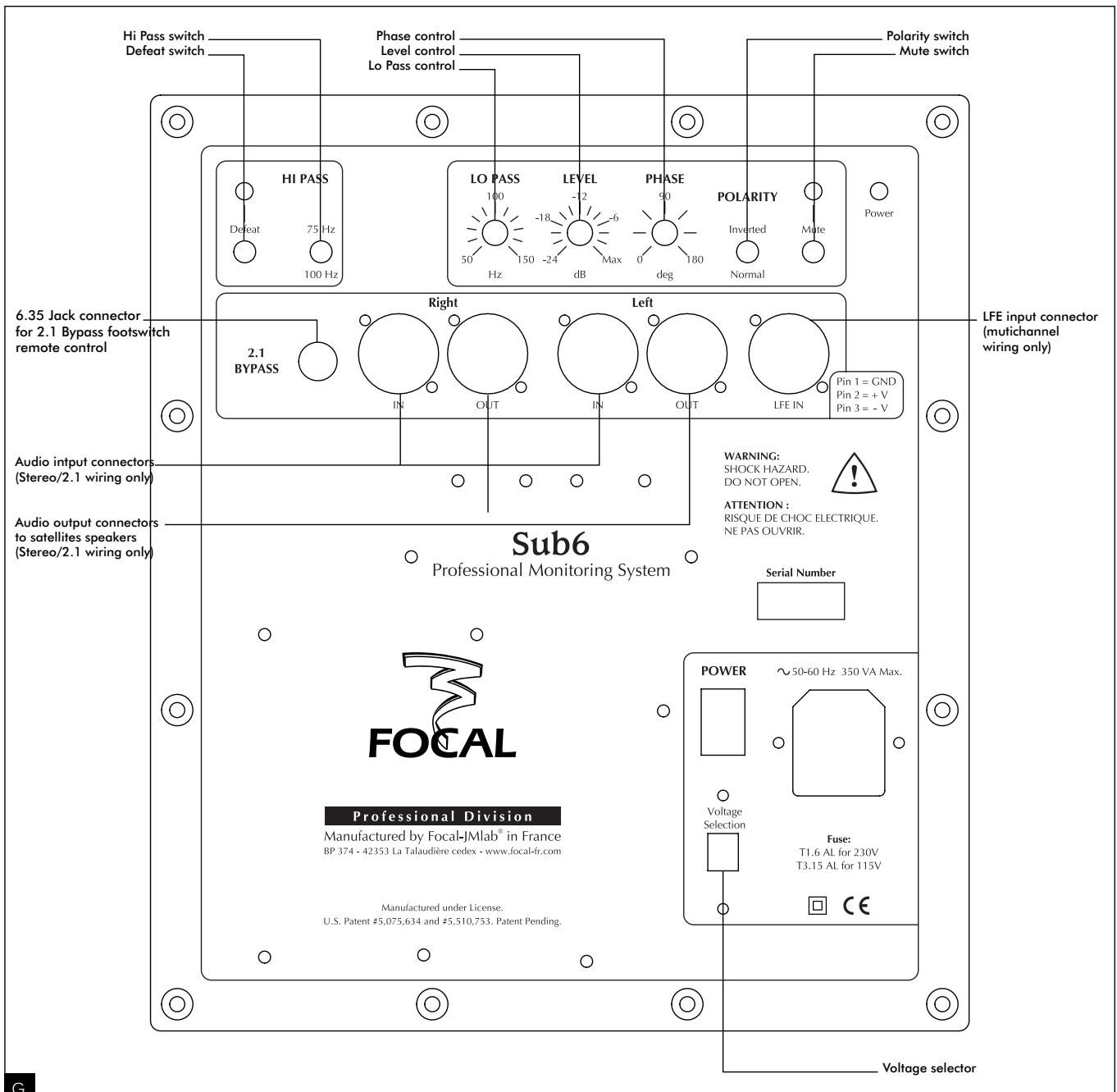

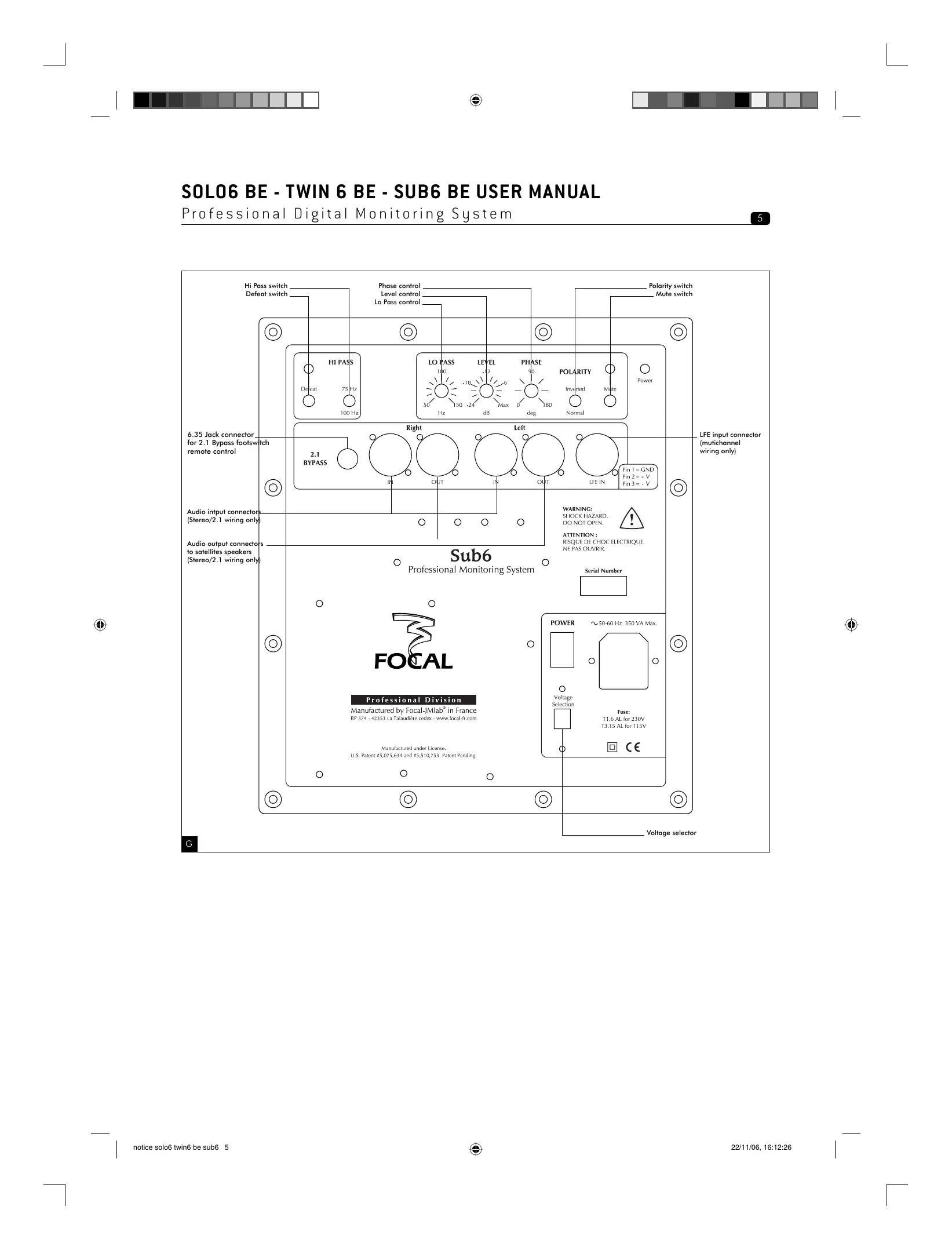

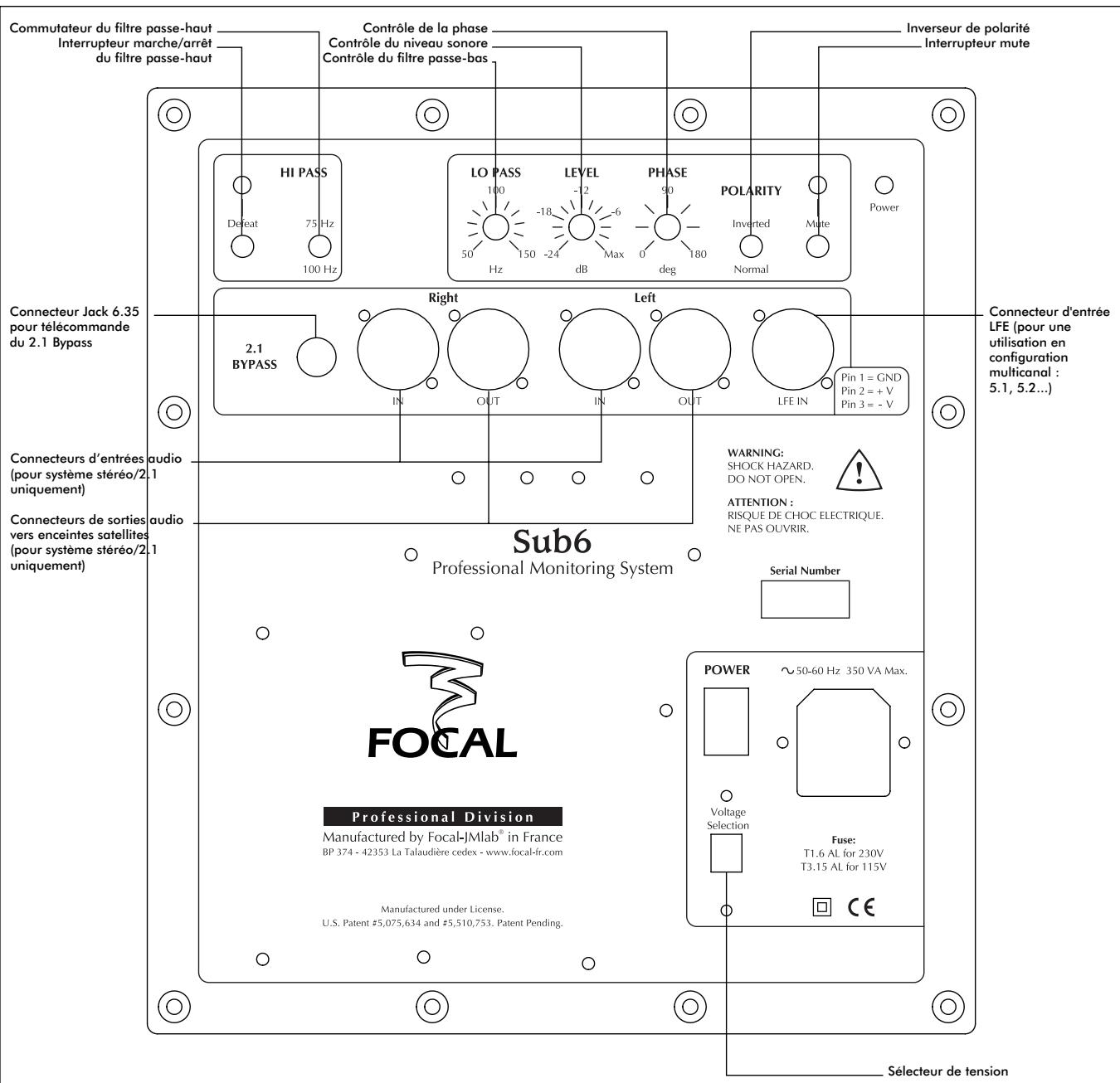

Audio connections: Sub6 (fig. G)

Stereo + Sub setup (2.1 or 2.2):

Left IN: this input is intended to receive the signal coming from the left channel of your source (mixing console, or other...).

Right IN: this input is intended to receive the signal coming from the right channel of your source (mixing console, or other...).

Left OUT: this output is intended to connect to the left main loudspeaker of your system. The signal supplied by this output is internally processed through a high pass filter.

Right OUT: this output is intended to connect to the right main loudspeaker of your system. The signal supplied by this output is internally processed through a high pass filter.

Multichannel configuration:

LFE: this input is intended to feed your Sub6 in a multichannel application (5.1, 5.2, 6.1, ...) this channel is dedicated to low frequencies only.

SOLO6 BE - TWIN 6 BE - SUB6 BE USER MANUAL: PRODUCT OVERVIEW

Professional Digital Monitoring System

7

Positioning

The Solo6 Be and Twin6 Be are designed for near field monitoring and should be placed at a distance between 1 and 3 metres from the listener, pointing towards the listening position. They can be sitting on the console top or placed on appropriate stands. In any way it is recommended that the tweeter is at a height from the floor approximately equivalent to that of the listener's ears. If required it can make sense to place the speakers upside down so that the previous rule is better fulfilled (fig. C,D).

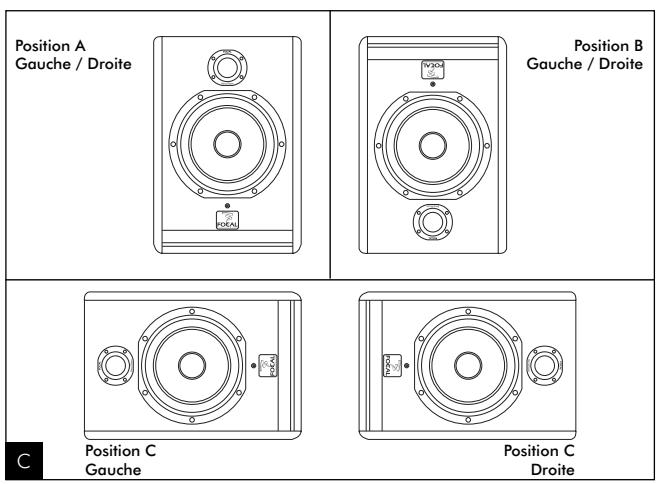

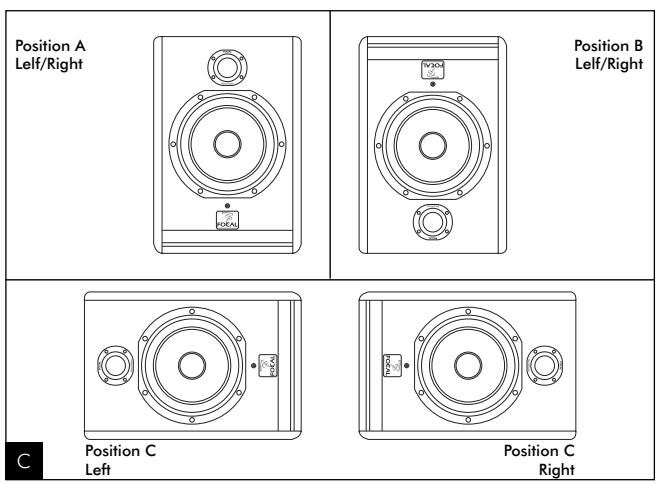

The Solo6 Be could be used vertically or horizontally depending on the environment, preferably pointing towards the listener (fig. C).

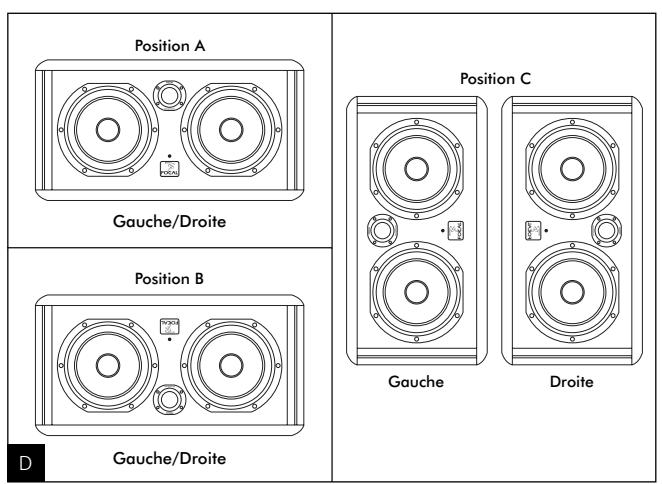

By design the Twinó Be's are rather intended for a landscape orientation, though in some situations they could be positioned vertically. As seen in the earlier rear panel description, the Twinó Be has a switch allowing to choose which drive unit is to reproduce the mid frequencies (see below) (fig. E). Consequently it will always be possible, as desirable, to configure the speakers in a "mirror" (ie symmetrical) way (fig. F). As a general rule having the "midrange" driver on the inside of the cabinet results in better imaging.

Optimal positioning of the Sub6 may vary depending on the surface, the shape and acoustic properties of the listening room. You are advised to try various locations so to choose the one giving the best possible and most level sound balance. As a rule of thumb the optimal location will often be in a corner of the room.

Running in

As in all brand new loudspeaker the drivers need some run in period: they are mechanical elements demanding a little time to settle and adapt to the climatic environment This period will vary depending of the working conditions and may take up to a few weeks. Avoid pushing the speakers very hard during their first hours of use, but to accelerate the run-in process it is good practice to operate the speakers at moderate levels for 20 hours or so, with programmes having significant low frequency content. Only once the transducers have come to stabilize will you get the optimum performance.

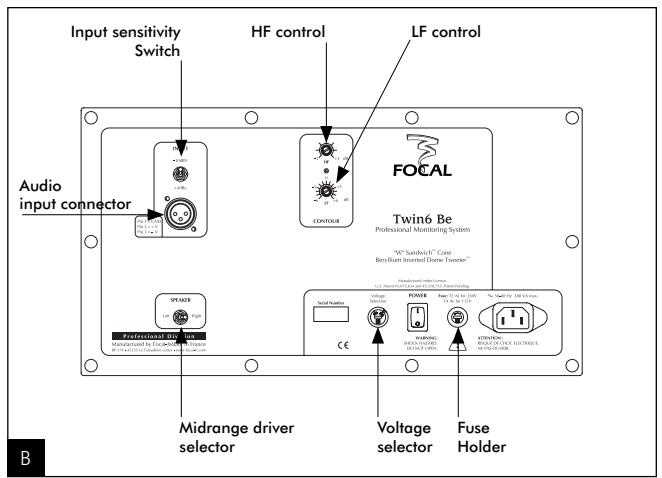

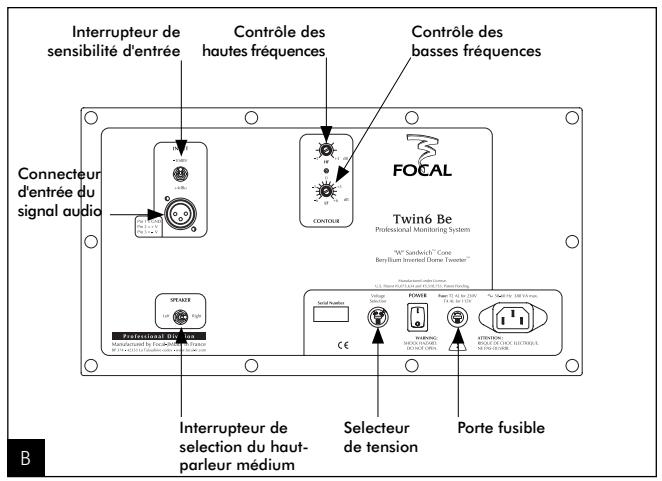

Solo6 Be/Twin6 Be/Sub6 Controls

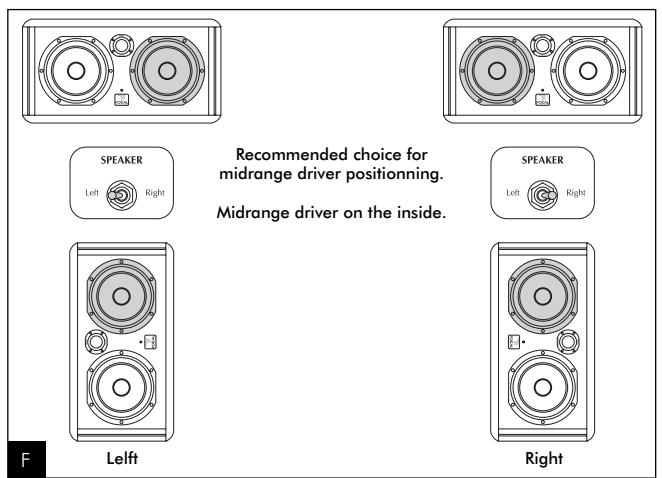

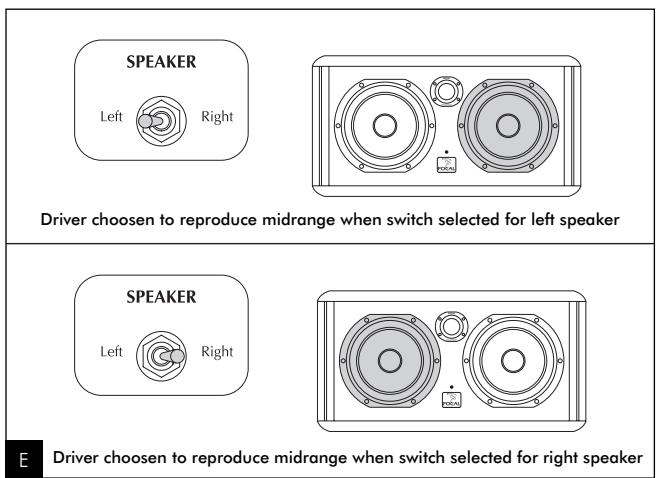

Speaker switch (Left/Right): only for Twin6 Be

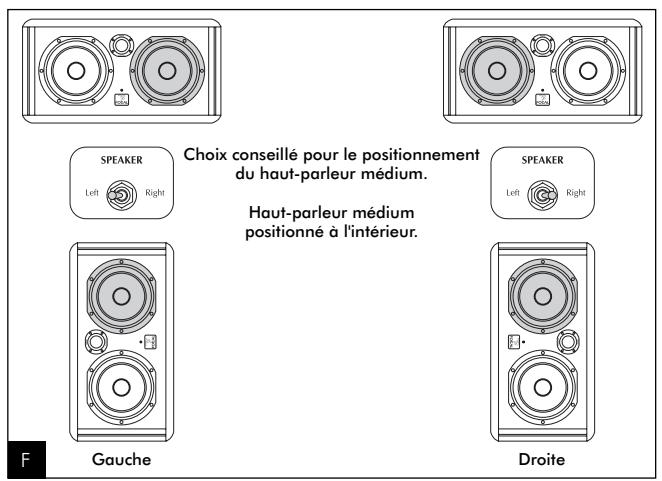

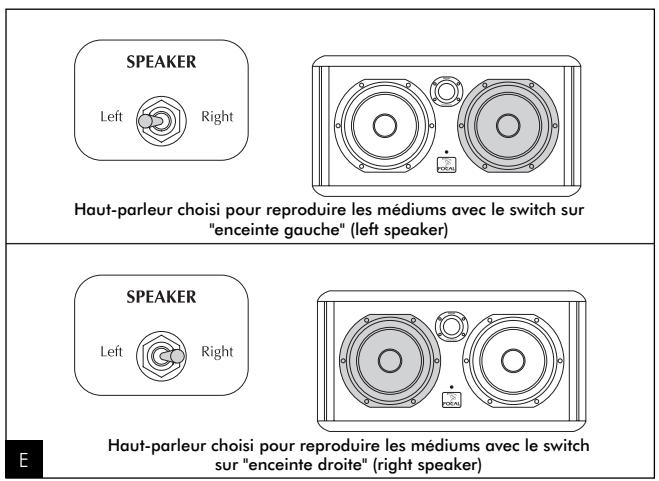

This switch allows the user to select which one of the two 6.5" drivers will reproduce the midrange. By convention, the "Right" position of the switch will select the left hand side driver (when facing the cabinet laying horizontally). Conversely in the "Left" position the right hand side driver (facing the cabinet) will be the one operating in the mid frequencies. It is easy to figure how useful this control is when it comes to get the best possible imaging in any cabinet layout (fig. E,F).

Input switch

The input sensitivity can be adjusted using this two position switch. The +4dBu position is suitable for standard professional audio equipment, while -10dBV position may be used for other types of sources providing a lesser output level.

HF contour

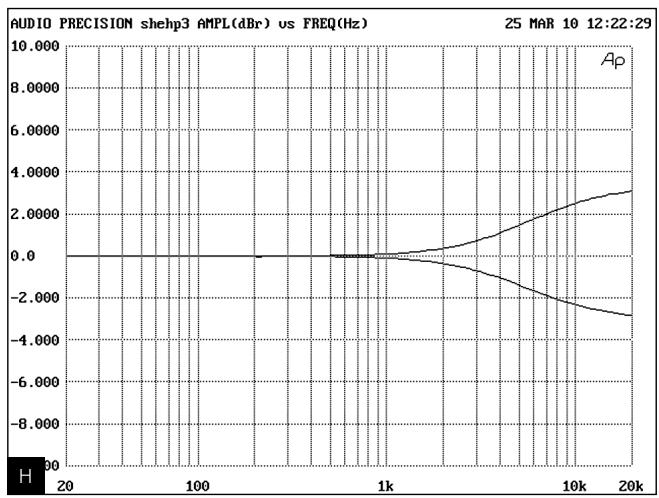

This control allows for a continuous adjustment of the high frequency level; it operates above 5kHz within a ± 3dB range (fig. H).

LF contour

This control allows for a continuous adjustment of the low frequency level; it operates below 150Hz within a ± 6dB range (fig. 1). This adjustment is typically useful to deal with possible excessive level of LF energy resulting from acoustic coupling associated with close reflecting surfaces: mixing console, nearby walls...

Power on indicator

A power on LED is located on the cabinet front panel, near the Focal logo.

SOL06 BE - TWIN 6 BE - SUB6 BE USER MANUAL: USING THE SYSTEM

Professional Digital Monitoring System

Sub6 controls (fig. G)

Level

This adjustment allows to set the sound level of the subwoofer relative to that of the main loudspeakers. It should also be optimised taking into account the actual location of the subwoofer and its acoustic consequences: for example in an angle the 6 dB acoustic gain should be compensated by an equivalent attenuation to maintain the overall balance of the system.

Mute

This switch will turn out the output signal of the subwoofer channel (making it silent does not require to switch the power off). When muting the subwoofer the high pass filters used for the main speakers will remain active.

Hi Pass

This area is dedicated to the setting of the high pass filters intended for the main speakers in a 2.1 configuration. The "Defeat" switch allows to disable (ie by-pass) these filters. The 75Hz / 100Hz switch allows to select the cut-off frequency, in order to optimise the acoustic recombination between the satellites and the Sub6.

Lo Pass

This potentiometer adjusts the cut-off frequency of the low pass filter on the subwoofer channel, thus setting the upper frequency range to be reproduced by the Sub6. The goal is to achieve the smoothest frequency response of the whole system: sub + satellites.

Polarity

This switch inverts the signal polarity on the subwoofer channel (ie 180^ phase shift).

Phase

This potentiomer provides some fine adjustment of the phase on the subwoofer channel. Combined with the polarity switch it can be used to compensate for the spacing between the sub and the main speakers, so to get a coherent soundfield through a proper time alignment of the different sources.

2.1 Bypass

This input allows for plugging in a control footswitch (not supplied) via a 14 jack connector.

Turning it active will :

• mute the subwoofer channel

• defeat the high pass filters in the satellites signal paths. The satellites will then be fed with full range signals.

This facility allows for instantaneous comparison between the 2.1 configuration (with sub) and the traditional stereo setup (without sub) with the same system.

Power indicator

Power "LED" indicator

SOLOG BE USER MANUAL: TECHNICAL SPECIFICATIONS

Professional Digital Monitoring System

SYSTEM

Frequency response		40Hz - 40kHz
Maximum SPL		113dB SPL (peak @ 1m)

ELECTRONIC SECTION

Input	Type/Impedance Connector Sensitivity	Electronically balanced / 10 kOhms XLR Adjustable, +4dBu ou -10dBV
LF amplifier stage HF amplifier stage		150W rms, BASH® technology 100W rms, class AB
Power supply	Main Voltage	230V (1.6A fuse rating) 115V (3.15A fuse rating) IEC inlet and detachable power cord
	Connection
User controls		Input level switch LF and HF contours (potentiometers) Power ON/OFF switch, mains voltage selector
Indicator		Power on LED

TRANSDUCERS

Woofer		"W" cone, Focal 6W4370B 6.5" drive unit
High frequency		Focal TB871 inverted Beryllium dome tweeter
Shielding		Integral through conciliation magnets or by magnet design

CABINET

Construction		19mm MDF panels with internal braces
Finish		Real red veneer on sides
Dimensions (HxWxD)		330mm x 240mm x 290mm - (13"x9.5"x11.4")
Weight		11kg - (24.2lb)

All specifications are subject to change.

TWING BE USER MANUAL: TECHNICAL SPECIFICATIONS

Professional Digital Monitoring System

SYSTEM

Frequency response		40Hz - 40kHz
Maximum SPL		115dB SPL (peak @ 1m)

ELECTRONIC SECTION

Input	Type/Impedance Connector Sensitivity	Electronically balanced / 10 kOhms XLR Adjustable, +4dBu ou -10dBV
LF amplifier stage LF/MF amplifier stage HF amplifier stage		150W rms, BASH® technology 150W rms, BASH® technology 100W rms, class AB
Power supply	Main Voltage Connection	230V (2A fuse rating) 115V (4A fuse rating) IEC inlet and detachable power cord
User controls		Input level switch Speaker (left/right) switch LF and HF contours (potentiometers) Power ON/OFF switch, mains voltage selector
Indicator		Power on LED

TRANSDUCERS

Woofer		2 x "W" cone, Focal 6W4370B 6.5" drive unit
High frequency		Focal TB871 inverted Beryllium dome tweeter
Shielding		Integral through conciliation magnets or by magnet design

CABINET

Construction		19mm MDF panels with internal braces
Finish		Real red veneer on sides
Dimensions (HxWxD)		250mm x 500mm x 340mm - (9.8" x 19.7"x 13.4")
Weight		14kg - (30.8lb)

All specifications are subject to change.

SYSTEM

Frequency response	30Hz - 250Hz
Maximum SPL	116dB SPL (peak @ 1m)

ELECTRONIC SECTION

Input	Type/Impedance Connector Sensitivity	Left, Right, LFE Electronically balanced / 10kOhms Female 3 pins XLR Variable
Output (to satellites)	Type/Impedance Connector	Left, Right Electronically balanced / 50 Ohms Male 3 pins XLR
Amplifier	350 W rms, BASHtechnology
Internal processing and functions	Subwoofer section	Left + Right mono summation LFE + lo-passed mono sum 24dB/octave variable lo-pass filter Phase adjustment Polarity 24dB/octave, defeatable hi-pass filters with selectable frequency
	Satellite section
User controls	Sub level (sensitivity) adjustment
	Lo-pass frequency adjustment
	Phase adjustment
	Polarity switch
	Mute
	2.1 bypass (controlled by external footswitch)
	Hi-pass frequency selection
	Hi-pass defeat
Indicators (LED's)	Power on
	Mute
	Hi-pass defeat
Power supply	Mains voltage Connection	230V (T1.6AL fuse rating) or 115V (T3.15AL fuse rating) IEC inlet and detachable power cord

TRANSDUCERS

Subwoofer

"W" composite sandwich cone, high excursion Focal 11W7670, 270mm (10.6") drive unit

CABINET

Construction	22mm MDF panels with internal braces
Finish	Real red veneer on sides - Black on body
Dimensions (HxWxD)	380mm x 344mm x 440mm (15" x 13.5" x 17.3")
Weight	23kg (50.7lb)

Professional Digital Monitoring System

Professional Digital Monitoring System

MANUEL UTILISATEUR SOLOG BE - TWIN 6 BE - SUB6 BE

Professional Digital Monitoring System

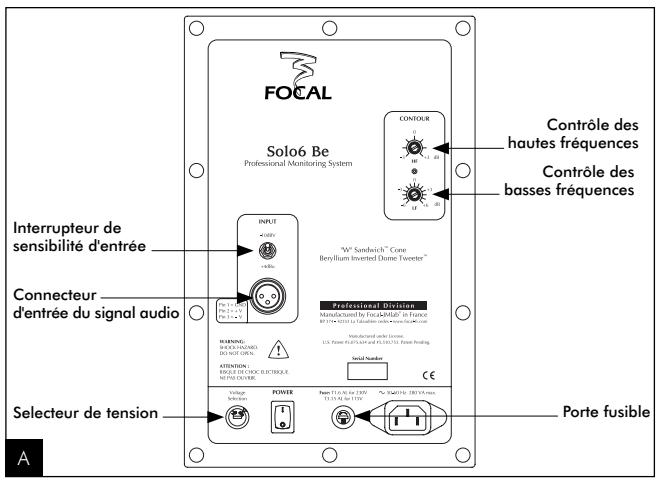

Solo6 Be

Pin 1 = masse (blindage)

Pin 2 = point chaud (signal en phase)

Pin 3 = point froid (signal hors phase)

Professional Digital Monitoring System

Professional Digital Monitoring System

Professional Digital Monitoring System

PERFORMANCES

Professional Digital Monitoring System

PERFORMANCES
