USER MANUAL PROFILE SUBWOOFERS FOCAL

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated «dangerous voltage« within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution: to prevent the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

1. Only use attachments/accessories specified by the manufacturer.
2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/apparatus combination to avoid injury from tip-over.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
4. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle.
5. The mains plug of the power supply cord shall remain readily operable.
6. Do not expose to dripping or splashing.

Magnetic disturbance

Application

Start-up and shut-down

Adjusting the volume

Night"mode

Program application

Parameters

Navigation

Input mode

Low Pass Mode

Boost Mode

Subsonic Mode

Phase Mode

Gain Mode

Presets buttons

Specifications and warranty

Specifications

Conditions of guarantee

Notes

International Guarantee

Page

2

12

14

16

18

21

36

39

PROFILE SUBWOOFER MANUAL

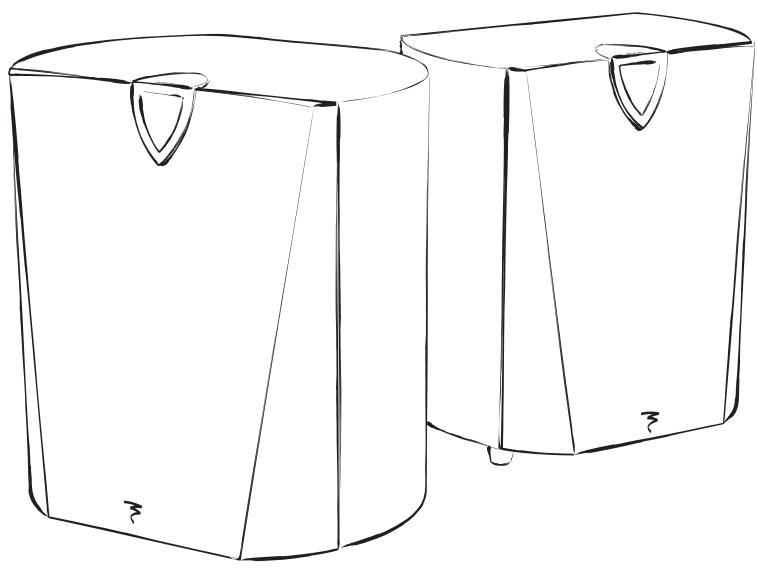

Congratulations and thank you for your purchase of a Profile self-powered subwoofer. We are pleased to share our philosophy with you: "the Spirit of Sound". This high-performance subwoofer features the latest technical developments from Focal-JMlab in terms of speaker design and amplification, whether it is for hi-fi or home theatre systems. In order to make the most of this subwoofer, we recommend that this user manual be kept for future consultation.

Break-in period

The driver used in the Profile is made up of complex mechanical elements that require an adaptation period before they deliver the best of their performance. They must adapt to the temperature and humidity conditions of their environment. This break-in period depends upon the encountered conditions and can last several weeks. To shorten this period, we recommend the use of the subwoofer during approximately twenty hours at medium level, playing standard music program, but with a large amount of bass. Once the components of the loudspeaker are completely stabilized, it is possible to enjoy the real performance of your self-powered subwoofer.

The Focal-JMlab warranty only applies if the enclosed warranty card is returned to us within 10 days of purchase.

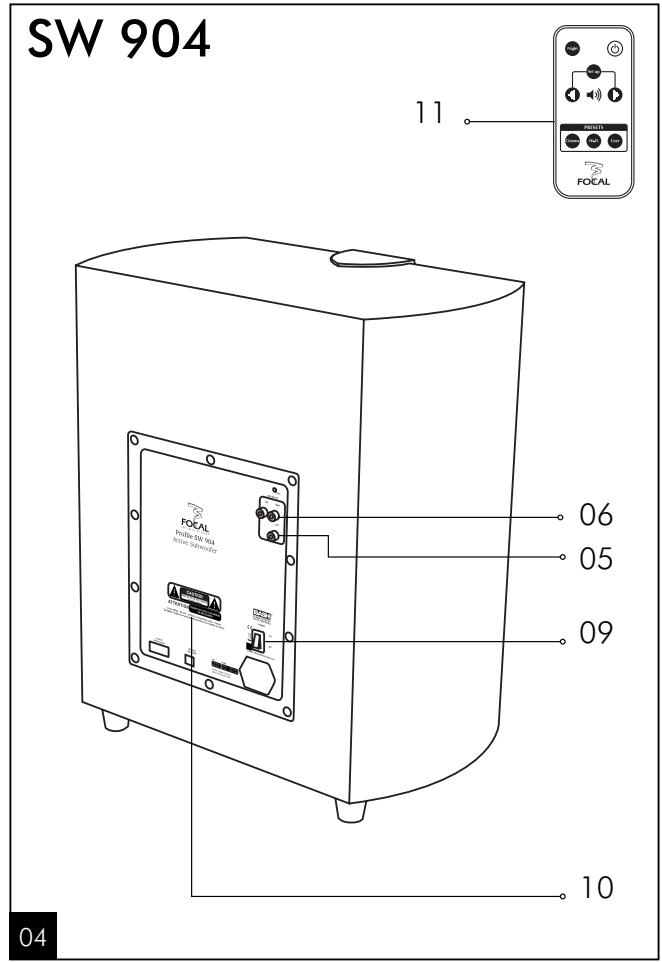

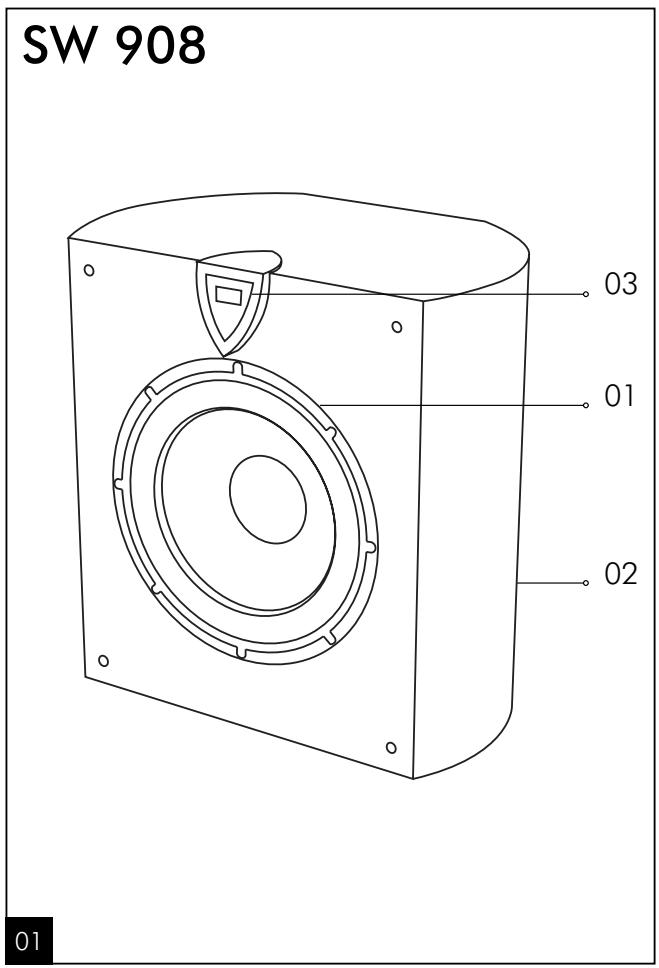

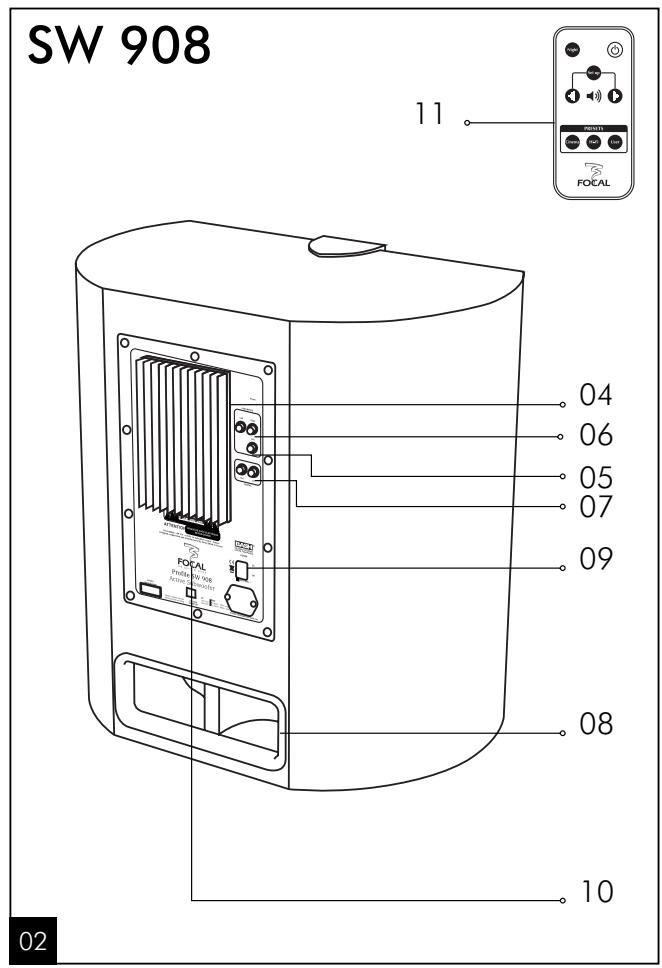

Specifications

"W" sandwich composite woofer (1)

BASH® digital amplifier (4)

DSP 24 bit processor (10)

• Active high-pass crossover, variable from 50 to 150Hz , 24dB/octave
• Variable phase from 0 to 180^
• 3dB boost at 40Hz
• Subsonic filter adjustable, 24dB/ octave
• Variable gain (-6dB to +6dB)

LCD display (3)

Multi-layer, curved MDF construction (2) (for SW 908 only)

Double-flared FTP aerodynamic port (8) (for SW 908 only)

Auto Power (9)

LFE input (5)

Stereo inputs (6)

Digital input/output on coaxial (7) (for SW 908 only)

Full-function, infrared remote control (11)

Three programmable memories

Connections

Low-level inputs on RCA

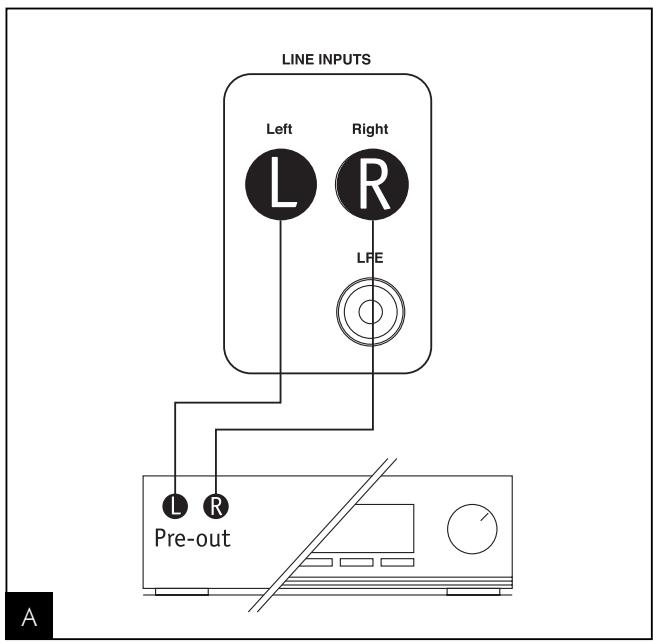

When using a two-channel, stereo amplifier with preamplifier line outputs, the Profile must be connected through RCA stereo inputs "line inputs Right/Left" (fig. A). This configuration is better than that of the high-level inputs and will deliver a cleaner sound.

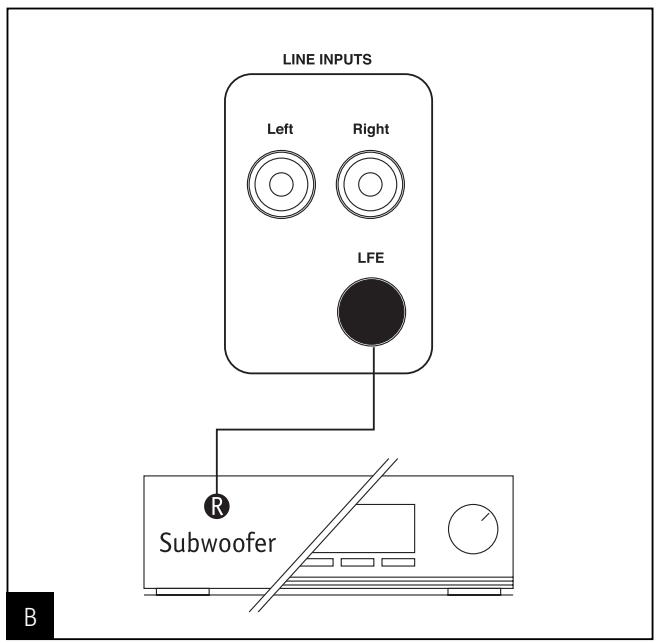

LFE input

When using an audio/video, multi-channel amplifier, the single LFE input of the Profile should be connected to the mono "Subwoofer" output of the audio/video amplifier (fig. B).

Digital input/output (Digital)

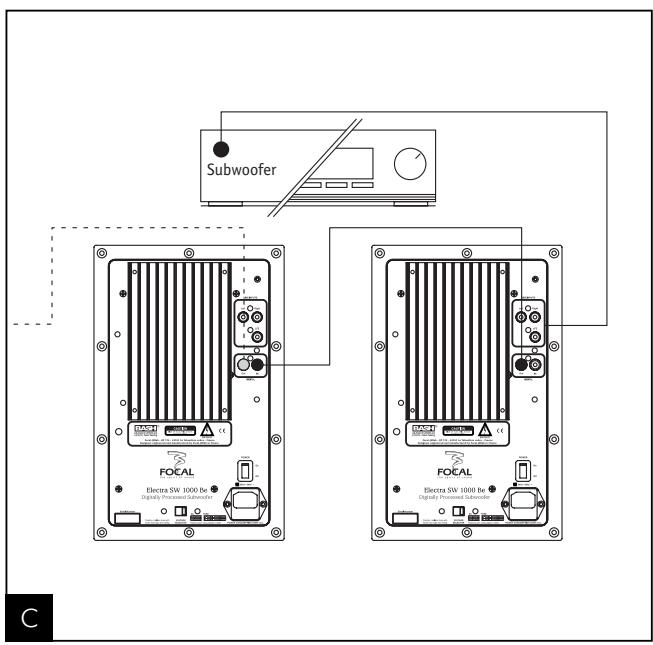

Several Profile SW908 subwoofer can be digitally connected to greatly increase sound pressure levels. The first "master" subwoofer receives the analog signal from the source unit and then drives in the digital domain as many additional "slave" subwoofer as deemed necessary. This permits all the settings and corrections on the master subwoofer to be systematically applied to the slaves (whose control menus are partially deactivated). Only gain and phase are accessible. The digital connection is serial from one subwoofer to the next (fig. C). Volume control of slave subwoofer is synchronized with master subwoofer.

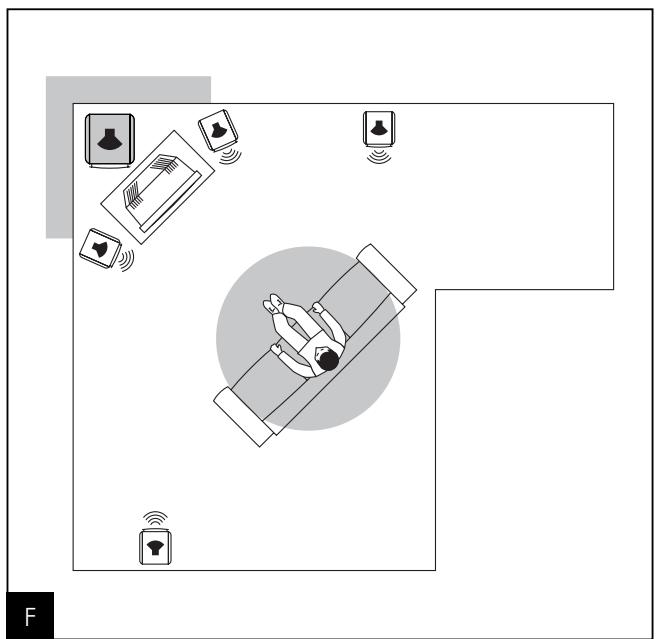

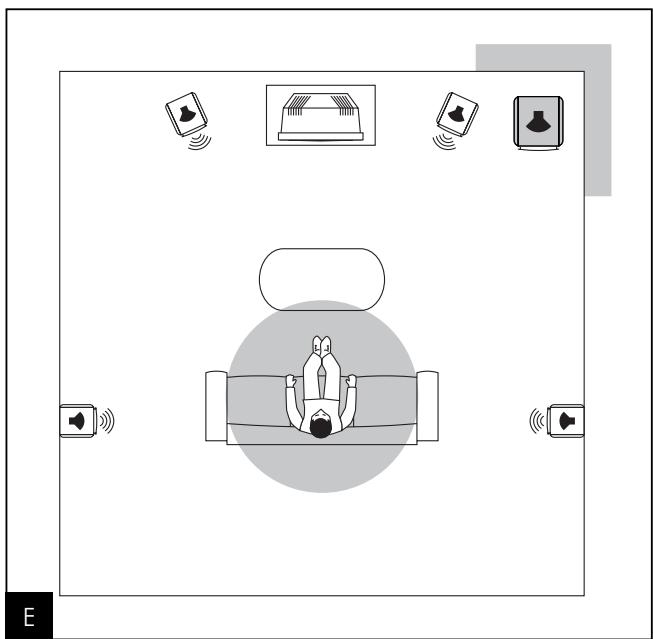

Positioning

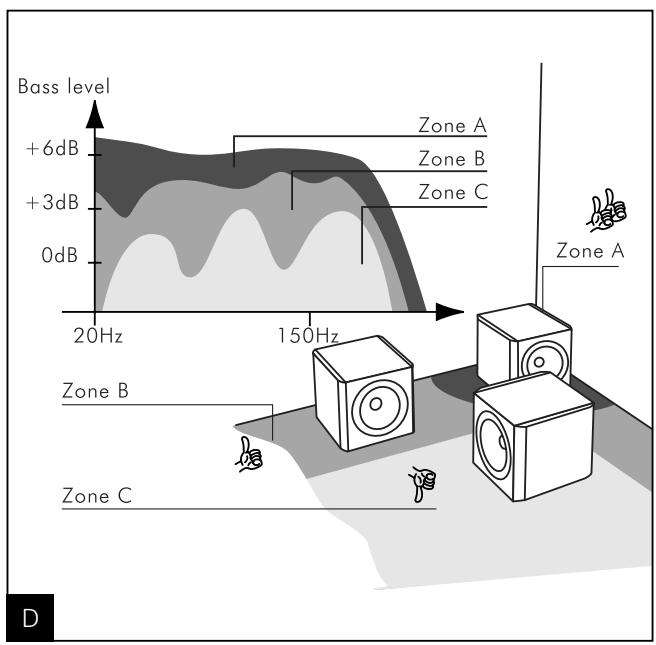

Contrary to conventional, hi-fi loudspeakers, which have to be placed at a reasonable distance from the walls and the listening area corners, we recommend placement of the Profile subwoofer in a corner of the listening area (fig. E, F). If the subwoofer is placed against only one wall or too far from the walls, the very large wavelength of the bass delivered by the subwoofer will excite the resonance of the listening room in an unpredictable way. Frequency response linearity will then be compromised and sound rendition will be affected (lack of depth, "boomy sound", poor bass, difficult or impossible coupling with the other loudspeakers). If you put the Profile sub in a corner, the resonant frequencies of the room will be more linear and predictable. In such a configuration, you will not only benefit from an optimum perception of the bass frequency range but the bass level will also increase by 6dB (fig. D). If a particular disposition of the room does not allow placement of the subwoofer in a corner, we recommend that you try different configurations until you find the best possible sound. Generally, the subwoofer should be placed along the front wall of a listening room. As bass frequency waves are omni-directional, the sound dispersion will not be affected if a piece of furniture or an object is placed between the subwoofer and the listening area. It is then possible to hide the Profile behind a piece of furniture as long as the bass frequency dispersion is not affected.

Magnetic disturbance

The Profile generates a magnetic field that may interfere with other sensitive household appliances. It is strongly advised to not place the Profile closer than 50cm (20") to your TV screen. Frame geometry as well as colours can be severely distorted by a magnetic field if the loudspeaker is placed to close to the cathode ray tube. Generally, all sensitive media (audio tapes, video tapes, magnetic data storage, projector and CRTS overhead projector) should not be placed close to any non-shielded loudspeaker.

APPLICATION

Start-up and shut-down

Turn the power switch on the back of the unit to the "On" position. A "Loading" message will appear on the display (this will only ever appear as start-up and shut-down of the subwoofer).

Thanks to the integrated "Autopower" setting, start-up is automatic on receiving an audio signal on the analog inputs. The message "FOCAL Profile" which appears on the screen indicates that the subwoofer is operational and awaiting instruction. Start-up can also be attained (ex: setting parameters of the subwoofer without an analog signal, see following chapter) by pressing the ① button on the remote.

In absence of an input audio signal, stand-by is as well automatic after approximately a period of 15 minutes. Stand-by can also be attained by pressing on the ① button on the remote.

When absent for several days, it is recommended to turn the power switch to "Off" on the back of the amplifier.

During an electrical storm, disconnect the mains cable.

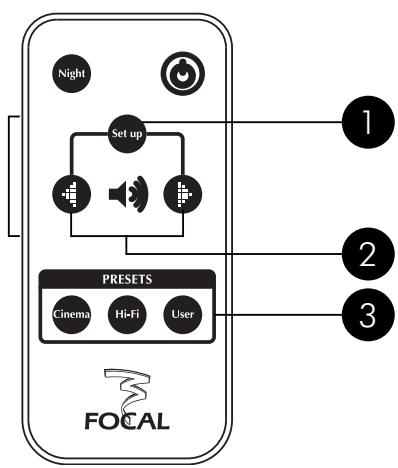

Adjusting the volume

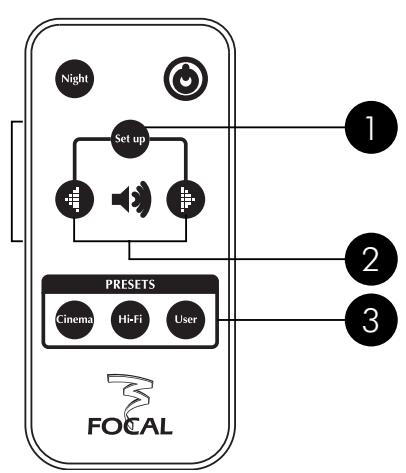

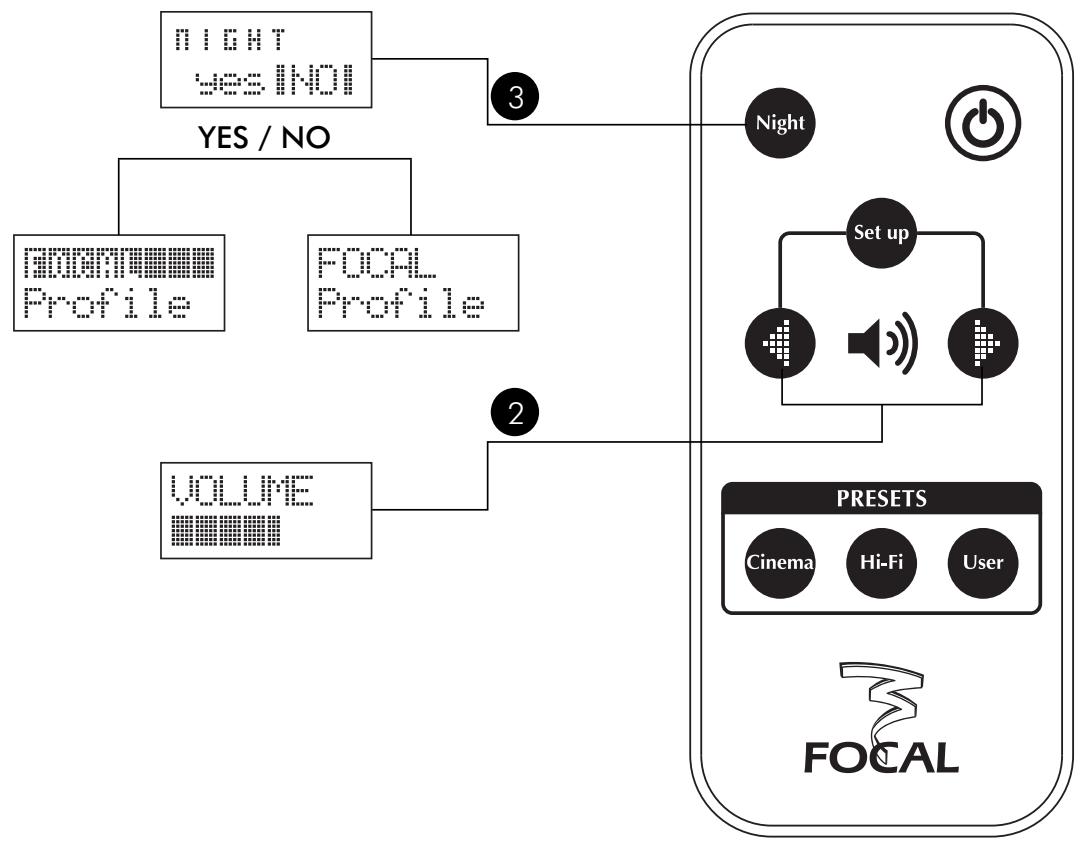

Adjusting the volume (button 2) allows a proper output level of the subwoofer compared to those of the other speakers in the system. Establishing this by remote control permits a very precise fine-tuning of the level according to the nature of the listening material.

Night"mode

This type of digital, dynamic compression of the signal permits the user to avoid large differences in playback level between weak and powerful signals. Weak signals are increased so that the bass is more present and satisfactory, even at low listening levels, while powerful signals are decreased in amplitude. This function allows for an excellent listening comfort in bass response, even at very low listening levels, and to avoid disturbing the neighbors or others nearby.

The default message "FOCAL Profile" appears highlighted on the display when in "Night" mode (button ③).

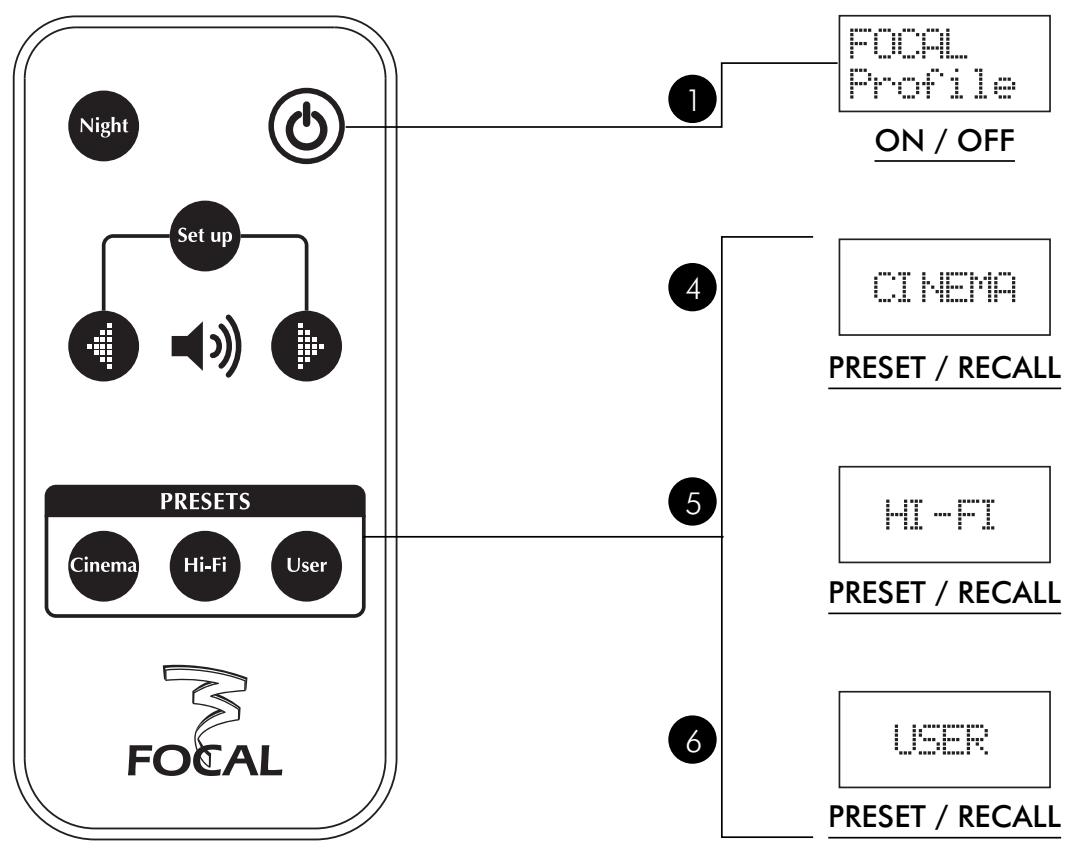

Program application

Three digital memory settings are accessible on the remote control (button 4, 5 or 6). The factory settings correspond generally to a range of applications. The "Hi-fi" mode corresponds to a setting, which is as linear as possible, with a well-integrated and deep bass. "Cinema" is calibrated to be more demonstrative and dynamic to highlight performance in film soundtracks. In the "User" mode, all corrections and filters are deactivated. All these settings can be modified at will. Consult the table at the end of the manual to return to the factory settings.

SW 908

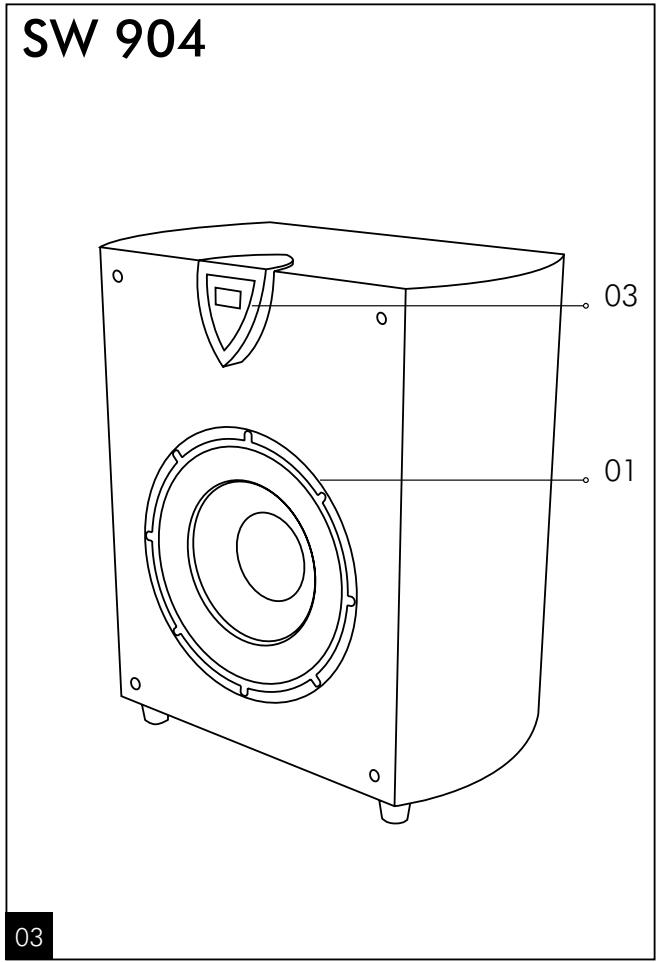

SW 904

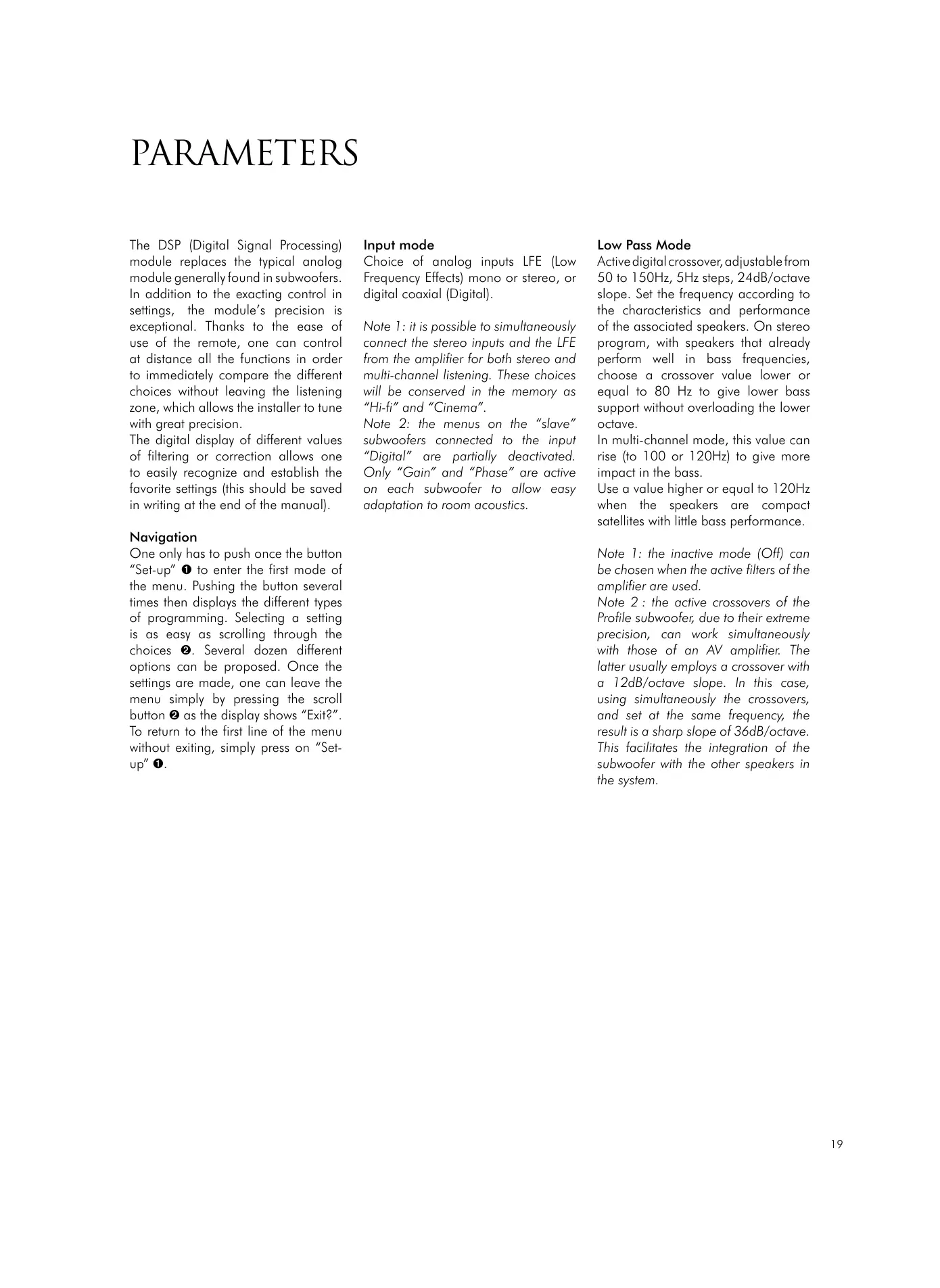

PARAMETERS

The DSP (Digital Signal Processing) module replaces the typical analog module generally found in subwoofoers. In addition to the exacting control in settings, the module's precision is exceptional. Thanks to the ease of use of the remote, one can control at distance all the functions in order to immediately compare the different choices without leaving the listening zone, which allows the installer to tune with great precision.

The digital display of different values of filtering or correction allows one to easily recognize and establish the favorite settings (this should be saved in writing at the end of the manual).

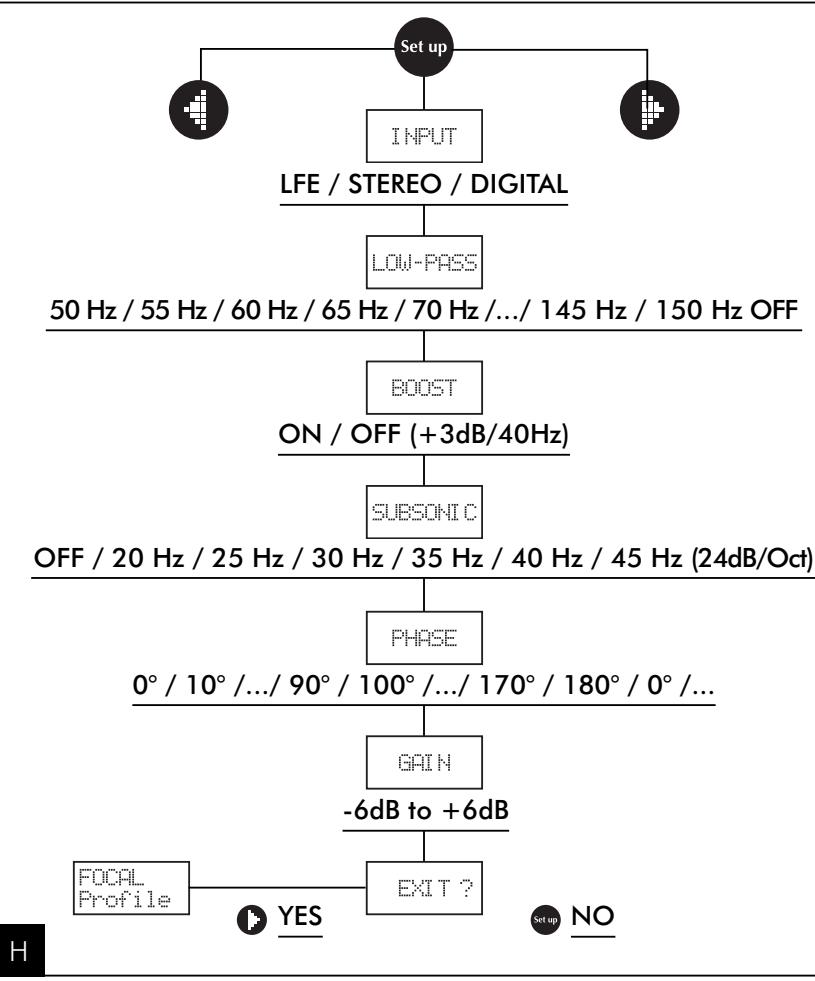

Navigation

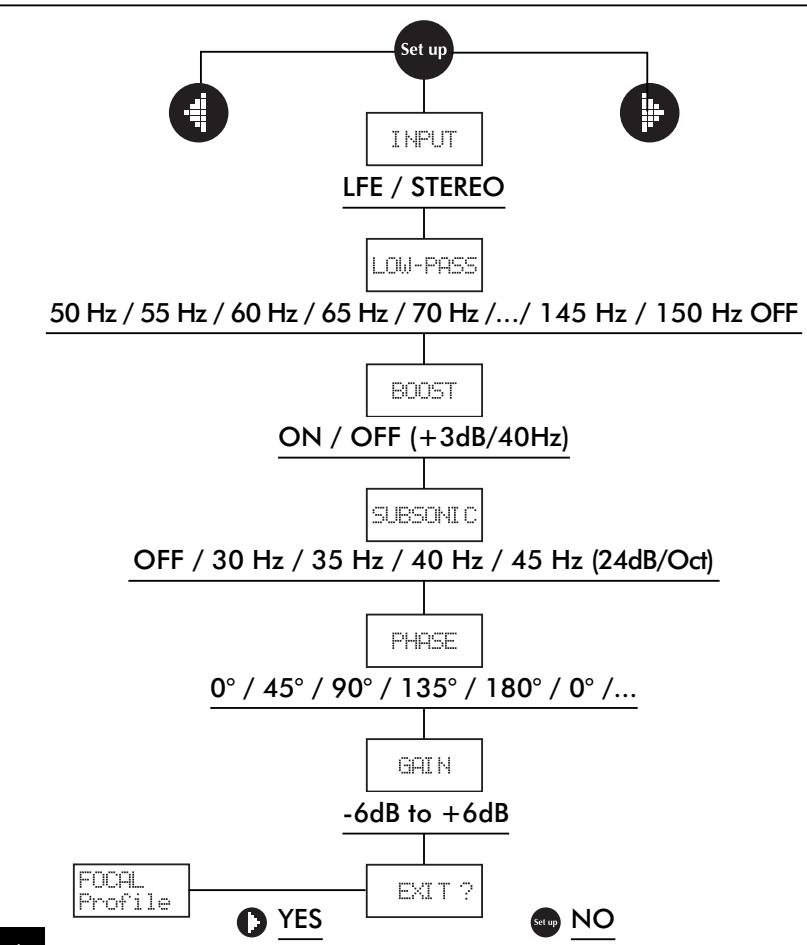

One only has to push once the button "Set-up" ① to enter the first mode of the menu. Pushing the button several times then displays the different types of programming. Selecting a setting is as easy as scrolling through the choices ②. Several dozen different options can be proposed. Once the settings are made, one can leave the menu simply by pressing the scroll button ② as the display shows "Exit?" To return to the first line of the menu without exiting, simply press on "Setup" ①.

Input mode

Choice of analog inputs LFE (Low Frequency Effects) mono or stereo, or digital coaxial (Digital).

Note 1: it is possible to simultaneously connect the stereo inputs and the LFE from the amplifier for both stereo and multi-channel listening. These choices will be conserved in the memory as "Hi-fi" and "Cinema".

Note 2: the menus on the "slave" subwoofer's connected to the input "Digital" are partially deactivated. Only "Gain" and "Phase" are active on each subwoofer to allow easy adaptation to room acoustics.

Low Pass Mode

Active digital crossover, adjustable from 50 to 150Hz , 5Hz steps, 24dB/octave slope. Set the frequency according to the characteristics and performance of the associated speakers. On stereo program, with speakers that already perform well in bass frequencies, choose a crossover value lower or equal to 80Hz to give lower bass support without overloading the lower octave.

In multi-channel mode, this value can rise (to 100 or 120Hz ) to give more impact in the bass.

Use a value higher or equal to 120Hz when the speakers are compact satellites with little bass performance.

Note 1: the inactive mode (Off) can be chosen when the active filters of the amplifier are used.

Note 2: the active crossovers of the Profile subwoofer, due to their extreme precision, can work simultaneously with those of an AV amplifier. The latter usually employs a crossover with a 12dB/octave slope. In this case, using simultaneously the crossovers, and set at the same frequency, the result is a sharp slope of 36dB/octave. This facilitates the integration of the subwoofer with the other speakers in the system.

PARAMETERS

Boost Mode

Increase of the bass level by +3dB at 40Hz . To be used as preference or need on multi-channel playback for very dynamic bass.

Subsonic Mode

Low-pass filter, adjustable from 0 (OFF) to 45Hz by 10Hz steps, at a slope of 24dB /octave. This filter can be very practical when the subwoofer is placed in a small room and-or at an angle in the room, or if the walls of the room are thin or not very rigid. The room may generate an excessive sound level in the lower bass or even cause saturation. Vibration and unpleasant resonances can then occur. The subsonic filter can progressively eliminate this annoyance and maintain a clean and strong bass performance. Adjust the filter value until the resonances disappear in the listening room.

Note 1: this filter setting can be used as well during extended listening periods at high levels. It inhibits excessive cone movement of the diaphragm (bottoming out) and delays the appearance of distortion.

Note 2: this filter can be used simultaneously with the mode "Boost" activated. The increase in energy (+3dB, equal to a doubling of power) is compensated by the subsonic filter, which suppresses energy in the upper bass.

Phase Mode

Adjustment of the phase from 0^ to 180^ . This adjustment allows to precisely lock in the phase of the subwoofer with that of the other loudspeakers at the crossover frequency. Navigate through the phase values with the directional arrows until the bass of the subwoofer perfectly meets that of the loudspeakers.

Note 1: this adjustment can be done by ear. However, measuring instruments make for easy work, and are recommended: discuss this with your reseller.

Note 2: it is possible, whilst listening, to compare the position 0^ and 180^ (inverted phase) directly from the menu, without fine-tuning by steps. This easy phase inversion solution can simplify final adjustment.

Gain Mode

It is possible to assign a different gain (from -6dB to +6dB) according to either a music or cinema program that would benefit from a higher level. This level can be kept in memory on the buttons Select Hi-fi and Cinema.

Presets buttons (memory)

After exiting a menu, you can assign your adjustments to one of the three available memory settings. Press, and hold one of the three "Preset" buttons for two seconds. When the display flashes, the setting has been memorized.

Note 1: the preset buttons correspond to the everyday use of either a stereo or home theatre system. Naturally, according to the use or nature of the system, these three buttons can be assigned to settings for either stereo or home theatre.

Note 2: the "User" function is an additional memory setting that can be assigned to another use of the subwoofer, e.g.: multi-channel SACD or DVD-Audio, which may require different settings.

SPECIFICATIONS AND WARRANTY

Specifications

	SW908	SW904
Driver	13" "W" cone woofer,	11" "W" cone woofer,
	2-1/2" voice coil	2-1/2" voice coil
Frequency response	27 to 150Hz	32 to 150Hz
Amplifier	500Wrms (700 W max) BASH®	350Wrms (450W max) BASH®
DSP section	24dB/octave active filter	24dB/octave active filter
	(50 to 150Hz)	(50 to 150Hz)
	Adjustable phase from 0° to 180°	Adjustable phase from 0° to 180°
	(by step of 10°)	(by step of 45°)
	24 dB/octave subsonic filter	24 dB/octave subsonic filter
	(20 to 45Hz)	(30 to 45Hz)
	Boost mode	Boost mode
	Night mode	Night mode
	3 users presets	3 users presets
Input	LFe/Stereo/Digital on coaxial	LFe/Stereo
	(SPDIF)
Power mode	On/Off/Autopower	On/Off/Autopower
Dimensions (HxWxD)	20x19.2x15"	19-13/16x16-15/16x12-3/8
	(510x488x380mm)	(504x430x315mm)
Weight	59.5lbs (27kg)	50.6lbs (23kg)

Conditions of guarantee

All Focal-JMlab loudspeakers are covered by warranty, which is drawn up by the official Focal-JMlab distributor in your country.

Your distributor can provide details concerning the conditions of warranty.

Warranty coverage extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

Woofer membrane sandwich composite "W" (1)

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:
