CONTENTS 2010

BONNEVILLE p8 An icon. A timeless classic SPECIFICATIONS p2

BONNEVILLE SE p14 Extra pure Bonneville. SPECIFICATIONS p25

BONNEYVILLE T100 p18 Classic styling. Re-engineered for a new century. SPECIFICATIONS p25

THRUXTON p26

The cafe racer. Reinvented.

SPECIFICATIONS p31

SCRAMBLER p32

No-nonsense 60s attitude.

Ready for Action.

SPECIFICATIONS p37

TRIUMPH CLOTHING p38

Whoever you are. Whatever you ride.

Whatever the weather. This is the gear.

Genuine Triumph clothing.

CREATE MY TRIUMPH p39

Have it your way. Exactly your way. By personalising your Triumph online at triumphmotorcycles.com Any bike

Any accessory. Any colour.

BONNÉVILLE. Named after Triumph's record-breaking motorcycle speed record on the Bonneville Salt Flats. Iconic. Independent. 50 years on, it's still an original. Freshly updated, with an authentic 70s vibe.

THE

BONNEVILLE RANGE

LEFT TO RIGHT: BONNEVILLE T100 FOREST GREEN AND NEW ENGLAND WHITE WITH ACCESSORIES. BONNEVILLE SE PACIFIC BLUE AND FUSION WHITE WITH ACCESSORIES. BONNEVILLE JET BLACK WITH ACCESSORIES. 5

Bonneville. Synonymous with Triumph. True to its heritage.

Always built by the finest craftsmen. Still built by the finest craftsmen. Second to none.

The Bonneville pin-stripe is still hand-painted by our craftsmen. Holding their breath to ensure a steady hand, they use fluid brush movements for a perfect line. Only then do they put a signature on the rear, lower part of the tank. It is the mark of quality and years of dedication. The mark of a Bonneville.

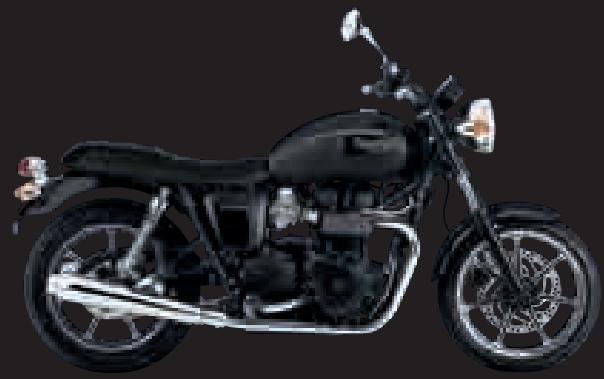

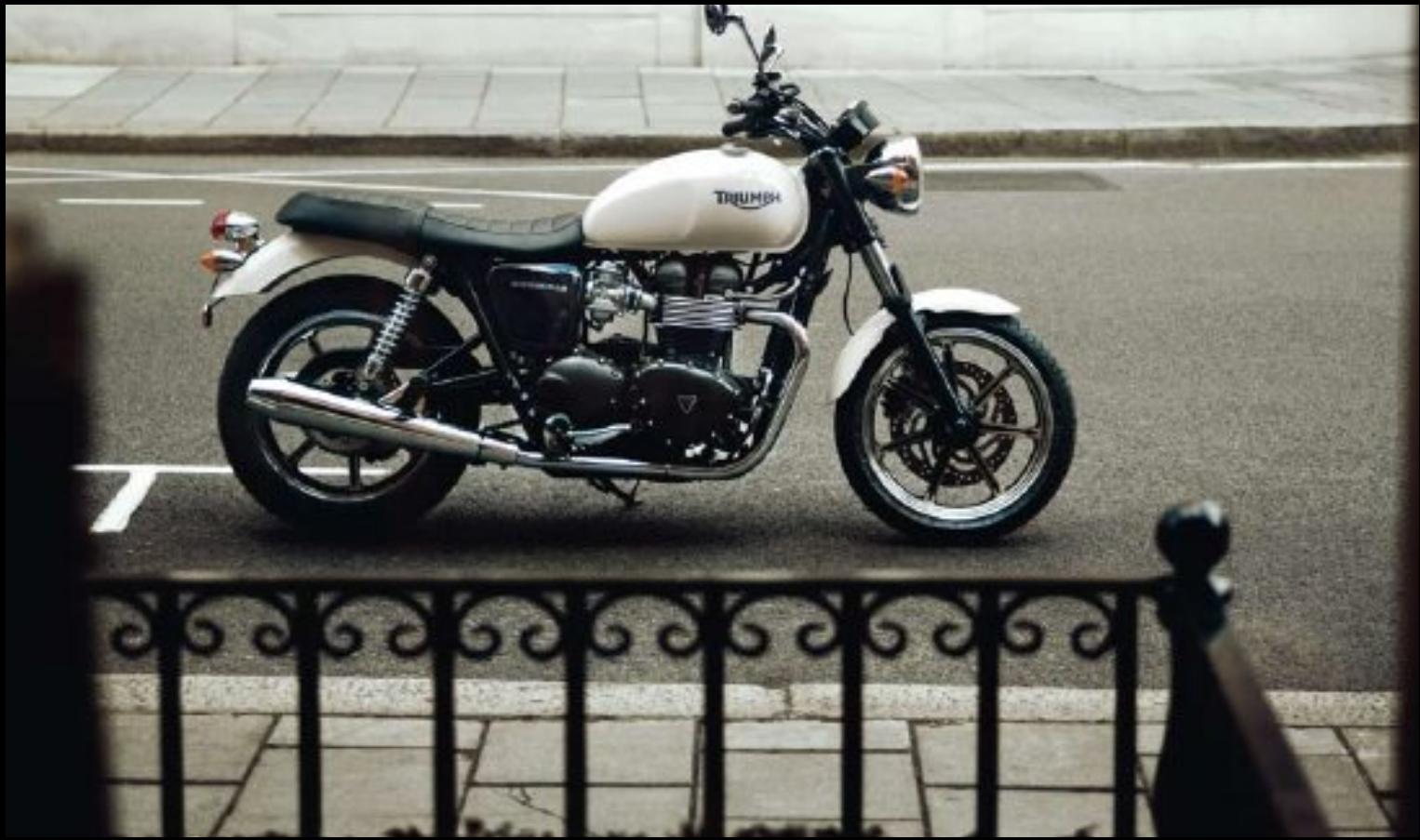

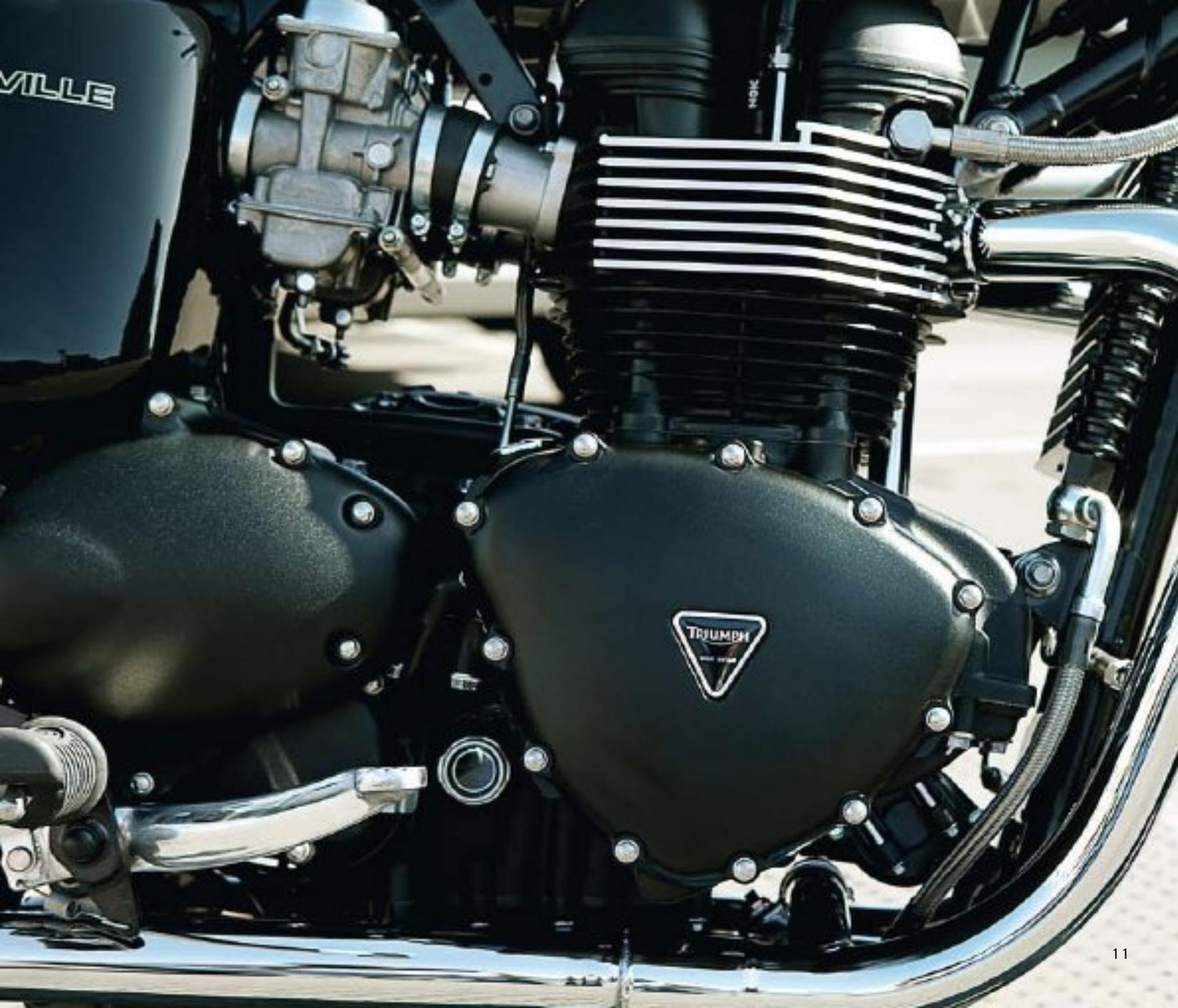

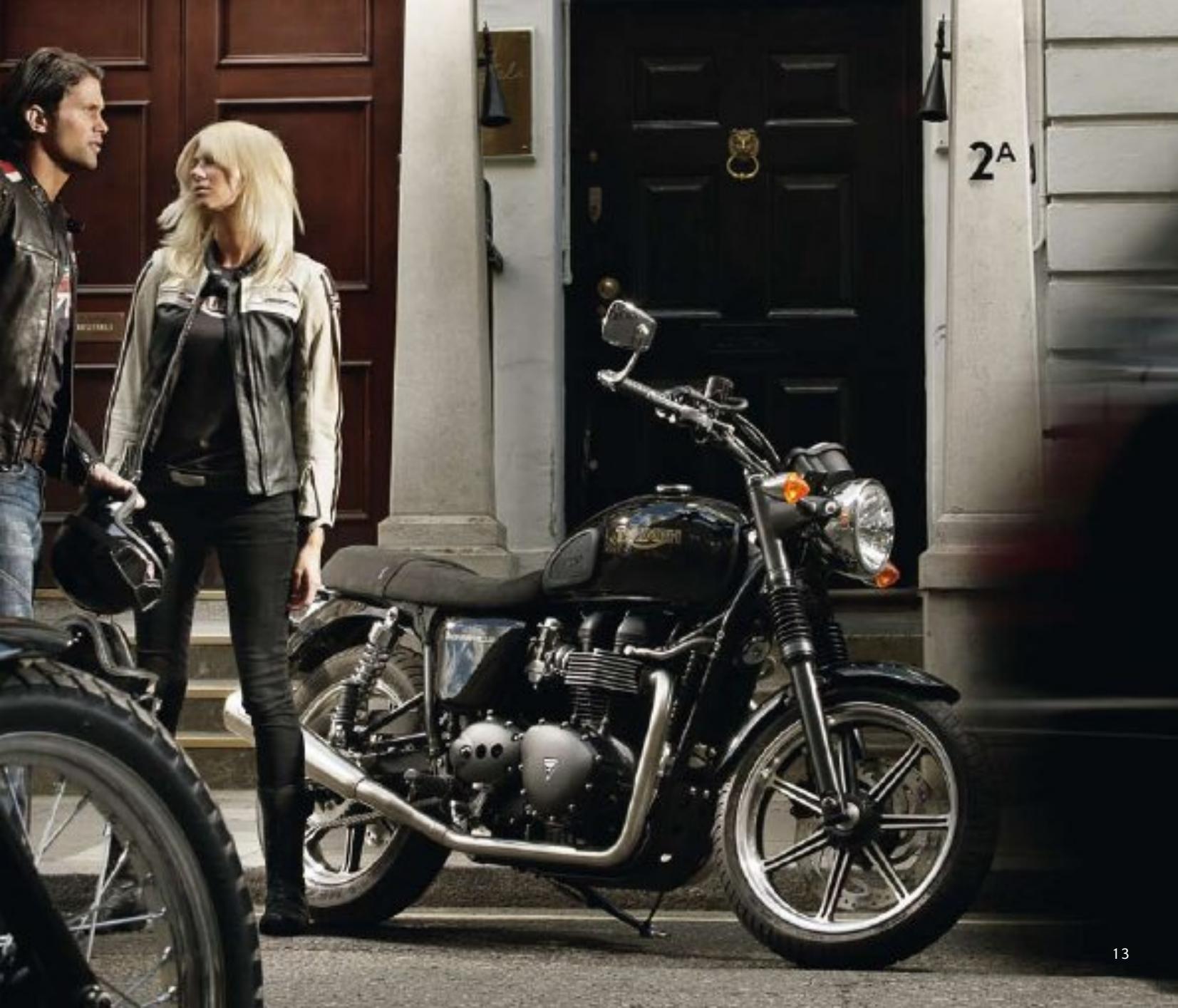

BONNEVILLE. New. Reinvented. So fire up the modern, fuel-injected, air-cooled 865cc parallel twin. Listen to the rich sound from the upswept, megaphone silencers. That'll put a grin on your face. A lower, narrower seat for a lower centre of gravity and a more appealing, relaxed ride. A classic. Reborn.

BONNEVILLE

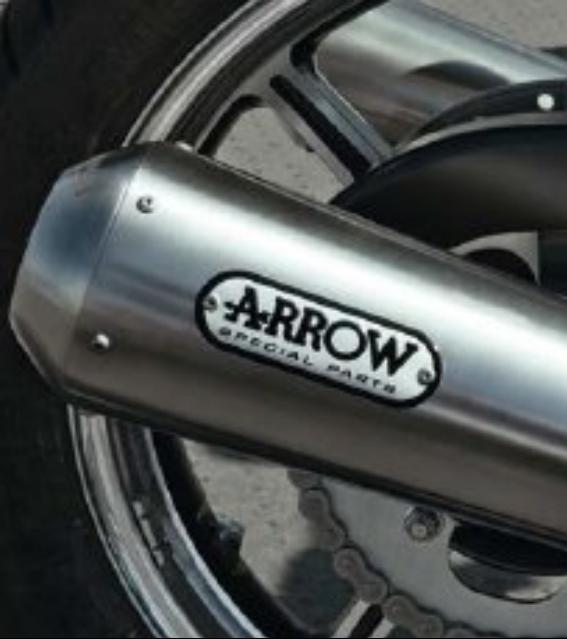

Brushed stainless steel full exhaust system developed in conjunction with Arrow Special Parts. Twin conical upswept silencers offers symmetry and the aesthetic simplicity of classic styling while remaining E approved, for noise. Features removable baffles for closed circuit use.

BONNEVILLE ACCESSORIES triumphmotorcycles.com

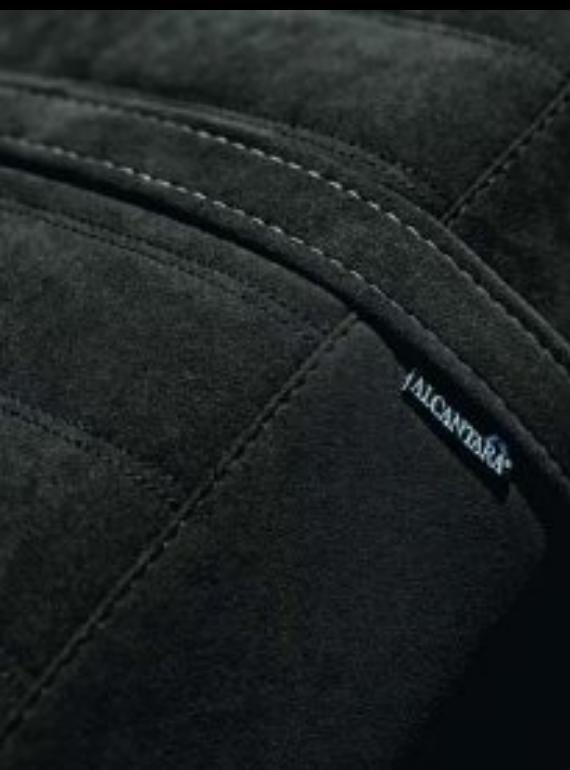

For ultimate style, comfort and a relaxed ride the Alcantara covered seat includes a contoured silicone gel layer to evenly distribute the rider's weight. It is also internally laminated for added durability and features the Triumph logo embossed at the rear.

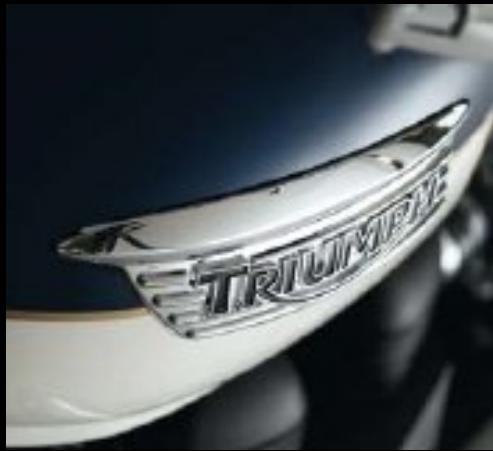

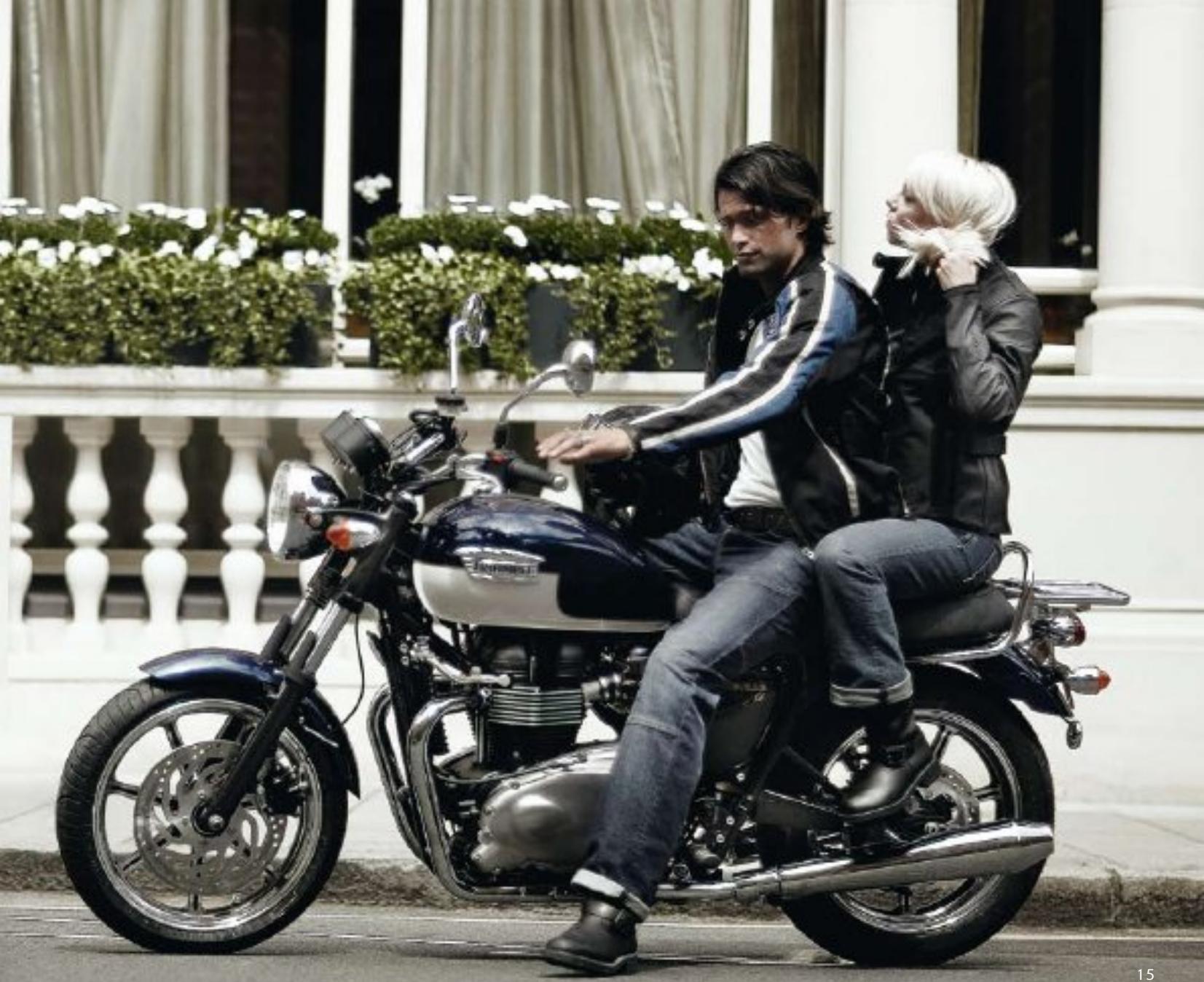

BONNÉVILLE S.E. Pure Bonnville. Only more so. Matching speedo and tacho. Polished alloy engine covers on the blacked out 865cc parallel twin. A traditional Triumph tank badge. Aluminium alloy cast wheels. Upswept silencers. 'Shortie' mudguards. Twin colour paint scheme available. Undiluted riding pleasure.

BONNEVILLE

SE

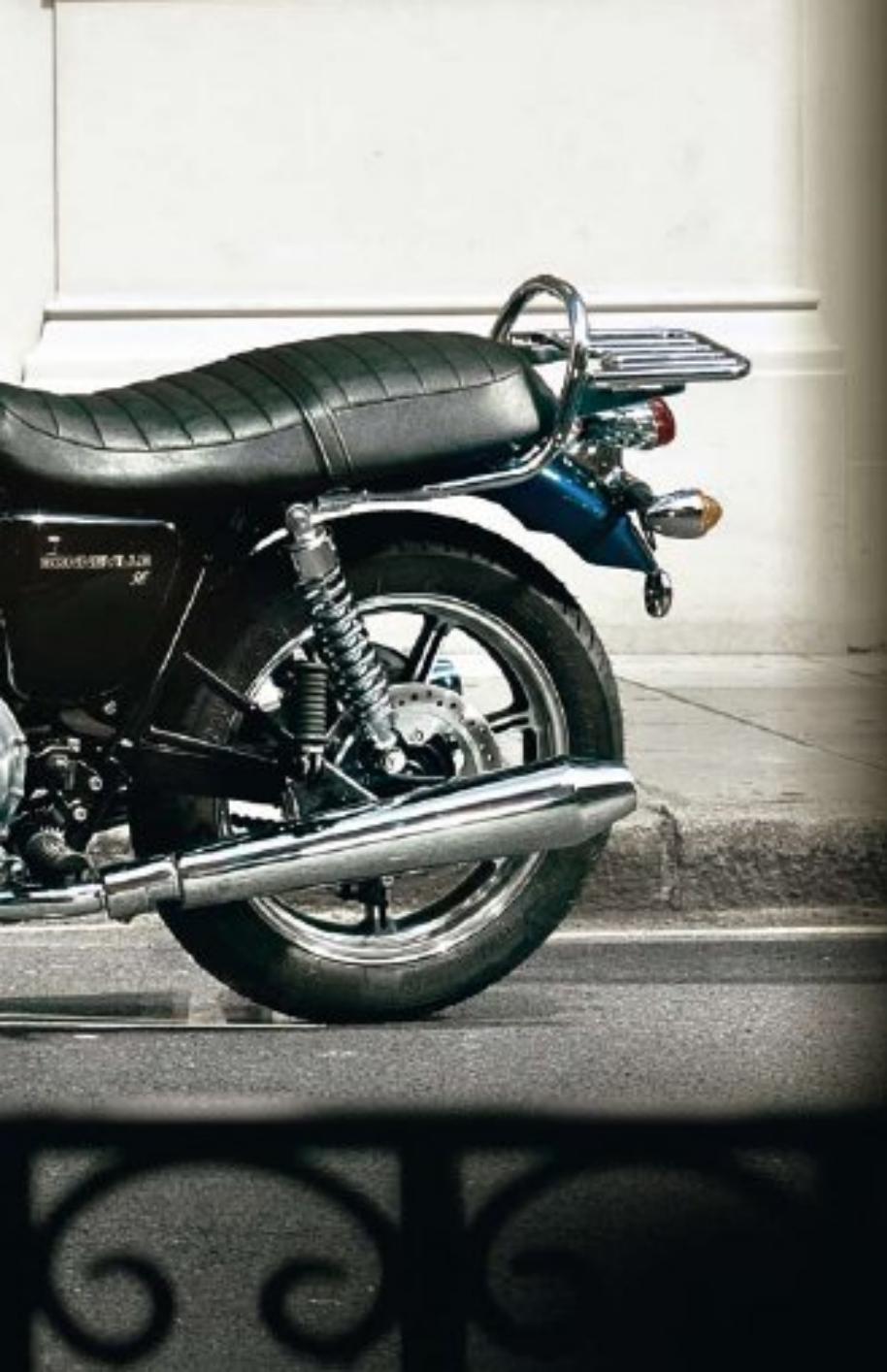

Triple plated. Hand polished. The versatile chrome tubular luggage rack with integral pillion grab rail fits all 865cc Bonneville models and adds practical carrying capacity.

Comfort touring gel seat, featuring a silicone gel layer to distribute weight more evenly and maximise long distance rider and pillion comfort.

The lockable fuel filler cap. Finished in high lustre chrome. With Triumph branded swivel dust cap for durability and smooth operation.

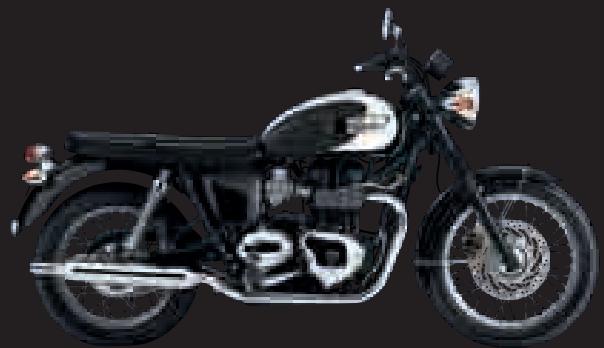

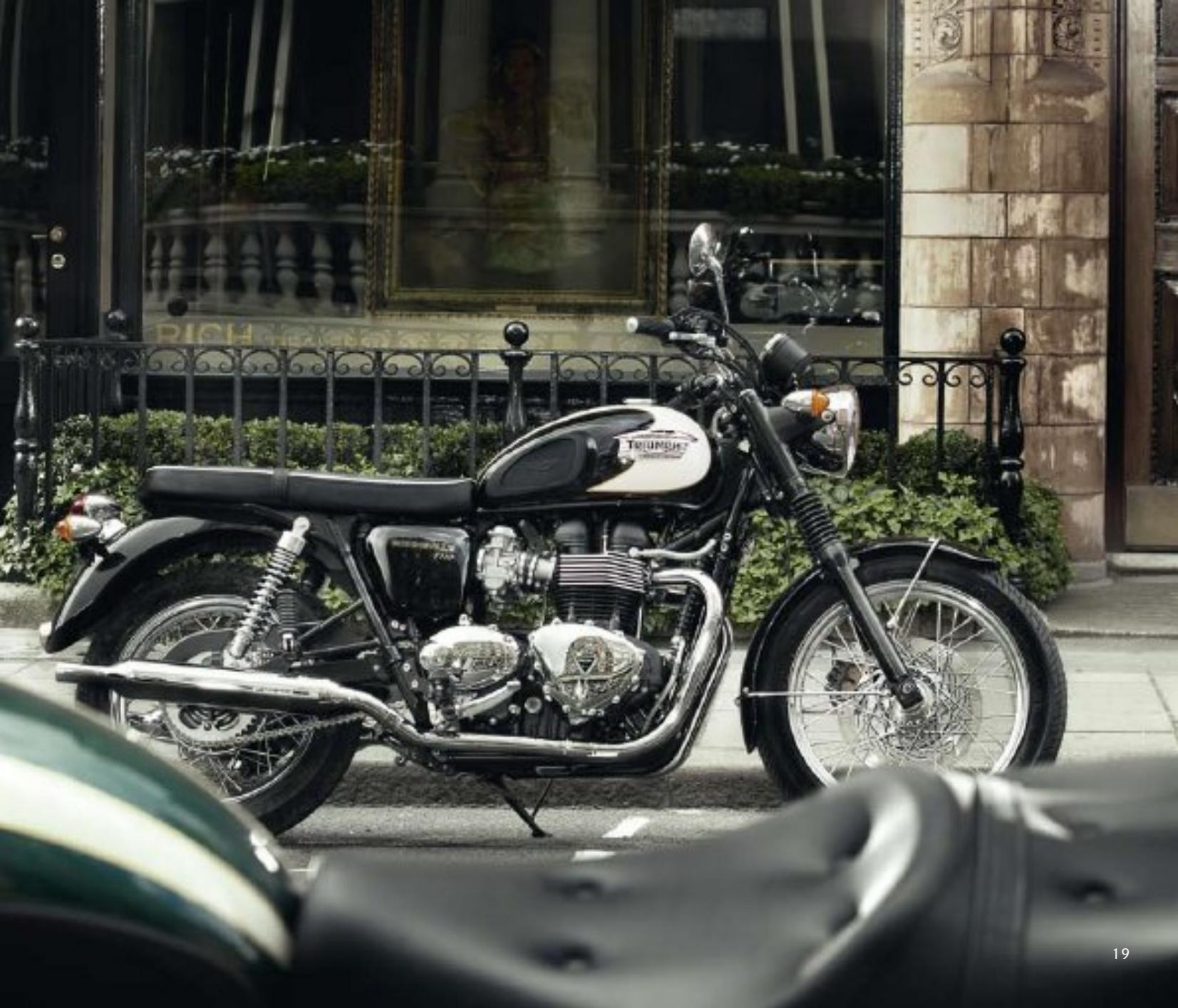

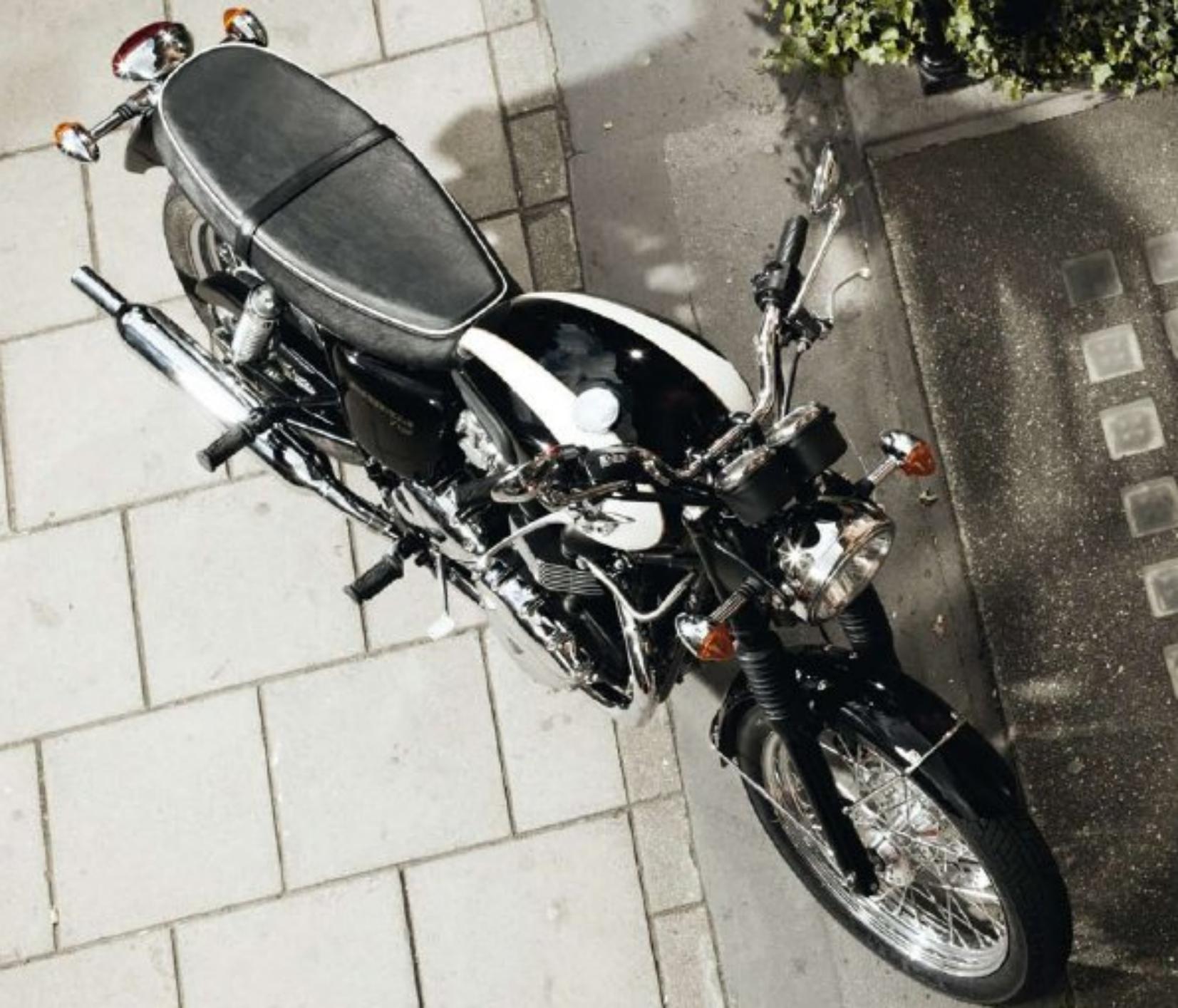

BON N E V I L L E T 100 . Classic 60s styling. Bang up to date engineering. Retro meets modern. Double-barrelled, fuel-injected responsiveness from the 865cc parallel twin. Smooth pulling, double-barrelled fun. A mellow backbeat from the twin peashooter exhausts. Love that sound. Chrome engine covers. Black instrument surround with tacho. Triumph logo on the seat. Two-tone paint. Spoked wheels. Fork gaiters. Biking the way it's meant to be. Ride it with a smile.

BONNEVILLE

T100

BONNEYVILLE T100 PICTURED IS STANDARD. MODEL WEARS T-SHIRT FROM THE TRIUMPH VINTAGE SIXTY8 COLLECTION, INSPIRED BY ICONIC IMAGES FROM THE 60S AND 70S.

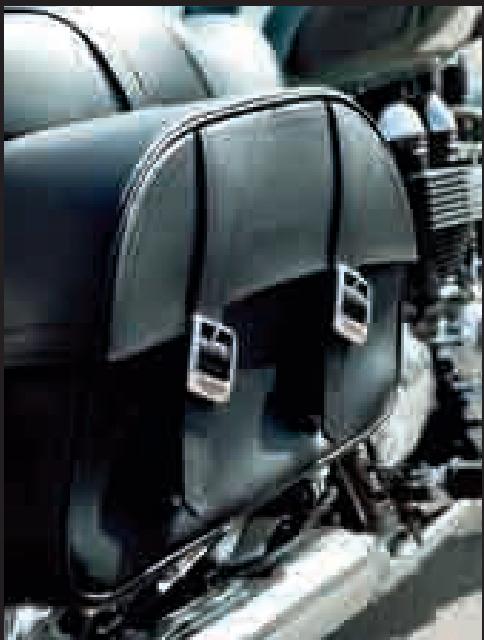

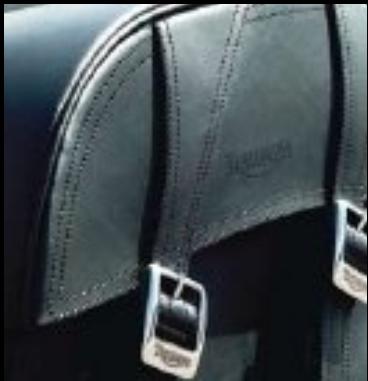

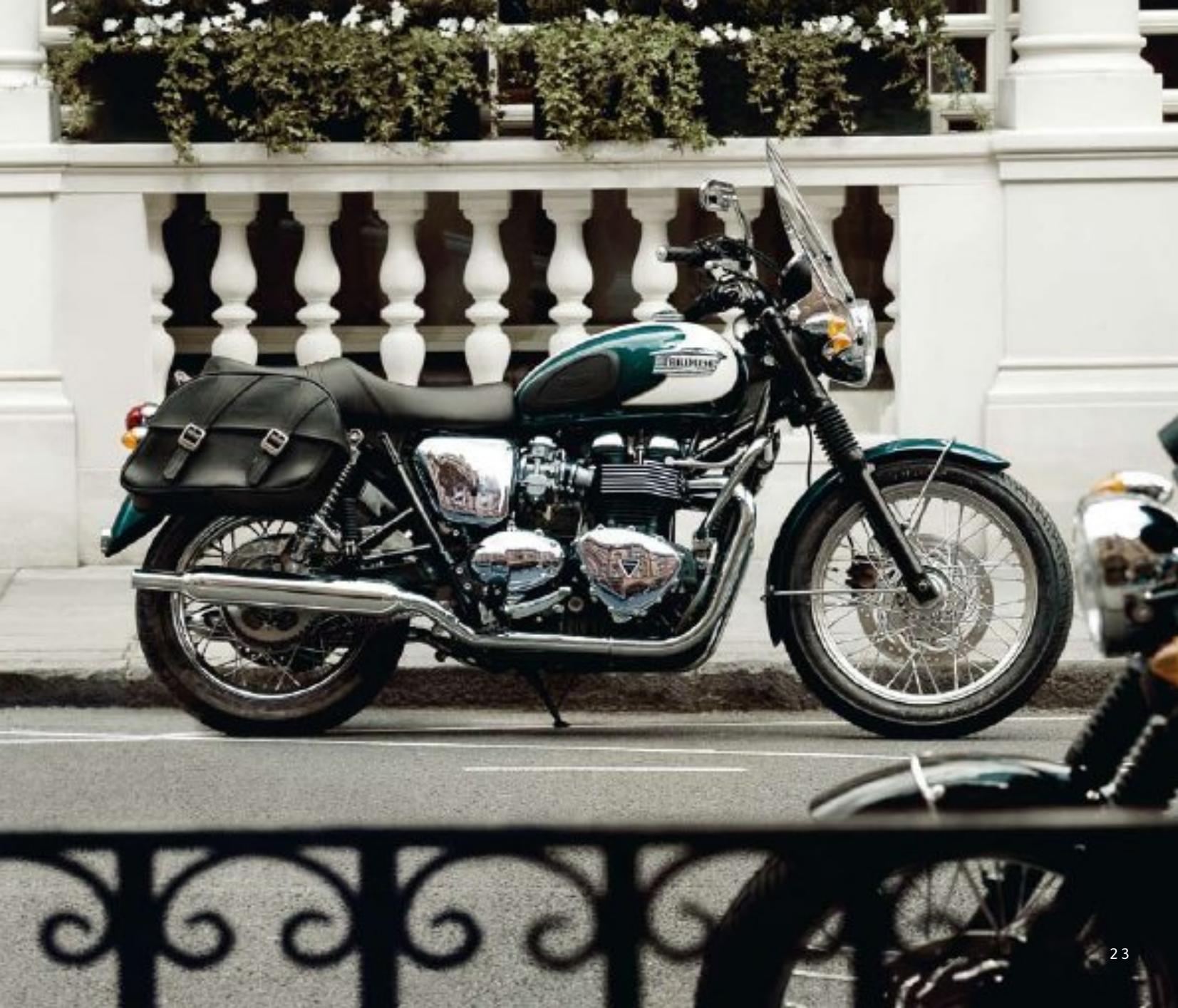

Genuine leather, 18 litre per side panniers can be added to the T100 and feature subtle Triumph branding. Twin strap detailing with chrome buckles and subtle snap fit clips.

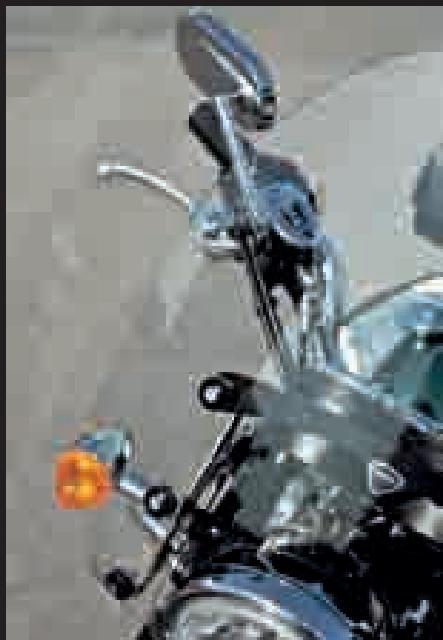

For increased touring potential the quick release screen offers superb levels of wind protection and is the ultimate in durability and optical clarity. It features Quantum coating for scratch and abrasion resistance three times greater than typical acrylic windscreens. Quick release mechanism. Carries subtle Triumph branding and is available with an optional windscreen lock kit.
Chrome oval mirror kit features high gloss, die cast aluminium mirror heads with solid stems. Each mirror features a laser etched Triumph logo.

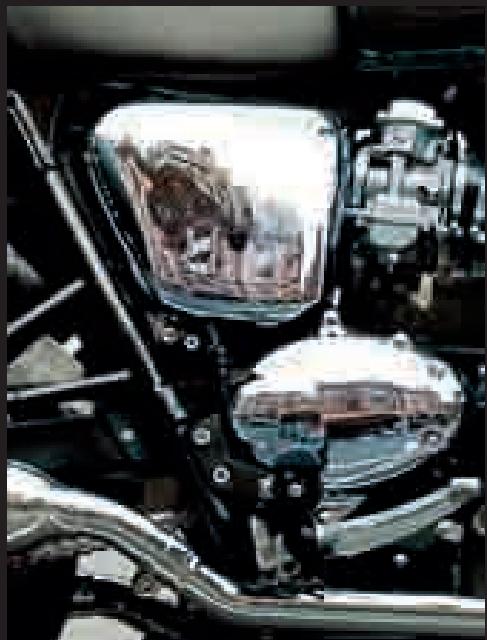

Complete the chrome detailing on your Bonneville with these high lustre, hand polished, triple plated steel side panels. High quality chrome finish ensures they stay looking good for years to come.

BONNEVILLE T100 ACCESSORIES triumphmotorcycles.com

BONNEVILLE FUSION WHITE

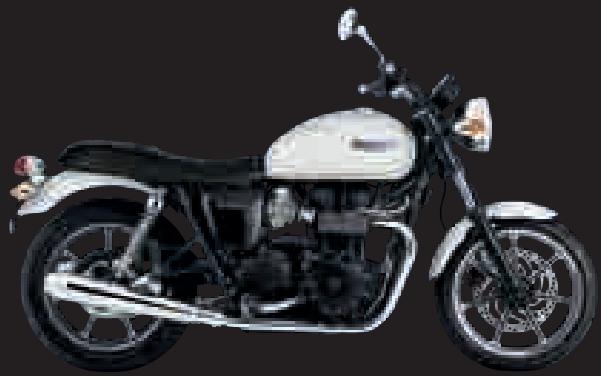

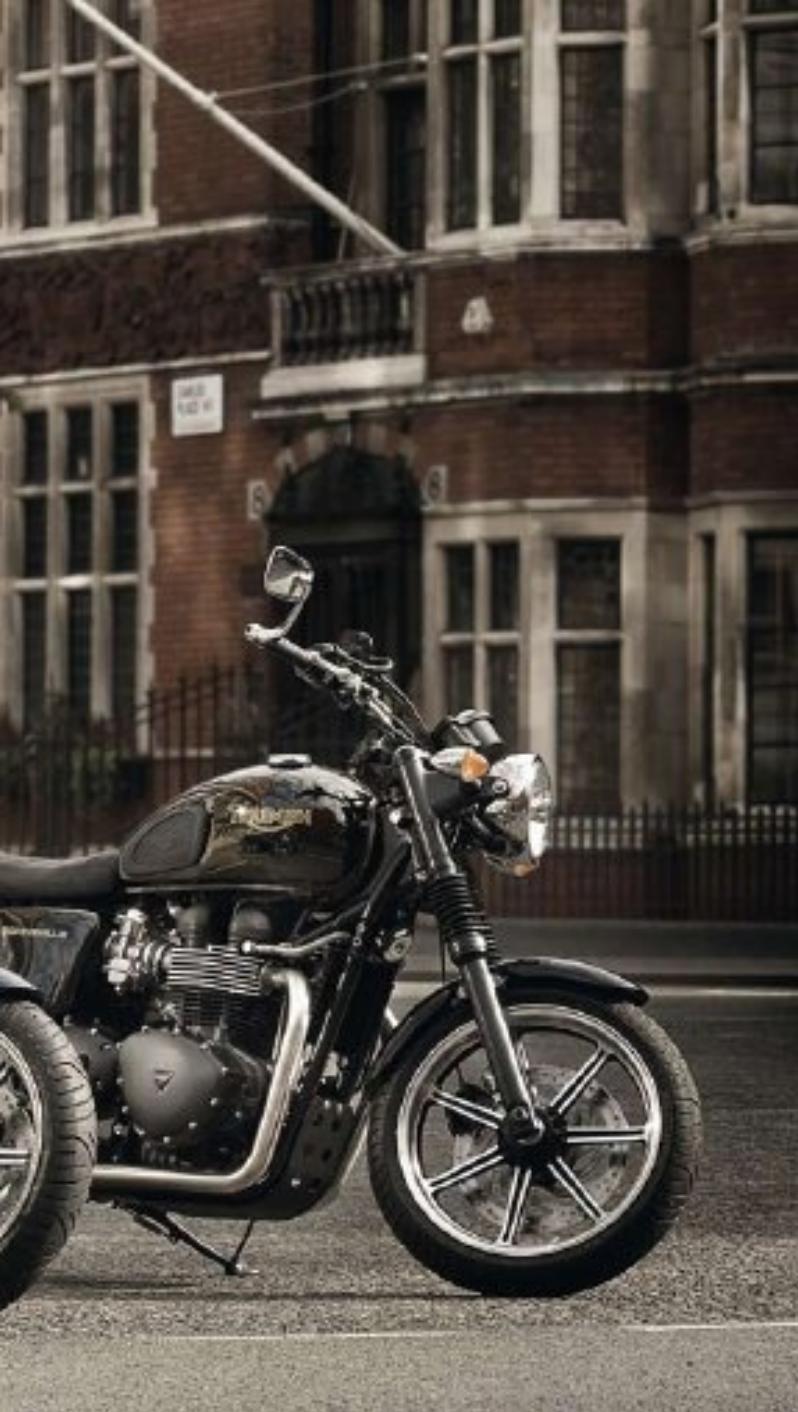

BONNEVILLE JET BLACK

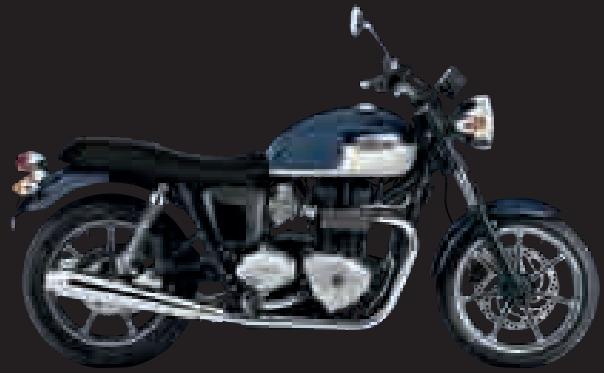

BONNEVILLE SE PACIFIC BLUE AND FUSION WHITE

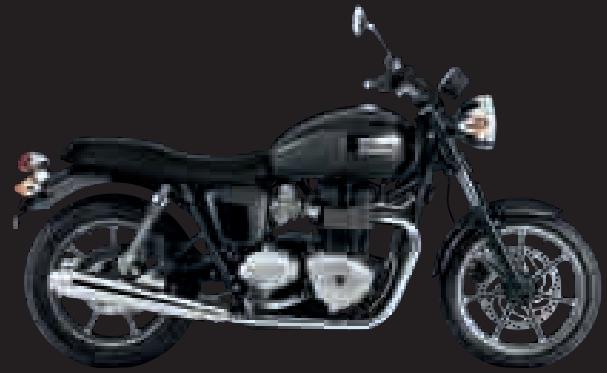

BONNEVILLE SE JET BLACK

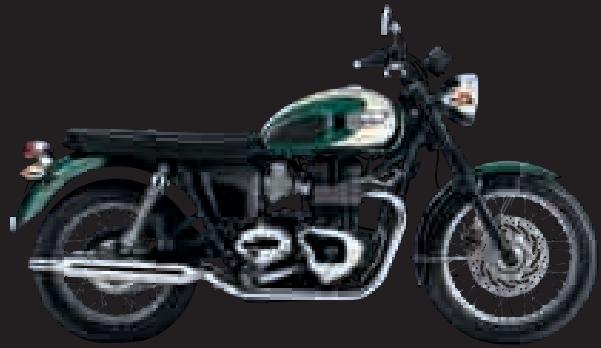

BONNEVILLE T100 FOREST GREEN AND NEW ENGLAND WHITE

BONNEVILLE T100 JET BLACK AND FUSION WHITE

Type	Air-cooled, DOHC, parallel-twin, 360° firing interval
Capacity	865cc
Bore/Stroke	90 x 68mm
Fuel System	Multipoint sequential electronic fuel injection with SAI
Exhaust	Stainless steel headers, twin chromed upswept silencers
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Oil Capacity	4.5 litres (1.2 US gals)

CHASSIS, RUNNING GEAR AND DISPLAYS

Frame		Tubular steel cradle
Swingarm		Twin-sided, tubular steel
Wheels	Front	Cast aluminium alloy 7-spoke 17 x 3.0in
	Rear	Cast aluminium alloy 7-spoke 17 x 3.5in
Tyres	Front	110/70 R17
	Rear	130/80 R17
Suspension	Front	Kayaba 41mm forks, 120mm travel
	Rear	Kayaba chromed spring twin shocks with adjustable preload, 100mm rear wheel travel
Brakes	Front	Single 310mm disc, Nissin 2-piston floating caliper
	Rear	Single 255mm disc, Nissin 2-piston floating caliper
Instrument Display/Functions	Bonneville	Analogue speedometer with odometer and trip information
	Bonneville SE	Analogue speedometer and tachometer with odometer and trip information

DIMENSIONS AND CAPACITIES

Length	2115mm (83.2in)
Width (handlebars)	790mm (31.1in)
Height without mirrors	1130mm (44.5in)
Seat Height	740mm (29.1in)
Wheelbase	1490mm (58.6in)
Rake/Trail	27°/106mm
Fuel Tank Capacity	16 litres (4.2 US gals)
Wet Weight (ready to ride)	225kg (495lbs)
PERFORMANCE	(Measured at crankshaft to 95/1/EO)
Maximum Power	67PS / 66bhp / 49kW @ 7500rpm
Maximum Torque	68Nm / 50ft/lbs @ 5800rpm

ENGINE AND TRANSMISSION

Type	Air-cooled, DOHC, parallel-twin, 360° firing interval
Capacity	865cc
Bore/Stroke	90 x 68mm
Fuel System	Multipoint sequential electronic fuel injection with SAI
Exhaust	Stainless steel headers, twin chromed silencers
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	5-speed
Oil Capacity	4.5 litres (1.2 US gals)

CHASSIS, RUNNING GEAR AND DISPLAYS

Frame		Tubular steel cradle
Swingarm		Twin-sided, tubular steel
Wheels	Front	36-spoke 19 x 2.5in
	Rear	40-spoke 17 x 3.5in
Tyres	Front	100/90 19
	Rear	130/80 R17
Suspension	Front	Kayaba 41mm forks, 120mm travel
	Rear	Kayaba chromed spring twin shocks with adjustable preload, 106mm rear wheel travel
Brakes	Front	Single 310mm disc, Nissin 2-piston floating caliper
	Rear	Single 255mm disc, Nissin 2-piston floating caliper
Instrument Display/Functions		Analogue speedometer and tachometer with odometer and trip information

DIMENSIONS AND CAPACITIES

Length	2230mm (87.7in)
Width (handlebars)	740mm (29.1in)
Height without mirrors	1100mm (43.3in)
Seat Height	775mm (30.5in)
Wheelbase	1500mm (59.0in)
Rake/Trail	28°/110mm
Fuel Tank Capacity	16 litres (4.2 US gals)
Wet Weight (ready to ride)	230kg (506lbs)
PERFORMANCE	(Measured at crankshaft to 95/1/EO)
Maximum Power	67PS / 66bhp / 49kW @ 7500rpm
Maximum Torque	68Nm / 50ft/lbs @ 5800rpm

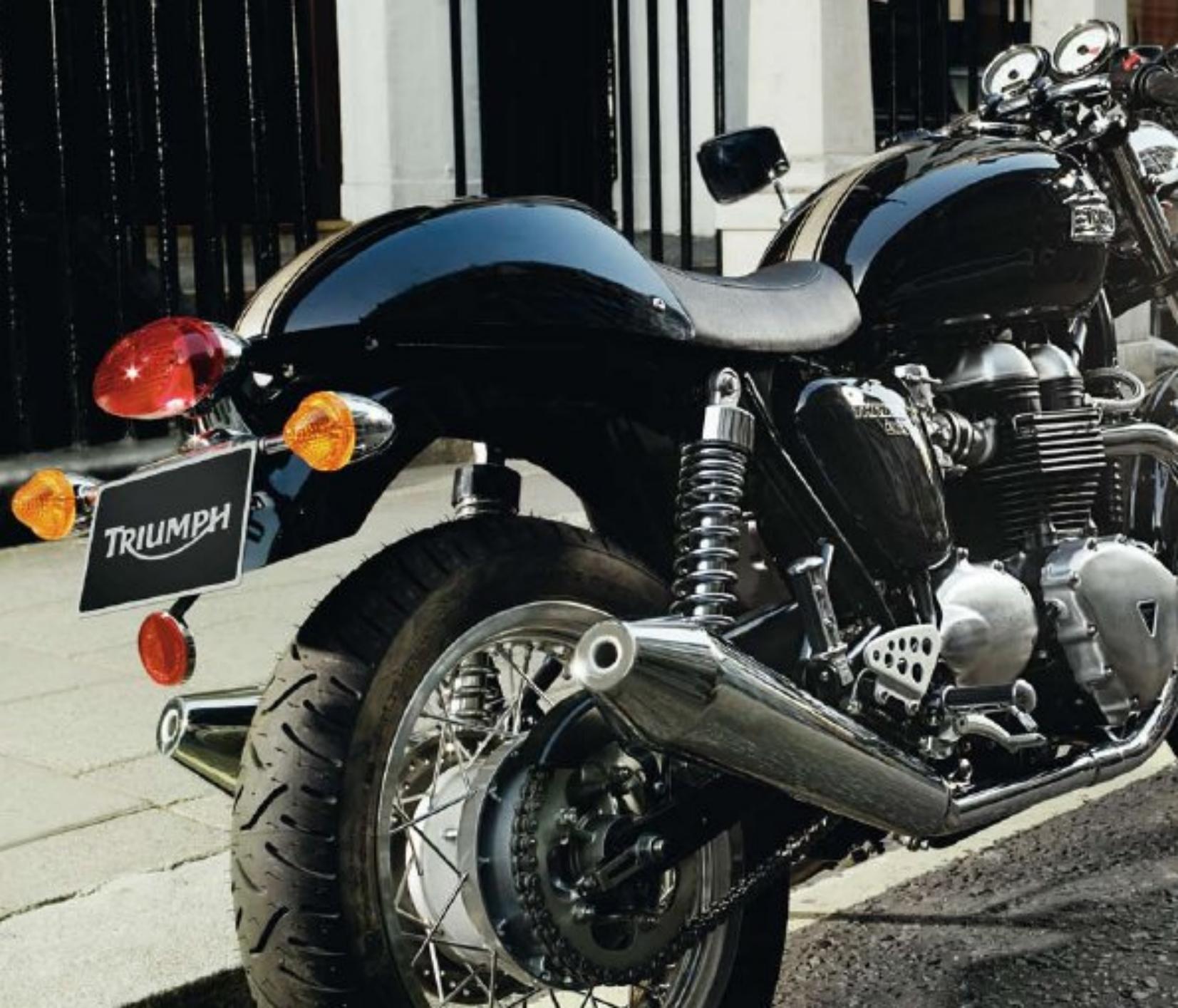

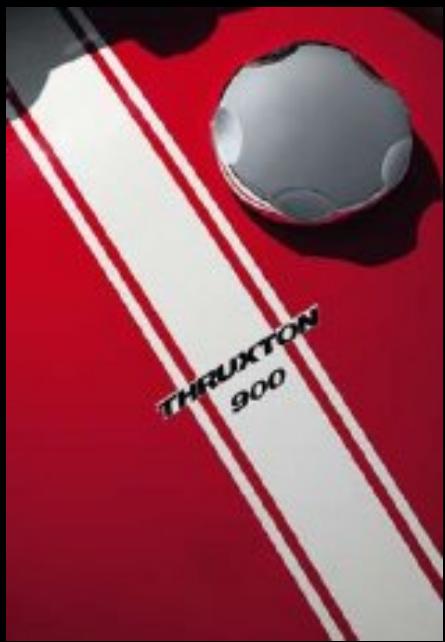

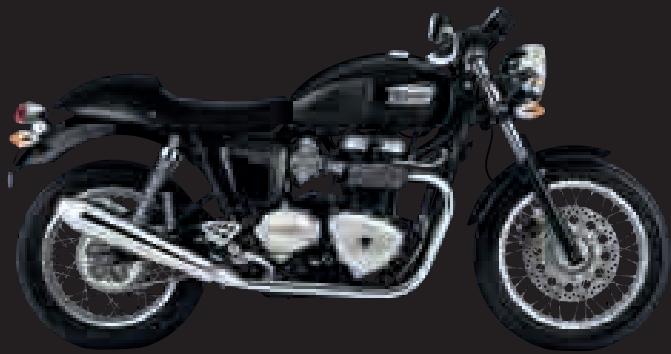

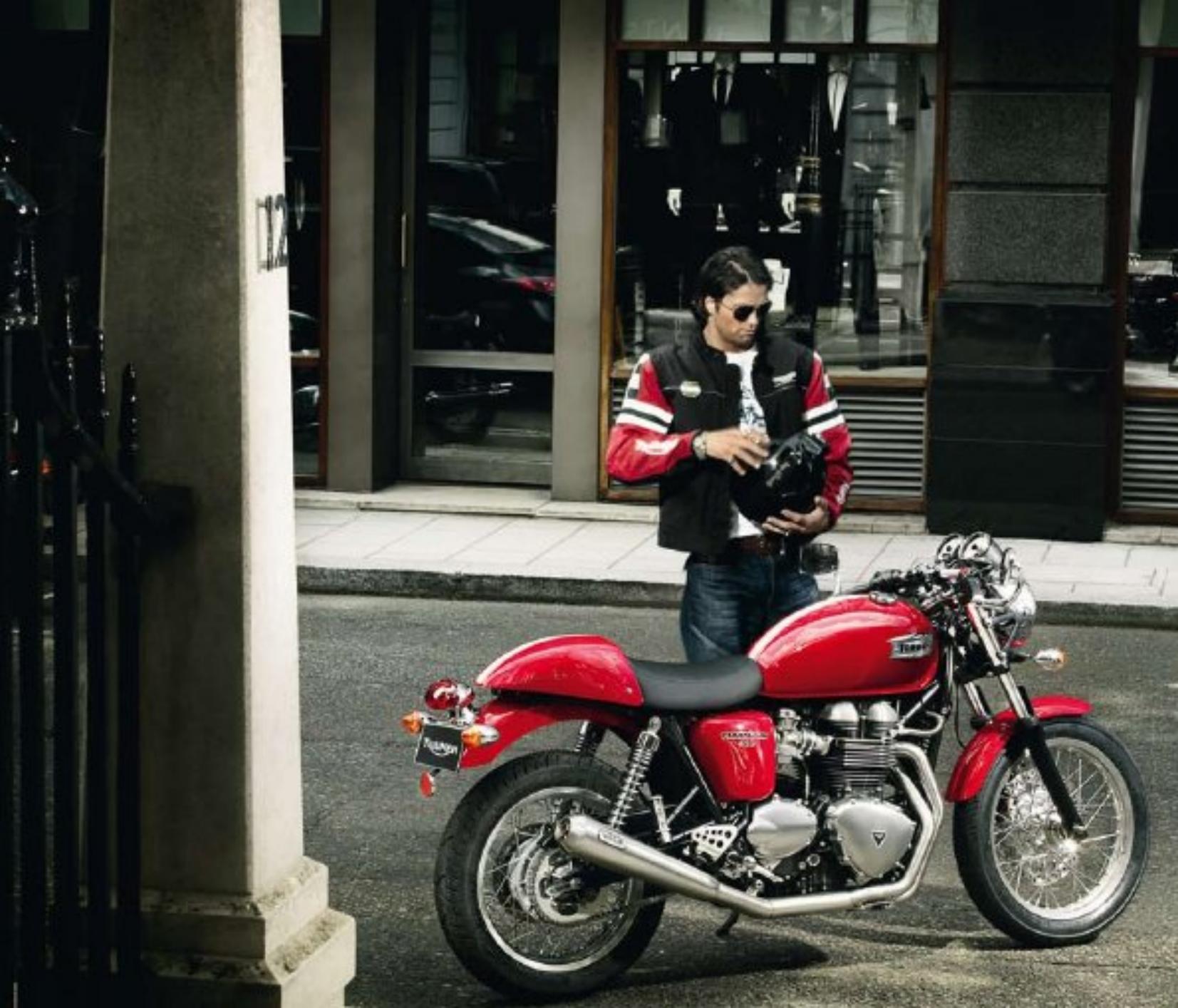

TH R U X T O N. Inspired by the 60s cafe racer. Named after the Triumph racing bikes of the era. The real deal. Remastered from the original. A sporty, yet comfortable, riding position. Fuel injected 865cc parallel twin tuned for performance. Spoked wheels. Megaphone style silencers. 18 inch front wheel with aluminium rim. Floating front disc and two piston caliper with braided hoses. Analogue tacho for perfectly tuned gear changes. Triumph's sportiest Modern Classic. Thruxton roars back. It's a blast.

THRUXTON

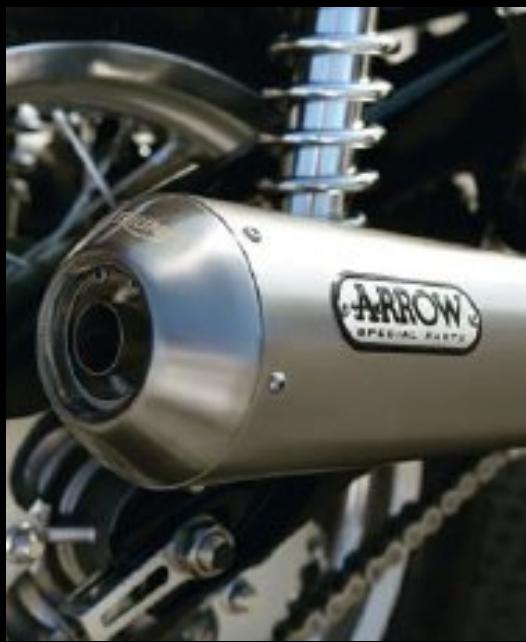

High performance stainless steel 2 into 1 exhaust system developed in conjunction with Arrow Special Parts. Offers an authentic clean look as well as substantial weight saving whilst remaining E-approved for noise. It features a removable baffle, for closed circuit use only, and a laser etched Triumph logo on the pipe's end cap.

The high gloss chrome replacement fuel cap has billet style detailing and is tested to the same exacting standards as the original item.

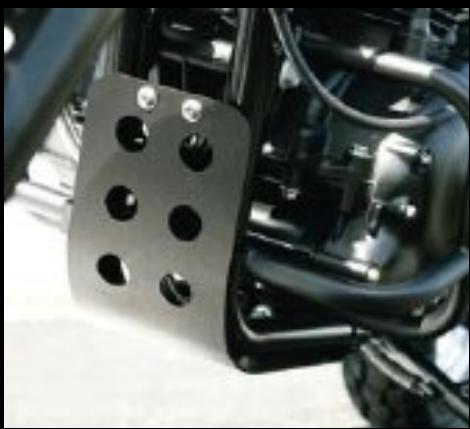

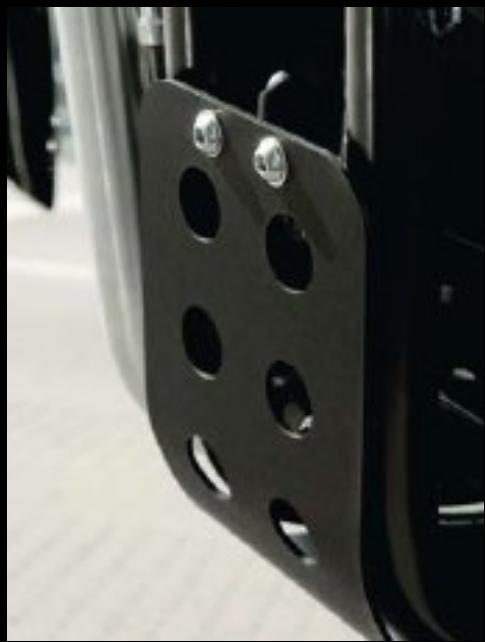

Add to the competition feel with a brushed alloy skid plate with black anodised finish and rugged-look drilled sections.

THRUXTON ACCESSORIES triumphmotorcycles.com

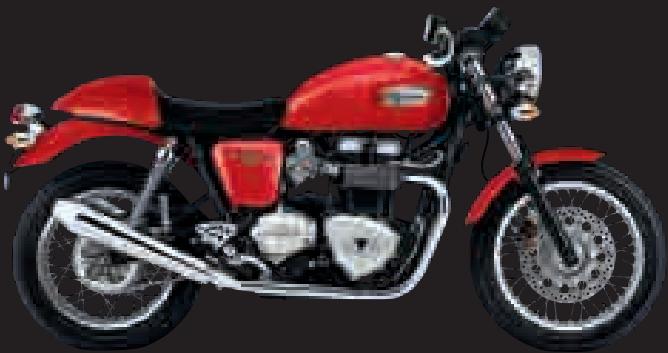

SPECIFICATIONS - THRUXTON

ENGINE AND TRANSMISSION

Type		Air-cooled, DOHC, parallel-twin, 360° firing interval
Capacity		865cc
Bore/Stroke		90 x 68mm
Fuel System		Multipoint sequential electronic fuel injection with SAI
Exhaust		Stainless steel headers, twin chromed upswept silencers
Final Drive		X ring chain
Clutch		Wet, multi-plate
Gearbox		5-speed
Oil Capacity		4.5 litres (1.2 US gals)
CHASSIS, RUNNING GEAR AND DISPLAYS
Frame		Tubular steel cradle
Swingarm		Twin-sided, tubular steel
Wheels	Front	36-spoke 18 x 2.5in, aluminium rim
	Rear	40-spoke 17 x 3.5in, aluminium rim
Tyres	Front	100/90 18
	Rear	130/80 R17
Suspension	Front	Kayaba 41mm forks with adjustable preload, 120mm travel
	Rear	Kayaba chromed spring twin shocks with adjustable preload, 106mm rear wheel travel
Brakes	Front	Single 320mm floating disc, Nissin 2-piston floating caliper
	Rear	Single 255mm disc, Nissin 2-piston floating caliper
Instrument Display/Functions		Analogue speedometer and tachometer with odometer and trip information
DIMENSIONS AND CAPACITIES
Length		2150mm (84.6in)
Width (handlebars)		830mm (32.7in)
Height without mirrors		1095mm (43.1in)
Seat Height		820mm (32.3in)
Wheelbase		1490mm (58.6in)
Rake/Trail		27°/97mm
Fuel Tank Capacity		16 litres (4.2 US gals)
Wet Weight (ready to ride)		230kg (506lbs)
PERFORMANCE		(Measured at crankshaft to 95/1/EC)
Maximum Power		69PS / 68bhp / 51kW @ 7400rpm
Maximum Torque		69Nm / 51ft/lbs @ 5800rpm

JET BLACK WITH GOLD STRIPE

TORNADO RED WITH WHITE STRIPE

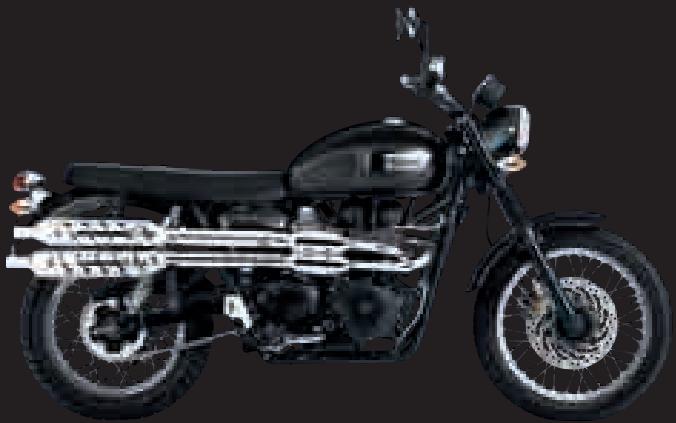

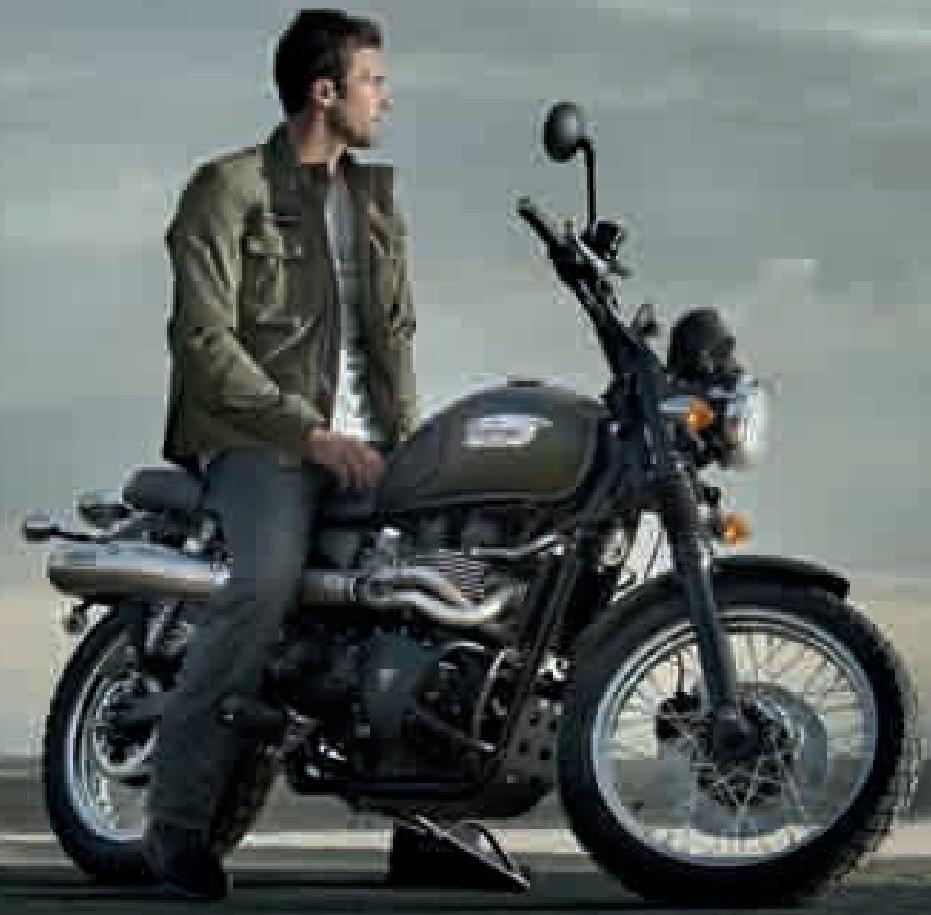

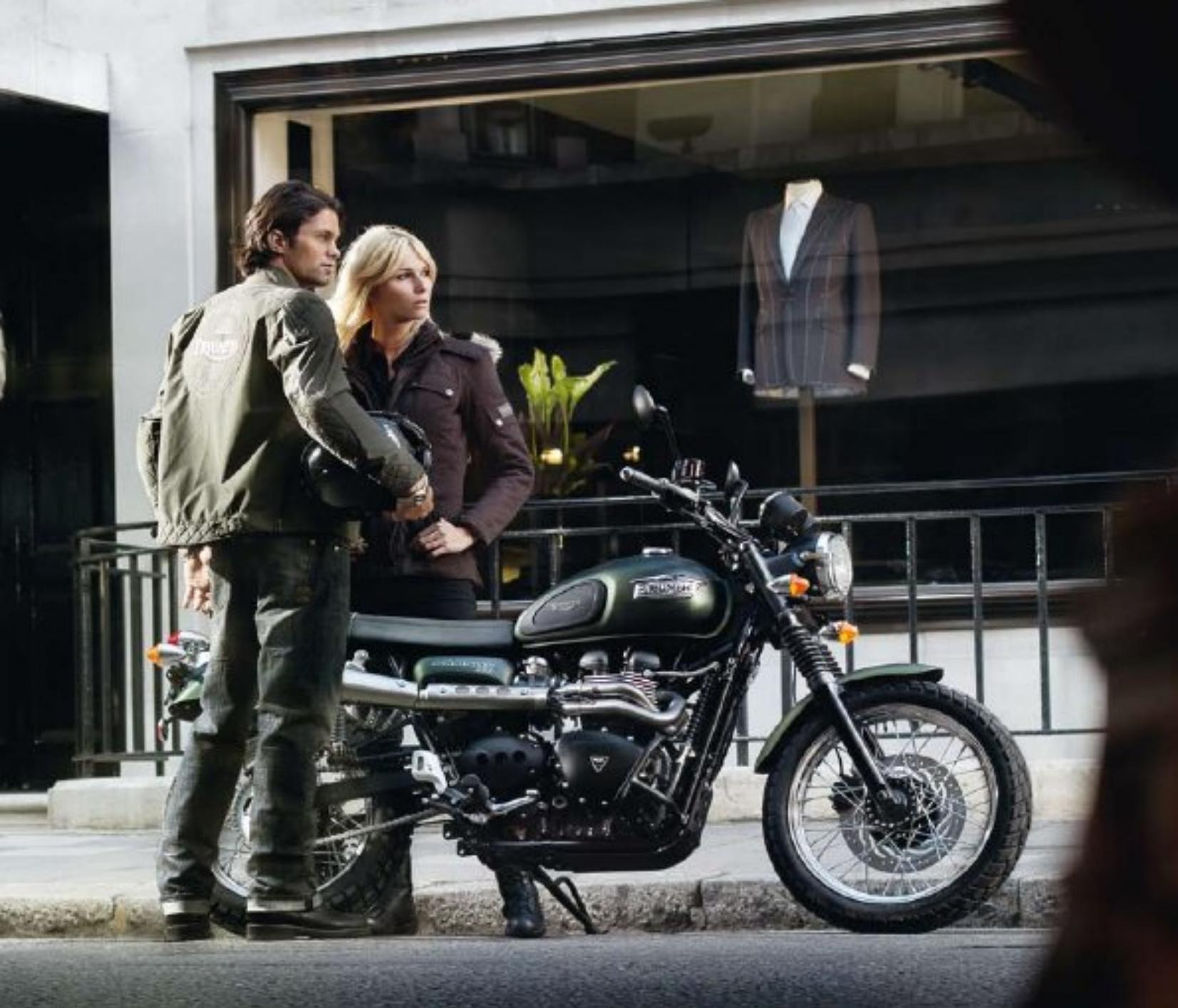

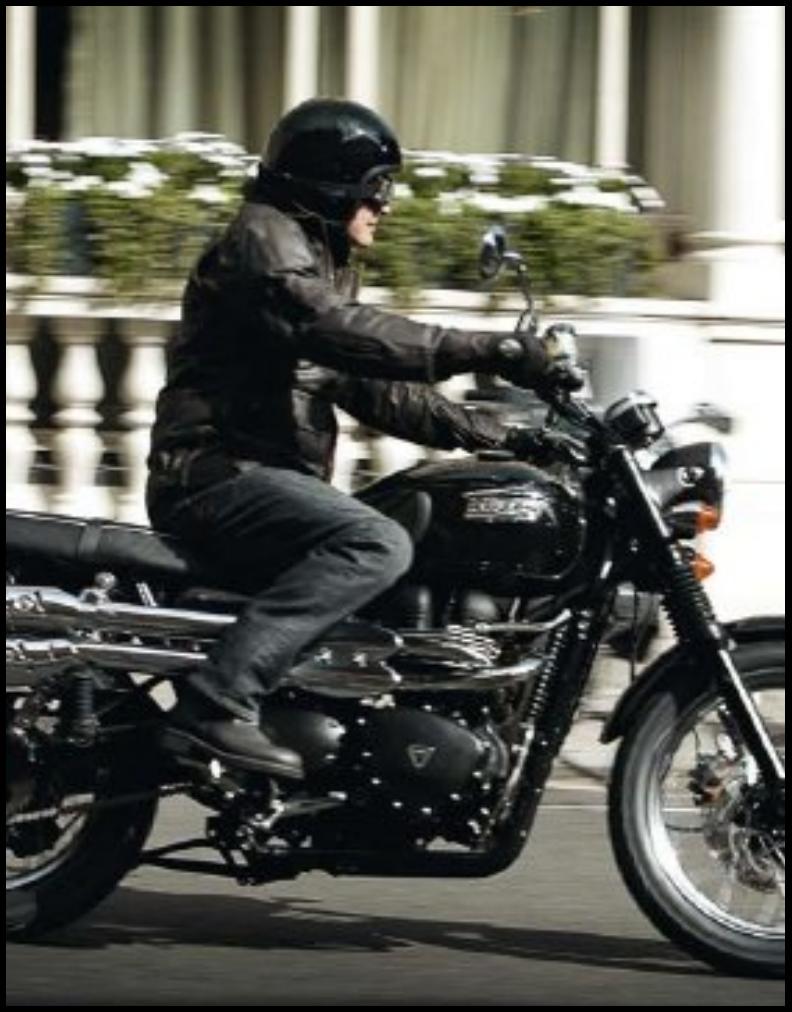

SCRAMBLER. Stripped down. Purposeful. Head turning. The stuff of Hollywood legends. With the latest twist. Our latest fuel injected, air-cooled 865cc parallel twin, reworked with different timings to give that distinctive exhaust note from those classy high swept chromed side pipes. Fork gaiters. Pulling strongly and self-confidently from low down. An accessible ride that's easy and relaxed. It's what it's always been. Only better.

SCRAMBLER

SCRAMBLER MATT KHAKI GREEN WITH ACCESSORIES

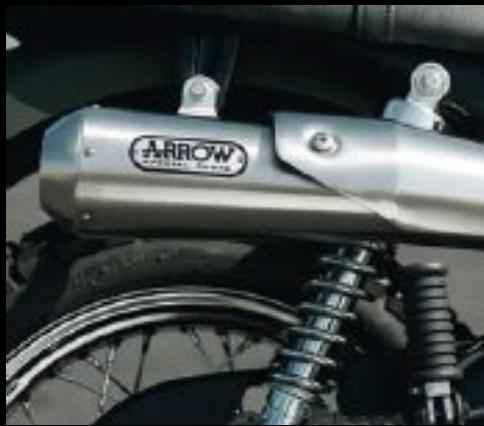

Beautifully engineered in conjunction with Arrow Special Parts in Italy, the stainless steel exhaust system offers substantial weight saving over standard equipment. It features integrated heat shields, a laser etched Triumph logo on the pipe's end cap and a removable baffle. For closed circuit use only. Hear it for yourself at triumphmotorcycles.com

Add to the competition feel with a brushed alloy skid plate, anodised in black with authentic lightweight rugged-look drilled sections.

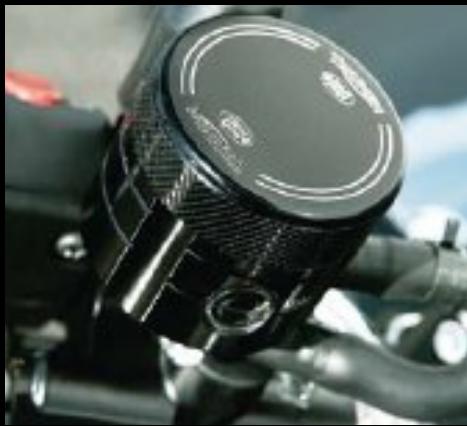

The ultimate finishing touch. This front brake reservoir is CNC machined from billet aluminium. It features integral sight glass, knurled lid with laser etched Triumph logo and is finished in anodised black.

SCRAMBLER ACCESSORIES triumphmotorcycles.com

SPECIFICATIONS - SCRAMBLER

ENGINE AND TRANSMISSION

Type		Air-cooled, DOHC, parallel-twin, 270° firing interval
Capacity		865cc
Bore/Stroke		90 x 68mm
Fuel System		Multipoint sequential electronic fuel injection with SAI
Exhaust		High level stainless steel headers with twin chromed silencers
Final Drive		X ring chain
Clutch		Wet, multi-plate
Gearbox		5-speed
Oil Capacity		4.5 litres (1.2 US gals)
CHASSIS, RUNNING GEAR AND DISPLAYS
Frame		Tubular steel cradle
Swingarm		Twin-sided, tubular steel
Wheels	Front	36-spoke 19 x 2.5in
	Rear	40-spoke 17 x 3.5in
Tyres	Front	100/90 19
	Rear	130/80 17
Suspension	Front	Kayaba 41mm forks, 120mm travel
	Rear	Kayaba chromed spring twin shocks with adjustable preload, 106mm rear wheel travel
Brakes	Front	Single 310mm disc, Nissin 2-piston floating caliper
	Rear	Single 255mm disc, Nissin 2-piston floating caliper
Instrument Display/Functions		Analogue speedometer with odometer and trip information
DIMENSIONS AND CAPACITIES
Length		2213mm (87.1in)
Width (handlebars)		860mm (33.8in)
Height without mirrors		1202mm (47.3in)
Seat Height		825mm (32.5in)
Wheelbase		1500mm (59.0in)
Rake/Trail		27.8°/105mm
Fuel Tank Capacity		16 litres (4.2 US gals)
Wet Weight (ready to ride)		230kg (506lbs)
PERFORMANCE		(Measured at crankshaft to 95/1/EO)
Maximum Power		59PS / 58bhp / 43kW @ 6800rpm
Maximum Torque		68Nm / 50ft/lbs @ 4750rpm
