USER MANUAL MP 1000 E T+A
T+A
USER MANUAL
E-SERIES
MP 1000 E
Welcome.
We are delighted that you have decided to purchase a T+A product. With your new MP 1000 E you have acquired a top-quality piece of equipment which has been designed and developed with the wishes of the audiophile music lover as absolute top priority.
This system represents our very best efforts at designing practical electronic equipment incorporating solid quality, user-friendly operation and a specification and performance which leaves nothing to be desired.
All these factors contribute to a piece of equipment which will satisfy your highest demands and your most searching requirements for a period of many years. All the components we use meet the German and European safety norms and standards which are currently valid. All the materials we use are subject to painstaking quality monitoring.
At all stages of production we avoid the use of substances which are environmentally unsound or potentially hazardous to health, such as chlorine-based cleaning agents and CFCs.
We also aim to avoid the use of plastics in general, and PVC in particular, in the design of our products. Instead we rely upon metals and other non-hazardous materials; metal components are ideal for recycling, and also provide effective electrical screening.
Our robust all-metal cases exclude any possibility of external sources of interference affecting the quality of reproduction. From the opposite point of view our products' electro-magnetic radiation (electro-smog) is reduced to an absolute minimum by the outstandingly effective screening provided by the metal case.
We would like to take this opportunity to thank you for the faith you have shown in our company by purchasing this product, and wish you many hours of enjoyment and sheer listening pleasure with your MP 1000 E.
elektroakustik GmbH & Co KG
License Notice
This product contains software in form of object code that is partially based on free software under different licenses, especially the GNU General Public License. You can find details on this in the License Information which you should have received with this product.
If you have not received a copy of the GNU General Public License, please see http://www.gnu.org/licenses/.
For a period of three years after last distribution of this product or its firmware, T+A offer the right to any third party to obtain a complete machine-readable copy of the corresponding source code on physical storage medium (DVD-ROM or USB stick) for a charge of 20€. To obtain such copy of the source code, please write to the following address including information about product model and firmware version: T+A elektroakustik, Planckstr. 9-11, 32052 Herford, Germany.
The GPL license and further information about Licenses can be found on the internet under this link:
http://www.ta-hifi.com/license-information
Qualcomm® aptX™
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission0,
About these instructions
All the controls and functions of the MP 1000 E which are frequently used are described in the first section of these operating instructions.
The second part 'Basic settings, Installation, Using the system for the first time' covers connections and settings which are very seldom required; they are generally required only when the machine is set up and used for the first time. Here you will also find a detailed description of the network settings required for connecting the MP 1000 E to your home network.
Symbols used in these instructions
Caution!
Text passages marked with this symbol contain important information which must be observed if the machine is to operate safely and without problems.
This symbol marks text passages which provide supplementary notes and background information; they are intended to help the user understand how to get the best out of the machine.
Notes on software updates
Many features of the MP 1000 E are software based. Updates and new features will be made available from time to time. The update process takes only a few minutes. See the chapter entitled “Software update” for how to update your device via the internet connection.
We recommend you to check for updates before using your MP 1000 E for the first time. To keep your device up to date you should check for updates from time to time.
IMPORTANT! CAUTION!
This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.
The following caution labels appear on your device:
Rear Panel:
CLASS 1
LASER PRODUCT
The operation instructions, the connection guidance and the safety notes are for your own good - please read them carefully and observe them at all times. The operating instructions are an integral part of this device. If you ever transfer the product to a new owner please be sure to pass them on to the purchaser to guard against incorrect operation and possible hazards.
All the components we use meet the German and European safety norms and standards which are currently valid. This product complies with the EU directives. The declaration of conformity can be downloaded from www.ta-hifi.com/DoC.
Contents
Front panel controls 8
Remote Control 13
Basic settings of the MP 1000 E....15
System Settings (System configuration menu)....15
Calling up and operating the menu....15
Source names ...... 15
Display brightness 16
Display mode....16
Language....16
Device name....16
Energy saver 16
Network 16
Music services 16
Bandwidth limit 17
FD100 pairing....17
Device Info....17
Pre amplifier functions of the MP 1000 E ....18
Using the unit with active speakers or power amplifiers 18
Operation with T+A PA 1000 E....18
Tone control settings (Tone menu)....18
Balance....18
Loudness....18
Tone Control....19
Bass / Treble 19
D/A Converter Settings....19
Calling up and operating the D/A converter options....19
D/A mode....19
Output phase....19
Operating the sources in detail 20
Favourites lists....20
General information 20
Calling up the Favourites list....20
Adding a favourite....20
Erasing a favourite from the Favourites list....20
Selecting a favourite from the list....21
Directly selecting a favourite....21
Sorting Favourites lists ......21
Operating the radio 22
FM – Radio 22
Selecting FM radio....22
Manual station search....22
Automatic station search ....23
Selecting a station from the Station list....23
RDS functions....23
DAB - Radio....24
Selecting DAB radio....24
Automatic station search ....25
Selecting a station from the Station list....25
RDS functions....25
Internet-Radio 26
Selecting Internet Radio as source....26
Selecting podcasts....26
Playback....26
Front panel display ....26
Search function....27
Operating music services 28
General information 28
Selecting the music service.... 28
Playback 28
Search function....29
Playlists and favourites 29
Operating the UPnP / DLNA source (Streaming Client) 30
General information on the streaming client 30
Selecting the UPnP / DLNA source.... 30
Playback 30
Playback of directories.... 31
Search function.... 31
Playing USB memory media (USB Media source) 32
General information 32
Selecting USB Media as source.... 32
Playback 32
Playback of directories.... 33
Search function.... 33
Operating the CD player 34
Selecting CD as source 34
Inserting a CD 34
Playing a CD 35
Variations....35
Track Select.... 35
During playback 35
Fast Search.... 35
CD Text 35
Playback mode 36
Repeat 36
Mix-mode 36
Playback Program.... 37
Creating a Playback Program 37
Playing a playback program.... 37
Erasing a playback program 37
Operating the Bluetooth source 38
Connecting the aerial 38
Selecting the Bluetooth Audio source 38
Setting up audio transfer....38
Playback functions....39
Start and pause playback 39
Stop playback 39
Skipping tracks.... 39
Controlling the MP 1000 E 39
NOTES 39
The MP 1000 E as D/A Converter 40
General Information on D/A Converter Operation 40
D/A Converter Operation....40
Selecting a D/A Converter Source 40
USB DAC operation in detail 41
System-requirements 41
Installing drivers 41
Settings......41
Notes on software....41
Notes on operation 41
Notes on setting up 41
Installation, Using the system for the first time, Safety notes ......43
Back panel connections ....44
Installation and wiring 46
Loudspeaker and signal cables....47
Mains cables and mains filters 47
Changing the batteries....47
Care of the unit 47
Storing the unit 47
Safety notes....48
Installation 48
Connection 48
Power supply 48
Mains leads / Mains plug 48
Enclosure openings 48
Supervision of device operation....48
Service, Damage 48
Over voltage 49
Approved usage....49
Approval and conformity with EC directives....49
Disposing of this product 49
Network Configuration 50
General Information....50
Compatible hardware and UPnP servers....50
Network settings menu ....50
Opening the network settings menu ....50
Operating the menu, changing and storing IP addresses....50
Closing the menu....51
Interrupting the menu without storing the settings 51
The Configuration for a Wired Ethernet LAN or Power-Line LAN connection....52
Setting the Parameters for a Wired Network ....52
The Configuration for a WLAN connection ....53
Setting the parameters for a wireless network....53
Selecting and connecting a WLAN by hand....53
Searching for and Selecting the Network....53
Entering the Password (for encoded networks)....53
Storing Network Settings and Restarting....53
Connecting to WLAN via the WPS-function....54
WPS-function....54
Connecting WLAN automatically via the WPS function 54
Selecting the WLAN manually and conneting via WPS 54
FD 100 Radio Remote Control (optionally)....55
Connecting the aerial....55
Pairing the FD 100....55
Notes on Energy Saving....56
General information 56
Automatic power-down (Energy saver)....56
Trouble shooting....57
Glossary / Supplementary Information 60
Network terminology 62
Software update 64
Appendix A 65
Wiring diagram 66
Wiring diagram 67
Appendix B 68
Specification 68
Front panel controls
All the important functions of the MP 1000 E can be operated using the buttons on the front panel. Direct-acting buttons are provided for fundamental functions such as source select, station change and track select. Functions not needed so frequently are controlled using the menus which are called up using the MODE TONE / SYS / SRC button.
All information relating to the machine's state, the current track and the associated transmitting station are displayed on the integral screen. The following section explains the functions of the buttons on the machine, and the information provided on the screen.
| (On / Off switch)A brief press on the ⏻ button switches the unit on and off. When the machine is switched on, the indicator light above the button glows. | ||
| Caution!The mains button is not a mains isolation switch. Even when the LED is not glowing, some parts of the machine are still connected to mains voltage (Standby operation).If you know you will not be using the machine for a long period, we recommend that you disconnect it from the mains by withdrawing the mains plugs from the wall socket. | ||
| (Headphones) | Socket for stereo headphones with an impedance of at least 32 Ω. | |
| The use of headphonesContinuous listening to programme material via earphones or head-phones at very high volume can result in permanent hearing loss. You can avoid damaging your health by not listening via headphones or ear-phones at high levels for long periods. | ||
| USB IN | Socket for a USB memory stick or an external hard disc.The storage medium can be formatted with the FAT16, FAT32, NTFS, ext2, ext3 or ext4 file system. | |
| The USB storage medium can be powered via the USB socket provided that its current drain meets the USB norm (< 500 mA). Normalised 2.5" USB hard discs can be connected directly to this socket, i.e. they require no mains PSU. | ||
| CD drawer | The CD drawer is located below the display. Please insert the disc with the label side facing upwards into the appropriate depression of the tray.The drawer is opened and closed by pressing the ▲ button. | |
| SCL/USB | Selects the SCL function (e.g. access to music servers, streaming services or similar) or the USB DAC function ( playback from a connected computer), or selects the USB Media function (connected USB memory media) of the streaming client.Press this button repeatedly until the desired source appears on the screen. | |
| If you wish to select a USB memory medium connected to the USB IN socket (front panel) or the USB HDD socket (back panel), then USB Media must be set as source. To play back from a computer connected to the USB / DAC socket, you must select USB DAC as source. | ||
| DISC/BT | Selects the CD player or the Bluetooth function of the MP 1000 E. Press this button once or twice until the desired source appears on the screen. | |
| RADIO | Selects one of the following radio sources: FM/VHF (FM RADIO source), DAB (DAB RADIO source) or Internet radio (Internet radio source). Press this button repeatedly until the desired radio source is displayed on the screen. | |
| INPUT | A brief press on this button selects the digital input you wish to use. Press the button repeatedly until the desired input is displayed on the screen. | |
| If you wish to make the selection process easier, you can remove from the select list those sources which are not used in your system. See chapter ‘System configuration menu / Source names’. | ||
| SRCSource menu | Opens the setup menu for the source device just selected. | |
| Not all sources have their own setup menu. For this reason the button does not have a function with all sources. | ||
| SYSSystem menu | Opens the ‘System configuration’ menu(for details see Chapter ‘System settings’) | |
| MODE TONE | A brief press: Switches between Mono and Stereo reception (FM Radio)A long press: Opens the tone control settings menu(for details see Chapter ‘Tone control settings’) | |
| Navigation | ||
| Back to the previous point / change button | ||
| Confirms input / change button | ||
| Selects the next point within a list / select button | ||
| Selects the previous point within a list / select button | ||
| OK | Confirm button | |
| Ends playbackDuring menu navigation:a brief press takes you back (higher) by one menu level or aborts the current input process; the change is then abandoned. | ||
| Starts playback / halts playback (pause) / resumes playback after a pause | ||
| Brief press: | Switches the display view from list navigation to the current played music track. | |
| Long press: | Switches between different screen displays | |
| Calls up the Favourites list | ||
| Brief press: | Selects the previous / next track or piece during playback (Depending on the selected source). | |
| Long press: | Fast forward / rewind: searches for a particular passage. Tuner: Search | |
| Fast forward / rewind are not for all sources possible. | ||
| Button for switching ON and OFF the BALANCED and PRE-OUT outputs (Muting). The symbol shows the current switching state. | ||
| The LINE OUT outputs are not switchable. These outputs are permanently switched on. | ||
| Increases / decreases the volume of the headphone output | ||
| The volume can be increased / decreased in steps by tipping one of the volume buttons. The current volume level is displayed on the display screen. If one of the buttons is kept pressed for approx. 1 second the volume increases / decreases continuously until the button is released. | ||
| If the pre-amplifier module (optional accessory) is installed, the volume of the BALANCED and PRE-OUT outputs alters at the same time. | ||

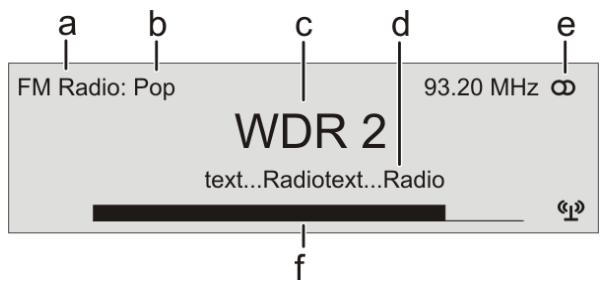

The displays and symbols which appear on the screen vary according to the currently active function.
The basic areas of the screen:
• Display field (a) shows the currently active source.
- Display field (b) shows information relating to the piece of music being played. The essential information is displayed enlarged in the main line.
• Display field (c) shows information relating to the device and playback.
- The bottom line (d) displays supplementary context-sensitive information (e.g. sampling frequency, elapsed time)
e.g..
CD:
Echoes
Pink Floyd - The Best Of
5/15 1:30
The MP 1000 E provides different screen displays for the Streaming Client (SCL), the Disc player, Bluetooth, USB and the different radio sources.
• Large-format display:
Enlarged display of the most important information, clearly legible even from a distance
• Detail display:
Small-text display showing a large number of additional information points, e.g. bit-rate etc.
A long press on the Ⓐ button on the remote control handset is used to switch between the display modes.
Screen symbols and their meaning
 | Making connection (Wait / Busy)The rotating symbol indicates that the MP 1000 E is currently processing a command, or is attempting to connect to a service. These processes may take some time to complete depending on the speed of your network and the load upon it.During such periods the MP 1000 E may be muted, and may not respond to the controls. Please wait until the symbol disappears, then try again. |
 | Indicates a music track which can be played, or a playlist. |
 | Indicates a folder which conceals further folders or lists. |
 | Indicates that a source is being reproduced via a cable connection. |
 | Indicates that a source is being reproduced via a radio connection. |
 | Indicates that the MP 1000 E is reproducing a station or playing back a music track. |
 | Pause indicator |
| 128k | Data rate indicator (if available):The higher the data rate, the better the quality of reproduction. |
 | Display of the elapsed playback time.This information is not available for all services. |
 | Position indicator in select lists. The first number shows the current position in the list, the second number the total number of list entries (length of list). |
  abc | Display of the symbol input modes |
 | Indicates the field strength of the radio signal. |

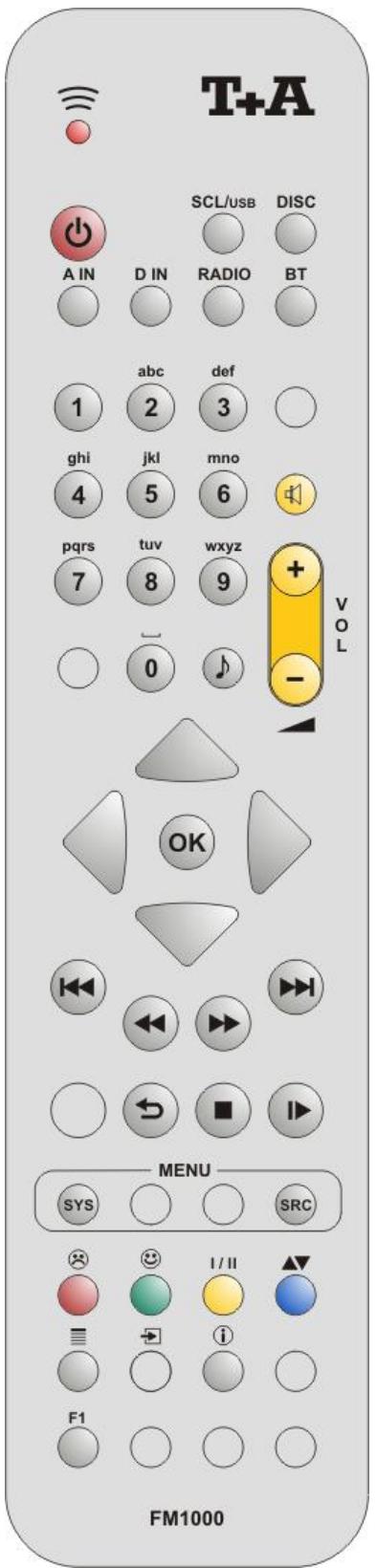

Remote Control
General Information
All the MP 1000 E's mechanism control functions and auxiliary functions can be operated using the remote control system. In general terms the remote control buttons have the same function as the corresponding buttons on the MP 1000 E's front panel. The infra-red sensor for the remote control system is located in the display area of the MP 1000 E. There must be clear line-of-sight contact between the FM1000 handset and the screen. The following tables show the remote control buttons and their general functions when operating the machine.
 | Switches the MP 1000 E on and off |
| Direct source select buttons | |
   | Selects the SCL function (e.g. access to music servers, streaming services or similar) or the USB DAC function (playback from a connected computer), or selects the USB Media function (connected USB memory media) of the streaming client.Press this button repeatedly until the desired source appears on the screen. |
| DISC | MP 1000 E's CD function |
 | A brief press on this button selects the digital input you wish to use. Press the button repeatedly until the desired input is displayed on the screen. |
  | Selects FM, DAB, or Internet radio as source. Press this button repeatedly until the desired source appears on the screen. |
| Selects Bluetooth as source. | |
 | If a PA 1000 E is connected to the MP 1000E (via E2-LINK), repeatedly pressing this button selects the desired listening source at the amplifier. |
| |
  ... xyz | Direct alpha-numeric input, e.g. track number, fast favourite select, radio station.The 0 and 1 buttons are also used for non-standard characters.During text input you can switch between numeric and alpha-numeric input, and between capitals and lower case by pressing the ▲▼ button. |
 (yellow) | Switches sound on and off (MUTING) |
 +(yellow) | Reduces / increases headphones volume. Performs the same function as the corresponding buttons on the MP 1000 E's front panel. With installed pre-module (option) the volume of the pre outputs is controlled too. |
  | A brief press opens the tone control menu.The menu points are called up using the ▲/▼buttons, and can be changed using the ◀/▶buttons.ONLY with installed Preamplifier module! |
 | Opens the setup menu for the source device just selected.(Not all sources have their own Setup menu.) |
 | Opens the 'System configuration' menu.(for details see Chapter 'Basic settings of the MP 1000 E') |
| NavigationReturns to the previous point / change buttonConfirms the input / change buttonSelects the next point within a list / select buttonSelects the previous point within a list / select buttonConfirmation button during input procedures | |
| Playback functionsStarts playback (Play function)During playback: halts (Pause) or resumes playbackStops playback.Long press while disc is stopped opens and closes the disc drawer.During menu navigation: a brief press takes you back (higher) by one menu level or aborts the current input process; the change is then abandoned.Selects the previous track during playback.Selects the next track during playback.Rewind to search for a particular passage.FM Radio: Manual station searchFast-forward to search for a particular passage.FM Radio: Manual station searchRepeat functions (not possible with all media)Brief press: Repeat Track, Repeat ALL, 'Normal'Long press: Mix-Mode (Shuffle) ON / OFFBrief button presses in MIX mode: Mix, Repeat Track, Repeat Mix | |
| Adds a favourite to the Favourites list.CD - player: Activates playback programmingAdds a track to the playback program during playback programming | |
| Long press: Removes a favourite from the Favourites list.CD - player: A Long press erases the playback program. | |
| Button for switching between Stereo and Mono reception (only FM Radio)The Stereo setting is constantly displayed in the screen window by a OD symbol.The Mono setting is constantly displayed in the screen window by a ● symbol. | |
| Switches between numeric and alpha-numeric input, and between capitals and lower case when pressed (repeatedly)Calls up the search function for SCL, USB-Media, Internet radio, Podcasts and Music services.Activates the sort function within a Favourites list. | |
| Displays the Favourites list created on the MP 1000 E | |
| Switches the display from the track list / station list navigation to the ,Now Playing' view.Switches the Radio text / CD-text function ON/OFF.A long press toggles between different screen displays. | |
| Opens the D/A mode selection menu. |
Controlling app
The MP 1000 E can be controlled by the T+A App too.
For Apple (iOS)
For Android
Basic settings of the MP 1000 E
System Settings (System configuration menu)
In the System configuration menu general device settings are adjusted. This menu is described in detail in the following chapter.
Calling up and operating the menu
- Briefly press the SYS button on the front panel or on the remote control handset to call up the menu.
- When you open the menu, the following Select points appear on the screen:
* Only visible with installed gateway module.
- Use the ▲ / ▼ buttons to select a point in the menu.
- If you wish to change a selected menu point, first press the OK button, and then use the ◀ / ▶ buttons to alter it.
- After making the change, press the OK button again to accept the new setting.
- You can press the ☐ button at any time to interrupt the process; the change is then abandoned.
- A brief press on the ☐ button also takes you back (higher) by one menu level.
- Press the button again to leave the menu.
Source names menu item
At this menu item you can activate and disable external sources, and assign a plain text name to each source; this name then appears in the screen displays.
When you call up this menu item using the OK button, a list of all the external sources of the MP 1000 E appears. Each source is followed by the assigned name, or if you have disabled the source concerned the note 'disabled'.
If you want to activate / disable a source, or change the plain text name, navigate to the appropriate line.
To activate a source, press the green 😊 button; pressing the red ⚙ button disables the source.
To change the plain-text name, move to the appropriate line and press the OK button. Now use the alpha-numeric keypad of the FM1000 to change the name as required, then confirm your choice with OK; this saves the settings for that source.
The ▲▼ button is used to switch between numeric and alpha-numeric input, and between capitals and lower-case letters. Letters can be erased by pressing the ◀ button.
If you should wish to restore the factory default source name, erase the whole name before saving the empty field with the OK button: this action resets the display to the standard source names.
The only available method of entering the name is to use the alphanumeric keypad on the remote control handset.
Display brightness menu item
At this point you can adjust the brightness of the integral screen to suit your personal preference for normal use; seven levels are available.
We recommend that brightness settings 6 and 7 should only be used when the screen is difficult to read due to very bright ambient light.
A lower brightness setting will extend the useful life of the screen.
Display mode menu item
This menu item offers the choice between three different display operation modes:
- Always on
- Temporary
- Always off
Selecting 'Temporary' will switch the display is on for a short while each time the MP 1000 E is being operated. Shortly after operation the display will be switched off again automatically.
The brightness of the display can be adjusted separately with the menu item 'Display Brightness' (see above).
Language menu item
In this menu point you define the language to be used for the displays on the screen of the front panel of the MP 1000 E.
The language used for data transferred to the machine, e.g. from an iPod or other Internet radio station, is determined by the supplying device or the radio station; you cannot define the language on the MP 1000 E.
Device name menu item
This menu point can be used to assign an individual name to the MP 1000 E. In a home network the device then appears under this name.
Energy saver menu item
The MP 1000 E features two stand-by modes: ECO Standby with reduced stand-by current drain, and Comfort Standby with additional functions, but slightly higher current drain. You can select your preferred stand-by mode in this menu point:
On (ECO standby):
Active functions in ECO standby mode:
• Power-on at the device itself, or by remote control.
- Automatic power-down after ninety minutes without signal (only possible with certain sources).
Off (Comfort standby):
The following expanded functions are available:
- Can be switched on using the FD100 radio remote control handset (the FD100 is an optional accessory)
- The automatic power-down function is disabled in Comfort standby mode.
Network menu item
All network settings can be carried out at this menu point. For a detailed description on setting up a LAN or WLAN connection please also refer to the section entitled “Network configuration” on page 48.
Music services menu item
At this point you can enter the access data for the music streaming services (TIDAL etc.) supported by the MP 1000 E.
Calling up this menu point by pressing the OK button displays a list of the supported music services.
Select the service you wish to use, then confirm your choice with the OK button.
Now use the alpha-numeric keypad of the FM1000 to enter the access data which you have received from your service provider in the lines "User" and "Passphrase".
Use the ▲▼ button to switch between numeric and alpha-numeric input, and between capitals and lower-case letters.
Press the ◀ button to erase any letter.
In each case confirm your input of user name and password by pressing the OK button.
To conclude the procedure and save the data, select the menu entry "Store and exit?" and confirm by pressing the OK button.
If access data for the selected music service has already been stored, the new data will overwrite them. To use the new access data you must first perform a "Logout" for the service in question, then switch the R 1000 E off and on again.
The music streaming services supported by the MP 1000 E require a subscription to the appropriate service provider.
Bandwidth limit menu item
This menu point can be used to adjust the link speed of the Internet connection. The bitrate of the Internet radio stations and streaming services is adjusted automatically to match your chosen setting. If you select “no limit” for bandwidth limit, the highest available quality is always selected automatically.
If you do not know the exact bandwidth of the internet connection, we recommend that you select the setting at which no drop-outs occur during playback.
FD100 pairing menu item
The MP 1000 E can be controlled remotely using the FD 100 bi-directional radio remote control handset if a Gateway module is installed; this is available as an optional extra.
When you call up this menu point, the MP 1000 E attempts to create a connection with the FD 100 radio remote control.
The menu item is only visible, if a gateway module is installed.
Menu item Device Info
Sub-point Update package
Sub-point Main
Sub-point Client
Sub-point DAB / FM
Sub-point Decoder
Sub-point Bluetooth
Sub-point Update
Sub-point Factory settings
At this menu point you will find information on the status of the installed software and the factory reset.
This point displays the currently installed software package.
Display of the control software version
Display of the Streaming Client software version
Display of the tuner software version.
Display of the CD mechanism decoder software
Display of the Bluetooth module software
At this point it is possible to initiate a firmware update. The update can be accessed from a USB stick or an Internet connection.
Calling up and confirming this menu point erases all personal settings, and restores the machine to the state as delivered (factory defaults).
Pre amplifier functions of the MP 1000 E
(Only possible with the optional pre-amplifier module installed)
Using the unit with active speakers or power amplifiers
The MP 1000 E can also be operated without an integrated amplifier, e.g. using directly connected active speakers or a power amplifier. For this 'stand-alone' mode the machine can be fitted with an optional pre-amplifier module. This module consists of a fully featured pre-amplifier with volume and tone controls. The following menu points relating to tone settings are only available if the pre-amplifier module is fitted.
Continuous listening to programme material at very high volume can result in permanent loss of hearing. You can avoid subsequent health problems by avoiding continuous listening at high volume
Operation with T+A PA 1000 E
A T+A PA 1000 E amplifier connected to the MP 1000 E by an E LINK cable is automatically detected by the MP 1000 E and the pre amplifier section will automatically be bypassed. In this case volume and tone are adjusted on the PA 1000 E's pre-amplifier.
Tone control settings (Tone menu)
The MP 1000 E features a range of facilities for fine-tuning the sound to suit your personal preference, the listening environment and the particular recording currently being played. All the tone control settings are grouped in the TONE menu.
Briefly press the ⏻ button on the remote control handset to call up the balance and tone control functions. This action brings up a set-up window which displays the various adjustment options.
- Use the ▲ / ▼ buttons to select an adjustment option.
- The option displayed can now be changed using the ◀ / ▶ buttons.
If no action is taken for a period of a few seconds, the set-up window disappears from the screen.
| Adjustment facility | |||
| Balance | 30 L | ... | 30 R |
| Loudness | Off | On | |
| Tone control | Off | On | |
| Treble | -7 | ... | +7 |
| Bass | -7 | ... | +7 |
| D/A mode | Linear | Impuls | |
| Output | inverted | norm | |
Balance
This menu item is used to alter the balance in level between the left and right channels, e.g. to compensate for non-symmetrical loudspeaker positioning.
The balance can be adjusted in increments of 1,25 dB; the screen always displays the current value.
The primary purpose of the Balance setting in the Tone menu is to compensate for inadequacies in the audio mix of the recording currently being played.
Loudness
The MP 1000 E is equipped with an automatic level-dependent volume control system (LOUDNESS), designed to compensate for the frequency-dependent sensitivity of the ear at very low volume, caused by the physiology of the human auditory system.
This set-up option switches the level-dependent volume control on and off.
Tone Control
This menu point can be used to disable (by-pass) the MP 1000 E's tone controls.
To switch off the tone controls, select the “OFF” setting. When the tone controls are switched off, any adjustments you make to the following menu points “BASS” and “TREBLE” have no effect.
Bass / Treble (Tone settings)
These two menu points can be used to alter the high-frequency (treble) and low-frequency (bass) settings when required.
The primary purpose of the settings in the Tone menu is to compensate for inadequacies in the audio mix of the recording currently being played.
If you wish to alter the fundamental tone settings for your loudspeakers, you should make adjustments in the “Speaker size” menu item of the system configuration menu.
D/A Converter Settings
A number of special settings are available for the MP 1000 E D/A converter; they are designed to fine-tune the characteristics of your amplifier to suit your listening preferences.
The following settings can only be called up if PCM-encoded audio is being played.
Calling up and operating the D/A converter options
Briefly press the F1 button on the remote control handset in order to call up the D/A converter set-up options. This action opens a set-up window in which the various options are displayed.
- Now use the ▲ / ▼ buttons to select a set-up option.
- In each case the displayed option can be altered using the ◀ / ▶ buttons.
- Press the F1 button again to leave the menu.
D/A mode
A number of special settings are available for the MP 1000 E's D/A converter; they are designed to fine-tune the characteristics of your amplifier to suit your listening preferences.
The MP 1000 E can exploit two different filter types offering different tonal characters:
- LINEAR is the standard setting, which has an extremely linear frequency response.
- The IMPULSE setting delivers an improved impulse response with a minimal reduced linearity.
Output phase
With particular instruments or voices the human ear is certainly capable of detecting whether absolute phase is correct or not. However, absolute phase is not always correctly recorded.
In this menu item the phase of the signal can be changed from normal to inverse phase and back.
The correction is carried out at the digital level, and has absolutely no adverse effect on sound quality.
Operating the sources in detail
Favourites lists
General information
The MP 1000 E includes the facility to create Favourites lists. The purpose of these lists is to store radio stations and podcasts, so that they can be accessed swiftly.
Each of the sources FM radio, DAB radio, and Internet radio (incl. podcasts) features its own Favourites list.
Once stored, the favourites can either be selected from the Favourites list, or called up directly by entering the program location number. The option of selecting using the location number is particularly useful when you wish to call up favourites when the screen is not in view (e.g. from an adjacent room) or using a house control system.
Favourites lists for the various music services (TIDAL etc.) are not supported. Instead it is usually possible to add Favourites and Playlists on-line via the provider's account. These can then be called up and played via the MP 1000 E.
Calling up the Favourites list
- The first step is to switch to one of the sources listed above.
- Press the ≡ button to call up the Favourites list.
a) Here the program location number is displayed within the list. Since it is possible to erase individual list items, the numbering may not be continuous.
b) The selected list entry is displayed in enlarged form.
c) Position display in the Favourites list.
Adding a favourite
If you especially enjoy the piece of music or radio station to which you are currently listening, simply press the green 😊 button on the FM1000; this action stores the station in the corresponding Favourites list.
Each Favourites lists features 99 program locations.
Favourites lists can only be used to store the piece of music and station which is currently playing.
Erasing a favourite from the Favourites list
Open the Favourites list by pressing the ☐ button. Use the ▲ / ▼ buttons to select the station in the list which you wish to erase, then hold the red Ⓧ button pressed in; this action removes the item from the Favourites list.
Erasing a Favourite does not cause the following Favourites to move up the list. The station position is no longer displayed after erasure, but a new Favourite can still be assigned to it.
Selecting a favourite from the list
- Press the ≡ button to call up the Favourites list.
- Use the ▲ / ▼ buttons to select a stored item from the Favourites list. The selected favourite is displayed in enlarged form.
- Select the favourite to be played by pressing the ▶ or OK button.
- You can return to the station to which you are currently listening (quit) by pressing the ◀ button.
Directly selecting a favourite
In addition to the option of selecting favourites using the Favourites list, it is possible to access the desired favourite directly by entering the program location number.
To select a stored favourite directly during playback, enter the two-digit program location number of the new favourite using the numeric buttons (0 to 9) on the remote control handset.
After you have pressed the numeric buttons, playback switches to the favourite you have just selected.
Sorting Favourites lists
The sequence of items in the Favourites list you have created can be altered in any way you wish. This is the procedure for changing the order of the list:
- The first step is to call up the Favourites list by briefly pressing the button.
- Use the ▲ / ▼ buttons to select the favourite whose position you wish to change. The selected Favourite is displayed in enlarged form.
- Pressing the ▲▼ button activates the Sort function for the selected favourite. The favourite is highlighted on the screen.
P01 - 1LIVE
P02 - HERFORD
P03 - WDR 5
1/38
- Now move the activated favourite to your preferred position in the Favourites list.
- A further press on the ▲▼ button de-activates the Sort function, and the favourite is stored at the new position.
- Briefly press the 📄 button again to close the Favourites list.
If you have previously erased a number of favourites, you may well find that some program locations in the Favourites list are missing (empty). Nevertheless, the favourites can still be moved to any location in the list!
Operating the radio
The MP 1000 E features an FM tuner (VHF radio), a DAB / DAB+ receiving section (digital radio) and also includes the facility to stream Internet radio. The following section describes in detail how to operate the individual radio sources.
FM – Radio
Selecting FM radio
Briefly tap the RADIO button on the front panel of the MP 1000 E or on the FM1000 remote control handset, repeatedly if necessary, until the source "FM Radio" is displayed on the screen.
Display
a) Displays the type of reception currently in use.
b) Hear the music type or style is displayed, e.g. Pop Music.
This information is only displayed if the transmitting station broadcasts it as part of the RDS system. If you are listening to a station which does not support the RDS system, or only supports it in part, these information fields remain empty.
c) The frequency and / or the station name is displayed in enlarged form. If a station name is displayed, its frequency is shown in area 'e'.
d) These lines display information which is broadcast by the station (e.g. Radio text).
e) Display of Stereo '∅' / Mono '
f) The field strength 《i》 and therefore the reception quality to be expected from the set transmitting station can be assessed from the field strength.
Manual station search
Holding one of the ◀◀ / ▶▶ buttons pressed in initiates a station search for FM tuner in the upward or downward direction. The station search stops automatically at the next station. A frequency can be selected directly by pressing the ◀◀ / ▶▶ buttons repeatedly. Briefly pressing the ◀◀ / ▶▶ buttons on the FM1000, repeatedly if necessary, enables you to select a particular frequency.
As soon as the station is audible, you can add it to your Favourites list by pressing the 😊 button.
A brief press on the SRC button to calls up the Station list menu. The following Select points are available:
| Station list | |
| → Sort stations by | Frequency |
| Add new stations | Start |
| Create new list | Start |
- If you wish to create a new station list, select the item "Create new list" and confirm your choice with OK.
- The station search begins, and automatically searches for all radio stations which the machine is able to pick up.
- If you wish to update an existing list, select the item "Add new stations".
- The menu item "Sort stations by ..." allows you to sort the stored list by any of several criteria.
Selecting a station from the Station list
- Pressing the ▲ / ▼ buttons opens the list of all stored stations.
a) Use the ▲ / ▼ buttons to select one of the stored stations. The station you choose is now displayed in enlarged form.
Press the ▶ or OK button to select the enlarged station for playing.
Pressing the ◀ button returns you to the station to which you are currently listening (quit).
b) Position indicator in the Favourites list.
Stations to which you often listen can be stored in a Favourites list; this makes it easier to select them (see the section entitled “Favourites list”).
RDS functions
If the station being received is broadcasting relevant RDS data, the following information will be displayed on the screen:
- Station name
- Radio text
- Program type (genre)
For stations that do not support the RDS system or only partially or with weak reception, no information will be displayed.
Switching Radio Text on and off
The Radio text function can be switched on and off by briefly pressing the ⓘ button on the remote control handset.
Mono / Stereo (only FM – Radio)
You can toggle the radio of the MP 1000 E between stereo and mono reception by briefly pressing the II button. The reception mode is shown on the screen by the following symbols:
'●' (Mono) or '○' (Stereo)
If the station you wish to listen to is very weak or very distant, and can only be picked up with severe background noise, you should always switch to MONO mode as this reduces the unwanted hiss significantly.
The Mono and Stereo symbols are only shown in the detailed screen display.
DAB - Radio
Selecting DAB radio
Briefly tap the RADIO button on the front panel of the MP 1000 E or on the FM1000 remote control handset, repeatedly if necessary, until the source "DAB Radio" is displayed on the screen.
Depending on the frequency band (block), it may take up to two seconds to switch stations when in DAB mode.

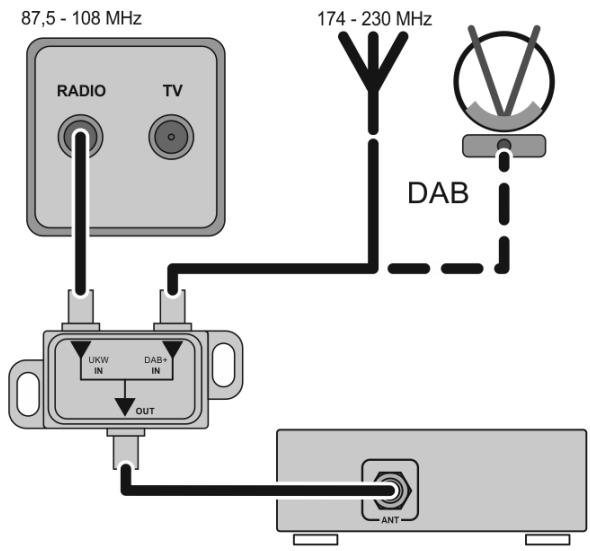

Since firmware version V1.20 the device supports DAB+ reception via the Swiss cable TV network. For further information about updating the firmware, please refer chapter „Software update“.
Display
a) Displays the type of reception currently in use.
b) Hear the music type or style is displayed, e.g. Pop Music.
This information is only displayed if the transmitting station broadcasts it as part of the RDS system. If you are listening to a station which does not support the RDS system, or only supports it in part, these information fields remain empty.
c) The frequency and / or the station name is displayed in enlarged form. If a station name is displayed, its frequency is shown in area 'e'.
d) These lines display information which is broadcast by the station (e.g. Radio text).
e) Display of Stereo '∅'.
f) The field strength (¶) and therefore the reception quality to be expected from the set transmitting station can be assessed from the field strength.
g) Bit-rate of the broadcasting station when listening to DAB radio.
* The higher the bit-rate, the better the station's sound quality.
A brief press on the SRC button to calls up the Station list menu. The following Select points are available:
| Station list | |
| → Sort stations by | Block |
| Add new stations | Start |
| Create new list | Start |
- If you wish to create a new station list, select the item "Create new list" and confirm your choice with OK.
- The station search begins, and automatically searches for all radio stations which the machine is able to pick up.
- If you wish to update an existing list, select the item "Add new stations".
- The menu item "Sort stations by ..." allows you to sort the stored list by any of several criteria.
Selecting a station from the Station list
- Pressing the ▲ / ▼ buttons opens the list of all stored stations.
a) Use the ▲ / ▼ buttons to select one of the stored stations. The station you choose is now displayed in enlarged form.
Press the ▶ or OK button to select the enlarged station for playing.
Pressing the ◀ button returns you to the station to which you are currently listening (quit).
b) Position indicator in the Favourites list.
Stations to which you often listen can be stored in a Favourites list; this makes it easier to select them (see the section entitled “Favourites list”).
RDS functions
If the station being received is broadcasting relevant RDS data, the following information will be displayed on the screen:
- Station name
- Radio text
- Program type (genre)
For stations that do not support the RDS system or only partially or with weak reception, no information will be displayed.
Internet-Radio
Selecting Internet Radio as source
Selecting podcasts
Briefly tap the RADIO button on the front panel of the MP 1000 E or on the FM1000 remote control handset, repeatedly if necessary, until the source "Internet Radio" is displayed on the screen.
Select the "Podcasts" entry instead of the "Radios" entry from the list.
The method of operating music services is described separately in the section entitled “Operating music services”.
Playback
The music content to be played is selected with the help of Select lists. These lists are controlled using the navigation buttons (cursor buttons) on the remote control handset or the machine's front panel.
a) Use the ▲ / ▼ buttons to select the desired entry from the list.
A brief press selects the previous / next entry within the list. The scrolling speed can be increased by holding the button pressed.
The list entry you choose is now displayed in enlarged form.
Press the ▶ or OK button to open or start the list entry shown in enlarged form.
Pressing the ◀ button returns you to the previous folder level.
b) Indicates the currently selected point within the opened list.
Starting playback
Press the ▶ button on the remote control handset or the machine's front panel to start playback.
Stopping playback
Pressing the ☐ button halts playback.
Stations and podcasts to which you often listen can be stored in a Favourites list; this makes it easier to select them (see the section entitled “Favourites list”).
Front panel display
While playing back the MP 1000 E can be switched to either of two different screen displays with a long press on the Ⓐ button:
- Large-format display: Enlarged display of the most important information, clearly legible even from a distance
- Detail display: Small-text display showing a large number of additional information points, e.g. bit-rate etc.
The Search function provides a means of locating Internet radio stations swiftly. This is the procedure for searching for a particular Internet radio station:
- Locate the Select list for the entry "Radio", then use the ▲ / ▼ buttons to select the "Search" item, and confirm your choice by pressing the OK button or while navigating within lists alternatively call up the search function by pressing the blue ▲▼ button.
- You will now see a window in which you can enter the keyword using the remote control handset's alpha-numeric keypad.
- Press the ◀ button to erase any letter.
- Briefly press the OK button to start the search.
• After a short delay you will see a list of the search results.
Search strings can consist of up to ten characters. It is also possible to enter multiple keywords separated by a space character, e.g. "BBC RADIO".
To search for a podcast, select the "Search" entry under "Podcasts".
Operating music services
General information
The MP 1000 E supports playback of music services such as TIDAL.
To make use of music services you may need to take out a paid subscription with the appropriate provider.
Use of music services requires the input of access data (username and password. These access data can be stored separately for each provider in the "Music services" menu within the System Configuration menu (see the section entitled "Basic settings of the MP 1000 E").
Future music services and others which are not currently supported may be added subsequently by updates to the firmware of the MP 1000 E.
Selecting the music service
Press the SCL/USB button on the FM1000 or the front panel of the MP 1000 E, repeatedly if necessary, to select the desired music service.
If the list of the selected service does not open when you press the OK button, this may mean that the access data is not stored or is incorrect (see the section entitled “Basic settings of the MP 1000 E / Music services”).
Playback
The music content to be played is selected with the help of Select lists. These lists are controlled using the navigation buttons (cursor buttons) on the remote control handset or the machine's front panel.
a) Use the ▲ / ▼ buttons to select the desired entry from the list.
A brief press selects the previous / next entry within the list. The scrolling speed can be increased by holding the button pressed.
The list entry you choose is now displayed in enlarged form.
Press the ▶ or OK button to open or start the list entry shown in enlarged form.
Pressing the ◀ button returns you to the previous folder level.
b) Indicates the currently selected point within the opened list.
Starting playback
Stopping playback
Skipping tracks
Press the ▶ button on the remote control handset or the machine's front panel to start playback.
Pressing the ☐ button halts playback.
A brief press on the ◀◀ / ▶▶▶ buttons during playback causes the device to jump to the next or previous piece of music within the current playlist.
The exact form of the displayed list and the preparation of the content depend to a large extent on the music service provider. You may therefore find that in some cases not all the functions described in these instructions can be used.
Search function
In order to find quickly what you want in the wide range of services on offer, it is possible to search for specific items in the content available from music service providers.
The first step in the procedure is to open the Select list of the appropriate music service. Navigate to the "Search" entry, and confirm by pressing the OK button. As an alternative it is possible to call up the search function by pressing the blue ▲▼ button while navigating in lists.
A window now opens in which the keyword can be entered using the remote control handset's alpha-numeric keypad.
Press the ◀ button to erase any letter.
Start the search by briefly pressing the OK button.
After a short delay a list appears showing the search results.
The results list varies from one music service to another. Many services allow you to filter the search results by artiste, album or track once the search has been completed.
The search function can be called up from every point within the lists by pressing the blue ▲▼ button.
The search strings can consist of up to eight characters. It is also possible to enter multiple keywords separated by a space character, e.g. "The Beat".
Playlists and favourites
Most music services offer the facility to register on the provider's website with the user data, create dedicated playlists, and manage the lists conveniently.
Once created, the playlists appear in the Select list of the corresponding music service, where they can be called up and played via the MP 1000 E.
The location within the select list at which the playlists can be accessed varies from one music service to another. Often these folders are named “My music”, “Library”, “Favourites” or similar.
Front panel display
While playing back the MP 1000 E can be switched to either of two different screen displays with a long press on the ⏻ button:
• Large-format display:
Enlarged display of the most important information, clearly legible even from a distance
• Detail display:
Small-text display showing a large number of additional information points, e.g. bit-rate etc.
Operating the UPnP / DLNA source (Streaming Client)
General information on the streaming client
The MP 1000 E features what is known as a ‘streaming client’. This facility makes it possible to play music files stored on PCs or servers (NAS) within the network.
The media content formats which the MP 1000 E can reproduce are very wide-ranging, and extend from compressed formats such as MP3, AAC and OGG Vorbis to high-quality non-compressed data formats such as FLAC, ALAC, AIFF and WAV, which are thoroughly audiophile in nature. A full listing of all possible data and playlist formats is included in the Specification, which you will find in the Appendix to these instructions.
Since virtually no read or data errors occur when electronic memory media are accessed, the potential reproduction quality is even higher than that of CD. The quality level may even exceed that of SACD and DVD-Audio.
Selecting the UPnP / DLNA source
Briefly tap the SCL/USB button on the front panel of the MP 1000 E or on the FM1000 remote control handset, repeatedly if necessary, until the source "UPnP / DLNA" is displayed on the screen.
Playback
The music content to be played is selected with the help of Select lists. These lists are controlled using the navigation buttons (cursor buttons) on the remote control handset or the machine's front panel.
a) Use the ▲ / ▼ buttons to select the desired entry (Server / Folder / Track) from the list.
A brief press selects the previous / next entry within the list. The scrolling speed can be increased by holding the button pressed.
The list entry you choose is now displayed in enlarged form.
Press the ▶ or OK button to open or start the list entry shown in enlarged form.
Pressing the ◀ button returns you to the previous folder level.
b) Indicates the currently selected point within the opened list.
The exact form of the displayed list and the preparation of the content also depend to a large extent on the capabilities of the server, i.e. the full facilities of the MP 1000 E cannot be exploited with all servers or media. You may therefore find that in many cases not all the functions described in these instructions can be used.
Starting playback
Stopping playback
Skipping tracks
Press the ▶ button on the remote control handset or the machine's front panel to start playback.
Pressing the ☐ button halts playback.
A brief press on the ◀◀ / ▶▶▶ buttons during playback causes the device to jump to the next or previous piece of music within the current playlist.
Playback of directories
In addition to the facility to play back individual folder content, it is also possible to play back entire directories. This is accomplished by selecting the folder of the directory to be played, then pressing the ▶ button to start playback. Playback commences with the first entry in the list of content to be played. If an entry in the list should contain a folder with additional sub-folders, the content of the lowest folder is always played first. This is followed by the content of the next higher folder level, etc. (see diagram right).
Search function
When you are navigating through lists you can call up the MP 1000 E's letter search function at any time by briefly pressing the blue ▲▼ button. The screen now displays the message "Search". While this is on the screen, enter up to eight letters or numerals using the remote control handset; the letters assigned to the numeric buttons are printed below the buttons. To obtain a particular letter, press the appropriate button repeatedly until the correct letter appears on the screen. Before entering the next character you have to wait until the cursor is displayed again. Press the ◀ button to erase any letter.
After pressing the OK button or after a brief delay with no further input the MP 1000 E moves to the first entry in the list which starts with the characters you entered.
If the text searched for is not found the best matching result will be shown. You can abort the search using the -button.
The function searches only the current folder. Eventually existing subfolders are ignored.
Front panel display
The MP 1000 E provides different screen displays for the Streaming Client.
A long press on the Ⓚ-button on the remote control handset is used to switch between the display modes.
• Large-format display:
Enlarged display of the most important information, clearly legible even from a distance
• Detail display:
Small-text display showing a large number of additional information points, e.g. bit rate etc.
Playing USB memory media
(USB Media source)
General information
The MP 1000 E is capable of playing music files stored on USB memory media, and features two USB sockets for this purpose: USB IN on the machine's front panel, and USB HDD on the back panel.
The memory medium can be formatted with any of the following file systems: FAT16, FAT32, NTFS, ext2, ext3 or ext4.
It is also possible to power the USB memory medium via the USB socket, provided that the unit's current drain accords with the USB norm. Normed 2.5 inch USB hard discs can be connected to the socket directly, without requiring their own mains PSU.
Selecting USB Media as source
Press once or twice on the SCL/USB button in order to select "USB MEDIA" as source.
All USB memory media connected to the machine are now displayed. If no USB memory medium is found, the screen displays the message “No USB media available”.
Playback
The music content to be played is selected with the help of Select lists. These lists are controlled using the navigation buttons (cursor buttons) on the remote control handset or the machine's front panel.
a) Use the ▲ / ▼ buttons to select an (a) USB memory / folder / track from the list.
A brief press selects the previous / next entry within the list. The scrolling speed can be increased by holding the button pressed.
The list entry you choose is now displayed in enlarged form.
Press the ▶ or OK button to open or start the list entry shown in enlarged form.
Pressing the ◀ button returns you to the previous folder level.
b) Indicates the currently selected point within the opened list.
Starting playback
Press the ▶ button on the remote control handset or the machine's front panel to start playback.
Stopping playback
Pressing the ☐ button halts playback.
Skipping tracks
A brief press on the ◀◀ / ▶▶▶ buttons during playback causes the device to jump to the next or previous piece of music within the current playlist.
Playback of directories
In addition to the facility to play back individual folder content, it is also possible to play back entire directories. This is accomplished by selecting the folder of the directory to be played, then pressing the ▶ button to start playback. Playback commences with the first entry in the list of content to be played. If an entry in the list should contain a folder with additional sub-folders, the content of the lowest folder is always played first. This is followed by the content of the next higher folder level, etc. (see diagram right).
Search function
When you are navigating through lists you can call up the MP 1000 E's letter search function at any time by briefly pressing the blue ▲▼ button. The screen now displays the message "Search". While this is on the screen, enter up to eight letters or numerals using the remote control handset; the letters assigned to the numeric buttons are printed below the buttons. To obtain a particular letter, press the appropriate button repeatedly until the correct letter appears on the screen. Before entering the next character you have to wait until the cursor is displayed again. Press the ◀ button to erase any letter.
After pressing the OK button or after a brief delay with no further input the MP 1000 E moves to the first entry in the list which starts with the characters you entered.
If the text searched for is not found the best matching result will be shown. You can abort the search using the -button.
The function searches only the current folder. Eventually existing subfolders are ignored.
Front panel display
While playing USB memory media the MP 1000 E can be switched to either of two different screen displays with a long press on the ⏻ button:
• Large-format display:
Enlarged display of the most important information, clearly legible even from a distance
• Detail display:
Small-text display showing a large number of additional information points, e.g. bit-rate etc.
Operating the CD player
Selecting CD as source
Select the CD player as source by pressing the DISC button on the FM1000, or by pressing the DISC/BT button on the front panel of the MP 1000 E twice.
Inserting a CD
- Open the CD drawer (▲) on the front panel / ■ FM1000)
- Place the disc centrally in the appropriate depression in the drawer, with the side to be played facing down.
- Close the CD drawer (▲) on the front panel / ■ FM1000)
When you close the drawer, the machine immediately reads the CD's 'Table of Contents'; the screen displays the message 'Reading'. During this period all button-presses are ignored.
The screen then displays the total number of tracks on the CD in the drawer, e.g.: '13 Tracks 60:27'. - It is also shows the current mode of operation, e.g.
Front panel display
In CD mode the MP 1000 E can be switched to either of two different screen displays with a long press on the ⏻ button:
- Large-format display: Enlarged display of the most important information, clearly legible even from a distance
- Detail display: Small-text display showing a large number of additional information points, e.g. bit-rate etc.
Fig. Large format display
Fig. Detail display
Playing a CD
Press the ▶ button on the front panel or on the FM1000 remote control handset to begin the playback process. Playback starts, and the screen shows the mode of operation (☐) and the number of the track currently being played: 'Track 1'.
The CD stops after the final track, and the screen again displays the total number of CD tracks and the overall running time.
Variations
If you press the ▶ / □ OK button after placing the CD in the machine, the drawer closes and playback starts with the first track.
The open drawer also closes if you enter the number of a track using the remote control handset.
You can interrupt playback at any time by pressing the ▶ button. During the interruption the screen displays the □ symbol. Press the ▶ button again to resume playback.
Briefly pressing the ◀◀ / ▶▶▶ button during playback causes the player to skip to the start of the preceding / next track.
A brief press on the ☐ button concludes playback.
A long press on the ☐ button opens the CD drawer.
Track Select During playback
Briefly press the ◀◀ or ▶▶ button repeatedly until the number of the track you want to hear appears on the integral screen.
Releasing the button interrupts playback briefly, and after this the desired track is played.
You can also enter the number of the desired track directly using the numeric buttons on the remote control handset.
Fast Search
- Fast forward search
(hold the ▶ button pressed in) - Fast reverse search
(hold the ◀ button pressed in)
Holding the button pressed in for a long period increases the rate (speed) of search. During the search process the screen displays the current track running time.
CD Text
If the disc in the drawer contains CD text, this can be superimposed or suppressed by briefly pressing the ⏻ button.
Playback mode
Repeat
Mix-mode
The CD player in the MP 1000 E features various playback modes. During playback the current playback mode is shown on the screen.
Brief press:
Repeatedly pressing the ⏻ button causes the machine to cycle through different playback modes.
Screen symbols
| → | The tracks of the CD or a playback program are continuously repeated in the preset sequence. |
| → 1 | The track of the CD or a playback program which has just been played is continuously repeated. |
| No symbol | Normal playback of the whole disc, or normal program playback. |
Long press:
Holding the ⏻ button pressed in switches the machine to Mix mode. A second long press ends Mix mode.
Screen symbols
| ✕ | The tracks of the CD or of a playback program are played in a random sequence. |
| ⊃✕ | The tracks of the CD or of a playback program are continuously repeated in a random sequence. |
Playback Program
Creating a Playback Program
A playback program consists of up to thirty tracks of a CD stored in any order you like. This can be useful, for example, when you are preparing a cassette recording. A playback program can only be created for the CD currently in the disc drawer of the MP 1000 E. The program remains stored until it is erased again, or until the CD drawer is opened.
When you place the CD in the drawer, the screen displays the total number of tracks on the disc, e.g.: '13 Tracks 60:27'. For creating a playback program the disc must be stopped.
- Press the 😊 button to activate playback programming mode.
- The screen displays the message 'Add Track 1 to Program' and '0 Tracks / 0:00 Program time'.
- Repeatedly press the 🔊 or ▶ button briefly until the number of the desired track appears on the screen after 'Track'.
- Now store the track in the playback program by briefly pressing the button.
- The screen shows the number of tracks and the total playing time of the play-back program. Select all the remaining tracks of the program in the same manner, and store them by briefly pressing the 😊 button.
- If you store thirty tracks, the screen displays the message 'Program full'. The playback programming process is concluded when all the desired tracks have been stored.
• End the playback programming process. - Hold the 😊 button pressed in for about one second
It is also possible to enter the track directly using the numeric buttons, instead of using the ◀◀ / ▶▶▶ buttons. After you enter the number, press the 😊 button briefly to store the track, as described above.
Playing a playback program
The playback program can now be played.
- Start the playback process by a brief press on the ▶ button
Playback starts with the first track of the playback program. The screen displays the message 'Program' while a playback program is playing.
The 🔊 and ➕ buttons select the previous or next track, but only within the playback program.
Erasing a playback program
Briefly pressing ☐ button in STOP mode opens the CD drawer, and thereby erases the playback program.
A playback program can also be erased without opening the CD drawer:
- Erase the playback program.
Hold the 😊 button pressed in again for about one second - The playback program is now erased.
Operating the Bluetooth source
The MP 1000 E's integral Bluetooth interface provides a means of transferring music wirelessly from devices such as smart-phones, tablet PCs, etc. to the MP 1000 E.
For a successful audio Bluetooth transfer from a mobile device to the MP 1000 E the mobile device must support the A2DP Bluetooth audio transfer protocol.
Connecting the aerial
An aerial must be connected to the unit for Bluetooth transmission. The aerial is connected to the socket marked 'BT' on the MP 1000 E.
* The aerial can also be set up free-standing using the magnetic base supplied in the set; this ensures maximum possible range.
Selecting the Bluetooth Audio source
Select the 'Bluetooth' source by repeatedly pressing the BT button on the remote control handset, or the DISC/BT button on the MP 1000 E's front panel.
The machine's integral screen now displays 'Bluetooth' as source.
Setting up audio transfer
Before music from a Bluetooth-capable device can be played through the MP 1000 E, the external device must first be registered to the MP 1000 E. As long as the MP 1000 E is switched on and no device is connected, it is always ready to receive. In this state the screen displays the message 'not connected'.
This is the procedure for establishing a connection:
- Start a search for Bluetooth equipment on your mobile device.
- When it finds the MP 1000 E, make the connection to your mobile device.
Once the connection is successfully established, the message on the MP 1000 E's screen switches to 'connected to YOUR DEVICE.
If your device requests a PIN code, this is always '0000'.
The procedure for establishing a connection can only be made if the Bluetooth source is activated (see chapter "Basic settings of the MP 1000 E").
Due to the large number of different equipment on the market, we are only able to provide a general description for setting up the radio connection. For detailed information please refer to the operating instructions supplied with your device.
Playback functions
Start and pause playback
Stop playback
Skipping tracks
Information on the piece of music currently being played is displayed on the screen of the R 1000 E if this function is supported by the device connected to the unit.
The behaviour and method of operating the connected mobile device are determined by the device itself. In general terms the function of the buttons of the MP 1000 E or the FM1000 remote control handset are as follows:
The ▶ / ▶ // buttons on the remote control handset or the front panel are used to start and pause playback (PLAY / PAUSE function).
Pressing the ☐ button halts playback.
A brief press on the ◀◀ / ▶▶▶ buttons during playback causes the device to jump to the next or previous piece of music within the current playlist.
Please note that many AVRCP-capable mobile devices do not support the controlling through the MP 1000 E. In case of doubt, please ask the manufacturer of your mobile device.
Controlling the MP 1000 E
The MP 1000 E can also be controlled from the mobile device (Start/Stop, Pause, Volume, etc.). To control the MP 1000 E the mobile device must conform to the Bluetooth AVRCP protocol.
Please note that many AVRCP-capable mobile devices do not support all the MP 1000 E's control functions. In case of doubt, please ask the manufacturer of your mobile device.
NOTES
The MP 1000 E has been tested with a large number of Bluetooth-capable mobile devices. However, we are unable to guarantee general compatibility with all devices available commercially since the range of equipment is so wide, and the various implementations of the Bluetooth standard differ widely in some cases. If you encounter a problem with Bluetooth transfer, please contact the manufacturer of the mobile device.
The maximum range of a Bluetooth audio transfer is normally about 3 to 5 metres, but the effective range may be affected by a number of factors. To achieve good range and interference-free reception there should be no obstacles or persons between the MP 1000 E and the mobile device.
Bluetooth audio transfers take place in what is known as the “everyman frequency band”, in which many different radio transmitters operate - including WLAN, garage door openers, baby intercoms, weather stations, etc. Radio interference caused by these other services may cause brief dropouts or - in rare cases - even failure of the connection, and such problems cannot be excluded. If problems of this kind occur frequently in your environment, we recommend that you use the Streaming Client or the USB input of the MP 1000 E instead of Bluetooth.
By their nature, Bluetooth transmissions always involve data reduction, and the attainable sound quality varies according to the mobile device in use, and the format of the music to be played. As a basic rule the maximum quality of music which is already stored in a data-reduced format, such as MP3, AAC, WMA or OGG-Vorbis, is worse than with uncompressed formats such as WAV or FLAC. For the highest reproduction quality we always recommend the use of the Streaming Client or the USB input of the MP 1000 E instead of Bluetooth.
The MP 1000 E as D/A Converter
General Information on D/A Converter Operation
The T+A MP 1000 E can be used as a high-quality D/A converter for other devices such as computers, streamer, digital radios etc. which are fitted with poor-quality converters or no converter at all. The MP 1000 E features two optical and three electrical S/P-DIF digital inputs on the back panel to allow this usage.
A USB-DAC input on the back panel permits to use the MP 1000 E as D/A converter for computers.
You can connect devices with electrical co-axial or optical light-pipe output to the digital inputs of the MP 1000 E. At the optical inputs Digital In 3 and Digital In 4 the MP 1000 E accepts digital stereo signals conforming to the S/P-DIF norm, with sampling rates of 32 to 96 kHz. At the electrical co-axial inputs Digital In 1 and Digital In 2 the range of sampling rates is from 32 to 192 kHz.
At the USB DAC IN input the MP 1000 E accepts digital PCM-encoded stereo signals with sampling rates of 44.1 to 384 kHz (32-bit) and DSD data with sampling rates of DSD64, DSD128 and DSD256.
If you wish the MP 1000 E to convert audio files from a Windows PC connected to it, you must first install driver software on the computer (see the chapter entitled 'USB DAC operation in detail'). If you are using a computer running Mac OS X 10.6 or higher no drivers are necessary.
D/A Converter Operation
Selecting a D/A Converter Source
Choose the digital input to which you have already connected the source device which is to be played by pressing the INPUT button on the front panel or the D IN button on the FM1000 ( repeatedly if necessary).
As soon as the source device delivers digital music data, the MP 1000 E automatically adjusts itself to the format and sampling rate of the signal, and you will hear the music.
Front panel display
During D/A converter operations the MP 1000 E integral screen displays the characteristics of the digital input signal.
USB DAC operation in detail
System-requirements
- Intel Core i3 or higher or a comparable AMD Processor.
- 4 GB RAM
- USB 2.0 Interface
• Microsoft Windows 10, 8.1, 8, 7, Windows Vista oder Windows XP
• or MAC OS X 10.6.+
Installing drivers
The MP 1000 E can be operated with the listed MAC operating systems without requiring the installation of a driver. Playback of DSD streams up to DSD128 and PCM streams up to 384 kHz is possible with MAC operating systems.
If the device is to be operated in conjunction with one of the stated Windows operating systems, a dedicated driver must first be installed. With the driver installed, it is possible to play DSD streams up to DSD256 and PCM streams up to 384 kHz.
The drivers required, together with detailed installation instructions including information on audio playback via USB, are available for downloading from our website at http://www.ta-hifi.com/support
Settings
A number of system settings have to be altered if you wish to operate MP 1000 E with your computer. These changes must be made regardless of the operating system. The installation instructions provide detailed information on how and where the settings are to be changed.
Notes on software
By default, the operating systems listed above do not support 'native' music playback. This means that the PC always converts the data stream to a fixed sample rate, regardless of the sample rate of the file to be played. Separate software is available - e.g. J. River Media Center or Foobar - which prevents the operating system converting the sample rate. The installation instructions included in the driver package contain further information on audio playback via USB.
Notes on operation
To prevent fail functions and system crashes of your computer and the playback program, please note the following:
- For Windows OS: Install the driver before you use the MP 1000 E for the first time.
- Use only drivers, streaming methods (e.g. WASAPI, Directsound) and playback software which are compatible to your operating system and between each other.
- Never connect or disconnect the USB connection while the system is running.
Notes on setting up
Do not set up the MP 1000 E on or immediately adjacent to the computer to which it is connected, otherwise the device could be affected by interference radiated by the computer.
Installation, Using the system for the first time, Safety notes
This section describes all those matters which are of fundamental importance when setting up and first using the equipment. This information is not relevant in daily use, but you should nevertheless read and note it before using the equipment for the first time.
Back panel connections
| ANALOG OUT | BALANCED | Symmetrical analogue output with fixed or variable level.If you are not using the pre-amplifier module, a pre-amplifier or integrated amplifier with its own volume control can be connected to the unit (fixed level output). It is possible to connect equipment such as active loudspeakers or output stages without their own volume control (see chapter ‘Pre-amplifier functions of the MP 1000 E’) if you install the optional pre-amplifier module. |
| PRE OUT | Unsymmetrical analogue output with fixed or variable level.If you are not using the pre-amplifier module, a pre-amplifier or integrated amplifier with its own volume control can be connected to the unit (fixed level output). It is possible to connect equipment such as active loudspeakers or output stages without their own volume control (see chapter ‘Pre-amplifier functions of the MP 1000 E’) if you install the optional pre-amplifier module. | |
| LINE OUT | Fixed-level analogue output for connecting the MP 1000 E to an amplifier with its own volume control. | |
| REMOTE | Radio aerial socketSocket for subsequent upgrading of the MP 1000 E with a radio gateway module for the T+A FD100 graphic remote control handset. | |
| BT (Bluetooth) | Radio aerial socket for the Bluetooth aerial supplied in the set. | |
| ANT(Antenna input) | This FM antenna input can be connected to a normal 75 Ω FM home antenna or to TV/FM cable networks. For first-class reception quality a high-performance aerial system, competently installed, is a basic requirement. | |
| DIGITAL OUT | Digital co-axial output for connection to an external digital recorder with a coaxial cable. | |
| It is not always possible to produce a digital version for all media, as in some cases the original contains copy protection measures which prevent this. | ||
| DIGITAL IN | Inputs for digital source devices with optical or coaxial (RCA) outputs. | |
| At its optical digital inputs the MP 1000 E accepts digital stereo signals (S/P-DIF signals) with sampling rates from 32kHz up to 96 kHz.At the coaxial digital inputs sampling rates in the range 32 to 192 kHz are supported. | ||
USB - WLAN
Socket for the WLAN stick supplied in the set. If you wish to connect the MP 1000 E to the home network via WLAN, then the WLAN stick must be connected to this socket.
Automatic Activation of the WLAN Module
After powering on the MP 1000 E detects if it is connected to a wired LAN Network. If no wired LAN connection is found, the MP 1000 E will automatically activate its WLAN module and it will try to get access to your WLAN network.
Attention!
When WLAN shall be used, the LAN socket must be left unconnected. Connect the USB-WLAN stick before switching the device on!
USB - HDD
Socket for a USB memory stick or external hard discs
The storage medium can be formatted with the FAT16, FAT32, NTFS, ext2, ext3 or ext4 file system.
The USB storage medium can be powered directly via the USB port provided that its current drain is in accordance with the USB norm. Normalised 2.5" USB hard discs can be connected directly, i.e. without a separate mains PSU.
USB DAC
Socket for connecting a PC or MAC computer.
At this input the MP 1000 E accepts digital PCM stereo signals with sampling rates in the range 44.1 to 384 kSps, and digital DSD stereo signals from DSD64 to DSD256*.
* DSD256 only with a Windows PC.
If you wish the MP 1000 E to convert audio files from a Windows PC connected to it, you must first install the appropriate drivers on the computer. No drivers are required if you are using a Linux or MAC computer (see the chapter 'USB DAC operation in detail').
LAN
Socket for connection to a wired LAN (Ethernet) home network.
If a LAN cable is connected this will have priority over wireless WLAN networks. The WLAN module of the MP 1000 E will automatically be disabled.
E2 LINK
Control input for T+A E2 LINK – systems:
Mains input
The mains cable is plugged into this socket.
For correct connections refer to the sections 'Installation and wiring' and 'Safety notes'.
Installation and wiring
Carefully unpack the unit and store the original packing material carefully. The carton and packing are specially designed for this unit and will be needed again if you wish to move the equipment at any time.
If you have to transport the device, it must always be carried or sent in its original packaging in order to prevent damage and defects.
If the unit gets very cold (e.g. when being transported), condensation may form inside it. Please do not switch it on until it has had plenty of time to warm up to room temperature, so that any condensation evaporates completely.
If the device has been in storage, or has not been used for a protracted period (> two years), it is essential to have it checked by a specialist technician before re-use.
Before placing the unit on sensitive laquer or wood surfaces please check the compatibility of the surface and the unit's feet on a non visible point and if necessary use an underlay. We recommend a surface of stone, glass, metal or the like.
The unit should be placed on a rigid, level base (See also chapter “Safety notes”). When placing the unit on resonance absorbers or anti-resonant components make sure that the stability of the unit is not reduced.
The unit should be set up in a well ventilated dry site, out of direct sunlight and away from radiators.
The unit must not be located close to heat-producing objects or devices, or anything which is heat-sensitive or highly flammable.
Mains and loudspeaker cables, and also remote control leads must be kept as far away as possible from signal leads and antenna cables. Never run them over or under the unit.
Notes on connections:
A complete connection diagram is shown in 'Appendix A'.
- Be sure to push all plugs firmly into their sockets. Loose connections can cause hum and other unwanted noises.
- When you connect the output sockets of the source device to the output sockets of the MP 1000 E always connect like to like, i. e. 'R' to 'R' and 'L' to 'L'. If you fail to heed this then the stereo channels will be reversed.
- The device is intended to be connected to mains outlet with protective earth connector. Please connect it only with the mains cable supplied to a properly installed mains outlet with protective earth connector.
- To achieve maximum possible interference rejection the mains plug should be connected to the mains socket in such a way that phase is connected to the mains socket contact marked with a dot (●). The phase of the mains socket can be determined using a special meter. If you are not sure about this, please ask your specialist dealer.
We recommend the use of the T+A 'POWER THREE' ready-to-use mains lead in conjunction with the 'POWER BAR' mains distribution panel, which is fitted with a phase indicator as standard.
When you have completed the wiring of the system please set the volume control to a very low level before switching the system on.
The screen on the MP 1000 E should now light up, and the unit should respond to the controls.
If you encounter problems when setting up and using the amplifier for the first time please remember that the cause is often simple, and equally simple to eliminate.
Please refer to the section of these instructions entitled 'Trouble shooting'.
Loudspeaker and signal cables
Loudspeaker cables and signal cables (inter-connects) have a significant influence on the overall reproduction quality of your sound system, and their importance should not be under-estimated. For this reason T+A recommends the use of high-quality cables and connectors.
Our accessory range includes a series of excellent cables and connectors whose properties are carefully matched to our speakers and electronic units, and which harmonise outstandingly well with them.
For difficult and cramped situations the T+A range also includes special-length cables and special-purpose connectors (e. g. right-angled versions) which can be used to solve almost any problem concerning connections and system location.
Mains cables and mains filters
The mains power supply provides the energy which your sound system equipment needs, but it also tends to carry interference from remote devices such as radio and computer systems.
Our accessory range includes the specially shielded 'POWER THREE' mains cable and the 'POWER BAR' mains filter distribution board which prevent electro-magnetic interference from entering your Hi-Fi system. The reproduction quality of our systems can often be further improved by using these items.
If you have any questions regarding cabling please refer to your specialist T+A dealer who will gladly give you comprehensive expert advice without obligation. We would also be happy to send you our comprehensive information pack on this subject.
Changing the batteries
Locate the point indicated by the arrow in the left picture, and open the battery compartment by pressing it in and simultaneously sliding back the battery cover. Insert three batteries of the LR 03 (MICRO) type in the battery compartment, as shown in the engraved diagram. Please note: it is essential to replace all three batteries at the same time.
Caution!
Batteries shout not be exposed to excessive heat like sunshine, fire or the like.
Disposing of exhausted batteries:
Exhausted batteries must never be thrown into the household waste! They should be returned to the battery vendor (specialist dealer) or your local toxic waste collection point, so that they can be recycled or disposed in a proper way. Most local authorities provide collection centres for such waste, and some provide pick-up vehicles for old batteries.
Care of the unit
Disconnect the mains plug at the wall socket before cleaning the case.
The surfaces of the case should be wiped clean with a soft, dry cloth only.
Never use solvent-based or abrasive cleaners!
Before switching the unit on again, check that there are no short-circuits at the connections, and that all cables are plugged in correctly.
Storing the unit
If the device has to be stored, place it in its original packaging and store it in a dry, frost-free location. Storage temperature range 0...40 °C
Safety notes
| For your own safety please consider it essential to read these operating instructions right through, and observe in particular the notes regarding setting up, operation and safety. | |
| Installation | Please consider the weight of the device. Never place the device on an unstable surface; the machine could fall off, causing serious or even fatal injury. Many injuries, especially to children, can be avoided if the following simple safety precautions are observed:Use only such items of furniture which can safely bear the weight of the device.Ensure that the device does not project beyond the edges of the supporting furniture.Do not place the device on tall furniture (e.g. bookshelves) without securely anchoring both items, i.e. furniture and device.Explain to children the hazards involved in climbing on furniture to reach the device or its controls.When installing the unit on a shelf or in a cupboard it is essential to provide an adequate flow of cooling air, to ensure that the heat produced by the unit is dissipated effectively. Any heat build-up will shorten the life of the unit and could be a source of danger. Be sure to leave free space of 10 cm around the unit for ventilation.If the system components are to be stacked then the amplifier must be the top unit. Do not place any object on the top cover.The unit must be set up in such a way that none of the connections can be touched directly (especially by children). Be sure to observe the notes and information in the section 'Installation and Wiring'. |
| Connection | The terminals (marked with the A-symbol) can carry high voltages. Always avoid touching terminals and sockets and the conductors of cables connected to them. Unless ready-made cables are used, all cables connected to these terminals and sockets must always be deployed by a trained person. |
| Power supply | The device is intended to be connected to mains outlet with protective earth connector. Please connect it only with the mains cable supplied to a properly installed mains outlet with protective earth connector.The power supply required for this unit is printed on the mains supply socket. The unit must never be connected to a power supply which does not meet these specifications. If the unit is not to be used for a long period disconnect it from the mains supply at the wall socket. |
| Mains leads / Mains plug | Mains leads must be deployed in such a way that there is no danger of damage to them (e.g. through persons treading on them or from furniture). Take particular care with plugs, distribution panels and connections at the device.Unplugging the mains plug will disconnect the device from the mains for service and repair. Please make sure that the mains plug is easily accessible. |
| Enclosure openings | Liquid or particles must never be allowed to get inside the unit through the ventilation slots. Mains voltage is present inside the unit, and any electric shock could cause serious injury or death. Never exert undue force on mains connectors.Protect the unit from drips and splashes of water; never place flower vases or fluid containers on the unit.Do not place naked flame sources, such as candle lights on the device. |
| Supervision of device operation | Like any other electrical appliance this device should never be used without proper supervision. Take care to keep the unit out of the reach of small children. |
| Service, Damage | The case should only be opened by a qualified specialist technician. Repairs and fuse replacements should be entrusted to an authorised T+A specialist workshop. With the exception of the connections and measures described in these instructions, no work of any kind may be carried out on the device by unqualified persons.If the unit is damaged, or if you suspect that it is not functioning correctly, immediately disconnect the mains plug at the wall socket, and ask an authorised T+A specialist workshop to check it. |
Over voltage
The unit may be damaged by excess voltage in the power supply, the mains circuit or in aerial systems, as may occur during thunderstorms (lightning strikes) or due to static discharges.
Special power supply units and excess voltage protectors such as the T+A 'Power Bar' mains distribution panel offer some degree of protection from damage to equipment due to the hazards described above.
However, if you require absolute security from damage due to excess voltage, the only solution is to disconnect the unit from the mains power supply and any aerial systems.
To avoid the risk of damage by overvoltages we recommend to disconnect all cables from this device and your HiFi system during thunderstorms.
All mains power supply and aerial systems to which the unit is connected must meet all applicable safety regulations and must be installed by an approved electrical installer.
Approved usage
The device is designed to operate in a temperate climate and altitudes up to 2000 m above sea level. The range of permissible operating temperatures is +10 ... +35°C. This device is designed exclusively for reproducing sound and/or pictures in the domestic environment. It is to be used in a dry indoor room which meets all the recommendations stated in these instructions.
Where the equipment is to be used for other purposes, especially in the medical field or any field in which safety is an issue, it is essential to establish the unit's suitability for this purpose with the manufacturer, and to obtain prior written approval for this usage.
Approval and conformity with EC directives
In its original condition the unit meets all currently valid European regulations. It is approved for use as stipulated within the EC.
By attaching the CE symbol to the unit T+A declares its conformity the EC directives and the national laws based on those directives. The declaration of conformity can be downloaded from www.ta-hifi.com/DoC.
The original, unaltered factory serial number must be present on the outside of the unit and must be clearly legible! The serial number is a constituent part of our conformity declaration and therefore of the approval for operation of the device. The serial numbers on the unit and in the original T+A documentation supplied with it (in particular the inspection and guarantee certificates), must not be removed or modified, and must correspond.
Infringing any of these conditions invalidates T+A conformity and approval, and the unit may not be operated within the EC. Improper use of the equipment makes the user liable to penalty under current EC and national laws.
Any modifications or repairs to the unit, or any other intervention by a workshop or other third party not authorised by T+A, invalidates the approval and operational permit for the equipment.
Only genuine T+A accessories may be connected to the unit, or such auxiliary devices which are themselves approved and fulfil all currently valid legal requirements.
When used in conjunction with auxiliary devices or as part of a system this unit may only be used for the purposes stated in the section 'Approved usage'.
Disposing of this product
The only permissible method of disposing of this product is to take it to your local collection centre for electrical waste.
FCC Information to the user
Tested To Comply With FCC Standards
FOR HOME OR OFFICE USE
(for use in the United States of America only)
Class B digital device – instructions:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different form that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Network Configuration
General Information
The MP 1000 E can be operated in wired LAN networks (Ethernet LAN or Powerline LAN) or in wireless networks (WLAN).
If you wish to use your MP 1000 E in your home network, you must first enter the necessary network settings on the MP 1000 E. This includes entering the network parameters such as the IP address etc. both for wired and wireless operation. If you wish to use a wireless connection, a number of additional settings for the WLAN network also have to be entered.
Please refer to the Chapter 'Glossary / Additional Information' and 'Network Terms' for additional explanations of terminology relating to network technology.
In the following sections we assume that a working home network (cable network of WLAN network) with router and (DSL) Internet access is present.
If you are unclear about some aspect of installing, setting up and configuring your network, please address your queries to your network administrator or a network specialist.
Compatible hardware and UPnP servers
The marketplace offers a vast number of routers, NAS devices and USB hard discs made by a very wide range of manufacturers. T+A equipment is generally compatible with other makes of machine which bear the UPnP label.
Network settings menu
All network settings are entered in the Network Configuration menu. This menu will vary slightly in appearance depending on the type of your network, i.e. whether you have a wired (LAN) or wireless (WLAN) network.
If in the Network Configuration Menu the entry 'Network IF Mode' is set to 'auto', the MP 1000 E will check automatically if a LAN connection to a network is present. If a LAN connection is found, the machine will assume that this is to be used, and displays the network configuration menu for LAN networks.
If no LAN network is connected, the MP 1000 E activates its WLAN module and displays the WLAN configuration menu when you call up the configuration menu. The menu for a WLAN network includes a number of additional menu points. The following sections explain how to use the menu, and the meaning of the individual menu points.
Opening the network settings menu
Open the System Configuration menu by pressing the SYS button on the remote control handset or the front panel of the MP 1000 E.
Use the ▲ / ▼ buttons to select the "Network" menu item, then confirm by pressing the OK button.
Operating the menu, changing and storing IP addresses
Use the ▲ / ▼ buttons in the menu to select the network parameter to be changed, and activate the entry with the OK button.
You can now change the setting using the following buttons, depending on the type of setting:
button /
for simple selection (ON / OFF)
Numeric buttons 0 to 9
for entering IP addresses
Alpha-numeric input
for entering text
When the setting process is complete, or when you have entered the complete address, press the OK button to confirm your action.
Alpha-numeric entry
At certain points, e.g. for entering server names or passwords, it is necessary to input series of characters (strings). At such points you can enter letters, numbers and special characters by repeatedly pressing the numeric buttons on the FM1000 remote control handset, as when writing SMS news. The assignment of letters to the buttons is printed below the buttons. Special characters can be accessed using the 0 and 1 buttons:
Use the blue ▲▼ button for toggling between numbers, capitals and lowercase letters. The bottom line of the screen shows which input mode is currently selected.
At certain points (e.g. DNS server name) it is possible to enter both an alphanumeric string and an IP address. At these points an IP address should be entered like a string (with separating dots as special characters). In this case an automatic check for valid address ranges (0 ... 255) is not carried out.
Closing the menu
Once you have correctly set all the parameters, select the menu item 'Store and exit?', then press the OK button. This action causes the MP 1000 E to accept the settings, and you should see the available network media sources (Internet radio, UPnP-AV server, etc.) displayed in the main menu.
Interrupting the menu without storing the settings
At any time you can leave the network configuration menu without making any changes to the network settings: this is done by pressing the ☐ button, which takes you to the menu item 'Store and exit?'. If you wish to quit at this point without saving, use the ▲ / ▼ buttons to select the 'Discard and exit?' menu item, then confirm with the OK button.
The Configuration for a Wired Ethernet LAN or Power-Line LAN connection
Setting the Parameters for a Wired Network
- Connect the MP 1000 E to an operational network or Power-Line modem using the LAN socket on the back panel.
- Open the System Configuration menu by pressing the sys button on the remote control handset or the front panel of the MP 1000 E.
- Use the ▲ / ▼ buttons to select the "Network" menu point, then confirm by pressing the OK button.
- You should now see the menu reproduced below, displaying the network parameters. In the title line the message 'LAN' should appear, indicating that the machine is connected to a wired LAN. If you see 'WLAN' at this point instead, please check your network connection, and ensure that the network is switched on and operational.
- You can now select the individual menu points and adjust them to match your network conditions. The illustration below shows the possible button inputs after each menu item.
| Network settings menu | |
| MAC | 00:0e:9b:cc:a4:35 |
| Connection state | LAN |
| → DHCP | Off |
| IP | 192.168.0.10 |
| Subnet mask | 255.255.255.0 |
| Gateway | 192.168.0.1 |
| DNS | 192.168.0.1 |
| Store and exit? | apply |
| Discard and exit? | apply |
◀ / ▶: Switching ON / OFF
(0...9): Numeric input, separating dots are automatically generated; input limited to valid addresses
(0...9, A...Z): Alpha-numeric input and special characters. IP - separating dots must be entered as special characters.
The parameters illustrated above are only typical values.
Addresses and settings may require different values for your network.
| Menu Point | Description |
| MAC | The MAC address is a hardware address which uniquely identifies your machine. The address displayed is determined by the manufacturer, and cannot be altered. |
| Connection state | Shows the connection state: WLAN, LAN or not connected. |
| DHCP | ONIf your network includes a DHCP server, please select the ON setting at this point. In this mode an IP address is automatically assigned to the MP 1000 E by the router. The screen shows only the MAC address and the message DHCP state ON. In this case the address input fields shown in the illustration do not appear in the menu.OFFIf your network does not include a DHCP server, please select the OFF setting. In this mode you must configure the following network settings manually. Please ask your network administrator for the addresses to be entered for your network. |
| IP | IP address of the MP 1000 E |
| Subnet mask | Network mask |
| Gateway | IP address of the router |
| DNS | Name / IP of the name server (optional) |
| Store and exit? | Stores the network parameters, and restarts the MP 1000 E with the new settings. |
| Discard and exit? | Closes the menu: data already entered is discarded. |
The Configuration for a WLAN connection
Setting the parameters for a wireless network
- Locate the USB WLAN stick supplied in the set, and connect it to the USB – WLAN socket on the back panel of the MP 1000 E. Check that there is no cable connected to the LAN socket of the MP 1000 E.
- Now switch the MP 1000 E on, and open the System Configuration menu by pressing the sys button on the remote control handset or the front panel of the MP 1000 E.
- Use the ▲ / ▼ buttons to select the menu point "Network", then confirm your choice with the OK button.
The following menu now opens:
Possible entries
Network settings menu
| MAC | 00:0e:9b:cc:a4:35 |
| Connection state | WLAN (SSID) |
| → Scan for WLAN | apply |
| DHCP | Off |
| IP | 192.168.0.10 |
| Subnet mask | 255.255.255.0 |
| Gateway | 192.168.0.1 |
| DNS | 192.168.0.1 |
| Store and exit? | apply |
| Discard and exit? | apply |
none
none
OK
/
(0 ... 9)
(0 ... 9)
(0 ... 9)
(0 ... 9, A ... Z)
OK
OK
Selecting and connecting a WLAN by hand
Searching for and Selecting the Network
- First select the menu point "Scan for WLANS", and activate it by pressing the OK button.
• A list of the WLANs found is displayed on the screen. - Use the ▲ / ▼ buttons to select the WLAN to which you wish the MP 1000 E to be connected, and confirm your choice with the OK button.
Entering the Password (for encoded networks)
If the network is encoded, the window shown below will appear once the WLAN is selected.
- At this point please enter the network password and confirm your input by pressing OK.
- Select the "Store and exit?" point, and confirm your choice with OK.
Network settings menu
| SSID: | Name of the WLAN |
| Login: | Man. (WPA/WPA2) |
| Passphrase: | xxxxxxxxx |
| Store and exit? | apply |
none
none
(0 ... 9, A ... Z)
OK
Storing Network Settings and Restarting
Finally select the "Store and exit?" menu point and press the OK button to accept the settings.
If a WEP code is used, the password must be entered as a hexadecimal code (0 - 9, A - F).
Connecting to WLAN via the WPS-function
WPS-function
The MP 1000 E supports WPS for WLAN setup. WPS (Wi-Fi Protected Setup) an easy process for establishing a secure WLAN connection. WPS can be used to connect the MP 1000 E with your router in a quick and convenient way. For that usage most modern routers have implemented the WPS function.
Connecting WLAN automatically via the WPS function
- First activate the WPS-function of the Router or Repeater to which you wish the MP 1000 E to be connected. For details please refer the manual of the device in question.
• Start the WPS-Autoconnect function of the MP 1000 E within 2 minutes. - Use the ▲ / ▼ buttons to select the menu point "WPS-Autoconnect", then confirm your choice with the OK button.
- After the connection is established, the line "Status" shows the connected WLAN network.
- Finally select the "Store and exit?" menu point and press the OK button to accept the settings.
Selecting the WLAN manually and conneting via WPS
If the WPS function connects the MP 1000 E to the wrong WLAN, the preferred WLAN can be also selected manually and only the authentication can be done by the WPS function. The procedure is described in the following:
- First activate the WPS-function of the Router or Repeater to which you wish the MP 1000 E to be connected. For details please refer the manual of the device in question.
- First select the menu point "Scan for WLANs", and activate it by pressing the OK button.
• A list of the WLANs found is displayed on the screen. - Use the ▲ / ▼ buttons to select the WLAN to which you wish the MP 1000 E to be connected, and confirm your choice with the OK button
The window shown below will appear once the WLAN is selected:
| Network settings menu | ||
| SSID: | Name of the WLAN | none |
| Login: | Auto (WPS) | none |
| → Passphrase: | xxxxxxxx | (0 ... 9, A ... Z) |
| Store and exit? | apply | OK |
- Select the "Login" menu point and press the OK button to activate it. Now select the setting „Auto (WPS)" and confirm it with the OK button.
- Now select the "Store and exit?" menu point and press the OK button.
- After the connection is established, the line "Status" shows the connected WLAN network.
- Finally select the "Store and exit?" menu point and press the OK button to accept the settings.
FD 100 Radio Remote Control (optionally)
Connecting the aerial
The MP 1000 E can be controlled remotely using the FD 100 bi-directional radio remote control handset if a Gateway module is installed; this is available as an optional extra. The FD 100 features an integral full-colour screen which provides a convenient means of controlling virtually all the Music Receiver's functions, even when there is no direct line-of-sight contact with it. The handset can also display information relating to the selected source or the medium currently playing.
Since the FD 100 operates by a radio link, an aerial must be connected to the MP 1000 E. This is plugged into the socket on the MP 1000 E marked 'Remote'.
* The aerial can also be set up free-standing using the magnetic base supplied in the set; this ensures maximum possible range.
Pairing the FD 100
Before the MP 1000 E can be controlled using the FD 100, the remote control handset must first be registered to the MP 1000 E. This process is known as pairing, and only has to be carried out once. The procedure is as follows:
- Press the sys button on the MP 1000 E to call up the Configuration menu, then select the 'FD 100 pairing' menu point using the ▼ button.
- To confirm the pairing process of the FD 100, press the OK button until the menu entry changes to 'waiting for FD 100'. (the function remains active for thirty seconds).
- Locate the sys button on the FD 100 and hold it pressed in to open the FD 100's System Settings menu.
- Now select the 'Start pairing' point, and press the OK button: the remote control handset automatically seeks the MP 1000 E.
- Once the device is found, you will see in the display header the on-screen message 'Pairing successful'. At the same time changes the menu entry of the MP 1000 E to 'Done'. If you wish, you can change the name of the device at this point (e.g. 'Living room').
- Confirm the name with the OK button.
- For faster access the MP 1000 E can also be assigned to a Hotkey; this is the next step (see FD 100 operating instructions).
- Select one - or optionally none - of the 'F' buttons, and confirm your choice by pressing the OK button.
- The FD 100 is now paired with the MP 1000 E, and is ready for use.
For detailed information on using the FD 100 please refer to the operating instructions supplied with the remote control handset.
The MP 1000 E can be controlled by the T+A App 'TA Control' too. For further information please visit our homepage www.ta-hifi.com/app
Notes on Energy Saving
General information
The MP 1000 E satisfies the requirements of the latest directives concerning energy-saving measures (EuP directive). The modern design of the mains power supply makes an important contribution to this.
The internal micro-processor constantly ensures that sub-assemblies which are not currently required are automatically switched off. The micro-processor itself operates in stand-by mode at a relatively low clock speed, and only responds to the remote control receiver.
In stand-by mode the current drain of the MP 1000 E is less than 0.5 Watt.
If you intend not to use the device for a long period, it should be disconnected from the mains socket, i.e. the mains plug should be withdrawn from the wall socket.
Automatic power-down (Energy saver)
The device features an automatic power-down function. If the MP 1000 E detects no operation or no music signal for a period longer than ninety minutes, it automatically switches to stand-by mode. Two minutes before the device enters the standby mode, a pop-up window appears on the screen. If the device should stay in operation please press the OK button while this message is displayed.
In countries outside the EU, in which the EuP directive has no validity, the automatic power-down feature can be disabled if necessary (see chapter entitled 'Basic settings of the MP 1000 E).
Trouble shooting
Many problems have a simple cause and a correspondingly simple solution. The following section describes a few difficulties you may encounter, and the measures you need to take to cure them. If you find it impossible to solve a problem with the help of these notes please disconnect the unit from the mains and ask your authorised T+A specialist dealer for advice.
| Machine does not switch on(red LED does not light up). | Cause 1:Mains lead not plugged in correctly.Remedy:Check connection, push connector in firmly. |
| Cause 2:Mains switch on the back panel not switched on.Remedy:Switch the mains switch on. |
FM radio
| Whistling or whispering noises from the speakers. | Cause:The antenna lead is routed too close to a mains, remote control or audio signal cable.Remedy:Move the leads so that they are spaced well apart. Use the domestic (loft or outside) antenna or a cable connection. |
| The RDS station name does not appear in the display. | Cause 1:The station is not broadcasting RDS information.Cause 2:Reception is poor, interference is severe, or the field strength (signal strength) is low.Remedy:Select only those stations which can be received with a strong signal: hiss-free and without interference. |
| The unit can be operated normally, but very few stations or none at all can be picked up. | Cause:The antenna system or antenna cable is faulty.Remedy:Check the antenna lead for good contact at the antenna socket (at the wall) and in the back of the tuner. As a test, try using the system with a trailing antenna. If you can now receive stations reasonably well, we recommend that you call out an expert antenna technician to check your antenna system. |
CD player
| The screen displays the message 'No Disc' when you close the CD drawer. | Cause 1:CD not inserted correctly.Remedy:Place CD centrally in the drawer, printed face up. |
| Cause 2:CD dirty.Remedy:Clean disc and insert again. | |
| Cause 3:CD damaged in the Table of Contents (TOC) area.Remedy:No remedy; the CD is unusable. | |
| Cause 4:The CD player has become very cold (e.g. in transit) and condensation has formed on the laser sensor optics.Remedy:Allow the unit to warm up for about an hour in a warm, well ventilated location. | |
| CD playback stops or 'jumps'. | Cause 1:CD damaged or dirty.Remedy:Clean CD. A damaged CD cannot be repaired! |
| Cause 2:The CD uses a copy protection system which does not conform to the CD-Audio standard (Red Book Standard)Remedy:Take back the CD to the dealer and ask for a proper CD according to the general CD standard. |
Streaming Client
| The streaming client cannot connect to a network. On the display the indication 'Cannot connect to...' is displayed. | Cause 1 (cable LAN): Network cable not properly connected Remedy: Connect network cable, check connection to router |
| Cause 2 (radio network): USB-WLAN stick not connected, or connected while the device was already switched on. Remedy: Switch the machine off, and connect the USB-WLAN stick supplied in the set. Now switch the machine on, and enter the network parameters (see the section entitled 'Network configuration'). | |
| Cause 3 (wireless LAN): WLAN reception quality bad (low field strength). Possibly too much attenuated by walls/ceilings on the transmission path. Remedy: Optimize location of receiver and transmitter antennas. Alternative: If transmission problems persist a so called ,Power Line' network might be good alternative to establish a good and stable network connection. The best, safest and most secure network however will always be a cable LAN network. | |
| Cause 4: Network parameters not properly configured. Remedy: Configure the network parameters correctly (see chapter 'Network configuration'). | |
| Transmission interruptions occur when listening to internet radio stations. | Cause 1: The capacity of the internet radio station's server is at its limit. Remedy: Choose a different station. |
| Cause 2: Network problems occurred. Remedy: Check your network (see above). | |
| Some internet radio stations cannot be received | Cause: The internet radio station has been switched off, it transmits only at certain hours of the day or it has changed its internet address. Remedy: Try to get information from the website of the station regarding transmission hours and internet address (URL). Try to establish a connection to the station at a later time. |
| Bad sound quality at certain internet radio stations | Cause:The station transmits with a low audio bandwidth (low bitrate).Remedy:Use stations transmitting at least at 128 kBit/s. This is the lowest recommended bitrate for adequate sound quality. For good sound quality we recommend high bitrates like 320 kBit/s |
| USB Storage device is not recognised | Cause 1:The storage device (especially USB hard discs without separate power supply) draws more electrical current from the USB interface than is permitted by the USB standard.Remedy:Only use USB storage devices that conform to the USB standard or use storage devices with own power supplies. |
Glossary / Supplementary Information
| Playback program | The MP 1000 E gives the user the opportunity to seek particular tracks on a CD for playback, to store this selection in a playback program and play it, or to record it to tape. |
| CD | Compact Discs (CD) are digital data media which need to be handled carefully. These are the basic rules:The surface of a CD should only ever be cleaned with a soft dry cloth. Never wipe it in a circular motion, i. e. along the tracks.Never use petrol, paint thinners, disc cleaners or similar materials on compact discs.CDs must be handled carefully in order to avoid serious damage to the surface. Severely scratched surfaces, writing on the disc or applying self-adhesive labels may result in the CD player being unable to read the data.CDs should not be heated or bent. This means that they should be stored in a position and attitude which meet these requirements. |
| E2 LINK | Control interface for remote control of T+A systems. The CD player / MP 1000 E receives the infra-red remote control signals and passes then on to the power amplifier and to the source devices. |
| Field strength | The electrical field strength is a measurement of the level (strength) of the radio signal supplied by the antenna. In general terms, the higher the field strength of the tuned station, the better the reception quality. Signal field strength is determined primarily by the following factors:Distance from radio transmitterObstacles (mountains etc.) between transmitter and receiverTransmitter output powerQuality and direction of the receiver antenna system.Point 4 is of crucial importance here. It is impossible to obtain good reception with a poor aerial system.Your specialist T+A dealer will be glad to advise you on the subject of installing or improving your aerial system, taking your specific local reception conditions into account. |
| FM= Frequency Modulation | All FM radio transmitters use the 'FM' method of modulation. This technology provides maximum possible sound quality and interference suppression. |
| Cable Network | When the MP 1000 E tuner was being developed the requirements of the European cable network were given high priority. The tuner copes very well with excessive signal levels, and its high selectivity avoids many of the problems involved with cable operation, without any reduction in reproduction quality. |
| MIX | In MIX-Mode (Shuffle) the titles of a CD or the titles of a program are played back in a random order. |
| Muting =Hiss suppression | The MP 1000 E features automatic hiss suppression which cuts out the annoying hissing sound between radio stations, and suppresses very weak stations which cannot be received with reasonable quality. |
| Preset= station memory | The MP 1000 E can store all the settings for stations, any of which can be recalled simply by pressing a button. |
| RDS= Radio Data System | Many radio stations broadcast supplementary digital information simultaneously with the programme. The MP 1000 E is equipped with an RDS decoder, and displays the station name of RDS transmitters in plain text on its alpha-numeric screen. This is a great advantage when searching for particular stations. |
| SINGLE CD | A Single CD' is a CD with smaller diameter and a shorter play time. The MP 1000 E can play back CD singles. Please insert these discs into the depression at the center of the disc tray. |
| Standby | The MP 1000 E can be switched on from the Standby state from the remote control handset. |
| TOC | The TABLE OF CONTENT of a CD is located at the inner diameter of the disc and contains important information about the structure of the disc. If the TOC-section of a CD is damaged or covered by fingerprints etc. the CD cannot be played back properly. |
| TRACK | Track is the term for a single item or piece of music on a CD. The tracks and their individual length are stated on the CD sleeve. |
Network terminology
General information
The Switch ensures that the individual components within a network are connected correctly. This is only possible if it can identify each device within the network unambiguously; this is the reason why every component is assigned a form of “house number” (IP address). The IP address consists of four number blocks each containing three digits separated by dots (e.g. 192.168.1.1).
Each of the individual number blocks may contain values between 1 and 254 (the values 0 and 255 are reserved for certain special functions, and should therefore not be used). However, if the network is to operate reliably, the network owner should only select addresses designed for home network use - i.e.: the first two number blocks should always be 192.168.xxx.xxx; the third block can be selected without restriction within the above limits (but should be the same for all devices on the network), and the fourth block must distinguish each device uniquely (e.g.: MP 1000 E 192.168.001.001, NAS: 192.186.001.002, PC: 192.168.001.003, ...).
If this local network is to include Internet music sources (Internet radio) as well as physical devices, then the T+A MP 1000 E must have access to the Internet. This facility is provided by a device such as a router with connection to the DSL network. This router is also a constituent part of the network, and is assigned its own IP address. The T+A MP 1000 E must also be informed of the address of the router (Gateway) to enable it to gain access to the outside world.
i
Please ensure that the first three blocks of the Device IP, Gateway IP and DNS 1 share the same address space (e.g. 192.168.0.xxx). The fourth block assigns a unique address (house number) to the components in the local network. This number must not be present more than once in the local network. The Device IP mask should always be assigned the address 255.255.255.0.
DNS
The Domain Name System (DNS) is one of the most important services on the Internet. Its primary task is to convert “Internet addresses”, such as www.taelektroakustik.de, into the associated IP address. In most home networks the router carries out the DNS function.
If you decide to configure your network manually (without DHCP), then simply enter the address of your router as the DNS address when configuring the network.
Ethernet-LAN
Wired network. Interference-free network technology, with the drawback of having to deploy a network cable.
Gateway
The computer or router in your network which is responsible for managing data traffic between your home network and the outside world (i.e. the Internet).
Client
Network device which obtains data from the network, decodes it and converts it into, for example, analogue music signals which can then be reproduced via an amplifier and loudspeakers. Streaming Clients also contain functions for displaying media content, and for navigating on the Internet or servers.
DHCP
DHCP is an abbreviation of Dynamic Host Configuration Protocol. The primary purpose of DHCP is to enable Clients to obtain your network configuration automatically from a server or router.
IP-Address
Network address. Each device in the network requires an IP address at which it can be accessed, and by which it is unambiguously identifiable. No individual network address may be present more than once. This is important if you are entering network addresses manually. If the addresses in your network are assigned by DHCP, you do not need to worry about IP addresses at all, as the DHCP server manages the addresses automatically without your intervention.
| NAS(Network Attached Storage) | Network storage facility. This is generally a very large-capacity (> 200 GB) storage device to which other devices have access. If the NAS server includes a UPnP-AV server service, then the MP 1000 E has access to media files stored on the NAS, and can play them back. |
| Powerline-LAN | In a Power-Line LAN data is transferred via the existing mains power cabling. Devices known as “Power-Line modems” are required at the transmitting and receiving end. In most cases Power-Line offers relatively problem-free data transfer with adequate data rates for audio streaming. We recommend Power-Line modems with bit rates of 85 or 200 Mbit/s. |
| Proxy server | A Proxy or Proxy server is a computer in the network which is capable of carrying out data transfers faster and more efficiently, and can increase security through the use of access control mechanisms. Most home networks do not include a proxy server. In this case there is no need to enter a Proxy address when configuring the MP 1000 E network. |
| Router | Central network device which creates and manages the connections between the network devices. In most networks the router also assumes the function of Gateway to the outside world. |
| Server | Network device which provides data and services for other devices in the network. For example, a UPnP-AV server typically stores audio / video data, and makes it available to other devices (the Streaming Clients). Many UPnP-AV servers also offer functions such as cataloguing, and easy identification of media content using criteria such as artiste, album name, genre, etc. |
| UPnP-AV | Network protocol that makes media files available on the home network. On PCs and NAS storage devices a UPnP-AV server software must be installed to enable the MP 1000 E to access media files stored on these devices. Examples for UPnP-AV server software compatible with the MP 1000 E:Windows:Twonky Media Serverhttp://www.twonkyvision.de/Windows Media Receiver 11http://www.microsoft.com/windows/windowsmedia/de/default.aspxLinux:Mediatombhttp://mediatomb.cc/GmediaServerhttp://www.gnu.org/software/gmediaserver/ |
| WLAN(also W-LAN, Wireless LAN) | Radio network. The network is connected by means of radio waves operating in the 2.4 GHz frequency band. Radio networks are easy to install as no cables have to be deployed, but they are often problematic and unreliable - especially when the transmission distances are substantial. Power-Line networks, which can also be installed without separate cabling, are a better choice in many situations. In every case the deployment of a network cable is the most reliable and problem-free technology for data transfer. |
| Compatible hardware and UPnP servers | The marketplace offers a vast number of routers, NAS devices and USB hard discs made by a very wide range of manufacturers.T+A equipment is generally compatible with other makes of machine which bear the UPnP label. |
Software update
Software update generally:
Software updates keep your MP 1000 E up-to-date. They bring new optimisations like faster operation and new features which were not available at the time the device was produced.
It may occur that after a software update some of your user defined settings like network parameters or favourite stations are lost and have to be restored after the update.
Updating via the Internet
Updating the firmware via the MP 1000 E's Internet connection
- The basic requirement is a functioning network with router and access to a broadband Internet connection; the system must be operating.
- Switch the machine on.
- Call up the system configuration menu by pressing the SYS button on the front panel.
- Use the ▲ / ▼ buttons to select the "Device info" menu item, and confirm your selection by pressing the ok button.
- Select the "Update" menu point with the ▲ / ▼ buttons, then press the OK button to confirm your choice.
- The Select option "WEB" should now be active (highlighted).
- The firmware update can now be started by pressing OK.
- The screen displays the current state of progress of the update.
- Once the update has been completed (duration around ten minutes) the device automatically switches itself off and restarts.
- When the machine has restarted, the update is complete.
- To ensure that the update was successful, access the "Device Info" menu point mentioned above, and check the new firmware status.
It is also possible to carry out the update process using the FM1000 remote control handset, as an alternative to operating the machine directly.
Appendix A
Wiring diagram
Balanced wiring (XLR)
PA 1000 E
Unbalanced wiring (RCA)
PA 1000 E
Wiring diagram
Attention!
A properly set up home network with router must be installed and in operation to use the MP 1000 E.
For the use of internet radio a DSL access to the internet is needed.
For questions regarding setting up your network and internet connection please ask your system administrator or any network specialist.
*1 Music Server with UPnP-AV server software installed
*2 Connection either via Cable-LAN or Wireless-LAN. For use in a WLAN, the USB WLAN stick included in the set must be connected as shown above before the device is switched on.
Wiring diagram
Note!
Please note that the digital radio DAB+ and the analogue FM radio transmitting in different frequency ranges. Depending on the existing antenna configuration, it may therefore be necessary to combine the two ranges with a DAB+/UKW feed-in crossover. When using an indoor antenna, do not place it in close proximity to sources of interference such as cordless telephones, WLAN routers or LED lights.
Aussenantenne für Radioempfang / Outdoor antenna for radio reception
Separate Antennen für UKW- und DAB-Empfang / Separate antennas for FM and DAB reception
Breitbandkabelanschluss für UKW- und DAB-Empfang / Broadband cable connection for FM and DAB reception
Zimmerantenne / Indoor antenna
Appendix B
Specification
CD-Player
| Formats | CD/DA, CD-R, CD-RW, CD-Text |
| Frequency response and dynamic | 2 Hz – 20 kHz / 100 dB |
Streaming Client
| Formats | MP3, WMA, AAC, FLAC, OGG-Vorbis, FLAC, AIFF, ALAC, WAV PCM 32 ... 192 kHz, 16/24 Bit; MP3 up to 320 kBit |
| Supported Media server | UPnP 1.1, UPnP-AV and DLNA compatible Server, Microsoft Windows Media Connect Server (WMDRM10), DLNA compatible Server |
| Features | Airable Internet Radio Service; Tidal, Deezer, qobuz. (subscription required) |
| Interfaces | LAN: Fast Ethernet 10/100 Base-T,WLAN: 2,4 GHz, +20 dBm (100 mW), IEEE 802.11 b/g/n (via USB Dongle) |
Tuner (FM)
| Frequency range | FM Radio 87,5 – 108 MHz (Europa / US) |
| 76 – 90 MHz (Japan Version)) | |
| Sensitivity | Mono (26dBA S/N) 1 μV, Stereo (65 dBA S/N) 40 μV |
| Overload margin | 103 dB μV, |
| Stereo channel separation | 50dB |
| RDS functions | Stationname, Radiotext |
Tuner (DAB)
| Reception standard | DAB, DAB+ |
| Frequency range | 168 – 240 MHz (Band III) |
| Overload margin | 103 dB μV, |
| Sensitivity (BER = 10 – 4) | 2,5 μV |
Bluetooth
| Bluetooth standards | Bluetooth standard BT 4.2 |
| Profiles | A2DP 1.2 (Advanced Audio Distribution Profile), AVRCP 1.5 (Audio Video Remote Control Profile) / aptX ®, MP3, SBC, AAC. |
| Frequency band | 2,4 GHz |
| Max. transmit power | +4dBm (2,5 mW) |
Connections
| Analogue outputs | |
| asymmetric co-axial (RCA) | 2,5 V eff / 50 Ohm fixed. With pre-module 0...2,5 V eff variable. |
| symmetric (XLR) | 5,0 V eff / 50 Ohm fixed. With pre-module 0...5,0 V eff variable |
| Output digital | 1x coax, IEC 60958 (LPCM) |
| Digital inputs | 5x S/P-DIF: 3x standard coax (192 kSps /24 bit) and 2x optical TOS-Link (96 kSps /24 bit)1x USB: Device-Mode - up to 384 kSps / 32 bit (LPCM) and DSD256*, supports asynchronous data transfer.2x USB master-mode for USB-mass storage devices (USB stick or VFAT formatted hard disc)* DSD256 only with a Windows PC with appropriate driver installed. |
D/A-Converter
| Double-Differential-Quadruple-Converter with 4 D/A converters per channel, 32-Bit Sigma Delta, 352,8 kSps / 384 kSps. | ||
| Analogue filter | Phase-linear Bessel filter 3rd order, 60...120 kHz (according to sample rate) | |
| Frequency response | PCM 44.1 kSps: 2 Hz - 20 kHzPCM 48 kSps: 2 Hz - 22 kHzPCM 96 kSps: 2 Hz - 40 kHzPCM 192 kSps: 2 Hz - 80 kHzPCM 384 kSps: 2 Hz - 100 kHz | DSD 64: 2 Hz - 44 kHzDSD 128: 2 Hz - 60 kHzDSD 256: 2 Hz - 80 kHz |
| Total harm. distortion | < 0.0015 % | |
| Signal : noise ratio, A-weighted: | 109 dBA | |
| Channel separation | 106 dB | |
| Power requirement | 100 - 240 V~ , 50-60 Hz | |
| Power consumption | ||
| Normal operation (max.) | 40 W | |
| Standby (ECO) | 0,39 W | |
| Auto power down function | After 90 minutes without music signal | |
| Dimensions | ||
| 44 x 11,5 x 35,5 cm (17,3 x 4,5 x 14 inch) (W x H x D) | ||
| Weight | ||
| 11 kg (24 lbs) | ||
| Accessory | ||
| Infrared remote control FM1000, W-LAN-USB-Stick, Bluetooth aerial, RCA cord, power cord, E2-Link-Cable, user manual | ||
| Optional Accessory | ||
| Radio remote control FD100 with Gateway, Preamp module VVM. | ||
We reserve the right to alter specifications.
T+A elektroakustik GmbH & Co. KG
Planckstraße 9 – 11
D - 32052 Herford
T +49 (0) 5221 / 7676-0
F +49 (0) 5221 / 7676-76
info@ta-hifi.com
www.ta-hifi.com
- T+A
- WELCOME
- ELEKTROAKUSTIK GMBH & CO KG
- LICENSE NOTICE
- ABOUT THESE INSTRUCTIONS
- SYMBOLS USED IN THESE INSTRUCTIONS
- CAUTION
- NOTES ON SOFTWARE UPDATES
- IMPORTANT! CAUTION
- CONTENTS
- FRONT PANEL CONTROLS
- REMOTE CONTROL
- BASIC SETTINGS OF THE MP 1000 E
- SYSTEM SETTINGS (SYSTEM CONFIGURATION MENU)
- PRE AMPLIFIER FUNCTIONS OF THE MP 1000 E
- TONE CONTROL SETTINGS (TONE MENU)
- D/A CONVERTER SETTINGS
- OPERATING THE SOURCES IN DETAIL
- FAVOURITES LISTS
- OPERATING THE RADIO
- FM – RADIO
- DAB - RADIO
- INTERNET-RADIO
- OPERATING MUSIC SERVICES
- OPERATING THE UPNP / DLNA SOURCE (STREAMING CLIENT)
- PLAYING USB MEMORY MEDIA (USB MEDIA SOURCE)
- OPERATING THE CD PLAYER
- PLAYBACK PROGRAM
- OPERATING THE BLUETOOTH SOURCE
- THE MP 1000 E AS D/A CONVERTER
- USB DAC OPERATION IN DETAIL
- INSTALLATION, USING THE SYSTEM FOR THE FIRST TIME, SAFETY NOTES
- BACK PANEL CONNECTIONS
- INSTALLATION AND WIRING
- SAFETY NOTES
- NETWORK CONFIGURATION
- THE CONFIGURATION FOR A WIRED ETHERNET LAN OR POWER-LINE LAN CONNECTION
- THE CONFIGURATION FOR A WLAN CONNECTION
- SELECTING AND CONNECTING A WLAN BY HAND
- CONNECTING TO WLAN VIA THE WPS-FUNCTION
- FD 100 RADIO REMOTE CONTROL (OPTIONALLY)
- NOTES ON ENERGY SAVING
- TROUBLE SHOOTING
- GLOSSARY / SUPPLEMENTARY INFORMATION
- NETWORK TERMINOLOGY
- SOFTWARE UPDATE
- APPENDIX A
- APPENDIX B
- ECHOES
- PINK FLOYD - THE BEST OF
- GENERAL INFORMATION
- BANDWIDTH LIMIT MENU ITEM
- FD100 PAIRING MENU ITEM
- MENU ITEM DEVICE INFO
- BALANCE
- LOUDNESS
- TONE CONTROL
- BASS / TREBLE (TONE SETTINGS)
- CALLING UP AND OPERATING THE D/A CONVERTER OPTIONS
- D/A MODE
- OUTPUT PHASE
- CALLING UP THE FAVOURITES LIST
- ADDING A FAVOURITE
- ERASING A FAVOURITE FROM THE FAVOURITES LIST
- SELECTING A FAVOURITE FROM THE LIST
- DIRECTLY SELECTING A FAVOURITE
- SORTING FAVOURITES LISTS
- P01 - 1LIVE
- SELECTING FM RADIO
- DISPLAY
- MANUAL STATION SEARCH
- SELECTING A STATION FROM THE STATION LIST
- RDS FUNCTIONS
- SWITCHING RADIO TEXT ON AND OFF
- MONO / STEREO (ONLY FM – RADIO)
- SELECTING DAB RADIO
- PLAYBACK
- STARTING PLAYBACK
- STOPPING PLAYBACK
- FRONT PANEL DISPLAY
- SELECTING THE MUSIC SERVICE
- GENERAL INFORMATION ON THE STREAMING CLIENT
- SELECTING THE UPNP / DLNA SOURCE
- PLAYING USB MEMORY MEDIA
- (USB MEDIA SOURCE)
- SELECTING USB MEDIA AS SOURCE
- SKIPPING TRACKS
- PLAYBACK OF DIRECTORIES
- SEARCH FUNCTION
- SELECTING CD AS SOURCE
- INSERTING A CD
- PLAYING A CD
- VARIATIONS
- TRACK SELECT DURING PLAYBACK
- FAST SEARCH
- CD TEXT
- PLAYBACK MODE
- REPEAT
- MIX-MODE
- BRIEF PRESS
- LONG PRESS
- CREATING A PLAYBACK PROGRAM
- PLAYING A PLAYBACK PROGRAM
- ERASING A PLAYBACK PROGRAM
- CONNECTING THE AERIAL
- SELECTING THE BLUETOOTH AUDIO SOURCE
- SETTING UP AUDIO TRANSFER
- PLAYBACK FUNCTIONS
- START AND PAUSE PLAYBACK
- STOP PLAYBACK
- CONTROLLING THE MP 1000 E
- NOTES
- GENERAL INFORMATION ON D/A CONVERTER OPERATION
- D/A CONVERTER OPERATION
- SELECTING A D/A CONVERTER SOURCE
- SYSTEM-REQUIREMENTS
- INSTALLING DRIVERS
- SETTINGS
- NOTES ON SOFTWARE
- NOTES ON OPERATION
- NOTES ON SETTING UP
- USB - WLAN
- AUTOMATIC ACTIVATION OF THE WLAN MODULE
- ATTENTION
- USB - HDD
- USB DAC
- LAN
- E2 LINK
- MAINS INPUT
- NOTES ON CONNECTIONS
- LOUDSPEAKER AND SIGNAL CABLES
- MAINS CABLES AND MAINS FILTERS
- CHANGING THE BATTERIES
- DISPOSING OF EXHAUSTED BATTERIES
- CARE OF THE UNIT
- STORING THE UNIT
- OVER VOLTAGE
- APPROVED USAGE
- APPROVAL AND CONFORMITY WITH EC DIRECTIVES
- DISPOSING OF THIS PRODUCT
- FCC INFORMATION TO THE USER
- (FOR USE IN THE UNITED STATES OF AMERICA ONLY)
- CLASS B DIGITAL DEVICE – INSTRUCTIONS
- COMPATIBLE HARDWARE AND UPNP SERVERS
- NETWORK SETTINGS MENU
- OPENING THE NETWORK SETTINGS MENU
- OPERATING THE MENU, CHANGING AND STORING IP ADDRESSES
- ALPHA-NUMERIC ENTRY
- CLOSING THE MENU
- INTERRUPTING THE MENU WITHOUT STORING THE SETTINGS
- SETTING THE PARAMETERS FOR A WIRED NETWORK
- WPS-FUNCTION
- CONNECTING WLAN AUTOMATICALLY VIA THE WPS FUNCTION
- SELECTING THE WLAN MANUALLY AND CONNETING VIA WPS
- PAIRING THE FD
- AUTOMATIC POWER-DOWN (ENERGY SAVER)
- I
- DNS
- ETHERNET-LAN
- GATEWAY
- CLIENT
- DHCP
- IP-ADDRESS
- SOFTWARE UPDATE GENERALLY
- UPDATING VIA THE INTERNET
- UPDATING THE FIRMWARE VIA THE MP 1000 E'S INTERNET CONNECTION
- WIRING DIAGRAM
- NOTE
- SPECIFICATION
Brand : T+A
Model : MP 1000 E
Category : Audio player
