Aego³ - Speaker Acoustic Energy - Free user manual and instructions

Product Type	Active satellite/subwoofer speaker system (soundbar variant available)
Brand	Acoustic Energy
Model	Aego³
Dimensions (Subwoofer)	350 x 195 x 307 mm (H x W x D)
Dimensions (Satellites)	105 x 75 x 85 mm (H x W x D)
Dimensions (Soundbar)	70 x 500 x 70 mm (H x W x D)
Weight	9 kg
Power Supply	110–240V @ 50/60Hz, 65VA
Inputs	1 x Stereo mini-jack, 1 x Optical digital, 1 x Bluetooth
Outputs	2 x RCA Phono (speaker level)
Controls	Full remote control operation
Wireless Connectivity	Bluetooth with pairing mode (device name: AEGO3)
Included Accessories	2 x 3m speaker cables, 1 x 2m stereo mini-jack lead, 1 x 2m optical lead, 1 x remote control, 1 x 1.8m power cord
Finish	Black textured subwoofer; aluminium, black rubber, black grille satellites or soundbar
Safety	Do not expose to rain or moisture; do not remove rear panel
Maintenance	Clean with a soft dry cloth; avoid liquids and solvents
Repairability	No user-serviceable parts; refer to qualified service personnel
Warranty	2 years (UK only) against defects in materials and workmanship
Manufacturing	Designed by Acoustic Energy Ltd (UK), manufactured in Malaysia

Frequently Asked Questions - Aego³ Acoustic Energy

How do I connect the Aego³ to my TV or smartphone?

Use the optical digital input for TV, the stereo mini-jack for portable devices, or pair via Bluetooth for wireless audio.

How do I pair my Bluetooth device?

Select the Bluetooth input on the remote. The system enters pairing mode and appears as AEGO3. The blue LED flashes while pairing and stays lit once connected, followed by an audible beep.

Can I use the Aego³ with a soundbar instead of satellites?

Yes, the Aego³ is available in Sub/Sat or Sub/Soundbar versions. Both offer similar performance and identical basic operation.

Where should I place the subwoofer?

The subwoofer has a downward-firing panel and downward-facing driver, so it can be placed close to walls. This design keeps cabling tidy and maximises placement flexibility.

What is the warranty period?

The Aego³ is covered by a two-year warranty in the UK against defects in materials, manufacture and workmanship. Contact your dealer for claims.

What should I do if there is no sound from the system?

Check that the correct input is selected, the remote control volume is raised, and all cables are securely connected. For Bluetooth, ensure the device is paired and playing audio.

Is the system safe to use near water?

No – to reduce the risk of electric shock, do not expose the system to rain or moisture. Keep it away from water sources.

How do I clean the speakers?

Use a soft dry cloth to wipe the surfaces. Do not use liquids, aerosols, or solvents, as they may damage the finish or internal components.

Are there user-serviceable parts inside the Aego³?

No. The rear panel contains dangerous voltage and there are no user-serviceable parts inside. Refer all servicing to qualified service personnel.

What cables are included in the box?

You get 2 x 3m speaker cables, a 2m stereo mini-jack lead, a 2m optical digital lead, a remote control, and a 1.8m power cord with regional plug.

USER MANUAL Aego³ Acoustic Energy

WARRANTY

Your Acoustic Energy Aego ³ system is guaranteed against defects in materials, manufacture and workmanship for two years from the date of purchase. Please retain all original packaging materials for possible future use.

Under this warranty Acoustic Energy agrees to repair any defect or, at the company's discretion, replace the faulty component(s) without charge for parts and labour. This warranty does not imply any acceptance by Acoustic Energy or its agents for consequential loss or damage and specifically excludes fair wear and tear, accident, misuse or unauthorised modification.

This warranty is applicable in the United Kingdom only and does not in any way limit the customer's legal rights. Claims and enquiries under the warranty for AE products purchased outside the UK should be addressed to the local importers or distributors.

If you have any reason to claim under the warranty please contact your dealer or point of purchase in the first instance.

WARNING

To reduce the chance of electric shock, do not expose this system to rain or moisture

To reduce the risk of shock, do not remove the rear panel of this system - there are no user-serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the system enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation point within an equilateral triangle as marked on the system is intended to alert the user to the presence of important operating and maintenance instructions in this owners guide.

Designed by Acoustic Energy Ltd (UK), manufactured in Malaysia.

ACOUSTIC ENERGY

Specification

Inputs:	1 x Stereo Mini-jack1 x Optical (digital)1 x Bluetooth (wireless)	Controls:	Full remote control operation
		Power Ratings:	110-240V @ 50/60Hz; 65VA
Outputs:	2 x RCA Phono (speaker level)	Dimensions (HWD):	Subwoofer - 350x195x307mmSatellites - 105x75x85mmSoundbar - 70x500x70mm
Accessories:	2 x 3m Speaker cables (RCA)1 x 2m Stereo Mini-jack to Mini-jack (3.5mm) lead1 x 2m Optical digital lead1 x Remote Control1 x 1.8m Two-pin power cord with regional mains plug.	Weight:	9kg
		Finish:	Black textured subwooferAluminium, black rubber and black grille Satellites or Soundbar.

SET-UP GUIDE

Thank you for choosing the Acoustic Energy Aego ³ music system, please take a moment to read through this quick set-up guide to ensure correct operation and to get the best performance from your system.

Whether you've chosen the Sub/Sat or Sub/Soundbar variation of the system, the basic operation remains the same and performance will be very similar between the two models.

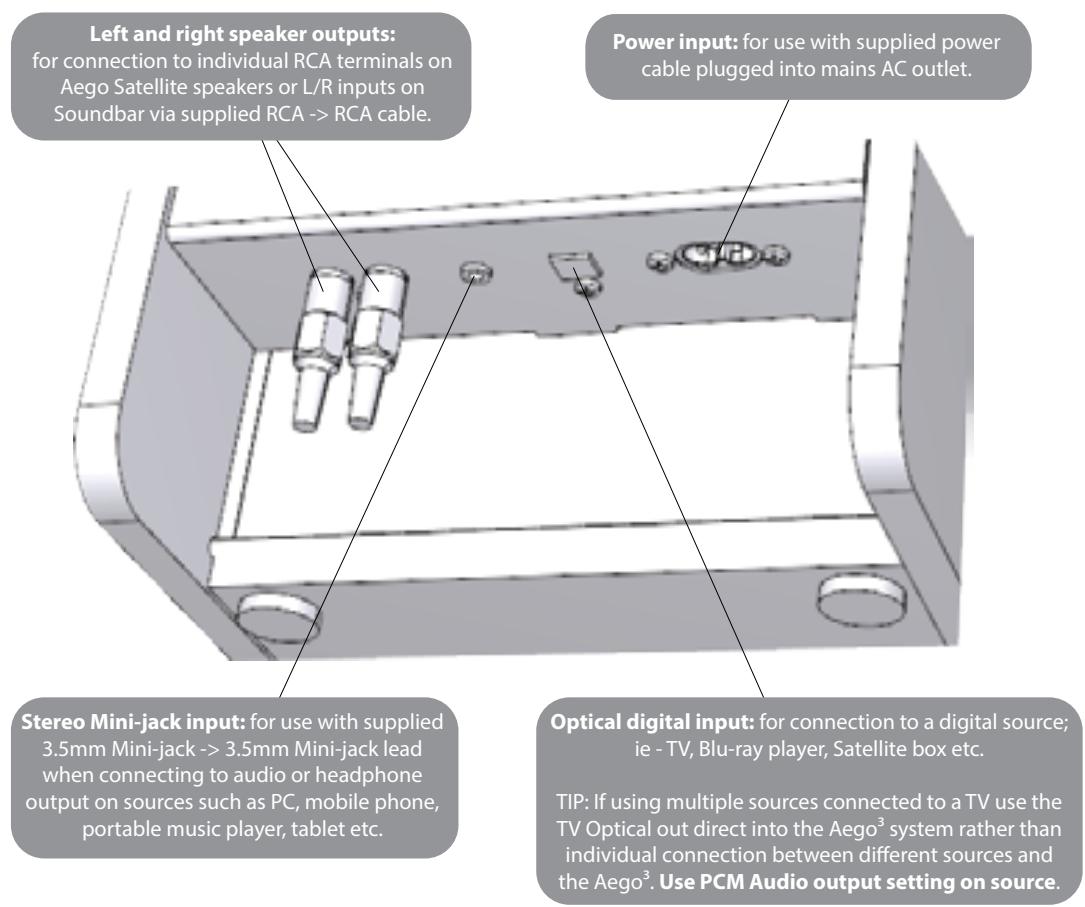

CONNECTION

All physical connections on the Aego ³ system are made via the downward-firing panel at the rear of the subwoofer. This placement ensures tidy cabling and allows for placement close to walls if necessary.

OPERATION

All operation of the Aego ³ system is performed via the supplied remote control, there are no physical controls on the system itself. A brief description of controls is outlined below.

Bluetooth®

When selecting the Bluetooth ^® “✗” input (indicated by a blue LED on the Subwoofer display panel) for the first time, the system will go into “pairing” mode and be visible to Bluetooth ^® -enabled devices for connection as “AEGO3”. Once paired with the Aego ³ the Bluetooth ^® source device will play audio wirelessly through the system and operate overall volume level if the function is available.

Whenever the Bluetooth input is selected in future it will attempt to pair with previously connected devices and become visible to new devices if no previous connections are available. Pairing mode can also be manually selected by pressing the "Pair" button; when the system is in pairing mode the blue LED on the Subwoofer display panel will flash, when connection is made the blue LED will remain lit and an audible "beep" will be heard. The most recently connected device always takes preference when attempting to play audio.*
