Type of product	Active 2.1 speaker system
Brand	Acoustic Energy
Model	Aego 2
Category	Speaker system
Driver technology	Patented high-excursion driver with heat transfer system and anti-resonant cone
Audio inputs	3 x RCA Phono (line level), 1 x stereo mini-jack (line level)
Audio outputs	3 x speaker terminals
Controls	Volume/power pot, 3-position bass switch, 2-position centre input switch
Amplification	Four channels: left, right, subwoofer, optional centre
Power rating	80VA; 120V@60Hz or 240V@50Hz
Subwoofer dimensions (H x W x D)	265 mm x 190 mm x 350 mm
Satellite dimensions (H x W x D)	68 mm x 103 mm x 90 mm
Total weight	9 kg
Finishes	Black or white subwoofer; textured satellites with silver/grey grilles
Mounting options	Wall brackets supplied; detachable rotating grille
Included accessories	2 x 5 m speaker cables, 1 x 2 m signal cable, speaker-level adaptor lead, 2 wall brackets
Source connections	Low-level RCA, front-panel mini-jack, high-level from amplifier via adaptor
Safety and maintenance	Do not expose to rain or moisture; wipe with soft dry cloth; no user-serviceable parts
Warranty	1 year cover for original defects
Design	Designed by KOI Inc (USA) exclusively for Acoustic Energy Ltd (UK)

Frequently Asked Questions - Aego 2 Acoustic Energy

What is included in the Aego 2 package?

The package includes two satellite speakers, one active subwoofer, 2 x 5 m speaker cables, 1 x 2 m signal input cable, a speaker level to line level adaptor cable, and 2 wall brackets.

How do I connect the Aego 2 to my TV?

You can connect a TV using the stereo mini-jack on the subwoofer's front panel, or via RCA phono connections on the back. If your TV has a headphone output, use the mini-jack; otherwise use RCA if available.

Can I connect the Aego 2 to a hi-fi amplifier?

Yes, use the included speaker level to line level adaptor cable from the amplifier's speaker outputs to the subwoofer's RCA inputs. Set the Aego 2 volume control near maximum and control the level from the amplifier.

What is the power rating of the Aego 2?

The Aego 2 consumes 80VA and is available in 120V@60Hz or 240V@50Hz versions. It contains four channels of amplification: left, right, subwoofer, and an optional centre.

What are the dimensions of the satellite speakers?

Each satellite measures 68 mm x 103 mm x 90 mm (H x W x D). The subwoofer measures 265 mm x 190 mm x 350 mm.

How does the bass switch work?

The subwoofer has a 3-position bass switch to adjust the low-frequency output to match your room acoustics or personal preference. Experiment to find the best setting.

Can I use the Aego 2 with a computer or MP3 player?

Yes, the Aego 2 has a stereo mini-jack input, ideal for computers, MP3 players, and personal CD players. You can also use the RCA inputs.

Is the Aego 2 upgradeable for home cinema?

Yes, Acoustic Energy offers upgrade packages (Aego3 and Aego5) to add a centre channel and surround speakers, enabling full multi-channel audio. The Aego 2 includes a centre input switch for this purpose.

What is the warranty period?

The Aego 2 is guaranteed against original defects in materials and workmanship for 1 year from the date of purchase. Claims should be made through your dealer.

How do I clean and maintain the speakers?

Clean the cabinets with a soft, dry cloth. Do not use solvents or water. Ensure the vents are not blocked. There are no user-serviceable parts; refer servicing to qualified personnel.

USER MANUAL Aego 2 Acoustic Energy

SMART | ACTIVE | SOUND

(AE)

ACOUSTIC ENERGY

OWNERS

MANUAL

WARNING

To reduce the risk of fire or electric shock, do not expose this system to rain or moisture.

CAUTION

To reduce the risk of shock, do not remove the cover of this system. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.

The CAUTION marks shown on this page are located on the back of your system.

The lightning flash, with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle as marked on the system is intended to alert the user to the presence of important operating and maintenance instructions in this owner's guide.

CAUTION	ATTENTION
Risk of electrical shockDo not open	Risque de choc électriqueNe pas ouvrir

Comprises an active sub woofer with system volume control plus two satellites.

You can hook your sources up to the low-level

RCA phono connections on the back of the

Aego sub woofer or, alternatively, use the stereo mini-jack located on the sub woofer's front-panel.

To connect Aego2 to an existing hi-fi amplifier use the adaptor lead supplied from your amplifier speaker outputs.

Note that the Aego2 system contains four channels of amplification as standard - left, right, sub woofer and an optional centre-channel for use with the Aego3 and 5 systems

POSITIONING

Detachable grille can rotate to suit speaker orientation.

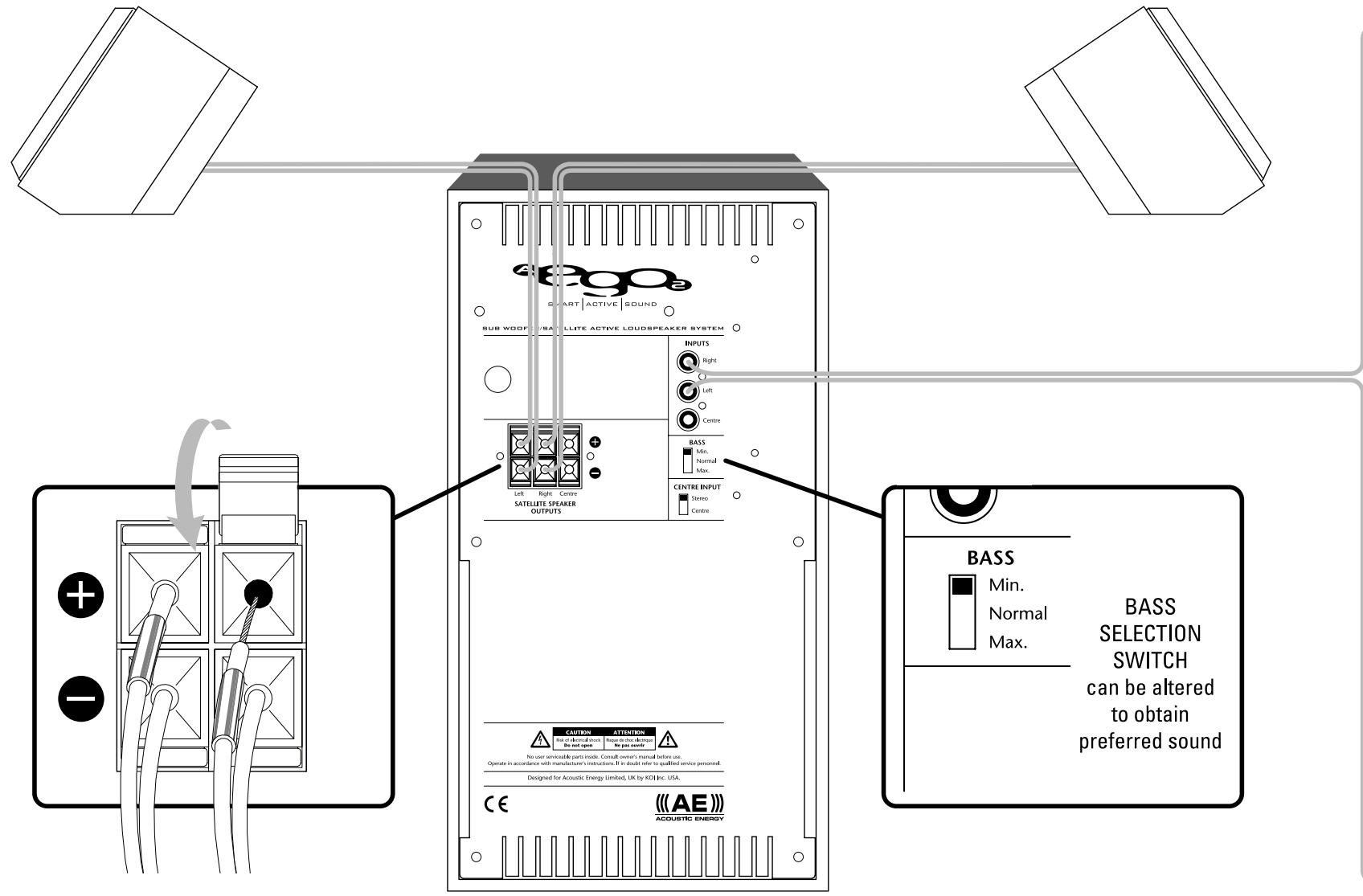

FIXING

* Not supplied

TV

GAMES

H|-F|

MP3

PC

PERSONAL CD

DVD

MINI DISC

TIP:

Where the source has a variable volume setting, it is suggested the volume control on the Aego2 Sub woofer be set on or near maximum. This way, the input volume can be varied from the amplifier utilising existing controls and remote control devices.

HIGH LEVEL INPUT FROM A POWER AMPLIFIER

* You can use ANY available Phono/RCA socket

UPGRADE FACILITIES

(Due Summer 2001)

An add-on package designed to upgrade Aego2 systems for full six-channel home cinema/audio use. The package includes three extra Aego satellite speakers (centre channel plus two surrounds) plus a high quality standalone Dolby® Digital/DTS processor with integrated two-channel amplifier.

(Due Summer 2001)

Combine the Aego2 and Aego3 packages and you have the Aego5. Offering full, straight out of the box compatibility with digital multi-channel audio systems, Aego5 will be the simplest route to unobtrusive, high performance multi-channel home cinema and audio.

WARRANTY

Your Acoustic Energy loudspeakers are guaranteed against original defects in materials, manufacture and workmanship for 1 year from the date of purchase. Please retain all original packaging materials for possible future use.

Under this warranty Acoustic Energy agrees to repair any defect or, at the company's discretion, replace the faulty component(s) without charge for parts and labour. This warranty does not imply any acceptance for Acoustic Energy or its agents for consequential loss damage and specifically excludes fair wear and tear, accident misuse or unauthorised modification.

This warranty is applicable in the United Kingdom only and does not in any way limit the customer's legal rights. Claims and enquiries under the warranty for AE products purchased outside the UK should be addressed to the local importers or distributors.

If you have reason to claim under the warranty please contact your dealer in the first instance.

TECHNICAL INFORMATION

SATELLITE SPEAKERS:

A patented advanced technology driver featuring a unique heat transfer system: special high excursion suspension and a computer-designed anti-resonant cone

INPUTS:

3 x RCA Phono - Line level

1 x Stereo Mini jack - Line level

OUTPUTS:

3 x Speaker terminals

CONTROLS:

1 x Volume / Power pot

1 x Bass switch (3 Position)

1 x Centre input switch (2 Position)

ACCESSORIES:

2 x 5 metre Speaker cables

1 x 2 metre Signal input cable

1 x Speaker level to line level adaptor cable

2 x Wall brackets

POWER RATINGS:

120V Model - 120V @ 60Hz; 80VA

240V Model - 140V @ 50Hz; 80VA

DIMENSIONS:

Sub Woofer - 265mm x 190mm x 350mm

Satellites - 68mm x 103mm x 90mm

WEIGHT:

9 Kg

FINISHES:

Black sub woofer

Textured black satellites with

silver/grey grilles

White sub woofer

Textured white satellites with

silver/grey grilles

ACOUSTIC ENERGY

Designed by KOI Inc (USA) Exclusively for Acoustic Energy Limited (UK)

Manufactured in Malasyia.
