Product Type	Walk-behind lawn mower
Brand	Scag
Model	SW 03099
Deck Width Options	32", 36", 48", 52" (depending on model)
Engine Options	Kawasaki 13-17 HP or Kohler 13-15 HP, air-cooled, 4-cycle
Transmission	Peerless 5-speed gearbox
Drive System	Belt drive with twin power belts
Steering	Clutch/brake fingertip steering with EZ Grip levers
Forward Speed	0-6 mph
Reverse Speed	0-2 mph
Fuel Capacity	5 gallons (19.0 liters)
Cutting Height Range	1.75" to 4.5" in 0.25" increments
Blade Engagement	Electric clutch switch
Cutter Blades	Marbain steel, .197" thick, milled edge, wear-resistant
Caster Wheels	9.4 x 3.5 smooth-tread flotation with roller bearings
Drive Tires	13 x 6.50-6 two-ply pneumatic tubeless
Deck Construction	7-gauge steel (32-48"), 10-gauge steel (52") with 7-gauge skirt
Weight Range	440-585 lbs (depending on model and attachments)
Safety Features	Operator presence system, blade clutch interlock, neutral safety switch
Warranty	3-year cutter deck, 2-year drive components, 90-day wear items

Frequently Asked Questions - SW 03099 Scag

What type of oil should I use in the Scag SW mower engine?

Use a high-quality detergent oil with an API rating of SJ or higher. The viscosity depends on operating temperature; typically SAE 30 for warm weather or 10W-30 for varying temperatures. Always check the engine manufacturer's recommendations in the operator's manual.

How do I adjust the cutting height on the Scag SW?

The cutting height can be adjusted manually from 1.75 to 4.5 inches in 0.25-inch increments. Loosen the hardware on the cutter deck and move it to one of three positions, or reposition the caster wheel spacers to fine-tune the pitch and height.

What should I do if the cutter belt slips?

Check the belt tension using a belt tension gauge. Adjust the J-bolt nut or the idler pulley so that the belt moves approximately 1/2 inch with 10 pounds of pressure. Recheck after the first 2, 4, and 8 hours of use due to initial stretch.

How often should I sharpen the cutter blades?

Sharpen the blades whenever cutting performance deteriorates or after every 8 hours of operation, unless more frequent sharpening is needed due to abrasive conditions. Do not sharpen beyond 1/3 of the blade width, and always check blade balance after sharpening.

What safety precautions should I take before operating the mower?

Read the entire operator's manual, keep all shields and safety devices in place, remove debris from the mowing area, check that all nuts and bolts are tight, and never operate without the discharge chute or an approved attachment installed. Disengage blades and shift to neutral before starting.

Can I operate the Scag SW on steep slopes?

Do not operate on steep slopes. To check a slope, attempt to back up it with the cutter deck down. If the machine can back up without wheel slipping, reduce speed and use extreme caution. Always follow OSHA approved operating procedures.

How do I engage the cutter blades?

Depress the operator presence levers and pull the blade clutch switch to the ON position. Push the switch down to disengage. Engage the clutch at 3/4 throttle for best equipment life.

What are the recommended tire pressures for the Scag SW?

Check tire pressures regularly. Caster wheels should be inflated to 25 psi, and drive wheels to 15 psi. Proper tire pressure ensures an even cut and prevents scalping.

How should I store the mower for more than 30 days?

Drain the fuel tank, or add a fuel stabilizer, and run the engine to distribute it. Disconnect the spark plug wire, remove the battery (if equipped), and store in a clean, dry area. Do not store near an open flame or where fumes can ignite.

What is the operator presence system on the Scag SW?

The operator presence system is a safety interlock that stops the engine when the operator releases the handle levers. It also prevents starting unless the transmission is in neutral and the blade clutch is disengaged, reducing the risk of accidents.

USER MANUAL SW 03099 Scag

SCAG POWER EQUIPMENT®

MODEL SW

THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMATION FOR YOUR SCAG MOWER. READING THIS MANUAL CAN PROVIDE YOU WITH ASSISTANCE IN MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR MOWER PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER. BEFORE OPERATING YOUR MACHINE, PLEASE READ ALL THE INFORMATION ENCLOSED.

OPERATOR'S MANUAL

WARNING:

FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY.

* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came with your mower.
* Keep others off the tractor (only one person at a time)

REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!

Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.

This manual covers the operating instructions and illustrated parts list for:

SW32-13KA	with a serial number of 7300001 to 7309999
SW36A-13KA	with a serial number of 7310001 to 7319999
SW36A-13KH	with a serial number of 7320001 to 7329999
SW36A-15KA	with a serial number of 7330001 to 7339999
SW48A-15KA	with a serial number of 7340001 to 7349999
SW48A-17KA	with a serial number of 7350001 to 7359999
SW52A-17KA	with a serial number of 7360001 to 7369999

Always use the entire serial number listed on the serial number tag when referring to this product.

SCAG®

POWER EQUIPMENT

TABLE OF CONTENTS

MODEL SW

SUBJECT

PAGE

Introduction.... 1

General Safety Instructions .... 1

Signal Words 1

Symbols 2-3

Before Operating.... 4

While Operating 4

Maintenance and Storage 5

Initial Run-In Procedures 6

Mower Operation 6

Cutter Deck Belt Adjustments 7

Transmission Drive Belt 8

Drive Control Adjustments 8

Cutter Deck Adjustments 8

Blade Height Adjustments 9

Cutter Blades 9

Lubrication and Maintenance Chart 10

Troubleshooting Cutting Conditions 11-13

Technical Specifications 14-15

TABLE OF CONTENTS

(CONTINUED)

SUBJECT

PAGE

Illustrated Parts List

SWM-32", 36" Cutter Decks....16-17

SWM-48", 52" Cutter Decks....18-19

Engine Deck....19-20

Handle Assembly....22-23

Instrument Panel....24

Peerless Transmission....25

Engine Deck Wire Harness - 14 Kawasaki....26

Wire Harness W/Relay....26

Handle Wire Harness-Manual Start....27

Engine Deck Wire Harness-Kohler (Single Cyl.) & 17 KA......27

Replacement Decals....28-29

Warranty Statement......Inside Back Cover

INTRODUCTION

Your mower was built to the highest standards in the industry. However, the prolonged life and maximum efficiency of your mower depends on you following the operating, maintenance and adjustment instructions in this manual.

We encourage you to contact your dealer for repairs. All Scag dealers are informed of the latest methods to service this equipment and provide prompt and efficient service in the field or at their service shop. They carry a full line of Scag service parts.

A replacement Operator's Manual is available from your Scag Servicing Dealer or by contacting Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. Please indicate the complete model and serial number of your Scag product.

USE OF OTHER THAN ORIGINAL SCAG REPLACEMENT PARTS WILL VOID THE WARRANTY.

The “Right” and “Left”, “Front” and “Rear” of the machine are referenced from the operator’s perspective when in the normal operating position and facing the forward travel direction.

GENERAL SAFETY INSTRUCTIONS

READ THIS OPERATOR'S MANUAL and instructions furnished with attachments.

Perform only those maintenance procedures described in this manual. If major repairs are ever needed or assistance is desired, contact an Authorized Scag Dealer. To ensure optimum performance and safety, always purchase genuine SCAG replacement parts and accessories.

Your safety and the safety of others depends significantly upon your knowledge and understanding of all correct operating practices and procedures of this machine.

SIGNAL WORDS

This symbol means “Attention! Become Alert! Your Safety is Involved!”. The symbol is used with the following signal words to attract your attention to safety messages found on the decals and throughout this manual. The message that follows the symbol contains important information about safety. To avoid injury and possible death, carefully read the message! Be sure to fully understand the causes of possible injury or death.

Signal Word:

It is a distinctive word on safety decals and throughout this manual that alerts the viewer to the existence and relative degree of the hazard.

DANGER:

The signal word “DANGER” denotes that an extremely hazardous situation exists on or near the machine that could result in high probability of death or irreparable injury if proper precautions are not taken.

WARNING:

The signal word “WARNING” denotes that a hazard exists on or near the machine that can result in injury or death if proper precautions are not taken.

CAUTION:

The signal word “CAUTION” is a reminder of safety practices on or near the machine that could result in personal injury if proper precautions are not taken.

ISO Symbols

CE Mark

SYMBOL	DESCRIPTION	SYMBOL	DESCRIPTION
	Choke		Transmission
	Parking Brake		Spinning Blade
	On/Start		Spring Tension on Idler
	Off/Stop		Oil
Falling Hazard
	Fast		Slow
	Continuously variable - Linear		Cutting element - Basic symbol
	Pinch Point		Cutting element - Engage
	Hourmeter/elapsed operating hours		Cutting element - Disengage
	Keep bystanders away		Read operator's manual

BEFORE OPERATING

1. Know the controls and how to stop quickly.

2. Do not allow children to operate the machine. Do not allow adults to operate the machine without proper instruction.

3. If the operator(s) or mechanic(s) can not read English it is the owner's responsibility to explain this material to them.

4. Remove all debris or other objects that might be picked up and thrown by the cutter blades. Keep all bystanders away from the mowing area.

5. Keep all shields, safety devices, and decals in place. If a shield, safety device or decal is defective or damaged, repair or replace it before operating. Also, check all nuts, bolts and screws for proper tightness, to assure the machine is in safe operating condition.

6. Do not operate the machine while wearing sandals, tennis shoes, sneakers or shorts. Also, do not wear loose fitting clothing which could get caught in moving parts. Always wear long pants and substantial shoes. Wearing safety glasses and safety shoes is advisable and required by some local ordinances and insurance regulations.

7. The owner/user can prevent and is responsible for accidents or injuries occurring to themselves, other people or property.

8. Fill the fuel tank with clean, fresh gasoline, with a minimum octane rating of 87. Avoid spilling gasoline. Gasoline is highly flammable, handle it carefully.

A. Use an approved gasoline container.
B. Do not fill the tank while the engine is hot or running.
C. Do not smoke while handling gasoline.
D. Fill the fuel tank outdoors and up to approximately 1" (25 mm) below the bottom of the filler neck.
E. Wipe up any spilled gasoline.

1. Before attempting to start the engine, shift the transmission into neutral, move the blade engagement switch to the OFF position, and move the neutral latches to neutral.

WHILE OPERATING

1. Do not operate the machine under the influence of alcohol or drugs.
2. Start the engine when the neutral latches are in the neutral lock position, the cutter blades are disengaged, and the transmission is in neutral.
3. Do not run the engine in a confined area without adequate ventilation. Exhaust fumes are hazardous and could possibly be deadly.
4. Using the machine demands attention. To prevent loss of control:

A. Mow only in daylight or when there is good artificial light.

B. Watch for holes or other hidden hazards.

C. Do not drive close to a drop-off, ditch, creek bank, or other hazard.

D. Reduce speed when making sharp turns and when turning on hillsides.

E. Always be sure of your footing. Keep a firm hold on the handles and walk---never run.

F. Do not operate where conditions are slippery.

1. The discharge chute must always be installed and in the down position on the side discharge cutter deck except when the Scag optional grass catcher or mulching plate are properly installed. If the discharge area should plug, shut the engine off and wait for all movement to stop before removing the obstruction.
2. Disengage the blades and wait for them to stop before crossing gravel drives, walks or roads.
3. Shut the engine off and wait until the blades come to a complete stop before removing the grass catcher container.

4. Never raise the cutter deck while the blades are rotating.

5. Always park the mower and/or start the engine on a level surface.

6. If the cutting blades should strike a solid object or the equipment should start to vibrate abnormally, stop the engine, disconnect the spark plug wire, and check immediately for the cause. Vibration is generally a warning of trouble. Check the machine for damaged or defective parts. Repair any damage before starting the engine or operating the cutter deck. Be sure the blades are in good condition and the blade bolts are tight.
7. Reduce speed and exercise extreme caution on slopes and in sharp turns to prevent tipping or loss of control. Be especially cautious when changing directions on slopes.

WARNING:

DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.

1. Do not touch the engine or muffler while the engine is running or soon after it is stopped. These areas could be hot enough to cause a burn.
2. Before leaving the operator's position or leaving the mower unattended, shift the transmission into neutral, place the neutral latches in the neutral lock position, and move the blade engagement switch to OFF. Shut the engine OFF and remove the key.
3. Do not pass or stand on the grass discharge side of any mower with the engine running. Stop operation when another person approaches.

WARNING

FALLING HAZARD USE ONLY SCAG APPROVED RIDING ATTACHMENTS SEE OPERATOR'S MANUAL 481109

1. Use only Scag approved attachments and accessories. Scag Approved Attachments:

RS-2

RS-ZT

GC-F4

GC-4D

Scag Approved Accessories:

Mulch Master

Traction Plus

Adjust-A-Grip

Turbo Baffle

Using unapproved attachments, (especially "stand-up" riding attachments) may be hazardous.

MAINTENANCE AND STORAGE

1. Allow only trained personnel to service the machine.
2. Disconnect the spark plug wire from the spark plug to prevent accidental starting of the engine when servicing, adjusting or storing the machine.
3. If the mower must be tipped to perform maintenance or adjustment, remove the battery, drain the gasoline from the fuel tank and the oil from the crankcase.
4. To reduce potential fire hazard, keep the engine free of excessive grease, grass, leaves and accumulations of dirt.
5. Be sure the machine is in safe operating condition by keeping nuts, bolts, and screws tight. Check the blade mounting bolts and nuts frequently to be sure they are tight.
6. If the engine must be running to perform a maintenance adjustment, keep hands, feet, clothing and other parts of the body away from the cutter deck blades and other moving parts.
7. Do not overspeed the engine by changing governor settings. To be sure of safety and accuracy, have an authorized dealer check maximum engine speed with a tachometer.

8. The engine must be shut off before checking the oil or adding oil to the crankcase.

9. Allow the engine to cool before storing the mower in any enclosure such as a garage or storage shed. Make sure the fuel tank is empty if the machine is to be stored in excess of 30 days. Do not store the mower near any open flame or where gasoline fumes may be ignited by a spark.

10. Always store gasoline in a safety-approved, red container.
11. Be careful when servicing the battery as it contains acid, which is corrosive and could cause burns to skin and clothing.
12. Batteries release explosive gases when being charged or discharged. Keep batteries away from any source of sparks and/or flame.

INITIAL RUN-IN PROCEDURES (FIRST DAY OF USE OR APPROXIMATELY 10 HOURS)

1. Check the belts for proper tension at 2, 4 and 8 hours. Adjust as needed.
2. Check the steering control rods for neutral adjustment. (See Adjustments, page 6)
3. Check the tires for proper pressure.

Caster Wheels

25 psi.

Drive Wheels

15 psi.

1. Check for loose hardware. Tighten as needed.
2. Check the safety switches for proper adjustment:

* The engine will crank, but not start if the machine is not in neutral.
* On electric start machines, the engine will not crank if the PTO switch is on.
* The engine should crank and start if the machine is in neutral and the PTO engagement switch is OFF.

1. Apply lubricant to all the grease fittings.

Lubricant was applied at the factory. This is just a precautionary check to make sure that all the fittings have been lubricated.

MOWER OPERATION

1. Read and understand the safety instructions before attempting to operate this machine.
2. Before starting the engine:

* Check the oil level in the engine.
* Fill the fuel tank with clean, fresh, lead-free gasoline.
* Open the fuel valve on the bottom of the fuel tank.

-NOTE-

Use gasoline with an octane rating no less than 87.

* The transmission must be in NEUTRAL.
* The blade clutch switch must be in the OFF position.
* The operator's presence levers must be released.
* The neutral latches must be in the neutral lock position.
* The key switch must be on.

1. Start the engine:

* Choke as required. If the engine is cold, pull the choke knob out. When the engine starts, slowly push the choke in. If the engine stalls, repeat the above operation. When the engine is warm, choking may not be necessary.

1. Engage the cutter blades by depressing the operator presence levers and pulling the blade clutch switch into the ON position. Push the switch to the OFF position to disengage the cutter blades.

PULL UP TO ENGAGE
PUSH DOWN TO DISENGAGE

390S0138

-NOTE-

When PTO is engaged or (possibly) disengaged, a squealing sound from the underside of the machine is normal. It is caused by the electric clutch plates meshing as the cutter blades come up to speed. For best equipment life, engage the clutch with the engine at 3/4 throttle, not under full load.

WARNING:

To avoid serious bodily injury and damage to the transmission, the machine must be at a full stop before shifting between gears or shifting between forward and reverse.

1. Shift the transmission into gear for the desired mowing speed.

-NOTE-

Top speed is suggested only for transport!

1. While squeezing the steering brake levers with both hands, release both neutral latches.
2. When the steering brake levers are released, the machine will travel straight. To make a right turn, squeeze the RH lever. To turn left, squeeze the LH lever.
3. TO STOP, squeeze both levers, lock the neutral latches, and shift the transmission into neutral.

CUTTER DECK BELT ADJUSTMENTS

1. Remove the belt cover.
2. Adjust the cutter deck drive belt using a belt tension gauge. Adjust the belt so that the belt moves 1/2" with 10 pounds of pressure. Adjust the tension by tightening or loosening the J-bolt nut. (See figure 1)

-NOTE-

Due to initial belt stretch and to prevent the belt from slipping, check this adjustment after the first 2 hours, 4 hours and 8 hours of operation.

Figure 1

1. Adjust the RH blade drive belt using a belt tension gauge. Adjust the belt so that the belt moves 1/2" with 10 pounds of pressure. Adjust the tension by tightening or loosening the J-bolt nut. (See Figure 2 & 3)

Figure 2. RH Blade Belt Adjustment

Figure 3. Cutter Deck Belts

TRANSMISSION DRIVE BELT

Adjust the transmission drive belt so that there is about a 3/16" deflection with 10 lbs. of pressure. Adjust by loosening idler pulley mounting bolt and sliding the idler left or right to change belt tension.

DRIVE CONTROL ADJUSTMENTS

1. Adjust the steering control rods so that there is approximately 3/4" clearance from the bottom of the rod to the bottom of the neutral latch slot when in the drive position. (See Figure 4)

Figure 4. Steering Control Rod Adjustment

1. Adjust the steering brake rods so that the brakes do not apply until the steering levers are pulled tight to the handles. When the steering levers are locked in the neutral position the machine should move freely.

CUTTER DECK ADJUSTMENTS

Due to the many cutting conditions that exist, it is difficult to suggest a cutter deck setting that will work for every lawn. There are two adjustments that can be made on these decks, pitch and height.

PITCH is the angle of the blades (comparing front to rear). A 1/4" downward pitch (front of deck down) is recommended for best cutting performance.

HEIGHT is the nominal distance the blade is off of the ground. This measurement is made with the blades pointed side to side and distance is measured between cutting tip and ground. (Also see Blade Height Adjustment, next page)

Changes to the cutting height can be achieved by repositioning the cutter deck. (This adjustment will also effect the pitch of the deck.) There are three available positions (see Figure 5).

Figure 5. Cutting Height Adjustment

Caster spacers also can be repositioned to change cutting heights and to change the pitch of the deck. (See Figure 6)

Figure 6. Caster Wheel Spacers

BLADE HEIGHT ADJUSTMENT

Adjusting the blade height can be done by moving any number of the five smaller 1/4" spacers on the blade mounting bolts to the top of the spindle shaft or below the spindle shaft.

-NOTE-

All blades should be positioned equally.

For best cut and discharge, a minimum of three spacers should be installed between the blade and the spindle. (See Figure 7)

CUTTER BLADES

Do not sharpen beyond 1/3 of the width of the blade. (See Figure 8)

-NOTE-

Dress the blade with a file. Using a wheel grinder may burn the blade. Check the balance of the blade. If blades are out of balance, vibration and premature wear of spindle assembly can occur. See your authorized Scag dealer for blade balancing or special tools if you choose to balance your own blades.

2002 SC407G

Figure 7. Blade Spacers

Figure 8. Blade Sharpening

LUBRICATION & MAINTENANCE

BREAK-IN			+ Grease spindle until grease comes out the relief valve.
8 HOURS (DAILY)			Compatible Greases:	Lidok EP #2 (found at industrial shops)Ronex MP (Exxon service stations)Shell Alvania (Shell service stations)Mobilux #2 (Mobil service stations)Super Lub M EP #2 (Conoco service stations)
40 HOURS (WEEKLY)
100 HOURS (BIWEEKLY)
500 HRS OR ANNUALLY
			PROCEDURE	COMMENTS
			Check all hardware for proper tightnessChange engine oil and filter at 5 hours
XX			Check engine oilRemove debris from under belt coverSharpen cutter bladesGrease spindle bearingsClean air filterCheck belt tensionCheck tire pressure	Do not over fillMore often if neededMore often if needed+ US Lithium MP White Grease 2125More often if neededAdd or adjust as required
XX
XX
XX
XX
X			Change engine oil	See engine mfg. information
	X		Replace air filterGrease caster wheel bearingsGrease caster wheel pivot shaftsGrease idler pulley bracket on cutter deckGrease drive wheel bearingsGrease transmission couplersGrease idler bracket LH & RHCheck all hardware for proper tightness	More often if neededChassis greaseChassis greaseChassis greaseChassis greaseChassis greaseChassis greaseMore often if needed
	X
	X		Adjust air gap on electric clutch	Contact your Scag dealer for information about making this adjustment

TROUBLESHOOTING CUTTING CONDITIONS

CONDITION	CAUSE	CURE
Stringers - Occasional Blades of Uncut Grass	Low engine RPM	Run engine at full 3600 RPM
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
	Dull blades, incorrect sharpening	Sharpen blades
	Deck plugged, grass accumulation	Clean underside of deck
	Belts slipping	Adjust belt tensions

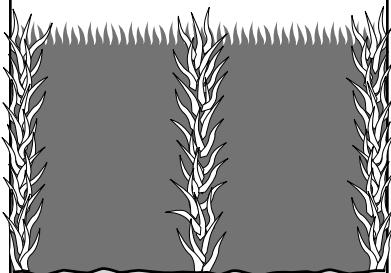

Streaking - Strips of Uncut Grass in Cutting Path	Dull, worn blades	Sharpen blades
	Incorrect blade sharpening	Sharpen blades
	Low engine RPM	Run engine at full 3600 RPM
	Belt slipping	Adjust belt tension
	Deck plugged, grass accumulation	Clean underside of deck
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
	Bent blades	Replace blades
Streaking - Strips of Uncut Grass Between Cutting Paths	Not enough overlapping between rows	Increase the overlap of each pass

TROUBLESHOOTING CUTTING CONDITIONS

CONDITION	CAUSE	CURE
Uneven Cut on Flat Ground - Wavy High-Low Appearance, Scalloped Cut, or Rough Contour	Lift worn off of blade	Replace blade
	Blade upside down	Mount with cutting edge toward ground
	Deck plugged, grass accumulation	Clean underside of deck
	Too much blade angle (deck pitch)	Adjust pitch and level
	Deck mounted improperly	See your authorized SCAG dealer
	Bent spindle area	See your authorized SCAG dealer
	Dull blade	Sharpen blade
Width of Deck SGB020
Uneven Cut on Uneven Ground - Wavy Appearance, High-Low Scalloped Cut, or Rough Contour	Uneven ground	May need to reduce ground speed, raise cutting height, and/or change direction of cut
Width of Deck SGB021
Sloping Ridge Across Width of Cutting Path	Tire pressures not equal	Check and adjust tire pressure
	Wheels uneven	Check and adjust tire pressure
	Deck mounted incorrectly	See your authorized SCAG dealer
Width of Deck SGB023

TROUBLESHOOTING CUTTING CONDITIONS

CONDITION	CAUSE	CURE
Scalping - BladesHitting Dirt orCutting Very Close tothe Ground	Low tire pressures	Check and adjust pressures
	Ground speed too fast	Slow speed to adjust for conditions
	Cutting too low	May need to reduce ground speed,raise cutting height, change directionof cut, and/or change pitch and level
	Rough terrain	May need to reduce ground speed,raise cutting height, and/or changedirection of cut
	Ground speed too fast	Slow speed to adjust for conditions
	Wet grass	Cut grass after it has dried out
Step CutRidge in Center ofCutting Path	Blades not mounted evenly	Adjust pitch and level
	Bent blade	Replace blade
	Internal spindle failure	See your authorized SCAG dealer
	Mounting of spindle incorrect	See your authorized SCAG dealer
Slope Cut - SlopingRidges Across Widthof Cutting Path	Bent spindle mounting area	See your authorized SCAG dealer
	Internal spindle failure	See your authorized SCAG dealer
	Bent deck housing	See your authorized SCAG dealer

TECHNICAL SPECIFICATIONS

MODELS

SW32-13KA, SW36A-13KA, SW36A-13KH, SW36A-14KA, SW48A-14KA, SW48A-15KH, SW48A-17KA, SW52A-17KA

ENGINE

General Type:

Brand / Model:

Heavy duty industrial/commercial

Kawasaki FB460V, FC420V, & FH500V:

Kohler CV13, CV15T

Horsepower:

Kawasaki FB460V=13 HP, FC420V=14HP, FH500V=17HP

Kohler CV13T=13HP, CV15T=15HP

Type:

Kawasaki 13 HP, 14 HP, 4 cycle gasoline engine, air cooled, single cylinder, vertical shaft engine. 17HP 4 cycle, air cooled, V twin cylinder, verticl shaft engine.

Kohler 13 HP & 15 HP = 4 cycle gasoline engine, air cooled, single cylinder, vertical shaft engine.

Displacement:

Kaw. 13 HP=460cc, 14 HP=423cc: 17HP=494cc

Kohler 13 HP=398cc, 15 HP=426cc:

Governor:

Mechanical type governor with variable speed control. Settings:

Kawasaki 13 HP=3600 rpm (+/- 75 rpm), 14 HP=3600 rpm (+/- 75rpm), idle set at 1200 rpm (+/- 75 rpm), 17HP=3600 rpm, idle set at 1550 rpm (+/- 75 rpm)

Kohler 13 HP & 15 HP=3600 rpm (+/- 50 rpm), idle set at 1200 rpm (+/- 75 rpm)

Air Cleaner:

Large capacity duel element with cyclonic-type air filter.

Exhaust:

Single & dual exhaust canister muffler.

Starter/Electrical:

Electronic ignition with recoil starter.

Fuel Pump Group:

Varied - See manufacturer's specification.

Oil Pump Group:

Varied - See manufacturer's specification.

Valve Group:

Varied - See manufacturer's specification.

ENGINE DECK

Thickness:

7 gauge steel.

Fuel Tank:

5 gallon (19.0 liters) seamless polyethylene.

Drive Wheels/Tires:

13.0 x 6.50-6 two-ply pneumatic tubeless.

Handle Bars:

1-1/4" diameter.

DRIVE SYSTEM

Type:

Belt drive with twin power belts for increased friction to pulley surface.

Transmissions:

Peerless 5-speed transmission, Model #700-070A.

Steering/Travel Control:

Clutch/brake fingertip steering, key lock switch. (EZ Grip design allows minimum hand force to operate controls.)

Brakes:

6" drum, band brake, one on each wheel.

Axles:

1"

Wire Harness:

14 gauge wire.

Safety Group:

Hand actuated operator presence system with blade clutch and transmission interlock to engine kill.

Forward Speed Range:

0 to 6.0 mph

Reverse Speed Range:

0 to 2.0 mph

Date of Issue: April, 2001

Specifications Subject to Change Without Notice

TECHNICAL SPECIFICATIONS (CON'T)

CUTTER DECK

Type:

Construction:

True Cutting Width:

Blade Engagement:

Cutting Height Adjustment:

Cutter Blades:

Discharge Opening:

Caster Wheels:

Spindles:

Spindle Pulleys:

Cutter Deck Belts:

SWM 32, SWM 36A, SWM48A, SWM 52A

Out-front design with anti-scalp rollers.

SWM32-48: 7-gauge steel with 7-gauge (3/16") steel skirt

SWM52:10-gauge steel with 7-gauge (3/16") steel skirt

SWM32=32.0" (81.3cm), SWM36=36.0" (90.2cm), SWM48=48.0"

(122.0cm), SWM48A=(122.0cm), SWM52=52.0" (132.0cm)

Electric blade engagement clutch with control panel switch

Manual adjustment 1-3/4" to 4-1/2" in 1/4" increments.

.197 Thick, Milled Edge, Wear Resistant Marbain™

SWM32 = Two (2) 16.5" blades, SWM36 = Two (2) 18" blades,

SWM48 = Three (3) 16.5" blades, SWM52 = Three (3) 18" blades

SWM32, 36, 52 Extra wide 11.5", SWM48 Extra wide 13.5",

9.4 x 3.5 smooth-tread flotation, inner tubes, split rims, roller bearings, with quick pin removal.

Cast housing, taper roller bearing, low maintenance with top access grease fitting and grease overfill relief poppet.

Cast-iron with easily removed taper hubs

B-section with Kevlar® cord.

ADDITIONAL SPECIFICATIONS

OPTIONAL ITEMS/ATTACHMENTS

Fabric Grass Catcher:

Metal Grass Catcher:

Sulky:

Mulching Plate:

EZ-GRIP-SW

GC-F4 Grass Catcher with 4 cubic ft. capacity

GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull dump or pick-up and dump.

RS-2 Two-Wheel Sulky with padded seat.

RS-ZT Two-Wheel Zero Turn Sulky with padded seat.

Steel plate fits over discharge opening. No blade change or removal required. Installs and removes in the field.

Provides reduced hand force at operator steering controls.

APPROXIMATE DIMENSIONS

Length:

Length with grass catcher:

Tracking Width:

Width:

Width (with discharge chute up):

Width with grass catcher:

Height:

Height with grass catcher:

Weight:

Weight with GC-F4 grass catcher:

Weight with GC-4D grass catcher:

SWM32 SWM36A SWM48A SWM52A

70.0" 75.0" 79.0" 79.0"

70.0" 72.0" 76.0" 76.0"

32.0" 37.0" 37.0" 37.0"

43.0" 48.0" 60.0" 60.0"

33.0" 38.0" 50.0" 53.0"

51.0" 56.0" 68.0" 71.0"

40.5" 40.5" 40.5" 40.5"

40.5" 40.5" 40.5" 40.5"

440 lbs. 475 lbs. 555 lbs. 535 lbs.

480 lbs. 515 lbs. 565 lbs. 575 lbs.

490 lbs. 525 lbs. 575 lbs. 585 lbs.

32" & 36A" CUTTER DECKS

32" & 36A" CUTTER DECKS

Ref. PartNo. Number		Description	32 36A	Ref. PartNo. Number		Description	32 36A
1	461361	Cutter Deck (Includes Decals)	x	42	48924	Pulley	x x
1A	461412	Cutter Deck (Includes Decals)		43	48926	Tapered Hub	x x
2	46631	Cutter Spindle Assy.	x x	44	04001-01	Hex Hd. Bolt, 1/4-20 x 3/4"	x x
3	43312	Spacer, Outside	x x	45	04020-09	Hex Nut, 5/8-11	x x
4	48307-08	Tapered Nut, 5/16-24	x x	46	48278	Belt, Blade Drive	x
5	481022	Tapered Bearing (Two)	x x	46A	48204	Belt, Blade Drive		x
6	43294	Spindle Housing	x x	47	43077	Spacer	x x
7	04001-154	Bolt, 5/16-18 x 4-3/4" Hex Head	x x	48	04021-05	Hex Nut, 3/8-16 Center Locknut	x x
8	43589	Spindle Shaft	x x	49	04019-04	Nut, 3/8-16 Serrated Flange	x x
9	04001-77	Bolt, 3/8-16 x 3-1/2" Hex Head	x x	50	04004-02	Support, Belt Cover	x x
10	04063-08	Key, 1/4 x 1/4 x 2"	x x	51	04017-42	Cpscrw, 7/16-14 x 1"Ser.Flg. HH	x x
11	43592	Spacer, Cutter Blade - Small	x x	52	04019-05	Nut, 7/16-14 Serrated Flange	x x
12	04001-10	Bolt,5/16-18 x 1-1/4" Hex Head	x x	53	43277	Spacer, J-Hook	x x
13	482245	Spring, Chute Return	x x	54	04041-12	Washer, 3/8 x 1-1/2 x 16 GA	x x
14	04019-03	Nut 5/16-18 Serrated Flange	x x	55	04021-09	Elastic Stop Nut, 3/8-16	x x
15	482461	Cutter Blade, 16-1/2" Marbain	x	56	45423	Idler Pivot	x x
15	482462	Cutter Blade, 18" Marbain		57	46748	Idler Arm Assy. (Inc. 22 & 58)	x x
15A	482466	Cutter Blade 16-1/2 Hi Lift Marbain	x	58	48100-02	Bronze Bearing	x x
15A	482467	Cutter Blade, 18 Hi Lift Marbain		59	04050-05	Retaining Ring, 1-1/8" Ext. "E"	x x
16	04040-10	Flatwasher, 5/8 W	x x	60	44078	J-Hook	x x
17	04001-41	Hex Hd. Bolt, 5/8-11 x 9-1/2"	x x	61	482416	Idler Pulley, Belt Clutch	x x
18	46079	Caster Assembly (Inc.19-28)	x x	62	481024	Seal, Cutter Spindle	x x
19	04066-01	Quick Pin	x x	63	43297	Spindle Bushing	x x
20	43037-01	Spacer, Caster Yoke, 1/2" long	x x	64	43296	Spacer, Inside	x x
21	48100-01	Bronze Bearing	x x	65	481035	Nut,1.06-18	x x
22	48114-04	Grease Fitting	x x	66	48677	Relief Fitting, Cutter Spindle	x x
23	46082	Support Assembly (Inc. 21-23)	x x	67	481025	Seal, Cutter Spindle	x x
24	45006	Caster Yoke	x x	68	48098	Spindle Shield	x x
25	43022	Sleeve, Caster Wheel Bearing	x x	69	04029-04	Wing Nut, 3/8-16 (Small) RH side	x x
26	04001-37	Hex Hd. Bolt, 1/2-13 x 5-1/2"	x x
27	04021-07	Elastic Stop Nut, 1/2-13	x x
28	48307	Wheel Assy. (Inc.4, 29-34)	x x
29	481774	Tire only, Caster Wheel	x x
NS	481773	Inner Tube only	x x
30	481772	Rim Pair, Caster Wheel	x x
31	481770	Retainer, Bearing, Caster Wheel	x x
32	481769	Roller Bearing, Caster Wheel	x x
33	48114-03	Grease Fitting, 45 degree 1/4-28	x x
34	481768	Hub Assembly	x x
35	04017-16	Cpscrw,5/16-18 x 3/4" Ser.Flg. Hex Head	x x
36	461355	Discharge Chute	x x
37	04021-10	Hex Nut, 5/16-18 Elastic Stop	x x
38	04001-09	Hex Hd Bolt, 5/16-18 x 1"	x x
39	46853	Belt Cover Assy (Includes Decal)	x
39A	46797	Belt Cover Assy (Includes Decal)		x
40	04041-07	Flat Washer, 3/8" Special	x x
41	04029-03	Wing Nut, 3/8-16	x x

* Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated.

48A, 52A" CUTTER DECKS

48A, 52A" CUTTER DECKS

Ref. Part					Ref. Part
No.	No.	Description	48A	52A	No.	No.	Description	48A	52A
1	461455	Cutter Deck (Includes decals)	x		40	04041-07	Flat Washer, 3/8" Special	x	x
1	461457	Cutter Deck (Includes decals)		x	41	04029-03	Wing Nut, 3/8-16 (Large)	x	x
2	46631	Spindle Assembly	x	x	42	48924	Pulley	x	x
3	43296	Spacer, Inside	x	x	43	48926	Tapered Hub	x	x
4	48924	Pulley	x	x	44	04001-01	Bolt, 1/4-20 x 3/4" Hex Head	x	x
5	481022	Tapered Bearing (Two)	x	x	45	04020-09	Nut, 5/8-11 Hex	x	x
6	43294	Spindle Housing	x	x	46	48923	Pulley, Double	x	x
7	48114-04	Grease Fitting Str. 5/16"	x	x	47	48087	Belt, RH Blade Drive	x
8	43589	Spindle Shaft, Tapered Brng	x	x	47	48285	Belt, RH Blade Drive		x
9	45037	Idler Pivot	x	x	48	48089	Belt, Blade Drive	x
10	04063-08	Key, 1/4 x 1/4 x 2"	x	x	48	48286	Belt, Blade Drive		x
11	43592	Spacer, Cutter Blade - Small	x	x	49	04021-05	Nut, 3/8-16, Nut Centerlock	x	x
12	04001-10	Bolt, 5/16-18 x 1-1/4" Hex Head	x	x	50	04019-04	Nut, 3/8-16, Serrated Flange	x	x
13	04001-154	Bolt, 5/16-18 x 4-3/4" Hex Head	x	x	51	04021-09	Nut, 3/8-16 Elastic Stop	x	x
14	04019-03	Serrated Flange Nut, 5/16-18	x	x	52	04004-02	Support, Belt Cover	x	x
15	482461	Cutter Blade 16-1/2" Marbain	x		53	04001-08	Bolt, 5/16-18 x 1/2" Hex Head	x	x
15	482462	Cutter Blade 18" Marbain		x	54	04017-42	Cpscrw,7/16-14 x 1"Ser Flng Hex Hd	x	x
15A	482466	Cutter Blade 16-1/2 High Lift Marbain		x	55	04019-05	Nut, 7/16-14 Serrated Flange	x	x
15A	482467	Cutter Blade 18 High Lift Marbain		x	56	04041-08	Flat Washer 3/4" Special	x	x
16	04040-10	Flatwasher,5/8" (.688 x 1.75 x .134)	x	x	56A	04041-08S	Flat Washer 3/4" Special	x	x
17	04001-41	Hex Head Bolt, 5/8-11 x 9-1/2"	x	x	57	44078	J-Hook	x	x
18	46079	Caster Assembly, (incl.19-28 & 7)	x	x	58	48181	Idler Pulley, "V" Groove	x	x
19	04066-01	Quick Pin	x	x	59	04050-02	Retaining Ring, 3/4" Ext."E"	x	x
20	43037-01	Spacer, Caster Yoke, 1/2" thick	x	x	60	46081	Idler Arm Assy. (Incl. 7 & 61)	x	x
21	48100-01	Bronze Bearing	x	x	61	48100-05	Bronze Bearing	x	x
22	48098	Spindle Shield	x	x	62	43028	J-Rod, Idler Pulley	x	x
23	46082	Support Assembly, (incl. 21-23)	x	x	63	43077	Spacer, J-Rod	x	x
24	45006	Caster Yoke	x	x	64	04041-12	Washer, 3/8 x 1-1/2 x 16 ga.	x	x
25	43022	Sleeve, Caster Wheel Bearing	x	x	65	04001-46	Bolt, 3/8-16 x 2-1/4" Hex Head	x	x
26	04001-37	Hex Hd Bolt, 1/2-13 x 5-1/2"	x	x	66	481024	Seal, Cutter Spindle	x	x
27	04021-07	Elastic Stop Nut, 1/2-13	x	x	67	46748	Idler Arm Assy (Includes 22 & 77)	x	x
28	48307	Wheel Assy. (incl. 29-34,81)	x	x	68	43277	Spacer, J-Rod	x	x
29	481774	Tire only, Caster Wheel	x	x	69	48677	Reielf Fitting, Cutter Spindle	x	x
NS	481773	Inner Tube only, Caster Wheel	x	x	70	43312	Spacer, Outside, Cutter Spindle	x	x
30	481772	Rim Pair, Caster Wheel	x	x	71	43297	Spindle Bushing	x	x
31	481770	Bearing Retainer, Caster Wheel	x	x	72	481035	Nut, Cutter Spindle	x	x
32	481769	Roller Bearing, Caster Wheel	x	x	73	04029-04	Wing Nut, 3/8-16 (Small) Top Side	x	x
33	48114-03	Grease Fitting 45 deg., 1/4-28	x	x	74	04001-77	Bolt, 3/8-16 x 3-1/2" Hex Head	x	x
34	481768	Hub Assembly, (incl. bolts)	x	x	75	45329	Idler Pivot	x	x
35	04017-16	Capscrew, 5/16-18 x 3/4"	x	x	76	482416	Idler Pulley, Belt Clutch	x	x
36	461054	Discharge Chute	x	x	77	48100-02	Bronze Bearing	x	x
37	04021-04	Nut, 5/16-18 Elastic Elastic Stop	x	x	78	04050-05	Retaining Ring	x	x
38	04001-11	Bolt, 5/16-18 x 1-1/2" Hex Head (Front)x		x	79	482295	Guide Roller	x	x
38A	04001-12	Bolt, 5/16-18 x 1-3/4" Hex Head (Rear) x		x	80	45944	Roller Shaft	x	x
39	46798	Belt Cover (Includes decals) x			81	481025	Seal, Cutter Spindle	x	x
39	461095	Belt Cover (Includes decals) 17KA x			82	482245	Spring, Chute Return	x	x
39	46804	Belt Cover (Includes decals)		x	83	481771	Nut, 3/8-24 Tapered	x	x

* Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated.

ENGINE DECK

Ref. PartNo. No.		Description	13KH 13KA15KH 14KA 17KA			Ref. PartNo. No.		Description	13KH 13KA15KH 14KA 17KA
1A	481775	Engine,13HP Kohler(CV13T, SpecPS-21530)	x			31	04030-05	Lock Washer,7/16"	x	x	x
						32A	04102-04	Bolt, 7/16-20 x2-1/2" Hex Head			x
1A	481757	Engine,15HP Kohler(CV 15T, Spec PS-41581)	x			32B	04103-03	Cpsrw, M10-1.5 x55 Metric Hex Hd	x	x
						33	04001-12	Bolt, 5/16-18 x 1-3/4" Hex Head	x	x	x
1B	48841	Engine 12.5HP Kawasaki(Spec FB460-ES05)		x		34	04002-07	Bolt, M8-1.25 x 1.0	x
						35	04021-09	Nut, 3/8-16 Elastic Stop	x	x	x
1B	48842	Engine, 14HP Kawasaki (FC420V)		x		36	04040-15	Flat Washer, 5/16"	x	x	x
1C	481563	Engine, 17HP Kawasaki (FH500V)			x	37	04018-01	Bolt, M8-1.25 x M25 Metric Hex Hd	x	x
2	48030-09	Cable Clamp	x	x	x	38	48192	Wheel Assembly (incl. 38A-38B)(fits SW36,48,52,61,72)	x	x	x
3	481580	Transmission, 5-speed(Peerless 700-070, 9 tooth spline)	x	x	x	38	48253	Wheel Assembly(incl. 38C-38D) (SW32)	x	x
4	48231	Neutral Safety Switch	x	x	x	38A	481860	Tire, 13 x 6.50-6, 2-ply(fits SW36,48,52,61 & 72)	x	x	x
5	48122-01	Fibre Washer, thin	x	x	x
5A	48122-02	Fibre Washer, thick	x	x	x
6	481581	Coupler, Jackshaft	x	x	x	38B	481859	Rim & Bearing Assembly (incl. 39)(fits SW36,48,52,61 & 72)	x	x	x
7	48114-05	Grease Fitting, straight 1/4-28	x	x	x
8	481582	Jackshaft (fits SW32,36 & 48)	x	x		38C	481861	Tire, 13 x 5.00-6 2-ply (SW32 only)		x
8A	481583	Jackshaft (fits SW52,61 & 72)			x	38D	481862	Rim Assembly (incl. 39) (SW32 only)			x
9	04063-09	Key, Hi-Pro #9	x	x	x	39	48193-02	Wheel Brng. NWC (OD 1.984-1.980)	x	x
10	04003-12	Bolt, 5/16-18 X 3/4" Carriage	x	x	x	40	04042-05	Washer, 1-1/16 x 1-3/4 x 12 ga	x	x	x
11A	43100	Wheel Axle (SW 52,61,72) **			x	40A	04041-14	Washer, 1-1/16 x 1-1/2 x 18 ga	x	x	x
11B	43085	Wheel Axle (SW36,48) **	x	x	x	41	04050-08	Retaining Ring, 1" Ext.- "E"	x	x	x
11C	43104	Wheel Axle (SW 32) **	x			42	48200	Pulley, Wheel Drive	x	x	x
12	49070-7002	17KA Muffler (Purchase from Kawasaki)			x	43	43088	Spacer, Wheel Pulley	x	x	x
13	04001-08	Bolt, 5/16-18 X 3/4" Hex Head	x	x	x	44	48209	Brake Drum	x	x	x
14	04040-14	Flat Washer 1/4" (.312 X .75 X .065)	x	x	x	45	04017-19	Bolt, 5/16-18 x 1-1/2" Serrated flange	x	x	x
15	04030-03	Lock Wshr. 5/16"	x	x	x	46	04003-03	Bolt, 3/8-16 x 2" Carriage	x	x	x
16	04019-04	Nut, 3/8-16 Serrated Flange	x	x	x	47	04021-10	Nut, 5/16-18 Elastic Stop	x	x	x
17	46764	Engine Deck (fits SW32)			x	48	21013-2064	Condenser (order from Kawasaki)		x
17A	46765	Engine Deck (fits SW36 & 48)	x	x		49	422930	Bracket, Capacitor		x
17B	46766	Engine Deck (fits SW52, 61 & 72)			x	50	04001-09	Bolt, 5/16-18 x 1" Hex Head	x	x	x
18	04021-08	Nut, 1/4-20 Elastic Stop	x	x	x	51	481716	Rubber Pad, Clutch Stop	x	x	x
19	04019-03	Nut, 5/16-18 Serrated Flange			x	52	04003-02	Bolt, 1/4-20 x 3/4" Carriage	x	x	x
20	04001-51	Bolt, 3/8-16 x 3-3/4" Hex Head	x	x	x	53	21066-2071	Rectifier (order from Kawasaki)		x
21	461397	Electric Clutch (Ogura)	x	x	x	54	422533	Backing Plate	x	x	x
22	04041-07	Washer, 3/8" (.391 x .938 x .105)	x	x	x	55	04001-59	Bolt, 1/4-20 x 1-1/4"	x	x
23	48197	Pulley, Transmission Input	x	x	x	56	481717	Wire Harness Adapter, 17KA			x
24	04063-07	Key, Woodruff #9	x	x	x	57	04031-09	Lock Washer Internal Tooth	x	x	x
25	04050-09	Retaining Ring, 5/8" Ext, Basic	x	x	x	58	421370	Anti Rotation Bracket	x	x	x
26	48203	Belt, Transmission Drive	x	x	x	59	04003-04	Bolt, 5/16-18 x 1" Carriage	x	x	x
27	481048	Idler Pulley, Transmission	x	x	x	60	04021-08	Nut, 1/4-20 Elastic Stop	x	x	x
28	481666	Pulley, Traction Drive	x	x	x	61	422534	Plate, Backing	x	x	x
29	04063-19	Key, 1/4 x 1/4 x 3/4"	x	x	x
30	04041-28	Flat Washer, 7/16" Special	x	x	x

* * = Requires welding onto chassis.
* Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated.

HANDLE ASSEMBLY

SW 2K HA

HANDLE ASSEMBLY

Ref. Part			13KH 13KA			Ref. Part			13KH 13KA
No.	No.	Description	15KH 14KA 17KA			No.	No.	Description	15KH 14KA 17KA
1	461126	Handle Assembly (Fits SW 36,48)	x	x	x	54	04050-09	Retaining Ring, 5/8 Ext. Basic	x	x	x
	46856	Handle Assembly (Fits SW52,61,72)	x	x		55	04017-06	Capscrew, 1/4-20 x 1" Ser. Flange	x	x	x
2	421360	Belt Guard	x	x	x	56	04003-01	Bolt, 1/4-20 x 6" Carriage			x
3	04017-27	Capscrew, 3/8-16 x 1" Ser. Flange	x	x	x	57	48030-09	Clamp	x	x	x
4	04041-07	Washer, 3/8" (.391 x .938 x .105)	x	x	x	58	04001-17	Bolt, 5/16-18 x 2" Hex Head	x	x	x
5	04021-09	Nut, 3/8-16 Elastic Stop	x	x	x	59	04019-02	Nut, 1/4-20 Serrated Flange	x	x	x
6	48755	Spring, Idler	x	x	x	60	04040-15	Flatwasher, 5/16 (.375 x .875 x .083)		x	x
7	04001-10	Bolt, 5/16-18 x 1-1/4" Hex Head	x	x	x	61	04021-02	Nut, 1/4-20 Elastic Stop	x	x	x
8	04021-10	Nut, 5/16-18 Elastic Stop	x	x	x	62	48179	Fuel Hose 7/32 ID x 3.5"(KA. Only)	x
9	04017-05	Capscrew, 1/4-20 x 3/4" Hex Head	x	x	x	63	48059-02	Fuel Hose Clamp (KA. Only)		x
10	44004	Control Rod, Steering	x	x	x	64	48057-02	Fuel Filter (KA. Only)		x
11	04062-02	Hair Pin, Small	x	x	x	65	48058	Fuel Hose,1/4"ID, 10" (KH Only)	x
12	04001-23	Bolt, 3/8-16 x 4-1/2" Hex Head	x	x	x	65A	48058	Fuel Hose,1/4"ID, 20" (KA. Only)		x	x
13	43032	Swivel Joint	x	x	x	66	48059-01	Clamp, Fuel Hose	x	x	x
14	04062-01	Hair Pin, Large .094 Diameter	x	x	x	67	481072	Choke Control			x
15	45847	Idler Bracket, RH	x	x	x	68	48159	Grip, Handle	x	x	x
15A	45846	Idler Bracket, LH	x	x	x	69	48308	Valve, Fuel Shut Off	x	x	x
16	43092	Idler Sleeve	x	x	x	70	46174	Fuel Tank Assy.(Incl. Bush. & Val.)	x	x	x
17	04001-62	Bolt, 3/8-16 x 3/4" Hex Head	x	x	x	71	481603	Fuel Tank Cap	x	x	x
18	04004-17	Support Belt Guard	x	x	x	72	421239	Strap, Fuel Tank	x	x	x
19	04019-04	Nut, 3/8-16 Serrated Flange	x	x	x	73	04010-10	Screw, 1/4-20 x 2" Rnd Hd Slotted	x	x	x
20	04019-03	Nut, 5/16-18 Serrated Flange	x	x	x	74	422279	Shift Lever	x	x	x
21	04017-28	Cpscrew, 3/16-18 x 1-1/4" Ser. Flng.	x	x	x	75	461163	Shift Lever Extention (incl. 81)	x	x	x
22	43286	Spacer	x	x	x	76	48144	Grip, Steering Lever	x	x	x
23	48309	Bushing	x	x	x	77	04041-07	Washer, 3/8 (.391x .938 x .105)	x	x	x
24	48292	Rubber Pad, (Upper)	x	x	x	78	04020-14	Nut, 3/8-24 UNF	x	x	x
25	46089	Steering Lever	x	x	x	79	48028-05	Cable Tie	x	x	x
26	04017-17	Capscrew, 5/16-18 x 1" Ser. Flng.	x	x	x	80	04001-53	Bolt, 5/16-18 x 2-1/2"	x	x	x
27	48312	Bushing	x	x	x	81	481839	Grip, Shift Handle	x	x	x
28	04040-15	Washer, 5/16 (.375 x .875 x .083)	x	x	x	82	421622	Bracket, Choke Mt. (17 KA.)	x	x	x
29	48951	Spring, Operator Presence	x	x	x
30	45573	Operator Presence Lever, LH (Small Frame)	x	x
30A	45571	Operator Presence Lever, LH (Large Frame)	x	x	x
31	45572	Operator Presence Lever, RH	x	x	x
32	44005	Brake Rod	x	x	x
33	45092	Brake Lever	x	x	x
34	45093	Brake Link	x	x	x
35	42254	Brake Link Plate	x	x	x
36	04024-01	Nut, 3/8 Push-on	x	x	x
37	48114-05	Grease Fitting, Straight 1/4-28	x	x	x
38	04050-01	Retaining Ring, 5/8 Ext. "E"	x	x	x
39	48210	Brake Band	x	x	x
40	04001-45	Bolt, 3/8-16 x 2" Hex Head	x	x	x
41	04031-08	1/4" Internal Tooth Lockwasher	x	x	x
42	04032-01	Curved Spring Washer	x	x	x
43	04015-13	Socket Head Capscrew #8-32 x 1/2"	x	x	x
44	04020-02	Nut, 1/4-20 Hex	x	x	x
45	461242	Neutral Latch, RH	x	x	x
45A	461241	Neutral Latch, LH	x	x	x
46	48205	Rubber Pad (Lower)	x	x	x
47	48202A	Belt, Wheel Drive	x	x	x
48	48198	Idler Pulley, Wheel Drive	x	x	x
49	48199	Pulley, Jackshaft (Inc. 50)	x	x	x
50	04012-04	Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock)	x	x	x
51	43098	Spacer, Jackshaft Pulley	x	x	x
52	48223	Flange, Jackshaft Bearing	x	x	x
53	48224	Bearing, Jackshaft	x	x	x

INSTRUMENT PANEL

Ref. No.	Part No.	Description	13KH 15KH	13KA 14KA	17KA
1	48717	Switch, Neutral Interlock	x	x	x
2A	481071	Throttle Control	x	x
2B	48946	Throttle Control (17KA)			x
3	481687	Engagement Switch, Electric Clutch	x	x	x
4	48609	Key Switch (Includes hardware)	x	x	x
5	48023	Hour Meter (dealer installed)	x	x	x
6	*	Screw, #10-32 x .50 Phillips Washer Head	x	x	x
7	04019-01	Nut, #10-32 Serrated Flange Hex Head	x	x	x
8	481678	Handle Wire Harness, Manual Start	x	x	x
NS	48030-09	Clamp, Wire Harness	x	x	x

* Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.

PEERLESS 700-070

FOR REFERENCE

ONLY

ORDER PARTS FROM

PEERLESS / TECUMSEH

Ref. No.	Part No.	Description	REF. NO.	PART NO.	DESCRIPTION
1	772083A	Case, Transmisson	50	778125	Spur Rear (35 teeth)
2	780086A	Needle Bearing Grease Spec	51	778239A	Spur Gear (32 teeth-steel)
2A	780142	Needle Bearing	52	778124A	Spur Gear (30 teeth)
3	770061A	Case, Transmission	53	778123A	Spur Gear (25 teeth)
8	792089A	Shift Key	56	778145	Spur Gear (12 teeth-steel)
9	784266	Shift Collar	57	778151	Spur Gear (15 teeth)
10	784376	Shift Rod & Fork	58	778240	Spur Gear (18 teeth-steel)
11	778154	Bevel Gear (42 teeth)	59	778126A	Spur Gear (20 teeth)
12	778176	Bevel Pinion (14 teeth-steel)	60	778127A	Spur Gear (25 teeth)
20	792077	Steel Ball, 5/16" dia.	65	780139	Washer
21	792078	Set Screw, 3/8-16 x 3/8"	66	776135	Input Shaft (3-11/16" long)
22	792079	Spring	67	776402	Shifter & Brake Shaft
24	780071	Thrust Bearing	71	788069	Square Cut Ring
25	792073	Screw, 1/4-20 x 1-1/4" (6)	72	792074	Threaded Plug (Shipping only, not used)
27	792035	Retaining Ring	81	786081	Roller Chain (No. 41 chain, 24 links)
28	788040	Retaining Ring	82	786082	Sprocket (9 teeth)
29	780072	Washer (6)	83	786083	Sprocket (18 teeth)
30	780108	Washer (5)	90	788067B	Grease (32 oz. bottle Bentonite grease)
32	792001	"O" Ring	150	510334	Gasket Eliminator (Loctite #515)
34	780105A	Flanged Bushing	178	*	Coupling (See page 18-19 for part number)
49	778146A	Spur Gear (37 teeth)	179	*	Connector Shaft (See page 18-19 for part number)

ENGINE DECK WIRE HARNESS - 14 HP KAWASAKI PART NO. 481074

WIRE HARNESS WITH RELAY PART NO. 481275

HANDLE WIRE HARNESS -

MANUAL START

PART NO. 481678

482284

481122

48A

32" - 48315

36" - 482297

48" - 481953

52" - 481954

WARNING

ROTATING BLADES AND BELTS

* Keep hands, feet & clothing clear
* Keep all guards in place
* Shut off engine & disengage blade clutch before servicing
* Use caution in directing discharge
* Read instruction manual before operating

DO NOT OPERATE UNLESS GRASS

CATCHER, MULCHING KIT OR

DISCHARGE CHUTE IS INSTALLED

482286

482286

48332

481483

482285

48404

481039

481971

48656

481109

Any part of the Scag commercial mower manufactured by Scag Power Equipment and found, in the reasonable judgment of Scag, to be defective in materials or workmanship, will be repaired or replaced by an Authorized Scag Service Dealer without charge for parts and labor. This warranty is limited to the original purchaser and is not transferable. Proof of purchase will be required by the dealer to substantiate any warranty claims. All warranty work must be performed by an Authorized Scag Service Dealer.

This warranty is limited to the following specified periods from the date of the original retail purchase for defects in materials or workmanship:

* Wear items including drive belts, blades, hydraulic hoses and tires are warranted for ninety (90) days.
* Batteries are covered for ninety (90) days.
* Frame and structural components including oil reservoir, fittings, and oil coolers are warranted for 1 year.
* Cutter decks are warranted against cracking for a period of three (3) years. (Parts and labor 1st year; Parts only 2nd and 3rd year) The repair or replacement of the cutter deck will be at the option of Scag Power Equipment. We reserve the right to request components for evaluation. This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual.
* Engines and electric starters are covered by the engine manufacturer's warranty period.
* Major drive system components (hydraulic pumps and hydraulic motors only) are warranted for two (2) years by Scag Power Equipment. (Parts and labor 1st year; Parts only 2nd year) (Two year warranty excludes fittings, hoses, cooling system, oil reservoir, drive belts, transaxles). The repair or replacement of the hydraulic pump or hydraulic motor will be at the option of Scag Power Equipment. This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual.
* Electric clutches have a Limited Warranty for 2 year (Parts and labor 1st year; Parts only 2nd year).
* Cutter Spindle Assemblies 46631 have a Limited Warranty for three years (Parts and labor 1st year; Parts only 2nd and 3rd year).
* Any Scag product used for rental purposes is covered by a 90 day warranty.

The Scag mower, including any defective part must be returned to an Authorized Scag Service Dealer within the warranty period. The expense of delivering the mower to the dealer for warranty work and the expense of returning it to the owner after repair will be paid for by the owner. Scag's responsibility is limited to making the required repairs and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Scag mower.

This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual. The warranty does not apply to any damage to the mower that is the result of improper maintenance, or to any mower or parts that have not been assembled or installed as specified in the Operator's Manual and Assembly Manual. The warranty does not cover any mower that has been altered or modified, changing performance or durability. In addition, the warranty does not extend to repairs made necessary by normal wear, or by the use of parts or accessories which, in the reasonable judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or durability.

Scag Power Equipment reserves the right to change or improve the design of any mower without assuming any obligation to modify any mower previously manufactured. All other implied warranties are limited in duration to the one (1) year warranty period or ninety (90) days for mowers used for rental purpose. Accordingly, any such implied warranties including merchantability, fitness for a particular purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate one year or ninety day warranty period. Scag's obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts and Scag does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Scag assumes no responsibility for incidental, consequential or other damages including, but not limited to, expense for gasoline, expense of delivering the mower to an Authorized Scag Service Dealer and expense of returning it to the owner, mechanic's travel time, telephone or telegram charges, rental of a like product during the time warranty repairs are being performed, travel, loss or damage to personal property, loss of revenue, loss of use of the mower, loss of time or inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

© 2001

SCAG POWER EQUIPMENT

DIVISION OF METALCRAFT OF MAYVILLE, INC.

PART NO. 03099

PRINTED 4/01

PRINTED IN USA
