USER MANUAL SW 03043 Scag
SCAG POWER EQUIPMENT®
MODEL SW
THIS MANUAL CONTAINS THE OPERATING INSTRUCTIONS AND SAFETY INFORMATION FOR YOUR SCAG MOWER. READING THIS MANUAL CAN PROVIDE YOU WITH ASSISTANCE IN MAINTENANCE AND ADJUSTMENT PROCEDURES TO KEEP YOUR MOWER PERFORMING TO MAXIMUM EFFICIENCY. THE SPECIFIC MODELS THAT THIS BOOK COVERS ARE CONTAINED ON THE INSIDE COVER. BEFORE OPERATING YOUR MACHINE, PLEASE READ ALL THE INFORMATION ENCLOSED.
OPERA TORYS MANUAL
WARNING:
FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came with your mower.
* Keep others off the tractor (only one person at a time)
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.
This manual covers the operating instructions and illustrated parts list for:
| SW32-13KA | with a serial number of 3110001-3119999 |
| SW36-13KA | with a serial number of 3120001-3129999 |
| SW36-13KH | with a serial number of 3130001-3139999 |
| SW48-14KA | with a serial number of 3140001-3149999 |
| SW48-14KH | with a serial number of 3150001-3159999 |
| SW48-14KAE | with a serial number of 3160001-3169999 |
| SW48-16BV | with a serial number of 3170001-3179999 |
| SW-16BV | with a serial number of 3200001-3209999 |
| SW-18BV | with a serial number of 3210001-3219999 |
| SW-18CVE | with a serial number of 3220001-3229999 |
Always use the entire serial number listed on the serial number tag when referring to this product.
SCAG®
POWER EQUIPMENT
TABLE OF CONTENTS
SUBJECT
PAGE
Introduction 1
General Safety Instructions.... 1
Signal Words 1
Before Operating 2
While Operating 2
Maintenance and Storage 3
Initial Run-In Procedures 4
Mower Operation 4
Cutter Deck Belt Adjustments 5
Transmission Drive Belt 5
Drive Control Adjustments 6
Cutter Deck Adjustments 6
Blade Height Adjustments 7
Cutter Blades 7
Lubrication and Maintenance Chart 8
Troubleshooting Cutting Conditions 9
Technical Specifications 12
INTRODUCTION
Your mower was built to the highest standards in the industry. However, the prolonged life and maximum efficiency of your mower depends on you following the operating, maintenance and adjustment instructions in this manual.
We encourage you to contact your dealer for repairs. All Scag dealers are informed of the latest methods to service this equipment and provide prompt and efficient service in the field or at their service shop. They carry a full line of Scag service parts.
A replacement Operator's Manual is available from your Scag Servicing Dealer or by contacting Scag Power Equipment, Service Department at P.O. Box 152, Mayville, WI 53050. Please indicate the complete model and serial number of your Scag product.
USE OF OTHER THAN ORIGINAL SCAG REPLACEMENT PARTS WILL VOID THE WARRANTY.
The “Right” and “Left”, “Front” and “Rear” of the machine are referenced from the operator’s perspective when in the normal operating position and facing the forward travel direction.
GENERAL SAFETY INSTRUCTIONS
READ THIS OPERATOR'S MANUAL and instructions furnished with attachments.
Perform only those maintenance procedures described in this manual. If major repairs are ever needed or assistance is desired, contact an Authorized Scag Dealer. To ensure optimum performance and safety, always purchase genuine SCAG replacement parts and accessories.
Your safety and the safety of others depends significantly upon your knowledge and understanding of all correct operating practices and procedures of this machine.
SIGNAL WORDS
This symbol means “Attention! Become Alert! Your Safety is Involved!” The symbol is used with the following signal words to attract your attention to safety messages found on the decals and throughout this manual. The message that follows the symbol contains important information about safety. To avoid injury and possible death, carefully read the message! Be sure to fully understand the causes of possible injury or death.
Signal Word:
It is a distinctive word on safety decals and throughout this manual that alerts the viewer to the existence and relative degree of the hazard.
DANGER:
The signal word “DANGER” denotes that an extremely hazardous situation exists on or near the machine that could result in high probability of death or irreparable injury if proper precautions are not taken.
WARNING:
The signal word “WARNING” denotes that a hazard exists on or near the machine that can result in injury or death if proper precautions are not taken.
CAUTION:
The signal word “CAUTION” is a reminder of safety practices on or near the machine that could result in personal injury if proper precautions are not taken.
BEFORE OPERATING
-
Know the controls and how to stop quickly.
-
Do not allow children to operate the machine. Do not allow adults to operate the machine without proper instruction.
-
Remove all debris or other objects that might be picked up and thrown by the cutter blades. Keep all bystanders away from the mowing area.
-
Keep all shields, safety devices, and decals in place. If a shield, safety device or decal is defective or damaged, repair or replace it before operating. Also, check all nuts, bolts and screws for proper tightness, to assure the machine is in safe operating condition.
-
Do not operate the machine while wearing sandals, tennis shoes, sneakers or shorts. Also, do not wear loose fitting clothing which could get caught in moving parts. Always wear long pants and substantial shoes. Wearing safety glasses and safety shoes is advisable and required by some local ordinances and insurance regulations.
-
Fill the fuel tank with clean, fresh gasoline, with a minimum octane rating of 87. Avoid spilling gasoline. Gasoline is highly flammable, handle it carefully.
A. Use an approved gasoline container.
B. Do not fill the tank while the engine is hot or running.
C. Do not smoke while handling gasoline.
D. Fill the fuel tank outdoors and up to approximately 1" (25 mm) below the bottom of the filler neck.
E. Wipe up any spilled gasoline.
- Before attempting to start the engine, shift the transmission into neutral, move the blade engagement switch to the OFF position, and move the neutral latches to neutral.
WHILE OPERATING
- Start the engine when the neutral latches are in the neutral lock position, the cutter blades are disengaged, and the transmission is in neutral.
- Do not run the engine in a confined area without adequate ventilation. Exhaust fumes are hazardous and could possibly be deadly.
- Using the machine demands attention. To prevent loss of control:
A. Mow only in daylight or when there is good artificial light.
B. Watch for holes or other hidden hazards.
C. Do not drive close to a drop-off, ditch, creek bank, or other hazard.
D. Reduce speed when making sharp turns and when turning on hillsides.
E. Always be sure of your footing. Keep a firm hold on the handles and walk---never run.
F. Do not operate where conditions are slippery.
- The discharge chute must always be installed and in the down position on the side discharge cutter deck except when the Scag optional grass catcher or mulching plate are properly installed. If the discharge area should plug, shut the engine off and wait for all movement to stop before removing the obstruction.
- Disengage the blades and wait for them to stop before crossing gravel drives, walks or roads.
- Shut the engine off and wait until the blades come to a complete stop before removing the grass catcher container.
- Never raise the cutter deck while the blades are rotating.
-
Always park the mower and/or start the engine on a level surface.
-
If the cutting blades should strike a solid object or the equipment should start to vibrate abnormally, stop the engine, disconnect the spark plug wire, and check immediately for the cause. Vibration is generally a warning of trouble. Check the machine for damaged or defective parts. Repair any damage before starting the engine or operating the cutter deck. Be sure the blades are in good condition and the blade bolts are tight.
-
Reduce speed and exercise extreme caution on slopes and in sharp turns to prevent tipping or loss of control. Be especially cautious when changing directions on slopes.
WARNING:
DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.
- Do not touch the engine or muffler while the engine is running or soon after it is stopped. These areas could be hot enough to cause a burn.
- Before leaving the operator's position or leaving the mower unattended, shift the transmission into neutral, place the neutral latches in the neutral lock position, and move the blade engagement switch to OFF. Shut the engine OFF and remove the key.
- Do not pass or stand on the grass discharge side of any mower with the engine running. Stop operation when another person approaches.
WARNING
FALLING HAZARD USE ONLY SCAG APPROVED RIDING ATTACHMENTS SEE OPERATOR'S MANUAL 481109
- Use only Scag approved riding attachments.
Scag Approved Riding Attachments:
RS-2
RS-ZT
Using unapproved attachments, (especially "stand-up" riding attachments) may be hazardous.
MAINTENANCE AND STORAGE
- Disconnect the spark plug wire from the spark plug to prevent accidental starting of the engine when servicing, adjusting or storing the machine.
- If the mower must be tipped to perform maintenance or adjustment, remove the battery, drain the gasoline from the fuel tank and the oil from the crankcase.
- To reduce potential fire hazard, keep the engine free of excessive grease, grass, leaves and accumulations of dirt.
- Be sure the machine is in safe operating condition by keeping nuts, bolts, and screws tight. Check the blade mounting bolts and nuts frequently to be sure they are tightened.
- If the engine must be running to perform a maintenance adjustment, keep hands, feet, clothing and other parts of the body away from the cutter deck blades and other moving parts.
- Do not overspeed the engine by changing governor settings. To be sure of safety and accuracy, have an authorized dealer check maximum engine speed with a tachometer.
- The engine must be shut off before checking the oil or adding oil to the crankcase.
-
Allow the engine to cool before storing the mower in any enclosure such as a garage or storage shed. Make sure the fuel tank is empty if the machine is to be stored in excess of 30 days. Do not store the mower near any open flame or where gasoline fumes may be ignited by a spark.
-
Always store gasoline in a safety-approved, red container.
- Be careful when servicing the battery as it contains acid, which is corrosive and could cause burns to skin and clothing.
- Batteries release explosive gases when being charged or discharged. Keep batteries away from any source of sparks and/or flame.
INITIAL RUN-IN PROCEDURES (FIRST DAY OF USE OR APPROXIMATELY 10 HOURS)
- Check the belts for proper tension at 2, 4 and 8 hours. Adjust as needed.
- Check the steering control rods for neutral adjustment. (See Adjustments, page 6)
- Check the tires for proper pressure.
Caster Wheels
25 psi.
Drive Wheels
15 psi.
- Check for loose hardware. Tighten as needed.
- Check the safety switches for proper adjustment:
* The engine will crank, but not start if the machine is not in neutral.
* On electric start machines, the engine will not crank if the PTO switch is on.
* The engine should crank and start if the machine is in neutral and the PTO engagement switch is OFF.
- Apply lubricant to all the grease fittings. Lubricant was applied at the factory. This is just a precautionary check to make sure that all the fittings have been lubricated.
MOWER OPERATION
- Read and understand the safety instructions before attempting to operate this machine.
- Before starting the engine:
* Check the oil level in the engine.
* Fill the fuel tank with clean, fresh, lead-free gasoline.
* Open the fuel valve on the bottom of the fuel tank.
-NOTE-
Use gasoline with an octane rating no less than 87.
* The transmission must be in NEUTRAL.
* The blade clutch switch must be in the OFF position.
* The operator's presence levers must be released.
* The neutral latches must be in the neutral lock position.
* The key switch must be on.
- Start the engine:
* Choke as required. If the engine is cold, pull the choke knob out. When the engine starts, slowly push the choke in. If the engine stalls, repeat the above operation. When the engine is warm, choking may not be necessary.
- Engage the cutter blades by lifting and pushing the blade clutch switch into the ON position. Pull the switch to the OFF position to disengage the cutter blades.
-NOTE-
When PTO is engaged or (possibly) disengaged, a squealing sound from the underside of the machine is normal. It is caused by the electric clutch plates meshing as the cutter blades come up to speed. For best equipment life, engage the clutch with the engine at 1/2 throttle, not under full load.
WARNING:
To avoid serious bodily injury and damage to the transmission, the machine must be at a full stop before shifting between gears or shifting between forward and reverse.
- Shift the transmission into gear for the desired mowing speed.
-NOTE-
Top speed is suggested only for transport!
- While squeezing the steering brake levers with both hands, release both neutral latches.
- When the steering brake levers are released, the machine will travel straight. To make a right turn, squeeze the RH lever. To turn left, squeeze the LH lever.
- TO STOP, squeeze both levers, lock the neutral latches, and shift the transmission into neutral.
CUTTER DECK BELT ADJUSTMENTS
- Remove the belt cover.
- Adjust the cutter deck drive belt using a belt tension gauge. Adjust the belt so that the belt moves 1/2" with 10 pounds of pressure. Adjust the tension by tightening or loosening the J-bolt nut. (See figure 1)
CUTTER DECK DRIVE BELT TENSION
ALIGNMENT IDLER - L.H.
SC400G
Figure 1
-NOTE-
Due to initial belt stretch and to prevent the belt from slipping, check this adjustment after the first 2 hours, 4 hours and 8 hours of operation.
- Adjust the RH blade drive belt using a belt tension gauge. Adjust the belt so that the belt moves 1/2" with 10 pounds of pressure. Adjust the tension by tightening or loosening the J-bolt nut. (See figure 2 & 3)
SC401G
Figure 2. RH Blade Belt Adjustment
Figure 3. Cutter Deck Belts
TRANSMISSION DRIVE BELT
Adjust the transmission drive belt so that there is about a 3/16" deflection with 10 lbs. of pressure. Adjust by loosening idler pulley mounting bolt and sliding the idler left or right to change belt tension.
DRIVE CONTROL ADJUSTMENTS
- Adjust the steering control rods so that there is approximately 3/4" clearance from the bottom of the rod to the bottom of the neutral latch slot when in the drive position. (See figure 4)
Figure 4. Steering Control Rod Adjustment
- Adjust the steering brake rods so that the brakes do not apply until the steering levers are pulled tight to the handles. When the steering levers are locked in the neutral position the machine should move freely.
CUTTER DECK ADJUSTMENTS
Due to the many cutting conditions that exist, it is difficult to suggest a cutter deck setting that will work for every lawn. There are two adjustments that can be made on these decks, pitch and height.
PITCH is the angle of the blades (comparing front to rear). A 1/4" downward pitch (front of deck down) is recommended for best cutting performance.
HEIGHT is the nominal distance the blade is off of the ground. This measurement is made with the blades pointed side to side and distance is measured between cutting tip and ground. (Also see Blade Height Adjustment, next page)
Changes to the cutting height can be achieved by repositioning the cutter deck. (This adjustment will also effect the pitch of the deck). There are three available positions (see figure 5).
Figure 5. Cutting Height Adjustment
Caster spacers also can be repositioned to change cutting heights and to change the pitch of the deck. (See figure 7)
Figure 6. Caster Wheel Spacers

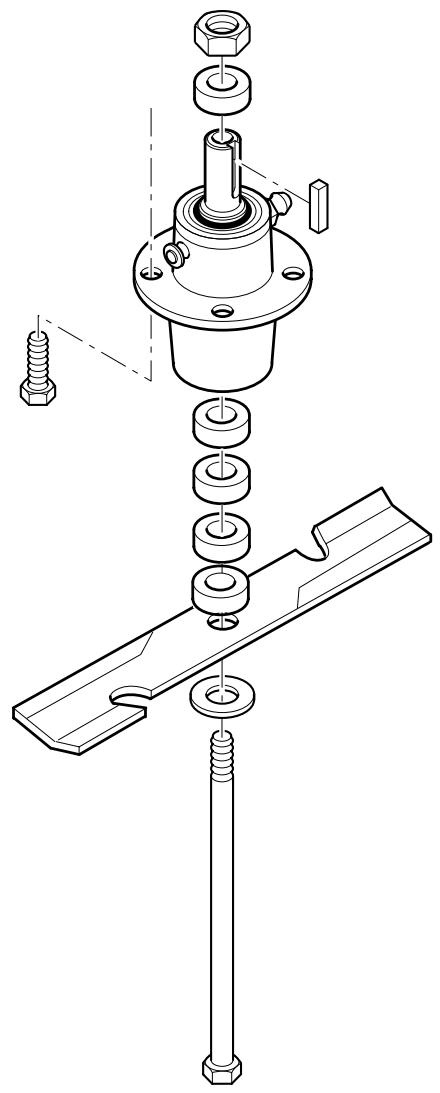

BLADE HEIGHT ADJUSTMENT
Adjusting the blade height can be done by moving any number of the five smaller 1/4" spacers on the blade mounting bolts to the top of the spindle shaft or below the spindle shaft.
-NOTE-
All blades should be positioned equally.
For best cut and discharge, a minimum of three spacers should be installed between the blade and the spindle. (See figure 7).
CUTTER BLADES
Do not sharpen beyond 1/3 of the width of the blade. (See figure 8)
-NOTE-
Dress the blade with a file. Using a wheel grinder may burn the blade. Check the balance of the blade. If blades are out of balance, vibration and premature wear of spindle assembly can occur. See your authorized Scag dealer for blade balancing or special tools if you choose to balance your own blades.
SC407G
Figure 7. Blade Spacers
Figure 8. Blade Sharpening
LUBRICATION & MAINTENANCE
BREAK-IN
8 HOURS (DAILY)
+ Grease spindle until grease comes out the relief valve
Compatible Greases: Lidok EP #2 (found at industrial shops)
Ronex MP (Exxon service stations)
Shell Alvania (Shell service stations)
Mobilux #2 (Mobil service stations)
Super Lub M EP #2 (Conoco service stations)
100 HOURS (BIWEEKLY)
500 HRS OR ANNUALLY
| PROCEDURE | COMMENTS |
| Check all hardware for proper tightnessChange engine oil and filter at 5 hours | |
| Check engine oilRemove debris from under belt coverSharpen cutter bladesGrease spindle bearingsClean air filterCheck belt tensionCheck tire pressure | Do not over fillMore often if neededMore often if needed+ US Lithium MP White Grease 2125More often if neededAdd or adjust as required |
| Change engine oil | See engine mfg. information |
| Replace air filterGrease caster wheel bearingsGrease caster wheel pivot shaftsGrease idler pulley bracket on cutter deckGrease drive wheel bearingsGrease transmission couplersGrease idler bracket LH & RHCheck all hardware for proper tightness | More often if neededChassis greaseChassis greaseChassis greaseChassis greaseChassis greaseChassis greaseMore often if needed |
| Adjust air gap on electric clutch | Contact your Scag dealer for information about making this adjustment |
TROUBLESHOOTING CUTTING CONDITIONS
| CONDITION | CAUSE | CURE |
| Stringers - Occasional Blades of Uncut Grass | Low engine RPM | Run engine at full 3600 RPM |
| Ground speed too fast | Slow speed to adjust for conditions | |
 | Wet grass | Cut grass after it has dried out |
| Dull blades, incorrect sharpening | Sharpen blades | |
| Deck plugged, grass accumulation | Clean underside of deck | |
 | Belts slipping | Adjust belt tensions |
| Streaking - Strips of Uncut Grass in Cutting Path | Dull, worn blades | Sharpen blades |
| Incorrect blade sharpening | Sharpen blades | |
| Low engine RPM | Run engine at full 3600 RPM | |
 | Belt slipping | Adjust belt tension |
| Deck plugged, grass accumulation | Clean underside of deck | |
| Ground speed too fast | Slow speed to adjust for conditions | |
| Wet grass | Cut grass after it has dried out | |
 | Bent blades | Replace blades |
| Streaking - Strips of Uncut Grass Between Cutting Paths | Not enough overlapping between rows | Increase the overlap of each pass |
 |
TROUBLESHOOTING
| CONDITION | CAUSE | CURE |
| Uneven Cut on Flat Ground - Wavy High-Low Appearance, Scalloped Cut, or Rough Contour | Lift worn off of blade | Replace blade |
| Blade upside down | Mount with cutting edge toward ground | |
| Deck plugged,grass accumulation | Clean underside of deck | |
| Too much blade angle (deck pitch) | Adjust pitch and level | |
 | Deck mounted improperly | See your authorized SCAG dealer |
| Bent spindle area | See your authorized SCAG dealer | |
| Dull blade | Sharpen blade | |
| Uneven Cut on Uneven Ground - Wavy Appearance, High-Low Scalloped Cut, or Rough Contour | Uneven ground | May need to reduce ground speed, raise cutting height, and/or change direction of cut |
 | ||
| Width of Deck SGB021 | ||
| Sloping Ridge Across Width of Cutting Path | Tire pressures not equal | Check and adjust tire pressure |
| Wheels uneven | Check and adjust tire pressure | |
 | Deck mounted incorrectly | See your authorized SCAG dealer |
| Width of Deck SGB023 |
TROUBLESHOOTING
| CONDITION | CAUSE | CURE |
| Scalping - Blades Hitting Dirt or Cutting Very Close to the Ground | Low tire pressures | Check and adjust pressures |
| Ground speed too fast | Slow speed to adjust for conditions | |
| Cutting too low | May need to reduce ground speed, raise cutting height, change direction of cut, and/or change pitch and level | |
 | Rough terrain | May need to reduce ground speed, raise cutting height, and/or change direction of cut |
| Ground speed too fast | Slow speed to adjust for conditions | |
| Wet grass | Cut grass after it has dried out | |
| Step Cut Ridge in Center of Cutting Path | Blades not mounted evenly | Adjust pitch and level |
| Bent blade | Replace blade | |
 | Internal spindle failure | See your authorized SCAG dealer |
| Mounting of spindle incorrect | See your authorized SCAG dealer | |
| Slope Cut - Sloping Ridges Across Width of Cutting Path | Bent spindle mounting area | See your authorized SCAG dealer |
| Internal spindle failure | See your authorized SCAG dealer | |
| Bent deck housing | See your authorized SCAG dealer | |
 |
TECHNICAL SPECIFICATIONS
MODELS
SW32-13KA, SW36-13KA, SW36-13KH, SW48-14KA, SW48-14KH, SW48-14KAE, SW48-16BV, SW-14KA, SW-16BV, SW-18BV, SW-18CVE
ENGINE
General Type:
Brand / Model:
Horsepower:
Type:
Displacement:
Cylinders:
Governor:
Air Cleaner:
Exhaust:
Starter/Electrical:
Fuel Pump Group:
Oil Pump Group:
Valve Group:
ENGINE DECK
Thickness:
Fuel Tank:
Drive Wheels/Tires:
Handle Bars:
DRIVE SYSTEM
Type:
Transmissions:
Steering/Travel Control:
Brakes:
Axles:
Wire Harness:
Safety Group:
Forward Speed Range:
Reverse Speed Range:
Heavy duty industrial/commercial
Kawasaki FB460V & FC420V: Kohler CV12.5, CV14T & CVE18:
Briggs & Stratton 303776 & 350776 Vanguard V-Twin OHV.
Kawasaki FB460V=13 HP, FC420V=14 HP: Kohler CV12.5=12.5HP,
CV14T=14 HP, CVE 18=18 HP: B&S 303776=16 HP, 350776=18 HP
Kawasaki 13 HP & 14 HP, Kohler 12.5 HP & 14 HP = 4 cycle gas, single cylinder, vertical shaft engine. Kohler 18 HP, B&S 16 HP & 18 HP = 4 cycle gas, twin cylinder, vertical shaft engine.
Kaw. 13 HP=460cc, 14 HP=423cc: Kohler 13 HP=398cc,
14 HP=398cc: B&S 16 HP=480cc, 18 HP=570cc
Single cast-iron sleeves & 2 cast-iron sleeves
Mechanical type governor with variable speed control. Settings:
Kawasaki 13 HP=3350 rpm (+/- 75 rpm), 14 HP=3600 rpm (+/- 75rpm), idle set at 1200 rpm (+/- 75 rpm) / Kohler 12.5 HP, 14 HP & 18 HP=3600 rpm (+/- 75 rpm), idle set at 1200 rpm (+/- 75 rpm)
B&S 16 HP & 18 HP- Mechanical Type Governor.
Large capacity duel element with cyclonic-type air filter.
Single & dual exhaust canister muffler.
Electronic ignition with recoil starter. 18CVE-12 volt battery with alternator, solid state ignition with key start.
Varied - See manufacturer's specification.
Varied - See manufacturer's specification.
Varied - See manufacturer's specification.
7 gauge steel.
5 gallon (19.0 liters) seamless polyethylene.
13.0 x 6.50-6 two-ply pneumatic tubeless.
1-1/4" diameter.
Belt drive with twin power belts for increased friction to pulley surface.
Peerless 5-speed transmission, Model #700-070A.
Clutch/brake fingertip steering, key lock switch. (EZ Grip design allows minimum hand force to operate controls.)
6" drum, band brake, one on each wheel.
1"
14 gauge wire.
Hand actuated operator presence system with blade clutch and transmission interlock to engine kill.
0 to 6.0 mph
0 to 2.0 mph
TECHNICAL SPECIFICATIONS (CON'T)
CUTTER DECK
Type:
Construction:
True Cutting Width:
Blade Engagement:
Cutting Height Adjustment:
Cutter Blades:
Discharge Opening:
Caster Wheels:
Spindles:
Spindle Pulleys:
Cutter Deck Belts:
SWM 32, SWM 36, SWM 48, SWM 52, SWM 61, SWM 72
Out-front design with anti-scalp rollers.
SWM32-48: 7-gauge steel with 7-gauge (3/16") steel skirt
SWM52, 61, 72:10-gauge steel with 7-gauge (3/16") steel skirt
SWM32=32.0" (81.3cm), SWM36=36.0" (90.2cm), SWM48=48.0"
(122.0cm), SWM52=52.0" (132.0cm), SWM61=61.0" (155.0cm), SWM72=71.5" (181.6cm)
Electric blade engagement clutch with control panel switch
Manual adjustment 1-3/4" to 4-1/2" in 1/4" increments.
.204" thick, milled edge, 5150 alloy steel
SWM32 = Two (2) 16.5" blades, SWM36 = Two (2) 18" blades,
SWM48 = Three (3) 16.5" blades, SWM52 = Three (3) 18" blades
SWM61 = Three (3) 21" blades, SWM72 = Three (3) 24 1/2" blades.
SWM32, 36, 52 Extra wide 11.5", SWM48 Extra wide 13.5",
SWM61, 72 Extra wide 13.75" discharge opening with hinged chute.
9.4 x 3.5 smooth-tread flotation, inner tubes, split rims, roller bearings, with quick pin removal.
Cast housing, taper roller bearing, low maintenance with top access grease fitting and grease overfill relief poppet.
Cast-iron with easily removed taper hubs
B-section with Kevlar® cord.
ADDITIONAL SPECIFICATIONS
OPTIONAL ITEMS/ATTACHMENTS
Fabric Grass Catcher:
Metal Grass Catcher:
Sulky:
Mulching Plate:
EZ-GRIP-SW
GC-F4 Grass Catcher with 4 cubic ft. capacity
GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull dump or pick-up and dump.
RS-2 Two-Wheel Sulky with padded seat.
RS-ZT Two-Wheel Zero Turn Sulky with padded seat.
Steel plate fits over discharge opening. No blade change or removal required. Installs and removes in the field.
Provides reduced hand force at operator steering controls.
APPROXIMATE DIMENSIONS
Length:
Length with grass catcher:
Tracking Width:
Width:
Width (with discharge chute up):
Width with grass catcher:
Height:
Height with grass catcher:
Weight:
Weight with GC-F4 grass catcher:
Weight with GC-4D grass catcher:
SWM32 SWM36 SWM48 SWM52 SWM61 SWM72
| 70.0" | 72.0" | 76.0" | 76.0" | 77.0" | 78.0" |
| 70.0" | 72.0" | 76.0" | 76.0" | 77.0" | 78.0" |
| 32.0" | 37.0" | 37.0" | 37.0" | 42.0" | 42.0" |
| 43.0" | 48.0" | 60.0" | 60.0" | 70.0" | 81.0" |
| 33.0" | 38.0" | 50.0" | 53.0" | 63.0" | 74.0" |
| 51.0" | 56.0" | 68.0" | 71.0" | 80.0" | 91.0" |
| 40.5" | 40.5" | 40.5" | 40.5" | 40.5" | 40.5" |
| 40.5" | 40.5" | 40.5" | 40.5" | 40.5" | 40.5" |
| 440 lbs. | 465 lbs. | 515 lbs. | 525 lbs. | 555 lbs. | 610 lbs. |
| 480 lbs. | 505 lbs. | 555 lbs. | 565 lbs. | 595 lbs. | 650 lbs. |
| 490 lbs. | 515 lbs. | 565 lbs. | 575 lbs. | 605 lbs. | 660 lbs. |
32" & 36" CUTTER DECKS
32" & 36" CUTTER DECKS
| Ref. PartNo. Number | Description | 32 36 | Ref. PartNo. Number | Description | 32 36 | |||
| 1 | 46849 | Cutter Deck (Includes Decals) | x | 42 | 48924 | Pulley | x x | |
| 1A | 46850 | Cutter Deck (Includes Decals) | 43 | 48926 | Tapered Hub | x x | ||
| 2 | 46631 | Cutter Spindle Assy. | x x | 44 | 04001-01 | Hex Hd. Bolt, 1/4-20 x 3/4" | x x | |
| 3 | 43312 | Spacer, Outside | x x | 45 | 04020-09 | Hex Nut, 5/8-11 | x x | |
| 4 | 48307-08 | Tapered Nut, 5/16-24 | x x | 46 | 48278 | Belt, Blade Drive | x | |
| 5 | 481022 | Tapered Bearing (Two) | x x | 46A | 48204 | Belt, Blade Drive | x | |
| 6 | 43294 | Spindle Housing | x x | 47 | 43077 | Spacer | x x | |
| 7 | 04001-108 | Bolt, 5/16-18 x 4-1/4" Hex Head | x x | 48 | 04021-05 | Hex Nut, 3/8-16 Center Locknut | x x | |
| 8 | 43298 | Spindle Shaft | x x | 49 | 04019-04 | Nut, 3/8-16 Serrated Flange | x x | |
| 9 | 04001-77 | Bolt, 3/8-16 x 3-1/2" Hex Head | x x | 50 | 04004-02 | Support, Belt Cover | x x | |
| 10 | 04063-08 | Key, 1/4 x 1/4 x 2" | x x | 51 | 04017-42 | Cpscrw, 7/16-14 x 1"Ser.Flg. HH | x x | |
| 11 | 43278 | Spacer, Cutter Blade - Small | x x | 52 | 04019-05 | Nut, 7/16-14 Serrated Flange | x x | |
| 12 | 04001-10 | Bolt,5/16-18 x 1-1/4" Hex Head | x x | 53 | 43277 | Spacer, J-Hook | x x | |
| 13 | 481050 | Spring, Chutte Return | x x | 54 | 04041-12 | Washer, 3/8 x 1-1/2 x 16 GA | x x | |
| 14 | 04019-03 | Nut 5/16-18 Serrated Flange | x x | 55 | 04021-09 | Elastic Stop Nut, 3/8-16 | x x | |
| 15 | 48110 | Cutter Blade 16-1/2" | x | 56 | 45423 | Idler Pivot | x x | |
| 15 | 48108 | Cutter Blade, 18" | 57 | 46748 | Idler Arm Assy. (Inc. 22 & 58) | x x | ||
| 15A | 48184 | Cutter Blade 16-1/2 Hi Lift | x | 58 | 48100-02 | Bronze Bearing | x x | |
| 15A | 48185 | Cutter Blade, 18 Hi Lift | 59 | 04050-05 | Retaining Ring, 1-1/8" Ext. "E" | x x | ||
| 16 | 04040-10 | Flatwasher, 5/8 W | x x | 60 | 44078 | J-Hook | x x | |
| 17 | 04001-41 | Hex Hd. Bolt, 5/8-11 x 9-1/2" | x x | 61 | 48269 | Idler Pulley, Belt Clutch | x x | |
| 18 | 46079 | Caster Assembly (Inc.19-28) | x x | 62 | 481024 | Seal, Cutter Spindle | x x | |
| 19 | 04066-01 | Quick Pin | x x | 63 | 43297 | Spindle Bushing | x x | |
| 20 | 43037-01 | Spacer, Caster Yoke, 1/2" long | x x | 64 | 43296 | Spacer, Inside | x x | |
| 21 | 48100-01 | Bronze Bearing | x x | 65 | 481035 | Nut, | x x | |
| 22 | 48114-04 | Grease Fitting | x x | 66 | 48677 | Relief Fitting, Cutter Spindle | x x | |
| 23 | 46082 | Support Assembly (Inc. 21-23) | x x | 67 | 481025 | Seal, Cutter Spindle | x x | |
| 24 | 45006 | Caster Yoke | x x | 68 | 48098 | Spindle Shield | x x | |
| 25 | 43022 | Sleeve, Caster Wheel Bearing | x x | |||||
| 26 | 04001-37 | Hex Hd. Bolt, 1/2-13 x 5-1/2" | x x | |||||
| 27 | 04021-07 | Elastic Stop Nut, 1/2-13 | x x | |||||
| 28 | 48307 | Wheel Assy. (Inc.4, 29-34) | x x | |||||
| 29 | 48307-02 | Tire only, Caster Wheel | x x | |||||
| NS | 48006-03 | Inner Tube only | x x | |||||
| 30 | 48307-04 | Rim Pair, Caster Wheel | x x | |||||
| 31 | 48006-07 | Retainer, Bearing, Caster Wheel | x x | |||||
| 32 | 48006-06 | Roller Bearing, Caster Wheel | x x | |||||
| 33 | 48114-03 | Grease Fitting, 45 degree 1/4-28 | x x | |||||
| 34 | 48006-05 | Hub Assembly | x x | |||||
| 35 | 04017-16 | Cpscrw,5/16-18 x 3/4" Ser.Flg. Hex Head | x x | |||||
| 36 | 461054 | Discharge Chute | x x | |||||
| 37 | 04021-10 | Hex Nut, 5/16-18 Elastic Stop | x x | |||||
| 38 | 04001-09 | Hex Hd Bolt, 5/16-18 x 1" | x x | |||||
| 39 | 46853 | Belt Cover Assy (Includes Decal) | x | |||||
| 39A | 46797 | Belt Cover Assy (Includes Decal) | ||||||
| 40 | 04041-07 | Flat Washer, 3/8" Special | x x | |||||
| 41 | 04029-03 | Wing Nut, 3/8-16 | x x | |||||
* Common hardware which should be purchased locally. All bolts are Grade 5 plated, all other fasteners zinc plated.
48", 52", 61", & 72" CUTTER DECKS
48, 52, 61, & 72" CUTTER DECKS
| Ref. PartNo. No. | Description | 48 52 61 72 | Ref. PartNo. No. | Description | 48 52 61 72 | ||||||||
| 1 | 46851 | Cutter Deck (Includes decals) | x | 45 | 04020-09 | Nut, 5/8-11 Hex | x | x | x | x | |||
| 1 | 46751 | Cutter Deck (Includes decals) | x | 46 | 48923 | Pulley, Double | x | x | |||||
| 1 | 46752 | Cutter Deck (Includes decals) | x | 46A | 48940 | Pulley, Double | x | ||||||
| 1 | 46608 | Cutter Deck (Includes decals) | x | 46B | 48966 | Pulley, Double | x | ||||||
| 2 | 46631 | Spindle Assembly | x | x | x | x | 47 | 48087 | Belt, RH Blade Drive | x | |||
| 3 | 43312 | Spacer, Inside | x | x | x | x | 47 | 48285 | Belt, RH Blade Drive | x | |||
| 4 | 48924 | Pulley | x | x | x | x | 47 | 48265 | Belt, RH Blade Drive | x | |||
| 5 | 481022 | Tapered Bearing (Two) | x | x | x | x | 47 | 48295 | Belt, RH Blade Drive | x | |||
| 6 | 43294 | Spindle Housing | x | x | x | x | 48 | 48089 | Belt, Blade Drive | x | |||
| 7 | 48114-04 | Grease Fitting Str. 5/16 | x | x | x | x | 48 | 48286 | Belt, Blade Drive | x | |||
| 8 | 43298 | Spindle Shaft, Tapered Brng | x | x | x | x | 48 | 48088 | Belt, Blade Drive | x | |||
| 9 | 45037 | Idler Pivot | x | x | x | x | 48 | 48296 | Belt, Blade Drive | x | |||
| 10 | 04063-08 | Key, 1/4 x 1/4 x 2" | x | x | x | x | 49 | 04021-05 | Nut, 3/8-16, Nut Centerlock | x | x | x | x |
| 11 | 43278 | Spacer, Cutter Blade - Small | x | x | x | x | 50 | 04019-04 | Nut, 3/8-16, Serrated Flange | x | x | x | x |
| 12 | 04001-10 | Bolt, 5/16-18 x 1-1/4" Hex Head | x | x | x | x | 51 | 04021-09 | Nut, 3/8-16 Elastic Stop | x | x | x | x |
| 13 | 04001-108 | Bolt, 5/16-18 x 4-1/4" Hex Head | x | x | x | x | 52 | 04004-02 | Support, Belt Cover | x | x | x | x |
| 14 | 04019-03 | Serrated Flange Nut, 5/16-18 | x | x | x | x | 53 | 04001-08 | Bolt, 5/16-18 x 1/2" Hex Head | x | x | x | x |
| 15 | 48110 | Cutter Blade 16-1/2" | x | 54 | 04017-42 | Cpscrw,7/16-14 x 1"Ser Flng H Hd | x | x | x | x | |||
| 15 | 48108 | Cutter Blade 18" | x | 55 | 04019-05 | Nut, 7/16-14 Serrated Flange | x | x | x | x | |||
| 15 | 48111 | Cutter Blade 21" | x | 56 | 04041-08 | Flat Washer 3/4" Special | x | x | x | x | |||
| 15 | 48112 | Cutter Blade 24" | x | 56A | 04041-08S | Flat Washer 3/4" Special | x | x | x | x | |||
| 15A | 48184 | Cutter Blade 16-1/2 Hi Lift | x | 57 | 44078 | J-Hook | x | x | x | x | |||
| 15A | 48185 | Cutter Blade 18 Hi Lift | x | 58 | 48181 | Idler Pulley, "V" Groove | x | x | x | x | |||
| 15A | 48304 | Cutter Blade 21 Hi Lift | x | 59 | 04050-02 | Retaining Ring, 3/4" Ext."E" | x | x | x | x | |||
| 16 | 04040-10 | Flatwasher, 5/8" (.688 x 1.75 x .134) | x | x | x | x | 60 | 46081 | Idler Arm Assy. (Incl. 22 & 61) | x | x | x | x |
| 17 | 04001-41 | Hex Head Bolt, 5/8-11 x 9-1/2" | x | x | x | x | 61 | 48100-05 | Bronze Bearing | x | x | x | x |
| 18 | 46079 | Caster Assembly, (incl. 19-28) | x | x | x | x | 62 | 43028 | J-Rod, Idler Pulley | x | x | x | |
| 19 | 04066-01 | Quick Pin | x | x | x | x | 62A | 44078 | J-Rod, Idler Pulley | x | |||
| 20 | 43037-01 | Spacer, Caster Yoke, 1/2" thick | x | x | x | x | 63 | 43077 | Spacer, J-Rod | x | x | x | x |
| 21 | 48100-01 | Bronze Bearing | x | x | x | x | 64 | 04041-12 | Washer, 3/8 x 1-1/2 x 16 ga. | x | x | x | x |
| 22 | 04030-03 | Lock Wshr, 5/16" (.317 x .586 x .078) | x | x | x | x | 65 | 04001-46 | Bolt, 3/8-16 x 2-1/4" Hex Head | x | x | x | x |
| 23 | 46082 | Support Assembly, (incl. 21-23) | x | x | x | x | 66 | 481024 | Seal, Cutter Spindle | x | x | x | x |
| 24 | 45006 | Caster Yoke | x | x | x | x | 67 | 46748 | Idler Arm Assy (Includes 22&77) | x | x | x | x |
| 25 | 43022 | Sleeve, Caster Wheel Bearing | x | x | x | x | 68 | 43277 | Spacer, J-Rod | x | x | x | x |
| 26 | 04001-37 | Hex Hd Bolt, 1/2-13 x 5-1/2" | x | x | x | x | 69 | 48677 | Reiief Fitting, Cutter Spindle | x | x | x | x |
| 27 | 04021-07 | Elastic Stop Nut, 1/2-13 | x | x | x | x | 70 | 43312 | Spacer, Outside, Cutter Spindle | x | x | x | x |
| 28 | 48307 | Wheel Assy. (incl. 29-34,81) | x | x | x | x | 71 | 43297 | Spindle Bushing | x | x | x | x |
| 29 | 48307-02 | Tire only, Caster Wheel | x | x | x | x | 72 | 481035 | Nut, Cutter Spindle | x | x | x | x |
| NS | 48006-03 | Inner Tube only, Caster Wheel | x | x | x | x | 73 | 04040-15 | Flat Wash., 5/16" (.375 x .875 x .083) | x | x | x | |
| 30 | 48307-04 | Rim Pair, Caster Wheel | x | x | x | x | 74 | 04001-77 | Bolt, 3/8-16 x 3-1/2" Hex Head | x | x | x | x |
| 31 | 48006-07 | Bearing Retainer, Caster Wheel | x | x | x | x | 75 | 45329 | Idler Pivot | x | x | x | x |
| 32 | 48006-06 | Roller Bearing, Caster Wheel | x | x | x | x | 76 | 48269 | Idler Pulley, Belt Clutch | x | x | x | x |
| 33 | 48114-03 | Grease Fitting 45 deg., 1/4-28 | x | x | x | x | 77 | 48100-02 | Bronze Bearing | x | x | x | x |
| 34 | 48006-05 | Hub Assembly, (incl. bolts) | x | x | x | x | 78 | 04050-05 | Retaining Ring | x | x | x | x |
| 35 | 04017-16 | Capscrew, 5/16-18 x 3/4" | x | x | x | x | 79 | 48038 | Guide Roller | x | x | x | x |
| 36 | 461055 | Discharge Chute | x | x | 80 | 45944 | Roller Shaft | x | x | x | x | ||
| 36A | 461054 | Discharge Chute | x | x | 81 | 481025 | Seal, Cutter Spindle | x | x | x | x | ||
| 37 | 04021-04 | Nut, 5/16-18 Elastic Elastic Stop | x | x | x | x | 82 | 43277 | Spacer, J-Hook | x | x | x | x |
| 38 | 04001-09 | Bolt, 5/16-18 x 1" Hex Head | x | x | x | x | 83 | 48307-08 | Nut, 3/8-24 Tapered | x | x | x | x |
| 39 | 46798 | Belt Cover (Includes decals) | x | 84 | 481050 | Spring, Chute Return | x | x | x | x | |||
| 39 | 46804 | Belt Cover (Includes decals) | x | 85 | 48098 | Spindle Shield | x | x | x | x | |||
| 39 | 46805 | Belt Cover (Includes decals) | x | ||||||||||
| 39 | 46848 | Belt Cover (Includes decals) | x | ||||||||||
| 40 | 04041-07 | Flat Washer, 3/8" Special | x | x | x | x | |||||||
| 41 | 04029-03 | Wing Nut, 3/8-16 | x | x | x | x | |||||||
| 42 | 48924 | Pulley | x | x | |||||||||
| 42A | 48753 | Pulley | x | ||||||||||
| 42B | 48967 | Pulley | x | ||||||||||
| 43 | 48926 | Tapered Hub | x | x | x | x | |||||||
| 44 | 04001-01 | Bolt, 1/4-20 x 3/4" Hex Head | x | x | x | x | |||||||
ENGINE DECK
| Ref. No. | Part No. | Description | 13KH 13KA 16BV | Ref. No. | Part No. | Description | 13KH 13KA 16BV | ||||||
| 14KH 14KA 18BV 18CVE | 14KH 14KA 18BV 18CVE | ||||||||||||
| 14KAE | 14KAE | ||||||||||||
| 1A | 48843 | Engine, 12.5HP Kohler (PS-1256) | x | 38B | 48193-03 | Rim & Bearing Assembly (incl. 39) (fits SW36,48,52,61 & 72) | x | x | x | x | |||
| 1A | 48844 | Engine, 14HP Kohler (CV 12.5T PS-1413) | x | 38C | 48253-02 | Tire, 13 x 5.00-6 2-ply (SW32 only) | x | ||||||
| 1B | 48841 | Engine 12.5HP Kawasaki (FB460-ES05) | x | 38D | 48253-03 | Rim Assembly (incl. 39) (SW32 only) | x | ||||||
| 39 | 48193-02 | Wheel Brng. NWC (OD 1.984-1.980) | x | x | x | x | |||||||
| 1B | 48842 | Engine, 14HP Kawasaki (FC420V) | x | 40 | 04042-05 | Washer, 1-1/16 x 1-3/4 x 12 ga | x | x | x | x | |||
| 1B | 481052 | Engine, 14HP Kawasaki Elec. Start | x | 40A | 04041-14 | Washer, 1-1/16 x 1-1/2 x 18 ga | x | x | x | x | |||
| 1C | 481065 | Engine, 16HP Briggs Vanguard (303772 0345 02) | x | 41 | 04050-08 | Retaining Ring, 1" Ext.- "E" | x | x | x | x | |||
| 42 | 48200 | Pulley, Wheel Drive | x | x | x | x | |||||||
| 1C | 48766 | Engine, 16HP BVE | x | 43 | 43088 | Spacer, Wheel Pulley | x | x | x | x | |||
| 1C | 481066 | Engine, 18HP Briggs Vanguard | x | 44 | 48209 | Brake Drum | x | x | x | x | |||
| 1D | 48969 | Engine, 18HP Kohler (Electric Start V-Twin) | x | 45 | 04017-19 | Bolt, 5/16-18 x 1-1/2" Serrated Flange | x | x | |||||
| 46 | 04003-03 | Bolt, 3/8-16 x 2" Carriage | x | x | x | x | |||||||
| 2 | 48030-09 | Cable Clamp | x | x | x | x | 47 | 04021-10 | Nut, 5/16-18 Elastic Stop | x | x | x | x |
| 3 | 481580 | Transmission, 5-speed (Peerless 700-070, 9 tooth spline) | x | x | x | x | 48 | 04003-11 | Bolt, 3/8-16 x 1-1/4" Carriage | x | |||
| 49 | 421703 | Battery Box | x | x | x | ||||||||
| 4 | 48231 | Neutral Safety Switch | x | x | x | x | 50 | 42330 | Bracket, Idler Pulley | x | |||
| 5 | 48122-01 | Fibre Washer, thin | x | x | x | x | 51 | 48814 | Rubber Pad, Clutch Stop | x | x | x | x |
| 5A | 48122-02 | Fibre Washer, thick | x | x | x | x | 52 | 04041-11 | Washer, 13/32 x 1-1/2 x 7 ga | x | |||
| 6 | 481581 | Coupler, Jackshaft | x | x | x | x | 53 | 45685 | Battery Support Weldment | x | x | x | |
| 7 | 48114-05 | Grease Fitting, straight 1/4-28 | x | x | x | x | 54 | 421564 | Backing Plate | x | x | x | x |
| 8 | 481582 | Jackshaft (fits SW32,36 & 48) | x | x | 55 | 48099 | Battery Cover Pad | x | |||||
| 8A | 481583 | Jackshaft (fits SW52,61 & 72) | x | x | 56 | 04003-01 | Bolt, 1/4-20 x 6" carriage | x | |||||
| 9 | 04063-09 | Key, Hi-Pro #9 | x | x | x | x | 57 | 04001-21 | Bolt, 3/8-16 x 1-3/4" Hex Head | x | |||
| 10 | 04003-12 | Bolt, 5/16-18 X 3/4" Carriage | x | x | x | x | 58 | 421370 | Anti Rotation Bracket | x | x | x | x |
| 11 | 421408 | Battery Cover | x | x | x | 59 | 04003-04 | Bolt, 5/16-18 x 1" Carriage | x | x | x | x | |
| 12 | 48402-03 | Oil Drain Extention 5-1/4" | x | 60 | 48257 | Pipe Cap | x | x | |||||
| 12A | 48402-04 | Oil Drain Extention 4-3/4" | x | 61 | 04029-01 | Wing Nut, 1/4-20 | x | x | x | ||||
| 13 | 04001-08 | Bolt, 5/16-18 X 3/4" Hex Head | x | x | x | x | 62 | 48015 | Battery | x | x | x | |
| 14 | 04040-14 | Flat Washer 1/4" (.312 X .75 X .065) | x | x | x | x | 63 | 04001-44 | Bolt, 1/4-20 x 1/2" Hex Head | x | x | x | |
| 15 | 04030-03 | Lock Wshr. 5/16" | x | x | x | x | 64 | 04020-02 | Nut, 1/4-20 | x | x | x | |
| 16 | 04019-04 | Nut, 3/8-16 Serrated Flange | x | x | x | x | 65 | 04021-08 | Nut, 1/4-20 Elastic Stop | x | x | x | x |
| 17 | 46764 | Engine Deck (fits SW32) | x | 66 | 04031-09 | Lock Washer Internal Tooth | x | x | x | x | |||
| 17A | 46765 | Engine Deck (fits SW36 &48) | x | x | 67 | 481077 | Wire Harness Adapter, Man. Start | x | |||||
| 17B | 46766 | Engine Deck (fits SW52,61 & 72) | x | x | 67 | 481054 | Wire Harness Adapter, Elec. Start | x | |||||
| 18 | 48661 | Rubber Pad | x | 68 | 04001-59 | Bolt, 1/4-20 x 1-1/4" | x | x | |||||
| 19 | 04019-03 | Nut, 5/16-18 Serrated Flange | x | x | x | 69 | 21066-2071 | Rectifier (order from Kawasaki) | x | ||||
| 20 | 04001-51 | Bolt, 3/8-16 x 3-3/4" Hex Head | x | x | x | x | 70 | 04003-02 | Bolt, 1/4-20 x 3/4" Carriage | x | x | x | x |
| 21 | 461073 | Electric Clutch (Ogura) | x | x | x | x | 71 | 04001-09 | Bolt, 5/16-18 x 1" Hex Head | x | x | x | x |
| 22 | 04041-07 | Washer, 3/8" (.391 x .938 x .105) | x | x | x | x | 72 | 421390 | Bracket, Capacitor | x | |||
| 23 | 48197 | Pulley, Transmission Input | x | x | x | x | 73 | 21013-2064 | Condenser (order from Kawasaki) | x | |||
| 24 | 04063-07 | Key, Woodruff #9 | x | x | x | x | 74 | 48029-06 | Battery Cable, 18" Red | x | |||
| 25 | 04050-09 | Retaining Ring, 5/8" Ext, Basic | x | x | x | x | 75 | 48029-11 | Battery Cable, 27" Black | x | |||
| 26 | 48203 | Belt, Transmission Drive | x | x | x | x | 75 | 48029-15 | Battery Cable, 36" Black | x | |||
| 27 | 481048 | Idler Pulley, Transmission | x | x | x | x | 75 | 48029-14 | Battery Cable, 31" Black | x | |||
| 28 | 48945 | Pulley, Traction Drive | x | x | x | x | 76 | 48029-02 | Battery Cable, 31.5" Red | x | x | x | |
| 29 | 04063-19 | Key, 1/4 x 1/4 x 3/4" | x | x | x | x | 77 | 48016 | Starter Solenoid | x | |||
| 30 | 04041-28 | Flat Washer, 7/16" Special | x | x | x | x | 78 | 04002-07 | Bolt, M8-1.25 x 1.0 | x | |||
| 31 | 04030-05 | Lock Washer,7/16" | x | x | x | x | 79 | 04021-08 | Nut, 1/4-20 Elastic Stop | x | x | x | x |
| 32A | 04001-101 | Bolt, 7/16-20 x2-1/2" Hex Head | x | 80 | 48126 | Rubber Boot | x | x | x | ||||
| 32B | 04001-102 | Bolt, 7/16-20 x 1-3/4" Hex Head | x | 81A | 43100 | Wheel Axle (SW 52,61,72) * | x | x | x | ||||
| 32C | 04002-15 | Cpsrw, M10-1.5 x55 Metric Hex Hd | x | x | 81B | 43085 | Wheel Axle (SW36,48) * | x | x | x | |||
| 33 | 04001-10 | Bolt, 5/16-18 x 1-1/4" Hex Head | x | x | x | x | 81C | 43104 | Wheel Axle (SW 32) * | x | |||
| 34 | 04030-04 | Lockwasher, Spring 3/8" | x | ||||||||||
| 35 | 04021-09 | Nut, 3/8-16 Elastic Stop | x | x | x | x | |||||||
| 36 | 04040-15 | Flat Washer, 5/16" | x | x | x | x | |||||||
| 37 | 04018-01 | Bolt, M8-1.25 x M25 Metric Hex Hd | x | x | |||||||||
| 38 | 48192 | Wheel Assembly (incl. 38A-38B) (fits SW36,48,52,61,72) | x | x | x | x | |||||||
| 38 | 48253 | Wheel Assembly (incl. 38C-38D) (SW32) | x | x | |||||||||
| 38A | 48192-02 | Tire, 13 x 6.50-6, 2-ply (fits SW36,48,52,61 & 72) | x | x | x | x | |||||||
HANDLE ASSEMBLY
HANDLE ASSEMBLY
| Ref. No. | Part No. | Description | 13KH13KA 16BV | Ref. No. | Part No. | Description | 13KH13KA 16BV | ||||||
| 14KH14KA 18BV 18BVE | 14KH14KA 18BV 18BVE | ||||||||||||
| 14KAE | 14KAE | ||||||||||||
| 1 | 46801 | Handle Assembly (Fits SW 36,48) | x | x | 54 | 04050-09 | Retaining Ring, 5/8 Ext. Basic | x | x | x | x | ||
| 1 | 46856 | Handle Assembly (Fits SW52,61,72) | x | x | x | x | 55 | 04017-06 | Capscrew, 1/4-20 x 1" Ser. Flange | x | x | x | x |
| 2 | 421360 | Belt Guard | x | x | x | x | 56 | 04003-01 | Bolt, 1/4-20 x 6" Carriage | x | |||
| 3 | 04017-27 | Capscrew, 3/8-16 x 1" Ser. Flange | x | x | x | x | 57 | 48030-09 | Clamp | x | x | x | x |
| 4 | 04041-07 | Washer, 3/8" (.391 x .938 x .105) | x | x | x | x | 58 | 04001-17 | Bolt, 5/16-18 x 2" Hex Head | x | x | x | x |
| 5 | 04021-09 | Nut, 3/8-16 Elastic Stop | x | x | x | x | 59 | 04019-02 | Nut, 1/4-20 Serrated Flange | x | x | x | x |
| 6 | 48755 | Spring, Idler | x | x | x | x | 60 | 04040-15 | Flatwasher, 5/16 (.375 x .875 x .083) | x | x | x | x |
| 7 | 04001-10 | Bolt, 5/16-18 x 1-1/4" Hex Head | x | x | x | x | 61 | 04021-02 | Nut, 1/4-20 Elastic Stop | x | x | x | x |
| 8 | 04021-10 | Nut, 5/16-18 Elastic Stop | x | x | x | x | 62 | 48179 | Fuel Hose (Kawasaki Only) | x | |||
| 9 | 04017-05 | Capscrew, 1/4-20 x 3/4" Hex Head | x | x | x | x | 63 | 48059-02 | Fuel Hose Clamp (Kaw. Only) | x | |||
| 10 | 44004 | Control Rod, Steering | x | x | x | x | 64 | 48057-02 | Fuel Filter (Kawasaki Only) | x | |||
| 11 | 04062-02 | Hair Pin, Small | x | x | x | x | 65 | 48058 | Fuel Hose, 1/4"ID, 10" (Kohler Only) x | ||||
| 12 | 04001-23 | Bolt, 3/8-16 x 4-1/2" Hex Head | x | x | x | x | 65A | 48058 | Fuel Hose, 1/4"ID, 20" (KAW & Briggs) | x | x | ||
| 13 | 43032 | Swivel Joint | x | x | x | x | 65B | 48058 | Fuel Hose, 1/4"ID, 23" (Kohler 18CVE) | x | |||
| 14 | 04062-01 | Hair Pin, Large .094 Diameter | x | x | x | x | 66 | 48059-01 | Clamp, Fuel Hose | x | x | x | x |
| 15 | 45847 | Idler Bracket, RH | x | x | x | x | 67 | 481072 | Choke Control | x | |||
| 15A | 45846 | Idler Bracket, LH | x | x | x | x | 67 | 48780 | Choke Control | x | |||
| 16 | 43092 | Idler Sleeve | x | x | x | x | 68 | 48159 | Grip, Handle | x | x | x | x |
| 17 | 04001-62 | Bolt, 3/8-16 x 3/4" Hex Head | x | x | x | x | 69 | 48308 | Valve, Fuel Shut Off | x | x | x | x |
| 18 | 04004-17 | Support Belt Guard | x | x | x | x | 70 | 46174 | Fuel Tank Assy. (Incl. Bush. & Valve)x | x | x | x | |
| 19 | 04019-04 | Nut, 3/8-16 Serrated Flange | x | x | x | x | 71 | 481603 | Fuel Tank Cap | x | x | x | x |
| 20 | 04019-03 | Nut, 5/16-18 Serrated Flange | x | x | x | x | 72 | 421239 | Strap, Fuel Tank | x | x | x | x |
| 21 | 04017-28 | Cpscrew, 3/16-18 x 1-1/4" Ser. Flng. | x | x | x | x | 73 | 04010-10 | Screw, 1/4-20 x 2" Round Hd Slotted x | x | x | x | |
| 22 | 43286 | Spacer | x | x | x | x | 74 | 422279 | Shift Lever | x | x | x | x |
| 23 | 48309 | Bushing | x | x | x | x | 75 | 421241 | Shift Lever Extention | x | x | x | x |
| 24 | 48292 | Rubber Pad, (Upper) | x | x | x | x | 76 | 48144 | Grip, Steering Lever | x | x | x | x |
| 25 | 46089 | Steering Lever | x | x | x | x | 77 | 04041-07 | Washer, 3/8 (.391x .938 x .105) | x | x | x | x |
| 26 | 04017-17 | Capscrew, 5/16-18 x 1" Ser. Flng. | x | x | x | x | 78 | 04020-14 | Nut, 3/8-24 UNF | x | x | x | x |
| 27 | 48312 | Bushing | x | x | x | x | 79 | 48028-05 | Cable Tie | x | x | x | x |
| 28 | 04040-15 | Washer, 5/16 (.375 x .875 x .083) | x | x | x | x | 80 | 04001-53 | Bolt, 5/16-18 x 2-1/2" | x | x | x | x |
| 29 | 48951 | Spring, Operator Presence | x | x | x | x | 81 | 481411 | Bushing, Bearing Retainer | x | x | x | x |
| 30 | 45573 | Operator Presence Lever, LH (Small Frame) | x | x | 82 | 481420 | Bearing | x | x | x | x | ||
| 83 | 04041-23 | Washer, #8-.170 x .375 x .032 | x | x | x | x | |||||||
| 30A | 45571 | Operator Presence Lever, LH (Large Frame) | x | x | x | x | |||||||
| 31 | 45572 | Operator Presence Lever, RH | x | x | x | x | |||||||
| 32 | 44005 | Brake Rod | x | x | x | x | A | 04017-27 | Capscrew, 3/8-16 x 1" Ser. Flng | x | x | x | x |
| 33 | 45092 | Brake Lever | x | x | x | x | B | 44098 | Rod, Traction Control | x | x | x | x |
| 34 | 45093 | Brake Link | x | x | x | x | C | 43032 | Swivel Joint | x | x | x | x |
| 35 | 42254 | Brake Link Plate | x | x | x | x | D | 04062-01 | Hair Pin, Large .094 Dia. | x | x | x | x |
| 36 | 04024-01 | Nut, 3/8 Push-on | x | x | x | x | E | 421372 | Mounting Brkt. LH Traction Cont. | x | x | x | x |
| 37 | 48114-05 | Greese Fitting, Straight 1/4-28 | x | x | x | x | EA | 421373 | Mounting Brkt. RH Traction Cont. | x | x | x | x |
| 38 | 04050-01 | Retaining Ring, 5/8 Ext. "E" | x | x | x | x | F | 04019-04 | Nut, 3/8-16 Serrated Flange | x | x | x | x |
| 39 | 48210 | Brake Band | x | x | x | x | G | 04017-16 | Capscrew, 5/16-18 x 3/4" Ser. Flg. | x | x | x | x |
| 40 | 04001-45 | Bolt, 3/8-16 x 2" Hex Head | x | x | x | x | H | 04019-03 | Nut, 5/16-18 Serrated Flange | x | x | x | x |
| 41 | 04031-08 | 1/4" Internal Tooth Lockwasher | x | x | x | x | I | 421428 | Traction Lever, LH | x | x | x | x |
| 42 | 04032-01 | Curved Spring Washer | x | x | x | x | IA | 421429 | Traction Lever, RH | x | x | x | x |
| 43 | 04015-13 | Socket Head Capscrew #8-32 x 1/2" | x | x | x | x | J | 45554 | Traction Lever Wldmnt. (Small Fm.) | x | |||
| 44 | 04020-02 | Nut, 1/4-20 Hex | x | x | x | x | JA | 45555 | Traction Lever Wldmnt. (Large Fm.) | x | x | x | x |
| 45 | 46942 | Neutral Latch, RH | x | x | x | x | |||||||
| 45A | 46941 | Neutral Latch, LH | x | x | x | x | |||||||
| 46 | 48205 | Rubber Pad (Lower) | x | x | x | x | |||||||
| 47 | 48202A | Belt, Wheel Drive | x | x | x | x | |||||||
| 48 | 48198 | Idler Pulley, Wheel Drive | x | x | x | x | |||||||
| 49 | 48199 | Pulley, Jackshaft (Inc. 50) | x | x | x | x | |||||||
| 50 | 04012-04 | Setscrew, Hex Socket Knurl Cup Pt. 5/16-18 (nylock) | x | x | x | x | |||||||
| 51 | 43098 | Spacer, Jackshaft Pulley | x | x | x | x | |||||||
| 52 | 48223 | Flange, Jackshaft Bearing | x | x | x | x | |||||||
| 53 | 48224 | Bearing, Jackshaft | x | x | x | x | |||||||
INSTRUMENT PANEL
SC413GB
| REF. NO. | PART NO. | DESCRIPTION | 13KH 13KA 16BV | |||
| 14KH 14KA 18BV | 18CVE | |||||
| 1 | 48717 | Switch, Neutral Interlock | x | x | x | x |
| 2A | 481071 | Throttle Control | x | x | ||
| 2B | 48946 | Throttle Control | x | x | ||
| 3 | 48787 | Engagement Switch, Electric Clutch (Inc. hardware) | x | x | x | x |
| 4A | 48609 | Key Switch (Includes hardware) | x | x | x | |
| 4B | 48798 | Key Switch (Includes hardware) | x | |||
| 5 | 48023 | Hour Meter (dealer installed) | x | x | x | x |
| 6 | * | Screw, #10-32 x .50 Phillips Washer Head | x | x | x | x |
| 7 | 04019-01 | Nut, #10-32 Serrated Flange Hex Head | x | x | x | x |
| 8 | 42413 | Bracket, Fuse Holder | x | x | x | |
| 9 | 48298 | Blade Fuse, 20A | x | x | x | |
| 10 | * | Screw, #10-32 x 1-1/2" | x | x | x | |
| 11 | 04021-01 | Nut, #10-32 Elastic Stop | x | x | x | |
| 12 | 48951 | Spring, Operator Presence | x | x | x | x |
| 13A | 481267 | Handle Wire Harness, Electric Start | x | x | ||
| 13B | 481266 | Handle Wire Harness, Manual Start | x | x | x | |
| NS | 48030-09 | Clamp, Wire Harness | x | x | x | x |
| 14 | 48788 | Relay (Electric Start Only) | x | |||
* Common hardware which should be purchased locally. All bolts grade 5 plated, all other fasteners zinc plated.
PEERLESS 700-070
FOR REFERENCE
ONLY
ORDER PARTS FROM
PEERLESS / TECUMSEH
| REF.PARTNO. NO. | DESCRIPTION | REF.PARTNO. NO. | DESCRIPTION | ||
| 1 | 772083A | Case, Transmisson | 50 | 778125 | Spur Rear (35 teeth) |
| 2 | 780086A | Needle Bearing Grease Spec | 51 | 778239A | Spur Gear (32 teeth-steel) |
| 2A | 780142 | Needle Bearing | 52 | 778124A | Spur Gear (30 teeth) |
| 3 | 770061A | Case, Transmission | 53 | 778123A | Spur Gear (25 teeth) |
| 8 | 792089A | Shift Key | 56 | 778145 | Spur Gear (12 teeth-steel) |
| 9 | 784266 | Shift Collar | 57 | 778151 | Spur Gear (15 teeth) |
| 10 | 784376 | Shift Rod & Fork | 58 | 778240 | Spur Gear (18 teeth-steel) |
| 11 | 778154 | Bevel Gear (42 teeth) | 59 | 778126A | Spur Gear (20 teeth) |
| 12 | 778176 | Bevel Pinion (14 teeth-steel) | 60 | 778127A | Spur Gear (25 teeth) |
| 20 | 792077 | Steel Ball, 5/16" dia. | 65 | 780139 | Washer |
| 21 | 792078 | Set Screw, 3/8-16 x 3/8" | 66 | 776135 | Input Shaft (3-11/16" long) |
| 22 | 792079 | Spring | 67 | 776402 | Shifter & Brake Shaft |
| 24 | 780071 | Thrust Bearing | 71 | 788069 | Square Cut Ring |
| 25 | 792073 | Screw, 1/4-20 x 1-1/4" (6) | 72 | 792074 | Threaded Plug (Shipping only, not used) |
| 27 | 792035 | Retaining Ring | 81 | 786081 | Roller Chain (No. 41 chain, 24 links) |
| 28 | 788040 | Retaining Ring | 82 | 786082 | Sprocket (9 teeth) |
| 29 | 780072 | Washer (6) | 83 | 786083 | Sprocket (18 teeth) |
| 30 | 780108 | Washer (5) | 90 | 788067B | Grease (32 oz. bottle Bentonite grease) |
| 32 | 792001 | "O" Ring | 150 | 510334 | Gasket Eliminator (Loctite #515) |
| 34 | 780105A | Flanged Bushing | 178 | 786176 | Coupling (Not used on Scag) |
| 49 | 778146A | Spur Gear (37 teeth) | 179 | 776401 | Connector Shaft (Not used on Scag) |
HANDLE WIRE HARNESS - ELECTRIC START
WIRE HARNESS WITH RELAY
PART NO. 481275
ENGINE DECK WIRE HARNESS -
KAWASAKI
PART NO. 481074
HANDLE WIRE HARNESS -
MANUAL START
PART NO. 481266
SC418GA
ENGINE DECK WIRE HARNESS - SW48-14KAE
PART NO. 481051
SC419G
ENGINE DECK WIRE HARNESS - 16HP-BV ELECTRIC START
PART NO. 481014
SC420G
ENGINE DECK
WIRE HARNESS -
KOHLER COMMAND
V-TWIN
PART NO. 481075
481121
481122
481270
481271
481483
DANGER
SPINNING BLADE
KEEP CLEAR
CONTACT CAN INJURE
48071
48071
48404
WARNING
INSTALL BELT COVER BEFORE OPERATING MACHINE
READ OPERATOR'S MANUAL
481039
481039
HEAVY DUTY COMMERCIAL
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS:
4,487,006
4,991,382
4,885,903
4,998,948
4,920,733
4,118,617
4,967,543
PATENTS PENDING
48072
WARNING
ROTATING BLADES AND BELTS
- KEEP HANDS, FEET & CLOTHING CLEAR
- KEEP ALL GUARDS IN PLACE
- SHUT OFF ENGINE & DISENGAGE BLADE CLUTCH BEFORE SERVICING
- CLEAR AREA OF DEBRIS BEFORE MOWING
- USE CAUTION IN DIRECTING DISCHARGE
- KEEP BYSTANDERS, CHILDREN & PETS AWAY
- READ INSTRUCTION MANUAL BEFORE OPERATING
DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING KIT, OR ENTIRE GRASS CATCHER INSTALLED 4810
481040
481040
48
32" - 48315
36" - 48316
48" - 48318
52" - 48319
61" - 48320
72" - 48327
WARNING
FALLING HAZARD USE ONLY SCAG APPROVED RIDING ATTACHMENTS SEE OPERATOR'S MANUAL 481109
481109
R N 1 2 3 4 5
48332
Any part of the Scag commercial mower manufactured by Scag Power Equipment and found, in the reasonable judgment of Scag, to be defective in materials or workmanship, will be repaired or replaced by an Authorized Scag Service Dealer without charge for parts and labor. This warranty is limited to the original purchaser and is not transferable. Proof of purchase will be required by the dealer to substantiate any warranty claims. All warranty work must be performed by an Authorized Scag Service Dealer.
This warranty is limited to the following specified periods from the date of the original retail purchase for defects in materials or workmanship:
* Wear items including drive belts, blades, hoses and tires are warranted for 90 days.
* Batteries are covered for 90 days.
* Frame, deck, and structural components including oil reservoir, fittings, and oil cooler are warranted for 1 year.
* Engines and electric starters are covered by the manufacturer's warranty period.
* Drive system components are warranted for 1 year by the component manufacturer, in conjunction with Scag Power Equipment. (Excluding fittings, hoses, cooling system, oil reservoir, drive belts).
* Electric clutches have a Limited Warranty for 2 year (Parts and labor 1st year; Parts only 2nd year).
* Cutter Spindle Assemblies 46631 have a Limited Warranty for three years (Parts and labor 1st year; Parts only 2nd and 3rd year).
Any Scag product used for rental purposes is covered by a 90 day warranty.
The Scag mower, including any defective part must be returned to an Authorized Scag Service Dealer within the warranty period. The expense of delivering the mower to the dealer for warranty work and the expense of returning it to the owner after repair will be paid for by the owner. Scag's responsibility is limited to making the required repairs and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Scag mower.
This warranty does not cover any mower that has been subject to misuse, neglect, negligence, or accident, or that has been operated in any way contrary to the operating instructions as specified in the Operator's Manual. The warranty does not apply to any damage to the mower that is the result of improper maintenance, or to any mower or parts that have not been assembled or installed as specified in the Operator's Manual and Assembly Manual. The warranty does not cover any mower that has been altered or modified, changing performance or durability. In addition, the warranty does not extend to repairs made necessary by normal wear, or by the use of parts or accessories which, in the reasonable judgment of Scag, are either incompatible with the Scag mower or adversely affect its operation, performance or durability.
Scag Power Equipment reserves the right to change or improve the design of any mower without assuming any obligation to modify any mower previously manufactured.
All other implied warranties are limited in duration to the one (1) year warranty period or ninety (90) days for mowers used for rental purpose. Accordingly, any such implied warranties including merchantability, fitness for a particular purpose, or otherwise, are disclaimed in their entirety after the expiration of the appropriate one year or ninety day warranty period. Scag's obligation under this warranty is strictly and exclusively limited to the repair or replacement of defective parts and Scag does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Scag assumes no responsibility for incidental, consequential or other damages including, but not limited to, expense for gasoline, expense of delivering the mower to an Authorized Scag Service Dealer and expense of returning it to the owner, mechanic's travel time, telephone or telegram charges, rental of a like product during the time warranty repairs are being performed, travel, loss or damage to personal property, loss of revenue, loss of use of the mower, loss of time or inconvenience. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
© 1997
SCAG POWER EQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC.
PART NO. 03043
PRINTED 9/97
PRINTED IN USA
- SCAG POWER EQUIPMENT®
- MODEL SW
- WARNING
- FAILURE TO FOLLOW SAFE OPERATING PRACTICES MAY RESULT IN SERIOUS INJURY
- REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR
- SCAG®
- POWER EQUIPMENT
- TABLE OF CONTENTS
- SUBJECT
- PAGE
- INTRODUCTION
- USE OF OTHER THAN ORIGINAL SCAG REPLACEMENT PARTS WILL VOID THE WARRANTY
- GENERAL SAFETY INSTRUCTIONS
- SIGNAL WORDS
- SIGNAL WORD
- DANGER
- CAUTION
- BEFORE OPERATING
- WHILE OPERATING
- MAINTENANCE AND STORAGE
- INITIAL RUN-IN PROCEDURES (FIRST DAY OF USE OR APPROXIMATELY 10 HOURS)
- MOWER OPERATION
- NOTE
- CUTTER DECK BELT ADJUSTMENTS
- TRANSMISSION DRIVE BELT
- DRIVE CONTROL ADJUSTMENTS
- CUTTER DECK ADJUSTMENTS
- BLADE HEIGHT ADJUSTMENT
- CUTTER BLADES
- LUBRICATION & MAINTENANCE
- BREAK-IN
- HOURS (DAILY)
- HRS OR ANNUALLY
- TECHNICAL SPECIFICATIONS
- MODELS
- ENGINE
- ENGINE DECK
- DRIVE SYSTEM
- TECHNICAL SPECIFICATIONS (CON'T)
- CUTTER DECK
- ADDITIONAL SPECIFICATIONS
- OPTIONAL ITEMS/ATTACHMENTS
- APPROXIMATE DIMENSIONS
- PEERLESS
- FOR REFERENCE
- ONLY
- ORDER PARTS FROM
- PEERLESS / TECUMSEH
- ROTATING BLADES AND BELTS
Brand : Scag
Model : SW 03043
Category : Lawn mower
