USER MANUAL PJD5112 VIEWSONIC

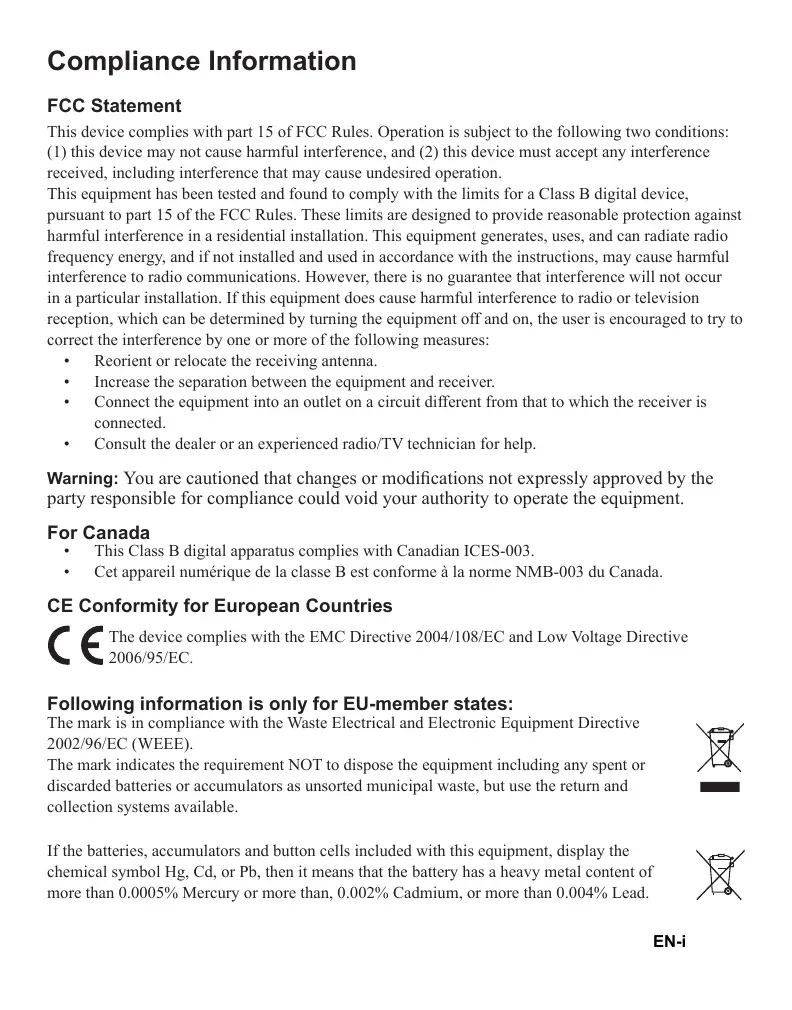

Compliance Information FCC Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmfül interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oceur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the equipment. For Canada + This Class B digital apparatus complies with Canadian ICES-003. + Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. CE Conformity for European Countries C € The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. Following information is only for EU-member states: The mark is in compliance with the Waste Electrical and Electronic Equipment Directive

2002/96/EC (WEEE). D

The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries or accumulators as unsorted municipal waste, but use the return and D | collection systems available. chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of If the batteries, accumulators and button cells included with this equipment, display the more than 0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead. K

Important Safety Instructions DELBELRE Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this unit near water. Clean with a soft, dry cloth. Do not block any ventilation openings. Install the unit in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. À polarized plug has two blades with one wider than the other. À grounding type plug has two blades and a third grounding prong, The wide blade and the third prong are provided or your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched particularly at plugs. Convenience receptacles and the point where they exit from the unit. Be sure that the power outlet is located near the unit so that it is easily accessible. Only use attachments/accessories specified by the manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the © manufacturer, or sold with the unit. When a cart is used, use caution when moving the cart/unit combination to avoid injury from tipping over. Unplug this unit when unused for long periods of time. Refër all servicing to qualified service personnel. Servicing is required when the unit has been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not operate normally or has been dropped. ENi

Declaration of RoHS Compliance This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below: Substance Proposed Maximum Actual Concentration Concentration Lead (Pb) 0.1% <0.1% Mercury (Hg) 0.1% <0.1% Cadmium (Cd) 0.01% <0.01% Hexavalent Chromium (Cr6*) 0.1% <0.1% Polybrominated biphenyls (PBB) 0.1% <0.1% Polybrominated diphenyl ethers (PBDE) 0.1% <0.1% Certain components of products as stated above are exempted under the Annex of the RoHS Directives as noted below: Examples of exempted components are:

1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not

specifically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic

parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead)

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up

10 04% lead by weight and as a cooper alloy containing up to 4% lead by weight

Copyright Information Copyright? ViewSonic® Corporation, 2010. AI rights reserved. Macintosh and Power Macintosh are registered trademarks of Apple Inc. Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation. VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice. No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation. Product Registration To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the Internet at: www.viewsonic.com. The ViewSonic® Wizard DVD- ROM also provides an opportunity for you to print the registration form, which you may mail or fax to ViewSonic. For Your Records Product Name: PJD5112 ViewSonic DLP Projector Model Number: VS12618 Document Number: PJD5112_UG_ENG Rev. 1C 04-19-10 Serial Number: Purchase Date: The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws. EN-2

Notes on the AC Power Cord AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. Ifthe supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations. Ground Ground For Australia and For the U.S.A, and Canada Mainland China Ground Sri For Continental Europe For the UK EN-3

CONTENTS Introduction Projector Features . Package Contents Projector Overview Using the Product Control Panel ……. Connection Ports Remote Control Replacing the Battery … Remote Control Operation … Installation Connecting the Projector … Powering On/Off the Projector Adjusting the Projector … Menu Operation Maintenance Cleaning the Lens … Cleaning the Projector Housing . Replacing the Lamp . Specifications Appendix LED Indicator Messages Compatibility Modes Troubleshooting RS-232 Command and Configuration . IR Control Code …. EN4

Introduction Projector Features The projector integrates high-performance optical engine projection and a user - friendly design to deliver high reliability and ease of use. The projector offers the following features: M Single chip 1.397cm / 0.55" Texas Instruments DLP® technology M SVGA (800 x 600 pixels) M Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression compatibility for VGA, SVGA, XGA and SXGA Compatibility with Macintosh® computers Compatibility with NTSC, PAL, SECAM and HDTV D-Sub 15-pin terminal for analog video connectivity User-friendly, multi-language on-screen display Advanced electronic keystone correction RS-232 connector for serial control M he reproduction, transfer or copy of all or any part of this document is not (or) M The information in this manual is subject to change without notices. permited without express written consent. EN-5

Package Contents When you unpack the projector, make sure you have all these components: AC Power Cord ViewSonic CD Wizard Quick Start Guide VGA Cable (D-SUB to D-SUB) Optional accessories RS232 cable RGB to component adapter PIN: J2552-0208-00 PIN: J2552-0212-00 the unit does not work. M Save the original shipping carton and Packing material: they will come-in handy if you ever to ship your unit. for maximum protection, repack your unit as it was. originally packed at the factory. er) M Contact you dealer immediately if any items are missing, appear damaged, or if EN-6

Projector Overview Front View

Speaker Focus ring Zoom ring Control panel Lamp cover EN-7

Rear View Connection ports AC power socket Kensington lock Rear IR remote control sensor Ventilation holes (exhaust) Security bar 200c0œe Bottom View © Ceiling mount (M46) @ Titt-adjustment feet M This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package. M Contact your dealer for information to mount the projector on a ceiling. EN-8

Using the Product Control Panel LED © «) Power (Power LED indicator) Réfer to "LED Indicator Messages”. @ TEMP (Temperature LED indicator) Refer to "LED Indicator Messages”. © LAMP (Lamp LED indicator) Refer to "LED Indicator Messages”. Button Function © w/mKkeystone Manually correct distorted images resulting from an angled projection © Four directional buttons Use four directional buttons to select items or make adjustments to your selection. ENTER Enter to sub-menu and confirm the menu selection. SOURCE Manually select an input source. MENU/EXIT Display or exit the on-screen display menus. o Power Tu the projector on or of.

Connection Ports usB This connector is for firmware update and mouse function support. VIDEO Connect composite video output from video equipment to this jack. S-VIDEO Connect S-Video output from video equipment to this jack. MONITOR OUT Connect to a computer display, etc. COMPUTER IN 1 Connect image input signal (analog RGB or component) to this jack. RS-232 When operating the projector via a computer, connect this to the controlling computers RS-232C port. @ COMPUTER IN 2 Connect image input signal (analog RGB or component) to this jack @ 12VOUT 12V DC out AUDIO IN Connect an audio output from video equipment to this jack. AUDIO OUT Connect to a speaker or other audio input equipment. © © © © © © EN-10

Remote Control POWER Turn the projector on or of. Four directional buttons Use four directional buttons to select items or make adjustments to your selection. MENU Display or exit the on-screen display menus.

Enter Confirmed selections. Exit Exit OSD Menu. Keystone+ / - Adjust image distortion caused by tilting the projector. Magnify Zoom in and out the images. Source Manually select an input source. Auto Resynchronize the projector to_the input signal from a computer. This function is available for computer mode only. Mouse Switch between OSD control and Mouse control (Apply to Navigation buttons, Enter/Mouse Left Click, and Exit/Mouse Right Click buttons). ViewM Switch in between high brightness performance or Accuracy color performance.

ViewSonic Freeze Press “Freeze” lo pause the screen image. Press again to cancel the freeze function. Mute Cut off the sound temporarily. Press again to cancel the Mute function. Blank Cut off the screen temporarily. Press again to cancel the Blank Screen function. Volume + / - Adjust the volume level. EN-11

Replacing the Battery For the first time use: Remove the transparent insulation tape by pulling it before use. For battery change:

1. Push the catch to the left and remove the battery

2. Remove the old Lithium coin cell and install new one

(CR2025). Ensure that the side with the mark “+” is up.

3. Push the battery holder back into the remote control

until you feel a click. Caution M Risk of explosion if battery is replaced by an incorrect type. M Dispose of used batteries according to the instructions. M Make sure the plus and minus terminals are correctly aligned when loading a battery.

Keep the battery out of the reach of children. Do not recharge the battery or expose the battery to fire or water. Do not dispose the used battery along with household waste. Dispose 1 batteries according to local regulations. Danger of explosion may happen if batteries are incorrect} replaced. Replace only with the same type recommended by the manufacturer. Battery should not be in or near to fire or water, keep batteries in a dark and dry place. I suspect battery leakage, wipe out the leakage and then replace a new bat the leakage adheres to your body or clothes, rinse well with water immediat EN-12

Remote Control Operation Point the remote control at the infrared remote sensor and press a button. M Operating the projector from the front M Operating the projector from the rear M The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. M Operate the remote control from a position where the remote sensor is visible. M Do not drop the remote control or jo it. M Keep the remote control out of locations with excessively high temperature or humidity. M Do not get water on the remote control or place wet objects on it. M Do not disassemble the remote control. EN-13

Installation Connecting the Projector © USB Cable © VGA (D-Sub) to HDTV (RCA) Cable @ VGA Cable (D-Sub to D-Sub) © Composite Video Cable © RS-232 Cable @ S-Video Cable @ Audio Cable En:

When connecting cable, power cords of both projector and extemal equipment should be disconnected from AC outlet. M The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously. The cables that come with the projector may difer from the above illustration. The included cables are based on actual shipment delivery. EN-14

Powering On/Off the Projector Powering On the Projector:

1. Remove the projector lens cap.

2. Complete the AC power cord and peripheral signal cable(s) connections.

3 Press () button to turn on the projector. The projector takes a minute or so to warm up.

4. Tum on your source (computer, notebook, DVD, etc.). The projector automatically

detects your source. M if you are connecting multiple sources to the projector simultaneously, press the SOURCE button on the control panel or the Source button on the remote control. Warning M Remove the lens cap first before powering on. 1 Never look into the lens when the lamp is on. This can damage your eyes. M This focal point concentrates high temperature. Do not place any object near itto avoid possible fire hazard. Powering Off the Projector:

1. Press (button to turn off the projector lamp. You will see a message "Power

off? Press Power again" appear on the screen.

2. Press (3 button again to confirm.

M The cooling fans continue to operate for cooling cycle. M When the Lamp LED begins fiashing, the projector has entered stand-by mode. M if you want to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered stand-by mode. Once in stand- by mode, simply press (button to restart the projector.

3. Disconnect the AC power cord from the electrical outlet and the projector.

4. Do nottum on the projector right after power off.

Adjusting the Projector Adjusting the Projector Height The projector is equipped with an elevator foot to adjust the image height. To raise or lower the image:

1. To raise or lower the image, press the elevator button and raise or lower the front

of the projector. Release the button to lock the adjustment.

2. Tolevel the image on the screen, turn the tit-adjustment foot to fine-tune the

height. adjustment foot are full retracted before placing the projector in its carrying case. (or) M 7 avoid damaging the projector, make sure that the elevator foot and tit- Adjusting the Projector Zoom and Focus Zoom ring Focus ring

1. Focus the image by rotating the focus ring. À still image is recommended for focusing.

2. Adjust the image by sliding the zoom ring.

Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. S0ûm / 200" Vide: 20m /7a7- Taie: 24m/945 473 Screen Screen size Wide Taie Diagonal Projection distance Projection distance m ne m on EU 51 157 œ

Position the projector in a horizontal position: other positions can cause heat build-up and damage to the projector. Keep a space of 30 cm or more between the sides of the projector. Do not use the projector in a smoky environment. Smoke residue may build- up on critical parts and damage the projector or is performance. Consul with your dealer for special installation such as suspending from a ceiling, EN-17

Menu Operation The projector has mulilingual on-screen display menus that allow you to make image adjustments and change a variety of settings

1 Adjustable range and default setting vary depending on signal type. 2 This function is only available when the projector is installed an optional filter cover. EN-19

2. When OSD is displayed, use 4 / w to select any feature in the main menu

3. After selecting the desired main menu item, press » to enter sub-menu for

feature setting. Use 4 / v to select the desired item and adjust the settings with 4/». Press the MENU button, the screen will return to the main menu To exit OSD, Press the MENU button again. The OSD menu will close and the projector will automatically save the new settings. ous Picture (Computer / Video Mode) Brightness Brighten or darken the image. Contrast Set the difference between light and dark areas. Color Setting Adjust the color temperature. At higher temperature the screen looks colder. at lower temperature, the screen looks warmer. If you select “User”, then you can change the intensity of each of 3 color (Red, Green, Blue) to customize user color temperature. User Color User Color provides six sets (R&BCMY) of colors to be adjusted. When you select each color, you can independentiy adjust its range and saturation according to your preference. Keystone Manually correct distorted images resulting from an angled projection Aspect Ratio Select how the picture fits on the screen: M 43 : The input source will be scaled to fit the projection screen M 169: The input source will be scaled to fitthe width of the screen. Image There are many factory presets optimized for various types of images. m PC For computer or notebook. = Movie For home theater. nm sRGB For PC standard color. m User Memorize user's settings. M White Board: For white projection screen type. M BilackBoard: For black projection screen type. M Green Board: For green projection screen type. M Dayight Mode: For a daylight environment. White Intensity Increase the brightness of white areas. EN-20

Gamma Effect the represent of dark scenery. With greater gamma value, dark scenery will look brighter. 3D Sync M Off: Disable 3D function M 30-Vision: For NVIDIA 3D Vision application M DLP-LINK: For TI 3D DLP-LINK application 3D Sync Invert (for TI 3D DLP-LINK only) M On: invert left and right frame contents. M Off: Default frame contents. Computer Image (Computer Mode) Frequency Adjust the timing of the projector relative to the computer. Tracking Adjust the phase of the projector relative to the computer. H Position (Horizontal Position) Adjust the image left or right within the projection area V Position (Vertical Position) Adjust the image up or down within the projection area. Video Image (Video Mode) Saturation Adjust a video image from black and white to fully saturated color. Sharpness Sharpen or soften the image. Tint Shift colors toward red or green. Sound (Computer / Video Mode) Volume Adjust the volume level. Mute Cut off the sound temporarily. Setting (Computer / Video Mode) Menu Position Choose the menu location on the display screen. Projection Adjust the picture to match the orientation of the projector: upright or upside-down, in front of or behind the screen. Invert or reverse the image accordingly. EN-21

Signal Type Specify the source to the COMPUTER IN 1/COMPUTER IN 2 terminal that you wish to project M Auto: Automatically detect the input signal type from COMPUTER IN 1 and COMPUTER IN 2 terminals. M RGB : For VGA signal M YCbCr/YPbPr:For component signal Lamp Hours Display the lamp's elapsed operating time (in hours). Lamp Hours Reset Reset the lamp Hour to 0 hours. Filter Mode Use this function to activate filter mode after the projector is installed an optional filter cover. Filter Hours Display the filter's elapsed operating time (in hours) M When Filter Mode is tuned on, the Filter Hours also tums on automatically. Filter Hours Reset Reset the filter Hour to O hours. Power Saving If no operation is performed for a specific period of time, projector will automatically turn off. Auto Source Automatically scan through all the input source. ECO Mode Use this function to dim the projector lamp light output which will lower power consumption and increase lamp life. M This function will be unavailable when the DCR function is on. High Altitude Use this function to allow the fans operates at full speed continuousiy to achieve proper high altitude cooling of the projector. OSD Timeout Duration of OSD menu display countly starts (at idle state by second). Option (Computer / Video Mode) Blank Screen Blank the screen temporarily, and select the screen color when this function is active. Password EN-22

Set or change the password. When the password function is added, image projection will require to input the preset password when turning on the projector. Screen Capture Capture the current projection screen as a start-up screen. Start-up Screen Select start-up screen when the projector is powered on or when no signal is input. “User is the screen that you captured. Zoom Zoom in and out the images. DCR (Dynamic Contrast Ratio) Enable DCR will further enhance contrast ratio by darkening the black scenes. Disable DCR will resume to normal contrast performance. DCR will impact lamp life and system noise performance. Closed Caption Enable or Disable closed captions by selecting CC1 (closed captiont, the most common channel), CC2, CC3, C4, T1, T2 or OFF. Brilliant Color” Produce an expanded on-screen color spectrum that delivers enhanced color saturation for bright, true-to-life images. Suggesting to tu Of for most video sources and On for most computer sources. Green Mode Enable this function when power consumption is under 1W. Language (Computer / Video Mode) Select the language used by the on-screen menu. Factory Default (Computer / Video Mode) Restore settings to factory default System Info (Computer / Video Mode) Source Display the current input source. Resolution Display current input source resolution. H. Frequency Display current image horizontal frequency.

Display current image vertical frequency. EN-23

Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. Warning Never open any of the covers on the projector. Dangerous electrical voltages inside the projector can cause severe injury. Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Cleaning the Lens Gentiy wipe the lens with lens cleaning paper. Do not touch the lens with your hands. Cleaning the Projector Housing Gentiy wipe with a soft cloth. f dirt and stains are not easily removed, use a soft cloth damped with water, or water and neutral detergent, and wipe dry with a soft, dry cloth.

M Tum off the projector and remove the AC power cord from the power outlet before beginning maintenance work. Make sure the lens is cool before cleaning. Do not use detergents or chemicals other than those noted above. Do not use benzene or thinners. Do not use chemical sprays. Use a soft cloth or lens paper only. EN-24

Replacing the Lamp As the projector operates over time, the brighiness of the projector lamp gradually decreases and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a warning message is displayed. Do not attempt to replace the lamp yourself. Contact the qualified service personnel for replacement M he lamp is extremely hot right after tuning off the projector. If you touch the lamp, you may scald your finger. When you replace the lamp, wait for at least 45 minutes for the lamp to cool down. M Do not touch the lamp glass at any time. The lamp may explode due to improper handling, including the touching of the lamp glass. M Lamp lfetime may differ from lamp to lamp and according to the environment ofuse. There is no guarantec of the same lfetime fr each lemp. Some lamps may fail or terminate their lfetime in a shorter period of time than other similar lamps. A lamp may explode as a result of vibration, shock or degradation as a result of hours of use as its lifetime draws to an end. Risk of explosion may differ according to the environment or conditions in which the projector and lamp are being used. Wear protective gloves and eyeglasses when fixing or detaching the lamp. Faster on-off-cycles will damage the lamp and reduce lamp life. Wait at least for 5 minutes to turn off the projector after powering on. Do not operate the lamp in proximity to paper, cloth, or other combustible material nor cover it with such materials. Do not operate the lamp in an atmosphere containing an inflammable substance, such as thinner. Thoroughly ventilate the area or the room when operating the lamp in an oxygen atmosphere (in the air. ozone is inhaled, it could cause headaches, nausea, dizziness, and other symptoms. The inorganic mercury is involved in the lamp. the lamp bursts, the mercury inside the lamp will be exposed. Leave the area immediately i the lamp shatters while being operated and ventilate the area for at least 30 minutes in order to avoid te inhalation of mercury fumes. Otheruise could be harmul to users heal EN-25

Turn off the projector. the projector is installed in a ceiling mount, remove it Unplug the power cord Loosen the screw in the side of the lamp cover and remove the cover. Remove the screws from the lamp module, raise the handle, and lift out the module.

6. Insert the new lamp module into the projector and tighten the screws.

7... Replace the lamp cover and tighten the screw. Turn on the projector. Ifthe lamp does not turn on after the warm-up period, try reinstalling the lamp.

9. Reset the lamp hour. Refer to the “Setting' menu.

nseN2 Dispose the used lamp according to local regulations. Ensure that screws are tightened propeniy. Screws not tightened fully may result in injury or accidents. Since the lamp is made of glass, do not drop the unit and do not scratch the glass. Do not reuse the old lamp. This could cause the lamp to explode. Be sure to tu offthe projector and unplug the AC power cord before replacing the lamp. Do not use the projector with the lamp cover removed.

SECAM, HDTV (480p, 576p, 720p, 1080i/p), Composite video Scanning frequency Horizontal frequency [31-80 KHz Vertical frequency 50-120 Hz Environment Operating: Temperature: 0°C to 40°C Humidity: 30%-85% Storage Temperature: -20°C to 60°C Humidity: 30%-85% Power requirement AC 100-240 V, 50 - 60 Hz, 2.5A Power consumption Z40W Dimension (W x D x H)_|279.5mm x 218mm x 105mm / 11.0" x 8.6 x 4.17 Weight 2-7 kg (6lb) Note: Design and Specifications are subject to change wilhout prior notice: EN-27

Appendix LED Indicator Messages TED Type Toïor Sins Many Power LED Blue Soïd Tanp LED _ _ The roectoris in standby Temp LED Of OF Power LED EE EL Camp LED OF Qu Powering up Temp LED OF OF Power LED EE So Camp LED OF OF Normal operation Temp LED OF OF Power LED Be Fan Camp LED OF Qu Power-doun Temp LED Of Qu Power LED Be SON Eu bageSS) | The projector system has some Camp LED Red Soïd problems with is fans, s0 the np TED Ru FR projector cannot art up. Power LED Be SO ETES | he lamp is in good condiion Camp LED OF Qu and is projecting at maximum Temp LED Of Qi brighiness. Power LED EE So ŒuTBrgniness) | The lamp has reached Ts end D LED SF Er of life and must be changed Soon. The lamp wil continue to Temp LED OF Soïa operate until fals . Change {he lamp. Ithe lamp is of, then ihe ballast wi become malfunction. Power LED EE FiasR fFuT The projector ts ShuMg and brghiness) {he fan motor is cooling the TPE = Se lamp for shutdown. Do not unplug the power cord or tum Temp LED Red Sora {ne pouer of before 1he Lamp LED changes lo fashing. The fan motor wi turn of when the lamp has cooled Power LED Be Soie Œulbriginess) || Temperaiure is lo Ngh. The Lamp LED Ra Fr Lamp wil ur Of. The fan motor is cooling the lamp. Temp LED Red Qu Power LED OF OF The Temp Ignion Pau 1 Tan LED Red So femperature is 1o0 high, the fans al cool he lamp Temp LED Red Soïd EN-28

Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your local reseller or service center. Please refer to "LED Indicator Messages" as well. Start-up problems I no lights turn on: M Be sure that the power cord is securely connected to the projector and the other end is plugged into an outiet with power. M Press the power button again. M Unplug the power cord and wait for a short while, then plug it in and press the power button again. Image problems Ifthe searching source is displayed M Press the SOURCE button on the control panel or the Source button on the remote control one or more times to select another active input source. M Be sure the external source is tumed on and connected. M For a computer connection, ensure your notebook computer's extemal video port is tumed on. Refer to the computer manual. If the image is out of focus: M Be sure the lens coveris removed. M While displaying the on-screen menu, adjust the focus ring. (The image size should not change: if it does, you are adjusting the zoom, not the focus.) M Check the projection lens to see if it needs cleaning, Ifthe image is flickering or unstable for a computer connection: M Press the Auto button on the remote control M Press the MENU button, go to Computer Image and adjust Frequency or Tracking. Remote control problems If the remote control does not operate: M Be sure nothing is blocking the remote control receiver on the front of the projector. Use the remote control within the effective range. M Aimthe remote control at the screen or at the front or back of the projector. M Move the remote control so it is more directiy in front of or behind the projector and not as far to the side. EN-31

Limited Warranty VIEWSONIC ® PROJECTOR What the warranty covers: ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. Limited Three (3) year General Warranty Subject to the more limited one (1) year warranty set out below, North and South America: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and one (1) year for the original lamp from the date of the first consumer purchase; Europe except Poland: Three (3) years warranty for all parts excluding the lamp, three (3) years for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Poland: Tivo (2) years warranty for all parts excluding the lamp, two (2) years for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Limited One (1) year Heavy Usage Warranty: Under heavy usage settings, where a projector”s use includes more than fourteen (14) hours average daily usage, North and South America: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase; Europe: One (1) year warranty for all parts excluding the lamp, one (1) year for labor, and ninety (90) days for the original lamp from the date of the first consumer purchase. Other regions or countries: Please check with your local dealer or local ViewSonic office for the warranty information. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturer"s installed lamp only. All accessory lamps purchased separately are warranted for 90 days. Who the warranty protects: This warranty is valid only for the first consumer purchaser. What the warranty does not cover:

1. Any product on which the serial number has been defaced, modified or removed.

2. Damage, deterioration, failure, or malfunction resulting from:

a. Accident, abuse, misuse, neglect, fire, water, lighning, or other acts of nature, improper maintenance, unauthorized product modification, or failure to follow instructions supplied with the product. Operation outside of product specifications. Operation of the product for other than the normal intended use or not under normal conditions. Repair or attempted repair by anyone not authorized by ViewSonic. Any damage of the product due to shipment. Removal or installation of the product. Causes external to the product, such as electric power fluctuations or failure. grsess

h.. Use of supplies or parts not meeting ViewSonic’s specifications.

i. Normal wear and tear.

À. Any other cause which does not relate to a product defect.

3. Removal, installation, and set-up service charges.

1. For information about receiving service under warranty, contact ViewSonic Customer Support

(please refer to “Customer Support” page). You will need to provide your products serial number.

2. To obtain warranted service, you wi be required to provide (a) the original dated sales slip, (b) your name,

(©) your address, (d) a description of the problem, and (e) the serial number of the product

3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service

center or ViewSonic.

4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.

Limitation of implied warranties: There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose. Exclusion of damages: ViewSonic’ liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1... Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility. of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

Effect of state law: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limitations on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you. Sales outside the U.S.A. and Canada: For warranty information and service on ViewSonic products sold outside of the U.S.A. and Canada, contact ViewSonic or your local ViewSonic dealer. The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card. For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope. com under Support/Warranty Information. 4.3: Projector Warranty PRJ_LWO1 Rev. 1h 06-25-07

Mexico Limited Warranty VIEWSONIC PROJECTOR What the warranty cover: ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & accessories. How long the warranty is effective: 3 years for all parts excluding the lamp, 3 years for labor, 1 year for the original lamp from the date of the first consumer purchase. Lamp warranty subject to terms and conditions, verification and approval. Applies to manufacturers installed lamp only. All accessory lamps purchased separately are warranted for 90 days. Who the warranty protects: This warranty is valid only for the first consumer purchaser. What the warranty does not cover: ‘Any product on which the serial number has been defaced, modified or removed. ; Damage, deterioration or malfunction resulting from Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product Any damage of the product due to shipment Causes external to the product, such as electrical power fluctuations or failure. Use of supplies or parts not meeting ViewSonic” specifications. Normal wear and tear. Any other cause which does not relate to a product defect

3. Any product exhibiting a condition commonly known as “image burn-in” which results when a static image is

displayed on the produet for an extended period of time.

4. Removal, installation, insurance, and set-up service charges.

reers How to get service: For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support page). You will need to provide your products serial number, so please record the product information in the space provided below on your purchase for your future use. Please retain our receipt of proof of purchase to support your warranty claim. For Your Records Model Number: Serial Number: Extended Warranty Purchase? CN) If 50, what date does warranty expire?

1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c)

your address, (d) a description of the problem, and (e) the serial number of the product

2. Take or ship the product in the original container packaging to an authorized ViewSonic service center.

3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.

Limitation of implied warranties: There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose. Exclusion of damages: ViewSonic’ liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:

1. Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of

the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.

2. Any other damages, whether incidental, consequential or otherwise.

3. Any claim against the customer by any other party.

4. Repair or attempted repair by anyone not authorized by ViewSonic.
