MAX 126 - Bass amplifier PEAVEY - Free user manual and instructions

USER MANUAL MAX 126 PEAVEY

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

C E

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. Only use attachments/accessories provided by the manufacturer.

2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

3. Unplug this apparatus during lightning storms or when unused for long periods of time.
4. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
5. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
6. If this product is to be mounted in an equipment rack, rear support should be provided.
7. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
1 1/2	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

Thank you for selecting the Peavey MAX 126 bass guitar amplifier. The MAX 126 offers great sound in a compact package. Its design makes it a perfect practice amplifier or for small jam sessions. The built-in tape/CD jack and headphone input will allow you to jam along with your favorite tunes without bummin' out your family or neighbors, too!

Before you begin to play through your amplifier, it is very important to ensure the product has the proper AC line voltage supplied. You can find the proper voltage for your amp printed next to the AC line (power) cord on the rear panel of the unit. Each product feature is numbered. Refer to the front panel diagram in this manual to locate the particular features next to their number.

Please read this guide carefully to ensure your personal safety as well as the safety of your amplifier.

FEATURES:

Built-in headphone connection
- Vintage control with patented Peavey TransTube® circuitry (for vintage tube bass amp sound) and on/off switch
- Gain control
- Tape/CD input connection
High and low equalization
- 6.5" speaker

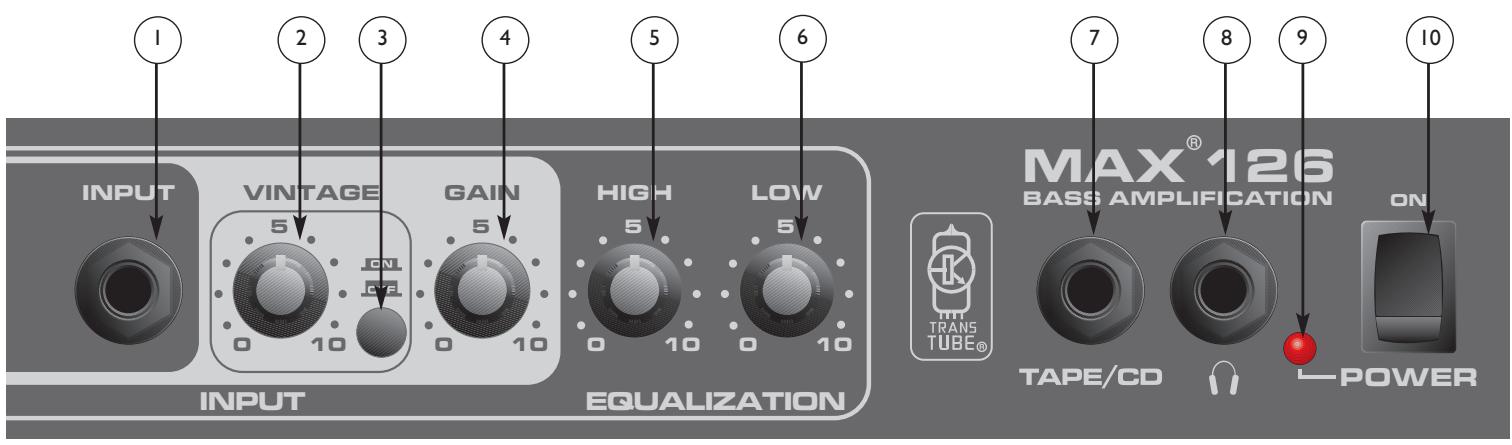

(1) Input Jack

Plug your bass into this 1 / 4'' jack. Connect your bass prior to turning on the power switch.

(2) Vintage

This control introduces patented Peavey TransTube® circuitry, with an EQ curve that simulates the sound of a vintage tube bass amp. Increase the amount of "tube" distortion/compression by turning the knob clockwise.

(3) Vintage On/Off

This push button switch allows you to turn the Vintage control on and off.

(4) Gain

This control sets the overall volume level of the MAX 126.

(5) High EQ

This control allows you to dial in high frequencies or "treble" sounds for your bass.

(6) Low EQ

This control adds bottom end to your sound. Use this control for low sounds or to add more "oomph" to your bass.

(7) Tape/CD Input

This standard 1/4" input jack allows you to connect a tape or CD player to your MAX 126 and play along.

(8) Headphone Input

This standard 1 / 4'' input jack allows you to connect standard headphones to the MAX® 126. Turn the Vintage and Gain controls all the way down before using headphones. Slowly turn up the volume and find a comfortable listening level. Remember, starting out on the bass with hearing damage would not be much fun! When headphones are connected to the MAX 126, the speaker is automatically turned off.

(9) Power LED

This LED illuminates when power is supplied to the MAX126.

(10) Power Switch

This two-way rocker switch applies power to the unit when placed in the ON position.

SPECIFICATIONS

POWER AMPLIFIER

Rated Power:

10 Watts RMS/8 Ohms,

nominal @ 1 kHz, 120 VAC line

Power Consumption: (Domestic)

26 Watts, 60 Hz, 120 VAC

(Export)

26 Watts, 50/60 Hz, 230-240 VAC

PREAMP

The following specs are measured at 1 kHz with all controls preset at 5.

Clean Channel:

Nominal Input Level: -20 dBV, 100mV RMS

Maximum Input Level: -10 dBV, 300mV RMS

Vintage Channel:

Nominal Input Level: -18 dBV, 125 mV RMS

Maximum Input Level: -10 dBV, 300 mV RMS

Tape/CD Input:

Impedance: High Z, 22 k Ohms Nominal Input Level: -6 dBV, 500 mV RMS

Headphone Output:

Nominal Output Level: 100 mV into 8 Ohms

(Disconnects internal speaker when used)

System Hum & Noise @

Nominal Input Level:

(Clean channel, 20 Hz to 20 kHz unweighted)

Greater than 70 dB below rated power

10 Watts RMS/8 Ohms, nominal @ 1 kHz, 120 VAC line

Consommation:

(Etats-Unis)

26 Watts, 60 Hz, 120 VAC

(Autre)

26 Watts, 50/60 Hz, 230-240 VAC

PREAMPLI

(Canal Clair, 20 Hz to 20 kHz unweighted)

Dimensions (H x L x P):

11.00" x 11.20" x 6.75"

(280 mm x 283 mm x 170 mm)

Poids:

11 lbs. (5 kg)

ESPAÑOL

MAX®126

26 vati0s, 60 Hz, 120 VAC

(Export)

26 varios, 50/60 Hz, 230-240 VAC

PREVIO

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years * (+ 3 years)
Drums	2 years * (+ 1 year)
Enclosures	3 years * (+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year * (+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(a) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR
(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEHTHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian, MS 39301

[phone] • FAX [phone] • www.peavey.com

EX00001
