Product Type	Pull-cord emergency stop switch
Brand	OMRON
Model	ER5018
Mounting dimensions	Mounting width: 40 mm
Weight	675 g
Housing material	Die-cast aluminum alloy
Eye nut material	Stainless steel
Color	Yellow
Protection rating	IP67 (NEMA 6)
Operating temperature	-25 to 80 °C
Switching capacity (AC)	120 V-6 A, 240 V-3 A, inductive
Switching capacity (DC)	24 V-2.5 A, inductive
Minimum current	5 V, 5 mA DC
Contact configuration	2 NC + 1 NO or 3 NC
Maximum cable reach	40 m
Actuation force	< 125 N
Tension force in run position	130 N typical
Mechanical life	1,000,000 operations minimum
Electrical life	1,000,000 operations minimum
Cable entries	3 x M20
Cleaning	Water washdown
Included accessories	Blue reset button; optional red emergency stop button
Spare parts available	Cable kits, pulleys, springs, etc.
Repairability	Do not repair, replace if necessary

Frequently Asked Questions - ER5018 OMRON

How to install the ER5018 switch?

Installation must be carried out by qualified personnel. Secure the device with M5 screws (tightening torque 4 Nm). Tension the rope to the middle position indicated by the red arrows in the viewing window. Use rope supports every 2.5 to 3 m.

What is the function of the blue reset button?

The blue reset button allows the switch to be returned to the run position after a trip. It must be manually pressed to allow the machine to restart.

How to test the proper operation of the system?

Actuate the rope at different points in the protected area. Check that the switch opens and the machine stops. Press the blue button to reset. Repeat the test to ensure reliable operation.

What is the maximum rope reach?

The maximum rope reach is 40 meters. For longer distances, install a second switch at the end.

What are the normal operating conditions?

Pulling force less than 75 N and rope deflection less than 150 mm between eye supports. Tension must be adjusted to maintain these values.

Is the switch resistant to water washdown?

Yes, the IP67 (NEMA 6) rating allows cleaning with water jets. Ensure that the cable glands are properly tightened (torque 1.5 Nm) to maintain the seal.

What safety contacts are available?

The safety contacts are normally closed (NC) with the rope properly tensioned. Two possible configurations: 2 NC + 1 NO or 3 NC.

Can an additional emergency stop button be added?

Yes, the switch can be equipped with a red emergency button (optional) mountable in two positions. It is also available as an accessory (SM06-ES60).

What accessories are available for the ER5018?

Rope kits (RK5, RK10, RK20, RK50), rope only, pulley, tensioner, spring, thimble, etc. Refer to the accessory table in the manual.

How to maintain the switch?

Check operation and rope tension weekly. Every 6 months, cut power, remove the cover, check the tightness of terminals and absence of moisture. Never attempt to repair the device.

USER MANUAL ER5018 OMRON

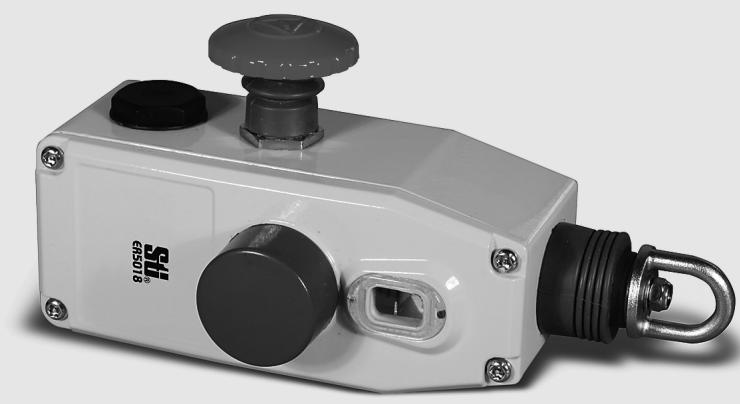

Compact Rope Pull Emergency Stop Switch

ER5018

• Compact size allows this switch to be used on smaller machines with a mounting width of 40mm and covering rope spans up to 40m
• Tension indicator—the tension indicator makes the system easy to set up and to maintain the proper rope tension
• Contact arrangements of 2 ~N / C + 1 ~N / O or 3 ~N / C
• IP67 (NEMA 6) enclosure enables the ER5018 switch to withstand water washdown cleaning
• Heavy-duty housing—the die-cast housing and stainless steel eye nut makes the ER5018 suitable for demanding industrial applications
• Integral E-Stop—the optional E-stop provides emergency stopping at the extreme end of the installation
• Reset button—the blue reset button must be pushed in order to return to "machine run" condition following switch actuation by a pulled or slacked rope
• Long life—the ER5018 switch is designed for a minimum of one million actuations
• Vibration tolerant—the snap-acting switch contacts protect against nuisance tripping due to vibration

C∈cULUS LISTED

Operation

Blue Reset Button

A blue reset button is provided to easily return the unit back to its machine-run position after actuation.

Emergency Push Button

The emergency push button may be installed or repositioned in the field. The ER5018 has two possible mounting positions for the emergency stop button.

Installation Hardware Available

RK Rope Tension Kit

The RK Rope Tension Kit comes with all of the required hardware for most installations. A spring is required as shown in the installation example below.

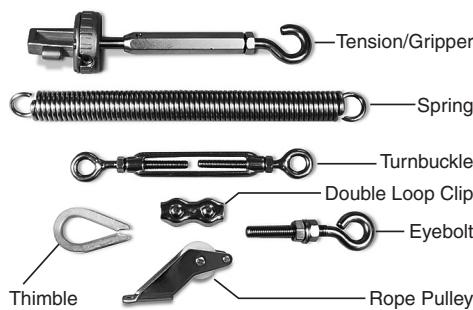

Installation Hardware

Individual hardware items may be purchased for specific installation requirements.

0 mm	3.5 mm	14.5 mm	17.0 mm
2NC + 1NO Versions	Rope Slack	Tension Range	Rope Pulled
11/12
21/22
33/34
3NC Versions	Rope Slack	Tension Range	Rope Pulled
11/12
21/22
31/32

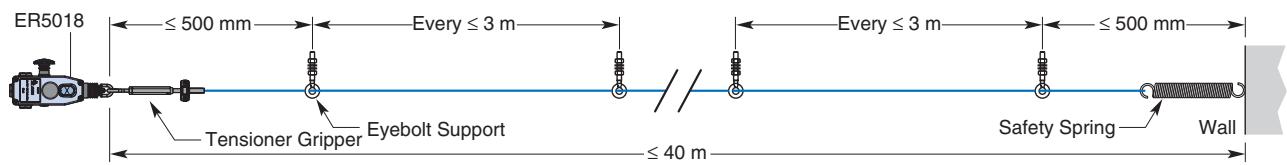

Mounting Specification

Note: Some installations may require a ER5018 on each end.

Applications

Typical applications are on conveyor systems and across rotating machinery, and around hazardous areas.

Ordering information

Compact Rope Pull Emergency Stop Switch

E-Stop	Contacts	Wiring Entry	Model
Not included	2 N/C + 1 N/O	3 x M20	ER5018-021M
Not included	3 N/C	3 x M20	ER5018-030M
Included	2 N/C + 1 N/O	3 x M20	ER5018-021ME
Included	3 N/C	3 x M20	ER5018-030ME

Accessories

Item	Model
Replacement Lid	SM06-SL400
Rope Kit, 5 m, Stainless Steel	RK5
Rope Kit, 10 m, Stainless Steel	RK10
Rope Kit, 20 m, Stainless Steel	RK20
Rope Kit, 50 m, Stainless Steel	RK50
Rope Only, 5 m	R5M
Rope Only, 10 m	R10M
Rope Only, 20 m	R20M
Rope Only, 50 m	R50M
Rope Only, 100 m	R100M
Rope Only, 126 m	R126M
Tensioner Gripper, Stainless Steel	SM06-TG00
Eye Bolt Stainless Steel, 8 per pack	SM06-EB10
Double Loop Clip, Stainless Steel, 4 per pack	SM06-DL20
Thimble Stainless Steel, 4 per pack	SM06-THSS
Turnbuckle, Stainless Steel	SM06-TB30
Spring, Stainless Steel	SM06-SP50
Rope Pulley, Stainless Steel	SM06-RPSS
E-Stop Mechanism	SM06-ES60

Specifications

Electrical	Contact Configurations	2 N/C + 1 N/O, 3 N/C
	Safety Contacts	2 N/C, 3 N/C
	Switching Ability	AC: 120 V-6 A, 240 V-3 A, Inductive DC: 24 V-2.5 A, Inductive
	Auxiliary Contacts	1 N/O
	Max Switching Current/Volt/Amp	240 V/720 VA
	Minimum Current	5 V, 5 mA DC
	Electrical Life	1,000,000 minimum
Mechanical	Mounting	Any position
	Mounting Hardware	2 x M5 screws
	Actuator Travel for Positive Opening	See diagrams on previous page
	Max Rope Span	40 m
	Operation Force	< 125 N
	Tensioning Force to Run Position	130 N typical
	Case Material	Die-cast aluminum alloy
	Eye Nut Material	Stainless steel
	Wiring Entry	3 x M20
	Weight	675 g
	Color	Yellow
	Mechanical Life	1,000,000 minimum
Environmental	Protection	IP67 (NEMA 6)
	Operating Temperature	-25 to 80°C
	Cleaning	Water washdown
Compliance	Standards	IEC947-5-1, IEC947-5-5, EN418, UL508, BS5304
	Approvals/Listings	CE marked for all applicable directives, UL and C-UL

Note: The safety contacts of the Omron STI switches are described as normally closed (N/C)—i.e., with the rope properly tensioned and the machine able to be started.

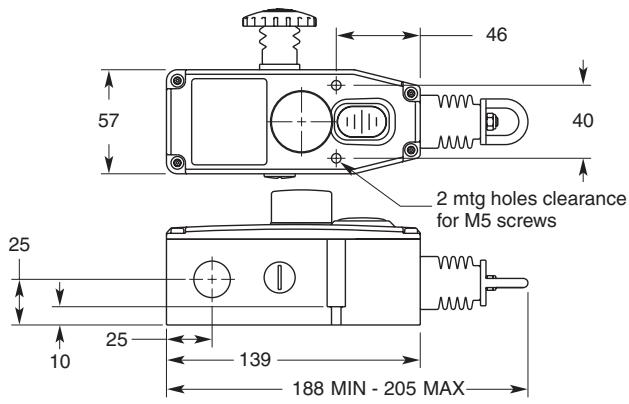

Dimensions

Operating instructions

Installation must be in accordance with the following steps and stated specifications and should be carried out by suitably competent personnel. Adherence to the recommended maintenance instructions forms part of the warranty.

WARNING

Do not defeat, tamper, remove or bypass this unit. Severe injury to personnel could result.

Optional 24 VDC Indicator Beacon

When +24VDC is applied to the red wire, the beacon will illuminate red and flash.

When +24 VDC is applied to the green wire, the beacon will illuminate green.

Optional 120 VAC Indicator Beacon

When +120VAC is applied to the red wire, the beacon will illuminate red and flash.

When +120 VAC is applied to the green wire, the beacon will illuminate green.

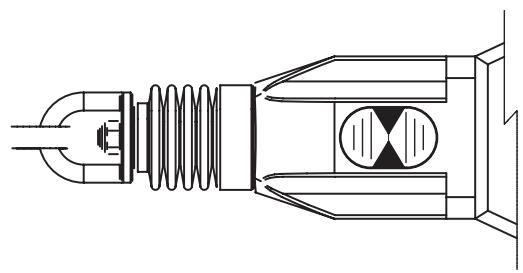

Tension Indicator

Indicator shown with steel rope properly adjusted.

WARNING

1. Installation of all Safety Rope Switch systems must be in accordance with a risk assessment for the individual application. Installation must only be carried out by competent personnel and in accordance with these instructions.
2. Rope support eyebolts must be fitted at 2.5m min. to 3m max. intervals along all rope lengths between switches. The rope must be supported no more than 500mm from the switch eyebolt or Safety Spring (if used). It is important that this first 500mm is not used as part of the active protection coverage.
3. M5 mounting bolts must be used to fix the switches. Tightening torque for mounting bolts to ensure reliable fixing is 4Nm . Tightening torque for the lid screws, conduit entry plugs and cable glands must be 1.5Nm to ensure IP seal. Only use correct sizing glands for conduit entry and cable outside diameter.
4. Tensioning of rope is achieved by use of tensioner / gripper assemblies. Upon installation, tension to mid-position as indicated by the red arrows in the viewing window of each switch. Check operation for all switches and the control circuits by pulsing the rope at various locations along the active protection area and resetting each switch by depressing the Blue Reset button. Ensure each time that the switches latch off and require manual resetting by depressing the Blue Reset button. Increase the system tension further, if required, depending upon the checks along the active length of coverage. If fitted with a Mushroom type E-Stop button (Red) then test and reset each switch to ensure function of control circuits. Typical operational conditions for successful operation of system is less than 75 N. pulling force and less than 150mm deflection of rope between eyebolt supports. If the optional LED is fitted but is not used, ensure that the conductors remain coiled and tied to the tie hole in the LED flange.
5. Every week: Check correct operation of system at locations along all coverage length. Check for nominal tension setting, re-tension rope if necessary. Every 6 months: Isolate power and remove cover. Check screw terminal tightness and check for signs of moisture ingress. Never attempt to repair any switch.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
