CX-ONE V4 - PLC Programming Software OMRON - Free user manual and instructions

Product type	Programming software for PLCs
Version	CX-ONE V4
Brand	OMRON
Available languages	French, English, German, Spanish, Italian, etc.
Main functions	Programming (LD, ST, SFC), network configuration, HMI visualization, integrated simulation, online editing, backup and restore
Supported PLCs	Omron CJ1, CJ2, CP1, CS1, etc.
Available packages	CX-One FULL (full range), CX-One LITE (Lean solutions)
License types	Single-user, 3, 10, 30, 50 users, site license
Distribution media	CD, DVD, download (license only)
Advanced features	Smart Input Ladder, Structures and arrays, Timer/Counter types, Ethernet/IP configuration, Cross Reference Popup
Programming standards	IEC 61131-3 (ST, SFC)
Required operating system	Windows 7, 8, 10 (64-bit)
Update	12 months of free updates via online registration

Frequently Asked Questions - CX-ONE V4 OMRON

What is CX-ONE V4?

CX-ONE V4 is a programming software for OMRON PLCs. It allows you to program, configure, visualize and simulate all the brand's PLCs in a single environment. It is available in two versions: FULL and LITE.

Which OMRON PLCs are supported by CX-ONE V4?

CX-ONE V4 supports compact PLCs (CP1, CP1L), CJ1, CJ2, CS1 series, as well as PLCs from the Lean and Stream range. It covers the entire scalable automation range of Omron.

Is CX-ONE V4 compatible with Windows 10?

Yes, CX-ONE V4 is compatible with Windows 7, 8 and 10 in 64-bit version. It is recommended to have at least 4 GB of RAM and 10 GB of disk space.

How to install CX-ONE V4?

Installation is done from a CD, DVD or a downloaded file. Run the installation program and follow the on-screen instructions. A license is required to activate the software after installation.

What are the new features of version V4 compared to V3?

New features include Smart Input Ladder (intuitive programming with symbol suggestions), management of structures and arrays to facilitate code reuse, extended Timer/Counter data types, Cross Reference Popup and a simplified Ethernet/IP configuration wizard.

Can I simulate my program without a physical PLC?

Yes, CX-ONE V4 includes an integrated simulation function. A simple click allows you to simulate the PLC and the HMI to test system interactions without the need for real equipment.

How to get a license for CX-ONE V4?

Licenses are available in several configurations: single-user, 3, 10, 30, 50 users or site license. They can be purchased standalone (code CXONE-ALxx-EV_) or with physical media (CD or DVD).

What is Smart Input Ladder?

Smart Input Ladder is a programming function that guides the user during input by automatically proposing symbols and completing lines. It reduces errors and speeds up programming, with block copy-paste features that automatically increment addresses.

How to update CX-ONE V4?

When registering online, you receive 12 months of free updates. The built-in update manager informs you of available new versions and allows simplified installation.

What is the difference between CX-One FULL and CX-One LITE?

CX-One FULL supports the entire scalable automation range of Omron, including high-end PLCs like CJ2. CX-One LITE is designed for Lean solutions and mainly supports compact PLCs. The price and scope of licenses differ.

USER MANUAL CX-ONE V4 OMRON

OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands. Tel: [phone] Fax: [phone] www.industrial.omron.eu

Austria

Tel: [phone]

www.industrial.omron.at

Belgium

Tel: [phone]

www.industrial.omron.be

Czech Republic

Tel: [phone]

www.industrial.omron.cz

Denmark

Tel: [phone]

www.industrial.omron.dk

Finland

Tel: [phone]

www.industrial.omron.fi

France

Tel: [phone]

www.industrial.omron.fr

Germany

Tel: [phone]

www.industrial.omron.de

Hungary

Tel: [phone]

www.industrial.omron.hu

Italy

Tel: [phone]

www.industrial.omron.it

Netherlands

Tel: [phone]

www.industrial.omron.nl

Norway

Tel: [phone]

www.industrial.omron.no

Poland

Tel: [phone]

www.industrial.omron.pl

Portugal

Tel: [phone]

www.industrial.omron.pt

Russia

Tel: [phone]

www.industrial.omron.ru

South Africa

Tel: [phone]

www.industrial.omron.co.za

Spain

Tel: [phone]

More Omron representatives

www.industrial.omron.eu

Automation Systems

• Programmable logic controllers (PLC) - Human machine interfaces (HMI) - Remote I/O
• Industrial PC's - Software

Motion & Drives

• Motion controllers - Servo systems - Inverters

Control Components

• Temperature controllers • Power supplies • Timers • Counters • Programmable relays
• Digital panel indicators - Electromechanical relays - Monitoring products - Solid-state relays
• Limit switches - Pushbutton switches - Low voltage switch gear

Sensing & Safety

• Photoelectric sensors • Inductive sensors • Capacitive & pressure sensors
• Cable connectors · Displacement & width-measuring sensors · Vision systems
• Safety networks - Safety sensors - Safety units/relay units - Safety door/guard lock switches

CX-ONE V4

One software is all you need

CX-One

» Control, visualise, position, detect and regulate

» One Programming tool

» A common automation environment

One software is all you need…

Omron is able to supply different scalable solutions for the variety of needs in the market today. Depending on the level of complexity of the application, we offer an increasing level of sophistication. Lean, Steam & XStream.

CX-One supports the entire range of scalable automation - it's the only software you need for your solution:

Configuration

From drive configuration and network set-up to regulation and sensing. CX-One includes all the software you need whatever device you have.

Programming

Whether you are programming a compact PLC or a top of the range CJ2, it's the same programming tool! Know one; know them all with our one software solution

Visualise

Visualise and interact with your machine in a minute with a range of easy to use runtime solutions from panel HMI to IPC.

Enhanced features that make your life even easier

We continually improve CX-One by adding new features that reduce your development time, reduce programming mistakes and make it quiker to find and solve problems. Our new features make it easier to reuse your code again and again. Its this simple strategy to accelerate, simplify and reuse that has directed the new features in CX-One v4.

New features

• Smart Input Ladder Programming
• Structures & Arrays
• TIMER & COUNTER Data Types
  Cross Reference Popup
• Simple EthernetIP Symbol Setting

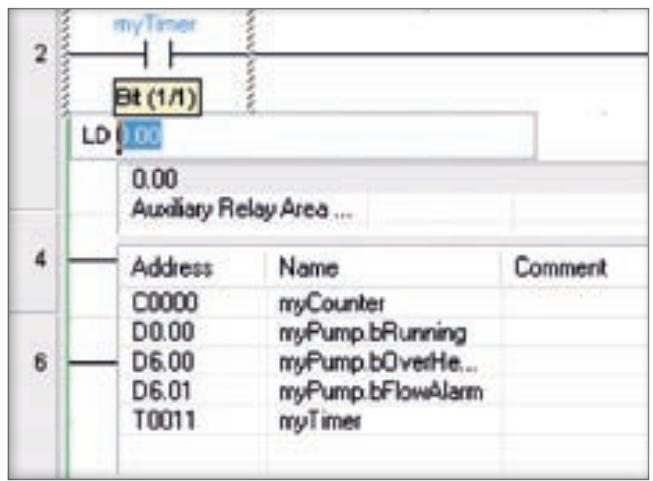

Ladder smart input

Allows intuitive fast programming with fewer key presses (and mistakes), as you are guided through symbol selection, etc. Block copy and paste will automatically increment addresses and rung lines are automatically completed.

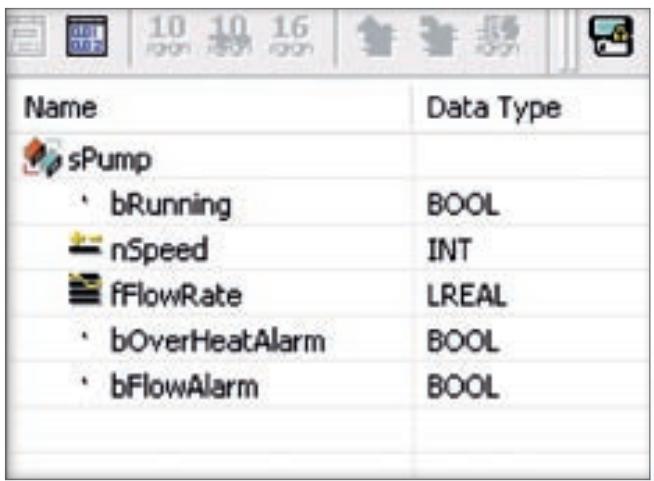

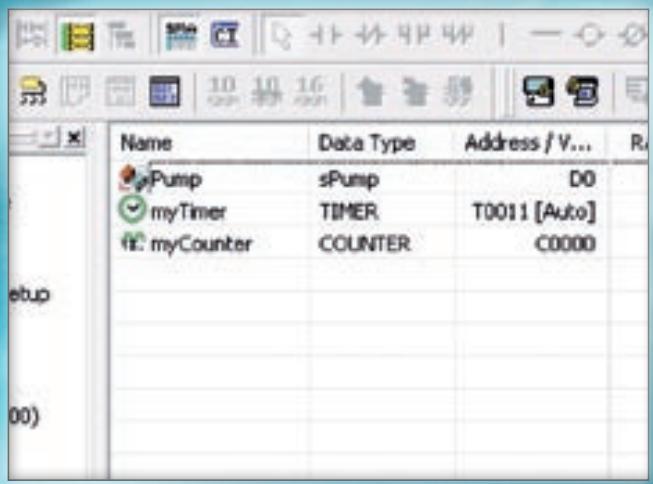

Structures and arrays

Enables reuse without hours of readdressing and makes handling data blocks of various data types so easy. Arrays and nested structures enable very complex data to be modelled easily and passed throughout your program.

Timer & counter

With CJ1 and CJ2 PLCs, these additional data types greatly simplify the use of timers in a ladder. Auto allocation enables you to define a timer symbol and never worry about where it is stored! Simply refer to the symbol name everywhere.

Save even more time

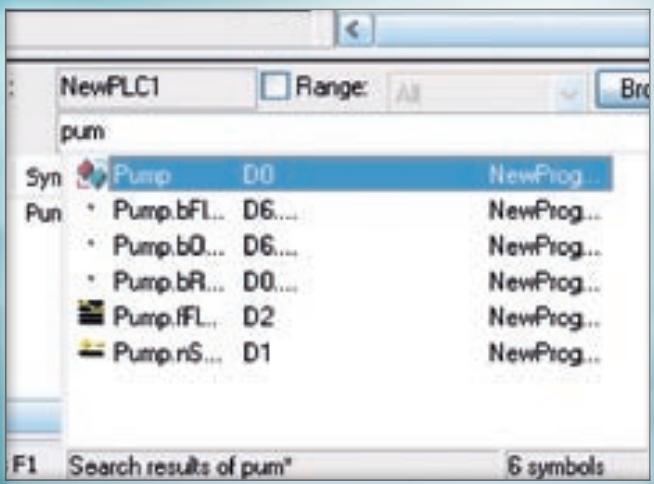

The address reference tool enables you to search with wildcards (* or ?) to find the symbol you want to check. With CJ2 PLC, the EM Area can now be address as symbols (including force set/reset) thus avoiding limitation of small W area. An EthernetIP setup wizard that makes it quick and easy to setup network symbols.
