IP35 - Motherboard ABIT - Free user manual and instructions

USER MANUAL IP35 ABIT

This user's manual contains all the information you may need for setting up this motherboard. To read the user's manual of PDF format (readable by Adobe Reader), place the "Driver & Utility CD" into the CD-ROM drive in your system. The auto-run screen will appear, click the "Manual" tab to enter its submenu. If not, browse the root directory of the CD-ROM via the File Manager, and double click the "AUTORUN" file.

Intel P35 / ICH9R (IP35)
Intel P35 / ICH9 (IP35-E)
FSB 1333 MHz
Dual Channel DDR2 800
Gigabit LAN
SATA 3Gb/s with RAID (IP35)
USB2.0/IEEE1394(IP35)
7.1-Channel HD Audio
abit SoftMenu™ Tech.
abit Silent OTES™ Tech. (IP35)
Vista Premium HW Ready

IP35/IP35-E

User's Manual

English + Multilingual QIG

P/N: 4310-0000-92

Rev. 2.00, May 2007

Copyright and Warranty Notice

The information in this document is subject to change without notice and does not represent a commitment on part of the vendor, who assumes no liability or responsibility for any errors that may appear in this manual.

No warranty or representation, either expressed or implied, is made with respect to the quality, accuracy or fitness for any particular part of this document. In no event shall the manufacturer be liable for direct, indirect, special, incidental or consequential damages arising from any defect or error in this manual or product.

Product names appearing in this manual are for identification purpose only and trademarks and product names or brand names appearing in this document are the property of their respective owners.

This document contains materials protected under International Copyright Laws. All rights reserved. No part of this manual may be reproduced, transmitted or transcribed without the expressed written permission of the manufacturer and authors of this manual.

If you do not properly set the motherboard settings, causing the motherboard to malfunction or fail, we cannot guarantee any responsibility.

The Following Information is Only for EU-member States:

Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE): The use of the symbol indicates that this product may not be treated as household waste. By Ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be cause by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. Hardware Setup 1-1

1.1 Specifications 1-1
1.2 Motherboard Layout 1-2

1.2.1 IP35 1-2
1.2.2 IP35-E 1-3

1.3 Choosing a Computer Chassis 1-4
1.4 Installing Motherboard 1-4
1.5 Checking Jumper Settings 1-5

1.5.1 CMOS Memory Clearing Header and Backup Battery 1-5

1.6 Connecting Chassis Components 1-7

1.6.1ATXPower Connectors. 1-7
1.6.2 Front Panel Switches & Indicators Headers 1-8
1.6.3 FAN Power Connectors 1-8

1.7 Installing Hardware 1-9

1.7.1 CPU Socket 775 1-9
1.7.2 DDR2 Memory Slots 1-11

1.8 Connecting Peripheral Devices 1-12

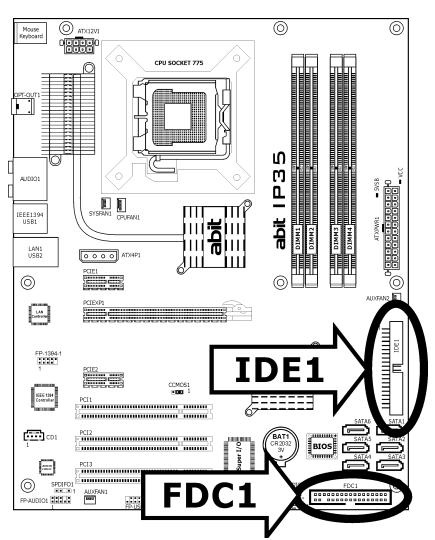

1.8.1 Floppy and IDE Disk Drive Connectors 1-12

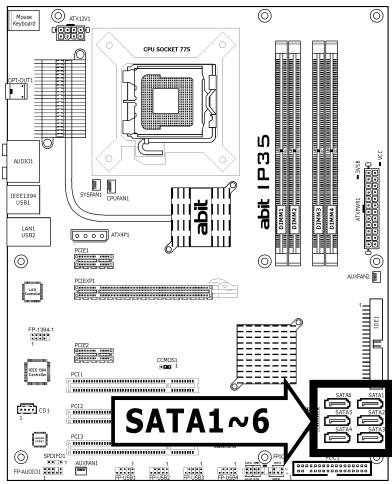

1.8.2 Serial ATA Connectors 1-13

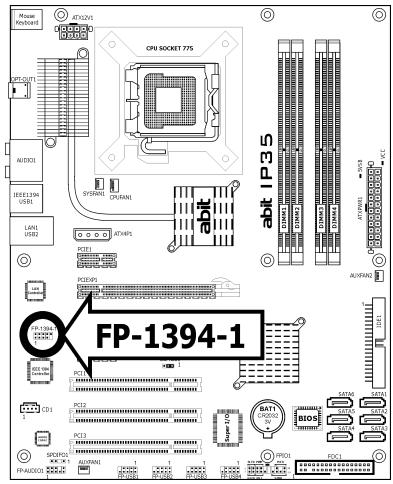

1.8.3 Additional USB 2.0 Port Headers.. 1-14
1.8.4 Additional IEEE 1394 Port Header.. 1-14

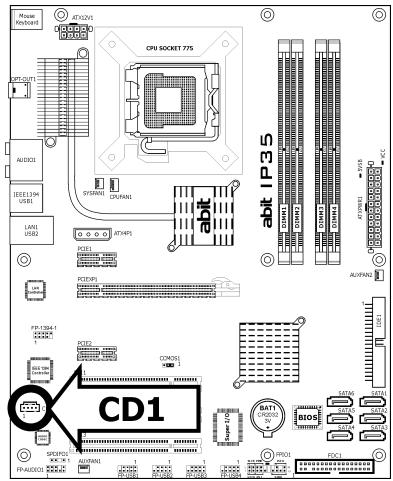

1.8.5 Internal Audio Connectors 1-15
1.8.6 Front Panel Audio Connection Header 1-15
1.8.7 S/PDIF Output Connection Header 1-17

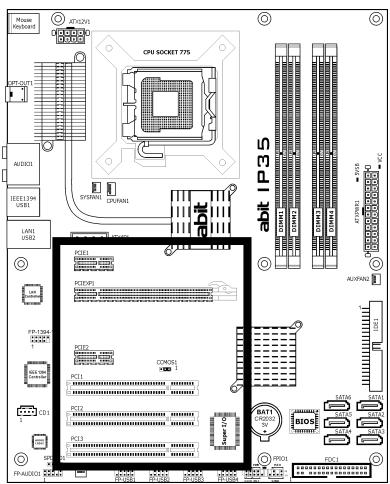

1.8.8 PCI and PCI Express X16, X1 Slots 1-17

1.9 Onboard Indicators 1-18

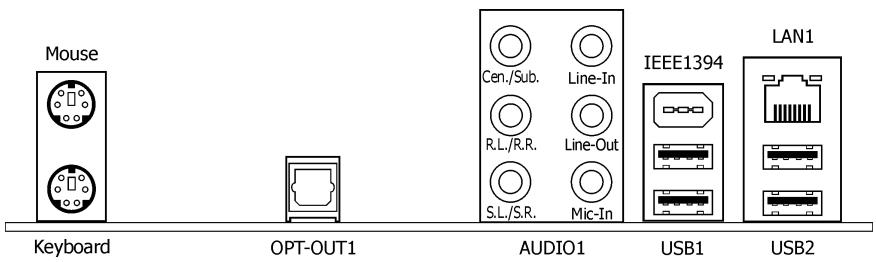

1.10 Connecting Rear Panel I/O Devices 1-19

2. BIOS Setup 2-1

2.1 SoftMenu Setup 2-2
2.2 Standard CMOS Features 2-4
2.3 Advanced BIOS Features 2-6
2.4 Advanced Chipset Features 2-9
2.5 Integrated Peripherals 2-11
2.6 Power Management Setup 2-15
2.7 PnP/PCI Configurations 2-17
2.8 PC Health Status 2-18
2.9 Load Fail-Safe Defaults.. 2-20
2.10 Load Optimized Defaults 2-20
2.11 Set Password 2-20
2.12 Save & Exit Setup 2-20
2.13 Exit Without Saving 2-20

3. Driver & Utility 3-1

3.1 CD-ROM AUTORUN 3-1
3.2 Intel Chipset Software Installation Utility 3-2
3.3 Intel Matrix Storage Manager 3-2
3.4 Audio Driver 3-3
3.5 LAN Driver 3-4
3.6 USB 2.0 Driver 3-4

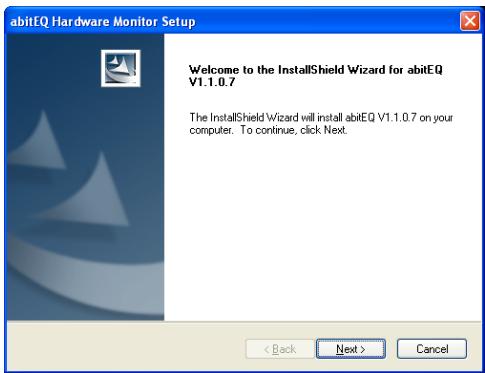

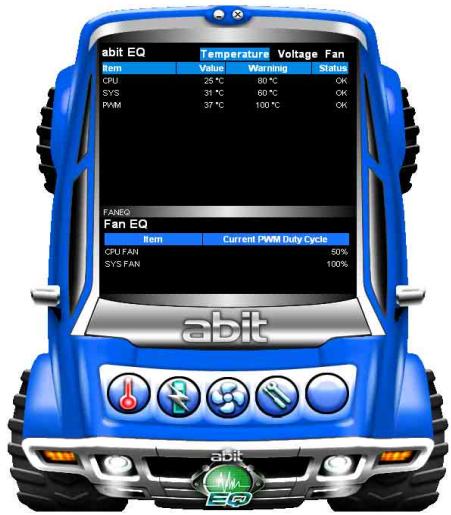

3.7 abitEQ 3-5

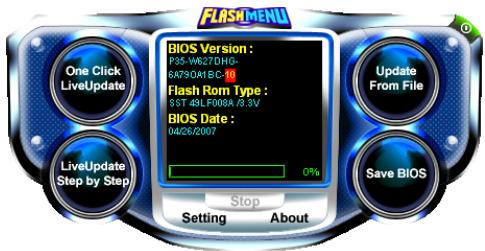

3.8 FlashMenu (BIOS Update Utility) 3-6
3.9 SATA RAID Driver (for Windows Vista) 3-7
3.10 SATA RAID Driver (for Windows XP, 2003, or 2000) 3-7

4. Multilingual Quick Installation Guide 4-1

4.1 Français//Guide d'Installation Rapide 4-1
4.2 Deutsch//Kurze Installationsanleitung 4-2
4.3 Italiano//Guida all'installazione rapida 4-3
4.4 Espanol//Guía rápida de instalación 4-4
4.5 Portugues//Guia de instalação rápida 4-5
4.6 Pycckn//KpaTkoe pykoBOcTBo no yCTaHOBKe 4-6
4.7 Eesti//Kiirpaigaldusjuhend 4-7
4.8 Latviski//Atras instalëšanas instrukcija 4-8
4.9 Lietuviu//Trumpas instaliavimo vadovas 4-9
4.10 Polski//Instrukcja szybkiej instalacji 4-10
4.11 Magyar//Gyorstelepitési utmutató 4-11
4.12 Türkç//Hizl Kurulum Kilavuzu 4-12
4.13 UJgOJUe//UJUJUJUe/.. 4-13
4.14 /Jrws// Jouolss u w sE 4-14
4.15 日本語//ケイックインスートルガイド 4-15
4.16 韩国..//..
4.17 Bahasa Malaysia//Panduan Pemasangan Ringkas 4-17
4.18//
4.19 繁體中交 4-19

5.1 Troubleshooting (How to Get Technical Support?) 5-1
5.1.1 Q & A 5-1
5.1.2 Technical Support Form.. 5-4
5.1.3 Contact Information 5-5

1. Hardware Setup

1.1 Specifications

CPU

• LGA775 socket for Intel processor of: Core 2 Extreme Edition / Core 2 Quad / Core 2 Duo, & Pentium Extreme Edition / Pentium Dual Core / Pentium D / Pentium 4.
  Supports FSB 1333MHz

Chipset

IP35: Intel P35 / Intel ICH9R
IP35-E: Intel P35 / Intel ICH9

Memory

• 4x 240-pin DIMM slots support maximum memory capacity up to 8GB.
  Supports Dual Channel DDR2 800/667 Un-buffered Non-ECC memory.

LAN

• Onboard Gigabit LAN Controller

Audio

• Onboard 7.1-Ch HD Audio Codec
  Supports Auto Jack Sensing and S/PDIF Out
  HDMI Audio Header Ready

Serial ATA

• IP35: 6x SATA 3Gb/s connectors offered by Intel ICH9R support Intel Matrix Storage Tech (AHCI & RAID 0, 1, 5, and 10).
• IP35-E: 4x SATA 3Gb/s connectors offered by Intel ICH9.

IEEE 1394 (For IP35 only)

Supports 2x IEEE 1394a ports at 400Mb/s transfer rate.

Expansion Slots

1x PCI-E X16 Slot
- 2x PCI-E X1 Slots
3x PCI Slots

Internal I/O Connectors

• 1x Floppy Port

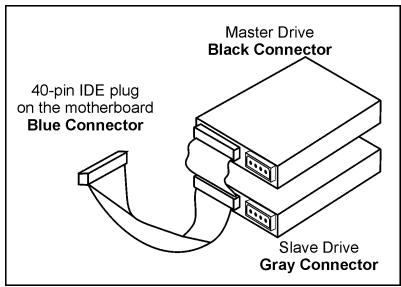

  1x Ultra ATA 133 IDE Connector
• 6x SATA 3Gb/s Connectors (For IP35 only)
• 4x SATA 3Gb/s Connectors (For IP35-E only)

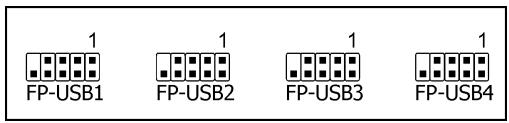

• 4x USB 2.0 Headers
• 1x IEEE 1394 Header (For IP35 only)
  1x FP-Audio Header
  1x CD-In Honnector
  1x S/PDIF Out Header

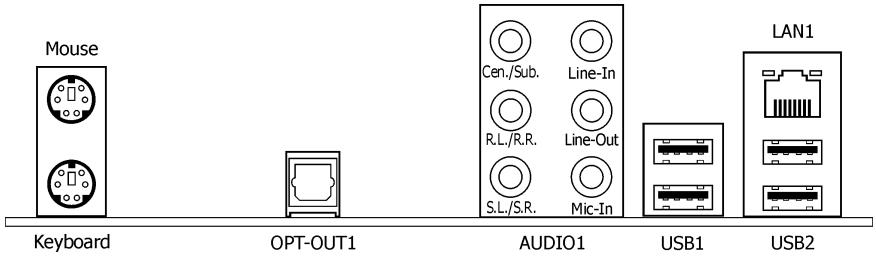

Rear Panel I/O

1x PS/2 Keyboard Connector
1x PS/2 Mouse Connector
1x Optical S/PDIF Out Connector
1x 7.1-Ch Audio Connector
- 1x IEEE 1394 Connector (For IP35 only)
4x USB 2.0 Connectors
1x RJ-45 Gigabit LAN Connector

abit Engineered

• abit SoftMenu™ Technology
• abit Silent OTES™ Technology (For IP35 only)

RoHS

100% Lead-free Process and RoHS Compliant

Miscellaneous

• ATX Form Factor (305mm x 245mm)
• Vista Premium HW Ready

※ Specifications and information contained herein are subject to change without notice.

1.2 Motherboard Layout

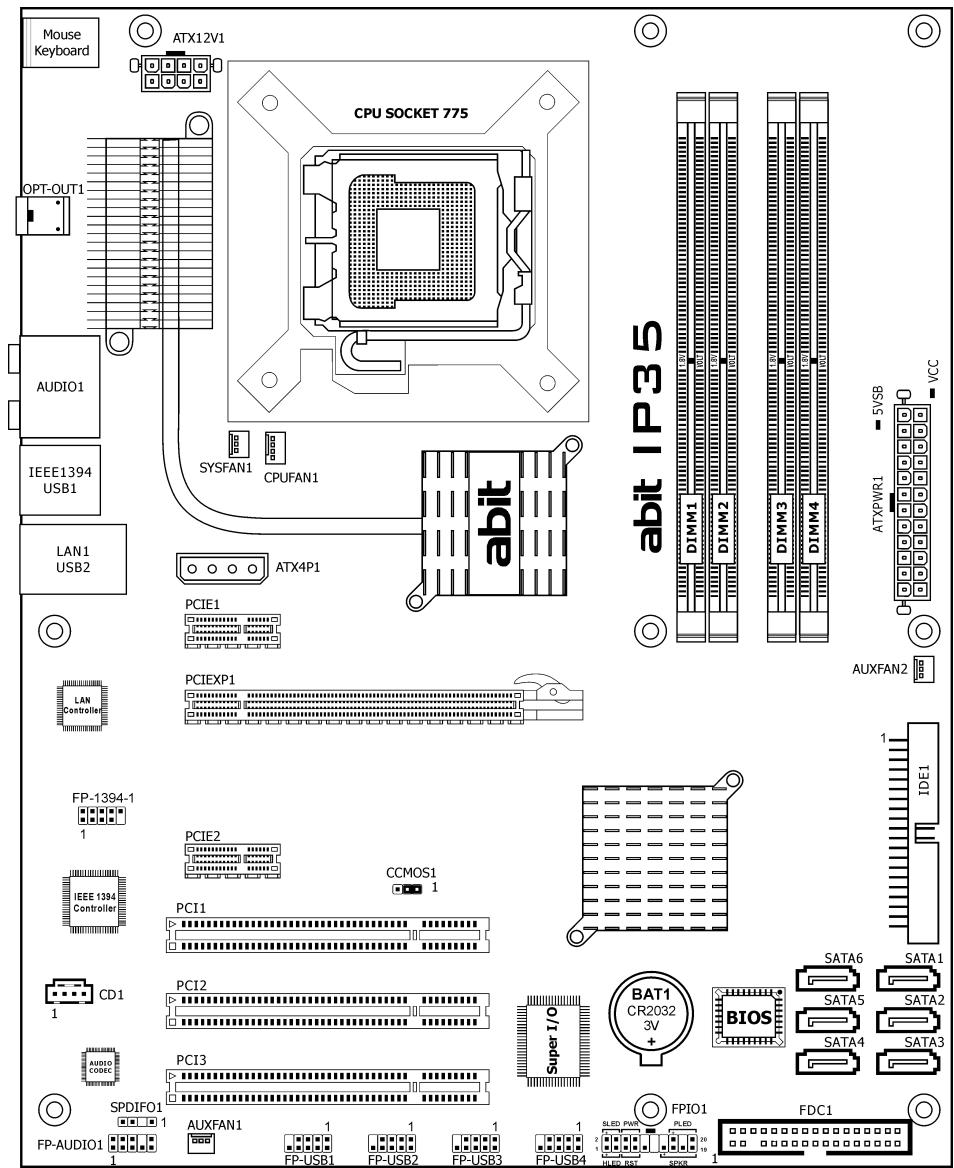

1.2.1 IP35

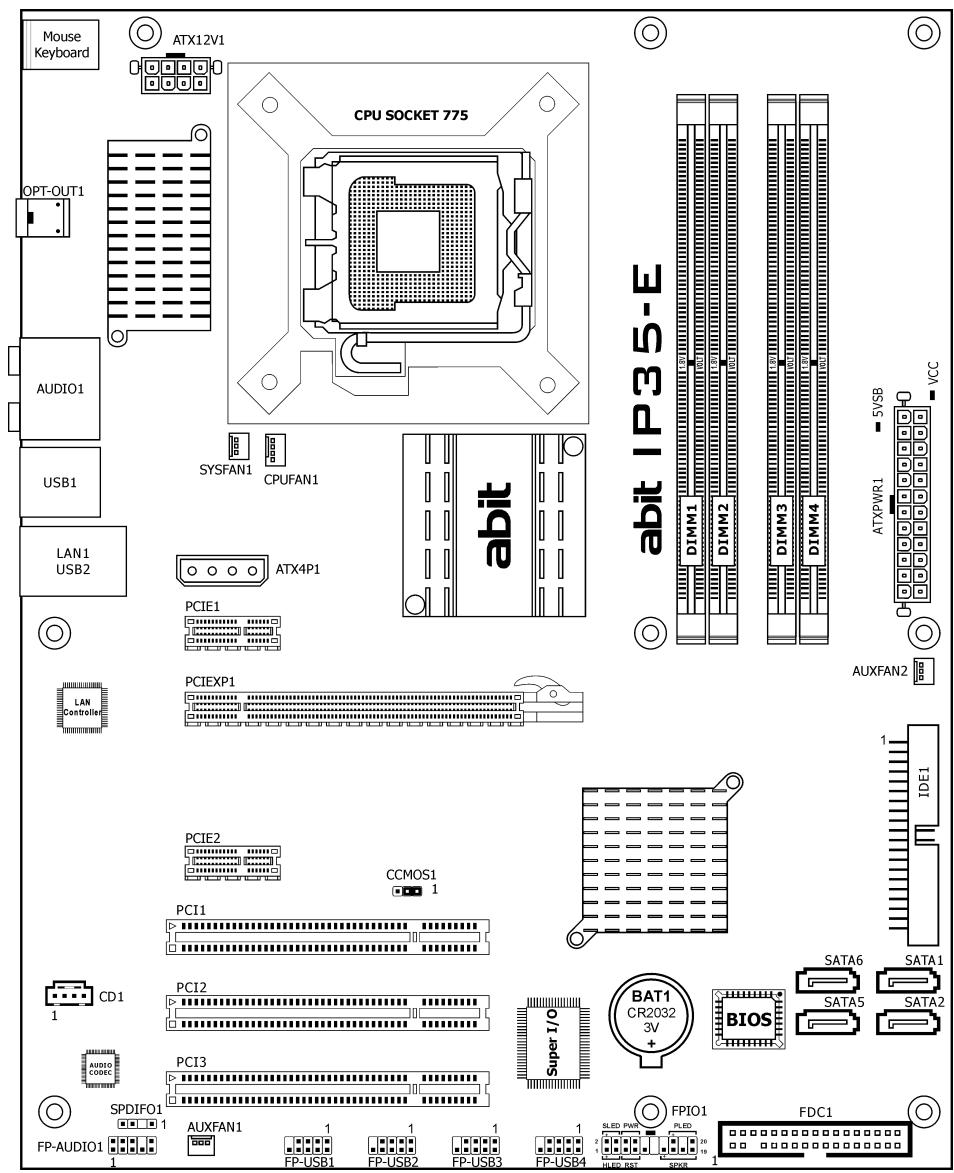

1.2.2 IP35-E

The motherboard and its component layouts illustrated in the following chapters of this manual were mainly based on model "IP35" but suitable for both "IP35" and "IP35-E", unless specifically stated.

1.3 Choosing a Computer Chassis

• Choose a chassis big enough to install this motherboard.
• As some features for this motherboard are implemented by cabling connectors on the motherboard to indicators and switches or buttons on the chassis, make sure your chassis supports all the features required.
• If there is a possibility of adopting some more hard drives, make sure your chassis has sufficient power and space for them.
• Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O shield of the chassis matches the I/O port configuration of this motherboard. You can find an I/O shield specifically designed for this motherboard in its package.

1.4 Installing Motherboard

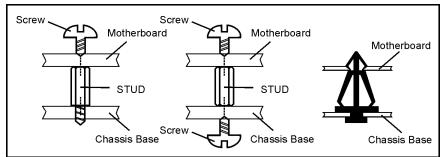

Most computer chassis have a base with many mounting holes to allow the motherboard to be securely attached, and at the same time, prevent the system from short circuits. There are two ways to attach the motherboard to the chassis base: (1) with studs, or (2) with spacers.

Basically, the best way to attach the board is with studs. Only if you are unable to do this

should you attach the board with spacers. Line up the holes on the board with the mounting holes on the chassis. If the holes line up and there are screw holes, you can attach the board with studs. If the holes line up and there are only slots, you can only attach with spacers. Take the tip of the spacers and insert them into the slots. After doing this to all the slots, you can slide the board into position aligned with slots. After the board has been positioned, check to make sure everything is OK before putting the chassis back on.

Always power off the computer and unplug the AC power cord before adding or removing any peripheral or component. Failing to so may cause severe damage to your motherboard and/or peripherals. Plug in the AC power cord only after you have carefully checked everything.

To install this motherboard:

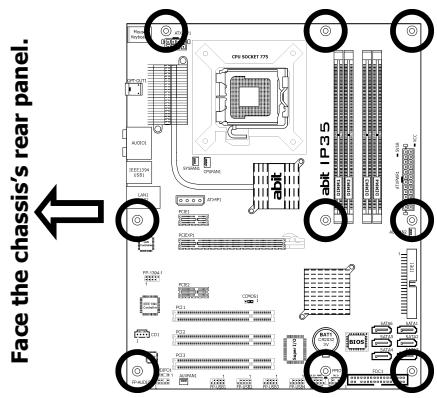

1. Locate all the screw holes on the motherboard and the chassis base.
2. Place all the studs or spacers needed on the chassis base and have them tightened.
3. Face the motherboard's I/O ports toward the chassis's rear panel.
4. Line up all the motherboard's screw holes with those studs or spacers on the chassis.
5. Install the motherboard with screws and have them tightened.
   ※ To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are already fastened on the chassis base and are without mounting-holes on the motherboard to align with.

1.5 Checking Jumper Settings

• For a 2-pin jumper, plug the jumper cap on both pins will make it CLOSE (SHORT). Remove the jumper cap, or plug it on either pin (reserved for future use) will leave it at OPEN position.

SHORT

OPEN

OPEN

• For 3-pin jumper, pin 1 2 or pin 2 3 can be shorted by plugging the jumper cap in.

Pin 2~3 SHORT

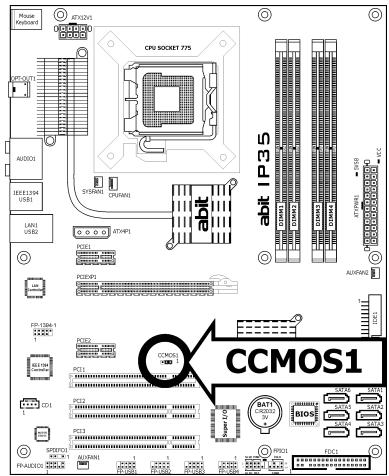

1.5.1 CMOS Memory Clearing Header and Backup Battery

The time to clear the CMOS memory occurs when (a) the CMOS data becomes corrupted, (b) you forgot the supervisor or user password preset in the BIOS menu, (c) you are unable to boot-up the system because the CPU ratio/clock was incorrectly set in the BIOS menu, or (d) whenever there is modification on the CPU or memory modules.

This header uses a jumper cap to clear the CMOS memory and have it reconfigured to the default values stored in BIOS.

• Pins 1 and 2 shorted (Default): Normal operation.
• Pins 2 and 3 shorted: Clear CMOS memory.

To clear the CMOS memory and load in the default values:

1. Power off the system.
2. Set pin-2 and pin-3 shorted by the jumper cap. Wait for a few seconds. Set the jumper cap back to its default settings --- pin-1 and pin-2 shorted.
3. Power on the system.
4. For incorrect CPU ratio/clock settings in the BIOS, press key to enter the BIOS setup menu right after powering on system.
5. Set the CPU operating speed back to its default or an appropriate value.
6. Save and exit the BIOS setup menu.

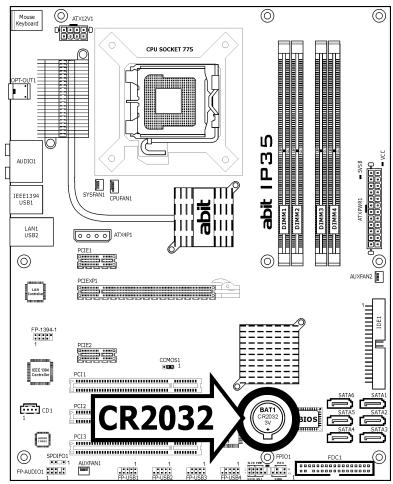

CMOS Backup Battery:

An onboard battery saves the CMOS memory to keep the BIOS information stays on even after disconnected your system with power source. Nevertheless, this backup battery exhausts after some five years. Once the error message like "CMOS BATTERY HAS Failed" or "CMOS checksum error" displays on monitor, this backup battery is no longer functional and has to be renewed.

To renew the backup battery:

1. Power off the system and disconnect with AC power source.
2. Remove the exhausted battery.
3. Insert a new CR2032 or equivalent battery. Pay attention to its polarity. The "+" side is its positive polarity.
4. Connect AC power source and power on the system.
5. Enter the BIOS setup menu. Reconfigure the setup parameters if necessary.

CAUTION:

Danger of explosion may arise if the battery is incorrectly renewed.
Renew only with the same or equivalent type recommended by the battery manufacturer.
※ Dispose of used batteries according to the battery manufacturer's instructions.

1.6 Connecting Chassis Components

1.6.1 ATX Power Connectors

These connectors provide the connection from an ATX12V power supply. As the plugs from the power supply fit in only one orientation, find the correct one and push firmly down into these foolproof-designed connectors.

For a fully configured system, we recommend that you use a power supply of ATX12V 2.0 (or newer) specification compliant and of providing minimum 400W power output capability.

※

The following motherboard photos are served for DEMO only, and may not be the same type or model as the one described in this user's manual.

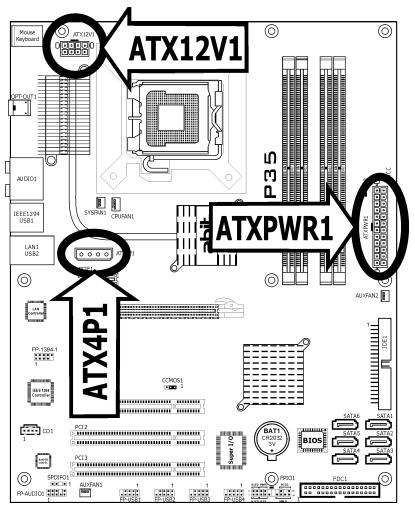

[ATXPWR1]: 24-pin power connector

You may connect either a 20-pin (ATX12V 1.3) or 24-pin (ATX12V 2.0) power source. However, it is recommended to connect the 24-pin ATX12V power source to meet the 240VA protection limits.

Plugged from a 24-pin ATX12V power.

Plugged from a 20-pin ATX12V power.

[ATX12V1]: 8-pin power connector

This connector supplies +12V power to CPU.

You may connect either a 4-pin ATX12V or an 8-pin EPS12V power source. However, it is recommended to connect the 8-pin EPS12V power source to meet the 240VA protection limits.

Plugged from a 4-pin ATX12V power.

Plugged from an 8-pin EPS12V power.

[ATX4P1]: Auxiliary 12V power connector

This connector provides an auxiliary power source for devices added on PCI Express slots.

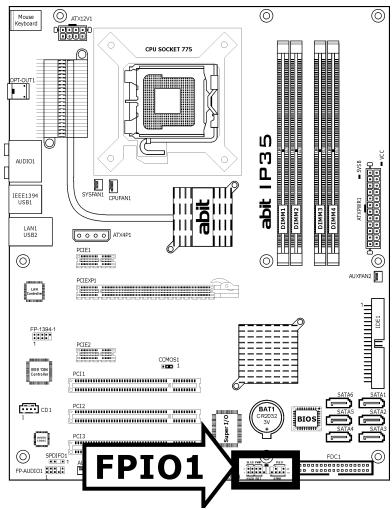

1.6.2 Front Panel Switches & Indicators Headers

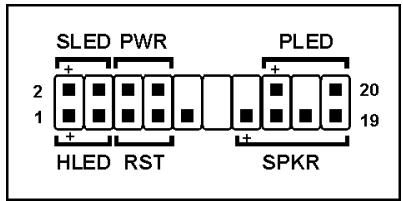

This header is used for connecting switches and LED indicators on the chassis front panel.

Watch the power LED pin position and orientation. The mark "+" align to the pin in the figure below stands for positive polarity for the LED connection. Please pay attention when connecting these headers. A wrong orientation will only result in the LED not lighting, but a wrong connection of the switches could cause system malfunction.

HLED (Pin 1,3):

Connects to the HDD LED cable of chassis front panel.

RST (Pin 5, 7):

Connects to the Reset Switch cable of chassis front panel.

SPKR (Pin 13, 15, 17, 19):

Connects to the System Speaker cable of chassis.

SLED (Pin 2, 4):

Connects to the Suspend LED cable (if there is one) of chassis front panel.

PWR (Pin 6, 8):

Connects to the Power Switch cable of chassis front panel.

PLED (Pin 16, 18, 20):

Connects to the Power LED cable of chassis front panel.

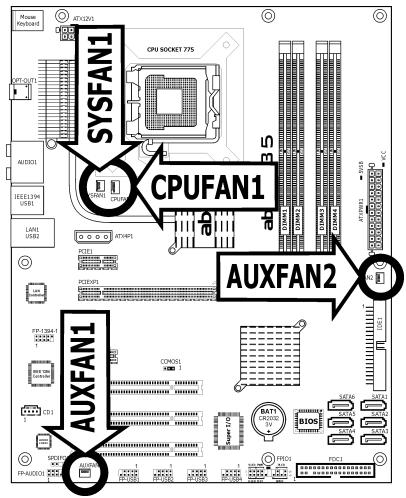

1.6.3 FAN Power Connectors

These connectors each provide power to the cooling fans installed in your system.

• CPUFAN1: CPU Fan Power Connector
• SYSFAN1: System Fan Power Connector
  AUXFAN1~4: Auxiliary Fan Power Connector

Either a 3-pin or 4-pin CPU cooling fan connected to the "CPUFAN1" connector is still capable of having its fan speed controlled. Please refer to the BIOS setup route: "PC Health Status" "ABIT FanEQ Control" "CPU FAN Type" to select the one of your own.

These fan connectors are not jumpers. DO NOT place jumper caps on these connectors.

1.7 Installing Hardware

※ DO NOT scratch the motherboard when installing hardware. An accidental scratch of a tiny surface-mount component may seriously damage the motherboard.
※ In order to protect the contact pins, please pay attention to these notices:

1. A maximum 20 cycles of CPU installation is recommended.
2. Never touch the contact pins with fingers or any object.
3. Always put on the cap when the CPU is not in use.

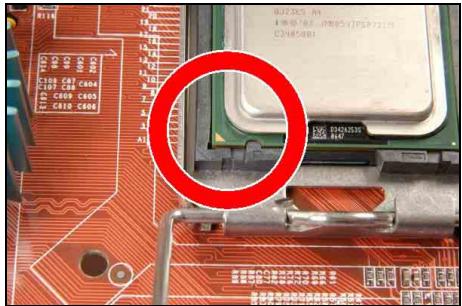

1.7.1 CPU Socket 775

The installation procedures vary with different types of CPU fan-and-heatsink assembly. The one shown here is served for demo only. For detailed information on how to install the one you bought, refer to its installation guidelines.

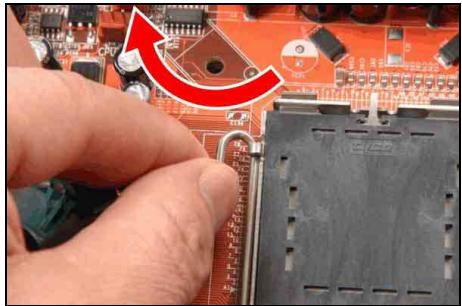

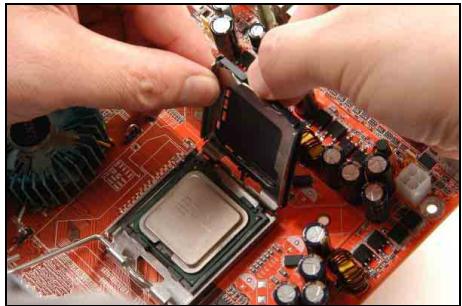

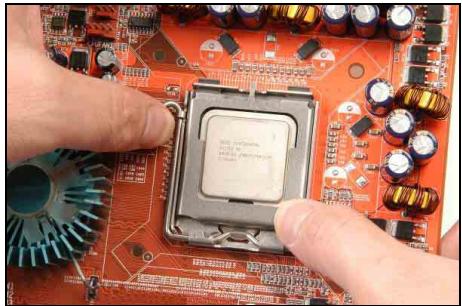

1. Place the board so that the lever-hook of the socket is on your left side. Use your left thumb and forefinger to hold the lever hook, pull it away from the retention tab. Rotate the lever to fully open position.

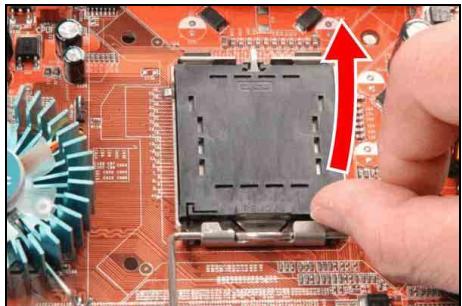

2. Use your right-thumb to raise the load plate. Lift it up to fully open position.

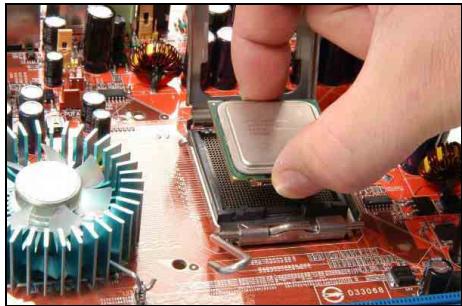

3. Use your right thumb and forefinger to grasp the CPU package. Be sure to grasp on the edge of the substrate, and face the Pin-1 indicator toward the bottom-left side. Aim at the socket and place the CPU package vertical down into the socket.

4. Visually inspect if the CPU is seated well into the socket. The alignment key must be located in the notch of package.

1. Use your left hand to hold the load plate, and use your right thumb to peel the cap off.

The cap plays an important role in protecting contact pins. In order to prevent bent pin, PUT ON the cap after operation or testing.

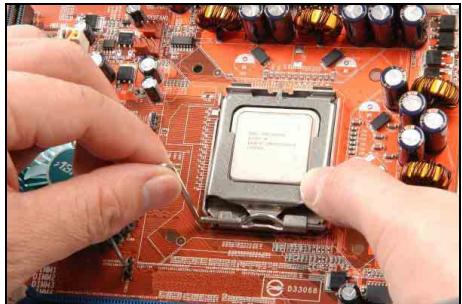

1. Lower the plate onto the CPU package. Engage the load lever while gently pressing down the load plate.

1. Secure the lever with the hook under retention tab.

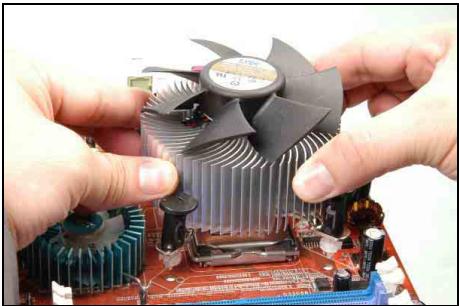

1. Place the heatsink and fan assembly onto the socket. Align the four fasteners toward the four mounting holes on the motherboard.

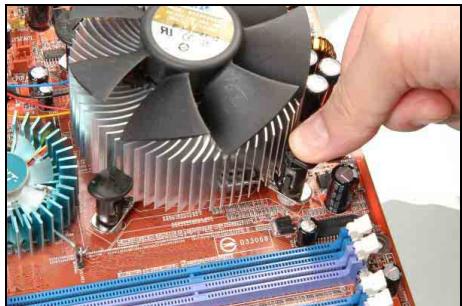

1. Press each of the four fasteners down into the mounting holes. Rotate the fastener clock-wise to lock the heatsink and fan assembly into position.

1. Attach the four-pin power plug from the heatsink and fan assembly to the CPU FAN connector.

A higher fan speed will be helpful for better airflow and heat-dissipation. Nevertheless, stay alert to not touch any heatsink since a high temperature generated by the working system is still possible.

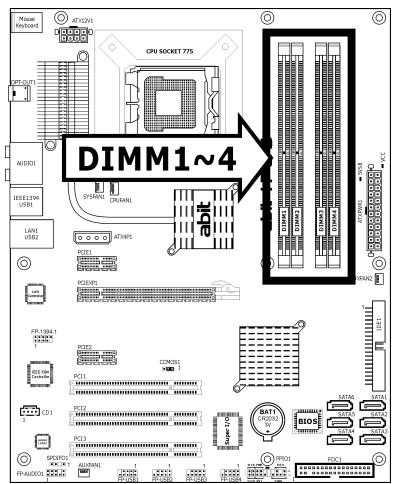

1.7.2 DDR2 Memory Slots

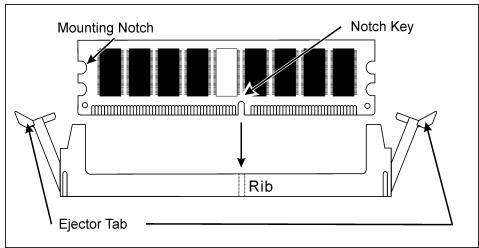

To reach the performance of Dual Channel DDR2, the following rules must be obeyed:

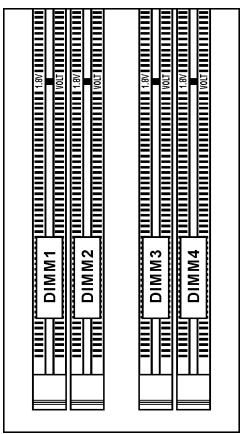

For a 2-DIMM dual-channel installation:

Populate DIMM modules of the same type and size on slots [DIMM1] + [DIMM3], or slots [DIMM2] + [DIMM4].

For a 4-DIMM dual-channel installation:

Populate 2 DIMM modules of the same type and size on slots [DIMM1] + [DIMM3], and another 2 DIMM modules of the same type and size on slots [DIMM2] + [DIMM4].

[DIMM1] and [DIMM3] slots are made of the same color.

[DIMM2] and [DIMM4] are made of another same color.

Usually there is no hardware or BIOS setup requires after adding or removing memory modules, but you will have to clear the CMOS memory first if any memory module related problem occurs.

To install system memory:

1. Power off the computer and unplug the AC power cord before installing or removing memory modules.
2. Locate the DIMM slot on the board.
3. Hold two edges of the DIMM module carefully, keep away from touching its connectors.
4. Align the notch key on the module with the rib on the slot.
5. Firmly press the module into the slots until the ejector tabs at both sides of the slot automatically snap into the mounting notch. Do not force the DIMM module in with extra force as the DIMM module only fits in one direction.
6. To remove the DIMM modules, push the two ejector tabs on the slot outward simultaneously, and then pull out the DIMM module.
   Static electricity can damage the electronic components of the computer or optional boards. Before starting these procedures, ensure that you are discharged of static electricity by touching a grounded metal object briefly.

1.8 Connecting Peripheral Devices

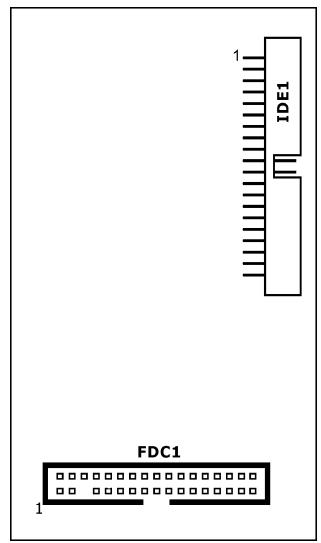

1.8.1 Floppy and IDE Disk Drive Connectors

The FDC1 connector connects up to two floppy drives with a 34-wire, 2-connector floppy cable. Connect the single end at the longer length of ribbon cable to the FDC1 on the board, the two connectors on the other end to the floppy disk drives connector. Generally you need only one floppy disk drive in your system.

The red line on the ribbon cable must be aligned with pin-1 on both the FDC1 port and the floppy connector.

Each of the IDE port connects up to two IDE drives at Ultra ATA/100 mode by one 40-pin, 80-conductor, and 3-connector Ultra ATA/66 ribbon cables.

Connect the single end (blue connector) at the longer length of ribbon cable to the IDE port of this board, the other two ends (gray and black connector) at the shorter length of the ribbon cable to the connectors of your hard drives.

※ Make sure to configure the "Master" and "Slave" relation before connecting two drives by one single ribbon cable. The red line on the ribbon cable must be aligned with pin-1 on both the IDE port and the hard-drive connector.

1.8.2 Serial ATA Connectors

Each SATA connector serves as one single channel to connect one SATA device by SATA cable.

Both SATA3 and SATA4 connectors are available for IP35 only.

To connect SATA device:

1. Attach either end of the signal cable to the SATA connector on motherboard. Attach the other end to the SATA device.
2. Attach the SATA power cable to the SATA device and connect the other end from the power supply.

The motherboard in this photo is served for DEMO only, and may not be the same type or model as the one described in this user's manual.

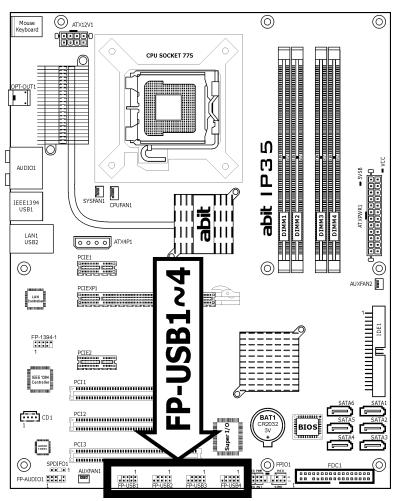

1.8.3 Additional USB 2.0 Port Headers

Each header supports 2x additional USB 2.0 ports by connecting bracket or cable to the rear I/O panel or the front-mounted USB ports of your chassis.

Pin	Pin Assignment	Pin	Pin Assignment
1	5VDUAL	2	5VDUAL
3	Data0 -	4	Data1 -
5	Data0 +	6	Data1 +
7	Ground	8	Ground
		10	NC

※ Make sure the connecting cable bears the same pin assignment.

1.8.4 Additional IEEE 1394 Port Header

Each header supports 1x additional IEEE 1394 port by connecting bracket or cable to the rear I/O panel or the front-mounted IEEE 1394 port of your chassis. (For IP35 only)

Pin	Pin Assignment	Pin	Pin Assignment
1	TPA0 +	2	TPA0 -
3	Ground	4	Ground
5	TPB0 +	6	TPB0 -
7	+12V	8	+12V
		10	Ground

※ Make sure the connecting cable bears the same pin assignment.

1.8.5 Internal Audio Connectors

This connector connects to the audio output of internal CD-ROM drive or add-on card.

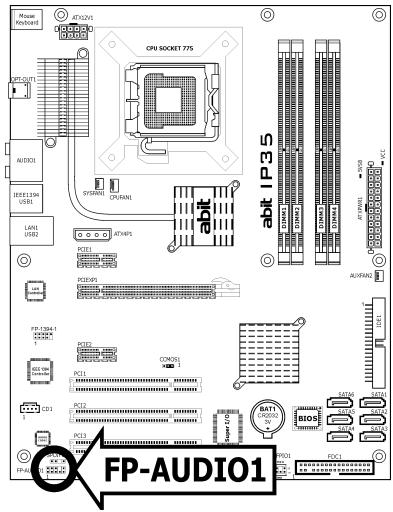

1.8.6 Front Panel Audio Connection Header

This header provides the front panel connection for HD (High Definition) Audio, yet for AC'97 Audio CODEC connection, you must carefully check the pin assignment before connecting from the front panel module. An incorrect connection may cause malfunction or even damage the motherboard.

Please do not connect the "Ground" cable or "USB VCC" cable from the front panel module to the Pin 4 "AVCC" of this header.

Pin	Pin Assignment (HD AUDIO)
1	MIC2 L
2	AGND
3	MIC2 R
4	AVCC
5	FRO-R
6	MIC2_JD
7	F_IO_SEN
9	FRO-L
10	LINE2_JD

Pin	Pin Assignment (AC'97 AUDIO)
1	MIC In
2	GND
3	MIC Power
4	NC
5	Line Out (R)
6	NC
7	NC
9	Line Out (L)
10	NC

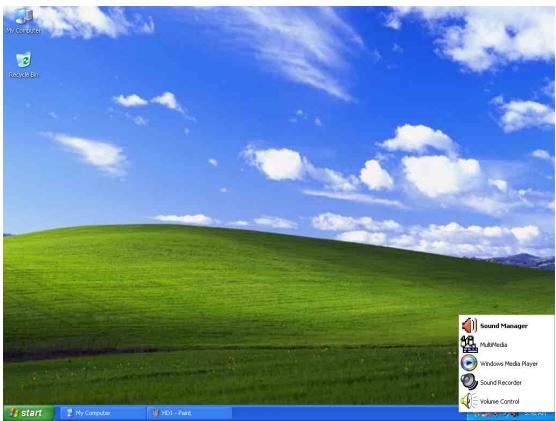

Driver Configuration for AC'97 audio connection:

The audio driver is originally configured to support HD Audio. For AC'97 audio connection, you may:

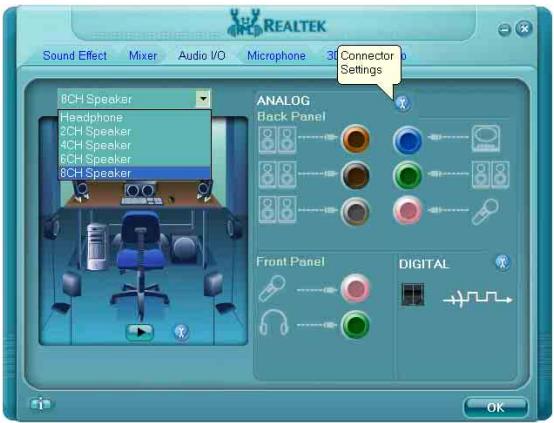

1. Right-click the "Realtek HD Audio Manager" icon in system tray.

1. Click "Audio I/O" tab, and then click "Connector Settings".

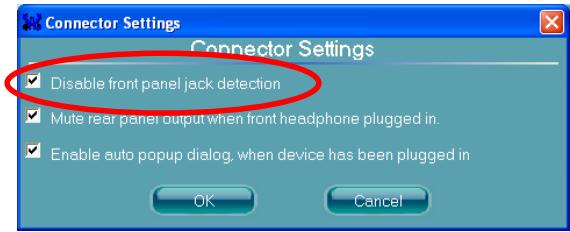

1. Click "Disabled front panel jack detection", and then click "OK" to confirm.

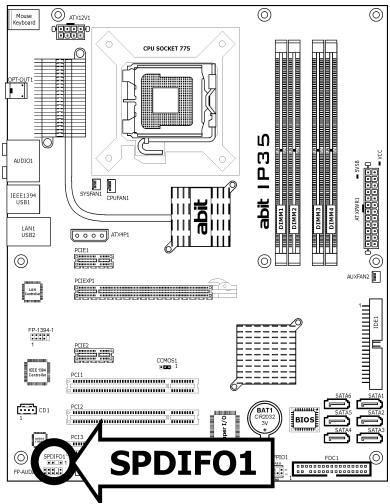

1.8.7 S/PDIF Output Connection Header

This header provides the S/PDIF output connection to your add-on HDMI VGA card.

Pin	Pin Assignment
1	VCC (5V)
2	x
3	S/PDIF Out
4	Ground

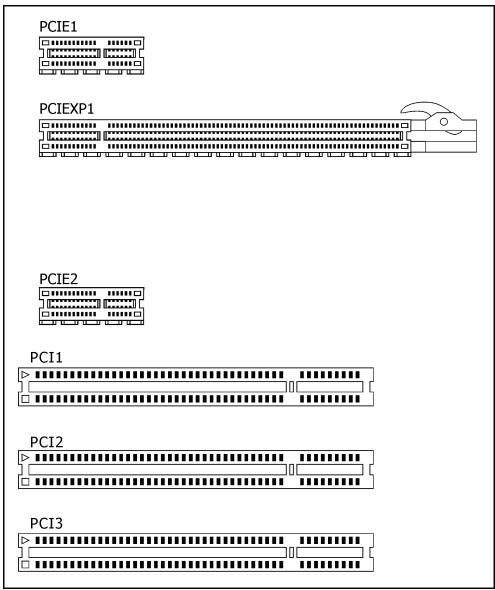

1.8.8 PCI and PCI Express X16, X1 Slots

Install PCI Express X16 graphics card into slot "PCIEXP1".

Install PCI Express X1 cards into slots "PCIE1" and/or "PCIE2".

Install PCI cards into slots "PCI1", "PCI2", and/or "PCI3".

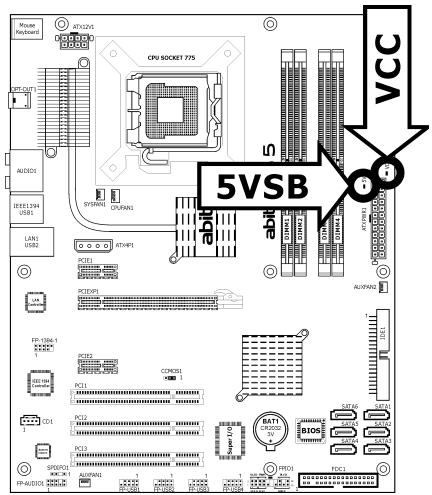

1.9 Onboard Indicators

5VSB: This LED lights up when the power supply is connected with power source.
VCC: This LED lights up when the system power is on.

1.10 Connecting Rear Panel I/O Devices

The rear I/O part of this motherboard provides the following I/O ports:

IP35

IP35-E

• Mouse: Connects to PS/2 mouse.
  Keyboard: Connects to PS/2 keyboard.
• OPT-OUT1: This connector provides an S/PDIF-Out connection through optical fiber to digital multimedia devices.
  AUDIO1:

Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel. R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel. S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround right channel.

Line-In: Connects to the line out from external audio sources.

Line-Out: Connects to the front left and front right channel.

Mic-In: Connects to the plug from external microphone.

• IEEE 1394: Connects to devices of IEEE 1394 protocol. (For IP35 only)
  LAN1: Connects to Local Area Network.
• USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard, hub, digital camera, joystick etc.

2. BIOS Setup

This motherboard provides a programmable EEPROM so that you can update the BIOS utility. The BIOS (Basic Input/Output System) is a program that deals with the basic level of communication between processor and peripherals. Use the BIOS Setup program only when installing motherboard, reconfiguring system, or prompted to "Run Setup". This chapter explains the Setup Utility of BIOS utility.

After powering up the system, the BIOS message appears on the screen, the memory count begins, and then the following message appears on the screen:

PRESS DEL TO ENTER SETUP

If this message disappears before you respond, restart the system by pressing <Ctrl> + <Alt> + <Del> keys, or by pressing the Reset button on the computer chassis. Only when these two methods fail should you restart the system by powering it off and then back on.

After pressing <Del> key, the main menu screen appears.

Phoenix - AwardBIOS CMOS Setup Utility
► SoftMenu Setup► Standard CMOS Features► Advanced BIOS Features► Advanced Chipset Features► Integrated Peripherals► Power Management Setup► PnP/PCI Configurations	► PC Health StatusLoad Fail-Safe DefaultsLoad Optimized DefaultsSet PasswordSave & Exit SetupExit Without Saving
Esc: Quit↑↓→← : Select ItemF10: Save & Exit Setup (P35-W627DHG-6A790A1AC-00)
Change CPU's Clock & Voltage

In order to increase system stability and performance, our engineering staff is constantly improving the BIOS menu. The BIOS setup screens and descriptions illustrated in this manual are for your reference only, and may not completely match with what you see on your screen.

2.1 SoftMenu Setup

This option configures the CPU's clock and voltage.

Phoenix - AwardBIOS CMOS Setup Utility SoftMenu Setup
Brand Name: Intel(R) Core(TM)2 CPU 6400 @ 2.13GHz Frequency: 2.17GHz
CPU Operating Speed	2133(266)
x - External Clock	272MHz
x - Multiplier Factor	8 X
x - Estimated New CPU Clock	2176MHz
x - DRAM Speed (CPU:DRAM)	Default
x - PCI Express Frequency	100MHz
Voltages Control	Default
x - CPU Core Voltage	1.3000V
x - DDR2 Voltage	1.80V
x - CPU VTT Voltage	1.20V
x - ICH 1.50V Voltage	1.50V
x - MCH 1.25V Voltage	1.250V
x - CPU GTLREF	63.0%
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Brand Name

This item displays the CPU model name installed on this motherboard.

Frequency

This item displays the processor speed of the CPU installed on this motherboard.

CPU Operating Speed

This item displays the CPU operating speed according to the type and speed of your CPU. You can also select the [User Define] option to enter the manual option.

User Define:

The wrong settings of the multiplier and external clock in certain circumstances may cause CPU damage. Setting the working frequency higher than the PCI chipset or processor specs, may cause abnormal memory module functioning, system hangs, hard disk drive data lose, abnormal functioning of the VGA card, or abnormal functioning with other add-on cards. Using non-specification settings for your CPU is not the intention of this explanation. These should be used for engineering testing, not for normal applications.
※ There will be no guaranty for the settings beyond specification. Any damage of any component on this motherboard or peripherals resulting therein is not our responsibility.

External Clock

This item selects the external clock frequency. Due to the specification limit of the CPU you installed, the speed you set over its standard bus speed is supported, but not guaranteed.

Multiplier Factor

This item displays the multiplier factor for the CPU you installed.

• Estimated New CPU Clock

This item displays an estimated CPU processor speed.

DRAM Speed (CPU:DRAM)

This item determines the DRAM frequency.

PCI Express Frequency

This item selects the clock frequency for PCI Express slot.

Voltages Control

This option allows you to switch between the default and user-defined voltages. Leave this setting at its default setting unless the current voltage setting cannot be detected or is not correct. The option "Manual" enables you to select the following voltages manually.

CPU Core Voltage

This item selects the Core voltage for CPU.

DDR2 Voltage

This item selects the voltage for DDR2 memory modules.

CPU VTT Voltage

This item selects the VTT voltage for CPU.

• ICH 1.50V Voltage

This item selects the voltage for ICH (SB).

• MCH 1.25V Voltage

This item selects the voltage for MCH (NB).

CPU GTLREF

This item selects the percentage ratio of CPU VTT voltage for the CPU GTL reference voltage.

2.2 Standard CMOS Features

Phoenix - AwardBIOS CMOS Setup Utility Standard CMOS Features
Date (mm:dd:yy)	Fri, May 11 2007
Time (hh:mm:ss)	12 : 34 : 56
▶ SATA Channel 1	None
▶ SATA Channel 3	None
▶ SATA Channel 2	None
▶ SATA Channel 4	None
▶ SATA Channel 5	None
▶ SATA Channel 6	None
Drive A	1.44M, 3.5 in.
Drive B	None
Floppy 3 Mode Support	Disabled
Halt On	All, But Keyboard
Base Memory	640K
Extended Memory	1046528K
Total Memory	1048576K
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Date (mm:dd:yy)

This item sets the date you specify (usually the current date) in the format of [Month], [Date], and [Year].

Time (hh:mm:ss)

This item sets the time you specify (usually the current time) in the format of [Hour], [Minute], and [Second].

SATA Channel 1 ~ SATA Channel 6

Click key to enter its menu:

Phoenix - AwardBIOS CMOS Setup Utility SATA Channel 1
Auto-Detection	Press Enter	Item Help
SATA Channel 1	Auto
Access Mode	Auto
Capacity	0 MB
Cylinder	0
Head	0
Precomp	0
Landing Zone	0
Sector	0
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Auto-Detection

This item allows you to detect the parameters of hard drives by pressing key. The parameters will be shown on the screen automatically.

SATA Channel 1 ~ SATA Channel 6

When set to [Auto], the BIOS will automatically check what kind of SATA hard drive you are using. If you want to define your own drive yourself, set it to [Manual] and make sure you fully understand the meaning of the parameters. Please refer to the instruction manual provided by the device's manufacturer to get the setting right.

Both SATA3 and SATA4 connectors are available for model "IP35" only.

Access Mode

This item selects the mode to access your SATA devices. Leave this item at its default [Auto] setting to detect the access mode of your HDD automatically.

Capacity

This item displays the approximate capacity of the disk drive. Usually the size is slightly greater than the size of a formatted disk given by a disk-checking program.

Cylinder

This item configures the numbers of cylinders.

Head

This item configures the numbers of read/write heads.

Precomp

This item displays the number of cylinders at which to change the write timing.

Landing Zone

This item displays the number of cylinders specified as the landing zone for the read/write heads.

Sector

This item configures the numbers of sectors per track.

Back to Standard CMOS Features Setup Menu

Drive A & Drive B

This item sets the type of floppy drives (usually only Drive A) installed.

Floppy 3 Mode Support

This item allows you to use "3 Mode Floppy Drive" in Japanese computer systems by selecting drive A, B, or both. Leave this item at its default [Disabled] setting if you are not using this Japanese standard floppy drive.

Halt On

This item determines whether the system stops if an error is detected during system boot-up.

Base Memory

This item displays the amount of base memory installed in the system. The value of the base memory is typically 640K for systems with 640K or more memory size installed on the motherboard.

Extended Memory

This item displays the amount of extended memory detected during system boot-up.

Total Memory

This item displays the total memory available in the system.

2.3 Advanced BIOS Features

Phoenix - AwardBIOS CMOS Setup Utility Advanced BIOS Features
Hyper-Threading Technology	Enabled	Item Help
Quick Power On Self Test	Enabled
CPU Feature	Press Enter
Hard Disk Boot Priority	Press Enter
First Boot Device	Floppy
Second Boot Device	Hard Disk
Third Boot Device	SATA CDROM
Boot Other Device	Enabled
Boot Up Floppy Seek	Disabled
Boot Up NumLock Status	On
Security Option	Setup
MPS Version Ctrl For OS	1.4
Report No FDD for OS	No
Delay IDE Initial (Secs)	0
Full Screen LOGO Show	Enabled
Disable Unused PCI Clock	Yes
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Hyper-Threading Technology

This item is used to enable the functionality of the processor with Hyper-Threading Technology and will appear only when using such processor.

The Hyper-Threading Technology helps your PC work more efficiently by maximizing processor resources and enabling a single processor to run two separate threads of software simultaneously, bringing forth greater performance and system responsiveness when running multiple applications at once.

Quick Power On Self Test

When set to [Enabled], this item speeds up the Power On Self Test (POST) after powering on the system. The BIOS shorten or skip some check during the POST.

Click key to enter its submenu:

Phoenix - AwardBIOS CMOS Setup Utility CPU Feature
Thermal Control	Enabled	Item Help
Limit CPUID MaxVal	Disabled
CIE Function	Enabled
Execute Disable Bit	Enabled
Virtualization Technology	Enabled
EIST Function	Enabled
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Thermal Control

This option enables or disables the thermal monitoring.

Limit CPUID MaxVal

When set to [Enabled], this item limits the CPUID maximum value to 3, which is usually required for older OS like Windows NT4.0.

Leave this item at its default [Disabled] settings for OS like Windows XP.

C1E Function

This item appears only for certain processors with the C1E (Enhanced Halt State) Function. When set to [Enabled], the processor will further reduce the total power consumption.

Execute Disable Bit

This item appears only for certain processors with the Execute Disable Bit (XD bit) feature. When set to [Enabled], this item allows the processor to prevent data pages from being used by malicious software to execute code and provide memory protection.

Virtualization Technology

This option enables or disables the additional hardware capabilities provided by Virtualization Technology.

EIST Function

This item appears only for certain processors with the EIST (Enhanced Intel SpeedStep Technology) Function. When set to [Enabled], EIST will dynamically switch between multiple frequency and voltage points to optimize the power and performance balance of the processor and system based on demand.

Hard Disk Boot Priority

This item selects the hard disks booting priority. By pressing key, you can enter its submenu where the hard disks detected can be selected for the booting sequence to boot up system.

This item functions only when there is the option of [Hard Disk] in any one of the First/Second/Third Boot Device items.

First Boot Device / Second Boot Device / Third Boot Device / Boot Other Device

Select the drive to boot first, second and third in the [First Boot Device], [Second Boot Device], and [Third Boot Device] items respectively. The BIOS will boot the operating system according to the sequence of the drive selected. Set [Boot Other Device] to [Enabled] if you wish to boot from another device other than these three items.

Boot Up Floppy Seek

When set to [Enabled], the BIOS will check whether the floppy disk drive is installed or not.

Boot Up NumLock Status

This item determines the default state of the numeric keypad at system booting up.

[On]: The numeric keypad functions as number keys.

[Off]: The numeric keypad functions as arrow keys.

Security Option

This item determines when the system will prompt for password - every time the system boots or only when enters the BIOS setup.

[Setup]: The password is required only when accessing the BIOS Setup.

[System]: The password is required each time the computer boots up.

Don't forget your password. If you forget the password, you will have to open the computer case and clear all information in the CMOS before you can start up the system. But by doing this, you will have to reset all previously set options.

MPS Version Ctrl For OS

This item specifies which version of MPS (Multi-Processor Specification) this motherboard will use. Leave this item at its default setting.

Report No FDD For OS

When set to [Yes], this item allows you to run some older operating system without floppy disk drive. Leave this item at its default setting.

Delay IDE Initial (Secs)

This item allows the BIOS to support some old or special IDE devices by prolonging this delay time. A larger value will give more delay time to the device for which to initialize and to prepare for activation.

Full Screen LOGO Show

This item determines to show the full screen logo when booting.

Disable Unused PCI Clock

This option disables the clock of PCI slot that is not in use.

[Yes]: The system automatically detect the unused DIMM and PCI slots, and stop sending clock signal to these unused PCI slots.

[No]: The system always send clock signal to all PCI slots.

※ Set this option to [No] setting if there are adapters that cannot be automatically detected by the system and will cause malfunction.

2.4 Advanced Chipset Features

Phoenix - AwardBIOS CMOS Setup Utility Advanced Chipset Features
DRAM Timing Selectable	By SPD	Item Help
x - CAS Latency Time (tCL)	Auto
x - RAS# to CAS# Dealay (tRCD)	Auto
x - RAS# Precharge (tRP)	Auto
x - Precharge Delay (tRAS)	Auto
x - Refresh Cycle Time (tRFC)	Auto
x - Write Recovery Time (tWR)	Auto
x - Write to Read Delay (tWTR)	Auto
x - Act to Act Time (tRRD)	Auto
x - Read to Precharge (tRTP)	Auto
PCIe Root Port Function	Press Enter
Init Display First	PCI Slot
PEG Force X1	Disabled
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

DRAM Timing Selectable

This item sets the optimal timings for the following four items, depending on the memory module you are using. The default setting "By SPD" configures these four items by reading the contents in the SPD (Serial Presence Detect) device. The EEPROM on the memory module stores critical parameter information about the module, such as memory type, size, speed, voltage interface, and module banks. The following items will be available to make adjustments by selecting option [Manual].

CAS Latency Time (tCL)
RAS# to CAS# Dealay (tRCD)
RAS# Precharge (tRP)
- Precharge Delay (tRAS)
Refresh Cycle Time (tRFC)
Write Recovery Time (tWR)
Write to Read Delay (tWTR)
- Act to Act Time (tRRD)
- Read to Precharge (tRTP)

PCIe Root Port Function

Click key to enter its menu:

Phoenix - AwardBIOS CMOS Setup Utility PCIe Root Port Function
PCI Express Slot 1	Auto
PCI Express Slot 2	Auto
PCIe Compliancy Mode	v1.0a
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

PCI Express Slot 1 / PCI Express Slot 2

This option enables or disables the PCI Express port function.

PCIe Compliancy Mode

This item selects the mode for PCI Express add-on card.

Back to Advanced Chipset Features Setup Menu

Init Display First

This item allows you to choose the primary display card.

PEG Force X1

When set to [Enabled], this item forces the PEG port down to x1 mode.

2.5 Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility Integrated Peripherals
►OnChip SATA Device	Press Enter	Item Help
►OnChip PCI Device	Press Enter
►Onboard PCI Device	Press Enter
►Super-I0 Device	Press Enter
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

OnChip SATA Device

Click key to enter its submenu:

Phoenix - AwardBIOS CMOS Setup Utility OnChip SATA Device
Bus Master	Enabled	Item Help
OnChip SATA Controller	Enabled
- OnChip SATA Mode	IDE
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Bus Master

This option enables or disables the bus mastering capability under the DOS environment.

OnChip SATA Controller

This item enables or disables the onchip SATA controller.

- OnChip SATA Mode (For model "IP35" only)

This item selects the mode for devices connected through SATA ports.

[IDE]: The on-chip Serial ATA served as IDE mode.

[RAID]: The on-chip Serial ATA served as RAID mode.

[AHCI]: The on-chip Serial ATA served as AHCI (Advanced Host Controller Interface) mode for advanced performance and usability.

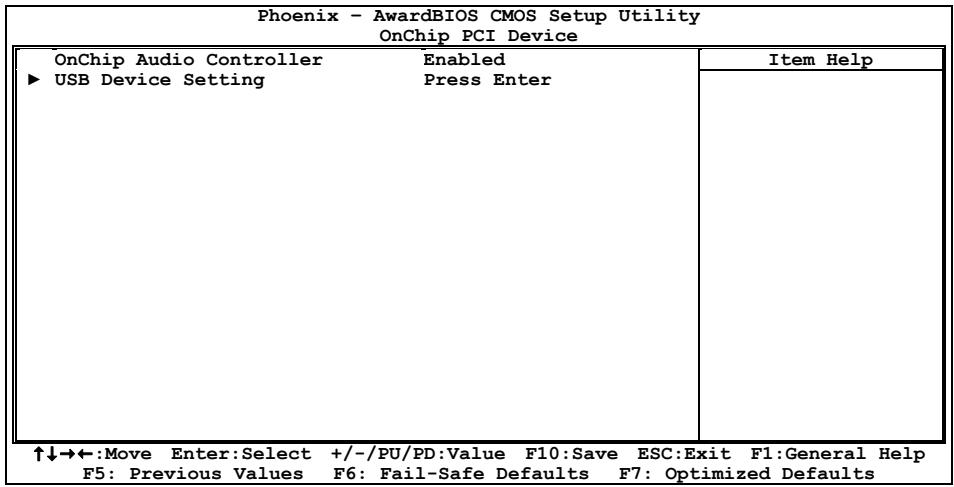

OnChip PCI Device

Click key to enter its submenu:

OnChip Audio Controller

This option enables or disables the audio controller.

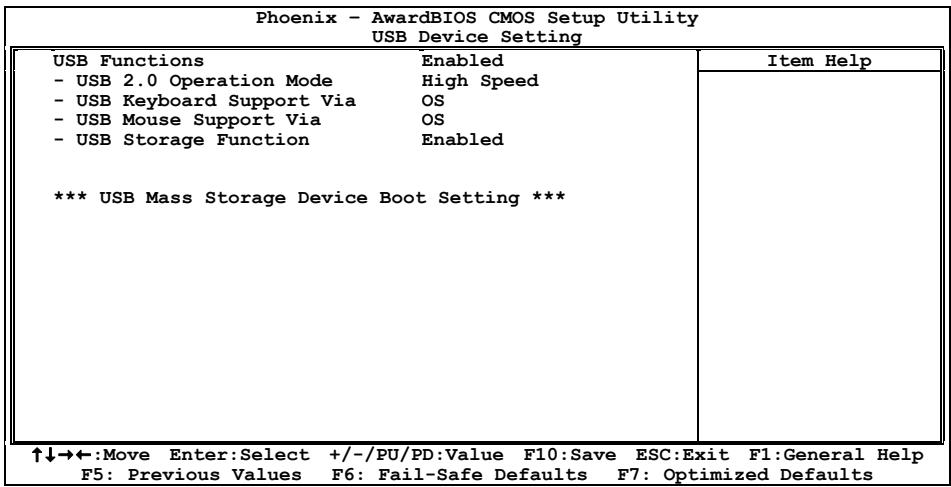

USB Device Setting

Click key to enter its submenu:

USB Functions

This option enables or disables the USB controller.

USB 2.0 Operation Mode

This option selects the speed mode for USB devices.

[High Speed]: All USB devices operate on high-speed mode.

[Full/Low Speed]: All USB devices operate on full/low-speed mode.

USB Keyboard Support Via

Select [BIOS] for the legacy operating system (such as DOS) that does not support USB keyboard.

USB Mouse Support Via

Select [BIOS] for the legacy operating system (such as DOS) that does not support USB mouse.

USB Storage Function

This option enables or disables the USB storage function.

Onboard PCI Device

Click key to enter its menu:

Phoenix - AwardBIOS CMOS Setup Utility Onboard PCI Device
IEEE 1394 Controller	Enabled	Item Help
IDE Controller	Enabled
Network Controller	Enabled
- Invoke Boot Agent	Disabled
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

IEEE 1394 Controller (For model "IP35" only)

This option enables or disables the IEEE 1394 controller.

IDE Controller

This option enables or disables the function over IDE connector.

Network Controller

This option enables or disables the LAN controller.

- Invoke Boot Agent

This item allows you to use the boot ROM (instead of a disk drive) to boot up the system and access the local area network directly.

Super-IO Device

Click key to enter its menu:

Phoenix - AwardBIOS CMOS Setup Utility Super-IO Device
Floppy Disk Controller Enabled	Item Help

Floppy Disk Controller

This option enables or disables the floppy disk controller.

2.6 Power Management Setup

Phoenix - AwardBIOS CMOS Setup Utility Power Management Setup
ACPI Suspend Type	S3(Suspend To RAM)	Item Help
- Resume By USB from S3	Disabled
Power Button Function	Instant-Off
Wake Up by PME# of PCI	Disabled
Wake Up by WAKE# of PCIe	Disabled
Wake Up by Onboard LAN	Disabled
Wake Up by Alarm	Disabled
X - Date(of Month) Alarm	0
X - Time(hh:mm:ss) Alarm	0 : 0 : 0
Power On Function	Button Only
X - KB Power On Password	Enter
X - Hot Key Power On	Ctrl-F1
Restore On AC Power Loss	Power Off
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

ACPI Suspend Type

This item selects the type of Suspend mode.

Resume By USB from S3

When set to [Enabled], this item allows you to use a USB device to wake up a system that is in the S3 (STR - Suspend To RAM) state. This item can be configured only if the item "ACPI Suspend Type" is set to [S3(STR)].

Power Button Function

This item selects the method of powering off your system:

[Delay 4 Sec.]: Pushing the power button for more than 4 seconds will power off the system. This will prevent the system from powering off in case you accidentally hit or pushed the power button.

[Instant-Off]: Pressing and then releasing the power button at once will immediately power off the system.

Wake Up by PME# of PCI

When set to [Enabled], access through the add-on PCI card can remotely wake up the system that was in Soft-Off condition. The PCI card must support the wake up function.

Wake Up by WAKE# of PCIe

When set to [Enabled], access through the add-on PCI Express card can remotely wake up the system that was in Soft-Off condition. The PCI Express card must support the wake up function.

Wake Up by Onboard LAN

When set to [Enabled], access through the onboard LAN port can remotely wake up the system that was in Soft-Off condition.

Wake Up by Alarm

When set to [Enabled], you can set the date and time you would like the Soft-Off PC to

power-on in the "Date (of Month) Alarm" and "Time (hh:mm:ss) Alarm" items. However, if the system is being accessed by incoming calls or the network (Resume On Ring/LAN) prior to the date and time set in these items, the system will give priority to the incoming calls or network instead.

- Date (of Month) Alarm

[0]: This option power-on the system everyday according to the time set in the "Time (hh:mm:ss) Alarm" item.

[1-31]: This option selects a date you would like the system to power-on. The system will power-on on the date set, and the time set in the "Time (hh:mm:ss) Alarm" item.

Time (hh:mm:ss) Alarm

This item sets the time you would like the system to power-on.

Power On Function

This item selects the way you want your system to power on.

[Password]: Use a password to power on the system, select this option then press . Enter your password. You can enter up to 5 characters. Type in exactly the same password to confirm, and then press .

[Hot KEY]: Use any of the function keys between <F1> to <F12> to power on the system.

[Mouse Left]: Double click the mouse left button to power on the system.

[Mouse Right]: Double click the mouse right button to power on the system.

[Any KEY]: Use any keyboard keys to power on the system.

[Button Only]: Use only the power button to power on the system.

[Keyboard 98]: Use the power-on button on the "Keyboard 98" compatible keyboard to power on the system.

The mouse wake up function can only be used with the PS/2 mouse, not with the COM port or USB type. Some PS/2 mice cannot wake up the system because of compatible problems. If the specs of your keyboard are too old, it may fail to power on.

KB Power On Password

This item sets the password required in order to power on your computer.

Do not forget your password, or you will have to clear the CMOS and reset all parameters in order to utilize this function again.

Hot Key Power On

This item powers on the system by pressing key plus one of each function key ( ~ ) simultaneously.

Restore On AC Power Loss

This item selects the system action after an AC power failure.

[Power Off]: When power returns after an AC power failure, the system's power remains off. You must press the Power button to power-on the system.

[Power On]: When power returns after an AC power failure, the system's power will be powered on automatically.

[Last State]: When power returns after an AC power failure, the system will return to the state where you left off before power failure occurred. If the system's power is off when AC power failure occurs, it will remain off when power returns. If the system's power is on when AC power failure occurs, the system will power-on when power returns.

2.7 PnP/PCI Configurations

Phoenix - AwardBIOS CMOS Setup Utility PnP/PCI Configurations
Resources Controlled By x IRQ Resources PCI/VGA Palette Snoop	Auto Press Enter Disabled	Item Help
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults

Resources Controlled By

This item configures all of the boot and Plug-and-Play compatible devices.

[Auto]: The system will automatically detect the settings.

[Manual]: Choose the specific IRQ resources in the "IRQ Resources" menu.

IRQ Resources

Click key to enter its submenu:

This item sets each system interrupt to either [PCI Device] or [Reserved].

PCI/VGA Palette Snoop

This item determines whether the MPEG ISA/VESA VGA cards can work with PCI/VGA or not.

[Enabled]: MPEG ISA/VESA VGA cards work with PCI/VGA.

[Disabled]: MPEG ISA/VESA VGA cards do not work with PCI/VGA.

2.8 PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility PC Health Status
▲ ABIT FanEQ Control	Press Enter	Item Help
FAN Fail Alarm Selectable	CPU FAN
Shutdown When FAN Fail	Disabled
CPU Shutdown Temperature	90°C/194°F
CPU Warning Temperature	80°C/176°F
CPU Temperature	40°C/118°F
SYS Temperature	31°C/ 88°F
PWM Temperature	35°C/ 95°F
CPU FAN Speed	3245 RPM
SYS FAN Speed	4218 RPM
AUX1 FAN Speed	0 RPM
AUX2 FAN Speed	0 RPM
CPU Core Voltage	1.30V
DDR2 Voltage	1.80V
CPU VTT Voltage	1.20V
MCH 1.25V Voltage	1.25V
ATX +12V	12.00V
ATX +3.3V	3.30V

ABIT FanEQ Control

This item determines the temperature threshold to raise the fan attached at CPU and SYS fan headers up to their full speed.

Click key to enter its menu:

Phoenix - AwardBIOS CMOS Setup Utility ABIT FanEQ Control
CPU FanEQ oncontrol	Enabled	Item Help
- CPU FAN Type	4 Pin
- FanEQ Target Temp.	50°C/122°F
- FanEQ Temp. Tolerance	5°C/ 41°F
- FanEQ Start Control	80%
- FanEQ Stop Control	50%
SYS FanEQ oncontrol	Disabled
x - FanEQ Reference Temp.	System
x - FanEQ Target Temp.	35°C/ 95°F
x - FanEQ Temp. Tolerance	5°C/ 41°F
x - FanEQ Start Control	70%
x - FanEQ Stop Control	50%
↑↓→←:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

CPU FanEQ Control

When set to [Enabled], these items control the CPU fan speed by the following setting combinations.

CPU FAN Type

This item selects your CPU fan type.

[4 Pin]: Leave this item at its default [4 Pin] setting for connecting a 4-pin cooling fan to the "CPUFAN1" fan power header.

[3 Pin]: For a 3-pin cooling fan connection, you must configure this item to [3 Pin] in order to have the speed control function enabled.

A mismatched configuration will cause the fan speed control function out of order. Please select the correct option according to your fan type.

FanEQ Target Temp

This item sets the temperature mark for the "CPU FanEQ" function to take effect.

FanEQ Temp. Tolerance

This item sets the temperature tolerance range for the item "FanEQ Target Temp."

FanEQ Start Control

This item sets the speed ratio for the CPU fan connected to "CPUFAN1" fan power header to start running.

FanEQ Stop Control

This item sets the lowest speed ratio for the CPU fan connected to "CPUFAN1" fan power header to run at when the CPU temperature detected is lower than the value of item "FanEQ Target Temp." plus the value of item "FanEQ Temp. Tolerance".

In the situation when the CPU temperature detected is higher than the value of item "FanEQ Target Temp." plus the value of item "FanEQ Temp. Tolerance", the speed ratio for the CPU fan connected to "CPUFAN1" fan power header will first run at the speed ratio set by the item "FanEQ Start Control", and then up to 100% .

SYS FanEQ Control

When set to [Enabled], these items control the SYS fan speed by the following setting combinations.

FanEQ Reference Temp.

This item selects the reference point for taking temperature.

FanEQ Target Temp

This item sets the temperature mark for the "SYS FanEQ" function to take effect.

FanEQ Temp. Tolerance

This item sets the temperature tolerance range for the item "FanEQ Target Temp."

FanEQ Start Control

This item sets the speed ratio for the CPU fan connected to "SYSFAN1" fan power header to start running.

FanEQ Stop Control

This item sets the lowest speed ratio for the CPU fan connected to "SYSFAN1" fan power header to run at when the CPU temperature detected is lower than the value of item "FanEQ Target Temp." plus the value of item "FanEQ Temp. Tolerance".

In the situation when the CPU temperature detected is higher than the value of item "FanEQ Target Temp." plus the value of item "FanEQ Temp. Tolerance", the speed ratio for the CPU fan connected to "SYSFAN1" fan power header will first run at the speed ratio set by the item "FanEQ Start Control", and then up to 100% .

Back to PC Health Status Setup Menu

FAN Fail Alarm Selectable

This item selects the fan that will be monitored for malfunction.

Shutdown When FAN Fail

When set to [Enabled], the system will be shut down if the fan selected for monitoring is not running.

CPU Shutdown Temperature

You can set the processor shutdown temperature here. If the processor temperature exceeds the settings value, system will force to shutdown to protect the processor not overheat.

CPU Warning Temperature

This item lets you select the temperature at which you want the system to send out a warning message to the PC speakers of when the temperature goes beyond either limit. You can select the temperatures you want.

All Voltages, Fans Speed and Thermal Monitoring

These unchangeable items list the current status of the CPU and environment temperatures, fan speeds, and system power voltage.

2.9 Load Fail-Safe Defaults

This option loads the BIOS default values for the most stable, minimal-performance system operations.

2.10 Load Optimized Defaults

This option loads the BIOS default values that are factory settings for optimal-performance system operations.

2.11 Set Password

This option protects the BIOS configuration or restricts access to the computer itself.

2.12 Save & Exit Setup

This option saves your selections and exits the BIOS setup menu.

2.13 Exit Without Saving

This option exits the BIOS setup menu without saving any changes.

3. Driver & Utility

The "Driver- & - Utility CD" that came packed with this motherboard contains drivers, utilities and software applications required for its basic and advanced features.

3.1 CD-ROM AUTORUN

To run the CD-ROM automatically:

1. Place the "Driver-&-Utility CD" into the CD-ROM drive in your system. The following installation auto-run screen appears. If not, browse the root directory of the CD-ROM via the File Manager, and double click the "AUTORUN" file.

2. Click the item needed for installation.

3. [Drivers]: Click to enter the driver installation menu.

4. [Manual]: Click to enter the user's manual menu.
5. [Utility]: Click to enter the utilities installation menu.

6. [abit Utility]: Click to enter the installation menu of utilities exclusively developed by abit.

7. [Browse CD] : Click to browse the contents of this "Driver-&-Utility CD".

8. [Close] Click to exit this installation menu.

9. The Windows will automatically search for current and updated software by looking up your computer.

When this "Found New Hardware Wizard" window appears. Click [Cancel] to start the following procedures.

Found New Hardware Wizard

Welcome to the Found New Hardware Wizard

Windows will search for current and updated software by looking on your computer, on the hardware installation CD, or on the Windows Update Web site (with your permission). Read our privacy policy

Can Windows connect to Windows Update to search for software?

Yes, this time only
Yes, now and every time I connect a device
No, not this time

Click Next to continue.

<Back

Next>

Cancel

3.2 Intel Chipset Software Installation Utility

To install this program:

1. Click on the [Drivers] tab in the installation menu screen.

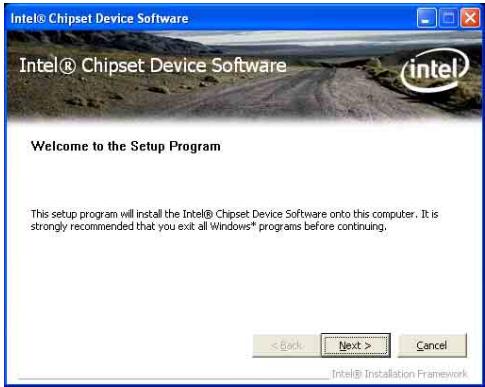

2. Click the [Intel Chipset Software Installation Utility] item. The installation screen appears.
3. Follow the prompts on the screen to complete installation.

3.3 Intel Matrix Storage Manager

This driver provides functionality for the on-chip SATA Controller.

This driver installation is necessary for connectors "SATA1~SATA6" only when after having enabled the RAID function in the BIOS setup menu.

The path to enable the RAID function in the BIOS setup menu is: Integrated Peripherals OnChip IDE Device SATA Mode Select "RAID".

Both SATA3 and SATA4 connectors are available for IP35 only.

To install this program:

1. Click on the [Drivers] tab in the installation menu screen.

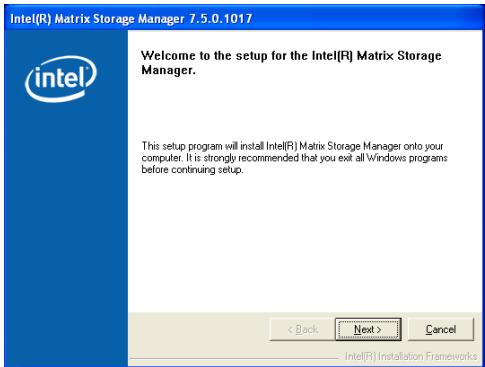

2. Click the [Intel Matrix Storage Technology Driver] item. The installation screen appears.
3. Follow the prompts on the screen to complete installation.

3.4 Audio Driver

To install this program:

1. Click on the [Drivers] tab in the installation menu screen.

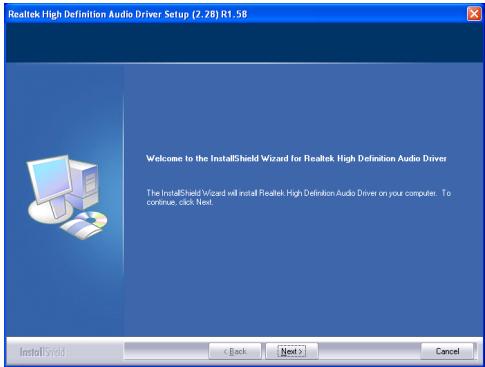

2. Click the [Audio Driver] item. The installation screen appears.
3. Follow the prompts on the screen to complete installation.

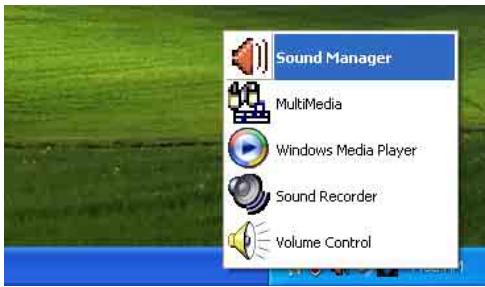

1. After restarting the system, right-click the Sound Manager icon located at the desktop shortcut. Click item "Sound Manager". The Realtek HD Audio Manager appears.

1. Click the [Audio I/O] tab.
2. Click the pull down menu to select the channel configuration.
3. Click [OK] button to apply the Audio I/O settings and exit.

3.5 LAN Driver

To install this program:

1. Click on the [Drivers] tab in the installation menu screen.

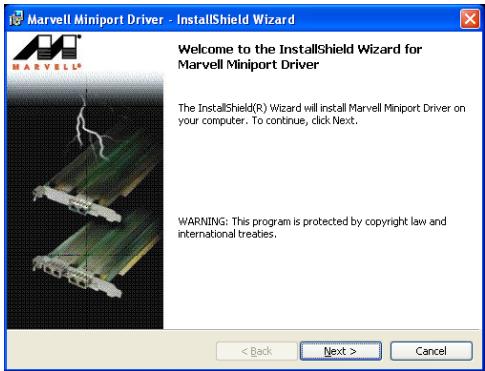

2. Click the [Marvell LAN Driver] item. The installation screen appears.
3. Follow the prompts on the screen to complete installation.

3.6 USB 2.0 Driver

There is no need to install this driver for Windows 2000 with Service Pack 4, Windows XP with Service Pack 1, or their later version.

3.7 abitEQ

The abitEQ is a self-diagnostic system that protects PC Hardware by monitoring critical items of Power Supply Voltage, CPU & System Fans Speed, and CPU & System Temperature.

To install this utility:

1. Click on the [abit Utility] tab in the installation menu screen.

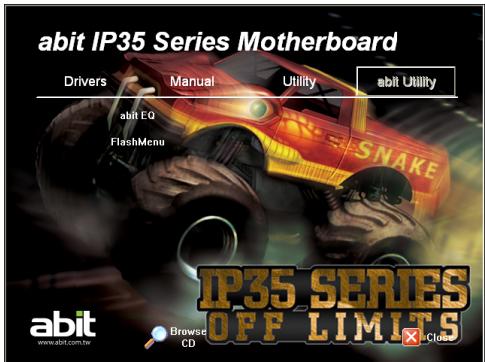

2. Click the [abitEQ] item. The following screen appears.

1. Follow the prompts on the screen to complete installation.

1. Execute the abitEQ by entering the Windows Menu [Start] [All Programs] [abit] [abitEQ].
2. The abitEQ shows you the status of Voltage, Fan Speed, and Temperature readings as well.

3.8 FlashMenu (BIOS Update Utility)

The FlashMenu is a utility to flash the BIOS in a more easily and quickly way.

To install this utility:

1. Click on the [abit Utility] tab in the installation menu screen.

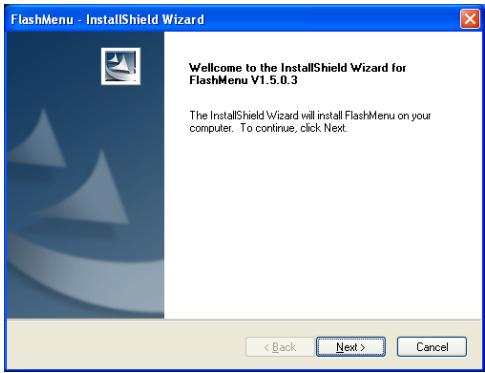

2. Click the [FlashMenu] item. The following screen appears.

1. Follow the prompts on the screen to complete installation.

1. Execute the FlashMenu by entering the Windows Menu [Start] [All Programs] [abit] [FlashMenu] [FlashMenu].
2. This FlashMenu screen appears. You can easily update the BIOS from clicking [Update From File], [One Click LiveUpdate], or [LiveUpdate Step by Step] button.

3.9 SATA RAID Driver (for Windows Vista)

The Raid Driver needed when installing Windows Vista operating system is located at the following path of your CD-ROM drive after placing the "Driver- & Utility CD" into it:

For Vista 32bit CD-ROM Drive:\Drivers\SATARIAID\Intel\Vista32

For Vista 64bit CD-ROM Drive:\Drivers\SATARIAID\Intel\Vista64

3.10 SATA RAID Driver (for Windows XP, 2003, or 2000)

The "Driver Disk Maker" program bundled in the Driver-&-Utility CD is a utility to build the driver program needed for SATA controller into a floppy disk under DOS environment. This procedure is necessary only for installing Windows operating system to the hard disk connected to "SATA1~SATA6" connector.

Both SATA3 and SATA4 connectors are available for IP35 only.

To create a driver disk:

1. Before starting, connect a 3.5'' floppy disk drive to the "FDC1" connector, and connect a CD-ROM drive to your motherboard. Prepare a 3.5'' floppy disk.
2. After completing all the start-up preparation for hardware setup, power on the system.
3. Enter the BIOS Setup Menu by hitting <Del> key¹.

Enter and select the BIOS menu "Advanced BIOS Features". Configure the option "First Boot Device" to "CD-ROM" drive. Save this selection and exit BIOS setup menu by accessing the BIOS menu "Save & Exit Setup".

1. Restart the system. The system will now boot from CD, and enter the ABIT Boot Manager, the following options appear³:

(0) Boot From First HDD
(1) Make Driver Disk
(2) Boot From First Floppy Drive
(3) Skip CD-ROM Boot (Try Next Boot Device)

Type <1> and hit key. The following options appear:

(1) Make Driver Disk
(2) Exit

Type <1> and hit key to start making.

1. The driver options appear:

(1) Intel SATA RAID Driver Disk for WinXP_2K_2003_Vista

Type the number of the actions you want and hit key.

1. Insert floppy disk to the floppy drive⁴. Press any key to continue.
2. Copying files to floppy now starts. After completed copying, hit the <n> key if you do not want to make another Driver Disk, and stop at the A:> prompt.
3. Take out the Driver- &- Utility CD from the CD-ROM drive now. Restart your system ^5 .

4. Multilingual Quick Installation Guide

Interne Audioanschlüsse: [CD1], [AUX1]
