KH 4438 MP3-CD-PLAYER - MP3 CD Player EBENCH - Free user manual and instructions

Product Type	Portable MP3 CD Player
Brand	EBENCH
Model	KH 4438
Power Supply	Mains adapter 230 V ~ 50 Hz or 2 AA batteries (rechargeable NiCd 1.2 V or non-rechargeable NiMh 1.5 V)
Supported Formats	Audio CD, CD-R, CD-RW, MP3 CD (up to 256 kbps)
Digital Anti-Shock Memory	45 seconds (CD) / 120 seconds (MP3)
Playback Functions	Repeat (1, all, folder), random, intro, program (up to 99 tracks), name search
Equalizer	POP, CLASSIC, JAZZ, DISCO, NORMAL
Bass Boost	Yes
Display	LCD with track, album, time information, etc.
Album / Song Index (MP3)	Up to 99 albums and 255 songs
Wired Remote Control	Yes, with integrated headphone jack
Headphone Output	3.5 mm jack
Line Output	Yes, for recording or connection to an amplifier
Battery Charging	CHARGE switch, charging indicator, charging time approx. 15 hours (max 18 h)
Key Lock (HOLD)	Yes, by slider
Automatic Shutdown	After 30 seconds at end of playback or double press STOP
Operating Temperature Range	5 °C to 35 °C
Maintenance	Clean the reading lens with a suitable kit; clean the casing with a soft damp cloth
Safety	Do not expose to moisture, excessive heat, do not open the casing (laser)

Frequently Asked Questions - KH 4438 MP3-CD-PLAYER EBENCH

How to install batteries in the player?

Open the battery compartment located under the device. Insert two AA batteries respecting the polarities (+ and -). For rechargeable batteries, use NiCd 1.2 V; for non-rechargeable, use NiMh 1.5 V. Make sure the CHARGE switch is set to OFF if you are using non-rechargeable batteries.

How to charge rechargeable batteries?

Connect the mains adapter to the player and plug it in. Set the CHARGE switch to ON. The charging indicator lights up. Allow to charge for about 15 hours (do not exceed 18 hours). You can listen to music during charging.

How to activate the anti-shock function (ESP)?

During playback of an audio CD, press the ALBUM/ESP/10+ button. The screen shows 'ESP ON' then the □ icon stays lit. The buffer memory records 45 seconds of music. For MP3, ESP is always on (120 seconds).

How to repeat a single song?

During playback, press MODE once. 'REPT 1' is displayed. Select the song to repeat with the SKIP buttons. To return to normal mode, press STOP twice or MODE once.

How to program the playback order of songs?

Press STOP then EQ/PROG. 'PROG' and 'P-01' are displayed. Use SKIP to choose a track, then press EQ/PROG to confirm. Repeat for up to 99 tracks. Press PLAY/PAUSE to start programmed playback.

How to use the equalizer?

During playback, press EQ/PROG repeatedly to cycle through modes: POP, CLASSIC, JAZZ, DISCO, NORMAL. The selected mode is briefly displayed on the screen.

How to search for a song by name on an MP3 CD?

Press STOP, then press and hold MODE until 'SONG SEARCH' appears. Use SKIP to select letters (max 8 characters), confirm each letter with MODE. After input, press PLAY/PAUSE. If the song is found, it is played; otherwise 'NOT FOUND' is displayed.

What to do if the player does not turn on?

First check the batteries: are they inserted correctly and sufficiently charged? Try plugging in the mains adapter. If the screen stays black, the batteries may be discharged. Replace or recharge them.

How to clean the reading lens?

Use a special cleaning kit for CD player lenses (sold as accessory). Follow the kit instructions. Never touch the lens with your fingers and do not use chemicals.

How to connect the player to an external amplifier?

Use the Line-out jack on the player. Connect an audio cable (e.g., jack to RCA) to the AUX or CD input of your amplifier. Set the player volume to a moderate level before starting playback.

USER MANUAL KH 4438 MP3-CD-PLAYER EBENCH

MP3 MP3 CONNECTO DISC PLAYER Bench SHP ALABRERAAN COPROG STOP OFF EXIT SECURBS ELECTRONIC SHOCK PROTECTION

Diagram of a device with numbered components and labeled parts, likely for technical or educational purposes.

29 20 28 21 22 23 30 24 25 26 27

PROG SHUFF INTRO MP3 CD HOLD REPT 1 DIR ALL 88 888 88:88 17 12 13 14 15 16

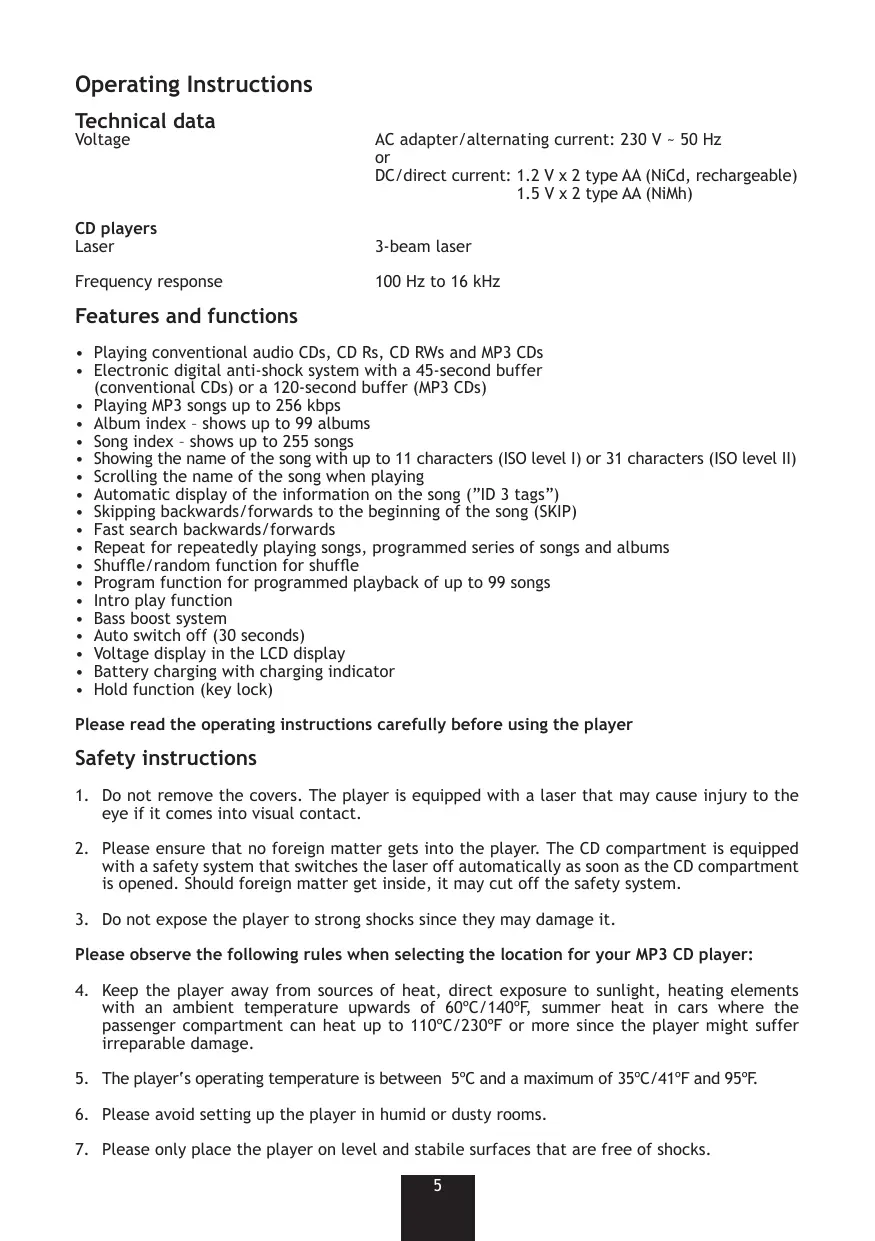

Operating Instructions

Technical data

Voltage

AC adapter/alternating current: 230 V \~ 50 Hz or

DC/direct current: 1.2 V x 2 type AA (NiCd, rechargeable) 1.5 V x 2 type AA (NiMh)

CD players

Laser

3-beam laser

Frequency response

100 Hz to 16 kHz

Features and functions

• Playing conventional audio CDs, CD Rs, CD RWs and MP3 CDs
• Electronic digital anti-shock system with a 45-second buffer (conventional CDs) or a 120-second buffer (MP3 CDs)
• Playing MP3 songs up to 256 kbps
  • Album index - shows up to 99 albums
• Song index - shows up to 255 songs
  • Showing the name of the song with up to 11 characters (ISO level I) or 31 characters (ISO level II)
• Scrolling the name of the song when playing
• Automatic display of the information on the song ("ID 3 tags")
• Skipping backwards/forwards to the beginning of the song (SKIP)
• Fast search backwards/forwards
• Repeat for repeatedly playing songs, programmed series of songs and albums
• Shuffle/random function for shuffle
• Program function for programmed playback of up to 99 songs
• Intro play function
• Bass boost system
  • Auto switch off (30 seconds)
  • Voltage display in the LCD display
• Battery charging with charging indicator
• Hold function (key lock)

Please read the operating instructions carefully before using the player

Safety instructions

1. Do not remove the covers. The player is equipped with a laser that may cause injury to the eye if it comes into visual contact.
2. Please ensure that no foreign matter gets into the player. The CD compartment is equipped with a safety system that switches the laser off automatically as soon as the CD compartment is opened. Should foreign matter get inside, it may cut off the safety system.
3. Do not expose the player to strong shocks since they may damage it.

Please observe the following rules when selecting the location for your MP3 CD player:

1. Keep the player away from sources of heat, direct exposure to sunlight, heating elements with an ambient temperature upwards of 60^ C/ 140^ F, summer heat in cars where the passenger compartment can heat up to 110^ C/ 230^ F or more since the player might suffer irreparable damage.

2. The player's operating temperature is between 5^ and a maximum of 35^ / 41^ and 95^ .

3. Please avoid setting up the player in humid or dusty rooms.

4. Please only place the player on level and stable surfaces that are free of shocks.

5. Sudden temperature fluctuations may cause condensate to form in the inside of the housing or on the laser scanner. Condensate may especially form when

- the player is brought from a cooler into a warmer room or into a cold room that is suddenly heated - the player is brought from a climate-controlled room or car into a hot or humid room in the summer

Condensate may cause malfunctions. If this takes place, please do not use the player for about two hours until it has adapted to room temperature.

1. Caution! Do not expose the player either to dripping or splashing water. Objects filled with water such as vases should not be placed on it.

2. Do not block the ventilation openings on the player since it might overheat.

Controls and displays on the player

1. CD compartment

2. SKIP button ▶

3. MODE button

4. STOP/OFF button ■

5. PLAY/PAUSE button ▶ II

6. LCD display

7. EQ/PROG button

8. ALBUM/ESP/10+ button

9. SKIP button ◀◀

10. PHONES

11. Battery charging display

12. OPEN slide

13. VOLUME

14. Line-out

15. CHARGE slide

16. BASS BOOST slide

17. HOLD slide

18. Battery compartment

19. DC IN 4,5 V

Skipping forwards to the beginning of the song/fast search forwards

Select mode

Stop CD playback/switch off

Start CD playback/pause

Liquid crystal display

Activate the equaliser function/program your own combination of songs

Select catalogues with MP3 CDs/activate the electronic digital anti-shock system/skip over 10 songs when searching for songs (only available with MP3 CDs)

Skipping backwards to the beginning of the song/fast search backwards

Headphone jack with connection for remote control

Open the CD compartments

Volume regulation

Audio output

Switch battery charging on/off

Switch bass boost system on/off

Switch key lock on/off

Terminal for line adapter

Controls and displays on the remote control

1. Headphone jack

2. STOP button ■

3. SKIP button ◀◀

4. MODE button

5. EQ/PROG button

6. VOLUME

7. SKIP button ▶

8. PLAY/PAUSE button ▶ II

9. LCD display

10. Slide HOLD

11. ALBUM/ESP/10+ button

Stop playback

Skip backwards to the beginning of the song/fast search backwards

Select playback mode

Activate the equaliser function/program your own combination of songs

Volume regulation

Skip forwards to the beginning of the song/fast search forwards

Start CD playback/pause

Liquid crystal display

Switch key lock on/off

Select catalogues with MP3 CDs/activate the electronic digital anti-shock system/skip over 10 songs when searching for songs (only available with MP3 CDs)

LCD displays

1. PROG	Display when playing programmed combination of songs
2. SHUFF	Display when shuffling
3. INTRO	Display when introduction function is activated
4. MP3	Display when playing an MP3 CD
5. CD	Display when playing conventional CDs
6. HOLD	Display when the HOLD function is activated (key lock)
7. REPT 1	Display when repeating playback of one song
8. REPT DIR	Display when repeating playback of individual songs of an album (only with MP3 CDs)
9. REPT ALL	Display when repeating playback of all tracks on a CD/of a programmed combination of songs
10.	Display with low batteries

1. Indicating the number of the current album
2. Indicating the current song
3. Indicating the time the current song has already played in minutes
4. Indicating the time the current song has already played in seconds
5. ☐ Display of the activated ESP function
6. Status line; this is the display of the information on the current song when playing MP3-CDs

Using the player

Power supply

Mains operation

Connect up the adapter for direct current to the DC IN direct current socket on the player and then put the plug into a socket (direct current).

Information on the direct current adapter

• Never touch the AC adapter when your hands are wet because there is the danger of an electrical shock.
• When the AC adapter is plugged in and batteries are in the player, battery operation is automatically switched off and the player switches to power operation.
• The shape and appearance of the plug on the illustration of the operating instructions may differ from that on the player.

Battery operation

Information on batteries

• Please always use two new batteries of the same kind when changing batteries.
• Batteries that do not satisfy the prescribed values may damage the player.
• Only charge batteries that are expressly made for that. Never attempt to open batteries. Batteries should not be exposed to greater heat and they should especially not be thrown into fire.
• Always dispose of batteries ecologically. You may obtain information on this from your local authorities.
• The player may be operated both with rechargeable NiCd batteries and conventional non-rechargeable NiMh batteries. Caution! Never charge conventional NiMh batteries. Before inserting non-rechargeable batteries, the CHARGE slide has to be in the OFF position since the player might suffer irreparable damage.

Inserting batteries

Insert the two rechargeable NiCd batteries supplied (type AA, 1.2 V) or conventional NiMh batteries (type AA, 1.5 V, non-rechargeable) into the battery compartment on the lower side of the player. Ensure that they are inserted correctly with the plus (+) and minus poles of the batteries at the marked locations.

Charging and using rechargeable batteries

Rechargeable batteries can be recharged in the player's battery compartment in about 15 hours. The rechargeable batteries supplied should be charged before using them for the first time. The same applies when the batteries have not been used over a longer period of time (more than 60 days). Furthermore, rechargeable batteries should always be completely empty before charging because their storage capacity might be reduced significantly (the memory effect).

1. Open the battery compartment and insert 2 of the recommended rechargeable NiCd batteries (1.2 V - 600 mA).
2. Connect the player to the power supply and then put the plug of the power supply into a socket. Switch the CHARGE slide to "ON" to start charging the batteries. If you have already inserted a CD/MP3 CD, the player starts playing automatically. Press the STOP button to stop playback. Press the STOP button twice to switch the player off. The batteries then continue to charge. The CHARGE indicator is illuminated during charging.

1. Disconnect the player from the socket after charging for 15 hours and put the CHARGE button to OFF. Never charge longer than 18 hours continuously since this could be detrimental to battery power.

Note: You may also play CDs when charging.

1. If your player's performance is drastically reduced in battery operation although the rechargeable batteries were properly charged, replace all of the batteries with new rechargeable NiCd batteries or non-rechargeable NiMh batteries.

2. The playback/playing time may be reduced when charging for the first time or even after not using the player for a longer period of time. In this case, let the batteries discharge completely several times and then recharge them completely again.

Note

The ▶ symbol flashes when the batteries are weak. Replace the batteries or switch over to network operation when it flashes.

If there is no display when you press the PLAY/PAUSE button, check whether the batteries have been inserted into the player correctly. If this is the case, the batteries are empty. Change the batteries or switch over to network operation.

Caution! Please only use the AC adapter supplied for charging batteries.

General Functions

Automatic switch-on

When you press the PLAY/PAUSE button, the player is automatically switched on.

Automatic switch-off

The player is automatically switched off after 30 seconds when all of the songs on a CD have been played or you press the STOP button twice.

Digital electronic anti-shock system

The digital electronic anti-shock system is regulated by a semiconductor memory that keeps the complete sound playback from being impaired if the player is exposed to impact or vibration. In CD operation you may activate the digital electronic anti-shock system as follows:

Press the ALBUM/ESP/10+ button when the player is playing. The display shows "ESP ON". The display is removed with the symbol □ remaining in the display. Then the electronic anti-shock

system is activated. The digital data corresponding to a sound playback of 45 seconds is put into a read-ahead memory buffer. As soon as the memory buffer is full, which you can see on the bars in the memory display ☐, it is overwritten with the next data (in turn also corresponding to 45 seconds of sound playback). If the player is exposed to impact in CD operation during playback, the data in the buffer are evaluated and sound playback can continue without problems. This gives the laser scanner time to stabilise and to read in new data from the CD. When the data from the memory have been captured, new data is put into the memory.

The battery power is quickly reduced by the anti-shock system being on. Therefore, if you are sure that the CD player is on a sturdy base and is not exposed to any shocks or vibration, leave the anti-shock system switched off.

In MP3 CD operation, the buffer records 120 seconds of music. The ESP function is constantly activated and cannot be switched off.

Bass Boost

Use bass boost to improve sound playback or to amplify the bass range when using headphones.

Equaliser function

You may play music with a wide range of equaliser curves. You have a selection of POP, CLASSIC, JAZZ, DISCO and NORMAL. Each equaliser curve has its own characteristic way of intoning the treble range, mid-range and bass range. This means that you can adapt playback to a variety of music genres and your very personal habits and preferences. Press the EQ/PROG button during playback to activate the various equaliser curves. If you press the EQ/PROG button several times, you can go through the various equaliser curves and the equaliser curve selected is indicated in the display for a few seconds.

Hold mode/key lock

After you have entered all settings, put the HOLD slide to ON and "HOLD" appears in the display. All of the buttons are locked in this position so that you cannot play it by mistake. Push the HOLD button to OFF to deactivate key lock and the "HOLD" symbol is removed.

OFF HOLD ON CD HOLD 00 1 0 1:58 PLAY

Conventional Audio-CDs

Playback

1. When the player is turned off, you may activate it by pressing the PLAY/PAUSE button.
2. First of all, turn the volume down before you plug in or unplug the headphones on the player or remote control.
3. Connect up the latch plug of the headphones with the headphone jack PHONES on the player.
4. Open the CD compartment with the OPEN slide.

5. Insert a CD with the labelled side upwards onto the axis in the middle of the CD compartment. Press the CD slightly until it locks noticeably onto the axis.

6. Close the CD compartment by pressing the cover down until it locks noticeably. The CD begins spinning, "READ" appears on the display and the total number of the songs and the overall playing time for the CD appears shortly on the display.

READ 0 14 64:51 00 1 00:01 PLAY

1. Press the PLAY/PAUSE button to start playback; "PLAY" appears on the display. Adjust the desired volume during playback and regulate basses and trebles as required or activate the electronic anti-shock function. The time the current song has played is shown in the display during playback.
2. If you wish to stop playback, press the STOP button. The total number of tracks the overall playback time is shown in the display.
3. If you press the STOP button again, "POWER/OFF" is shown in the display and the player switches off.

0 14 64:51 STOP

Using the SKIP buttons

Press the SKIP ▶ button to skip forwards to the beginning of a song.

Press the SKIP ◀ button to skip backwards to the beginning of a song.

You can use fast search to find a specific place within a piece on the CD when you hold down the SKIP button during playback (forwards ▶ or backwards ◀). When you release the SKIP button again, playback begins at the same place in the song.

Programmed playback of CD songs

You can select up to 99 songs on a CD and program them to be played in the desired order.

1. Press STOP and then the PROGRAM button.
2. "PROG", the number of the first song and "P-01" are shown in the display.

PROG CD 000 P-01 STOP

1. Press the SKIP button ▶ or ◀ to select the first song for programming forwards or backwards.

PROG CD 002 P-01 STOP

1. Press the PROGRAM button again. The first song selected is now programmed and the display shows "P-02" for the second song to be programmed.

PROG CD 000 P-02 STOP

1. Repeat steps 3 and 4 to program other songs.
2. When you have finished programming songs, press the PLAY/PAUSE button and programmed playback starts with the first programmed song.

PROG CD 002 00:01 PLAY

The CD player stops automatically as soon as all songs stored have been played. The selection of songs remains programmed until the CD compartment is opened or the player is switched off.

Intro Scan

This function allows you to play the first 10 seconds of each song on a CD in order. In order to start the introduction function, press the STOP, and then the MODE button once. "INTRO" appears on the display. Now press the PLAY/PAUSE button.

INTRO CD 00:01 PLAY

Shuffle

The CD player automatically selects and plays all songs on the CD in random order with the shuffle function.

1. Press the STOP and then the MODE button twice; "SHUFF" appears on the display.
2. Now press the PLAY/PAUSE button to start shuffle.

Repeated playback of individual songs

Press the MODE button once when playing a CD and "REPT 1" appears on the display. Then select a song to be played repeatedly with the SKIP buttons ▶ or ◀. This song is then played repeatedly until the STOP or MODE button is pressed twice to change back to normal playback operation.

CD REPT 1 003 02:42

Repeated playback of all CD songs

Press the MODE button twice when playing a CD and "REPT ALL" appears on the display. All of the songs of the CD inserted will be repeated until the STOP or MODE button is pressed once to change back to normal playback operation.

MP3 CDs

Note: The read in/scanning times are somewhat longer due to the greater memory capacity of MP3 discs.

Playback

1. Open the CD compartment, insert the MP3 CD correctly, close the CD compartment and press the PLAY/PAUSE button.
2. "READ" appears on the display and the player now reads in the information from the MP3 CD and shows it as follows:

READ

MP3 14 0156 ISB-07

MP3 0100100:15 SUPE

Selecting songs

You may select the desired song in MP3 operation in the same fashion as when playing conventional CDs with the SKIP buttons (forwards/backwards).

When selecting various songs from various catalogues, please select the catalogue prior to selecting the desired song from the catalogue. Then proceed as follows:

1. Keep the ALBUM/ESP/10+ button pressed down and the first catalogue of the CD is shown in the display.
2. Select the desired catalogue with the SKIP buttons ▶ or ◀.
3. Then press the PLAY/PAUSE button; the first song of the selected catalogue is shown in the display and playback starts.

You can select other songs in the desired catalogue with the SKIP button (forwards/backwards).

Repeated playback of individual songs

Repeated playback of the entire CD

Introduction function

Shuffle

Proceed in the same fashion to activate these functions as with conventional CDs (refer to the corresponding sections in the chapter on conventional CDs).

Repeated playback of songs in a catalogue

Press the MODE button during playback twice to repeatedly play all songs of the current catalogue. "REPT DIR" appears in the display.

MP3 REPT DIR 01 002 03:18 02

Programmed playback

1. Press the STOP and then the EQ/PROG button.
2. Select the desired catalogue with the SKIP buttons (forwards/backwards).
3. Press the EQ/PROG button again.
4. Select the desired song in the desired catalogues with the SKIP buttons (forwards/backwards) and program it by pressing the EQ/PROG button again.
5. Repeat the steps described above to program the other songs. You may program up to 99 songs in any order.
6. When you have programmed all desired songs, start playback with the PLAY/PAUSE button.

After all programmed songs have been played, the player automatically changes into STOP mode. The songs you programmed remain in the memory until the CD compartment is opened or the player is switched off by pressing the STOP button again.

Searching for songs according to names

With MP3-conditions, you may search for songs by entering their names. You may only enter a maximum of 8 characters (letters or numbers). Before searching for songs, you should find out whether the name of the artist or the song title was stored first on the MP3 CD to identify the songs. Then either enter eight letters/numbers of the artist's name or eight letters of the song title.

1. Press the STOP button and keep the MODE button pressed until "SONG SEARCH" appears in the display.
2. Select the initial of the song you are searching for with the SKIP buttons (forwards/backwards) when the letter A appears on the display. You may also enter numbers.
3. Press the MODE button to select the letter. Then a second letter is shown in the display. Proceed as described to select the second letter or second number. Press the STOP button to go back to the previous letter.
4. After you have entered the song title or artist's name, press the PLAY/PAUSE button and your input is compared with the names stored on the MP3 CD. If it finds the song, it is automatically played back. If it finds several songs, it plays the first song it finds. If it does not find it, the display shows "NOT FOUND".

Remote control

You may use the following functions of the player with the remote control supplied: PLAY/PAUSE, STOP, SKIP (forward/back), MODE, ALBUM/ESP/10+, EQ/PROG, HOLD, volume. Furthermore, you can connect the headphones up to remote control.

Line drawing of a mechanical assembly with two tools and a circular component (no text or symbols)

Line-out jack

You may record music on another player with the line-out jack on the player by connecting the wire supplied with the line-out jack of the CD player and the input jack of a recorder (such as a cassette recorder).

If you would like to connect your MP3 CD player to another player to use its loudspeakers for playing music (for instance, your hi-fi player), you have to connect the wire supplied with the line-out jack of the CD player and the input jack (AUX/CD INPUT, etc.) to the player.

Cleaning the scanning lens

If there is dust on the scanning lens of the CD player, this may lead to malfunctions, especially tone disturbances during playback. If the scanning lens is soiled (for instance, with dust), you may clean it with a cleaner as used for cameras and accessories. Do not touch the scanner with your hands.

Cleaning the housing

Use a soft slightly moistened cloth for cleaning. Never use chemicals such as benzene, thinner, or similar things that could damage the finish. Please ensure that no liquid gets inside of the player.

Declaration of conformance

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Bochum, Germany, herewith declare this product to be in conformance with all applicable international standards, safety requirements and the EC directives.

Type: KH 4438

Bochum, 31.10. 2002

Hans Kompernaß

- Managing Director -
