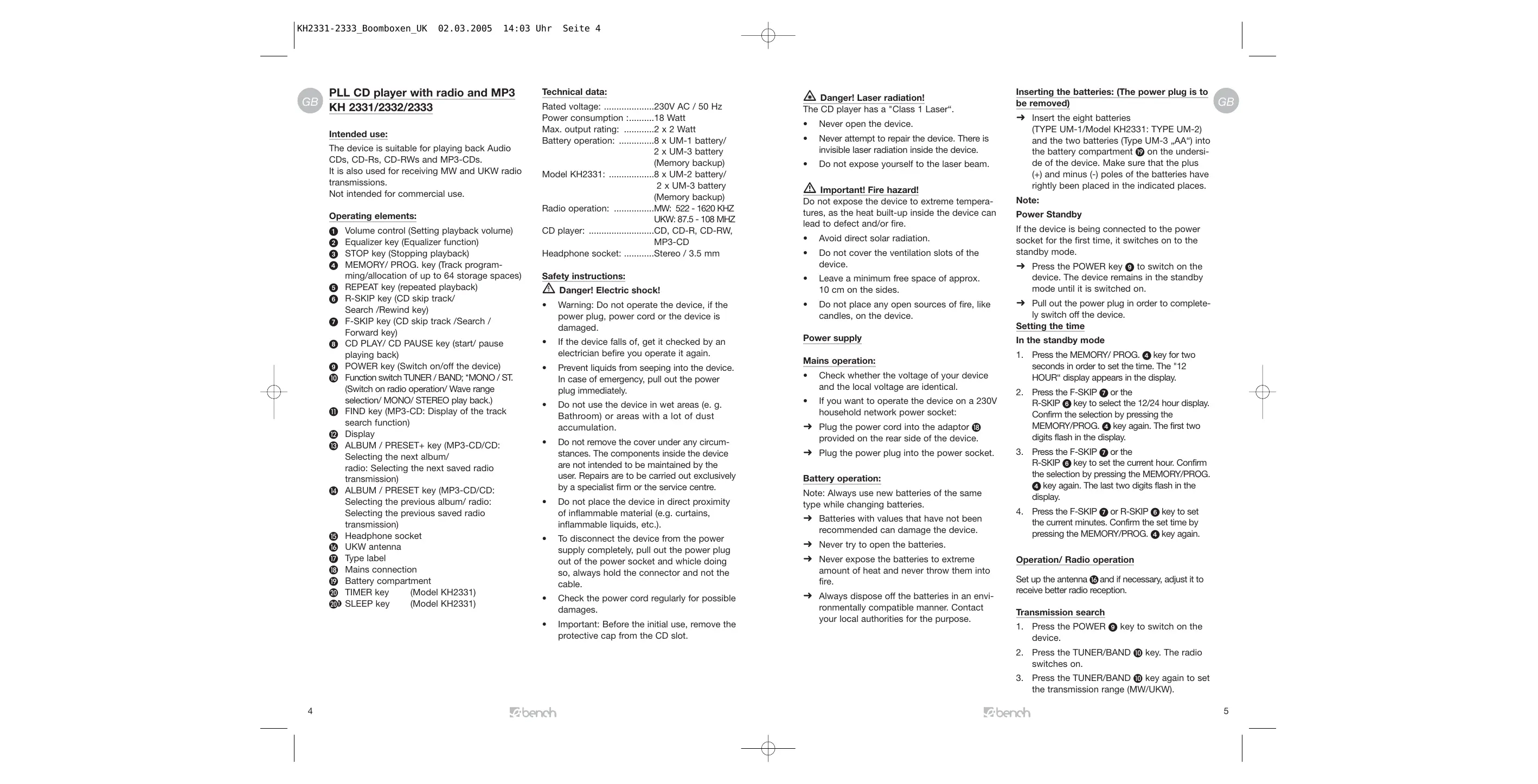

KH2331-2333 Boomboxen UK 02.03.2005 PLL CD player with radio and MP3 KH 2331/2332/2333 Intended use: The device is suitable for playing back Audio CDs, CD-Rs, CD-RWs and MP3-CDs. It is also used for receiving MW and UKW radio transmissions. Not intended for commercial use. Operating elements: Equalizer key (Equalizer function) STOP key (Stopping playback) REPEAT key (repeated playback) R-SKIP key (CD skip track/ Search /Rewind key) F-SKIP key (CD skip track /Search / Forward key) playing back) 6 © © ©0 oo0e selection/ MONO/ STEREO play back.) search function) Display

Selecting the next album/ radio: Selecting the next saved radio transmission) Selecting the previous album/ radio: Selecting the previous saved radio transmission) Headphone socket UKW antenna Type label Mains connection Battery compartment TIMER key (Model KH2331) @P SLEEP key (Model KH2331)

Rated voltage: Power consumption Max. output rating: Battery operation: Model KH2331: . Radio operation: CD player: … Headphone socket: Safety instructions: À Danger! Electric shock + Warning: Do not operate the device, if the power plug, power cord or the device is damaged. + _Ifthe device falls of, get it checked by an electrician befire you operate it again. + Prevent liquids from seeping into the device. In case of emergency, pull out the power plug immediately. + Do not use the device in wet areas (e. g. Bathroom) or areas with a lot of dust accumulation. + Do not remove the cover under any circum- stances. The components inside the device are not intended to be maintained by the user. Repairs are to be carried out exclusively by a specialist firm or the service centre. + Do not place the device in direct proximity of inflammable material (e.g. curtains, inflammable liquids, etc.). + To disconnect the device from the power supply completely, pull out the power plug out of the power socket and whicle doing so, always hold the connector and not the cable. + Check the power cord regularly for possible damages. + Important: Before the initial use, remove the protective cap from the CD slot. À Danger! Laser radiation! The CD player has a “Class 1 Laser“. + Never open the device. + Never attempt to repair the device. There is invisible laser radiation inside the device. + Do not expose yourself to the laser beam. À Important! Fire hazard! Do not expose the device to extreme tempera- tures, as the heat built-up inside the device can lead to defect and/or fire. + Avoid direct solar radiation. + Do not cover the ventilation slots of the device. + Leave a minimum free space of approx. 10 cm on the sides. + Do not place any open sources of fire, like candles, on the device. Power supply Mains operation: + Check whether the voltage of your device and the local voltage are identical. + _ If you want to operate the device on a 230V household network power socket: — Plug the power cord into the adaptor ® provided on the rear side of the device. — Plug the power plug into the power socket. Battery operation: Note: Always use new batteries of the same type while changing batteries. — Batteries with values that have not been recommended can damage the device. + Never try to open the batteries. — Never expose the batteries to extreme amount of heat and never throw them into fire. — Always dispose off the batteries in an envi- ronmentally compatible manner. Contact your local authorities for the purpose. Inserting the batteries: (The power plug is to be removed) + Insert the eight batteries (TYPE UM-1/Model KH2331: TYPE UM-2) and the two batteries (Type UM-3 ,AA‘) into the battery compartment ® on the undersi- de of the device. Make sure that the plus (+) and minus ( poles of the batteries have rightiy been placed in the indicated places. Note: Power Standby If the device is being connected to the power socket for the first time, it switches on to the standby mode. — Press the POWER key @ to switch on the device. The device remains in the standby mode until it is switched on. + Pull out the power plug in order to complete- ly switch off the device. Setting the time In the standby mode

1. Press the MEMORY/ PROG. @ key for two

seconds in order to set the time. The "12 HOUR“ display appears in the display. Press the F-SKIP @ or the R-SKIP @ key to select the 12/24 hour display. Confirm the selection by pressing the MEMORY/PROG. @ key again. The first two digits flash in the display.

3. Press the F-SKIP @ or the

R-SKIP @ key to set the current hour Confirm the selection by pressing the MEMORY/PROG. © key again. The last two digits flash in the display.

4. Press the F-SKIP @ or R-SKIP @ key to set

the current minutes. Confirm the set time by pressing the MEMORY/PROG. @ key again. Operation/ Radio operation Set up the antenna @ and if necessary, adjust it to receive better radio reception. Transmission search

1. Press the POWER @ key to switch on the

3. Press the TUNER/BAND @ key again to set

the transmission range (MW/UKW).

KH2331-2333 Boomboxen UK 02.03.2005 Press the F-SKIP @ or the R-SKIP @ key for a few seconds and release the key. The automatic transmission now starts searching the first transmission with adequate signal strength. Repeat the process to set other transmis- sions. To set the transmission with weak signal strength:

Press the F-SKIP @ or the R-SKIP @ key continuously until you get the desired frequency or the reception is optimal. Save the radio transmission

Press the TUNER/BAND @ key again to sent the transmission range (MW/UKW). Search the desired transmission as descri- bed under the point "Transmission search". Press the MEMORY/ PROG. 4 briefly. The indication "PROG" appears in the display and the memory position “O1“ blinks. Press the ALBUM/PRESET+ @ or ALBUM/PRESET- @ key to save the current transmission in another memory position (1-10). Press the MEMORY/ PROG. @ key again. The previously set transmissions are written in the memory. Repeat the process to save other transmis- sions. 14:03 Uhr Seite 6 Selecting the saved radio transmissions — Press the ALBUM/PRESET+ ® or ALBUM/PRESET- @ key to select a memo- ry position between 1-10. Note: (Mains or battery operation) Make sure that both the (UM-3/'AA') batteries have been inserted. The saved radio transmis sions are thus received even if there is a drop in the mains voltage. CD/MP3-CD operation Inserting the CD/MP3-CD

1. Press OPEN/CLOSE to open the

2. Place the CD/MP3-CD in the CD slot.

3. Press OPEN/CLOSE to close the

CD slot. The CD/MP3 player starts and reads the contents of the CD/MP3-CD. After a few seconds, the total playback time and the number of the current track appears in the display. Playing back the inserted CD

1. Press the PLAY/PAUSE @ key.

= The playback begins with the first track of the CD. - The display shows the current track num- ber and the previous playback time. - The CD player stops when al the tracks have been played. The total playback time as well as the number of the current track are shown in the display.

2. Press the STOP @ key to stop the play-

3. Press the PLAY/PAUSE @ key to interrupt

the playback. (The playback should be pre- viously activated).

4. Press the PLAY/PAUSE @ key again to conti-

nue the playback. Selecting different tracks during playback — Press the F-SKIP @ or the R-SKIP @ key until the desired track appears in the display.

Only for MP3-CDs: + Press the ALBUM/PRESET+ ® or ALBUM/PRESET @ key once or multiple times to find the desired album. Restarting the current track — During the playback, press the R-SKIP @ once. Playback of the current track restarts. Searching a song passage during the playback + Press and hold the F-SKIP @ or R-SKIP @ key to search the desired song passage. The playback continues when you release the F-SKIP @ or R-SKIP @ key. Search function Possible only for playing back MP3-CDs: + Press the FIND @ key to call the MP3-CD search function. Searching with the help of the file name + Press the FIND @ once to call the MP3-CD search function. À and the alphabet "A" appears in the display. If a file name begins with the alpha- bet "A" beginnt, it appears in the display as well. — Press the F-SKIP @ or R-SKIP @ key to search from A-Z and 0-9. — Press the PLAY/PAUSE © key to begin playing back the desired track. Searching with the help of the album name — Press the FIND @ key twice to call the search function. À and the "ALBUM" appears in the display. — Press the F-Skip @ or R-SKIP @ key to search the desired album. — Press the PLAY/PAUSE © key to start play- ing back the album. Text display (ID3 display) — While playing back an MP3-CD, press the FIND @ key for two seconds. The file name/ track/ artist/ album of the current track appears in the display. — Press the FIND @ key once again for two seconds to go to the playback time display. Note: The device is compatible with ID3 V:1, V2 only. Track programming Up to 64 tracks can be stored. CD playback

1. Insert the CD in the device, as described

under “Insert the CD“.

2. Press the MEMORY/PROG. @ key to start

3. Press the F-Skip @ or R-SKIP @ key to

find a particular track.

4. Press the MEMORY/PROG. @ key to write

the track in the memory.

5. Repeat the process until you have written

all the tracks in the memory.

6. Press the PLAY/PAUSE @ key to playback

the automatically created programme.

7. Press the STOP @ key to stop the play-

back. MP3-CD playback

1. Insert the CD in the device, as described

under “Insert the CD“.

2. Press the MEMORY/PROG. @ key to start

3. Press the F-SKIP @ or R-SKIP @ key to

find the desired album folder.

4. Press the MEMORY/PROG. @ key to write

the album/ folder in the memory.

5. Press the F-SKIP @ or R-SKIP @ to find

6. Press the MEMORY/PROG. @ key to write

the track in the memory.

7. Press the PLAY/PAUSE @ key to playback

the automatically created programme.

8. Press the STOP @ key to stop the play-

back. Checking the programming

1. Press the MEMORY/PROG. @ to take a

look at the stored track. The first pro- grammed track appears in the display.

2. Press the MEMORY/PROG. @ key again to

go to the next track.

KH2331-2333 Boomboxen UK 02.03.2005 Playing back the programm — Press the PLAY/PAUSE @ key. The play- back begins with the first track of the pro- gramme. When al the tracks have been played, the CD/MP3-CD player stops playing back. Deleting track programming + Press the STOP @ key or open and close the CD compartment to delete the track programming. Repeated payback of tracks Use the Repeat Function to repeat a track /complete CD or the programme. cp:

1. Press the REPEAT @ key once. "REPEAT

1“ appears in the display and the current track is repeatedly played back.

2. Press the REPEAT @ key twice. REPEAT

ALL“ appears in the display and the the complete CD is repeatedly played back.

3. Press the REPEAT @ key thrice to switch

off repeated playback. MP3-CD:

1. Press the REPEAT @ key once. "REPEAT

1“ appears in the display and the current track is repeatedly played back..

2. Press the REPEAT @ key twice. REPEAT

ALL“ appears in the display and the the complete CD is repeatedly played back.

3. Press the REPEAT @ key thrice. REPEAT

ALBUM“ appears in the display and the the complete album is repeatedly played back.

4. Press the REPEAT @ key four times to

switch off repeated playback. 14:03 Uhr Seite 8 Timer function (Only in model KH2331) Make sure that the time has been set before you programme the Timer. Select CD or Radio as the playback source. For Radio operation, the desired transmission must be first set. Switching on the timer:

1. Press the ALBUM/PRESET+ ® or

ALBUM/PRESET @ key to set the desired transmission.

2. Press the TIMER @ keys. € appears in

R-SKIP @ keys to set the hours. Confirm the setting by pressing the TIMER @ key again. The last two digits link.

4. Press the F-SKIP @ or

R-SKIP @ keys to set the minutes. Confirm the start time by pressing the TIMER @ key again.

5. Repeat steps 3 + 4 to set the turn-off time.

6. TUNER appears in the display.

Press the F-SKIP @ or R-SKIP @ keys to select the playback source (CD or Tuner).

7. Press the TIMER @ key to confirm the

playback source. Volume level 15 appears in the display.

8. Press the F-SKIP @ or R-SKIP @ keys to

sent the volume level.

9. Press the TIMER @ key to store the set-

tings. Switching off the timer:

1. Press the TIMER @ key.

2. Gis no longer shown in the display. The

timer is switched off. Sleep function (Only in Model KH2331)

1. Press the SLEEP © key. SLEEP appears in

2. Press the SLEEP ® key again to set a

Sleep time of 90 - 10 minutes.

3. Press the SLEEP @ key again to switch off

the Sleep function. Equalizer function This device has a preset Equalizer + Press the EQ @ key to select the Equalizer settings. The following setting options are available: - CLASSIC - ROCK - POP - JAZZ - PASS (Equalizer function is deactivated) Connection of stereo headphones This device has a 3.5mm stereo headphone connection. + Insert the plug of the headphone in the headphone socket ® and set volume con- trol @ as desired. During the reception through the headphone, the speakers are automatically muted. Cleaning Clean the casing with a slightiy damp cloth only. In case of stubborn stains, pour a few drops of a mild detergent on the damp cloth. Important: Make sure that moisture does not seep into the casing or the mains connection at the time of cleaning. Disposal The packaging is made of 100% environment- friendly materials, which you can dispose off through the local recycling centres. Contact your municipal authorities or city admi- nistration for information on disposal options for used household appliances. Batteries should not be disposed off with hou- sehold waste. Always dispose off the batteries in an environment-friendly manner. Contact your local authorities for the purpose. Service Please take the warranty card from the appro- priate service centre of your province. Kompernass Handelsgesellschaft mbH Burgstrasse 21 44867 Bochum Deutschland / Germany wuwkompernass.com
