Product type	Clock radio
Brand	EBENCH
Model	KH 2287
Mains power	220-230 V ~ 50 Hz
Backup power	9 V battery (not included)
Reception bands	FM and AM (medium wave)
Display	LED screen
Alarm function	Buzzer or radio
Alarm repetition (snooze)	Yes, about 9 minutes
Sleep function	Timer up to 1 h 59
Automatic alarm stop	After 1 h 59
FM antenna	Floating wire antenna
AM antenna	Internal ferrite antenna
Volume control	Rotary knob
Band selection	FM/AM switch
Maintenance	Clean with a soft cloth, unplugged
Safety	Do not open the casing, do not expose to water
Included accessories	Mains power cord, user manual

Frequently Asked Questions - KH 2287 EBENCH

How to set the time?

Press and hold the TIME SET button and simultaneously press the HOUR and MINUTE buttons until the correct time is displayed.

How to set the alarm time?

Press simultaneously the ALARM, HOUR and MINUTE buttons until the desired time appears on the display.

How to be woken by the radio?

Set the function switch to ON, tune a station and adjust the volume, then switch the switch to AUTO.

What to do in case of power outage?

Insert a 9 V battery in the compartment to backup the time and alarm. The LED display turns off, but the internal clock continues.

How to use the sleep function?

Press the SLEEP button (④). The default duration is 0:59. To change it, hold SLEEP and press HOUR (⑦) or MINUTE (⑧). The radio turns off after the set duration (max 1:59).

How to stop the alarm?

Press the ALARM STOP button (⑥) or set the function switch to OFF.

How to clean the device?

Unplug the device from the mains. Clean the casing with a soft cloth only. Do not use cleaning products.

Which battery to use for backup?

Use a 9 V battery (block type). Replace it once a year to ensure proper operation.

What to do if the device does not turn on?

Check the mains socket and power cord. If the cord or device is damaged, do not use it and contact Customer Service.

How to improve FM reception?

Fully extend the floating wire antenna and orient it in different directions until you get the best reception.

USER MANUAL KH 2287 EBENCH

Digital alarm clock with red display showing 12:00 (no visible text or symbols beyond clock face)

KH 2284

Digital alarm clock with green display showing 12:10 (no visible text or symbols beyond clock and buttons)

KH 2285

12:10 W W

KH 2286

Digital alarm clock with digital display showing 12:22 (no visible text or symbols beyond clock face)

KH 2287

GB Operating instructions and safety advices Page 11

Diagram of a Smart TV brand air conditioner with numbered labels pointing to ports and function buttons

⑫ 0.000 A4+ 0.5k ⑪ ⑩ ⑬

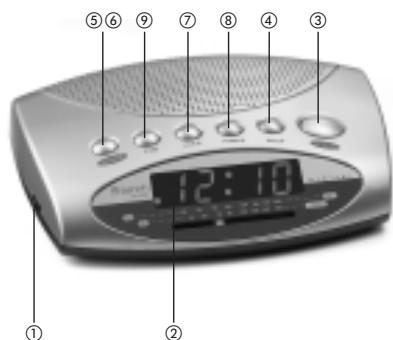

KH 2285

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ 12:10

470/234 121 + 1 AM +20/234 ⑪ ⑫ ⑬ ⑩

AirPin 12:10 Battery ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Diagram of a device rear panel with labeled ports and connectors, showing numbered labels 10 to 13.

③ ⑪ ⑩ ② 12:22 ① ⑫ ⑬ ⑬ ⑭ ④ ⑨ ⑤ ⑥ ⑦ ⑧ 5-inch

Bedienungsanleitung

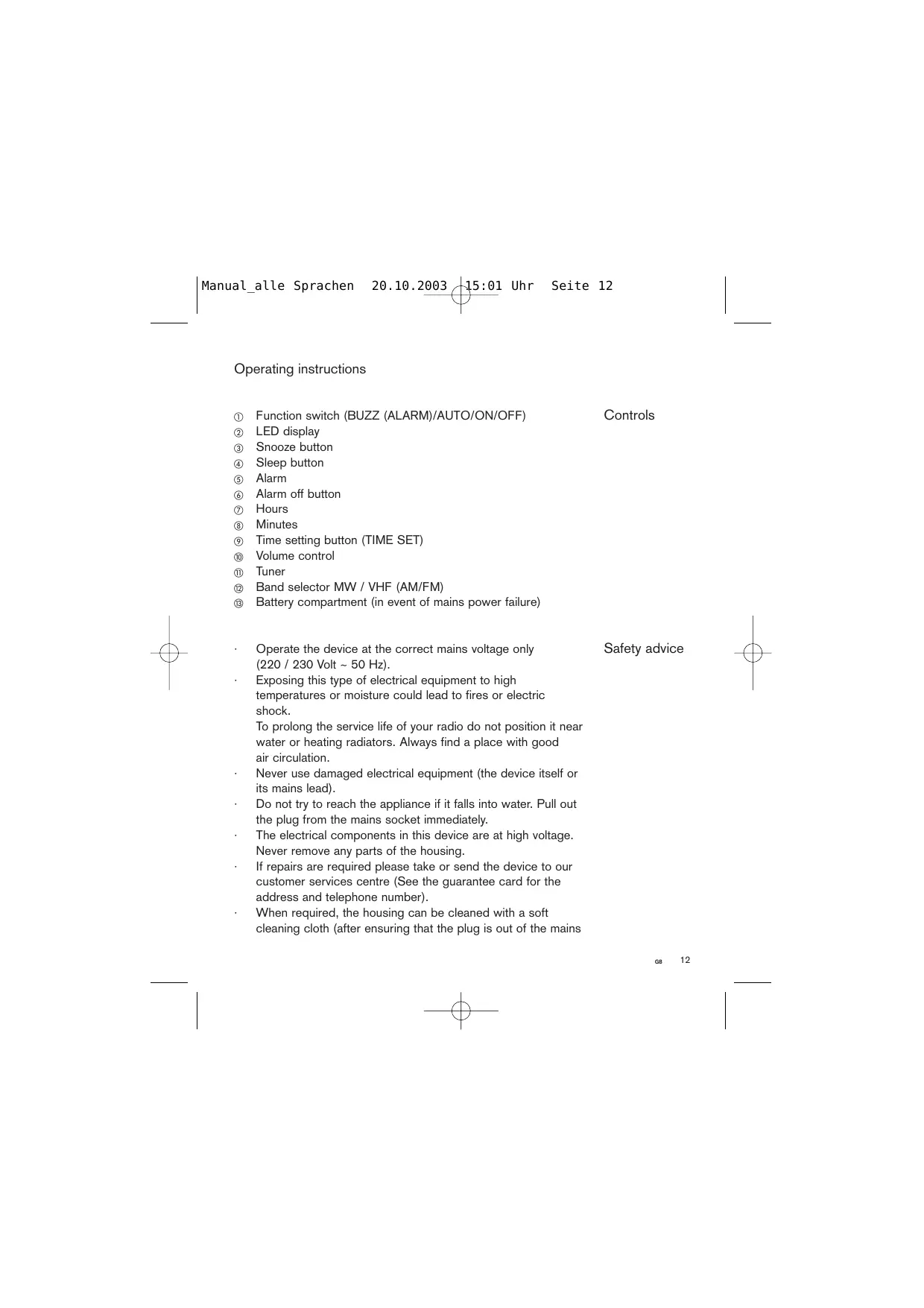

Operating instructions

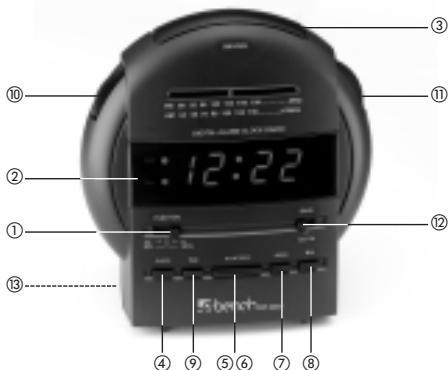

① Function switch (BUZZ (ALARM)/AUTO/ON/OFF)
② LED display
③ Snooze button
④ Sleep button
⑤ Alarm
⑥ Alarm off button
⑦ Hours
⑧ Minutes
⑨ Time setting button (TIME SET)
⑩ Volume control
⑪ Tuner
⑫ Band selector MW / VHF (AM/FM)
⑬ Battery compartment (in event of mains power failure)

- Operate the device at the correct mains voltage only (220 / 230 Volt \~ 50 Hz).

- Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock.

To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.

• Never use damaged electrical equipment (the device itself or its mains lead).
• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.
• The electrical components in this device are at high voltage. Never remove any parts of the housing.
• If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).
• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains

Controls

Safety advice

socket). Never use cleaning agents as they could damage the housing.

Connecting to mains Insert the plug into a mains socket (make sure the mains voltage matches that of the device).

Radio reception Switch on the radio by moving the function switch ⑨ into the ON position.

Set the band selector switch to the required position (VHF or MW) ⑫. Set the volume using the volume control ⑩.

Set the radio to the VHF or medium wave frequency of your choice using the tuner ⑪.

Aerials FM (VHF): Unwind and position the wire aerial for best reception of VHF.

AM /MW: The radio has a sensitive ferrite aerial.

Setting the time Press and hold down the TIME button ⑨ (TIME / TIME-SET) whilst pressing the HOURS ⑦ or MINUTES ⑧ button until you see the correct time in the display.

Setting the alarm time Press the ALARM ⑤ and HOURS ⑦ or MINUTES ⑧ button until the required alarm time appears in the display.

Setting the alarm mode 1 First set the required alarm time as explained above. 2 If you wish to be woken by the buzzer set the FUNCTION SWITCH ① to BUZZ (ALARM). The activated alarm mode is then shown in the display.

• If you wish to be woken by the radio, set the FUNCTION

SWITCH to ON and select the desired station/frequency and the volume ⑩.

3 Then set the FUNCTION SWITCH ① to AUTO. The activated alarm mode is then shown in the display.
4 Then set the FUNCTION SWITCH ① to RADIO. The activated alarm mode is then shown in the display.

The appropriate alarm sounds when the alarm time is reached.

The alarm sound switches off automatically after 1 hour 59 minutes.

The alarm sound can be temporarily interrupted by pressing the SNOOZE button ③. After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes.

You can cut short the alarm period by setting the FUNCTION SWITCH ① to OFF.

After the alarm is switched off, if you set the FUNCTION SWITCH ① to AUTO again the alarm will sound on the next day at the same time.

Automatic 24 hour alarm

This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH ① in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes.

Going to sleep with the sleep function

1 Press the Sleep button ④ to set the time for which the radio will play. The display shows 0:59.
2 If you wish the radio to stop playing earlier just press and hold down the Sleep button ④ whilst pressing the MINUTES ⑧ button until the desired playing time is displayed.

3 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button ④ whilst pressing the HOURS ⑦ button.
4 To switch off the Sleep function ① or to set the sleep time to 0:00 press the SNOOZE button ③.

NOTE: Pressing the Sleep button ① again after setting the sleep time will automatically reset the sleep time to 0:59. Press the SNOOZE ③ button to switch off the Sleep function.

Mains power failure

To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these circumstances the LED display ② will not be illuminated. Once mains power is restored the correct time will be automatically displayed again.

Note: The alarm, radio and LED ② display do not function during battery operation.

• Insert the battery into the battery compartment (see Fig. 13).
  – Replace the battery annually.

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product conforms with the following EC regulations:

Statement of conformity

EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description:

Radio alarm clock KH 2284, KH 2285, KH 2286, KH 2287

Bochum, 31.05.2003

Kanayama8

Hans Kompernaß

- Managing Director -
