Product type	Electric alarm clock with radio
Brand	EBENCH
Model	KH 2285
Dimensions	Approximately 150 x 80 x 60 mm
Weight	Approximately 0.5 kg
Power supply	220-230 V ~ 50 Hz
Backup battery	1 9V battery (not included)
Main functions	Alarm clock radio, audible alarm (buzzer) or radio, LED display, alarm snooze, sleep timer, volume control, FM/AM selection
Alarm	Maximum ringing time: 1h59min; automatic shut-off; repeat possible for 1h59min
Radio	FM and AM bands; FM wire antenna, AM ferrite antenna
Sleep timer	From 0 to 1h59min
Display	LED (digital display)
Maintenance and cleaning	Disconnect before cleaning; use a dry cloth, no cleaning products
Safety	Do not expose to moisture, heat or water; do not remove the cover; have repairs done by a professional if damaged
Spare parts and repairability	No user-serviceable parts; contact customer service for any repairs
General information	Electric alarm clock with radio and alarm functions; settings backup via 9V battery during power outages

Frequently Asked Questions - KH 2285 EBENCH

How to set the time on the KH 2285 alarm clock?

Hold down the TIME SET button, then press the HOUR and MINUTE buttons to adjust the display.

How to set the alarm time?

Press the ALARM button simultaneously with the HOUR and MINUTE buttons until the desired time is shown.

How to use the snooze function?

When the alarm sounds, press the snooze button (③). The alarm will automatically resume after about 9 minutes, up to a maximum of 1h59.

How to turn off the alarm permanently?

Set the function switch to OFF. To deactivate it again the next day, set it back to AUTO.

How to set the sleep timer?

Press the SLEEP button (④). The displayed duration is 0:59. To change it, press SLEEP and MINUTE simultaneously to decrease, or SLEEP and HOUR to increase up to 1:59.

What type of backup battery should I use and how to install it?

Use a 9V battery. Open the battery compartment (③) and insert the battery respecting polarity. Replace it once a year.

Why does my alarm clock not work after a power outage?

If no backup battery is installed, the settings are lost. Install a 9V battery. In case of a power failure, the display turns off but the settings are retained; they reappear when power is restored.

How to improve FM reception?

Fully extend the wire antenna and orient it for better reception. Avoid nearby metallic obstacles.

What to do if no sound comes from the radio?

Check that the function switch is set to ON, the volume is high enough, and the band (FM/AM) is correctly selected. Try tuning to another frequency.

How to clean the alarm clock?

Always disconnect the device before cleaning. Use a dry, soft cloth. Never use liquid or abrasive products.

USER MANUAL KH 2285 EBENCH

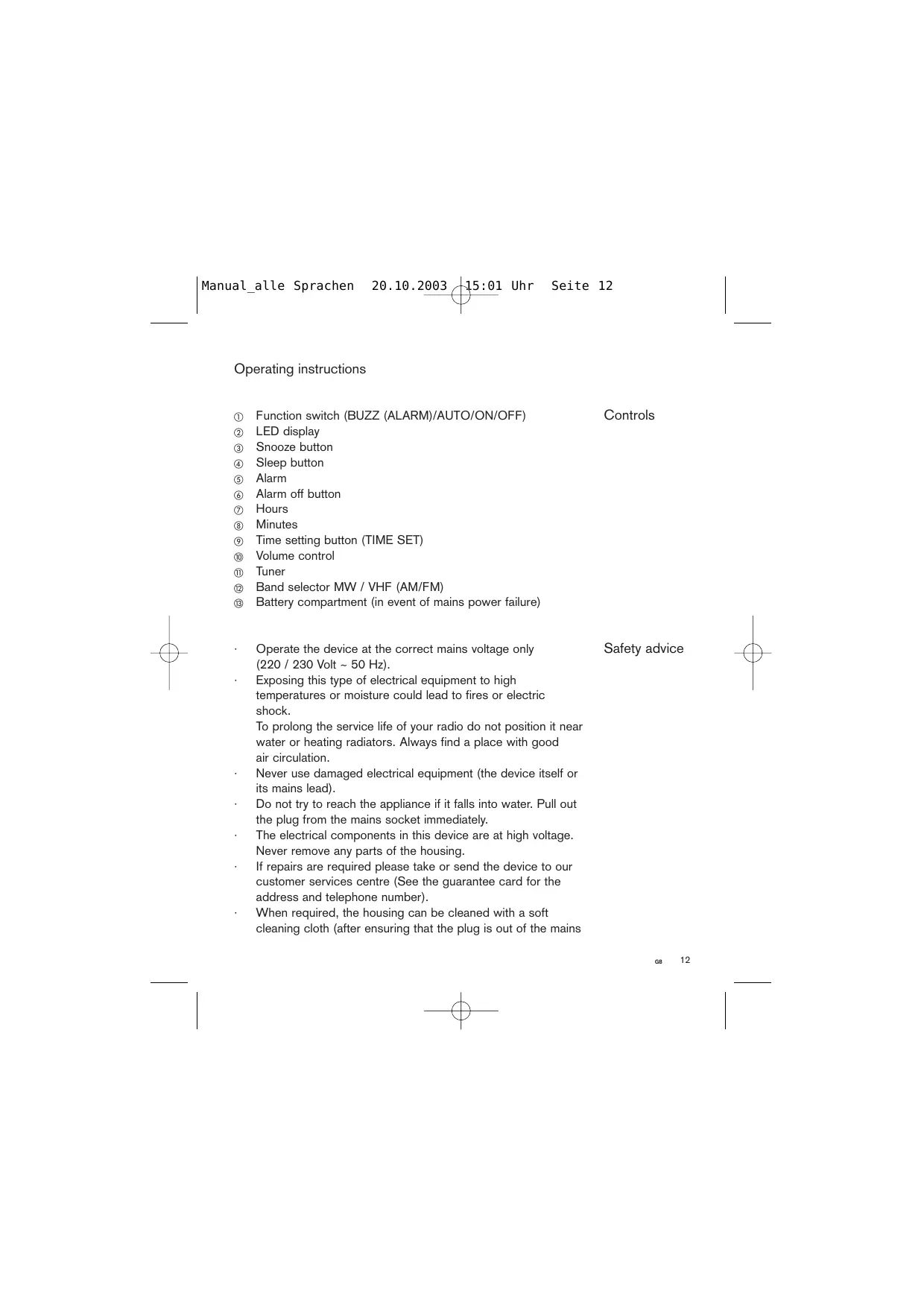

Operating instructions

① Function switch (BUZZ (ALARM)/AUTO/ON/OFF)
② LED display
③ Snooze button
④ Sleep button
⑤ Alarm
⑥ Alarm off button
⑦ Hours
8 Minutes
⑨ Time setting button (TIME SET)
Volume control
Tuner
12 Band selector MW/VHF (AM/FM)
③ Battery compartment (in event of mains power failure)

Controls

• Operate the device at the correct mains voltage only (220/230 Volt 50Hz ).
• Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock.

To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.

• Never use damaged electrical equipment (the device itself or its mains lead).
• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.
  The electrical components in this device are at high voltage. Never remove any parts of the housing.
  If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).
• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains

Safety advice

socket). Never use cleaning agents as they could damage the housing.

Connecting to mains	Insert the plug into a mains socket (make sure the mains voltage matches that of the device).
Radio reception	Switch on the radio by moving the function switch ⑨ into the ON position. Set the band selector switch to the required position (VHF or MW) ⑫. Set the volume using the volume control ⑬. Set the radio to the VHF or medium wave frequency of your choice using the tuner ⑭.
Aerials	FM (VHF): Unwind and position the wire aerial for best reception of VHF. AM /MW: The radio has a sensitive ferrite aerial.
Setting the time	Press and hold down the TIME button ⑨ (TIME / TIME-SET) whilst pressing the HOURS ⑦ or MINUTES ⑧ button until you see the correct time in the display.
Setting the alarm time	Press the ALARM ⑤ and HOURS ⑦ or MINUTES ⑧ button until the required alarm time appears in the display.
Setting the alarm mode	1 First set the required alarm time as explained above. 2 If you wish to be woken by the buzzer set the FUNCTION SWITCH ① to BUZZ (ALARM). The activated alarm mode is then shown in the display. If you wish to be woken by the radio, set the FUNCTION

SWITCH to ON and select the desired station/frequency and the volume ⑩

3 Then set the FUNCTION SWITCH ① to AUTO. The activated alarm mode is then shown in the display.
4 Then set the FUNCTION SWITCH ① to RADIO. The activated alarm mode is then shown in the display.

The appropriate alarm sounds when the alarm time is reached. The alarm sound switches off automatically after 1 hour 59 minutes. The alarm sound can be temporarily interrupted by pressing the SNOOZE button ③ . After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes. You can cut short the alarm period by setting the FUNCTION SWITCH ① to OFF.

After the alarm is switched off, if you set the FUNCTION SWITCH ① to AUTO again the alarm will sound on the next day at the same time.

This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH ① in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes.

1 Press the Sleep button ④ to set the time for which the radio will play. The display shows 0:59 .
2 If you wish the radio to stop playing earlier just press and hold down the Sleep button ④ whilst pressing the MINUTES ⑧ button until the desired playing time is displayed.

Automatic 24 hour alarm

Going to sleep with the sleep function

3 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button ④ whilst pressing the HOURS ⑦ button.
4 To switch off the Sleep function ① or to set the sleep time to 0:00 press the SNOOZE button ③.

NOTE: Pressing the Sleep button ① again after setting the sleep time will automatically reset the sleep time to 0:59 . Press the SNOOZE ③ button to switch off the Sleep function.

Mains power failure

To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these circumstances the LED display ② will not be illuminated. Once mains power is restored the correct time will be automatically displayed again. Note: The alarm, radio and LED ② display do not function during battery operation.

• Insert the battery into the battery compartment (see Fig. ③).
• Replace the battery annually.

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Statement of Bochum, Germany, hereby declare that this product conforms conformity with the following EC regulations:

EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description:

Radio alarm clock KH 2284, KH 2285, KH 2286, KH 2287

Bochum, 31.05.2003

Hans Kompernaß

• Managing Director -
