Product Type	Radio alarm clock
Brand	EBENCH
Model	KH 2284
Dimensions (approx.)	20 x 15 x 10 cm
Weight (approx.)	500 g
Mains power supply	220-230 V ~ 50 Hz
Backup power supply	1 x 9 V battery (not included)
Main functions	FM/AM radio, alarm with buzzer or radio, sleep timer, snooze
Display	LED screen
Time setting	Using HOUR and MINUTE buttons while holding TIME SET button
Alarm setting	ALARM, HOUR and MINUTE buttons
FM antenna	Collapsible floating antenna
AM antenna	Built-in ferrite antenna
Function switch	BUZZER (ALARM) / AUTO / ON / OFF
Alarm duration	Maximum 1 hour 59 minutes, then automatic shut-off
Alarm repetition	Approximately 9 minutes, repeatable up to 1 h 59 min
Sleep function	Adjustable from 0:00 to 1:59 hours
Care and cleaning	Unplug before cleaning; use a dry cloth only
Safety	Do not expose to water or heat; do not open the casing
Spare parts and repairability	Repairs by after-sales service only (address on warranty card)

Frequently Asked Questions - KH 2284 EBENCH

How to set the time on the KH 2284 radio alarm clock?

Hold down the TIME SET button, then press the HOUR and MINUTE buttons until the desired time appears on the display.

How to set the alarm?

Press the ALARM, HOUR and MINUTE buttons simultaneously until the desired alarm time appears. Then set the function switch to BUZZER for an audible alarm or AUTO to wake up to the radio.

How to use the sleep function (fall asleep to music)?

Press the SLEEP button. The default duration of 0:59 is displayed. To decrease it, hold this button and press MINUTE. To increase it (max 1:59), hold SLEEP and press HOUR. To disable, press the snooze button.

What to do in case of a power failure?

Insert a 9 V battery into the compartment (see illustration) to retain the time and alarm settings. During a power cut, the display turns off but the internal clock continues thanks to the battery. When power returns, the correct time is displayed automatically. Note that the radio and alarm do not work on battery.

How to improve radio reception?

For FM, fully extend the floating antenna and orient it for best reception. For AM, the device has a built-in ferrite antenna that is very sensitive; simply turn the device to pick up the waves.

How to clean the radio alarm clock?

Always unplug the device from the mains before cleaning. Use a dry, soft cloth. Never use cleaning products as they could damage the casing.

What safety precautions should I observe?

Do not expose the device to water, humidity or heat sources. Do not use if damaged (device or cable). Never open the casing as dangerous voltages are present inside. For any repairs, contact after-sales service.

What to do if the device does not turn on?

Check that the power cord is properly plugged into a working mains socket (220-230 V). Ensure the function switch is not set to OFF. If the device remains off, there may be an internal fault; contact after-sales service.

How to stop the alarm before the end of its cycle?

You can temporarily interrupt the alarm by pressing the snooze button – it will sound again after 9 minutes. To turn it off completely, set the function switch to OFF. If you set it back to AUTO, the alarm will trigger again the next day at the same time.

Can I use the radio on batteries?

No, the radio and alarm only work on mains power. The 9 V battery is only a backup system to keep the time and settings in case of a power cut. The LED display also turns off when the device runs on battery.

USER MANUAL KH 2284 EBENCH

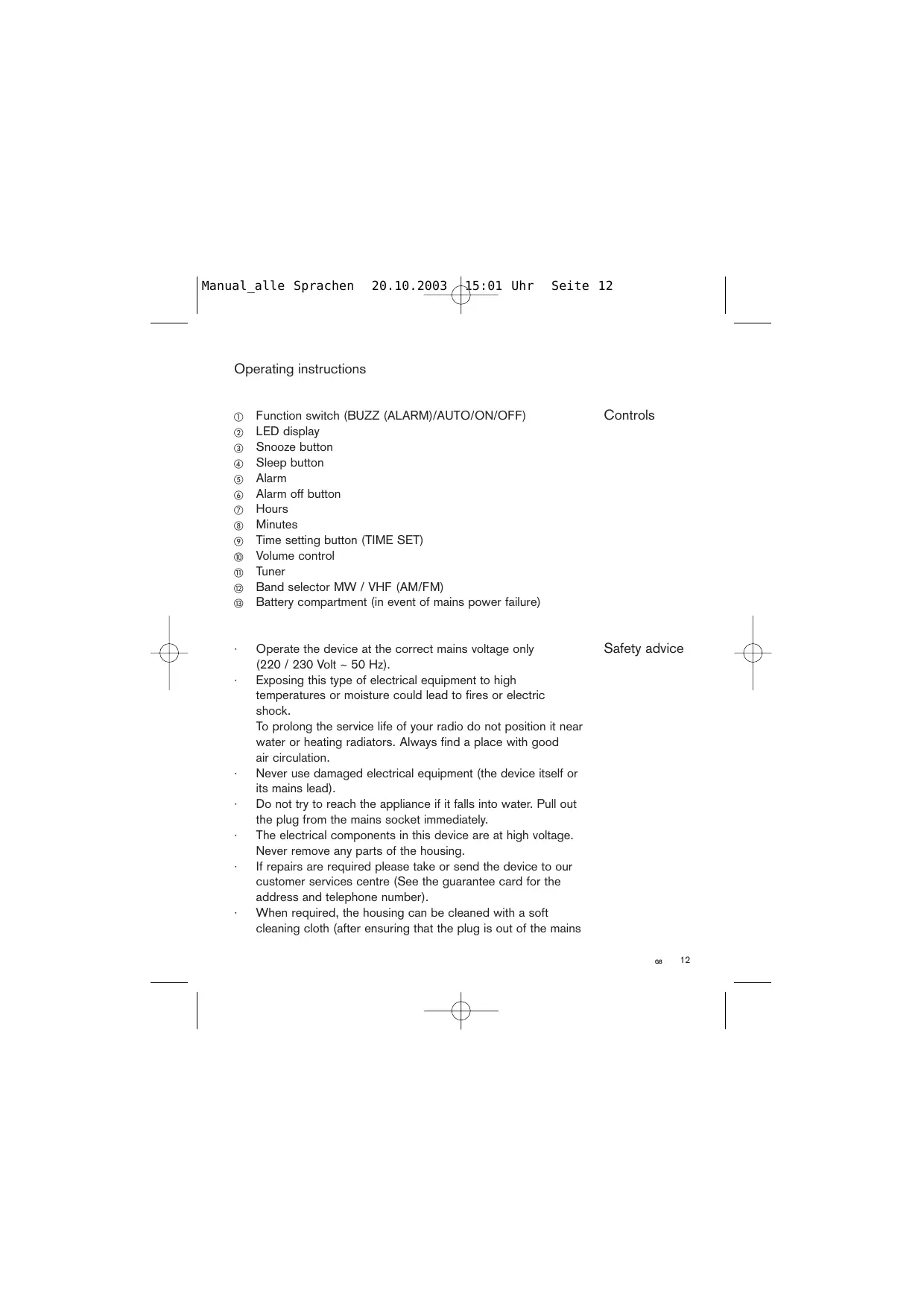

Operating instructions

① Function switch (BUZZ (ALARM)/AUTO/ON/OFF)
② LED display
③ Snooze button
④ Sleep button
⑤ Alarm
⑥ Alarm off button
⑦ Hours
8 Minutes
⑨ Time setting button (TIME SET)
Volume control
Tuner
12 Band selector MW/VHF (AM/FM)
③ Battery compartment (in event of mains power failure)

Controls

• Operate the device at the correct mains voltage only (220/230 Volt 50 Hz).
• Exposing this type of electrical equipment to high temperatures or moisture could lead to fires or electric shock.

To prolong the service life of your radio do not position it near water or heating radiators. Always find a place with good air circulation.

• Never use damaged electrical equipment (the device itself or its mains lead).
• Do not try to reach the appliance if it falls into water. Pull out the plug from the mains socket immediately.
  The electrical components in this device are at high voltage. Never remove any parts of the housing.
  If repairs are required please take or send the device to our customer services centre (See the guarantee card for the address and telephone number).
• When required, the housing can be cleaned with a soft cleaning cloth (after ensuring that the plug is out of the mains

Safety advice

socket). Never use cleaning agents as they could damage the housing.

Connecting to mains	Insert the plug into a mains socket (make sure the mains voltage matches that of the device).
Radio reception	Switch on the radio by moving the function switch ⑨ into the ON position. Set the band selector switch to the required position (VHF or MW) ⑫. Set the volume using the volume control ⑬. Set the radio to the VHF or medium wave frequency of your choice using the tuner ⑭.
Aerials	FM (VHF): Unwind and position the wire aerial for best reception of VHF. AM /MW: The radio has a sensitive ferrite aerial.
Setting the time	Press and hold down the TIME button ⑨ (TIME / TIME-SET) whilst pressing the HOURS ⑦ or MINUTES ⑧ button until you see the correct time in the display.
Setting the alarm time	Press the ALARM ⑤ and HOURS ⑦ or MINUTES ⑧ button until the required alarm time appears in the display.
Setting the alarm mode	1 First set the required alarm time as explained above. 2 If you wish to be woken by the buzzer set the FUNCTION SWITCH ① to BUZZ (ALARM). The activated alarm mode is then shown in the display. If you wish to be woken by the radio, set the FUNCTION

SWITCH to ON and select the desired station/frequency and the volume ⑩

3 Then set the FUNCTION SWITCH ① to AUTO. The activated alarm mode is then shown in the display.
4 Then set the FUNCTION SWITCH ① to RADIO. The activated alarm mode is then shown in the display.

The appropriate alarm sounds when the alarm time is reached. The alarm sound switches off automatically after 1 hour 59 minutes. The alarm sound can be temporarily interrupted by pressing the SNOOZE button ③ . After approximately 9 minutes the alarm sound automatically switches itself on again. This process can be repeated for a maximum of 1 hour 59 minutes. You can cut short the alarm period by setting the FUNCTION SWITCH ① to OFF.

After the alarm is switched off, if you set the FUNCTION SWITCH ① to AUTO again the alarm will sound on the next day at the same time.

This setting allows you to go to sleep whilst listening to the radio. With the FUNCTION SWITCH ① in the AUTO or OFF position the radio plays for a maximum of 1 hour 59 minutes.

1 Press the Sleep button ④ to set the time for which the radio will play. The display shows 0:59 .
2 If you wish the radio to stop playing earlier just press and hold down the Sleep button ④ whilst pressing the MINUTES ⑧ button until the desired playing time is displayed.

Automatic 24 hour alarm

Going to sleep with the sleep function

3 If you wish the playing time to be extended to 1:59, press and hold down the Sleep button ④ whilst pressing the HOURS ⑦ button.
4 To switch off the Sleep function ① or to set the sleep time to 0:00 press the SNOOZE button ③.

NOTE: Pressing the Sleep button ① again after setting the sleep time will automatically reset the sleep time to 0:59 . Press the SNOOZE ③ button to switch off the Sleep function.

Mains power failure

To guard against losing your settings in the event of a mains power failure insert a 9-volt battery into the battery compartment. The battery ensures that the radio alarm clock will function in emergency mode even during a mains power failure. In these circumstances the LED display ② will not be illuminated. Once mains power is restored the correct time will be automatically displayed again. Note: The alarm, radio and LED ② display do not function during battery operation.

• Insert the battery into the battery compartment (see Fig. ③).
• Replace the battery annually.

We, Kompernaß Handelsgesellschaft mbH, Burgstr. 21, D-44867 Statement of Bochum, Germany, hereby declare that this product conforms conformity with the following EC regulations:

EC low voltage regulations, Electromagnetic compatibility, Applicable harmonised standards.

Type/Description:

Radio alarm clock KH 2284, KH 2285, KH 2286, KH 2287

Bochum, 31.05.2003

Hans Kompernaß

• Managing Director -
