KH 2275 - Alarm clock radio EBENCH - Free user manual and instructions

Product type	Clock radio
Brand	EBENCH
Model	KH 2275
Power supply	Mains 230 V / 50 Hz
Backup battery	9 V block battery (not included)
Radio reception	FM (VHF) and AM (MW)
Alarm functions	Radio or audible alarm (buzzer)
Snooze	9 minutes
Sleep timer	59 minutes maximum, adjustable
Time setting	TIME, HOUR, MINUTE buttons
Alarm setting	ALARM, HOUR, MINUTE buttons
Volume control	VOL knob with on/off function (click)
Band selection	AM/FM switch
Display	Digital display with alarm indicator
Cleaning	Dry soft cloth; do not use solvents
Safety	Do not expose to moisture; avoid condensation; do not open the housing
Disposal	Environmental protection: recycling of electronic devices and batteries
Intended use	Household use only
Electromagnetic compatibility	Compliant with standards; place 1 m from bed if sensitive

Frequently Asked Questions - KH 2275 EBENCH

How to set the time on the EBENCH KH 2275 alarm clock?

Press and hold the TIME button, then press HOUR to set hours and MINUTE for minutes. Release the TIME button to confirm.

How to set the alarm?

Press and hold the ALARM button, then use the HOUR and MINUTE buttons to set the alarm time. Release ALARM to confirm.

How to choose between radio alarm and audible alarm?

Turn the VOL knob: if the volume is set to an audible position, the alarm will be by radio. For an audible alarm (buzzer), gently turn the knob until you hear a click (BUZZ position).

How to activate and deactivate the alarm function?

Slide the switch to AUTO to activate the alarm (a light dot appears). Set it to OFF to completely deactivate the alarm.

How to use the snooze function?

Press the SNOOZE button while the alarm sounds. The alarm stops and triggers again after 9 minutes.

How to use the sleep timer?

Set the switch to AUTO, then press SLEEP. The radio will automatically turn off after 59 minutes. To reduce the duration, press and hold SLEEP and press MINUTE to adjust.

How to clean the clock radio?

First unplug the device. Use a dry soft cloth. Never use cleaning products or solvents, as they could damage the plastic.

What to do in case of power outage? Are settings preserved?

Insert a 9V battery in the compartment provided to save the time and settings in case of power failure. Without battery, the settings will be lost.

How to change the backup battery?

Open the battery compartment (located behind or under the device) and replace the used 9V battery with a new one. Observe polarity.

Why does the device not turn on?

Check that the power cord is properly plugged into a working outlet. If the device operates only on battery, ensure the battery is inserted and not discharged. If the problem persists, contact customer service.

USER MANUAL KH 2275 EBENCH

Operating Instructions

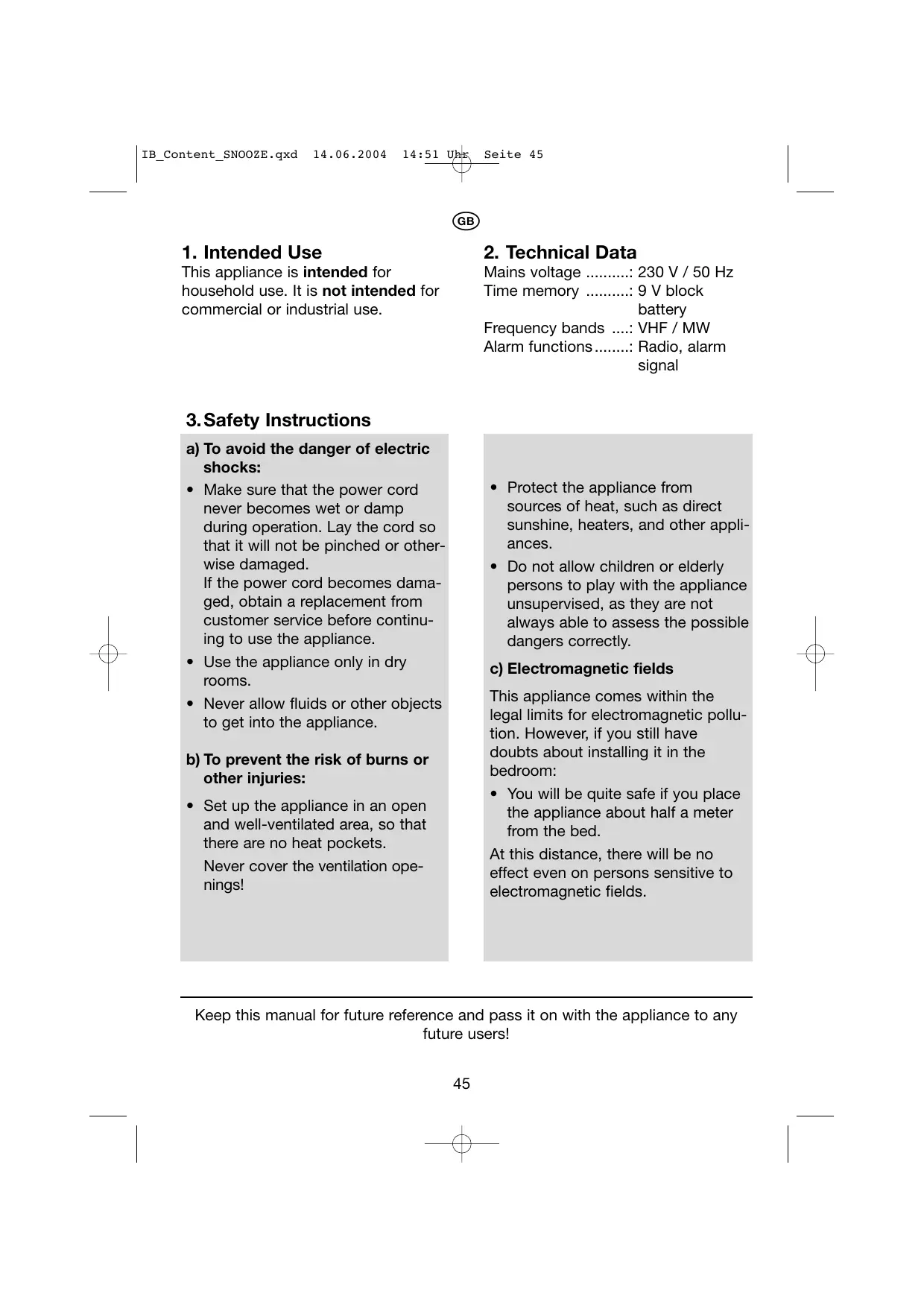

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage : 230 V / 50 Hz

Time memory 9 V block battery

Frequency bands ....: VHF / MW

Alarm functions: Radio, alarm

signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
• If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:
- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

• You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket. Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

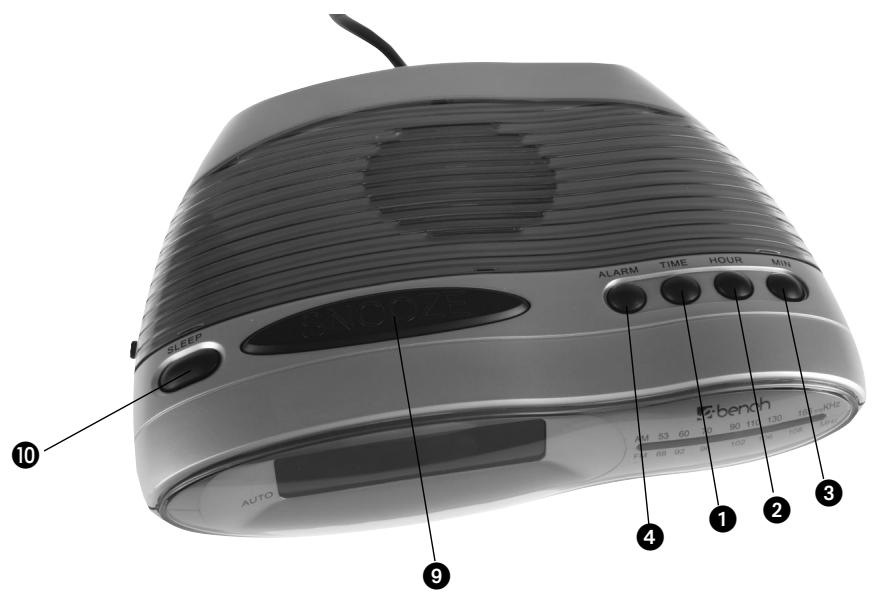

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

Press and hold the TIME button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

Press and hold the ALARM button and:
Press the HOUR button to set the hour.
Press the MINUTE button to set the minutes.

7. Radio reception

Move the sliding switch to the ON position.
⑥ Turn the volume control VOL to the centre position.
Select the frequency band with the AM / FM sliding switch.
Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.
You will be awakened by the radio if ...
the volume control VOL is set to a level high enough to awaken you.
You will be awakened by the alarm signal if ...
the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

Press the SNOOZE button and the alarm will sound again after 9 minutes.
Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
3 then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

Disconnect the power plug from the power socket.
Never open the casing. There are no operating controls inside.

Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
