KH 2273 - Alarm clock radio EBENCH - Free user manual and instructions

Product type	Clock radio
Brand	EBENCH
Model	KH 2273
Mains power supply	230 V / 50 Hz
Backup power	9 V battery (type 6LR61)
Reception bands	FM (UKW) / AM (MW)
Alarm functions	Radio or alarm (buzzer)
Time display	Digital
Snooze	Yes, 9 minutes
Sleep timer	Yes, 59 minutes (adjustable)
Controls	Buttons: Time, Minute, Alarm, Volume, Tune; Switches: ON/OFF/AUTO, AM/FM
Approximate dimensions	150 x 100 x 100 mm
Approximate weight	0.5 kg
Cleaning	Soft dry cloth
Safety	Do not expose to water; do not open the casing
Repairability	No user-serviceable parts
Disposal instructions	Used batteries: collection points; device: electronic recycling

Frequently Asked Questions - KH 2273 EBENCH

How to set the time?

Press and hold the TIME button, then press HOUR to set hours and MINUTE to set minutes.

How to set the alarm?

Press and hold the ALARM button, then press HOUR and MINUTE to set the wake-up time. Then set the switch to AUTO to activate the alarm.

How to use snooze?

During the alarm, press the SNOOZE button to repeat the alarm after 9 minutes.

How to use the sleep timer?

Set the switch to AUTO, then press SLEEP to listen to the radio for 59 minutes. You can reduce the duration by pressing and holding SLEEP and adjusting with MINUTE.

What if the screen shows nothing?

Check that the power plug is properly connected and that the backup battery (9 V) is correctly inserted and functional. If the problem persists, contact customer service.

Why does my alarm not ring?

Ensure the switch is in AUTO position and the alarm time is correctly set. If using the radio, check that the volume is high enough. If using the alarm, turn the volume to BUZZ position (click when turning off).

Can I use the device without a battery?

Yes, the device operates on mains power. The battery only retains the time and settings during a power outage.

How to clean the device?

First, unplug the device. Clean it with a soft dry cloth. Do not use cleaning agents or solvents.

What to do in case of malfunction?

Never open the casing. The device contains no user-serviceable parts. Contact customer service for any repairs.

How to change the battery?

Unplug the power cord, open the battery compartment at the back or bottom of the device, replace the used 9 V battery with a new one, then close the compartment.

USER MANUAL KH 2273 EBENCH

Blurred grayscale image with indistinct shapes and no visible text or symbols

Operating Instructions

o z budzikiem cja obsługi obudík k obsluze obudík na obsluhu P Radio-despe Manual de instruča GB Radio alarm Operating Instructi 8:30 KHz 1650 1200 900 700 600 530 AM MHz 108 106 102 96 92 88 FM

AM BAND FM TUNING 7 8

ALABR side OFF ON AUTO SUD7 VOLT ⑤ ⑥

1 2 3 4 5 6 7 8 9 SNOOZE ALABE SLEEP TIME HOURS MUTE

8:30 KHz 1650 1200 900 700 600 530 AM MHz 108 106 102 96 92 88 FM

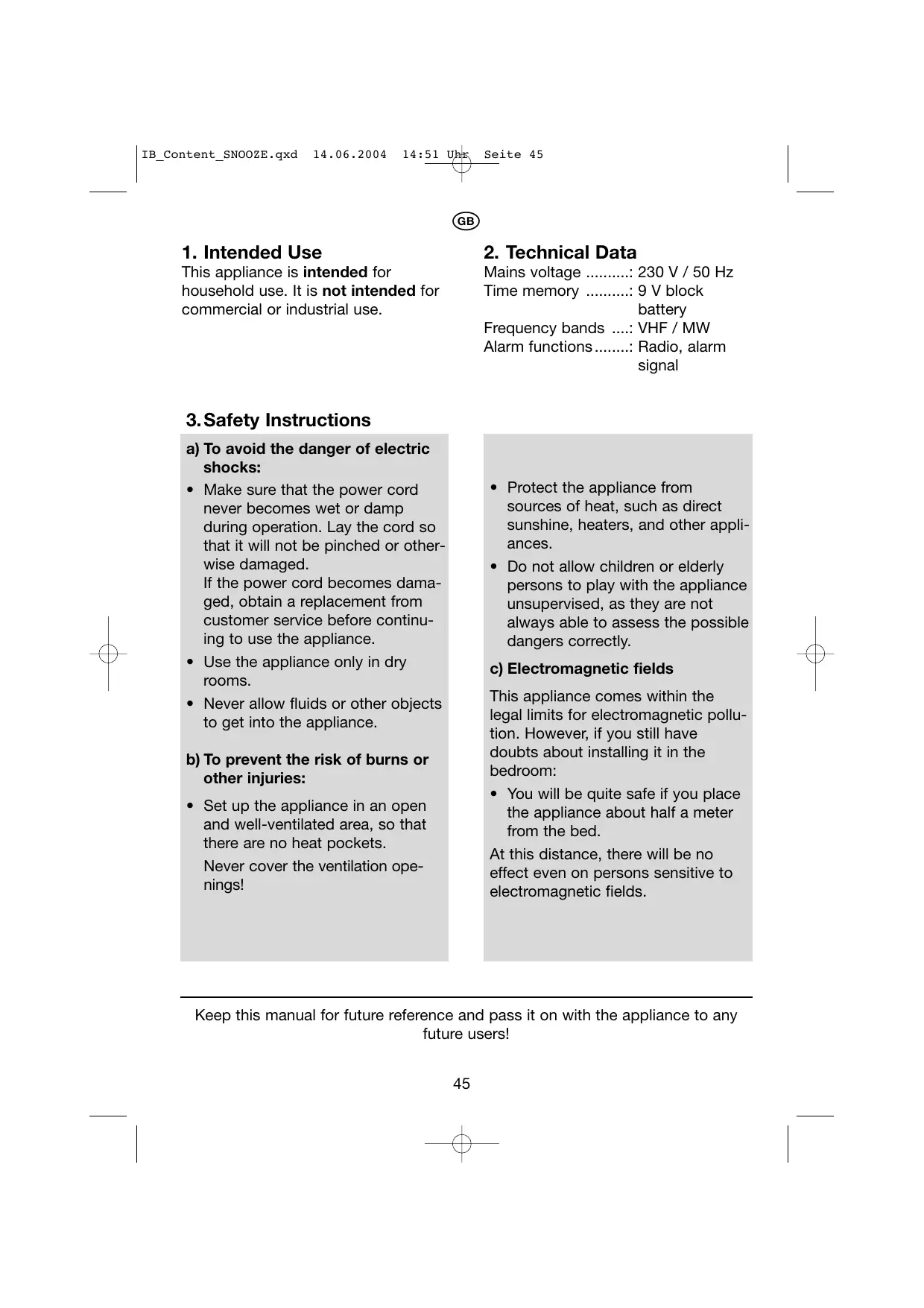

1. Verwendungszweck

This appliance is intended for household use. It is not intended for commercial or industrial use.

2. Technical Data

Mains voltage ......: 230 V / 50 Hz

Time memory ......: 9 V block battery

Frequency bands .....: VHF / MW

Alarm functions......: Radio, alarm signal

3. Safety Instructions

a) To avoid the danger of electric shocks:

• Make sure that the power cord never becomes wet or damp during operation. Lay the cord so that it will not be pinched or otherwise damaged.
  If the power cord becomes damaged, obtain a replacement from customer service before continuing to use the appliance.
• Use the appliance only in dry rooms.
• Never allow fluids or other objects to get into the appliance.

b) To prevent the risk of burns or other injuries:

- Set up the appliance in an open and well-ventilated area, so that there are no heat pockets.

Never cover the ventilation openings!

• Protect the appliance from sources of heat, such as direct sunshine, heaters, and other appliances.
• Do not allow children or elderly persons to play with the appliance unsupervised, as they are not always able to assess the possible dangers correctly.

c) Electromagnetic fields

This appliance comes within the legal limits for electromagnetic pollution. However, if you still have doubts about installing it in the bedroom:

- You will be quite safe if you place the appliance about half a meter from the bed.

At this distance, there will be no effect even on persons sensitive to electromagnetic fields.

4. Connecting the appliance

Before oeprating the appliance, make sure that it is in perfect condition. Do not use it otherwise.

Open the battery compartment at the back or underneath, and insert a 9V battery pack.
Insert the power plug into the power socket.

Choose a power socket that is accessible at any time, so that you can pull out the plug from the socket quickly if there is a fault.

5. Setting the clock

If you are setting up the appliance for the first time after inserting a new battery:

① Press and hold the TIME button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

6. Setting the alarm time

If the clock is set correctly, as described above:

4 Press and hold the ALARM button and:
② Press the HOUR button to set the hour.
③ Press the MINUTE button to set the minutes.

7. Radio reception

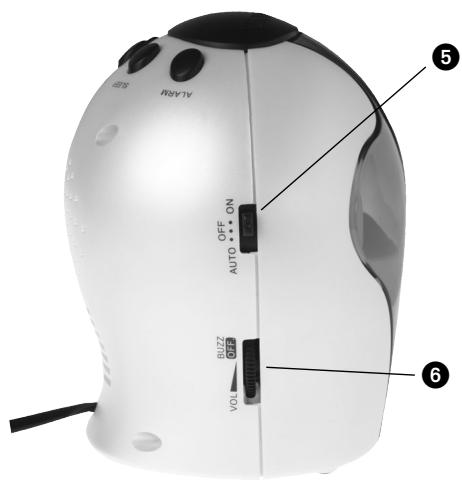

⑤ Move the sliding switch to the ON position.
6 Turn the volume control VOL to the centre position.

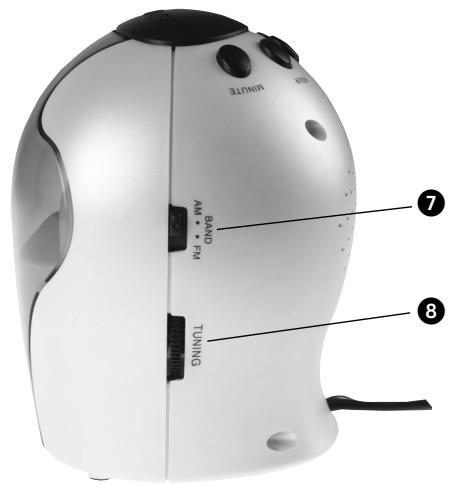

⑦ Select the frequency band with the AM / FM sliding switch.
⑧ Select the desired station with the TUNING control.

8. Switching on the alarm

If the clock and alarm time are set correctly, as described above:

5 Set the sliding switch to the AUTO position. The alarm is now switched on. This is confirmed by a dot at the bottom left of the display.

You will be awakened by the radio if ...

⑥ the volume control VOL is set to a level high enough to awaken you.

You will be awakened by the alarm signal if ...

⑥ the volume control VOL is turned quietly until it switches off with an audible click, and goes into the BUZZ setting.

9. Switching off the alarm

9 Press the SNOOZE button and the alarm will sound again after 9 minutes.
⑤ Move the sliding switch to the OFF positioin, to switch off the alarm altogether.

10. Sleep timer

If you would like to listen to the radio for a while before going to sleep and would like the radio to switch off by itself:

⑤ Move the sliding switch to the AUTO position, and ...
10 press the SLEEP button. The radio will remain on for 59 min.

You can shorten the time remaining till switch-off time by ...

10 pressing and holding the SLEEP button
③ then pressing the MINUTE button to set the remaining time.

11. Cleaning and Care

Warning: Danger of electric shock!

Before cleaning the appliance:

→ Disconnect the power plug from the power socket.
→ Never open the casing. There are no operating controls inside.

→ Clean the appliance using a clean dry cloth only.
Do not use cleaning agents or solvents. These can damage the plastic surfaces.

12. Disposal

Before disposing of the appliance,...

Take out the batteries, as described at point 4. Old batteries should not be disposed of with the household waste:
Return old batteries to your dealer, or take them to an appropriate disposal point.
Protect the environment! Take the appliance to a recycling point for electronic equipment.
