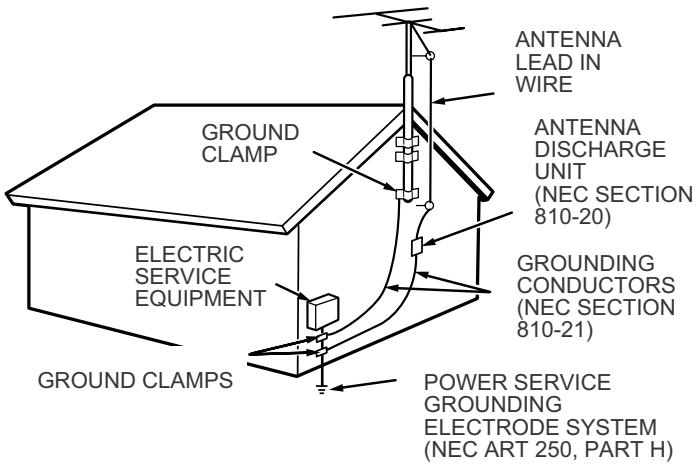

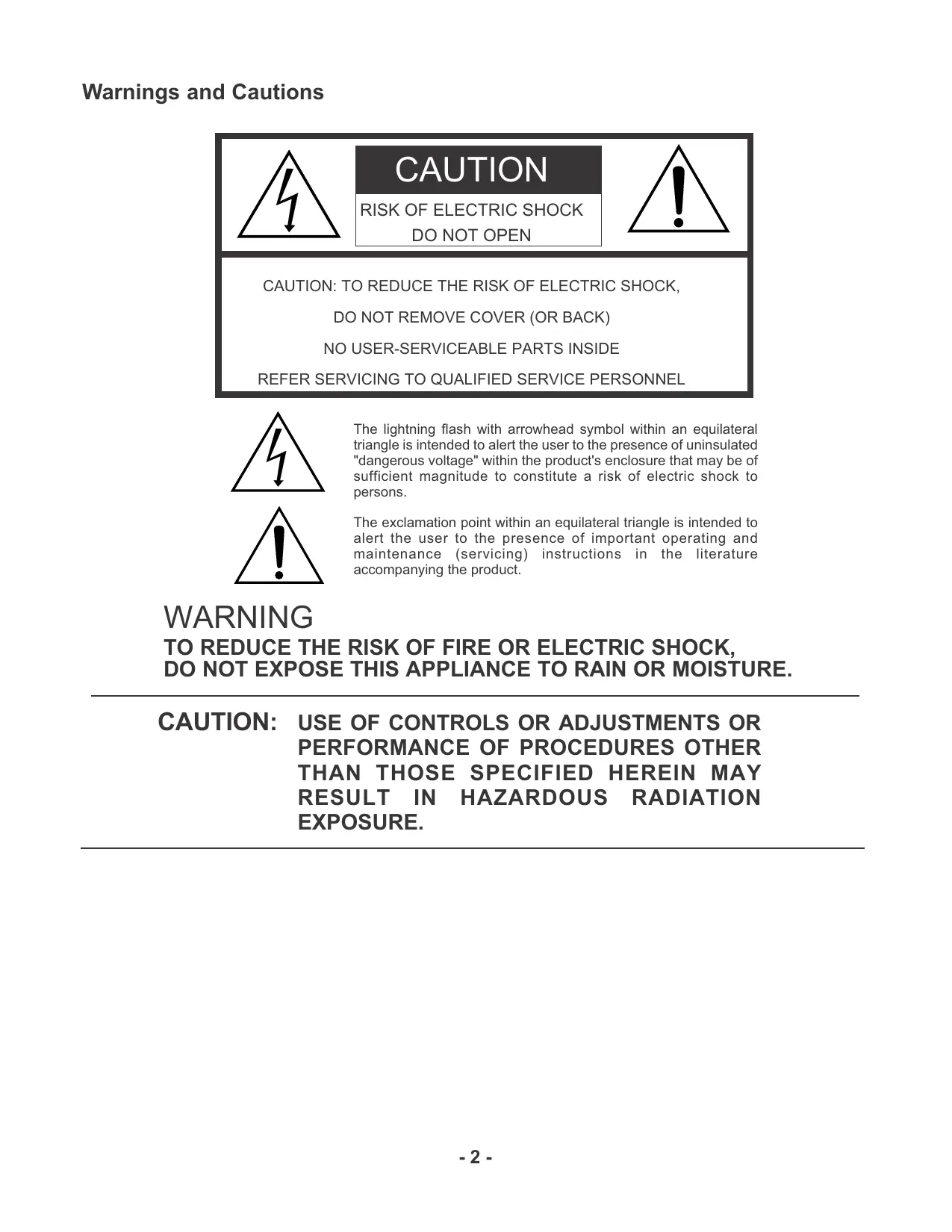

14. Outdoor Antenna Grounding — If an outside antenna or cable

system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against vollage sürges and buil-up stat charges Âricle 810 of the National Electrical Code, ANSI/NFPÀ 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.

Lightning — Lightning — Unplug the unit from the wall outlet and disconnect the antenna or cable system for added protection during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power line surges. Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. Object and Liquid Entry — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or Short-out parts that could result in a fire or electric shock. Never spil liquid of any kind on the product. Servicing — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power supply cord or plug is damaged. Ifliquid has been spilled, or objects have fallen into the product. Ifthe product has been exposed to rain or water. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. Ifthe product has been dropped or damaged in any way, and When the product exhibits a distinct change in performance — this indicates a need for service. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. Safety Check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. Wall or Ceiling Mounting — The product should be mounted to a wall or ceiling only as recommended by the manufacturer. Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products including amplifiers) that produce heat.

NEC - NATIONAL ELECTRICAL CODE

NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV (Cable-TV) system installer's attention to Article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. NOTE: This equipment has been tested and found to comply With the limits for a Class B digital device, pursuant to

Part 15 ofthe FCC Rules. These limits are designed to

provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses and can radiate radio frequency en- ergy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran- tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + _Reorient or relocate the receiving antenna. + Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. + _ Consultthe dealer or an experienced radio/TV tech- nician for help. NOTE:Changes or modifications may cause this unitto fail to comply with Part 15 ofthe FCC Rules and may void the user's authority to operate the equipment.

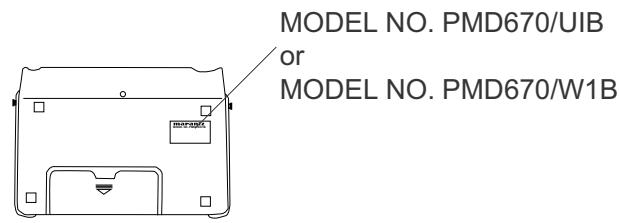

WARNINGS Do not expose the equipment to rain or moisture. Do not remove the cover from the equipment. Do not insert anything into the equipment through the ventilation holes. Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc. No naked flame sources, such as lighted candles, should be placed on the equipment. When disposing of used batteries, please comply With governmental regulations or environmental public instruction's rules that apply in your country or area. When setting up the recorder ensure that: it will not be exposed to interference from external equipment. it will not be exposed to electrostatic dis- charges. it will not be exposed to direct sunlight. heavy objects are not placed on the recorder. Copyright Recording and playback of any material may require consent. For further information refer to the following US ordinances: + Copyright act of 1956 + Dramatic and Musical Performance Act 1958 + Performers Protection Acts 1963 and 1972 + any subsequent statutory enactments and orders

Quick Start Follow the instructions on this page to Quick Start your new PMD670 Portable Solid State Recorder and begin recording.

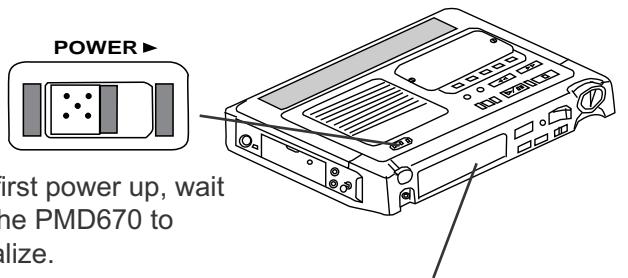

2. Slide the POWER switch to the right and release.

POWER» Note: Outside of the USA a CF card is not included. See page 41 for installing a CF card and page 22 to format a CF card. Quick Start Basic Instructions pcinasv Plug the AC adapter in. Slide the POWER switch to turn on. Slide the REC switch to start recording. Push and release REC PAUSE when record- ing is not necessary. e. Slide the REC switch to resume recording. f.. Push the STOP button to stop recording. eopp Quick Start Detailed Instructions The PMD670 comes factory preset for recording voice using its built-in (internal) microphone. These are settings for recording a meeting, not settings for recording a vocal performance. Quick Start ignores your changing any of these presets, it even ignores installing batteries.

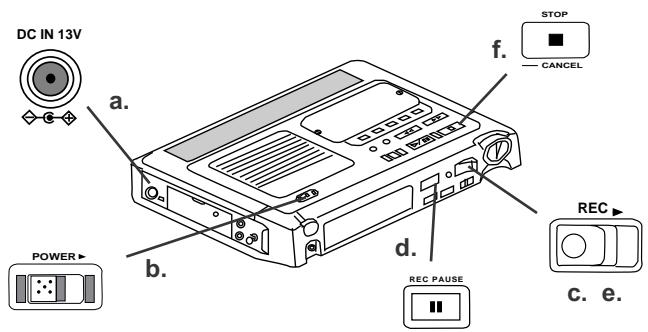

1. Unpack the AC adapter and the PMD670.

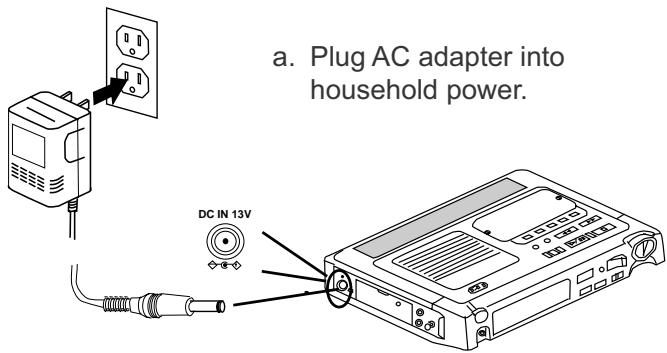

a. Plug AC adapter into household power. b. Plug the adaptor jack into the PMD670 at DC IN 13V. On first power up, wait for the PMD670 to initialize. A full display will appear momentarily. The display will change to Loading then to Reading. The display will change to this display for a newly formatted CF card. EE + ! Be CLLLLLLLLE À @ Da" CD)

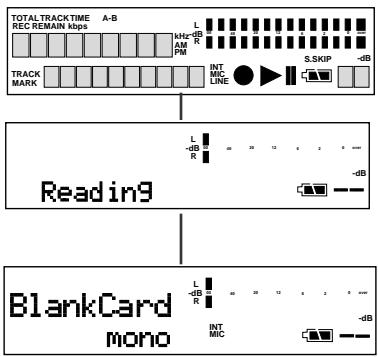

CS - Reading =— BlankCsrd u mono _* as ——

3. Slide the REC button to the right and release.

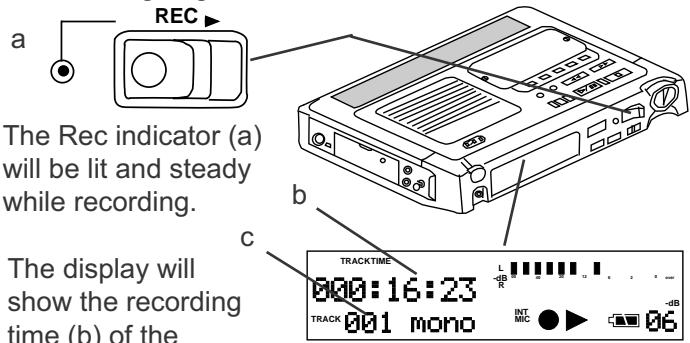

Recording begins. REC» The Rec indicator (a) Will be lit and steady while recording.

The display will show the recording time (b) of the current track (c). Reg: 16:25 ‘ « Di mono "“@h «auf

4. Push and release the STOP button to stop record-

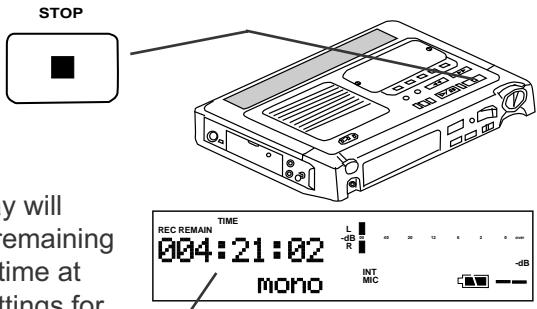

ing and end the track (close the audio file). sToP The display will show the remaining recording time at BBr21 192 : MONC Li ae — current settings for the CF card. example shows 4 hours 21 minutes and 02 seconds remaining To transfer audio transfer the CF c:

connect via 1/0, see page 43. files to your computer: ard, see page 37,

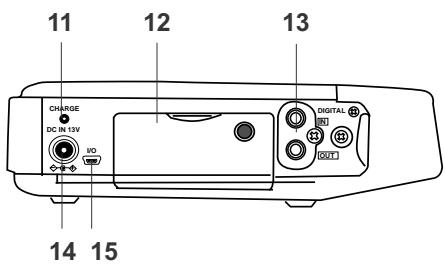

Left side CHARGE indicator . CF card compartment To eject a CF card To insert a CF card DIGITAL IN/OUT jacks DC IN 13V jack. 1/0 port How to connect via 1/O port... 43 Right side Remote jack 44 Remote Mode. LINE OUT/IN jack: MIC IN jacks PHANTOM +48V switch Microphone recommendations Carry studs Installing the carry strap Bottom Battery compartment Battery power … Installing AA size batteries Installing an optional Ni-Cd or Ni-MH battery Display Care and maintenanc: Recording time chart. Troubleshooting Record setting recommendations Specifications Optional accessories Menu defaults Warranty US/Europe models The US model, PMD670/UIB distributed in the USA, and European model, PMD670/W1B distributed elsewhere, differ slightly in supplied accessories and default settings. Those differ- ences are noted in this User Guide.

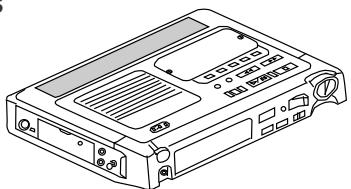

Package contents + PMD670 + 1/0 cable (3 ft) 64MB CF card (US only) (shipped formatted and installed)

AC adapter AA battery holder Carry strap

Carry strap retainers (2) Security screws (3) ISO 3x10 (3mm x 10mm long) For Memory compartment door (1) or Security cover (2 spares). Plastic pin and retainer (spare - for Memory compartment door)

Contents of the CD may vary. Contents usually include: +_ PDF format manual(s) Several languages may be included. + _ Demonstration copy of PMD Edit software + _ Instructions for obtaining full copy of PMD Edit This User Guide Customer Registration Document

Hint: When making major changes to your re- cording setup we suggest the following procedure: identify the appropriate input device (internal microphone, microphone(s), Line input). Select the input menu choice corre- sponding to your input device selection. (See page 17.) If necessary, set or change the default Algor/File parameters for your recording situation. (See page 28.)

Introduction Thank you for selecting the Marantz Professional PMD670 Portable Solid State Recorder. The PMD670 is an audio recorder that records in digital audio formats onto a Compact FlashT memory card (CF card) or MicrodriveT". Compact flash memory cards, also used in digital cameras, are widely available at consumer electronics retailers and computer resellers. Audio inputs may be from: + the built-in microphone, + condenser or dynamic microphone(s) con- nected to the XLR jacks, + line level audio sources connected to the LINE IN jacks, or - digital audio sources in SP/DIF format con- nected to the DIGITAL IN jack. Audio outputs may be from: + the built-in speaker, + headphones connected to the PHONES jack, + analog audio devices such as an amplifier or other device connected to the LINE OUT jacks, and/or - digital audio devices using SP/DIF format connected to the DIGITAL OUT jack. Computer compatible The PMD670 records directly onto CF cards. Recordings can be transferred to your desktop or laptop computer by removing the CF card from the PMD670 or by using the supplied cable to connect the PMD670 to your computer via the 1/0 port. Audio recorded in the popular MP3 com- pression format is directly available for intranet or internet file sharing. - log and archive audio files + play audio files on your computer + save audio files to: + your hard drive

• a floppy + a CD-R disc + post streaming audio files on your web site - use software and your computer to transcribe digital recordings + An editing program (PMD Edit, available from Marantz Professional for PC users) lets you convert and edit audio files that were recorded on the PMD670. Voice recording The PMD670 has several helpful features for voice recording in situations such as meetings, conferences or other events. + Use less memory (longer recording time) For voice recording the recording quality level (bit rate recorded and/or sampling frequency) can be set to the lowest levels permitting more time recorded on the CF card. + Easy to use for recording One control begins recording. Simply slide and release the red REC switch. + Security — Input settings After you have set up the input settings* for your application the settings can be set to ON With the INPUT LOCK switch. As an added precaution the input setting switches (including the ability to change input devices) can be protected with the supplied screw-on cover preventing unintentional changes. *Settings for recording meetings for example, will usually be the same from meeting to meet- ing. + Security — CF cards For added security the CF card compartment door can be secured with a screw. This is especially recommended if you transfer audio files via the 1/0 cable. Playback aids À common problem with lengthy voice or other recordings is difficulty in locating one or more specific passages for playback. The PMD670 has several ways to mark or tag specific record starting points. + Date and time A built-in date and time generator marks the beginning of each track.

+ Tracks A new track (file) is automatically started each time recording is stopped using the STOP button. Automatic recording The PMD670 can be set to stop recording when there is silence (Silent Skip) and auto- matically start when sound resumes. The PMD670 can be set to automatically add an EDL mark to the track at each such starting point. EDL marks* EDL (Edit Decision List) marks can be created during recording manually or automatically. EDL marks help you find those specific points in the recording. *The EDL marking system is proprietary to Marantz Professional solid state recorders. During playback you can search for EDL marks in forward or reverse. You can change an EDL mark into a skip mark or an A:-B repeating point. That lets you create custom playback sequences which include skipping audio between EDL marks or repeating audio between EDL marks. Up to 255 EDL marks can be added to a CF card. EDL marks are numbered consecu- tively starting at one. During recording you can manually add an EDL mark by pressing MARK. EDL marks can be added automati- cally, for example at the beginning of each track. PMD Edit computer software, is specifically designed for the PMD670. PMD Edit recog- nizes EDL marks generated by the PMD670. This is especially useful for editing audio files on your PC. For more information visit www.marantzpro.com/Products/ PMDEdit.html. Features + Stereo (2 channels) and mono (1 channel) audio recording and playback. Records onto various types of CF cards. (Please refer to the Marantz Professional web site at www.marantzpro.com for a complete updated list of approved cards.) Two different recording formats. + Compressed recording using MPEG1 Layer Il (MP2) or MPEG1 Layer Ill (MP3) mono and stereo. + Uncompressed recording using 16-bit linear Pulse Code Modulation (PCM). MS-DOS" and Windows compatible file system. Selectable file types: + Wave (.wav) + Broadcast Wave Format (.bwf) + RAW MP2 (.mpg)/MP3 (.mp3). recording bit rate is selectable *_.mpg/mp3 compressed at 32kbps (recom- mended for dictation), 32, 48, or 64kbps (recommended for voice recording), or 128, or 192 kbs (recommended for recording music) + PCM (.wav) uncompressed at 768kbps (mono) (very high quality mono audio record- ing) + PCM (.wav) uncompressed at 1536kbps (stereo) (recommended for very high quality audio recording) Manual, manual with limiter and automatic record level control (ALC). An ANC (Ambient Noise Cancel) switch for reducing unwanted background noise. Pre-Recording memory buffer that records 2 seconds of audio before recording is started. Portions of multiple recordings can be played back in sequence using EDL marks. There are four ways to power the PMD670: + Included AC adapter + AA Alkaline batteries (— 6 hours) + Optional rechargeable Ni-Cd battery pack RB1100 (- 5 hours). + Optional rechargeable Ni-MH battery RB1650 (- 7 hours). Built-in Time and Date generator marks the beginning of each track. REMOTE jack permits a wired remote button for controlling the recording process.

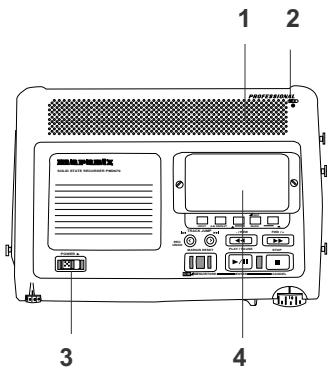

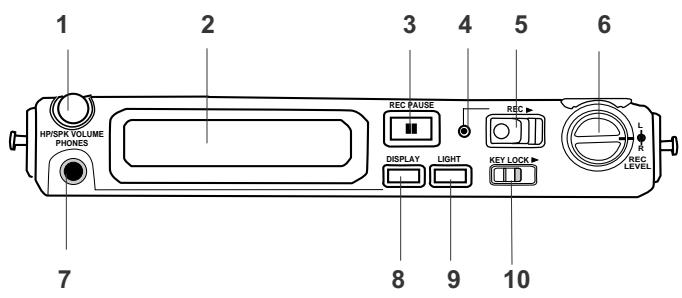

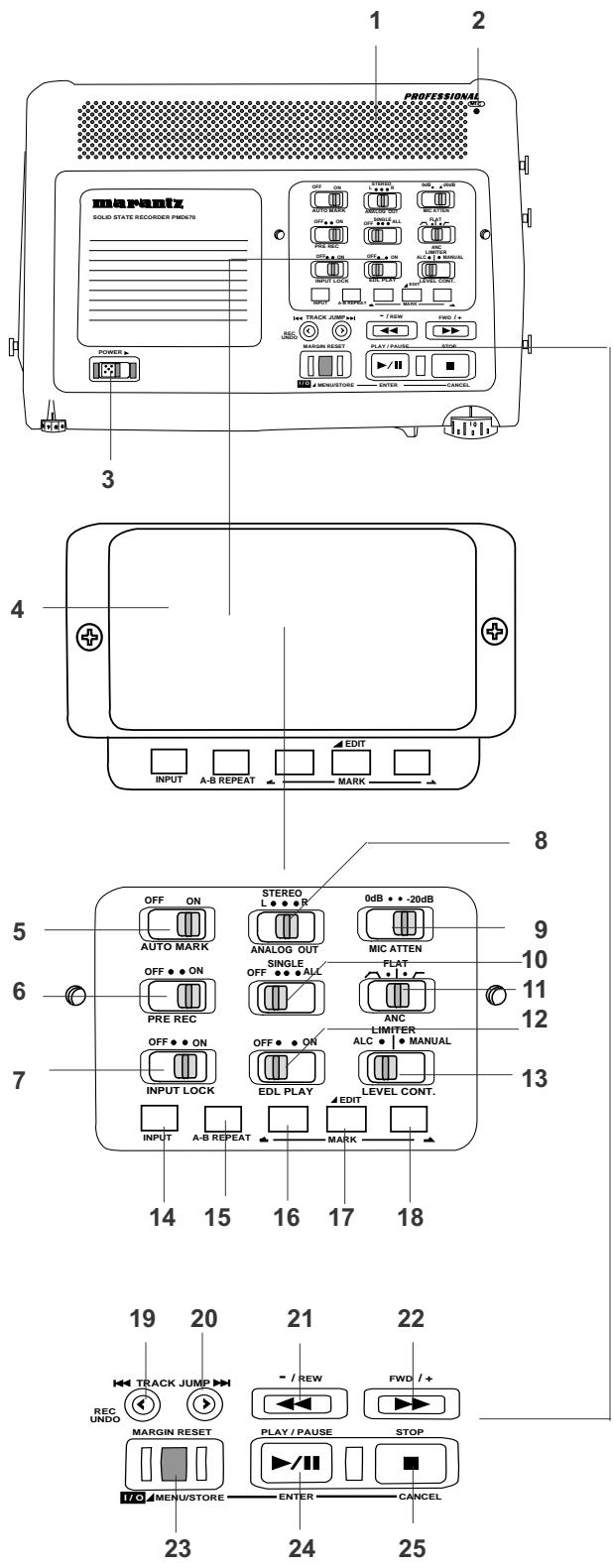

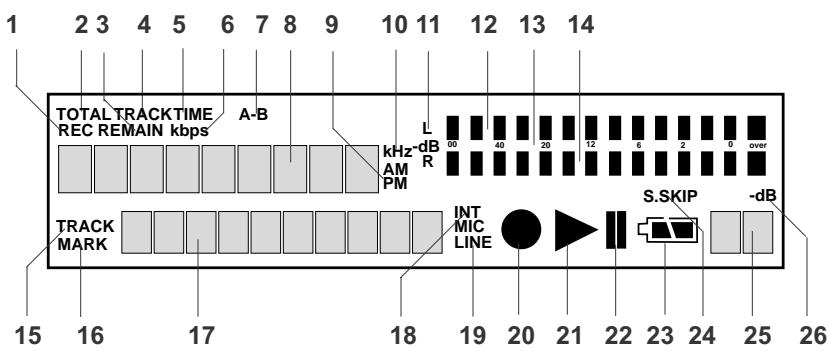

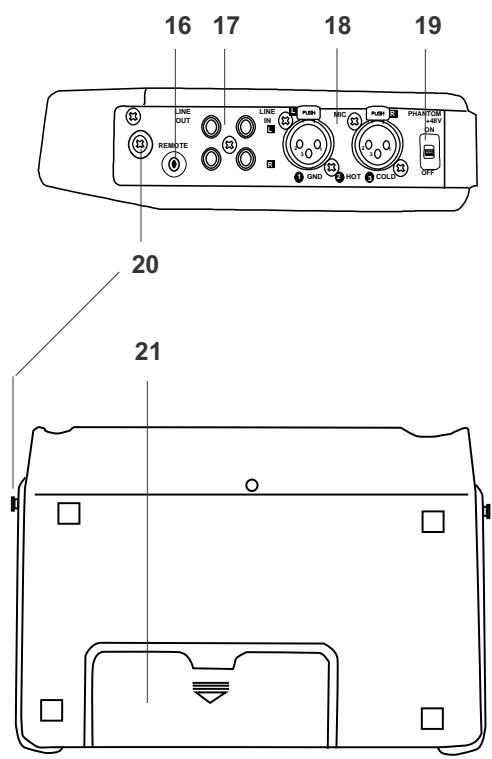

Controls and Connections Top

The played back audio signal is simulta- neously output to the built-in speaker, the PHONES jack, LINE OUT jacks and DIGITAL OUT jack. Headphones plugged into the PHONES jack mutes the internal speaker. The HP/SPK VOLUME control controls the built-in Speaker and Headphone volume. [AL 2. MIC (internal microphone)

Slide to the right and release to turn Power on or off. If the AC adaptor is con- nected at DC IN and plugged in, it powers the PMD670. If power is not detected at DC IN, battery power is automatically used if available. When first powered up the PMD670 takes some time to initialize. Loading is dis- played, then a blank screen for a while. Loadini Reading is dis- played while the CF Reading 2 * card is read.

Use a small Phillips screw- driver to remove or replace the Security cover. The Security cover makes setup controls relatively unavailable. The setup controls allow you to setup the PMD670 for your unique application. You can then have someone operate the PMD670 without concern that they might change something that could cause failure to record. sm) © Note: Two 3mm machine screws 10mm long are used for the security cover. Recording setup controls CT) CRE 5. AUTO MARK switch Turns the automatic EDL AUTO MARK mark feature on or off. ON: During record, a pause (pushing the REC PAUSE button) adds an EDL mark to the track. During record an EDL mark is added to the track if a remote device (plugged into the REMOTE jack) is used to pause recording. OFF: Pausing during record does not add an EDL mark to the track. Factory default: AUTO MARK switch ON.

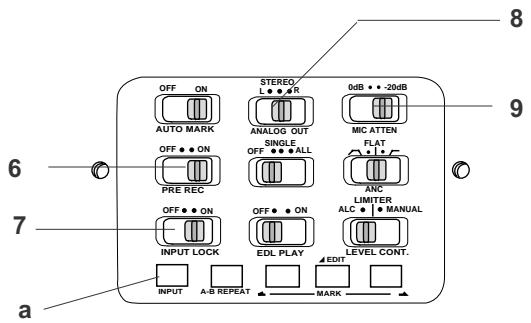

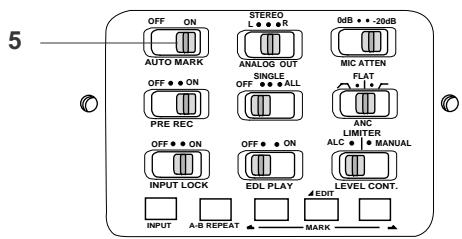

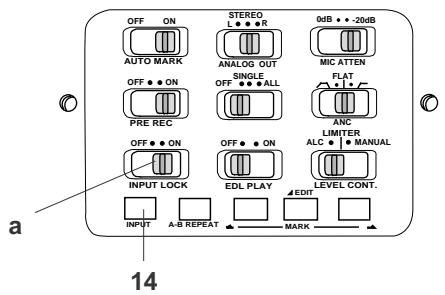

(M) CE ° s —+—Eÿ 5 OÙ Le 7 ame ann, OFF + « ON 6. PRE REC switch Lets you turn off pre record cache if it is not PRE REC desired. When power is on the PMD670 is constantly saving 2 seconds of audio input. This is called pre record cache. When recording is started by sliding the REC switch, or resumed from REC PAUSE by sliding the REC switch the pre-re- corded 2 seconds is recorded. OFF: Turns the 2 second pre-record cache off. ON: Leaves the 2 second pre-record cache on. Factory default: PRE REC switch at ON.

7. INPUT LOCK switch

OFFe e ON The INPUT LOCK switch lets you lock your selected input settings with a switch INPUT LOCK covered by the Security cover. OFF: When the INPUT LOCK switch is at OFF push and release the INPUT button (a) to tab through the input choices. The selection “times out” to the displayed input choice in 5 seconds. E Bar 14812 0. xample mona au —— display: mono with INT MIC ON: When the INPUT LOCK switch is at ON pushing the INPUT button (a) does nothing (skips the input selection choices). Factory default: INPUT LOCK switch at OFF. STEREO Les 8. ANALOG OUT switch Selects the audio output ARCS OUT channel for playback. Applies to playback output to LINE OUT, and Internal speaker or headphones. L: Audio recorded on the Left channel is output to both the left and right output channels. If the recording is dual level mono (a mono input was recorded onto both the right and left channels) the L setting outputs the audio at a normal level while the right is reduced -15dB. STEREO: Audio recorded on the Left channel is output to the left output channel, and audio re- corded on the Right channel is output to the right output channel. Both channels are output to the internal speaker. R: Audio recorded on the Right stereo channel is output to both the left and right output channels. Factory default: ANALOG OUT switch at STEREO. MIC ATTEN switch The microphone attenuation switch permits the direct use of microphones that differ in sensitivity. OdB +_e -20dB 9. MIC ATTEN 0dB: No microphone attenuation. -20dB: Input from a microphone(s) connected to the XLR MIC IN jacks is cut by -20dB. Factory default: MIC ATTEN switch at OdB.

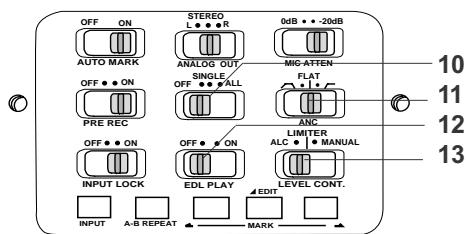

SINGLE 10. REPEAT switch OFF + ° °ALL Lets you endlessly repeat playback of a track or entire REÉPEAT memory card. OFF: No repeat. SINGLE: During playback the current track is repeated. When playback reaches the end of the track it automatically starts playback from the beginning of that track. ALL: During playback all tracks are repeated. When playback reaches the end of the last track it automatically starts playback from the begin- ning of the first track. Factory default: REPEAT switch at OFF. Note: For other methods of repeat playback see the A- B REPEAT button and/or EDL A-B looping. FLAT 11. ANC switch The ANC (Ambient Noise Cancel) switch lets you ANC choose to reduce ambi- ent noise before recording on the internal micro- phone or MIC inputs. Ambient Noise Cancel positions do not change the memory used in recording. Examples of low ambient noise sources include: traffic, air condi- tioning hum, and wind noise. 7° Band pass position reduces the lows and highs and passes (records) the center (voice level) audio frequencies. This reduces the re- cording of high and low frequency ambient noise. FLAT: No filtering applied. 77 : High pass position reduces low fre- quency ambient noise only. US default: ANC switch at Band pass 7. Europe default: ANC switch at FLAT. RE 2. EDL PLAY switch The EDL PLAY switch EDL PLAY turns EDL PLAY off or on. OFF: When the EDL PLAY switch is at OFF PMD670 playback does not respond to EDL mark instructions. ON: When EDL PLAY is ON PMD670 playback follows EDL mark instructions regarding play- back order, skipping sections of recording on the memory card, or repeating a section of recording on the memory card. Note: If the EDL PLAY switch is at ON and there are no EDL marks on the CF card (recording was done with the AUTO MARK switch at OFF) playback is not available. Switch to OFF for playback. Factory default: EDL PLAY switch at OFF. LIMITER LeMANUAL 13. LEVEL CONT. switch The LEVEL CONT(rol) switch lets you select the type of input level control. ALI LEVEL CONT. MANUAL: At MANUAL you control the input level with the REC LEVEL controls. LIMITER: At LIMITER peak sound levels that would distort the recording are limited. ALC: AtALC (Automatic Level Control = Auto- matic Gain Control) the PMD670 automatically responds to changes in input level. If recording is quiet the input level is increased. If recording is loud the input level is decreased. This is a desir- able feature when recording a meeting with several speakers, because a speaker close to the micro- phone and/or with a loud voice will be automati- cally recorded at a reduced level and a quiet speaker will be recorded at an increased level and is less likely to have their input missed.

ALC is usually not desired when recording music (voice or instrument) because the transitions in input level may be audible in the recording, and can make the recording ‘hissy’ by raising the level during quiet passages and recording ambient noise. The REC LEVEL controls do not work when the LEVEL CONT. switch is set at ALC. US default: LEVEL CONT. switch at ALC. Europe default: LEVEL CONT. switch at MANUAL.

The INPUT button lets you select the audio input and audio channels for record- ing. When the INPUT LOCK switch (a) is at OFF, press and release the INPUT button to tab through the input choices. When the desired input is displayed switch the INPUT LOCK INPUT switch (a) to ON. PORN] Example Ed: 14:12 Le FU display: none ET mono with INT MIC The nine input choices are: mono with INT MIC input stereo with LINE input mono with LINE input (L only) LR mono with LINE input (L +R mix) Digiln (digital input) stereo with MIC input DEmono with MIC input (dual level mono, L only) mono with MIC input (L only) LRmono with MIC input (L +R mix) Note: The PMD670 'listens' only to the selected input. For example if the input selected is LRmono with LINE input, and no input source is connected to the LINE IN jacks the PMD670 will record silence. US default: mono with INT MIC input. Europe default: stereo with MIC input. What the input selections do: Selects the input device(s) and channels The input selection chooses which input(s) the PMD670 is using for recording and how many channels are recorded. Selects the recording (file) parameters The input selection also determines which set of algorithm/file parameters are used (stereo file, mono file, or digital file). Recording (file) parameters: stereo (recorded as a stereo file): stereo with LINE input, stereo with MIC input, DLmono with MIC input. mono (recorded as a mono file): mono with INT MIC input, mono with LINE input, LR mono with LINE input, mono with MIC input, LRmono with MIC input. digital (recorded as a digital file): DIGITAL IN input. The default algorithm/file parameters are: stereo file: MP2, 48kHz sample frequency, 128kbps per channel, and file extension .mpg. mono file: MP3, 44.1kHz sample frequency, 32kbps, and file extension .mp3. digital file: MP2, 44.1kHz or 48kHz sample frequency (dependent on input source rather than default or PMD670 menu selection), 128kbps, and file extension .mpg. Via the Algor/File Menu choice, the algorithm/file parameters for stereo, mono or digital files can be changed. See Algor/File Menu choice on page

Input device(s) and channels: mono with INT MIC input Mono audio input from the internal microphone is recorded as a mono file. stereo with LINE input Audio input from the L LINE IN jack is recorded on the Left channel. Audio input from the R LINE IN jack is recorded on the Right channel. mono with LINE input Audio input from the L LINE IN jack is recorded as a mono file. LR mono with LINE input Audio input from the L LINE IN jack and the R LINE IN jack are combined and recorded as a mono file. Digiln Digital audio data at 44.1KHz or 48kHz input through the DIGITAL IN jack can be recorded. stereo with MIC input The microphone connected to the L MIC IN XLR jack is recorded on the Left channel and the microphone connected to the R MIC IN XLR jack is recorded on the Right channel. DEmono with MIC input In Dual Level mono with MIC input the micro- phone input from the L MIC IN XLR jack is re- corded on both the Left and Right channels. The Right channel is reduced -15dB. mono with MIC input In mono with MIC input the microphone input from the L MIC IN XLR jack is recorded as a mono file. LRmono with MIC input In LR mono with MIC input the microphone input from the L MIC IN XLR jack and the R MIC IN XLR are combined and recorded as a mono file.

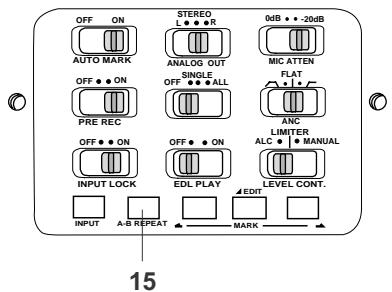

15. A-B REPEAT button

While in playback press and release to start point A to point B repeat playback. A-B REPEAT A-B Repeat playback Point A (starting point) is set when the A-B RE- PEAT button is pressed and released. The next press and release sets point B (ending point). Playback repeats between A and B. Note: You can use the -/REW or FWD/+ buttons be- tween setting the A and B points. You cannot use the TRACK JUMP forward or reverse buttons. You can pause during A-B repeat playback by pressing and releasing the PLAY/PAUSE button

1. Resume A-B playback by pressing the

PLAY/PAUSE button /n again. Exit and cancel A-B repeat by pressing the STOP button M or pressing the A-B REPEAT button.

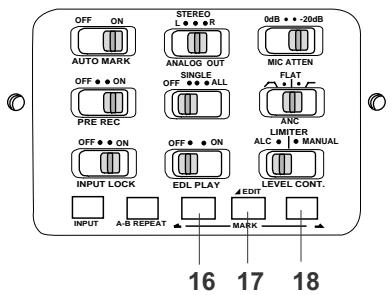

AEDIT 16, 17, 18. MARK/ AEDIT buttons This button group controls EDL Marks and Editing functions. MARK EDL Marks Mark functions: manually adding Marks, and locating Marks. Adding EDL Marks Press and release the MARK/ 4EDIT button to manually add an EDL Mark during recording. Press the MARK 4EDIT button during pause, recording, or playback to add an EDL Mark. During recording adding an EDL Mark introduces an audible click in the recording when using the internal microphone. Locating EDL Marks From Stop press and release the Mark forward button (18) or Mark reverse button (16) to tab through the EDL marks on the CF card. EDL Mark location as recording time from the beginning of the track. Example display. GE: B6E2T MARK dis- Le 885 Point. as — played (instead \ of TRACK) / ù ? EDL Mark EDL Mark type number To start playback from the displayed EDL Mark press and release the PLAY/PAUSE button.

Edit functions: editing EDL Marks to create custom playback sequences, erasing and renum- bering Tracks, and formatting the CF card. Custom playback sequences EDL Marks are numbered consecutively from 001 and automatically renumbered when an EDL Mark is added or erased. Playback is also con- secutive from the point that playback begins. EDL Mark custom playback can: Skip playback from the beginning of a 'Skip' EDL Mark to the beginning of the next EDL Mark. A-B loop from a 'Loop_A' EDL Mark to a'Loop_B' EDL Mark. Note: EDL Marks are not automatically placed at the beginning of tracks. If you want your custom playback sequence to include track beginning points add EDL Marks to coincide with track beginning points by: a. Start playback by pressing and releasing PLAY/Pause »… and then pause playback by pressing and releasing PLAY/Pause »… again. b. Press and release TRACK JUMP forward »»1 or TRACK JUMP reverse 1«< until the desired track number is displayed. c. Press and release the MARK/ 4 EDIT button. Editing EDL Marks: AI EDL Marks are initially entered as "Point" marks. From Stop display the EDL Mark by pressing and releasing the Mark forward button (18) or Mark reverse button (16) to tab through the EDL marks on the CF card. When the EDL mark to be edited is displayed press and release the MARK/ 4EDIT button. The current EDL Mark type will be flashing. Example 696: Qu; 25 ; co display. mx 668 Point as —

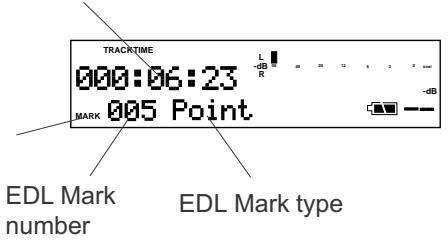

Press and release the MARK/4EDIT button to tab through the EDL Mark types: Point, Skip, Loop_A, Loop_B, and Erase. When the type you want to change the EDL Mark to is flashing press and release the ENTER button »/1. gag:æm:25 | mur Writing as —— Writing will be displayed briefly and the PMD670 will return to stop mode. Skip An EDL Mark changed to 'Skip' will be skipped during EDL playback (playback with EDL PLAY switch at ON). Playback will skip to the beginning of the next EDL Mark. A skipped EDL recording is not erased. The recording is still on the CF card. The skipped EDL recording will play if the EDL PLAY switch is at OFF. You can change the type later. EDL A:-B looping To playback an EDL A-B loop press the PLAY/ PAUSE button 1 to begin playback then press and release the A-B REPEAT button. If there is an error, for example there is an EDL Mark of type Loop_A but no EDL Mark of type Loop_B an error message is displayed. BGB: 14:01 |“EDLError-E Example display. au 82 Only one EDL A-B loop can programmed. When a'Loop_A' or 'Loop_B' exists on a CF card and another is created the old mark automatically changes to a "Skip". Erase When an EDL mark is erased the remaining EDL marks are automatically renumbered from 1 through the number of EDL marks on the CF card. Edit mode Edit mode includes: Renumber (renumber tracks), TrKERASE (erase a track), TrKMKERASE (erase an EDL mark), AIIMKERASE (erase all EDL marks), and FOR- MAT (format the CF card). How to renumber tracks If you have erased tracks from the CF card it is easier to locate recordings if the tracks are renumbered. From stop press and hold the MARK/ 4EDIT button for about 2 seconds to enter Edit mode. Renumber flash- ing in the display. RES au — While Renumber is flashing (5 seconds) press and release the ENTER button 1. (Or press and release the STOP button mt to cancel.)

EXECUT ING as EXECUTING will be displayed and the percent- age executing will increase to 100%.

Done au — 100% done will be displayed momentarily. Then the PMD670 and the display will return to stop mode. How to erase tracks From stop press and hold the MARK/ 4EDIT button for about 2 seconds to enter Edit mode. Renumber flashing ill il i N 7 in the display. Renumbe au — While Renumber is flashing (5 seconds) press and release the MARK/ EDIT button again. TrKERASE flashing in the display.

TrkERASE s— TIT While TrKERASE is flashing (5 seconds) press and release the ENTER button 1.

Track number flash- ing in the ERASE | NPA : |" gg 1 ERASE display. I Press and release the FWD/+ button »» or the -/REW button <#< to select the track number you want to erase. Example track l

34. le ASdERASE as —

While the track to be erased is flashing (5 sec- onds) press and release the ENTER button >". (Or press and release the STOP button m to cancel.) EXECUTING will be displayed luxe PYECUT ING as — momentarily. Done will be dis- played momen- ue one = ——| tarily. The PMD670 and the display will return to stop mode. The recording time (file space on the CF card) used by the erased track is available for record ing. How to erase all EDL marks within one track From stop press and hold the MARK/ 4EDIT button for about 2 seconds to enter Edit mode. Renumber flashing in the display. While the display is flashing (5 seconds) Ml ranber

press and release the MARK/4EDIT button two more times. TrkMkErase flashing in the display. NII I TrkMkERASE TTT T While TrkKMKERASE is flashing (5 seconds) press and release the ENTER button 1. au —

Press and release the FWD/+ button »» or the -/REW button << to select the track that con- tains the EDL Marks you want to erase. Example Track 12.

| 41 2MkERASE While the track number is flaShing (5 seconds) press and release the ENTER button =". (Or press and release the STOP button mi to can- cel.) EXECUTING will be displayed l'*EKECUT ING momentarily. Done will be displayed mo- mentarily. “Bone

How to erase all EDL marks From stop press and hold the MARK/ 4EDIT button for about 2 seconds to enter Edit mode. Renumber flashing in the display. D'UN Renumber While the display is flashing (5 seconds) press and release the MARK 4EDIT button three more times. AIIMKErase flash- ing in the display.

au —— While AIIMKERASE is flashing (5 seconds) press and release the ENTER button »/1. AIMKErOK? NN flashing in the ALIHKErOK? display. TT The display asks you to confirm that you want to erase all EDL Marks on the CF card. While AIIMKErOK? is flashing press and release the ENTER button =-n to confirm. (Or press and release the STOP button K to cancel.) EXECUTING will be displayed momen- tarily. au — sx EHECUT IG Done will be dis- played momentarily. pu Done The PMD670 and the display will return to stop mode. How to format a CF card From stop press and hold the MARK/ 4EDIT button for about 2 seconds to enter Edit mode. Renumber flashing NTI in the display. 4 Renumber TTT While the display is flashing (5 seconds) press and release the MARK/ 4EDIT button four more times. FORMAT flashing Nr in the display. FORMAT as — While FORMAT is flashing (5 seconds) press and release the ENTER button »1. FORMAT OK? Lil] ina i N / flashing in the FORMAT OK* au —— display. TITI The display asks you to confirm that you want to format the CF card. Formatting the CF card will erase all recordings on the card. While FORMAT OK? is flashing press and re- lease the ENTER button »11 to confirm. (Or press and release the STOP button M to cancel.) EXECUTING will be 190% displayed momen- EXECUTING au — tarily. Done will be dis- 19@% played momentarily. Done au —— The PMD670 returns to stop mode. BlankCard 17 mono _* su — BlankCard will be displayed. The CF card formats used by the PMD670 are Windows compatible. You can copy audio files using a Windows compatible computer* that can read a CF card or be connected via the 1/0 port. “Or a Macintosh computer that can recognize Windows compatible removable drives. CF cards with less than 2 GB capacity are auto- matically formatted FAT16 (FAT = File Allocation Table). CF cards with 2 - 8 GB capacity are automatically formatted FAT32. The maximum CF card that can be formatted in the PMD670 is 8 GB. If larger cards are used please format in your computer.

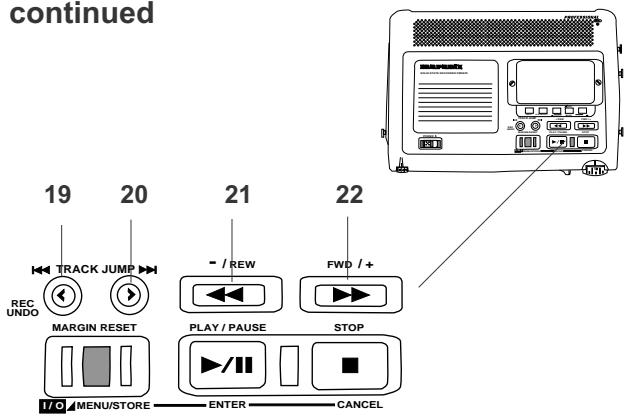

During playback press and release to jump to the previous track. If pressed while playing the first track jumps to the last track on the CF card.

During recording press and release twice to undo (erase) the recording and pause recording at the beginning of the track. Example display pre NIUE j Go: 26:13 * « during record. megid mono *@D 2097 Example display for RE ATITITTN 3 seconds after BG: 26:13 REC UNDO button me REC Lndo?® @D ‘an Gr) is pressed. Example if REC UNDO button is pressed again BB : BE: BE 614 mors D'Or: Within the 3 sec- onds. Recording is at REC pause at the beginning of the track.

20. TRACK JUMP forward button »»1

During playback press and release to jump to the next track. If pressed while playing the last track jumps to the first track on the CF card. Co) =)

During playback press and hold the -REW button << to "rewind", do an audible search in the reverse direction. Press and hold the FWD/+ button »» to "forward", do a 2X speed audible search in the forward direction. Release to return to normal forward playback. FWD /+ During play pause, press and hold the -/REW button << or the FWD/+ button »» to rewind or fast forward quickly. The rewind or fast forward is at 10X speed for three seconds, then automati- cally speeds up to 140X speed. Notes: Ifthe -/REW button << or the FWD/+ button »» is held past the beginning or end of a track the rewind or fast forward will continue onto the previous or next track. If REPEAT SINGLE or REPEAT ALL is on, the rewind or fast forward will follow the repeat order. Does not function in EDL playback or EDL A-B repeat. During Editing and Menu functions press and release the -/REW button << to increment a parameter in the - direction and press and re- lease the FWD/+ button »» to increment a parameter in the + direction.

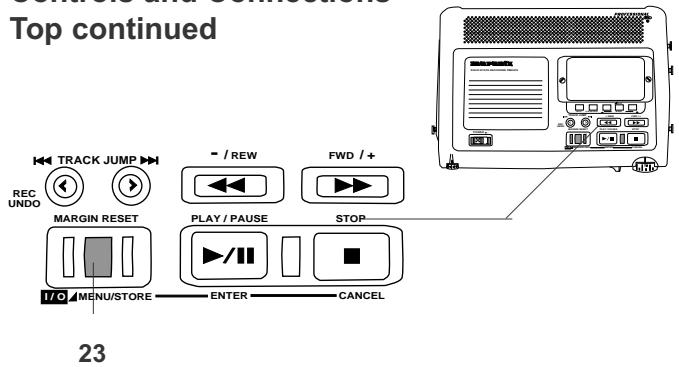

Controls and Connections Top continued MARGIN RESET

button Several functions depend- D avenvsTore — ing on state of the PMD670. MARGIN RESET button During record press and release to reset the peak level margin. Example display 99:26:13 * . egid mons %@D as With level margin at -02dB before press- ing the MARGIN RESET button. level margin The level margin displays the highest level achieved since the track began or the MARGIN RESET button was pressed and released. OV indicates a margin over OdB. 1/0 button Connects the CF card via the 1/O port to a con- nected device (usually a computer). From power off press and hold the 1/0 button while you slide the POWER switch on the PMD670 to the right to power on. This display appears. 1-0 Online Il The CF card in the PMD670 appears as an external drive on a connected computer. Power off to disconnect. See page 43, How to connect via the 1/O port. AMENU/STORE button The PMD670 Menu lets you preset various parameters. To access the Menu with POWER on and the PMD670 in Stop: à EE. _— Menu operations

1. Press and hold the 4 MENU/STORE button

for about 2 seconds. MENU will appear (flashing) in the display. Example BG: 07:49 display: renu While MENU is flashing (for about 3 seconds) press and release the ENTER button >. The Menu choice will appear. If the flashing MENU times out start over at 1. The last Menu choice entered appears, the following starts from the Date/Time menu choice. NII DatesT ine as —

3. Press and release the FWD/+ button »»>

4. or the -/REW button << to tab through the

menu choices. The rest of the menu setting procedure differs slightly depending on the menu item. In general you:

5. Press and release the ENTER button »/n to

select a menu choice.

6. Press and release the FWD/+ button »» or

the -/REW button << to change the menu setting.

7. Press and release the ENTER button »/" to

confirm the menu setting.

Then either: 8a. Press and release the FWD/+ button »» or the -/REW button << to tab to another menu choice, or 8b. Press and release the 4 MENU/STORE button to write the menu changes and return to stop mode, or &c. Press and release the CANCEL button Æ to cancel any menu changes and return to stop mode. The Menu choices are: Date/Time — For setting or changing the Date and Time associated with when an audio track (file) was created. DateForm — For selecting the date order. Algor/File — For setting or changing the recording compression algorithm, associated bit rate, audio file type, and channels recorded. M. Track — Turn manual track incrementing feature on or off. SeamisPly — Turn the Seampless play feature on or off. S.Skip — Turn Silent Skip feature on or off, set the number of seconds the dB level must meet or exceed the set threshold, and set the dB threshold level. A.Cue — Turn the Auto Cue feature on or off, set the number of micro-seconds the dB level must meet or exceed the set threshold, and set the dB threshold level. S.Play — Turn the single track play feature on or off. Beep — Turn the beep on or off. A.PowOff — Enable or disable the Automatic Power Off feature. Batt_Type -— Set the battery type. RemoteMode -— Set the effect of the optional wired remote switch. 1D1 — Set the description ID code for broadcast wave file recordings. I1D2 — Set the origin ID code for broadcast wave file recordings. 1D3 — Set the origin reference ID code for broad- cast wave file recordings. Default — Reset all Menu settings to factory default settings. How to set or change the Date and time The date and time are written on each audio track (file) when the track is started. When an audio track is viewed on a computer this date and time appears as when the file was ‘modi- fied'. (US date format is illustrated.)

2. While MENU is flashing (for about 3 seconds)

Press and release the ENTER button »… again. The current date and time information Will be displayed with the month flashing. R2421: 00. Example Hay2s 2643 display. ss —

4. With the month flashing press and release

the FWD/+ button »» or the -/REW but- ton << to tab through the months. When the month is correct, Press and release the ENTER button 1.

The day will be flashing. Example 62:21 ;08.. display. June 2095 as

5. With the day flashing press and release the

6. With the year flashing press and release the

FWD/+ button »» or the -/REW button << to tab through years (2003 - 2099). When the year is correct, press and release the ENTER button »/1. The hour will be flashing. Example \IT7 display. / ren 2884 as —

7. With the hour flashing press and release the

FWD/+ button »» or the -/REW button << to tab through hours. AM, PM will change when you pass 12, check that it is correct. When the hour and AM/PM is correct, Press and release the ENTER button >. The minute will be flashing.

Gen. Juriäd 2064 as — Example display.

8. With the minute flashing press and release

the FWD/+ button »» or the -/REW but- ton << to tab through minutes. When the minute is correct, Press and release the ENTER button un. Date/Time will be

9. Press and release the 4MENU/STORE

button. If you have made changes to the date and/or time Stored will be displayed briefly. Date T ine as — Stored as The display will return to stop mode. Note: The date and time settings will remain for about a month if the AC Adapter is not plugged in and no batteries are installed.

How to set or change the Date Form The date form is the date order month/day/year or day/month/year. The US default is M/D/Y (month/day/year). The Europe default is D/M/Y (day/month/year).

1. From stop, press and hold the 4MENU/

STORE button for about 2 seconds. MENU Will appear (flashing) in the display. Example 107: Ho display: Fe: EP 48 me

2. While MENU is flashing (for about 3 seconds)

press and release the ENTER button >. The Date/Time Menu choice will appear. NE: h DatesT ine as — (If the flashing MENU times out start over at 1.)

3. While Date/Time is flashing (for about 3

again. TheM/D/Y choice will flash. TITI Example HD display. | DaleForm as

5. Press and release the FWD/+ button »» or

the -/REW button << to toggle between M/D/Y and D/M/Y. When the desired form appears press and release the ENTER button

6. Press and release the FWD/+ button »» or

the -/REW button << to tab to another menu choice, or

Press and release the A4MENU/STORE button to write the menu changes and return to stop mode, or Press and release the CANCEL button EH to cancel all menu changes and return to stop mode.

Algor/File The PMD670 can record in a variety of compres- sion algorithm, associated bit rate, file format, and recording type (channels recorded) parameters. See explanations below and chart in right column. First select your input device (internal micro- phone, microphone(s), Line in, or digital input). Second select your input channel choice with the INPUT button, see page 17. Recording Type The recording type can be stereo (two channels of recording) mono (one channel of recording) or digital. This is set by your choice of input device and input channel choice. Algorithm The PMD670 can record using three methods two of which are compression algorithms: PCM, MP3, and MP2. PCM (Pulse Code Modulation) is uncompressed. These are high quality audio files used in the recording industry. For ex- ample, for recording CD quality music. PMD Edit and other professional level computer applications are available for computer process- ing of PCM files. MP3 (MPEG1 Layer Ill) is highly compressed, and creates relatively small files that are com- monly used to transfer files on the internet. MP2 (MPEG1 Layer Il) is a compressed file format that is commonly used in broadcasting. MP2 audio is a higher quality than MP3. This is especially useful when lower bitrates are used. If you are a news reporter you will probably want to record in MP2 format using the .bwf extension. Sample Frequency Sample frequency is measured in KHz (kilo Hertz). The sample frequency is the number of samples of the audio wave(s) per second. For example, the PMD670 can record PCM at 48 kHz that is 48,000 samples per second. Bit Rate The bit rate for PCM is constant at 768kbps/ch. MP2 and MP3 can be recorded at a number of different bit rates. File Format The file format (3 character computer file exten- sion) might be .wav, .bwf, .mpg or .mp3. Broad- cast Wave Files (.bwf) include identification codes in the file header. 1 AlgorFile (default)

2. selected by input device and input channel

mp3 |L_32 mp3/.bwf 22.05] 160,128,80,64,40,32 PCM |—$— -wav/.bwf 192,128,96,64,48,32 | .mpg/.buf MP2 | 441 [Mono | 32 160,128,80,64,40:32) | (mp3Abuf (p3 32 PONT | (Dig-In}/MP2) -- | 384,256,192,128,96,64 MP3 320,256,160,128,80,64 | -MP3/.buf How to set or change the Algor/File parameter defaults. The Chart of Algorithm/File Parameters reflects the menu setting procedure of those parameters. The factory defaults are circled.

1. Select the Algor/File menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will ap- pear (flashing) in the display. Example BG 1672 49 1, display: Heru # as b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »1…1. The Date/Time Menu choice, or the last menu choice, will appear. (If the flashing MENU times out start over at a.) NET Date,T ine su — Press and release the FWD/+ button »» repeatedly until the Algor/File is flashing. NLILY fisor-File = — d. Press and release the ENTER button 1. You are now at column 2 of the chart of Algorithm File Parameters where you choose between the parameters for Stereo, Mono, or Dig-in input selections.

2. Press and release the FWD/+ button »» or

the -/REW button #4 to tab to your record- ing type choice. Example Es on display with JA Stereo chosen. TT Press and release the ENTER button »… to accept the Stereo choice and switch to column 3.

3. Press and release the FWD/+ button »» or

the -/REW button << to tab to your algorithm choice. Example display "48.89" with MP2 cho- EL eo sen. TTTX

How to set or change the Algor/File param- à 5. Press and release the FWD/+ button »» or eters continued the -/REW button #« to tab to your bit rate 1 AlgorFile (default) . choice. Example TT M 48 display with 128 44.19

44.1 128 chosen. “L HP2 Stereo ‘as —

32 -....._.. -wav/.bwf PCM

22.05 In our example we press and release the

1 ENTER button > to accept the 128 choice CMP2 | 34.1] 384,256,192,128,96,64 | cmpgjbuf and switch to column 6. [Stereo | 32 : 48 6. Press and release the FWD/+ button »» or

44.1 | 320,256,160,128,80,64 .

mp3 [32 mp3/L.buf the -/REW button << to tab to your file 24 format choice. 22.05] 160,128,80,64,40,32 Example NTT7 display with FILE .buf -bwf chosen. HP2/Sterèo seen .wav/.bwf In our example we press and release the ENTER button > to accept the .bwf choice 192,128,96,64,48,32 | .mpg/.buf and switch to Algor/File. [Mono | NL TL : 160,128,80,64,40:32) | (mp3/bwf Flsor-File us —— In this example we press and release the EE Wav.but AMENU/STORE button to save the change (Dig-n}7MP2 | -- |384,256,192,128,96,64 | cmpgibuf and exit menu. Stored is displayed briefly. MP3 320,256,160,128,80,64 | -Mmp3/.buf Stored nl In our example we press and release the The display returns to stop mode. ENTER button »… to accept the MP2 choice and switch to column 4. Note: Changes to Algor/File usually also mean hard-

4. Press and release the FWD/+ button > or ware and INPUT menu changes. In our example

the -/REW button << to tab to your sample we changed the default MP2 Stereo.mpg with to frequency choice MP2 Stereo .bwf. We would expect to connect | microphones, change the INPUT settings from Example STTZ. mono with INT MIC input to stereo with MIC display with 25e He 1e 0 — input, and enter ID numbers for the .bwf file

44.1 chosen. M LErES header.

In our example we press and release the ENTER button to accept the 44.1 choice and switch to column 5.

Other menu choices: Manual track incrementing. When Manual track incrementing is on, during recording slide and release the REC switch » to increment the track. À new track is created at that point. There is no break in recording. When Manual track incrementing is off, sliding and releasing REC switch » during recording does nothing. Default setting is On.

1. Select the M. Track menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »/n. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until M. Track is displayed and flashing. NET Ma TrackOn

3. Press and release the ENTER button wa to

accept the M. Track choice and switch to ON or OFF. NIIY H.TrackOPr =

4. Press and release the FWD/+ button »» or

the -/REW button << to toggle between On and Off.

5. When correct Press and release the ENTER

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4MENU/STORE button to write the menu change(s) and return to stop mode. Seamless Play. When Seamiless Play is On, during playback multiple tracks will be played back in sequence without any break (space) between the tracks. When Seamiless Play is Off, during playback multiple tracks will be played back in sequence With breaks (brief periods of silence) between the tracks. Default setting is Off.

1. Select the Seamis Ply menu choice:

a. From stop, press and hold the 4MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button 1. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button »»

repeatedly until Seamis Ply is displayed and flashing. SI 17 Seamls Pla au

4. Press and release the FWD/+ button »» or

the -/REW button 4#« to toggle between Off and On. au ——

5. When correct Press and release the ENTER

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode.

Silent Skip. Silent skip automatically pauses recording when there is a period of silence and continues record- ing when sound resumes. Silent Skip looks for sound below a preset level for a preset period of time. When that occurs the PMD670 switches to record pause. When a signal of about -30 dB is : : 6. input recording resumes. For example, if you are both the recorder and master of ceremonies for an event, you can preset the PMD670 for recording and automati- 7. cally start recording when you start speaking into the microphone. When the AUTO MARK switch is at ON resump- tion of recording after a record pause by Silent Skip adds an EDL mark. 8. Default settings are Off, 03 seconds, and -40 dB.

1. Select the S.Skip menu choice:

a. From stop, press and hold the 4 MENU 9. button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 sec- onds) press and release the ENTER button +1. The last Menu choice selected will 10. appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until S.Skip is displayed and flashing. \ IBEses n S:5k ir off a 4 fl

3. Press and release the ENTER button 1 to

accept the S.Skip choice and switch to On or Off. Ses | al S.Skir On es fl

4. Press and release the FWD/+ button »» or

the -/REW button << to toggle between ON and OFF.

When correct Press and release the ENTER button »Ai to switch to set or change sec- onds. NT 7 Edsec <.Skir On as 4Ël Press and release the FWD/+ button >» or the -/REW button << to change the number of seconds of silence. The range is 1 to 5. When correct Press and release the ENTER button >" to switch to the decibel threshold level. Gdsec \ a 5.5kir On as 45 Press and release the FWD/+ button »» or the -/REW button << to change the (-dB) decibel threshold level. The range is 20 to 60 in 5 dB increments. When correct Press and release the ENTER button 11 to switch to S.Skip flashing. es . SÉSE on 245 AREIEN Press and release the FWD/+ button »» to switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode.

Auto Cue Auto Cue skips the silence at the beginning of an audio track and pauses playback at the point where the sound is loud enough for long enough. You can adjust how loud (how many dB) and how long (milliseconds) the audio has to be before playback is cued. If S.Play is selected (see next page), when the end of the track is reached Auto Cue pauses playback cued to the sound of the next track. Default settings are Off, 20 milliseconds, and -40 dB.

1. Select the A.Cue menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will ap- pear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »1. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until A.Cue is displayed and flashing. \ | 2fmsec . as 4 HL£ue Fr

3. Press and release the ENTER button 1 to

accept the A.Cue choice and switch to On or Off. 2Emseg | as 4û A.Cue On

4. Press and release the FWD/+ button »» or

the -/REW button << to toggle between On and Off.

5. When correct Press and release the ENTER

Press and release the FWD/+ button »» or the -/REW button << to change the number of milliseconds of sound exceeding the threshold. The range is 5 to 60 in five milli- second increments. When correct Press and release the ENTER button »1 to switch to the decibel threshold level.

Press and release the FWD/+ button »» or the -/REW button << to change the decibel threshold level. The range is -60dB to -20dB in 5dB increments. When correct Press and release the ENTER button 1 to switch to A.Cue flashing. \ L'Sfmsec A.Cus _On CRE Press and release the FWD/+ button »» to switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode.

Single Play During playback, when Single Play and Auto Cue are Off, and the end of a track is reached the next track automatically starts playing. During playback, when Single Play is On, and the end of a track is reached the PMD670 auto- matically pauses. This differs from Auto Cue in that Single Play does not cue to start of audio. Default is S.Play Off.

1. Select the S.Play menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 sec- onds) press and release the ENTER button +1. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until S.Play is displayed and Beep When battery charge can provide no more than 1-3 minutes of recording or playback and Beep is set to On, the battery indicator will flash, the REC indicator will flash and the PMD670 will beep. Ifthe PMD670 is not operated for 30 minutes during stop or play pause, power can be auto- matically shut off to conserve battery life. (See A.PowOFF next page.) If A. PowOFF is set to Y, and Beep is set to ON, the PMD670 will beep to alert you that the power is shutting off. Default is Beep On.

accept the S.Play choice and switch to On or Off.

4. Press and release the FWD/+ button »» or

the -/REW button << to toggle between ON and OFF.

5. When correct Press and release the ENTER

button >" to switch to S.Play flashing. as —|

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4MENU/STORE button to write the menu change(s) and return to stop mode.

Select the Beep menu choice: From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. While MENU is flashing (for about 3 seconds) press and release the ENTER button >. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.) Press and release the FWD/+ button »> repeatedly until Beep is displayed and flash- ing. Press and release the ENTER button »…1 to accept the Beep choice and switch to On or Off. N17

Beer Press and release the FWD/+ button »» or the -/REW button << to toggle between ON and OFF. When correct Press and release the ENTER button 1 to switch to Beep flashing.

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode. Automatic Power Off If the PMD670 is not operated for 30 minutes during stop or play pause, power can be auto- matically shut off to conserve battery life. Default is A. PowOFF Y (on).

1. Select the A.PowOFF menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 sec- onds) press and release the ENTER button +. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until A. PowOff is displayed and flashing. NII 17 FL posoe ss

3. Press and release the ENTER button »… to

accept the A.PowOff choice and switch to Y or N.

4. Press and release the FWD/+ button »» or

the -REW button #4 to toggle between Y and N.

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode. Battery Type The PMD670 can operate on 8 store bought AA size Alkaline, Ni-Cd* or Ni-MH* batteries. *Not charged by the built-in charger. An optional Ni-Cd battery pack (Model RB1100 available from Marantz Professional) will be charged by the built-in charger when the AC adaptor is plugged in. An optional Ni-MH battery pack (Model RB1650 available from Marantz Professional) can be used but is not charged by the built in charger and requires Marantz Professional charger model BC600. Default is Alkaline.

1. Select the Batt_Type menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »/n. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until Batt_ Type is displayed and flashing. : Alkaline / Batt_Tupe NEA TITI

3. Press and release the ENTER button »/… to

5. When correct Press and release the ENTER

button »… to switch to A.PowOff flashing. accept the Batt_Type choice and switch to the type of battery.

4. Press and release the FWD/+ button »» or

N 17 the -/REW button << to tab between Alka- line, Ni-Cd, and Ni-MH. Ill Mann NTT T7 Hi—HH lÉalt)Tyre =

5. When correct Press and release the ENTER

button 1 to switch to Batt_Type flashing. Nil D 17 Eatt_Tyre au

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode. Remote Mode Use a wired remote, not supplied, to control the PMD670. There are four remote modes: + StartStop — during recording or playback switch the remote off to pause, on to resume. +. EDL Mark — during recording or playback switch remote to on to add an EDL mark. + PWR REC - during power off, switch remote to on to turn power on and begin recording. During recording switch remote to off to stop recording and power off. +. M.Track — during recording, switch remote to on to increment the track. À new track is created at that point. Default is StartStop.

1. Select the RemoteMode menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »/1. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button »»>

repeatedly until RemoteMode is displayed and flashing. RUR REG | 7 Renotehode =

3. Press and release the ENTER button wa to

accept the RemoteMode choice and switch to RemoteMode choices.

4. Press and release the FWD/+ button >» or

the -/REW button << to tab through the RemoteMode choices: StartStop, EDL Mark, PWR REC, or M.Track us / enctetode cu DIX

5. When correct Press and release the ENTER

button 11 to switch to RemoteMode flashing.

6. Press and release the FWD/+ button »» to

switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode. Broadcast Wave ID numbers Broadcast Wave Format (.bwf) has three identifi- cation numbers in the header (Extension Chunk): Description, Originator, and Originator Refer- ence. For example, if the IDs are used for a broadcast station ID1 could be the identifier of the station, ID2 could be used for the department code, and 1D3 for the badge number of the reporter. Default is all ID number at 000000.

1. Select the ID1 menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 sec- onds) press and release the ENTER button »A1. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >»

repeatedly until ID1 is displayed and flashing.

Press and release the ENTER button »/1 to accept the ID# choice and switch to the highest number position. bufDsorrt ID1 649863 es |

Press and release the FWD/+ button »» or the -/REW button << to tab through the digits 0 through 9. When correct Press and release the ENTER button 1 to switch to the next digit. pufbscnet IDi 40300

as —| Press and release the FWD/+ button »» or the -/REW button << to tab through the digits 0 through 9. bufDscret IDi 659699 se

Repeat steps 5 and 6 until all six digits are set. Press and release the ENTER button »11 to switch to ID# flashing. Press and release the FWD/+ button »# to switch to the next ID#. bufür Ref IDE CEE] Repeat 5 - 8 for all three ID numbers. When ID3 is flashing, Press and release the FWD/+ button »» to switch to another menu choice, or press and release the 4 MENU/STORE button to write the menu change(s) and return to stop mode. Menu Default The Default menu choice resets all menu items to their defaults. This is handy if you are setting up a new setting configuration because you don't have to check all the settings, you know they are at the default. Defaults are listed for each menu item. Note: US defaults are used for illustration. See page 51 for a table of menu defaults.

1. Select the Default menu choice:

a. From stop, press and hold the 4 MENU button for about 2 seconds. MENU will appear (flashing) in the display. b. While MENU is flashing (for about 3 seconds) press and release the ENTER button »/n. The last Menu choice selected will appear. (If the flashing MENU times out start over at a.)

2. Press and release the FWD/+ button >

repeatedly until Default is displayed and flashing. NITY DefaulieRe = 3a Press and release the ENTER button »…1 to write the defaults. EXECUTING will be displayed, EXECUT ING eu then Done will be displayed briefly. Cons au —— 3b. Or, press and release the CANCEL button to exit menu mode without changing menu settings.

Controls and Connections Top continued PLAY / PAUSE 24. PLAY/PAUSE but- ton»… (playback) ENTER button > (menu) PLAY/PAUSE button »/1 From stop press and release to begin playback. During playback press and release to pause playback. During playback pause, press and release to resume playback. PIATIPAUSE ENTER button» During menu functions press and release to accept the ENTER — current setting and switch to the next menu item to be set. STOP 25. STOP/CANCEL button m During recording, press and release to stop recording and CANCEL end the track (file). During playback, press and release to stop playback and end the playback session. When you resume playback starts at the beginning of the first track. During menu operations press and release to cancel all entries made and return to stop mode.

Turn to adjust the volume of headphones plugged into the PHONE jack or the built-in Le OLUME speaker. Audio on the built-in speaker is automatically interrupted when recording with the internal microphone. During playback what is heard on the L'or R headphone depends on the recording and for a Stereo or Dual Mono recording, the setting of the ANALOG OUT switch.

See Display on page 43 for details. REC PAUSE

3. REC PAUSE buttonIl

During recording push and release to pause. When paused the REC indicator will flash. 66:91:23 015 mono Example display. 2e CE b a € The Pause symbol (a) will be displayed. The Record symbol (b) will flash in the display The Level meter (c) will remain active. To resume recording slide the REC switch to the right and release. A REC PAUSE does not increment the track. Ifthe AUTO MARK switch is at ON, a REC PAUSE adds an EDL mark. When recording is resumed the following is displayed for a couple of seconds. ELITE BGg:61:25 * : …H32inTotal © Sp d e f MARK (d) is displayed to indicate that the num- ber (e) indicates the count of EDL marks. “inTotal" (f) reminds you that EDL marks are counted from the beginning the Flash memory card not the beginning of the current track. Red indicator light is lit SL REC and steady during Record, flashing during Record pause.

REC 5. REC switch » From Stop slide to the right and release to start recording. From REC PAUSE slide to the right and release to resume recording. During recording slide to the right and release to increment the track (start a new audio file). To stop recording press and release STOP H.

6. REC LEVEL controls

Turn to adjust the record level when the LEVEL CONT. switch R is at MANUAL. REC LEVEL The inside control (Right channel) and outside control (Left channel) turn together unless you hold one while turning the other. The optimum record level is when the level meter goes as close to OdB as possible but does not go OVER.

D 7. PHONES jack | © Plug stereo head- phones in here. Adjust headphone volume with the HP/SPK volume control.

Headphones are active during recording and playback. During playback plugging in headphones mutes the internal speaker. DISPLAY

Press and release to tab through alternate infor- mation displays. Displays are slightly different in Stop, Record and Play. remaining record time on card During Stop: Default display is cn ah Remaining 9a4: nr: 49 - as — record time for none the card. Example display. After the first press ÉRRRRRE track information |. K 25 is displayed. 815 more Total tracks on CF card. After the second press EDL mark en information is 2 sur ÉdSinTotal au — displayed. 4SinTots Total EDL marks on CF card. bit rate sampling frequency After the third \ press file pa- 2244 101 : rameters are MPS Moro au —| displayed. / \ compression ‘recording type algorithm Current clock time After the fourth J u hours:minutes:seconds press Date and Time informa- Di:@4:34 CRE tion is dis- Fe oc played. Mas15 2604 After the fifth press the display returns to the default: remaining record time on the card. . Record time on track During Record the default display TRES is Record time on |AdAi 2613 the currenttrack. l'“914 mono Te» The first press of the DISPLAY button switches to remaining record time for the card. The second press switches to file parameters. The third press switches to date and time. The fourth press returns to the default. During Playback playing time the default display — is playing time on |fgg:4f: 16 the current track. [“@11 mono > as à The first press switches to file parameters. The second press switches to date and time. The third press returns to the default. LIGHT 9. LIGHT button Press and release to momentarily turn the Dis- play light on. Press and hold for three seconds to switch the Display light on. Press and release to switch the Display light off.

The KEY LOCK switch secures the PMD670 in the state it is in during Record, Playback or Stop. Slide the switch to the right to turn KEY LOCK on. Only these controls will work: Display LIGHT button. POWER switch - Works during Playback or Stop. PRE REC switch. If you try to operate a button or switch that is locked, "HOLD" appears briefly in the display. Example display: GR: 21:27 PTICITE . Hold Fe» so Left side

CHARGE 11. CHARGE indicator Lit when optional Ni-Cd © battery is charging.

12. CF card compartment

Pull to open to access the CF card. OpenDoor Power Down is displayed for about one second. OrenDoor Pouer Doun Card eject D nn CF card slot button — |? > e | __ CF card door

Card eject button The Card eject button has two positions: click out (a) and click in (b). To eject a CF card:

1. Ifrecording or in playback push STOP m.

If other operations are in progress cancel them by pushing STOP M or wait for them to complete.

2. Open the CF card door*.

3. Push and release the Card eject button so it is

position to the click in position (b). “Opening the CF card door turns power off. If recording is in progress, opening the Memory card door automatically stops recording and writes critical track information to properly close the file before powering off. To insert a CF card:

1. Push and release the Card eject button so it is

in the click in position (b above).

door. Note: If the CF card door won't latch, check that the Card eject button is in the click in position (b above).

Security The supplied Memory compart- ment security screw requires sus if) © using a small Philips screwdriver (8mm x to open the Memory compartment 10mm long) door. That reduces the possibility that the CF card will be misplaced or stolen.

1. Remove the plastic pin (c) and then the

2. Add the screw. Tighten the screw with a small

Phillips screwdriver tight enough so the screw cannot be removed with a fingernail.

13. DIGITAL IN/OUT jacks

ON RCA jacks for connect- © ing the PMD670 to an DIGITAL audio component that accepts or outputs digital audio signals. [®) OUT IN: Connect to the digital out of a digital audio component. PCM audio data input at 44.1 and 48 kHz can be recorded. This input has to be selected in the Input menu for the signal to be recorded. See INPUT button. OUT: Connect to the digital in of a digital audio component. + _ Only files with sample frequencies of 48 or 44.1kHZz can be output. + Digital audio is only output during normal or EDL playback. + _ The receiving component must be able to accept audio in SPDIF (IEC-958-Il) format. + _ The receiving component must be able to accept a sampling frequency of 48 or 44.1kHz. DC IN 13V

Plug the supplied AC adapter in here. The power supplied is 1.0A at 13V AC. ê € & The PMD670 automatically switches to adapter power if it was running on battery power. If AC power is interrupted by a power outage or unplugging the adapter the PMD670 automatically switches to battery power. 10 15. 1/0 port Plug the supplied 1/0 cable in here and connect the other end to your computer (PC or MAC). The connection makes it easy to copy audio files to your computer's hard drive or a CD. The 1/0 connection can only be made active when the PMD670 is off (neither recording or during play- back).

How to connect via the 1/O port MARGIN RESET POWER» A Dares Ton —

1. Connect the cable to the PMD670 and your

2. Slide the POWER switch on the PMD670 to

the right and release to power off.

3. Press and hold the 1/0 MENU/STORE button

while you slide the POWER switch on the PMD670 to the right and release to power on. 1-0 Online nl This display appears: The CF card in the PMD670 appears as a re- movable device on your computer. The audio files are in a MPGLANG1 folder. CAUTION: Only copy audio files (tracks) to other volumes. Do not modify or delete the EDL file. If the EDL file is missing or damaged PMD670 will not be able to recognize one or more recorded tracks or all tracks. See the enclosed CD for demo PMDEdit soft- ware for computer audio file manipulation. PMDEdit is a full featured software suite de- signed for Marantz Professional digital recorders available for purchase at www.marantzpro.com/ Products/PMDEdit.html or at (630) 741-0330. Power off and power the PMD670 back on to resume recording or playback. What will appear on your computer is a file titled PMD670.EDL and a folder (directory) titled MPGLANG1. Files within the MPGLANG1 folder are numbered from 1001 through the number of tracks recorded to a maximum of 1999. The file extension will be .mp3, wav, .bwf or .mpg de- pending on the Algor/File parameters that were set for the recording. Diagram of file structure (assuming .mp3 files). Root —17—PMD670.EDL L— MPGLANG1 1001.MP3 — 1002.MP3 — 1003.MP3

L 1999.MP3 Changes made to file names or file structure made on your computer will prevent file recognitiion and therefore playback in the PMD670. However audio files from your computer that are renamed using the file names above and put into the structure above may be playable on the PMD670. For example, if you name an mp3 audio file 1234.MP3 and place it in MPGLANG1 folder the PMD670 may play it.

Right side REMOTE 16. Remote jack Plug a wired remote (not supplied) in here. Wiring diagram

A switch connected to the 2.5mm mini jack off (open) and on (closed) does the following de- pending on the RemoteMode setting: RemoteMode: Start Stop During record or playback switch remote off to pause, on to resume. EDL Mark During record or playback switch remote to on to add an EDL mark. PWR REC During POWER off, switch remote to on to turn power on and begin recording. During recording, switch remote to off to stop recording and power off. M.Track During recording, switch remote to on to increment the track. À new track is created at that point. There is no break in recording. See Remote Mode on page 36 to set or change the Remote Mode.

jacks Plug external line level audio devices in here. LINE OUT jacks Plug Left and Right RCA audio cables in here to connect to the input of an amplifier or other external unit. During playback what is output on the L'or R channel depends on the recording and for a Stereo or Dual Mono recording, the setting of the ANALOG OUT switch. LINE IN jacks Plug Left and Right RCA audio cables in here to connect to the output of an external unit. To record, mono, stereo, or LR mono LINE input must be selected in the input select menu. See INPUT button.

Plug external micro- phones in here. For mono recording use the Left jack. To record, stereo with MIC input, DLmono with MIC input, mono with MIC input, or LRmono with MIC input must be selected in the input select menu. See INPUT button. Notes: XLR pinout is 1 ground, 2 hot and 3 cold. Microphones with a PHONE jack can be used with an adapter (not supplied) from PHONE to XLR.

Right side continued PHANTOM 19. PHANTOM +48V switch H48V Switch to ON to provide 48V ON of power for a condenser microphone(s). E ON: +48V is supplied to power condenser microphone(s). OFF OFF: No microphone power is supplied. Microphone recommendations Professional condenser microphone(s) (which require additional power either phantom power from the PMD670 or from another source) are recommended because they provide greater sensitivity, and higher quality audio recording. Dynamic microphone(s) can be used but do not yield optimum audio quality recordings. Consult with your local dealer to select the appropriate microphone(s) for your specific application. In many cases they can demonstrate the various performances and characteristics of microphones for your use.

Attach the supplied carry strap here. Installing the carry strap

retainer through the round hole.

partment Press and slide at arrow to open the Battery compartment.

Battery power The PMD670 can operate on several types of battery power. Hint: Keep fully charged batteries in the PMD670 when recording using AC power. Otherwise if AC power is interrupted, as much as 30 minutes of your recording could be lost. Eight AA alkaline batteries and the supplied battery carrier can be used. Alkaline batteries can power recording or playback for about *6 hours. AA size rechargeable Ni-Cd or Ni-MH batteries can be used in the supplied battery carrier, but those cannot be recharged with the PMD670's built in charger. An optional Ni-Cd battery model RB1100 can be charged in the PMD670. The RB1100 can also be charged with an optional charger model BC600. Ni-Cd batteries can power recording or playback for about *5 hours. An optional Ni-MH (Nickel metal hydride) battery model RB1650 can be used, but cannot be recharged with the PMD670's built-in charger. It requires charger model BC600. Ni-MH batteries can power recording or playback for about *7 hours. “Using compact flash media. Installing AA size batteries: Power off, turn the PMD670 over. Press and push in the direction of the arrow to remove the battery com- partment cover. Install 8 AA size batter- ies to the battery carrier with the - ends towards the springs. Install the battery carrier with tab as shown and over the ribbon for easy battery carrier removal. Replace the battery compartment cover“. tab ribbon Installing an optional Ni-Cd or Ni-MH battery Install the battery with tab as shown and over the ribbon for easy battery removal*. *When changing battery type, for optimal battery performance, be sure you change the Batt_Type menu setting. The optional Ni-Cd battery is charged only when: + The AC adaptor is connected. + The Ni-Cd battery is loaded correctly in the battery compartment. + The power to the PMD670 is off. While charging (about 3 hours) the CHARGE indicator will blink. When the Ni-Cd battery charge cycle is complete the CHARGE indicator will be lit and steady.

REC label The REC label appears with other labels in this area to indicate TOTAL REC TIME or REC TIME REMAINING displayed on the upper alphanumeric display. TOTAL label The TOTAL label appears with other labels in this area to indicate TOTAL REC TIME, or TOTAL REC TIME REMAINING displayed on the upper alphanumeric display. TRACK label The TRACK label appears with other labels in this area to indicate TRACK TIME displayed on the upper alphanumeric display. REMAIN label The REMAIN label appears with other labels in this area to indicate REC TIME REMAIN- ING, or TOTAL REC TIME REMAINING displayed on the upper alphanumeric display. TIME label The TIME label appears with other labels in this area to indicate REC TIME REMAINING, TOTAL REC TIME REMAINING, or TRACK TIME displayed on the upper alphanumeric display. kbps label The kbps label appears to indicate that the first five places in the upper alphanumeric display are kilobytes per second. A-B label A- indicates that the beginning (A point) of an A-B loop has been set. A-B indicates that the ending (B point) of an A-B loop has also been set.

Upper alphanumeric display Displays a variety of information including remaining recording time, clock time, menu settings etc. Associated labels are display items 1-7 and 9-10. AM / PM label Displays AM or PM when clock time is dis- played. kHz label The kHz label appears to indicate that the last five places in the Upper alphanumeric display is frequency in kiloHertz. L -dB R level meter labels Lis the label for the upper (Left) level meter. -dB is the label for the center level meter scale in decibels. Ris the label for the lower (Right) level meter. Upper level meter The louder the sound input to the recorder on the Left channel the more bars are displayed. Decibel scale The scale in dB (decibels) for the upper and lower level meters. Lower level meter The louder the sound input to the recorder on the Right channel the more bars are dis- played. TRACK label The TRACK label appears to indicate that the number displayed on the left of the lower alphanumeric display is the track number. MARK label The MARK label appears to indicate that the number displayed on the left of the lower alphanumeric display is the EDL Mark num- ber. . Lower alphanumeric display Displays a variety of information including remaining recording algorithm, date, track number, number of tracks on CF card, EDL

Mark number, number of EDL Marks on CF card etc. Associated labels are display items 15 and 16.

18. MIC/INT MIC label

The MIC label appears when external micro- phones are selected. The INT MIC label appears when input se- lected for recording is the internal micro- phone.

The LINE label appears when input(s) se- lected for recording is (are) the LINE IN jacks.

The Record symbol appears when the PMD670 is in record mode. Appears with the Play symbol when recording. Appears flashing when in record pause.

The Play symbol appears when the PMD670 is in playback, playback pause, recording, record pause.

The Pause symbol appears when the PMD670 is in playback pause, or record pause.

The Battery symbol appears in most displays to indicate battery charge. ay indicates that battery charge is okay. &_æindicates that battery charge is getting low and there is approximately 5 to 10 minutes of record or playback time available. =. flashing indicates that battery has ap- proximately 1 to 3 minutes of record or playback time remaining. The REC indicator light will flash. If BEEP is set to On the PMD670 will also beep. If the PMD670 continues to operate it will automatically shut down. If recording it will write track information, stop recording and power off. If in playback it will stop playback and power off. c indicates that battery charge is depleted or no battery is installed.

The Silent Skip label appears when Silent Skip is enabled.

The Margin level is displayed. The PMD670 holds this display at the highest level achieved during the current recording. If more than 0 dB, OV is displayed. To reset the Margin level press and release the MARGIN RESET button.

The -dB label applies to the Peak level display. Care and Maintenance Use a soft cloth slightly moistened with mild detergent solution.

- 6+- Recording time chart The recording time available on a CF card depends on the size of the card in MB, the recording type (.mp3, .mp2 or PCM), the bitrate of the recording and if recording in mono or stereo. This Recording time chart lists approximate recording times based on those factors. bitrate .mMmp3 32 MB 64 MB CARD 128 MB SIZE 256 MB 340 MB 512 MB (1 GB) 1024 MB bitrate .mp2 32 MB 64 MB CARD 128 MB SIZE 256 MB 340 MB 512 MB (1 GB) 1024MB| 70:

TROUBLESHOOTING Should faults occur, it is in many cases not necessary to consult your dealer or technical service department. On the basis of the following checks, you will be able to rectify a number of conditions yourself without difficulty. If the condition cannot be remedied after the following check, please consult your dealer or contact Marantz Professional at 630 741 0330. The PMD670 does not turn on Check power + install fresh batteries + check AC adaptor connections The PMD670 turns on then turns itself off + install fresh batteries The PMD670 seems to record but there is no sound on playback + check input settings (For example, if LINE input is selected and no input is connected to the LINE IN jacks the PMD670 will record silence.) The PMD670 will not playback + check EDL switch, if ON switch to OFF No audio playback through headphones or internal speaker + check HP/SPK VOLUME control setting + check a different track or CF card The PMD670 will not record + check that the maximum of 999 tracks have not been recorded + check that the PMD670 acknowledges the CF card No signal from microphone input + chedk input selection + check REC level control settings + check if microphone(s) require Phantom power Excessive noise + check cable connections Playback on a PC results in poor sound + check quality of PC sound card and program + check frequency conversion program* *The PMD670 records audio files with a sampling frequency of 48kHz. Some PC programs convert the files to 44.1kHz (using a sample rate con- verter). Only high quality sample rate converters should be used. PC cannot read files + check if the files are MP2 or MP2 with a .wav file extension Some PC's cannot interpret this combi- nation. Try renaming the MP2 file so it has a .mp2 or .mp3 file extension. + check the capability of the PC program Some playback and editing programs do not support MP2/MP3 or Broadcast Wave (.bwf) formats. Consult the Marantz Professional website at www.marantzpro.com for links to programs that support MP2/MP3 and Broadcast Wave Format. The rechargeable battery not recharging check that the CHARGE indicator is flashing during charging and lit and steady when charging is complete. check AC adaptor connections check that Power is turned off on the PMD670 Rechargeable battery life low + make sure you fully charge and discharge the Ni- Cd battery during each charge cycle + replace battery Media cards that are heavily used should be occa- sionally reformatted to avoid audio problems due to fragmentation. Ifthe PMD670 exhibits erratic behavior, the micropro- cessor can be reset by, powering off, disconnecting AC power and removing batteries. Record setting recommendations Recording a meeting LEVEL CONT. switch at ALC. ANC switch at 7. Factory default settings. Input: INT MIC mono or MIC mono Menu settings: Algor/File: mono, MP3, 44.1kHz, 32 kbps, .mp3. M.Track: On S.Skip: On Beep: On A.PowOff: Yes Recording music LEVEL CONT. switch at MANUAL. ANC switch at FLAT. Input: MIC stereo Menu settings: Algor/File: Stereo, MP3,44.1kKHz, 128kbps, .mp3. M.Track: Off S.Skip: Off Beep: Off A.PowOff: Yes Menu settings (highest quality): Algor/File: Stereo, PCM,44.1kHz, 128kbps, .wav. M.Track: Off S.Skip: Off Beep: Off A.PowOff: Yes

LIMITED WARRANTY Your Marantz Professional product is warranted against manufacturer defects in material and workmanship for a period of one year parts and labor. Except as specified below, this warranty covers defects in material and workmanship. The following are not covered under warranty:

1. Damage, deterioration, malfunction or failure to meet

performance specifications resulting from: a) Accidents, acts of nature, misuse, abuse, neglect or unauthorized product modification. b) Improper installation, removal or maintenance, or failure to follow supplied instructions. c) Repair or attempted repair by a non-Marantz authorized agent. d) Any shipment (claims must be presented to the carrier). €) Any cause other than a defect of manufacturing.

2. Cleaning, check-ups with no fault found or changes

incurred for installation, removal or reinstallation of the product.

3. Any serialized product on which the serial number has

been defaced, modified or removed.

4. Batteries and battery chargers.

5. Accessories, including but not limited to: cables, mount-

ing hardware and brackets, cleaning accessories, power cords and adapters, and carry cases.

6. Products purchased outside of the United States, its

possessions or territories. Non-transferable warranty This Warranty may be enforced only by the original pur- chaser. What We Will Pay For We will pay for all labor and material expenses for items covered by the warranty. How You Can Get Service

1. lf your unit needs service in the USA, contact our

service referral at the appropriate telephone number indicated below. We will advise you of the name and location of one or more authorized service centers from which service may be obtained. Please do not return the unit directly to us.

2. You must pay any shipping charges if it is necessary to

ship the product for service. If the necessary repairs are covered by the warranty, we will pay return shipping charges to your location anywhere in the United States or its territories.

3. Whenever warranty service is required, you must

present the original dated sales receipt or other proof of date purchased. Limitation of Implied Warranties All implied warranties, including warranties of merchantabil- ity and fitness for a particular purpose, are limited in duration to the length of this warranty. Exclusion of Damages Liability for any defective product is limited to repair or replacement of the product at manufacturer's option. Manufacturer shall not be liable for damage to other products caused by any defects in Marantz products, damages based on inconvenience or loss of use of the product, or any other damages, whether incidental, conse- quential, or otherwise. Some States do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. How State Law Relates to the Warranty This warranty gives you specific legal rights, and you may have other rights which may vary from State to State. Marantz Professional Service Number: Marantz Professional Factory Service (630) 741-0330 This warranty is enforceable only in the United States and its possessions or territories.

mea rant Æ, ° Marantz is a registered trademark. a 2003/6
