USER MANUAL ULTRAVID 8X50 BR LEICA

121x67x142mm (BR) 121x63x141mm (BL) ca. 790 g/710 g (BR/BL)

Dear Customer, Worldwide, the name Leica stands for superb optical quality, close-tolerance precision engineering, absolute reliability, and long product life. We wish you a great deal of enjoyment and success with your new Leica Ultravid binoculars. So that you can use them properly, we recommend that you first of all read these instructions.

– Binoculars – Carrying strap – Ever-ready case – Eyepiece protection cover – 2 lens caps (only with BR-models) – Instructions – Warranty Card – Test certificate

1. Eyepiece cups Position a: unscrewed for viewing without glasses Position b: screwed in for viewing with glasses 2. Eyelets for carrying strap 3. Lockable diopter adjustment ring 4. Central focusing ring 5. Hinged joint for adjusting the eyebase

Never look directly at the sun or other sources of bright light with your binoculars! This could cause eye damage! Never use your binoculars while you are walking! You might overlook obstacles!

Possible applications

The Leica Ultravid binoculars have hermetically sealed and nitrogen-filled magnesium housings. They are therefore suited for rough outdoor use. There is no need to be concerned with moisture as they are 100% waterproof to a depth of 5 m and the internal optical system is not subject to fogging.

Attaching the carrying strap and the protective eyepiece cover

See illustration on the rear cover flap.

Attaching the protective lens caps

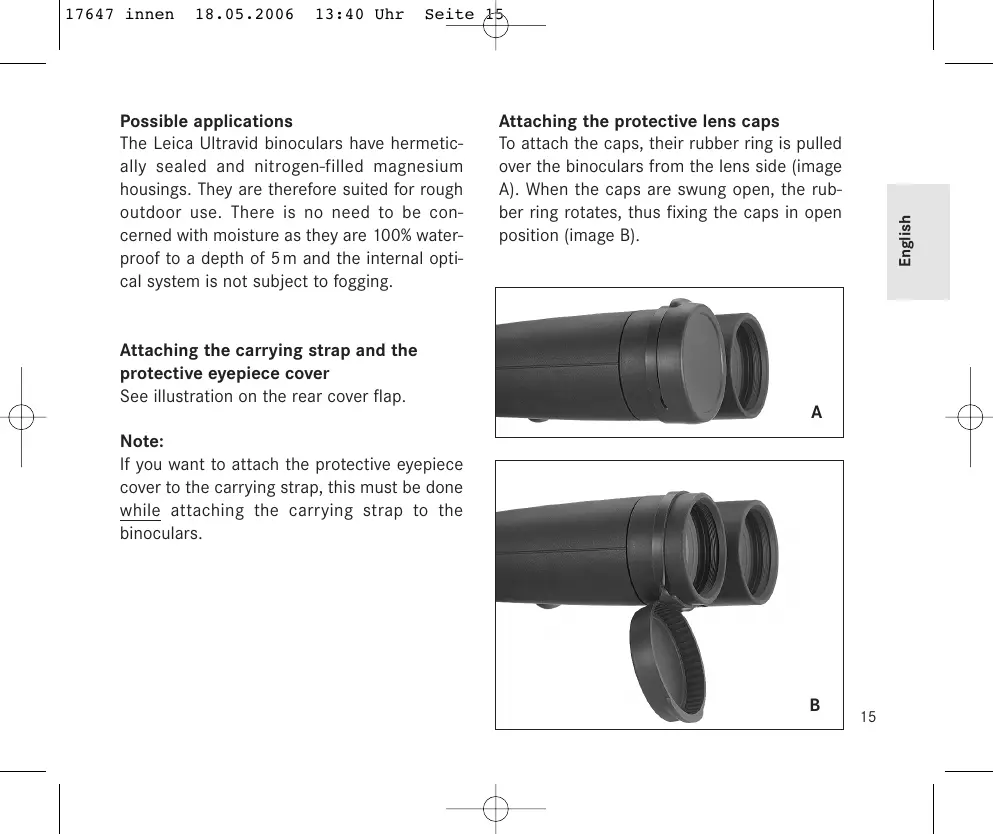

To attach the caps, their rubber ring is pulled over the binoculars from the lens side (image A). When the caps are swung open, the rubber ring rotates, thus fixing the caps in open position (image B).

If you want to attach the protective eyepiece cover to the carrying strap, this must be done while attaching the carrying strap to the binoculars.

B Adjusting the eyecups /

Use with and without glasses The eyepiece cups (1) can be easily adjusted by turning them and they lock securely into the selected positions. They can also be completely removed for thorough cleaning. For viewing with eyeglasses (image A) they remain in the fully screwed-in position. For viewing without eyeglasses, they are unscrewed by turning them anticlockwise. Two positions are available for optimum adjustment (images B, C).

C D If the eyepieces are very dirty, it is recommended to remove the cups for cleaning

(image D). To do this, they are simply pulled off while in the fully unscrewed position.

Adjusting the eyebase

To set the eyebase, adjust the binoculars at the hinged joint. The left and right fields of view must merge and produce a single circular image.

Focusing / Diopter adjustment

With the Leica Ultravid binoculars the central focusing ring (4) is used to set the focus for variously distant objects. Compensation for individual defective vision for viewing without eyeglasses is made using the diopter ring (4), which is normally locked (Figure A). To unlock the two rings the diopter ring is pulled up (Figure B). Now, the central focusing ring only effects the focus of the left optical system, the diopter ring only that of the right system.

Using one of the rings, then focus the respective barrel on the desired subject. Continue by setting the optimal focus for the second barrel with the other ring. Pressing the diopter ring back down locks the set value. The set value can be conveniently read from the accurate scale on the diopter ring.

– The diopter ring rotates freely, i.e. it can accidentally be rotated by more than 360° with respect to the central focusing ring. Depending on the latter's previous setting, the combined system's focusing range can be limited considerably by this. Therefore, take care to turn the diopter ring only as far as necessary for the eyesight adjustment. – For viewing on just the left or the right side, the other eye should be kept closed or the appropriate half of the binoculars simply covered at the front on the lens.

Indications on the scale

As long as the two halves of the drive are coupled together, the binoculars are permanently adjusted to your eyesight, irrespective of the focusing distance to an object. You need to make the adjustment only once. If other people use your binoculars, they may have to alter the setting. Simply note your personal setting on the scale; when someone else has used them, you can reset the binoculars in a matter of seconds. The distance between two divisions on the scale represents a difference of approx. one diopter of correction being applied to the left and right eye. 19

Care and maintenance

Your Leica Ultravid binoculars need no special maintenance. Use a soft lens brush or a blower to remove large particles of dirt, sand, etc. To remove fingerprints etc., first wipe the eyepiece and lens with a damp cloth, then dry them with a piece of clean, soft chamois leather or lint-free cloth. If the binoculars, particularly the rotating eyecups, are very dirty, simply rinse them under a running faucet. Always rinse off salt water. Moisture inside the central focusing unit (visible through the scale window) will dry quickest when the two rings (3/4) are unlocked. Attention! Do not apply too much pressure when wiping strongly soiled lens surfaces. Even though the coating is very tough, sand and salt crystals can cause scratches.

Order No. Tripod adapter with 1/4" thread . . . . .42220 Floating carrying strap, orange . . . . . .42163

Should you need replacements for your binoculars, such as eyecups, covers, or a strap, please turn to our Customer Service department or your national Leica agent. The addresses are listed in the Warranty Card.

Trouble shooting guide…

– The image seen through the binoculars is not concentric.

– Fogging due to water in the scale window.

a) The binoculars are not properly adjusted to your personal eyebase.

a) Hinge the binoculars more or less at their centerline, as necessary, until the left and right image merges.

b) Your pupils are not properly aligned with the exit pupils of the binoculars.

b) Check the position or your head, eyes and the binoculars.

c) The eyepieces are not set for the correct viewing conditions with or without eyeglasses.

c) Correct the setting of the eyepieces: If you wear glasses, screw in the eyepiece tubes, if you do not wear glasses, unscrew the tubes.

– The two-piece drive was not properly coupled together when you cleaned the binoculars under running water.

– Disengage the two halves of the drive. Allow the moisture to dry. There is no risk of damage.

Close focusing limit

Geometric light value

Exit pupil longitudinal distance

Coating on lenses on prisms

High Durable Coating (HDC™)

High Lux System (HLS™) and phase correction coating P40

Diopter compensation

Operating temperature Storage temperature Waterproofing Housing Dimensions (W1 x H2 x D1) Weight 1

With eyebase set to 65 mm

With eyecups screwed in

117x55x119mm approx. 560 g

0.5 bar (up to approx. 5 m water depth) magnesium housing with titanium axle, BR-models rubber-armored 117x55x119mm 121x 67x142mm 121x67x142mm (BR) 121x63x141mm (BL) approx. 595 g

approx.790g/710g (BR/BL)

Exit pupil longitudinal distance

Geometric light value Field of view Close focusing limit (at 0 dioptr.)

Coating on lenses on prisms

High Durable Coating (HDC™)

High Lux System (HLS™) and phase correction coating P40

Diopter compensation

Operating temperature

-40° to +85° Waterproofing 0.5 bar (up to approx. 5 m water depth) Housing magnesium housing with titanium axle, BR-models rubber-armored 125x70x183mm 125x70x178mm 125x70x183mm Dimensions (W1 x H2 x D1) 121x67x147mm (BR) 121x63x146mm (BL) Weight 1 2

approx. 765g/695g (BR/BL)

With eyebase set to 65 mm

With eyecups screwed in

Leica in the Internet and Leica Academy

Up to date information about products, novelties, special events, Leica Academy seminars, and the Leica company is available on our home page on the internet at: http://www.leica-camera.com

Leica Information Service

Should you have any technical questions regarding the use of Leica products, the Leica Information Service will be happy to answer in writing or by phone, fax, or e-mail: Leica Camera AG Informations-Service Postfach 1180 D - 35599 Solms Tel.: +49 (0) 64 42-208-111 Fax: +49 (0) 64 42-208- 339 e-mail: info@leica-camera.com

Leica Customer Service

For service of your Leica equipment and in case of neccessary repairs please contact the customer services of Leica Camera AG or of any national Leica agency (see Warranty Card for address list). Ask your authorized dealer and Leica specialist for advice. Leica Camera AG Customer Service Solmser Gewerbepark 8 D - 35606 Solms Tel.: +49 (0) 64 42-208-189 Fax: +49 (0) 64 42-208-339 e-mail: customer.service@leica-camera.com
