Thank you for purchasing this Minolta digital camera. Please take the time to read through this instruction manual so you can enjoy all the features of your new camera. Check the packing list before using this product. If any items are missing, immediately contact your camera dealer. Minolta DiIMAGE 5414 digital camera AA alkaline batteries (set of four) Neck strap NS-DG304 Lens cap LF-236 CompactFlash card AV cable AVC-100 USB cable USB-600 DiMAGE Viewer CD-ROM DiMAGE Viewer instruction manual Camera manual Warranty card Camera Notes Because the performance of alkaline batteries with digital cameras is low, the use of Ni-MH batteries is recommended. Although alkaline batteries are sup- plied with this product, its performance will be limited; only use alkaline bat- teries for test photographs or when Ni-MH batteries, the Minolta extemal bat- tery pack, or the AC adapter are not available. Fully recharge the Ni-MH bat- teries just before using the camera. Apple, the Apple logo, Macintosh, Power Macintosh, Mac OS, and the Mac OS logo are registered trademarks of Apple Computer Inc. Microsoft and Windows are registered trademarks of the Microsoft Corporation. The official name of Windows is Microsoft Windows Operating System. Pentium is a registered trademark of the Intel Corporation. Power PC is a trademark of the Intemational Business Machines Corporation. QuickTime is a trademark used under license. All other trademarks are the property of their respective owners.

FOR PROPER AND SAFE USE

Read and understand all wamings and cautions before using this product. À WARNING Using batteries improperly can cause them to leak harmul solutions, overheat, or explode which may damage property or cause personal injury. Do not ignore the following warnings. + Only use the batteries specified in this instruction manual. + Do not install the batteries with the polarity (#/-) reversed. + Do not use batteries which show wear or damage. + Do not expose batteries to fire, high temperatures, water, or moisture. + Do not attempt to short or disassemble batteries. + Do not store batteries near or in metallic products. + Do not mix batteries of different types, brands, ages, or charge levels. + Do not charge alkaline batteries. + When recharging rechargeable batteries, only use the recommended charger. + Do not use leaking batteries. If fluid from the batteries enters your eye, immediately rinse the eye with plenty of fresh water and contact a doctor. If fluid from the batteries makes contact with your skin or clothing, wash the area thoroughly with water. + Tape over battery contacts to avoid short-circuiting during disposal; always follow local regulations for battery disposal. + Use only the specified AC adapter within the voltage range indicated on the adapter unit. An inappropriate adapter or current may cause damage or injury through fire or electric shock. + Do not disassemble this product. Electric shock may cause injury if a high voltage circuit inside the product is touched. + immediately remove the batteries or unplug the AC adapter and discontinue use if the camera is dropped or subjected to an impact in which the interior, especially the flash unit, is exposed. The flash has a high voltage circuit which may cause an electric shock resulting in injury. The continued use of a damaged product or part may cause injuries or fire. + Keep batteries or small parts that could be swallowed away from infants. Contact a doctor

2 BEFORE YOU BEGIN 3

immediately if an object is swallowed. + Store this product out of reach of children. Be careful when around children not to harm them with the product or parts. Do not fire the flash directly into the eyes. It may damage eyesight. + Do not fire the flash at vehicle operators. It may cause a distraction or temporary blindness which may lead to an accident. Do not use the monitor while operating a vehicle or walking. It may result in injury or an accident. Do not look directly at the sun or strong light sources through the viewfinder. It may damage your eyesight or cause blindness. + Do not use this product in a humid environment, or operate this product with wet hands. If liquid enters the product, immediately remove the batteries or unplug the AC adapter and discontinue use. The continued use of a product exposed to liquids may cause damage or injury through fire or electric shock. Do not use the product near inflammable gases or liquids such as gasoline, benzine, or paint thinner. Do not use inflammable products such as alcohol, benzine, or paint thinner to clean the product. The use of inflammable cleaners and solvents may cause an explosion or fire. When unplugging the AC adapter, do not pull on the power cord. Hold the adapter unit when removing it from an outiet. Do not damage, twist, modify, heat, or place heavy objects on the AC adapter cord. A damaged cord may cause damage or injury through fire or electric shock. Ifthe product emits a strange odor, heat, or smoke, discontinue use. immediately remove the batteries taking care not to bum yourself as the batteries become hot with use. The continued use of a damaged product or part may cause injuries or fire. + Take the product to a Minolta Service Facility when repairs are required À CAUTION + Do not use or store the product in a hot or humid environment such as the glove compartment or trunk of a car. It may damage the product and batteries which may result in bums or injuries caused by heat, fire, explosion, or leaking battery fluid. - If batteries are leaking, discontinue use of the product. - The camera temperature rises with extended periods of use. Care should be taken to avoid bus. - Bums may result if the memory card or batteries are removed immediately after extended periods of use. Tum the camera off and wait for it to cool. + Do not fire the flash while it is in contact with people or objects. The flash unit discharges à large amount of energy which may cause burns. + Do not apply pressure to the LCD monitor. A damaged monitor may cause injury, and the liquid from the monitor may cause inflammation. If liquid from the monitor makes contact with skin, wash the area with fresh water. If liquid from the monitor comes in contact with the eyes, immediately rinse the eyes with plenty of water and contact a doctor. + When using the AC adapter, insert the plug securely into the electrical outlet. + Do not use if the AC adapter cord is damaged. + Do not cover the AC adapter. À fire may result. + Do not obstruct access to the AC adapter: this can hinder the unplugging of the unit in emergencies. + Unplug the AC adapter when cleaning or when the product is not in use. The following marks may be found on the product This mark on your camera certifies that this camera meets the requirements of the EU (European Union) conceming interference causing equipment regulations. CE stands for Conformité Européenne (European Conformity). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not Digital Camer: DIMAGE 5414 rec. | cause harmful interference, and (2) this device must accept any interference received, including interference that may cause FOR HOME o orricE USE | undesired operation. Do not remove the ferrite cores from the cables. Tested by the Minolta Corporation 101 Williams Drive, Ramsey, New J ersey 07446, U.S.A. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

The basic operation of this camera is covered between pages 15 and 42. This section of the manual covers the camera parts, preparation of the camera for use, and the basic camera operation for recording, viewing, and deleting images. The basic and advanced auto-recording mode sections cover all the basic functions of the camera in this mode and in the multi-function recording mode. Take time to read these sections before moving on to the multi-function recording mode section. The basic playback section describes how to view images. The other sections can be read as needed. Many of the features of this camera are controlled with menus. The menu navigation sections concisely describe how to change menu settings. Descriptions of the settings immediately follow the navigation sections. Throughout the text are shooting tips and camera notes. Shooting tips give advice and infomation on photography and how to use the camera to achieve the best results. Camera notes cover details on camera operation. Data panel . LCD monitor display . Getting up and running. Attaching the neck strap and lens cap. Changing batteries Battery condition indicator . Auto power save. Extemal power supplies (sold separately) Changing the CompactFlash card Setting the date and time. Auto-recording mode - basic operation Setting the camera to record images automatically Handling the camera … Using the zoom lens... Basic recording operation. Focus lock Focus range. Focus signal Special focusing situations . Digital-subject- program button Flash modes Flash range - auto-recording mode. Flash signals… Camera-shake waming . Drive modes Self-timer … Remote control (sold separately) . Continuous advance Bracketing. Display button - recording mode Playback - basic operation … Single-frame playback and histogram display: Viewing and deleting images... Display button - playback. Enlarged playback. Auto-recording mode - advanced operation. Navigating the auto-recording mode menu . Image size and image quality. Voice memo. Date imprinting Digital zoom. Instant playback. Exposure compensation … What is an EV? What is a stop? Multi-function recording mode. Autofocus areas and control. Navigating the multi-function recording mode menu Exposure modes Program Aperture priority - A. Manual exposure - M. Bulb exposures Focus modes White balance.

Automatic white balance Preset white balance Custom white balance Camera sensitivity - ISO. Flash range and camera sensitivity. Full-time AF Metering modes. Exposure bracketing increment Color mode Image control - sharpness, contrast, & filte: A short guide to photography Movie recording. Notes on movie recording . Recording movies with the IR Remote Control RC-3 (sold separately) Playback mode - advanced operation: Playing back voice memos Viewing movies… Navigating the playback-mode menu Frame-selection screen. Viewing images on a television Deleting files . Locking files Changing the index playback format. Slide Show. About DPOF . Creating a DPOF print order Ordering an index print. Canceling a DPOF print order. Copying images Setup mode Navigating the setup menu. LCD monitor brightness... Formatting CompactFlash cards Auto power save. Language... Display mode File number (# memory. Folder name . Select folde: Audio signals Shutter FX … Volume … Resetting the camera . Date and time setting . Date format. Video output Data-transfer mode System requirements. Connecting the camera to a computer. Connecting to Windows 98 and 98 Second Edition Automatic installation. Manual installation .… CompactFlash card folder organization. Disconnecting the camera from the computer Windows 98 and 98 Second Edition Windows Me, 2000 Professional, and XP Macintosh. Changing the CompactFlash card - data-transfer mode Auto power save - data-transfer mode... QuickTime system requirements Appendix Troubleshooting . About Ni-MH batteries … Removing the driver software - Windows. Care and storage Technical specifications .

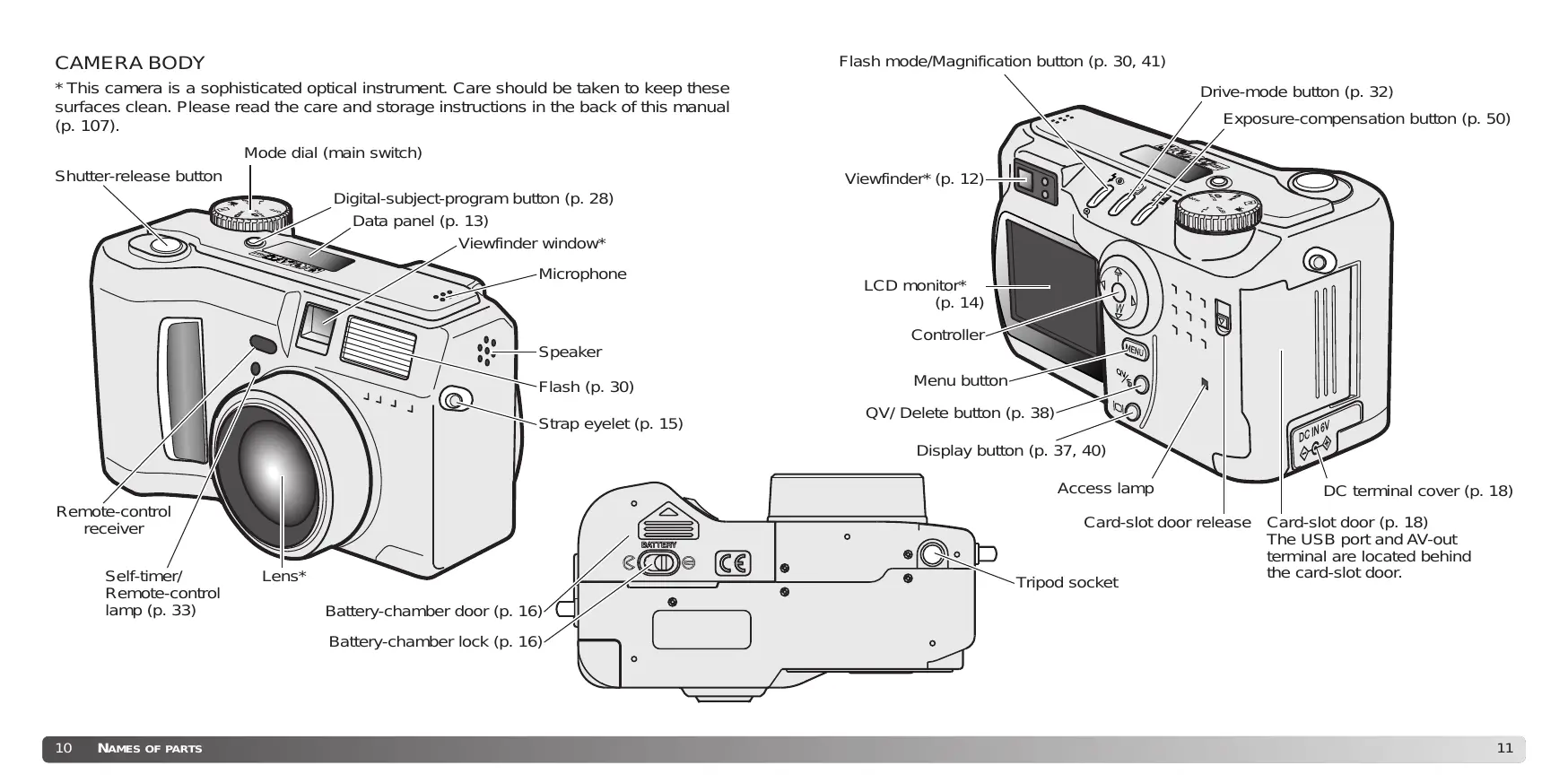

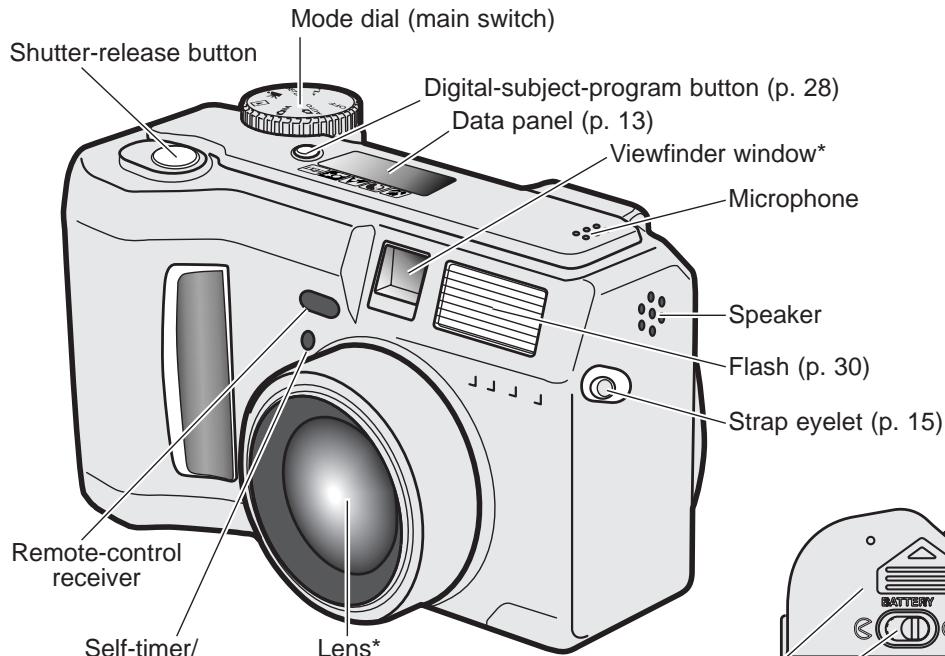

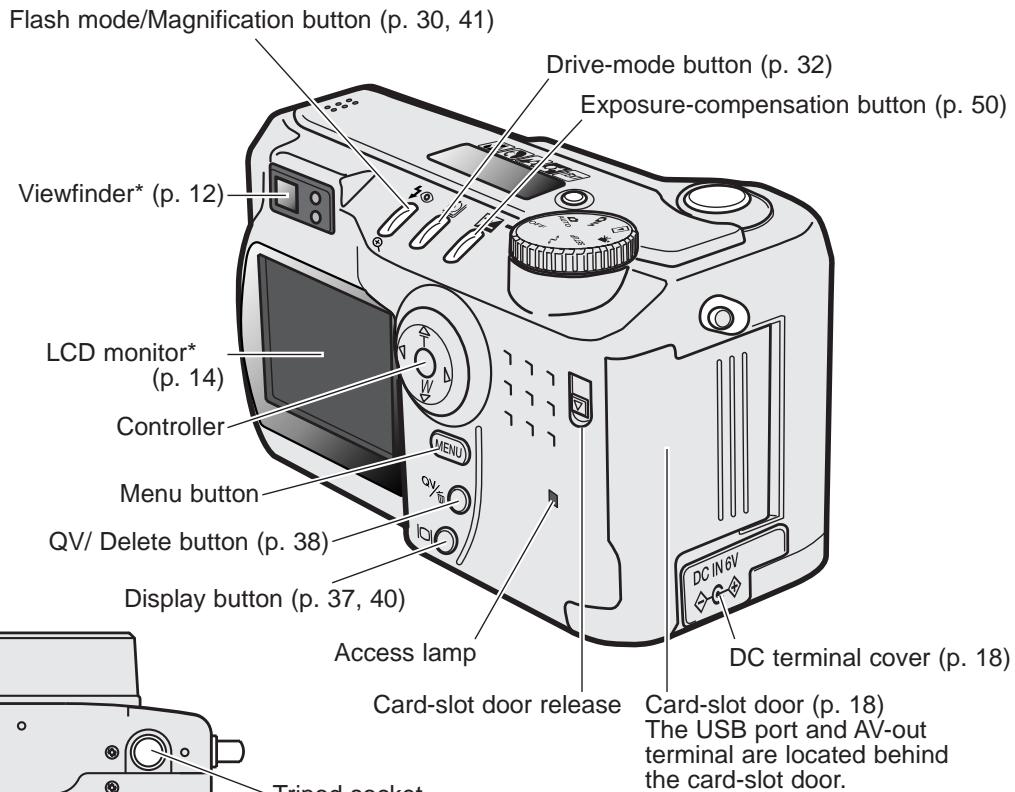

CAMERA BODY *This camera is a sophisticated optical instrument. Care should be taken to keep these surfaces clean. Please read the care and storage instructions in the back of this manual (p.107). Mode dial (main switch) Shutter-release button = Digital-subject-program button (p. 28) Data panel (p. 13) ESS S— Viewfinder window* Ur ZE Microphone Speaker | Flash (p. 30) ne eyelet (p. 15) Remote-control Flash mode/Magnification button (p. 30, 41) Drive-mode button (p. 32) Exposure-compensation button (p. 50) Viewfinder* (p. 12) LCD monitor* (p.14) Controller- Menu button QV/ Delete button (p. 38) Access lamp DC terminal cover (p. 18) Card-slot door release Card-slot door (p. 18) terminal are located behind the card-slot door. receiver serum D Remote-control lamp (p. 33) Battery-chamber door (p. 16): Battery-chamber lock (p. 16)

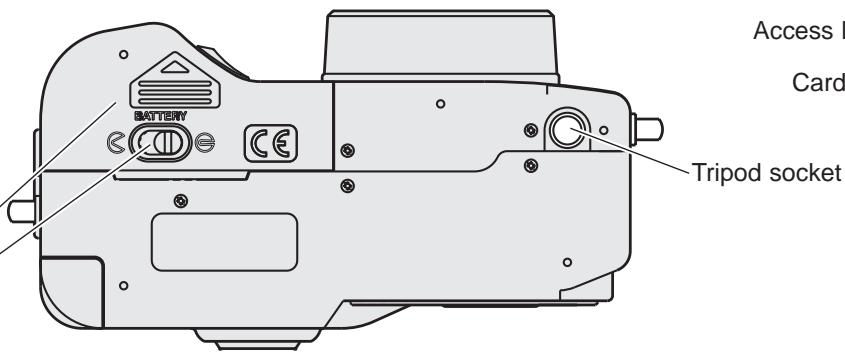

The USB port and AV-out Je2x s Tripod socket

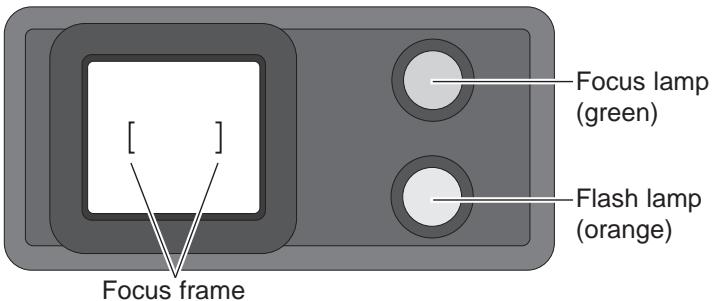

VIEWFINDER Focus lamp (green) Flash lamp (orange) Focus frame Because the optical viewfnder and the lens are slightiy separated, the image seen through one is not exactly the same as the other; this is called parallax. Parallax can cause errors in framing at close distances and is more pronounced at longer focal lengths. When the subject is closer than 1m (3ft) at the wide-angle lens position or 3m (10f) atthe telephoto lens position, use the LCD monitor to compose the image; because the lens creates the monitor image, it does not suffer from parallax. MODE DIAL This dial gives direct and easy access to the camera's major modes. It also acts as the main switch. Auto-recording mode (p. 22, 42) GM Muit-function recording mode (p. 52) D] Playback mode (p. 38, 70) %Æ _ Movie-recording mode (p. 68) sETUP Setup mode (p. 84) A Data-transfer mode (p. 92) DATA PANEL Digital-subject-program indicators (p. 28) White-balance indicator (p. 60) Manual-focus indicator (p. 59) Camera-sensitivity indicator (p. 62) Spot-metering indicator (p. 63) Flash-mode indicators (p. 30) I image-size display (p. 44) I image-quality display (p. 44) Drive-mode indicators (p. 32) Microphone indicator (p. 46) Battery-condition indicator (p. 17) Exposure-compensation indicator (p. 50) Exposure-mode indicators (p. 56) Digital-subject-program icons (p. 28) Pas Ds Dec LILI ) Frame counter (p. 45) The frame counter cannot exceed

999. When the number of

recordable images exceeds this, 999 will be displayed. The frame counter will continue to count down when the number of recordable images falls below one thousand.

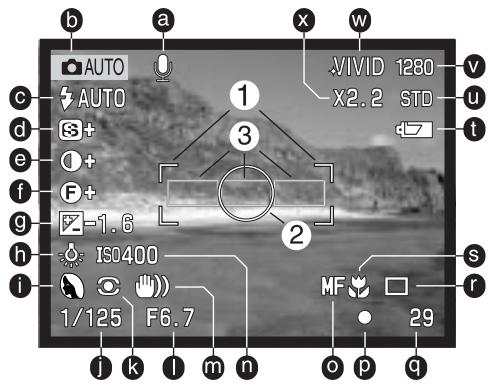

m. Camera-shake waming (p. 31) 2. Spot metering area (p. 63) n. Camera-sensitivity (ISO) display (p.62) 3. AF sensors (p. 25) Indicators and displays from both the auto-recording and mult-function recording modes have been displayed for clarity.

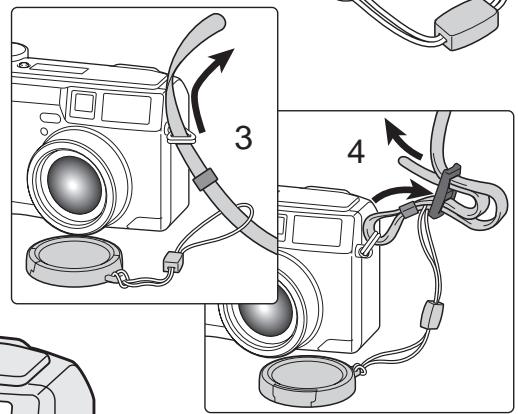

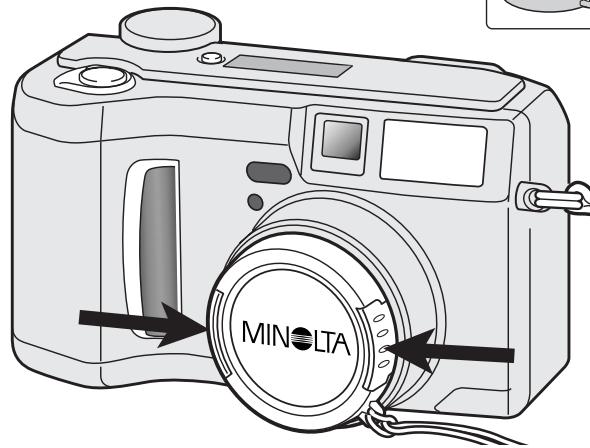

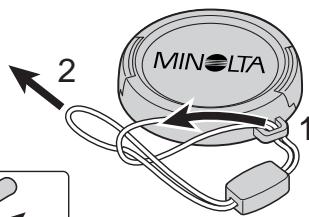

ATTACHING THE NECK STRAP AND LENS CAP Attach the small strap to the lens cap by passing one of the small loops through the eyelet on the cap (1) and then passing the other loop through the first loop (2) and tightening. Attach the camera strap to the strap eyelets as shown. Make sure the neck strap passes through the loop of the lens- cap strap. Always keep the camera strap around your neck in the event that you drop the camera. Using your thumb and index finger, pinch the outside tabs of the lens cap to remove or attach. Always replace the lens cap when the camera is not in use.

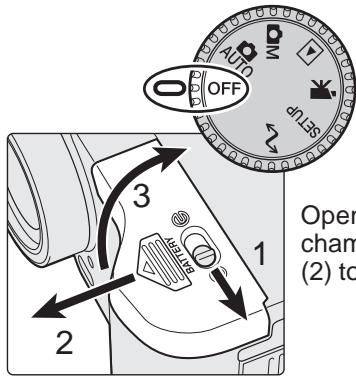

CHANGING BATTERIES This digital camera uses four AA-size alkaline or Ni-MH batteries. Ni-MH batteries are recommended because of longer life. When using Ni-MH batteries, fully recharge them with a battery charger suitable for complex electronic equipment. Please consult your vendor about an appropriate charger. When replacing batteries, the mode dial should be in the off position. If the camera is not tumed off when replacing exhausted batteries, the low-battery waming may not reset. Open the battery-chamber door by moving the battery- chamber lock (1) to the open position. Slide the door forward (2) to release the safety catch; the door should spring open (3). Insert the batteries. Make sure the positive and negative battery terminals are oriented as illustrated on the diagram in the battery chamber. Close the battery-chamber door and slide it back toward the body (4) to engage the safety catch. Move the lock lever (5) to the close position. After installing the batteries, the settime/date message may appear on the monitor. The clock and calendar are set in the custom 2 section of the setup menu (p. 20).

This camera is equipped with an automatic battery-condition indicator. When the camera is on, the battery-condition indicator appears on the data panel and monitor, The monitor icon will change from white to red when battery power is low. If the data panel and monitor are blank, the batteries may be dead or installed incorrectiy. Full-battery Icon - the batteries are fully charged. This icon is UL7 | displayed for five seconds on the monitor when the camera is tumed on. The icon remains on the data panel. Low-battery waming - battery power is very low. The batteries d_Æ should be replaced as soon as possible. This warning << A automatically appears and remains on the monitor until the batteries are changed. Blinking low-battery icon - when displayed on the data panel with no other icons, power is insufficient for camera operation. —| =—— The shutter will not release. When replacing exhausted _2} batteries, wait thirty seconds between removing the old V — batteries and inserting the new ones. When installing batteries, make sure the battery terminals are clean. Residue or dirt on the terminals can sometimes cause a false low-battery waming. Always use a clean, dry cloth to clean batteries.

To conserve battery power, the camera will tum off displays and unnecessary functions if an operation is not made within a certain period. The LCD monitor will tu off after thirty seconds. The data panel tums off after one minute. To restore the displays, press any button or key, or tum the mode dial to another position. The length of the auto-power- save period for the data panel can be changed in the basic section of the setup menu (p. 84).

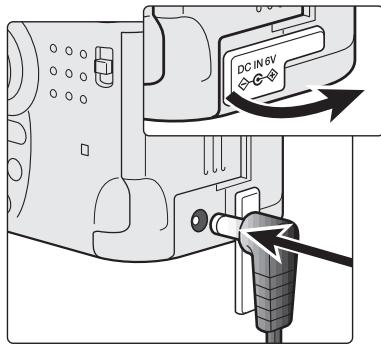

EXTERNAL POWER SUPPLIES (SOLD SEPARATELY) The AC Adapter allows the camera to be powered from an electrical household outiet. The AC Adapter is recommended when the camera is interfaced with a computer or during periods of heavy use. AC Adapter model AC-1L is for use in North America, J apan, and Taiwan: AC-2L is for use in all other areas. The Extemal High-power Battery Pack Kit EBP-100 is a portable source of power for the camera. The kit contains a high-power lithium-ion battery, holder, and charger. The battery and charger are also available separately. This battery pack will significantiy extend the operating time of the camera. Always tum off the camera before changing between power supplies. Remove the DC terminal cover from the left. The cover is attached to the body to prevent loss. Insert the mini plug of the AC adapter or battery pack into the DC terminal. Always remove exhausted batteries before connecting an external power Supply. Wait thirty seconds between removing the old batteries and plugging in the extemal power source. Insert the AC adapter plug into an electrical outiet.

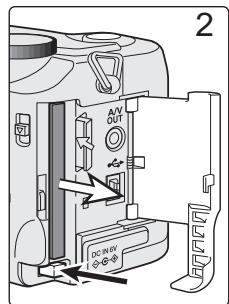

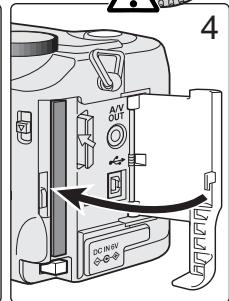

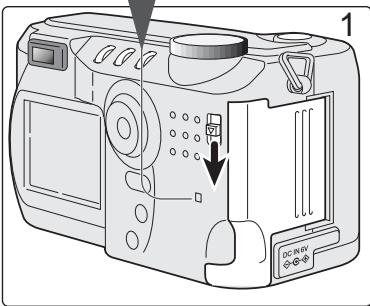

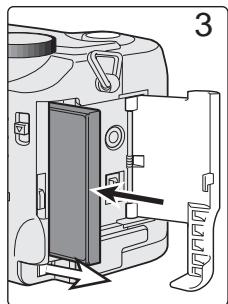

CHANGING THE COMPACTFLASH CARD

A type | CompactFlash card must be inserted for the camera to operate. If a card has not been inserted, a no-card warning will automatically be displayed on the monitor and three dashes (- - -) will be displayed on the data-panel frame counter. For CompactFlash card care and storage, see page 109.

GETNNG UP AND RUNNING

Always tum off the camera and confirm the access lamp is not lit before inserting or removing a CompactFlash card, otherwise the card may be damaged, and data lost. Slide the card-slot door release down to open the card-slot door (1). To eject a CompactFlash card, press the card-eject lever (2). The card can now be pulled out. Take care when removing the card as it becomes hot with use. Insert the memory card into the card slot until the card-eject lever pops out (3). Insertthe card so the face is toward the front of the camera. Always push the card in straight, never at an angle. Never force the card. If the card does not fit, check that it is oriented correctiy. Close the card-slot door (4). A card used in another camera may have to be formatted before being used. A card is formatted in the basic section of the setup menu (p. 84); this operation permanent}y erases all data on the card. If the unable-to-use-card message appears, the card is not compatible with the camera and cannot be formatted.

After initially inserting a memory card and batteries, the camera's clock and calendar must be set. When images are recorded, the image data is saved with the date and time of recording. Depending on the region, the menu language may also have to be set. To change the language, see the camera notes on the following page. Reset default Use the down key to highlight the date/time-set Date/Time set _— menu option. Date format MM/DDAYYY Video output NTSC Use the right key to highlight the custom 2 tab atthe top of the menu. À\ Tu the mode dial on the top of the camera to the setup position. The À camera will tum on and the setup menu will be displayed. Press the right key. “Enter” will appear on the right side of the menu. Custom 2 section of the Navigating the menu is simple. The up/down and leftright keys of the setup menu controller move the cursor and change settings on the menu. Press the center of the controller to display the date/time setting screen. Pressing the center of the controller selects menu options and sets Use the left and right keys to select the item adjustments, Setup DateTimeset (EN: to be changed. Use the up and doun keys to adjustthe item. Press the center of the controller to set the clock and calendar. The setup menu will be displayed. Date/Time setting screen Camera notes For customers in certain areas, the menu language must also be set. Highlight the lan- guage option in the basic section of the setup menu. Press the right key to display the lan- guage settings. Using the up/down keys, highlight the desired language. Press the center of the controller to set the highlighted language; the setup menu will be displayed in the selected language. LCDbrightness 3 AFomt - Powersave Lin Language English Display mode -

20 GETNNG UP AND RUNNING 21

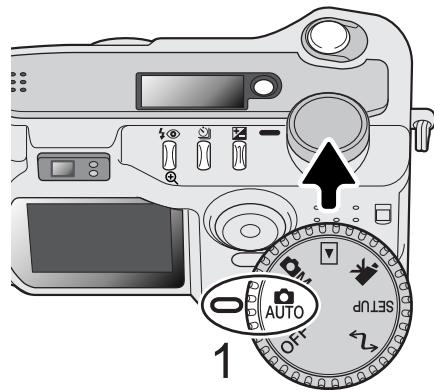

SETTING THE CAMERA TO RECORD IMAGES AUTOMATICALLY AUTO-RECORDING MODE Tu the mode dial to automatic recording (1); all camera BASIC OPERATION operations are now fully automatic. The autofocus, This section covers the basic operation of this camera. Thoroughly familiarize yourself exposure, and imaging systems will work together to bring beautiful results effortlessiy. with the operations in this section before moving on to the other sections in the manual. While many of the camera's systems in this mode are automatic, the camera's operation can be optimized to different subjects very simply with the digital subject program button (p. 28). The flash mode (p. 30) and drive mode (p. 32) can also be changed. Image size and quality can be set on the auto-recording mode menu (p. 42). The sophisticated technology employed in the auto-recording mode frees the photographer from complicated camera settings to be able to simply concentrate on the subject and composition. Although automated, the camera's operation can be changed to meet various conditions as well as to suit personal shooting preferences. Minolta History Innovation and creativity has always been a driving force behind Minolta products. The Exposure mode Program Fixed Electro-zoom X was purely an exercise in Metering mode Multi-segment Fixed camera design. It was unveiled at Photokina — - in Germany 1966. Camera sensitivity (ISO) Auto Fixed Flash mode Auto flash Can be changed* The Electro-zoom X was an electronically j i controlled aperture-priority mechanical SLR Ras ae MERS En ES) with a built-in 30 - 120mm f/3.5 zoom lens giv- Focus control Autofocus Fixed ing twenty 12 X 17mm images on a roll of Drive mode Single-frame advance | Can be changed* 16mm film. The shutter-release button and = - — battery chamber are located in the grip. Only Exposure compensation 0.0 Can be adjusted: a few prototypes were built making it one of Color mode Natural Color Fixed Minolta's rarest cameras. White balance Auto Fixed

• Changes to the flash or drive mode will reset when the mode dial is tumed to another position. Adjustments made with exposure compensation will be reset to 0.0 when the camera is tumed off or changed to another mode.

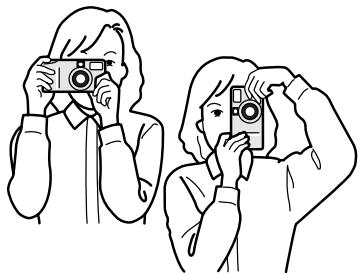

While using the viewfnder or LCD monitor, grip the camera fimiy with your right hand while supporting the body with your left hand. Keep your elbows at your side and your feet Shoulder-width apart to hold the camera steadily. When taking vertical pictures, hold the camera so that the flash is above the lens with the grip to the bottom. Take care not to cover the lens with your fingers or the strap.

This camera is equipped with a 7.15 to 28.6mm optical zoom. This is equivalent to a 35 - 140mm zoom lens on à 35mm camera. In 35mm photography, focal lengths below 50mm are referred to as wide-angle; the angle of view is larger than that of the human eye. Above 50mm is referred to as telephoto and makes distant objects appear closer. The effect of the optical zoom is visible in both the viewfinder and LCD monitor.

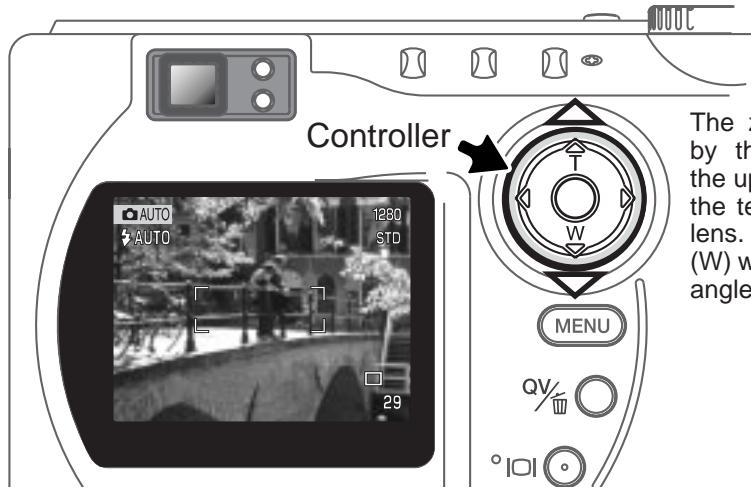

The zoom lens is operated by the controller. Pressing the up key (T) will zoom in to the telephoto position of the lens. Pressing the down key (W) will zoom out to the wide- angle position.

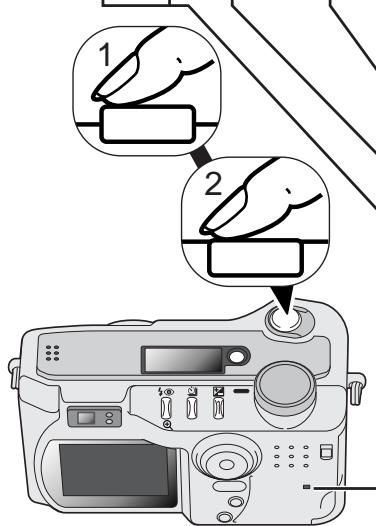

With the mode dial set to auto recording, the camera will be on and the LCD monitor will activate. Place the subject within the focus frame. + The focus-lock function (p. 26) can be used with off-center subjects. + The subject must be within the focus range of the lens: 0.5m - (wide-angle position), 0.9m - « (telephoto position). For subjects closer than 0.6m, use the macro function (p. 28). + Ifthe subjectis closer than 1m atthe wide-angle lens position or 3m at the telephoto lens position, use the LCD monitor to frame the subject. Press the shutter-release button partway down (1) to lock the focus and exposure. + The focus signals (p. 27) on the monitor will confirm the focus. If the focus signal is red, the camera was unable to focus on the subject Repeat the previous steps until the signal is white. + When the focus is set, an AF sensor will briefly appear on the live image to indicate the point of focus. + The shutter speed and aperture value will change from white to black indicating the exposure is locked. Press the shutter-release button all the way down (2) to take the picture. + The access lamp will glow indicating image data is being written to the CompactFlash card. Never remove à memory card while data is being transferred.

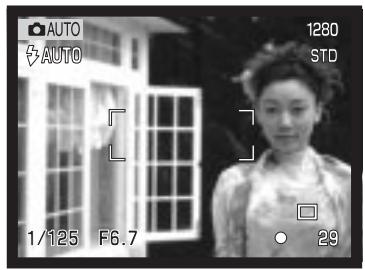

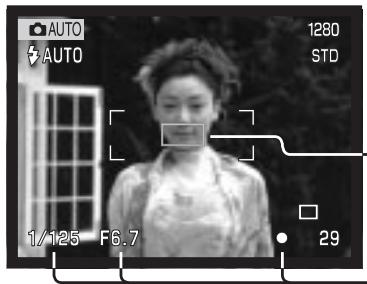

FOCUS LOCK The focus-lock function is used when the subject is off-center and outside the focus frame. Focus lock may also be used when a special focusing situation prevents the camera from focusing on the subject. This function is controlled with the shutter-release button. Place the subject within the focus frame. Press and hold the shutter-release button partway down. + The focus signals will indicate that the focus is locked. The shutter speed and aperture value will change from white to black indicating the exposure is locked. + When the focus is set, an AF sensor will briefly appear on the live image to indicate the point of focus. Without lifting your finger from the shutter-release button, recompose the subject within the image area. Press the shutter-release button all the way down to take the picture. FOCUS RANGE Wide-angle lens position Telephoto lens position Macro mode (p. 28) 0.5m - w (1.Gft - æ) CCD plane 0.9m - 0 (3ft- «) 0.16m - 0.6m (O.5ft - 2ft)

All distances are measured from the CCD.

26 AUTO-RECORDING MODE - BASIC OPERATION

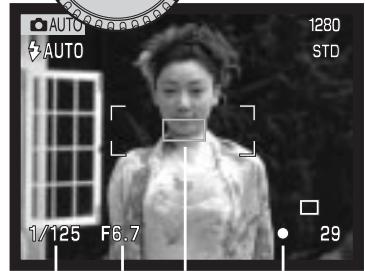

FOCUS SIGNALS This digital camera has a quick, accurate autofocusing system. The focus icon in the lower right comer of the LCD monitor and the green focus lamp next to the viewfinder indicate the focus status. + The shutter can be released even if the camera cannot focus on the subject. + When the AF system cannot focus, the focus is set to infinity. When the flash is in use, the focus is set between 3.0 and 3.8m. In this case, focus lock can be used with an object at the same distance as the main subject or the camera can be focused manually in the multi-function recording mode (p. 59). Focus icon: white Focus lamp: steady Focus locked. Focus icon: red Cannot focus. The subject is too close or à special Focus lamp: blinking situation is preventing the AF system from focusing.

SPECIAL FOCUSING SITUATIONS

The camera may not be able to focus in certain situations. lfthe autofocus system cannot focus on a subject, the focus icon will tum red. In this situation the focus-lock function can be used to focus on another object at the same distance as your main subject, and then the image can be recomposed to take the picture. The subject is too dark. The subject in the Two subjects at differ- The subject is near a focus frame is lowin entdistances overlap very bright object or contrast. in the focus frame. area.

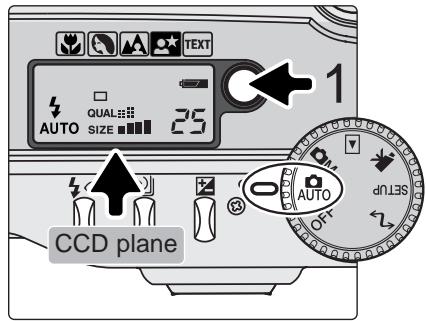

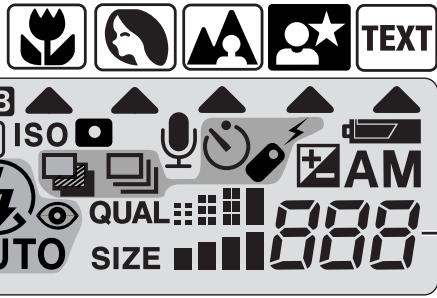

DIGITAL-SUBJ ECT-PROGRAM BUTTON O PORTRAIT - optimized to reproduce soft skin tones and a slight The digila-subject program button (1) optimizes defocusing of the background, The flash mode can be changed the camera's exposure, white-balance, and image- . {p. 30). Most portraits look best at a telephoto setting; longer DOCesnnD yaes TON Various COndIONS and focal lengths do not exaggerate facial features and the shallower subjects. Pressing the subject-program button depth of field softens the background. cycles through the modes: macro, portrait, landscape, night portrait, text, macro & text, and the original exposure mode. À pointer will indicate the active subject program. The subject program will remain in effect until it is changed or the mode dial is tumed to another position. Except for macro, digital subject programs cannot be used in the mülti-function recording mode. LANDSCAPE - optimized to produce sharp, colorful landscapes. The flash mode is set to flash cancel. Fill-flash can be used (p. 30). NIGHT PORTRAIT - for deep, subtile night scenes. When used with fill-flash, the subject and background exposures are balanced. When taking pictures of a landscape at night, use a tipod to eliminate blurring from camera shake. To take portraits with night scenes, set the flash mode to fill-flash (p. 30). Ask your subject not to move after the flash burst the shutter will still be open for the background exposure. While subject programs optimize camera performance for each shooting condition, some changes can be made to camera settings. The flash mode (p. 30) can be changed and the exposure can be altered using the exposure-compensation function (p. 50). In extreme lighting conditions, changes in exposure compensation may not produce the intended results in the portrait, night portrait, or text modes. The camera-shake waming (P. 31) may appear in macro, landscape, night portrait, or text modes. MACRO - used for close-up photography between 16 and 60 cm (6 — 2Ain.) from the CCD. When the macro mode is selected, the lens will automatically zoom to the correct position. The zoom position cannot be changed. The LCD monitor should be used to compose the picture and will automatically activate if off. The Viewfinder cannot be used because of parallax. The fiash is set to flash cancel (p. 30). Fill-fiash can be used, but can cause extreme overexposure and uneven illumination. TEXT - for the crisp reproduction of black text or line art on white backgrounds. The flash mode is set to flash cancel (p. 30). Fill flash can be used. Use a tripod to eliminate camera shake and ensure the sharpest images. MACRO & TEXT - for close-up images of text or line art between

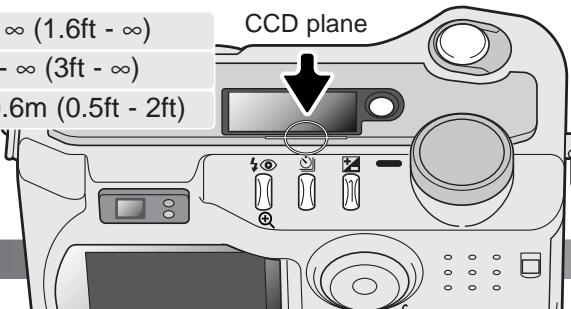

16 - 60cm (6 —24in.) fromthe CCD. Two pointers will indicate the

combined modes on the data panel and the macro and text indicators will be displayed on the monitor. The use of a tripod is recommended. The fiash is set to flash cancel. Fill-fiash can cause extreme overexposure and uneven illumination. This subject program can be used in the mult-function recording mode. It will not reset if the position of the mode dial is changed.

28 AUTO-RECORDING MODE - BASIC OPERATION 29

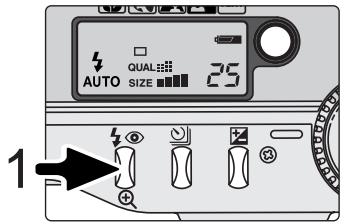

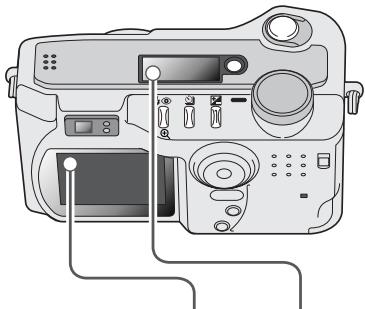

FLASH MODES To set the flash mode, simply press the flash mode button (1) on the back of the camera until the desired mode is displayed. Autoflash - the flash fires automatically in low-light and backlit conditions. Fill-flash - the flash fires with each exposure regardless of the amount of ambient light. Fill-flash can be used to reduce harsh shadows caused by strong direct light or sunshine. Flash cancel - the flash will not fire. Use flash cancel when flash photography is prohibited, natural light is desired to illuminate the subject, or the subject is beyond the flash range. The camera-shake warning may appear when flash cancel is selected (p. 31). Red-eye reduction - the flash fires twice before the main flash burst to reduce red-eye; an effect caused by light reflected from the retina. Use in low-light conditions when taking photographs of people or animals. The pre- flashes contract the pupils of the subjects eyes.

AUTO-RECORDING MODE - BASIC OPERATION

Autoflash Fill-flash Flash cancel Autoflash with red-eye reduction Fill-fiash with red-eye reduction

FLASH RANGE - AUTO-RECORDING MODE

The camera will automatically control the flash output For well-exposed images, the subject must be within the flash range. Because of the optical system, the flash range is not the same at the lens’ wide-angle position as it is at the telephoto position. 0.5m —3.5m (1.6 ft -11.5ft) 0.9m —3.0m (3.0 ft -9.8 ft) Wide-angle position Telephoto position Atthe wide-angjle lens position, when using the flash with subjects closer than 1m (3ft), vignetting can occur. À slight shadow or shading may be apparent at the bottom of a horizontal image. FLASH SIGNALS The orange flash lamp next to the viewfinder indicates the status of the flash. When the lamp glows steadily, the flash is charged and ready to fire. When the lamps blinks quicky, the flash is charging and the shutter will not release. The flash lamp is also used as a camera-shake warning, see below. CAMERA-SHAKE WARNING If the shutter speed falls below the point where the camera can be safely hand held, the camera-shake waming will appear on the LCD monitor and the orange focus lamp will blink slowly. Camera shake is slight blurring caused by subtie hand motion and is more pronounced at the telephoto setting of the lens than at the wide-angle setting. Although the waming appears, the shutter can stil be released. If the waming appears, the following steps can be taken: + Place the camera on a tripod. + Use the built-in flash. + Zoom the lens towards the wide-angle position until the waming disappears.

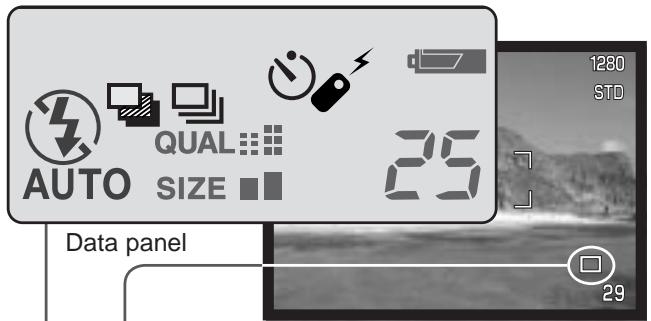

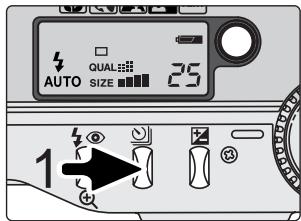

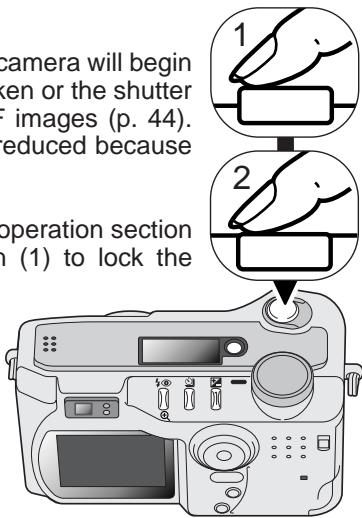

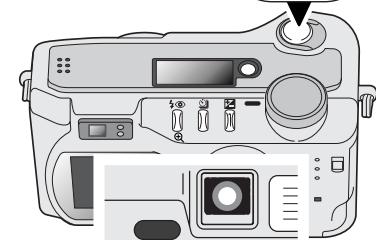

DRIVE MODES The drive modes control the rate and method images are captured. Icons indicating the selected drive mode appear on the data panel and LCD monitor. To change the drive mode, simply press the drive-mode button (1) on the back of the camera until the desired mode is displayed. All drive-mode indicators have been shown for clariy. The single-frame advance and continuous drive _indicators occupy the same area of the data panel. AIl the drive-mode icons appear in the lower right comer of the monitor. Data panel LCD monitor Single-frame advance To take a single image each time the shutter- release button is pressed (p. 25). Self-timer/ To delay the release of the shutter. Used for Remote control self-portraits. Continuous To take multiple images when the shutter- advance release button is pressed and held. To take a series of three images with Breeisirs differing exposures. SELF-TIMER Ùg* Used for self-portraits, the self-timer will delay the release of the shutter for approximately ten seconds after the shutter-release button is pressed. The self-timer is set with the drive-mode button (p. 32). With the camera on a tripod, compose the picture as described in the basic recording operation section (p. 25). Focus lock ( 26) can be used with off-center subjects. Press the shutter-release button partway down to lock the exposure and focus (1). Press the shutter-release button all the way down to begin the countdown (2). Because focus and exposure are determined when the shutter-release button is pressed, do not stand in front of the camera when taking a self-timer image. Always confirm the focus with the focus signals before beginning the countdown (p. 27). During the countdown, the self-timer lamp on the front of the camera (3) will startto blink and is accompanied by an audio signal. A few seconds before the exposure, the self-timer lamp will blink rapidiy. The lamp will glow steadily just before the shutter fires. To stop the countdown, press the drive-mode button. The self-timer is canceled after the exposure. The audio signal can be tumed off in the custom 1 section of the setup menu (p. 84). 3 Shooting tips The self-timer can be used to minimize camera shake with long exposures. When using the cam- era on a tripod, photographs of static subjects (landscapes, stil-lifes, or close-up photographs) can be made with the selftimer. Because no contact is made with the camera during exposure, there is no risk of camera shake caused by the operator.

AUTO-RECORDING MODE - BASIC OPERATION 33

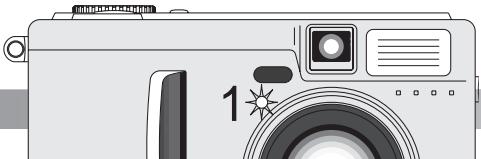

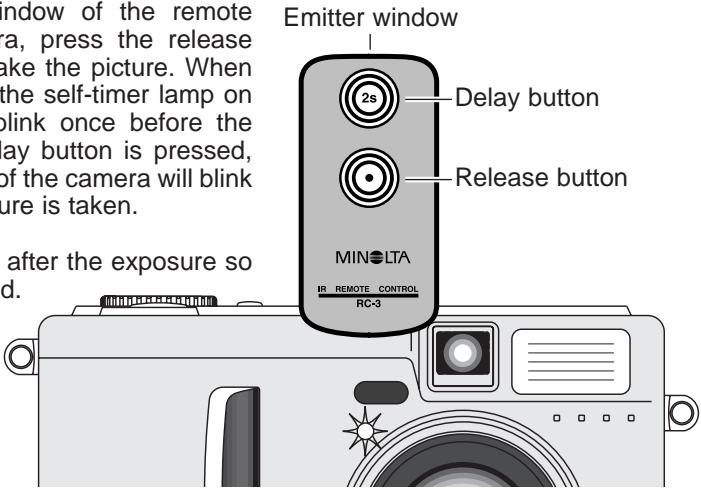

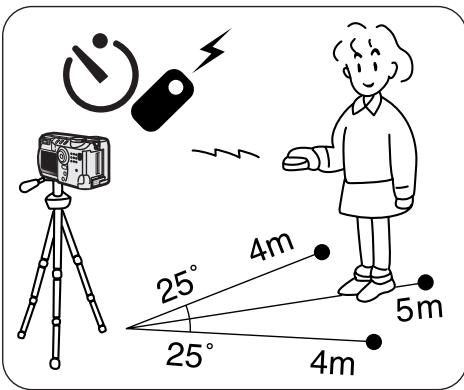

REMOTE CONTROL (SOLD SEPARATELY) The IR Remote Control RC-3 allows remote camera operation up to 5m (16 ft) away. The remote control unit can be used in movie recording (p. 68). Place the camera on a tripod, and set the drive mode to self-timer / remote control (p. 32). Arrange the camera and subject to compose the picture. Frame the subject within the focus frame when setting up the camera. Focus lock cannot be used with the IR remote control. In mult-function recording mode, focus area selection can be used for off-center subjects (p. 52). While pointing the emitter window of the remote Emitter window control unit toward the camera, press the release button or the delay button to take the picture. When the release button is pressed, the self-timer lamp on the front of the camera will blink once before the picture is taken. When the delay button is pressed, the self-timer lamp on the front ofthe camera will blink for two seconds before the picture is taken. Delay button Release button The drive mode does not reset after the exposure so MIN@LA multiply images can be captured. _smmmm — | === The remote control may not De Da me O— or under fluorescent light. 34 AUTo-RECORDING MODE - BASIC OPERATION CONTINUOUS ADVANCE Tl The continuous-advance drive mode allows a series of images to be captured while holding down the shutter-release button. Continuous advance acts like a motor drive on à film camera. The number of images that can be captured at one time and the rate of capture depend on the image-quality and image-size setting. The maximum rate of capture is 1.6 fps. The continuous-advance mode is set with the drive-mode button (p. 32). When the shutter-release button is pressed and held, the camera will begin recording images until the maximun number has been taken or the shutter button is released. This mode cannot be used with TIFF images (p. 44). The built-in flash can be used, but the rate of capture is reduced because the flash must recharge between frames. Compose the picture as described in the basic recording operation section (. 25). Press the shutter-release button partway down (1) to lock the exposure and focus for the series. Press and hold the shutter-release button all the way down (2) t begin taking pictures. The following chart lists the approximate maximum number of images that can be captured with different image-quality and image-size combinations. Quality Size 2272 X 1704 1600 X 1200 1280 X 960 640 X 480 Fine 6 10 15 53) Standard 9 16 25) 43 Economy 14 24 31 53

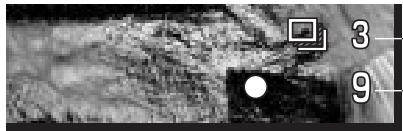

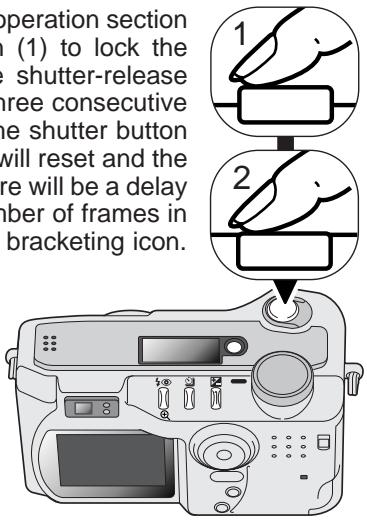

BRACKETING Ch This drive mode makes a three-image bracket of a scene. Bracketing is a method of taking a series of images of a static subject in which each image has a slight variation in exposure. The bracketing mode is set with the drive-mode button (p. 32). Brackets Mu cannot be made with TIFF images (p. 44). The order of the bracket series is normal exposure (as indicated by the shutter speed and aperture displays), underexposure, and overexposure. The exposure bracket in auto-recording mode is set to 0.5 Ev increments. In the multi-function recording mode the increment can be set to 0.3, 0.5, or 1.0 Ev increments in the custom 1 section of the menu (p. 54). Compose the picture as described in the basic recording operation section (p. 25). Press the shutter-release button partway down (1) to lock the exposure and focus for the series. Press and hold the shutter-release button all the way down (2) to make the bracket series; three consecutive images will be captured. If the memory card is filled or the shutter button is released before the series has completed, the camera will reset and the entire bracket must be made again. When using fiash, there will be à delay between frames as the flash charges. The remaining number of frames in the bracket series is displayed on the monitor next to the bracketing icon. Number of frames in bracketing series Frame counter When using exposure compensation (p. 50), the bracketing series will be made in relation to the compensated exposure. Under extreme conditions, one of the bracketed exposures may be inaccurate because it is outside the exposure control range of the camera.

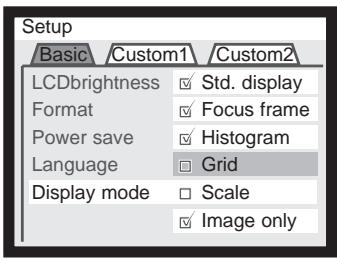

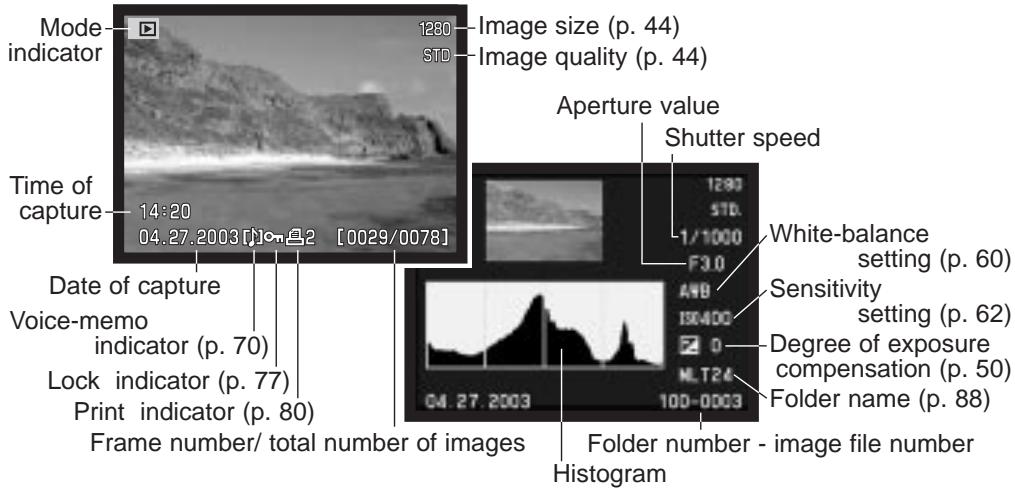

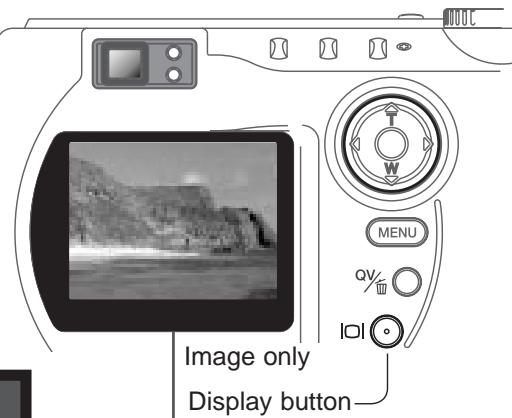

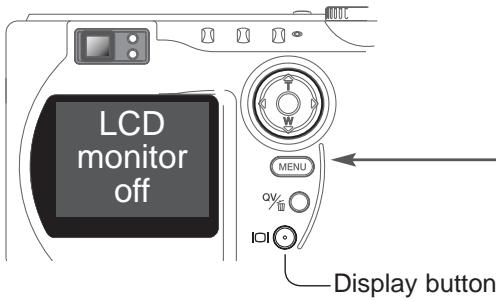

The display button controls the LCD monitor display. The display cycles to the next position each time the button is pressed: standard display, focus frame only, real-time histogram, live image only, and monitor off. The number of screens and their formats can be changed in the basic section of the setup menu (p. 84) Battery power can be conserved by tuming the monitor off and using the viewfnder to take pictures. When the menu or exposure-compensation button is pressed, or the macro mode is activated, the monitor will automatically tum on. Full-time AF (p. 63) and the digital zoom (p. 48) are disabled when the monitor is off. Standard display Focus frame only Real-time histogram Live image only monitor Gi #0) ÊTo) KL pisplay button The real-time histogram shows the approximate luminance distribution of the live image. The histogramis not accurate when the monitor image is amplified in low-light conditions, or when the camera is focusing. The histogram of the recorded image may not have the same distribution as the real-time histogram.

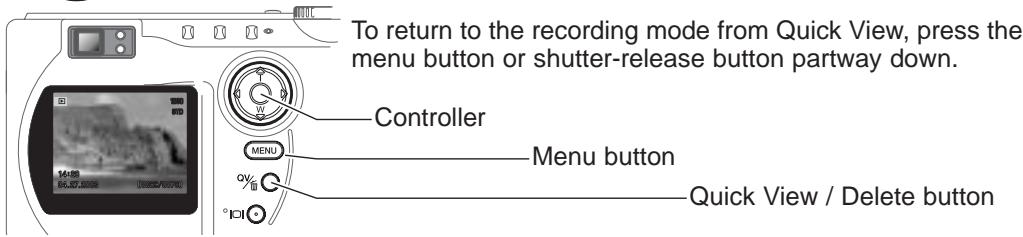

Images can be viewed in the Quick View or playback modes. This section covers the basic operations in both modes. The playback mode has additional functions, see page

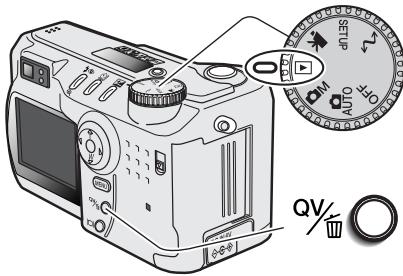

To view images from the playback mode, tum the mode dial to the playback position. Te) To view images from the auto-recording, Hé % multi-function recording, or movie recording “) modes, press the Quick View / delete button.

To view the histogram of the displayed still image, press the up key. The histogram shows the luminance distribution of the image from black (left) to white (righd. The 224 vertical lines indicates the relative proportion of that light value in the image. The histogram can be used to evaluate exposure, but displays no color information. To retum to single-frame playback, press the down key.

VIEWING AND DELETING IMAGES

In Quick View or the playback mode, use the leftright keys of the controller & scroll through the images. __ To retum to the recording mode from Quick View, press the ZÆR — menu button or shutter-release button partway down. Menu button Quick View / Delete button

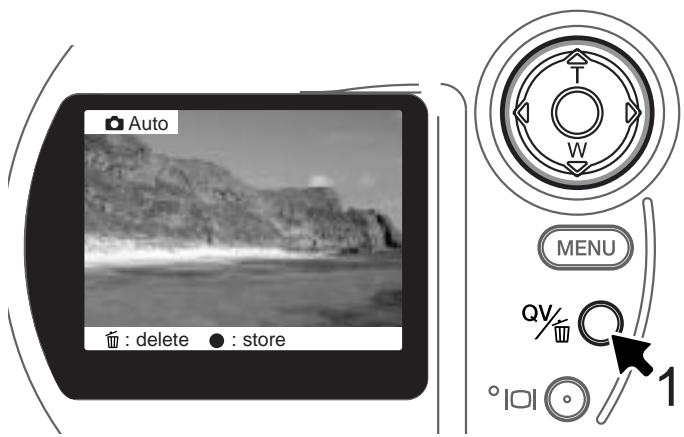

QV/delete button. A confirmation screen will a To delete the displayed image, press the #%O appear. A Delete this frame? Use the lefÿright keys to highlight “Yes,” “No” will No cancel the operation. 04272003 110028/00781 Press the center of the controller to delete the image.

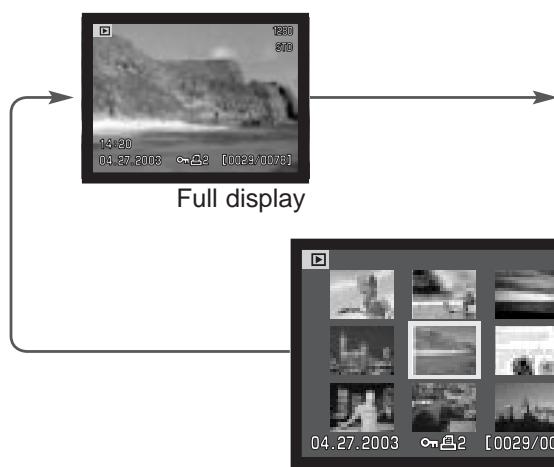

The display button controls the display format. Each time the button is pressed, the display cycles through to the next format: full display, image only, index playback. om ©"

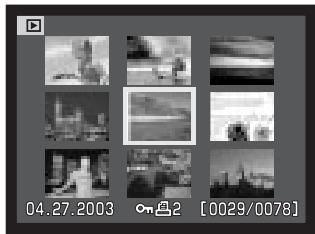

Index playback In index playback, the lefÿright keys of the controller will move the yellow border to the next or the previous image. When the image is highlighted with the border, the date of recording, voice memo indicator, the lock and printing status, and the frame number of the image are displayed at the bottom of the screen. The highlighted image can be deleted using the QV/delete button (p. 39), or an accompanying voice memo can be played by pressing the controller (p. 70). When the display infomation button is pressed again, the highlighted image will be displayed in the single-frame playback mode. À nine or four image index can be displayed. The index-playback format can be changed in the basic section of the playback-mode menu (p. 72).

40 PLAYBACK - BASIC OPERATION

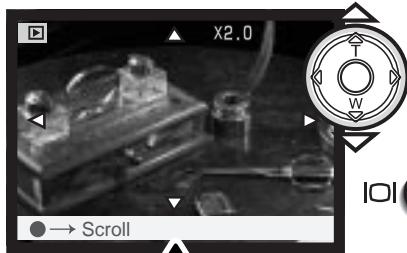

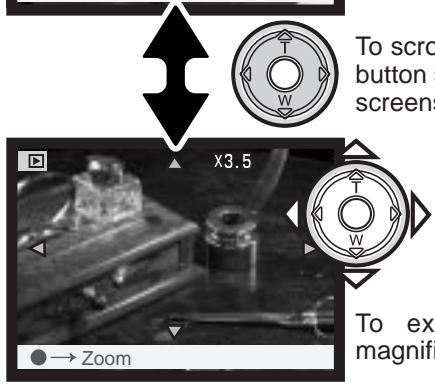

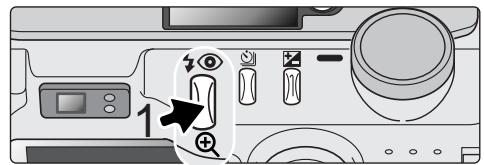

ENLARGED PLAYBACK In single-frame playback, a still image can be enlarged up to 3.5X in O.2X increments for closer examination. 640 X 480 size images can only be enlarged between 1.2X and 2.0X. The maximum enlargement of 1024 X 768 digital zoom images is 3.2X. TIFF images cannot be enlarged. With the image to be magnified displayed, press the magnification button (1) t activate the enlarged playback mode. The degree of magnification is displayed on the LCD monitor. Pressing the up key increases the image magnification. Pressing the down key decreases the magnification. O1 O The display button switches between showing the full display and the image only. To scroll the image, press the center of the controller; the button switches between the enlarged-playback and scroll screens. Use the four-way keys of the controller to scroll the image. To exit the enlarged playback mode, press the magnification button (1).

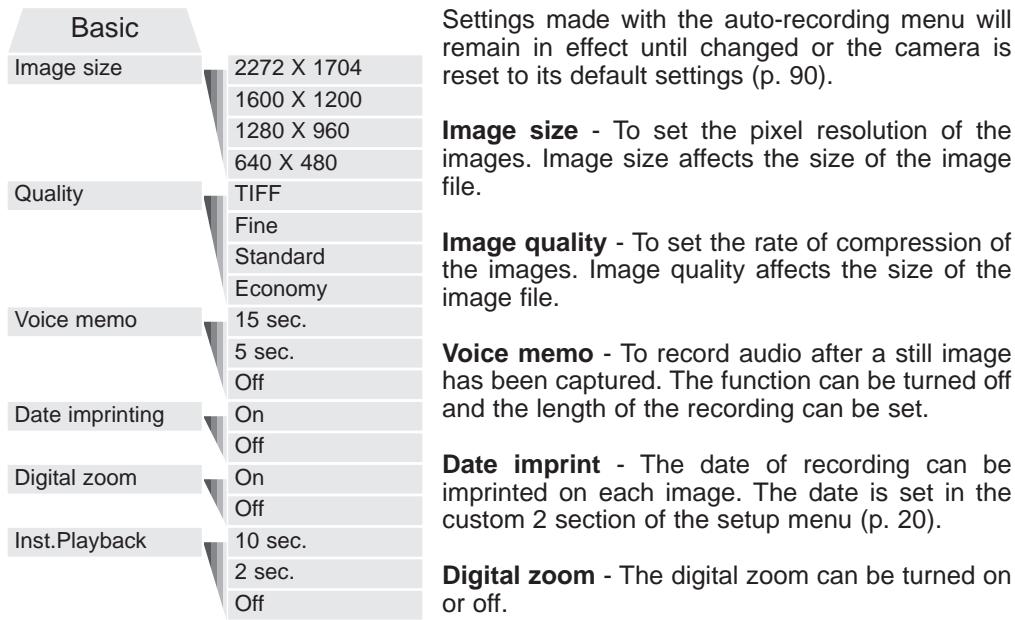

Settings made with the auto-recording menu will AUTO-RECORDING MODE - A2YANCED Basic En Image size 2272 X 1704 reset to its default settings (p. 90).

NAVIGATING THE AUTO-RECORDING MODE MENU \ 1600 X 1200

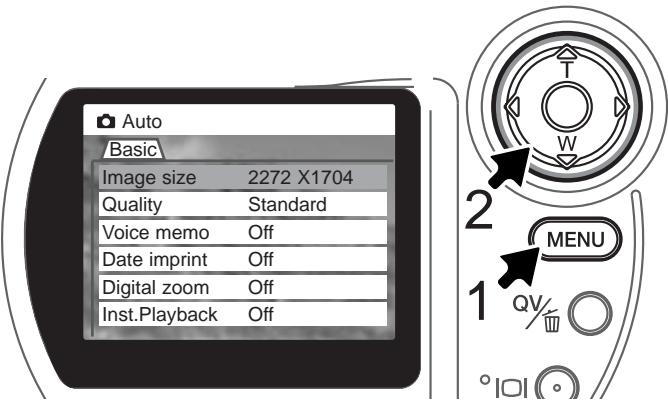

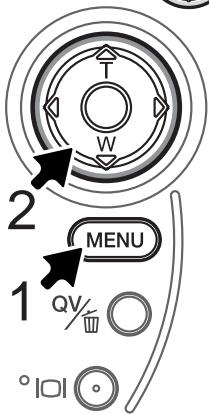

In auto-recording mode, press the menu button (1) to activate the menu. The menu Ho EEO) image size = To set he Prel resoution of ne button also turns off the menu after settings are made. The four-way keys of the controller CIDREED RQ 2e Tes 9 (2) are used to move the cursor in the menu. Pressing the center of the controller will Quality TIFF - < gi enter a setting. \ ine Image quality - To set the rate of compression of LL Standard h » n . the images. Image quality affects the size of the Use the up/down keys of the controller to scroll through the menu options. Highlight Economy imace file the option whose setting needs to be changed. When scrolling in one direction, the ETES De ge île. cursor will jump between the top and bottom of the menu. . . . 5 sec. Voice memo - To record audio after a still image | . _. . of has been captured. The function can be tumed off With the menu option to be changed highlighted, press the right controller key; the GERS _- and the length of the recording can be set. settings will be displayed with the current setting highlighted. To retum to the menu | ic off options, press the left key. RER on Date imprint - The date of recording can be \ imprinted on each image. The date is set in the QUE custom 2 section of the setup menu (p. 20) Use the up/down keys to highlight Press the center of the controller InstPlayback 10/5ec p p.20). the new setting. to select the highlighted setting. Y . …: 2sec. Digital zoom - The digital zoom can be tumed on off or off. Once a setting has been Instant playback - After taking a picture, the image will be displayed on the monitor for selected, the cursor will retum to two or ten seconds. The displayed image can be deleted before being saved to the the menu options and the new CompactFlash card. Auto ! ? . setting will be displayed. | . | . . FFSA Changes can continue to be Read the following sections for more details on these options and settings. All of these made. To retum to the auto- functions appear on the multi-function recording mode menu (p. 54). Quality Standard [Voice memo Of MENU Be me —07 [y

#%O D 7% recording mode menu will also affect the multi-function DST O) recording mode.

42 AUTO-RECORDING MODE - ADVANCED OPERATION 43

recording mode, press the menu button. Changes made on the auto-

IMAGE SIZE AND IMAGE QUALITY

Changing image size affects the . Number of pixels number of pixels in each image. The Pata Panel LCD monitor (hor. x vert) greater the image size, the larger the 2272 2272 X 1704 file size. Choose image size based on HEG0 1600 X 1200 the final use of the image - smaller images will be more suitable for web 1280 1280 X 960 sites whereas larger sizes will produce 640 640 X 480 higher quality prints. Image quality controls the rate of compression, but has no effect on the number of pixels in the image. The higher the image quality, the lower the rate of compression and the larger the file sizes. If economical use of the memory card is important, use the economy mode. Standard image quality is sufficient for normal usage. The TIFF mode will produce the highest quality image and the largest image files. A status bar is displayed when large images are saved. Data panel LCD monitor File type QuAL TIFF TIFF - the highest quality image. TIFF auaL FINE Fine - high-quality image. JPEG QuaL STD. Standard - the default setting. JPEG QUALE ECON. Economy - the smallest file sizes. JPEG File formats vary with the image quality setting. The fine, standard, and economy settings are formatted as a J PEG file. TIFF, fine, standard, and economy files can be recorded as color or monochrome images (p. 64) in the multi-function recording mode. Image size and quality must be set before the picture is taken. Changes are displayed on the data panel and LCD monitor. Image size and quality must be reset manually. See navigating the auto-recording mode menu section on page 42. In multi-function recording mode, image size and quality are controlled in the basic section of the multi-function recording menu (p. 54). If image size or quality are changed, the frame counter will display the approximate number of images that can be recorded at that setting on the installed memory card. One memory card can contain images with differing sizes and qualities. The number of images that can be stored on à memory card is determined by the size of the card and the file size of the images. The actual file size is determined by the scene; some subjects can be compressed further than others. Approximate file sizes. Quality Size 2272 X 1704 1600 X 1200 1280 X 960 640 X 480

TIFF 12MB 5.7MB 3.7MB 1.0MB

Fine 2MB 1.0MB 720KB 320KB Standard 1.2MB 650KB 460KB 240KB Economy 750KB 430KB 330KB 190KB Approximate number of images that can be stored on a 16MB memory card. TIFF il 2 à 15 Fine 6 12 17 34 Standard at 19 26 42 Economy 17 27 33 48 Camera Notes The frame counter indicates the approximate number of images that can be stored on the mem- ory card at the camera's image quality and size settings. If the settings are changed, the frame counter adjusts accordingly. Because the counter uses approximate file sizes, the actual image taken may not change the counter or may decrease it by more than one. When the frame counter displays zero, itindicates no more images at the image size and quality settings can be captured. Changing those settings may allow more images to be saved to the card.

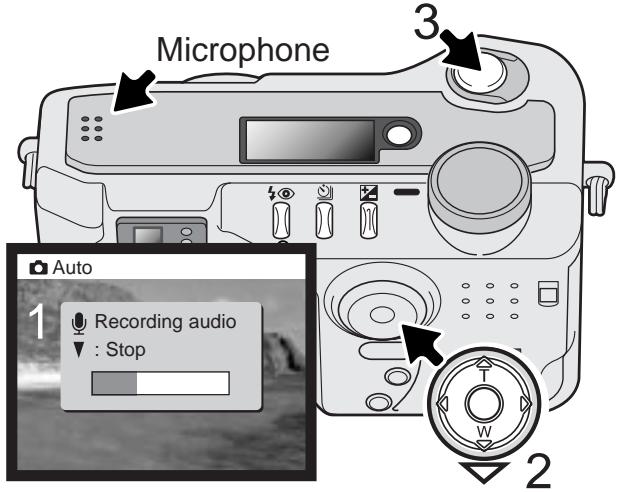

VOICE MEMO Ÿ Voice mem allows a five or fifteen second audio track to be recorded with a still image. The function is activated and the length of the recording time is set on the auto-recording mode menu (p. 42). In multi-function recording mode, voice memo is controlled in the custom 2 section of the multi-function recording menu (p. 54). When the function is active, the microphone icon is displayed on the data panel and LCD monitor. The voice memo must be set before taking a picture. It will remain in effect until reset After an image is captured, a screen will appear indicating the audio recording has started. À bar graph (1) will display the amount of recorded time remaining. The recording will automatically stop when the set time M —— 25

down key of the controller (2) or the shutter-release button (3) before the recording has finished. has elapsed. To cancel the recording Q CRE EE and erase the audio track, press the nd N ÿ ‘AUD Ÿ Recording audio Y :Stop The voice memo is attached to the last frame in a continuous-advance or bracketing series (p. 32). The voice memo can be played back in Quick View or in the playback mode (P. 70). Images with voice-memo audio tracks have a note icon displayed with them. Recording Tips When making audio recordings, be careful not to touch or cover the microphone. The quality of the recording is proportional to the subject to microphone distance. For best results, hold the cam- era approximately 20cm (in) from your mouth.

46 AUTO-RECORDING MODE - ADVANCED OPERATION

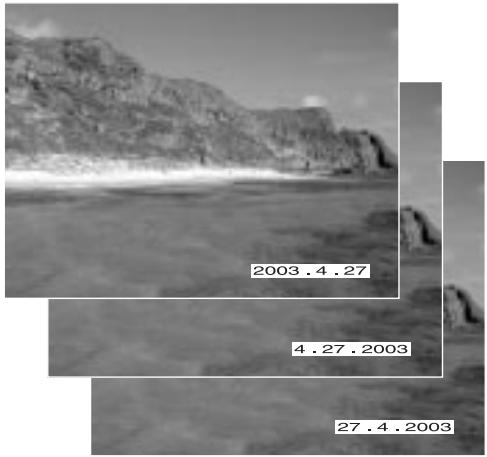

DATE IMPRINTING The date of recording can be printed directiy on the image. The imprinting function must be activated before the image is taken. Once activated, the date will continue to be imprinted until the function is reset a yellow bar is displayed behind the frame counter on the monitor to indicate date imprinting is active. D 5

Date-imprinting indicator Date imprinting is activated with a menu; see navigating the auto-recording mode menu section on page 42. In multi-function recording mode, date imprinting is controlled in the custom 2 section of the mult-function recording menu (p. 54). The date is imprinted in the lower right comer of the image when viewed horizontally. It is printed directiy on the photograph writing over the image information. The date can be imprinted in three formats: year/month/day, month/day/year, and day/month/year. The date and date format are set in the custom 2 section of the setup-mode menu (p. 84). Camera Notes Every time a still image is recorded, it is stored with an exif tag that contains the date and time of recording as well as shooting information. This information can be viewed with the camera in the playback or Quick View mode, or on a computer with the DiMAGE Viewer software.

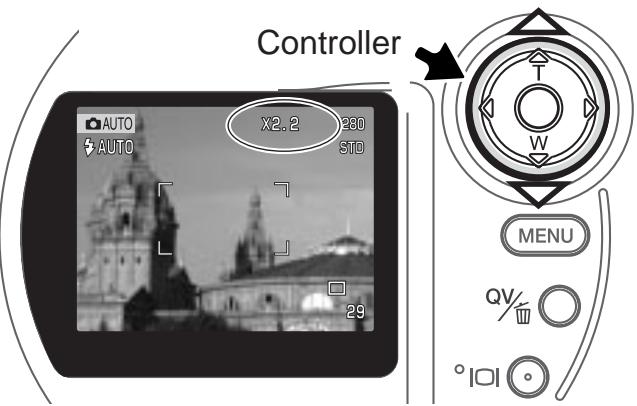

DIGITAL ZOOM Assisting the optical zoom is a 2.2X digital zoom. The effect of the digital zoom doubles the power of the telephoto position of the optical zoom giving the equivalent of a 308mm lens on à 35mm camera. The effect is visible on the LCD monitor only. The digital-zoom is canceled if the LCD monitor is tumed off (p. 37). The digital zoom is activated in the auto-recording menu (p. 42). In the multi-function recording mode, it is activated in the custom 1 section of the mult-function recording mode menu (p. 54). lawvrol At the maximum telephoto position, Faure press the up key (T) to activate the digital zoom. X2.2 will be displayed in the top right comer of the monitor. To cancel the digital zoom, press the doun key. When an image is taken with the digital zoom, the final image size depends on the image- size setting on the camera, see chart. Image size setting 2272 X 1704 1600 X 1200 1280 X 960 640 X 480 Size of recorded image DHRST EE 1024 X 768 1024 X 768 640 X 480

INSTANT PLAYBACK After an image is captured, it can be displayed on the monitor before being saved. An index display is used with the continuous-advance or bracketing drive modes (p. 32). When used with voice memo, the audio recording begins after the image is played back. Instant playback is activated with a menu; see navigating the auto-recording mode menu section on page 42. Instant playback is also set in the custom 2 section of the multi- function recording menu (p. 54). There are three menu settings: off Instant playback is disabled. 2 sec The captured image will be displayed for two or ten seconds. While dis- DEEE played, the image can be deleted before being saved. To store an image during playback. If the center of the controller is pressed during the instant playback, the displayed image will immediately be saved and the playback canceled. To delete an image. To delete an image during the instant playback, press the QV/delete button A) A confirmation screen will appear. À Delete this frame? Use the lefÿright keys of the controller to highlight"YES.” “NO” will cancel the operation. Press the controller to delete the image. f : delete store

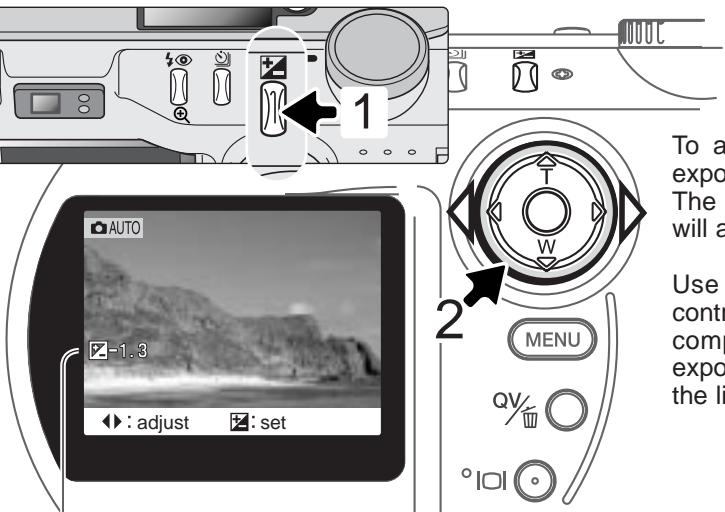

EXPOSURE COMPENSATION The camera exposure can be adjusted to make the final picture lighter or darker by as much as 42Ev in 1/3 increments. In auto-recording mode, exposure compensation is reset when the mode dial is moved to another position. The exposure-compensation value will remain in effect until it has been reset in the multi-function recording mode. The exposure compensation must be set before the image is captured. When setting the exposure compensation, the amount of compensation is shown next to the exposure- compensation indicator on the monitor. After the setting is made, the shutter-speed and aperture displays will indicate the actual exposure. Because the exposure can be adjusted in fine steps, the shutter speed or aperture value displayed may not change. When set to any value other than 0.0, the exposure-compensation indicator will remain on the data panel and LCD monitor as a warning. To adjust the exposure, press the exposure-compensation button (1). The exposure compensation screen will appear. Use the lefÿright keys of the controller (2) to adjust the exposure- É compensation value. Change in me exposure compensation is visible in YO the live image on the monitor. id]

Exposure-compensation indicator and value 50 AUTo-RECORDING MODE - ADVANCED OPERATION 1 Shooting tips Sometimes the camera's exposure meter is deceived by certain conditions. Exposure compen- sation can be used in these situations. For example, a very bright scene, such as a snowy land- scape or a white sandy beach, can appear too dark in the captured image. Before taking the pic- ture, adjusting the exposure by +1 or +2 EV will result in an image with normal tonal values.

Calculated camera -1.0Ev exposure In the example above, the dark water caused the camera to overexpose the image making it bright and washed-out. By compensating the exposure, detail is brought out in the leaves, and the stones and water appear richer. WHAT IS AN EV? WHAT IS À STOP? Ev stands for exposure value. The term stop comes from the name of aperture plates used in early lenses. À change of one Ev or one stop will adjust the exposure calculated by the camera by a factor of two. Change in Ev Change in stops Adjustment to exposure +2.0 EV +2 stops 4X as much light +1.0 EV +1 stop 2X as much light

0.0 Ev Calculated exposure

Except for digital subject programs, the basic operation of the camera in multi-function recording mode is identical to the auto-recording mode. Thoroughly familiarize yourself with the previous sections before moving on. The mult-function recording mode allows greater flexibility over image making. This recording mode gives more control over autofocus and composition. The menu controls are extensive allowing critical adjustments to image qualities such as color, sharpness, and contrast Unlike the auto-recording mode, settings made in multi-function recording are not reset when the position of the mode dial is changed.

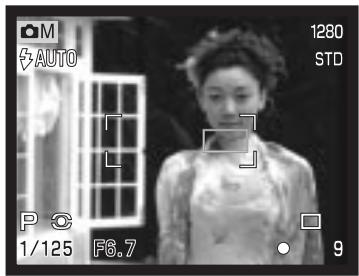

AUTOFOCUS AREAS AND CONTROL

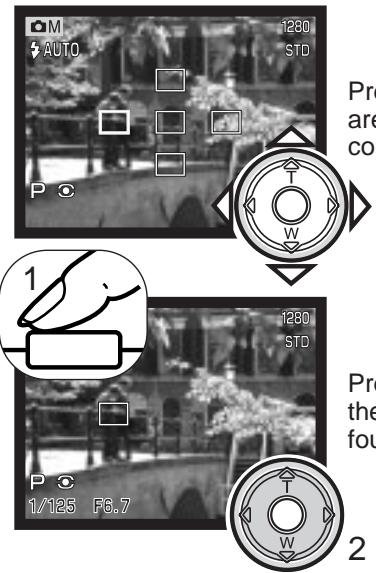

In the multi-function recording mode, the controller selects the focus area used. The wide focus area and focus area selection allow flexibility in a variety of situations. The wide focus area is an array of local focus areas that work together to control focus. This system is especially effective with moving subjects or quick shooting in fast- moving events. When focus locks, one of the AF sensors within the wide focus area will briefly indicate the point of focus. Switching between the wide focus area and the spot focus areas is Simple. Press and hold the controller until the wide-focus-area frame lines change to the spot-focus-area display. Press and hold the controller again to retum to the wide-focus-area frame lines.

52 MULTI-FUNCTION RECORDING MODE

The focus area selection controls which spot focus area is active. This function can be used for off-center subjects or to single out an individual subject from a group. Press and hold the controller to display the spot focus areas; the active area is blue. Use the four-way key of the controller to highlight the desired autofocus area. Press the shutter-release button partway down (1) or press the center of the controller (2) to select the area; the other four areas will disappear. Once a spot focus area is selected, it will remain active even after the picture has been taken. Only when one focus area is displayed, can the controller be used to zoom (p. 24) or adjust the exposure (p. 56). To select another focus area, press the center of the controller; all five areas should be displayed. The controller can now be used to change the spot focus area. The selected focus area selection remains in effect when the LCD monitor is tumed off.

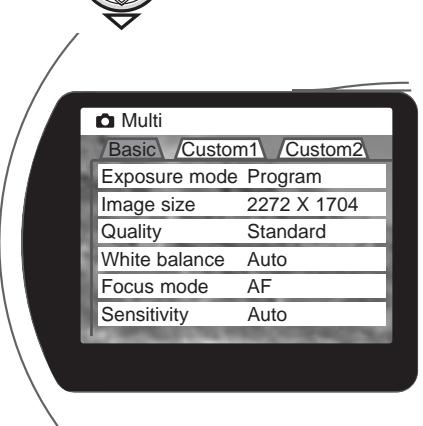

In mult-function recording mode, press the menu button (1) to activate the menu. The menu button also tums off the menu after making settings. The four-way keys of the controller (2) are used to move the cursor in the menu. Pressing the center of the controller will enter à setting. Activate the recording-mode menu with the menu button. The basic tab at the top of the menu will be highlighted. Use the leftright keys of the controller to highlight the appropriate menu tab; the menus will change as the tabs are highlighted. When the desired menu section is displayed, use the up/down keys to scroll through the menu options. Highlight the option whose setting needs to be changed. When scrolling in one direction, the cursor will jump between the top and bottom ofthe menu. With the menu option to be changed highlighted, press the right controller key; the settings will be displayed with the current setting highlighted. To retum to the menu options, press the left key. Use the up/doun keys to highlight the new setting. Press the controller to select the highlighted setting. Once a setting has been selected, the cursor will retum to the menu options and the new setting will be Venere displayed. Changes can continue to be made. To retum to the image sze 2272 X 1704 recording mode, press the menu Quality Sander button. Changes made to image unie baiance auto x size, image quality, voice memo, date imprint, digital zoom, and Sensitvity Au instant playback will affect the Len — auto-recording mode.

0.3Ev On/0f 10 sec. 2 sec.

Cool (-) 15 sec. 5 sec.

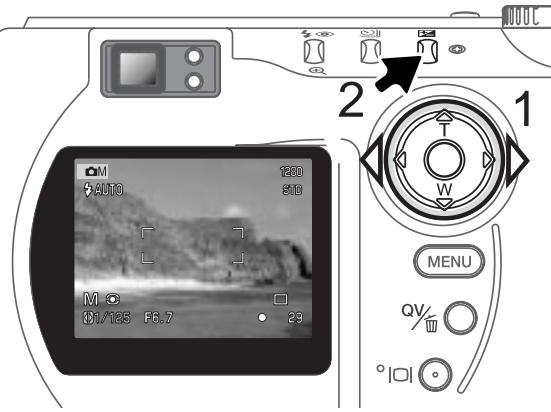

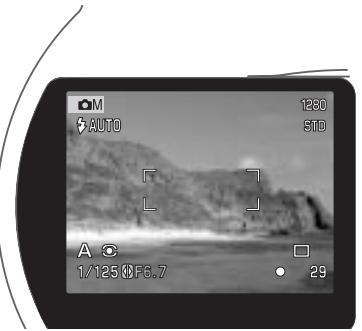

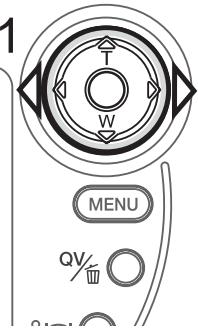

EXPOSURE MODES The three exposure modes allow extensive control over image making: program, aperture priority, and manual exposure. Exposure modes are set in the basic section of the mult-function recording mode menu (p. 54). Program The program exposure mode controls both the shutter speed and aperture to ensure perfect exposures. The sophisticated exposure system allows the photographer the freedomto shoot without having to worry about the technical details of exposure settings. The shutter speed and aperture values of the exposure are displayed on the monitor. If shutter speed and aperture displays tum red, the scene is beyond the exposure control range of the camera. Aperture priority - A The photographer selects the aperture and the camera sets the appropriate shutter speed to ensure correct exposure. When aperture priority is selected, the aperture value on the monitor tums blue and a double arrow icon appears next to it. Ifthe LCD monitor is tumed off, the aperture value is fixed at the last setting and cannot be changed. The flash mode is set to flash cancel. Fill-flash can be selected (p. 30). Use the lefÿright keys of the controller (1) to set the desired aperture value. Press the shutter-release button to activate the exposure system; the corresponding shutter speed will be displayed on the monitor. The aperture value can be changed in two steps: f/3.0 and f/6.7 at the lens’ wide-angle position, f/3.6 and f/8.0 at the lens’ telephoto position. As the lens is zoomed, the aperture will automatically shift. If the aperture value is beyond the shutter-speed range, the shutter-speed display will tum red on the monitor. For more on the aperture and image control, see page 66. ET) Manual exposure - M Manual exposure mode allows individual selection of M \ Ke» shutter speeds and apertures. This mode overrides the exposure system giving the photographer total control over. the final exposure. The shutter speeds can be changed in DAS 67 half stop increments between 1/1000 and 4 seconds. AS changes are made to the exposure, the effect will be visible on the monitor. The shutter-speed and aperture display will tum red on the monitor if the image is extremely under or overexposed. If the monitor is black, increase the exposure until the image is visible; decrease the exposure ifthe monitor is white. Ifthe LCD monitor is tumed off, the exposure is fixed at the last setting and cannot be changed. When the shutter-release button is pressed partway down, the brighiness of the live image may change while the camera is focusing. In manual exposure mode, the auto camera-sensitivity setting will fix the ISO value at

100. The camera sensitivity can be changed in the basic section of the multi-function

recording menu (p. 54). The flash mode is set to flash cancel. Fill-flash can be selected (p. 30), but the live image will not refiect the ambient or flash exposure. Bulb exposures can be made, see page 58. To change the shutter speed use the leftright keys of the controller (1) to set the desired shutter speed. To change the aperture press the exposure- compensation button (2); the aperture value will tum blue. Use the leftright keys of the controller (1) to set the desired aperture. The exposure-compensation button switches between the shutter speed and aperture display. The value that can be set will be blue with a double arrow icon to the left.

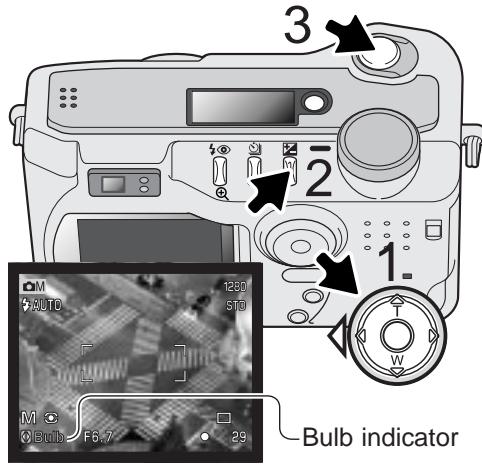

BULB EXPOSURES Bulb photographs can be taken in the manual-exposure mode (M) (p. 57). Exposures up to fifeen seconds can be made by pressing and holding the shutter-release button. The use of a tripod is recommended. The cameras exposure system cannot be used to calculate bulb exposures; à separate light meter is recommended. Set the exposure mode to manual in the basic section of the multi-function recording mode menu (p. 54). Set the drive mode to single-frame advance (p. 32). Use the controller (1) to decrease the shutter- speed value below four seconds until “bulb” is displayed. To setthe aperture value, press the exposure- compensation button (2); the aperture display should tum blue. Use the controller (1) to set the aperture. To take the picture, press and hold the shutter- release button (3) for the duration of the exposure. Releasing the shutter button will end the exposure. The monitor will be blank during the exposure. Camera Notes When making bulb exposures, noise can be more pronounced because of the unusually long exposure times, especially at 400 ISO. When making long bulb exposures, à camera sensitivity setting of 64 or 100 will produce excellent results. At higher ISO settings, using shorter exposure times (8 seconds or less) will reduce the effect of noise. FOCUS MODES This camera has autofocus and manual focus control. The focus mode is set in the basic section of the multi-function recording mode menu (p. 54). Autofocus will produce excellent results in almost every situation, however, under certain conditions, the autofocus system will not work accurately; see special focusing situations on page 27. In these situations the camera can be manually focused. After setting the camera to the manual focus mode (MF), “ZOOM” and “FOCUS” will appear at the top of the LCD monitor. Press the center of the controller to switch between the two functions; the function highlighted in blue is active. With “FOCUS” highlighted, use the up/down keys of the controller to focus; the approximate focus distance is displayed at the bottom of the monitor next to the frame counter. AII distances are measured from the CCD. When the focus is set to the minimum focusing distance, as the lens is zoomed, the distance will change to match the minimum focusing distance at each focal length. Manual focus is not available when the monitor is tumed off; the controller function is automatically switched to the zoom. Press the controller to switch between focus and zoom (1). The active function is highlighted in blue (2). Use the up/down keys of the controller to zoom or focus. Focus distance from the CCD.

WHITE BALANCE White balance is the camera's ability to make different types of lighting appear neutral. The effect is similar to selecting daylight or tungsten film, or using color compensating fiers in conventional photography. An indicator is displayed on the monitor if a setting other than auto white-balance is chosen. White balance is set in the basic section of the multi-function recording mode menu (p. 54). Automatic White Balance The automatic white balance compensates for the color temperature of a scene. In most cases, the auto setting will balance the ambient light and create beautiful images, even under mixed-lighting conditions. When the built-in flash is used, the white balance is set for the color temperature of the fiash. Preset White Balance Preset white-balance settings must be set before the image is taken. Once set, the effect is immediately visible on the LCD monitor. The builtin flash can be used with preset white-balance settings, but will create a pinkish or blueish cast with the fluorescent and tungsten settings. The flash is daylight balanced and will produce acceptable results with the daylight and cloudy settings. Cloudy - for overcast outdoor scenes. Daylight - for outdoor and sunlit subjects. Tungsten - for incandescent lighting: household filament light bulbs. Fluorescent - for fluorescent lighting office ceiling lights. Custom White Balance Custom-white-balance function allows a photographer to calibrate the camera to a specific lighting condition. The setting can be used repeatedly until reset. Custom white balance is especially useful with mixed-lighting conditions or when critical control over color is needed. The object used to make a calibration should be white. À blank piece of white paper is an ideal surface and can easily be carried in a camera bag. To calibrate the white balance for ambient light exposures, setthe flash mode to flash-cancel (p. 30). GDS To calibrate the camera, select the custom setting in the Custom Custom white balance option in the basic section of the multi- function recording mode menu; a window will open asking you to choose “set” or ‘recall.” Use the controller to highlight “set” and then press the center of the controller to enter the command; the custom white-balance calibration screen will appear. ASelect set or recall. |" GM Custom WB set Fill the image area with a white object the object does not need to be in focus. Press the shutter-release button to make the calibration. The custom setting will remain in effect until another calibration is made or the white- fuuse balance setting is changed. Set WB with shutter button If the custom white-balance setting needs to be used again, select the custom setting on the basic section of the menu; à |ASelectsetorrecall window will appear. Highlight ‘recall” and press the controller to Real enter the commandi the last custom white-balance setting will be applied to the camera.

Five camera sensitivity settings can be selected: Auto, 64, 100, 200, and 400; the numerical values are based on an ISO equivalent. ISO is the standard used to indicate film sensitivity: the higher the number, the more sensitive the film. Camera sensitivity is set in the basic section of the multi-function recording mode menu (p. 54). The auto setting automatically adjusts the camera sensitivity to the light conditions between ISO 64 and 320. When the flash is activated and camera sensitivity is set to auto, the ISO value is set between ISO 64 and 200. When any other setting than auto is used, 150” will appear on the data panel, and 150” and the set value will be displayed on the monitor. Photographers can select a specific sensitivity setting. As the ISO value doubles, the camera sensitivity doubles. Like grain in silver-halide film that increases with speed, noise increases with sensitivity in digital imaging; an ISO seting of 64 will have the least noise and 400 will have the most noise. An ISO setting of 400 may allow the camera to be hand-held in low-light conditions without the need of a flash.

FLASH RANGE AND CAMERA SENSITIVITY

The flash range is measured from the CCD. Because of the optical system, the flash range is not the same at the lens’ wide-angle position as it is at the telephoto position. Flash range (telephoto) 0.9m —3.0m (3.0 ft —9.8 ft) ISO setting Flash range (wide angle) AUTO 0.5m —3.5m (1.6 ft —115 ft) 64 0.5m —2.0m (1.6 ft — 6.6ft) 0.9m —1.7m (3.0 ft —5.6 ft) 100 0.5m —2.5m (1.6 ft — 8.2ft) 0.9m —2.1m (3.0 ft —-6.9 ft) 200 0.5m —3.5m (1.6 ft —115 ft) 0.9m —3.0m (3.0 ft. —9.8 ft) 400 0.5m —5.0m (1.6 ft —16.4 ft) 0.9m —4.2m (3.0 ft —13.8ft) Atthe wide-angle lens position, when using the flash with subjects closer than 1m (3f), vignetting can occur. A slight shadow or shading may be apparent at the bottom of a horizontal image. FULL-TIME AF With full-time AF active, the autofocus systems continually focuses to keep the monitor image sharp. This also reduces the autofocusing time when taking pictures. Full-time AF can be activated in the custom 1 section of the multi-function recording mode menu (p. 54). When the monitor is tumed off or when the camera is set to manual focus, full-time AF is disabled. Tuning the full-time AF function off can help conserve battery power. METERING MODES The icons indicating the metering modes are displayed on the monitor. The metering mode is set in the custom 1 section of the multi-function recording mode menu (p. 54). This data is combined with distance information to calculate the camera exposure. This advanced metering system will give accurate wony-free exposures in almost all situations. Spot metering uses a small area within the [Ps ———— re] image to calculate the exposure. When this MEN 5 mode is selected, the LCD monitor will automatically activate if off and a small circle will appear in the middle of the live image indicating the measuring area. The spot allows precise exposure measurements of a particular object without being influenced by extremely right or dark areas within the scene. If the LCD monitor is tumed off, the spot-metering mode will remain active. > Multi-segment metering uses 270 segments to measure luminance and color.

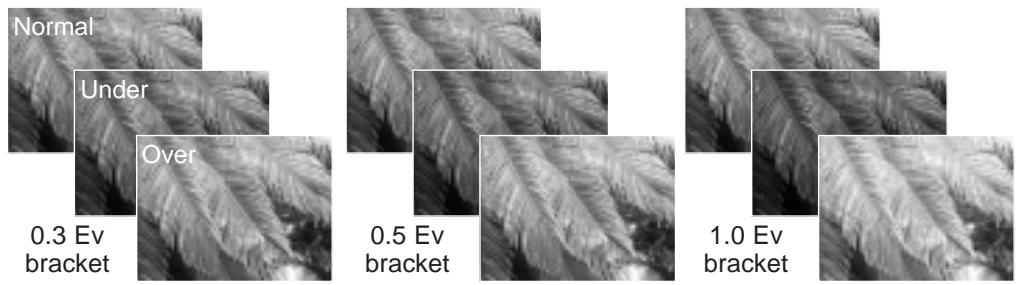

EXPOSURE BRACKETING INCREMENT

In mult-function recording mode, three bracketing steps can be selected: 0.3 Ev, 0.5 Ev,

1.0 Ev. The larger the number, the greater the difference in exposure between the images

in the bracketed series. For information on the bracketing drive mode, see page 36. The bracketing increment can be changed in the custom 1 section of the multi-function recording mode menu (p. 54).

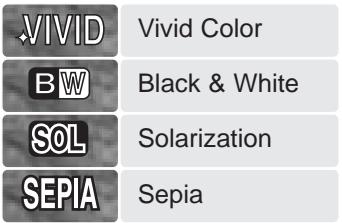

bracket bracket COLOR MODE The color mode controls the appearance of a still image. N This must be set before the image is recorded. The color MAMIE Vivid Color mode is set in the custom 2 section of the multi-function . recording mode menu (p. 54). The live image on the BREL EURE monitors will refiect the selected mode. The color mode _ il ï: Sol ti has no effect on image file size. olarization n Sepi: Natural Color reproduces the colors in the scene ÉSEPIAN] pla faitfully. This mode uses no monitor indicator when active. Vivid Color increases the saturation of colors. Black & White produces monochrome images. The sepia mode creates warm tone monochrome images. Solarization produces à partial reversal of tones and colors in the highlights.

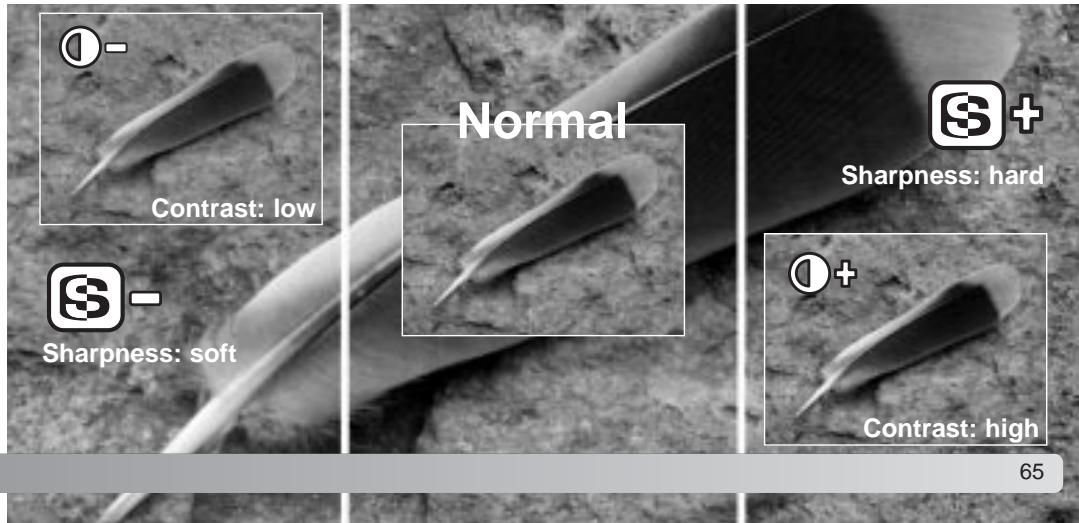

IMAGE CONTROL - SHARPNESS, CONTRAST, & FILTER

Changes in color, sharpness, and contrast can be made using the custom 2 section of the mult-function recording mode menu (p. 54). The sharpness, contrast and filter imaging controls give photographers the ability to maximize the image information at the scene. Any changes made with these functions are applied to the live image on the monitor. Changes made to sharpness and contrast may be difficult to see on the monitor. However, when viewed on a computer, the changes will be evident The levels must be set before the image is recorded. If any setting other than normal or off is selected, an indicator will be displayed showing an increase (+) or decrease (-) in the quality selected. Tuning the camera off will not reset these functions. To accent or soften details in an image in three levels: hard (+, normal, and soft (-). Contrast To increase or decrease the contrast of the scene in three levels: high (H, normal, and low (-).

Sharpness To adjust the overall color of a Natural Color or Vivid Color image: warm (4) and cool (-).

Photography can be a rewarding pursuit. It is a broad and disciplined field that can take years to master. But the pleasure in making photographs and the joy of capturing a magical moment cannot be compared. This guide is an introduction to some basic photographie principles. The lens aperture controls not only exposure, but also depth of field; the area between the closest and the furthest object in focus. The larger the aperture value, the greater the depth of field and the longer the shutter speed needed to make the exposure. The smaller the aperture value, the shallower the depth of field and the faster the shutter speed needed to make the exposure. Usually landscape photographs use à large depth of field (large aperture value) to keep the foreground and background in focus, and portraits use a shallow depth of field (small aperture value) to separate the subject from the background. Depth of field also changes with focal length. The wide-angle position of the lens has à large depth of field: the telephoto position has a shallow depth of field.

A SHORT GUIDE TO PHOTOGRAPHY |

The shutter controls not only exposure, but also the ability to stop motion. Fast shutter speeds are used in sport photography to stop action. Slow shutter speeds can be used to show the flow of motion such as water cascading over à waterfall. The use of a tripod is recommended with slow shutter speeds. The change in aperture and shutter speed is not apparent in the live image. Unlike film cameras, test photographs can be taken and immediately viewed. For critical work, take a test photograph at the set aperture or shutter speed and view the result in Quick View. The image can be deleted if not acceptable and another test image can be taken at a different setting.

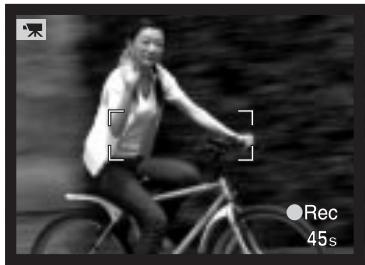

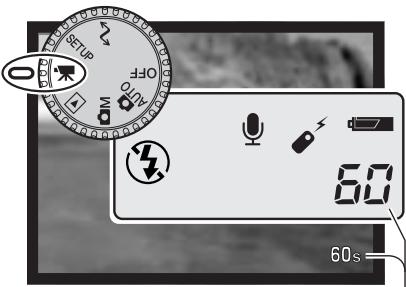

MOVIE RECORDING This camera can record up to sixty seconds of digital video with sound. The motion J PEG image is 320 X 240 pixels (QVGA). The effective image area is 284 X 211 pixels; two thin lines will appear to the left and right of the image when played back. Under certain conditions less than sixty seconds of digital video may be recorded. Total recording time with an 16MB CompactFlash card is approximately 51 seconds. The digital video recording rate is approximately 296KB per second. Actual CompactFlash card capacity depends on the subject and the number of still images captured. Available recording time: Setthe main dial to movie recording. Before recording, the data-panel and monitor frame counters show the maximum time in seconds can be recorded with the next movie clip. A maximum of 60 seconds is displayed until the amount of remaining time falls below one minute, then the remaining number of seconds that can be recorded is displayed. Frame the picture as described in the basic recording operation section (p. 25). Press the shutter-release button partway down to lock the focus. Press the shutter-release button all the way down and release to Start recording. An indicator will appear in the lower right comer of the monitor during recording. The zoom and focus are fixed during recording. The camera will continue to record until the recording time is used or the shutter-release button is pressed again. When recording, the data panel and monitor frame counters will count down the remaining time. 68 MOVE RECORDING

NOTES ON MOVIE RECORDING

In movie recording, some functions can be used, some are fixed, and some are disabled. This mode has no menu controls. Exposure mode Camera sensitivity (ISO) Focus area Focus control White balance Macro mode Exposure compensation Display button Flash Digital zoom Program (fixed) Auto (fixed) Wide focus area (fixed) Autofocus (fixed) Auto (fixed) Available (p. 28) Available (p. 50) All displays available except monitor off (p. 37) Disabled Disabled RECORDING MOVIES WITH THE IR REMOTE CONTROL RC-3 Emitter window

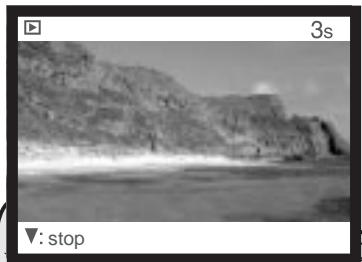

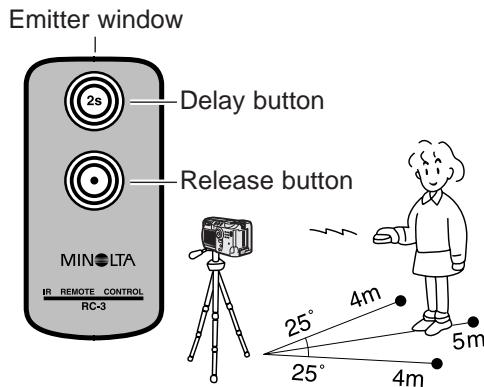

TL Delay button MINSLTA The RC-3 remote control (sold separately) can be used to record movie clips up to 5m (16) away. Simply point the remote control toward the camera and use the release or delay button to start and stop the recording. When using the release button, the self- time lamp (1) will blink once before the camera starts to record; when using the delay button, the self:timer lamp will blink for two seconds before recording. The lamp will glow to indicate the camera is recording. Both buttons will stop the camera instanty when pressed. The remote control may not operate with backlit subjects or under fluorescent light.

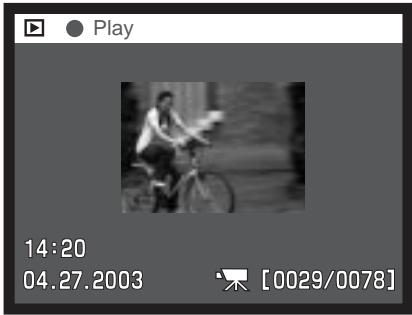

The basic functions in this mode are described in the basic playback section on pages 38 through 41. This section covers how to play back movie clips and voice memos as well as the advanced functions on the playback menu.

PLAYING BACK VOICE MEMOS

Voice memos (p. 46) can be played back in Quick View and the playback mode. The voice memo indicator will be displayed at the bottom of the monitor if an audio track is attached to the displayed still image. Press the center of the controller to start the audio playback. 120) Da*ers 20031) [0029/00781 Playback time is displayed on à bar at the top of the image. The display retums to Quick View or the playback mode when the audio track finishes. Press the down key ofthe controller to cancel the playback. lo! Press the display button to view the image with or without the guidance bar. VIEWING MOVIES Movie clips can be played back in Quick View and the playback mode. A thumbnail ofthe first frame of the clip indicates a movie file. Use the leftright keys of the controller to display the movie clip to be viewed. Press the center of the controller to play back the clip.

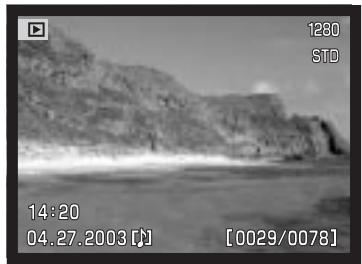

04.27.2003 °# [0029/0078]

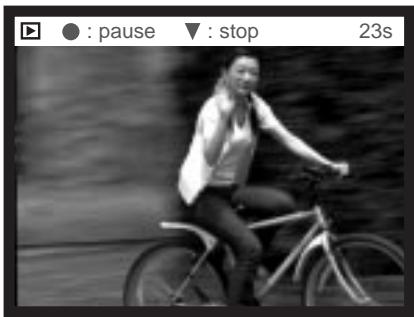

Playback time is displayed on a bar at the top of the image. The display retums to Quick View or the playback mode when the movie clip finishes. Π@:pause Y:stop Pressing the controller during playback pauses the movie clip: pressing the controller again resumes the playback. When the movie clip finishes, the first frame is displayed. Press the display button to view the movie ol with or without the guidance bar. To cancel the playback of a movie, press the down key of the controller.

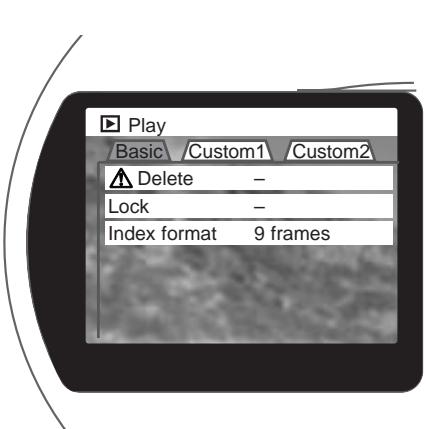

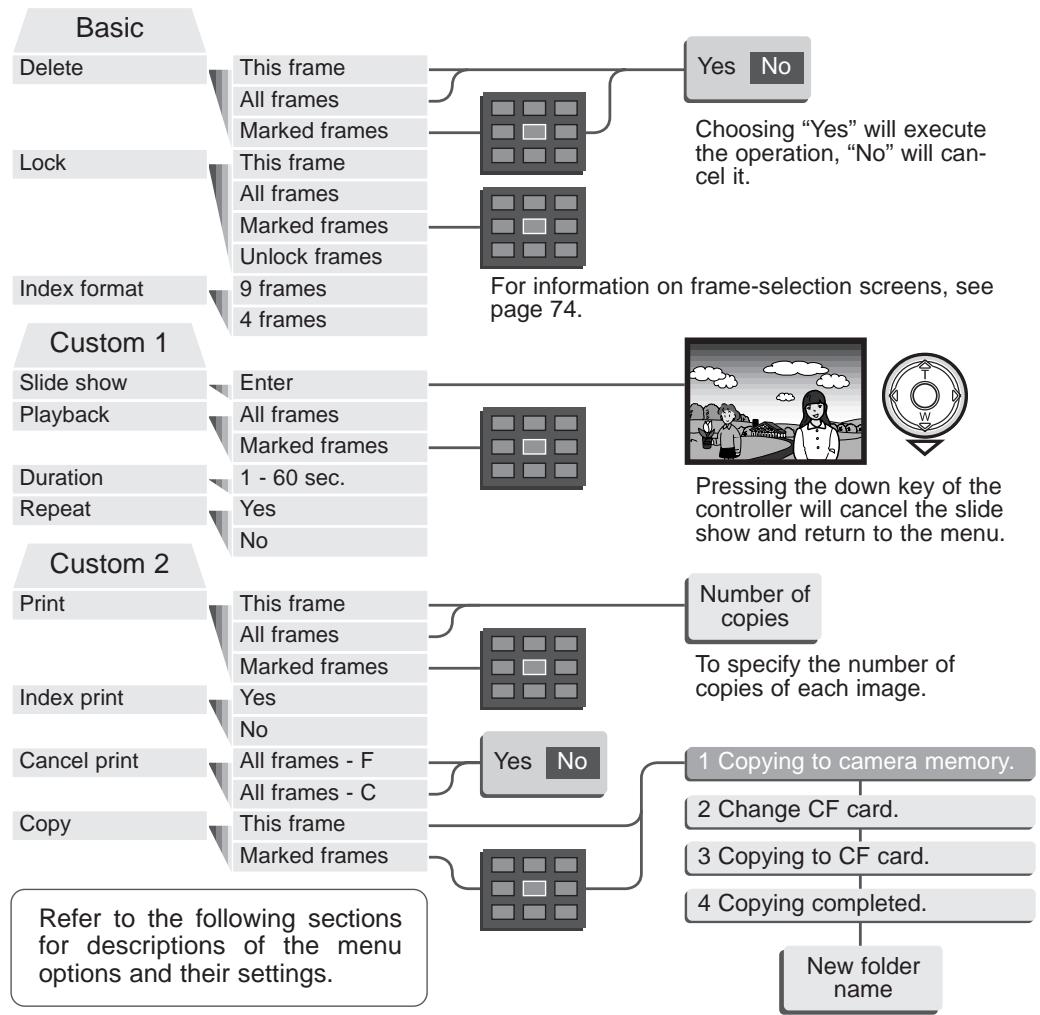

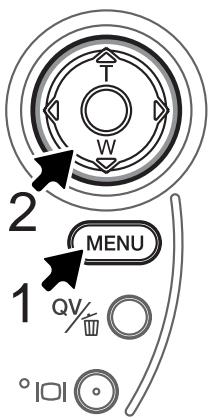

NAVIGATING THE PLAYBACK-MODE MENU Basic In playback mode, press the menu button (1) to activate the menu. The menu button also DEEE EEE ves EI tums off the menu after making settings. The four-way keys of the controller (2) are used Y RITES to move the cursor in the menu. Pressing the center of the controller will enter a setting. PP ee Choosing “Yes” will execute T the operation, “No” will can- Activate the playback-mode menu with the menu button. The basic tab at the top of Le MoÉaue) Dr the menu will be highlighted. Use the leftright keys of the controller to highlight the \ All frames appropriate menu tab; the menus will change as the tabs are highlighted. FRE Unlock frames When the desired menu section Is displayed, use the up/doun keys scrail through Index format 9 frames For information on frame-selection screens, see the menu options. Highlight the option whose setting needs to be changed.When 4 page 74. scrolling in one direction, the cursor will jump between the top and bottom of the menu. 4 frames Custom 1 With the menu option to be changed highlighted, press the right controller key: the Slide show « Enter settings will be displayed with the current setting highlighted. To retum to the menu Playback y Aliens pions, press the Ie key tee —Æ5 Duration 1-60 sec. Pressing the down key of the Use the up/down keys to highlight the Press the controller to select the Repeat = controller will cancel the slide new setting. highlighted setting. No Show and retum to the menu. Custom 2 Print This frame Muneercir Y All frames 2 ES Mad rames —Æ To spectre nurrber of Once a setting has been selected, Index print V'= copies of each image. WE V CET the cursor will retum to the menu No options and the new setting will be Cancel print q Ames -F xes KA 1 Copying to camera memory. Lock = displayed. Changes can continue Al frames - C J index fomat 9 frames 5 pe made. To retum to the Copy y Ts ame {2 Change CF ea playbac mode, press the menu Marked frames 3 Copying to CF card. Refer to the following sections for descriptions of the menu options and their settings. 4 Copying completed. New folder name

72 PLAYBACK MODE - ADVANCED OPERATION 73

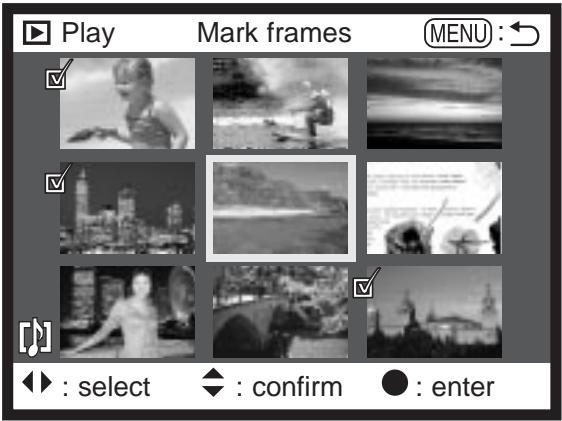

FRAME-SELECTION SCREEN When a marked-frames setting is chosen on a menu, the frame selection screen will appear. This screen allows multiple images to be chosen. An indicator in the bottom left comer shows if the image is a movie clip or has a voice memo. The index format of the screen can be changed in the basic section of the playback-mode menu (p. 72). The lefvright keys of the controller move the yellow border to select the image.

The up key of the controller selects the frame; when selected, an icon will appear next to Ent the image. The Menu button SJ L. : down key will Cancels the screen (il Æ £ Je deselect the image > _ removing the icon. are operation D4h: select +:confimm @:enter The garbage-can icon indicates the (= The key icon indicates the image is image is selected for deletion. locked or selected to be locked. LÉ The check icon indicates the image &) The printer icon indicates the image is selected for the slide show or to [= is selected for printing. The number be copied to another CompactFlash next to the icon shows the number card. of copies requested. Press the controller to complete the operation.

VIEWING IMAGES ON A TELEVISION

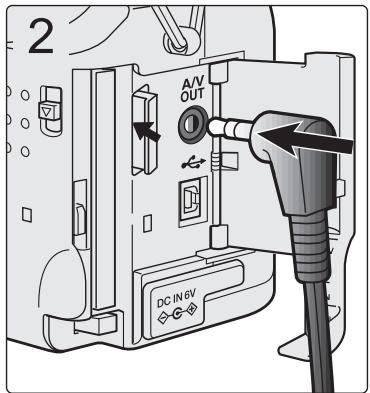

It is possible to view camera images on your television. The camera has a video-out terminal to make the connection using the supplied AV cable. The camera is compatible with the NTSC and PAL standards. The video-output setting can be checked and set in the custom 2 section of the setup menu (p. 84). 1.Tumn off the television and the camera. 2.Insert the mini-plug end of the AV cable into the cam- era's AV-out terminal. 3.Plug the other end of the AV cable into the video and audio inputterminals on the television. The yellow plug is for the video output The white plug is for the monau- ral audio output. The audio output will also be heard through the camera's speaker while connected to a television. 4.Tum the television on. 5.Change the television to the video channel. 6.Tum the camera's mode dial to the playback position. The camera's monitors will not activate when the cam- era is attached to a television. The playback-mode dis- play will be visible on the television screen. 7.View images as described in the playback section.

DELETING FILES Deleting permanentiy erases the file. a file cannot \ recovered. Care should be taken when deleting images. Single, multiple, or all files in a folder can be deleted with the playback-mode menu. Before an image file is deleted, a confirmation screen will appear; choosing “Yes” will execute the operation, “No” will cancel it. To delete files in other folders, the folder must first be selected in the custom 1 section of the setup menu (p. 84). The delete option has three settings: This frame - The file displayed or highlighted in playback mode will be deleted. All frames - All unlocked files in the selected folder will be deleted. Marked frames - To delete multiple files. When this setting is chosen, the frame-selection screen will be displayed. Use the leftright keys of the controller to highlight the first file t be deleted. Pressing the up key will mark the thumbnail with the garbage-can icon. To deselect a file for deletion, highlight it with the yellow border and press the down key: the garbage-can icon will disappear. Continue until all the files to be deleted are marked. Press the controller to continue (the confirmation screen will appear), or press the menu button to cancel the operation and retum to the playback menu. On the confirmation screen, highlighäng and entering “Yes” will delete the marked files. The delete function will only erase unlocked files. If a file is locked, it must be unlocked before it can be deleted. LOCKING FILES Single, multiple, or all files in a folder can be locked. A locked file cannot be deleted by either the playback-mode menu functions or the QV/delete button. Important image files should be locked. To lock files in other folders, the folder must first be selected in the custom 1 section of the setup menu (p. 84). The lock option has four settings: This frame - The file displayed or highlighted in playback mode will be locked. All frames - Al files in the folder will be locked. Marked frames - To lock or unlock multiple files. When this setting is chosen, the frame- selection screen will be displayed. Use the leftright keys of the controller to highlight the file to be locked. Pressing the up key will mark the thumbnail with the key icon. To unlock a file, highlight it with the yellow border and press the down key; the key icon will disappear. Continue until all the files to be locked are marked. Press the controller to lock the marked frames, or press the menu button to cancel the operation and retum to the playback menu. Unlock frames - All files in the folder will be unlocked. Locking a file will protect it from a delete function. However, the formatting function (p.

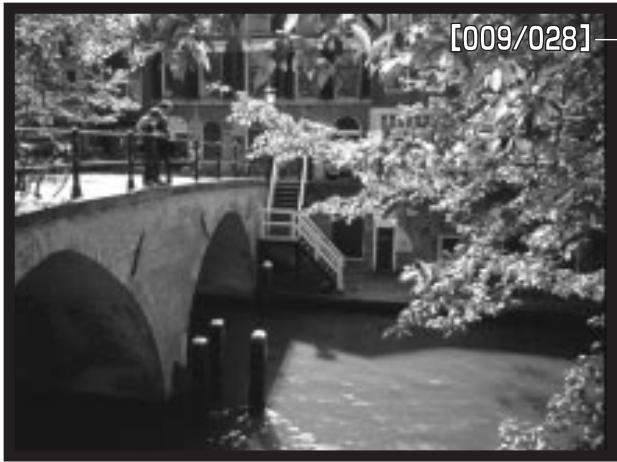

SLIDE SHOW The custom 1 section of the playback-mode menu controls the slide-show function. This function automatically displays all still images in a folder in order. Menu options Slide show DE PACE + rome count. À. 25 je down / total _ number of images in the presentation. Playback Press the controller to pause and restart the presentation. Duration To cancel the presentation, press the down key of the controller. Repeat

PLAYBACK MODE - ADVANCED OPERATION

Settings Enter All frames Marked Frames

Yes / No To startthe slide-show presentation. Pressing the center of the controller will pause the presentation. During the slide show, press the down key of the controller to stop the pre- sentation and retum to the playback-mode menu. To select all the images in the folder to be displayed in the slide-show presentation. To select specific images in the folder to be displayed in the slide-show presentation. When this setting is chosen, the frame-selection screen will be displayed. Use the leftright keys of the controller to highlight the image to be included in the presentation. Pressing the up key will mark the image with a check icon. To deselect a marked image, highlight it with the yellow border and press the down key; the check icon will disappear. Continue until all the images have been edited. Press the controller to set the marked frames, or press the menu button to cancel the operation and retum to the playback menu. To select the period each image will be displayed during the slide show. Selecting “Yes” will cause the slide show to repeat until it is canceled using the down key of the controller. “No” will end the slide show presentation and retum to the play- back-mode menu when all the images have been dis- played once.

ABOUT DPOF This camera is supported by DPOF "” version 1.1. The DPOF (Digital Print Order Format) allows direct printing of still images from digital cameras. After the DPOF file is created, the CompactFlash card is simply taken to a photofinishing service or inserted into the CompactFlash-card slot of DPOF compatible printers. When a DPOF file is created, a misc. folder is automatically made on the CompactFlash card to store it (p. 98).

CREATING A DPOF PRINT ORDER

The print menu option is used to set an order for standard prints from images in a specific folder. Single, multiple, or all images can be printed. If a CompactFlash card has multiple folders, a printing file must be created for each folder. Folders are selected in the custom 1 section of the setup menu (p. 84). This-frame - To create a DPOF fille for the image displayed or highlighted in playback mode. All-frames - To create a DPOF file for all images in the folder specified in the custom 1 section of the setup menu (p. 84). Marked frames - To chose a group of images to be printed or when the number of copies for each image varies. When selected, the frame selection screen will appear. Use the leftright keys ofthe controller to highlight an image to be printed. Pressing the up key will mark the image with the printer icon. The number next to the icon indicates the number of copies of that image will be printed. Pressing the up key will increase the number of copies, pressing the down key will decrease the number. À maximum of nine copies can be ordered. To deselect an image for printing, press the down key until the the number of copies reaches zero and the printer icon disappears. Continue until all the images to be printed are marked. Press the controller to create the DPOF file, or press the menu button to cancel the operation and retum to the playback menu.

80 PLAYBACK MODE - ADVANCED OPERATION

When the this-frame or all-frames setting is chosen, a screen will appear requesting the number of copies of each image; a maximum of nine copies can be ordered. Use the up/down keys of the controller to set the number of copies desired. If the all-frames setting was used to create à print order, any additional images saved afterwards in the folder will not be included in the order. DPOF files created with another camera will be canceled.

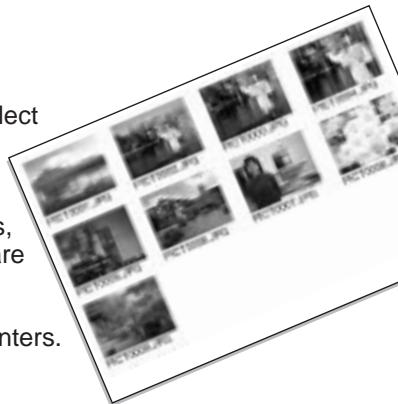

ORDERING AN INDEX PRINT

To create an index print of all the images in the folder, select “Yes.” To cancel an index print, simply change the setting to “No.” If an index-print order is created, any additional images saved afterwards in the folder will not be included in the index print. If a CompactFlash card has multiple folders, an index print must be selected for each folder. Folders are selected in the custom 1 section of the setup menu (p. 84). The number of images printed per sheet differs between printers. The information printed with the thumbnails can vary.

CANCELING A DPOF PRINT ORDER

The cancel-print option deletes the DPOF files. When the setting is selected, a confirmation screen will appear; choosing and entering “Yes” will execute the operation and cancel the print order. All frames F - To cancel the printing file in the folder. Folders are selected in the custom 1 section of the setup menu (p. 84). All frames C - To cancel all printing files on the CompactFlash card.

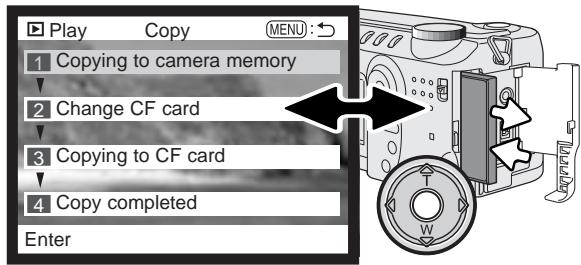

COPYING IMAGES Image files can be copied from one CompactFlash card to another. Up to 23MB of data can be transferred. Every time the copy function is used, a new folder is automatically created for the images (p. 98). Images with voice memos are copied with their audio files. Copies of locked images are unlocked (p. 77). DPOF information is not copied. This frame - To copy the image displayed or highlighted in playback mode. Marked frames - To copy single or multiple images. When selected, the frame-selection screen will appear highlight the image to be copied with the yellow border and then press the up key of the controller to mark it with the check icon. To deselect an image to be copied, highlight the selected image and press the down key; the check icon will disappear. Continue until all the images to be copied are marked. Press the controller to continue, or press the menu button to cancel the operation and retum to the playback menu. When the image(s) to be copied are selected, à screen with four messages is displayed; the messages are highlighted during the copying procedure. When the change-CF-card message is highlighted, remove the camera's CompactFlash card and insert the card to which the image should be copied. Œj Play Copy CD: Copying to camera memory Change CF card Copying to CF card Copy completed Press the center of the controller t continue or the menu button to cancel the copy operation. After the copy-completed message is highlighted, a newscreen will D AgiuterS appear to indicate the name ofthe new folder containing the copied images; press the controller to retum to the menu. CA

82 PLAYBACK MODE - ADVANCED OPERATION

If too many images have been selected, a warning will appear and the copy routine will be canceled. Divide the number of images into two or three batches. The copy- unsuccessful message will appear when one or all of the images could not be copied. Check the second CompactFlash card to see which files were copied and then repeat the procedure for the images that were not transferred. Minolta History On February 20th, 1962, J ohn Glenn became the first American to orbit the Earth. On board his Friendship 7 spacecraft was a Minolta Hi-matic camera to record that historic event. The 4 hour, 55 minute, and 23 second flight orbited the Earth three times at an average speed of 28,000 kph (17,500 mph). Mr. Glenn visited our Sakai camera factory in J apan on May 24th, 1963 to plant a palm tree to celebrate the occasion. The palm tree is still in the courtyard of the factory and stands over eight meters tall (26f. The camera? Itwas not lost. Itis on display atthe Smithsonian Institution's National Air and Space Museum in Washington D.C. This and other objects from J ohn Glenn's Friendship 7 Mercury flight can be found in galley 210, “Apollo to the Moon."

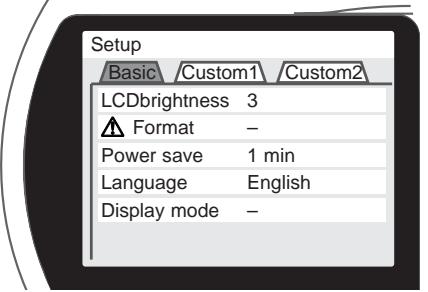

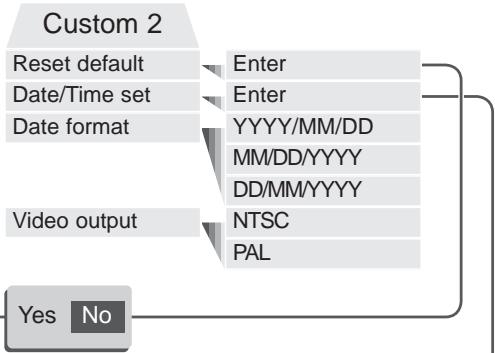

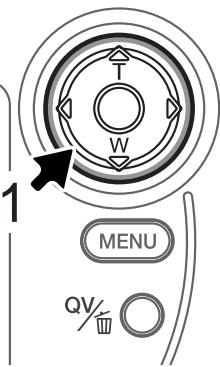

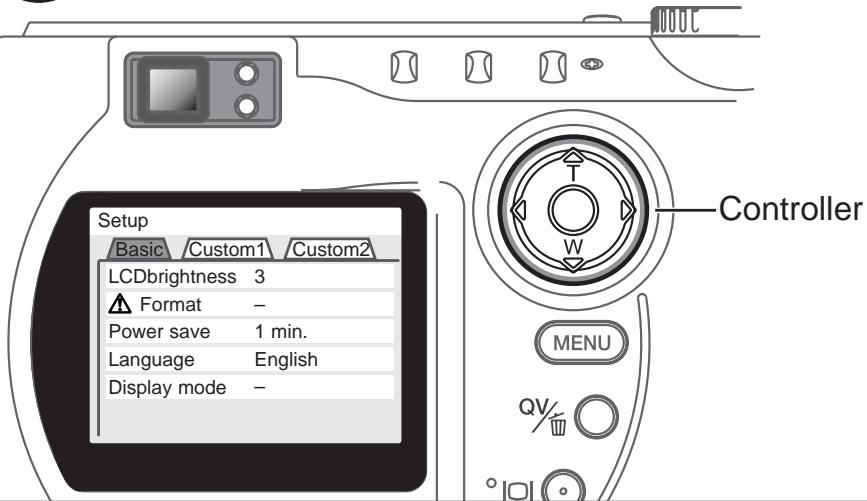

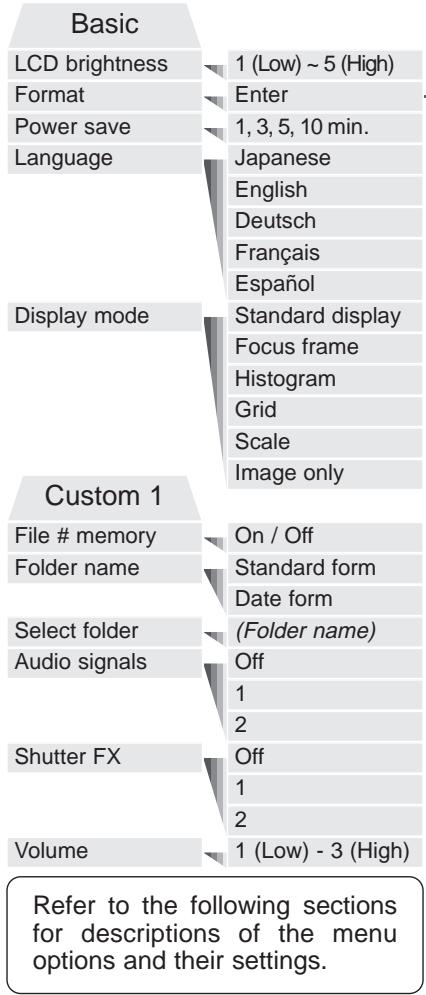

To access the menu, simply tum the mode dial to the setup position. The four-way keys of the controller (1) are used to move the cursor in the menu. Pressing the controller will enter a setting. When the menu activates, the basic tab at the top of the menu will be highlighted. Use the leftright keys of the controller to highlightthe appropriate menu tab; the menus will change as the tabs are highlighted. When the desired menu section is displayed, use the up/down keys to scroll through the menu options. Highlight the option whose setting needs to be changed. When scrolling in one direction, the cursor will jump between the top and bottom of the menu. With the menu option to be changed highlighted, press the right controller key; the settings will be displayed with the current setting highlighted. To retum to the menu options, press the left key. Press the controller to select the highlighted setting. Use the up/doun keys to highlight the new setting. Once a setting has been selected, the cursor will retum to the menu options and the new setting will be displayed. Settng can continue to be made. LCDbrightness 3 À Format - Powersave _1min Language English Display mode - Basic LCD brighness Format Power save Language Display mode Custom 1 File #memory Folder name Select folder Audio signals Shutter FX Volume 1 (Low) —5 (High) « Enter « 13,5,10min. Japanese English Deutsch Français Español Standard display Focus frame Histogram Grid Scale Image only On/0f Standard form Date form « (Folder name)

Choosing “Yes” on the confirmation screens will execute the operation, “No” will cancel it Date/Time set (END: On the date/time setting screen, use the leftright keys of the controller to select the year, month, day, hour, or minute. The up/doun keys are used to change the value. Press the central button of the controller to set the calendar and clock.

The brightness of the LCD monitor can be set in five levels from 1 (low) to 5 (high). When this option is selected, the live image is displayed behind the menu. As each setting is highlighted, the monitor will adjust accordingly; the controller must be pressed to set the highlighted level.

FORMATTING COMPACTFLASH CARDS

When à CompactFlash card is formatted, all data is erasedi. The formatting function is used to erase all data on à CompactFlash card. Before formatting a CompactFlash card, copy the data to a computer or storage device. Locking images will not protect them from being deleted when the card is formatted. Always format the CompactFlash card using the camera; never use a computer to format a card. When the format option is selected and entered, a confirmation screen will appear. Choosing “Yes” will format the card, choosing “No” will cancel the formatting operation. A screen will appear to indicate the card has been formatted; press the controller to return to the setup menu. A CompactFlash card used in another camera may have to be formatted before being used. If the unable-to-use-card message appears, the card is not compatible with the camera and cannot be formatted.

The camera will turn off the data panel to conserve battery power if no operation is made within a certain period. The length of this period can be changed to 1, 3, 5, or 10 minutes. The auto-power-save option will not affect the display period of LCD monitor; it will Shut down after 30 seconds. To restore the displays when they shut doun, simply press the shutter-release button. When the camera is connected to the computer, the auto-power-save period is set to ten minutes. This period cannot be changed. 86 SETuP MODE LANGUAGE The language used in the menus can be changed. The language is selected in the basic section of the setup menu (p. 84). DISPLAY MODE ca The recording mode es DE displays activated by the ? display button (p. 37) can be selected in the basic section of the setup menu. The display Standard display Focus frame only Real-time histogram Cycle is the same as the order shown on the menu.

When file number memory is selected, if a new folder is created, the first file stored in the folder will have a number one greater than the last file saved. If the file number memory is disabled, the image file name will have a number one greater than the last image saved in the folder. file number memory is active and the CompactFlash card is changed, the firstfile saved & the new card will have a number one greater than the last file saved on the previous card if the new card does not contain an image with a greater file number. If it does, the file number of the new image will be one greater than the greatest on the card. FOLDER NAME All recorded images are stored in folders on the memory card. Folder = names come in two formats, standard and date. Standard folders have an eight character name. The initial folder is ——— named 100MLT24. The first three digits are the folder’s serial number, 10OMLT24 which will increase by one each time a new folder is created. The next (Standard) three letters refer to Minolta, and the last two numbers indicate the camera used; 24 indicates a DIMAGE 5414. = A date folder name also starts with the three digit serial number and is followed by one register for the year, two register for the month, and two registers for the day: 101YMMDD. The folder 10130412 was created in 10130412 2003 on April 12th. (Date) With the date folder format selected, when an image is recorded a new folder with the days date will be created. AIl images recorded that day will be placed in that folder. Images recorded on a different day will be placed in a new folder with the corresponding date. If the file number memory function is off, when a new folder is created, the serial number in the image-file name is reset to 0001. If file number memory function is on, the serial number in the image-file will be one greater than the last image saved. For more infomation on folder organization and file names, see page 98. SELECT FOLDER This option allows the selection of existing folders. All images recorded will be placed in the selected folder if the folder-name option is set to standard form. In quick view or playback mode, only the images in the selected folder can be viewed or edited. Except for the all-frames-C setting in the custom 2 section of the playback-mode menu, changes made with menus only affect the images in the selected folder. To make changes to all images in multiple folders, each folder must be selected and the menu operation repeated for each folder. Formatting a CompactFlash card erases all folders regardless if they are selected or not. AUDIO SIGNALS Every time a button is pressed, an audio signal will give a positive confirmation of the operation. The audio signals can be tum off in the custom 1 section of the setup menu (p. 84). The tone of the signal can also be changedi signal 1 is mechanical and signal 2 is electrical. SHUTTER FX When the shutter is released, a shutter sound effect will give a positive confirmation of the operation. The sound effect can be tum off in the custom 1 section of the setup menu (p. 84). Two shutter effects are available; signal 1 is mechanical and signal 2 is electrical. The mechanical shutter sound was taken from the legendary Minolta CLE, a compact rangefinder that represents the pinnacle of the development of the Leitz-Minolta CL. VOLUME The speaker volume can be increased or decreased. This affects the audio signals and shutter FX only and will not change the levels of the voice memo or movie audio track.

This function affects all modes. When selected, a confirmation screen will appear; choosing “Yes” resets the following functions and settings, “No” cancels the operation. Default Setting Page Exposure mode Program 56 Focus mode Autofocus. 59 Focus area Wide focus area 52 Digital zoom of 48 Drive mode Single-frame advance 32 Flash mode Auto flash 30 Image quality Standard 44 Image size 2272 X 1704 44 Voice memo of 46 Date imprinting of 47 Instant playback of 49 Metering mode Multi-segment 63 Exposure compensation 0.0 50 Camera sensitivity (ISO) Auto 62 White balance Auto white balance 60 Full-time AF of 63 Exposure bracket 0.5 Ev 64 Color mode Natural Color 64 Sharpness Normal 65 Contrast Normal 65 Filter of 65 Index playback format 9 frames 77 Duration (Slide Show) 5 seconds 78 Repeat (Slide Show) No 78 LCD monitor brightness 3 86 Auto-power-save period 1 minute 86 File number memory off 88 Folder name Standard 88 Audio signals 1 89 Shutter FX 1 89 Volume 2 89

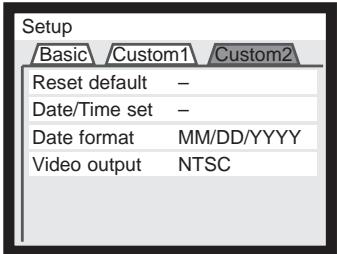

DATE AND TIME SETTING

Itis important to accurately set the clock. When a still image or a movie clip is recorded, the date and time of the recording are saved with the image and are displayed during playback or can be read with the DIMAGE Viewer software included on the CD-ROM. The camera's clock is also used with date imprinting (p. 47). To set the clock and calender, see page 20. DATE FORMAT The date format that is displayed or imprinted can be changed: YYYY/MM/DD (year, month, day), MM/DD/YYYY (month, day, year), DD/MM/YYYY (day, month, year). Simply select the format and enter it by pressing the center of the controller; the new format will be displayed on the menu. VIDEO OUTPUT Camera images can be displayed on a television (p. 75). The video output can be changed between NTSC and PAL. North America uses the NTSC standard and Europe uses the PAL standard. Check which standard is used in your region to play back images on your television set.

DATA-TRANSFER MODE Read this section carefully before connecting the camera to a computer. Details on using and installing the DiMAGE Viewer software are found in the supplied software manual. The DiMAGE manuals do not cover the basic operation of computers or their operating systems; please refer to the manual supplied with your computer. SYSTEM REQUIREMENTS For the camera to be connected directly to the computer and used as a mass-storage device, the computer must be equipped with a USB port as a standard interface. Both the computer and the operating system must be guaranteed by their manufacturers to support USB interface. The following operating systems are compatible with the camera: IBM PC / AT Compatible Macintosh Mac OS 9.0 —-9.2.2 and Mac OS X

10.1.3 - 10.1.5, 10.2.1, and 10.22.

Windows 98, 98SE, Me, 2000 Professional, and XP. Check the Minolta web site for the latest compatibility information: North America: htip:/www.minoltausa.com Europe: http:/www.minoltaeurope.conVpe/digital/anguages_stage.htmi Users with Windows 98 or 98 second edition will need to install the driver software on the included DiMAGE Viewer CD-ROM (p. 95). No special driver software is required for other Windows or Macintosh operating systems. Customers who have bought a previous DiMAGE digital camera and have installed the Windows 98 driver sofware must repeat the installation procedure. The updated version of the driver software included on the supplied DiMAGE Viewer CD-ROM is required for the operation of the DiMAGE 5414 with a computer. The new software will have no affect on the perfomance of older DiMAGE cameras. 92 DATA-TRANSFER MODE

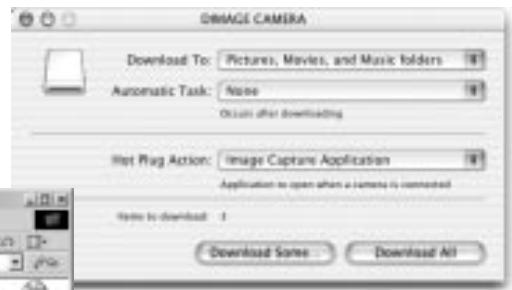

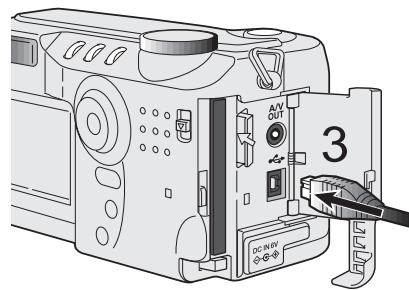

CONNECTING THE CAMERA TO A COMPUTER

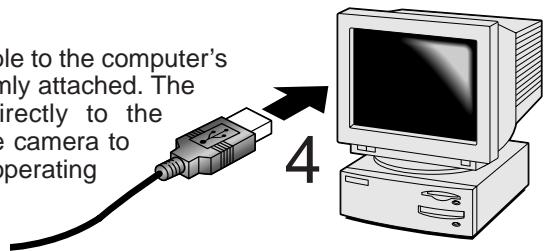

Afresh set of batteries should be used when the camera is connected to a computer. The use of the AC adapter (sold separately) is recommended over the use of batteries. For users with Windows 98 or 98SE, read the section on how to install the necessary USB driver before connecting the camera to a computer (P. 95). 1 Start up the computer. The computer must be tumed on before connecting the camera. 2 Insert the CompactFlash card into the camera. Confirm that the correct card is in the camera. To change the CompactFlash while the camera is connected to a computer, see page 102. 3 Open the card-siot door. Attach the smaller plug of the USB cable to the camera. Make sure the plug is firmly attached. 4 Attach the other end of the USB cable to the computer's USB port. Make sure the plug is firmiy attached. The camera should be connected directly to the computer's USB port Attaching the camera to a USB hub may prevent it from operating properiy. 5 Setthe mode dial to the data-transfer position to initiate the USB connection. À screen will appear to indicate the beginning of the connection process. When the signal has been received by the computer, the LCD monitor will tum off. Initializing USB (Continued on next page)

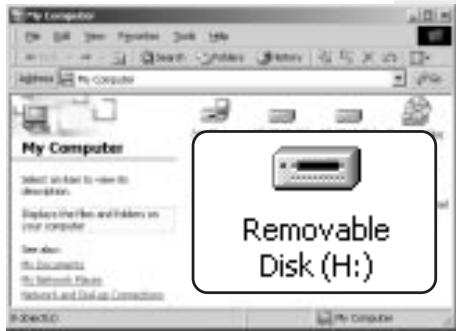

Seruwabhe Di {5} When the camera is properly connected to the computer, a drive icon, or volume, will appear. When using Windows XP or Mac OS X, a window will open requesting instructions on what to do with the image data; follow the directions in the window. If the computer does not recognize the camera, disconnect the camera and restart the computer. Repeat the connection procedure above. eo Smnés CaasinA Donntant Tee (etiren, Vs. end due bédurs 1 — neceuse Task: [iuee “ Mac OS X Finder Removable Disk (H:} rune CE Windows NO=NAME Mac OS Mac OS X The volume name varies between memory cards. 94 DATA-TRANSFER MODE

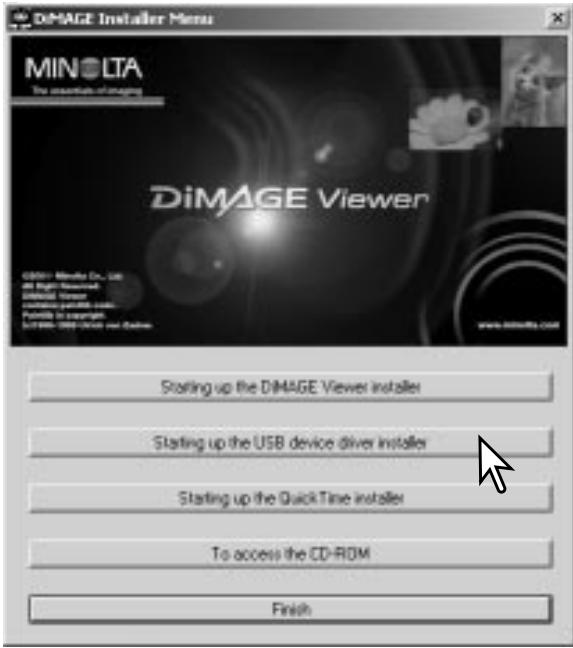

CONNECTING TO WINDOWS 98 AND 98 SECOND EDITION

The driver needs only to be installed once. Ifthe driver cannot be installed automatically, it can be installed manual with the operating system's add-new-hardware wizard: see the instructions on the following page. During installation, if the operating system requests the Windows 98 CD-ROM, insert it into the CD-ROM drive and follow the accompanying instructions on the screen. No special driver software is required for other Windows or Macintosh operating systems. Automatic Installation Before connecting the camera to the computer, place the DIMAGE Viewer CD-ROM in the CD-ROM drive. The DiMAGE installer menu should automatically activate. To automatically install the Windows 98 USB driver, click on the starting-up- the-USB-device-driver-installer button. A window will appear to confirm that the driver should be installed: click “Yes” to continue. DMAGE LS8 Drive (Srorirg 0 Me DIMAGE Vievvec metal j Slatg wo the USB device Sven oise h Statng w0 re Doc Tin tas j When the driver has been Too co NE { | successfully installed, à window will appear. Click “OK.” Restart the [ Cr } | computer and connect the camera (p.

93) to complete the operation.

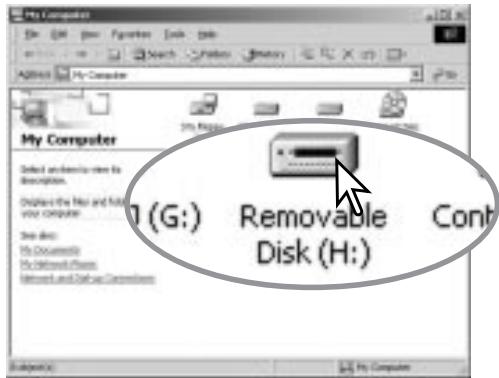

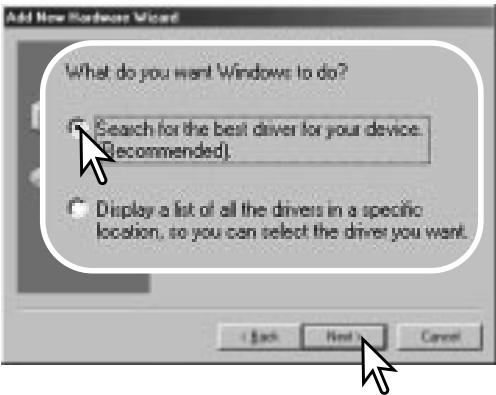

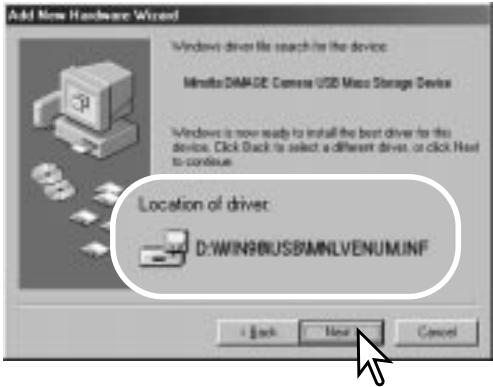

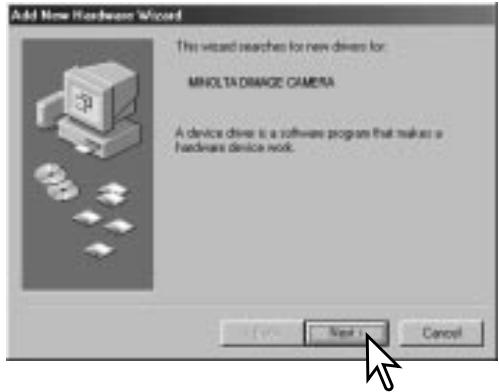

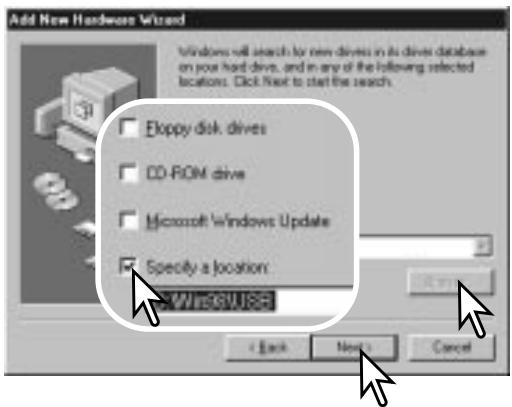

Manual Installation To install the Windows 98 driver manually, follow the instructions in the connecting-the- camera-to-a-computer section on page 93. When the camera is plugged into the computer, the operating system will detect the new device and the add-new-hardware- wizard window will open. Place the DiMAGE software CD-ROM in the CD-ROM drive. Click “Next.” Choose to specify the location of the driver. The browse window can be used to indicate the driver location. The driver should be located in the CD-ROM drive at AWin98\USB. When the location is shown in the window, click “Next.” DATA-TRANSFER MODE Choose the recommended search for a suitable driver. Click “Next.” The add new hardware wizard will confirm the location of the driver. Click “Next” to install the driver in the system. One of three drivers may be located: MNLVENUM.inf, USBPDR.inf, or USBSTRG.inf. The letter designating the CD-ROM drive will vary between computers. The last window will confirm the driver has been installed. Click “Finish” to close the add new hardware wizard. Restart the computer. When the my-computer window is opened, a new removable-disk icon will be displayed. Double click on the icon to access the cameras CompactFlash card; see page 98.

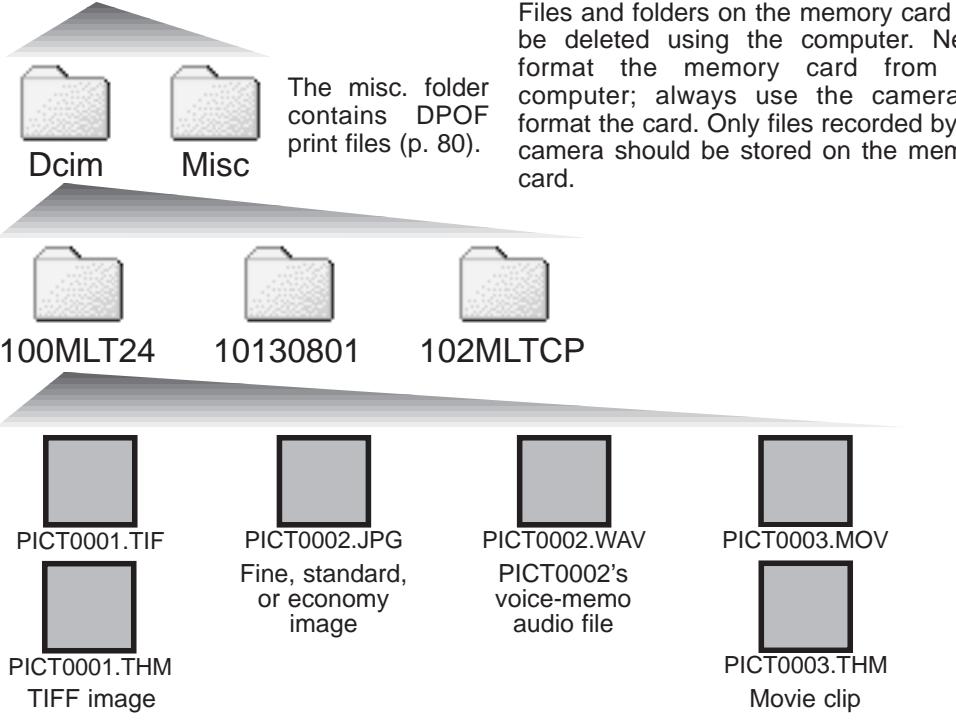

COMPACTFLASH CARD FOLDER ORGANIZATION

Once the camera is connected to the computer, image and audio . files can be accessed by double clicking on icons. Image folders are located in the DCIM folder. To copying images and audio recordings, simply drag and drop the file icon into a location in the Drive Icon computer. pe Files and folders on the memory card can be deleted using the computer. Never . format the memory card from the The misc. folder computer: always use the camera to contains DPOF format the card. Only files recorded by the print files (p. 80). camera should be stored on the memory Dcim Misc card. S © 100MLT24 10130801 102MLTCP PICTOOOL.TIF PICTO002J PG PICTO002.WAV PICTO003.MOV Fine, standard, PICTO002's or economy voice-memo image audio file

PICTO001.THM PICT0O003.THM

TIFF image Movie clip

Image and audio file names begin with “PICT” followed by a four-digit file number and a tif, jpg. mov, or thm extension. Voice-memo audio files have a wav extension and the file name corresponds to its image file. The thumbnail images (thm) are produced with TIFF images and movie clips and are only used in camera and DiMAGE Viewer operation. Copy images (p. 82) are placed in a folder with a name ending in “CP.” When a new folder is created, the first three digits in the folder name will be one greater than the largest folder number on the card. When the index number in the image file name exceeds 9,999, a new folder will be created with a number one greater than the greatest folder number on the memory card: e.g. from 100MLT24 to 101MLT24. The number in the image file name may not correspond to the frame number of the image. As images are deleted in the camera, the frame counter will adjust itself to show the number of images on the card and reassign the frame numbers accordingly. The serial numbers used with image files will not change when an image is deleted. When a new image is recorded, it will be assigned à number one greater than the largest serial number in the folder. File serial numbers can be controlled with the file-number-memory function in the custom 1 section of the setup menu (p. 84). Camera Notes Image files contain exif tag data. This data includes the time and date the image was recorded as well as the camera settings used. This data can be viewed with the camera or the DiMAGE Viewer software. If a camera image is opened in a photo-retouching application that does not sup- port exif tags, such as Adobe Photoshop, and then the image is saved overwriting the original data, the exif tag information is erased. When using software other than the DiMAGE Viewer, always make a backup copy of the image files to protect the exif tag data. To view images correctiy on your computer, the monitors color space may need to be adjusted Refer to your computer manual on how to calibrate the display to the following requirement SRGB, with a color temperature of 6500K, and a gamma of 2.2. Changes made to the captured image with the camera's contrast and color-saturation controls will affect any color-matching soft- ware in use.

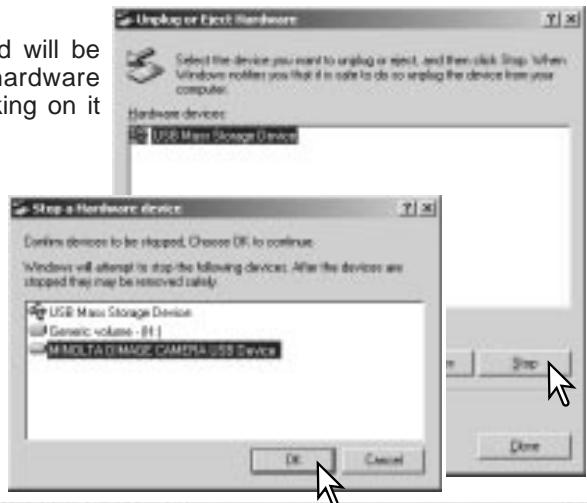

Never disconnect the camera when the access lamp is red - the data or memory card may permanentiy be damaged Windows 98 / 98 Second Edition Confirm that the access lamp is not lit Turn off the camera and then disconnect the USB cable. Windows Me, 2000 Professional, and XP To disconnect the camera, click once on the unplug-or-eject-hardware icon located on the task bar. A small window will open indicating the device to be stopped. 3:45 PM Click on the small window to stop EE NN | the device. The safe-to-remove- hardware window will open. Close 1) The LED Ma Por age Dev crc car om be aol rem fran de mn. the window, tum the camera off, and then disconnect the USB (ea | cable. Ÿ When more than one external device are connected to the computer, repeat the procedure above except right click on the unplug-or-eject-hardware icon; à small window indicating the unplug-or-eject-hardware routine will open. Click on the small window. Unplug or eject hardware N 100 DATA-TRANSFER MODE CREER «| The hardware devices to be stopped will be ne RER displayed in the unplug-or-eject-hardware ES ESCTEETEEE EES C window. Highlight the device by clicking On it | sus mue then click “Stop.” 1isif {Contes comme + be rampe Dress DE à contre À confimation screen will appear tD | ans dnasre anttien indicate the devices to be stopped. in Click “OK” to stop the device. Cane came #1 CON: ) A third and final screen will appear to indicate the camera can be safely disconnected from the computer. Close the window, tum the camera off, and then disconnect the USB CSN cable. F

Macintosh Confirmthatthe access lamp is not lit and then drag Ÿ the mass-storage device icon and drop it into the trash. Tu the camera off, and then disconnect the œ USB cable. -.

CHANGING THE COMPACTFLASH CARD - DATA-TRANSFER MODE Never remove a memory card when the access lamp is red - the data or memory card may permanentiy be damage: Windows 98 and 98 Second Edition

1. Tum off the camera.

3. Tum the mode dial to the data-transfer position to remake the USB connection.

2. Tum off the camera.

3. Change the CompactFlash card.

4. Tum the mode dial to the data-transfer position to remake the USB connection.

1. Stop the USB connection by dragging the drive icon into the trash (p. 101).

2. Tum off the camera.

3. Change the CompactFlash card.

4. Tum the mode dial to the data-transfer position to remake the USB connection.

AUTO POWER SAVE - DATA-TRANSFER MODE

If the camera does not receive a read or write command within ten minutes, it will Shut down to save power. When the camera shuts down, an unsafe-removal-of-device waming may appear on the computer monitor. Click “OK.” Neither the camera or computer will be damaged in this operation. Tum off the camera with the mode dial. Remake the USB connection by tuming the mode dial back to the data-transfer position.

QUICKTIME SYSTEM REQUIREMENTS

IBM PC / AT Compatible Pentium-based computer Windows 95, 98, 98SE, NT, Me, or 2000 Professional. 32MB or more of RAM QuickTime is used for viewing movie clips and playing voice-memo audio files. To install QuickTime, follow the instructions in the installer. Macintosh users can download the latest version of QuickTime free of charge from the Apple Computer web site: http:/www.apple.com. Sound Blaster or compatible sound card DirectX 3.0 or later recommended TROUBLESHOOTING The section covers minor problems with basic camera operation. For major problems or damage, or if a problem continues to reoccur frequentiy, contact a Minolta service facility listed on the back cover of this manual. Problem Symptom Nothing dis- played on the data panel or the monitors. The camera will not work. Cause The batteries are dead. The batteries are inserted incorrectiy. The AC adapter is not connected property. The camera was accidentally tumed on while in à bag or case, or the lens was hin- dered while extending. Solution Replace batteries (p. 16). Reinsert the batteries taking care that the negative and pos- itive terminals are oriented as indicated on the inside of the battery chamber door (p.16). Check that the adapter is con- nected to the camera and a live electrical outlet (p. 18). Tum the camera off and on to restore operation.

Problem Symptom Cause Solution Problem Symptom Cause Solution While using flash, the pic- The subject is beyond the flash range (p. M2ve closer to the subject or CompactFlash card is full Insert a new CompactFlash “000” is dis- and unable to store an card (p. 18), delete some en | CE change the camera sensitivity played on the image atthe image-quali- images (p. 76), or change the b to a higher setting (p. 62). frame counter ty orimage-size setting _image-quality or image-size dark. Shutter will on the camera. setting (p. 44). not release. Shooting data is displayed, Camera setto Shutter speed and Merle | but live image manual- aperture combination is lt Cr ss ing appears on N° CompactFlash card in Insert a CompactFlash card is entirely exposure extremely under or over. 2PETrE ane un an mage the monitor, (Ne Camera. (p.18). black or mode (M). exposing the live image. PP Fu white. Make sure the subject is within Enr die. Turn off the camera and remove the batteries or unplug the external power Subject is too close. the autofocus range (p. 26) or played on the SUPPIY. Wait for the message to disappear before reinserting the batteries or use the macro mode (p. 28). és EE plugging in the power supply. If the camera is hot, allow it to cool before GERS removing the batteries and Compactflash card. The camera is in macro Cancel the macro mode setting : . . . Focus signal is | mode. p.28). Ifthe camera does not function normally, tum it off, remove and reinsert the batteries, or red. unplug and reconnect the AC adapter. Always tum the camera off using the mode dial otherwise the CompactFlash card may be damaged and camera settings reset The ren À special situation is pre. U5€ the focus-lock function to camera temperature rises with extended periods of use. Care should be taken to avoid not sharp. Venting the autofocus gys- "CUS on an object at the same burns when handling the camera, batteries, or CompactFlash card. tem fem focusing (p27 distance as the subject (p. 26) or use manual focus (p. 59).

ABOUT NI-MH BATTERIES

Pictures are When using Ni-MH batteries, clean both battery terminals with dry cloth to wipe off any taken indoors 2/9 Shutter speeds Use a tipod, change the cam- dirt or residue. Because of the sophisticated computer system, the camera critically crinlow-lignt "ESultin blured images = era sensitivity to a higher set- monitors power levels. If the battery terminals are dirty, the camera may give a false low- situations with Men the camera is hand-… Hg (p. 62), or use the flash (p. battery waming. If battery performance is unusually low, wipe the battery terminals with out flash. - D. a clean, dry cloth. . Ni-MH battery performance will decrease if the batteries are often recharged before they Continuous Ch: nel ï _e ; A : r bee (motion honge the Imege-quaiiy set have been fully discharged. Completely exhaust the Ni-MH batteries using the camera CLS Ing (p. 44). before charging.

L.insert a memory card in the camera and connect itto the computer with the USB cable. Other devices must not be connected to the computer during this procedure.

2. Right click on the My-computer icon. Select “properties” from the drop-down menu.

Windows XP: fromthe start menu go to the control panel. Click on the performance and maintenance category. Click “System” to open the system properties window. 3.Windows 2000 and XP: selectthe hardware tab in the properties window and click the device-manager button. Windows 98 and Me: click the device-manager tab in the properties window. 4.The driver file will be located in the universal-serial-bus-controller or other-devices location of the device manager. Click on the locations to display the files. The driver should be indicated with the camera name. Under certain conditions, the driver name may not contain the camera name. However, the driver will be indicated by either a question mark or exclamation point. 5.Click on the driver to select it. 6.Windows 2000 and XP: click on the action button to display the drop-down menu. Select ‘uninstall.” A confirmation screen will appear. Clicking “Yes” will remove the dri- ver from the system. Windows 98 and Me: click the remove button. À confirmation screen will appear. Clicking “Yes” will remove the driver from the system. 7.Disconnect the USB cable and turn off the camera. Restart the computer.

CAMERA CARE + Do not subject the camera to shock or impact. + Tum off the camera when transporting. + This camera is neither waterproof nor splashproof. Inserting or removing batteries or the CompactFlash card, or operating the camera with wet hands may damage the camera. + When atthe beach or near water, take care not to expose the camera to water or sand. Water, sand, dust, or salt can damage the camera. + Do not leave the camera under direct sunlight. Do not pointthe lens directy at the sun: the CCD may be damaged. CLEANING + Ifthe camera or the outside of the lens is dirty, gentiy wipe itwith a soft, clean, dry cloth. If the camera or lens comes in contact with sand, genty blow away loose particles. Wiping may scratch the surface. + To clean the lens surface, first blow away any dust or sand, then gentiy wipe the lens with a cloth or tissue designed for optics. Use lens-cleaning fluid if necessary. + Never use organic solvents to clean the camera. + Never touch the lens surface with your fingers. STORAGE + Store in a cool, dry, well-ventilated area away from dust and chemicals. For long periods of disuse, store the camera in an airtight container with a silica-gel drying agent. + Remove the batteries and CompactFlash card from the camera when not in use for extended periods. + Do not store the camera in an area with naphthalene or mothballs. + During long periods of storage, operate the camera occasionally. When taking the camera out of storage, check that the camera is functioning properiy before using.

+ Although the LCD monitor is manufactured using high precision technology, there may occasionally be a lack of color or bright points on the LCD monitor. + Do not apply pressure to the surface of the LCD monitor; it may be permanentiy damaged. +In à cold environment, the LCD monitor may become temporarily dark. When the camera warms up, the display will function normally. + The LCD monitor may be slow to react in low temperatures or may tum dark in a hot environment. When the camera reaches normal operating temperature, the display will function normally. + If fingerprints are on the LCD monitor surface, gentiy wipe with a soft, clean, dry cloth.

OPERATING TEMPERATURES AND CONDITIONS

+ This camera has been designed for use in temperatures from 0°C to 40°C (32°F to 104°F). + Never leave the camera exposed to extreme high temperatures, such as in à car parked in the sun, or to extreme humidity. + When taking the camera from a cold to a warm environment, place it in a sealed plastic bag to prevent condensation from forming. Allow the camera to come to room temperature before removing it from the bag.

BEFORE IMPORTANT EVENTS OR J OURNEYS

+ Check the camera's operation; take test pictures and purchase spare batteries. + Minolta has no responsibility for any damage or loss incurred by equipment malfunction. COPYRIGHT + TV program, films, video tapes, photographs, and other materials may be copyrighted. Unauthorized recording or duplication of such material may be contrary to copyright laws. Taking pictures or images of performances, exhibitions, et., is prohibited without approval and can infringe on copyright Images protected by copyright can only be used under the provisions within the copyright laws. BATTERIES + Battery performance decreases with temperature. In cold environments, we recommend keeping spare batteries in a warm place, such as the inside of a coat. Batteries can recover their power when they warm up. As the performance of Ni-MH batteries are less affected by temperature, their use is recommended when shooting in cold environments. -Remove the batteries when the camera is not in use for an extended period. Leaking battery fluid may damage the battery-chamber. + Occasionally, when using alkaline batteries, the battery-condition indicator will give a false low-battery-power waming, even though there is enough power capacity. Continue to use the camera; the low-battery indicator will disappear. + If batteries have been exhausted when used in the camera, do not reload them even if their charge seems to recover over time. These batteries will interfere with normal camera operation.

COMPACTFLASH CARD CARE AND HANDLING

CompactFlash Cards are manufactured with precision electronic components. The fol- lowing may cause data loss or damage: + Improper use of the card. + Bending, dropping, or subjecting the card to impact. + Heat, moisture, and direct sunlight. + Static electrical discharge or electromagnetic fields near the card. + Removing the card or interrupting the power supply while the camera or à computer is accessing the card (reading, writing, formatting, etc.). + Touching the electrical contacts of the card with your fingers or metal objects. + Using the card beyond its life. Purchasing a new card periodically may be necessary. Minolta has no responsibility for any loss or damage to data. It is recommended that a copy of the card data be made.

QUESTIONS AND SERVICE

+ If you have questions about your camera, contact your local camera dealer or write to the Minolta distributor in your area. + Before shipping your camera for repair, contact a Minolta Service Facility.

TECHNICAL SPECIFICATIONS Number of effective pixels: CCD: Camera sensitivity (ISO): Aspect ratio: Lens construction: Maximum aperture: Focal length: Focusing range (from the CCD): Filter diameter: Autofocusing system: Shutter: Shutter speeds: Built-in flash recycling time: Viewfnder: Monitor LCD: Monitor field of view AID conversion: Recording media: File formats: Printing output control: Menu languages: Video output:

1/1.8-type interline primary-color CCD with a total of

Auto and 64, 100, 200, and 400 ISO equivalents.

11 elements in 9 groups including one AD glass and two double-sided aspheric elements. #/3.0 (wide-angle position), f/3.6 (telephoto position)

7.15 - 28.6 mm (35mm equivalent 35 - 140 mm)

0.5 m (1.6 ft.) - infinity (wide-angle position)

Video AF CCD electronic shutter plus mechanical shutter 1/1000 - 4s, bulb (15 maximum) 8s (approx) Optical real-image zoom viewfnder. 46 mm TFT color Approximately 100% 12 bits Type 1 CompactFlash cards JPEG, TIFF, motion J PEG (mov), WAV. DCF 1.0 and DPOF compliant. Exif print, PRINT Image Matching Il Japanese, English, German, French, and Spanish NTSC and PAL Batteries: Battery performance (recording): Battery perfomance (playback): Extemnal power source: Dimensions: Weight: Operating temperature: Operating humidity: 4 AA Ni-MH or alkaline batteries. Ni-MH batteries are recommended over alkaline. Approximately 160 frames. Based on Minolta's stan- dard test method: 1,850mAh Ni-MH batteries, LCD monitor on, full-size images (2272 X 1704), standard image quality, no instant playback, no voice memo, flash used with 50% of the frames. Approximately 300 frames: based on Minolta's stan- dard test method: 1,850mAh Ni-MH batteries, LCD monitor off, full-size images (2272 X 1704), standard image quality, no instant playback, no voice memo, flash used with 50% of the frames. Approx. continuous playback time: 120 min. Based on Minolta's standard test method: 1,850mAh Ni-MH bat- teries, LCD monitor on. AC adapter (AC-1L or AC-2L) High-power battery pack (EBP-100)

113.5 (W) X 64.5 (H) X 58.5 (D) mm

Specifications are based on the latest information available at the time of printing and are subject to change without notice. 110 APPENDX

9222-2799-31 PR-A212 Printed in China

Ni-MH batteries are recommended over alkaline for digital cameras. The recording performance ofthe DIMAGE S414 with 1,850mAh Ni-MH batteries is approximately 160 frames when using the camera with the LCD monitor on, or approximately 300 frames when using the camera with the LCD monitor off. This is based on Minolta's standard test method: full-size images (2272 X 1704), standard image quality, no instant playback, no voice memo, flash used with 50% of the frames. The number of recordable frames can vary with battery and charger brands, and under differing operating conditions. English Although alkaline batteries are supplied with this product, its performance will be limited; only use alkaline batteries for test photographs or when Ni-MH batteries, the Minolta external battery pack, or the AC adapter are not available. Fully recharge the Ni-MH batteries just before using the camera. When using Ni-MH batteries, clean both battery terminals with a dry cloth to wipe off any dirt or residue. Because of the sophisticated computer system, the camera critically monitors power levels. If the battery terminals are dirty, the camera may give a false low-battery warning. If battery performance is unusually low, first wipe the battery terminals with a clean, dry cloth before replacing the batteries. Ni-MH battery performance will decrease if the batteries are often recharged before they have been fully discharged. Completely exhaust the Ni-MH batteries using the camera before charging. Always turn off the camera before changing the batteries.
