USER MANUAL PL-100 ZYXEL

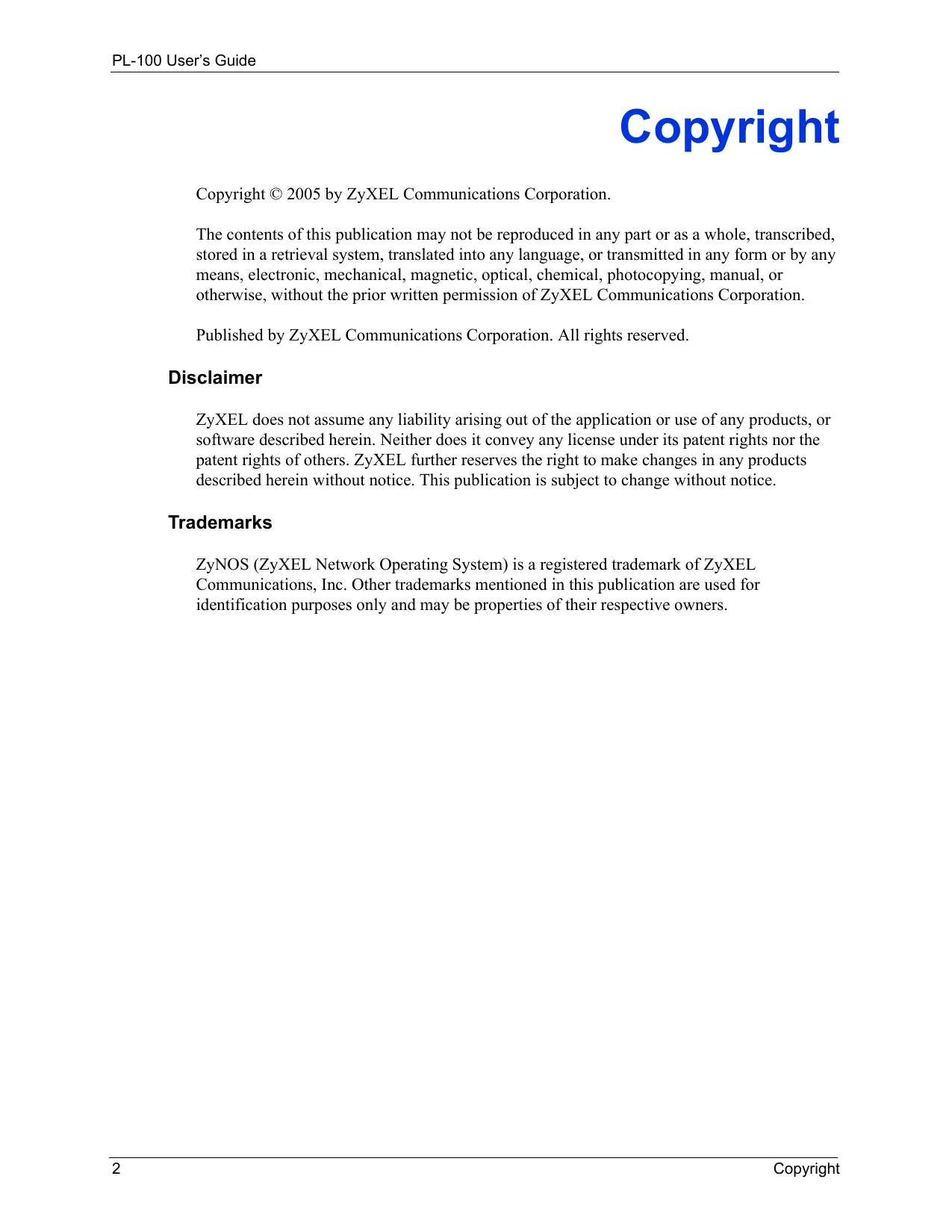

PL-100 Users Guide Copyright Copyright © 2005 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice. Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners. 2 Copyright

PL-100 User's Guide Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: + This device may not cause harmful interference. + This device must accept any interference received, including interference that may cause undesired operations. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + _Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. + _ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or TV technician for help. Notice 1 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Certifications 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page. Federal Communications Commission (FCC) Interference Statement 3

PL-100 Users Guide Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information. Connect the power cord to the right supply voltage (110V AC in North America or 230V AC in Europe). Place connecting cables carefully so that no one will step on them or stumble over them. Do NOT allow anything to rest on the power cord and do NOT locate the product where anyone can walk on the power cord. If you wall mount your device, make sure that no electrical, gas or water pipes will be damaged. Do NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning. Do NOT expose your device to dampness, dust or corrosive liquids. Do NOT use this product near water, for example, in a wet basement or near a swimming pool. Make sure to connect the cables to the correct ports. Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device. Do NOT store things on the device. Connect ONLY suitable accessories to the device. Safety Warnings

PL-100 User's Guide ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. Note Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind of character to the purchaser. To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country. ZyXEL Limited Warranty 5

PL-100 Users Guide Customer Support Please have the following information ready when you contact customer support. Product model and serial number. Warranty Information. Date that you received your device. Brief description of the problem and the steps you took to solve it.

PL-100 Users Guide 8 Customer Support

PL-100 User's Guide Table of Contents Copyright … Federal Communications Commission (FCC) Interference Statement... 3 Safety Warnings ZyXEL Limited Warranty... Customer Support Table of Contents List of Figures List of Tables . Preface

1.4 Applications for the PL-100

1.4.1 Broadband Internet Access via Cable or DSL Modem . :

1.4.2 Connect a Computer, Printer or Game Device to a Network 18

1.4.3 Share Files, Printers and Other Devices

Connecting the PL-100

2.1 Preparing to Install the PL-100

2.2 Connecting the PL-100

2.2.1 Connecting the PL-100 to Your Main Cable or DSL Modem

2.2.2 Connecting the PL-100 to a Computer

3.1 Installation of the Utility

Using the Configuration Utility

5.1 Using LEDs to Diagnose a Problem

5.1.1 PWR LED is Off

5.1.2 LINK LED is Off

5.1.3 ETHN LED is Off

Appendix A PL-100 Specifications Appendix B Setting up Your Computer’s IP Address...

PL-100 Users Guide 12 List of Figures

PL-100 User's Guide List of Tables Table 1 LED Status of the PL-100 After Connection Table 2 Utility Main Window Descriptions Table 3 Privacy Screen Choices Table 4 Diagnostics Screen Items Table 5 About Screen Choices Table 6 Troubleshooting PWR LED Table 7 Troubleshooting LINK LED Table 8 Troubleshooting ETHN LED Table 9 Specifications … Table 10 RJ-45 Connector Pin Assignments List of Tables 13

PL-100 Users Guide 14 List of Tables

PL-100 User's Guide Preface Congratulations on your purchase of the PL-100 PowerLine 85 Mbps Ethernet Adapter. Note: Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products. Your PL-100 Ethernet Adapter is easy to install and configure. About This User's Guide This manual is designed to guide you through the configuration of your PL-100 for its various applications. Related Documentation + Supporting Disk Refer to the included CD for support documents. + Quick Start Guide The Quick Start Guide is designed to help you get up and running right away. It contains a detailed easy-to-follow connection diagram, default settings, handy checklists and information on setting up your network and configuring for Internet access. + ZyXEL Glossary and Web Site Please refer to www.zyxel.com for an online glossary of networking terms and additional support documentation. User Guide Feedback Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you! Syntax Conventions + “Enter” means for you to type one or more characters. “Select” or “Choose” means for you to use one predefined choices. + Mouse action sequences are denoted using a comma. For example, “In Windows, click Start, Settings and then Control Panel” means first click the Start button, then point your mouse pointer to Settings and then click Control Panel. + “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”. Preface 15

Getting to Know Your PL-100 This chapter introduces the main features and applications of the PL-100.

1.1 PL-100 PowerLine 85 Mbps Ethernet Adapter Overview

Thank you for purchasing the The PL-100 PowerLine 85 Mbps Ethernet Adapter transforms a house's existing electrical wiring into a powerful networking infrastructure. The PL-100 plugs into an ordinary outlet to easily extend a cable or DSL broadband connection or existing Ethernet (LAN) network to any other electrical outlet in any room of a house, all without the need for any new cabling. The PL-100 supports up to an 85 Mbps data rate over common power lines while providing 56-bit DES Link Encryption for a safe and secure network. Easy to install, simply plug the PL- 100 into an outlet and connect it to any broadband modem or router, and then plug each PC, home entertainment device, gaming console or network-ready printer into a power socket with another PL-100.

Up to an 85 Mbps Data Rate Over Power Lines Power line communication (PLC), also called Broadband over Power Lines (BPL) or Power Line Telecoms (PLT), is a wireline technology that is able to use the current electricity networks for data and voice transmission. The technology allows the transfer of voice and data by superimposing an analog signal over the standard 50 or 60 Hz alternating current (AC). 56-bit DES Link Encryption Data Encryption Standard (DES) is a widely used method of data encryption using a secret key. DES applies a 56-bit key to each 64-bit block of data. No New Wiring to Install The PL-100 works in any home with copper wiring used as for electrical lines. Since some older houses built before 1950 might have older wiring, then it may not work in these cases. The PL-100 signal has no problem passing through circuit breakers, but can’t pass through power transformers (which usually feed power to a house or groups of houses). The PL-100 works with AC input of 100 — 240 V.

Chapter 1 Getting to Know Your PL-100 17

PL-100 Users Guide LAN Port The 10/100 Mbps auto-negotiating Ethernet LAN port allows the PL-100 to detect the speed of incoming transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network. The port is also auto-crossover (MDI/MDI-X) meaning it automatically adjusts to either a crossover or straight-through Ethernet cable. HomePlug V1.01 Compatible À coalition of manufacturers, the HomePlug Powerline Alliance, established the HomePlug

1.0 Standard, which enables the establishment of an Ethernet-class network over powerline

+ _ At least two available power outlets +_ Standard home power wiring + A computer with the following: + CD-ROM drive + IBM compatible running at 200 MHz or better + 64 MB of RAM + __ Ethernet network adapter + TCP/IP installed

1.4 Applications for the PL-100

Here are some examples of what you can do with your PL-100.

1.4.1 Broadband Internet Access via Cable or DSL Modem

You can connect the PL-100 to cable modem, DSL or wireless modem via an Ethernet switch or wireless port on the modem, and extend this high speed connection to all other PL-100 devices in the house.

1.4.2 Connect a Computer, Printer or Game Device to a Network

Besides a computer, you can connect other devices to your PL-100 enabled home LAN network. A printer, game device or a home entertainment system can be easily added to the system by connecting each to a PL-100. Each device only needs a standard ethernet connector. 18 Chapter 1 Getting to Know Your PL-100

1.4.3 Share Files, Printers and Other Devices

The benefit of any home network is of course to easily connect to high speed Internet, but also to share and exchange content. Easily share one printer with everyone in the house. Send or receive videos or music anywhere in the house. It is a great way to connect and is safer than a wireless connection.

Chapter 1 Getting to Know Your PL-100 19

Connecting the PL-100 This chapter describes how to connect the PL-100 to your broadband connection and computers.

2.1 Preparing to Install the PL-100

The PL-100 PowerLine 85 Mbps Ethernet Adapter allows you to set up a high speed home network using your house's existing electrical wiring. The PL-100 plugs into an ordinary outlet to easily extend a cable or DSL broadband connection or existing Ethernet (LAN) network to any other electrical outlet in any room of a house. Basically, you need to plug one PL-100 Ethernet adapter into a wall outlet for each computer (or other Ethernet device like printer or game console) you want to connect to your network. You will also need one PL-100 to extend your cable or DSL modem connection, the PL-100 connects to your modem or router to extend your broadband connection to the other PL-100 units in your house. The steps below will show how to setup the hardware, install the required software and then use the PL-100 home networking functions. If needed, there is a Troubleshooting section included that will hopefully help you work through any issues you might encounter. Section Chapter 5 on page 37 for help. To summarize what you need to install the system, let’s do a quick summary. + One PL-100 Ethernet adapter connected to each computer. + A standard broadband modem. + A standard router connected to broadband modem (some units might have a combined Cable or DSL modem or router).

Chapter 2 Connecting the PL-100 21

2.2 Connecting the PL-100

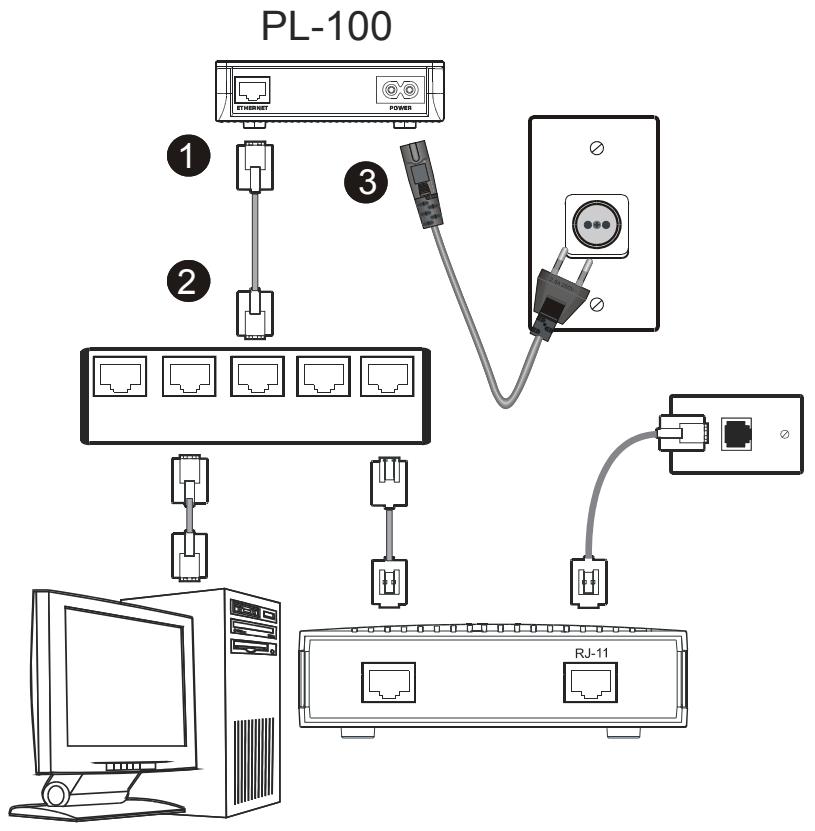

2.2.1 Connecting the PL-100 to Your Main Cable or DSL Modem

In order to get the whole house networked, you want to first make sure all the computers you wish to be networked are connected properly to a PL-100 adapter. The figure below shows how to connect the PL-100 into your existing broadband connection via Ethernet switch. Follow the steps below to connect the PL-100 to your broadband modem. 1 Connect an Ethernet cable to the port on the PL-100. 2 Connect the other end of this Ethernet cable to an available Ethernet LAN port of your router (broadband modem or router device). 3 Plug the PL-100 into a wall socket that is near your computer. 4 Confirm that the PWR, LINK and ETHN LEDs on the PL-100 are on. Figure 1 Connecting the PL-100 to a Broadband Modem PL-100 22 Chapter 2 Connecting the PL-100

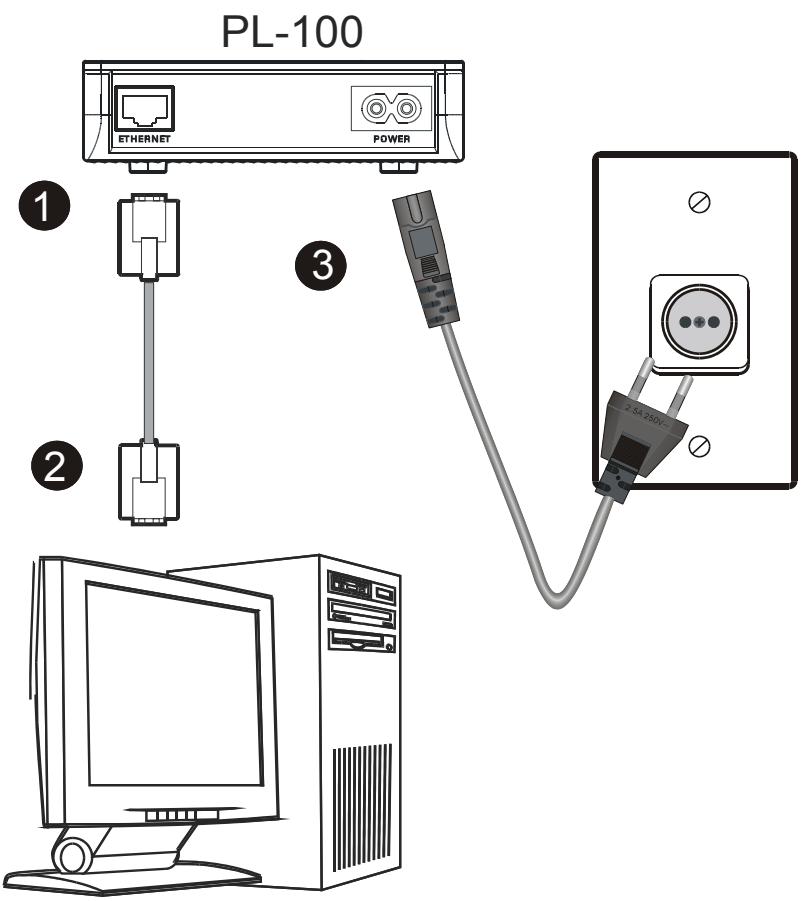

2.2.2 Connecting the PL-100 to a Computer

For all the computers you wish to be networked, they must each be connected properly to a PL-100 Ethernet adapter. The figure below shows how to connect the PL-100 to each computer. Follow the steps below to connect the PL-100 to your computer. 1 Connect an Ethernet cable to the port on the PL-100. 2 Connect the other end of this Ethernet cable to the Ethernet port of your computer. 3 Plug the PL-100 into a wall socket that is near your computer. 4 Confirm that the PWR, LINK and ETHN LEDs on the PL-100 are on. Figure 2 Connecting the PL-100 to a Computer PL-100

Chapter 2 Connecting the PL-100 23

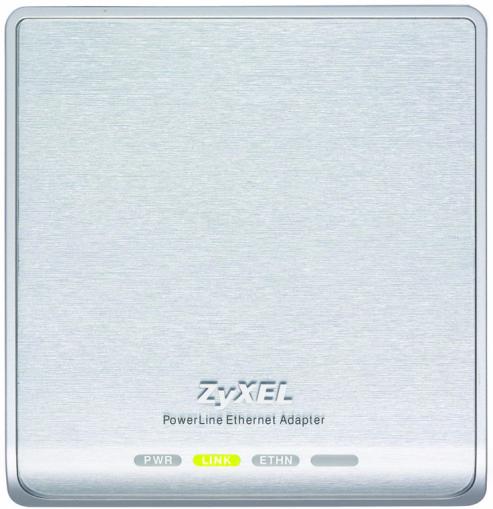

The LEDs of the PL-100 show the current connection status. Figure 3 PL-100 Top View With LED Lights Table 1 LED Status of the PL-100 After Connection

LABEL STATUS DESCRIPTION

PWR ON The PL-100 is on and receiving power. OFF The PL-100 is not receiving power. LINK ON The Powerline port detects another powerline device. Flashing The Powerline port is transmitting. OFF The Powerline port is not detecting another powerline device. ETHN ON The Ethernet port is on and ready. Flashing The Ethernet port is transmitting. OFF Devices on the Ethernet port are not connected or not on. Please refer to the troubleshooting guide for additional help if needed. Section Chapter 5 on page 37 for help.

Chapter 2 Connecting the PL-100

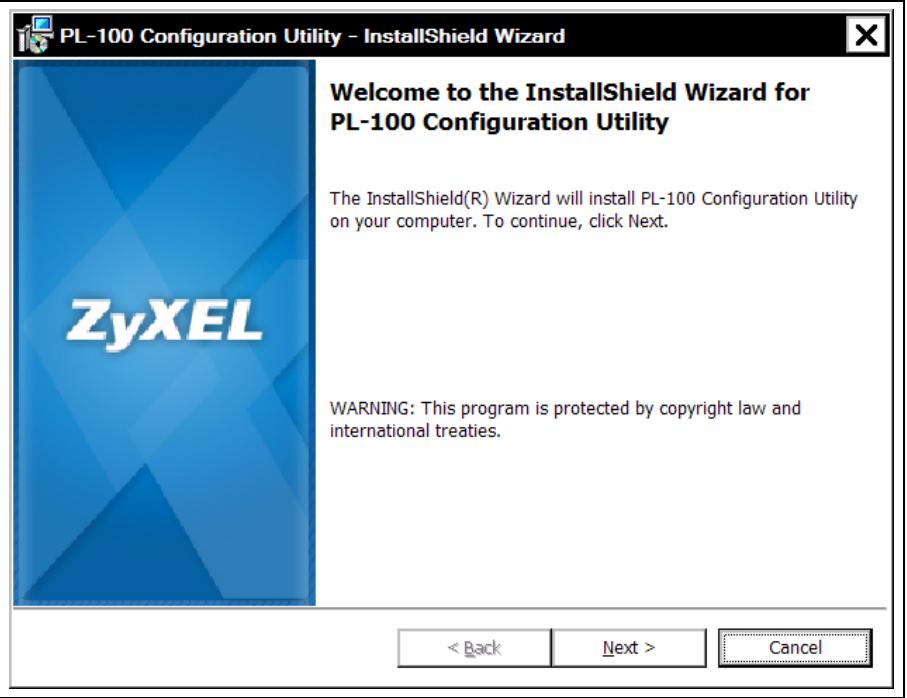

3.1 Installation of the Utility

Please verify that no other HomePlug or Encryption Management Utilities are installed before installing this product. If other utilities are installed, uninstall them and restart before installing this software. To install the PL-100 Configuration Utility, please follow the steps below. 1 Insert the ZyXEL Windows OS Configuration Utility Setup utility CD-ROM into the computer’s CD-ROM drive. The Setup utility runs automatically. Alternatively this can also be done manually by double clicking the setup.exe file on the CD. The CD will launch an installation utility similar to the one shown in Figure 4. Click Next to continue. Figure 4_InstallShield Wizard Start Screen 00 Configuration Utility - InstallShield Wizard Welcome to the InstallShield Wizard for PL-100 Configuration Utility The InstallShield(R) Wizard will install PL-100 Configuration Utility on your computer. To continue, click Next.

WARNING: This program is protected by copyright law and

international treaties. Back ux> [[[ cn |

Chapter 3 Installing the PL-100 Software 25

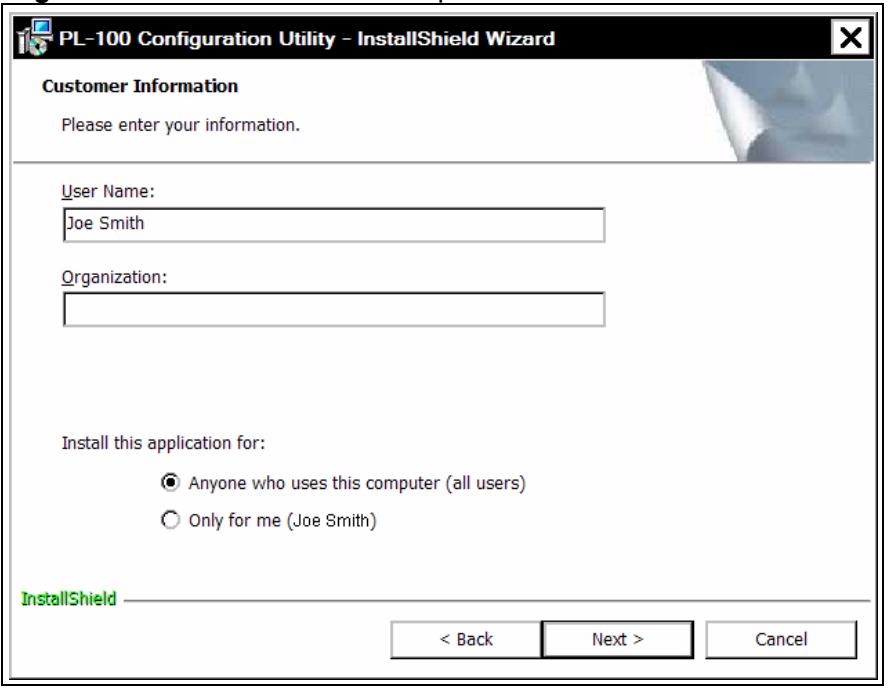

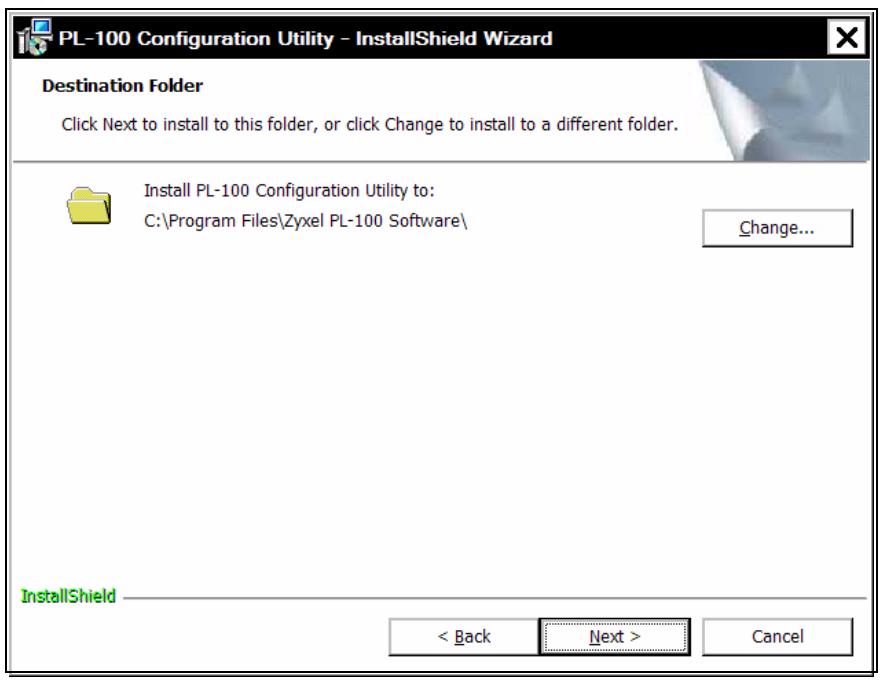

PL-100 Users Guide 2 Enter your User Name and Organization (optional). For exclusive control by an individual, click the “Only for me” radio button. Click Next to continue. Figure 5 Customer Information Input Customer Information Please enter our information. User Name: Poe Smin Organization: Install this application for: © anyone who uses this computer (all users) © on for me (Joe Smith) 3 Click Next to install to the default folder, or click Change to install to a different folder. Figure 6 Install Destination Folder nfiguration Utility - InstallShield Wizard Destination Folder Click Next to install to this folder, or click Change to install to à different folder. a Install PL-100 Configuration Utility to: C:\Program Files\2yxel PL-100 Software\ ange. <Bak | Nex> | Cancel

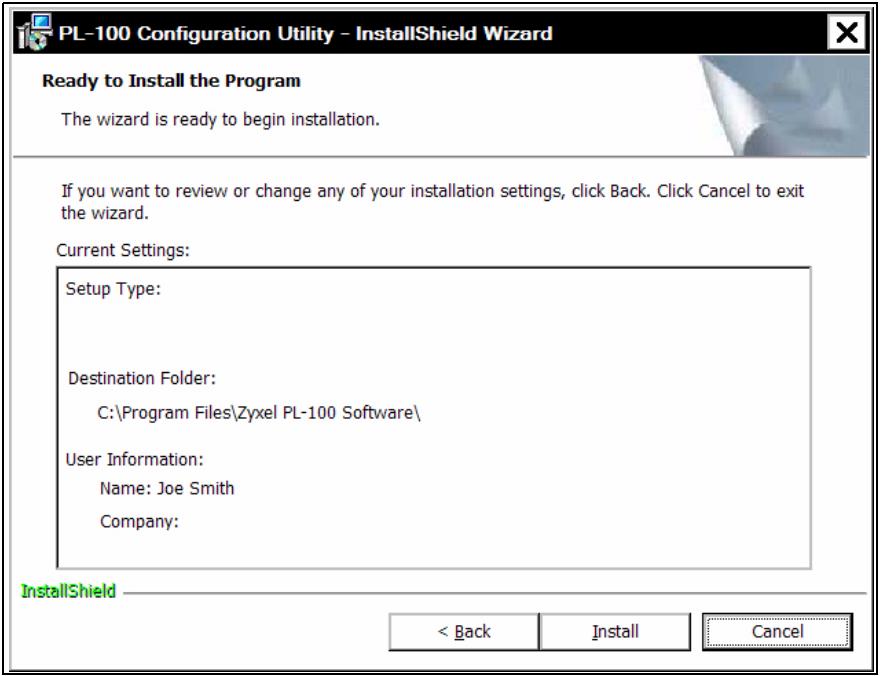

PL-100 User's Guide 4 The installation wizard is ready to begin the installation. Click Next to proceed or Cancel to exit the wizard. Figure 7 Install Begin Screen nfiguration Utility Ready to Install the Program The wizard is ready to begin installation. I you want to review or change any of your installation settings, click Back. Click Cancel to exit the Wizard. Current Settings: Setup Type: Destination Folder: C:\Program Files\Zyxel PL-100 Software\ User Information: Name: Joe Smith Company: InstallShield 5 The PL-100 Configuration Utility is being installed. Please wait for installation to complete. Figure 8 Install Process Screen nfiguration Utility - Insta Installing PL-100 Configuration Utifity The program features you selected are being installed. Please wait while the InstallShield Wizard installs PL-100 Configuration Utility. This may take several minutes. Status: < Back ext JL net

Chapter 3 Installing the PL-100 Software 27

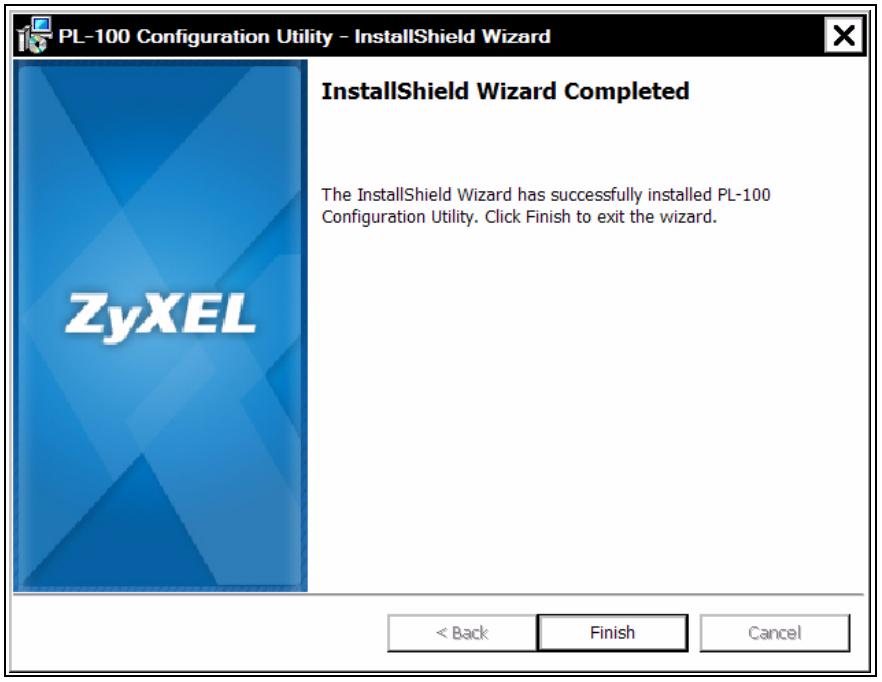

PL-100 User's Guide 6 This is the screen to confirm the Installation Wizard has successfully installed the PL-100 Configuration Utility to your computer. Click Finish to exit the wizard. Figure 9 Installation Confirmation Screen ty - InstallSi Wizard InstallShield Wizard Completed The InstallShield Wizard has successfully installed PL-100 Configuration Utility. Click Finish to exit the wizard. < Back Finish Cancel

Using the Configuration Utility After the hardware and software are installed successfully, you can set up and adjust your network. In order to run the configuration utility, double-click the utility icon. To do this, click Start, Programs and Zyxel Software and click on PL-100 Configuration Utility. Figure 10 on page 29 below shows the main screen of the configuration utility.

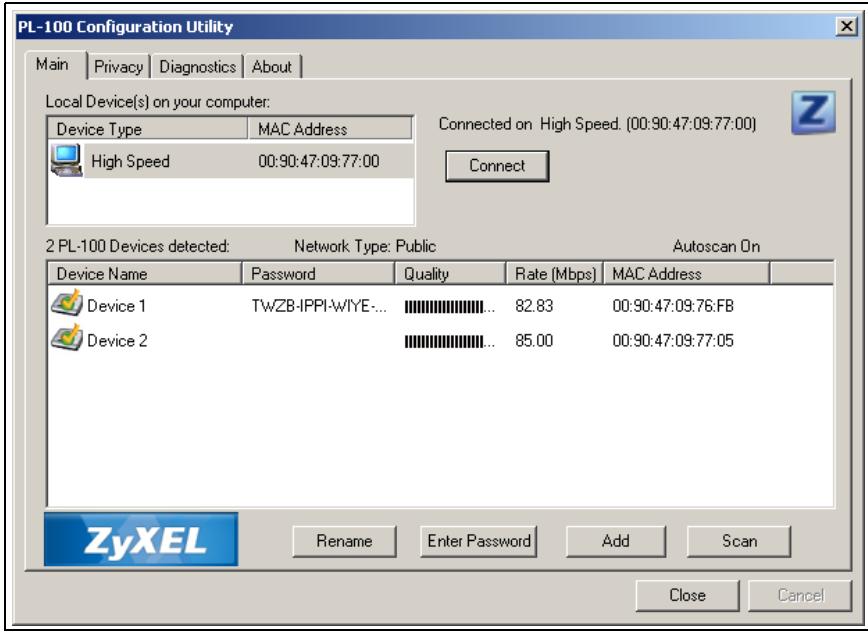

4.1 Configuration Utility Main Screen

The Main screen essentially provides a list of all powerline devices logically connected to the computer where the utility is running. Figure 10 PL-100 Configuration Utility Main

Chapter 4 Using the Configuration Utility

PL-100 Users Guide Table 2 Utility Main Window Descriptions LABEL DESCRIPTION Top Panel This shows all local HomePlug devices found connected to the computer’s NIC (Network Interface Card). In most cases, only one device will be seen. In situations where there are more than one device connected, such as a USB and also an Ethernet device, you may click to select the one to manage through and then click the Connect button toits right. The status area above the button indicates that your PC is connected to that same device. Once connected to the chosen local device, the utility will automatically scan the power line periodically for any other HomePlug devices. If no local HomePlug devices are discovered, the status area above the connect button will indicate that accordingly. Lower Panel This displays all the HomePlug devices discovered on the current logical network (remote devices). Displayed immediately above this panel is the number of remote devices found, the type of logical network (Public or Private), and a message area that reports connectivity and scan status. The following information is displayed for each of the devices discovered that appear in the lower panel. Device Name This shows the default device name, which may be re-defined. You may change the name by clicking on the name and editing in-place, or by using the rename button. An icon is optionally shown with the name. A distinction in icons is made between low- speed and high-speed devices (HomePlug 1.0 and Turbo). By default, the icon is displayed with the name. Rename This allows you to rename a device. Password This shows current password for device. Quality This shows the quality of the High speed or Low speed device connection. Rate This shows the current transmission rate of selected device. MAC Address | This shows the device’s MAC address. Enter This column shows the supplied device password (initially left blank). You may enter Password the password by using the Set Password button (explained below). To set the Password of the device (required when creating a private network), first select the device by clicking on its name in the lower panel and then click on the Enter Password button. A dialog box will appear as shown below to type the password. The selected device name is shown above the field for entering the password. Click OK after entering the new password. A confirmation box will appear if the password was entered correctly. If a device is not found, you will be notified and suggestions to resolve common problems will be presented. Add Button This is used to add a remote device to your network that is not on the displayed list in the lower panel. For example, a device currently on another logical network See Figure 11 on page 31,can be added this way. You are advised to locate the passwords for all devices you wish to manage and add them to the local logical network by clicking on the Add button. A dialog box will appear as seen below. The dialog box allows you to enter both a device name and the password. Scan Button This is used to perform an immediate search of the HomePlug devices connected to the computer. By default the utility automatically scans every few seconds and updates the display.

Chapter 4 Using the Configuration Utility

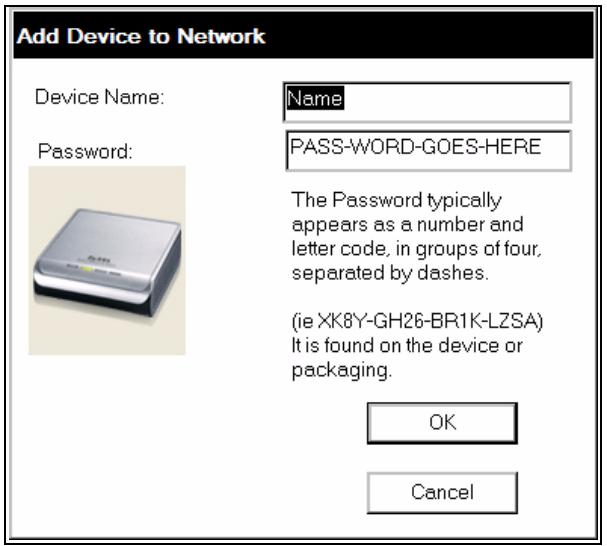

PL-100 User's Guide Figure 11 Add Device Add Device to Netwo: Device Name: Æ Password PASS-WORD-GOES-HERE The Password typically appears as a number and letter code, in groups offour, separated by dashes Ge XKEY-GH26-BRIK-LZSA) Kis found an the device or packaging Cancel A confirmation box will appear if the password was entered correctly and if the device was found. If a device is not found, you will be notified and suggestions to resolve common problems will be presented. Note: The device must be present on the power line (plugged in) in order for the password to be confirmed and added to the network. located, a warning message will be shown. If the device could not be À typical screen after naming and supplying passwords might appear as below, which is also the diagnostics screen. Figure 12 Naming and Passwords PL-100 Configuration Utility Main | Pivacy Diagnostics | About | System Information I À On NIC #1 MAC = OU-IT:2F-70B7.7E HomeFlug Device #1 MAC = 00:90:47:0977-00 Netoik name: HomePlug Vendor. Product Fimaare: Version 15 (INTS500CS MAC-1-5-5-53-20050712-RELEASE } Reade: 6776 (862 KB) Wites: 2120 (171 KB) Drops = 0, Fais = 0, Highest = 0.00 Mbps. Lowest = 0.00 Mbps Remote Device History (Log) Device [MAC Address [Password [Rate [Mbps] [ Network | LastSeen Device 1 00904709 76FB TWZBIPPIWIVE. 8283 HomePlug Sep 24 11:24 Device 2 009047087705 -notentered 6500 HomePlug SepATTA (ET mi Dekte… | EmsiRepor. | Save Report. | | PrintRepor.. |

Chapter 4 Using the Configuration Utility

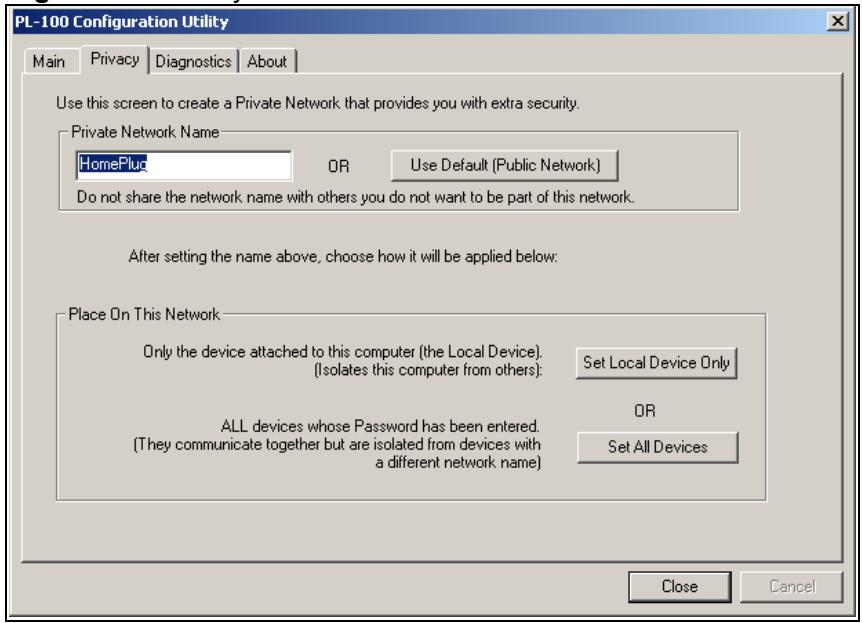

The Privacy dialog screen provides a means for managing the local network and providing additional security. All HomePlug devices are shipped using a default logical network (network name), which is normally “HomePlug”. The Privacy dialog screen allows you to make the network private by changing the network name (network password) of devices. You can always reset a HomePlug network to the universal one (public) by entering “HomePlug” as the network name or by clicking on the Use Default button. Note: Changing the network name to any other name other than HomePlug will show the network type on the main screen as Private. Figure 13 Privacy Screen

Moin … Privacy | Diagnostics | About | Use this screen to create a Private Netotk that provides you milh extra security Private Network Name HomePius oR Use Defaut (Public Netwoik] Do nat share the network name with athers you do not want to be pat of this network. Alter seting he name above, chose how wil be applied belour Place On This Netwoik Oh he device atlached lots computer (the Local Device) (lsolates this computer om others} Set Local Device On

ALL devices mhose Password has been entered. {They communicate together but are isolated from devices with Set AI Devices different nehuork name] Table 3 Privacy Screen Choices LABEL DESCRIPTION Set Local This is used to change the network name (network password) for the local device only. Device Only | After doing this, all the devices seen on the Main panel prior to this will no longer be able to communicate or respond to the computer, as they will be on a different logical network. Devices previously set up with the same logical network (same network name) will appear in the device list afterward selecting this option. Set All This is used to change the logical network of all devices that appear on the Main panel. Devices You must have entered the device's Password in order to set it to the new logical network. A notification message will appear to report the success of this operation. 32 Chapter 4 Using the Configuration Utility

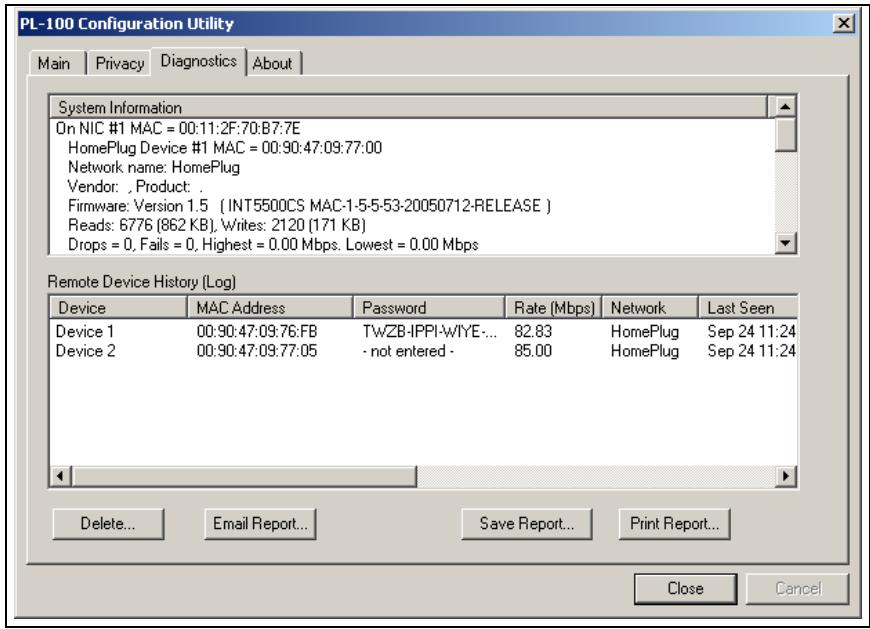

The Diagnostics screen shows system information and a history of all devices seen. The appearance is shown in the figure below. Figure 14 Diagnostics Screen Main | Privacy Diagnostics | About | fPL-100 Conf on Utility System Information, On NIC #1 MAC = OUT-2F 707€ HomePlug Device #1 MAC = 00:90.47:08:77.00 Netwoëk name: HomePug Vendor Product Fimware: Version 1.5 {INTS500CS MAC-1:5-5.5320050712-RELEASE } Reads: 6776 (862 KB) Wites: 2120 (171 KB) Draps = 0, Fais = 0, Highest = 0,00 Mbps. Lowest = 0.00 Mbps Remote Device History Log)

Chapter 4 Using the Configuration Utility

PL-100 Users Guide Table 4 Diagnostics Screen Items LABEL DESCRIPTION Upper Panel | This area shows technical data concerning software and hardware on the host computer used to communicate over HomePlug. It includes the following: + Operating System Type or Version + Host Network Name + User Name + MAC Address of all NICs (network interface card) + Identify Versions of all Driver DLLSs and Libraries used (NDIS) + HomePlug chipset manufacturer name (Turbo Only devices) + MAC Firmware Version (Turbo Only devices) + Vendor Name Lower Panel |This area contains a history of all remote devices seen on the computer over time. Devices are shown here regardless of whether or not they are on the same logical network. Devices that are active on the current logical network will show a transfer rate in the Rate column; devices on other networks, or devices that may no longer exist are shown with a “?” in the Rate column. The following remote device information is available from the diagnostics screen: + Adapter Alias Name + __ Adapter MAC Address + Adapter Password + Adapter Last known rate + Adapter Last Known Network + _HomePlug chipset manufacturer name + Date device last scanned. + MAC Firmware Version (Turbo Only). Delete, Email |The diagnostics information displayed may be saved to a text file for later emailing to Report, Save | technical support of a manufacturer, or printed for reference during a technical support Report, Print | call. Devices no longer part of the network can be deleted using the Delete button. Report 34 Chapter 4 Using the Configuration Utility

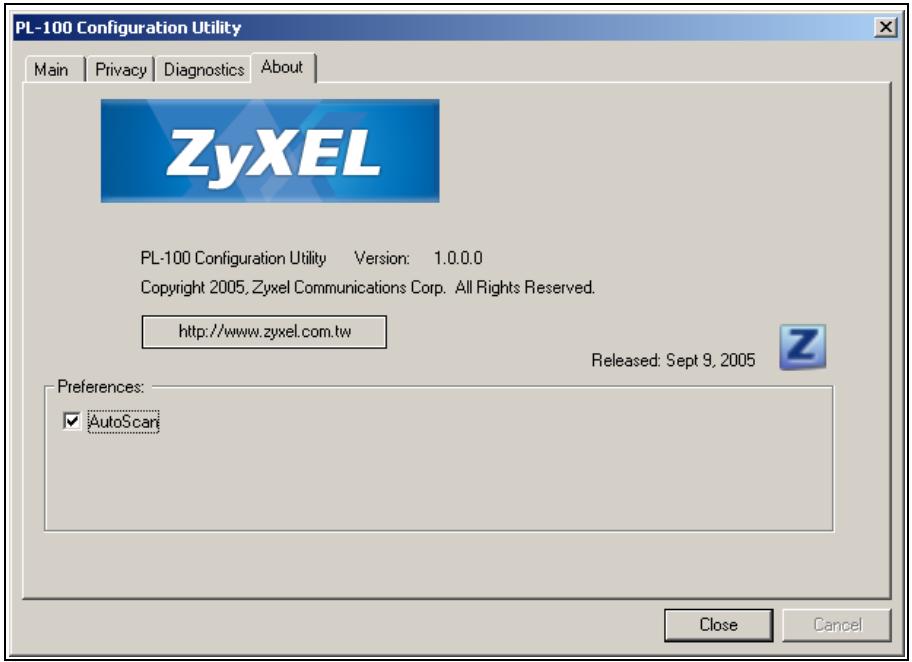

The About screen in the figure below shows the software version and provides access to the ZyXEL website. Figure 15 About Screen PL-100 Configuration Utility Main | Pivacy| Diagnostics About | PL-100 Configuration Utity Version: 1.000 Copyright 2005, Zyxel Communications Corp. Al Rights Reserved. Hitp://mwve ayrel com tu L Rleased Sept 9, 2005 Close Crea] Table 5 About Screen Choices LABEL DESCRIPTION directly to the ZyXEL web site. http://www.zyxel.com.tw |Clicking on this web address field will open a web browser and take you Main utility screen is clicked. AutoScan This is used as the default Autoscan setting to find all HomePlug devices connected to the computer. When checked, the utility automatically scans every few seconds and updates the information to display. When left blank, the Configuration Utility only scans for devices when the Scan button on the

Chapter 4 Using the Configuration Utility

Troubleshooting This chapter covers potential problems and possible remedies. After each problem description, instructions are provided to help you diagnose and fix the problem.

5.1 Using LEDs to Diagnose a Problem

5.1.1 PWR LED is Off

1 Make sure the PL-100 is properly connected to a power outlet. Make sure the outlet is working by plugging another electric device into it. If it is working, plug in the PL- 100 again. If the PL-100 LED still does not light, contact our technical support.

5.1.2 LINK LED is Off

1 Use the PL-100 Configuration Utility to detect all other Homeplug devices on your power line network. 2 Try plugging a second Homeplug device into an adjacent socket (to your PL-100) and see if the lights light up. If you are still having a problem, please contact our technical support line.

5.1.3 ETHN LED is Off

1 Check that all Ethernet cables are securely connected at all ports and are the correct type (Cat-5 or higher). 2 Check the Ethernet adapter on your computer and make sure it's enabled and working properly. If the PL-100 is connected to an Ethernent switch or router, make sure the device is working correctly, and that the LAN network is working and configured correctly as well.

PL-100 User's Guide APPENDIX À PL-100 Specifications Table9 Specifications ITEM DESCRIPTION Product Name PL-100 PowerLine 85 Mbps Ethernet Adapter Power Input 100 - 240 VAC, 50 — 60 Hz, 0.05 A Dimensions 112 (L) mm x 106 (D) mm x 28.5 mm (H) Operating Temp | 0°C - 45°C Humidity 10% — 90% Noncondensing Frequency 4.3 MHz, 20.9 MHz Band Cabling Type 1 x Powerline Power Cord 1 x LAN UTP Category 5 or Better Network Ports 1 x 10/100M BASE-T Ethernet port with Auto MDI/MDIX 1 x 85 Mbps PowerLine port compliant with 14M HomePlug V1.01 Power Line Supports up to 16 (Tone Map) PL devices communicating on a single network. 1 PL Network device supports 16 remote Ethernet addresses, Total support 64. Network 1 x RJ-45 (10/100BASE-T Ethernet) Interface 1x2 PIN AC-JACK + Power Cable Encryption 56-bit DES Link Encryption with Key Management Certifications FCC, CE Table 10 RJ-45 Connector Pin Assignments RJ-45 CONNEC

PL-100 User's Guide APPENDIX B Setting up Your Computer’s IP Address All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed. Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and all versions of UNIX/LINUX include the software components you need to install and use TCP/IP on your computer. Windows 3.1 requires the purchase of a third-party TCP/IP application package. TCP/IP should already be installed on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems. After the appropriate TCP/IP components are installed, configure the TCP/IP settings in order to "communicate" with your network. If you manually assign IP information instead of using dynamic assignment, make sure that your computers have IP addresses that place them in the same subnet as the Prestige’s LAN port. Appendix B Setting up Your Computer's IP Address 41

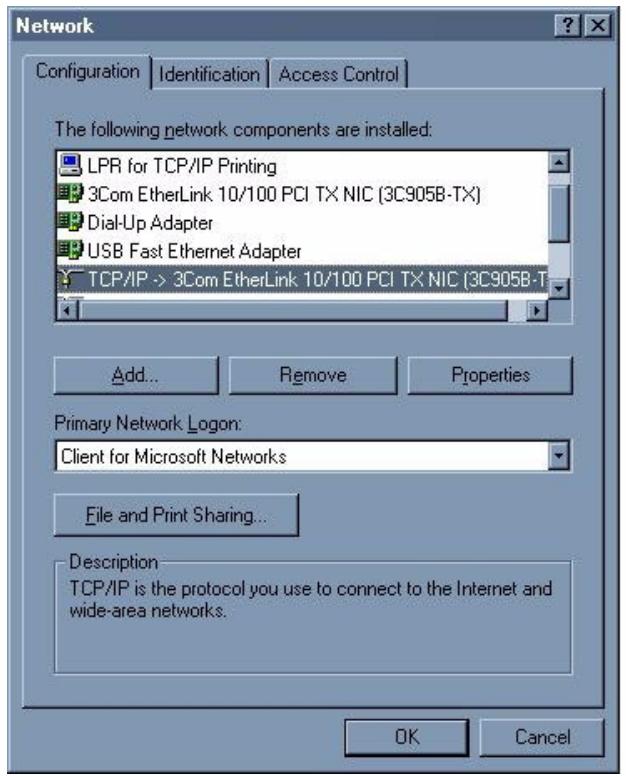

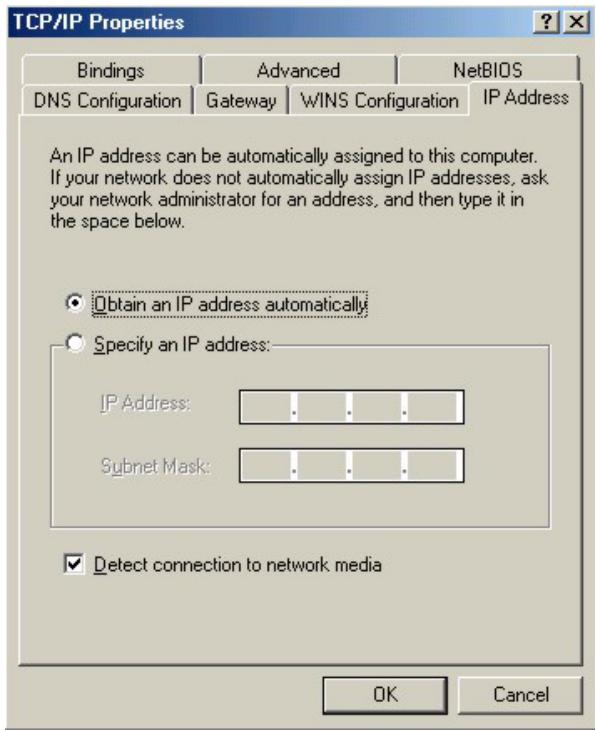

PL-100 User's Guide Windows 95/98/Me Click Start, Settings, Control Panel and double-click the Network icon to open the Network window. Figure 16 Windows 95/98/Me: Network: Configuration Network LPR for TCPAP Printing 3Com EtherLink 10/100 PCI TX NIC (3C9058-TX) DiaUp Adapter USB Fast Ethemet Adapter Client for Microsoft Networks E Installing Components The Network window Configuration tab displays a list of installed components. You need a network adapter, the TCP/IP protocol and Client for Microsoft Networks. If you need the adapter: 1 Inthe Network window, click Add. 2 Select Adapter and then click Add. 3 Select the manufacturer and model of your network adapter and then click OK. If you need TCP/IP: 1 Inthe Network window, click Add. 2 Select Protocol and then click Add. 3 Select Microsoft from the list of manufacturers. 4 Select TCP/IP from the list of network protocols and then click OK.

PL-100 User's Guide If you need Client for Microsoft Networks: 1 Click Add. 2 Select Client and then click Add. 3 Select Microsoft from the list of manufacturers. 4 Select Client for Microsoft Networks from the list of network clients and then click OK. 5 Restart your computer so the changes you made take effect. Configuring 1 In the Network window Configuration tab, select your network adapter's TCP/IP entry and click Properties 2 Click the IP Address tab. + If your IP address is dynamic, select Obtain an IP address automatically. + If you have a static IP address, select Specify an IP address and type your information into the IP Address and Subnet Mask fields. Figure 17 Windows 95/98/Me: TCP/IP Properties: IP Address ÉTCPAP Properties ET" Bindings | Advanced | NetBl0S | DNS Configuration | Gateway | WINS Configuration IP Address An IP address can be automatically assigned to this computer. If your network does not automatically assign IP addresses, ask your network administretor for an address, and then type it in the space below. F Detect connection to netwark media

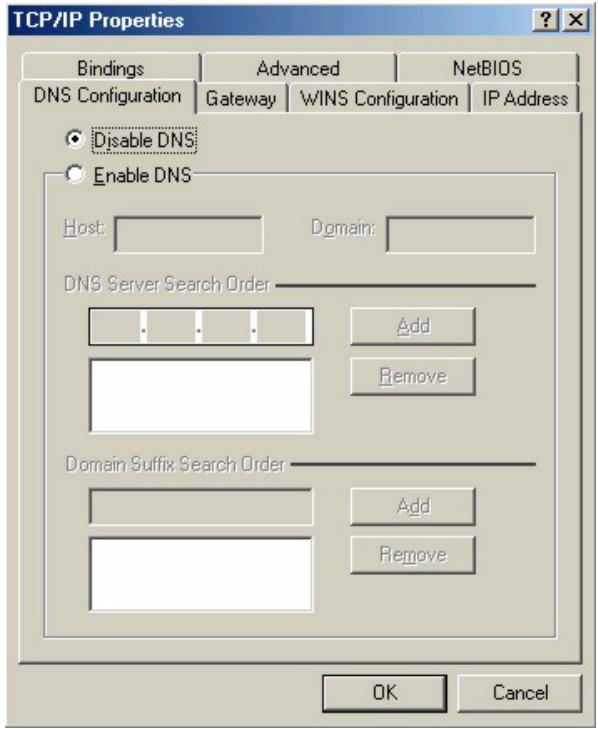

3 Click the DNS Configuration tab. + If you do not know your DNS information, select Disable DNS. + If you know your DNS information, select Enable DNS and type the information in the fields below (you may not need to fill them all in). Appendix B Setting up Your Computer's IP Address 43

PL-100 User's Guide igure 18 Windows 95/98/Me: TCP/IP Properties: DNS Configuration TCP/IP Properties D 21 xf| 4 Click the Gateway tab. + If you do not know your gateway’s IP address, remove previously installed gateways. +__If you have a gateway IP address, type it in the New gateway field and click Add. 5 Click OK to save and close the TCP/IP Properties window. 6 Click OK to close the Network window. Insert the Windows CD if prompted. 7 Turn on your Prestige and restart your computer when prompted. Verifying Settings 1 Click Start and then Run. 2 In the Run window, type "winipcfg" and then click OK to open the IP Configuration window. 3 Select your network adapter. You should see your computer's IP address, subnet mask and default gateway. 44 Appendix B Setting up Your Computer’s IP Address

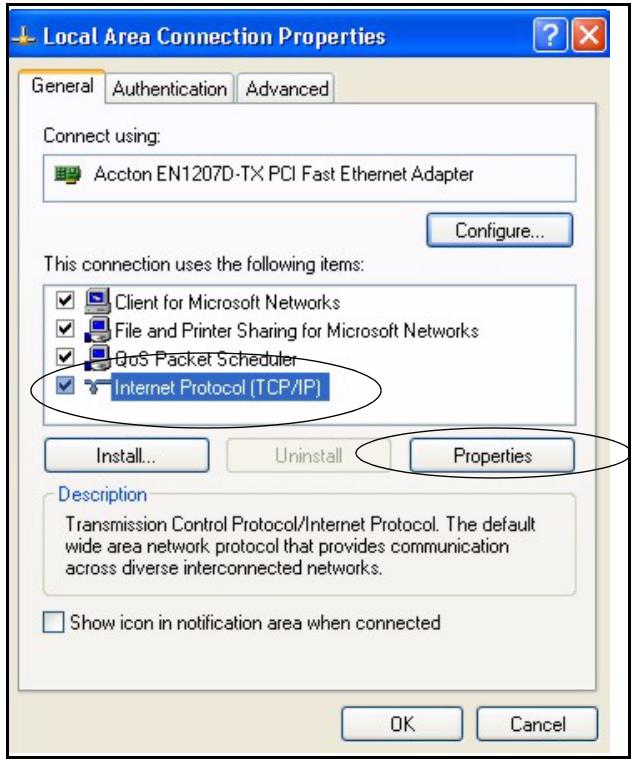

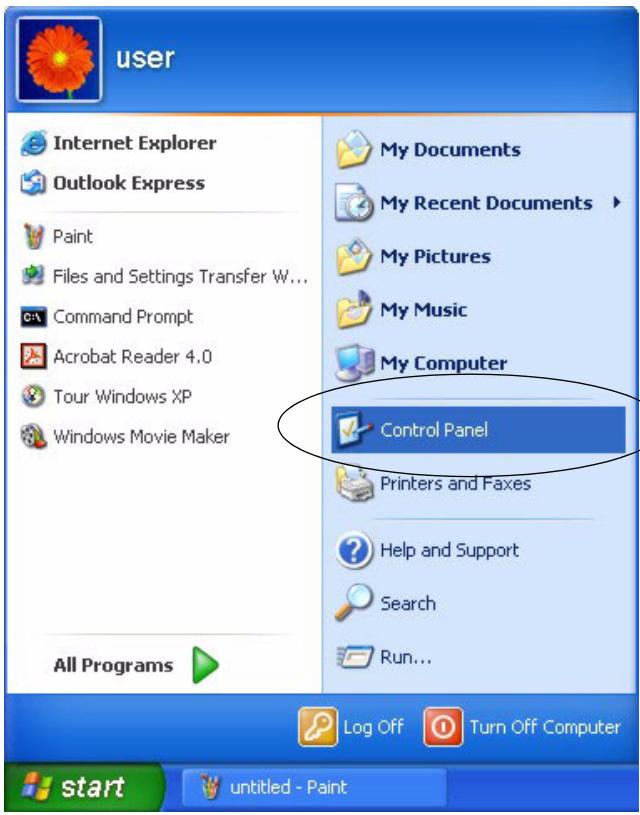

same Controllers See Also Miindowvs Linda 3 Right-click Local Area Connection and then click Properties. Appendix B Setting up Your Computer's IP Address

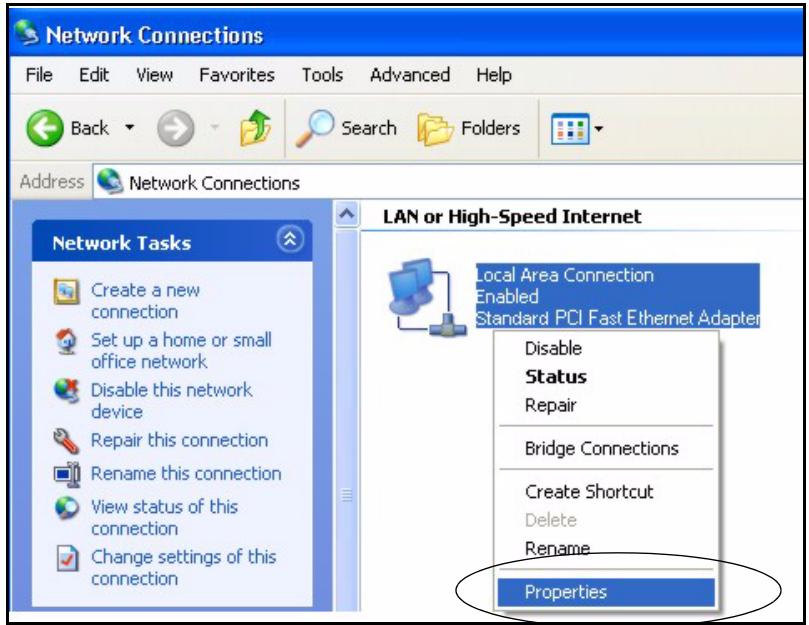

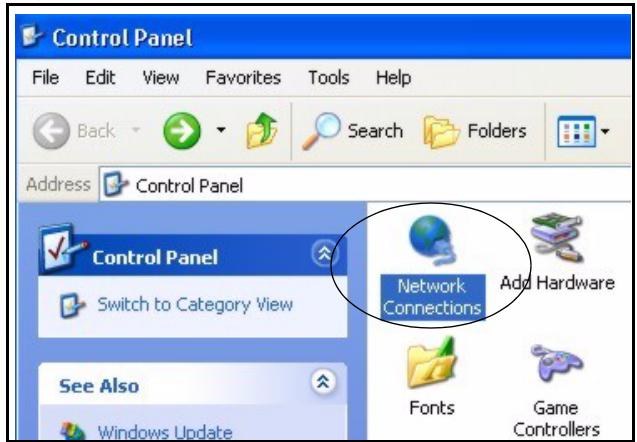

PL-100 User's Guide Figure 21 Windows XP: Control Panel: Network Connections Fle Edit View Favorites Tools Advanced Help ex - Q © sen Eros F- © Network Connections : Properties LAN or High-Speed Internet Network Tasks FE create a new connection © Set up a home or small office network Eee © Dissbie this network device Repair À Repair this connection Bridge Connections Œ Rename this connection © view status of this connection Change settings of this connection Create Shortcut Rer 4 Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and then click Properties. Figure 22 Windows XP: Local Area Connection Properties Area Conne: General | Authentication | Advanced Connect using ## Accton EN1207D-TX PCI Fast Ethemet Adapter This connection uses the following items: M (S] Ciient for Microsoft Networks M JE File and Printer Sharing for Microsoft Networks

ii Tree 2 Description Transmission Control Protocol/Intemet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. [1 Show icon in notification area when connected 5 The Internet Protocol TCP/IP Properties window opens XP). + __If you have a dynamic IP address click automatically. (the General tab in Windows Obtain an IP address 46 Appendix B Setting up Your Computer’s IP Address

PL-100 User's Guide + If you have a static IP address click Use the following IP Address and fill in the IP address, Subnet mask, and Default gateway fields. + Click Advanced. Figure 23 Windows XP: Internet Protocol (TCP/IP) Properties

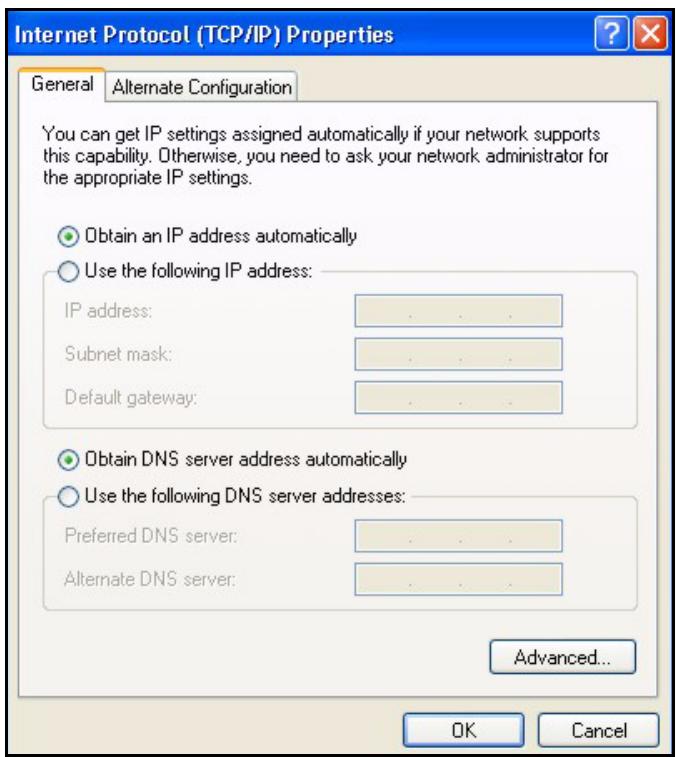

Internet Protocol (TCP/IP) Properties General | Altemate Configuration You can get IP settings assigned automatically if your network supports this capabilty. Dtherwise, you need ta ask your network administrator far the appropriate IP settings. © Obtain an IP address automatically © Use the following IP address: © Obtain DNS server address automatically © Use the following DNS server addresses: 6 If you do not know your gateway's IP address, remove any previously installed gateways in the IP Settings tab and click OK. Do one or more of the following if you want to configure additional IP addresses: + __Inthe IP Settings tab, in IP addresses, click Add. + In TCP/IP Address, type an IP address in IP address and a subnet mask in Subnet mask, and then click Add. + Repeat the above two steps for each IP address you want to add. + Configure additional default gateways in the IP Settings tab by clicking Add in Default gateways. + In TCP/IP Gateway Address, type the IP address of the default gateway in Gateway. To manually configure a default metric (the number of transmission hops), clear the Automatic metrie check box and type a metric in Metric. + Click Add. + Repeat the previous three steps for each default gateway you want to add. + Click OK when finished. Appendix B Setting up Your Computer's IP Address 47

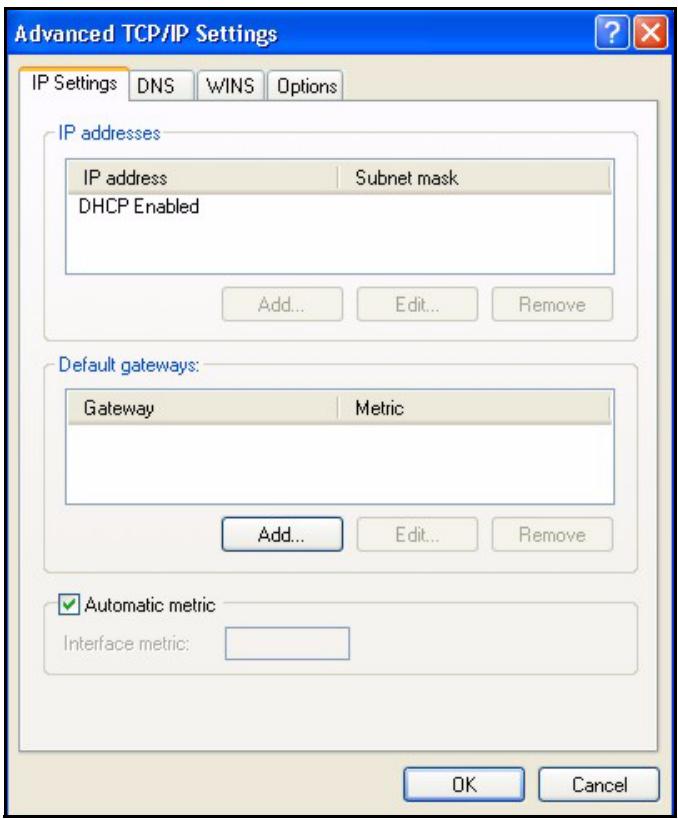

PL-100 User's Guide Figure 24 Windows XP: Advanced TCP/IP Properties Advanced TCP/IP Settings HE IP addresses [IP address DHCP Enabled Default gateways: | | Gateway

Automatic metic: | IP Settings | DNS | WINS | Options Subnet mask Metric 7 Inthe Internet Protocol TCP/IP Properties window (the General tab in Windows XP): Click Obtain DNS server address automatically if you do not know your DNS server IP address(es). If you know your DNS server IP address(es), click Use the following DNS server addresses, and type them in the Preferred DNS server and Alternate DNS server fields. If you have previously configured DNS servers, click Advanced and then the DNS tab to order them.

Appendix B Setting up Your Computer's IP Address

Internet Protocol (TCP/IP) Properties General | Altemate Configuration You can get IP settings assigned automatically if your network supports this capabilty. Dtherwise, you need ta ask your network administrator far the appropriate IP settings. © Obtain an IP address automatically © Use the following IP address: © Obtain DNS server address automatically © Use the following DNS server addresses: 8 Click OK to close the Internet Protocol (TCP/IP) Properties window. 9 Click Close (OK in Windows 2000/NT) to close the Local Area Connection Properties window. 10 Close the Network Connections window (Network and Dial-up Connections in Windows 2000/NT). 11Tumn on your Prestige and restart your computer (if prompted). Verifying Settings 1 Click Start, AIL Programs, Accessories and then Command Prompt. 2 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also open Network Connections, right-click a network connection, click Status and then click the Support tab. Appendix B Setting up Your Computer's IP Address 49

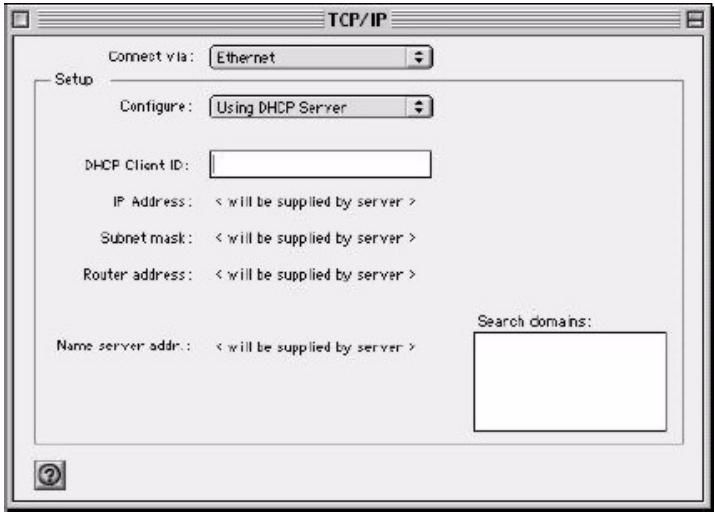

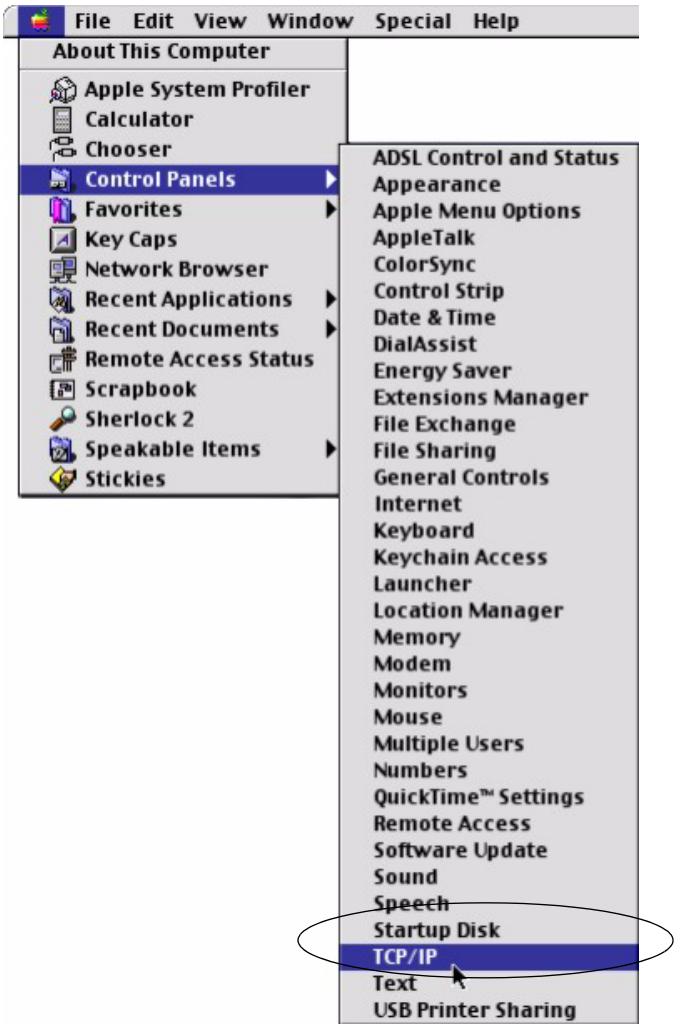

PL-100 User's Guide Macintosh OS 8/9 1 Click the Apple menu, Control Panel and double-click TCP/IP to open the TCP/IP Control Panel. Figure 26 Macintosh OS 8/9: Apple Menu CEA rie Edit View Window Special Help About This Computer &à Apple System Profiler Calculator f& Chooser ADSL Control and Status K_ Control Panels À Appearance Ü, Favorites »| Apple Menu Options [2] key Caps AppleTalk Network Browser ColorSync G Recent Applications D] Control Strip Recent Documents _b| Er ro) Cf Remote Access Status es { Scrapbook Extensions Manager À Sherlock 2 File Exchange Gi Speakable Items »| File Sharing & Stickies General Controls Internet Keyboard Keychain Access Launcher Location Manager Memory Modem Monitors Mouse Multiple Users Numbers QuickTime” Settings Remote Access Software Update Sound | Speech — | € Startup Disk D

USB Printer Sharing 2 Select Ethernet built-in from the Connect via list. 50 Appendix B Setting up Your Computer's IP Address

DHCP Client ID IF Adiress: < will be supplied by server 2 Submetmask: € will be supplied by server > Router adress: € will be supplied by server > Search comans: Name server addr.: € will be supplied by server » 3 For dynamically assigned settings, select Using DHCP Server from the Configure: list. 4 For statically assigned settings, do the following: + __Fromthe Configure box, select Manually. + Type your IP address in the IP Address box. + Type your subnet mask in the Subnet mask box. + Type the IP address of your Prestige in the Router address box. 5 Close the TCP/IP Control Panel. 6 Click Save if prompted, to save changes to your configuration. 7 Turn on your Prestige and restart your computer (if prompted). Verifying Settings Check your TCP/IP properties in the TCP/IP Control Panel window. Macintosh OS X 1 Click the Apple menu, and click System Preferences to open the System Preferences window. Figure 28 Macintosh OS X: Apple Menu CH Grab File Edit About This Mac Get Ma X Software. Capty System Preferences

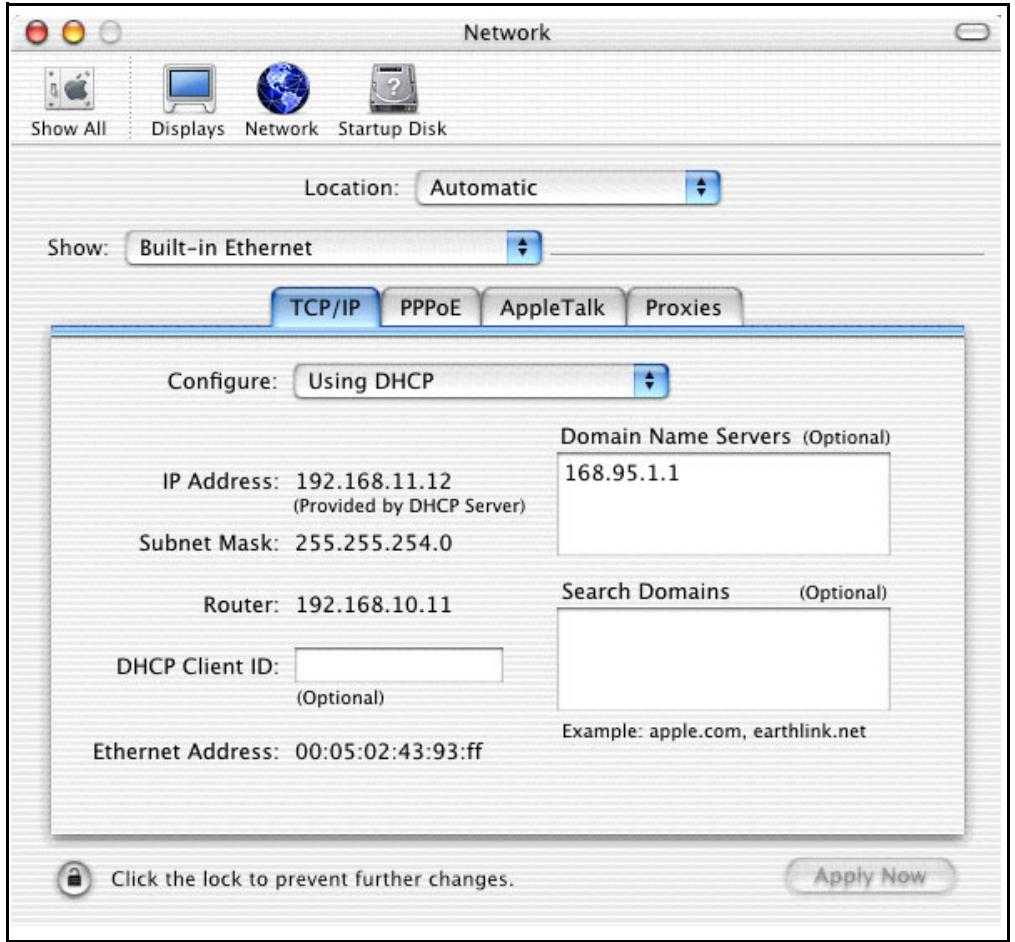

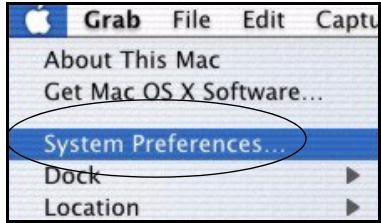

2 Click Network in the icon bar. + Select Automatic from the Location list. Appendix B Setting up Your Computer's IP Address

PL-100 User's Guide + Select Built-in Ethernet from the Show list. + Clickthe TCP/IP tab. 3 For dynamically assigned settings, select Using DHCP from the Configure list. Figure 29 Macintosh OS X: Network CAES Network e Show All : Displays Network Startup Disk Location: Automatic B] Show: { Built-in Ethernet " PrePnpn pPPoE | Appleralk | Proxies | Configure: ! Using DHCP 5] Domain Name Servers (Optional) IP Address: 192.168.11.12 168.95:11 (Provided by DHCP Server) Subnet Mask: 255.255.254.0 Router: 192.168.10.11 Search Domains {Optional) DHCP Client ID: {Optional) Example: apple.com, earthlink.net Ethernet Address: 00:05:02:43:93:ff (@) click the lock to prevent further changes. Appiy Now 4 For statically assigned settings, do the following: + __Fromthe Configure box, select Manually. + Type your IP address in the IP Address box. + Type your subnet mask in the Subnet mask box. + Type the IP address of your Prestige in the Router address box. 5 Click Apply Now and close the window. 6 Turn on your Prestige and restart your computer (if prompted). Verifying Settings Check your TCP/IP properties in the Network window. 52 Appendix B Setting up Your Computer's IP Address

Abnormal Working Conditions 5 About Screen 35 AC 4 Accessories 4 Acts of God 5 Adapter Last Known Network 34 Adapter Last known rate 34 Add 30 Add Device 31 Airflow 4 Alias 34 Authority 3 auto-negotiating 18

Cables, Connecting 4 Cabling Type 39 CE 39 Certifications 3, 39 Changes or Modifications 3 Charge 5 Index Circuit 3 Class B 3 Communications 3 Compliance, FCC 3 Components 5 Condition 5 Configuration Utility 29 Connecting Cables 4 Connecting the PL-100 21 Consequential Damages 5 Contact Information 6 Contacting Customer Support 6 Copyright 2 Correcting Interference 3 Corrosive Liquids 4 Covers 4 Customer Information 26 Customer Support 6

Failure 5 FCC 3, 39 Compliance 3 Rules, Part 15 3 FCC Rules 3 Federal Communications Commission 3 Finland, Contact Information 6 Fitness 5 France, Contact Information 6 Frequency Band 39 Full-duplex 18 Functionally Equivalent 5

Game Console 21 Gas Pipes 4 Germany, Contact Information 6 God, act of 5

PL-100 User's Guide Opening 4 Operating Condition 5 Operating System Type/Version 34 Operating Temp 39 Organization 26 Out-dated Warranty 5 Ouilet 3

Qualified Service Personnel 4 Quality 30

Radio Communications 3 Radio Frequency Energy 3 Radio Interference 3 Radio Reception 3 Radio Technician 3 Rate 30 Read Me First 15 Receiving Antenna 3 Registered 2 Registered Trademark 2 Regular Mail 6 Related Documentation 15 Relocate 3 Re-manufactured 5 Removing 4 Rename 30 Reorient 3 Repair 5 Replace 5 Replacement 5 Reproduction 2 Restore 5 Return Material Authorization (RMA) Number 5 Returned Products 5 Returns 5 Rights 2 Rights, Legal 5 Risk 4 Risks 4 RMA 5

Safety Warnings 4 Save Report, 34 Scan 30 Separation Between Equipment and Receiver 3 Serial Number 6 Service 4, 5 Service Personnel 4 Set AIl Devices 32, 35 Set Local Device 32, 35 Set Password 30 Shipping 5 Shock, Electric 4 Index

PL-100 Users Guide Spain, Contact Information 6 Supply Voltage 4 Support E-mail 6 Supporting Disk 15 Sweden, Contact Information 6 Swimming Pool 4 Syntax Conventions 15

Undesired Operations 3 User Name 26, 34 Utility Main Window 30
