USER MANUAL P-2602HWL-D7A ZYXEL

Copyright © 2006 by ZyXEL Communications Corporation.

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Published by ZyXEL Communications Corporation. All rights reserved.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Trademarks

ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operations.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

If this equipment does cause harmful interference to radio/television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Notice 1

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s).

This Class B digital apparatus complies with Canadian ICES-003.

Viewing Certifications

1 Go to www.zyxel.com
2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this page.

Safety Warnings

For your safety, be sure to read and follow all warning notices and instructions.

- To reduce the risk of fire, use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord.

- Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

- Use ONLY the dedicated power supply for your device. Connect the power cord or power adaptor to the right supply voltage (110V AC in North America or 230V AC in Europe).

- Do NOT use the device if the power supply is damaged as it might cause electrocution.

- If the power supply is damaged, remove it from the power outlet.

- Do NOT attempt to repair the power supply. Contact your local vendor to order a new power supply.

- Place connecting cables carefully so that no one will step on them or stumble over them. Do NOT allow anything to rest on the power cord and do NOT locate the product where anyone can walk on the power cord.

- Do not use the device outside, and make sure all the connections are indoors. There may be a remote risk of electric shock from lightning.

- If you wall mount your device, make sure that no electrical, gas or water pipes will be damaged.

- Do NOT install nor use your device during a thunderstorm. There may be a remote risk of electric shock from lightning.

- Do NOT expose your device to dampness, dust or corrosive liquids.

- Do NOT use this product near water, for example, in a wet basement or near a swimming pool.

- Make sure to connect the cables to the correct ports.

- Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.

- Do NOT store things on the device.

- Connect ONLY suitable accessories to the device.

This product is recyclable. Dispose of it properly.

Prohibition sign with a trash bin crossed out and a blank rectangular block below

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country.

Note: Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Customer Support

Please have the following information ready when you contact customer support.

• Product model and serial number.
- Warranty Information.
- Date that you received your device.
- Brief description of the problem and the steps you took to solve it.

+” is the (prefix) number you enter to make an international telephone call.

METHODLOCATION	SUPPORT E-MAIL	TELEPHONE	WEB SITE	REGULAR MAIL
	SALES E-MAIL	FAX	FTP SITE
CORPORATEHEADQUARTERS(WORLDWIDE)	[e-mail]	[phone]	www.zyxel.comwww.europe.zyxel.com	ZyXEL Communications Corp.6 Innovation Road IIScience ParkHsinchu 300Taiwan
	[e-mail]	[phone]	ftp.zyxel.comftp.europe.zyxel.com
COSTA RICA	[e-mail]	[phone]	www.zyxel.co.cr	ZyXEL Costa RicaPlaza Roble EscazúEtapa El Patio, Tercer PisoSan José, Costa Rica
	[e-mail]	[phone]	ftp.zyxel.co.cr
CZECH REPUBLIC	[e-mail]	[phone]	www.zyxel.cz	ZyXEL CommunicationsCzech s.r.o.Modranská 621143 01 Praha 4 - ModranyCeská Republika
	[e-mail]	[phone]
DENMARK	[e-mail]	[phone]	www.zyxel.dk	ZyXEL Communications A/SColumbusvej2860 SoeborgDenmark
	[e-mail]	[phone]
FINLAND	[e-mail]	[phone]	www.zyxel.fi	ZyXEL Communications OyMalminkaari 1000700 HelsinkiFinland
	[e-mail]	[phone]
FRANCE	[e-mail]	[phone]	www.zyxel.fr	ZyXEL France1 rue des VergersBat. 1 / C69760 LimonestFrance
		[phone]
GERMANY	[e-mail]	[phone]	www.zyxel.de	ZyXEL Deutschland GmbH.Adenauerstr. 20/A2 D-52146WuerselenGermany
	[e-mail]	[phone]
HUNGARY	[e-mail]	[phone]	www.zyxel.hu	ZyXEL Hungary48, Zoldlomb Str.H-1025, BudapestHungary
	[e-mail]	[phone]
KAZAKHSTAN	http://zyxel.kz/support	[phone]	www.zyxel.kz	ZyXEL Kazakhstan43, Dostyk ave.,Office 414Dostyk Business Centre050010, AlmatyRepublic of Kazakhstan
	[e-mail]	[phone]
NORTH AMERICA	[e-mail]	1-800-255-4101+1-714-632-0882	www.us.zyxel.com	ZyXEL Communications Inc.1130 N. Miller St.AnaheimCA 92806-2001U.S.A.
	[e-mail]	[phone]	ftp.us.zyxel.com
NORWAY	[e-mail]	[phone]	www.zyxel.no	ZyXEL Communications A/S Nils Hansens vei 13 0667 Oslo Norway
	[e-mail]	[phone]
POLAND	[e-mail]	[phone]	www.pl.zyxel.com	ZyXEL Communications ul. Okrzei 1A 03-715 Warszawa Poland
		[phone]
RUSSIA	http://zyxel.ru/support	[phone]	www.zyxel.ru	ZyXEL Russia Ostrovityanova 37a Str. Moscow, 117279 Russia
	[e-mail]	[phone]
SPAIN	[e-mail]	[phone]	www.zyxel.es	ZyXEL Communications Arte, 21 5a planta 28033 Madrid Spain
	[e-mail]	[phone]
SWEDEN	[e-mail]	[phone]	www.zyxel.se	ZyXEL Communications A/S Sjöporten 4, 41764 Göteborg Sweden
	[e-mail]	[phone]
UKRAINE	[e-mail]	[phone]	www.ua.zyxel.com	ZyXEL Ukraine 13, Pimonenko Str. Kiev, 04050 Ukraine
	[e-mail]	[phone]
UNITED KINGDOM	[e-mail]	[phone] 08707 555779 (UK only)	www.zyxel.co.uk	ZyXEL Communications UK Ltd.,11 The Courtyard, Eastern Road, Bracknell, Berkshire, RG12 2XB, United Kingdom (UK)
	[e-mail]	[phone]	ftp.zyxel.co.uk

Table of Contents

Copyright 3

Certifications 4

Safety Warnings 5

ZyXEL Limited Warranty....6

Customer Support....7

Table of Contents 9

List of Figures 23

List of Tables 29

Preface 35

Chapter 1 Getting To Know the ZyXEL Device....37

1.1 Introducing the P-2602H(W)(L)-Dx Series ....37

1.2 Features ....38

1.3 Wireless Features ("W" models only) 42

1.4 Applications for the ZyXEL Device ....44

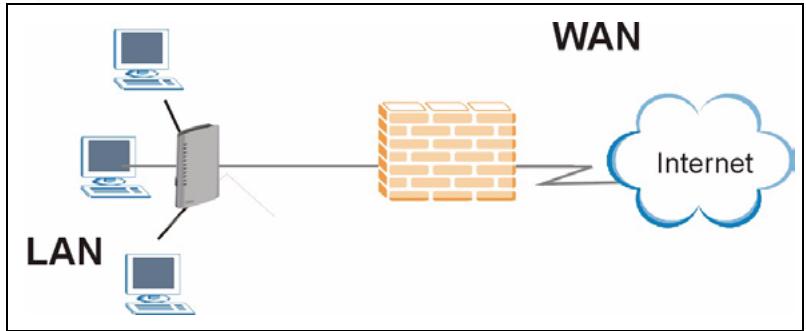

1.4.1 Internet Access ...... 44

1.4.1.1 Internet Single User Account 44

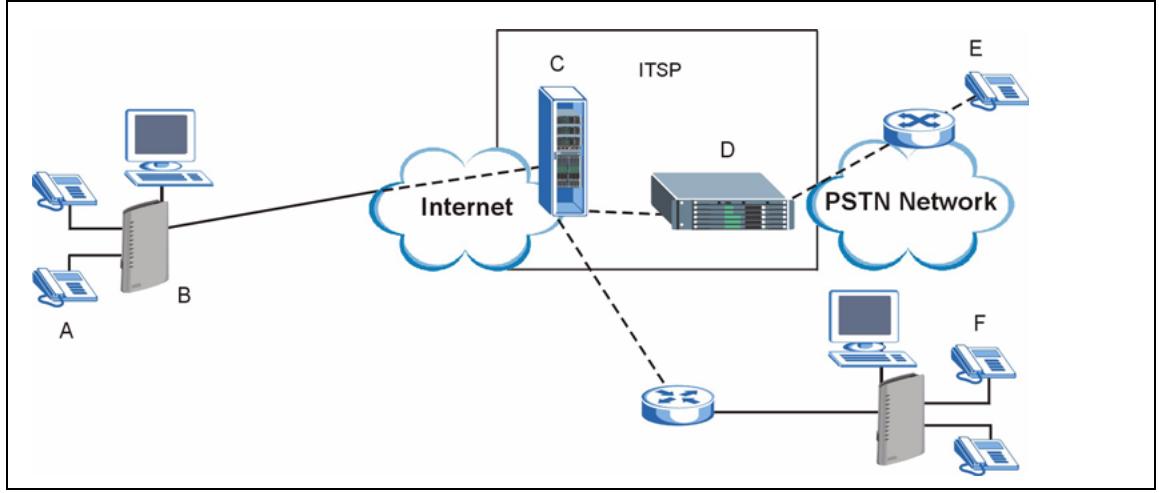

1.4.2 Making Calls via Internet Telephony Service Provider ....44

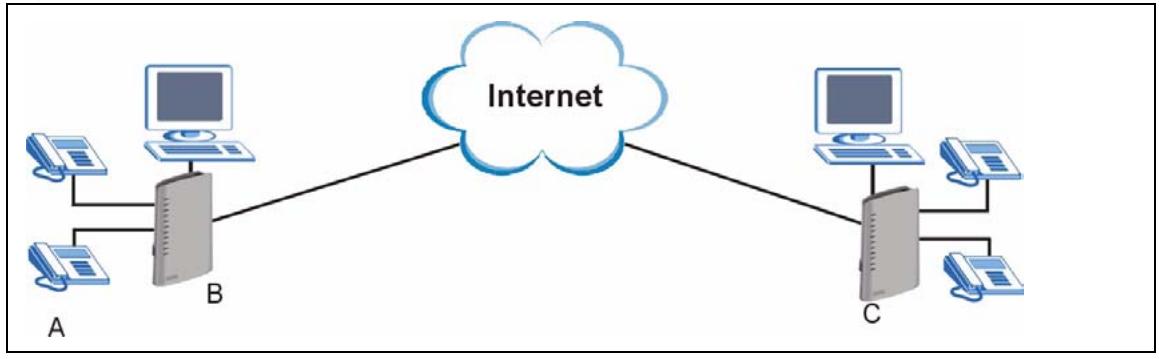

1.4.3 Make Peer-to-peer Calls 45

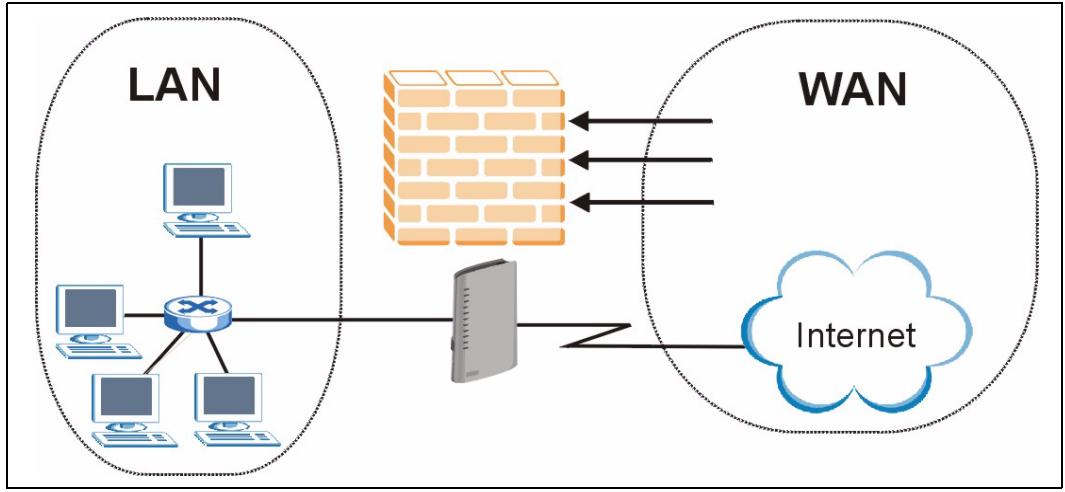

1.4.4 Firewall for Secure Broadband Internet Access 45

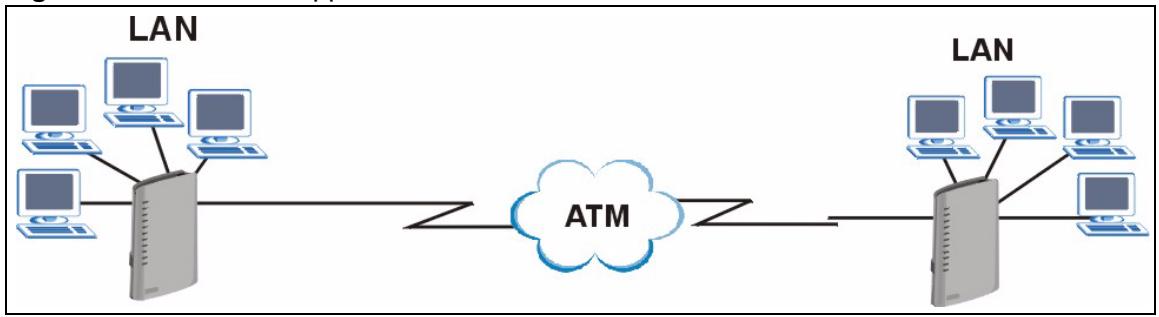

1.4.5 LAN to LAN Application 46

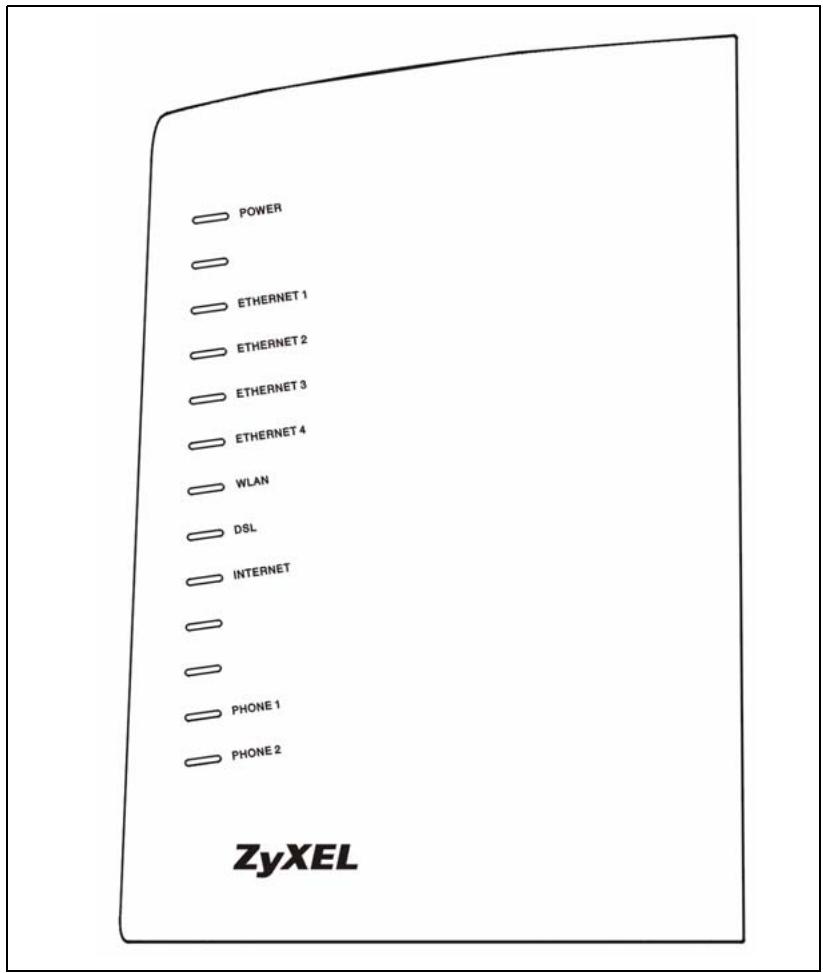

1.4.6 LEDs 47

Chapter 2 Introducing the Web Configurator......49

2.1 Web Configurator Overview ....49

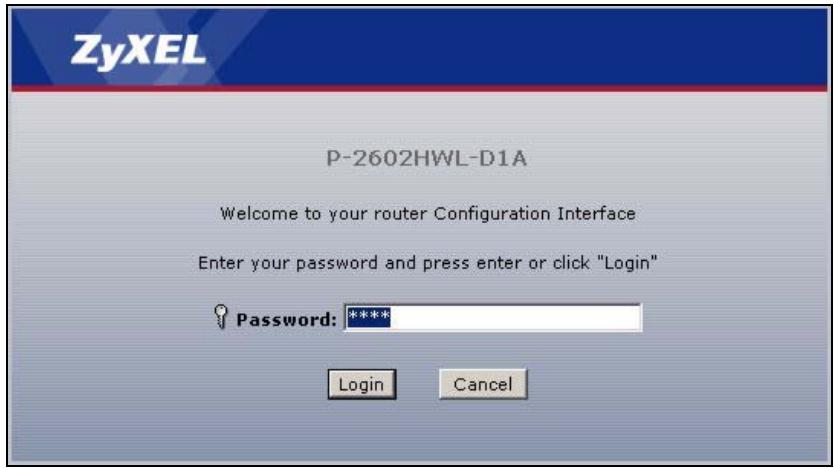

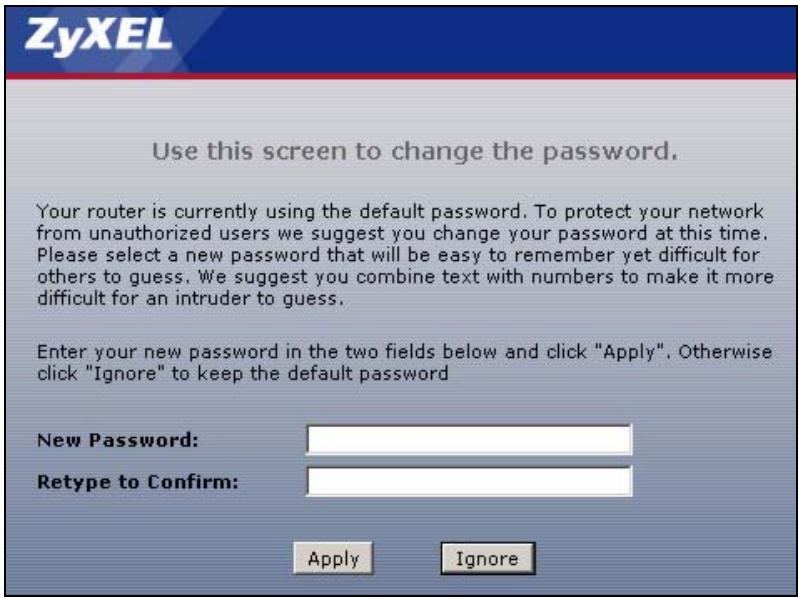

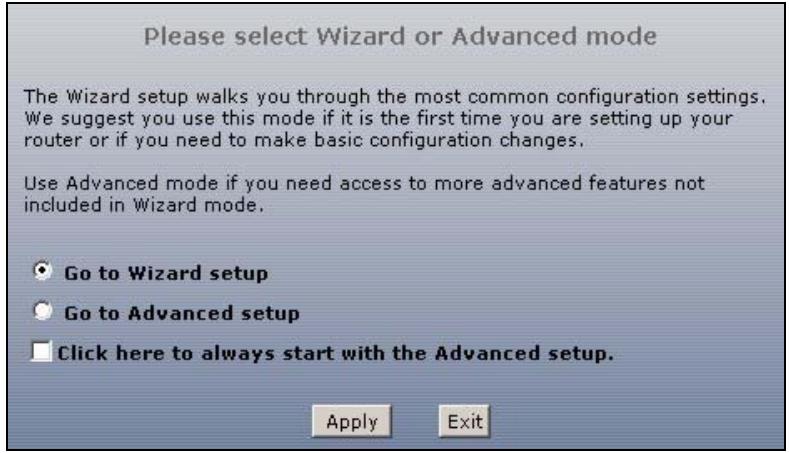

2.1.1 Accessing the Web Configurator ....49

2.1.2 The RESET Button ....51

2.1.2.1 Using The Reset Button ....51

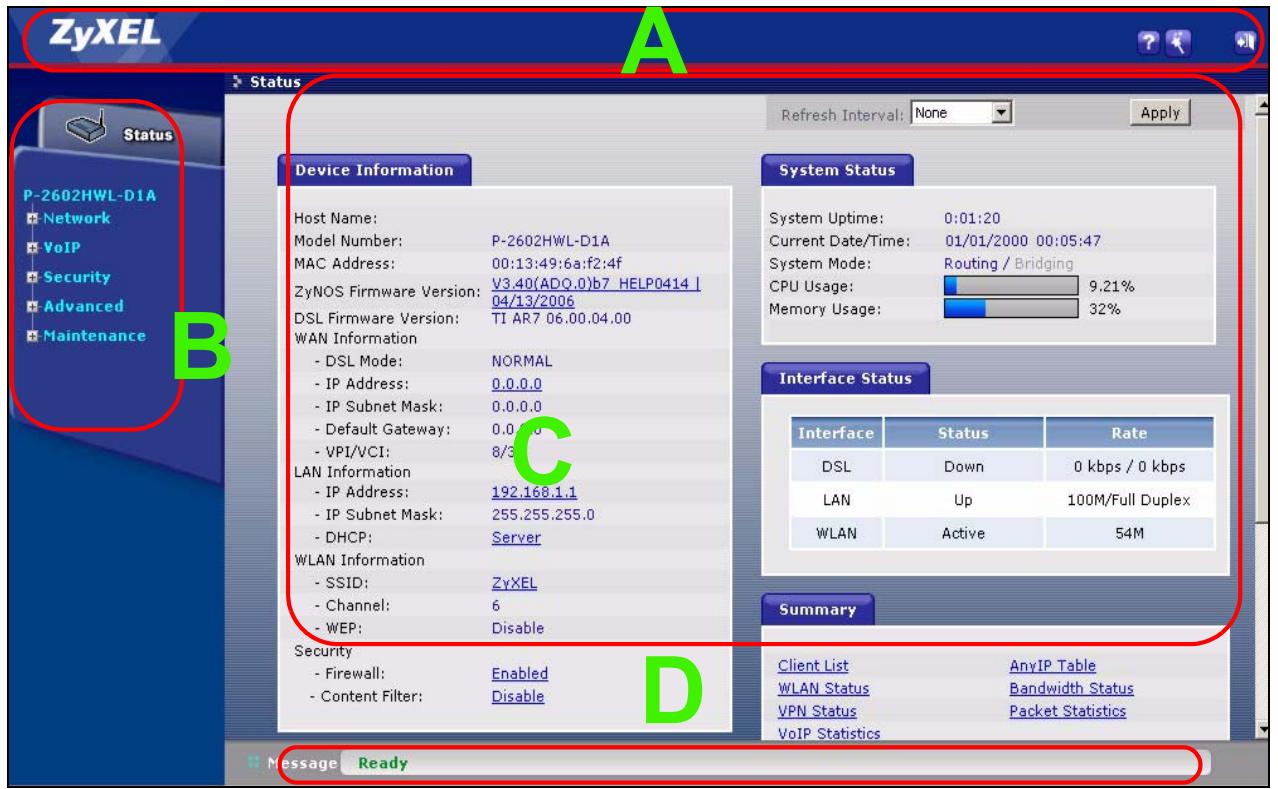

2.2 Web Configurator Main Screen ....52

2.2.1 Title Bar ....52

2.2.2 Navigation Panel ....53

2.2.3 Main Window 55
2.2.4 Status Bar ....55

Chapter 3

Internet and Wireless Setup Wizard 57

3.1 Introduction ......57

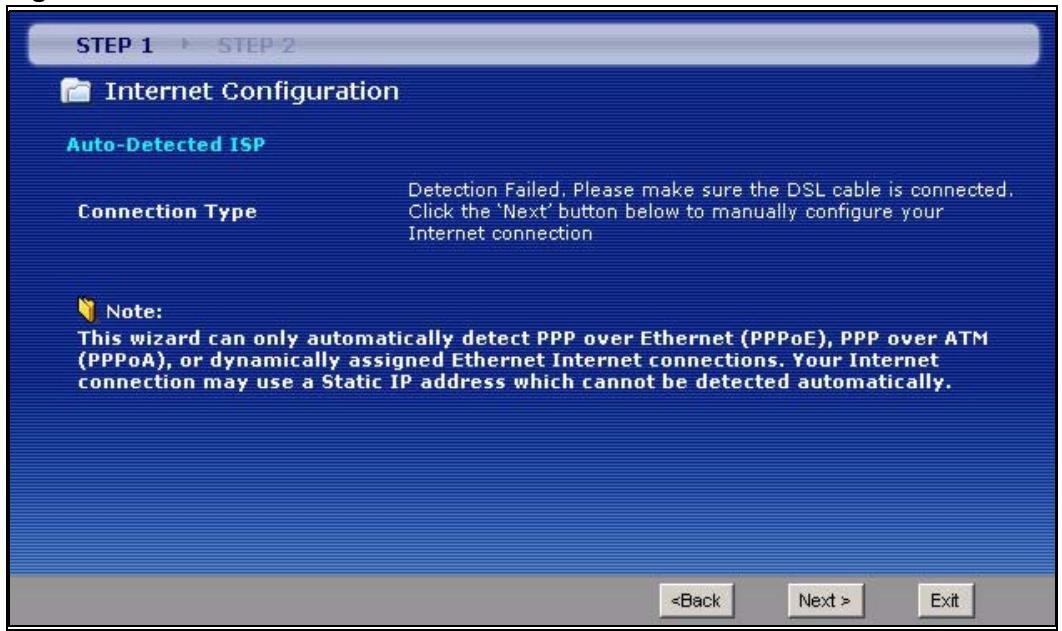

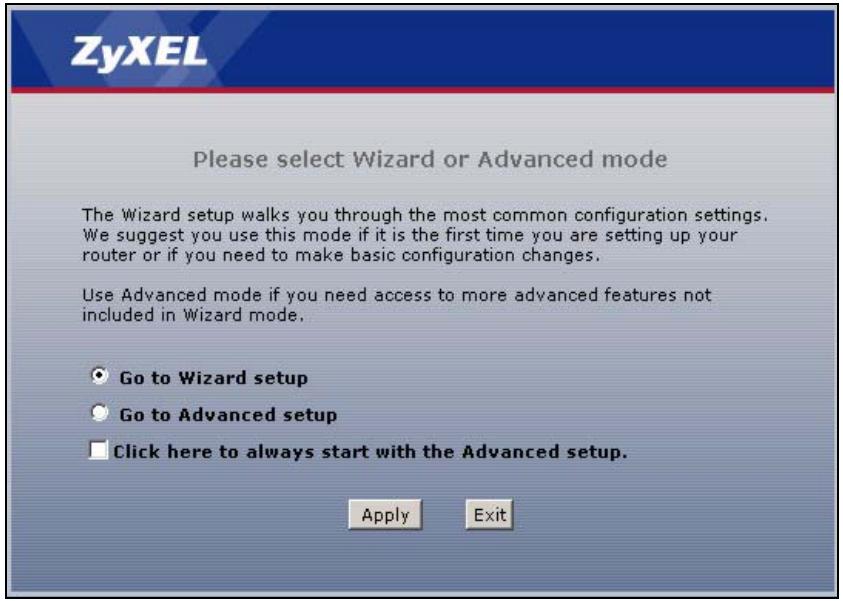

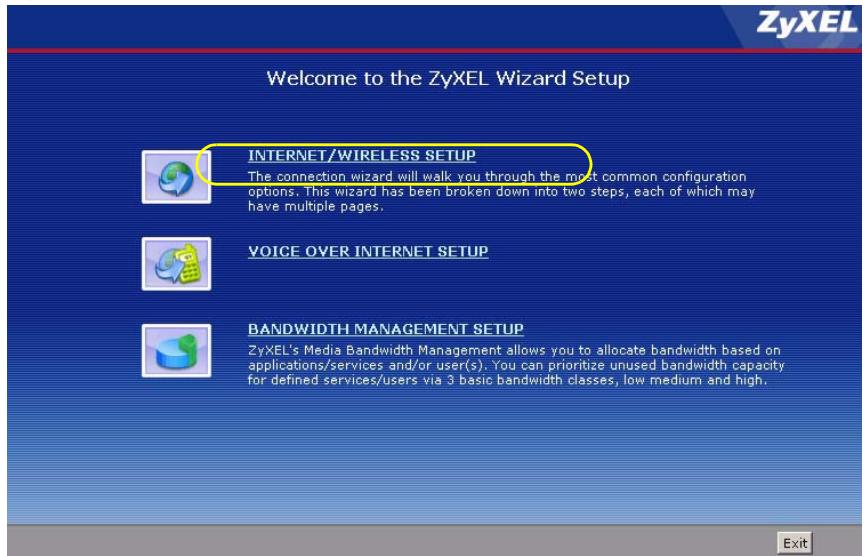

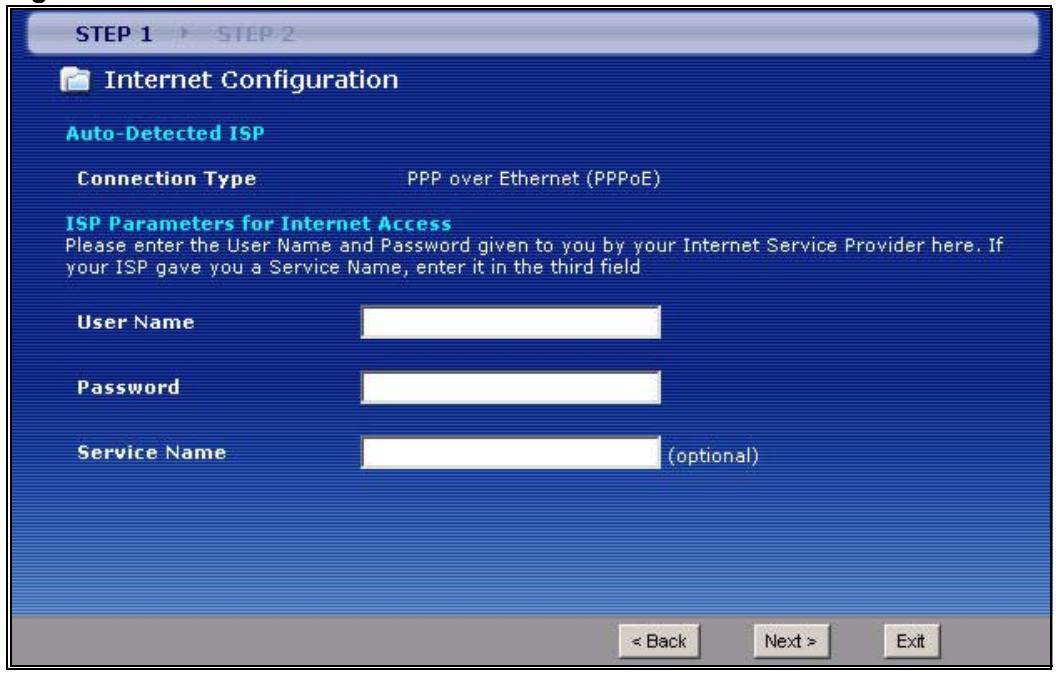

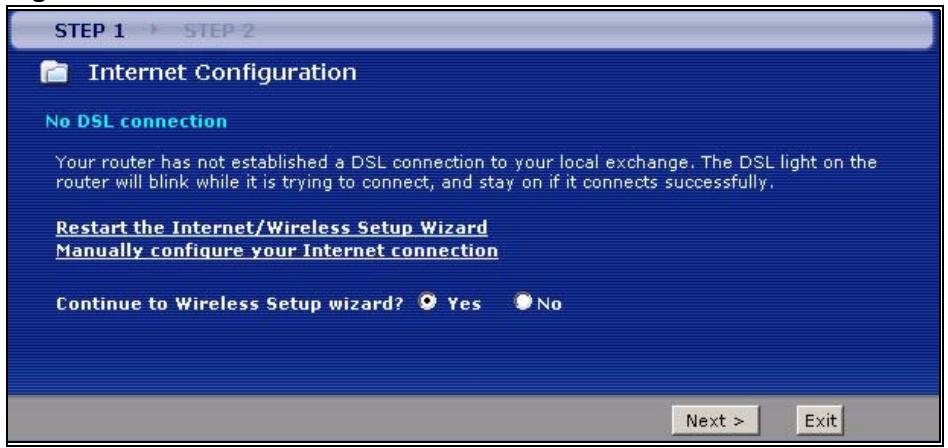

3.2 Internet Access Wizard Setup ....57

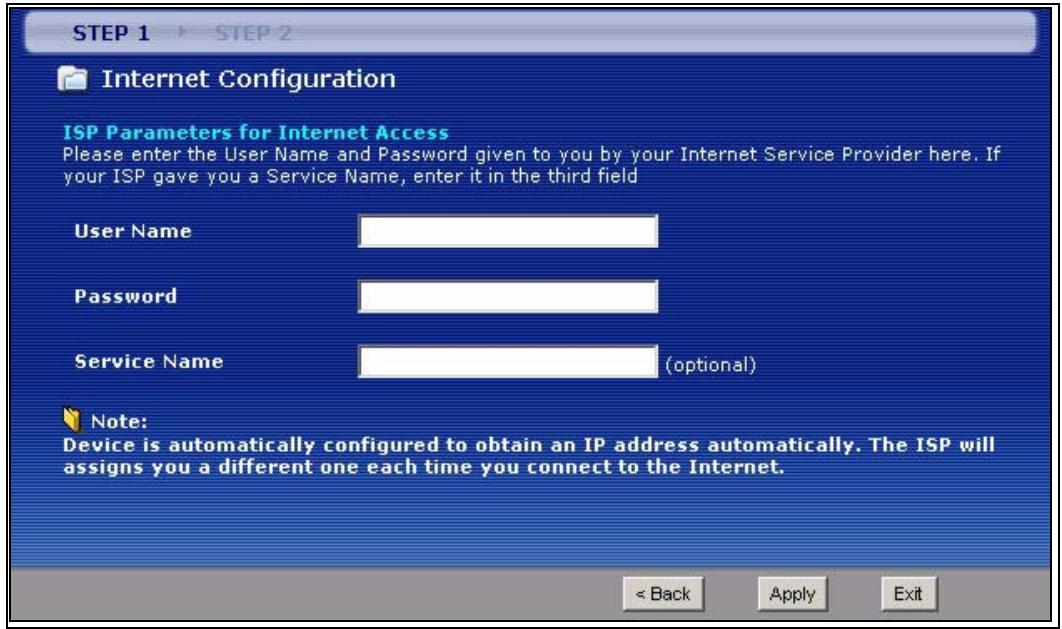

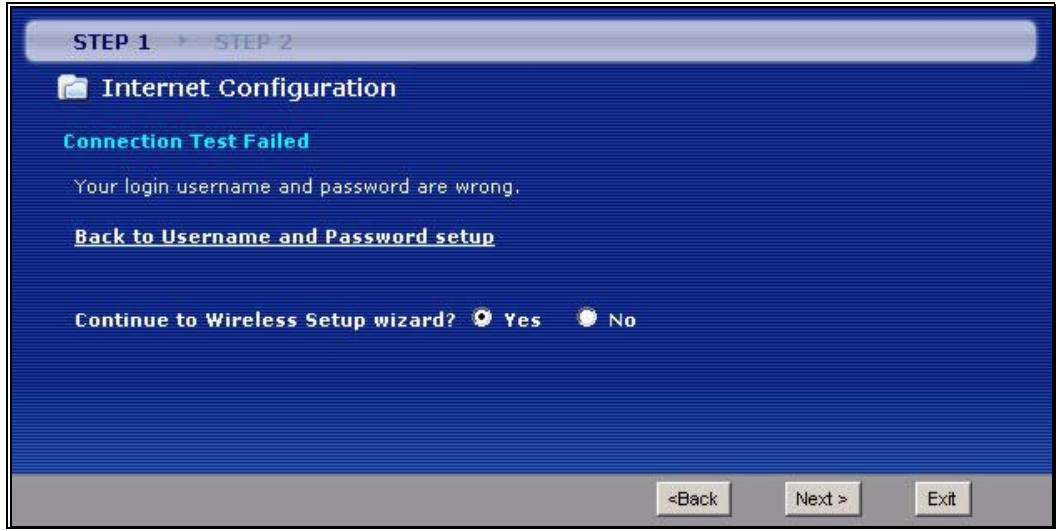

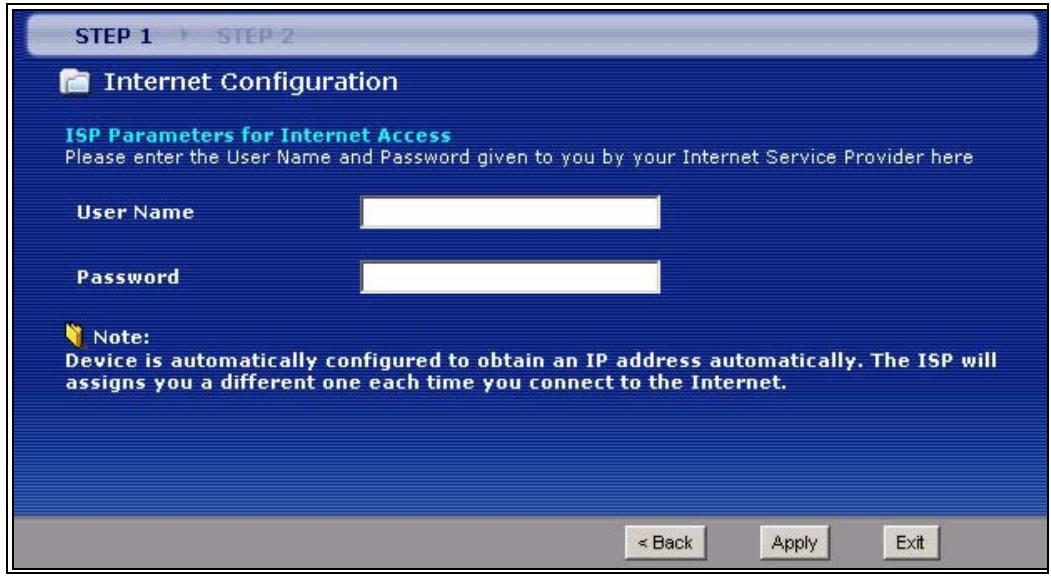

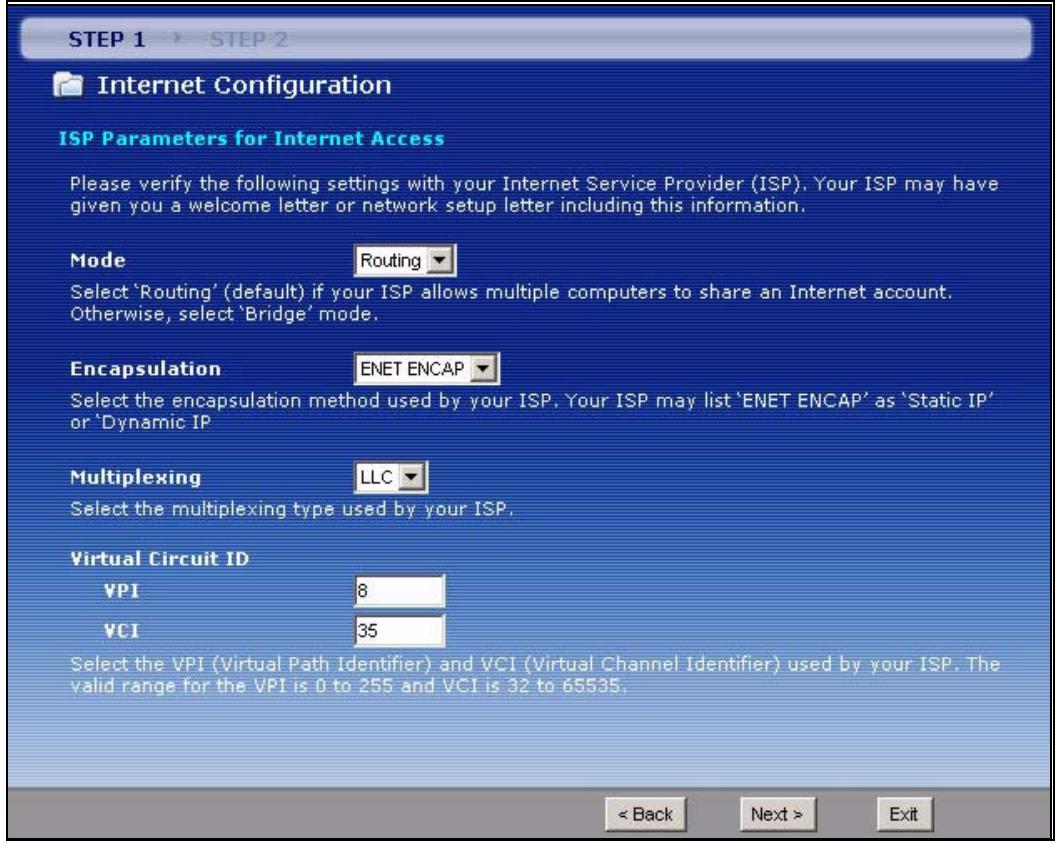

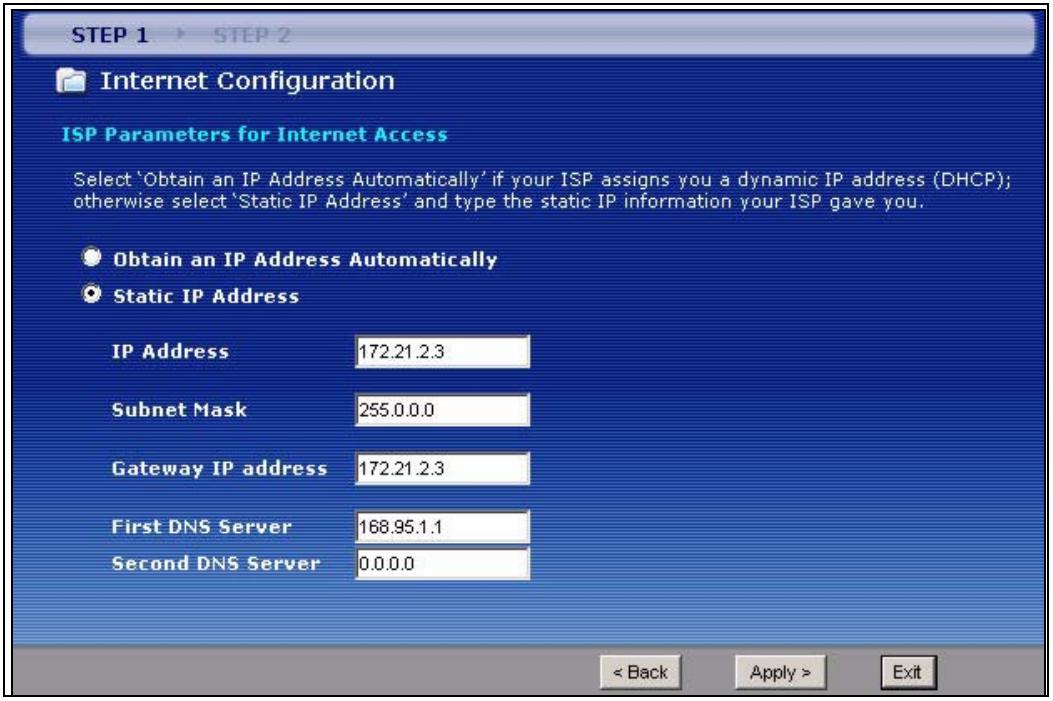

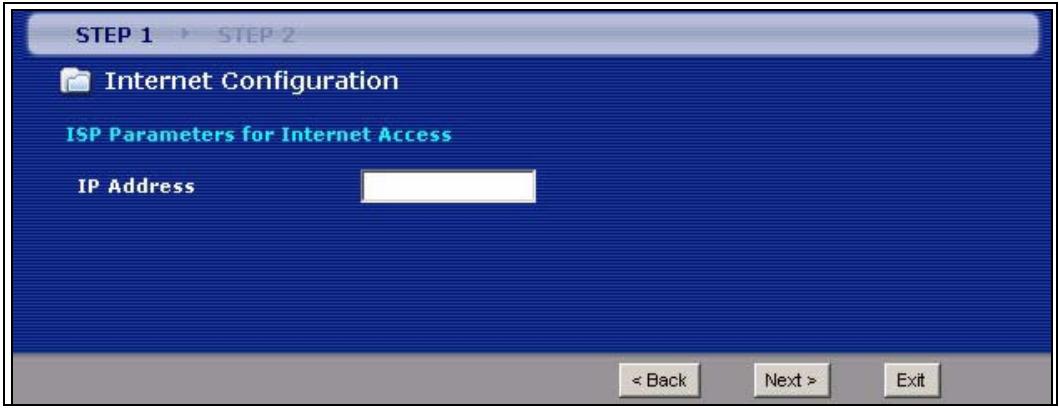

3.2.1 Manual Configuration ....59

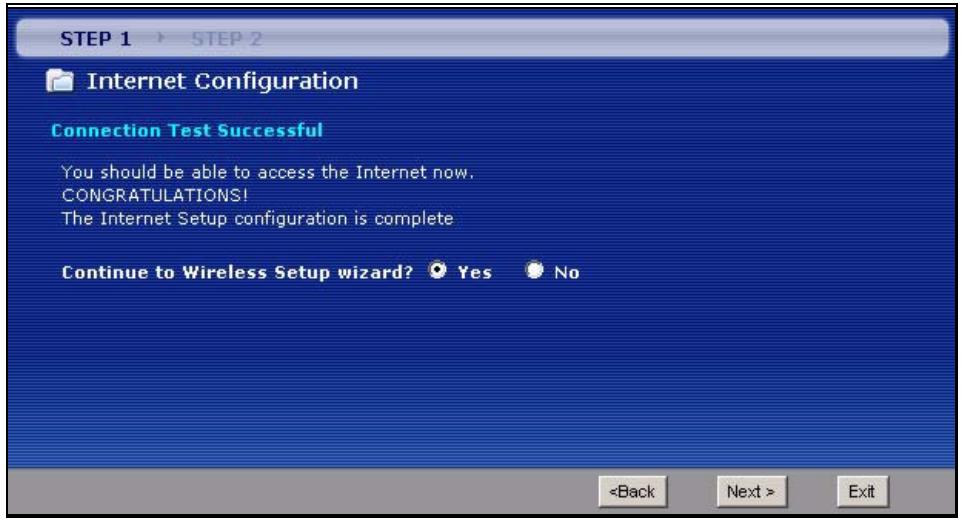

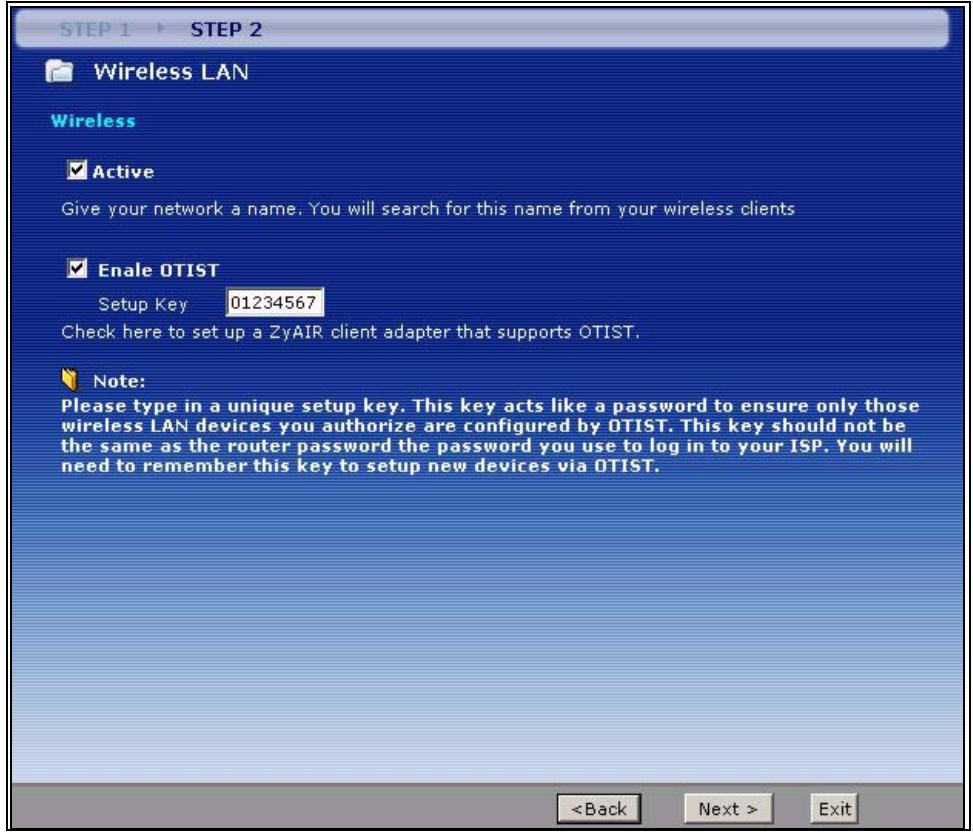

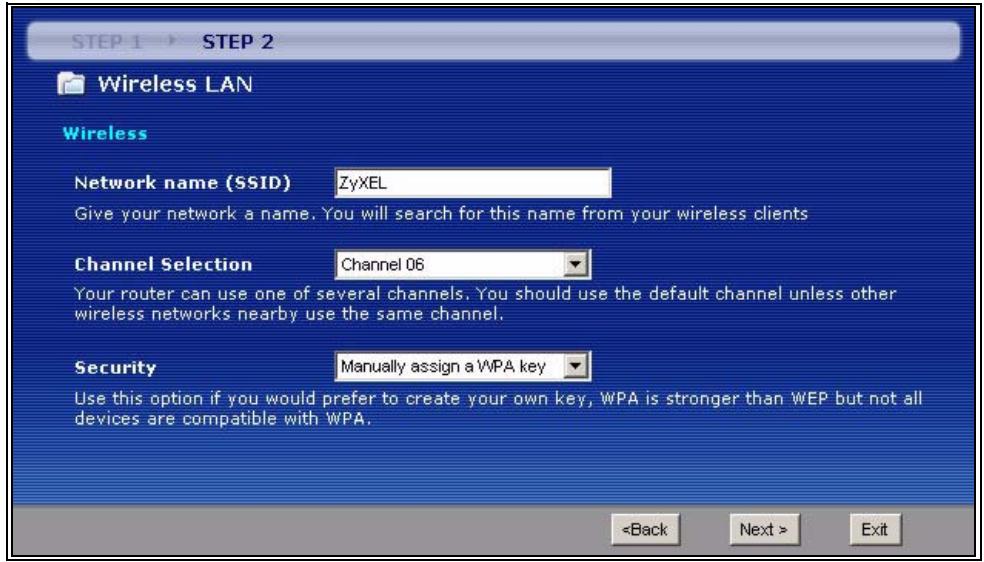

3.3 Wireless Connection Wizard Setup 65

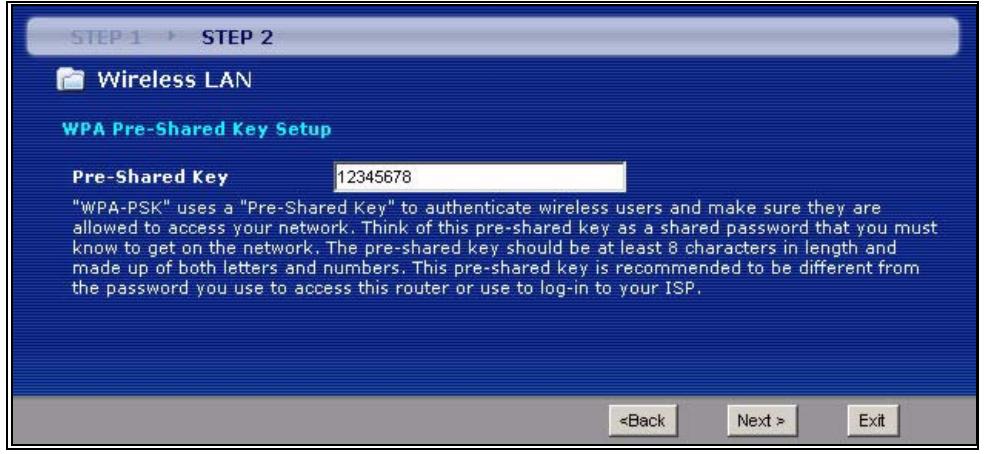

3.3.1 Manually Assign a WPA key 67

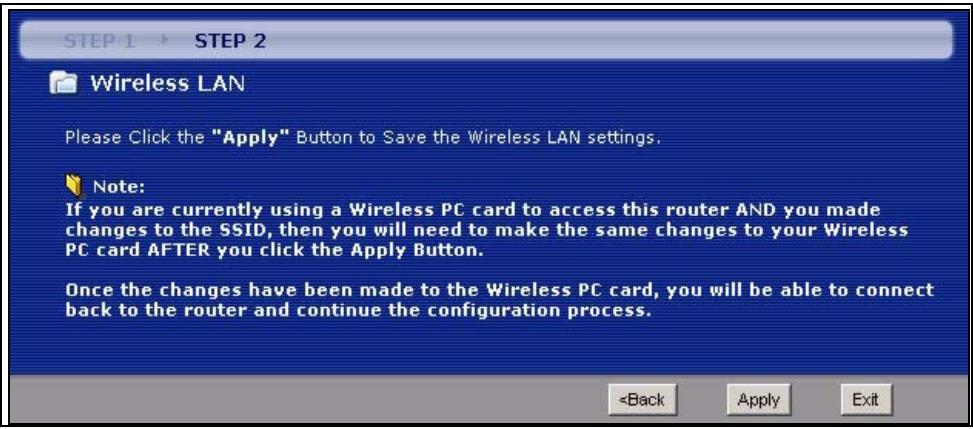

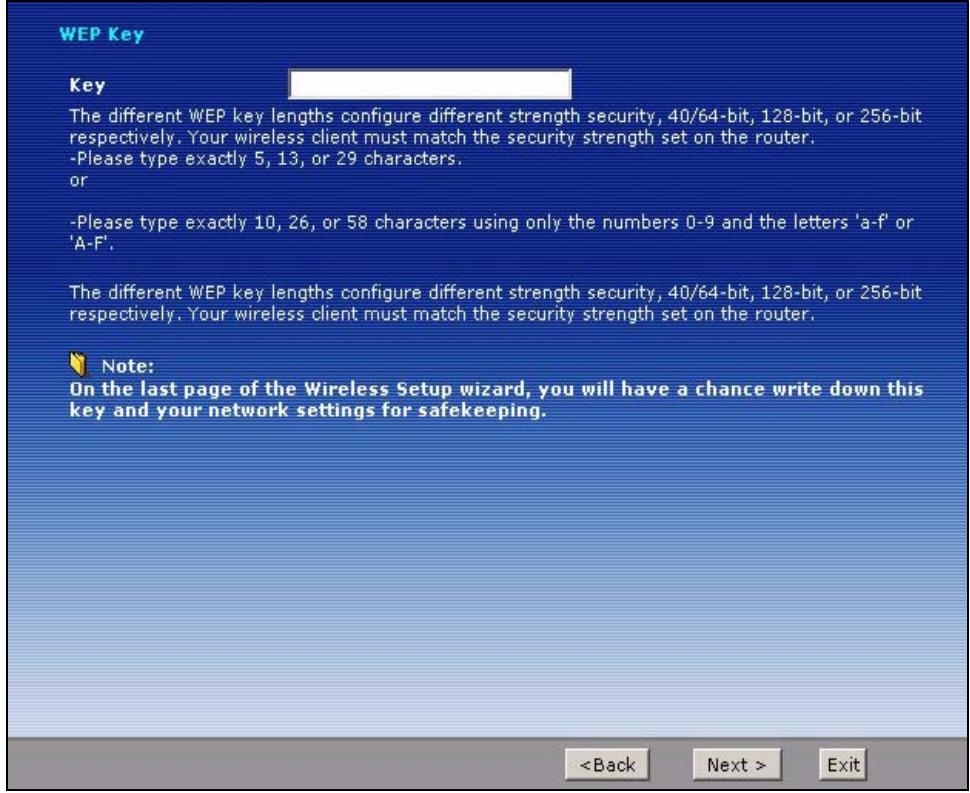

3.3.2 Manually Assign a WEP key....68

Chapter 4

VoIP Wizard And Example 71

4.1 Introduction ......71
4.2 VoIP Wizard Setup 71

Chapter 5

Bandwidth Management Wizard 77

5.1 Introduction ......77
5.2 Predefined Media Bandwidth Management Services ....77
5.3 Bandwidth Management Wizard Setup 78

Chapter 6

Status Screens 83

6.1 Status Screen 83
6.2 Any IP Table 86
6.3 WLAN Status ("W" models only) 87
6.4 Packet Statistics ....87
6.5 VoIP Statistics 89

Chapter 7

WAN Setup....93

7.1 WAN Overview 93

7.1.1 Encapsulation ......93
7.1.1.1 ENET ENCAP 93
7.1.1.2 PPP over Ethernet 93
7.1.1.3 PPPoA 94
7.1.1.4 RFC 1483 94

7.1.2 Multiplexing .....94

7.1.2.1 VC-based Multiplexing 94

7.1.2.2 LLC-based Multiplexing 94

7.1.3 VPI and VCI 94

7.1.4 IP Address Assignment 95

7.1.4.1 IP Assignment with PPPoA or PPPoE Encapsulation .....95

7.1.4.2 IP Assignment with RFC 1483 Encapsulation .....95

7.1.4.3 IP Assignment with ENET ENCAP Encapsulation .....95

7.1.5 Nailed-Up Connection (PPP) 95

7.1.6 NAT 95

7.2 Metric 96

7.3 Traffic Shaping 96

7.3.1 ATM Traffic Classes .....97

7.3.1.1 Constant Bit Rate (CBR) 97

7.3.1.2 Variable Bit Rate (VBR) 97

7.3.1.3 Unspecified Bit Rate (UBR) 98

7.4 Zero Configuration Internet Access 98

7.5 Internet Access Setup 98

7.5.1 Advanced Internet Access Setup....101

7.6 WAN More Connections 102

7.7 Traffic Redirect 103

7.8 WAN Backup Setup ....105

Chapter 8

LAN Setup....107

8.1 LAN Overview 107

8.1.1 LANs, WANs and the ZyXEL Device 107

8.1.2 DHCP Setup 108

8.1.2.1 IP Pool Setup ....108

8.1.3 DNS Server Address 108

8.1.4 DNS Server Address Assignment ....109

8.2 LAN TCP/IP 109

8.2.1 IP Address and Subnet Mask 109

8.2.1.1 Private IP Addresses 110

8.2.2 RIP Setup 110

8.2.3 Multicast 111

8.2.4 Any IP 111

8.2.4.1 How Any IP Works 112

8.3 Configuring LAN IP 113

8.3.1 Configuring Advanced LAN Setup 113

8.4 DHCP Setup 115

8.5 LAN Client List 116

8.6 LAN IP Alias 117

Chapter 9

Wireless LAN 121

9.1 Wireless Network Overview ...... 121

9.2 Wireless Security Overview ......122

9.2.1 SSID 122
9.2.2 MAC Address Filter 122
9.2.3 User Authentication 123
9.2.4 Encryption 123
9.2.5 One-Touch Intelligent Security Technology (OTIST) 124

9.3 Wireless Performance Overview ...... 124

9.3.1 Quality of Service (QoS) 124

9.4 Additional Wireless Terms ...... 125

9.5 General WLAN Screen 125

9.5.1 No Security 126
9.5.2 WEP Encryption Screen 127
9.5.3 WPA(2)-PSK 128
9.5.4 WPA(2) Authentication Screen 130
9.5.5 Wireless LAN Advanced Setup 131

9.6 OTIST Screen 133
9.6.1 Notes on OTIST 135
9.7 MAC Filter 136
9.8 QoS Screen 137
9.8.1 Application Priority Configuration....138

Chapter 10

Network Address Translation (NAT) Screens 141

10.1 NAT Overview 141

10.1.1 NAT Definitions .... 141
10.1.2 What NAT Does .... 142
10.1.3 How NAT Works 142
10.1.4 NAT Application 143
10.1.5 NAT Mapping Types 143

10.2 SUA (Single User Account) Versus NAT 144
10.3 NAT General Setup 144
10.4 Port Forwarding 145

10.4.1 Default Server IP Address 146
10.4.2 Port Forwarding: Services and Port Numbers ....146
10.4.3 Configuring Servers Behind Port Forwarding (Example) ..... 146

10.5 Configuring Port Forwarding 147

10.5.1 Port Forwarding Rule Edit 148
10.5.2 SIP ALG 149

Chapter 11

Voice 151

11.1 Introduction to VoIP ...... 151
11.2 SIP 151

11.2.1 SIP Identities .... 151

11.2.1.1 SIP Number 151

11.2.1.2 SIP Service Domain 152

11.2.2 SIP Call Progression 152

11.2.3 SIP Servers 152

11.2.3.1 SIP User Agent ....153

11.2.3.2 SIP Proxy Server 153

11.2.3.3 SIP Redirect Server 154

11.2.3.4 SIP Register Server 154

11.3 SIP Settings Screen 154

11.3.1 RTP 156

11.4 Pulse Code Modulation .... 156

11.5 Voice Coding 156

11.5.1 G.711 156

11.5.2 G.729 156

11.6 PSTN Call Setup Signaling ....157

11.7 MWI (Message Waiting Indication) 157

11.8 Custom Tones (IVR) 157

11.8.0.1 Recording Custom Tones 157

11.8.0.2 Listening to Custom Tones 158

11.8.0.3 Deleting Custom Tones ....158

11.9 Advanced SIP Setup Screen 158

11.10 Quality of Service (QoS) 162

11.10.1 Type Of Service (ToS) 162

11.10.2 DiffServ 162

11.10.2.1 DSCP and Per-Hop Behavior ...... 162

11.10.3 VLAN 163

11.10.4 SIP QoS Screen 163

11.11 Phone 164

11.12 PSTN Line ("L" models only) 164

11.12.1 Voice Activity Detection/Silence Suppression 164

11.12.2 Comfort Noise Generation 164

11.12.3 Echo Cancellation .... 164

11.13 Analog Phone Screen 165

11.14 Advanced Analog Phone Setup Screen 166

11.14.1 Common Phone Settings Screen 167

11.15 Supplementary Phone Services Overview 168

11.15.1 The Flash Key 168

11.15.2 Europe Type Supplementary Phone Services 168

11.15.2.1 European Call Hold 169

11.15.2.2 European Call Waiting 169

11.15.2.3 European Call Transfer 169

11.15.2.4 European Three-Way Conference ..... 170

11.15.3 USA Type Supplementary Services ....170

11.15.3.1 USA Call Hold .... 170

11.15.3.2 USA Call Waiting 171

11.15.3.3 USA Call Transfer 171

11.15.3.4 USA Three-Way Conference ....171

11.16 Phone Region Screen 171

11.17 Speed Dial 172

11.17.1 Peer-to-Peer Calls ...... 172

11.18 Speed Dial Screen 173

11.19 Incoming Call Policy Screen ....174

11.20 PSTN Line Screen ("L" models only) 176

Chapter 12

Phone Usage 179

12.1 Dialing a Telephone Number 179

12.2 Using Speed Dial to Dial a Telephone Number ..... 179

12.3 Internal Calls ...... 179

12.4 Checking the Device's IP Address 179

12.5 Auto Firmware Upgrade ....180

Chapter 13

Firewalls....181

13.1 Firewall Overview ....181

13.2 Types of Firewalls .... 181

13.2.1 Packet Filtering Firewalls ....181

13.2.2 Application-level Firewalls 182

13.2.3 Stateful Inspection Firewalls 182

13.3 Introduction to ZyXEL's Firewall 182

13.3.1 Denial of Service Attacks .... 183

13.4 Denial of Service 183

13.4.1 Basics ...... 183

13.4.2 Types of DoS Attacks .... 184

13.4.2.1 ICMP Vulnerability 186

13.4.2.2 Illegal Commands (NetBIOS and SMTP) ....186

13.4.2.3 Traceroute .... 187

13.5 Stateful Inspection .... 187

13.5.1 Stateful Inspection Process 188

13.5.2 Stateful Inspection on Your ZyXEL Device 188

13.5.3 TCP Security ....189

13.5.4 UDP/ICMP Security 189

13.5.5 Upper Layer Protocols ....190

13.6 Guidelines for Enhancing Security with Your Firewall 190

13.6.1 Security In General 190

13.7 Packet Filtering Vs Firewall ....191

13.7.1 Packet Filtering: 191

13.7.1.1 When To Use Filtering .... 192

13.7.2 Firewall 192

13.7.2.1 When To Use The Firewall 192

Chapter 14

Firewall Configuration 193

14.1 Access Methods ...... 193

14.2 Firewall Policies Overview 193

14.3 Rule Logic Overview ...... 194

14.3.1 Rule Checklist .... 194

14.3.2 Security Ramifications ....194

14.3.3 Key Fields For Configuring Rules 195

14.3.3.1 Action 195

14.3.3.2 Service 195

14.3.3.3 Source Address 195

14.3.3.4 Destination Address 195

14.4 Connection Direction .... 195

14.4.1 LAN to WAN Rules 196

14.4.2 Alerts ...... 196

14.5 General Firewall Policy 196

14.6 Firewall Rules Summary 197

14.6.1 Configuring Firewall Rules 199

14.6.2 Customized Services ...... 202

14.6.3 Configuring A Customized Service 202

14.7 Example Firewall Rule ....203

14.8 DoS Thresholds 207

14.8.1 Threshold Values ......207

14.8.2 Half-Open Sessions ......208

14.8.2.1 TCP Maximum Incomplete and Blocking Time ....208

14.8.3 Configuring Firewall Thresholds 209

Chapter 15

Content Filtering 211

15.1 Content Filtering Overview 211

15.2 Configuring Keyword Blocking 211

15.3 Configuring the Schedule 212

15.4 Configuring Trusted Computers 213

Chapter 16

Introduction to IPSec 215

16.1 VPN Overview ......215

16.1.1 IPSec 215

16.1.2 Security Association 215

16.1.3 Other Terminology ....215

16.1.3.1 Encryption ......215

16.1.3.2 Data Confidentiality ......216

16.1.3.3 Data Integrity 216

16.1.3.4 Data Origin Authentication ......216

16.1.4 VPN Applications ......216

16.2 IPSec Architecture ...... 216

16.2.1 IPSec Algorithms ....217

16.2.2 Key Management ......217

16.3 Encapsulation ....217

16.3.1 Transport Mode 218

16.3.2 Tunnel Mode 218

16.4 IPSec and NAT 218

Chapter 17

VPN Screens 221

17.1 VPN/IPSec Overview 221

17.2 IPSec Algorithms ...... 221

17.2.1 AH (Authentication Header) Protocol ....221

17.2.2 ESP (Encapsulating Security Payload) Protocol ....221

17.3 My IP Address 222

17.4 Secure Gateway Address 223

17.4.1 Dynamic Secure Gateway Address .....223

17.5 VPN Setup Screen 223

17.6 Keep Alive 225

17.7 VPN, NAT, and NAT Traversal 226

17.8 Remote DNS Server 227

17.9 ID Type and Content ......227

17.9.1 ID Type and Content Examples ......229

17.10 Pre-Shared Key ......229

17.11 Editing VPN Policies 229

17.12 IKE Phases 234

17.12.1 Negotiation Mode ......235

17.12.2 Diffie-Hellman (DH) Key Groups ......236

17.12.3 Perfect Forward Secrecy (PFS) 236

17.13 Configuring Advanced IKE Settings 236

17.14 Manual Key Setup 239

17.14.1 Security Parameter Index (SPI) 239

17.15 Configuring Manual Key 239

17.16 Viewing SA Monitor 242

17.17 Configuring Global Setting 244

17.18 Telecommuter VPN/IPSec Examples 244

17.18.1 Telecommuters Sharing One VPN Rule Example 244

17.18.2 Telecommuters Using Unique VPN Rules Example .....245

17.19 VPN and Remote Management ....247

Chapter 18

Static Route 249

18.1 Static Route 249

18.2 Configuring Static Route 249

18.2.1 Static Route Edit ....250

Chapter 19

Bandwidth Management 253

19.1 Bandwidth Management Overview 253

19.2 Application-based Bandwidth Management ....253

19.3 Subnet-based Bandwidth Management .....253

19.4 Application and Subnet-based Bandwidth Management ....254

19.5 Scheduler 254

19.5.1 Priority-based Scheduler 254

19.5.2 Fairness-based Scheduler 255

19.6 Maximize Bandwidth Usage 255

19.6.1 Reserving Bandwidth for Non-Bandwidth Class Traffic .....255

19.6.2 Maximize Bandwidth Usage Example 256

19.6.2.1 Priority-based Allotment of Unused and Unbudgeted Bandwidth 256

19.6.2.2 Fairness-based Allotment of Unused and Unbudgeted Bandwidth ... 257

19.6.3 Bandwidth Management Priorities ......257

19.7 Configuring Summary 257

19.8 Bandwidth Management Rule Setup 259

19.8.1 Rule Configuration....260

19.9 Bandwidth Monitor 262

Chapter 20

Dynamic DNS Setup....263

20.1 Dynamic DNS Overview 263

20.1.1 DYNDNS Wildcard 263

20.2 Configuring Dynamic DNS 263

Chapter 21

Remote Management Configuration 267

21.1 Remote Management Overview ......267

21.1.1 Remote Management Limitations ....267

21.1.2 Remote Management and NAT 268

21.1.3 System Timeout 268

21.2 WWW 268

21.3 Telnet 269

21.4 Configuring Telnet 269

21.5 Configuring FTP 270

21.6 SNMP 271

21.6.1 Supported MIBs 272

21.6.2 SNMP Traps 273

21.6.3 Configuring SNMP 273

21.7 Configuring DNS 275

21.8 Configuring ICMP 275

Chapter 22

Universal Plug-and-Play (UPnP) 277

22.1 Introducing Universal Plug and Play 277

22.1.1 How do I know if I'm using UPnP? 277

22.1.2 NAT Traversal 277

22.1.3 Cautions with UPnP 278

22.2 UPnP and ZyXEL 278

22.2.1 Configuring UPnP 278

22.3 Installing UPnP in Windows Example 279

22.4 Using UPnP in Windows XP Example 282

Chapter 23

System 289

23.1 General Setup and System Name ......289

23.1.1 General Setup 289

23.2 Time Setting 291

Chapter 24

Logs 295

24.1 Logs Overview ......295

24.1.1 Alerts and Logs ....295

24.2 Viewing the Logs ....295

24.3 Configuring Log Settings 296

24.4 SMTP Error Messages ....299

24.4.1 Example E-mail Log 299

Chapter 25

Tools 301

25.1 Introduction ......301

25.2 Filename Conventions ......301

25.3 File Maintenance Over WAN 302

25.4 Firmware Upgrade Screen 302
25.5 Backup and Restore ....304

25.5.1 Backup Configuration 305
25.5.2 Restore Configuration 305
25.5.3 Reset to Factory Defaults ....307

25.6 Restart 307

25.7 Using FTP or TFTP to Back Up Configuration ....308

25.7.1 Using the FTP Commands to Back Up Configuration ....308
25.7.2 FTP Command Configuration Backup Example 308
25.7.3 Configuration Backup Using GUI-based FTP Clients ....309
25.7.4 Backup Configuration Using TFTP 309
25.7.5 TFTP Command Configuration Backup Example ....310
25.7.6 Configuration Backup Using GUI-based TFTP Clients ....310

25.8 Using FTP or TFTP to Restore Configuration 310

25.8.1 Restore Using FTP Session Example 311

25.9 FTP and TFTP Firmware and Configuration File Uploads ....311

25.9.1 FTP File Upload Command from the DOS Prompt Example ....311
25.9.2 FTP Session Example of Firmware File Upload ....312
25.9.3 TFTP File Upload ....312
25.9.4 TFTP Upload Command Example ....313

Chapter 26

Diagnostic 315

26.1 General Diagnostic ....315
26.2 DSL Line Diagnostic 315

Chapter 27

Troubleshooting 319

27.1 Problems Starting Up the ZyXEL Device ....319
27.2 Problems with the LAN ....319
27.3 Problems with the WAN 320
27.4 Problems Accessing the ZyXEL Device ....321

27.4.1 Pop-up Windows, JavaScripts and Java Permissions ....321

27.4.1.1 Internet Explorer Pop-up Blockers 322
27.4.1.2 JavaScripts ....325
27.4.1.3 Java Permissions ....327

27.5 Telephone Problems 329
27.6 Problems With Multiple SIP Accounts ....330

27.6.1 Outgoing Calls ......330
27.6.2 Incoming Calls ......331

Appendix A

Product Specifications 333

P-2602HWL Series Power Adaptor Specifications.... 336

Appendix B

Splitters and Microfilters 339

Connecting a POTS Splitter 339

Telephone Microfilters 339

ZyXEL Device With ISDN 340

Appendix C

Setting up Your Computer's IP Address....341

Windows 95/98/Me.... 341

Configuring 343

Verifying Settings 344

Windows 2000/NT/XP 344

Verifying Settings 348

Macintosh OS 8/9....349

Verifying Settings 350

Macintosh OS X 350

Verifying Settings.... 351

Appendix D

IP Addresses and Subnetting 353

Introduction to IP Addresses 353

IP Address Classes and Hosts 353

Subnet Masks 355

Subnetting 355

Example: Two Subnets 356

Example: Four Subnets.... 357

Example Eight Subnets 358

Subnetting With Class A and Class B Networks 359

Appendix E

Wireless LANs 361

Wireless LAN Topologies 361

Ad-hoc Wireless LAN Configuration 361

BSS.... 361

ESS.... 362

Channel 363

RTS/CTS 363

Fragmentation Threshold 364

Preamble Type 365

IEEE 802.1x 366

RADIUS.... 366

Types of RADIUS Messages 366

Types of Authentication 367

EAP-MD5 (Message-Digest Algorithm 5) 367

EAP-TLS (Transport Layer Security) 368

EAP-TTLS (Tunneled Transport Layer Service) 368

PEAP (Protected EAP) 368

LEAP 368

Dynamic WEP Key Exchange 368

WPA 369

User Authentication 369

Encryption 369

Security Parameters Summary 370

Appendix F

Services 371

Appendix G

Firewall Commands 375

Sys Firewall Commands 375

Appendix H

Triangle Route 377

The Ideal Setup.... 377

The "Triangle Route" Problem...... 377

The "Triangle Route" Solutions 378

IP Aliasing 378

Gateways on the WAN Side 379

Appendix I

Log Descriptions.... 381

Log Commands.... 390

Configuring What You Want the ZyXEL Device to Log 390

Displaying Logs 391

Log Command Example.... 392

Appendix J

Command Interpreter.... 393

Command Syntax.... 393

Command Usage 393

Appendix K

Internal SPTGEN 395

Internal SPTGEN Overview 395

The Configuration Text File Format.... 395

Internal SPTGEN File Modification - Important Points to Remember 395

Internal SPTGEN FTP Download Example.... 396

Internal SPTGEN FTP Upload Example 397

Command Examples 419

Index 421

List of Figures

Figure 1 Internet Access Application 44

Figure 2 Internet Telephony Service Provider Application 45

Figure 3 Peer-to-peer Calling .... 45

Figure 4 Firewall Application ...... 46

Figure 5 LAN-to-LAN Application 46

Figure 6 LEDs 47

Figure 7 Password Screen .... 50

Figure 8 Change Password Screen .... 50

Figure 9 Wizard or Advanced Screen 51

Figure 10 Main Screen 52

Figure 11 Select a Mode .... 57

Figure 12 Wizard Welcome .... 58

Figure 13 Auto Detection: No DSL Connection .... 58

Figure 14 Auto-Detection: PPPoE 59

Figure 15 Auto Detection: Failed 59

Figure 16 Internet Access Wizard Setup: ISP Parameters 60

Figure 17 Internet Connection with PPPoE 61

Figure 18 Internet Connection with RFC 1483 62

Figure 19 Internet Connection with ENET ENCAP 62

Figure 20 Internet Connection with PPPoA 63

Figure 21 Connection Test Failed-1 64

Figure 22 Connection Test Failed-2. 64

Figure 23 Connection Test Successful 65

Figure 24 Wireless LAN Setup Wizard 1 65

Figure 25 Wireless LAN 66

Figure 26 Manually Assign a WPA key 67

Figure 27 Manually Assign a WEP key 68

Figure 28 Wireless LAN Setup 3 69

Figure 29 Internet Access and WLAN Wizard Setup Complete 70

Figure 30 VoIP Phone Calls ...... 71

Figure 31 Select a Mode 72

Figure 32 Wizard: Welcome 72

Figure 33 VoIP Wizard Configuration 73

Figure 34 SIP Registration Test 74

Figure 35 VoIP Wizard Fail 75

Figure 36 VoIP Wizard Finish 75

Figure 37 Select a Mode .... 79

Figure 38 Wizard: Welcome 79

Figure 39 Bandwidth Management Wizard: General Information 80

Figure 40 Bandwidth Management Wizard: Service Configuration 80

Figure 41 Bandwidth Management Wizard: Complete 81

Figure 42 Status Screen 83

Figure 43 Any IP Table 86

Figure 44 WLAN Status 87

Figure 45 Packet Statistics 88

Figure 46 VoIP Statistics 89

Figure 47 Example of Traffic Shaping 97

Figure 48 Internet Access Setup (PPPoE) 99

Figure 49 Advanced Internet Access Setup 101

Figure 50 WAN More Connections 103

Figure 51 Traffic Redirect Example 104

Figure 52 Traffic Redirect LAN Setup 104

Figure 53 LAN and WAN IP Addresses 107

Figure 54 Any IP Example 112

Figure 55 LAN IP 113

Figure 56 Advanced LAN Setup 114

Figure 57 DHCP Setup 115

Figure 58 LAN Client List .... 116

Figure 59 Physical Network & Partitioned Logical Networks .... 118

Figure 60 LAN IP Alias 118

Figure 61 Example of a Wireless Network .... 121

Figure 62 Wireless LAN: General 126

Figure 63 Wireless: No Security 127

Figure 64 Wireless: Static WEP Encryption 128

Figure 65 Wireless: WPA(2)-PSK 129

Figure 66 Wireless: WPA(2) 130

Figure 67 Advanced 132

Figure 68 Network > Wireless LAN > OTIST 133

Figure 69 Example: Wireless Client OTIST Screen 134

Figure 70 OTIST: Settings 134

Figure 71 OTIST: In Progress on the ZyXEL Device 134

Figure 72 OTIST: In Progress on the Wireless Device 135

Figure 73 Start OTIST? 135

Figure 74 MAC Address Filter 136

Figure 75 Wireless LAN: QoS 137

Figure 76 Application Priority Configuration 138

Figure 77 How NAT Works 142

Figure 78 NAT Application With IP Alias 143

Figure 79 NAT General 145

Figure 80 Multiple Servers Behind NAT Example 146

Figure 81 Port Forwarding 147

Figure 82 Port Forwarding Rule Setup 148

Figure 83 Network > NAT > ALG 149

Figure 84 SIP User Agent 153

Figure 85 SIP Proxy Server 153

Figure 86 SIP Redirect Server .... 154

Figure 87 SIP > SIP Settings 155

Figure 88 VoIP > SIP Settings > Advanced 159

Figure 89 DiffServ: Differentiated Service Field 162

Figure 90 SIP > QoS 163

Figure 91 Phone > Analog Phone .... 165

Figure 92 Phone > Analog Phone > Advanced 166

Figure 93 Phone > Common 167

Figure 94 VoIP > Phone > Region 172

Figure 95 Phone Book > Speed Dial .... 173

Figure 96 Phone Book > Incoming Call Policy .... 175

Figure 97 PSTN Line > General 177

Figure 98 Firewall Application .... 183

Figure 99 Three-Way Handshake .... 184

Figure 100 SYN Flood 185

Figure 101 Smurf Attack .... 186

Figure 102 Stateful Inspection .... 187

Figure 103 Firewall: General 196

Figure 104 Firewall Rules 198

Figure 105 Firewall: Edit Rule .... 200

Figure 106 Firewall: Customized Services 202

Figure 107 Firewall: Configure Customized Services .... 203

Figure 108 Firewall Example: Rules 204

Figure 109 Edit Custom Port Example 204

Figure 110 Firewall Example: Edit Rule: Destination Address 205

Figure 111 Firewall Example: Edit Rule: Select Customized Services ...... 206

Figure 112 Firewall Example: Rules: MyService 207

Figure 113 Firewall: Threshold 209

Figure 114 Content Filter: Keyword ...... 211

Figure 115 Content Filter: Schedule 212

Figure 116 Content Filter: Trusted 213

Figure 117 Encryption and Decryption ...... 216

Figure 118 IPSec Architecture 217

Figure 119 Transport and Tunnel Mode IPSec Encapsulation .... 218

Figure 120 IPSec Summary Fields ...... 223

Figure 121 VPN Setup 224

Figure 122 NAT Router Between IPSec Routers ...... 226

Figure 123 VPN Host using Intranet DNS Server Example 227

Figure 124 Edit VPN Policies 230

Figure 125 Two Phases to Set Up the IPSec SA 234

Figure 126 Advanced VPN Policies 237

Figure 127 VPN: Manual Key 240

Figure 128 VPN: SA Monitor 243

Figure 129 VPN: Global Setting 244

Figure 130 Telecommuters Sharing One VPN Rule Example 245

Figure 131 Telecommuters Using Unique VPN Rules Example 246

Figure 132 Example of Static Routing Topology ...... 249

Figure 133 Static Route 250

Figure 134 Static Route Edit ...... 251

Figure 135 Subnet-based Bandwidth Management Example ...... 254

Figure 136 Bandwidth Management: Summary 258

Figure 137 Bandwidth Management: Rule Setup 259

Figure 138 Bandwidth Management Rule Configuration 260

Figure 139 Bandwidth Management: Monitor 262

Figure 140 Dynamic DNS 264

Figure 141 Remote Management: WWW 268

Figure 142 Telnet Configuration on a TCP/IP Network 269

Figure 143 Remote Management: Telnet 270

Figure 144 Remote Management: FTP 271

Figure 145 SNMP Management Model ...... 272

Figure 146 Remote Management: SNMP 274

Figure 147 Remote Management: DNS 275

Figure 148 Remote Management: ICMP 276

Figure 149 Configuring UPnP 278

Figure 150 Add/Remove Programs: Windows Setup: Communication 280

Figure 151 Add/Remove Programs: Windows Setup: Communication: Components ..... 280

Figure 152 Network Connections ...... 281

Figure 153 Windows Optional Networking Components Wizard 281

Figure 154 Networking Services 282

Figure 155 Network Connections ...... 283

Figure 156 Internet Connection Properties 283

Figure 157 Internet Connection Properties: Advanced Settings 284

Figure 158 Internet Connection Properties: Advanced Settings: Add .... 284

Figure 159 System Tray Icon 285

Figure 160 Internet Connection Status .... 285

Figure 161 Network Connections ...... 286

Figure 162 Network Connections: My Network Places .... 287

Figure 163 Network Connections: My Network Places: Properties: Example .... 287

Figure 164 System General Setup 290

Figure 165 System Time Setting 291

Figure 166 View Log 296

Figure 167 Log Settings 297

Figure 168 E-mail Log Example ...... 300

Figure 169 Firmware Upgrade 303

Figure 170 Firmware Upload In Progress 303

Figure 171 Network Temporarily Disconnected 304

Figure 172 Error Message 304

Figure 173 Configuration .... 305

Figure 174 Configuration Upload Successful 306

Figure 175 Network Temporarily Disconnected 306

Figure 176 Configuration Upload Error 306

Figure 177 Reset Warning Message 307

Figure 178 Reset In Process Message 307

Figure 179 Restart Screen 307

Figure 180 FTP Session Example 308

Figure 181 Restore Using FTP Session Example .... 311

Figure 182 FTP Session Example of Firmware File Upload .... 312

Figure 183 Diagnostic: General 315

Figure 184 Diagnostic: DSL Line .... 316

Figure 185 Pop-up Blocker 322

Figure 186 Internet Options ...... 323

Figure 187 Internet Options ...... 324

Figure 188 Pop-up Blocker Settings 325

Figure 189 Internet Options ...... 326

Figure 190 Security Settings - Java Scripting .... 327

Figure 191 Security Settings - Java 328

Figure 192 Java (Sun) 329

Figure 193 Outgoing Calls: Default 330

Figure 194 Outgoing Calls: Individual Configuration .... 330

Figure 195 Incoming Calls: Default 331

Figure 196 Incoming Calls: Individual Configuration .... 331

Figure 197 Connecting a POTS Splitter .... 339

Figure 198 Connecting a Microfilter .... 340

Figure 199 ZyXEL Device with ISDN 340

Figure 200 W/Windows 95/98/Me: Network: Configuration 342

Figure 201 Windows 95/98/Me: TCP/IP Properties: IP Address 343

Figure 202 Windows 95/98/Me: TCP/IP Properties: DNS Configuration 344

Figure 203 Windows XP: Start Menu 345

Figure 204 Windows XP: Control Panel 345

Figure 205 Windows XP: Control Panel: Network Connections: Properties 346

Figure 206 Windows XP: Local Area Connection Properties 346

Figure 207 Windows XP: Advanced TCP/IP Settings 347

Figure 208 Windows XP: Internet Protocol (TCP/IP) Properties 348

Figure 209 Macintosh OS 8/9: Apple Menu 349

Figure 210 Macintosh OS 8/9: TCP/IP 350

Figure 211 Macintosh OS X: Apple Menu 350

Figure 212 Macintosh OS X: Network 351

Figure 213 Peer-to-Peer Communication in an Ad-hoc Network 361

Figure 214 Basic Service Set .... 362

Figure 215 Infrastructure WLAN 363

Figure 216 RTS/CTS 364

Figure 217 Ideal Setup .... 377

Figure 218 "Triangle Route" Problem 378

Figure 219 IP Alias 378

Figure 220 Gateways on the WAN Side 379

Figure 221 Displaying Log Categories Example 390

Figure 222 Displaying Log Parameters Example 391

Figure 223 Log Command Example 392

Figure 224 Configuration Text File Format: Column Descriptions .... 395

Figure 225 Invalid Parameter Entered: Command Line Example 396

Figure 226 Valid Parameter Entered: Command Line Example 396

Figure 227 Internal SPTGEN FTP Download Example 397

Figure 228 Internal SPTGEN FTP Upload Example 397

List of Tables

Table 1 Models Covered ...... 37

Table 2 ADSL Standards 38

Table 3 IEEE 802.11g 42

Table 4 LEDs 47

Table 5 Web Configurator Icons in the Title Bar 53

Table 6 Navigation Panel Summary 53

Table 7 Internet Access Wizard Setup: ISP Parameters 60

Table 8 Internet Connection with PPPoE 61

Table 9 Internet Connection with RFC 1483 62

Table 10 Internet Connection with ENET ENCAP 63

Table 11 Internet Connection with PPPoA 63

Table 12 Wireless LAN Setup Wizard 1 66

Table 13 Wireless LAN Setup Wizard 2 66

Table 14 Manually Assign a WPA key 68

Table 15 Manually Assign a WEP key 69

Table 16 Sample SIP Account Information 73

Table 17 VoIP Wizard Configuration 73

Table 18 Media Bandwidth Management Setup: Services 77

Table 19 Bandwidth Management Wizard: General Information 80

Table 20 Bandwidth Management Wizard: Service Configuration 81

Table 21 Status Screen 84

Table 22 Any IP Table 87

Table 23 WLAN Status 87

Table 24 Packet Statistics 88

Table 25 VoIP Statistics 90

Table 26 Internet Access Setup 99

Table 27 Advanced Internet Access Setup 10

Table 28 Advanced Internet Access Setup 10

Table 29 WAN Backup Setup 10

Table 30 LAN IP 11

Table 31 Advanced LAN Setup 11

Table 32 DHCP Setup 11

Table 33 LAN Client List 11

Table 34 LAN IP Alias 11

Table 35 Types of Encryption for Each Type of Authentication 12

Table 36 Wireless LAN: General 12

Table 37 Wireless No Security 12

Table 38 Wireless: Static WEP Encryption 12

Table 39 Wireless: WPA(2)-PSK 129

Table 40 Wireless: WPA(2) 130

Table 41 Wireless LAN: Advanced 132

Table 42 Network > Wireless LAN > OTIST 133

Table 43 MAC Address Filter 136

Table 44 Wireless LAN: QoS 137

Table 45 Application Priority Configuration .... 139

Table 46 NAT Definitions ...... 141

Table 47 NAT Mapping Types ...... 144

Table 48 NAT General 145

Table 49 Port Forwarding 147

Table 50 Port Forwarding Rule Setup 148

Table 51 Network > NAT > ALG 149

Table 52 SIP Call Progression 152

Table 53 SIP > SIP Settings 155

Table 54 Custom Tones Details ...... 157

Table 55 VoIP > SIP Settings > Advanced 160

Table 56 SIP > QoS 163

Table 57 Phone > Analog Phone 165

Table 58 Phone > Analog Phone > Advanced 166

Table 59 Phone > Common 167

Table 60 European Flash Key Commands 168

Table 61 USA Flash Key Commands 170

Table 62 VoIP > Phone > Region 172

Table 63 Phone Book > Speed Dial 173

Table 64 Phone Book > Incoming Call Policy 175

Table 65 PSTN Line > General 177

Table 66 Common IP Ports 184

Table 67 ICMP Commands That Trigger Alerts .... 186

Table 68 Legal NetBIOS Commands 186

Table 69 Legal SMTP Commands 186

Table 70 Firewall: General 197

Table 71 Firewall Rules ...... 198

Table 72 Firewall: Edit Rule ...... 201

Table 73 Customized Services ...... 202

Table 74 Firewall: Configure Customized Services 203

Table 75 Firewall: Threshold 209

Table 76 Content Filter: Keyword 212

Table 77 Content Filter: Schedule 213

Table 78 Content Filter: Trusted 213

Table 79 VPN and NAT 219

Table 80 AH and ESP 222

Table 81 VPN Setup 224

Table 82 VPN and NAT 226

Table 83 Local ID Type and Content Fields 228

Table 84 Peer ID Type and Content Fields 228

Table 85 Matching ID Type and Content Configuration Example 229

Table 86 Mismatching ID Type and Content Configuration Example 229

Table 87 Edit VPN Policies 230

Table 88 Advanced VPN Policies 237

Table 89 VPN: Manual Key 240

Table 90 VPN: SA Monitor 243

Table 91 VPN: Global Setting 244

Table 92 Telecommuters Sharing One VPN Rule Example 245

Table 93 Telecommuters Using Unique VPN Rules Example 246

Table 94 Static Route 250

Table 95 Static Route Edit 251

Table 96 Application and Subnet-based Bandwidth Management Example ...... 254

Table 97 Maximize Bandwidth Usage Example 256

Table 98 Priority-based Allotment of Unused and Unbudgeted Bandwidth Example ..... 256

Table 99 Fairness-based Allotment of Unused and Unbudgeted Bandwidth Example ..... 257

Table 100 Bandwidth Management Priorities ...... 257

Table 101 Media Bandwidth Management: Summary 258

Table 102 Bandwidth Management: Rule Setup 259

Table 103 Bandwidth Management Rule Configuration 261

Table 104 Dynamic DNS 264

Table 105 Remote Management: WWW 269

Table 106 Remote Management: Telnet 270

Table 107 Remote Management: FTP 271

Table 108 SNMP Traps 273

Table 109 Remote Management: SNMP 274

Table 110 Remote Management: DNS 275

Table 111 Remote Management: ICMP 276

Table 112 Configuring UPnP 279

Table 113 System General Setup 290

Table 114 System Time Setting 291

Table 115 View Log 296

Table 116 Log Settings 297

Table 117 SMTP Error Messages ...... 299

Table 118 Filename Conventions ...... 302

Table 119 Firmware Upgrade .... 303

Table 120 Restore Configuration .... 305

Table 121 General Commands for GUI-based FTP Clients 309

Table 122 General Commands for GUI-based TFTP Clients .... 310

Table 123 Diagnostic: General 315

Table 124 Diagnostic: DSL Line 316

Table 125 Troubleshooting Starting Up Your Device .... 319

Table 126 Troubleshooting the LAN 319

Table 127 Troubleshooting the WAN 320

Table 128 Troubleshooting Accessing Your Device 321

Table 129 Troubleshooting Telephone 329

Table 130 Device Specifications .... 333

Table 131 Firmware Specifications .... 334

Table 132 P-2602HWL Series Power Adaptor Specifications 336

Table 133 Classes of IP Addresses 354

Table 134 Allowed IP Address Range By Class 354

Table 135 “Natural” Masks 355

Table 136 Alternative Subnet Mask Notation 355

Table 137 Two Subnets Example ...... 356

Table 138 Subnet 1 356

Table 139 Subnet 2 357

Table 140 Subnet 1 357

Table 141 Subnet 2 358

Table 142 Subnet 3 358

Table 143 Subnet 4 358

Table 144 Eight Subnets ...... 359

Table 145 Class C Subnet Planning 359

Table 146 Class B Subnet Planning 360

Table 147 IEEE 802.11g 365

Table 148 Comparison of EAP Authentication Types .... 369

Table 149 Wireless Security Relational Matrix 370

Table 150 Examples of Services ...... 371

Table 151 Sys Firewall Commands 375

Table 152 System Maintenance Logs 381

Table 153 System Error Logs 382

Table 154 Access Control Logs ...... 382

Table 155 TCP Reset Logs 383

Table 156 Packet Filter Logs 383

Table 157 ICMP Logs 383

Table 158 CDR Logs 384

Table 159 PPP Logs 384

Table 160 UPnP Logs 385

Table 161 Content Filtering Logs 385

Table 162 Attack Logs 385

Table 163 802.1X Logs 386

Table 164 ACL Setting Notes 387

Table 165 ICMP Notes 387

Table 166 Syslog Logs 388

Table 167 SIP Logs 388

Table 168 RTP Logs 389
Table 169 FSM Logs: Caller Side 389
Table 170 FSM Logs: Callee Side 389
Table 171 PSTN Logs 389
Table 172 RFC-2408 ISAKMP Payload Types 390
Table 173 Abbreviations Used in the Example Internal SPTGEN Screens Table ...... 398
Table 174 Menu 1 General Setup 398
Table 175 Menu 3 398
Table 176 Menu 4 Internet Access Setup 401
Table 177 Menu 12 403
Table 178 Menu 15 SUA Server Setup 407
Table 179 Menu 21.1 Filter Set #1 409
Table 180 Menu 21.1 Filer Set #2, 413
Table 181 Menu 23 System Menus 417
Table 182 Menu 24.11 Remote Management Control 418
Table 183 Command Examples ...... 419

Preface

Congratulations on your purchase of the P-2602H(W)(L)-DxA 802.11g Wireless ADSL 2+ VoIP IAD (the “ZyXEL Device”). Your ZyXEL Device is easy to install and configure.

About This User's Guide

This manual is designed to guide you through the configuration of your ZyXEL Device for its various applications.

Note: Use the web configurator or command interpreter interface to configure your ZyXEL Device. Not all features can be configured through all management interfaces.

Related Documentation

- Supporting Disk

Refer to the included CD for support documents.

- Quick Start Guide

The Quick Start Guide is designed to help you get up and running right away. It contains connection information and instructions on getting started.

• Web Configurator Online Help

Embedded web help for descriptions of individual screens and supplementary information.

- ZyXEL Web Site

Please go to http://www.zyxel.com for product news, firmware, updated documents, and other support materials.

User Guide Feedback

Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to [e-mail] or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.

Syntax Conventions

- “Enter” means for you to type one or more characters. “Select” or “Choose” means for you to use one predefined choices.

- Screen titles and labels are in Bold Times New Roman font. Predefined field choices are in Bold Arial font. Command and arrow keys are enclosed in square brackets. [ENTER] means the Enter, or carriage return key; [ESC] means the Escape key and [SPACE BAR] means the Space Bar.

• Mouse action sequences are denoted using a right angle bracket ( > ). For example, “In Windows, click Start > Settings > Control Panel” means first click the Start button, then point your mouse pointer to Settings and then click Control Panel.
• “e.g.,” is a shorthand for “for instance”, and “i.e.,” means “that is” or “in other words”.
• The P-2602H(W)(L)-DxA may be referred to as the ZyXEL Device in this user's guide.

Graphics Icons Key

ZyXEL Device	Computer	Notebook computer
Server	Switch	Router
Telephone	DSLAM	Trunking gateway
Firewall	Wireless signal

CHAPTER 1 Getting To Know the ZyXEL Device

This chapter describes the key features and applications of your device.

1.1 Introducing the P-2602H(W)(L)-Dx Series

The P-2602H(W)(L)-DxA series are Integrated Access Devices (IADs) that combine an ADSL2+ router with Voice over IP (VoIP) communication capabilities to allow you to use a traditional analog or ISDN telephone to make Internet calls. By integrating DSL and NAT, you are provided with ease of installation and high-speed, shared Internet access. The P-2602H(W)(L)-DxA series is also a complete security solution with a robust firewall and content filtering.

At the time of writing, this guide covers the following models.

Table 1 Models Covered

P-2602HWL-D1A	P-2602HWL-D3A	P-2602HWL-D7A
P-2602HW-D1A	P-2602HW-D3A	P-2602HW-D7A
P-2602H-D1A	P-2602H-D3A	P-2602H-D7A

Not all models include all features. Please refer to the following description of the product name format.

• “H” denotes an integrated 4-port hub (switch). The “H” models also include Virtual Private Network (VPN) capability.
• “W” denotes wireless functionality. There is an embedded mini-PCI module for IEEE 802.11g wireless LAN connectivity. All wireless features documented in this user’s guide refer to the “W” models only.
• “L” denotes the PSTN (Public Switched Telephone Network) line feature. The PSTN line lets you have VoIP phone service and PSTN phone service at the same time. All PSTN line features documented in this user’s guide refer to the “L” models only.

Note: When the ZyXEL Device does not have power, only the phone connected to the PHONE 1 port can be used for making calls. Ensure you know which phone this is, so that in case of emergency you can make outgoing calls.

Models with “3” as the next to the last character (like the P-2602HWL-D3A) denote a device that works over ISDN (Integrated Services Digital Network). Models with “1” or “7” as the next to the last character (like the P-2602HWL-D1A or the P-2602HWL-D7A) denote a device that works over T-ISDN (UR-2).

Note: Only use firmware for your ZyXEL Device's specific model. Refer to the label on the bottom of your ZyXEL Device.

The web browser-based Graphical User Interface (GUI) provides easy management.

Note: All screens displayed in this user's guide are from the P-2602HWL-D1 model.

1.2 Features

The following sections introduce your device's key features.

Built-in Switch

The four 10/100 Mbps auto-negotiating Ethernet ports allow the ZyXEL Device to detect the speed of incoming transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mode depending on your Ethernet network. The ports are also auto-crossover (MDI/MDI-X) meaning they automatically adjust to either a crossover or straight-through Ethernet cable.

High Speed Internet Access

The ZyXEL Device is ideal for high-speed Internet browsing and making LAN-to-LAN connections to remote networks. The ZyXEL Device is compatible with the ADSL/ADSL2/ADSL2+ standards. Maximum data rates attainable for each standard are shown in the next table.

Table 2 ADSL Standards

DATA RATE STANDARD	UPSTREAM	DOWNSTREAM
ADSL	832 kbps	8Mbps
ADSL2	3.5Mbps	12Mbps
ADSL2+	3.5Mbps	24Mbps

Note: If your ZyXEL Device does not support Annex M, the maximum ADSL2/2+ upstream data rate is 1.2 Mbps. ZyXEL Devices which work over ISDN do not support Annex M.

The standard your ISP supports determines the maximum upstream and downstream speeds attainable. Actual speeds attained also depend on the distance from your ISP, line quality, etc.

PSTN Line (“L” models only)

You can connect a PSTN line to your device. You can receive incoming PSTN phone calls even while someone else is making VoIP phone calls. You can dial a (prefix) number to make an outgoing PSTN call. You can still make PSTN phone calls if your device loses power.

Note: When the ZyXEL Device does not have power, only the phone connected to the PHONE 1 port can be used for making calls. Ensure you know which phone this is, so that in case of emergency you can make outgoing calls.

Zero Configuration Internet Access

Once you connect and turn on the device, it automatically detects the Internet connection settings (such as the VCI/VPI numbers and the encapsulation method) from the ISP and makes the necessary configuration changes. In cases where additional account information (such as an Internet account user name and password) is required or the ZyXEL Device cannot connect to the ISP, you will be redirected to web screen(s) for information input or troubleshooting.

Any IP

The Any IP feature allows a computer to access the Internet and the ZyXEL Device without changing the network settings (such as IP address and subnet mask) of the computer, when the IP addresses of the computer and the ZyXEL Device are not in the same subnet.

Auto Provisioning

Your VoIP service provider can automatically update your device's configuration via an auto-provisioning server.

Auto Firmware Upgrade

Your device gives you the option to upgrade to a newer firmware version if it finds one during auto-provisioning. Your VoIP service provider must have an auto-provisioning server and a server set up with firmware in order for this feature to work.

Firewall

Your device has a stateful inspection firewall with DoS (Denial of Service) protection. By default, when the firewall is activated, all incoming traffic from the WAN to the LAN is blocked unless it is initiated from the LAN. The firewall supports TCP/UDP inspection, DoS detection and prevention, real time alerts, reports and logs.

IPSec VPN Capability

Establish a Virtual Private Network (VPN) to connect with business partners and branch offices using data encryption and the Internet to provide secure communications without the expense of leased site-to-site lines. The ZyXEL Device VPN is based on the IPSec standard and is interoperable with other IPSec-based VPN products.

The ZyXEL Device supports up to two simultaneous IPSec connections.

Network Address Translation (NAT)

Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).

Content Filtering

Content filtering allows you to block access to Internet web sites that contain key words (that you specify) in the URL. You can also schedule when to perform the filtering and give trusted LAN IP addresses unfiltered Internet access.

Media Bandwidth Management

Media Bandwidth Management allows you to specify bandwidth classes based on an application and/or subnet. You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to different bandwidth classes.

REN

A Ringer Equivalence Number (REN) is used to determine the number of devices (like telephones or fax machines) that may be connected to the telephone line. Your device has a REN of three, so it can support three devices per telephone port.

Dynamic Jitter Buffer

The built-in adaptive buffer helps to smooth out the variations in delay (jitter) for voice traffic. This helps ensure good voice quality for your conversations.

Multiple SIP Accounts

You can simultaneously use multiple voice (SIP) accounts and assign them to one or both telephone ports.

Multiple Voice Channels

Your device can simultaneously handle multiple voice channels (telephone calls).

Additionally you can answer an incoming phone call on a VoIP account, even while someone else is using the account for a phone call.

Voice Activity Detection/Silence Suppression

Voice Activity Detection (VAD) reduces the bandwidth that a call uses by not transmitting when you are not speaking.

Comfort Noise Generation

Your device generates background noise to fill moments of silence when the other device in a call stops transmitting because the other party is not speaking (as total silence could easily be mistaken for a lost connection).

Echo Cancellation

You device supports G.168, an ITU-T standard for eliminating the echo caused by the sound of your voice reverberating in the telephone receiver while you talk.

QoS (Quality of Service)

Quality of Service (QoS) mechanisms help to provide better service on a per-flow basis. Your device supports Type of Service (ToS) tagging and Differentiated Services (DiffServ) tagging. This allows the device to tag voice frames so they can be prioritized over the network.

SIP ALG

Your device is a SIP Application Layer Gateway (ALG). It allows VoIP calls to pass through NAT for devices behind it (such as a SIP-based VoIP software application on a computer).

Universal Plug and Play (UPnP)

Your device and other UPnP enabled devices can use the standard TCP/IP protocol to dynamically join a network, obtain an IP address and convey their capabilities to each other.

PPPoE Support (RFC2516)

PPPoE (Point-to-Point Protocol over Ethernet) emulates a dial-up connection. It allows your ISP to use their existing network configuration with newer broadband technologies such as ADSL. The PPPoE driver on your device is transparent to the computers on the LAN, which see only Ethernet and are not aware of PPPoE thus saving you from having to manage PPPoE clients on individual computers.

Other PPPoE Features

• PPPoE idle time out
• PPPoE dial on demand

Dynamic DNS Support

With Dynamic DNS support, you can have a static hostname alias for a dynamic IP address, allowing the host to be more easily accessible from various locations on the Internet. You must register for this service with a Dynamic DNS service provider.

DHCP

DHCP (Dynamic Host Configuration Protocol) allows the individual clients (computers) to obtain the TCP/IP configuration at start-up from a centralized DHCP server. Your device has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to DHCP clients. Your device can also act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the actual real DHCP server to the clients.

Multiple PVC (Permanent Virtual Circuits) Support

Your device supports up to 8 Permanent Virtual Circuits (PVC's).

IP Alias

IP alias allows you to partition a physical network into logical networks over the same Ethernet interface. Your device supports three logical LAN interfaces via its single physical Ethernet interface with the your device itself as the gateway for each LAN network.

IP Policy Routing (IPPR)

Traditionally, routing is based on the destination address only and the router takes the shortest path to forward a packet. IP Policy Routing (IPPR) provides a mechanism to override the default routing behavior and alter the packet forwarding based on the policy defined by the network administrator.

Packet Filters

Your device's packet filtering function allows added network security and management.

Ease of Installation

Your device is designed for quick, intuitive and easy installation.

Housing

Your device's compact and ventilated housing minimizes space requirements, making it easy to position anywhere in your busy office.

1.3 Wireless Features (“W” models only)

IEEE 802.11g Wireless LAN

IEEE 802.11g is fully compatible with the IEEE 802.11b standard. This means an IEEE 802.11b radio card can interface directly with an IEEE 802.11g access point (and vice versa) at 11 Mbps or lower depending on range. IEEE 802.11g has several intermediate rate steps between the maximum and minimum data rates. The IEEE 802.11g data rate and modulation are as follows:

Table 3 IEEE 802.11g

DATA RATE (MBPS)	MODULATION
1	DBPSK (Differential Binary Phase Shift Keyed)
2	DQPSK (Differential Quadrature Phase Shift Keying)

Table 3 IEEE 802.11g

DATA RATE (MBPS)	MODULATION
5.5 / 11	CCK (Complementary Code Keying)
6/9/12/18/24/36/48/54	OFDM (Orthogonal Frequency Division Multiplexing)

Note: Your device may be prone to RF (Radio Frequency) interference from other 2.4 GHz devices such as microwave ovens, wireless phones, Bluetooth enabled devices, and other wireless LANs.

IEEE 802.11g+ Wireless LAN

Your device supports IEEE 802.11g+ to allow any ZyXEL WLAN devices that also support IEEE 802.1g+ to associate with the ZyXEL Device at higher transmission speeds than with standard IEEE 802.11g.

External Antenna

The ZyXEL Device is equipped with an attached antenna to provide a clear radio signal between the wireless stations and the access points.

Wireless LAN MAC Address Filtering

Your device can check the MAC addresses of wireless stations against a list of allowed or denied MAC addresses.

WEP Encryption

WEP (Wired Equivalent Privacy) encrypts data frames before transmitting over the wireless network to help keep network communications private.

Wi-Fi Protected Access

Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i security standard. Key differences between WPA and WEP are user authentication and improved data encryption.

WPA2

WPA 2 (IEEE 802.11i) is a wireless security standard that defines stronger encryption, authentication and key management than WPA.

WMM QoS

WMM (Wi-Fi MultiMedia) QoS (Quality of Service) allows you to prioritize wireless traffic according to the delivery requirements of individual services.

1.4 Applications for the ZyXEL Device

Here are some example uses for which the ZyXEL Device is well suited.

1.4.1 Internet Access

Your device is the ideal high-speed Internet access solution. It supports the TCP/IP protocol, which the Internet uses exclusively. It is compatible with all major ADSL DSLAM (Digital Subscriber Line Access Multiplexer) providers. A DSLAM is a rack of ADSL line cards with data multiplexed into a backbone network interface/connection (for example, T1, OC3, DS3, ATM or Frame Relay). Think of it as the equivalent of a modem rack for ADSL. In addition, your device allows wireless clients access to your network resources and the Internet. A typical Internet access application is shown below.

Figure 1 Internet Access Application

1.4.1.1 Internet Single User Account

For a SOHO (Small Office/Home Office) environment, your device offers the Single User Account (SUA) feature that allows multiple users on the LAN (Local Area Network) to access the Internet concurrently for the cost of a single IP address

1.4.2 Making Calls via Internet Telephony Service Provider

In a home or small office environment, you can use your device to make and receive VoIP telephone calls through an Internet Telephony Service Provider (ITSP).

The following figure shows a basic example of how you would make a VoIP call through an ITSP. You use your analog phone (A in the figure) and your device (B) changes the call into VoIP. Your device then sends your call to the Internet and the ITSP's SIP server. The VoIP call server forwards calls to PSTN phones (E) through a trunking gateway (D) to the PSTN network. The VoIP call server forwards calls to IP phones (F) through the Internet.

Figure 2 Internet Telephony Service Provider Application

1.4.3 Make Peer-to-peer Calls

You can call directly to someone's IP address without using a SIP proxy server. Peer-to-peer calls are also called “Point to Point” or “IP-to-IP” calls. You must know the peer’s IP address in order to do this.

The following figure shows a basic example of how you would make a peer-to-peer VoIP call. You use your analog phone (A in the figure) and your device (B) changes the call into VoIP. and sends the call through the Internet to the peer VoIP device (C).

Figure 3 Peer-to-peer Calling

1.4.4 Firewall for Secure Broadband Internet Access

Your device provides protection from attacks by Internet hackers. By default, the firewall blocks all incoming traffic from the WAN. The firewall supports TCP/UDP inspection and DoS (Denial of Services) detection and prevention, as well as real time alerts, reports and logs.

Figure 4 Firewall Application

1.4.5 LAN to LAN Application

You can use your device to connect two geographically dispersed networks over the ADSL line. A typical LAN-to-LAN application is shown as follows.

Figure 5 LAN-to-LAN Application

1.4.6 LEDs

Figure 6 LEDs

POWER ETHERNET 1 ETHERNET 2 ETHERNET 3 ETHERNET 4 WLAN DSL INTERNET PHONE 1 PHONE 2 ZyXEL

The following table describes your device's LEDs.

Table 4 LEDs

LED	COLOR	STATUS	DESCRIPTION
POWER	Green	On	Your device is receiving power and functioning properly.
		Blinking	Your device is rebooting and performing a self-test.
	Red	On	Your device is not ready or there is a malfunction.
	None	Off	Your device is not turned on.
ETHERNET 1-4	Green	On	Your device has a successful Ethernet connection.
		Blinking	The ZyXEL Device is sending/receiving data.
	None	Off	The Ethernet port is not connected.
WLAN (“W” models only)	Green	On	Your device is ready, but is not sending/receiving data through the wireless LAN.
		Blinking	Your device is sending/receiving data through the wireless LAN.
	None	Off	The wireless LAN is not ready or has failed.
DSL	Green	On	Your device has a DSL connection.
		Blinking	Your device is initializing the DSL line.
	None	Off	The DSL link is down.
INTERNET	Green	On	Your device has an IP connection but no traffic.Your device has a WAN IP address (either static or assigned by a DHCP server), PPP negotiation was successfully completed (if used) and the DSL connection is up.
		Blinking	Your device is sending or receiving IP traffic.
	Red	On	Your device attempted to make an IP connection but failed.Possible causes are no response from a DHCP server, no PPPoE response, PPPoE authentication failed).
	None	Off	Your device does not have an IP connection
PHONE 1, 2	Green	On	A SIP account is registered for the phone port.
		Blinking	A telephone connected to the phone port has its receiver off of the hook or there is an incoming call.
	Orange	On	A SIP account is registered for the phone port and there is a voice message in the corresponding SIP account.
		Blinking	A telephone connected to the phone port has its receiver off of the hook and there is a voice message in the corresponding SIP account.
	None	Off	The phone port does not have a SIP account registered.

Refer to the Quick Start Guide for information on hardware connections.

CHAPTER 2

Introducing the Web

Configurator

This chapter describes how to access and navigate the web configurator.

2.1 Web Configurator Overview

The web configurator is an HTML-based management interface that allows easy device setup and management via Internet browser. Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768 pixels.

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in Windows XP SP (Service Pack) 2.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).

See Chapter 27 on page 319 if you need to make sure these functions are allowed in Internet Explorer.

2.1.1 Accessing the Web Configurator

1 Make sure your ZyXEL Device hardware is properly connected (refer to the Quick Start Guide).
2 Launch your web browser.
3 Type "192.168.1.1" as the URL.
4 A password screen displays. The default password (“1234”) displays in non-readable characters. If you haven’t changed the password yet, you can just click Login. Click Cancel to revert to the default password in the password field. If you have changed the password, enter your password and click Login.

Figure 7 Password Screen

ZyXEL P-2602HWL-D1A Welcome to your router Configuration Interface Enter your password and press enter or click "Login" Password: **** Login Cancel

5 The following screen displays if you have not yet changed your password. It is highly recommended you change the default password. Enter a new password, retype it to confirm and click Apply; alternatively click Ignore to proceed to the main menu if you do not want to change the password now.

Figure 8 Change Password Screen

ZyXEL Use this screen to change the password. Your router is currently using the default password. To protect your network from unauthorized users we suggest you change your password at this time. Please select a new password that will be easy to remember yet difficult for others to guess. We suggest you combine text with numbers to make it more difficult for an intruder to guess. Enter your new password in the two fields below and click "Apply". Otherwise click "Ignore" to keep the default password New Password: Retype to Confirm: Apply Ignore

6 A screen displays to let you choose whether to go to the wizard or the advanced screens.

• Click Go to Wizard setup if you are logging in for the first time or if you want to make basic changes. The wizard selection screen appears after you click Apply. See Chapter 3 on page 57 for more information.
• Click Go to Advanced setup if you want to configure features that are not available in the wizards. Select the check box if you always want to go directly to the advanced screens. The main screen appears after you click Apply. See Section 2.2 on page 52 for more information.
• Click Exit if you want to log out.

Note: For security reasons, the ZyXEL Device automatically logs you out if you do not use the web configurator for five minutes. If this happens, log in again.

Figure 9 Wizard or Advanced Screen

Please select Wizard or Advanced mode The Wizard setup walks you through the most common configuration settings. We suggest you use this mode if it is the first time you are setting up your router or if you need to make basic configuration changes. Use Advanced mode if you need access to more advanced features not included in Wizard mode. Go to Wizard setup Go to Advanced setup Click here to always start with the Advanced setup. Apply Exit

2.1.2 The RESET Button

You can use the RESET button at the back of the device to turn the wireless LAN off or on. You can also use it to activate OTIST in order to assign your wireless security settings to wireless clients. If you forget your password or cannot access the web configurator, you will need to use the RESET button to reload the factory-default configuration file. This means that you will lose all configurations that you had previously and the password will be reset to "1234". You can also use the

2.1.2.1 Using The Reset Button

1 Make sure the POWER LED is on (not blinking).
2 Do one of the following.

To turn the wireless LAN off or on, press the RESET button for one second and release it. The WLAN LED should change from on to off or vice versa. (“W” models only)

To activate OTIST in order to assign your wireless security settings to wireless clients, press the RESET button for five seconds and release it. The WLAN LED should flash while the device uses OTIST to send wireless settings to OTIST clients.(“W” models only)

To set the device back to the factory default settings, press the RESET button for ten seconds or until the POWER LED begins to blink and then release it. When the POWER LED begins to blink, the defaults have been restored and the device restarts.

2.2 Web Configurator Main Screen

Figure 10 Main Screen

ZyXEL Status P-2602HWL-D1A Network VoIP Security Advanced Maintenance B Device Information Host Name: Model Number: P-2602HWL-D1A MAC Address: 00:13:49:6a:f2:4f ZyNOS Firmware Version: V3.40(ADQ.0)b7 HELP0414 | DSL Firmware Version: 04/13/2006 WAN Information - DSL Mode: NORMAL - IP Address: 0.0.0.0 - IP Subnet Mask: 0.0.0.0 - Default Gateway: 0.0.0.0 - VPI/VCI: 8/3 LAN Information - IP Address: 192.168.1.1 - IP Subnet Mask: 255.255.255.0 - DHCP: Server WLAN Information - SSID: ZyXEL - Channel: 6 - WEP: Disable Security - Firewall: Enabled - Content Filter: Disable System Status System Uptime: 0:01:20 Current Date/Time: 01/01/2000 00:05:47 System Mode: Routing / Bridging CPU Usage: 9.21% Memory Usage: 32% Interface Status Interface Status Rate DSL Down 0 kbps / 0 kbps LAN Up 100M/Full Duplex WLAN Active 54M Summary Client List AnyIP Table WLAN Status Bandwidth Status VPN Status Packet Statistics VoIP Statistics Message Ready

As illustrated above, the main screen is divided into these parts:

• A - title bar
- B - navigation panel
- C - main window
- D - status bar

2.2.1 Title Bar

The title bar allows you to change the language and provides some icons in the upper right corner.

The icons provide the following functions.

Table 5 Web Configurator Icons in the Title Bar

ICON	DESCRIPTION
[∅D3Z]	Help: Click this icon to open up help screens.
	Wizards: Click this icon to go to the configuration wizards. See Chapter 3 on page 57 for more information.
	Logout: Click this icon to log out of the web configurator.

2.2.2 Navigation Panel

Use the menu items on the navigation panel to open screens to configure ZyXEL Device features. The following tables describe each menu item.

Table 6 Navigation Panel Summary

LINK	TAB	FUNCTION
Status		This screen contains administrative and system-related information.
Network
WAN	Internet Connection	Use this screen to configure ISP parameters, WAN IP address assignment, DNS servers and other advanced properties.
LAN	IP	Use this screen to configure LAN TCP/IP settings, enable Any IP and other advanced properties.
	DHCP Setup	Use this screen to configure LAN DHCP settings.
	Client List	Use this screen to view current DHCP client information and to always assign specific IP addresses to individual MAC addresses (and host names).
	IP Alias	Use this screen to partition your LAN interface into subnets.
Wireless LAN (“W” models only)	General	Use this screen to configure the wireless LAN settings and WLAN authentication/security settings.
	OTIST	Use this screen to assign your wireless security settings to wireless clients.
	MAC Filter	Use this screen to configure the ZyXEL Device to give exclusive access to specific wireless clients or exclude specific wireless clients from accessing the ZyXEL Device.
	QoS	WMM QoS allows you to prioritize wireless traffic according to the delivery requirements of individual services.
	Local User Database	Use this screen to set up built-in user profiles for wireless station authentication.
NAT	General	Use this screen to enable NAT.
	Port Forwarding	Use this screen to make your local servers visible to the outside world.
	Address Mapping	Use this screen to configure network address translation mapping rules.
VoIP
SIP	SIP Settings	Use this screen to configure your ZyXEL Device's Voice over IP settings.
	QoS	Use this screen to configure your ZyXEL Device's Quality of Service settings for VoIP.

Table 6 Navigation Panel Summary

LINK	TAB	FUNCTION
Phone	Analog Phone	Use this screen to set which phone ports use which SIP accounts.
	Common	Use this screen to configure general phone port settings.
	Region	Use this screen to select your location and call service mode.
Phone Book	Incoming Call Policy	Use this screen to configure call-forwarding.
	Speed Dial	Use this screen to configure speed dial for SIP phone numbers that you call often.
PSTN Line ("L" models only)	General	Use this screen to configure your ZyXEL Device's settings for PSTN calls.
Security
Firewall	General	Use this screen to activate/deactivate the firewall and the default action to take on network traffic going in specific directions.
	Rules	This screen shows a summary of the firewall rules, and allows you to edit/add a firewall rule.
	Anti Probing	Use this screen to set whether or not your device will respond to pings and probes for services that you have not made available.
	Threshold	Use this screen to configure the thresholds for determining when to drop sessions that do not become fully established.
Content Filter	Keyword	Use this screen to block access to web sites containing certain keywords in the URL.
	Schedule	Use this screen to set the days and times for your device to perform content filtering.
	Trusted	Use this screen to exclude a range of users on the LAN from content filtering.
VPN	Setup	Use this screen to configure each VPN tunnel.
	Monitor	Use this screen to look at the current status of each VPN tunnel.
	VPN Global Setting	Use this screen to allow NetBIOS traffic through VPN tunnels.
Advanced
Static Route	IP Static Route	Use this screen to configure IP static routes to tell your device about networks beyond the directly connected remote nodes.
Bandwidth MGMT	Summary	Use this screen to configure bandwidth management on an interface.
	Rule Setup	Use this screen to define a bandwidth rule.
	Monitor	Use this screen to view the ZyXEL Device's bandwidth usage and allotments.
Dynamic DNS		This screen allows you to use a static hostname alias for a dynamic IP address.

Table 6 Navigation Panel Summary

LINK	TAB	FUNCTION
Remote MGMT	WWW	Use this screen to configure through which interface(s) and from which IP address(es) users can use HTTP to manage the ZyXEL Device.
	Telnet	Use this screen to configure through which interface(s) and from which IP address(es) users can use Telnet to manage the ZyXEL Device.
	FTP	Use this screen to configure through which interface(s) and from which IP address(es) users can use FTP to access the ZyXEL Device.
	SNMP	Use this screen to configure your ZyXEL Device's settings for Simple Network Management Protocol management.
	DNS	Use this screen to configure through which interface(s) and from which IP address(es) users can send DNS queries to the ZyXEL Device.
	ICMP	Use this screen to set whether or not your device will respond to pings and probes for services that you have not made available.
UPnP	General	Use this screen to turn UPnP on or off.
Maintenance
System	General	Use this screen to configure your device's name, domain name, management inactivity timeout and password.
	Time Setting	Use this screen to change your ZyXEL Device's time and date.
Logs	View Log	Use this screen to display your device's logs.
	Log Settings	Use this screen to select which logs and/or immediate alerts your device is to record. You can also set it to e-mail the logs to you.
Tools	Firmware	Use this screen to upload firmware to your device.
	Configuration	Use this screen to backup and restore your device's configuration (settings) or reset the factory default settings.
	Restart	This screen allows you to reboot the ZyXEL Device without turning the power off.
Diagnostic	General	Use this screen to test the connections to other devices.
	DSL Line	These screen displays information to help you identify problems with the DSL connection.

2.2.3 Main Window

The main window displays information and configuration fields. It is discussed in the rest of this document.

Right after you log in, the Status screen is displayed. See Chapter 6 on page 83 for more information about the Status screen.

2.2.4 Status Bar

Check the status bar when you click Apply or OK to verify that the configuration has been updated.

CHAPTER 3

Internet and Wireless Setup Wizard

This chapter provides information on the Wizard Setup screens for Internet access in the web configurator.

3.1 Introduction

Use the wizard setup screens to configure your system for Internet access with the information given to you by your ISP.

Note: See the advanced menu chapters for background information on these fields.

3.2 Internet Access Wizard Setup

1 After you enter the password to access the web configurator, select Go to Wizard setup and click Apply. Otherwise, click the wizard icon ( ) in the top right corner of the web configurator to go to the wizards.

Figure 11 Select a Mode

ZyXEL Please select Wizard or Advanced mode The Wizard setup walks you through the most common configuration settings. We suggest you use this mode if it is the first time you are setting up your router or if you need to make basic configuration changes. Use Advanced mode if you need access to more advanced features not included in Wizard mode. Go to Wizard setup Go to Advanced setup Click here to always start with the Advanced setup. Apply Exit

2 Click INTERNET/WIRELESS SETUP to configure the system for Internet access and wireless connection.

Figure 12 Wizard Welcome

ZyXEL Welcome to the ZyXEL Wizard Setup INTERNET/WIRELESS SETUP The connection wizard will walk you through the most common configuration options. This wizard has been broken down into two steps, each of which may have multiple pages. VOICE OVER INTERNET SETUP BANDWIDTH MANAGEMENT SETUP ZyXEL's Media Bandwidth Management allows you to allocate bandwidth based on applications/services and/or user(s). You can prioritize unused bandwidth capacity for defined services/users via 3 basic bandwidth classes, low medium and high. Exit

3 Your ZyXEL device attempts to detect your DSL connection and your connection type.

a The following screen appears if a connection is not detected. Check your hardware connections and click Restart the Internet/Wireless Setup Wizard to return to the wizard welcome screen. If you still cannot connect, click Manually configure your Internet connection. Follow the directions in the wizard and enter your Internet setup information as provided to you by your ISP. See Section 3.2.1 on page 59 for more details. If you would like to skip your Internet setup and configure the wireless LAN settings, leave Yes selected and click Next.

Figure 13 Auto Detection: No DSL Connection

STEP 1 STEP 2 Internet Configuration No DSL connection Your router has not established a DSL connection to your local exchange. The DSL light on the router will blink while it is trying to connect, and stay on if it connects successfully. Restart the Internet/Wireless Setup Wizard Manually configure your Internet connection Continue to Wireless Setup wizard? Yes No Next > Exit

b The following screen displays if a PPPoE or PPPoA connection is detected. Enter your Internet account information (username, password and/or service name) exactly as provided by your ISP. Then click Next and see Section 3.3 on page 65 for wireless connection wizard setup.

Figure 14 Auto-Detection: PPPoE

STEP 1 STEP 2 Internet Configuration Auto-Detected ISP Connection Type PPP over Ethernet (PPPoE) ISP Parameters for Internet Access Please enter the User Name and Password given to you by your Internet Service Provider here. If your ISP gave you a Service Name, enter it in the third field User Name Password Service Name (optional) < Back Next > Exit

c The following screen appears if the ZyXEL device detects a connection but not the connection type. Click Next and refer to Section 3.2.1 on page 59 on how to manually configure the ZyXEL Device for Internet access.

Figure 15 Auto Detection: Failed

STEP 1 > STEP 2 Internet Configuration Auto-Detected ISP Connection Type Detection Failed. Please make sure the DSL cable is connected. Click the 'Next' button below to manually configure your Internet connection Note: This wizard can only automatically detect PPP over Ethernet (PPPoE), PPP over ATM (PPPoA), or dynamically assigned Ethernet Internet connections. Your Internet connection may use a Static IP address which cannot be detected automatically. Exit

3.2.1 Manual Configuration

1 If the ZyXEL Device fails to detect your DSL connection type but the physical line is connected, enter your Internet access information in the wizard screen exactly as your

SIP provider gave it to you. Leave the defaults in any fields for which you were not given information.

Figure 16 Internet Access Wizard Setup: ISP Parameters

STEP 1 STEP 2 Internet Configuration ISP Parameters for Internet Access Please verify the following settings with your Internet Service Provider (ISP). Your ISP may have given you a welcome letter or network setup letter including this information. Mode Routing Select 'Routing' (default) if your ISP allows multiple computers to share an Internet account. Otherwise, select 'Bridge' mode. Encapsulation ENET ENCAP Select the encapsulation method used by your ISP. Your ISP may list 'ENET ENCAP' as 'Static IP' or 'Dynamic IP' Multiplexing LLC Select the multiplexing type used by your ISP. Virtual Circuit ID VPI 8 VCI 35 Select the VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) used by your ISP. The valid range for the VPI is 0 to 255 and VCI is 32 to 65535. < Back Next > Exit

The following table describes the fields in this screen.

Table 7 Internet Access Wizard Setup: ISP Parameters

LABEL	DESCRIPTION
Mode	From the Mode drop-down list box, select Routing (default) if your ISP allows multiple computers to share an Internet account. Otherwise select Bridge.
Encapsulation	Select the encapsulation type your ISP uses from the Encapsulation drop-down list box. Choices vary depending on what you select in the Mode field.If you select Bridge in the Mode field, select either PPPoA or RFC 1483.If you select Routing in the Mode field, select PPPoA, RFC 1483, ENET ENCAP or PPPoE.
Multiplexing	Select the multiplexing method used by your ISP from the Multiplex drop-down list box either VC-based or LLC-based.
Virtual Circuit ID	VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a virtual circuit. Refer to the appendix for more information.
VPI	Enter the VPI assigned to you. This field may already be configured.
VCI	Enter the VCI assigned to you. This field may already be configured.
Back	Click Back to go back to the previous screen.

Table 7 Internet Access Wizard Setup: ISP Parameters

LABEL	DESCRIPTION
Next	Click Next to continue to the next wizard screen. The next wizard screen you see depends on what protocol you chose above.
Exit	Click Exit to close the wizard screen without saving your changes.

2 The next wizard screen varies depending on what mode and encapsulation type you use. All screens shown are with routing mode. Configure the fields and click Next to continue. See Section 3.3 on page 65 for wireless connection wizard setup

Figure 17 Internet Connection with PPPoE

STEP 1 STEP 2 Internet Configuration ISP Parameters for Internet Access Please enter the User Name and Password given to you by your Internet Service Provider here. If your ISP gave you a Service Name, enter it in the third field User Name Password Service Name (optional) Note: Device is automatically configured to obtain an IP address automatically. The ISP will assign you a different one each time you connect to the Internet. < Back Apply Exit

The following table describes the fields in this screen.

Table 8 Internet Connection with PPPoE

LABEL	DESCRIPTION
User Name	Enter the user name exactly as your ISP assigned. If assigned a name in the form user@domain where domain identifies a service name, then enter both components exactly as given.
Password	Enter the password associated with the user name above.
Service Name	Type the name of your PPPoE service here.
Back	Click Back to go back to the previous wizard screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Exit	Click Exit to close the wizard screen without saving your changes.

Figure 18 Internet Connection with RFC 1483

STEP 1 STEP 2 Internet Configuration ISP Parameters for Internet Access IP Address < Back Next > Exit

The following table describes the fields in this screen.

Table 9 Internet Connection with RFC 1483

LABEL	DESCRIPTION
IP Address	This field is available if you selectRoutingin theModefield.Type your ISP assigned IP address in this field.
Back	ClickBackto go back to the previous wizard screen.
Next	ClickNextto continue to the next wizard screen.
Exit	ClickExitto close the wizard screen without saving your changes.

Figure 19 Internet Connection with ENET ENCAP

STEP 1 > STEP 2 Internet Configuration ISP Parameters for Internet Access Select 'Obtain an IP Address Automatically' if your ISP assigns you a dynamic IP address (DHCP); otherwise select 'Static IP Address' and type the static IP information your ISP gave you. Obtain an IP Address Automatically Static IP Address IP Address 172.21.2.3 Subnet Mask 255.0.0.0 Gateway IP address 172.21.2.3 First DNS Server 168.95.1.1 Second DNS Server 0.0.0.0 < Back Apply > Exit

The following table describes the fields in this screen.

Table 10 Internet Connection with ENET ENCAP

LABEL	DESCRIPTION
Obtain an IP Address Automatically	A static IP address is a fixed IP that your ISP gives you. A dynamic IP address is not fixed; the ISP assigns you a different one each time you connect to the Internet.Select Obtain an IP Address Automatically if you have a dynamic IP address.
Static IP Address	Select Static IP Address if your ISP gave you an IP address to use.
IP Address	Enter your ISP assigned IP address.
Subnet Mask	Enter a subnet mask in dotted decimal notation.Refer to the appendix to calculate a subnet mask If you are implementing subnetting.
Gateway IP address	You must specify a gateway IP address (supplied by your ISP) when you use ENET ENCAP in the Encapsulation field in the previous screen.
First DNS Server	Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.
Second DNS Server	As above.
Back	Click Back to go back to the previous wizard screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Exit	Click Exit to close the wizard screen without saving your changes.

Figure 20 Internet Connection with PPPoA

STEP 1 STEP 2 Internet Configuration ISP Parameters for Internet Access Please enter the User Name and Password given to you by your Internet Service Provider here User Name Password Note: Device is automatically configured to obtain an IP address automatically. The ISP will assigns you a different one each time you connect to the Internet. < Back Apply Exit

The following table describes the fields in this screen.

Table 11 Internet Connection with PPPoA

LABEL	DESCRIPTION
User Name	Enter the login name that your ISP gives you.
Password	Enter the password associated with the user name above.
Back	Click Back to go back to the previous wizard screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Exit	Click Exit to close the wizard screen without saving your changes.

- If the user name and/or password you entered for PPPoE or PPPoA connection are not correct, the screen displays as shown next. Click Back to Username and Password setup to go back to the screen where you can modify them.

Figure 21 Connection Test Failed-1

STEP 1 STEP 2 Internet Configuration Connection Test Failed Your login username and password are wrong. Back to Username and Password setup Continue to Wireless Setup wizard? Yes No Exit

- If the following screen displays, check if your account is activated or click Restart the Internet/Wireless Setup Wizard to verify your Internet access settings.

Figure 22 Connection Test Failed-2.

STEP 1 STEP 2 Internet Configuration Connection Test Failed Cannot access the Internet, please check your ISP account is active and that the settings you entered in the wizard are correct. If you still have problems, please contact customer support. Restart the Internet/Wireless Setup Wizard Continue to Wireless Setup wizard? Yes No Exit

3.3 Wireless Connection Wizard Setup

After you configure the Internet access information, use the following screens to set up your wireless LAN.

1 Select Yes and click Next to configure wireless settings. Otherwise, select No and skip to Step 6.

Figure 23 Connection Test Successful

STEP 1 > STEP 2 Internet Configuration Connection Test Successful You should be able to access the Internet now. CONGRATULATIONS! The Internet Setup configuration is complete Continue to Wireless Setup wizard? Yes No Exit

2 Use this screen to activate the wireless LAN and OTIST. Click Next to continue.

Figure 24 Wireless LAN Setup Wizard 1

STEP 1 STEP 2 Wireless LAN Wireless ✓ Active Give your network a name. You will search for this name from your wireless clients ✓ Enale OTIST Setup Key 01234567 Check here to set up a ZyAIR client adapter that supports OTIST. Note: Please type in a unique setup key. This key acts like a password to ensure only those wireless LAN devices you authorize are configured by OTIST. This key should not be the same as the router password the password you use to log in to your ISP. You will need to remember this key to setup new devices via OTIST. Exit

The following table describes the labels in this screen.

Table 12 Wireless LAN Setup Wizard 1

LABEL	DESCRIPTION
Active	Select the check box to turn on the wireless LAN.
Enable OTIST	Select the check box to enable OTIST if you want to transfer your ZyXEL Device's SSID and WEP or WPA-PSK security settings to wireless clients that support OTIST and are within transmission range.You must also activate and start OTIST on the wireless client at the same time. The process takes three minutes to complete.
Setup Key	Type an OTIST Setup Key of up to eight ASCII characters in length. Be sure to use the same OTIST Setup Key on the ZyXEL Device and wireless clients.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3 Configure your wireless settings in this screen. Click Next.

Figure 25 Wireless LAN

STEP 1 STEP 2 Wireless LAN Wireless Network name (SSID) ZyXEL Give your network a name. You will search for this name from your wireless clients Channel Selection Channel 06 Your router can use one of several channels. You should use the default channel unless other wireless networks nearby use the same channel. Security Manually assign a WPA key Use this option if you would prefer to create your own key, WPA is stronger than WEP but not all devices are compatible with WPA. Exit

The following table describes the labels in this screen.

Table 13 Wireless LAN Setup Wizard 2

LABEL	DESCRIPTION
Network Name(SSID)	Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN.If you change this field on the ZyXEL Device, make sure all wireless stations use the same SSID in order to access the network.
Channel Selection	The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a channel. Select a channel ID that is not already in use by a neighboring device.

Table 13 Wireless LAN Setup Wizard 2

LABEL	DESCRIPTION
Security	Select Automatically assign a WPA key (only available if you enable OTIST) if you want OTIST to configure a WPA key for you.Select Manually assign a WPA-PSK key to configure a Pre-Shared Key (WPA-PSK). Choose this option only if your wireless clients support WPA. See Section 3.3.1 on page 67 for more information.Select Manually assign a WEP key to configure a WEP Key. See Section 3.3.2 on page 68 for more information.Select Disable wireless security to have no wireless LAN security configured and your network is accessible to any wireless networking device that is within range.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

Note: The wireless stations and ZyXEL Device must use the same SSID, channel ID and WEP encryption key (if WEP is enabled), WPA-PSK (if WPA-PSK is enabled) for wireless communication.

4 This screen varies depending on the security mode you selected in the previous screen. Fill in the field (if available) and click Next.

3.3.1 Manually Assign a WPA key

Choose Manually assign a WPA key in the Wireless LAN setup screen to set up a Pre-Shared Key.

Figure 26 Manually Assign a WPA key

STEP 1 > STEP 2 Wireless LAN WPA Pre-Shared Key Setup Pre-Shared Key 12345678 "WPA-PSK" uses a "Pre-Shared Key" to authenticate wireless users and make sure they are allowed to access your network. Think of this pre-shared key as a shared password that you must know to get on the network. The pre-shared key should be at least 8 characters in length and made up of both letters and numbers. This pre-shared key is recommended to be different from the password you use to access this router or use to log-in to your ISP. Exit

The following table describes the labels in this screen.

Table 14 Manually Assign a WPA key

LABEL	DESCRIPTION
Pre-Shared Key	Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless connection by configuring WPA in the wireless LAN screens. You need to configure an authentication server to do this.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3.3.2 Manually Assign a WEP key

Choose Manually assign a WEP key to setup WEP Encryption parameters.

Figure 27 Manually Assign a WEP key

WEP Key Key The different WEP key lengths configure different strength security, 40/64-bit, 128-bit, or 256-bit respectively. Your wireless client must match the security strength set on the router. -Please type exactly 5, 13, or 29 characters. or -Please type exactly 10, 26, or 58 characters using only the numbers 0-9 and the letters 'a-f' or 'A-F'. The different WEP key lengths configure different strength security, 40/64-bit, 128-bit, or 256-bit respectively. Your wireless client must match the security strength set on the router. Note: On the last page of the Wireless Setup wizard, you will have a chance write down this key and your network settings for safekeeping. Exit

The following table describes the labels in this screen.

Table 15 Manually Assign a WEP key

LABEL	DESCRIPTION
Key	The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless stations must use the same WEP key for data transmission.Enter any 5, 13 or 29 ASCII characters or 10, 26 or 58 hexadecimal characters ("0-9", "A-F") for a 64-bit, 128-bit or 256-bit WEP key respectively.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

5 Click Apply to save your wireless LAN settings.

Figure 28 Wireless LAN Setup 3

STEP 1 STEP 2 Wireless LAN Please Click the "Apply" Button to Save the Wireless LAN settings. Note: If you are currently using a Wireless PC card to access this router AND you made changes to the SSID, then you will need to make the same changes to your Wireless PC card AFTER you click the Apply Button. Once the changes have been made to the Wireless PC card, you will be able to connect back to the router and continue the configuration process. 6 Use the read-only summary table to check whether what you have configured is correct. Click Finish to complete and save the wizard setup. Note: No wireless LAN settings display if you chose not to configure wireless LAN settings. Figure 29 Internet Access and WLAN Wizard Setup Complete

CONGRATULATIONS! The Internet/Wireless Setup configuration is complete. Here is your current settings. Internet Settings Mode : Routing Encapsulation : Enet Encap Mutiplexing : VC VPI/VCI : 0/33 Wireless LAN Settings Network Name(SSID) : ZyXEL Channel : 6 Security : Manually assigned a WEP key Network Key(WEP Key) : 12345 Press "Finish" button to close this wizard, or click the following link to open other pages.page. Return to Wizard Main Page View device Status

7 Launch your web browser and navigate to www.zyxel.com. Internet access is just the beginning. Refer to the rest of this guide for more detailed information on the complete range of ZyXEL Device features. If you cannot access the Internet, open the web configurator again to confirm that the Internet settings you configured in the wizard setup are correct.

CHAPTER 4 VoIP Wizard And Example

This chapter shows you how to configure your SIP account(s) and make a VoIP phone call.

4.1 Introduction

The ZyXEL Device has Voice over IP (VoIP) communication capabilities that allow you to use a traditional analog telephone to make Internet calls. You can configure the ZyXEL Device to use up to two SIP based VoIP accounts. This section describes how you can set up your ZyXEL Device to call someone who is also using a VoIP device. Make sure your telephone is connected to the Phone 1 port before you start with our example. In the following figure, A represents your phone and B represents the phone of the person you would like to call. Figure 30 VoIP Phone Calls

In order to make VoIP calls you need to register at least one SIP account on your ZyXEL Device. You can register your SIP account in the VOICE OVER INTERNET SETUP wizard.

4.2 VoIP Wizard Setup

1 After you enter the password to access the web configurator, select Go to Wizard setup and click Apply. Otherwise, click the wizard icon (☐) in the top right corner of the web configurator to display the wizard main screen. Figure 31 Select a Mode

ZyXEL Please select Wizard or Advanced mode The Wizard setup walks you through the most common configuration settings. We suggest you use this mode if it is the first time you are setting up your router or if you need to make basic configuration changes. Use Advanced mode if you need access to more advanced features not included in Wizard mode. Go to Wizard setup Go to Advanced setup Click here to always start with the Advanced setup. Apply Exit

2 Click VOICE OVER INTERNET SETUP to configure your SIP settings. Figure 32 Wizard: Welcome

ZyXEL Welcome to the ZyXEL Wizard Setup INTERNET/WIRELESS SETUP The connection wizard will walk you through the most common configuration options. This wizard has been broken down into two steps, each of which may have multiple pages. VOICE OVER INTERNET SETUP BANDWIDTH MANAGEMENT SETUP ZyXEL's Media Bandwidth Management allows you to allocate bandwidth based on applications/services and/or user(s). You can prioritize unused bandwidth capacity for defined services/users via 3 basic bandwidth classes, low medium and high. Exit

3 Fill in the VOICE OVER INTERNET SETUP wizard screen with the information provided by your VoIP service provider. Your VoIP service provider supplies you with the following information. When you are finished, click Apply. Table 16 Sample SIP Account Information

INFORMATION FROM VOIP SERVICE PROVIDER	EXAMPLE VALUES	DESCRIPTION
SIP account address	[e-mail]	11223344 is your SIP number. This is the part that comes before the “@” symbol in your SIP account address.SIPA-Account.com is your SIP server domain.
SIP server address	a.b.c.d	a.b.c.d is the IP address or domain name of your SIP server.
Username	VoIPUser	This is the username you use to login to your SIP account.
Password	Password	This is the password you use to login to your SIP account.

Figure 33 VoIP Wizard Configuration

VoIP Configuration SIP1 Settings SIP Number 11223344 SIP Server Address a.b.c.d SIP Service Domain SIPA-Account.com Authentication User Name VoIPUser Password ********** Check here to set up SIP2 settings. The following table describes the labels in this screen. Table 17 VoIP Wizard Configuration

LABEL	DESCRIPTION
SIP Number	Enter your SIP number in this field. Use the number or text that comes before the @ symbol in a SIP account. If your SIP account is [e-mail], your SIP number is “11223344”. You can use up to 127 ASCII characters.
SIP Server Address	Type the IP address or domain name of the SIP server in this field. It doesn’t matter whether the SIP server is a proxy, redirect or register server. You can use up to 95 ASCII characters.

Table 17 VoIP Wizard Configuration

LABEL	DESCRIPTION
SIP Service Domain	Enter the SIP service domain name in this field (the domain name that comes after the @ symbol in a SIP account like [e-mail]). You can use up to 127 ASCII Extended set characters.
User Name	This is the name used to register this SIP account with the SIP register server. Type the user name exactly as it was given to you. You can use up to 95 ASCII characters.
Password	Type the password associated with the user name above. You can use up to 95 ASCII Extended set characters.
Check here to set up SIP2 settings.	This screen configures SIP account 1. Select the check box if you have a second SIP account that you want to use. You will need to configure the same fields for the second SIP account.Note: If you configure more than one SIP account, you need to configure Analog Phone settings in Section 10.12 on page 134 to distinguish between the two accounts when you make and receive phone calls.
Back	Click Back to return to the previous screen.
Apply	Click Apply to complete the wizard setup and save your configuration.
Exit	Click Exit to close the wizard without saving your settings.

4 Your ZyXEL Device will attempt to register your SIP account with your VoIP service provider. When your account is registered your PHONE 1 light will come on and you are ready to make and receive VoIP phone calls. Figure 34 SIP Registration Test

ZyXEL SIP Registration Test in Process Please wait a moment. about 1 Seconds

5 This screen displays if SIP account registration fails. If your DSL cable was disconnected, you can try connecting it. Then wait a few seconds and click Register Again. If your Internet connection was already working, you can click Back and try re-entering your SIP account settings. Figure 35 VoIP Wizard Fail

VoIP Configuration SIP 1 Registered Fail SIP Registration Failed. Please make sure the DSL cable is connected. You can press "Register Again" button to do SIP Registration again, or press "Exit" button to exit this wizard.

6 This screen displays if your SIP account registration was successful. Click Return to Wizard Main Page if you want to use another configuration wizard. Click Go to Advanced Setup page or Finish to close the wizard and go to the main web configurator screens. Figure 36 VoIP Wizard Finish

CONGRATULATIONS You have completed the VoIP setup Press "Finish" button to close this wizard, or click the following link to open other pages. Return to Wizard Main Page Go to Advanced Setup page Finish

7 To call other VoIP users, you need to follow a similar process to ensure that their SIP account is registered and active. After it is registered, they need to provide you with their SIP number. You can use your VoIP service provider's dialing plan to call SIP numbers. You can also use your VoIP service provider's dialing plan to call regular phone numbers. You dial a prefix number, provided to you by your VoIP service provider, followed by a regular phone number. Note: To find out more information about configuring your VoIP features and making non VoIP calls see Chapter 10 on page 119.

CHAPTER 5

Bandwidth Management Wizard

This chapter shows you how to configure basic bandwidth management using the wizard screens.

5.1 Introduction

Bandwidth management allows you to control the amount of bandwidth going out through the ZyXEL Device's WAN port and prioritize the distribution of the bandwidth according to service bandwidth requirements. This helps keep one service from using all of the available bandwidth and shutting out other users.

5.2 Predefined Media Bandwidth Management Services

The following is a description of the services that you can select and to which you can apply media bandwidth management using the wizard screens. Table 18 Media Bandwidth Management Setup: Services

SERVICE	DESCRIPTION
WWW	The World Wide Web (WWW) is an Internet system to distribute graphical, hyper-linked information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one service on the Internet. Other services on the Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser.
FTP	File Transfer Program enables fast transfer of files, including large files that may not be possible by e-mail. FTP uses TCP (Transmission Control Protocol) port number 21.
E-Mail	Electronic mail consists of messages sent through a computer network to specific groups or individuals. Here are some default ports for e-mail:POP3 - port 110IMAP - port 143SMTP - port 25HTTP - port 80
Telnet	Telnet is the login and terminal emulation protocol common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems. Telnet uses TCP port 23.
NetMeeting (H.323)	A multimedia communications product from Microsoft that enables groups to teleconference and videoconference over the Internet. NetMeeting supports VoIP, text chat sessions, a whiteboard, and file transfers and application sharing.NetMeeting uses H.323. H.323 is a standard teleconferencing protocol suite that provides audio, data and video conferencing. It allows for real-time point-to-point and multipoint communication between client computers over a packet-based network that does not provide a guaranteed quality of service.H.323 is transported primarily over TCP, using the default port number 1720.
VoIP (SIP)	Sending voice signals over the Internet is called Voice over IP or VoIP. Session Initiated Protocol (SIP) is an internationally recognized standard for implementing VoIP. SIP is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet.SIP is transported primarily over UDP but can also be transported over TCP, using the default port number 5060.
VoIP (H.323)	Sending voice signals over the Internet is called Voice over IP or VoIP.H.323 is a standard teleconferencing protocol suite that provides audio, data and video conferencing. It allows for real-time point-to-point and multipoint communication between client computers over a packet-based network that does not provide a guaranteed quality of service.H.323 is transported primarily over TCP, using the default port number 1720.
TFTP	Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol).

5.3 Bandwidth Management Wizard Setup

1 After you enter the password to access the web configurator, select Go to Wizard setup and click Apply. Otherwise, click the wizard icon (☐) in the top right corner of the web configurator to display the wizard main screen. Figure 37 Select a Mode

ZyXEL Please select Wizard or Advanced mode The Wizard setup walks you through the most common configuration settings. We suggest you use this mode if it is the first time you are setting up your router or if you need to make basic configuration changes. Use Advanced mode if you need access to more advanced features not included in Wizard mode. Go to Wizard setup Go to Advanced setup Click here to always start with the Advanced setup. Apply Exit

2 Click BANDWIDTH MANAGEMENT SETUP.

Figure 38 Wizard: Welcome

ZyXEL Welcome to the ZyXEL Wizard Setup INTERNET/WIRELESS SETUP The connection wizard will walk you through the most common configuration options. This wizard has been broken down into two steps, each of which may have multiple pages. VOICE OVER INTERNET SETUP BANDWIDTH MANAGEMENT SETUP ZyXEL's Media Bandwidth Management allows you to allocate bandwidth based on applications/services and/or user(s). You can prioritize unused bandwidth capacity for defined services/users via 3 basic bandwidth classes, low medium and high. Exit

3 Activate bandwidth management and select to allocate bandwidth to packets based on the packet size or services. Figure 39 Bandwidth Management Wizard: General Information

STEP 1 STEP 2 General Information Select the check box to apply bandwidth management to traffic going through the device. Enter the amount of bandwidth that you want to allocate. ✓ Active Exit

The following fields describe the label in this screen. Table 19 Bandwidth Management Wizard: General Information

LABEL	DESCRIPTION
Active	Select the Active check box to have the ZyXEL Device apply bandwidth management to traffic going out through the ZyXEL Device’s WAN, LAN or WLAN port.Select Auto Classifier to automatically allocate bandwidth to packets based on the packet size or Services Setup to allocate bandwidth based on the service requirements.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

4 If you select Service Setup, use the second wizard screen to select the services that you want to apply bandwidth management and select the priorities that you want to apply to the services listed. Figure 40 Bandwidth Management Wizard: Service Configuration

STEP 1 STEP 2 Service Configuration In the box below you can allocate bandwidth based on the applications and services important to you. Check the 'Active' box for each application you use and change the priority setting to match your individual needs. Active Service Priority □ WWW High ○ Mid ● Low □ FTP High ● Mid ○ Low □ E-Mail High ● Mid ○ Low ✓ Telnet High ○ Mid ● Low ✓ NetMeeting (H.323) High ○ Mid ● Low ✓ VoIP (SIP) ● High ○ Mid ○ Low □ VoIP (H.323) High ○ Mid ● Low □ TFTP High ○ Mid ● Low Use "High", "Mid" or "Low" to prioritize the bandwidth for each service. < Back Next > Exit

The following table describes the labels in this screen. Table 20 Bandwidth Management Wizard: Service Configuration

LABEL	DESCRIPTION
Active	Select Active to enable bandwidth management for service specified traffic.Select an entry's Active check box to turn on bandwidth management for the service/application.
Service	These fields display the services names.
Priority	Select High, Mid or Low priority for each service to have your ZyXEL Device use a priority for traffic that matches that service.A service with High priority is given as much bandwidth as it needs.If you select services as having the same priority, then bandwidth is divided equally amongst those services.Services not specified in bandwidth management are allocated bandwidth after all specified services receive their bandwidth requirements.If the rules set up in this wizard are changed in Advanced, Bandwidth MGMT, Rule Setup, then the service priority radio button will be set to User Configured.The Advanced, Bandwidth MGMT, Rule Setup screen allows you to edit these rule configurations.
Back	Click Back to go back to the previous wizard screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Exit	Click Exit to close the wizard screen without saving your changes.

5 Follow the on-screen instructions and click Finish to complete the wizard setup and save your configuration. Figure 41 Bandwidth Management Wizard: Complete

CONGRATULATIONS! You have completed the Media Bandwidth Management setup. You can press "Finish" button to complete Bandwidth Management Setup. Press "Finish" button to close this wizard, or click the following link to open other pages. Return to Wizard Main Page Go to Advanced Setup page

CHAPTER 6

Status Screens

Use the Status screens to look at the current status of the device, system resources, interfaces (LAN and WAN), and SIP accounts. You can also register and unregister SIP accounts. The Status screen also provides detailed information from Any IP and DHCP and statistics from VoIP, bandwidth management, and traffic.

6.1 Status Screen

Click Status to open this screen. Figure 42 Status Screen

Refresh Interval: None Apply Device Information Host Name: Model Number: P-2602HWL-D1A MAC Address: 00:13:49:6a:f2:4f ZyNOS Firmware Version: V3.40(ADQ.0)b7 | 04/03/2006 DSL Firmware Version: TI AR7 06.00.04.00 WAN Information - DSL Mode: NORMAL - IP Address: 0.0.0.0 - IP Subnet Mask: 0.0.0.0 - Default Gateway: 0.0.0.0 - VPI/VCI: 8/35 LAN Information - IP Address: 192.168.1.1 - IP Subnet Mask: 255.255.255.0 - DHCP: Server WLAN Information - SSID: ZyXEL - Channel: 6 - WEP: Disable Security - Firewall: Enabled - Content Filter: Disable System Status System Uptime: 0:11:41 Current Date/Time: 01/01/2000 00:27:14 System Mode: Routing / Bridging CPU Usage: 6.76% Memory Usage: 27% Interface Status Interface Status Rate DSL Down 0 kbps / 0 kbps LAN Up 100M/Full Duplex WLAN InActive N/A Summary Client List AnyIP Table WLAN Status Bandwidth Status VPN Status Packet Statistics VoIP Statistics VoIP Status Account Registration URI SIP 1 Register Register Fail ChangeMe@127.0.0.1 SIP 2 Register Inactive ChangeMe@127.0.0.1

Each field is described in the following table. Table 21 Status Screen

LABEL	DESCRIPTION
Refresh Interval	Enter how often you want the ZyXEL Device to update this screen.
Apply	Click this to update this screen immediately.
Device Information
Host Name	This field displays the ZyXEL Device system name. It is used for identification. You can change this in the Maintenance > System > General screen's System Name field.
Model Number	This is the model name of your device.
MAC Address	This is the MAC (Media Access Control) or Ethernet address unique to your ZyXEL Device.
ZyNOS Firmware Version	This field displays the current version of the firmware inside the device. It also shows the date the firmware version was created. Click this to go to the screen where you can change it.
DSL Firmware Version	This field displays the current version of the device's DSL modem code.
WAN Information
DSL Mode	This is the DSL standard that your ZyXEL Device is using.
IP Address	This field displays the current IP address of the ZyXEL Device in the WAN. Click this to go to the screen where you can change it.
IP Subnet Mask	This field displays the current subnet mask in the WAN.
Default Gateway	This is the IP address of the default gateway, if applicable.
VPI/VCI	This is the Virtual Path Identifier and Virtual Channel Identifier that you entered in the wizard or WAN screen.
LAN Information
IP Address	This field displays the current IP address of the ZyXEL Device in the LAN. Click this to go to the screen where you can change it.
IP Subnet Mask	This field displays the current subnet mask in the LAN.
DHCP	This field displays what DHCP services the ZyXEL Device is providing to the LAN. Choices are:Server - The ZyXEL Device is a DHCP server in the LAN. It assigns IP addresses to other computers in the LAN.Relay - The ZyXEL Device acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients.None - The ZyXEL Device is not providing any DHCP services to the LAN. Click this to go to the screen where you can change it.
WLAN Information	(“W” models only)
SSID	This is the descriptive name used to identify the ZyXEL Device in the wireless LAN. Click this to go to the screen where you can change it.
Channel	This is the channel number used by the ZyXEL Device now.
Security	This displays the type of security mode the ZyXEL Device is using in the wireless LAN.

Table 21 Status Screen

LABEL	DESCRIPTION
Security
Firewall	This displays whether or not the ZyXEL Device's firewall is activated. Click this to go to the screen where you can change it.
Content Filter	This displays whether or not the ZyXEL Device's content filtering is activated. Click this to go to the screen where you can change it.
System Status
System Uptime	This field displays how long the ZyXEL Device has been running since it last started up. The ZyXEL Device starts up when you plug it in, when you restart it (Maintenance >Tools >Restart), or when you reset it (see Section 2.1.2 on page 51).
Current Date/ Time	This field displays the current date and time in the ZyXEL Device. You can change this in Maintenance >System >Time Setting.
System Mode	This displays whether the ZyXEL Device is functioning as a router or a bridge.
CPU Usage	This field displays what percentage of the ZyXEL Device's processing ability is currently used. When this percentage is close to 100%, the ZyXEL Device is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management; see Chapter 19 on page 253).
Memory Usage	This field displays what percentage of the ZyXEL Device's memory is currently used. Usually, this percentage should not increase much. If memory usage does get close to 100%, the ZyXEL Device is probably becoming unstable, and you should restart the device. See Section 25.6 on page 307, or turn off the device (unplug the power) for a few seconds.
Interface Status
Interface	This column displays each interface the ZyXEL Device has.
Status	For the DSL interface, this field displays Down (line is down), Up (line is up or connected) if you're using Ethernet encapsulation and Down (line is down), Up (line is up or connected), Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE encapsulation.This field indicates whether or not the ZyXEL Device is using the interface.For the LAN interface, this field displays Up when the ZyXEL Device is using the interface and Down when the ZyXEL Device is not using the interface.For the WLAN interface, it displays Active when WLAN is enabled or Inactive when WLAN is disabled.
Rate	For the LAN interface, this displays the port speed and duplex setting.For the DSL interface, it displays the downstream and upstream transmission rate.For the WLAN interface, it displays the transmission rate when WLAN is enabled or N/A when WLAN is disabled.
Summary
Client List	Click this link to view current DHCP client information. See Section 8.5 on page 116.
AnyIP Table	Click this link to view a list of IP addresses and MAC addresses of computers, which are not in the same subnet as the ZyXEL Device. See Section 6.2 on page 86.
WLAN Status	Click this link to display the MAC address(es) of the wireless stations that are currently associating with the ZyXEL Device. See Section 6.3 on page 87.

Table 21 Status Screen

LABEL	DESCRIPTION
Bandwidth Status	Click this link to view the ZyXEL Device's bandwidth usage and allotments. See Section 19.9 on page 262.
VPN Status	Click this link to view the ZyXEL Device's current VPN connections. See Section 17.16 on page 242.
Packet Statistics	Click this link to view port status and packet specific statistics. See Section 6.4 on page 87.
VoIP Statistics	Click this link to view statistics about your VoIP usage. See Section 6.5 on page 89.
VoIP Status
Account	This column displays each SIP account in the ZyXEL Device.
Registration	This field displays the current registration status of the SIP account. You have to register SIP accounts with a SIP server to use VoIP.If the SIP account is already registered with the SIP server,Click Unregister to delete the SIP account's registration in the SIP server. This does not cancel your SIP account, but it deletes the mapping between your SIP identity and your IP address or domain name.The second field displays Registered.If the SIP account is not registered with the SIP server,Click Register to have the ZyXEL Device attempt to register the SIP account with the SIP server.The second field displays the reason the account is not registered.Inactive - The SIP account is not active. You can activate it in VoIP > SIP > SIP Settings.Register Fail - The last time the ZyXEL Device tried to register the SIP account with the SIP server, the attempt failed. The ZyXEL Device automatically tries to register the SIP account when you turn on the ZyXEL Device or when you activate it.
URI	This field displays the account number and service domain of the SIP account. You can change these in VoIP > SIP > SIP Settings.

6.2 Any IP Table

Click Status > AnyIP Table to access this screen. Use this screen to view the IP address and MAC address of each computer that is using the ZyXEL Device but is in a different subnet than the ZyXEL Device. Figure 43 Any IP Table

AnyIP Table # IP Address MAC Address Refresh

Each field is described in the following table. Table 22 Any IP Table

LABEL	DESCRIPTION
#	This field is a sequential value. It is not associated with a specific entry.
IP Address	This field displays the IP address of each computer that is using the ZyXEL Device but is in a different subnet than the ZyXEL Device.
MAC Address	This field displays the MAC address of the computer that is using the ZyXEL Device but is in a different subnet than the ZyXEL Device.
Refresh	Click this to update this screen.

6.3 WLAN Status ("W" models only)

Click Status > WLAN Status to access this screen. Use this screen to view the wireless stations that are currently associated to the ZyXEL Device. Figure 44 WLAN Status

Wireless LAN- Association List

MAC Address Association Time

1 00:ac:c5:01:23:45 1 Refresh

The following table describes the labels in this screen. Table 23 WLAN Status

LABEL	DESCRIPTION
#	This is the index number of an associated wireless station.
MAC Address	This field displays the MAC (Media Access Control) address of an associated wireless station.
Association Time	This field displays the time a wireless station first associated with the ZyXEL Device.
Refresh	Click Refresh to reload this screen.

6.4 Packet Statistics

Click Status > Packet Statistics to access this screen. Read-only information here includes port status and packet specific statistics. Also provided are "system up time" and "poll interval(s)". The Poll Interval(s) field is configurable. Figure 45 Packet Statistics

System Monitor System up Time: 1:06:57 Current Date/Time: 01/01/2000 01:15:30 CPU Usage: 0.29% Memory Usage: 63% WAN Port Statistics Link Status: Down WAN IP Address: 0.0.0.0 Upstream Speed: 0 kbps Downstream Speed: 0 kbps Node-Link Status TxPkts RxPkts Errors Tx B/s Rx B/s Up Time 1-PPPoE Idle 0 0 0 0 0 0:00:00 LAN Port Statistics Interface Status TxPkts RxPkts Collisions Interface Up 5492 5177 0 Wireless 54M 96 0 0 Poll Interval(s): 5 sec Set Interval Stop

The following table describes the fields in this screen. Table 24 Packet Statistics

LABEL	DESCRIPTION
System Monitor
System up Time	This is the elapsed time the system has been up.
Current Date/Time	This field displays your ZyXEL Device's present date and time.
CPU Usage	This field specifies the percentage of CPU utilization.
Memory Usage	This field specifies the percentage of memory utilization.
WAN Port Statistics
Link Status	This is the status of your WAN link.
WAN IP Address	This is the IP address of the ZyXEL Device's WAN port.
Upstream Speed	This is the upstream speed of your ZyXEL Device.
Downstream Speed	This is the downstream speed of your ZyXEL Device.
Node-Link	This field displays the remote node index number and link type. Link types are PPPoA, ENET, RFC 1483 and PPPoE.
Status	This field displays Down (line is down), Up (line is up or connected) if you're using Ethernet encapsulation and Down (line is down), Up (line is up or connected), Idle (line (ppp) idle), Dial (starting to trigger a call) and Drop (dropping a call) if you're using PPPoE encapsulation.
TxPkts	This field displays the number of packets transmitted on this port.
RxPkts	This field displays the number of packets received on this port.
Errors	This field displays the number of error packets on this port.
Tx B/s	This field displays the number of bytes transmitted in the last second.
Rx B/s	This field displays the number of bytes received in the last second.
Up Time	This field displays the elapsed time this port has been up.
LAN Port Statistics
Ethernet	This field displays either Ethernet (LAN ports) or Wireless (WLAN port).
Status	For the LAN ports, this field displays Down (line is down) or Up (line is up or connected). For the WLAN port, it displays the transmission rate when WLAN is enabled or N/A when WLAN is disabled.
TxPkts	This field displays the number of packets transmitted on this interface.
RxPkts	This field displays the number of packets received on this interface.
Collisions	This is the number of collisions on this interfaces.
Poll Interval(s)	Type the time interval for the browser to refresh system statistics.
Set Interval	Click this to apply the new poll interval you entered in the Poll Interval field above.
Stop	Click this button to halt the refreshing of the system statistics.

6.5 VoIP Statistics

Click Status > VoIP Statistics to access this screen. Figure 46 VoIP Statistics

SIP Status: Account Registration Last Registration URI Protocol Message Waiting Last Incoming Number Last Outgoing Number SIP1 Register Fail N/A changeme@127.0.0.1 UDP No N/A N/A SIP2 Register Fail N/A changeme@127.0.0.1 UDP No N/A N/A Call Statistics: Phone Hook Status Codec Peer Number Duration TxPkts RxPkts Tx B/s Rx B/s Phone1 On N/A N/A N/A 0:00:00 0 0 0 0 Phone2 On N/A N/A N/A 0:00:00 0 0 0 0 Poll Interval(s) : 5 sec Set Interval Stop

Each field is described in the following table. Table 25 VoIP Statistics

LABEL	DESCRIPTION
SIP Status
Account	This column displays each SIP account in the ZyXEL Device.
Registration	This field displays the current registration status of the SIP account. You can change this in theStatusscreen.Registered- The SIP account is registered with a SIP server.Register Fail- The last time the ZyXEL Device tried to register the SIP account with the SIP server, the attempt failed. The ZyXEL Device automatically tries to register the SIP account when you turn on the ZyXEL Device or when you activate it.Inactive- The SIP account is not active. You can activate it in VoIP > SIP > SIP Settings.
Last Registration	This field displays the last time you successfully registered the SIP account. It displaysN/A if you never successfully registered this account.
URI	This field displays the account number and service domain of the SIP account. You can change these in VoIP > SIP > SIP Settings.
Protocol	This field displays the transport protocol the SIP account uses. SIP accounts always use UDP.
Message Waiting	This field indicates whether or not there are any messages waiting for the SIP account.
Last Incoming Number	This field displays the last number that called the SIP account. It displaysN/A if no number has ever dialed the SIP account.
Last Outgoing Number	This field displays the last number the SIP account called. It displaysN/A if the SIP account has never dialed a number.
Call Statistics
Phone	This field displays each phone port in the ZyXEL Device.
Hook	This field indicates whether the phone is on the hook or off the hook.On- The phone is hanging up or already hung up.Off- The phone is dialing, calling, or connected.
Status	This field displays the current state of the phone call.N/A- There are no current VoIP calls, incoming calls or outgoing calls being made.DIAL- The callee's phone is ringing.RING- The phone is ringing for an incoming VoIP call.Process- There is a VoIP call in progress.DISC- The callee's line is busy, the callee hung up or your phone was left off the hook.
Codec	This field displays what voice codec is being used for a current VoIP call through a phone port.
Peer Number	This field displays the SIP number of the party that is currently engaged in a VoIP call through a phone port.
Duration	This field displays how long the current call has lasted.
Tx Pkts	This field displays the number of packets the ZyXEL Device has transmitted in the current call.
Rx Pkts	This field displays the number of packets the ZyXEL Device has received in the current call.

Table 25 VoIP Statistics

LABEL	DESCRIPTION
Tx B/s	This field displays how quickly the ZyXEL Device has transmitted packets in the current call. The rate is the average number of bytes transmitted per second.
Rx B/s	This field displays how quickly the ZyXEL Device has received packets in the current call. The rate is the average number of bytes transmitted per second.
Poll Interval(s)	Enter how often you want the ZyXEL Device to update this screen, and click Set Interval.
Set Interval	Click this to make the ZyXEL Device update the screen based on the amount of time you specified in Poll Interval.
Stop	Click this to make the ZyXEL Device stop updating the screen.

CHAPTER 7 WAN Setup

This chapter describes how to configure WAN settings.

7.1 WAN Overview

A WAN (Wide Area Network) is an outside connection to another network or the Internet.

7.1.1 Encapsulation

Be sure to use the encapsulation method required by your ISP. The ZyXEL Device supports the following methods.

7.1.1.1 ENET ENCAP

The MAC Encapsulated Routing Link Protocol (ENET ENCAP) is only implemented with the IP network protocol. IP packets are routed between the Ethernet interface and the WAN interface and then formatted so that they can be understood in a bridged environment. For instance, it encapsulates routed Ethernet frames into bridged ATM cells. ENET ENCAP requires that you specify a gateway IP address in the ENET ENCAP Gateway field in the second wizard screen. You can get this information from your ISP.

7.1.1.2 PPP over Ethernet

The ZyXEL Device supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF Draft standard (RFC 2516) specifying how a personal computer (PC) interacts with a broadband modem (DSL, cable, wireless, etc.) connection. The PPPoE option is for a dial-up connection using PPPoE. For the service provider, PPPoE offers an access and authentication method that works with existing access control systems (for example RADIUS). One of the benefits of PPPoE is the ability to let you access one of multiple network services, a function known as dynamic service selection. This enables the service provider to easily create and offer new IP services for individuals. Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires no specific configuration of the broadband modem at the customer site. By implementing PPPoE directly on the ZyXEL Device (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the ZyXEL Device does that part of the task. Furthermore, with NAT, all of the LANs' computers will have access.

7.1.1.3 PPPoA

PPPoA stands for Point to Point Protocol over ATM Adaptation Layer 5 (AAL5). A PPPoA connection functions like a dial-up Internet connection. The ZyXEL Device encapsulates the PPP session based on RFC1483 and sends it through an ATM PVC (Permanent Virtual Circuit) to the Internet Service Provider's (ISP) DSLAM (digital access multiplexer). Please refer to RFC 2364 for more information on PPPoA. Refer to RFC 1661 for more information on PPP.

7.1.1.4 RFC 1483

RFC 1483 describes two methods for Multiprotocol Encapsulation over ATM Adaptation Layer 5 (AAL5). The first method allows multiplexing of multiple protocols over a single ATM virtual circuit (LLC-based multiplexing) and the second method assumes that each protocol is carried over a separate ATM virtual circuit (VC-based multiplexing). Please refer to RFC 1483 for more detailed information.

7.1.2 Multiplexing

There are two conventions to identify what protocols the virtual circuit (VC) is carrying. Be sure to use the multiplexing method required by your ISP.

7.1.2.1 VC-based Multiplexing

In this case, by prior mutual agreement, each protocol is assigned to a specific virtual circuit; for example, VC1 carries IP, etc. VC-based multiplexing may be dominant in environments where dynamic creation of large numbers of ATM VCs is fast and economical.

7.1.2.2 LLC-based Multiplexing

In this case one VC carries multiple protocols with protocol identifying information being contained in each packet header. Despite the extra bandwidth and processing overhead, this method may be advantageous if it is not practical to have a separate VC for each carried protocol, for example, if charging heavily depends on the number of simultaneous VCs.

7.1.3 VPI and VCI

Be sure to use the correct Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI) numbers assigned to you. The valid range for the VPI is 0 to 255 and for the VCI is 32 to 65535 (0 to 31 is reserved for local management of ATM traffic). Please see the appendix for more information.

7.1.4 IP Address Assignment

A static IP is a fixed IP that your ISP gives you. A dynamic IP is not fixed; the ISP assigns you a different one each time. The Single User Account feature can be enabled or disabled if you have either a dynamic or static IP. However the encapsulation method assigned influences your choices for IP address and ENET ENCAP gateway.

7.1.4.1 IP Assignment with PPPoA or PPPoE Encapsulation

If you have a dynamic IP, then the IP Address and ENET ENCAP Gateway fields are not applicable (N/A). If you have a static IP, then you only need to fill in the IP Address field and not the ENET ENCAP Gateway field.

7.1.4.2 IP Assignment with RFC 1483 Encapsulation

In this case the IP Address Assignment must be static with the same requirements for the IP Address and ENET ENCAP Gateway fields as stated above.

7.1.4.3 IP Assignment with ENET ENCAP Encapsulation

In this case you can have either a static or dynamic IP. For a static IP you must fill in all the IP Address and ENET ENCAP Gateway fields as supplied by your ISP. However for a dynamic IP, the ZyXEL Device acts as a DHCP client on the WAN port and so the IP Address and ENET ENCAP Gateway fields are not applicable (N/A) as the DHCP server assigns them to the ZyXEL Device.

7.1.5 Nailed-Up Connection (PPP)

A nailed-up connection is a dial-up line where the connection is always up regardless of traffic demand. The ZyXEL Device does two things when you specify a nailed-up connection. The first is that idle timeout is disabled. The second is that the ZyXEL Device will try to bring up the connection when turned on and whenever the connection is down. A nailed-up connection can be very expensive for obvious reasons. Do not specify a nailed-up connection unless your telephone company offers flat-rate service or you need a constant connection and the cost is of no concern.

7.1.6 NAT

NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet, for example, the source address of an outgoing packet, used within one network to a different IP address known within another network.

7.2 Metric

The metric represents the "cost of transmission". A router determines the best route for transmission by choosing a path with the lowest "cost". RIP routing uses hop count as the measurement of cost, with a minimum of "1" for directly connected networks. The number must be between "1" and "15"; a number greater than "15" means the link is down. The smaller the number, the lower the "cost". The metric sets the priority for the ZyXEL Device's routes to the Internet. If any two of the default routes have the same metric, the ZyXEL Device uses the following pre-defined priorities: - Normal route: designated by the ISP (see Section 7.5 on page 98) - Traffic-redirect route (see Section 7.7 on page 103) - WAN-backup route, also called dial-backup (see Section 7.8 on page 105) For example, if the normal route has a metric of "1" and the traffic-redirect route has a metric of "2" and dial-backup route has a metric of "3", then the normal route acts as the primary default route. If the normal route fails to connect to the Internet, the ZyXEL Device tries the traffic-redirect route next. In the same manner, the ZyXEL Device uses the dial-backup route if the traffic-redirect route also fails. If you want the dial-backup route to take first priority over the traffic-redirect route or even the normal route, all you need to do is set the dial-backup route's metric to "1" and the others to "2" (or greater). IP Policy Routing overrides the default routing behavior and takes priority over all of the routes mentioned above.

7.3 Traffic Shaping

Traffic Shaping is an agreement between the carrier and the subscriber to regulate the average rate and fluctuations of data transmission over an ATM network. This agreement helps eliminate congestion, which is important for transmission of real time data such as audio and video connections. Peak Cell Rate (PCR) is the maximum rate at which the sender can send cells. This parameter may be lower (but not higher) than the maximum line speed. 1 ATM cell is 53 bytes (424 bits), so a maximum speed of 832Kbps gives a maximum PCR of 1962 cells/sec. This rate is not guaranteed because it is dependent on the line speed. Sustained Cell Rate (SCR) is the mean cell rate of each bursty traffic source. It specifies the maximum average rate at which cells can be sent over the virtual connection. SCR may not be greater than the PCR. Maximum Burst Size (MBS) is the maximum number of cells that can be sent at the PCR. After MBS is reached, cell rates fall below SCR until cell rate averages to the SCR again. At this time, more cells (up to the MBS) can be sent at the PCR again. If the PCR, SCR or MBS is set to the default of "0", the system will assign a maximum value that correlates to your upstream line rate. The following figure illustrates the relationship between PCR, SCR and MBS. Figure 47 Example of Traffic Shaping

7.3.1 ATM Traffic Classes

These are the basic ATM traffic classes defined by the ATM Forum Traffic Management 4.0 Specification.

7.3.1.1 Constant Bit Rate (CBR)

Constant Bit Rate (CBR) provides fixed bandwidth that is always available even if no data is being sent. CBR traffic is generally time-sensitive (doesn't tolerate delay). CBR is used for connections that continuously require a specific amount of bandwidth. A PCR is specified and if traffic exceeds this rate, cells may be dropped. Examples of connections that need CBR would be high-resolution video and voice.

7.3.1.2 Variable Bit Rate (VBR)

The Variable Bit Rate (VBR) ATM traffic class is used with bursty connections. Connections that use the Variable Bit Rate (VBR) traffic class can be grouped into real time (VBR-RT) or non-real time (VBR-nRT) connections. The VBR-RT (real-time Variable Bit Rate) type is used with bursty connections that require closely controlled delay and delay variation. It also provides a fixed amount of bandwidth (a PCR is specified) but is only available when data is being sent. An example of an VBR-RT connection would be video conferencing. Video conferencing requires real-time data transfers and the bandwidth requirement varies in proportion to the video image's changing dynamics. The VBR-nRT (non real-time Variable Bit Rate) type is used with bursty connections that do not require closely controlled delay and delay variation. It is commonly used for "bursty" traffic typical on LANs. PCR and MBS define the burst levels, SCR defines the minimum level. An example of an VBR-nRT connection would be non-time sensitive data file transfers.

7.3.1.3 Unspecified Bit Rate (UBR)

The Unspecified Bit Rate (UBR) ATM traffic class is for bursty data transfers. However, UBR doesn't guarantee any bandwidth and only delivers traffic when the network has spare bandwidth. An example application is background file transfer.

7.4 Zero Configuration Internet Access

Once you turn on and connect the ZyXEL Device to a telephone jack, it automatically detects the Internet connection settings (such as the VCI/VPI numbers and the encapsulation method) from the ISP and makes the necessary configuration changes. In cases where additional account information (such as an Internet account user name and password) is required or the ZyXEL Device cannot connect to the ISP, you will be redirected to web screen(s) for information input or troubleshooting. Zero configuration for Internet access is disabled when • the ZyXEL Device is in bridge mode - you set the ZyXEL Device to use a static (fixed) WAN IP address.

7.5 Internet Access Setup

To change your ZyXEL Device's WAN remote node settings, click Network > WAN > Internet Access Setup. The screen differs by the encapsulation. See Section 7.1 on page 93 for more information. Figure 48 Internet Access Setup (PPPoE)

Internet Access Setup More Connections WAN Backup Setup General Mode Routing Encapsulation PPPoE User Name Password **** Service Name Multiplexing VC Virtual Circuit ID VPI 8 VCI 35 IP Address Obtain an IP Address Automatically Static IP Address IP Address 0.0.0.0 DNS server First DNS Server Obtained From ISP 0.0.0.0 Second DNS Server Obtained From ISP 0.0.0.0 Third DNS Server Obtained From ISP 0.0.0.0 Connection Nailed-Up Connection Connect on Demand Max Idle Timeout 0 sec Apply Cancel Advanced Setup

The following table describes the labels in this screen. Table 26 Internet Access Setup

LABEL	DESCRIPTION
General
Mode	SelectRouting(default) from the drop-down list box if your ISP allows multiple computers to share an Internet account. Otherwise selectBridge.
Encapsulation	Select the method of encapsulation used by your ISP from the drop-down list box. Choices vary depending on the mode you select in theModefield.If you selectBridgein theModefield, select either PPPoA or RFC 1483.If you selectRoutingin theModefield, select PPPoA, RFC 1483, ENET ENCAP or PPPoE.
User Name	(PPPoA and PPPoE encapsulation only) Enter the user name exactly as your ISP assigned. If assigned a name in the form user@domain where domain identifies a service name, then enter both components exactly as given.
Password	(PPPoA and PPPoE encapsulation only) Enter the password associated with the user name above.
Service Name	(PPPoE only) Type the name of your PPPoE service here.
Multiplexing	Select the method of multiplexing used by your ISP from the drop-down list.Choices areVCorLLC.
Virtual Circuit ID	VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a virtual circuit. Refer to the appendix for more information.
VPI	The valid range for the VPI is 0 to 255. Enter the VPI assigned to you.
VCI	The valid range for the VCI is 32 to 65535 (0 to 31 is reserved for local management of ATM traffic). Enter the VCI assigned to you.
IP Address
IP Address	This option is available if you selectRoutingin theModefield.A static IP address is a fixed IP that your ISP gives you. A dynamic IP address is not fixed; the ISP assigns you a different one each time you connect to the Internet.SelectObtain an IP Address Automaticallyif you have a dynamic IP address; otherwise selectStatic IP Addressand type your ISP assigned IP address in theIP Addressfield below.
Subnet Mask(ENET ENCAP encapsulation only)	Enter a subnet mask in dotted decimal notation.Refer to the appendix to calculate a subnet mask If you are implementing subnetting.
Gateway IP address(ENET ENCAP encapsulation only)	You must specify a gateway IP address (supplied by your ISP) when you selectENET ENCAPin theEncapsulationfield
DNS Server
First DNS ServerSecond DNS ServerThird DNS Server	SelectObtained From ISPif your ISP dynamically assigns DNS server information (and the ZyXEL Device's WAN IP address).SelectUser-Definedif you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you choseUser-Defined, but leave the IP address set to 0.0.0.0,User-Definedchanges toNoneafter you clickApply.If you set a second choice toUser-Defined, and enter the same IP address, the secondUser-Definedchanges toNoneafter you clickApply.SelectDNS Relayto have the ZyXEL Device act as a DNS proxy only when the ISP uses IPCP DNS server extensions. The ZyXEL Device's LAN IP address displays in the field to the right (read-only). The ZyXEL Device tells the DHCP clients on the LAN that the ZyXEL Device itself is the DNS server. When a computer on the LAN sends a DNS query to the ZyXEL Device, the ZyXEL Device forwards the query to the real DNS server learned through IPCP and relays the response back to the computer. You can only selectDNS Relayfor one of the three servers; if you selectDNS Relayfor a second or third DNS server, that choice changes toNoneafter you clickApply.SelectNoneif you do not want to configure DNS servers. You must have another DNS server on your LAN, or else the computers must have their DNS server addresses manually configured. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
Connection(PPPoA and PPPoE encapsulation only)
Nailed-Up Connection	SelectNailed-Up Connectionwhen you want your connection up all the time. The ZyXEL Device will try to bring up the connection automatically if it is disconnected.
Connect on Demand	SelectConnect on Demandwhen you don't want the connection up all the time and specify an idle time-out in theMax Idle Timeoutfield.
Max Idle Timeout	Specify an idle time-out in theMax Idle Timeoutfield when you selectConnect on Demand. The default setting is 0, which means the Internet session will not timeout.
Apply	ClickApplyto save the changes.
Cancel	Click Cancel to begin configuring this screen afresh.
Advanced Setup	Click this button to display the Advanced WAN Setup screen and edit more details of your WAN setup.

7.5.1 Advanced Internet Access Setup

To edit your ZyXEL Device's advanced WAN settings, click the Advanced Setup button in the Internet Access Setup screen. The screen appears as shown. Figure 49 Advanced Internet Access Setup

RIP & Multicast Setup RIP Direction None RIP Version N/A Multicast None ATM Qos ATM QoS Type UBR Peak Cell Rate 0 cell/sec Sustain Cell Rate 0 cell/sec Maximum Burst Size 0 cell Zero Configuration Yes PPPoE Passthrough No Back Apply Cancel

The following table describes the labels in this screen. Table 27 Advanced Internet Access Setup

LABEL	DESCRIPTION
RIP & Multicast Setup
RIP Direction	Select the RIP direction from None, Both, In Only and Out Only.
RIP Version	Select the RIP version from RIP-1, RIP-2B and RIP-2M.
Multicast	IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a multicast group. The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it.
ATM QoS
ATM QoS Type	Select CBR (Continuous Bit Rate) to specify fixed (always-on) bandwidth for voice or data traffic. Select UBR (Unspecified Bit Rate) for applications that are non-time sensitive, such as e-mail. Select VBR-RT (real-time Variable Bit Rate) type for applications with bursty connections that require closely controlled delay and delay variation. Select VBR-nRT (non real-time Variable Bit Rate) type for connections that do not require closely controlled delay and delay variation.
Peak Cell Rate	Divide the DSL line rate (bps) by 424 (the size of an ATM cell) to find the Peak Cell Rate (PCR). This is the maximum rate at which the sender can send cells. Type the PCR here.
Sustain Cell Rate	The Sustain Cell Rate (SCR) sets the average cell rate (long-term) that can be transmitted. Type the SCR, which must be less than the PCR. Note that system default is 0 cells/sec.
Maximum Burst Size	Maximum Burst Size (MBS) refers to the maximum number of cells that can be sent at the peak rate. Type the MBS, which is less than 65535.
Zero Configuration	This feature is not applicable/available when you configure the ZyXEL Device to use a static WAN IP address or in bridge mode.Select Yes to set the ZyXEL Device to automatically detect the Internet connection settings (such as the VCI/VPI numbers and the encapsulation method) from the ISP and make the necessary configuration changes.Select No to disable this feature. You must manually configure the ZyXEL Device for Internet access.
PPPoE Passthrough (PPPoE encapsulation only)	This field is available when you select PPPoE encapsulation.In addition to the ZyXEL Device's built-in PPPoE client, you can enable PPPoE pass through to allow up to ten hosts on the LAN to use PPPoE client software on their computers to connect to the ISP via the ZyXEL Device. Each host can have a separate account and a public WAN IP address.PPPoE pass through is an alternative to NAT for application where NAT is not appropriate.Disable PPPoE pass through if you do not need to allow hosts on the LAN to use PPPoE client software on their computers to connect to the ISP.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save the changes.
Cancel	Click Cancel to begin configuring this screen afresh.

7.6 WAN More Connections

The ZyXEL Device allows you to configure more than one Internet access connection. To configure additional Internet access connections click Network > WAN > More Connections. The screen differs by the encapsulation. Figure 50 WAN More Connections

Internet Access Setup More Connections WAN Backup Setup

Active Name VPI/VCI Encapsulation Modify

1 Internet Connection 0/33 PPPoE 2 - -- -- -- 3 - -- -- -- 4 - -- -- -- 5 - -- -- -- 6 - -- -- -- 7 - -- -- -- 8 - -- -- -- Apply Cancel

The following table describes the labels in this screen. Table 28 Advanced Internet Access Setup

LABEL	DESCRIPTION
#	This is an index number indicating the number of the corresponding connection.
Active	This field indicates whether the connection is active or not.
Name	This is the name you gave to the Internet connection.
VPI/VCI	This field displays the Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI) numbers configured for this WAN connection.
Encapsulation	This field indicates the encapsulation method of the Internet connection.
Modify	Click the modify icon to edit the Internet connection settings. Click this icon on an empty configuration to add a new Internet access setup.Click the delete icon to remove the Internet access setup from your connection list.
Apply	Click Apply to save the changes.
Cancel	Click Cancel to begin configuring this screen afresh.

7.7 Traffic Redirect

Traffic redirect forwards traffic to a backup gateway when the ZyXEL Device cannot connect to the Internet. An example is shown in the figure below. Figure 51 Traffic Redirect Example

The following network topology allows you to avoid triangle route security issues when the backup gateway is connected to the LAN. Use IP alias to configure the LAN into two or three logical networks with the ZyXEL Device itself as the gateway for each LAN network. Put the protected LAN in one subnet (Subnet 1 in the following figure) and the backup gateway in another subnet (Subnet 2). Configure filters that allow packets from the protected LAN (Subnet 1) to the backup gateway (Subnet 2). Figure 52 Traffic Redirect LAN Setup

7.8 WAN Backup Setup

To configure your ZyXEL Device's WAN backup, click Network > WAN > WAN Backup Setup.

Internet Access Setup More Connections WAN Backup Setup WAN Backup Setup Backup Type DSL Link Check WAN IP Address 1 0.0.0.0 Check WAN IP Address 2 0.0.0.0 Check WAN IP Address 3 0.0.0.0 Fail Tolerance 0 Recovery Interval 0 sec Timeout 0 sec Traffic Redirect Active Traffic Redirect Metric 15 Backup Gateway 0.0.0.0 Apply Cancel

The following table describes the labels in this screen. Table 29 WAN Backup Setup

LABEL	DESCRIPTION
Backup Type	Select the method that the ZyXEL Device uses to check the DSL connection.SelectDSL Linkto have the ZyXEL Device check if the connection to the DSLAM is up. SelectICMPto have the ZyXEL Device periodically ping the IP addresses configured in theCheck WAN IP Addressfields.
Check WAN IP Address1-3	Configure this field to test your ZyXEL Device's WAN accessibility. Type the IP address of a reliable nearby computer (for example, your ISP's DNS server address).Note:If you activate either traffic redirect or dial backup, you must configure at least one IP address here.When using a WAN backup connection, the ZyXEL Device periodically pings the addresses configured here and uses the other WAN backup connection (if configured) if there is no response.
Fail Tolerance	Type the number of times (2 recommended) that your ZyXEL Device may ping the IP addresses configured in theCheck WAN IP Addressfield without getting a response before switching to a WAN backup connection (or a different WAN backup connection).
Recovery Interval	When the ZyXEL Device is using a lower priority connection (usually a WAN backup connection), it periodically checks whether or not it can use a higher priority connection.Type the number of seconds (30 recommended) for the ZyXEL Device to wait between checks. Allow more time if your destination IP address handles lots of traffic.
Timeout	Type the number of seconds (3 recommended) for your ZyXEL Device to wait for a ping response from one of the IP addresses in the Check WAN IP Address field before timing out the request. The WAN connection is considered "down" after the ZyXEL Device times out the number of times specified in the Fail Tolerance field. Use a higher value in this field if your network is busy or congested.
Traffic Redirect	Traffic redirect forwards traffic to a backup gateway when the ZyXEL Device cannot connect to the Internet.
Active Traffic Redirect	Select this check box to have the ZyXEL Device use traffic redirect if the normal WAN connection goes down.Note: If you activate traffic redirect, you must configure at least one Check WAN IP Address.
Metric	This field sets this route's priority among the routes the ZyXEL Device uses. The metric represents the "cost of transmission". A router determines the best route for transmission by choosing a path with the lowest "cost". RIP routing uses hop count as the measurement of cost, with a minimum of "1" for directly connected networks. The number must be between "1" and "15"; a number greater than "15" means the link is down. The smaller the number, the lower the "cost".
Backup Gateway	Type the IP address of your backup gateway in dotted decimal notation. The ZyXEL Device automatically forwards traffic to this IP address if the ZyXEL Device's Internet connection terminates.
Apply	Click Apply to save the changes.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 8 LAN Setup

This chapter describes how to configure LAN settings.

8.1 LAN Overview

A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is a computer network limited to the immediate area, usually the same building or floor of a building. The LAN screens can help you configure a LAN DHCP server and manage IP addresses. See Section 8.3 on page 113 to configure the LAN screens.

8.1.1 LANs, WANs and the ZyXEL Device

The actual physical connection determines whether the ZyXEL Device ports are LAN or WAN ports. There are two separate IP networks, one inside the LAN network and the other outside the WAN network as shown next. Figure 53 LAN and WAN IP Addresses

8.1.2 DHCP Setup

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the ZyXEL Device as a DHCP server or disable it. When configured as a server, the ZyXEL Device provides the TCP/IP configuration for the clients. If you turn DHCP service off, you must have another DHCP server on your LAN, or else the computer must be manually configured.

8.1.2.1 IP Pool Setup

The ZyXEL Device is pre-configured with a pool of IP addresses for the DHCP clients (DHCP Pool). See the product specifications in the appendices. Do not assign static IP addresses from the DHCP pool to your LAN computers.

8.1.3 DNS Server Address

DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice versa. The DNS server is extremely important because without it, you must know the IP address of a machine before you can access it. The DNS server addresses that you enter in the DHCP setup are passed to the client machines along with the assigned IP address and subnet mask. There are two ways that an ISP disseminates the DNS server addresses. The first is for an ISP to tell a customer the DNS server addresses, usually in the form of an information sheet, when s/he signs up. If your ISP gives you the DNS server addresses, enter them in the DNS Server fields in DHCP Setup, otherwise, leave them blank. Some ISP's choose to pass the DNS servers using the DNS server extensions of PPP IPCP (IP Control Protocol) after the connection is up. If your ISP did not give you explicit DNS servers, chances are the DNS servers are conveyed through IPCP negotiation. The ZyXEL Device supports the IPCP DNS server extensions through the DNS proxy feature. If you set the router to be a DNS relay, it tells the DHCP clients that the device itself is the DNS server. When a computer sends a DNS query to the ZyXEL Device, the ZyXEL Device forwards the query to the real DNS server learned through IPCP and relays the response back to the computer. Please note that DNS proxy works only when the ISP uses IPCP DNS server extensions. It does not mean you can leave the DNS servers out of the DHCP setup under all circumstances. If your ISP gives you explicit DNS servers, make sure that you enter their IP addresses in the DHCP Setup screen. This way, the ZyXEL Device can pass the DNS servers to the computers and the computers can query the DNS server directly without the ZyXEL Device's intervention.

8.1.4 DNS Server Address Assignment

Use DNS (Domain Name System) to map a domain name to its corresponding IP address and vice versa. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. There are two ways that an ISP disseminates the DNS server addresses. - The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you sign up. If your ISP gives you DNS server addresses, enter them in the DNS Server fields in the DHCP Setup screen. - The ZyXEL Device acts as a DNS proxy when the DNS Server field is set to DNS Relay in the DHCP Setup screen.

8.2 LAN TCP/IP

The ZyXEL Device has built-in DHCP server capability that assigns IP addresses and DNS servers to systems that support DHCP client capability.

8.2.1 IP Address and Subnet Mask

Similar to the way houses on a street share a common street name, so too do computers on a LAN share one common network number. Where you obtain your network number depends on your particular situation. If the ISP or your network administrator assigns you a block of registered IP addresses, follow their instructions in selecting the IP addresses and the subnet mask. If the ISP did not explicitly give you an IP network number, then most likely you have a single user account and the ISP will assign you a dynamic IP address when the connection is established. If this is the case, it is recommended that you select a network number from 192.168.0.0 to 192.168.255.0 and you must enable the Network Address Translation (NAT) feature of the ZyXEL Device. The Internet Assigned Number Authority (IANA) reserved this block of addresses specifically for private use; please do not use any other number unless you are told otherwise. Let's say you select 192.168.1.0 as the network number; which covers 254 individual addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other words, the first three numbers specify the network number while the last number identifies an individual computer on that network. Once you have decided on the network number, pick an IP address that is easy to remember, for instance, 192.168.1.1, for your ZyXEL Device, but make sure that no other device on your network is using that IP address. The subnet mask specifies the network number portion of an IP address. Your ZyXEL Device will compute the subnet mask automatically based on the IP address that you entered. You don't need to change the subnet mask computed by the ZyXEL Device unless you are instructed to do otherwise.

8.2.1.1 Private IP Addresses

Every machine on the Internet must have a unique address. If your networks are isolated from the Internet, for example, only between your two branch offices, you can assign any IP addresses to the hosts without problems. However, the Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of IP addresses specifically for private networks: • 10.0.0.0 — 10.255.255.255 • 172.16.0.0 — 172.31.255.255 • 192.168.0.0 — 192.168.255.255 You can obtain your IP address from the IANA, from an ISP or it can be assigned from a private network. If you belong to a small organization and your Internet access is through an ISP, the ISP can provide you with the Internet addresses for your local networks. On the other hand, if you are part of a much larger organization, you should consult your network administrator for the appropriate IP addresses. Note: Regardless of your particular situation, do not create an arbitrary IP address; always follow the guidelines above. For more information on address assignment, please refer to RFC 1597, Address Allocation for Private Internets and RFC 1466, Guidelines for Management of IP Address Space.

8.2.2 RIP Setup

RIP (Routing Information Protocol) allows a router to exchange routing information with other routers. The RIP Direction field controls the sending and receiving of RIP packets. When set to: - Both - the ZyXEL Device will broadcast its routing table periodically and incorporate the RIP information that it receives. - In Only - the ZyXEL Device will not send any RIP packets but will accept all RIP packets received. - Out Only - the ZyXEL Device will send out RIP packets but will not accept any RIP packets received. - None - the ZyXEL Device will not send any RIP packets and will ignore any RIP packets received. The Version field controls the format and the broadcasting method of the RIP packets that the ZyXEL Device sends (it recognizes both formats when receiving). RIP-1 is universally supported; but RIP-2 carries more information. RIP-1 is probably adequate for most networks, unless you have an unusual network topology. Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.

8.2.3 Multicast

Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1 recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to a group of hosts on the network - not everybody and not just 1. IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. IGMP version 2 (RFC 2236) is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in wide use. If you would like to read more detailed information about interoperability between IGMP version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address 224.0.0.0 is not assigned to any group and is used by IP multicast computers. The address 224.0.0.1 is used for query messages and is assigned to the permanent group of all IP hosts (including gateways). All hosts must join the 224.0.0.1 group in order to participate in IGMP. The address 224.0.0.2 is assigned to the multicast routers group. The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-v2). At start up, the ZyXEL Device queries all directly connected networks to gather group membership. After that, the ZyXEL Device periodically updates this information. IP multicasting can be enabled/disabled on the ZyXEL Device LAN and/or WAN interfaces in the web configurator (LAN; WAN). Select None to disable IP multicasting on these interfaces.

8.2.4 Any IP

Traditionally, you must set the IP addresses and the subnet masks of a computer and the ZyXEL Device to be in the same subnet to allow the computer to access the Internet (through the ZyXEL Device). In cases where your computer is required to use a static IP address in another network, you may need to manually configure the network settings of the computer every time you want to access the Internet via the ZyXEL Device. With the Any IP feature and NAT enabled, the ZyXEL Device allows a computer to access the Internet without changing the network settings (such as IP address and subnet mask) of the computer, when the IP addresses of the computer and the ZyXEL Device are not in the same subnet. Whether a computer is set to use a dynamic or static (fixed) IP address, you can simply connect the computer to the ZyXEL Device and access the Internet. The following figure depicts a scenario where a computer is set to use a static private IP address in the corporate environment. In a residential house where a ZyXEL Device is installed, you can still use the computer to access the Internet without changing the network settings, even when the IP addresses of the computer and the ZyXEL Device are not in the same subnet. Figure 54 Any IP Example

The Any IP feature does not apply to a computer using either a dynamic IP address or a static IP address that is in the same subnet as the ZyXEL Device's IP address. Note: You must enable NAT/SUA to use the Any IP feature on the ZyXEL Device.

8.2.4.1 How Any IP Works

Address Resolution Protocol (ARP) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address, also known as a Media Access Control or MAC address, on the local area network. IP routing table is defined on IP Ethernet devices (the ZyXEL Device) to decide which hop to use, to help forward data along to its specified destination. The following lists out the steps taken, when a computer tries to access the Internet for the first time through the ZyXEL Device. 1 When a computer (which is in a different subnet) first attempts to access the Internet, it sends packets to its default gateway (which is not the ZyXEL Device) by looking at the MAC address in its ARP table. 2 When the computer cannot locate the default gateway, an ARP request is broadcast on the LAN. 3 The ZyXEL Device receives the ARP request and replies to the computer with its own MAC address. 4 The computer updates the MAC address for the default gateway to the ARP table. Once the ARP table is updated, the computer is able to access the Internet through the ZyXEL Device. 5 When the ZyXEL Device receives packets from the computer, it creates an entry in the IP routing table so it can properly forward packets intended for the computer. After all the routing information is updated, the computer can access the ZyXEL Device and the Internet as if it is in the same subnet as the ZyXEL Device.

8.3 Configuring LAN IP

Click Network > LAN to open the IP screen. See Section 8.1 on page 107 for background information. Figure 55 LAN IP

IP DHCP Setup Client List IP Alias LAN TCP/IP IP Address 192.168.1.1 IP Subnet Mask 255.255.255.0 Apply Cancel Advanced Setup

The following table describes the fields in this screen. Table 30 LAN IP

LABEL	DESCRIPTION
LAN TCP/IP
IP Address	Enter the IP address of your ZyXEL Device in dotted decimal notation, for example, 192.168.1.1 (factory default).
IP Subnet Mask	Type the subnet mask assigned to you by your ISP (if given).
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.
Advanced Setup	Click this button to display the Advanced LAN Setup screen and edit more details of your LAN setup.

8.3.1 Configuring Advanced LAN Setup

To edit your ZyXEL Device's advanced LAN settings, click the Advanced Setup button in the LAN IP screen. The screen appears as shown. Figure 56 Advanced LAN Setup

RIP & Multicast Setup RIP Direction Both RIP Version RIP-1 Multicast IGMP-v1 Any IP Setup ✓ Active Windows Networking (NetBIOS over TCP/IP) ✓ Allow between LAN and WAN Back Apply Cancel

The following table describes the labels in this screen. Table 31 Advanced LAN Setup

LABEL	DESCRIPTION
RIP & Multicast Setup
RIP Direction	Select the RIP direction from None, Both, In Only and Out Only.
RIP Version	Select the RIP version from RIP-1, RIP-2B and RIP-2M.
Multicast	IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a multicast group. The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it.
Any IP Setup	Select the Active check box to enable the Any IP feature. This allows a computer to access the Internet without changing the network settings (such as IP address and subnet mask) of the computer, even when the IP addresses of the computer and the ZyXEL Device are not in the same subnet.When you disable the Any IP feature, only computers with dynamic IP addresses or static IP addresses in the same subnet as the ZyXEL Device's LAN IP address can connect to the ZyXEL Device or access the Internet through the ZyXEL Device.
Windows Networking (NetBIOS over TCP/IP)	NetBIOS (Network Basic Input/Output System) are TCP or UDP packets that enable a computer to connect to and communicate with a LAN. For some dial-up services such as PPPoE or PPTP, NetBIOS packets cause unwanted calls.However it may sometimes be necessary to allow NetBIOS packets to pass through to the WAN in order to find a computer on the WAN.
Allow between LAN and WAN	Select this check box to forward NetBIOS packets from the LAN to the WAN and from the WAN to the LAN. If your firewall is enabled with the default policy set to block WAN to LAN traffic, you also need to enable the default WAN to LAN firewall rule that forwards NetBIOS traffic.Clear this check box to block all NetBIOS packets going from the LAN to the WAN and from the WAN to the LAN.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save the changes.
Cancel	Click Cancel to begin configuring this screen afresh.

8.4 DHCP Setup

Click Network > DHCP Setup to open this screen. Use this screen to configure the DNS server information that the ZyXEL Device sends to the DHCP client devices on the LAN. Figure 57 DHCP Setup

DHCP Setup DHCP IP Pool Starting Address 192.168.1.33 Pool Size 32 Remote DHCP Server 0.0.0.0 DNS Server DNS Servers Assigned by DHCP Server First DNS Server Obtained From ISP 0.0.0.0 Second DNS Server Obtained From ISP 0.0.0.0 Third DNS Server Obtained From ISP 0.0.0.0 Apply Cancel

The following table describes the labels in this screen. Table 32 DHCP Setup

LABEL	DESCRIPTION
DHCP Setup
DHCP	If set to Server, your ZyXEL Device can assign IP addresses, an IP default gateway and DNS servers to Windows 95, Windows NT and other systems that support the DHCP client.If set to None, the DHCP server will be disabled.If set to Relay, the ZyXEL Device acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients.Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.When DHCP is used, the following items need to be set:
IP Pool Starting Address	This field specifies the first of the contiguous addresses in the IP address pool.
Pool Size	This field specifies the size, or count of the IP address pool.
Remote DHCP Server	If Relay is selected in the DHCP field above then enter the IP address of the actual remote DHCP server here.
DNS Server
DNS Servers Assigned by DHCP Server	The ZyXEL Device passes a DNS (Domain Name System) server IP address to the DHCP clients.

Table 32 DHCP Setup

LABEL	DESCRIPTION
First DNS ServerSecond DNS ServerThird DNS Server	Select Obtained From ISP if your ISP dynamically assigns DNS server information (and the ZyXEL Device's WAN IP address).SelectUser-Definedif you have the IP address of a DNS server. Enter the DNS server's IP address in the field to the right. If you choseUser-Defined, but leave the IP address set to 0.0.0.0,User-Definedchanges to Noneafter you clickApply. If you set a second choice toUser-Defined, and enter the same IP address, the secondUser-Definedchanges to Noneafter you clickApply.SelectDNS Relayto have the ZyXEL Device act as a DNS proxy only when the ISP uses IPCP DNS server extensions. The ZyXEL Device's LAN IP address displays in the field to the right (read-only). The ZyXEL Device tells the DHCP clients on the LAN that the ZyXEL Device itself is the DNS server. When a computer on the LAN sends a DNS query to the ZyXEL Device, the ZyXEL Device forwards the query to the real DNS server learned through IPCP and relays the response back to the computer. You can only selectDNS Relayfor one of the three servers; if you selectDNS Relayfor a second or third DNS server, that choice changes to Noneafter you clickApply.SelectNoneif you do not want to configure DNS servers. You must have another DHCP sever on your LAN, or else the computers must have their DNS server addresses manually configured. If you do not configure a DNS server, you must know the IP address of a computer in order to access it.
Apply	ClickApplyto save your changes back to the ZyXEL Device.
Cancel	ClickCancelto begin configuring this screen afresh.

8.5 LAN Client List

This table allows you to assign IP addresses on the LAN to specific individual computers based on their MAC Addresses. Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02. Click Network > LAN > Client List to open the following screen. Use this screen to change your ZyXEL Device's static DHCP settings. Figure 58 LAN Client List

DHCP Client Table IP Address 192.168.1.66 MAC Address AA:BB:CC:EE:EE:EE Add

Status Host Name IP Address MAC Address Reserve Modify

1 IBM1 192.168.1.33 11:22:33:44:55:66 ✓ ✓ 2 192.168.1.34 AA:BB:CC:DD:EE:FF ✓ ✓ 3 HP 192.168.1.99 AA:BB:CC:KK:FF:GG ✓ ✓ Apply Reset Refresh

The following table describes the labels in this screen. Table 33 LAN Client List

LABEL	DESCRIPTION
IP Address	Enter the IP address that you want to assign to the computer on your LAN with the MAC address that you will also specify.
MAC Address	Enter the MAC address of a computer on your LAN.
Add	Click Add to add a static DHCP entry.
#	This is the index number of the static IP table entry (row).
Status	This field displays whether the client is connected to the ZyXEL Device.
Host Name	This field displays the computer host name.
IP Address	This field displays the IP address relative to the # field listed above.
MAC Address	The MAC (Media Access Control) or Ethernet address on a LAN (Local Area Network) is unique to your computer (six pairs of hexadecimal notation).A network interface card such as an Ethernet adapter has a hardwired address that is assigned at the factory. This address follows an industry standard that ensures no other adapter has a similar address.
Reserve	Select the check box in the heading row to automatically select all check boxes or select the check box(es) in each entry to have the ZyXEL Device always assign the selected entry(ies)'s IP address(es) to the corresponding MAC address(es) (and host name(s)). You can select up to 128 entries in this table. After you click Apply, the MAC address and IP address also display in the LAN Static DHCP screen (where you can edit them).
Modify	Click the modify icon to have the IP address field editable and change it.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.
Refresh	Click Refresh to reload the DHCP table.

8.6 LAN IP Alias

IP alias allows you to partition a physical network into different logical networks over the same Ethernet interface. The ZyXEL Device supports three logical LAN interfaces via its single physical Ethernet interface with the ZyXEL Device itself as the gateway for each LAN network. When you use IP alias, you can also configure firewall rules to control access between the LAN's logical networks (subnets). Note: Make sure that the subnets of the logical networks do not overlap. The following figure shows a LAN divided into subnets A, B, and C. Figure 59 Physical Network & Partitioned Logical Networks

Click Network > LAN > IP Alias to open the following screen. Use this screen to change your ZyXEL Device's IP alias settings. Figure 60 LAN IP Alias

IP DHCP Setup Client List IP Alias IP Alias 1 IP Alias 1 IP Address 0.0.0.0 IP Subnet Mask 0.0.0.0 RIP Direction None RIP Version N/A IP Alias 2 IP Alias 2 IP Address 0.0.0.0 IP Subnet Mask 0.0.0.0 RIP Direction None RIP Version N/A Apply Cancel

The following table describes the labels in this screen. Table 34 LAN IP Alias

LABEL	DESCRIPTION
IP Alias 1, 2	Select the check box to configure another LAN network for the ZyXEL Device.
IP Address	Enter the IP address of your ZyXEL Device in dotted decimal notation.Alternatively, click the right mouse button to copy and/or paste the IP address.
IP Subnet Mask	Your ZyXEL Device will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the ZyXEL Device.

Table 34 LAN IP Alias

LABEL	DESCRIPTION
RIP Direction	RIP (Routing Information Protocol, RFC 1058 and RFC 1389) allows a router to exchange routing information with other routers. The RIP Direction field controls the sending and receiving of RIP packets. Select the RIP direction from Both/In Only/Out Only/None. When set to Both or Out Only, the ZyXEL Device will broadcast its routing table periodically. When set to Both or In Only, it will incorporate the RIP information that it receives; when set to None, it will not send any RIP packets and will ignore any RIP packets received.
RIP Version	The RIP Version field controls the format and the broadcasting method of the RIP packets that the ZyXEL Device sends (it recognizes both formats when receiving). RIP-1 is universally supported but RIP-2 carries more information. RIP-1 is probably adequate for most networks, unless you have an unusual network topology. Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting. Multicasting can reduce the load on non-router machines since they generally do not listen to the RIP multicast address and so will not receive the RIP packets. However, if one router uses multicasting, then all routers on your network must use multicasting, also. By default, RIP direction is set to Both and the Version set to RIP-1.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 9 Wireless LAN

This chapter discusses how to configure the wireless network settings in your ZyXEL Device. See the appendices for more detailed information about wireless networks. This chapter applies to the “W” models only.

9.1 Wireless Network Overview

The following figure provides an example of a wireless network. Figure 61 Example of a Wireless Network

The wireless network is the part in the blue circle. In this wireless network, devices A and B use the access point (AP) to interact with the other devices (such as the printer) or with the Internet. Your ZyXEL Device is the AP. Every wireless network must follow these basic guidelines. - Every device in the same wireless network must use the same SSID. The SSID is the name of the wireless network. It stands for Service Set IDentity. - If two wireless networks overlap, they should use a different channel. Like radio stations or television channels, each wireless network uses a specific channel, or frequency, to send and receive information. \- Every device in the same wireless network must use security compatible with the AP. Security stops unauthorized devices from using the wireless network. It can also protect the information that is sent in the wireless network.

9.2 Wireless Security Overview

The following sections introduce different types of wireless security you can set up in the wireless network.

9.2.1 SSID

Normally, the ZyXEL Device acts like a beacon and regularly broadcasts the SSID in the area. You can hide the SSID instead, in which case the ZyXEL Device does not broadcast the SSID. In addition, you should change the default SSID to something that is difficult to guess. This type of security is fairly weak, however, because there are ways for unauthorized wireless devices to get the SSID. In addition, unauthorized wireless devices can still see the information that is sent in the wireless network.

9.2.2 MAC Address Filter

Every device that can use a wireless network has a unique identification number, called a MAC address. ^1 A MAC address is usually written using twelve hexadecimal characters ^2 ; for example, 00A0C5000002 or 00:A0:C5:00:00:02. To get the MAC address for each device in the wireless network, see the device's User's Guide or other documentation. You can use the MAC address filter to tell the ZyXEL Device which devices are allowed or not allowed to use the wireless network. If a device is allowed to use the wireless network, it still has to have the correct information (SSID, channel, and security). If a device is not allowed to use the wireless network, it does not matter if it has the correct information. This type of security does not protect the information that is sent in the wireless network. Furthermore, there are ways for unauthorized wireless devices to get the MAC address of an authorized device. Then, they can use that MAC address to use the wireless network.

9.2.3 User Authentication

Authentication is the process of verifying whether a wireless device is allowed to use the wireless network. You can make every user log in to the wireless network before they can use it. However, every device in the wireless network has to support IEEE 802.1x to do this. For wireless networks, you can store the user names and passwords for each user in a RADIUS server. This is a server used in businesses more than in homes. If you do not have a RADIUS server, you cannot set up user names and passwords for your users. Unauthorized wireless devices can still see the information that is sent in the wireless network, even if they cannot use the wireless network. Furthermore, there are ways for unauthorized wireless users to get a valid user name and password. Then, they can use that user name and password to use the wireless network.

9.2.4 Encryption

Wireless networks can use encryption to protect the information that is sent in the wireless network. Encryption is like a secret code. If you do not know the secret code, you cannot understand the message. The types of encryption you can choose depend on the type of authentication. (See section 9.2.3 on page 123 for information about this.) Table 35 Types of Encryption for Each Type of Authentication

	No Authentication	RADIUS Server
Weakest↑Strongest	No Security
	Static WEP
	WPA-PSK	WPA
	WPA2-PSK	WPA2

For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If users do not log in to the wireless network, you can choose no encryption, Static WEP, WPA-PSK, or WPA2-PSK. Usually, you should set up the strongest encryption that every device in the wireless network supports. For example, suppose you have a wireless network with the ZyXEL Device and you do not have a RADIUS server. Therefore, there is no authentication. Suppose the wireless network has two devices. Device A only supports WEP, and device B supports WEP and WPA. Therefore, you should set up Static WEP in the wireless network. Note: It is recommended that wireless networks use WPA-PSK, WPA, or stronger encryption. The other types of encryption are better than none at all, but it is still possible for unauthorized wireless devices to figure out the original information pretty quickly. When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option (WPA compatible) to support WPA as well. In this case, if some of the devices support WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the type of wireless network login) and select the WPA compatible option in the ZyXEL Device. Many types of encryption use a key to protect the information in the wireless network. The longer the key, the stronger the encryption. Every device in the wireless network must have the same key.

9.2.5 One-Touch Intelligent Security Technology (OTIST)

With ZyXEL's OTIST, you set up the SSID and the encryption (WEP or WPA-PSK) on the ZyXEL Device. Then, the ZyXEL Device transfers them to the devices in the wireless networks. As a result, you do not have to set up the SSID and encryption on every device in the wireless network. The devices in the wireless network have to support OTIST, and they have to be in range of the ZyXEL Device when you activate it. See section 9.6 on page 133 for more details.

9.3 Wireless Performance Overview

The following sections introduce different ways to improve the performance of the wireless network.

9.3.1 Quality of Service (QoS)

You can turn on Wi-Fi MultiMedia (WMM) QoS to improve the performance of voice and video applications in the wireless network. QoS gives high priority to voice and video, which makes them run more smoothly. Similarly, it gives low priority to many large file downloads so that they do not reduce the quality of other applications.

9.4 Additional Wireless Terms

The following table describes wireless network terms and acronyms used in the ZyXEL Device.

TERM	DESCRIPTION
Intra-BSS Traffic	This describes direct communication (not through the ZyXEL Device) between two wireless devices within a wireless network. You might disable this kind of communication to enhance security within your wireless network.
RTS/CTS Threshold	In a wireless network which covers a large area, wireless devices are sometimes not aware of each other's presence. This may cause them to send information to the AP at the same time and result in information colliding and not getting through.By setting this value lower than the default value, the wireless devices must sometimes get permission to send information to the ZyXEL Device. The lower the value, the more often the devices must get permission.If this value is greater than the fragmentation threshold value (see below), then wireless devices never have to get permission to send information to the ZyXEL Device.
Preamble	A preamble affects the timing in your wireless network. There are two preamble modes: long and short. If a device uses a different preamble mode than the ZyXEL Device does, it cannot communicate with the ZyXEL Device.
Authentication	The process of verifying whether a wireless device is allowed to use the wireless network.
Max. Frame Burst	Enable this to improve the performance of both pure IEEE 802.11g and mixed IEEE 802.11b/g networks. Maximum Frame Burst sets the maximum time that the ZyXEL Device transmits IEEE 802.11g wireless traffic only.
Fragmentation Threshold	A small fragmentation threshold is recommended for busy networks, while a larger threshold provides faster performance if the network is not very busy.
Roaming	If you have two or more ZyXEL Devices (or other wireless access points) on your wireless network, you can enable this option so that wireless devices can change locations without having to log in again. This is useful for devices, such as notebooks, that move around a lot.

9.5 General WLAN Screen

Note: If you are configuring the ZyXEL Device from a computer connected to the wireless LAN and you change the ZyXEL Device's SSID or WEP settings, you will lose your wireless connection when you press Apply to confirm. You must then change the wireless settings of your computer to match the ZyXEL Device's new settings. Click Network > Wireless LAN to open the Wireless LAN General screen. Figure 62 Wireless LAN: General

General OTIST MAC Filter QoS Wireless Setup Active Wireless LAN Network Name(SSID) ZyXEL Hide SSID Channel Selection Channel-06 2437MHz Security Security Mode No Security Apply Cancel Advanced Setup

The following table describes the general wireless LAN labels in this screen. Table 36 Wireless LAN: General

LABEL	DESCRIPTION
Active Wireless LAN	Click the check box to activate wireless LAN.
Network Name(SSID)	(Service Set IDentity) The SSID identifies the Service Set with which a wireless station is associated. Wireless stations associating to the access point (AP) must have the same SSID. Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN.Note: If you are configuring the ZyXEL Device from a computer connected to the wireless LAN and you change the ZyXEL Device's SSID or WEP settings, you will lose your wireless connection when you press Apply to confirm. You must then change the wireless settings of your computer to match the ZyXEL Device's new settings.
Hide SSID	Select this check box to hide the SSID in the outgoing beacon frame so a station cannot obtain the SSID through scanning using a site survey tool.
Channel Selection	Set the operating frequency/channel depending on your particular region.Select a channel from the drop-down list box.
Security Mode	See the following sections for more details about this field.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.
Advanced Setup	Click Advanced Setup to display the Wireless Advanced Setup screen and edit more details of your WLAN setup.

9.5.1 No Security

Select No Security to allow wireless stations to communicate with the access points without any data encryption. Note: If you do not enable any wireless security on your ZyXEL Device, your network is accessible to any wireless networking device that is within range. Figure 63 Wireless: No Security

General OTIST MAC Filter QoS Wireless Setup Active Wireless LAN Network Name(SSID) ZyXEL Hide SSID Channel Selection Channel-06 2437MHz Security Security Mode No Security Apply Cancel Advanced Setup

The following table describes the labels in this screen. Table 37 Wireless No Security

LABEL	DESCRIPTION
Security Mode	Choose No Security from the drop-down list box.

9.5.2 WEP Encryption Screen

In order to configure and enable WEP encryption; click Network > Wireless LAN to display the General screen. Select Static WEP from the Security Mode list. Figure 64 Wireless: Static WEP Encryption

General OTIST MAC Filter QoS Wireless Setup Active Wireless LAN Network Name(SSID) ZyXEL Hide SSID Channel Selection Channel-06 2437MHz Security Security Mode Static WEP Passphrase Generate WEP Key Note: The different WEP key lengths configure different strength security, 40/64-bit, 128-bit, or 256-bit respectively. Your wireless client must match the security strength set on the router. -Please type exactly 5, 13, or 29 characters. or -Please type exactly 10, 26, or 58 characters using only the numbers 0-9 and the letters 'a-f' or 'A-F'. Apply Cancel Advanced Setup

The following table describes the wireless LAN security labels in this screen. Table 38 Wireless: Static WEP Encryption

LABEL	DESCRIPTION
Security Mode	Choose Static WEP from the drop-down list box.
Passphrase	Enter a Passphrase (up to 32 printable characters) and clicking Generate. The ZyXEL Device automatically generates a WEP key.
WEP Key	The WEP key is used to encrypt data. Both the ZyXEL Device and the wireless stations must use the same WEP key for data transmission.If you want to manually set the WEP key, enter any 5, 13 or 29 characters (ASCII string) or 10, 26 or 58 hexadecimal characters ("0-9", "A-F") for a 64-bit, 128-bit or 256-bit WEP key respectively.

9.5.3 WPA(2)-PSK

In order to configure and enable WPA-PSK authentication; click Network > Wireless LAN to display the General screen. Select WPA-PSK or WPA2-PSK from the Security Mode list. Figure 65 Wireless: WPA(2)-PSK

General OTIST MAC Filter QoS Wireless Setup Active Wireless LAN Network Name(SSID) ZyXEL Hide SSID Channel Selection Channel-06 2437MHz Security Security Mode WPA2-PSK WPA Compatible Pre-Shared Key ReAuthentication Timer 1800 (In Seconds) Idle Timeout 3600 (In Seconds) Group Key Update Timer 1800 (In Seconds) Apply Cancel Advanced Setup

The following table describes the wireless LAN security labels in this screen. Table 39 Wireless: WPA(2)-PSK

LABEL	DESCRIPTION
Security Mode	Choose WPA-PSK or WPA2-PSK from the drop-down list box.
WPA Compatible	This field is only available for WPA2-PSK. Select this if you want the ZyXEL Device to support WPA-PSK and WPA2-PSK simultaneously.
Pre-Shared Key	The encryption mechanisms used for WPA(2) and WPA(2)-PSK are the same. The only difference between the two is that WPA(2)-PSK uses a simple common password, instead of user-specific credentials.Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including spaces and symbols).
ReAuthentication Timer (in seconds)	Specify how often wireless stations have to resend usernames and passwords in order to stay connected. Enter a time interval between 10 and 9999 seconds. The default time interval is 1800 seconds (30 minutes).Note: If wireless station authentication is done using a RADIUS server, the reauthentication timer on the RADIUS server has priority.
Idle Timeout	The ZyXEL Device automatically disconnects a wireless station from the wired network after a period of inactivity. The wireless station needs to enter the username and password again before access to the wired network is allowed. The default time interval is 3600 seconds (or 1 hour).
Group Key Update Timer	The Group Key Update Timer is the rate at which the AP (if using WPA(2)-PSK key management) or RADIUS server (if using WPA key management) sends a new group key out to all clients. The re-keying process is the WPA equivalent of automatically changing the WEP key for an AP and all stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is also supported in WPA-PSK mode. The ZyXEL Device default is 1800 seconds (30 minutes).

9.5.4 WPA(2) Authentication Screen

In order to configure and enable WPA Authentication; click the Wireless LAN link under Network to display the Wireless screen. Select WPA or WPA2 from the Security list. Figure 66 Wireless: WPA(2)

General OTIST MAC Filter QoS Wireless Setup Active Wireless LAN Network Name(SSID) ZyXEL Hide SSID Channel Selection Channel-06 2437MHz Security Security Mode WPA2 WPA Compatible ReAuthentication Timer 1800 (In Seconds) Idle Timeout 3600 (In Seconds) Group Key Update Timer 1800 (In Seconds) Authentication Server IP Address 0.0.0.0 Port Number 1812 Shared Secret Accounting Server (optional) IP Address 0.0.0.0 Port Number 1813 Shared Secret Apply Cancel Advanced Setup

The following table describes the wireless LAN security labels in this screen. Table 40 Wireless: WPA(2)

LABEL	DESCRIPTION
Security Mode	Choose WPA or WPA2 from the drop-down list box.
WPA Compatible	This field is only available for WPA2. Select this if you want the ZyXEL Device to support WPA and WPA2 simultaneously.
ReAuthentication Timer (in seconds)	Specify how often wireless stations have to resend usernames and passwords in order to stay connected. Enter a time interval between 10 and 9999 seconds. The default time interval is 1800 seconds (30 minutes).Note: If wireless station authentication is done using a RADIUS server, the reauthentication timer on the RADIUS server has priority.

Table 40 Wireless: WPA(2)

LABEL	DESCRIPTION
Idle Timeout	The ZyXEL Device automatically disconnects a wireless station from the wired network after a period of inactivity. The wireless station needs to enter the username and password again before access to the wired network is allowed. The default time interval is 3600 seconds (or 1 hour).
WPA Group Key Update Timer	The WPA Group Key Update Timer is the rate at which the AP (if using WPA-PSK key management) or RADIUS server (if using WPA key management) sends a new group key out to all clients. The re-keying process is the WPA equivalent of automatically changing the WEP key for an AP and all stations in a WLAN on a periodic basis. Setting of the WPA Group Key Update Timer is also supported in WPA-PSK mode. The ZyXEL Device default is 1800 seconds (30 minutes).
Authentication Server
IP Address	Enter the IP address of the external authentication server in dotted decimal notation.
Port Number	Enter the port number of the external authentication server. The default port number is 1812.You need not change this value unless your network administrator instructs you to do so with additional information.
Shared Secret	Enter a password (up to 31 alphanumeric characters) as the key to be shared between the external authentication server and the ZyXEL Device.The key must be the same on the external authentication server and your ZyXEL Device. The key is not sent over the network.
Accounting Server (optional)
IP Address	Enter the IP address of the external accounting server in dotted decimal notation.
Port Number	Enter the port number of the external accounting server. The default port number is 1813.You need not change this value unless your network administrator instructs you to do so with additional information.
Shared Secret	Enter a password (up to 31 alphanumeric characters) as the key to be shared between the external accounting server and the ZyXEL Device.The key must be the same on the external accounting server and your ZyXEL Device. The key is not sent over the network.

9.5.5 Wireless LAN Advanced Setup

To configure advanced wireless settings, click the Advanced Setup button in the General screen. The screen appears as shown. Figure 67 Advanced

Wireless Advanced Setup RTS/CTS Threshold 2432 (0 ~ 2432, 4096 when G+ Enhanced) Fragmentation Threshold 2432 (256 ~ 2432, 4096 when G+ Enhanced) Preamble Long 802.11 Mode 802.11g Only Enable 802.11g+ mode Back Apply Cancel

The following table describes the labels in this screen. Table 41 Wireless LAN: Advanced

LABEL	DESCRIPTION
Wireless Advanced Setup
RTS/CTS Threshold	Enter a value between 0 and 2432. If you select the G+ Enhanced checkbox a value of 4096 is displayed.
Fragmentation Threshold	It is the maximum data fragment size that can be sent. Enter a value between 256 and 2432. If you select the G+ Enhanced checkbox a value of 4096 is displayed.
Preamble	Select a preamble type from the drop-down list menu. Choices are Long, Short or Dynamic. The default setting is Long. See the appendix for more information.
802.11 Mode	Select 802.11b Only to allow only IEEE 802.11b compliant WLAN devices to associate with the ZyXEL Device.Select 802.11g Only to allow only IEEE 802.11g compliant WLAN devices to associate with the ZyXEL Device.Select Mixed to allow either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL Device might be reduced.
Enable 802.11g+ mode	Select Enable 802.11g+ mode checkbox to allow any ZyXEL WLAN devices that support this feature to associate with the ZyXEL Device at higher transmission speeds. This permits the ZyXEL Device to transmit at a higher speed than the 802.11g Only mode.
Back	Click this to return to the previous screen without saving changes.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

9.6 OTIST Screen

Use this screen to set up and start OTIST on the ZyXEL Device in your wireless network. To open this screen, click Network > Wireless LAN > OTIST. Figure 68 Network > Wireless LAN > OTIST

General OTIST MAC Filter QoS OTIST Setup Key 01234567 ✓ Yes! Please enhance the Wireless Security Level to WPA-PSK automatically if no WLAN security has been set. This will generate a random PSK key for your convenience. Start

The following table describes the labels in this screen. Table 42 Network > Wireless LAN > OTIST

LABEL	DESCRIPTION
Setup Key	Type a key (password) 8 ASCII characters long.Note:If you change the OTIST setup key in the ZyXEL Device, you must change it on the wireless devices too.
Yes!	Select this if you want the ZyXEL Device to automatically generate a pre-shared key for the wireless network. Before you do this, clickNetwork > Wireless LAN > Generaland set theSecurity Modeto No Security.Clear this if you want the ZyXEL Device to use a pre-shared key that you enter. Before you do this, clickNetwork > Wireless LAN > General, set theSecurity Modeto WPA-PSK, and enter thePre-Shared Key.
Start	Click Startto activate OTIST and transfer settings. The process takes three minutes to complete.Note:You must click Startin the ZyXEL Device and in the wireless device(s) within three minutes of each other. You can start OTIST in the wireless devices and the ZyXEL Device in any order.

Before you click Start, you should enable OTIST on all the OTIST-enabled devices in the wireless network. For most devices, follow these steps. 1 Start the ZyXEL utility 2 Click the Adapter tab. 3 Select the OTIST check box, and enter the same Setup Key as the ZyXEL Device. 4 Click Save. Figure 69 Example: Wireless Client OTIST Screen

Link Info Site Survey Profile Adapter Adapter Setting Transfer Rate: Fully Auto Power Saving Mode: Disabled ☑ OTIST(One-Touch Intelligent Security Technology): Setup Key : 01234567 Start Save

To start OTIST in the device, click Start in this screen. Note: You must click Start in the ZyXEL Device and in the wireless device(s) within three minutes of each other. You can start OTIST in the wireless devices and the ZyXEL Device in any order. After you click Start in the ZyXEL Device, the following screen appears (in the ZyXEL Device). Figure 70 OTIST: Settings

Microsoft Internet Explorer The security is WPA-PSK mode on WLAN now. The key is 2D3WBIK09b OK

You can use the key in this screen to set up WPA-PSK encryption manually for non-OTIST devices in the wireless network. Review the settings, and click OK. The ZyXEL Device begins transferring OTIST settings. The following screens appear in the ZyXEL Device and in the wireless devices. Figure 71 OTIST: In Progress on the ZyXEL Device

OTIST OTIST in Process Please wait a moment. (about 129 Seconds)

Figure 72 OTIST: In Progress on the Wireless Device

OTIST OTIST in progress, please wait for 3 minutes. Cancel

These screens close when the transfer is complete.

9.6.1 Notes on OTIST

1 If you enable OTIST in a wireless device, you see this screen each time you start the utility. Click Yes to search for an OTIST-enabled AP (in other words, the ZyXEL Device). Figure 73 Start OTIST?

OTIST Do you want to start OTIST function? Yes No Don't show me this window again.

2 If an OTIST-enabled wireless device loses its wireless connection for more than ten seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually have the wireless device search for an OTIST-enabled AP, there is no timeout; click Cancel in the OTIST progress screen to stop the search.) 3 After the wireless device finds an OTIST-enabled AP, you must click Start in the ZyXEL Device's Network > Wireless LAN > OTIST screen or hold in the Reset button on the ZyXEL Device for one or two seconds to transfer the settings again. 4 If you change the SSID or the keys on the ZyXEL Devices after using OTIST, you need to run OTIST again or enter them manually in the wireless device(s). 5 If you configure OTIST to generate a WPA-PSK key, this key changes each time you run OTIST. Therefore, if a new wireless device joins your wireless network, you need to run OTIST on the AP and ALL wireless devices again.

9.7 MAC Filter

To change your ZyXEL Device's MAC filter settings, click Network > Wireless LAN > MAC Filter. The screen appears as shown. Figure 74 MAC Address Filter

General OTIST MAC Filter QoS MAC Filter Active MAC Filter Filter Action Allow Deny Set MAC Address Set MAC Address 1 00:00:00:00:00:00 2 00:00:00:00:00:00 3 00:00:00:00:00:00 4 00:00:00:00:00:00 5 00:00:00:00:00:00 6 00:00:00:00:00:00 7 00:00:00:00:00:00 8 00:00:00:00:00:00 9 00:00:00:00:00:00 10 00:00:00:00:00:00 11 00:00:00:00:00:00 12 00:00:00:00:00:00 13 00:00:00:00:00:00 14 00:00:00:00:00:00 15 00:00:00:00:00:00 16 00:00:00:00:00:00 17 00:00:00:00:00:00 18 00:00:00:00:00:00 19 00:00:00:00:00:00 20 00:00:00:00:00:0 21 0O:O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O O 23 24 26 28 3O 32 25 26 28 3O 32 27 3O 32 29 32 31 Apply Cancel

The following table describes the labels in this menu. Table 43 MAC Address Filter

LABEL	DESCRIPTION
Active MAC Filter	Select the check box to enable MAC address filtering.
Filter Action	Define the filter action for the list of MAC addresses in the MAC Address table.Select Deny to block access to the ZyXEL Device, MAC addresses not listed will be allowed to access the ZyXEL DeviceSelect Allow to permit access to the ZyXEL Device, MAC addresses not listed will be denied access to the ZyXEL Device.
Set	This is the index number of the MAC address.

Table 43 MAC Address Filter

LABEL	DESCRIPTION
MAC Address	Enter the MAC addresses of the wireless station that are allowed or denied access to the ZyXEL Device in these address fields. Enter the MAC addresses in a valid MAC address format, that is, six hexadecimal character pairs, for example, 12:34:56:78:9a:bc.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

9.8 QoS Screen

The QoS screen by default allows you to automatically give a service a priority level. Click Network > Wireless LAN > QoS. The following screen displays. Figure 75 Wireless LAN: QoS

General OTIST MAC Filter QoS QoS Enable WMM QoS WMM QoS Policy Application Priority

Name: Service Dest Port Priority Modify

1 - - 0 - 2 - - 0 - 3 - - 0 - 4 - - 0 - 5 - - 0 - 6 - - 0 - 7 - - 0 - 8 - - 0 - 9 - - 0 - 10 - - 0 - Apply Cancel

The following table describes the fields in this screen. Table 44 Wireless LAN: QoS

LABEL	DESCRIPTION
QoS Setup
Enable WMM QoS	Select the check box to enable WMM QoS on the ZyXEL Device.

Table 44 Wireless LAN: QoS

LABEL	DESCRIPTION
WMM QoS Policy	Select Default to have the ZyXEL Device automatically give a service a priority level according to the ToS value in the IP header of packets it sends. Select Application Priority from the drop-down list box to display a table of application names, services, ports and priorities to which you want to apply WMM QoS.
	This table only appears if you select Application Priority in WMM QoS Policy.
#	This is the number of an individual application entry.
Name	This field displays a description given to an application entry.
Service	This field displays either FTP, WWW, E-mail or a User Defined service to which you want to apply WMM QoS.
Dest Port	This field displays the destination port number to which the application sends traffic.
Priority	Select the priority of the application.Highest - Typically used for voice or video that should be high-quality.High - Typically used for voice or video that can be medium-quality.Mid - Typically used for applications that do not fit into another priority. For example, Internet surfing.Low - Typically used for non-critical “background” applications, such as large file transfers and print jobs that should not affect other applications.
Modify	Click the Edit icon to open the Application Priority Configuration screen.Modify an existing application entry or create a application entry in the Application Priority Configuration screen.Click the Remove icon to delete an application entry.
Apply	Click Apply to save your changes back to the ZyXEL Device.

9.8.1 Application Priority Configuration

To edit a WMM QoS application entry, click the edit icon under Modify. The following screen displays. Figure 76 Application Priority Configuration

Application Priority Configuration Name: Service E-Mail Dest Port 25 (1~65535) Priority Highest Apply Cancel

See Appendix 31 on page 371 for a list of commonly-used services and destination ports. The following table describes the fields in this screen. Table 45 Application Priority Configuration

LABEL	DESCRIPTION
Application Priority Configuration
Name	Type a description of the application priority.
Service	The following is a description of the applications you can prioritize with WMM QoS. Select a service from the drop-down list box.FTPFile Transfer Program enables fast transfer of files, including large files that may not be possible by e-mail. FTP uses port number 21.E-MailElectronic mail consists of messages sent through a computer network to specific groups or individuals. Here are some default ports for e-mail:POP3 - port 110IMAP - port 143SMTP - port 25HTTP - port 80WWWThe World Wide Web is an Internet system to distribute graphical, hyper-linked information, based on Hyper Text Transfer Protocol (HTTP) - a client/server protocol for the World Wide Web. The Web is not synonymous with the Internet; rather, it is just one service on the Internet. Other services on the Internet include Internet Relay Chat and Newsgroups. The Web is accessed through use of a browser.User-DefinedUser-defined services are user specific services configured using known ports and applications.
Dest Port	This displays the port the selected service uses. Type a port number in the field provided if you want to use a different port to the default port.
Priority	Select a priority from the drop-down list box.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to return to the previous screen.

CHAPTER 10

Network Address Translation (NAT) Screens

This chapter discusses how to configure NAT on the ZyXEL Device.

10.1 NAT Overview

NAT (Network Address Translation - NAT, RFC 1631) is the translation of the IP address of a host in a packet, for example, the source address of an outgoing packet, used within one network to a different IP address known within another network.

10.1.1 NAT Definitions

Inside/outside denotes where a host is located relative to the ZyXEL Device, for example, the computers of your subscribers are the inside hosts, while the web servers on the Internet are the outside hosts. Global/local denotes the IP address of a host in a packet as the packet traverses a router, for example, the local address refers to the IP address of a host when the packet is in the local network, while the global address refers to the IP address of the host when the same packet is traveling in the WAN side. Note that inside/outside refers to the location of a host, while global/local refers to the IP address of a host used in a packet. Thus, an inside local address (ILA) is the IP address of an inside host in a packet when the packet is still in the local network, while an inside global address (IGA) is the IP address of the same inside host when the packet is on the WAN side. The following table summarizes this information. Table 46 NAT Definitions

ITEM	DESCRIPTION
Inside	This refers to the host on the LAN.
Outside	This refers to the host on the WAN.
Local	This refers to the packet address (source or destination) as the packet travels on the LAN.
Global	This refers to the packet address (source or destination) as the packet travels on the WAN.

NAT never changes the IP address (either local or global) of an outside host.

10.1.2 What NAT Does

In the simplest form, NAT changes the source IP address in a packet received from a subscriber (the inside local address) to another (the inside global address) before forwarding the packet to the WAN side. When the response comes back, NAT translates the destination address (the inside global address) back to the inside local address before forwarding it to the original inside host. Note that the IP address (either local or global) of an outside host is never changed. The global IP addresses for the inside hosts can be either static or dynamically assigned by the ISP. In addition, you can designate servers, for example, a web server and a telnet server, on your local network and make them accessible to the outside world. If you do not define any servers (for Many-to-One and Many-to-Many Overload mapping – see Table 47 on page 144), NAT offers the additional benefit of firewall protection. With no servers defined, your ZyXEL Device filters out all incoming inquiries, thus preventing intruders from probing your network. For more information on IP address translation, refer to RFC 1631, The IP Network Address Translator (NAT).

10.1.3 How NAT Works

Each packet has two addresses – a source address and a destination address. For outgoing packets, the ILA (Inside Local Address) is the source address on the LAN, and the IGA (Inside Global Address) is the source address on the WAN. For incoming packets, the ILA is the destination address on the LAN, and the IGA is the destination address on the WAN. NAT maps private (local) IP addresses to globally unique ones required for communication with hosts on other networks. It replaces the original IP source address (and TCP or UDP source port numbers for Many-to-One and Many-to-Many Overload NAT mapping) in each packet and then forwards it to the Internet. The ZyXEL Device keeps track of the original addresses and port numbers so incoming reply packets can have their original values restored. The following figure illustrates this. Figure 77 How NAT Works

10.1.4 NAT Application

The following figure illustrates a possible NAT application, where three inside LANs (logical LANs using IP Alias) behind the ZyXEL Device can communicate with three distinct WAN networks. Figure 78 NAT Application With IP Alias
        A1["Server in Sales Network =IP 2 (IGA 2)"]
        A2["Server in R&D Network =IP 3 (IGA 3)"]
        A3["Server in Admin Network =IP 1 (IGA 1)"]
        A4["Server in Admin Network =IP 1 (IGA 1)"]
    end

    subgraph Corporation B
        B1["LAN1: 192.168.1.X Network Server "Admin" = 192.168.1.1"]
        B2["NT Server 192.168.1.1"]
        B3["NT Server 192.168.2.1"]
        B4["LAN2: 192.168.2.X Network Server "Sales" = 192.168.2.1"]
        B5["NT Server 192.168.3.1"]
        B6["LAN3: 192.168.3.X Network Server "R&D" = 192.168.3.1"]
    end

    Internet((Internet)) -->|WAN Addresses: IGA 1 → LAN Addresses: Default IPs| A
    Internet -->|WAN Addresses: IGA 2 → LAN Addresses: Default IPs| B
    Internet -->|WAN Addresses: IGA 3 → LAN Addresses: Default IPs| C

10.1.5 NAT Mapping Types

NAT supports five types of IP/port mapping. They are: - One to One: In One-to-One mode, the ZyXEL Device maps one local IP address to one global IP address. - Many to One: In Many-to-One mode, the ZyXEL Device maps multiple local IP addresses to one global IP address. This is equivalent to SUA (for instance, PAT, port address translation), ZyXEL's Single User Account feature that previous ZyXEL routers supported (the SUA Only option in today's routers). - Many to Many Overload: In Many-to-Many Overload mode, the ZyXEL Device maps the multiple local IP addresses to shared global IP addresses. - Many-to-Many No Overload: In Many-to-Many No Overload mode, the ZyXEL Device maps each local IP address to a unique global IP address. - Server: This type allows you to specify inside servers of different services behind the NAT to be accessible to the outside world. Port numbers do NOT change for One-to-One and Many-to-Many No Overload NAT mapping types. The following table summarizes these types. Table 47 NAT Mapping Types

TYPE	IP MAPPING
One-to-One	ILA1←→ IGA1
Many-to-One (SUA/PAT)	ILA1←→ IGA1ILA2←→ IGA1...
Many-to-Many Overload	ILA1←→ IGA1ILA2←→ IGA2ILA3←→ IGA1ILA4←→ IGA2...
Many-to-Many No Overload	ILA1←→ IGA1ILA2←→ IGA2ILA3←→ IGA3...
Server	Server 1 IP←→ IGA1Server 2 IP←→ IGA1Server 3 IP←→ IGA1

10.2 SUA (Single User Account) Versus NAT

SUA (Single User Account) is a ZyNOS implementation of a subset of NAT that supports two types of mapping, Many-to-One and Server. The ZyXEL Device also supports Full Feature NAT to map multiple global IP addresses to multiple private LAN IP addresses of clients or servers using mapping types as outlined in Table 47 on page 144. - Choose SUA Only if you have just one public WAN IP address for your ZyXEL Device. - Choose Full Feature if you have multiple public WAN IP addresses for your ZyXEL Device.

10.3 NAT General Setup

You must create a firewall rule in addition to setting up SUA/NAT, to allow traffic from the WAN to be forwarded through the ZyXEL Device. Click Network > NAT to open the following screen. Figure 79 NAT General

General Port Forwarding ALG NAT Setup ✓ Active Network Address Translation(NAT) ● SUA Only ○ Full Feature Max NAT/Firewall Session Per User 512 Apply Cancel

The following table describes the labels in this screen. Table 48 NAT General

LABEL	DESCRIPTION
Active Network Address Translation (NAT)	Select this check box to enable NAT.
SUA Only	Select this radio button if you have just one public WAN IP address for your ZyXEL Device.
Full Feature	Select this radio button if you have multiple public WAN IP addresses for your ZyXEL Device.
Max NAT/ Firewall Session Per User	When computers use peer to peer applications, such as file sharing applications, they need to establish NAT sessions. If you do not limit the number of NAT sessions a single client can establish, this can result in all of the available NAT sessions being used. In this case, no additional NAT sessions can be established, and users may not be able to access the Internet.Each NAT session establishes a corresponding firewall session. Use this field to limit the number of NAT/Firewall sessions client computers can establish through the ZyXEL Device.If your network has a small number of clients using peer to peer applications, you can raise this number to ensure that their performance is not degraded by the number of NAT sessions they can establish. If your network has a large number of users using peer to peer applications, you can lower this number to ensure no single client is exhausting all of the available NAT sessions.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

10.4 Port Forwarding

A port forwarding set is a list of inside (behind NAT on the LAN) servers, for example, web or FTP, that you can make visible to the outside world even though NAT makes your whole inside network appear as a single computer to the outside world. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers. You can allocate a server IP address that corresponds to a port or a range of ports. Many residential broadband ISP accounts do not allow you to run any server processes (such as a Web or FTP server) from your location. Your ISP may periodically check for servers and may suspend your account if it discovers any active services at your location. If you are unsure, refer to your ISP.

10.4.1 Default Server IP Address

In addition to the servers for specified services, NAT supports a default server IP address. A default server receives packets from ports that are not specified in this screen. Note: If you do not assign a Default Server IP address, the ZyXEL Device discards all packets received for ports that are not specified here or in the remote management setup.

10.4.2 Port Forwarding: Services and Port Numbers

Use the Port Forwarding screen to forward incoming service requests to the server(s) on your local network. The most often used port numbers and services are shown in Appendix F on page 371. Please refer to RFC 1700 for further information about port numbers.

10.4.3 Configuring Servers Behind Port Forwarding (Example)

Let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example), port 80 to another (B in the example) and assign a default server IP address of 192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet. Figure 80 Multiple Servers Behind NAT Example

10.5 Configuring Port Forwarding

Note: If you do not assign a Default Server IP address, the ZyXEL Device discards all packets received for ports that are not specified here or in the remote management setup. Click Network > NAT > Port Forwarding to open the following screen. See Appendix F on page 371 for port numbers commonly used for particular services. Figure 81 Port Forwarding

General Port Forwarding ALG Default Server Setup Default Server 0.0.0.0 Port Forwarding Service Name WWW Server IP Address 0.0.0.0 Add

Active Service Name Start Port End Port Server IP Address Modify

Apply Cancel

The following table describes the fields in this screen. Table 49 Port Forwarding

LABEL	DESCRIPTION
Default Server Setup
Default Server	In addition to the servers for specified services, NAT supports a default server. A default server receives packets from ports that are not specified in this screen. If you do not assign a Default Server IP address, the ZyXEL Device discards all packets received for ports that are not specified here or in the remote management setup.
Port Forwarding
Service Name	Select a service from the drop-down list box.
Server IP Address	Enter the IP address of the server for the specified service.
Add	Click this button to add a rule to the table below.
#	This is the rule index number (read-only).
Active	Click this check box to enable the rule.
Service Name	This is a service's name.
Start Port	This is the first port number that identifies a service.
End Port	This is the last port number that identifies a service.
Server IP Address	This is the server's IP address.

Table 49 Port Forwarding

LABEL	DESCRIPTION
Modify	Click the edit icon to go to the screen where you can edit the port forwarding rule. Click the delete icon to delete an existing port forwarding rule. Note that subsequent address mapping rules move up by one when you take this action.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to return to the previous configuration.

10.5.1 Port Forwarding Rule Edit

To edit a port forwarding rule, click the rule's edit icon in the Port Forwarding screen to display the screen shown next. Figure 82 Port Forwarding Rule Setup

Rule Setup ✓ Active Service Name WWW Start Port 80 End Port 80 Server IP Address 10.10.1.2 Back Apply Cancel

The following table describes the fields in this screen. Table 50 Port Forwarding Rule Setup

LABEL	DESCRIPTION
Active	Click this check box to enable the rule.
Service Name	Enter a name to identify this port-forwarding rule.
Start Port	Enter a port number in this field.To forward only one port, enter the port number again in the End Port field.To forward a series of ports, enter the start port number here and the end port number in the End Port field.
End Port	Enter a port number in this field.To forward only one port, enter the port number again in the Start Port field above and then enter it again in this field.To forward a series of ports, enter the last port number in a series that begins with the port number in the Start Port field above.
Server IP Address	Enter the inside IP address of the server here.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

10.5.2 SIP ALG

Some NAT routers may include a SIP Application Layer Gateway (ALG). A SIP ALG allows SIP calls to pass through NAT by examining and translating IP addresses embedded in the data stream. When the ZyXEL Device registers with the SIP register server, the SIP ALG translates the ZyXEL Device's private IP address inside the SIP data stream to a public IP address. You do not need to use STUN or an outbound proxy if your ZyXEL Device is behind a SIP ALG. Use this screen to enable and disable the SIP (VoIP) ALG in the ZyXEL Device. To access this screen, click Network > NAT > ALG. Figure 83 Network > NAT > ALG

General Port Forwarding ALG ALG Settings ✓ Enable SIP ALG Apply Reset

Each field is described in the following table. Table 51 Network > NAT > ALG

LABEL	DESCRIPTION
Enable SIP ALG	Select this to make sure SIP (VoIP) works correctly with port-forwarding and address-mapping rules.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Reset	Click this to return to previously saved configuration.

CHAPTER 11 Voice

This chapter provides background information on VoIP and SIP and explains how to configure your device's voice settings.

11.1 Introduction to VoIP

VoIP is the sending of voice signals over the Internet Protocol. This allows you to make phone calls and send faxes over the Internet at a fraction of the cost of using the traditional circuit-switched telephone network. You can also use servers to run telephone service applications like PBX services and voice mail. Internet Telephony Service Provider (ITSP) companies provide VoIP service. Circuit-switched telephone networks require 64 kilobits per second (Kbps) in each direction to handle a telephone call. VoIP can use advanced voice coding techniques with compression to reduce the required bandwidth.

11.2 SIP

The Session Initiation Protocol (SIP) is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet. SIP signaling is separate from the media for which it handles sessions. The media that is exchanged during the session can use a different path from that of the signaling. SIP handles telephone calls and can interface with traditional circuit-switched telephone networks.

11.2.1 SIP Identities

A SIP account uses an identity (sometimes referred to as a SIP address). A complete SIP identity is called a SIP URI (Uniform Resource Identifier). A SIP account's URI identifies the SIP account in a way similar to the way an e-mail address identifies an e-mail account. The format of a SIP identity is SIP-Number@SIP-Service-Domain.

11.2.1.1 SIP Number

The SIP number is the part of the SIP URI that comes before the “@” symbol. A SIP number can use letters like in an e-mail address ([e-mail] for example) or numbers like a telephone number ([e-mail] for example).

11.2.1.2 SIP Service Domain

The SIP service domain of the VoIP service provider is the domain name in a SIP URI. For example, if the SIP address is [e-mail], then “VoIP-provider.com” is the SIP service domain.

11.2.2 SIP Call Progression

The following figure displays the basic steps in the setup and tear down of a SIP call. A calls B. Table 52 SIP Call Progression

A		B
1. INVITE
		2. Ringing
		3. OK
4. ACK
	5.Dialogue (voice traffic)
6. BYE
		7. OK

A sends a SIP INVITE request to B. This message is an invitation for B to participate in a SIP telephone call. 6 B sends a response indicating that the telephone is ringing. 7 B sends an OK response after the call is answered. 8 A then sends an ACK message to acknowledge that B has answered the call. 9 Now A and B exchange voice media (talk). 10 After talking, A hangs up and sends a BYE request. 11B replies with an OK response confirming receipt of the BYE request and the call is terminated.

11.2.3 SIP Servers

SIP is a client-server protocol. A SIP client is an application program or device that sends SIP requests. A SIP server responds to the SIP requests. When you use SIP to make a VoIP call, it originates at a client and terminates at a server. A SIP client could be a computer or a SIP phone. One device can act as both a SIP client and a SIP server.

11.2.3.1 SIP User Agent

A SIP user agent can make and receive VoIP telephone calls. This means that SIP can be used for peer-to-peer communications even though it is a client-server protocol. In the following figure, either A or B can act as a SIP user agent client to initiate a call. A and B can also both act as a SIP user agent to receive the call. Figure 84 SIP User Agent

11.2.3.2 SIP Proxy Server

A SIP proxy server receives requests from clients and forwards them to another server. In the following example, you want to use client device A to call someone who is using client device C. 1 The client device (A in the figure) sends a call invitation to the SIP proxy server (B). 2 The SIP proxy server forwards the call invitation to C. Figure 85 SIP Proxy Server

11.2.3.3 SIP Redirect Server

A SIP redirect server accepts SIP requests, translates the destination address to an IP address and sends the translated IP address back to the device that sent the request. Then the client device that originally sent the request can send requests to the IP address that it received back from the redirect server. Redirect servers do not initiate SIP requests. In the following example, you want to use client device A to call someone who is using client device C. 1 Client device A sends a call invitation for C to the SIP redirect server (B). 2 The SIP redirect server sends the invitation back to A with C's IP address (or domain name). 3 Client device A then sends the call invitation to client device C. Figure 86 SIP Redirect Server

11.2.3.4 SIP Register Server

A SIP register server maintains a database of SIP identity-to-IP address (or domain name) mapping. The register server checks your user name and password when you register.

11.3 SIP Settings Screen

Use this screen to maintain basic information about each SIP account. You can also enable and disable each SIP account. To access this screen, click VoIP > SIP > SIP Settings. Figure 87 SIP > SIP Settings

SIP Settings QoS SIP Account : SIP1 SIP Settings ✓ Active SIP Account Number changeme SIP Local Port 5060 (1025-65535) SIP Server Address 127.0.0.1 SIP Server Port 5060 (1-65535) REGISTER Server Address 127.0.0.1 REGISTER Server Port 5060 (1-65535) SIP Service Domain 127.0.0.1 ✓ Send Caller ID Authentication User Name changeme Password ******** Apply Reset Advanced Setup

Each field is described in the following table. Table 53 SIP > SIP Settings

LABEL	DESCRIPTION
SIP Account	Select the SIP account you want to see in this screen. If you change this field, the screen automatically refreshes.
SIP Settings
Active SIP Account	Select this if you want the ZyXEL Device to use this account. Clear it if you do not want the ZyXEL Device to use this account.
Number	Enter your SIP number. In the full SIP URI, this is the part before the @ symbol. You can use up to 127 printable ASCII characters.
SIP Local Port	Enter the ZyXEL Device's listening port number, if your VoIP service provider gave you one. Otherwise, keep the default value.
SIP Server Address	Enter the IP address or domain name of the SIP server provided by your VoIP service provider. You can use up to 95 printable ASCII characters. It does not matter whether the SIP server is a proxy, redirect or register server.
SIP Server Port	Enter the SIP server's listening port number, if your VoIP service provider gave you one. Otherwise, keep the default value.
REGISTER Server Address	Enter the IP address or domain name of the SIP register server, if your VoIP service provider gave you one. Otherwise, enter the same address you entered in the SIP Server Address field. You can use up to 95 printable ASCII characters.
REGISTER Server Port	Enter the SIP register server's listening port number, if your VoIP service provider gave you one. Otherwise, enter the same port number you entered in the SIP Server Port field.

Table 53 SIP > SIP Settings

LABEL	DESCRIPTION
SIP Service Domain	Enter the SIP service domain name. In the full SIP URI, this is the part after the @ symbol. You can use up to 127 printable ASCII Extended set characters.
Send Caller ID	Select this if you want to send identification when you make VoIP phone calls. Clear this if you do not want to send identification.
Authentication
User Name	Enter the user name for registering this SIP account, exactly as it was given to you. You can use up to 95 printable ASCII characters.
Password	Enter the user name for registering this SIP account, exactly as it was given to you. You can use up to 95 printable ASCII Extended set characters.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.
Advanced Setup	Click this to edit the advanced settings for this SIP account. The Advanced SIP Setup screen appears.

11.3.1 RTP

When you make a VoIP call using SIP, the RTP (Real time Transport Protocol) is used to handle voice data transfer. See RFC 1889 for details on RTP.

11.4 Pulse Code Modulation

Pulse Code Modulation (PCM) measures analog signal amplitudes at regular time intervals and converts them into bits.

11.5 Voice Coding

A codec (coder/decoder) codes analog voice signals into digital signals and decodes the digital signals back into analog voice signals. The ZyXEL Device supports the following codecs.

11.5.1 G.711

G.711 is a Pulse Code Modulation (PCM) waveform codec. G.711 provides very good sound quality but requires 64kbps of bandwidth.

11.5.2 G.729

G.729 is an Analysis-by-Synthesis (AbS) hybrid waveform codec that uses a filter based on information about how the human vocal tract produces sounds. G.729 provides good sound quality and reduces the required bandwidth to 8kbps.

11.6 PSTN Call Setup Signaling

Dual-Tone MultiFrequency (DTMF) signaling uses pairs of frequencies (one lower frequency and one higher frequency) to set up calls. It is also known as Touch Tone®. Each of the keys on a DTMF telephone corresponds to a different pair of frequencies. Pulse dialing sends a series of clicks to the local phone office in order to dial numbers. ^1

11.7 MWI (Message Waiting Indication)

Enable Message Waiting Indication (MWI) enables your phone to give you a message—waiting (beeping) dial tone when you have a voice message(s). Your VoIP service provider must have a messaging system that sends message waiting status SIP packets as defined in RFC 3842.

11.8 Custom Tones (IVR)

IVR (Interactive Voice Response) is a feature that allows you to use your telephone to interact with the ZyXEL Device. The ZyXEL Device allows you to record custom tones for the Caller Ringing Tone and On Hold Tone functions. The same recordings apply to both the caller ringing and on hold tones. Table 54 Custom Tones Details

LABEL	DESCRIPTION
Total Time for All Tones	120 seconds for all custom tones combined
Time per Individual Tone	20 seconds
Total Number of Tones Recordable	TenYou can record up to ten different custom tones but the total time must be 120 seconds or less.For example you could record up to ten 12-second tones or up to six 20-second tones.

11.8.0.1 Recording Custom Tones

Use the following steps if you would like to create new tones or change your tones: 1 Pick up the phone and press “\*\*\*\*” on your phone’s keypad and wait for the message that says you are in the configuration menu. 2 Press a number from 1101\~1108 on your phone followed by the “#” key. 3 Play your desired music or voice recording into the receiver's mouthpiece. Press the “#” key. 4 You can continue to add, listen to, or delete tones, or you can hang up the receiver when you are done.

11.8.0.2 Listening to Custom Tones

Do the following to listen to a custom tone: 1 Pick up the phone and press “\*\*\*\*” on your phone’s keypad and wait for the message that says you are in the configuration menu. 2 Press a number from 1201\~1208 followed by the “#” key to listen to the tone. 3 You can continue to add, listen to, or delete tones, or you can hang up the receiver when you are done.

11.8.0.3 Deleting Custom Tones

Do the following to delete a custom tone: 1 Pick up the phone and press “\*\*\*\*” on your phone’s keypad and wait for the message that says you are in the configuration menu. 2 Press a number from 1301\~1308 followed by the “#” key to delete the tone of your choice. Press 14 followed by the “#” key if you wish to clear all your custom tones. You can continue to add, listen to, or delete tones, or you can hang up the receiver when you are done.

11.9 Advanced SIP Setup Screen

Click VoIP > SIP > SIP Settings to open the SIP Settings screen. Select a SIP account and click Advanced Setup to open the Advanced SIP Setup screen. Use this screen to maintain advanced settings for each SIP account. Figure 88 VoIP > SIP Settings > Advanced

SIP Account :SIP1 SIP Server Settings URL Type SIP Expiration Duration 3600 (20-65535) sec Register Re-send timer 180 (1-65535) sec Session Expires 300 (30-3600) sec Min-SE 180 (20-1800) sec RTP Port Range Start Port 40000 (1025-65535) End Port 65535 (1025-65535) Voice Compression Primary Compression Type G.711A Secondary Compression Type G.729 Third Compression Type G.729 DTMF Mode RFC 2833 Outbound Proxy Enable Server Address Server Port 0 (1025-65535) MWI (Message Waiting Indication) Enable Expiration Time 1800 (1-65535) sec Fax Option G.711 Fax Passthrough T.38 Fax Relay Call Forward Call Forward Table Table 1 Caller Ringing Enable Caller Ringing Tone Default On Hold Enable On Hold Tone Default Back Apply Cancel

Each field is described in the following table. Table 55 VoIP > SIP Settings > Advanced

LABEL	DESCRIPTION
SIP Account	This field displays the SIP account you see in this screen.
SIP Server Settings
URL Type	Select whether or not to include the SIP service domain name when the ZyXEL Device sends the SIP number.SIP - include the SIP service domain name.TEL - do not include the SIP service domain name.
Expiration Duration	Enter the number of seconds your SIP account is registered with the SIP register server before it is deleted. The ZyXEL Device automatically tries to re-register your SIP account when one-half of this time has passed. (The SIP register server might have a different expiration.)
Register Re-send timer	Enter the number of seconds the ZyXEL Device waits before it tries again to register the SIP account, if the first try failed or if there is no response.
Session Expires	Enter the number of seconds the ZyXEL Device lets a SIP session remain idle (without traffic) before it automatically disconnects the session.
Min-SE	Enter the minimum number of seconds the ZyXEL Device lets a SIP session remain idle (without traffic) before it automatically disconnects the session. When two SIP devices start a SIP session, they must agree on an expiration time for idle sessions. This field is the shortest expiration time that the ZyXEL Device accepts.
RTP Port Range
Start Port End Port	Enter the listening port number(s) for RTP traffic, if your VoIP service provider gave you this information. Otherwise, keep the default values.To enter one port number, enter the port number in the Start Port and End Port fields.To enter a range of ports,enter the port number at the beginning of the range in the Start Port field.enter the port number at the end of the range in the End Port field.
Voice Compression	Select the type of voice coder/decoder (codec) that you want the ZyXEL Device to use. G.711 provides higher voice quality but requires more bandwidth (64 kbps).G.711A is typically used in Europe.G.711u is typically used in North America and Japan.In contrast, G.729 only requires 8 kbps.The ZyXEL Device must use the same codec as the peer. When two SIP devices start a SIP session, they must agree on a codec.
Primary Compression Type	Select the ZyXEL Device's first choice for voice coder/decoder.
Secondary Compression Type	Select the ZyXEL Device's second choice for voice coder/decoder. Select None if you only want the ZyXEL Device to accept the first choice.
Third Compression Type	Select the ZyXEL Device's third choice for voice coder/decoder. Select None if you only want the ZyXEL Device to accept the first or second choice.

Table 55 VoIP > SIP Settings > Advanced

LABEL	DESCRIPTION
DTMF Mode	Control how the ZyXEL Device handles the tones that your telephone makes when you push its buttons. You should use the same mode your VoIP service provider uses.RFC 2833 - send the DTMF tones in RTP packets.PCM - send the DTMF tones in the voice data stream. This method works best when you are using a codec that does not use compression (like G.711). Codecs that use compression (like G.729) can distort the tones.SIP INFO - send the DTMF tones in SIP messages.
Outbound Proxy
Active	Select this if your VoIP service provider has a SIP outbound server to handle voice calls. This allows the ZyXEL Device to work with any type of NAT router and eliminates the need for STUN or a SIP ALG. Turn off any SIP ALG on a NAT router in front of the ZyXEL Device to keep it from retranslating the IP address (since this is already handled by the outbound proxy server).
Server Address	Enter the IP address or domain name of the SIP outbound proxy server.
Server Port	Enter the SIP outbound proxy server's listening port, if your VoIP service provider gave you one. Otherwise, keep the default value.
MWI (Message Waiting Indication)
Enable	Select this if you want to hear a waiting (beeping) dial tone on your phone when you have at least one voice message. Your VoIP service provider must support this feature.
Expiration Time	Keep the default value, unless your VoIP service provider tells you to change it. Enter the number of seconds the SIP server should provide the message waiting service each time the ZyXEL Device subscribes to the service. Before this time passes, the ZyXEL Device automatically subscribes again.
Fax Option	This field controls how the ZyXEL Device handles fax messages.
G.711 Fax Passthrough	Select this if the ZyXEL Device should use G.711 to send fax messages. The peer devices must also use G.711.
T.38 Fax Relay	Select this if the ZyXEL Device should send fax messages as UDP or TCP/IP packets through IP networks. This provides better quality, but it may have interoperability problems. The peer devices must also use T.38.
Call Forward
Call Forward Table	Select which call forwarding table you want the ZyXEL Device to use for incoming calls. You set up these tables in VoIP > Phone Book > Incoming Call Policy.
Caller Ringing
Enable	Select the check box if you want to specify what tone people hear when they call you. The ZyXEL Device provides a default tone, but you can add additional tones using IVR. See Section 11.8 on page 157 for more information.
Caller Ringing Tone	Select the tone you want people to hear when they call you. You should setup these tones using IVR first. See Section 11.8 on page 157 for more information.
On Hold
Enable	Select the check box if you want to specify what tone people hear when you put them on hold. The ZyXEL Device provides a default tone, but you can add additional tones using IVR. See Section 11.8 on page 157 for more information.
On Hold Tone	Select the tone you want people to hear when you put them on hold. You should setup these tones using IVR first. See Section 11.8 on page 157 for more information.

Table 55 VoIP > SIP Settings > Advanced

LABEL	DESCRIPTION
Back	Click this to return to the SIP Settings screen without saving your changes.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.10 Quality of Service (QoS)

Quality of Service (QoS) refers to both a network's ability to deliver data with minimum delay, and the networking methods used to provide bandwidth for real-time multimedia applications.

11.10.1 Type Of Service (ToS)

Network traffic can be classified by setting the ToS (Type Of Service) values at the data source (for example, at the ZyXEL Device) so a server can decide the best method of delivery, that is the least cost, fastest route and so on.

11.10.2 DiffServ

DiffServ is a class of service (CoS) model that marks packets so that they receive specific per-hop treatment at DiffServ-compliant network devices along the route based on the application types and traffic flow. Packets are marked with DiffServ Code Points (DSCPs) indicating the level of service desired. This allows the intermediary DiffServ-compliant network devices to handle the packets differently depending on the code points without the need to negotiate paths or remember state information for every flow. In addition, applications do not have to request a particular service or give advanced notice of where the traffic is going. ^1

11.10.2.1 DSCP and Per-Hop Behavior

DiffServ defines a new DS (Differentiated Services) field to replace the Type of Service (TOS) field in the IP header. The DS field contains a 2-bit unused field and a 6-bit DSCP field which can define up to 64 service levels. The following figure illustrates the DS field. DSCP is backward compatible with the three precedence bits in the ToS octet so that non-DiffServ compliant, ToS-enabled network device will not conflict with the DSCP mapping. Figure 89 DiffServ: Differentiated Service Field

DSCP(6-bit)

Unused(2-bit)

The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior), that each packet gets across the DiffServ network. Based on the marking rule, different kinds of traffic can be marked for different priorities of forwarding. Resources can then be allocated according to the DSCP values and the configured policies.

11.10.3 VLAN

Virtual Local Area Network (VLAN) allows a physical network to be partitioned into multiple logical networks. Only stations within the same group can communicate with each other. Your ZyXEL Device can add IEEE 802.1Q VLAN ID tags to voice frames that it sends to the network. This allows the ZyXEL Device to communicate with a SIP server that is a member of the same VLAN group. Some ISPs use the VLAN tag to identify voice traffic and give it priority over other traffic.

11.10.4 SIP QoS Screen

Use this screen to maintain ToS and VLAN settings for the ZyXEL Device. To access this screen, click VoIP > SIP > QoS. Figure 90 SIP > QoS

SIP Settings QoS TOS SIP TOS Priority Setting 5 (0~255) RTP TOS Priority Setting 5 (0~255) VLAN Taging Voice VLAN ID 0 (0~4095) Apply Reset

Each field is described in the following table. Table 56 SIP > QoS

LABEL	DESCRIPTION
SIP TOS Priority Setting	Enter the priority for SIP voice transmissions. The ZyXEL Device creates Type of Service priority tags with this priority to voice traffic that it transmits.
RTP TOS Priority Setting	Enter the priority for RTP voice transmissions. The ZyXEL Device creates Type of Service priority tags with this priority to RTP traffic that it transmits.
Voice VLAN ID	Select this if the ZyXEL Device has to be a member of a VLAN to communicate with the SIP server. Ask your network administrator, if you are not sure. Enter the VLAN ID provided by your network administrator in the field on the right. Your LAN and gateway must be configured to use VLAN tags.Otherwise, clear this field.

Table 56 SIP > QoS

LABEL	DESCRIPTION
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.11 Phone

You can configure the volume, echo cancellation and VAD settings for each individual phone port on the ZyXEL Device. You can also select which SIP account to use for making outgoing calls.

11.12 PSTN Line ("L" models only)

With PSTN line you can make and receive regular PSTN phone calls. Use a prefix number to make a regular call. When the device does not have power, you can make regular calls without dialing a prefix number. Note: When the ZyXEL Device does not have power, only the phone connected to the PHONE 1 port can be used for making calls. Ensure you know which phone this is, so that in case of emergency you can make outgoing calls. You can also use the PSTN Line screen to specify phone numbers that should always use the regular phone service (without having to dial a prefix number). Do this for emergency numbers (like those for contacting police, fire or emergency medical services).

11.12.1 Voice Activity Detection/Silence Suppression

Voice Activity Detection (VAD) detects whether or not speech is present. This lets the ZyXEL Device reduce the bandwidth that a call uses by not transmitting “silent packets” when you are not speaking.

11.12.2 Comfort Noise Generation

When using VAD, the ZyXEL Device generates comfort noise when the other party is not speaking. The comfort noise lets you know that the line is still connected as total silence could easily be mistaken for a lost connection.

11.12.3 Echo Cancellation

G.168 is an ITU-T standard for eliminating the echo caused by the sound of your voice reverberating in the telephone receiver while you talk.

11.13 Analog Phone Screen

Use this screen to control which SIP accounts and PSTN line each phone uses. To access this screen, click VoIP > Phone > Analog Phone. Figure 91 Phone > Analog Phone

Analog Phone Common Region Phone Port Settings: Phone1 Outgoing Call Use ✓ SIP1 ☐ SIP2 Incoming Call apply to ✓ SIP1 ✓ SIP2 ✓ PSTN Line Apply Cancel Advanced Setup

Each field is described in the following table. Table 57 Phone > Analog Phone

LABEL	DESCRIPTION
Phone Port Settings	Select the phone port you want to see in this screen. If you change this field, the screen automatically refreshes.
Outgoing Call Use
SIP1	Select this if you want this phone port to use the SIP1 account when it makes calls. If you select both SIP accounts, the ZyXEL Device tries to use SIP2 first.
SIP2	Select this if you want this phone port to use the SIP2 account when it makes calls. If you select both SIP accounts, the ZyXEL Device tries to use SIP2 first.
Incoming Call apply to
SIP1	Select this if you want to receive phone calls for the SIP1 account on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.
SIP2	Select this if you want to receive phone calls for the SIP2 account on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.
PSTN Line (“L” models only)	Select this if you want to receive phone calls from the PSTN line (that do not use the Internet) on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.Note:When the ZyXEL Device does not have power, regardless of the settings you configure, only the phone connected to the PHONE 1 port can be used for making calls. Ensure you know which phone this is, so that in case of emergency you can make outgoing calls.

Table 57 Phone > Analog Phone

LABEL	DESCRIPTION
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.
Advanced Setup	Click this to edit the advanced settings for this phone port. The Advanced Analog Phone Setup screen appears.

11.14 Advanced Analog Phone Setup Screen

Use this screen to edit advanced settings for each phone port. To access this screen, click Advanced Setup in VoIP > Phone > Analog Phone. Figure 92 Phone > Analog Phone > Advanced

Analog Phone 1 Voice Volume Control Speaking Volume -1(Min.) Listening Volume -1(Min.) Echo Cancellation G.168 Active Dialing Interval Select Dialing Interval Select 3 VAD Support Each field is described in the following table. Table 58 Phone > Analog Phone > Advanced

LABEL	DESCRIPTION
Analog Phone	This field displays the phone port you see in this screen.
Voice Volume Control
Speaking Volume	Enter the loudness that the ZyXEL Device uses for speech that it sends to the peer device. -1 is the quietest, and 1 is the loudest.
Listening Volume	Enter the loudness that the ZyXEL Device uses for speech that it receives from the peer device. -1 is the quietest, and 1 is the loudest.
Echo Cancellation
G.168 Active	Select this if you want to eliminate the echo caused by the sound of your voice reverberating in the telephone receiver while you talk.

Table 58 Phone > Analog Phone > Advanced

LABEL	DESCRIPTION
Dialing Interval Select
Dialing Interval Select	Enter the number of seconds the ZyXEL Device should wait after you stop dialing numbers before it makes the phone call. The value depends on how quickly you dial phone numbers.If you selectActive Immediate Dialin VoIP > Phone > Common, you can press the pound key (#) to tell the ZyXEL Device to make the phone call immediately, regardless of this setting.
VAD Support	Select this if the ZyXEL Device should stop transmitting when you are not speaking. This reduces the bandwidth the ZyXEL Device uses.
Back	Click this to return to theAnalog Phonescreen without saving your changes.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.14.1 Common Phone Settings Screen

Use this screen to activate and deactivate immediate dialing. To access this screen, click VoIP > Phone > Common. Figure 93 Phone > Common

Analog Phone Common Region Common Settings Active Immediate Dial Apply Cancel

Each field is described in the following table. Table 59 Phone > Common

LABEL	DESCRIPTION
Active Immediate Dial	Select this if you want to use the pound key (#) to tell the ZyXEL Device to make the phone call immediately, instead of waiting the number of seconds you selected in the Dialing Interval Select in VoIP > Phone > Analog Phone.If you select this, dial the phone number, and then press the pound key. The ZyXEL Device makes the call immediately, instead of waiting. You can still wait, if you want.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.15 Supplementary Phone Services Overview

Supplementary services such as call hold, call waiting, call transfer, ... are generally available from your VoIP service provider. The ZyXEL Device supports the following services: - Call Hold - Call Waiting - Making a Second Call - Call Transfer • Call Forwarding (see Section 11.19 on page 174) • Three-Way Conference - Internal Calls (see Section 12.3 on page 179) Note: To take full advantage of the supplementary phone services available through the ZyXEL Device's phone ports, you may need to subscribe to the services from your VoIP service provider.

11.15.1 The Flash Key

Flashing means to press the hook for a short period of time (a few hundred milliseconds) before releasing it. On newer telephones, there should be a "flash" key (button) that generates the signal electronically. If the flash key is not available, you can tap (press and immediately release) the hook by hand to achieve the same effect. However, using the flash key is preferred since the timing is much more precise. With manual tapping, if the duration is too long, it may be interpreted as hanging up by the ZyXEL Device. You can invoke all the supplementary services by using the flash key.

11.15.2 Europe Type Supplementary Phone Services

This section describes how to use supplementary phone services with the Europe Type Call Service Mode. Commands for supplementary services are listed in the table below. After pressing the flash key, if you do not issue the sub-command before the default sub-command timeout (2 seconds) expires or issue an invalid sub-command, the current operation will be aborted. Table 60 European Flash Key Commands

COMMAND	SUB-COMMAND	DESCRIPTION
Flash		Put a current call on hold to place a second call.Switch back to the call (if there is no second call).
Flash	0	Drop the call presently on hold or reject an incoming call which is waiting for answer.
Flash	1	Disconnect the current phone connection and answer the incoming call or resume with caller presently on hold.

Table 60 European Flash Key Commands

COMMAND	SUB-COMMAND	DESCRIPTION
Flash	2	1. Switch back and forth between two calls.2. Put a current call on hold to answer an incoming call.3. Separate the current three-way conference call into two individual calls (one is on-line, the other is on hold).
Flash	3	Create three-way conference connection.
Flash	*98#	Transfer the call to another phone.

11.15.2.1 European Call Hold

Call hold allows you to put a call (A) on hold by pressing the flash key. If you have another call, press the flash key and then “2” to switch back and forth between caller A and B by putting either one on hold. Press the flash key and then “0” to disconnect the call presently on hold and keep the current call on line. Press the flash key and then “1” to disconnect the current call and resume the call on hold. If you hang up the phone but a caller is still on hold, there will be a remind ring.

11.15.2.2 European Call Waiting

This allows you to place a call on hold while you answer another incoming call on the same telephone (directory) number. If there is a second call to a telephone number, you will hear a call waiting tone. Take one of the following actions. \- Reject the second call. Press the flash key and then press “0”. \- Disconnect the first call and answer the second call. Either press the flash key and press “1”, or just hang up the phone and then answer the phone after it rings. \- Put the first call on hold and answer the second call. Press the flash key and then “2”.

11.15.2.3 European Call Transfer

Do the following to transfer an incoming call (that you have answered) to another phone. 1 Press the flash key to put the caller on hold. 2 When you hear the dial tone, dial “\*98#” followed by the number to which you want to transfer the call. to operate the Intercom. 3 After you hear the ring signal or the second party answers it, hang up the phone.

11.15.2.4 European Three-Way Conference

Use the following steps to make three-way conference calls. 1 When you are on the phone talking to someone, press the flash key to put the caller on hold and get a dial tone. 2 Dial a phone number directly to make another call. 3 When the second call is answered, press the flash key and press “3” to create a three-way conversation. 4 Hang up the phone to drop the connection. 5 If you want to separate the activated three-way conference into two individual connections (one is on-line, the other is on hold), press the flash key and press “2”.

11.15.3 USA Type Supplementary Services

This section describes how to use supplementary phone services with the USA Type Call Service Mode. Commands for supplementary services are listed in the table below. After pressing the flash key, if you do not issue the sub-command before the default sub-command timeout (2 seconds) expires or issue an invalid sub-command, the current operation will be aborted. Table 61 USA Flash Key Commands

COMMAND	SUB-COMMAND	DESCRIPTION
Flash		Put a current call on hold to place a second call. After the second call is successful, press the flash key again to have a three-way conference call.Put a current call on hold to answer an incoming call.
Flash	*98#	Transfer the call to another phone.

11.15.3.1 USA Call Hold

Call hold allows you to put a call (A) on hold by pressing the flash key. If you have another call, press the flash key to switch back and forth between caller A and B by putting either one on hold. If you hang up the phone but a caller is still on hold, there will be a remind ring.

11.15.3.2 USA Call Waiting

This allows you to place a call on hold while you answer another incoming call on the same telephone (directory) number. If there is a second call to your telephone number, you will hear a call waiting tone. Press the flash key to put the first call on hold and answer the second call.

11.15.3.3 USA Call Transfer

Do the following to transfer an incoming call (that you have answered) to another phone. 1 Press the flash key to put the caller on hold. 2 When you hear the dial tone, dial “\*98#” followed by the number to which you want to transfer the call. to operate the Intercom. 3 After you hear the ring signal or the second party answers it, hang up the phone.

11.15.3.4 USA Three-Way Conference

Use the following steps to make three-way conference calls. 1 When you are on the phone talking to someone (party A), press the flash key to put the caller on hold and get a dial tone. 2 Dial a phone number directly to make another call (to party B). 3 When party B answers the second call, press the flash key to create a three-way conversation. 4 Hang up the phone to drop the connection. 5 If you want to separate the activated three-way conference into two individual connections (with party A on-line and party B on hold), press the flash key. 6 If you want to go back to the three-way conversation, press the flash key again. 7 If you want to separate the activated three-way conference into two individual connections again, press the flash key. This time the party B is on-line and party A is on hold.

11.16 Phone Region Screen

Use this screen to maintain settings that often depend on which region of the world the ZyXEL Device is in. To access this screen, click VoIP > Phone > Region. Figure 94 VoIP > Phone > Region

Analog Phone Common Region Region Settings Region Settings Default Call Service Mode Europe Type Apply Cancel

Each field is described in the following table. Table 62 VoIP > Phone > Region

LABEL	DESCRIPTION
Region Settings	Select the place in which the ZyXEL Device is located.
Call Service Mode	Select the mode for supplementary phone services (call hold, call waiting, call transfer and three-way conference calls) that your VoIP service provider supports.Europe Type - use supplementary phone services in European modeUSA Type - use supplementary phone services American modeYou might have to subscribe to these services to use them. Contact your VoIP service provider.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.17 Speed Dial

Speed dial provides shortcuts for dialing frequently used (VoIP) phone numbers.

11.17.1 Peer-to-Peer Calls

You can call another VoIP device directly without going through a SIP server. You must set up a speed dial entry in the phone book in order to do this. Select Non-Proxy (Use IP or URL) in the Type column and enter the callee's IP address or domain name. The ZyXEL Device sends SIP INVITE requests to the peer VoIP device when you use the speed dial entry. You do not need to configure a SIP account on the ZyXEL Device 2602HW in order to make a peer-to-peer VoIP call.

11.18 Speed Dial Screen

You have to create speed-dial entries if you want to make peer-to-peer calls or call SIP numbers that use letters. You can also create speed-dial entries for frequently-used SIP phone numbers. Use this screen to add, edit, or remove speed-dial numbers for outgoing calls. To access this screen, click VoIP > Phone Book > Speed Dial. Figure 95 Phone Book > Speed Dial

Speed Dial Incoming Call Policy Speed Dial Speed Dial Number Name: Type #01 Use Proxy Non-Proxy (Use IP or URL) Add Speed Dial Phone Book Speed Dial Number Name: Destination Modify #01 #02 #03 #04 #05 #06 #07 #08 #09 #10 Clear Cancel

Each field is described in the following table. Table 63 Phone Book > Speed Dial

LABEL	DESCRIPTION
Speed Dial	Use this section to create or edit speed-dial entries.
Speed Dial	Select the speed-dial number you want to use for this phone number.
Number	Enter the SIP number you want the ZyXEL Device to call when you dial the speed-dial number.
Name	Enter a name to identify the party you call when you dial the speed-dial number. You can use up to 127 printable ASCII characters.
Type	Select Use Proxy if you want to use one of your SIP accounts to call this phone number.Select Non-Proxy (Use IP or URL) if you want to use a different SIP server or if you want to make a peer-to-peer call. In this case, enter the IP address or domain name of the SIP server or the other party in the field below.
Add	Click this to use the information in the Speed Dial section to update the Speed Dial Phone Book section.

Table 63 Phone Book > Speed Dial

LABEL	DESCRIPTION
Speed Dial Phone Book	Use this section to look at all the speed-dial entries and to erase them.
Speed Dial	This field displays the speed-dial number you should dial to use this entry.
Number	This field displays the SIP number the ZyXEL Device calls when you dial the speed-dial number.
Name	This field displays the name of the party you call when you dial the speed-dial number.
Destination	This field is blank, if the speed-dial entry uses one of your SIP accounts. Otherwise, this field shows the IP address or domain name of the SIP server or other party. (This field corresponds with the Type field in the Speed Dial section.)
Modify	Use this field to edit or erase the speed-dial entry.Click the Edit icon to copy the information for this speed-dial entry into the Speed Dial section, where you can change it.Click the Remove icon to erase this speed-dial entry.
Clear	Click this to erase all the speed-dial entries.
Cancel	Click this to set every field in this screen to its last-saved value.

11.19 Incoming Call Policy Screen

Use this screen to maintain rules for handling incoming calls. You can block, redirect, or accept them. To access this screen, click VoIP > Phone Book > Incoming Call Policy. Figure 96 Phone Book > Incoming Call Policy

Speed Dial Incoming Call Policy Table Number: Table 1 Forward to Number Setup □ Unconditional Forward to Number □ Busy Forward to Number □ No Answer Forward to Number No Answer Waiting Time 5 (Second) Advanced Setup

Activate Incoming Call Number Forward to Number Condition

1 □ Unconditional 2 □ Unconditional 3 □ Unconditional 4 □ Unconditional 5 □ Unconditional 6 □ Unconditional 7 □ Unconditional 8 □ Unconditional 9 □ Unconditional 10 □ Unconditional Apply Reset

You can create two sets of call-forwarding rules. Each one is stored in a call-forwarding table. Each field is described in the following table. Table 64 Phone Book > Incoming Call Policy

LABEL	DESCRIPTION
Table Number	Select the call-forwarding table you want to see in this screen. If you change this field, the screen automatically refreshes.
Forward to Number Setup	The ZyXEL Device checks these rules, in the order in which they appear, after it checks the rules in the Advanced Setup section.
Unconditional Forward to Number	Select this if you want the ZyXEL Device to forward all incoming calls to the specified phone number, regardless of other rules in the Forward to Number section. Specify the phone number in the field on the right.
Busy Forward to Number	Select this if you want the ZyXEL Device to forward incoming calls to the specified phone number if the phone port is busy. Specify the phone number in the field on the right. If you have call waiting, the incoming call is forwarded to the specified phone number if you reject or ignore the second incoming call.
No Answer Forward to Number	Select this if you want the ZyXEL Device to forward incoming calls to the specified phone number if the call is unanswered. (See No Answer Waiting Time.) Specify the phone number in the field on the right.
No Answer Waiting Time	This field is used by the No Answer Forward to Number feature and No Answer conditions below.Enter the number of seconds the ZyXEL Device should wait for you to answer an incoming call before it considers the call is unanswered.

Table 64 Phone Book > Incoming Call Policy

LABEL	DESCRIPTION
Advanced Setup	The ZyXEL Device checks these rules before it checks the rules in the Forward to Number section.
#	This field is a sequential value, and it is not associated with a specific rule. The sequence is important, however. The ZyXEL Device checks each rule in order, and it only follows the first one that applies.
Activate	Select this to enable this rule. Clear this to disable this rule.
Incoming Call Number	Enter the phone number to which this rule applies.
Forward to Number	Enter the phone number to which you want to forward incoming calls from the Incoming Call Number. You may leave this field blank, depending on the Condition.
Condition	Select the situations in which you want to forward incoming calls from the Incoming Call Number, or select an alternative action.Unconditional - The ZyXEL Device immediately forwards any calls from the Incoming Call Number to the Forward to Number.Busy - The ZyXEL Device forwards any calls from the Incoming Call Number to the Forward to Number when your SIP account already has a call connected.No Answer - The ZyXEL Device forwards any calls from the Incoming Call Number to the Forward to Number when the call is unanswered. (See No Answer Waiting Time.)Block - The ZyXEL Device rejects calls from the Incoming Call Number.Accept - The ZyXEL Device allows calls from the Incoming Call Number. You might create a rule with this condition if you do not want incoming calls from someone to be forwarded by rules in the Forward to Number section.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.20 PSTN Line Screen (“L” models only)

Use this screen to set up the PSTN line you use to make regular phone calls. To access this screen, click VoIP > PSTN Line > General. Figure 97 PSTN Line > General

General Call through PSTN Line PSTN Line Pre-fix Number 0000 Relay to PSTN Line 1. 2. 3. 4. 5. 6. 7. 8. 9. Apply Reset

Each field is described in the following table. Table 65 PSTN Line > General

LABEL	DESCRIPTION
PSTN Line Pre-fix Number	Enter 1 - 7 numbers you dial before you dial the phone number, if you want to make a regular phone call while one of your SIP accounts is registered. These numbers tell the ZyXEL Device that you want to make a regular phone call.
Relay to PSTN Line	Enter phone numbers (for regular calls, not VoIP calls) that you want to dial without the prefix number. For example, you should enter emergency numbers.The number (1 - 9) is not a speed-dial number. It is just a sequential value that is not associated with any phone number.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 12 Phone Usage

This chapter describes how to use a phone connected to your ZyXEL Device for basic tasks.

12.1 Dialing a Telephone Number

The PHONE LED turns green when your SIP account is registered. Dial a SIP number like “12345” on your phone’s keypad. Use speed dial entries (see Section 11.17 on page 172) for peer-to-peer calls or SIP numbers that use letters. Dial the speed dial entry on your telephone's keypad. Use your VoIP service provider's dialing plan to call regular telephone numbers.

12.2 Using Speed Dial to Dial a Telephone Number

After configuring the speed dial entry and adding it to the phonebook, press the speed dial entry's key combination on your phone's keypad.

12.3 Internal Calls

Press “####” on your phone’s keypad to call the ZyXEL Device’s other phone port.

12.4 Checking the Device's IP Address

Do the following to listen to the ZyXEL Device's current IP address. 1 Pick up your phone's receiver. 2 Press “\*\*\*\*” on your phone’s keypad and wait for the message that says you are in the configuration menu. 3 Press “5” followed by the # key. 4 Listen to the IP address and make a note of it. 5 Hang up the receiver.

12.5 Auto Firmware Upgrade

During auto-provisioning, the ZyXEL Device checks to see if there is a newer firmware version. If newer firmware is available, the ZyXEL Device plays a recording when you pick up your phone's handset. Press “\*99#” to upgrade the ZyXEL Device’s firmware. Press “#99#” to not upgrade the ZyXEL Device’s firmware.

CHAPTER 13 Firewalls

This chapter gives some background information on firewalls and introduces the ZyXEL Device firewall.

13.1 Firewall Overview

Originally, the term firewall referred to a construction technique designed to prevent the spread of fire from one room to another. The networking term “firewall” is a system or group of systems that enforces an access-control policy between two networks. It may also be defined as a mechanism used to protect a trusted network from an untrusted network. Of course, firewalls cannot solve every security problem. A firewall is one of the mechanisms used to establish a network security perimeter in support of a network security policy. It should never be the only mechanism or method employed. For a firewall to guard effectively, you must design and deploy it appropriately. This requires integrating the firewall into a broad information-security policy. In addition, specific policies must be implemented within the firewall itself. Refer to Section 14.5 on page 196 to configure default firewall settings. Refer to Section 14.6 on page 197 to view firewall rules. Refer to Section 14.6.1 on page 199 to configure firewall rules. Refer to Section 14.6.2 on page 202 to configure a custom service. Refer to Section 14.8.3 on page 209 to configure firewall thresholds.

13.2 Types of Firewalls

There are three main types of firewalls: - Packet Filtering Firewalls • Application-level Firewalls • Stateful Inspection Firewalls

13.2.1 Packet Filtering Firewalls

Packet filtering firewalls restrict access based on the source/destination computer network address of a packet and the type of application.

13.2.2 Application-level Firewalls

Application-level firewalls restrict access by serving as proxies for external servers. Since they use programs written for specific Internet services, such as HTTP, FTP and telnet, they can evaluate network packets for valid application-specific data. Application-level gateways have a number of general advantages over the default mode of permitting application traffic directly to internal hosts: Information hiding prevents the names of internal systems from being made known via DNS to outside systems, since the application gateway is the only host whose name must be made known to outside systems. Robust authentication and logging pre-authenticates application traffic before it reaches internal hosts and causes it to be logged more effectively than if it were logged with standard host logging. Filtering rules at the packet filtering router can be less complex than they would be if the router needed to filter application traffic and direct it to a number of specific systems. The router need only allow application traffic destined for the application gateway and reject the rest.

13.2.3 Stateful Inspection Firewalls

Stateful inspection firewalls restrict access by screening data packets against defined access rules. They make access control decisions based on IP address and protocol. They also "inspect" the session data to assure the integrity of the connection and to adapt to dynamic protocols. These firewalls generally provide the best speed and transparency, however, they may lack the granular application level access control or caching that some proxies support. See Section 13.5 on page 187 for more information on stateful inspection. Firewalls, of one type or another, have become an integral part of standard security solutions for enterprises.

13.3 Introduction to ZyXEL's Firewall

The ZyXEL Device firewall is a stateful inspection firewall and is designed to protect against Denial of Service attacks when activated. The ZyXEL Device's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The ZyXEL Device can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network. The ZyXEL Device also has packet filtering capabilities. The ZyXEL Device is installed between the LAN and the Internet. This allows it to act as a secure gateway for all data passing between the Internet and the LAN. The ZyXEL Device has one DSL/ISDN port and one Ethernet LAN port, which physically separate the network into two areas. \- The DSL/ISDN port connects to the Internet. \- The LAN (Local Area Network) port attaches to a network of computers, which needs security from the outside world. These computers will have access to Internet services such as e-mail, FTP, and the World Wide Web. However, “inbound access” will not be allowed unless you configure remote management or create a firewall rule to allow a remote host to use a specific service.

13.3.1 Denial of Service Attacks

Figure 98 Firewall Application

13.4 Denial of Service

Denials of Service (DoS) attacks are aimed at devices and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources. The ZyXEL Device is pre-configured to automatically detect and thwart all known DoS attacks.

13.4.1 Basics

Computers share information over the Internet using a common language called TCP/IP. TCP/IP, in turn, is a set of application protocols that perform specific functions. An “extension number”, called the "TCP port" or "UDP port" identifies these protocols, such as HTTP (Web), FTP (File Transfer Protocol), POP3 (E-mail), etc. For example, Web traffic by default uses TCP port 80. When computers communicate on the Internet, they are using the client/server model, where the server "listens" on a specific TCP/UDP port for information requests from remote client computers on the network. For example, a Web server typically listens on port 80. Please note that while a computer may be intended for use over a single port, such as Web on port 80, other ports are also active. If the person configuring or managing the computer is not careful, a hacker could attack it over an unprotected port. Some of the most common IP ports are: Table 66 Common IP Ports

21	FTP	53	DNS
23	Telnet	80	HTTP
25	SMTP	110	POP3

13.4.2 Types of DoS Attacks

There are four types of DoS attacks: 1 Those that exploit bugs in a TCP/IP implementation. 2 Those that exploit weaknesses in the TCP/IP specification. 3 Brute-force attacks that flood a network with useless data. 4 IP Spoofing. 5 "Ping of Death" and "Teardrop" attacks exploit bugs in the TCP/IP implementations of various computer and host systems. - Ping of Death uses a "ping" utility to create an IP packet that exceeds the maximum 65,536 bytes of data allowed by the IP specification. The oversize packet is then sent to an unsuspecting system. Systems may crash, hang or reboot. - Teardrop attack exploits weaknesses in the re-assembly of IP packet fragments. As data is transmitted through a network, IP packets are often broken up into smaller chunks. Each fragment looks like the original IP packet except that it contains an offset field that says, for instance, "This fragment is carrying bytes 200 through 400 of the original (non fragmented) IP packet." The Teardrop program creates a series of IP fragments with overlapping offset fields. When these fragments are reassembled at the destination, some systems will crash, hang, or reboot. 6 Weaknesses in the TCP/IP specification leave it open to "SYN Flood" and "LAND" attacks. These attacks are executed during the handshake that initiates a communication session between two applications. Figure 99 Three-Way Handshake

Under normal circumstances, the application that initiates a session sends a SYN (synchronize) packet to the receiving server. The receiver sends back an ACK (acknowledgment) packet and its own SYN, and then the initiator responds with an ACK (acknowledgment). After this handshake, a connection is established. \- SYN Attack floods a targeted system with a series of SYN packets. Each packet causes the targeted system to issue a SYN-ACK response. While the targeted system waits for the ACK that follows the SYN-ACK, it queues up all outstanding SYN-ACK responses on what is known as a backlog queue. SYN-ACKs are moved off the queue only when an ACK comes back or when an internal timer (which is set at relatively long intervals) terminates the three-way handshake. Once the queue is full, the system will ignore all incoming SYN requests, making the system unavailable for legitimate users. Figure 100 SYN Flood

\- In a LAND Attack, hackers flood SYN packets into the network with a spoofed source IP address of the targeted system. This makes it appear as if the host computer sent the packets to itself, making the system unavailable while the target system tries to respond to itself. 7 A brute-force attack, such as a "Smurf" attack, targets a feature in the IP specification known as directed or subnet broadcasting, to quickly flood the target network with useless data. A Smurf hacker floods a router with Internet Control Message Protocol (ICMP) echo request packets (pings). Since the destination IP address of each packet is the broadcast address of the network, the router will broadcast the ICMP echo request packet to all hosts on the network. If there are numerous hosts, this will create a large amount of ICMP echo request and response traffic. If a hacker chooses to spoof the source IP address of the ICMP echo request packet, the resulting ICMP traffic will not only clog up the "intermediary" network, but will also congest the network of the spoofed source IP address, known as the "victim" network. This flood of broadcast traffic consumes all available bandwidth, making communications impossible. Figure 101 Smurf Attack

13.4.2.1 ICMP Vulnerability

ICMP is an error-reporting protocol that works in concert with IP. The following ICMP types trigger an alert: Table 67 ICMP Commands That Trigger Alerts

5	REDIRECT
13	TIMESTAMP_REQUEST
14	TIMESTAMP_REPLY
17	ADDRESS_MASK_REQUEST
18	ADDRESS_MASK_REPLY

13.4.2.2 Illegal Commands (NetBIOS and SMTP)

The only legal NetBIOS commands are the following - all others are illegal. Table 68 Legal NetBIOS Commands

MESSAGE:

REQUEST:

POSITIVE:

VE:

RETARGET:

KEEPALIVE:

All SMTP commands are illegal except for those displayed in the following tables. Table 69 Legal SMTP Commands

AUTH	DATA	EHLO	ETRN	EXPN	HELO	HELP	MAIL	NOOP
QUIT	RCPT	RSET	SAML	SEND	SOML	TURN	VRFY

13.4.2.3 Traceroute

Traceroute is a utility used to determine the path a packet takes between two endpoints. Sometimes when a packet filter firewall is configured incorrectly an attacker can traceroute the firewall gaining knowledge of the network topology inside the firewall. Often, many DoS attacks also employ a technique known as "IP Spoofing" as part of their attack. IP Spoofing may be used to break into systems, to hide the hacker's identity, or to magnify the effect of the DoS attack. IP Spoofing is a technique used to gain unauthorized access to computers by tricking a router or firewall into thinking that the communications are coming from within the trusted network. To engage in IP spoofing, a hacker must modify the packet headers so that it appears that the packets originate from a trusted host and should be allowed through the router or firewall. The ZyXEL Device blocks all IP Spoofing attempts.

13.5 Stateful Inspection

With stateful inspection, fields of the packets are compared to packets that are already known to be trusted. For example, if you access some outside service, the proxy server remembers things about your original request, like the port number and source and destination addresses. This “remembering” is called saving the state. When the outside system responds to your request, the firewall compares the received packets with the saved state to determine if they are allowed in. The ZyXEL Device uses stateful packet inspection to protect the private LAN from hackers and vandals on the Internet. By default, the ZyXEL Device’s stateful inspection allows all communications to the Internet that originate from the LAN, and blocks all traffic to the LAN that originates from the Internet. In summary, stateful inspection: - Allows all sessions originating from the LAN (local network) to the WAN (Internet). - Denies all sessions originating from the WAN to the LAN. Figure 102 Stateful Inspection

The previous figure shows the ZyXEL Device's default firewall rules in action as well as demonstrates how stateful inspection works. User A can initiate a Telnet session from within the LAN and responses to this request are allowed. However other Telnet traffic initiated from the WAN is blocked.

13.5.1 Stateful Inspection Process

In this example, the following sequence of events occurs when a TCP packet leaves the LAN network through the firewall's WAN interface. The TCP packet is the first in a session, and the packet's application layer protocol is configured for a firewall rule inspection: 1 The packet travels from the firewall's LAN to the WAN. 2 The packet is evaluated against the interface's existing outbound access list, and the packet is permitted (a denied packet would simply be dropped at this point). 3 The packet is inspected by a firewall rule to determine and record information about the state of the packet's connection. This information is recorded in a new state table entry created for the new connection. If there is not a firewall rule for this packet and it is not an attack, then the settings in the Firewall General screen determine the action for this packet. 4 Based on the obtained state information, a firewall rule creates a temporary access list entry that is inserted at the beginning of the WAN interface's inbound extended access list. This temporary access list entry is designed to permit inbound packets of the same connection as the outbound packet just inspected. 5 The outbound packet is forwarded out through the interface. 6 Later, an inbound packet reaches the interface. This packet is part of the connection previously established with the outbound packet. The inbound packet is evaluated against the inbound access list, and is permitted because of the temporary access list entry previously created. 7 The packet is inspected by a firewall rule, and the connection's state table entry is updated as necessary. Based on the updated state information, the inbound extended access list temporary entries might be modified, in order to permit only packets that are valid for the current state of the connection. 8 Any additional inbound or outbound packets that belong to the connection are inspected to update the state table entry and to modify the temporary inbound access list entries as required, and are forwarded through the interface. 9 When the connection terminates or times out, the connection's state table entry is deleted and the connection's temporary inbound access list entries are deleted.

13.5.2 Stateful Inspection on Your ZyXEL Device

Additional rules may be defined to extend or override the default rules. For example, a rule may be created which will: \- Block all traffic of a certain type, such as IRC (Internet Relay Chat), from the LAN to the Internet. - Allow certain types of traffic from the Internet to specific hosts on the LAN. - Allow access to a Web server to everyone but competitors. - Restrict use of certain protocols, such as Telnet, to authorized users on the LAN. These custom rules work by evaluating the network traffic's Source IP address, Destination IP address, IP protocol type, and comparing these to rules set by the administrator. Note: The ability to define firewall rules is a very powerful tool. Using custom rules, it is possible to disable all firewall protection or block all access to the Internet. Use extreme caution when creating or deleting firewall rules. Test changes after creating them to make sure they work correctly. Below is a brief technical description of how these connections are tracked. Connections may either be defined by the upper protocols (for instance, TCP), or by the ZyXEL Device itself (as with the "virtual connections" created for UDP and ICMP).

13.5.3 TCP Security

The ZyXEL Device uses state information embedded in TCP packets. The first packet of any new connection has its SYN flag set and its ACK flag cleared; these are "initiation" packets. All packets that do not have this flag structure are called "subsequent" packets, since they represent data that occurs later in the TCP stream. If an initiation packet originates on the WAN, this means that someone is trying to make a connection from the Internet into the LAN. Except in a few special cases (see "Upper Layer Protocols" shown next), these packets are dropped and logged. If an initiation packet originates on the LAN, this means that someone is trying to make a connection from the LAN to the Internet. Assuming that this is an acceptable part of the security policy (as is the case with the default policy), the connection will be allowed. A cache entry is added which includes connection information such as IP addresses, TCP ports, sequence numbers, etc. When the ZyXEL Device receives any subsequent packet (from the Internet or from the LAN), its connection information is extracted and checked against the cache. A packet is only allowed to pass through if it corresponds to a valid connection (that is, if it is a response to a connection which originated on the LAN).

13.5.4 UDP/ICMP Security

UDP and ICMP do not themselves contain any connection information (such as sequence numbers). However, at the very minimum, they contain an IP address pair (source and destination). UDP also contains port pairs, and ICMP has type and code information. All of this data can be analyzed in order to build "virtual connections" in the cache. For instance, any UDP packet that originates on the LAN will create a cache entry. Its IP address and port pairs will be stored. For a short period of time, UDP packets from the WAN that have matching IP and UDP information will be allowed back in through the firewall. A similar situation exists for ICMP, except that the ZyXEL Device is even more restrictive. Specifically, only outgoing echoes will allow incoming echo replies, outgoing address mask requests will allow incoming address mask replies, and outgoing timestamp requests will allow incoming timestamp replies. No other ICMP packets are allowed in through the firewall, simply because they are too dangerous and contain too little tracking information. For instance, ICMP redirect packets are never allowed in, since they could be used to reroute traffic through attacking machines.

13.5.5 Upper Layer Protocols

Some higher layer protocols (such as FTP and RealAudio) utilize multiple network connections simultaneously. In general terms, they usually have a "control connection" which is used for sending commands between endpoints, and then "data connections" which are used for transmitting bulk information. Consider the FTP protocol. A user on the LAN opens a control connection to a server on the Internet and requests a file. At this point, the remote server will open a data connection from the Internet. For FTP to work properly, this connection must be allowed to pass through even though a connection from the Internet would normally be rejected. In order to achieve this, the ZyXEL Device inspects the application-level FTP data. Specifically, it searches for outgoing "PORT" commands, and when it sees these, it adds a cache entry for the anticipated data connection. This can be done safely, since the PORT command contains address and port information, which can be used to uniquely identify the connection. Any protocol that operates in this way must be supported on a case-by-case basis. You can use the web configurator's Custom Ports feature to do this.

13.6 Guidelines for Enhancing Security with Your Firewall

- Change the default password. - Limit who can telnet into your router. - Don't enable any local service (such as SNMP or NTP) that you don't use. Any enabled service could present a potential security risk. A determined hacker might be able to find creative ways to misuse the enabled services to access the firewall or the network. - For local services that are enabled, protect against misuse. Protect by configuring the services to communicate only with specific peers, and protect by configuring rules to block packets for the services at specific interfaces. - Protect against IP spoofing by making sure the firewall is active. - Keep the firewall in a secured (locked) room.

13.6.1 Security In General

You can never be too careful! Factors outside your firewall, filtering or NAT can cause security breaches. Below are some generalizations about what you can do to minimize them. - Encourage your company or organization to develop a comprehensive security plan. Good network administration takes into account what hackers can do and prepares against attacks. The best defense against hackers and crackers is information. Educate all employees about the importance of security and how to minimize risk. Produce lists like this one! - DSL or cable modem connections are “always-on” connections and are particularly vulnerable because they provide more opportunities for hackers to crack your system. Turn your computer off when not in use. - Never give out a password or any sensitive information to an unsolicited telephone call or e-mail. - Never e-mail sensitive information such as passwords, credit card information, etc., without encrypting the information first. - Never submit sensitive information via a web page unless the web site uses secure connections. You can identify a secure connection by looking for a small “key” icon on the bottom of your browser (Internet Explorer 3.02 or better or Netscape 3.0 or better). If a web site uses a secure connection, it is safe to submit information. Secure web transactions are quite difficult to crack. - Never reveal your IP address or other system networking information to people outside your company. Be careful of files e-mailed to you from strangers. One common way of getting BackOrifice on a system is to include it as a Trojan horse with other files. - Change your passwords regularly. Also, use passwords that are not easy to figure out. The most difficult passwords to crack are those with upper and lower case letters, numbers and a symbol such as % or #. - Upgrade your software regularly. Many older versions of software, especially web browsers, have well known security deficiencies. When you upgrade to the latest versions, you get the latest patches and fixes. - If you use “chat rooms” or IRC sessions, be careful with any information you reveal to strangers. - If your system starts exhibiting odd behavior, contact your ISP. Some hackers will set off hacks that cause your system to slowly become unstable or unusable. - Always shred confidential information, particularly about your computer, before throwing it away. Some hackers dig through the trash of companies or individuals for information that might help them in an attack.

13.7 Packet Filtering Vs Firewall

Below are some comparisons between the ZyXEL Device's filtering and firewall functions.

13.7.1 Packet Filtering:

- The router filters packets as they pass through the router's interface according to the filter rules you designed. - Packet filtering is a powerful tool, yet can be complex to configure and maintain, especially if you need a chain of rules to filter a service. - Packet filtering only checks the header portion of an IP packet.

13.7.1.1 When To Use Filtering

- To block/allow LAN packets by their MAC addresses. - To block/allow special IP packets which are neither TCP nor UDP, nor ICMP packets. - To block/allow both inbound (WAN to LAN) and outbound (LAN to WAN) traffic between the specific inside host/network "A" and outside host/network "B". If the filter blocks the traffic from A to B, it also blocks the traffic from B to A. Filters can not distinguish traffic originating from an inside host or an outside host by IP address. - To block/allow IP trace route.

13.7.2 Firewall

- The firewall inspects packet contents as well as their source and destination addresses. Firewalls of this type employ an inspection module, applicable to all protocols, that understands data in the packet is intended for other layers, from the network layer (IP headers) up to the application layer. - The firewall performs stateful inspection. It takes into account the state of connections it handles so that, for example, a legitimate incoming packet can be matched with the outbound request for that packet and allowed in. Conversely, an incoming packet masquerading as a response to a nonexistent outbound request can be blocked. - The firewall uses session filtering, i.e., smart rules, that enhance the filtering process and control the network session rather than control individual packets in a session. - The firewall provides e-mail service to notify you of routine reports and when alerts occur.

13.7.2.1 When To Use The Firewall

- To prevent DoS attacks and prevent hackers cracking your network. - A range of source and destination IP addresses as well as port numbers can be specified within one firewall rule making the firewall a better choice when complex rules are required. - To selectively block/allow inbound or outbound traffic between inside host/networks and outside host/networks. Remember that filters can not distinguish traffic originating from an inside host or an outside host by IP address. - The firewall performs better than filtering if you need to check many rules. - Use the firewall if you need routine e-mail reports about your system or need to be alerted when attacks occur. - The firewall can block specific URL traffic that might occur in the future. The URL can be saved in an Access Control List (ACL) database.

CHAPTER 14

Firewall Configuration

This chapter shows you how to enable and configure the ZyXEL Device firewall.

14.1 Access Methods

The web configurator is, by far, the most comprehensive firewall configuration tool your ZyXEL Device has to offer. For this reason, it is recommended that you configure your firewall using the web configurator. CLI commands provide limited configuration options and are only recommended for advanced users.

14.2 Firewall Policies Overview

Firewall rules are grouped based on the direction of travel of packets to which they apply: • LAN to LAN/ Router \- WAN to LAN • LAN to WAN \- WAN to WAN/ Router Note: The LAN includes both the LAN port and the WLAN. By default, the ZyXEL Device's stateful packet inspection allows packets traveling in the following directions: • LAN to LAN/ Router This allows computers on the LAN to manage the ZyXEL Device and communicate between networks or subnets connected to the LAN interface. • LAN to WAN By default, the ZyXEL Device's stateful packet inspection drops packets traveling in the following directions: \- WAN to LAN \- WAN to WAN/ Router This prevents computers on the WAN from using the ZyXEL Device as a gateway to communicate with other computers on the WAN and/or managing the ZyXEL Device. You may define additional rules and sets or modify existing ones but please exercise extreme caution in doing so. Note: If you configure firewall rules without a good understanding of how they work, you might inadvertently introduce security risks to the firewall and to the protected network. Make sure you test your rules after you configure them. For example, you may create rules to: - Block certain types of traffic, such as IRC (Internet Relay Chat), from the LAN to the Internet. - Allow certain types of traffic, such as Lotus Notes database synchronization, from specific hosts on the Internet to specific hosts on the LAN. - Allow everyone except your competitors to access a Web server. - Restrict use of certain protocols, such as Telnet, to authorized users on the LAN. These custom rules work by comparing the Source IP address, Destination IP address and IP protocol type of network traffic to rules set by the administrator. Your customized rules take precedence and override the ZyXEL Device's default rules.

14.3 Rule Logic Overview

Note: Study these points carefully before configuring rules.

14.3.1 Rule Checklist

State the intent of the rule. For example, “This restricts all IRC access from the LAN to the Internet.” Or, “This allows a remote Lotus Notes server to synchronize over the Internet to an inside Notes server.” 1 Is the intent of the rule to forward or block traffic? 2 What direction of traffic does the rule apply to? 3 What IP services will be affected? 4 What computers on the LAN are to be affected (if any)? 5 What computers on the Internet will be affected? The more specific, the better. For example, if traffic is being allowed from the Internet to the LAN, it is better to allow only certain machines on the Internet to access the LAN.

14.3.2 Security Ramifications

1 Once the logic of the rule has been defined, it is critical to consider the security ramifications created by the rule: 2 Does this rule stop LAN users from accessing critical resources on the Internet? For example, if IRC is blocked, are there users that require this service? 3 Is it possible to modify the rule to be more specific? For example, if IRC is blocked for all users, will a rule that blocks just certain users be more effective? 4 Does a rule that allows Internet users access to resources on the LAN create a security vulnerability? For example, if FTP ports (TCP 20, 21) are allowed from the Internet to the LAN, Internet users may be able to connect to computers with running FTP servers. 5 Does this rule conflict with any existing rules? 6 Once these questions have been answered, adding rules is simply a matter of plugging the information into the correct fields in the web configurator screens.

14.3.3 Key Fields For Configuring Rules

14.3.3.1 Action

Should the action be to Drop, Reject or Permit? Note: "Drop" means the firewall silently discards the packet. "Reject" means the firewall discards packets and sends an ICMP destination-unreachable message to the sender.

14.3.3.2 Service

Select the service from the Service scrolling list box. If the service is not listed, it is necessary to first define it. See Appendix F on page 371 for more information on predefined services.

14.3.3.3 Source Address

What is the connection's source address; is it on the LAN or WAN? Is it a single IP, a range of IPs or a subnet?

14.3.3.4 Destination Address

What is the connection's destination address; is it on the LAN or WAN? Is it a single IP, a range of IPs or a subnet?

14.4 Connection Direction

This section describes examples for firewall rules for connections going from LAN to WAN and from WAN to LAN. LAN to LAN/ Router, WAN to WAN/ Router and DMZ to DMZ/ Router rules apply to packets coming in on the associated interface (LAN, WAN or DMZ respectively). LAN to LAN/ Router means policies for LAN-to-ZyXEL Device (the policies for managing the ZyXEL Device through the LAN interface) and policies for LAN-to-LAN (the policies that control routing between two subnets on the LAN). Similarly, WAN to WAN/ Router and DMZ to DMZ/ Router polices apply in the same way to the WAN and DMZ ports.

14.4.1 LAN to WAN Rules

The default rule for LAN to WAN traffic is that all users on the LAN are allowed non-restricted access to the WAN. When you configure a LAN to WAN rule, you in essence want to limit some or all users from accessing certain services on the WAN. WAN to LAN Rules The default rule for WAN to LAN traffic blocks all incoming connections (WAN to LAN). If you wish to allow certain WAN users to have access to your LAN, you will need to create custom rules to allow it.

14.4.2 Alerts

Alerts are reports on events, such as attacks, that you may want to know about right away. You can choose to generate an alert when a rule is matched in the Edit Rule screen (see Figure 105 on page 200). When an event generates an alert, a message can be immediately sent to an e-mail account that you specify in the Log Settings screen. Refer to Chapter 24 on page 295 for details.

14.5 General Firewall Policy

Click Security > Firewall to display the following screen. Activate the firewall by selecting the Active Firewall check box as seen in the following screen. Refer to Section 13.1 on page 181 for more information. Figure 103 Firewall: General

General Rules Threshold General ✓ Active Firewall ✓ Bypass Triangle Route Caution: When Bypass Triangle Route is checked, all LAN to LAN and WAN to WAN packets will bypass the Firewall check. Packet Direction Default Action Log WAN to LAN Drop ✓ LAN to WAN Permit ✓ WAN to WAN / Router Drop ✓ LAN to LAN / Router Permit □ Basic... Apply Cancel

The following table describes the labels in this screen. Table 70 Firewall: General

LABEL	DESCRIPTION
Active Firewall	Select this check box to activate the firewall. The ZyXEL Device performs access control and protects against Denial of Service (DoS) attacks when the firewall is activated.
Bypass Triangle Route	Select this check box to have the ZyXEL Device firewall permit the use of triangle route topology on the network. See the appendix for more on triangle route topology.Note: Allowing asymmetrical routes may let traffic from the WAN go directly to a LAN computer without passing through the router. SeeAppendix H on page 377for more on triangle route topology and how to deal with this problem.
Packet Direction	This is the direction of travel of packets (LAN to LAN / Router, LAN to WAN, WAN to WAN / Router, WAN to LAN).Firewall rules are grouped based on the direction of travel of packets to which they apply. For example,LAN to LAN / Routermeans packets traveling from a computer/subnet on the LAN to either another computer/subnet on the LAN interface of the ZyXEL Device or the ZyXEL Device itself.
Default Action	Use the drop-down list boxes to select the default action that the firewall is take on packets that are traveling in the selected direction and do not match any of the firewall rules.SelectDropto silently discard the packets without sending a TCP reset packet or an ICMP destination-unreachable message to the sender.SelectRejectto deny the packets and send a TCP reset packet (for a TCP packet) or an ICMP destination-unreachable message (for a UDP packet) to the sender.SelectPermitto allow the passage of the packets.
Log	Select the check box to create a log (when the above action is taken) for packets that are traveling in the selected direction and do not match any of your customized rules.
Expand...	Click this button to display more information.
Basic...	Click this button to display less information.
Apply	ClickApplyto save your changes back to the ZyXEL Device.
Cancel	ClickCancelto begin configuring this screen afresh.

14.6 Firewall Rules Summary

Note: The ordering of your rules is very important as rules are applied in turn. Refer to Section 13.1 on page 181 for more information. Click Security > Firewall > Rules to bring up the following screen. This screen displays a list of the configured firewall rules. Note the order in which the rules are listed. Figure 104 Firewall Rules

General Rules Threshold Rules Firewall Rules Storage Space in Use ( 1% ) 0% 100% Packet Direction LAN to LAN / Router Create a new rule after rule number : 0 Add

Active Source IP Destination IP Service Action Schedule Log Modify Order

Apply Cancel

The following table describes the labels in this screen. Table 71 Firewall Rules

LABEL	DESCRIPTION
Firewall Rules Storage Space in Use	This read-only bar shows how much of the ZyXEL Device's memory for recording firewall rules it is currently using. When you are using 80% or less of the storage space, the bar is green. When the amount of space used is over 80%, the bar is red.
Packet Direction	Use the drop-down list box to select a direction of travel of packets for which you want to configure firewall rules.
Create a new rule after rule number	Select an index number and click Add to add a new firewall rule after the selected index number. For example, if you select “6”, your new rule becomes number 7 and the previous rule 7 (if there is one) becomes rule 8.
	The following read-only fields summarize the rules you have created that apply to traffic traveling in the selected packet direction. The firewall rules that you configure (summarized below) take priority over the general firewall action settings in the General screen.
#	This is your firewall rule number. The ordering of your rules is important as rules are applied in turn.
Active	This field displays whether a firewall is turned on or not. Select the check box to enable the rule. Clear the check box to disable the rule.
Source IP	This drop-down list box displays the source addresses or ranges of addresses to which this firewall rule applies. Please note that a blank source or destination address is equivalent to Any.
Destination IP	This drop-down list box displays the destination addresses or ranges of addresses to which this firewall rule applies. Please note that a blank source or destination address is equivalent to Any.
Service	This drop-down list box displays the services to which this firewall rule applies. See Appendix 31 on page 371 for more information.
Action	This field displays whether the firewall silently discards packets (Drop), discards packets and sends a TCP reset packet or an ICMP destination-unreachable message to the sender (Reject) or allows the passage of packets (Permit).
Schedule	This field tells you whether a schedule is specified (Yes) or not (No).
Log	This field shows you whether a log is created when packets match this rule (Yes) or not (No).
Modify	Click the Edit icon to go to the screen where you can edit the rule.Click the Remove icon to delete an existing firewall rule. A window displays asking you to confirm that you want to delete the firewall rule. Note that subsequent firewall rules move up by one when you take this action.
Order	Click the Move icon to display theMove the rule tofield. Type a number in theMove the rule tofield and click theMovebutton to move the rule to the number that you typed. The ordering of your rules is important as they are applied in order of their numbering.
Apply	ClickApplyto save your changes back to the ZyXEL Device.
Cancel	ClickCancelto begin configuring this screen afresh.

14.6.1 Configuring Firewall Rules

Refer to Section 13.1 on page 181 for more information. In the Rules screen, select an index number and click Add or click a rule's Edit icon to display this screen and refer to the following table for information on the labels. Figure 105 Firewall: Edit Rule

Edit Rule 2 ✓ Active Action for Matched Packets: Permit Source Address Address Type Any Address Start IP 0.0.0.0 Address Add >> End IP 0.0.0.0 Address Edit << Subnet Mask 0.0.0.0 Delete Source Address List Any Destination Address Address Type Any Address Start IP 0.0.0.0 Address Add >> End IP 0.0.0.0 Address Edit << Subnet Mask 0.0.0.0 Delete Destination Address List Any Service Available Services Any(All) Any(ICMP) AIMNEW-ICQ(TCP:5190) AUTH(TCP:113) BGP(TCP:179) Edit Customized Services Selected Services Any(UDP) Any(TCP) Add >> Remove Schedule Day to Apply ✓ Everyday ✓ Sun ✓ Mon ✓ Tue ✓ Wed ✓ Thu ✓ Fri ✓ Sat Time of Day to Apply : (24-Hour Format) ✓ All day Start 0 hour 0 minute End 0 hour 0 minute Log □ Log Packet Detail Information. Alert □ Send Alert Message to Administrator When Matched. Apply Cancel

The following table describes the labels in this screen. Table 72 Firewall: Edit Rule

LABEL	DESCRIPTION
Active	Select this option to enable this firewall rule.
Action for Matched Packet	Use the drop-down list box to select whether to discard (Drop), deny and send an ICMP destination-unreachable message to the sender of (Reject) or allow the passage of (Permit) packets that match this rule.
Source/Destination Address
Address Type	Do you want your rule to apply to packets with a particular (single) IP, a range of IP addresses (e.g., 192.168.1.10 to 192.169.1.50), a subnet or any IP address? Select an option from the drop-down list box that includes: Single Address, Range Address, Subnet Address and Any Address.
Start IP Address	Enter the single IP address or the starting IP address in a range here.
End IP Address	Enter the ending IP address in a range here.
Subnet Mask	Enter the subnet mask here, if applicable.
Add >>	Click Add >> to add a new address to the Source or Destination Address box. You can add multiple addresses, ranges of addresses, and/or subnets.
Edit <<	To edit an existing source or destination address, select it from the box and click Edit <<.
Delete	Highlight an existing source or destination address from the Source or Destination Address box above and click Delete to remove it.
Services
Available/ Selected Services	Please see Appendix F on page 371 for more information on services available. Highlight a service from the Available Services box on the left, then click Add >> to add it to the Selected Services box on the right. To remove a service, highlight it in the Selected Services box on the right, then click Remove.
Edit Customized Service	Click the Edit Customized Services link to bring up the screen that you use to configure a new custom service that is not in the predefined list of services.
Schedule
Day to Apply	Select everyday or the day(s) of the week to apply the rule.
Time of Day to Apply (24-Hour Format)	Select All Day or enter the start and end times in the hour-minute format to apply the rule.
Log
Log Packet Detail Information	This field determines if a log for packets that match the rule is created or not. Go to the Log Settings page and select the Access Control logs category to have the ZyXEL Device record these logs.
Alert
Send Alert Message to Administrator When Matched	Select the check box to have the ZyXEL Device generate an alert when the rule is matched.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to exit this screen without saving.

14.6.2 Customized Services

Configure customized services and port numbers not predefined by the ZyXEL Device. For a comprehensive list of port numbers and services, visit the IANA (Internet Assigned Number Authority) website. See Appendix F on page 371 for some examples. Click the Edit Customized Services link while editing a firewall rule to configure a custom service port. This displays the following screen. Refer to Section 13.1 on page 181 for more information. Figure 106 Firewall: Customized Services

Customized Services No. Name Protocol Port 1 2 3 4 5 6 7 8 9 10 Back

The following table describes the labels in this screen. Table 73 Customized Services

LABEL	DESCRIPTION
No.	This is the number of your customized port. Click a rule’s number of a service to go to the Firewall Customized Services Config screen to configure or edit a customized service.
Name	This is the name of your customized service.
Protocol	This shows the IP protocol (TCP, UDP or TCP/UDP) that defines your customized service.
Port	This is the port number or range that defines your customized service.
Back	Click Back to return the Firewall Edit Rule screen.

14.6.3 Configuring A Customized Service

Click a rule number in the Firewall Customized Services screen to create a new custom port or edit an existing one. This action displays the following screen. Refer to Section 13.1 on page 181 for more information. Figure 107 Firewall: Configure Customized Services

Config Service Name Service Type TCP/UDP Port Configuration Type Single Port Range From 0 To 0 Port Number Back Apply Cancel Delete

The following table describes the labels in this screen. Table 74 Firewall: Configure Customized Services

LABEL	DESCRIPTION
Service Name	Type a unique name for your custom port.
Service Type	Choose the IP port (TCP, UDP or TCP/UDP) that defines your customized port from the drop down list box.
Port Configuration
Type	Click Single to specify one port only or Range to specify a span of ports that define your customized service.
Port Number	Type a single port number or the range of port numbers that define your customized service.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to return to the previously saved settings.
Delete	Click Delete to delete the current rule.

14.7 Example Firewall Rule

The following Internet firewall rule example allows a hypothetical “MyService” connection from the Internet. 1 Click Security > Firewall > Rules. 2 Select WAN to LAN in the Packet Direction field. Figure 108 Firewall Example: Rules

General Rules Threshold Rules Firewall Rules Storage Space in Use ( 3% ) 0% 100% Packet Direction WAN to LAN Create a new rule after rule number : 0 Add

Active Source IP Destination IP Service Action Schedule Log Modify Order

Apply Cancel

3 In the Rules screen, select the index number after that you want to add the rule. For example, if you select "6", your new rule becomes number 7 and the previous rule 7 (if there is one) becomes rule 8. 4 Click Add to display the firewall rule configuration screen. 5 In the Edit Rule screen, click the Edit Customized Services link to open the Customized Service screen. 6 Click an index number to display the Customized Services Config screen and configure the screen as follows and click Apply. Figure 109 Edit Custom Port Example

Config Service Name MyService Service Type TCP/UDP Port Configuration Type Single Port Range Port Number From 123 To 123 Apply Cancel Delete

7 Select Any in the Destination Address box and then click Delete. 8 Configure the destination address screen as follows and click Add. Figure 110 Firewall Example: Edit Rule: Destination Address

Edit Rule 1 ✓ Active Action for Matched Packets: Permit Source Address Address Type Any Address Start IP 0.0.0.0 Address Add >> End IP 0.0.0.0 Address Edit < > Subnet Mask 0.0.0.0 Delete Source Address List Any Destination Address Address Type Range Address Start IP 10.0.0.10 Address Add >> End IP 10.0.0.15 Address Edit < > Subnet Mask 0.0.0.0 Delete Destination Address List Service

9 Use the Add >> and Remove buttons between Available Services and Selected Services list boxes to configure it as follows. Click Apply when you are done. Note: Custom services show up with an “\*” before their names in the Services list box and the Rules list box. Figure 111 Firewall Example: Edit Rule: Select Customized Services

Edit Rule 2 ✓ Active Action for Matched Packets: Permit Source Address Address Type Any Address Start IP 0.0.0.0 Address Add >> End IP 0.0.0.0 Address Edit << Subnet Mask 0.0.0.0 Delete Source Address List Any Destination Address Address Type Range Address Start IP 10.0.0.10 Address Add >> End IP 10.0.0.15 Address Edit << Subnet Mask 0.0.0.0 Delete Destination Address List 10.0.0.10 - 10.0.0.15 Service Available Services Any(All) Any(ICMP) AIMNEW-ICG(TCP:5190) AUTH(TCP:113) BGP(TCP:179) Edit Customized Services Selected Services *MyService(TCP/UDP:123) Add >> Remove. Schedule Day to Apply ✓ Everyday ✓ Sun ✓ Mon ✓ Tue ✓ Wed ✓ Thu ✓ Fri ✓ Sat Time of Day to Apply : (24-Hour Format) ✓ All day Start 0 hour 0 minute End 0 hour 0 minute Log □ Log Packet Detail Information. Alert □ Send Alert Message to Administrator When Matched. Apply Cancel

On completing the configuration procedure for this Internet firewall rule, the Rules screen should look like the following. Rule 1 allows a “MyService” connection from the WAN to IP addresses 10.0.0.10 through 10.0.0.15 on the LAN. Figure 112 Firewall Example: Rules: MyService

General Rules Threshold Rules Firewall Rules Storage Space in Use ( 3%) 0% 100% Packet Direction WAN to LAN Create a new rule after rule number : 1 Add

Active Source IP Destination IP Service Action Schedule Log Modify Order

1 Any 10.0.0.10 - 10.0.0.15 *MyService(TCP/UDP:123) Permit No No N Apply Cancel

14.8 DoS Thresholds

For DoS attacks, the ZyXEL Device uses thresholds to determine when to drop sessions that do not become fully established. These thresholds apply globally to all sessions. You can use the default threshold values, or you can change them to values more suitable to your security requirements. Refer to Section 14.8.3 on page 209 to configure thresholds.

14.8.1 Threshold Values

Tune these parameters when something is not working and after you have checked the firewall counters. These default values should work fine for most small offices. Factors influencing choices for threshold values are: - The maximum number of opened sessions. - The minimum capacity of server backlog in your LAN network. - The CPU power of servers in your LAN network. • Network bandwidth. • Type of traffic for certain servers. If your network is slower than average for any of these factors (especially if you have servers that are slow or handle many tasks and are often busy), then the default values should be reduced. You should make any changes to the threshold values before you continue configuring firewall rules.

14.8.2 Half-Open Sessions

An unusually high number of half-open sessions (either an absolute number or measured as the arrival rate) could indicate that a Denial of Service attack is occurring. For TCP, "half-open" means that the session has not reached the established state-the TCP three-way handshake has not yet been completed (see Figure 99 on page 184). For UDP, "half-open" means that the firewall has detected no return traffic. The ZyXEL Device measures both the total number of existing half-open sessions and the rate of session establishment attempts. Both TCP and UDP half-open sessions are counted in the total number and rate measurements. Measurements are made once a minute. When the number of existing half-open sessions rises above a threshold (max-incomplete high), the ZyXEL Device starts deleting half-open sessions as required to accommodate new connection requests. The ZyXEL Device continues to delete half-open requests as necessary, until the number of existing half-open sessions drops below another threshold (max-incomplete low). When the rate of new connection attempts rises above a threshold (one-minute high), the ZyXEL Device starts deleting half-open sessions as required to accommodate new connection requests. The ZyXEL Device continues to delete half-open sessions as necessary, until the rate of new connection attempts drops below another threshold (one-minute low). The rate is the number of new attempts detected in the last one-minute sample period.

14.8.2.1 TCP Maximum Incomplete and Blocking Time

An unusually high number of half-open sessions with the same destination host address could indicate that a Denial of Service attack is being launched against the host. Whenever the number of half-open sessions with the same destination host address rises above a threshold (TCP Maximum Incomplete), the ZyXEL Device starts deleting half-open sessions according to one of the following methods: - If the Blocking Time timeout is 0 (the default), then the ZyXEL Device deletes the oldest existing half-open session for the host for every new connection request to the host. This ensures that the number of half-open sessions to a given host will never exceed the threshold. - If the Blocking Time timeout is greater than 0, then the ZyXEL Device blocks all new connection requests to the host giving the server time to handle the present connections. The ZyXEL Device continues to block all new connection requests until the Blocking Time expires.

14.8.3 Configuring Firewall Thresholds

The ZyXEL Device also sends alerts whenever TCP Maximum Incomplete is exceeded. The global values specified for the threshold and timeout apply to all TCP connections. Click Firewall, and Threshold to bring up the next screen. Figure 113 Firewall: Threshold

General Rules Threshold Denial of Service Thresholds One Minute Low 80 (Sessions per Minute) One Minute High 100 (Sessions per Minute) Maximum Incomplete Low 80 (Sessions) Maximum Incomplete High 100 (Sessions) TCP Maximum Incomplete 10 (Sessions) Action taken when TCP Maximum Incomplete reached threshold Delete the Oldest Half Open Session when New Connection Request Comes. Deny New Connection Request for 10 Minutes(1~255) Apply Cancel

The following table describes the labels in this screen. Table 75 Firewall: Threshold

LABEL	DESCRIPTION	DEFAULT VALUES
Denial of Service Thresholds
One Minute Low	This is the rate of new half-open sessions that causes the firewall to stop deleting half-open sessions. The ZyXEL Device continues to delete half-open sessions as necessary, until the rate of new connection attempts drops below this number.	80 existing half-open sessions.
One Minute High	This is the rate of new half-open sessions that causes the firewall to start deleting half-open sessions. When the rate of new connection attempts rises above this number, the ZyXEL Device deletes half-open sessions as required to accommodate new connection attempts.	100 half-open sessions per minute. The above numbers cause the ZyXEL Device to start deleting half-open sessions when more than 100 session establishment attempts have been detected in the last minute, and to stop deleting half-open sessions when fewer than 80 session establishment attempts have been detected in the last minute.
Maximum Incomplete Low	This is the number of existing half-open sessions that causes the firewall to stop deleting half-open sessions. The ZyXEL Device continues to delete half-open requests as necessary, until the number of existing half-open sessions drops below this number.	80 existing half-open sessions.
Maximum Incomplete High	This is the number of existing half-open sessions that causes the firewall to start deleting half-open sessions. When the number of existing half-open sessions rises above this number, the ZyXEL Device deletes half-open sessions as required to accommodate new connection requests. Do not set Maximum Incomplete High to lower than the current Maximum Incomplete Low number.	100 existing half-open sessions. The above values causes the ZyXEL Device to start deleting half-open sessions when the number of existing half-open sessions rises above 100, and to stop deleting half-open sessions with the number of existing half-open sessions drops below 80.
TCP Maximum Incomplete	This is the number of existing half-open TCP sessions with the same destination host IP address that causes the firewall to start dropping half-open sessions to that same destination host IP address. Enter a number between 1 and 256. As a general rule, you should choose a smaller number for a smaller network, a slower system or limited bandwidth.	30 existing half-open TCP sessions.
Action taken when the TCP Maximum Incomplete reached threshold
Delete the Oldest Half Open Session when New Connection Request Comes.	Select this radio button to clear the oldest half open session when a new connection request comes.
Deny New Connection Request for	Select this radio button and specify for how long the ZyXEL Device should block new connection requests when TCP Maximum Incomplete is reached.Enter the length of blocking time in minutes (between 1 and 256).
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 15 Content Filtering

This chapter covers how to configure content filtering.

15.1 Content Filtering Overview

Internet content filtering allows you to create and enforce Internet access policies tailored to your needs. Content filtering gives you the ability to block web sites that contain key words (that you specify) in the URL. You can set a schedule for when the ZyXEL Device performs content filtering. You can also specify trusted IP addresses on the LAN for which the ZyXEL Device will not perform content filtering.

15.2 Configuring Keyword Blocking

Use this screen to block sites containing certain keywords in the URL. For example, if you enable the keyword "bad", the ZyXEL Device blocks all sites containing this keyword including the URL http://www.website.com/bad.html, even if it is not included in the Filter List. To have your ZyXEL Device block Web sites containing keywords in their URLs, click Security > Content Filter. The screen appears as shown. Figure 114 Content Filter: Keyword

Keyword ✓ Active Keyword Blocking Block Websites that contain these keywords in the URL : bad Delete Clear All Keyword Add Keyword Apply Cancel

The following table describes the labels in this screen. Table 76 Content Filter: Keyword

LABEL	DESCRIPTION
Active Keyword Blocking	Select this check box to enable this feature.
Block Websites that contain these keywords in the URL:	This box contains the list of all the keywords that you have configured the ZyXEL Device to block.
Delete	Highlight a keyword in the box and click Delete to remove it.
Clear All	Click Clear All to remove all of the keywords from the list.
Keyword	Type a keyword in this field. You may use any character (up to 127 characters). Wildcards are not allowed.
Add Keyword	Click Add Keyword after you have typed a keyword.Repeat this procedure to add other keywords. Up to 64 keywords are allowed.When you try to access a web page containing a keyword, you will get a message telling you that the content filter is blocking this request.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to return to the previously saved settings.

15.3 Configuring the Schedule

To set the days and times for the ZyXEL Device to perform content filtering, click Security > Content Filter > Schedule. The screen appears as shown. Figure 115 Content Filter: Schedule

Keyword Schedule Trusted Schedule □ Block Everyday ✓ Edit Daily to Block Active Start Time End Time Monday 0 hr 0 min 0 hr 0 min Tuesday 0 hr 0 min 0 hr 0 min Wednesday 0 hr 0 min 0 hr 0 min Thursday 0 hr 0 min 0 hr 0 min Friday 0 hr 0 min 0 hr 0 min Saturday 0 hr 0 min 0 hr 0 min Sunday 0 hr 0 min 0 hr 0 min Apply Cancel

The following table describes the labels in this screen. Table 77 Content Filter: Schedule

LABEL	DESCRIPTION
Schedule	Select Block Everyday to make the content filtering active everyday.Otherwise, select Edit Daily to Block and configure which days of the week (or everyday) and which time of the day you want the content filtering to be active.
Active	Select the check box to have the content filtering to be active on the selected day.
Start Time	Enter the time when you want the content filtering to take effect in hour-minute format.
End Time	Enter the time when you want the content filtering to stop in hour-minute format.
Apply	Click Apply to save your changes.
Cancel	Click Cancel to return to the previously saved settings.

15.4 Configuring Trusted Computers

To exclude a range of users on the LAN from content filtering on your ZyXEL Device, click Security > Content Filter > Trusted. The screen appears as shown. Figure 116 Content Filter: Trusted

Keyword Schedule Trusted Trusted User IP Range From : ( IP address ) To : ( IP address ) Apply Cancel

The following table describes the labels in this screen. Table 78 Content Filter: Trusted

LABEL	DESCRIPTION
Trusted User IP Range
From	Type the IP address of a computer (or the beginning IP address of a specific range of computers) on the LAN that you want to exclude from content filtering.
To	Type the ending IP address of a specific range of users on your LAN that you want to exclude from content filtering. Leave this field blank if you want to exclude an individual computer.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to return to the previously saved settings.

CHAPTER 16 Introduction to IPSec

This chapter introduces the basics of IPSec VPNs.

16.1 VPN Overview

A VPN (Virtual Private Network) provides secure communications between sites without the expense of leased site-to-site lines. A secure VPN is a combination of tunneling, encryption, authentication, access control and auditing technologies/services used to transport traffic over the Internet or any insecure network that uses the TCP/IP protocol suite for communication.

16.1.1 IPSec

Internet Protocol Security (IPSec) is a standards-based VPN that offers flexible solutions for secure data communications across a public network like the Internet. IPSec is built around a number of standardized cryptographic techniques to provide confidentiality, data integrity and authentication at the IP layer.

16.1.2 Security Association

A Security Association (SA) is a contract between two parties indicating what security parameters, such as keys and algorithms they will use.

16.1.3 Other Terminology

16.1.3.1 Encryption

Encryption is a mathematical operation that transforms data from "plaintext" (readable) to "ciphertext" (scrambled text) using a "key". The key and clear text are processed by the encryption operation, which leads to the data scrambling that makes encryption secure. Decryption is the opposite of encryption: it is a mathematical operation that transforms "ciphertext" to plaintext. Decryption also requires a key. Figure 117 Encryption and Decryption

16.1.3.2 Data Confidentiality

The IPSec sender can encrypt packets before transmitting them across a network.

16.1.3.3 Data Integrity

The IPSec receiver can validate packets sent by the IPSec sender to ensure that the data has not been altered during transmission.

16.1.3.4 Data Origin Authentication

The IPSec receiver can verify the source of IPSec packets. This service depends on the data integrity service.

16.1.4 VPN Applications

The ZyXEL Device supports the following VPN applications. - Linking Two or More Private Networks Together Connect branch offices and business partners over the Internet with significant cost savings and improved performance when compared to leased lines between sites. - Accessing Network Resources When NAT Is Enabled When NAT is enabled, remote users are not able to access hosts on the LAN unless the host is designated a public LAN server for that specific protocol. Since the VPN tunnel terminates inside the LAN, remote users will be able to access all computers that use private IP addresses on the LAN. - Unsupported IP Applications A VPN tunnel may be created to add support for unsupported emerging IP applications. See Chapter 1 on page 37 for an example of a VPN application.

16.2 IPSec Architecture

The overall IPSec architecture is shown as follows. Figure 118 IPSec Architecture

16.2.1 IPSec Algorithms

The ESP (Encapsulating Security Payload) Protocol (RFC 2406) and AH (Authentication Header) protocol (RFC 2402) describe the packet formats and the default standards for packet structure (including implementation algorithms). The Encryption Algorithm describes the use of encryption techniques such as DES (Data Encryption Standard) and Triple DES algorithms. The Authentication Algorithms, HMAC-MD5 (RFC 2403) and HMAC-SHA-1 (RFC 2404), provide an authentication mechanism for the AH and ESP protocols. Please see Section 17.2 on page 221 for more information.

16.2.2 Key Management

Key management allows you to determine whether to use IKE (ISAKMP) or manual key configuration in order to set up a VPN.

16.3 Encapsulation

The two modes of operation for IPSec VPNs are Transport mode and Tunnel mode. Figure 119 Transport and Tunnel Mode IPSec Encapsulation

Original IP Packet	IP Header	TCP Header	Data
Transport Mode Protected Packet	IPSec Header	IP Header	TCP Header	Data
Tunnel Mode Protected Packet	IP Header	IPSec Header	IP Header	TCP Header	Data

16.3.1 Transport Mode

Transport mode is used to protect upper layer protocols and only affects the data in the IP packet. In Transport mode, the IP packet contains the security protocol (AH or ESP) located after the original IP header and options, but before any upper layer protocols contained in the packet (such as TCP and UDP). With ESP, protection is applied only to the upper layer protocols contained in the packet. The IP header information and options are not used in the authentication process. Therefore, the originating IP address cannot be verified for integrity against the data. With the use of AH as the security protocol, protection is extended forward into the IP header to verify the integrity of the entire packet by use of portions of the original IP header in the hashing process.

16.3.2 Tunnel Mode

Tunnel mode encapsulates the entire IP packet to transmit it securely. A Tunnel mode is required for gateway services to provide access to internal systems. Tunnel mode is fundamentally an IP tunnel with authentication and encryption. This is the most common mode of operation. Tunnel mode is required for gateway to gateway and host to gateway communications. Tunnel mode communications have two sets of IP headers: - Outside header: The outside IP header contains the destination IP address of the VPN gateway. - Inside header: The inside IP header contains the destination IP address of the final system behind the VPN gateway. The security protocol appears after the outer IP header and before the inside IP header.

16.4 IPSec and NAT

Read this section if you are running IPSec on a host computer behind the ZyXEL Device. NAT is incompatible with the AH protocol in both Transport and Tunnel mode. An IPSec VPN using the AH protocol digitally signs the outbound packet, both data payload and headers, with a hash value appended to the packet. When using AH protocol, packet contents (the data payload) are not encrypted. A NAT device in between the IPSec endpoints will rewrite either the source or destination address with one of its own choosing. The VPN device at the receiving end will verify the integrity of the incoming packet by computing its own hash value, and complain that the hash value appended to the received packet doesn't match. The VPN device at the receiving end doesn't know about the NAT in the middle, so it assumes that the data has been maliciously altered. IPSec using ESP in Tunnel mode encapsulates the entire original packet (including headers) in a new IP packet. The new IP packet's source address is the outbound address of the sending VPN gateway, and its destination address is the inbound address of the VPN device at the receiving end. When using ESP protocol with authentication, the packet contents (in this case, the entire original packet) are encrypted. The encrypted contents, but not the new headers, are signed with a hash value appended to the packet. Tunnel mode ESP with authentication is compatible with NAT because integrity checks are performed over the combination of the "original header plus original payload," which is unchanged by a NAT device. Transport mode ESP with authentication is not compatible with NAT. Table 79 VPN and NAT

SECURITY PROTOCOL	MODE	NAT
AH	Transport	N
AH	Tunnel	N
ESP	Transport	N
ESP	Tunnel	Y

CHAPTER 17 VPN Screens

This chapter introduces the VPN screens. See Chapter 24 on page 295 for information on viewing logs and the appendix for IPSec log descriptions.

17.1 VPN/IPSec Overview

Use the screens documented in this chapter to configure rules for VPN connections and manage VPN connections.

17.2 IPSec Algorithms

The ESP and AH protocols are necessary to create a Security Association (SA), the foundation of an IPSec VPN. An SA is built from the authentication provided by the AH and ESP protocols. The primary function of key management is to establish and maintain the SA between systems. Once the SA is established, the transport of data may commence.

17.2.1 AH (Authentication Header) Protocol

AH protocol (RFC 2402) was designed for integrity, authentication, sequence integrity (replay resistance), and non-repudiation but not for confidentiality, for which the ESP was designed. In applications where confidentiality is not required or not sanctioned by government encryption restrictions, an AH can be employed to ensure integrity. This type of implementation does not protect the information from dissemination but will allow for verification of the integrity of the information and authentication of the originator.

17.2.2 ESP (Encapsulating Security Payload) Protocol

The ESP protocol (RFC 2406) provides encryption as well as the services offered by AH. ESP authenticating properties are limited compared to the AH due to the non-inclusion of the IP header information during the authentication process. However, ESP is sufficient if only the upper layer protocols need to be authenticated. An added feature of the ESP is payload padding, which further protects communications by concealing the size of the packet being transmitted. Table 80 AH and ESP

	ESP	AH
ENCRYPTION
	DES (default)Data Encryption Standard (DES) is a widely used method of data encryption using a private (secret) key. DES applies a 56-bit key to each 64-bit block of data.	MD5 (default)MD5 (Message Digest 5) produces a 128-bit digest to authenticate packet data.
	3DESTriple DES (3DES) is a variant of DES, which iterates three times with three separate keys (3 x 56 = 168 bits), effectively doubling the strength of DES.	SHA1SHA1 (Secure Hash Algorithm) produces a 160-bit digest to authenticate packet data.
	AESAdvanced Encryption Standard is a newer method of data encryption that also uses a secret key. This implementation of AES applies a 128-bit key to 128-bit blocks of data. AES is faster than 3DES.
	Select NULL to set up a phase 2 tunnel without encryption.
AUTHENTICATION	MD5 (default)MD5 (Message Digest 5) produces a 128-bit digest to authenticate packet data.	MD5 (default)MD5 (Message Digest 5) produces a 128-bit digest to authenticate packet data.
	SHA1SHA1 (Secure Hash Algorithm) produces a 160-bit digest to authenticate packet data.	SHA1SHA1 (Secure Hash Algorithm) produces a 160-bit digest to authenticate packet data.
	Select MD5 for minimal security and SHA1 for maximum security.

17.3 My IP Address

My IP Address is the WAN IP address of the ZyXEL Device. The ZyXEL Device has to rebuild the VPN tunnel if the My IP Address changes after setup. The following applies if this field is configured as 0.0.0.0: - The ZyXEL Device uses the current ZyXEL Device WAN IP address (static or dynamic) to set up the VPN tunnel. - If the WAN connection goes down, the ZyXEL Device uses the dial backup IP address for the VPN tunnel when using dial backup or the LAN IP address when using traffic redirect. See Chapter 7 on page 93 for details on dial backup and traffic redirect.

17.4 Secure Gateway Address

Secure Gateway Address is the WAN IP address or domain name of the remote IPSec router (secure gateway). If the remote secure gateway has a static WAN IP address, enter it in the Secure Gateway Address field. You may alternatively enter the remote secure gateway's domain name (if it has one) in the Secure Gateway Address field. You can also enter a remote secure gateway's domain name in the Secure Gateway Address field if the remote secure gateway has a dynamic WAN IP address and is using DDNS. The ZyXEL Device has to rebuild the VPN tunnel each time the remote secure gateway's WAN IP address changes (there may be a delay until the DDNS servers are updated with the remote gateway's new WAN IP address).

17.4.1 Dynamic Secure Gateway Address

If the remote secure gateway has a dynamic WAN IP address and does not use DDNS, enter 0.0.0.0 as the secure gateway's address. In this case only the remote secure gateway can initiate SAs. This may be useful for telecommuters initiating a VPN tunnel to the company network (see Section 17.18 on page 244 for configuration examples). The Secure Gateway IP Address may be configured as 0.0.0.0 only when using IKE key management and not Manual key management.

17.5 VPN Setup Screen

The following figure helps explain the main fields in the web configurator. Figure 120 IPSec Summary Fields

Local and remote IP addresses must be static. Click Security and VPN to open the VPN Setup screen. This is a read-only menu of your IPSec rules (tunnels). The IPSec summary menu is read-only. Edit a VPN by selecting an index number and then configuring its associated submenus. Figure 121 VPN Setup

Setup Monitor VPN Global Setting Summary No. Active Name: Local Address Remote Address Encap. IPSec Algorithm Secure Gateway IP Modify 1 - - ... ... - - ... ... 2 - - ... ... - - ... ... 3 - - ... ... - - ... ... 4 - - ... ... - - ... ... 5 - - ... ... - - ... ... 6 - - ... ... - - ... ... 7 - - ... ... - - ... ... 8 - - ... ... - - ... ... 9 - - ... ... - - ... ... 10 - - ... ... - - ... ... 11 - - ... ... - - ... ... 12 - - ... ... - - ... ... 13 - - ... ... - - ... ... 14 - - ... ... - - ... ... 15 - - ... ... - - ... ... 16 - - ... ... - - ... ... 17 - - ... ... - - ... ... 18 - - ... ... - - ... ... 19 - - ... ... - - ... ... 20 - - ... ... - - ... ... Apply Cancel

The following table describes the fields in this screen. Table 81 VPN Setup

LABEL	DESCRIPTION
No.	This is the VPN policy index number. Click a number to edit VPN policies.
Active	This field displays whether the VPN policy is active or not. A Yes signifies that this VPN policy is active. No signifies that this VPN policy is not active.
Name	This field displays the identification name for this VPN policy.
Local Address	This is the IP address(es) of computer(s) on your local network behind your ZyXEL Device.The same (static) IP address is displayed twice when the Local Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Single.The beginning and ending (static) IP addresses, in a range of computers are displayed when the Local Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Range.A (static) IP address and a subnet mask are displayed when the Local Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Subnet.

Table 81 VPN Setup

LABEL	DESCRIPTION
Remote Address	This is the IP address(es) of computer(s) on the remote network behind the remote IPSec router.This field displays N/A when the Secure Gateway Address field displays 0.0.0.0. In this case only the remote IPSec router can initiate the VPN.The same (static) IP address is displayed twice when the Remote Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Single.The beginning and ending (static) IP addresses, in a range of computers are displayed when the Remote Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Range.A (static) IP address and a subnet mask are displayed when the Remote Address Type field in the VPN-IKE (or VPN-Manual Key) screen is configured to Subnet.
Encap.	This field displays Tunnel or Transport mode (Tunnel is the default selection).
IPSec Algorithm	This field displays the security protocols used for an SA.Both AH and ESP increase ZyXEL Device processing requirements and communications latency (delay).
Secure Gateway IP	This is the static WAN IP address or URL of the remote IPSec router. This field displays 0.0.0.0 when you configure the Secure Gateway Address field in the VPN-IKE screen to 0.0.0.0.
Modify	Click the Edit icon to go to the screen where you can edit the VPN configuration.Click the Remove icon to remove an existing VPN configuration.
Apply	Click this to save your changes and apply them to the ZyXEL Device.
Cancel	Click this return your settings to their last saved values.

17.6 Keep Alive

When you initiate an IPSec tunnel with keep alive enabled, the ZyXEL Device automatically renegotiates the tunnel when the IPSec SA lifetime period expires (see Section 17.12 on page 234 for more on the IPSec SA lifetime). In effect, the IPSec tunnel becomes an “always on” connection after you initiate it. Both IPSec routers must have a ZyXEL Device-compatible keep alive feature enabled in order for this feature to work. If the ZyXEL Device has its maximum number of simultaneous IPSec tunnels connected to it and they all have keep alive enabled, then no other tunnels can take a turn connecting to the ZyXEL Device because the ZyXEL Device never drops the tunnels that are already connected. When there is outbound traffic with no inbound traffic, the ZyXEL Device automatically drops the tunnel after two minutes.

17.7 VPN, NAT, and NAT Traversal

NAT is incompatible with the AH protocol in both transport and tunnel mode. An IPSec VPN using the AH protocol digitally signs the outbound packet, both data payload and headers, with a hash value appended to the packet, but a NAT device between the IPSec endpoints rewrites the source or destination address. As a result, the VPN device at the receiving end finds a mismatch between the hash value and the data and assumes that the data has been maliciously altered. NAT is not normally compatible with ESP in transport mode either, but the ZyXEL Device's NAT Traversal feature provides a way to handle this. NAT traversal allows you to set up an IKE SA when there are NAT routers between the two IPSec routers. Figure 122 NAT Router Between IPSec Routers

Normally you cannot set up an IKE SA with a NAT router between the two IPSec routers because the NAT router changes the header of the IPSec packet. NAT traversal solves the problem by adding a UDP port 500 header to the IPSec packet. The NAT router forwards the IPSec packet with the UDP port 500 header unchanged. In Figure 122 on page 226, when IPSec router A tries to establish an IKE SA, IPSec router B checks the UDP port 500 header, and IPSec routers A and B build the IKE SA. For NAT traversal to work, you must: - Use ESP security protocol (in either transport or tunnel mode). - Use IKE keying mode. - Enable NAT traversal on both IPSec endpoints. - Set the NAT router to forward UDP port 500 to IPSec router A. Finally, NAT is compatible with ESP in tunnel mode because integrity checks are performed over the combination of the "original header plus original payload," which is unchanged by a NAT device. The compatibility of AH and ESP with NAT in tunnel and transport modes is summarized in the following table. Table 82 VPN and NAT

SECURITY PROTOCOL	MODE	NAT
AH	Transport	N
AH	Tunnel	N
ESP	Transport	Y*
ESP	Tunnel	Y

Y\* - This is supported in the ZyXEL Device if you enable NAT traversal.

17.8 Remote DNS Server

In cases where you want to use domain names to access Intranet servers on a remote network that has a DNS server, you must identify that DNS server. You cannot use DNS servers on the LAN or from the ISP since these DNS servers cannot resolve domain names to private IP addresses on the remote network The following figure depicts an example where three VPN tunnels are created from ZyXEL Device A; one to branch office 2, one to branch office 3 and another to headquarters. In order to access computers that use private domain names on the headquarters (HQ) network, the ZyXEL Device at branch office 1 uses the Intranet DNS server in headquarters. The DNS server feature for VPN does not work with Windows 2000 or Windows XP. Figure 123 VPN Host using Intranet DNS Server Example

If you do not specify an Intranet DNS server on the remote network, then the VPN host must use IP addresses to access the computers on the remote network.

17.9 ID Type and Content

With aggressive negotiation mode (see Section 17.12.1 on page 235), the ZyXEL Device identifies incoming SAs by ID type and content since this identifying information is not encrypted. This enables the ZyXEL Device to distinguish between multiple rules for SAs that connect from remote IPSec routers that have dynamic WAN IP addresses. Telecommuters can use separate passwords to simultaneously connect to the ZyXEL Device from IPSec routers with dynamic IP addresses (see Section 17.18 on page 244 for a telecommuter configuration example). Regardless of the ID type and content configuration, the ZyXEL Device does not allow you to save multiple active rules with overlapping local and remote IP addresses. With main mode (seeSection 17.12.1 on page 235), the ID type and content are encrypted to provide identity protection. In this case the ZyXEL Device can only distinguish between up to 12 different incoming SAs that connect from remote IPSec routers that have dynamic WAN IP addresses. The ZyXEL Device can distinguish up to 12 incoming SAs because you can select between three encryption algorithms (DES, 3DES and AES), two authentication algorithms (MD5 and SHA1) and two key groups (DH1 and DH2) when you configure a VPN rule (seeSection 17.13 on page 236). The ID type and content act as an extra level of identification for incoming SAs. The type of ID can be a domain name, an IP address or an e-mail address. The content is the IP address, domain name, or e-mail address. Table 83 Local ID Type and Content Fields

LOCAL ID TYPE=	CONTENT=
IP	Type the IP address of your computer or leave the field blank to have the ZyXEL Device automatically use its own IP address.
DNS	Type a domain name (up to 31 characters) by which to identify this ZyXEL Device.
E-mail	Type an e-mail address (up to 31 characters) by which to identify this ZyXEL Device.
	The domain name or e-mail address that you use in the Content field is used for identification purposes only and does not need to be a real domain name or e-mail address.

Table 84 Peer ID Type and Content Fields

PEER ID TYPE=	CONTENT=
IP	Type the IP address of the computer with which you will make the VPN connection or leave the field blank to have the ZyXEL Device automatically use the address in theSecure Gatewayfield.
DNS	Type a domain name (up to 31 characters) by which to identify the remote IPSec router.
E-mail	Type an e-mail address (up to 31 characters) by which to identify the remote IPSec router.
	The domain name or e-mail address that you use in theContentfield is used for identification purposes only and does not need to be a real domain name or e-mail address. The domain name also does not have to match the remote router’s IP address or what you configure in theSecure Gateway Addrfield below.

17.9.1 ID Type and Content Examples

Two IPSec routers must have matching ID type and content configuration in order to set up a VPN tunnel. The two ZyXEL Devices in this example can complete negotiation and establish a VPN tunnel. Table 85 Matching ID Type and Content Configuration Example

ZYXEL DEVICE A	ZYXEL DEVICE B
Local ID type: E-mail	Local ID type: IP
Local ID content: [e-mail]	Local ID content: 1.1.1.2
Peer ID type: IP	Peer ID type: E-mail
Peer ID content: 1.1.1.2	Peer ID content: [e-mail]

The two ZyXEL Devices in this example cannot complete their negotiation because ZyXEL Device B's Local ID type is IP, but ZyXEL Device A's Peer ID type is set to E-mail. An “ID mismatched” message displays in the IPSEC LOG. Table 86 Mismatching ID Type and Content Configuration Example

ZYXEL DEVICE A	ZYXEL DEVICE B
Local ID type: IP	Local ID type: IP
Local ID content: 1.1.1.10	Local ID content: 1.1.1.10
Peer ID type: E-mail	Peer ID type: IP
Peer ID content: [e-mail]	Peer ID content: N/A

17.10 Pre-Shared Key

A pre-shared key identifies a communicating party during a phase 1 IKE negotiation (see Section 17.12 on page 234 for more on IKE phases). It is called “pre-shared” because you have to share it with another party before you can communicate with them over a secure connection.

17.11 Editing VPN Policies

Click an Edit icon in the VPN Setup Screen to edit VPN policies. Figure 124 Edit VPN Policies

IPSec Setup Active Keep Alive NAT Traversal Name: IPSec Key Mode IKE Negotiation Mode Main Encapsulation Mode Tunnel DNS Server (for IPSec VPN) 0.0.0.0 Local Local Address Type Single IP Address Start 0.0.0.0 End / Subnet Mask 0.0.0.0 Remote Remote Address Type Single IP Address Start 0.0.0.0 End / Subnet Mask 0.0.0.0 Address Information Local ID Type IP Content My IP Address 0.0.0.0 Peer ID Type IP Content Secure Gateway Address 0.0.0.0 Security Protocol VPN Protocol ESP Pre-Shared Key Encryption Algorithm DES Authentication Algorithm SHA1 Advanced Apply Cancel

The following table describes the fields in this screen. Table 87 Edit VPN Policies

LABEL	DESCRIPTION
IPSec Setup
Active	Select this check box to activate this VPN policy. This option determines whether a VPN rule is applied before a packet leaves the firewall.
Keep Alive	Select either Yes or No from the drop-down list box.Select Yes to have the ZyXEL Device automatically reinitiate the SA after the SA lifetime times out, even if there is no traffic. The remote IPSec router must also have keep alive enabled in order for this feature to work.

Table 87 Edit VPN Policies

LABEL	DESCRIPTION
NAT Traversal	This function is available if theVPN protocolis ESP.Select this check box if you want to set up a VPN tunnel when there are NAT routers between the ZyXEL Device and remote IPSec router. The remote IPSec router must also enable NAT traversal, and the NAT routers have to forward UDP port 500 packets to the remote IPSec router behind the NAT router.
Name	Type up to 32 characters to identify this VPN policy. You may use any character, including spaces, but the ZyXEL Device drops trailing spaces.
IPSec Key Mode	SelectIKEorManualfrom the drop-down list box.IKEprovides more protection so it is generally recommended.Manualis a useful option for troubleshooting if you have problems usingIKEkey management.
Negotiation Mode	SelectMainorAggressivefrom the drop-down list box. Multiple SAs connecting through a secure gateway must have the same negotiation mode.
Encapsulation Mode	SelectTunnelmode orTransportmode from the drop-down list box.
DNS Server (for IPSec VPN)	If there is a private DNS server that services the VPN, type its IP address here. The ZyXEL Device assigns this additional DNS server to the ZyXEL Device's DHCP clients that have IP addresses in this IPSec rule's range of local addresses. A DNS server allows clients on the VPN to find other computers and servers on the VPN by their (private) domain names.
Local	Local IP addresses must be static and correspond to the remote IPSec router's configured remote IP addresses.Two active SAs can have the same configured local or remote IP address, but not both. You can configure multiple SAs between the same local and remote IP addresses, as long as only one is active at any time.In order to have more than one active rule with theSecure Gateway Addressfield set to0.0.0.0, the ranges of the local IP addresses cannot overlap between rules.If you configure an active rule with0.0.0.0in theSecure Gateway Addressfield and the LAN's full IP address range as the local IP address, then you cannot configure any other active rules with theSecure Gateway Addressfield set to0.0.0.0.
Local Address Type	Use the drop-down menu to chooseSingle, Range, orSubnet. SelectSinglefor a single IP address. SelectRangefor a specific range of IP addresses. SelectSubnetto specify IP addresses on a network by their subnet mask.
IP Address Start	When theLocal Address Typefield is configured toSingle, enter a (static) IP address on the LAN behind your ZyXEL Device. When theLocal Address Typefield is configured toRange, enter the beginning (static) IP address, in a range of computers on your LAN behind your ZyXEL Device. When theLocal Address Typefield is configured toSubnet, this is a (static) IP address on the LAN behind your ZyXEL Device.
End / Subnet Mask	When theLocal Address Typefield is configured toSingle, this field is N/A.When theLocal Address Typefield is configured toRange, enter the end (static) IP address, in a range of computers on the LAN behind your ZyXEL Device. When theLocal Address Typefield is configured toSubnet, this is a subnet mask on the LAN behind your ZyXEL Device.

Table 87 Edit VPN Policies

LABEL	DESCRIPTION
Remote	Remote IP addresses must be static and correspond to the remote IPSec router's configured local IP addresses. The remote fields do not apply when the Secure Gateway IP Address field is configured to 0.0.0.0. In this case only the remote IPSec router can initiate the VPN.Two active SAs cannot have the local and remote IP address(es) both the same. Two active SAs can have the same local or remote IP address, but not both. You can configure multiple SAs between the same local and remote IP addresses, as long as only one is active at any time.
Remote Address Type	Use the drop-down menu to choose Single, Range, or Subnet. Select Single with a single IP address. Select Range for a specific range of IP addresses. Select Subnet to specify IP addresses on a network by their subnet mask.
IP Address Start	When the Remote Address Type field is configured to Single, enter a (static) IP address on the network behind the remote IPSec router. When the Remote Address Type field is configured to Range, enter the beginning (static) IP address, in a range of computers on the network behind the remote IPSec router. When the Remote Address Type field is configured to Subnet, enter a (static) IP address on the network behind the remote IPSec router.
End / Subnet Mask	When the Remote Address Type field is configured to Single, this field is N/A. When the Remote Address Type field is configured to Range, enter the end (static) IP address, in a range of computers on the network behind the remote IPSec router. When the Remote Address Type field is configured to Subnet, enter a subnet mask on the network behind the remote IPSec router.
Address Information
Local ID Type	Select IP to identify this ZyXEL Device by its IP address.Select DNS to identify this ZyXEL Device by a domain name.Select E-mail to identify this ZyXEL Device by an e-mail address.
Content	When you select IP in the Local ID Type field, type the IP address of your computer in the local Content field. The ZyXEL Device automatically uses the IP address in the My IP Address field (refer to the My IP Address field description) if you configure the local Content field to 0.0.0.0 or leave it blank.It is recommended that you type an IP address other than 0.0.0.0 in the local Content field or use the DNS or E-mail ID type in the following situations.When there is a NAT router between the two IPSec routers.When you want the remote IPSec router to be able to distinguish between VPN connection requests that come in from IPSec routers with dynamic WAN IP addresses.When you select DNS or E-mail in the Local ID Type field, type a domain name or e-mail address by which to identify this ZyXEL Device in the local Content field. Use up to 31 ASCII characters including spaces, although trailing spaces are truncated. The domain name or e-mail address is for identification purposes only and can be any string.
My IP Address	Enter the WAN IP address of your ZyXEL Device. The VPN tunnel has to be rebuilt if this IP address changes.The following applies if this field is configured as 0.0.0.0:The ZyXEL Device uses the current ZyXEL Device WAN IP address (static or dynamic) to set up the VPN tunnel.If the WAN connection goes down, the ZyXEL Device uses the dial backup IP address for the VPN tunnel when using dial backup or the LAN IP address when using traffic redirect. See Chapter 7 on page 93 for details on dial backup and traffic redirect.

Table 87 Edit VPN Policies

LABEL	DESCRIPTION
Peer ID Type	Select IP to identify the remote IPSec router by its IP address.Select DNS to identify the remote IPSec router by a domain name.Select E-mail to identify the remote IPSec router by an e-mail address.
Content	The configuration of the peer content depends on the peer ID type.For IP, type the IP address of the computer with which you will make the VPN connection. If you configure this field to 0.0.0.0 or leave it blank, the ZyXEL Device will use the address in the Secure Gateway Address field (refer to the Secure Gateway Address field description).For DNS or E-mail, type a domain name or e-mail address by which to identify the remote IPSec router. Use up to 31 ASCII characters including spaces, although trailing spaces are truncated. The domain name or e-mail address is for identification purposes only and can be any string.It is recommended that you type an IP address other than 0.0.0.0 or use the DNS or E-mail ID type in the following situations:When there is a NAT router between the two IPSec routers.When you want the ZyXEL Device to distinguish between VPN connection requests that come in from remote IPSec routers with dynamic WAN IP addresses.
Secure Gateway Address	Type the WAN IP address or the URL (up to 31 characters) of the IPSec router with which you're making the VPN connection. Set this field to 0.0.0.0 if the remote IPSec router has a dynamic WAN IP address (the Key Management field must be set to IKE).In order to have more than one active rule with the Secure Gateway Address field set to 0.0.0.0, the ranges of the local IP addresses cannot overlap between rules.If you configure an active rule with 0.0.0.0 in the Secure Gateway Address field and the LAN's full IP address range as the local IP address, then you cannot configure any other active rules with the Secure Gateway Address field set to 0.0.0.0.
Security Protocol
VPN Protocol	Select ESP if you want to use ESP (Encapsulation Security Payload). The ESP protocol (RFC 2406) provides encryption as well as some of the services offered by AH. If you select ESP here, you must select options from the Encryption Algorithm and Authentication Algorithm fields (described below).
Pre-Shared Key	Type your pre-shared key in this field. A pre-shared key identifies a communicating party during a phase 1 IKE negotiation. It is called "pre-shared" because you have to share it with another party before you can communicate with them over a secure connection.Type from 8 to 31 case-sensitive ASCII characters or from 16 to 62 hexadecimal ("0-9", "A-F") characters. You must precede a hexadecimal key with a "0x" (zero x), which is not counted as part of the 16 to 62 character range for the key. For example, in "0x0123456789ABCDEF", "0x" denotes that the key is hexadecimal and "0123456789ABCDEF" is the key itself.Both ends of the VPN tunnel must use the same pre-shared key. You will receive a "PYLD_MALFORMED" (payload malformed) packet if the same pre-shared key is not used on both ends.

Table 87 Edit VPN Policies

LABEL	DESCRIPTION
Encryption Algorithm	Select DES, 3DES, AES or NULL from the drop-down list box.When you use one of these encryption algorithms for data communications, both the sending device and the receiving device must use the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key.Triple DES (3DES) is a variation on DES that uses a 168-bit key. As a result,3DES is more secure than DES. It also requires more processing power, resulting in increased latency and decreased throughput. This implementation of AES uses a 128-bit key.AES is faster than 3DES.Select NULL to set up a tunnel without encryption. When you select NULL, you do not enter an encryption key.
Authentication Algorithm	Select SHA1 or MD5 from the drop-down list box.MD5 (Message Digest 5) and SHA1 (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The SHA1 algorithm is generally considered stronger than MD5, but is slower. Select MD5 for minimal security and SHA-1 for maximum security.
Advanced	Click Advanced to configure more detailed settings of your IKE key management.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

17.12 IKE Phases

There are two phases to every IKE (Internet Key Exchange) negotiation – phase 1 (Authentication) and phase 2 (Key Exchange). A phase 1 exchange establishes an IKE SA and the second one uses that SA to negotiate SAs for IPSec. Figure 125 Two Phases to Set Up the IPSec SA

In phase 1 you must: - Choose a negotiation mode. - Authenticate the connection by entering a pre-shared key. - Choose an encryption algorithm. - Choose an authentication algorithm. - Choose a Diffie-Hellman public-key cryptography key group (DH1 or DH2). - Set the IKE SA lifetime. This field allows you to determine how long an IKE SA should stay up before it times out. An IKE SA times out when the IKE SA lifetime period expires. If an IKE SA times out when an IPSec SA is already established, the IPSec SA stays connected. In phase 2 you must: - Choose which protocol to use (ESP or AH) for the IKE key exchange. - Choose an encryption algorithm. - Choose an authentication algorithm - Choose whether to enable Perfect Forward Secrecy (PFS) using Diffie-Hellman public-key cryptography – see Section 17.12.3 on page 236. Select None (the default) to disable PFS. - Choose Tunnel mode or Transport mode. - Set the IPSec SA lifetime. This field allows you to determine how long the IPSec SA should stay up before it times out. The ZyXEL Device automatically renegotiates the IPSec SA if there is traffic when the IPSec SA lifetime period expires. The ZyXEL Device also automatically renegotiates the IPSec SA if both IPSec routers have keep alive enabled, even if there is no traffic. If an IPSec SA times out, then the IPSec router must renegotiate the SA the next time someone attempts to send traffic.

17.12.1 Negotiation Mode

The phase 1 Negotiation Mode you select determines how the Security Association (SA) will be established for each connection through IKE negotiations. \- Main Mode ensures the highest level of security when the communicating parties are negotiating authentication (phase 1). It uses 6 messages in three round trips: SA negotiation, Diffie-Hellman exchange and an exchange of nonces (a nonce is a random number). This mode features identity protection (your identity is not revealed in the negotiation). \- Aggressive Mode is quicker than Main Mode because it eliminates several steps when the communicating parties are negotiating authentication (phase 1). However the trade-off is that faster speed limits its negotiating power and it also does not provide identity protection. It is useful in remote access situations where the address of the initiator is not known by the responder and both parties want to use pre-shared key authentication.

17.12.2 Diffie-Hellman (DH) Key Groups

Diffie-Hellman (DH) is a public-key cryptography protocol that allows two parties to establish a shared secret over an unsecured communications channel. Diffie-Hellman is used within IKE SA setup to establish session keys. 768-bit (Group 1 - DH1) and 1024-bit (Group 2 – DH2) Diffie-Hellman groups are supported. Upon completion of the Diffie-Hellman exchange, the two peers have a shared secret, but the IKE SA is not authenticated. For authentication, use pre-shared keys.

17.12.3 Perfect Forward Secrecy (PFS)

Enabling PFS means that the key is transient. The key is thrown away and replaced by a brand new key using a new Diffie-Hellman exchange for each new IPSec SA setup. With PFS enabled, if one key is compromised, previous and subsequent keys are not compromised, because subsequent keys are not derived from previous keys. The (time-consuming) Diffie-Hellman exchange is the trade-off for this extra security. This may be unnecessary for data that does not require such security, so PFS is disabled (None) by default in the ZyXEL Device. Disabling PFS means new authentication and encryption keys are derived from the same root secret (which may have security implications in the long run) but allows faster SA setup (by bypassing the Diffie-Hellman key exchange).

17.13 Configuring Advanced IKE Settings

Click Advanced in the Edit VPN Policies screen to open this screen. Figure 126 Advanced VPN Policies

VPN - IKE - Advanced Setup Protocol 0 Enable Replay Detection NO Local Start Port 0 End 0 Remote Start Port 0 End 0 Phase1 Negotiation Mode Main Pre-Shared Key Encryption Algorithm DES Authentication Algorithm MD5 SA Life Time (Seconds) 28800 Key Group DH1 Phase2 Active Protocol ESP Encryption Algorithm DES Authentication Algorithm SHA1 SA Life Time (Seconds) 28800 Encapsulation Tunnel Perfect Forward Secrecy (PFS) NONE Apply Cancel

The following table describes the fields in this screen. Table 88 Advanced VPN Policies

LABEL	DESCRIPTION
VPN - IKE
Protocol	Enter 1 for ICMP, 6 for TCP, 17 for UDP, etc. 0 is the default and signifies any protocol.
Enable Replay Detection	As a VPN setup is processing intensive, the system is vulnerable to Denial of Service (DoS) attacks The IPSec receiver can detect and reject old or duplicate packets to protect against replay attacks. Select YES from the drop-down menu to enable replay detection, or select NO to disable it.
Local Start Port	0 is the default and signifies any port. Type a port number from 0 to 65535. Some of the most common IP ports are: 21, FTP; 53, DNS; 23, Telnet; 80, HTTP; 25, SMTP; 110, POP3.
End	Enter a port number in this field to define a port range. This port number must be greater than that specified in the previous field. If Local Start Port is left at 0, End will also remain at 0.
Remote Start Port	0 is the default and signifies any port. Type a port number from 0 to 65535. Some of the most common IP ports are: 21, FTP; 53, DNS; 23, Telnet; 80, HTTP; 25, SMTP; 110, POP3.
End	Enter a port number in this field to define a port range. This port number must be greater then that specified in the previous field. If Remote Start Port is left at 0, End will also remain at 0.
Phase 1

Table 88 Advanced VPN Policies

LABEL	DESCRIPTION
Negotiation Mode	Select Main or Aggressive from the drop-down list box. Multiple SAs connecting through a secure gateway must have the same negotiation mode.
Pre-Shared Key	Type your pre-shared key in this field. A pre-shared key identifies a communicating party during a phase 1 IKE negotiation. It is called "pre-shared" because you have to share it with another party before you can communicate with them over a secure connection.Type from 8 to 31 case-sensitive ASCII characters or from 16 to 62 hexadecimal ("0-9", "A-F") characters. You must precede a hexadecimal key with a "0x" (zero x), which is not counted as part of the 16 to 62-character range for the key. For example, in "0x0123456789ABCDEF", "0x" denotes that the key is hexadecimal and "0123456789ABCDEF" is the key itself.Both ends of the VPN tunnel must use the same pre-shared key. You will receive a "PYLD_MALFORMED" (payload malformed) packet if the same pre-shared key is not used on both ends.
Encryption Algorithm	Select DES, 3DES or AES from the drop-down list box.When you use one of these encryption algorithms for data communications, both the sending device and the receiving device must use the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key.Triple DES (3DES) is a variation on DES that uses a 168-bit key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in increased latency and decreased throughput. This implementation of AES uses a 128-bit key. AES is faster than 3DES.
Authentication Algorithm	Select SHA1 or MD5 from the drop-down list box. MD5 (Message Digest 5) and SHA1 (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The SHA1 algorithm is generally considered stronger than MD5, but is slower. Select MD5 for minimal security and SHA-1 for maximum security.
SA Life Time (Seconds)	Define the length of time before an IKE SA automatically renegotiates in this field. It may range from 60 to 3,000,000 seconds (almost 35 days).A short SA Life Time increases security by forcing the two VPN gateways to update the encryption and authentication keys. However, every time the VPN tunnel renegotiates, all users accessing remote resources are temporarily disconnected.
Key Group	You must choose a key group for phase 1 IKE setup. DH1 (default) refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024 bit (1Kb) random number.
Phase 2
Active Protocol	Use the drop-down list box to choose from ESP or AH.
Encryption Algorithm	This field is available when you select ESP in the Active Protocol field.Select DES, 3DES, AES or NULL from the drop-down list box.When you use one of these encryption algorithms for data communications, both the sending device and the receiving device must use the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key.Triple DES (3DES) is a variation on DES that uses a 168-bit key. As a result, 3DES is more secure than DES . It also requires more processing power, resulting in increased latency and decreased throughput. This implementation of AES uses a 128-bit key. AES is faster than 3DES.Select NULL to set up a tunnel without encryption. When you select NULL, you do not enter an encryption key.

Table 88 Advanced VPN Policies

LABEL	DESCRIPTION
Authentication Algorithm	Select SHA1 or MD5 from the drop-down list box. MD5 (Message Digest 5) and SHA1 (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The SHA1 algorithm is generally considered stronger than MD5, but is slower. Select MD5 for minimal security and SHA-1 for maximum security.
SA Life Time (Seconds)	Define the length of time before an IKE SA automatically renegotiates in this field. It may range from 60 to 3,000,000 seconds (almost 35 days).A short SA Life Time increases security by forcing the two VPN gateways to update the encryption and authentication keys. However, every time the VPN tunnel renegotiates, all users accessing remote resources are temporarily disconnected.
Encapsulation	Select Tunnel mode or Transport mode from the drop-down list box.
Perfect Forward Secrecy (PFS)	Perfect Forward Secrecy (PFS) is disabled (NONE) by default in phase 2 IPSec SA setup. This allows faster IPSec setup, but is not so secure. Choose DH1 or DH2 from the drop-down list box to enable PFS. DH1 refers to Diffie-Hellman Group 1 a 768 bit random number. DH2 refers to Diffie-Hellman Group 2 a 1024 bit (1Kb) random number (more secure, yet slower).
Back	Click Back to return to the previous screen.
Apply	Click Apply to save your changes back to the ZyXEL Device and return to the VPN-IKE screen.
Cancel	Click Cancel to return to the VPN-IKE screen without saving your changes.

17.14 Manual Key Setup

Manual key management is useful if you have problems with IKE key management.

17.14.1 Security Parameter Index (SPI)

An SPI is used to distinguish different SAs terminating at the same destination and using the same IPSec protocol. This data allows for the multiplexing of SAs to a single gateway. The SPI (Security Parameter Index) along with a destination IP address uniquely identify a particular Security Association (SA). The SPI is transmitted from the remote VPN gateway to the local VPN gateway. The local VPN gateway then uses the network, encryption and key values that the administrator associated with the SPI to establish the tunnel. Current ZyXEL implementation assumes identical outgoing and incoming SPIs.

17.15 Configuring Manual Key

You only configure VPN Manual Key when you select Manual in the IPSec Key Mode field on the VPN IKE screen. This is the VPN Manual Key screen as shown next. Figure 127 VPN: Manual Key

Setup Monitor VPN Global Setting IPSec Setup Active Name: 2488393585 IPSec Key Mode Manual SPI 0 Encapsulation Mode Transport DNS Server (for IPSec VPN) 0.0.0.0 Local Local Address Type Range IP Address Start End / Subnet Mask Remote Remote Address Type Range IP Address Start End / Subnet Mask Address Information My IP Address Secure Gateway Address Security Protocol IPSec Protocol ESP Encryption Algorithm DES Encapsulation Key Authentication Algorithm SHA1 Authentication Key Back Apply Cancel

The following table describes the fields in this screen. Table 89 VPN: Manual Key

LABEL	DESCRIPTION
IPSec Setup
Active	Select this check box to activate this VPN policy.
Name	Type up to 32 characters to identify this VPN policy. You may use any character, including spaces, but the ZyXEL Device drops trailing spaces.
IPSec Key Mode	Select IKE or Manual from the drop-down list box. Manual is a useful option for troubleshooting if you have problems using IKE key management.
SPI	Type a number (base 10) from 1 to 999999 for the Security Parameter Index.
Encapsulation Mode	Select Tunnel mode or Transport mode from the drop-down list box.
DNS Server (for IPSec VPN)	If there is a private DNS server that services the VPN, type its IP address here. The ZyXEL Device assigns this additional DNS server to the ZyXEL Device's DHCP clients that have IP addresses in this IPSec rule's range of local addresses. A DNS server allows clients on the VPN to find other computers and servers on the VPN by their (private) domain names.
Local	Local IP addresses must be static and correspond to the remote IPSec router's configured remote IP addresses.Two active SAs cannot have the local and remote IP address(es) both the same. Two active SAs can have the same local or remote IP address, but not both. You can configure multiple SAs between the same local and remote IP addresses, as long as only one is active at any time.
Local Address Type	Use the drop-down menu to choose Single, Range, or Subnet. Select Single for a single IP address. Select Range for a specific range of IP addresses. Select Subnet to specify IP addresses on a network by their subnet mask.
IP Address Start	When the Local Address Type field is configured to Single, enter a (static) IP address on the LAN behind your ZyXEL Device. When the Local Address Type field is configured to Range, enter the beginning (static) IP address, in a range of computers on your LAN behind your ZyXEL Device. When the Local Address Type field is configured to Subnet, this is a (static) IP address on the LAN behind your ZyXEL Device.
End / Subnet Mask	When the Local Address Type field is configured to Single, this field is N/A. When the Local Address Type field is configured to Range, enter the end (static) IP address, in a range of computers on the LAN behind your ZyXEL Device. When the Local Address Type field is configured to Subnet, this is a subnet mask on the LAN behind your ZyXEL Device.
Remote	Remote IP addresses must be static and correspond to the remote IPSec router's configured local IP addresses.Two active SAs cannot have the local and remote IP address(es) both the same. Two active SAs can have the same local or remote IP address, but not both. You can configure multiple SAs between the same local and remote IP addresses, as long as only one is active at any time.
Remote Address Type	Use the drop-down menu to choose Single, Range, or Subnet. Select Single with a single IP address. Select Range for a specific range of IP addresses. Select Subnet to specify IP addresses on a network by their subnet mask.
IP Address Start	When the Remote Address Type field is configured to Single, enter a (static) IP address on the network behind the remote IPSec router. When the Remote Address Type field is configured to Range, enter the beginning (static) IP address, in a range of computers on the network behind the remote IPSec router. When the Remote Address Type field is configured to Subnet, enter a (static) IP address on the network behind the remote IPSec router.
End / Subnet Mask	When the Remote Address Type field is configured to Single, this field is N/A. When the Remote Address Type field is configured to Range, enter the end (static) IP address, in a range of computers on the network behind the remote IPSec router. When the Remote Address Type field is configured to Subnet, enter a subnet mask on the network behind the remote IPSec router.
Address Information
My IP Address	Enter the WAN IP address of your ZyXEL Device. The VPN tunnel has to be rebuilt if this IP address changes.The following applies if this field is configured as 0.0.0.0:The ZyXEL Device uses the current ZyXEL Device WAN IP address (static or dynamic) to set up the VPN tunnel.If the WAN connection goes down, the ZyXEL Device uses the dial backup IP address for the VPN tunnel when using dial backup or the LAN IP address when using traffic redirect. See Chapter 7 on page 93 for details on dial backup and traffic redirect.
Secure Gateway Address	Type the WAN IP address or the URL (up to 31 characters) of the IPSec router with which you're making the VPN connection.
Security Protocol
IPSec Protocol	Select ESP if you want to use ESP (Encapsulation Security Payload). The ESP protocol (RFC 2406) provides encryption as well as some of the services offered by AH. If you select ESP here, you must select options from the Encryption Algorithm and Authentication Algorithm fields (described next).
Encryption Algorithm	Select DES, 3DES or NULL from the drop-down list box.When DES is used for data communications, both sender and receiver must know the same secret key, which can be used to encrypt and decrypt the message or to generate and verify a message authentication code. The DES encryption algorithm uses a 56-bit key. Triple DES (3DES) is a variation on DES that uses a 168-bit key. As a result, 3DES is more secure than DES. It also requires more processing power, resulting in increased latency and decreased throughput. Select NULL to set up a tunnel without encryption. When you select NULL, you do not enter an encryption key.
Encapsulation Key (only with ESP)	With DES, type a unique key 8 characters long. With 3DES, type a unique key 24 characters long. Any characters may be used, including spaces, but trailing spaces are truncated.
Authentication Algorithm	Select SHA1 or MD5 from the drop-down list box. MD5 (Message Digest 5) and SHA1 (Secure Hash Algorithm) are hash algorithms used to authenticate packet data. The SHA1 algorithm is generally considered stronger than MD5, but is slower. Select MD5 for minimal security and SHA-1 for maximum security.
Authentication Key	Type a unique authentication key to be used by IPSec if applicable. Enter 16 characters for MD5 authentication or 20 characters for SHA-1 authentication. Any characters may be used, including spaces, but trailing spaces are truncated.
Back	Click Back to return to the previous screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.

17.16 Viewing SA Monitor

Click Security, VPN and Monitor to open the SA Monitor screen as shown. Use this screen to display and manage active VPN connections. A Security Association (SA) is the group of security settings related to a specific VPN tunnel. This screen displays active VPN connections. Use Refresh to display active VPN connections. This screen is read-only. The following table describes the fields in this tab. When there is outbound traffic but no inbound traffic, the SA times out automatically after two minutes. A tunnel with no outbound or inbound traffic is "idle" and does not timeout until the SA lifetime period expires. See Section 17.6 on page 225 on keep alive to have the ZyXEL Device renegotiate an IPSec SA when the SA lifetime expires, even if there is no traffic. Figure 128 VPN: SA Monitor

Setup Monitor VPN Global Setting Monitor No. Name: Encapsulation IP Sec Algorithm ○ 1 - - - ○ 2 - - - - ○ 3 - - - - ○ 4 - - - - ○ 5 - - - - ○ 6 - - - - ○ 7 - - - - ○ 8 - - - - ○ 9 - - - - ○ 10 - - - - ○ 11 - - - - ○ 12 - - - - ○ 13 - - - - ○ 14 - - - - ○ 15 - - - - ○ 16 - - - - ○ 17 - - - - ○ 18 - - - - ○ 19 - - - - ○ 20 - - - - Disconnect Refresh

The following table describes the fields in this screen. Table 90 VPN: SA Monitor

LABEL	DESCRIPTION
No	This is the security association index number.
Name	This field displays the identification name for this VPN policy.
Encapsulation	This field displaysTunnelorTransportmode.
IPSec Algorithm	This field displays the security protocol, encryption algorithm, and authentication algorithm used in each VPN tunnel.
Disconnect	Select one of the security associations, and then clickDisconnectto stop that security association.
Refresh	ClickRefreshto display the current active VPN connection(s).

17.17 Configuring Global Setting

To change your ZyXEL Device's global settings, click VPN and then Global Setting. The screen appears as shown. Figure 129 VPN: Global Setting

Setup Monitor VPN Global Setting VPN Global Setting Windows Networking (NetBIOS over TCP/IP) ✓ Allow NetBIOS Traffic Through All IPSec Tunnels Apply Cancel

The following table describes the fields in this screen. Table 91 VPN: Global Setting

LABEL	DESCRIPTION
Windows Networking (NetBIOS over TCP/IP)	NetBIOS (Network Basic Input/Output System) are TCP or UDP packets that enable a computer to find other computers. It may sometimes be necessary to allow NetBIOS packets to pass through VPN tunnels in order to allow local computers to find computers on the remote network and vice versa.
Allow NetBIOS Traffic Through All IPSec Tunnels	Select this check box to send NetBIOS packets through the VPN connection.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

17.18 Telecommuter VPN/IPSec Examples

The following examples show how multiple telecommuters can make VPN connections to a single ZyXEL Device at headquarters. The telecommuters use IPSec routers with dynamic WAN IP addresses. The ZyXEL Device at headquarters has a static public IP address.

17.18.1 Telecommuters Sharing One VPN Rule Example

See the following figure and table for an example configuration that allows multiple telecommuters (A, B and C in the figure) to use one VPN rule to simultaneously access a ZyXEL Device at headquarters (HQ in the figure). The telecommuters do not have domain names mapped to the WAN IP addresses of their IPSec routers. The telecommuters must all use the same IPSec parameters but the local IP addresses (or ranges of addresses) should not overlap. Figure 130 Telecommuters Sharing One VPN Rule Example

Table 92 Telecommuters Sharing One VPN Rule Example

FIELDS	TELECOMMUTERS	HEADQUARTERS
My IP Address:	0.0.0.0 (dynamic IP address assigned by the ISP)	Public static IP address
Secure Gateway IP Address:	Public static IP address	0.0.0.0 With this IP address only the telecommuter can initiate the IPSec tunnel.
Local IP Address:	Telecommuter A: 192.168.2.12 Telecommuter B: 192.168.3.2 Telecommuter C: 192.168.4.15	192.168.1.10
Remote IP Address:	192.168.1.10	0.0.0.0 (N/A)

17.18.2 Telecommuters Using Unique VPN Rules Example

In this example the telecommuters (A, B and C in the figure) use IPSec routers with domain names that are mapped to their dynamic WAN IP addresses (use Dynamic DNS to do this). With aggressive negotiation mode (see Section 17.12.1 on page 235), the ZyXEL Device can use the ID types and contents to distinguish between VPN rules. Telecommuters can each use a separate VPN rule to simultaneously access a ZyXEL Device at headquarters. They can use different IPSec parameters. The local IP addresses (or ranges of addresses) of the rules configured on the ZyXEL Device at headquarters can overlap. The local IP addresses of the rules configured on the telecommuters' IPSec routers should not overlap. See the following table and figure for an example where three telecommuters each use a different VPN rule for a VPN connection with a ZyXEL Device located at headquarters. The ZyXEL Device at headquarters (HQ in the figure) identifies each incoming SA by its ID type and content and uses the appropriate VPN rule to establish the VPN connection. The ZyXEL Device at headquarters can also initiate VPN connections to the telecommuters since it can find the telecommuters by resolving their domain names. Figure 131 Telecommuters Using Unique VPN Rules Example

Table 93 Telecommuters Using Unique VPN Rules Example

TELECOMMUTERS	HEADQUARTERS
All Telecommuter Rules:	All Headquarters Rules:
My IP Address 0.0.0.0	My IP Address: bigcompanyhq.com
Secure Gateway Address: bigcompanyhq.com	Local IP Address: 192.168.1.10
Remote IP Address: 192.168.1.10	Local ID Type: E-mail
Peer ID Type: E-mail	Local ID Content: [e-mail]
Peer ID Content: [e-mail]
Telecommuter A (telecommutera.dydns.org)	Headquarters ZyXEL Device Rule 1:
Local ID Type: IP	Peer ID Type: IP
Local ID Content: 192.168.2.12	Peer ID Content: 192.168.2.12
Local IP Address: 192.168.2.12	Secure Gateway Address: telecommuter1.com
	Remote Address 192.168.2.12
Telecommuter B (telecommuterb.dydns.org)	Headquarters ZyXEL Device Rule 2:
Local ID Type: DNS	Peer ID Type: DNS
Local ID Content: telecommuterb.com	Peer ID Content: telecommuterb.com
Local IP Address: 192.168.3.2	Secure Gateway Address: telecommuterb.com
	Remote Address 192.168.3.2
Telecommuter C (telecommuterc.dydns.org)	Headquarters ZyXEL Device Rule 3:
Local ID Type: E-mail	Peer ID Type: E-mail
Local ID Content: [e-mail]	Peer ID Content: [e-mail]
Local IP Address: 192.168.4.15	Secure Gateway Address: telecommuterc.com
	Remote Address 192.168.4.15

17.19 VPN and Remote Management

If a VPN tunnel uses Telnet, FTP, WWW, then you should configure remote management (Remote Management) to allow access for that service.

CHAPTER 18 Static Route

This chapter shows you how to configure static routes for your ZyXEL Device.

18.1 Static Route

Each remote node specifies only the network to which the gateway is directly connected, and the ZyXEL Device has no knowledge of the networks beyond. For instance, the ZyXEL Device knows about network N2 in the following figure through remote node Router 1. However, the ZyXEL Device is unable to route a packet to network N3 because it doesn't know that there is a route through the same remote node Router 1 (via gateway Router 2). The static routes are for you to tell the ZyXEL Device about the networks beyond the remote nodes. Figure 132 Example of Static Routing Topology

18.2 Configuring Static Route

Click Advanced > Static Route to open the Static Route screen. Figure 133 Static Route

Static Route Static Route Rules

Active Name Destination Netmask Gateway Modify

1 - - - - - ✓ ✓ 2 - - - - - ✓ ✓ ✓ 3 - - - - - ✓ ✓ ✓ 4 - - - - - ✓ ✓ ✓ 5 - - - - - ✓ ✓ ✓ 6 - - - - - ✓ ✓ ✓ 7 - - - - - ✓ ✓ ✓ 8 - - - - - ✓ ✓ ✓ 9 - - - - - ✓ ✓ ✓ 10 - - - - - ✓ ✓ ✓ 11 - - - - - ✓ ✓ ✓ 12 - - - - - ✓ ✓ ✓ 13 - - - - - ✓ ✓ ✓ 14 - - - - - ✓ ✓ ✓ 15 - - - - - ✓ ✓ ✓ 16 - - - - - ✓ ✓ ✓ Apply Cancel

The following table describes the labels in this screen. Table 94 Static Route

LABEL	DESCRIPTION
#	This is the number of an individual static route.
Active	This field shows whether this static route is active (Yes) or not (No).
Name	This is the name that describes or identifies this route.
Destination	This parameter specifies the IP network address of the final destination. Routing is always based on network number.
Netmask	This parameter specifies the IP network subnet mask of the final destination.
Gateway	This is the IP address of the gateway. The gateway is a router or switch on the same network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.
Modify	Click the edit icon to go to the screen where you can set up a static route on the ZyXEL Device.Click the delete icon to remove a static route from the ZyXEL Device. A window displays asking you to confirm that you want to delete the route.
Apply	Click this to apply your changes to the ZyXEL Device.
Cancel	Click this to return to the previously saved configuration.

18.2.1 Static Route Edit

Select a static route index number and click Edit. The screen shown next appears. Use this screen to configure the required information for a static route. Figure 134 Static Route Edit

Static Route Setup Active Route Name Destination IP Address 0.0.0.0 IP Subnet Mask 0.0.0.0 Gateway IP Address 0.0.0.0 Back Apply Cancel

The following table describes the labels in this screen. Table 95 Static Route Edit

LABEL	DESCRIPTION
Active	This field allows you to activate/deactivate this static route.
Route Name	Enter the name of the IP static route. Leave this field blank to delete this static route.
Destination IP Address	This parameter specifies the IP network address of the final destination. Routing is always based on network number. If you need to specify a route to a single host, use a subnet mask of 255.255.255.255 in the subnet mask field to force the network number to be identical to the host ID.
IP Subnet Mask	Enter the IP subnet mask here.
Gateway IP Address	Enter the IP address of the gateway. The gateway is a router or switch on the same network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.
Back	Click Back to return to the previous screen without saving.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 19

Bandwidth Management

This chapter contains information about configuring bandwidth management, editing rules and viewing the ZyXEL Device's bandwidth management logs.

19.1 Bandwidth Management Overview

ZyXEL's Bandwidth Management allows you to specify bandwidth management rules based on an application and/or subnet. You can allocate specific amounts of bandwidth capacity (bandwidth budgets) to different bandwidth rules. The ZyXEL Device applies bandwidth management to traffic that it forwards out through an interface. The ZyXEL Device does not control the bandwidth of traffic that comes into an interface. Bandwidth management applies to all traffic flowing out of the router, regardless of the traffic's source. Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the ZyXEL Device and be managed by bandwidth management. - The sum of the bandwidth allotments that apply to the WAN interface (LAN to WAN, WLAN to WAN) must be less than or equal to the WAN speed that you configure in the Bandwidth Management Summary screen. - The sum of the bandwidth allotments that apply to the LAN port (WAN to LAN, WLAN to LAN) must be less than or equal to the LAN speed that you configure in the Bandwidth Management Summary screen. - The sum of the bandwidth allotments that apply to the WLAN port (LAN to WLAN, WAN to WLAN) must be less than or equal to the WLAN speed that you configure in the Bandwidth Management Summary screen.

19.2 Application-based Bandwidth Management

You can create bandwidth classes based on individual applications (like VoIP, Web, FTP, E-mail and Video for example).

19.3 Subnet-based Bandwidth Management

You can create bandwidth classes based on subnets. The following figure shows LAN subnets. You could configure one bandwidth class for subnet A and another for subnet B. Figure 135 Subnet-based Bandwidth Management Example

19.4 Application and Subnet-based Bandwidth Management

You could also create bandwidth classes based on a combination of a subnet and an application. The following example table shows bandwidth allocations for application specific traffic from separate LAN subnets. Table 96 Application and Subnet-based Bandwidth Management Example

TRAFFIC TYPE	FROM SUBNET A	FROM SUBNET B
VoIP	64 Kbps	64 Kbps
Web	64 Kbps	64 Kbps
FTP	64 Kbps	64 Kbps
E-mail	64 Kbps	64 Kbps
Video	64 Kbps	64 Kbps

19.5 Scheduler

The scheduler divides up an interface's bandwidth among the bandwidth classes. The ZyXEL Device has two types of scheduler: fairness-based and priority-based.

19.5.1 Priority-based Scheduler

With the priority-based scheduler, the ZyXEL Device forwards traffic from bandwidth classes according to the priorities that you assign to the bandwidth classes. The larger a bandwidth class's priority number is, the higher the priority. Assign real-time applications (like those using audio or video) a higher priority number to provide smoother operation.

19.5.2 Fairness-based Scheduler

The ZyXEL Device divides bandwidth equally among bandwidth classes when using the fairness-based scheduler; thus preventing one bandwidth class from using all of the interface's bandwidth.

19.6 Maximize Bandwidth Usage

The maximize bandwidth usage option (see Figure 136 on page 258) allows the ZyXEL Device to divide up any available bandwidth on the interface (including unallocated bandwidth and any allocated bandwidth that a class is not using) among the bandwidth classes that require more bandwidth. When you enable maximize bandwidth usage, the ZyXEL Device first makes sure that each bandwidth class gets up to its bandwidth allotment. Next, the ZyXEL Device divides up an interface's available bandwidth (bandwidth that is unbudgeted or unused by the classes) depending on how many bandwidth classes require more bandwidth and on their priority levels. When only one class requires more bandwidth, the ZyXEL Device gives extra bandwidth to that class. When multiple classes require more bandwidth, the ZyXEL Device gives the highest priority classes the available bandwidth first (as much as they require, if there is enough available bandwidth), and then to lower priority classes if there is still bandwidth available. The ZyXEL Device distributes the available bandwidth equally among classes with the same priority level.

19.6.1 Reserving Bandwidth for Non-Bandwidth Class Traffic

Do the following to configure the ZyXEL Device to allow bandwidth for traffic that is not defined in a bandwidth filter. 1 Do not enable the interface's Maximize Bandwidth Usage option. 2 Leave some of the interface's bandwidth unbudgeted. Make sure that the interface's root class has more bandwidth than the sum of the bandwidths of the interface's bandwidth management rules.

19.6.2 Maximize Bandwidth Usage Example

Here is an example of a ZyXEL Device that has maximize bandwidth usage enabled on an interface. The following table shows each bandwidth class's bandwidth budget. The classes are set up based on subnets. The interface is set to 10240 kbps. Each subnet is allocated 2048 kbps. The unbudgeted 2048 kbps allows traffic not defined in any of the bandwidth filters to go out when you do not select the maximize bandwidth option. Table 97 Maximize Bandwidth Usage Example

BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: 2048 kbps
	Sales: 2048 kbps
	Marketing: 2048 kbps
	Research: 2048 kbps

The ZyXEL Device divides up the unbudgeted 2048 kbps among the classes that require more bandwidth. If the administration department only uses 1024 kbps of the budgeted 2048 kbps, the ZyXEL Device also divides the remaining 1024 kbps among the classes that require more bandwidth. Therefore, the ZyXEL Device divides a total of 3072 kbps of unbudgeted and unused bandwidth among the classes that require more bandwidth.

19.6.2.1 Priority-based Allotment of Unused and Unbudgeted Bandwidth

The following table shows the priorities of the bandwidth classes and the amount of bandwidth that each class gets. Table 98 Priority-based Allotment of Unused and Unbudgeted Bandwidth Example

BANDWIDTH CLASSES, PRIORITIES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: Priority 4, 1024 kbps
	Sales: Priority 6, 3584 kbps
	Marketing: Priority 6, 3584 kbps
	Research: Priority 5, 2048 kbps

Suppose that all of the classes except for the administration class need more bandwidth. - Each class gets up to its budgeted bandwidth. The administration class only uses 1024 kbps of its budgeted 2048 kbps. - The sales and marketing are first to get extra bandwidth because they have the highest priority (6). If they each require 1536 kbps or more of extra bandwidth, the ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused bandwidth equally between the sales and marketing departments (1536 kbps extra to each for a total of 3584 kbps for each) because they both have the highest priority level. \- Research requires more bandwidth but only gets its budgeted 2048 kbps because all of the unbudgeted and unused bandwidth goes to the higher priority sales and marketing classes.

19.6.2.2 Fairness-based Allotment of Unused and Unbudgeted Bandwidth

The following table shows the amount of bandwidth that each class gets. Table 99 Fairness-based Allotment of Unused and Unbudgeted Bandwidth Example

BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: 1024 kbps
	Sales: 3072 kbps
	Marketing: 3072 kbps
	Research: 3072 kbps

Suppose that all of the classes except for the administration class need more bandwidth. - Each class gets up to its budgeted bandwidth. The administration class only uses 1024 kbps of its budgeted 2048 kbps. - The ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused bandwidth equally among the other classes. 1024 kbps extra goes to each so the other classes each get a total of 3072 kbps.

19.6.3 Bandwidth Management Priorities

Traffic with a higher priority gets through faster while traffic with a lower priority is dropped if the network is congested. The following table describes the priorities that you can apply to traffic that the ZyXEL Device forwards out through an interface. Table 100 Bandwidth Management Priorities

PRIORITY	DESCRIPTION
High	Typically used for voice traffic or video that is especially sensitive to jitter (jitter is the variations in delay).
Mid	Typically used for “excellent effort” or better than best effort and would include important business traffic that can tolerate some delay.
Low	This is typically used for non-critical “background” traffic such as bulk transfers that are allowed but that should not affect other applications and users.

19.7 Configuring Summary

Click Advanced > Bandwidth MGMT to open the screen as shown next. Enable bandwidth management on an interface and set the maximum allowed bandwidth for that interface. Figure 136 Bandwidth Management: Summary

Summary Rule Setup Monitor Summary BW Manager manages the bandwidth of traffic flowing out of router on the specific interface. BW Manager can be switched on/off independently for each interface. Interface Active Speed(kbps) Scheduler Max Bandwidth Usage LAN ✓ 100000 Priority-Based ✓ Yes WLAN ✓ 54000 Priority-Based ✓ Yes WAN ✓ 100000 Priority-Based ✓ Yes Apply Cancel

The following table describes the labels in this screen. Table 101 Media Bandwidth Management: Summary

LABEL	DESCRIPTION
Interface	These read-only labels represent the physical interfaces. Select an interface's check box to enable bandwidth management on that interface. Bandwidth management applies to all traffic flowing out of the router through the interface, regardless of the traffic's source.Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the ZyXEL Device and be managed by bandwidth management.
Active	Select an interface's check box to enable bandwidth management on that interface.
Speed (kbps)	Enter the amount of bandwidth for this interface that you want to allocate using bandwidth management.This appears as the bandwidth budget of the interface's root class. The recommendation is to set this speed to match the interface's actual transmission speed. For example, set the WAN interface speed to 1000 kbps if your Internet connection has an upstream transmission speed of 1 Mbps.If this number is higher than the interface's actual transmission speed, and you configure bandwidth rules for all of the bandwidth, higher priority traffic could use all of the bandwidth so lower priority traffic does not get through.Note: Unless you enable Max Bandwidth Usage, the ZyXEL Device only uses up to the amount of bandwidth that you configure here. The ZyXEL Device does not use any more bandwidth for the interface's connections, even if the interface has more outgoing bandwidth.
Scheduler	Select either Priority-Based or Fairness-Based from the drop-down menu to control the traffic flow.Select Priority-Based to give preference to bandwidth classes with higher priorities.Select Fairness-Based to treat all bandwidth classes equally.
Max Bandwidth Usage	Select this check box to have the ZyXEL Device divide up all of the interface's unallocated and/or unused bandwidth among the bandwidth classes that require bandwidth. Do not select this if you want to reserve bandwidth for traffic that does not match a bandwidth class or you want to limit the transmission speed of this interface (see theSpeedfield description).
Apply	ClickApplyto save your settings back to the ZyXEL Device.
Cancel	ClickCancelto begin configuring this screen afresh.

19.8 Bandwidth Management Rule Setup

You must use the Bandwidth Management Summary screen to enable bandwidth management on an interface before you can configure rules for that interface. Click Advanced > Bandwidth MGMT > Rule Setup to open the following screen. Figure 137 Bandwidth Management: Rule Setup

Summary Rule Setup Monitor Rule Setup Direction LAN Service WWW Priority High Bandwidth 10 (kbps) Add To LAN Interface

Rule Name Destination Port Priority Bandwidth(kbps) Modify

1 WWW 0 High 10 2 Telnet 0 High 5 Apply Cancel

The following table describes the labels in this screen. Table 102 Bandwidth Management: Rule Setup

LABEL	DESCRIPTION
Direction	Select LAN to apply bandwidth management to traffic that the ZyXEL Device forwards to the LAN.Select WAN to apply bandwidth management to traffic that the ZyXEL Device forwards to the WAN.Select WLAN to apply bandwidth management to traffic that the ZyXEL Device forwards to the WLAN.
Service	Select a service for your rule or you can select User define to go to the screen where you can define your own.
Priority	Select a priority from the drop down list box. Choose High, Mid or Low.
Bandwidth (kbps)	Specify the maximum bandwidth allowed for the rule in kbps. The recommendation is a setting between 20 kbps and 20000 kbps for an individual rule.If you want to leave some bandwidth for traffic that does not match a bandwidth filter, make sure that the interface's root class has more bandwidth than the sum of the bandwidths of the interface's bandwidth management rules.
Add	Click this button to save your rule. It displays in the following table.
#	This is the number of an individual bandwidth management rule.
Rule Name	This is the name of the rule.
Destination Port	This is the port number of the destination. 0 means any destination port.
Priority	This is the priority of this rule.
Bandwidth (kbps)	This is the maximum bandwidth allowed for the rule in kbps.
Modify	Click the Edit icon to go to the screen where you can edit the rule.Click the Remove icon to delete an existing rule.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

19.8.1 Rule Configuration

Click the Edit icon or User define in the Service field to configure a bandwidth management rule. Use bandwidth rules to allocate specific amounts of bandwidth capacity (bandwidth budgets) to specific applications and/or subnets. Figure 138 Bandwidth Management Rule Configuration

Rule Configuration Rule Name WWW BW Budget 10 (Kbps) Priority High ✓ Use All Managed Bandwidth Filter Configuration Service User defined Destination Address 0.0.0.0 Destination Subnet Netmask 0.0.0.0 Destination Port 0 Source Address 0.0.0.0 Source Subnet Netmask 0.0.0.0 Source Port 80 Protocol TCP 6 Back Apply Cancel

See Appendix F on page 371 for a list of commonly-used services. The following table describes the labels in this screen. Table 103 Bandwidth Management Rule Configuration

LABEL	DESCRIPTION
Rule Configuration
Rule Name	Use the auto-generated name or enter a descriptive name of up to 20 alphanumeric characters, including spaces.
BW Budget	Specify the maximum bandwidth allowed for the rule in kbps. The recommendation is a setting between 20 kbps and 20000 kbps for an individual rule.
Priority	Select a priority from the drop down list box. Choose High, Mid or Low.
Use All Managed Bandwidth	Select this option to allow a rule to borrow unused bandwidth on the interface. Bandwidth borrowing is governed by the priority of the rules. That is, a rule with the highest priority is the first to borrow bandwidth. Do not select this if you want to leave bandwidth available for other traffic types or if you want to restrict the amount of bandwidth that can be used for the traffic that matches this rule.
Filter Configuration
Service	This field simplifies bandwidth class configuration by allowing you to select a predefined application. When you select a predefined application, you do not configure the rest of the bandwidth filter fields (other than enabling or disabling the filter). SIP (Session Initiation Protocol) is a signaling protocol used in Internet telephony, instant messaging and other VoIP (Voice over IP) applications. Select SIP from the drop-down list box to configure this bandwidth filter for traffic that uses SIP. File Transfer Protocol (FTP) is an Internet file transfer service that operates on the Internet and over TCP/IP networks. A system running the FTP server accepts commands from a system running an FTP client. The service allows users to send commands to the server for uploading and downloading files. Select FTP from the drop-down list box to configure this bandwidth filter for FTP traffic. H.323 is a standard teleconferencing protocol suite that provides audio, data and video conferencing. It allows for real-time point-to-point and multipoint communication between client computers over a packet-based network that does not provide a guaranteed quality of service. Select H.323 from the drop-down list box to configure this bandwidth filter for traffic that uses H.323. Select User defined from the drop-down list box if you do not want to use a predefined application for the bandwidth class. When you select User defined, you need to configure at least one of the following fields (other than the Subnet Mask fields which you only enter if you also enter a corresponding destination or source IP address).
Destination Address	Enter the destination IP address in dotted decimal notation.
Destination Subnet Netmask	Enter the destination subnet mask. This field is N/A if you do not specify a Destination Address. Refer to the appendix for more information on IP subnetting.
Destination Port	Enter the port number of the destination. See Appendix 31 on page 371 for some common services and port numbers. A blank destination IP address means any destination IP address.
Source Address	Enter the source IP address in dotted decimal notation. A blank source IP address means any source IP address.
Source Subnet Netmask	Enter the destination subnet mask. This field is N/A if you do not specify a Source Address. Refer to the appendix for more information on IP subnetting. A blank source port means any source port number.
Source Port	Enter the port number of the source. See Appendix 31 on page 371 for some common services and port numbers.
Protocol	Select the protocol (TCP or UDP) or select User defined and enter the protocol (service type) number. 0 means any protocol number.
Back	Click Back to go to the previous screen.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

19.9 Bandwidth Monitor

To view the ZyXEL Device's bandwidth usage, click Advanced > Bandwidth MGMT > Monitor. The screen appears as shown. Select an interface from the drop-down list box to view the bandwidth usage of its bandwidth rules. The gray section of the bar represents the percentage of unused bandwidth and the blue color represents the percentage of bandwidth in use. Figure 139 Bandwidth Management: Monitor

Summary Rule Setup Monitor Monitor LAN To LAN Interface WWW 0 / 100000 kbps Telnet 0 / 100000 kbps

CHAPTER 20 Dynamic DNS Setup

This chapter discusses how to configure your ZyXEL Device to use Dynamic DNS.

20.1 Dynamic DNS Overview

Dynamic DNS allows you to update your current dynamic IP address with one or many dynamic DNS services so that anyone can contact you (in NetMeeting, CU-SeeMe, etc.). You can also access your FTP server or Web site on your own computer using a domain name (for instance myhost.dhs.org, where myhost is a name of your choice) that will never change instead of using an IP address that changes each time you reconnect. Your friends or relatives will always be able to call you even if they don't know your IP address. First of all, you need to have registered a dynamic DNS account with www.dyndns.org. This is for people with a dynamic IP from their ISP or DHCP server that would still like to have a domain name. The Dynamic DNS service provider will give you a password or key.

20.1.1 DYNDNS Wildcard

Enabling the wildcard feature for your host causes \*.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still reach your hostname. If you have a private WAN IP address, then you cannot use Dynamic DNS. See Section 20.2 on page 263 for configuration instruction.

20.2 Configuring Dynamic DNS

To change your ZyXEL Device's DDNS, click Advanced > Dynamic DNS. The screen appears as shown. See Section 20.1 on page 263 for more information. Figure 140 Dynamic DNS

Dynamic DNS Dynamic DNS Setup Active Dynamic DNS Service Provider WWW.DynDNS.ORG Dynamic DNS Type Dynamic DNS Host Name User Name Password Enable Wildcard Option Enable off line option (Only applies to custom DNS) IP Address Update Policy Use WAN IP Address Dynamic DNS server auto detect IP Address Use specified IP Address 0.0.0.0 Apply Cancel

The following table describes the fields in this screen. Table 104 Dynamic DNS

LABEL	DESCRIPTION
Dynamic DNS Setup
Active Dynamic DNS	Select this check box to use dynamic DNS.
Service Provider	This is the name of your Dynamic DNS service provider.
Dynamic DNS Type	Select the type of service that you are registered for from your Dynamic DNS service provider.
Host Name	Type the domain name assigned to your ZyXEL Device by your Dynamic DNS provider.You can specify up to two host names in the field separated by a comma (",").
User Name	Type your user name.
Password	Type the password assigned to you.
Enable Wildcard Option	Select the check box to enable DynDNS Wildcard.
Enable off line option	This option is available when CustomDNS is selected in the DDNS Type field.Check with your Dynamic DNS service provider to have traffic redirected to a URL (that you can specify) while you are off line.
IP Address Update Policy
Use WAN IP Address	Select this option to update the IP address of the host name(s) to the WAN IP address.
Dynamic DNS server auto detect IP Address	Select this option only when there are one or more NAT routers between the ZyXEL Device and the DDNS server. This feature has the DDNS server automatically detect and use the IP address of the NAT router that has a public IP address.Note:The DDNS server may not be able to detect the proper IP address if there is an HTTP proxy server between the ZyXEL Device and the DDNS server.
Use specified IP Address	Type the IP address of the host name(s). Use this if you have a static IP address.
Apply	ClickApplyto save your changes back to the ZyXEL Device.
Cancel	Click Cancelto begin configuring this screen afresh.

CHAPTER 21 Remote Management Configuration

This chapter provides information on configuring remote management.

21.1 Remote Management Overview

Remote management allows you to determine which services/protocols can access which ZyXEL Device interface (if any) from which computers. Note: When you configure remote management to allow management from the WAN, you still need to configure a firewall rule to allow access. You may manage your ZyXEL Device from a remote location via: - Internet (WAN only) - ALL (LAN and WAN) • LAN only, - Neither (Disable). Note: When you choose WAN only or LAN & WAN, you still need to configure a firewall rule to allow access. To disable remote management of a service, select Disable in the corresponding Access Status field. You may only have one remote management session running at a time. The ZyXEL Device automatically disconnects a remote management session of lower priority when another remote management session of higher priority starts. The priorities for the different types of remote management sessions are as follows. 1 Telnet 2 HTTP

21.1.1 Remote Management Limitations

Remote management over LAN or WAN will not work when: \- You have disabled that service in one of the remote management screens. - The IP address in the Secured Client IP field does not match the client IP address. If it does not match, the ZyXEL Device will disconnect the session immediately. - There is already another remote management session with an equal or higher priority running. You may only have one remote management session running at one time. • There is a firewall rule that blocks it.

21.1.2 Remote Management and NAT

When NAT is enabled: - Use the ZyXEL Device's WAN IP address when configuring from the WAN. - Use the ZyXEL Device's LAN IP address when configuring from the LAN.

21.1.3 System Timeout

There is a default system management idle timeout of five minutes (three hundred seconds). The ZyXEL Device automatically logs you out if the management session remains idle for longer than this timeout period. The management session does not time out when a statistics screen is polling.

21.2 WWW

To change your ZyXEL Device's World Wide Web settings, click Advanced > Remote MGMT to display the WWW screen. Figure 141 Remote Management: WWW

WWW Telnet FTP SNMP DNS ICMP www Port 80 Access Status LAN & WAN Secured Client IP ● All ○ Selected 0.0.0.0 Note : 1: For UPnPto function normally, the HTTP service must be available for LAN computers using UPnP. 2: You may also need to create a Firewall rule Apply Cancel

The following table describes the labels in this screen. Table 105 Remote Management: WWW

LABEL	DESCRIPTION
Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Access Status	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP	A secured client is a “trusted” computer that is allowed to communicate with the ZyXEL Device using this service.SelectAllto allow any computer to access the ZyXEL Device using this service.ChooseSelectedto just allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	ClickApplyto save your settings back to the ZyXEL Device.
Cancel	ClickCancelto begin configuring this screen afresh.

21.3 Telnet

You can configure your ZyXEL Device for remote Telnet access as shown next. The administrator uses Telnet from a computer on a remote network to access the ZyXEL Device. Figure 142 Telnet Configuration on a TCP/IP Network

21.4 Configuring Telnet

Click Advanced > Remote MGMT > Telnet tab to display the screen as shown. Figure 143 Remote Management: Telnet

WWW Telnet FTP SNMP DNS ICMP Telnet Port 23 Access Status LAN & WAN Secured Client IP All Selected 0.0.0.0 Note : You may also need to create a Firewall rule Apply Cancel

The following table describes the labels in this screen. Table 106 Remote Management: Telnet

LABEL	DESCRIPTION
Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Access Status	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP	A secured client is a “trusted” computer that is allowed to communicate with the ZyXEL Device using this service.Select All to allow any computer to access the ZyXEL Device using this service.Choose Selected to just allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

21.5 Configuring FTP

You can upload and download the ZyXEL Device's firmware and configuration files using FTP, please see Section 25.7 on page 308 for details. To use this feature, your computer must have an FTP client. To change your ZyXEL Device's FTP settings, click Advanced > Remote MGMT > FTP tab. The screen appears as shown. Figure 144 Remote Management: FTP

WWW Telnet FTP SNMP DNS ICMP FTP Port 21 Access Status LAN & WAN Secured Client IP All Selected 0.0.0.0 Note : You may also need to create a Firewallrule Apply Cancel

The following table describes the labels in this screen. Table 107 Remote Management: FTP

LABEL	DESCRIPTION
Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Access Status	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP	A secured client is a “trusted” computer that is allowed to communicate with the ZyXEL Device using this service.Select All to allow any computer to access the ZyXEL Device using this service.Choose Selected to just allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

21.6 SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. Your ZyXEL Device supports SNMP agent functionality, which allows a manager station to manage and monitor the ZyXEL Device through the network. The ZyXEL Device supports SNMP version one (SNMPv1) and version two (SNMPv2). The next figure illustrates an SNMP management operation. Note: SNMP is only available if TCP/IP is configured. Figure 145 SNMP Management Model

An SNMP managed network consists of two main types of component: agents and a manager. An agent is a management software module that resides in a managed device (the ZyXEL Device). An agent translates the local management information from the managed device into a form compatible with SNMP. The manager is the console through which network administrators perform network management functions. It executes applications that control and monitor managed devices. The managed devices contain object variables/managed objects that define each piece of information to be collected about a device. Examples of variables include such as number of packets received, node port status etc. A Management Information Base (MIB) is a collection of managed objects. SNMP allows a manager and agents to communicate for the purpose of accessing these objects. SNMP itself is a simple request/response protocol based on the manager/agent model. The manager issues a request and the agent returns responses using the following protocol operations: - Get - Allows the manager to retrieve an object variable from the agent. - GetNext - Allows the manager to retrieve the next object variable from a table or list within an agent. In SNMPv1, when a manager wants to retrieve all elements of a table from an agent, it initiates a Get operation, followed by a series of GetNext operations. - Set - Allows the manager to set values for object variables within an agent. - Trap - Used by the agent to inform the manager of some events.

21.6.1 Supported MIBs

The ZyXEL Device supports MIB II that is defined in RFC-1213 and RFC-1215. The focus of the MIBs is to let administrators collect statistical data and monitor status and performance.

21.6.2 SNMP Traps

The ZyXEL Device will send traps to the SNMP manager when any one of the following events occurs: Table 108 SNMP Traps

TRAP #	TRAP NAME	DESCRIPTION
0	coldStart (defined in RFC-1215)	A trap is sent after booting (power on).
1	warmStart (defined in RFC-1215)	A trap is sent after booting (software reboot).
4	authenticationFailure (defined in RFC-1215)	A trap is sent to the manager when receiving any SNMP get or set requirements with the wrong community (password).
6	whyReboot (defined in ZYXEL-MIB)	A trap is sent with the reason of restart before rebooting when the system is going to restart (warm start).
6a	For intentional reboot:	A trap is sent with the message "System reboot by user!" if reboot is done intentionally, (for example, download new files, CI command "sys reboot", etc.).
6b	For fatal error:	A trap is sent with the message of the fatal code if the system reboots because of fatal errors.

21.6.3 Configuring SNMP

To change your ZyXEL Device's SNMP settings, click Advanced > Remote MGMT > SNMP. The screen appears as shown. Figure 146 Remote Management: SNMP

WWW Telnet FTP SNMP DNS ICMP SNMP Port 161 Access Status LAN & WAN Secured Client IP All Selected 0.0.0.0 SNMP Configuration Get Community public Set Community public TrapCommunity public TrapDestination 0.0.0.0 Note : You may also need to create a Firewallrule Apply Cancel

The following table describes the labels in this screen. Table 109 Remote Management: SNMP

LABEL	DESCRIPTION
SNMP
Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Access Status	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP	A secured client is a “trusted” computer that is allowed to communicate with the ZyXEL Device using this service.Select All to allow any computer to access the ZyXEL Device using this service.Choose Selected to just allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
SNMP Configuration
Get Community	Enter the Get Community, which is the password for the incoming Get and GetNext requests from the management station. The default is public and allows all requests.
Set Community	Enter the Set community, which is the password for incoming Set requests from the management station. The default is public and allows all requests.
Trap
Community	Type the trap community, which is the password sent with each trap to the SNMP manager. The default is public and allows all requests.
Destination	Type the IP address of the station to send your SNMP traps to.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

21.7 Configuring DNS

Use DNS (Domain Name System) to map a domain name to its corresponding IP address and vice versa. Refer to Chapter 8 on page 107 for background information. To change your ZyXEL Device's DNS settings, click Advanced > Remote MGMT > DNS. The screen appears as shown. Use this screen to set from which IP address the ZyXEL Device will accept DNS queries and on which interface it can send them your ZyXEL Device's DNS settings. Figure 147 Remote Management: DNS

WWW Telnet FTP SNMP DNS ICMP DNS Port 53 Access Status LAN & WAN Secured Client IP All Selected 0.0.0.0 Note : You may also need to create a Firewall rule Apply Cancel

The following table describes the labels in this screen. Table 110 Remote Management: DNS

LABEL	DESCRIPTION
Port	The DNS service port number is 53 and cannot be changed here.
Access Status	Select the interface(s) through which a computer may send DNS queries to the ZyXEL Device.
Secured Client IP	A secured client is a “trusted” computer that is allowed to send DNS queries to the ZyXEL Device.Select All to allow any computer to send DNS queries to the ZyXEL Device.Choose Selected to just allow the computer with the IP address that you specify to send DNS queries to the ZyXEL Device.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

21.8 Configuring ICMP

To change your ZyXEL Device's security settings, click Advanced > Remote MGMT > ICMP. The screen appears as shown. If an outside user attempts to probe an unsupported port on your ZyXEL Device, an ICMP response packet is automatically returned. This allows the outside user to know the ZyXEL Device exists. Your ZyXEL Device supports anti-probing, which prevents the ICMP response packet from being sent. This keeps outsiders from discovering your ZyXEL Device when unsupported ports are probed. Note: If you want your device to respond to pings and requests for unauthorized services, you may also need to configure the firewall anti probing settings to match. Figure 148 Remote Management: ICMP

WWW Telnet FTP SNMP DNS ICMP ICMP Respond to Ping on LAN & WAN Do not respond to requests for unauthorized services Apply Cancel

The following table describes the labels in this screen. Table 111 Remote Management: ICMP

LABEL	DESCRIPTION
ICMP	Internet Control Message Protocol is a message control and error-reporting protocol between a host server and a gateway to the Internet. ICMP uses Internet Protocol (IP) datagrams, but the messages are processed by the TCP/IP software and directly apparent to the application user.
Respond to Ping on	The ZyXEL Device will not respond to any incoming Ping requests when Disable is selected. Select LAN to reply to incoming LAN Ping requests. Select WAN to reply to incoming WAN Ping requests. Otherwise select LAN & WAN to reply to both incoming LAN and WAN Ping requests.
Do not respond to requests for unauthorized services	Select this option to prevent hackers from finding the ZyXEL Device by probing for unused ports. If you select this option, the ZyXEL Device will not respond to port request(s) for unused ports, thus leaving the unused ports and the ZyXEL Device unseen. By default this option is not selected and the ZyXEL Device will reply with an ICMP Port Unreachable packet for a port probe on its unused UDP ports, and a TCP Reset packet for a port probe on its unused TCP ports.Note that the probing packets must first traverse the ZyXEL Device's firewall mechanism before reaching this anti-probing mechanism. Therefore if the firewall mechanism blocks a probing packet, the ZyXEL Device reacts based on the corresponding firewall policy to send a TCP reset packet for a blocked TCP packet or an ICMP port-unreachable packet for a blocked UDP packets or just drop the packets without sending a response packet.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 22 Universal Plug-and-Play (UPnP)

This chapter introduces the UPnP feature in the web configurator.

22.1 Introducing Universal Plug and Play

Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use. See Section 22.2.1 on page 278 for configuration instructions.

22.1.1 How do I know if I'm using UPnP?

UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device.

22.1.2 NAT Traversal

UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. NAT traversal allows the following: • Dynamic port mapping - Learning public IP addresses - Assigning lease times to mappings Windows Messenger is an example of an application that supports NAT traversal and UPnP. See the NAT chapter for more information on NAT.

22.1.3 Cautions with UPnP

The automated nature of NAT traversal applications in establishing their own services and opening firewall ports may present network security issues. Network information and configuration may also be obtained and modified by users in some network environments. When a UPnP device joins a network, it announces its presence with a multicast message. For security reasons, the ZyXEL Device allows multicast messages on the LAN only. All UPnP-enabled devices may communicate freely with each other without additional configuration. Disable UPnP if this is not your intention.

22.2 UPnP and ZyXEL

ZyXEL has achieved UPnP certification from the Universal Plug and Play Forum UPnPTM Implementers Corp. (UIC). ZyXEL's UPnP implementation supports Internet Gateway Device (IGD) 1.0. See the following sections for examples of installing and using UPnP.

22.2.1 Configuring UPnP

Click Advanced > UPnP to display the screen shown next. See Section 22.1 on page 277 for more information. Figure 149 Configuring UPnP

General UPnP Setup Device Name: ZyXEL P-2602HWL-D1A Internet Sharing Gateway Active the Universal Plug and Play(UPnP) Feature Allow users to make configuration changes through UPnP Note : For UPnP to function normally, the HTTP service must be available for LAN computers using UPnP. Apply Cancel

The following table describes the fields in this screen. Table 112 Configuring UPnP

LABEL	DESCRIPTION
Active the Universal Plug and Play (UPnP) Feature	Select this check box to activate UPnP. Be aware that anyone could use a UPnP application to open the web configurator's login screen without entering the ZyXEL Device's IP address (although you must still enter the password to access the web configurator).
Allow users to make configuration changes through UPnP	Select this check box to allow UPnP-enabled applications to automatically configure the ZyXEL Device so that they can communicate through the ZyXEL Device, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application.
Allow UPnP to pass through Firewall	Select this check box to allow traffic from UPnP-enabled applications to bypass the firewall.Clear this check box to have the firewall block all UPnP application packets (for example, MSN packets).
Apply	Click Apply to save the setting to the ZyXEL Device.
Cancel	Click Cancel to return to the previously saved settings.

22.3 Installing UPnP in Windows Example

This section shows how to install UPnP in Windows Me and Windows XP.

Installing UPnP in Windows Me

Follow the steps below to install the UPnP in Windows Me. 1 Click Start and Control Panel. Double-click Add/Remove Programs. 2 Click on the Windows Setup tab and select Communication in the Components selection box. Click Details. Figure 150 Add/Remove Programs: Windows Setup: Communication

Add/Remove Programs Properties Install/Uninstall Windows Setup Startup Disk To add or remove a component, select or clear the check box. If the check box is shaded, only part of the component will be installed. To see what's included in a component, click Details. Components: Address Book 1.7 MB Communications 5.6 MB Desktop Themes 0.0 MB Games 10.1 MB Multilanguage Support 0.0 MB Space used by installed components: 42.4 MB Space required: 0.0 MB Space available on disk: 866.3 MB Description Includes accessories to help you connect to other computers and online services. 5 of 10 components selected Details... Have Disk... OK Cancel Apply

3 In the Communications window, select the Universal Plug and Play check box in the Components selection box. Figure 151 Add/Remove Programs: Windows Setup: Communication: Components

Communications To install a component, select the check box next to the component name, or clear the check box if you do not want to install it. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: ✓ NetMeeting 4.2 MB ✓ Phone Dialer 0.2 MB ✓ Universal Plug and Play 0.4 MB ☐ Virtual Private Networking 0.0 MB Space used by installed components: 42.4 MB Space required: 0.0 MB Space available on disk: 866.3 MB Description Universal Plug and Play enables seamless connectivity and communication between Windows and intelligent appliances. Details... OK Cancel

4 Click OK to go back to the Add/Remove Programs Properties window and click Next. 5 Restart the computer when prompted.

Installing UPnP in Windows XP

Follow the steps below to install the UPnP in Windows XP. 1 Click Start and Control Panel. 2 Double-click Network Connections. 3 In the Network Connections window, click Advanced in the main menu and select Optional Networking Components .... Figure 152 Network Connections

Network Connections File Edit View Favorites Tools Back Address Network Connections Network Tasks Advanced Help Operator-Assisted Dialing Dial-up Preferences... Network Identification... Bridge Connections Advanced Settings... Optional Networking Components...

4 The Windows Optional Networking Components Wizard window displays. Select Networking Service in the Components selection box and click Details. Figure 153 Windows Optional Networking Components Wizard

Windows Optional Networking Components Wizard Windows Components You can add or remove components of Windows XP. To add or remove a component, click the checkbox. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Components: □ Management and Monitoring Tools 1.9 MB ✓ Networking Services 0.3 MB □ Other Network File and Print Services 0.0 MB Description: Contains a variety of specialized, network-related services and protocols. Total disk space required: 0.0 MB Space available on disk: 260.9 MB Details... < Back Next > Cancel

5 In the Networking Services window, select the Universal Plug and Play check box. Figure 154 Networking Services

Networking Services To add or remove a component, click the check box. A shaded box means that only part of the component will be installed. To see what's included in a component, click Details. Subcomponents of Networking Services: RIP Listener 0.0 MB Simple TCP/IP Services 0.0 MB Universal Plug and Play 0.2 MB Description: Allows your computer to discover and control Universal Plug and Play devices. Total disk space required: 0.0 MB Space available on disk: 260.8 MB Details... OK Cancel

6 Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.

22.4 Using UPnP in Windows XP Example

This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the ZyXEL Device. Make sure the computer is connected to a LAN port of the ZyXEL Device. Turn on your computer and the ZyXEL Device.

Auto-discover Your UPnP-enabled Network Device

1 Click Start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway. 2 Right-click the icon and select Properties. Figure 155 Network Connections

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection Set up a home or small office network Disable this network device Rename this connection View status of this connection Change settings of this connection Internet Gateway Internet Connection Enabled Internet Connection LAN or H Disable Status Create Shortcut Delete Rename Properties

3 In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created. Figure 156 Internet Connection Properties

Internet Connection Properties General Connect to the Internet using: Internet Connection This connection allows you to connect to the Internet through a shared connection on another computer. Settings... ✓ Show icon in notification area when connected OK Cancel

4 You may edit or delete the port mappings or click Add to manually add port mappings. Figure 157 Internet Connection Properties: Advanced Settings

Advanced Settings Services Select the services: running on your network that. Internet users can access. Services ✓ msnags (192.168.1.65.9610) 16003 TCP ✓ msnags (192.168.1.66.9659) 27111 UDP ✓ msnags (192.168.1.91.7281) 35037 UDP ✓ msnags (192.168.1.91.7810) 31711 TCP Add... Edit... Delete OK Cancel

Figure 158 Internet Connection Properties: Advanced Settings: Add

Service Settings Description of service: Test Name or IP address (for example 192.168.0.12) of the computer hosting this service on your network: 192.168.1.11 External Port number for this service: 143 Internal Port number for this service: 143 TCP UDP OK Cancel

5 When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically. 6 Select Show icon in notification area when connected option and click OK. An icon displays in the system tray. Figure 159 System Tray Icon

Internet Connection is now connected Click here for more information... upnp2 - Paint 6:43 PM

7 Double-click on the icon to display your current Internet connection status. Figure 160 Internet Connection Status

Internet Connection Status General Internet Gateway Status: Connected Duration: 00:00:56 Speed: 100.0 Mbps Activity Internet Internet Gateway My Computer Packets: Sent: 8 618 Received: 5,943 746 Properties Disable Close

Web Configurator Easy Access

With UPnP, you can access the web-based configurator on the ZyXEL Device without finding out the IP address of the ZyXEL Device first. This comes helpful if you do not know the IP address of the ZyXEL Device. Follow the steps below to access the web configurator. 1 Click Start and then Control Panel. 2 Double-click Network Connections. 3 Select My Network Places under Other Places. Figure 161 Network Connections

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection Set up a home or small office network See Also Network Troubleshooter Other Places Control Panel My Network Places My Documents My Computer Details Network Connections System Folder Internet Gateway Internet Connection Disabled Internet Connection LAN or High-Speed Internet Local Area Connection Enabled Accton EN1207D-TX PCI Fast ...

4 An icon with the description for each UPnP-enabled device displays under Local Network. 5 Right-click on the icon for your ZyXEL Device and select Invoke. The web configurator login screen displays. Figure 162 Network Connections: My Network Places

My Network Places File Edit View Favorites Tools Help Back Search Folders Address My Network Places Network Tasks Add a network place View network connections Set up a home or small office network View workgroup computers Local Network ZyXEL Prestige 650R-31 Internet Sharing Gateway Invoke Create Shortcut Delete Rename Properties Other Places

6 Right-click on the icon for your ZyXEL Device and select Properties. A properties window displays with basic information about the ZyXEL Device. Figure 163 Network Connections: My Network Places: Properties: Example

ZyXEL Prestige 650R-31 Internet Sharing Gateway Pr... General ZyXEL Prestige 650R-31 Internet Sharing Gateway Manufacturer: ZyXEL Model Name: ZyXEL Internet Sharing Gateway Model Number: Prestige 650R-31 Description: ZyXEL Prestige 650R-31 Internet Sharing Gateway Device Address: http://192.168.1.1/ Close Cancel

CHAPTER 23 System

Use this screen to configure the ZyXEL Device's time and date settings.

23.1 General Setup and System Name

General Setup contains administrative and system-related information. System Name is for identification purposes. However, because some ISPs check this name you should enter your computer's "Computer Name". - In Windows 95/98 click Start, Settings, Control Panel, Network. Click the Identification tab, note the entry for the Computer Name field and enter it as the System Name. - In Windows 2000, click Start, Settings, Control Panel and then double-click System. Click the Network Identification tab and then the Properties button. Note the entry for the Computer name field and enter it as the System Name. - In Windows XP, click start, My Computer, View system information and then click the Computer Name tab. Note the entry in the Full computer name field and enter it as the ZyXEL Device System Name.

23.1.1 General Setup

The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave this blank, the domain name obtained by DHCP from the ISP is used. While you must enter the host name (System Name), the domain name can be assigned from the ZyXEL Device via DHCP. Click Maintenance > System to open the General screen. Figure 164 System General Setup

General Time Setting System Setup System Name Domain Name Administrator Inactivity Timer 5 (minutes, 0 means no timeout) Password Old Password New Password Retype to confirm Caution: Please record your new password whenever you change it. The system will lock you out if you have forgotten your password. Apply Cancel

The following table describes the labels in this screen. Table 113 System General Setup

LABEL	DESCRIPTION
General Setup
System Name	Choose a descriptive name for identification purposes. It is recommended you enter your computer's “Computer name” in this field. This name can be up to 30 alphanumeric characters long. Spaces are not allowed, but dashes “-” and underscores ”_” are accepted.
Domain Name	Enter the domain name (if you know it) here. If you leave this field blank, the ISP may assign a domain name via DHCP.The domain name entered by you is given priority over the ISP assigned domain name.
Administrator Inactivity Timer	Type how many minutes a management session (either via the web configurator or telnet) can be left idle before the session times out. The default is 5 minutes. After it times out you have to log in with your password again. Very long idle timeouts may have security risks. A value of "0" means a management session never times out, no matter how long it has been left idle (not recommended).
Password
Old Password	Type the default password or the existing password you use to access the system in this field.
New Password	Type your new system password (up to 30 characters). Note that as you type a password, the screen displays a (*) for each character you type. After you change the password, use the new password to access the ZyXEL Device.
Retype to Confirm	Type the new password again for confirmation.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

23.2 Time Setting

To change your ZyXEL Device's time and date, click Maintenance > System > Time Setting. The screen appears as shown. Use this screen to configure the ZyXEL Device's time based on your local time zone. Figure 165 System Time Setting

General Time Setting Current Time and Date Current Time 00:52:08 Current Date 2000-01-01 Time and Date Setup ● Manual New Time (hh:mm:ss) 0 : 50 : 58 New Date (yyyy/mm/dd) 2000 / 1 / 1 ○ Get from Time Server Time Protocol Waytime (RFC-867) Time Server Address 0.0.0.0 Time Zone Setup Time Zone (GMT) Greenwich Mean Time : Dublin Edinburgh, Lisbon, London □ Daylight Savings Start Date First Sunday of January (2000-01-02) at 0 o'clock End Date First Sunday of January (2000-01-02) at 0 o'clock Apply Cancel

The following table describes the fields in this screen. Table 114 System Time Setting

LABEL	DESCRIPTION
Current Time and Date
Current Time	This field displays the time of your ZyXEL Device.Each time you reload this page, the ZyXEL Device synchronizes the time with the time server.
Current Date	This field displays the date of your ZyXEL Device.Each time you reload this page, the ZyXEL Device synchronizes the date with the time server.
Time and Date Setup
Manual	Select this radio button to enter the time and date manually. If you configure a new time and date, Time Zone and Daylight Saving at the same time, the new time and date you entered has priority and the Time Zone and Daylight Saving settings do not affect it.
New Time (hh:mm:ss)	This field displays the last updated time from the time server or the last time configured manually.When you set Time and Date Setup to Manual, enter the new time in this field and then click Apply.
New Date (yyyy/mm/dd)	This field displays the last updated date from the time server or the last date configured manually.When you set Time and Date Setup to Manual, enter the new date in this field and then click Apply.
Get from Time Server	Select this radio button to have the ZyXEL Device get the time and date from the time server you specified below.
Time Protocol	Select the time service protocol that your time server sends when you turn on the ZyXEL Device. Not all time servers support all protocols, so you may have to check with your ISP/network administrator or use trial and error to find a protocol that works.The main difference between them is the format.Daytime (RFC 867) format is day/month/year/time zone of the server.Time (RFC 868) format displays a 4-byte integer giving the total number of seconds since 1970/1/1 at 0:0:0.The default, NTP (RFC 1305), is similar to Time (RFC 868).
Time Server Address	Enter the IP address or URL (up to 20 extended ASCII characters in length) of your time server. Check with your ISP/network administrator if you are unsure of this information.
Time Zone Setup
Time Zone	Choose the time zone of your location. This will set the time difference between your time zone and Greenwich Mean Time (GMT).
Daylight Saving	Daylight saving is a period from late spring to early fall when many countries set their clocks ahead of normal local time by one hour to give more daytime light in the evening.Select this option if you use Daylight Saving Time.
Start Date	Configure the day and time when Daylight Saving Time starts if you selected Enable Daylight Saving. The o'clock field uses the 24 hour format. Here are a couple of examples:Daylight Saving Time starts in most parts of the United States on the first Sunday of April. Each time zone in the United States starts using Daylight Saving Time at 2 A.M. local time. So in the United States you would select First, Sunday, April and type 2 in the o'clock field.Daylight Saving Time starts in the European Union on the last Sunday of March. All of the time zones in the European Union start using Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in the European Union you would select Last, Sunday, March. The time you type in the o'clock field depends on your time zone. In Germany for instance, you would type 2 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
End Date	Configure the day and time when Daylight Saving Time ends if you selected Enable Daylight Saving. The o'clock field uses the 24 hour format. Here are a couple of examples:Daylight Saving Time ends in the United States on the last Sunday of October. Each time zone in the United States stops using Daylight Saving Time at 2 A.M. local time. So in the United States you would select Last, Sunday, October and type 2 in the o'clock field.Daylight Saving Time ends in the European Union on the last Sunday of October. All of the time zones in the European Union stop using Daylight Saving Time at the same moment (1 A.M. GMT or UTC). So in the European Union you would select Last, Sunday, October. The time you type in the o'clock field depends on your time zone. In Germany for instance, you would type 2 because Germany's time zone is one hour ahead of GMT or UTC (GMT+1).
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to begin configuring this screen afresh.

CHAPTER 24 Logs

This chapter contains information about configuring general log settings and viewing the ZyXEL Device's logs. Refer to the appendix for example log message explanations.

24.1 Logs Overview

The web configurator allows you to choose which categories of events and/or alerts to have the ZyXEL Device log and then display the logs or have the ZyXEL Device send them to an administrator (as e-mail) or to a syslog server.

24.1.1 Alerts and Logs

An alert is a type of log that warrants more serious attention. They include system errors, attacks (access control) and attempted access to blocked web sites. Some categories such as System Errors consist of both logs and alerts. You may differentiate them by their color in the View Log screen. Alerts display in red and logs display in black.

24.2 Viewing the Logs

Click Maintenance > Logs to open the View Log screen. Use the View Log screen to see the logs for the categories that you selected in the Log Settings screen (see Section 24.3 on page 296). Log entries in red indicate alerts. The log wraps around and deletes the old entries after it fills. Click a column heading to sort the entries. A triangle indicates ascending or descending sort order. Figure 166 View Log

View Log Log Settings View Logs Display: All Logs Email Log Now Refresh Clear Log

Time ▲ Message Source Destination Notes

1 01/01/2000 00:33:40 WEB Login Successfully User:admin 2 01/01/2000 00:31:32 none: UDP 192.168.1.1:53 192.168.1.34:1197 ACCESS PERMITTED 3 01/01/2000 00:31:32 none: UDP 192.168.1.1:53 192.168.1.34:1196 ACCESS PERMITTED 4 01/01/2000 00:31:32 none: UDP 192.168.1.1:53 192.168.1.34:1195 ACCESS PERMITTED 5 01/01/2000 00:30:23 WEB Login Successfully User:user

The following table describes the fields in this screen. Table 115 View Log

LABEL	DESCRIPTION
Display	The categories that you select in theLog Settingsscreen display in the drop-down list box.Select a category of logs to view; selectAll Logsto view logs from all of the log categories that you selected in theLog Settingspage.
Email Log Now	ClickEmail Log Nowto send the log screen to the e-mail address specified in theLog Settingspage (make sure that you have first filled in theE-mail Log Settingsfields inLog Settings).
Refresh	ClickRefreshto renew the log screen.
Clear Log	ClickClear Logto delete all the logs.
#	This field is a sequential value and is not associated with a specific entry.
Time	This field displays the time the log was recorded.
Message	This field states the reason for the log.
Source	This field lists the source IP address and the port number of the incoming packet.
Destination	This field lists the destination IP address and the port number of the incoming packet.
Notes	This field displays additional information about the log entry.

24.3 Configuring Log Settings

Use the Log Settings screen to configure to where the ZyXEL Device is to send logs; the schedule for when the ZyXEL Device is to send the logs and which logs and/or immediate alerts the ZyXEL Device is to record. See Section 24.1 on page 295 for more information. To change your ZyXEL Device's log settings, click Maintenance > Logs > Log Settings. The screen appears as shown. Alerts are e-mailed as soon as they happen. Logs may be e-mailed as soon as the log is full. Selecting many alert and/or log categories (especially Access Control) may result in many e-mails being sent. Figure 167 Log Settings

View Log Log Settings E-mail Log Settings Mail Server: (Outgoing SMTP Server Name or IP Address) Mail Subject: Send Log to: (E-Mail Address) Send Alerts to: (E-Mail Address) Enable SMTP Authentication User Name: Password: Log Schedule: None Day for Sending Log: Monday Time for Sending Log: 0 (hour) 0 (minute) Clear log after sending mail Syslog Logging Active Syslog IP Address: 0.0.0.0 (Server Name or IP Address) Log Facility: Local 1 Active Log and Alert Log System Maintenance System Errors Access Control UPnP Forward Web Sites Blocked Web Sites Attacks Any IP SIP RTP FSM Send Immediate Alert System Errors Access Control Blocked Web Sites Attacks Apply Cancel

The following table describes the fields in this screen. Table 116 Log Settings

LABEL	DESCRIPTION
E-mail Log Settings
Mail Server	Enter the server name or the IP address of the mail server for the e-mail addresses specified below. If this field is left blank, logs and alert messages will not be sent via E-mail.

Table 116 Log Settings

LABEL	DESCRIPTION
Mail Subject	Type a title that you want to be in the subject line of the log e-mail message that the ZyXEL Device sends. Not all ZyXEL Device models have this field.
Send Log to	The ZyXEL Device sends logs to the e-mail address specified in this field. If this field is left blank, the ZyXEL Device does not send logs via e-mail.
Send Alerts to	Alerts are real-time notifications that are sent as soon as an event, such as a DoS attack, system error, or forbidden web access attempt occurs. Enter the E-mail address where the alert messages will be sent. Alerts include system errors, attacks and attempted access to blocked web sites. If this field is left blank, alert messages will not be sent via E-mail.
Enable SMTP Authentication	SMTP (Simple Mail Transfer Protocol) is the message-exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another. Select the check box to activate SMTP authentication. If mail server authentication is needed but this feature is disabled, you will not receive the e-mail logs.
User Name	Enter the user name (up to 31 characters) (usually the user name of a mail account).
Password	Enter the password associated with the user name above.
Log Schedule	This drop-down menu is used to configure the frequency of log messages being sent as E-mail:DailyWeeklyHourlyWhen Log is FullNone.If you select Weekly or Daily, specify a time of day when the E-mail should be sent. If you select Weekly, then also specify which day of the week the E-mail should be sent. If you select When Log is Full, an alert is sent when the log fills up. If you select None, no log messages are sent.
Day for Sending Log	Use the drop down list box to select which day of the week to send the logs.
Time for Sending Log	Enter the time of the day in 24-hour format (for example 23:00 equals 11:00 pm) to send the logs.
Clear log after sending mail	Select the checkbox to delete all the logs after the ZyXEL Device sends an E-mail of the logs.
Syslog Logging	The ZyXEL Device sends a log to an external syslog server.
Active	Click Active to enable syslog logging.
Syslog IP Address	Enter the server name or IP address of the syslog server that will log the selected categories of logs.
Log Facility	Select a location from the drop down list box. The log facility allows you to log the messages to different files in the syslog server. Refer to the syslog server manual for more information.
Active Log and Alert
Log	Select the categories of logs that you want to record.
Send Immediate Alert	Select log categories for which you want the ZyXEL Device to send E-mail alerts immediately.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to return to the previously saved settings.

24.4 SMTP Error Messages

If there are difficulties in sending e-mail the following error message appears. “SMTP action request failed. ret=??”. The “?” are described in the following table. Table 117 SMTP Error Messages

-1 means ZyXEL Device out of socket

-2 means tcp SYN fail

-3 means smtp server OK fail

-4 means HELO fail

-5 means MAIL FROM fail

-6 means RCPT TO fail

-7 means DATA fail

-8 means mail data send fail

24.4.1 Example E-mail Log

An "End of Log" message displays for each mail in which a complete log has been sent. The following is an example of a log sent by e-mail. - You may edit the subject title. • The date format here is Day-Month-Year. - The date format here is Month-Day-Year. The time format is Hour-Minute-Second. - "End of Log" message shows that a complete log has been sent. Figure 168 E-mail Log Example

Subject:
Firewall Alert From
Date:
Fri, 07 Apr 2000 10:05:42
From:
[e-mail]
To:
[e-mail]
1|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |default policy |forward
| 09:54:03 |UDP src port:00520 dest port:00520 |<1,00> |
2|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |default policy |forward
| 09:54:17 |UDP src port:00520 dest port:00520 |<1,00> |
3|Apr 7 00 |From:192.168.1.6 To:10.10.10.10 |match |forward
| 09:54:19 |UDP src port:03516 dest port:00053 |<1,01> |
......{snip}......
......{snip}......
126|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:00 |UDP src port:00520 dest port:00520 |<1,02> |
127|Apr 7 00 |From:192.168.1.131 To:192.168.1.255 |match |forward
| 10:05:17 |UDP src port:00520 dest port:00520 |<1,02> |
128|Apr 7 00 |From:192.168.1.1 To:192.168.1.255 |match |forward
| 10:05:30 |UDP src port:00520 dest port:00520 |<1,02> |
End of Firewall Log

CHAPTER 25 Tools

This chapter explains how to upload new firmware, manage configuration files and restart your ZyXEL Device. Note: Do not interrupt the file transfer process as this may PERMANENTLY DAMAGE YOUR ZyXEL Device.

25.1 Introduction

Use the instructions in this chapter to change the device's configuration file or upgrade its firmware. After you configure your device, you can backup the configuration file to a computer. That way if you later misconfigure the device, you can upload the backed up configuration file to return to your previous settings. You can alternately upload the factory default configuration file if you want to return the device to the original default settings. The firmware determines the device's available features and functionality. You can download new firmware releases from your nearest ZyXEL FTP site (or www.zyxel.com) to use to upgrade your device's performance. Note: Only use firmware for your device's specific model. Refer to the label on the bottom of your ZyXEL Device.

25.2 Filename Conventions

The configuration file (often called the romfile or rom-0) contains the factory default settings in the menus such as password, DHCP Setup, TCP/IP Setup, etc. It arrives from ZyXEL with a “rom” filename extension. Once you have customized the ZyXEL Device's settings, they can be saved back to your computer under a filename of your choosing. ZyNOS (ZyXEL Network Operating System sometimes referred to as the “ras” file) is the system firmware and has a “bin” filename extension. Find this firmware at www.zyxel.com. With many FTP and TFTP clients, the filenames are similar to those seen next. ftp> put firmware.bin ras This is a sample FTP session showing the transfer of the computer file "firmware.bin" to the ZyXEL Device. ftp> get rom-0 config.cfg This is a sample FTP session saving the current configuration to the computer file "config.cfg". If your (T)FTP client does not allow you to have a destination filename different than the source, you will need to rename them as the ZyXEL Device only recognizes “rom-0” and “ras”. Be sure you keep unaltered copies of both files for later use. The following table is a summary. Please note that the internal filename refers to the filename on the ZyXEL Device and the external filename refers to the filename not on the ZyXEL Device, that is, on your computer, local network or FTP site and so the name (but not the extension) may vary. After uploading new firmware, see the Status screen to confirm that you have uploaded the correct firmware version. Table 118 Filename Conventions

FILE TYPE	INTERNAL NAME	EXTERNAL NAME	DESCRIPTION
Configuration File	Rom-0	This is the configuration filename on the ZyXEL Device. Uploading the rom-0 file replaces the entire ROM file system, including your ZyXEL Device configurations, system-related data (including the default password), the error log and the trace log.	*.rom
Firmware	Ras	This is the generic name for the ZyNOS firmware on the ZyXEL Device.	*.bin

25.3 File Maintenance Over WAN

TFTP, FTP and Telnet over the WAN will not work when: 1 The firewall is active (turn the firewall off or create a firewall rule to allow access from the WAN). 2 You have disabled Telnet service in menu 24.11. 3 You have applied a filter in menu 3.1 (LAN) or in menu 11.5 (WAN) to block Telnet service. 4 The IP you entered in the Secured Client IP field in menu 24.11 does not match the client IP. If it does not match, the device will disconnect the Telnet session immediately.

25.4 Firmware Upgrade Screen

Click Maintenance > Tools to open the Firmware screen. Follow the instructions in this screen to upload firmware to your ZyXEL Device. The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot. See Section 25.9 on page 311 for upgrading firmware using FTP/TFTP commands. Figure 169 Firmware Upgrade

Firmware Configuration Restart Firmware Upgrade To upgrade the internal device firmware, browse to the location of the binary (.BIN) upgrade file and click Upload. Upgrade files can be downloaded from website. If the upgrade file is compressed (.ZIP file), you must first extract the binary (.BIN) file. In some cases, you may need to reconfigure Current Firmware Version: V3.40(ADQ.0)b3_0120 | 01/20/2006 File Path: Browse... Upload

The following table describes the labels in this screen. Table 119 Firmware Upgrade

LABEL	DESCRIPTION
Current Firmware Version	This is the present Firmware version and the date created.
File Path	Type in the location of the file you want to upload in this field or click Browse ... to find it.
Browse...	Click Browse... to find the .bin file you want to upload. Remember that you must decompress compressed (.zip) files before you can upload them.
Upload	Click Upload to begin the upload process. This process may take up to two minutes.

Note: Do NOT turn off the ZyXEL Device while firmware upload is in progress! After you see the Firmware Upload in Progress screen, wait two minutes before logging into the ZyXEL Device again. Figure 170 Firmware Upload In Progress

ZyXEL Firmware Upload In Progress Do not Turn Off the Device. Please Wait ... Please wait for the device to finish restarting(PWR LED is on steady). This should take about two minutes. To access the device after a successful firmware upload, you need to log in again. Check your new firmware version in the system status menu.

The ZyXEL Device automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop. Figure 171 Network Temporarily Disconnected

Local Area Connection Network cable unplugged 10:44

After two minutes, log in again and check your new firmware version in the Status screen. If the upload was not successful, the following screen will appear. Click Return to go back to the Firmware screen. Figure 172 Error Message

System Upload Firmware upload error! The uploaded file was not accepted by the device. Please return to the previous page and select a valid upgrade file. Click Help for more information. Return

25.5 Backup and Restore

See Section 25.7 on page 308 and Section 25.8 on page 310 for transferring configuration files using FTP/TFTP commands. Click Maintenance > Tools > Configuration. Information related to factory defaults, backup configuration, and restoring configuration appears as shown next. Figure 173 Configuration

Firmware Configuration Restart Backup Configuration Click Backup to save the current configuration to you computer. Backup Restore Configuration To restore a previously saved configuration file on your computer to the Prestige, please type a location for storing the configuration file or click Browse to look for one, and then click Upload. File Path: Browse... Upload Reset to Factory Default Settings Click Reset to clear all user-entered configuration and return the Prestige to the factory default settings. The following default settings would become effective after click Reset Password :1234 Lan IP : 192.168.1.1 DHCP : Server . Reset

25.5.1 Backup Configuration

Backup Configuration allows you to back up (save) the ZyXEL Device's current configuration to a file on your computer. Once your ZyXEL Device is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file will be useful in case you need to return to your previous settings. Click Backup to save the ZyXEL Device's current configuration to your computer.

25.5.2 Restore Configuration

Restore Configuration allows you to upload a new or previously saved configuration file from your computer to your ZyXEL Device. Table 120 Restore Configuration

LABEL	DESCRIPTION
File Path	Type in the location of the file you want to upload in this field or clickBrowse...to find it.
Browse...	ClickBrowse...to find the file you want to upload. Remember that you must decompress compressed (.ZIP) files before you can upload them.
Upload	ClickUploadto begin the upload process.

Note: Do not turn off the ZyXEL Device while configuration file upload is in progress. After you see a “restore configuration successful” screen, you must then wait one minute before logging into the ZyXEL Device again. Figure 174 Configuration Upload Successful

ZyXEL Restore Configuration successful The Router Is Rebooting Now. Please Wait ... The router will now reboot. As there will be no indication of when the process is complete, please wait for one minute before attempting to access the router again.

The ZyXEL Device automatically restarts in this time causing a temporary network disconnect. In some operating systems, you may see the following icon on your desktop. Figure 175 Network Temporarily Disconnected

Local Area Connection Network cable unplugged 10:44

If you uploaded the default configuration file you may need to change the IP address of your computer to be in the same subnet as that of the default device IP address (192.168.1.1). See Appendix C on page 341 for details on how to set up your computer's IP address. If the upload was not successful, the following screen will appear. Click Return to go back to the Configuration screen. Figure 176 Configuration Upload Error

System Upload Firmware upload error! The uploaded file was not accepted by the device. Please return to the previous page and select a valid upgrade file. Click Help for more information. Return

25.5.3 Reset to Factory Defaults

Click the Reset button to clear all user-entered configuration information and return the ZyXEL Device to its factory defaults. The following warning screen appears. Figure 177 Reset Warning Message

Microsoft Internet Explorer Are you sure you want to reset the device back to the factory defaults?This will erase all of your custom configuration. OK Cancel

Figure 178 Reset In Process Message

ZyXEL Reset to Factory Default Settings Please Wait ... The router will now reboot. As there will be no indication of when the process is complete, please wait for one minute before attempting to access the device again.

You can also press the RESET button on the rear panel to reset the factory defaults of your ZyXEL Device. Refer to Section 2.1.2 on page 51 for more information on the RESET button.

25.6 Restart

System restart allows you to reboot the ZyXEL Device without turning the power off. Click Maintenance > Tools > Restart. Click Restart to have the ZyXEL Device reboot. This does not affect the ZyXEL Device's configuration. Figure 179 Restart Screen

Firmware Configuration Restart System Reboot Click Restart to have the device perform a software restart. The SYS(or PWR) LED blinks as the device restarts and then stays steady on if the restart is successful. Wait a minute before logging into the device again. Restart

25.7 Using FTP or TFTP to Back Up Configuration

This section covers how to use FTP or TFTP to save your device's configuration file to your computer.

25.7.1 Using the FTP Commands to Back Up Configuration

1 Launch the FTP client on your computer. 2 Enter “open”, followed by a space and the IP address of your ZyXEL Device. 3 Press [ENTER] when prompted for a username. 4 Enter your password as requested (the default is "1234"). 5 Enter "bin" to set transfer mode to binary. 6 Use "get" to transfer files from the ZyXEL Device to the computer, for example, "get rom-0 config.rom" transfers the configuration file on the ZyXEL Device to your computer and renames it "config.rom". See earlier in this chapter for more information on filename conventions. 7 Enter "quit" to exit the ftp prompt.

25.7.2 FTP Command Configuration Backup Example

This figure gives an example of using FTP commands from the DOS command prompt to save your device's configuration onto your computer. Figure 180 FTP Session Example

331 Enter PASS command
Password:
230 Logged in
ftp> bin
200 Type I OK
ftp> get rom-0 zyxel.rom
200 Port command okay
150 Opening data connection for STOR ras
226 File received OK
ftp: 16384 bytes sent in 1.10Seconds 297.89Kbytes/sec.
ftp> quit

25.7.3 Configuration Backup Using GUI-based FTP Clients

The following table describes some of the commands that you may see in GUI-based FTP clients. Table 121 General Commands for GUI-based FTP Clients

COMMAND	DESCRIPTION
Host Address	Enter the address of the host server.
Login Type	Anonymous.This is when a user I.D. and password is automatically supplied to the server for anonymous access. Anonymous logins will work only if your ISP or service administrator has enabled this option.Normal.The server requires a unique User ID and Password to login.
Transfer Type	Transfer files in either ASCII (plain text format) or in binary mode.
Initial Remote Directory	Specify the default remote directory (path).
Initial Local Directory	Specify the default local directory (path).

25.7.4 Backup Configuration Using TFTP

The ZyXEL Device supports the up/downloading of the firmware and the configuration file using TFTP (Trivial File Transfer Protocol) over LAN. Although TFTP should work over WAN as well, it is not recommended. To use TFTP, your computer must have both telnet and TFTP clients. To backup the configuration file, follow the procedure shown next. 1 Use telnet from your computer to connect to the ZyXEL Device and log in. Because TFTP does not have any security checks, the ZyXEL Device records the IP address of the telnet client and accepts TFTP requests only from this address. 2 Enter command “sys stdio 0” to disable the management idle timeout, so the TFTP transfer will not be interrupted. Enter command “sys stdio 5” to restore the five-minute management idle timeout (default) when the file transfer is complete. 3 Launch the TFTP client on your computer and connect to the ZyXEL Device. Set the transfer mode to binary before starting data transfer. 4 Use the TFTP client (see the example below) to transfer files between the ZyXEL Device and the computer. The file name for the configuration file is “rom-0” (rom-zero, not capital o). Note that the telnet connection must be active before and during the TFTP transfer. For details on TFTP commands (see following example), please consult the documentation of your TFTP client program. For UNIX, use “get” to transfer from the ZyXEL Device to the computer and “binary” to set binary transfer mode.

25.7.5 TFTP Command Configuration Backup Example

The following is an example TFTP command: tftp [-i] host get rom-0 config.rom where “i” specifies binary image transfer mode (use this mode when transferring binary files), “host” is the ZyXEL Device IP address, “get” transfers the file source on the ZyXEL Device (rom-0, name of the configuration file on the ZyXEL Device) to the file destination on the computer and renames it config.rom.

25.7.6 Configuration Backup Using GUI-based TFTP Clients

The following table describes some of the fields that you may see in GUI-based TFTP clients. Table 122 General Commands for GUI-based TFTP Clients

COMMAND	DESCRIPTION
Host	Enter the IP address of the ZyXEL Device. 192.168.1.1 is the ZyXEL Device's default IP address when shipped.
Send/Fetch	Use “Send” to upload the file to the ZyXEL Device and “Fetch” to back up the file on your computer.
Local File	Enter the path and name of the firmware file (*.bin extension) or configuration file (*.rom extension) on your computer.
Remote File	This is the filename on the ZyXEL Device. The filename for the firmware is “ras” and for the configuration file, is “rom-0”.
Binary	Transfer the file in binary mode.
Abort	Stop transfer of the file.

Refer to Section 25.3 on page 302 to read about configurations that disallow TFTP and FTP over WAN.

25.8 Using FTP or TFTP to Restore Configuration

This section shows you how to restore a previously saved configuration. Note that this function erases the current configuration before restoring a previous back up configuration; please do not attempt to restore unless you have a backup configuration file stored on disk. FTP is the preferred method for restoring your current computer configuration to your device since FTP is faster. Please note that you must wait for the system to automatically restart after the file transfer is complete.

Note: WARNING!

Do not interrupt the file transfer process as this may PERMANENTLY DAMAGE YOUR device. When the Restore Configuration process is complete, the device will automatically restart.

25.8.1 Restore Using FTP Session Example

Figure 181 Restore Using FTP Session Example

ftp> put config.rom rom-0
200 Port command okay
150 Opening data connection for STOR rom-0
226 File received OK
221 Goodbye for writing flash
ftp: 16384 bytes sent in 0.06Seconds 273.07Kbytes/sec.
ftp>quit

Refer to Section 25.3 on page 302 to read about configurations that disallow TFTP and FTP over WAN.

25.9 FTP and TFTP Firmware and Configuration File Uploads

This section shows you how to upload firmware and configuration files.

Note: WARNING!

Do not interrupt the file transfer process as this may PERMANENTLY DAMAGE YOUR device. FTP is the preferred method for uploading the firmware and configuration. To use this feature, your computer must have an FTP client. The following sections give examples of how to upload the firmware and the configuration files.

25.9.1 FTP File Upload Command from the DOS Prompt Example

1 Launch the FTP client on your computer. 2 Enter “open”, followed by a space and the IP address of your device. 3 Press [ENTER] when prompted for a username. 4 Enter your password as requested (the default is “1234”). 5 Enter "bin" to set transfer mode to binary. 6 Use “put” to transfer files from the computer to the device, for example, “put firmware.bin ras” transfers the firmware on your computer (firmware.bin) to the device and renames it “ras”. Similarly, “put config.rom rom-0” transfers the configuration file on your computer (config.rom) to the device and renames it “rom-0”. Likewise “get rom- 0 config.rom" transfers the configuration file on the device to your computer and renames it "config.rom." See earlier in this chapter for more information on filename conventions. 7 Enter "quit" to exit the ftp prompt.

25.9.2 FTP Session Example of Firmware File Upload

Figure 182 FTP Session Example of Firmware File Upload

331 Enter PASS command
Password:
230 Logged in
ftp> bin
200 Type I OK
ftp> put firmware.bin ras
200 Port command okay
150 Opening data connection for STOR ras
226 File received OK
ftp: 1103936 bytes sent in 1.10Seconds
297.89Kbytes/sec.
ftp> quit

More commands (found in GUI-based FTP clients) are listed earlier in this chapter. Refer to Section 25.3 on page 302 to read about configurations that disallow TFTP and FTP over WAN.

25.9.3 TFTP File Upload

The device also supports the uploading of firmware files using TFTP (Trivial File Transfer Protocol) over LAN. Although TFTP should work over WAN as well, it is not recommended. To use TFTP, your computer must have both telnet and TFTP clients. To transfer the firmware and the configuration file, follow the procedure shown next. 1 Use telnet from your computer to connect to the device and log in. Because TFTP does not have any security checks, the device records the IP address of the telnet client and accepts TFTP requests only from this address. 2 Enter the command “sys stdio 0” to disable the management idle timeout, so the TFTP transfer will not be interrupted. Enter “command sys stdio 5” to restore the five-minute management idle timeout (default) when the file transfer is complete. 3 Launch the TFTP client on your computer and connect to the device. Set the transfer mode to binary before starting data transfer. 4 Use the TFTP client (see the example below) to transfer files between the device and the computer. The file name for the firmware is “ras”. Note that the telnet connection must be active and the device in CI mode before and during the TFTP transfer. For details on TFTP commands (see following example), please consult the documentation of your TFTP client program. For UNIX, use “get” to transfer from the device to the computer, “put” the other way around, and “binary” to set binary transfer mode.

25.9.4 TFTP Upload Command Example

The following is an example TFTP command: tftp [-i] host put firmware.bin ras Where “i” specifies binary image transfer mode (use this mode when transferring binary files), “host” is the device’s IP address, “put” transfers the file source on the computer (firmware.bin – name of the firmware on the computer) to the file destination on the remote host (ras - name of the firmware on the device). Commands that you may see in GUI-based TFTP clients are listed earlier in this chapter.

CHAPTER 26 Diagnostic

These read-only screens display information to help you identify problems with the ZyXEL Device.

26.1 General Diagnostic

Click Maintenance > Diagnostic to open the screen shown next. Figure 183 Diagnostic: General

General DSL Line General - Info - TCP/IP Address Ping

The following table describes the fields in this screen. Table 123 Diagnostic: General

LABEL	DESCRIPTION
TCP/IP Address	Type the IP address of a computer that you want to ping in order to test a connection.
Ping	Click this button to ping the IP address that you entered.

26.2 DSL Line Diagnostic

Click Maintenance > Diagnostic > DSL Line to open the screen shown next. Figure 184 Diagnostic: DSL Line

SAR Driver Counters Display: inPkts = 0x00000000, inDiscards = 0x00000000 outPkts = 0x00000000, outDiscards = 0x00000000 inF4Pkts = 0x00000000, outF4Pkts = 0x00000000 inF5Pkts = 0x00000000, outF5Pkts = 0x00000000 openChan = 0x00000001, closeChan = 0x00000000 txRate(Bps) = 0, rxRate(Bps) = 0 ATM Status ATM Loopback Test DSL Line Status Reset ADSL Line Capture All Logs

The following table describes the fields in this screen. Table 124 Diagnostic: DSL Line

LABEL	DESCRIPTION
ATM Status	Click this button to view your DSL connection's Asynchronous Transfer Mode (ATM) statistics. ATM is a networking technology that provides high-speed data transfer. ATM uses fixed-size packets of information called cells. With ATM, a high QoS (Quality of Service) can be guaranteed.The (Segmentation and Reassembly) SAR driver translates packets into ATM cells. It also receives ATM cells and reassembles them into packets.These counters are set back to zero whenever the device starts up.inPktsis the number of good ATM cells that have been received.inDiscardsis the number of received ATM cells that were rejected.outPktsis the number of ATM cells that have been sent.outDiscardsis the number of ATM cells sent that were rejected.inF4Pktsis the number of ATM Operations, Administration, and Management (OAM) F4 cells that have been received. See ITU recommendation I.610 for more on OAM for ATM.outF4Pktsis the number of ATM OAM F4 cells that have been sent.inF5Pktsis the number of ATM OAM F5 cells that have been received.outF5Pktsis the number of ATM OAM F5 cells that have been sent.openChanis the number of times that the ZyXEL Device has opened a logical DSL channel.closeChanis the number of times that the ZyXEL Device has closed a logical DSL channel.txRateis the number of bytes transmitted per second.rxRateis the number of bytes received per second.
ATM Loopback Test	Click this button to start the ATM loopback test. Make sure you have configured at least one PVC with proper VPIs/VCIs before you begin this test. The ZyXEL Device sends an OAM F5 packet to the DSLAM/ATM switch and then returns it (loops it back) to the ZyXEL Device. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network.
DSL Line Status	Click this button to view statistics about the DSL connections. noise margin downstream is the signal to noise ratio for the downstream part of the connection (coming into the ZyXEL Device from the ISP). It is measured in decibels. The higher the number the more signal and less noise there is. output power upstream is the amount of power (in decibels) that the ZyXEL Device is using to transmit to the ISP. attentuation downstream is the reduction in amplitude (in decibels) of the DSL signal coming into the ZyXEL Device from the ISP. Discrete Multi-Tone (DMT) modulation divides up a line's bandwidth into sub-carriers (sub-channels) of 4.3125 KHz each called tones. The rest of the display is the line's bit allocation. This is displayed as the number (in hexadecimal format) of bits transmitted for each tone. This can be used to determine the quality of the connection, whether a given sub-carrier loop has sufficient margins to support certain ADSL transmission rates, and possibly to determine whether particular specific types of interference or line attenuation exist. Refer to the ITU-T G.992.1 recommendation for more information on DMT. The better (or shorter) the line, the higher the number of bits transmitted for a DMT tone. The maximum number of bits that can be transmitted per DMT tone is 15. There will be some tones without any bits as there has to be space between the upstream and downstream channels.
Reset ADSL Line	Click this button to reinitialize the ADSL line. The large text box above then displays the progress and results of this operation, for example: "Start to reset ADSL Loading ADSL modem F/W... Reset ADSL Line Successfully!"
Capture All Logs	Click this button to display information and statistics about your ZyXEL Device's ATM statistics, DSL connection statistics, DHCP settings, firmware version, WAN and gateway IP address, VPI/VCI and LAN IP address.

CHAPTER 27 Troubleshooting

This chapter covers potential problems and the corresponding remedies.

27.1 Problems Starting Up the ZyXEL Device

Table 125 Troubleshooting Starting Up Your Device

PROBLEM	CORRECTIVE ACTION
None of the lights turn on when I turn on the ZyXEL Device.	Make sure that the ZyXEL Device’s power adaptor is connected to the ZyXEL Device and plugged in to an appropriate power source. Make sure that the ZyXEL Device and the power source are both turned on.Turn the ZyXEL Device off and on.If the error persists, you may have a hardware problem. In this case, you should contact your vendor.

27.2 Problems with the LAN

Table 126 Troubleshooting the LAN

PROBLEM	CORRECTIVE ACTION
The ETHERNET lights do not turn on.	Check your Ethernet cable connections (refer to the Quick Start Guide for details). Check for faulty Ethernet cables.
	Make sure your computer's Ethernet Card is working properly.
I cannot access the ZyXEL Device from the LAN.	If Any IP is disabled, make sure that the IP address and the subnet mask of the ZyXEL Device and your computer(s) are on the same subnet.

27.3 Problems with the WAN

Table 127 Troubleshooting the WAN

PROBLEM	CORRECTIVE ACTION
The DSL light is off.	Check the telephone wire and connections between the ZyXEL Device DSL port and the wall jack.
	Make sure that the telephone company has checked your phone line and set it up for DSL service.
	Reset your DSL line to reinitialize your link to the DSLAM. For details, refer to Section 26.2 on page 315.
I cannot get a WAN IP address from the ISP. (The INTERNET light is red.)	The ISP provides the WAN IP address after authenticating you. Authentication may be through the user name and password, the MAC address or the host name.The username and password apply to PPPoE and PPPoA encapsulation only.Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct case). Refer to Section 7.5 on page 98.
I cannot access the Internet.	Make sure the ZyXEL Device is turned on and connected to the network.Verify your WAN settings. Refer to Chapter 7 on page 93.Make sure you entered the correct user name and password.If you use PPPoE pass through, make sure that bridge mode is turned on.
The Internet connection disconnects.	If you use PPPoA or PPPoE encapsulation, check the idle time-out setting. Refer to Section 7.5 on page 98.Contact your ISP.

27.4 Problems Accessing the ZyXEL Device

Table 128 Troubleshooting Accessing Your Device

PROBLEM	CORRECTIVE ACTION
I cannot access the ZyXEL Device.	The username is “admin”. The default password is “1234”. The Password and Username fields are case-sensitive. Make sure that you enter the correct password and username using the proper casing.If you have changed the password and have now forgotten it, you will need to upload the default configuration file. This restores all of the factory defaults including the password.
I cannot access the web configurator.	Make sure that there is not a telnet session running.Use the ZyXEL Device’s WAN IP address when configuring from the WAN. Refer to the instructions on checking your WAN connection.Use the ZyXEL Device’s LAN IP address when configuring from the LAN. Refer to for instructions on checking your LAN connection.Check that you have enabled web service access. If you have configured a secured client IP address, your computer’s IP address must match it. Refer to Chapter 21 on page 267 for details.Your computer’s and the ZyXEL Device’s IP addresses must be on the same subnet for LAN access.If you changed the ZyXEL Device’s LAN IP address, then enter the new one as the URL.See the following section to check that pop-up windows, JavaScripts and Java permissions are allowed.
	You may also need to clear your Internet browser’s cache.In Internet Explorer, click Tools and then Internet Options to open the Internet Options screen.In the General tab, click Delete Files. In the pop-up window, select the Delete all offline content check box and click OK. Click OK in the Internet Options screen to close it.If you disconnect your computer from one device and connect it to another device that has the same IP address, your computer’s ARP (Address Resolution Protocol) table may contain an entry that maps the management IP address to the previous device’s MAC address).In Windows, use arp -d at the command prompt to delete all entries in your computer’s ARP table.
I cannot remotely manage the ZyXEL Device from the LAN or WAN.	Refer to Chapter 21 on page 267 for scenarios when remote management may not be possible.
	Use the ZyXEL Device’s WAN IP address when configuring from the WAN.Use the ZyXEL Device’s LAN IP address when configuring from the LAN.

27.4.1 Pop-up Windows, JavaScripts and Java Permissions

In order to use the web configurator you need to allow: - Web browser pop-up windows from your device. - JavaScripts (enabled by default). \- Java permissions (enabled by default). Note: Internet Explorer 6 screens are used here. Screens for other Internet Explorer versions may vary.

27.4.1.1 Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device. Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow pop-up blocking and create an exception for your device's IP address.

27.4.1.1.1 Disable pop-up Blockers

1 In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker. Figure 185 Pop-up Blocker

Tools Mail and News Pop-up Blocker Manage Add-ons... Synchronize... Windows Update Windows Messenger Internet Options... Turn Off Pop-up Blocker Pop-up Blocker Settings

You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab. 1 In Internet Explorer, select Tools, Internet Options, Privacy. 2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any web pop-up blockers you may have enabled. Figure 186 Internet Options

Internet Options General Security Privacy Content Connections Programs Advanced Settings Move the slider to select a privacy setting for the Internet zone. Medium - Blocks third-party cookies that do not have a compact privacy policy - Blocks third-party cookies that use personally identifiable information without your implicit consent - Restricts first-party cookies that use personally identifiable information without implicit consent Sites... Import... Advanced... Default Pop-up Blocker Prevent most pop-up windows from appearing. Block pop-ups Settings... OK Cancel Apply

3 Click Apply to save this setting.

27.4.1.1.2 Enable pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps. 1 In Internet Explorer, select Tools, Internet Options and then the Privacy tab. 2 Select Settings...to open the Pop-up Blocker Settings screen. Figure 187 Internet Options

Internet Options General Security Privacy Content Connections Programs Advanced Settings Move the slider to select a privacy setting for the Internet zone. Medium - Blocks third-party cookies that do not have a compact privacy policy - Blocks third-party cookies that use personally identifiable information without your implicit consent - Restricts first-party cookies that use personally identifiable information without implicit consent Sites... Import... Advanced... Default Pop-up Blocker Prevent most pop-up windows from appearing. ✓ Block pop-ups Settings... OK Cancel Apply

3 Type the IP address of your device (the web page that you do not want to have blocked) with the prefix "http://". For example, http://192.168.1.1. 4 Click Add to move the IP address to the list of Allowed sites. Figure 188 Pop-up Blocker Settings

Pop-up Blocker Settings Exceptions Pop-ups are currently blocked. You can allow pop-ups from specific Web sites by adding the site to the list below. Address of Web site to allow: http://192.168.1.1 Add Allowed sites: Remove Remove All Notifications and Filter Level ✓ Play a sound when a pop-up is blocked. ✓ Show Information Bar when a pop-up is blocked. Filter Level: Medium: Block most automatic pop-ups Pop-up Blocker FAQ Close

5 Click Close to return to the Privacy screen. 6 Click Apply to save this setting.

27.4.1.2 JavaScripts

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScripts are allowed. 1 In Internet Explorer, click Tools, Internet Options and then the Security tab. Figure 189 Internet Options

Internet Options General Security Privacy Content Connections Programs Advanced Select a Web content zone to specify its security settings. Internet Local intranet Trusted sites Restricted sites Internet This zone contains all Web sites you haven't placed in other zones Sites... Security level for this zone Move the slider to set the security level for this zone. Medium - Safe browsing and still functional - Prompts before downloading potentially unsafe content - Unsigned ActiveX controls will not be downloaded - Appropriate for most Internet sites Custom Level... Default Level OK Cancel Apply

2 Click the Custom Level... button. 3 Scroll down to Scripting. 4 Under Active scripting make sure that Enable is selected (the default). 5 Under Scripting of Java applets make sure that Enable is selected (the default). 6 Click OK to close the window. Figure 190 Security Settings - Java Scripting

Security Settings Settings: Scripting Active scripting Disable Enable Prompt Allow paste operations via script Disable Enable Prompt Scripting of Java applets Disable Enable Prompt User Authentication Reset custom settings Reset to: Medium Reset OK Cancel

27.4.1.3 Java Permissions

1 From Internet Explorer, click Tools, Internet Options and then the Security tab. 2 Click the Custom Level... button. 3 Scroll down to Microsoft VM. 4 Under Java permissions make sure that a safety level is selected. 5 Click OK to close the window. Figure 191 Security Settings - Java

Security Settings Settings: Disable Enable Font download Disable Enable Prompt Microsoft VM Java permissions Custom Disable Java High safety Low safety Medium safety Reset custom settings Reset to: Medium Reset OK Cancel

27.4.1.3.1 JAVA (Sun)

1 From Internet Explorer, click Tools, Internet Options and then the Advanced tab. 2 make sure that Use Java 2 for under Java (Sun) is selected. 3 Click OK to close the window. Figure 192 Java (Sun)

Internet Options General Security Privacy Content Connections Programs Advanced Settings: Use inline AutoComplete Use Passive FTP (for firewall and DSL modem compatibility) Use smooth scrolling HTTP 1.1 settings Use HTTP 1.1 Use HTTP 1.1 through proxy connections Java (Sun) Use Java 2 v1.4.1_07 for (requires restart) Microsoft VM Java console enabled (requires restart) Java logging enabled JIT compiler for virtual machine enabled (requires restart) Multimedia Always show Internet Explorer (5.0 or later) Radio toolbar Don't display online media content in the media bar Enable Automatic Image Resizing Restore Defaults OK Cancel Apply

27.5 Telephone Problems

Table 129 Troubleshooting Telephone

PROBLEM	CORRECTIVE ACTION
The telephone port won’t work or the telephone lacks a dial tone.	Check the telephone connections and telephone wire.Make sure you have the VoIP SIP Settings screen properly configured.
I can access the Internet, but cannot make VoIP calls.	Make sure you have the VoIP SIP Settings screen properly configured.One of the PHONE lights should come on. Make sure that your telephone is connected to the corresponding PHONE port.You can also check the VoIP status in the Status screen.If the VoIP settings are correct, use speed dial to make peer-to-peer calls. If you can make a call using speed dial, there may be something wrong with the SIP server, contact your VoIP service provider.
I cannot call from one of the ZyXEL Device’s phone ports to the other phone port.	You cannot call the SIP number of the SIP account that you are using to make a call. The ZyXEL Device generates a busy tone and does not attempt to establish a call if the SIP number you dial matches the outgoing SIP number of the phone port you are using.For example, if you set Phone 1 to use SIP account 1 and set Phone 2 to use SIP account 2, then you can use Phone 1 to call to SIP account 2's SIP number or Phone 2 to call to SIP account 1's SIP number.

27.6 Problems With Multiple SIP Accounts

You can set up two SIP accounts on your ZyXEL Device and your ZyXEL Device is equipped with two phone ports. By default your ZyXEL Device uses SIP account 1 with both phone ports for outgoing calls, and it uses SIP accounts 1 and 2 for incoming calls. With this setting, you always use SIP account 1 for your outgoing calls and you cannot distinguish which SIP account the calls are coming in through. If you want to control the use of different dialing plans for accounting purposes or other reasons, you need to configure your phone ports in order to control which SIP account you are using when placing or receiving calls.

27.6.1 Outgoing Calls

The following figure represents the default behavior of your ZyXEL Device when two SIP accounts are configured and you are using two phones. When you place a call from phone 1 or phone 2, the ZyXEL Device will use SIP account 1. Figure 193 Outgoing Calls: Default

In the next example, phone port 1 is configured to use SIP account 1 and phone port 2 is configured to use SIP account 2. In this case, every time you place a call through phone port 1, you are using your SIP account 1. Similarly, every time you place a call through phone port 2, you are using your SIP account 2. To apply these configuration changes you need to configure the Analog Phone screen. See Section 11.3 on page 154. Figure 194 Outgoing Calls: Individual Configuration

27.6.2 Incoming Calls

The following example shows the default behavior of your ZyXEL Device for incoming calls when two SIP accounts are configured and you are using two phones. When a call comes in from your SIP account 1, the phones connected to both phone port 1 and phone port 2 ring. Similarly, when a call comes in from your SIP account 2, the phones connected to both phone port 1 and phone port 2 ring. In either case you are not sure which SIP account the call is coming from. Figure 195 Incoming Calls: Default

In the next example, phone port 1 is configured to use SIP account 1 and phone port 2 is configured to use SIP account 2 for incoming calls. In this case, every time you receive a call from your SIP account 1, the phone connected to phone port 1 rings. Similarly, every time you receive a call from your SIP account 2, the phone connected to phone port 2 rings. To apply these configuration changes you need to configure the Analog Phone screen. See Section 11.3 on page 154. Figure 196 Incoming Calls: Individual Configuration

APPENDIX A

Product Specifications

See also Chapter 1 on page 37 for a general overview of the key features.

Specification Tables

Table 130 Device Specifications

Default IP Address	192.168.1.1
Default Subnet Mask	255.255.255.0 (24 bits)
Default Password	1234
DHCP Server IP Pool	192.168.1.32 to 192.168.1.64
Static DHCP Addresses	10
Dimensions	(168 W) x (37 D) x (248 H) mm
Weight	390g
Power Specification	18VAC 1A
Built-in Switch	Four auto-negotiating, auto MDI/MDI-X 10/100 Mbps RJ-45 Ethernet ports
PHONE Ports	2 RJ-11 FXS POTS ports.
PSTN Line port (“L” models only)	1 RJ-11 FXS POTS port for making calls over the PSTN line.
RESET Button	Restores factory defaults
Antenna	One attached external dipole antenna, 2dBi
Operation Temperature	0°C ~ 50°C
Storage Temperature	-30° ~ 60°C
Operation Humidity	10% ~ 85% RH
Storage Humidity	10% ~ 90% RH

Table 131 Firmware Specifications

ADSL Standards	Support ITU G.992.1 G.dmt (Annex B, U-R2)EOC specified in ITU-T G.992.1ADSL2 G.dmt.bis (G.992.3)ADSL2 G.lite.bis (G.992.4)ADSL 2/2+ AnnexMADSL2+ (G.992.5)Reach-Extended ADSL (RE ADSL)SRA (Seamless Rate Adaptation)Auto-negotiating rate adaptationADSL physical connection ATM AAL5 (ATM Adaptation Layer type 5)Multi-protocol over AAL5 (RFC 2684/1483)PPP over ATM AAL5 (RFC 2364)PPP over Ethernet (RFC 2516)Multiple PPPoEVC-based and LLC-based multiplexingUp to 8 PVCs (Permanent Virtual Circuits)I.610 F4/F5 OAMZero configuration
Other Protocol Support	PPP (Point-to-Point Protocol) link layer protocolTransparent bridging for unsupported network layer protocolsDHCP Server/Client/RelayRIP I/RIP IIICMPATM QoS SNMP v1 and v2c with MIB II support (RFC 1213)IP Multicasting IGMP v1 and v2IGMP ProxyUPnP
Management	Embedded Web ConfiguratorCLI (Command Line Interpreter)SNMP v1 & v2c with MIB IIEmbedded FTP/TFTP Server for firmware upgrade and configuration file backup and restoreTelnet for remote managementRemote Management Control: Telnet, FTP, Web, SNMP and DNS.VoIP Auto-provisioning via TFTP / HTTP / HTTPSRemote Firmware UpgradeSyslog
Wireless ("W" models only)	IEEE 802.11g ComplianceFrequency Range: 2.4 GHz ISM BandAdvanced Orthogonal Frequency Division Multiplexing (OFDM)Data Rates: 54Mbps, 11Mbps, 5.5Mbps, 2Mbps, and 1 Mbps Auto FallbackTurn on-off WLAN by reset button (press 1s on reset button to turn on or turn off the WLAN; 5s for OTIST; 10s to reset back to factory default)WPA2WMMIEEE 802.11iIEEE 802.11eWired Equivalent Privacy (WEP) Data Encryption 64/128/256 bit.WLAN bridge to LANUp to 32 MAC Address filtersIEEE 802.1xStore up to 32 built-in user profiles using EAP-MD5 (Local User Database)External RADIUS server using EAP-MD5, TLS, TTLSOTIST (ZyXEL's One-Touch Intelligent Security Technology)Antenna: 2dBi, non-detachable
Firewall	Stateful Packet InspectionPrevent Denial of Service attacks such as Ping of Death, SYN Flood, LAND, Smurf etc.Access Control of ServiceContent FilteringIP & Generic Packet FilteringReal time Attack Alerts and LogsReports and logsSIP ALG passthrough
NAT/SUA	Port Forwarding1024 NAT sessionsMultimedia applicationPPTP under NAT/SUAIPSec passthroughSIP ALG passthrough
VPN	20 IPSec tunnelsIKE and Manual Key ManagementAH and ESP ProtocolDES, 3DES and AES EncryptionSHA-1 and MD5 AuthenticationTunnel and Transport Mode EncapsulationIPSec NAT TraversalNETBIOS pass-through for IPSec
Content Filtering	Web page blocking by URL keyword.
Static Routes	16 IP
Voice Features	SIP version 2 (Session Initiating Protocol RFC 3261)SDP (Session Description Protocol RFC 2327)RTP (RFC 1889)RTCP (RFC 1890)Voice codecs (coder/decoders) G.711, G.729G.168 echo cancellation (8ms ~ 16ms)Fax and data modem discriminationSilence Suppression / Voice Activity Detection (VAD)Comfort Noise Generation (CNG)Dynamic Jitter Buffer (Adaptive)DTMF Detection and GenerationDTMF: In-band and Out-band traffic (RFC 2833),(PCM), (SIP INFO)Point-to-point call establishment between two IADsQuick dialing through predefined phone book, which maps the phone dialing number and destination URL.Multiple SIP number registration and multiple signaling handling capability.(per POTS port)Caller ID supportFlexible Dial Plan (RFC3525 section 7.1.14)Multiple SIP Accounts / Phone Numbers- Freely assignable Numbers to Each Phone Port
Other Features	Any IPZero Configuration (VC auto-hunting)Traffic RedirectDynamic DNSIP AliasIP Policy RoutingSPTGENQoS

P-2602HWL Series Power Adaptor Specifications

Table 132 P-2602HWL Series Power Adaptor Specifications

NORTH AMERICAN PLUG STANDARDS	OEM (Original Equipment Manufacturer)	LEI (LEADER ELECTRONICS INC.)
AC Power Adapter Model	ADS18B-W 180100	MU18-2180100-A1
Input Power	AC 100~240Volts/50/60Hz/0.5A	AC 100~240Volts/50/60Hz/0.6A
Output Power	DC 18Volts/1A	DC 18Volts/1A
Power Consumption	12 Watt max	12 Watt max
Safety Standards	UL,CUL(UL 60950-1)	UL,CUL(UL 60950-1)
EUROPEAN PLUG STANDARDS
AC Power Adapter Model	ADS18B-B 180100	MU18-2180100-C5
Input Power	AC 100~240Volts/50/60Hz/0.5A	AC 100~240Volts/50/60Hz/0.6A
Output Power	DC 18Volts/1A	DC 18Volts/1A
Power Consumption	12 Watt max	12 Watt max
Safety Standards	TUV, CE(EN 60950 -1 )	TUV, CE(EN 60950-1)
UNITED KINGDOM PLUG STANDARDS
AC Power Adapter Model	ADS18B-D 180100	MU18-2180100-B2
Input Power	AC 100~240Volts/50/60Hz/0.5A	AC 100~240Volts/50/60Hz/0.6A
Output Power	DC 18Volts/1A	DC 18Volts/1A
Power Consumption	12 Watt max	12 Watt max
Safety Standards	TUV. CE(EN 60950 -1 )	TUV, CE(EN 60950-1)

APPENDIX B

Splitters and Microfilters

This appendix tells you how to install a POTS splitter or a telephone microfilter.

Connecting a POTS Splitter

When you use the Full Rate (G.dmt) ADSL standard, you can use a POTS (Plain Old Telephone Service) splitter to separate the telephone and ADSL signals. This allows simultaneous Internet access and telephone service on the same line. A splitter also eliminates the destructive interference conditions caused by telephone sets. Install the POTS splitter at the point where the telephone line enters your residence, as shown in the following figure. Figure 197 Connecting a POTS Splitter

1 Connect the side labeled "Phone" to your telephone. 2 Connect the side labeled “Modem” or “DSL” to your ZyXEL Device. 3 Connect the side labeled "Line" to the telephone wall jack.

Telephone Microfilters

Telephone voice transmissions take place in the lower frequency range, 0 - 4KHz, while ADSL transmissions take place in the higher bandwidth range, above 4KHz. A microfilter acts as a low-pass filter, for your telephone, to ensure that ADSL transmissions do not interfere with your telephone voice transmissions. The use of a telephone microfilter is optional. 1 Connect a phone cable from the wall jack to the single jack end of the Y- Connector. 2 Connect a cable from the double jack end of the Y-Connector to the “wall side” of the microfilter. 3 Connect another cable from the double jack end of the Y-Connector to the ZyXEL Device. 4 Connect the “phone side” of the microfilter to your telephone as shown in the following figure. Figure 198 Connecting a Microfilter

ZyXEL Device With ISDN

This section relates to people who use their ZyXEL Device with ADSL over ISDN (digital telephone service) only. The following is an example installation for the ZyXEL Device with ISDN. Figure 199 ZyXEL Device with ISDN

APPENDIX C

Setting up Your Computer's IP Address

All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed. Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and all versions of UNIX/LINUX include the software components you need to install and use TCP/IP on your computer. Windows 3.1 requires the purchase of a third-party TCP/IP application package. TCP/IP should already be installed on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems. After the appropriate TCP/IP components are installed, configure the TCP/IP settings in order to "communicate" with your network. If you manually assign IP information instead of using dynamic assignment, make sure that your computers have IP addresses that place them in the same subnet as the ZyXEL Device's LAN port.

Windows 95/98/Me

Click Start, Settings, Control Panel and double-click the Network icon to open the Network window Figure 200 W/Windows 95/98/Me: Network: Configuration

Network Configuration Identification Access Control The following network components are installed: LPR for TCP/IP Printing 3Com EtherLink 10/100 PCI TX NIC (3C905B-TX) Dial-Up Adapter USB Fast Ethernet Adapter TCP/IP -> 3Com EtherLink 10/100 PCI TX NIC (3C905B-T Add... Remove Properties Primary Network Logon: Client for Microsoft Networks File and Print Sharing... Description TCP/IP is the protocol you use to connect to the Internet and wide-area networks. OK Cancel

Installing Components

The Network window Configuration tab displays a list of installed components. You need a network adapter, the TCP/IP protocol and Client for Microsoft Networks. If you need the adapter: 1 In the Network window, click Add. 2 Select Adapter and then click Add. 3 Select the manufacturer and model of your network adapter and then click OK. If you need TCP/IP: 1 In the Network window, click Add. 2 Select Protocol and then click Add. 3 Select Microsoft from the list of manufacturers. 4 Select TCP/IP from the list of network protocols and then click OK. If you need Client for Microsoft Networks: 1 Click Add. 2 Select Client and then click Add. 3 Select Microsoft from the list of manufacturers. 4 Select Client for Microsoft Networks from the list of network clients and then click OK. 5 Restart your computer so the changes you made take effect.

Configuring

1 In the Network window Configuration tab, select your network adapter's TCP/IP entry and click Properties 2 Click the IP Address tab. \- If your IP address is dynamic, select Obtain an IP address automatically. \- If you have a static IP address, select Specify an IP address and type your information into the IP Address and Subnet Mask fields. Figure 201 Windows 95/98/Me: TCP/IP Properties: IP Address

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address An IP address can be automatically assigned to this computer. If your network does not automatically assign IP addresses, ask your network administrator for an address, and then type it in the space below. Obtain an IP address automatically Specify an IP address: IP Address: .... Subnet Mask: .... Detect connection to network media OK Cancel

3 Click the DNS Configuration tab. • If you do not know your DNS information, select Disable DNS. - If you know your DNS information, select Enable DNS and type the information in the fields below (you may not need to fill them all in). Figure 202 Windows 95/98/Me: TCP/IP Properties: DNS Configuration

TCP/IP Properties Bindings Advanced NetsBIOS DNS Configuration Gateway WINS Configuration IP Address Disable DNS Enable DNS Host: Domain: DNS Server Search Order Add Remove Domain Suffix Search Order Add Remove OK Cancel

4 Click the Gateway tab. - If you do not know your gateway's IP address, remove previously installed gateways. - If you have a gateway IP address, type it in the New gateway field and click Add. 5 Click OK to save and close the TCP/IP Properties window. 6 Click OK to close the Network window. Insert the Windows CD if prompted. 7 Turn on your ZyXEL Device and restart your computer when prompted.

Verifying Settings

1 Click Start and then Run. 2 In the Run window, type "winipcfg" and then click OK to open the IP Configuration window. 3 Select your network adapter. You should see your computer's IP address, subnet mask and default gateway.

Windows 2000/NT/XP

1 For Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel. Figure 203 Windows XP: Start Menu

user Internet Explorer Outlook Express Paint Files and Settings Transfer W... Command Prompt Acrobat Reader 4.0 Tour Windows XP Windows Movie Maker All Programs My Documents My Recent Documents My Pictures My Music My Computer Control Panel Printers and Faxes Help and Support Search Run... Log Off Turn Off Computer start untitled - Paint

2 For Windows XP, click Network Connections. For Windows 2000/NT, click Network and Dial-up Connections. Figure 204 Windows XP: Control Panel

Control Panel File Edit View Favorites Tools Help Back Search Folders Address Control Panel Control Panel Switch to Category View Network Connections Add Hardware Se Also Windows Update Fonts Game Controllers

3 Right-click Local Area Connection and then click Properties. Figure 205 Windows XP: Control Panel: Network Connections: Properties

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection Set up a home or small office network Disable this network device Repair this connection Rename this connection View status of this connection Change settings of this connection LAN or High-Speed Internet Local Area Connection Enabled Standard PCI Fast Ethernet Adapter Disable Status Repair Bridge Connections Create Shortcut Delete Rename Properties

4 Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties. Figure 206 Windows XP: Local Area Connection Properties

Local Area Connection Properties General Authentication Advanced Connect using: Accton EN1207D-TX PCI Fast Ethernet Adapter Configure... This connection uses the following items: ✓ Client for Microsoft Networks ✓ File and Printer Sharing for Microsoft Networks ✓ QoS Packet Scheduler ✓ Internet Protocol (TCP/IP) Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected OK Cancel

5 The Internet Protocol TCP/IP Properties window opens (the General tab in Windows XP). \- If you have a dynamic IP address click Obtain an IP address automatically. \- If you have a static IP address click Use the following IP Address and fill in the IP address, Subnet mask, and Default gateway fields. Click Advanced. Figure 207 Windows XP: Advanced TCP/IP Settings

Advanced TCP/IP Settings IP Settings DNS WINS Options IP addresses IP address Subnet mask DHCP Enabled Add... Edit... Remove Default gateways: Gateway Metric Add... Edit... Remove ✓ Automatic metric Interface metric: OK Cancel

6 If you do not know your gateway's IP address, remove any previously installed gateways in the IP Settings tab and click OK. Do one or more of the following if you want to configure additional IP addresses: • In the IP Settings tab, in IP addresses, click Add. - In TCP/IP Address, type an IP address in IP address and a subnet mask in Subnet mask, and then click Add. - Repeat the above two steps for each IP address you want to add. - Configure additional default gateways in the IP Settings tab by clicking Add in Default gateways. - In TCP/IP Gateway Address, type the IP address of the default gateway in Gateway. To manually configure a default metric (the number of transmission hops), clear the Automatic metric check box and type a metric in Metric. - Click Add. - Repeat the previous three steps for each default gateway you want to add. - Click OK when finished. 7 In the Internet Protocol TCP/IP Properties window (the General tab in Windows XP): - Click Obtain DNS server address automatically if you do not know your DNS server IP address(es). - If you know your DNS server IP address(es), click Use the following DNS server addresses, and type them in the Preferred DNS server and Alternate DNS server fields. If you have previously configured DNS servers, click Advanced and then the DNS tab to order them. Figure 208 Windows XP: Internet Protocol (TCP/IP) Properties

Internet Protocol (TCP/IP) Properties General Alternate Configuration You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically Use the following IP address: IP address: ... Subnet mask: ... Default gateway: ... Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: ... Alternate DNS server: ... Advanced... OK Cancel

8 Click OK to close the Internet Protocol (TCP/IP) Properties window. 9 Click OK to close the Local Area Connection Properties window. 10Turn on your ZyXEL Device and restart your computer (if prompted).

Verifying Settings

1 Click Start, All Programs, Accessories and then Command Prompt. 2 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also open Network Connections, right-click a network connection, click Status and then click the Support tab.

Macintosh OS 8/9

1 Click the Apple menu, Control Panel and double-click TCP/IP to open the TCP/IP Control Panel. Figure 209 Macintosh OS 8/9: Apple Menu

File Edit View Window Special Help About This Computer Apple System Profiler Calculator Chooser Control Panels Favorites Key Caps Network Browser Recent Applications Recent Documents Remote Access Status Scrapbook Sherlock 2 Speakable Items Stickies ADSL Control and Status Appearance Apple Menu Options AppleTalk ColorSync Control Strip Date & Time DialAssist Energy Saver Extensions Manager File Exchange File Sharing General Controls Internet Keyboard Keychain Access Launcher Location Manager Memory Modem Monitors Mouse Multiple Users Numbers QuickTime™ Settings Remote Access Software Update Sound Speech Startup Disk TCP/IP Text USB Printer Sharing

2 Select Ethernet built-in from the Connect via list. Figure 210 Macintosh OS 8/9: TCP/IP

TCP/IP Connect via: Ethernet Setup Configure: Using DHCP Server DHCP Client ID: IP Address: < will be supplied by server > Subnet mask: < will be supplied by server > Router address: < will be supplied by server > Name server addr.: < will be supplied by server > Search domains:

3 For dynamically assigned settings, select Using DHCP Server from the Configure: list. 4 For statically assigned settings, do the following: • From the Configure box, select Manually. • Type your IP address in the IP Address box. • Type your subnet mask in the Subnet mask box. - Type the IP address of your ZyXEL Device in the Router address box. 5 Close the TCP/IP Control Panel. 6 Click Save if prompted, to save changes to your configuration. 7 Turn on your ZyXEL Device and restart your computer (if prompted).

Verifying Settings

Check your TCP/IP properties in the TCP/IP Control Panel window.

Macintosh OS X

1 Click the Apple menu, and click System Preferences to open the System Preferences window. Figure 211 Macintosh OS X: Apple Menu

Grab File Edit Captu About This Mac Get Mac OS X Software... System Preferences... Dock Location

2 Click Network in the icon bar.

- Select Automatic from the Location list. - Select Built-in Ethernet from the Show list. - Click the TCP/IP tab. 3 For dynamically assigned settings, select Using DHCP from the Configure list. Figure 212 Macintosh OS X: Network

Network Show All Displays Network Startup Disk Location: Automatic Show: Built-in Ethernet TCP/IP PPPoE AppleTalk Proxies Configure: Using DHCP IP Address: 192.168.11.12 (Provided by DHCP Server) Subnet Mask: 255.255.254.0 Router: 192.168.10.11 DHCP Client ID: (Optional) Ethernet Address: 00:05:02:43:93:ff Domain Name Servers (Optional) 168.95.1.1 Search Domains (Optional) Example: apple.com, earthlink.net Click the lock to prevent further changes. Apply Now

4 For statically assigned settings, do the following: • From the Configure box, select Manually. • Type your IP address in the IP Address box. • Type your subnet mask in the Subnet mask box. - Type the IP address of your ZyXEL Device in the Router address box. 5 Click Apply Now and close the window. 6 Turn on your ZyXEL Device and restart your computer (if prompted).

Verifying Settings

Check your TCP/IP properties in the Network window.

APPENDIX D

IP Addresses and Subnetting

This appendix introduces IP addresses, IP address classes and subnet masks. You use subnet masks to subdivide a network into smaller logical networks.

Introduction to IP Addresses

An IP address has two parts: the network number and the host ID. Routers use the network number to send packets to the correct network, while the host ID identifies a single device on the network. An IP address is made up of four octets, written in dotted decimal notation, for example, 192.168.1.1. (An octet is an 8-digit binary number. Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or 0 to 255 in decimal.) There are several classes of IP addresses. The first network number (192 in the above example) defines the class of IP address. These are defined as follows: • Class A: 0 to 127 • Class B: 128 to 191 • Class C: 192 to 223 • Class D: 224 to 239 • Class E: 240 to 255

IP Address Classes and Hosts

The class of an IP address determines the number of hosts you can have on your network. - In a class A address the first octet is the network number, and the remaining three octets are the host ID. - In a class B address the first two octets make up the network number, and the two remaining octets make up the host ID. - In a class C address the first three octets make up the network number, and the last octet is the host ID. The following table shows the network number and host ID arrangement for classes A, B and C. Table 133 Classes of IP Addresses

IP ADDRESS	OCTET 1	OCTET 2	OCTET 3	OCTET 4
Class A	Network number	Host ID	Host ID	Host ID
Class B	Network number	Network number	Host ID	Host ID
Class C	Network number	Network number	Network number	Host ID

An IP address with host IDs of all zeros is the IP address of the network (192.168.1.0 for example). An IP address with host IDs of all ones is the broadcast address for that network (192.168.1.255 for example). Therefore, to determine the total number of hosts allowed in a network, deduct two as shown next: - A class C address (1 host octet: 8 host bits) can have 2^8 - 2 , or 254 hosts. - A class B address (2 host octets: 16 host bits) can have 2^16 - 2 , or 65534 hosts. A class A address (3 host octets: 24 host bits) can have 2^24-2 hosts, or approximately 16 million hosts.

IP Address Classes and Network ID

The value of the first octet of an IP address determines the class of an address. • Class A addresses have a 0 in the leftmost bit. - Class B addresses have a 1 in the leftmost bit and a 0 in the next leftmost bit. • Class C addresses start with 1 1 0 in the first three leftmost bits. - Class D addresses begin with 1 1 1 0. Class D addresses are used for multicasting, which is used to send information to groups of computers. - There is also a class E. It is reserved for future use. The following table shows the allowed ranges for the first octet of each class. This range determines the number of subnets you can have in a network. Table 134 Allowed IP Address Range By Class

CLASS	ALLOWED RANGE OF FIRST OCTET (BINARY)	ALLOWED RANGE OF FIRST OCTET (DECIMAL)
Class A	00000000 to 01111111	0 to 127
Class B	10000000 to 10111111	128 to 191
Class C	11000000 to 11011111	192 to 223
Class D	11100000 to 11101111	224 to 239
Class E(reserved)	11110000 to 11111111	240 to 255

Subnet Masks

A subnet mask is used to determine which bits are part of the network number, and which bits are part of the host ID (using a logical AND operation). A subnet mask has 32 bits. If a bit in the subnet mask is a “1” then the corresponding bit in the IP address is part of the network number. If a bit in the subnet mask is “0” then the corresponding bit in the IP address is part of the host ID. Subnet masks are expressed in dotted decimal notation just like IP addresses. The “natural” masks for class A, B and C IP addresses are as follows. Table 135 "Natural" Masks

CLASS	NATURAL MASK
A	255.0.0.0
B	255.255.0.0
C	255.255.255.0

Subnetting

With subnetting, the class arrangement of an IP address is ignored. For example, a class C address no longer has to have 24 bits of network number and 8 bits of host ID. With subnetting, some of the host ID bits are converted into network number bits. By convention, subnet masks always consist of a continuous sequence of ones beginning from the leftmost bit of the mask, followed by a continuous sequence of zeros, for a total number of 32 bits. Since the mask is always a continuous number of ones beginning from the left, followed by a continuous number of zeros for the remainder of the 32 bit mask, you can simply specify the number of ones instead of writing the value of each octet. This is usually specified by writing a “/” followed by the number of bits in the mask after the address. For example, 192.1.1.0 /25 is equivalent to saying 192.1.1.0 with mask 255.255.255.128. The following table shows all possible subnet masks for a class “C” address using both notations. Table 136 Alternative Subnet Mask Notation

SUBNET MASK	SUBNET MASK “1” BITS	LAST OCTET BIT VALUE	DECIMAL
255.255.255.0	/24	0000 0000	0
255.255.255.128	/25	1000 0000	128
255.255.255.192	/26	1100 0000	192
255.255.255.224	/27	1110 0000	224
255.255.255.240	/28	1111 0000	240
255.255.255.248	/29	1111 1000	248
255.255.255.252	/30	1111 1100	252

The first mask shown is the class “C” natural mask. Normally if no mask is specified it is understood that the natural mask is being used.

Example: Two Subnets

As an example, you have a class “C” address 192.168.1.0 with subnet mask of 255.255.255.0. Table 137 Two Subnets Example

IP/SUBNET MASK	NETWORK NUMBER	HOST ID
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask	255.255.255.	0
Subnet Mask (Binary)	11111111.11111111.11111111.	00000000

The first three octets of the address make up the network number (class “C”). To make two networks, divide the network 192.168.1.0 into two separate subnets by converting one of the host ID bits of the IP address to a network number bit. The “borrowed” host ID bit can be either “0” or “1” thus giving two subnets; 192.168.1.0 with mask 255.255.255.128 and 192.168.1.128 with mask 255.255.255.128. Note: In the following charts, shaded/bolded last octet bit values indicate host ID bits "borrowed" to make network ID bits. The number of "borrowed" host ID bits determines the number of subnets you can have. The remaining number of host ID bits (after "borrowing") determines the number of hosts you can have on each subnet. Table 138 Subnet 1

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask	255.255.255.	128
Subnet Mask (Binary)	11111111.11111111.11111111.	10000000
Subnet Address: 192.168.1.0	Lowest Host ID: 192.168.1.1
Broadcast Address: 192.168.1.127	Highest Host ID: 192.168.1.126

Table 139 Subnet 2

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	128
IP Address (Binary)	11000000.10101000.00000001.	10000000
Subnet Mask	255.255.255.	128
Subnet Mask (Binary)	11111111.11111111.11111111.	10000000
Subnet Address: 192.168.1.128	Lowest Host ID: 192.168.1.129
Broadcast Address: 192.168.1.255	Highest Host ID: 192.168.1.254

Host IDs of all zeros represent the subnet itself and host IDs of all ones are the broadcast address for that subnet, so the actual number of hosts available on each subnet in the example above is 2^7-2 or 126 hosts for each subnet. 192.168.1.0 with mask 255.255.255.128 is the subnet itself, and 192.168.1.127 with mask 255.255.255.128 is the directed broadcast address for the first subnet. Therefore, the lowest IP address that can be assigned to an actual host for the first subnet is 192.168.1.1 and the highest is 192.168.1.126. Similarly the host ID range for the second subnet is 192.168.1.129 to 192.168.1.254.

Example: Four Subnets

The above example illustrated using a 25-bit subnet mask to divide a class “C” address space into two subnets. Similarly to divide a class “C” address into four subnets, you need to “borrow” two host ID bits to give four possible combinations (00, 01, 10 and 11). The subnet mask is 26 bits (1111111.1111111.1111111.1100000) or 255.255.255.192. Each subnet contains 6 host ID bits, giving 2^6-2 or 62 hosts for each subnet (all zeroes is the subnet itself, all ones is the broadcast address on the subnet). Table 140 Subnet 1

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.0	Lowest Host ID: 192.168.1.1
Broadcast Address: 192.168.1.63	Highest Host ID: 192.168.1.62

Table 141 Subnet 2

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	64
IP Address (Binary)	11000000.10101000.00000001.	01000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.64	Lowest Host ID: 192.168.1.65
Broadcast Address: 192.168.1.127	Highest Host ID: 192.168.1.126

Table 142 Subnet 3

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	128
IP Address (Binary)	11000000.10101000.00000001.	10000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.128	Lowest Host ID: 192.168.1.129
Broadcast Address: 192.168.1.191	Highest Host ID: 192.168.1.190

Table 143 Subnet 4

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	192
IP Address (Binary)	11000000.10101000.00000001.	11000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.192	Lowest Host ID: 192.168.1.193
Broadcast Address: 192.168.1.255	Highest Host ID: 192.168.1.254

Example Eight Subnets

Similarly use a 27-bit mask to create eight subnets (000, 001, 010, 011, 100, 101, 110 and 111). The following table shows class C IP address last octet values for each subnet. Table 144 Eight Subnets

SUBNET	SUBNET ADDRESS	FIRST ADDRESS	LAST ADDRESS	BROADCAST ADDRESS
1	0	1	30	31
2	32	33	62	63
3	64	65	94	95
4	96	97	126	127
5	128	129	158	159
6	160	161	190	191
7	192	193	222	223
8	224	225	254	255

The following table is a summary for class “C” subnet planning. Table 145 Class C Subnet Planning

NO. “BORROWED” HOST BITS	SUBNET MASK	NO. SUBNETS	NO. HOSTS PER SUBNET
1	255.255.255.128 (/25)	2	126
2	255.255.255.192 (/26)	4	62
3	255.255.255.224 (/27)	8	30
4	255.255.255.240 (/28)	16	14
5	255.255.255.248 (/29)	32	6
6	255.255.255.252 (/30)	64	2
7	255.255.255.254 (/31)	128	1

Subnetting With Class A and Class B Networks.

For class “A” and class “B” addresses the subnet mask also determines which bits are part of the network number and which are part of the host ID. A class “B” address has two host ID octets available for subnetting and a class “A” address has three host ID octets (see Table 133 on page 354) available for subnetting. The following table is a summary for class “B” subnet planning. Table 146 Class B Subnet Planning

NO. “BORROWED” HOST BITS	SUBNET MASK	NO. SUBNETS	NO. HOSTS PER SUBNET
1	255.255.128.0 (/17)	2	32766
2	255.255.192.0 (/18)	4	16382
3	255.255.224.0 (/19)	8	8190
4	255.255.240.0 (/20)	16	4094
5	255.255.248.0 (/21)	32	2046
6	255.255.252.0 (/22)	64	1022
7	255.255.254.0 (/23)	128	510
8	255.255.255.0 (/24)	256	254
9	255.255.255.128 (/25)	512	126
10	255.255.255.192 (/26)	1024	62
11	255.255.255.224 (/27)	2048	30
12	255.255.255.240 (/28)	4096	14
13	255.255.255.248 (/29)	8192	6
14	255.255.255.252 (/30)	16384	2
15	255.255.255.254 (/31)	32768	1

APPENDIX E

Wireless LANs

Wireless LAN Topologies

This section discusses ad-hoc and infrastructure wireless LAN topologies.

Ad-hoc Wireless LAN Configuration

The simplest WLAN configuration is an independent (Ad-hoc) WLAN that connects a set of computers with wireless stations (A, B, C). Any time two or more wireless adapters are within range of each other, they can set up an independent network, which is commonly referred to as an Ad-hoc network or Independent Basic Service Set (IBSS). The following diagram shows an example of notebook computers using wireless adapters to form an Ad-hoc wireless LAN. Figure 213 Peer-to-Peer Communication in an Ad-hoc Network

A B C

BSS

A Basic Service Set (BSS) exists when all communications between wireless stations or between a wireless station and a wired network client go through one access point (AP). Intra-BSS traffic is traffic between wireless stations in the BSS. When Intra-BSS is enabled, wireless station A and B can access the wired network and communicate with each other. When Intra-BSS is disabled, wireless station A and B can still access the wired network but cannot communicate with each other. Figure 214 Basic Service Set

ESS

An Extended Service Set (ESS) consists of a series of overlapping BSSs, each containing an access point, with each access point connected together by a wired network. This wired connection between APs is called a Distribution System (DS). This type of wireless LAN topology is called an Infrastructure WLAN. The Access Points not only provide communication with the wired network but also mediate wireless network traffic in the immediate neighborhood. An ESSID (ESS IDentification) uniquely identifies each ESS. All access points and their associated wireless stations within the same ESS must have the same ESSID in order to communicate. Figure 215 Infrastructure WLAN

Channel

A channel is the radio frequency(ies) used by IEEE 802.11a/b/g wireless devices. Channels available depend on your geographical area. You may have a choice of channels (for your region) so you should use a different channel than an adjacent AP (access point) to reduce interference. Interference occurs when radio signals from different access points overlap causing interference and degrading performance. Adjacent channels partially overlap however. To avoid interference due to overlap, your AP should be on a channel at least five channels away from a channel that an adjacent AP is using. For example, if your region has 11 channels and an adjacent AP is using channel 1, then you need to select a channel between 6 or 11.

RTS/CTS

A hidden node occurs when two stations are within range of the same access point, but are not within range of each other. The following figure illustrates a hidden node. Both stations (STA) are within range of the access point (AP) or wireless gateway, but out-of-range of each other, so they cannot "hear" each other, that is they do not know if the channel is currently being used. Therefore, they are considered hidden from each other. Figure 216 RTS/CTS

When station A sends data to the AP, it might not know that the station B is already using the channel. If these two stations send data at the same time, collisions may occur when both sets of data arrive at the AP at the same time, resulting in a loss of messages for both stations. RTS/CTS is designed to prevent collisions due to hidden nodes. An RTS/CTS defines the biggest size data frame you can send before an RTS (Request To Send)/CTS (Clear to Send) handshake is invoked. When a data frame exceeds the RTS/CTS value you set (between 0 to 2432 bytes), the station that wants to transmit this frame must first send an RTS (Request To Send) message to the AP for permission to send it. The AP then responds with a CTS (Clear to Send) message to all other stations within its range to notify them to defer their transmission. It also reserves and confirms with the requesting station the time frame for the requested transmission. Stations can send frames smaller than the specified RTS/CTS directly to the AP without the RTS (Request To Send)/CTS (Clear to Send) handshake. You should only configure RTS/CTS if the possibility of hidden nodes exists on your network and the "cost" of resending large frames is more than the extra network overhead involved in the RTS (Request To Send)/CTS (Clear to Send) handshake. If the RTS/CTS value is greater than the Fragmentation Threshold value (see next), then the RTS (Request To Send)/CTS (Clear to Send) handshake will never occur as data frames will be fragmented before they reach RTS/CTS size. Note: Enabling the RTS Threshold causes redundant network overhead that could negatively affect the throughput performance instead of providing a remedy.

Fragmentation Threshold

A Fragmentation Threshold is the maximum data fragment size (between 256 and 2432 bytes) that can be sent in the wireless network before the AP will fragment the packet into smaller data frames. A large Fragmentation Threshold is recommended for networks not prone to interference while you should set a smaller threshold for busy networks or networks that are prone to interference. If the Fragmentation Threshold value is smaller than the RTS/CTS value (see previously) you set then the RTS (Request To Send)/CTS (Clear to Send) handshake will never occur as data frames will be fragmented before they reach RTS/CTS size.

Preamble Type

A preamble is used to synchronize the transmission timing in your wireless network. There are two preamble modes: Long and Short. Short preamble takes less time to process and minimizes overhead, so it should be used in a good wireless network environment when all wireless stations support it. Select Long if you have a ‘noisy’ network or are unsure of what preamble mode your wireless stations support as all IEEE 802.11b compliant wireless adapters must support long preamble. However, not all wireless adapters support short preamble. Use long preamble if you are unsure what preamble mode the wireless adapters support, to ensure interpretability between the AP and the wireless stations and to provide more reliable communication in ‘noisy’ networks. Select Dynamic to have the AP automatically use short preamble when all wireless stations support it, otherwise the AP uses long preamble. Note: The AP and the wireless stations MUST use the same preamble mode in order to communicate.

IEEE 802.11g Wireless LAN

IEEE 802.11g is fully compatible with the IEEE 802.11b standard. This means an IEEE 802.11b adapter can interface directly with an IEEE 802.11g access point (and vice versa) at 11 Mbps or lower depending on range. IEEE 802.11g has several intermediate rate steps between the maximum and minimum data rates. The IEEE 802.11g data rate and modulation are as follows: Table 147 IEEE 802.11g

DATA RATE (MBPS)	MODULATION
1	DBPSK (Differential Binary Phase Shift Keyed)
2	DQPSK (Differential Quadrature Phase Shift Keying)
5.5 / 11	CCK (Complementary Code Keying)
6/9/12/18/24/36/48/54	OFDM (Orthogonal Frequency Division Multiplexing)

IEEE 802.1x

In June 2001, the IEEE 802.1x standard was designed to extend the features of IEEE 802.11 to support extended authentication as well as providing additional accounting and control features. It is supported by Windows XP and a number of network devices. Some advantages of IEEE 802.1x are: - User based identification that allows for roaming. - Support for RADIUS (Remote Authentication Dial In User Service, RFC 2138, 2139) for centralized user profile and accounting management on a network RADIUS server. - Support for EAP (Extensible Authentication Protocol, RFC 2486) that allows additional authentication methods to be deployed with no changes to the access point or the wireless stations.

RADIUS

RADIUS is based on a client-server model that supports authentication, authorization and accounting. The access point is the client and the server is the RADIUS server. The RADIUS server handles the following tasks: - Authentication Determines the identity of the users. - Authorization Determines the network services available to authenticated users once they are connected to the network. \- Accounting Keeps track of the client's network activity. RADIUS is a simple package exchange in which your AP acts as a message relay between the wireless station and the network RADIUS server.

Types of RADIUS Messages

The following types of RADIUS messages are exchanged between the access point and the RADIUS server for user authentication: - Access-Request Sent by an access point requesting authentication. - Access-Reject Sent by a RADIUS server rejecting access. - Access-Accept Sent by a RADIUS server allowing access. \- Access-Challenge Sent by a RADIUS server requesting more information in order to allow access. The access point sends a proper response from the user and then sends another Access-Request message. The following types of RADIUS messages are exchanged between the access point and the RADIUS server for user accounting: - Accounting-Request Sent by the access point requesting accounting. - Accounting-Response Sent by the RADIUS server to indicate that it has started or stopped accounting. In order to ensure network security, the access point and the RADIUS server use a shared secret key, which is a password, they both know. The key is not sent over the network. In addition to the shared key, password information exchanged is also encrypted to protect the network from unauthorized access.

Types of Authentication

This appendix discusses some popular authentication types: EAP-MD5, EAP-TLS, EAP-TTLS, PEAP and LEAP. The type of authentication you use depends on the RADIUS server or the AP. Consult your network administrator for more information.

EAP-MD5 (Message-Digest Algorithm 5)

MD5 authentication is the simplest one-way authentication method. The authentication server sends a challenge to the wireless station. The wireless station ‘proves’ that it knows the password by encrypting the password with the challenge and sends back the information. Password is not sent in plain text. However, MD5 authentication has some weaknesses. Since the authentication server needs to get the plaintext passwords, the passwords must be stored. Thus someone other than the authentication server may access the password file. In addition, it is possible to impersonate an authentication server as MD5 authentication method does not perform mutual authentication. Finally, MD5 authentication method does not support data encryption with dynamic session key. You must configure WEP encryption keys for data encryption.

EAP-TLS (Transport Layer Security)

With EAP-TLS, digital certifications are needed by both the server and the wireless stations for mutual authentication. The server presents a certificate to the client. After validating the identity of the server, the client sends a different certificate to the server. The exchange of certificates is done in the open before a secured tunnel is created. This makes user identity vulnerable to passive attacks. A digital certificate is an electronic ID card that authenticates the sender's identity. However, to implement EAP-TLS, you need a Certificate Authority (CA) to handle certificates, which imposes a management overhead.

EAP-TTLS (Tunneled Transport Layer Service)

EAP-TTLS is an extension of the EAP-TLS authentication that uses certificates for only the server-side authentications to establish a secure connection. Client authentication is then done by sending username and password through the secure connection, thus client identity is protected. For client authentication, EAP-TTLS supports EAP methods and legacy authentication methods such as PAP, CHAP, MS-CHAP and MS-CHAP v2.

PEAP (Protected EAP)

Like EAP-TTLS, server-side certificate authentication is used to establish a secure connection, then use simple username and password methods through the secured connection to authenticate the clients, thus hiding client identity. However, PEAP only supports EAP methods, such as EAP-MD5, EAP-MSCHAPv2 and EAP-GTC (EAP-Generic Token Card), for client authentication. EAP-GTC is implemented only by Cisco.

LEAP

LEAP (Lightweight Extensible Authentication Protocol) is a Cisco implementation of IEEE 802.1x.

Dynamic WEP Key Exchange

The AP maps a unique key that is generated with the RADIUS server. This key expires when the wireless connection times out, disconnects or reauthentication times out. A new WEP key is generated each time reauthentication is performed. If this feature is enabled, it is not necessary to configure a default encryption key in the Wireless screen. You may still configure and store keys here, but they will not be used while Dynamic WEP is enabled. Note: EAP-MD5 cannot be used with Dynamic WEP Key Exchange For added security, certificate-based authentications (EAP-TLS, EAP-TTLS and PEAP) use dynamic keys for data encryption. They are often deployed in corporate environments, but for public deployment, a simple user name and password pair is more practical. The following table is a comparison of the features of authentication types. Table 148 Comparison of EAP Authentication Types

	EAP-MD5	EAP-TLS	EAP-TTLS	PEAP	LEAP
Mutual Authentication	No	Yes	Yes	Yes	Yes
Certificate – Client	No	Yes	Optional	Optional	No
Certificate – Server	No	Yes	Yes	Yes	No
Dynamic Key Exchange	No	Yes	Yes	Yes	Yes
Credential Integrity	None	Strong	Strong	Strong	Moderate
Deployment Difficulty	Easy	Hard	Moderate	Moderate	Moderate
Client Identity Protection	No	No	Yes	Yes	No

WPA

User Authentication

WPA applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to authenticate wireless stations using an external RADIUS database.

Encryption

WPA improves data encryption by using Temporal Key Integrity Protocol (TKIP) or Advanced Encryption Standard (AES), Message Integrity Check (MIC) and IEEE 802.1x. TKIP uses 128-bit keys that are dynamically generated and distributed by the authentication server. It includes a per-packet key mixing function, a Message Integrity Check (MIC) named Michael, an extended initialization vector (IV) with sequencing rules, and a re-keying mechanism. TKIP regularly changes and rotates the encryption keys so that the same encryption key is never used twice. The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that then sets up a key hierarchy and management system, using the PMK to dynamically generate unique data encryption keys to encrypt every data packet that is wirelessly communicated between the AP and the wireless stations. This all happens in the background automatically. AES (Advanced Encryption Standard) also uses a secret key. This implementation of AES applies a 128-bit key to 128-bit blocks of data. The Message Integrity Check (MIC) is designed to prevent an attacker from capturing data packets, altering them and resending them. The MIC provides a strong mathematical function in which the receiver and the transmitter each compute and then compare the MIC. If they do not match, it is assumed that the data has been tampered with and the packet is dropped. By generating unique data encryption keys for every data packet and by creating an integrity checking mechanism (MIC), TKIP makes it much more difficult to decrypt data on a Wi-Fi network than WEP, making it difficult for an intruder to break into the network. The encryption mechanisms used for WPA and WPA-PSK are the same. The only difference between the two is that WPA-PSK uses a simple common password, instead of user-specific credentials. The common-password approach makes WPA-PSK susceptible to brute-force password-guessing attacks but it's still an improvement over WEP as it employs an easier-to-use, consistent, single, alphanumeric password.

Security Parameters Summary

Refer to this table to see what other security parameters you should configure for each Authentication Method/ key management protocol type. MAC address filters are not dependent on how you configure these security features. Table 149 Wireless Security Relational Matrix

AUTHENTICATION METHOD/ KEYMANAGEMENT PROTOCOL	ENCRYPTIONMETHOD	ENTERMANUAL KEY	ENABLE IEEE 802.1X
Open	None	No	No
Open	WEP	No	Enable with Dynamic WEP Key
		Yes	Enable without Dynamic WEP Key
		Yes	Disable
Shared	WEP	No	Enable with Dynamic WEP Key
		Yes	Enable without Dynamic WEP Key
		Yes	Disable
WPA	WEP	No	Yes
WPA	TKIP	No	Yes
WPA-PSK	WEP	Yes	Yes
WPA-PSK	TKIP	Yes	Yes

APPENDIX F

Services

The following table lists some commonly-used services and their associated protocols and port numbers. - Name: This is a short, descriptive name for the service. You can use this one or create a different one, if you like. - Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the service uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP protocol number, not the port number. - Port(s): This value depends on the Protocol. \- If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number. • If the Protocol is USER, this is the IP protocol number. \- Description: This is a brief explanation of the applications that use this service or the situations in which this service is used. Table 150 Examples of Services

NAME	PROTOCOL	PORT(S)	DESCRIPTION
AH (IPSEC_TUNNEL)	User-Defined	51	The IPSEC AH (Authentication Header) tunneling protocol uses this service.
AIM	TCP	5190	AOL's Internet Messenger service.
AUTH	TCP	113	Authentication protocol used by some servers.
BGP	TCP	179	Border Gateway Protocol.
BOOTP_CLIENT	UDP	68	DHCP Client.
BOOTP_SERVER	UDP	67	DHCP Server.
CU-SEEME	TCP/UDP	7648	A popular videoconferencing solution from White Pines Software.
	TCP/UDP	24032
DNS	TCP/UDP	53	Domain Name Server, a service that matches web names (e.g. www.zyxel.com) to IP numbers.
ESP (IPSEC_TUNNEL)	User-Defined	50	The IPSEC ESP (Encapsulation Security Protocol) tunneling protocol uses this service.
FINGER	TCP	79	Finger is a UNIX or Internet related command that can be used to find out if a user is logged on.
FTP	TCP	20	File Transfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail.
	TCP	21
H.323	TCP	1720	NetMeeting uses this protocol.
HTTP	TCP	80	Hyper Text Transfer Protocol - a client/server protocol for the world wide web.
HTTPS	TCP	443	HTTPS is a secured http session often used in e-commerce.
ICMP	User-Defined	1	Internet Control Message Protocol is often used for diagnostic purposes.
ICQ	UDP	4000	This is a popular Internet chat program.
IGMP (MULTICAST)	User-Defined	2	Internet Group Multicast Protocol is used when sending packets to a specific group of hosts.
IKE	UDP	500	The Internet Key Exchange algorithm is used for key distribution and management.
IMAP4	TCP	143	The Internet Message Access Protocol is used for e-mail.
IMAP4S	TCP	993	This is a more secure version of IMAP4 that runs over SSL.
IRC	TCP/UDP	6667	This is another popular Internet chat program.
MSN Messenger	TCP	1863	Microsoft Networks' messenger service uses this protocol.
NetBIOS	TCP/UDP	137	The Network Basic Input/Output System is used for communication between computers in a LAN.
	TCP/UDP	138
	TCP/UDP	139
	TCP/UDP	445
NEW-ICQ	TCP	5190	An Internet chat program.
NEWS	TCP	144	A protocol for news groups.
NFS	UDP	2049	Network File System - NFS is a client/server distributed file service that provides transparent file sharing for network environments.
NNTP	TCP	119	Network News Transport Protocol is the delivery mechanism for the USENET newsgroup service.
PING	User-Defined	1	Packet INternet Groper is a protocol that sends out ICMP echo requests to test whether or not a remote host is reachable.
POP3	TCP	110	Post Office Protocol version 3 lets a client computer get e-mail from a POP3 server through a temporary connection (TCP/IP or other).
POP3S	TCP	995	This is a more secure version of POP3 that runs over SSL.
PPTP	TCP	1723	Point-to-Point Tunneling Protocol enables secure transfer of data over public networks. This is the control channel.
PPTP_TUNNEL (GRE)	User-Defined	47	PPTP (Point-to-Point Tunneling Protocol) enables secure transfer of data over public networks. This is the data channel.
RCMD	TCP	512	Remote Command Service.
REAL_AUDIO	TCP	7070	A streaming audio service that enables real time sound over the web.
REXEC	TCP	514	Remote Execution Daemon.
RLOGIN	TCP	513	Remote Login.
ROADRUNNER	TCP/UDP	1026	This is an ISP that provides services mainly for cable modems.
RTELNET	TCP	107	Remote Telnet.
RTSP	TCP/UDP	554	The Real Time Streaming (media control) Protocol (RTSP) is a remote control for multimedia on the Internet.
SFTP	TCP	115	The Simple File Transfer Protocol is an old way of transferring files between computers.
SMTP	TCP	25	Simple Mail Transfer Protocol is the message-exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another.
SMTPS	TCP	465	This is a more secure version of SMTP that runs over SSL.
SNMP	TCP/UDP	161	Simple Network Management Program.
SNMP-TRAPS	TCP/UDP	162	Traps for use with the SNMP (RFC:1215).
SQL-NET	TCP	1521	Structured Query Language is an interface to access data on many different types of database systems, including mainframes, midrange systems, UNIX systems and network servers.
SSDP	UDP	1900	The Simple Service Discovery Protocol supports Universal Plug-and-Play (UPnP).
SSH	TCP/UDP	22	Secure Shell Remote Login Program.
STRM WORKS	UDP	1558	Stream Works Protocol.
SYSLOG	UDP	514	Syslog allows you to send system logs to a UNIX server.
TACACS	UDP	49	Login Host Protocol used for (Terminal Access Controller Access Control System).
TELNET	TCP	23	Telnet is the login and terminal emulation protocol common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems.
TFTP	UDP	69	Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol).
VDOLIVE	TCP	7000	A videoconferencing solution. The UDP port number is specified in the application.
	UDP	user-defined

APPENDIX G

Firewall Commands

Sys Firewall Commands

The following describes the firewall commands. See the Command Interpreter appendix for information on the command structure. Each of these commands must be preceded by sys firewall when you use them. For example, type sys firewall active yes to turn on the firewall. Table 151 Sys Firewall Commands

Command		Description
acl
	disp	Displays ACLs or a specific ACL set # and rule #.
active		Active firewall or deactivate firewallEnables/disables the firewall.
cnt
	disp	Displays the firewall log type and count.
	clear	Clears the firewall log count.
pktdump		Dumps the last 64 bytes of packets that the firewall has dropped.
dynamicrule	display	Displays the firewall's dynamic rules.
tcprst
	rst	Turns TCP reset sending on/off.
	rst113	Turns TCP reset sending for port 113 on/off.
	display	Displays the TCP reset sending settings.
icmp		This rule is not in use.
dos
	smtp	Enables/disables the SMTP DoS defender.
	display	Displays the SMTP DoS defender setting.
	ignore	Sets if the firewall will ignore DoS attacks on the lan/wan.
ignore
	dos	Sets if the firewall will ignore DoS attacks on the lan/wan.
	triangle	Sets if the firewall will ignore triangle route packets on the lan/wan.

APPENDIX H Triangle Route

The Ideal Setup

When the firewall is on, your ZyXEL Device acts as a secure gateway between your LAN and the Internet. In an ideal network topology, all incoming and outgoing network traffic passes through the ZyXEL Device to protect your LAN against attacks. Figure 217 Ideal Setup

The “Triangle Route” Problem

A traffic route is a path for sending or receiving data packets between two Ethernet devices. Some companies have more than one alternate route to one or more ISPs. If the LAN and ISP(s) are in the same subnet, the “triangle route” problem may occur. The steps below describe the “triangle route” problem. 1 A computer on the LAN initiates a connection by sending out a SYN packet to a receiving server on the WAN. 2 The ZyXEL Device reroutes the SYN packet through Gateway B on the LAN to the WAN. 3 The reply from the WAN goes directly to the computer on the LAN without going through the ZyXEL Device. As a result, the ZyXEL Device resets the connection, as the connection has not been acknowledged. Figure 218 "Triangle Route" Problem

The “Triangle Route” Solutions

This section presents you two solutions to the “triangle route” problem.

IP Aliasing

IP alias allows you to partition your network into logical sections over the same Ethernet interface. Your ZyXEL Device supports up to three logical LAN interfaces with the ZyXEL Device being the gateway for each logical network. By putting your LAN and Gateway B in different subnets, all returning network traffic must pass through the ZyXEL Device to your LAN. The following steps describe such a scenario. 1 A computer on the LAN initiates a connection by sending a SYN packet to a receiving server on the WAN. 2 The ZyXEL Device reroutes the packet to Gateway B, which is in Subnet 2. 3 The reply from WAN goes through the ZyXEL Device to the computer on the LAN in Subnet 1. Figure 219 IP Alias
        A["Computer"]
        B["Server"]
    end
    LAN -->|1| Subnet1
    LAN -->|4| Subnet2
    subgraph WAN
        A["A"]
        B["B"]
    end
    subgraph Internet
        C["Cloud"]
    end

Gateways on the WAN Side

A second solution to the “triangle route” problem is to put all of your network gateways on the WAN side as the following figure shows. This ensures that all incoming network traffic passes through your ZyXEL Device to your LAN. Therefore your LAN is protected. Figure 220 Gateways on the WAN Side

APPENDIX I

Log Descriptions

This appendix provides descriptions of example log messages. Table 152 System Maintenance Logs

LOG MESSAGE	DESCRIPTION
Time calibration is successful	The router has adjusted its time based on information from the time server.
Time calibration failed	The router failed to get information from the time server.
WAN interface gets IP: %s	A WAN interface got a new IP address from the DHCP, PPPoE, PPTP or dial-up server.
DHCP client IP expired	A DHCP client's IP address has expired.
DHCP server assigns %s	The DHCP server assigned an IP address to a client.
Successful WEB login	Someone has logged on to the router's web configurator interface.
WEB login failed	Someone has failed to log on to the router's web configurator interface.
Successful TELNET login	Someone has logged on to the router via telnet.
TELNET login failed	Someone has failed to log on to the router via telnet.
Successful FTP login	Someone has logged on to the router via ftp.
FTP login failed	Someone has failed to log on to the router via ftp.
NAT Session Table is Full!	The maximum number of NAT session table entries has been exceeded and the table is full.
Starting Connectivity Monitor	Starting Connectivity Monitor.
Time initialized by Daytime Server	The router got the time and date from the Daytime server.
Time initialized by Time server	The router got the time and date from the time server.
Time initialized by NTP server	The router got the time and date from the NTP server.
Connect to Daytime server fail	The router was not able to connect to the Daytime server.
Connect to Time server fail	The router was not able to connect to the Time server.
Connect to NTP server fail	The router was not able to connect to the NTP server.
Too large ICMP packet has been dropped	The router dropped an ICMP packet that was too large.
Configuration Change: PC = 0x%x, Task ID = 0x%x	The router is saving configuration changes.
Successful SSH login	Someone has logged on to the router's SSH server.
SSH login failed	Someone has failed to log on to the router's SSH server.
Successful HTTPS login	Someone has logged on to the router's web configurator interface using HTTPS protocol.
HTTPS login failed	Someone has failed to log on to the router's web configurator interface using HTTPS protocol.

Table 153 System Error Logs

LOG MESSAGE	DESCRIPTION
%s exceeds the max.number of session per host!	This attempt to create a NAT session exceeds the maximum number of NAT session table entries allowed to be created per host.
setNetBIOSFilter: calloc error	The router failed to allocate memory for the NetBIOS filter settings.
readNetBIOSFilter: calloc error	The router failed to allocate memory for the NetBIOS filter settings.
WAN connection is down.	A WAN connection is down. You cannot access the network through this interface.

Table 154 Access Control Logs

LOG MESSAGE	DESCRIPTION
Firewall default policy: [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access matched the default policy and was blocked or forwarded according to the default policy's setting.
Firewall rule [NOT] match: [ TCP | UDP | IGMP | ESP | GRE | OSPF ],	Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access matched (or did not match) a configured firewall rule (denoted by its number) and was blocked or forwarded according to the rule.
Triangle route packet forwarded: [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall allowed a triangle route session to pass through.
Packet without a NAT table entry blocked: [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The router blocked a packet that didn't have a corresponding NAT table entry.
Router sent blocked web site message: TCP	The router sent a message to notify a user that the router blocked access to a web site that the user requested.

Table 155 TCP Reset Logs

LOG MESSAGE	DESCRIPTION
Under SYN flood attack, sent TCP RST	The router sent a TCP reset packet when a host was under a SYN flood attack (the TCP incomplete count is per destination host.)
Exceed TCP MAX incomplete, sent TCP RST	The router sent a TCP reset packet when the number of TCP incomplete connections exceeded the user configured threshold. (the TCP incomplete count is per destination host.) Note: Refer to TCP Maximum Incomplete in the Firewall Attack Alerts screen.
Peer TCP state out of order, sent TCP RST	The router sent a TCP reset packet when a TCP connection state was out of order. Note: The firewall refers to RFC793 Figure 6 to check the TCP state.
Firewall session time out, sent TCP RST	The router sent a TCP reset packet when a dynamic firewall session timed out. Default timeout values: ICMP idle timeout (s): 60UDP idle timeout (s): 60TCP connection (three way handshaking) timeout (s): 30TCP FIN-wait timeout (s): 60TCP idle (established) timeout (s): 3600
Exceed MAX incomplete, sent TCP RST	The router sent a TCP reset packet when the number of incomplete connections (TCP and UDP) exceeded the user-configured threshold. (Incomplete count is for all TCP and UDP connections through the firewall.) Note: When the number of incomplete connections (TCP + UDP) > “Maximum Incomplete High”, the router sends TCP RST packets for TCP connections and destroys TOS (firewall dynamic sessions) until incomplete connections < “Maximum Incomplete Low”.
Access block, sent TCP RST	The router sends a TCP RST packet and generates this log if you turn on the firewall TCP reset mechanism (via CI command: "sys firewall tcprst").

Table 156 Packet Filter Logs

LOG MESSAGE	DESCRIPTION
[ TCP | UDP | ICMP | IGMP | Generic ] packet filter matched (set: %d, rule: %d)	Attempted access matched a configured filter rule (denoted by its set and rule number) and was blocked or forwarded according to the rule.

For type and code details, see Table 165 on page 387. Table 157 ICMP Logs

LOG MESSAGE	DESCRIPTION
Firewall default policy: ICMP,,,	ICMP access matched the default policy and was blocked or forwarded according to the user's setting.
Firewall rule [NOT] match: ICMP,,,	ICMP access matched (or didn't match) a firewall rule (denoted by its number) and was blocked or forwarded according to the rule.
Triangle route packet forwarded: ICMP	The firewall allowed a triangle route session to pass through.
Packet without a NAT table entry blocked: ICMP	The router blocked a packet that didn’t have a corresponding NAT table entry.
Unsupported/out-of-order ICMP: ICMP	The firewall does not support this kind of ICMP packets or the ICMP packets are out of order.
Router reply ICMP packet: ICMP	The router sent an ICMP reply packet to the sender.

Table 158 CDR Logs

LOG MESSAGE	DESCRIPTION
board %d line %d channel %d, call %d, %s C01 Outgoing Call dev=%x ch=%x %s	The router received the setup requirements for a call. “call” is the reference (count) number of the call. “dev” is the device type (3 is for dial-up, 6 is for PPPoE, 10 is for PPTP). "channel" or “ch” is the call channel ID. For example, "board 0 line 0 channel 0, call 3, C01 Outgoing Call dev=6 ch=0 "Means the router has dialed to the PPPoE server 3 times.
board %d line %d channel %d, call %d, %s C02 OutCall Connected %d %s	The PPPoE, PPTP or dial-up call is connected.
board %d line %d channel %d, call %d, %s C02 Call Terminated	The PPPoE, PPTP or dial-up call was disconnected.

Table 159 PPP Logs

LOG MESSAGE	DESCRIPTION
ppp:LCP Starting	The PPP connection's Link Control Protocol stage has started.
ppp:LCP Opening	The PPP connection's Link Control Protocol stage is opening.
ppp:CHAP Opening	The PPP connection's Challenge Handshake Authentication Protocol stage is opening.
ppp:IPCP Starting	The PPP connection's Internet Protocol Control Protocol stage is starting.
ppp:IPCP Opening	The PPP connection's Internet Protocol Control Protocol stage is opening.
ppp:LCP Closing	The PPP connection's Link Control Protocol stage is closing.
ppp:IPCP Closing	The PPP connection's Internet Protocol Control Protocol stage is closing.

Table 160 UPnP Logs

LOG MESSAGE	DESCRIPTION
UPnP pass through Firewall	UPnP packets can pass through the firewall.

Table 161 Content Filtering Logs

LOG MESSAGE	DESCRIPTION
%s: block keyword	The content of a requested web page matched a user defined keyword.
%s	The system forwarded web content.

For type and code details, see Table 165 on page 387. Table 162 Attack Logs

LOG MESSAGE	DESCRIPTION
attack [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF attack.
attack ICMP (type:%d, code:%d)	The firewall detected an ICMP attack.
land [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF land attack.
land ICMP (type:%d, code:%d)	The firewall detected an ICMP land attack.
ip spoofing - WAN [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall detected an IP spoofing attack on the WAN port.
ip spoofing - WAN ICMP (type:%d, code:%d)	The firewall detected an ICMP IP spoofing attack on the WAN port.
icmp echo : ICMP (type:%d, code:%d)	The firewall detected an ICMP echo attack.
syn flood TCP	The firewall detected a TCP syn flood attack.
ports scan TCP	The firewall detected a TCP port scan attack.
teardrop TCP	The firewall detected a TCP teardrop attack.
teardrop UDP	The firewall detected an UDP teardrop attack.
teardrop ICMP (type:%d, code:%d)	The firewall detected an ICMP teardrop attack.
illegal command TCP	The firewall detected a TCP illegal command attack.
NetBIOS TCP	The firewall detected a TCP NetBIOS attack.
ip spoofing - no routing entry [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall classified a packet with no source routing entry as an IP spoofing attack.
ip spoofing - no routing entry ICMP (type:%d, code:%d)	The firewall classified an ICMP packet with no source routing entry as an IP spoofing attack.
vulnerability ICMP (type:%d, code:%d)	The firewall detected an ICMP vulnerability attack.
traceroute ICMP (type:%d, code:%d)	The firewall detected an ICMP traceroute attack.

Table 163 802.1X Logs

LOG MESSAGE	DESCRIPTION
Local User Database accepts user.	A user was authenticated by the local user database.
Local User Database reports user credential error.	A user was not authenticated by the local user database because of an incorrect user password.
Local User Database does not find user's credential.	A user was not authenticated by the local user database because the user is not listed in the local user database.
RADIUS accepts user.	A user was authenticated by the RADIUS Server.
RADIUS rejects user. Pls check RADIUS Server.	A user was not authenticated by the RADIUS Server. Please check the RADIUS Server.
Local User Database does not support authentication method.	The local user database only supports the EAP-MD5 method. A user tried to use another authentication method and was not authenticated.
User logout because of session timeout expired.	The router logged out a user whose session expired.
User logout because of user deassociation.	The router logged out a user who ended the session.
User logout because of no authentication response from user.	The router logged out a user from which there was no authentication response.
User logout because of idle timeout expired.	The router logged out a user whose idle timeout period expired.
User logout because of user request.	A user logged out.
Local User Database does not support authentication method.	A user tried to use an authentication method that the local user database does not support (it only supports EAP-MD5).
No response from RADIUS. Pls check RADIUS Server.	There is no response message from the RADIUS server, please check the RADIUS server.
Use Local User Database to authenticate user.	The local user database is operating as the authentication server.
Use RADIUS to authenticate user.	The RADIUS server is operating as the authentication server.
No Server to authenticate user.	There is no authentication server to authenticate a user.
Local User Database does not find user's credential.	A user was not authenticated by the local user database because the user is not listed in the local user database.

Table 164 ACL Setting Notes

PACKET DIRECTION	DIRECTION	DESCRIPTION
(L to W)	LAN to WAN	ACL set for packets traveling from the LAN to the WAN.
(W to L)	WAN to LAN	ACL set for packets traveling from the WAN to the LAN.
(L to L/ZyXEL Device)	LAN to LAN/ZyXEL Device	ACL set for packets traveling from the LAN to the LAN or the ZyXEL Device.
(W to W/ZyXEL Device)	WAN to WAN/ZyXEL Device	ACL set for packets traveling from the WAN to the WAN or the ZyXEL Device.

Table 165 ICMP Notes

TYPE	CODE	DESCRIPTION
0		Echo Reply
	0	Echo reply message
3		Destination Unreachable
	0	Net unreachable
	1	Host unreachable
	2	Protocol unreachable
	3	Port unreachable
	4	A packet that needed fragmentation was dropped because it was set to Don't Fragment (DF)
	5	Source route failed
4		Source Quench
	0	A gateway may discard internet datagrams if it does not have the buffer space needed to queue the datagrams for output to the next network on the route to the destination network.
5		Redirect
	0	Redirect datagrams for the Network
	1	Redirect datagrams for the Host
	2	Redirect datagrams for the Type of Service and Network
	3	Redirect datagrams for the Type of Service and Host
8		Echo
	0	Echo message
11		Time Exceeded
	0	Time to live exceeded in transit
	1	Fragment reassembly time exceeded
12		Parameter Problem
	0	Pointer indicates the error
13		Timestamp
	0	Timestamp request message
14		Timestamp Reply
	0	Timestamp reply message
15		Information Request
	0	Information request message
16		Information Reply
	0	Information reply message

Table 166 Syslog Logs

LOG MESSAGE

DESCRIPTION

"This message is sent by the system ("RAS" displays as the system name if you haven't configured one) when the router generates a syslog. The facility is defined in the web MAIN MENU->LOGS->Log Settings page. The severity is the log's syslog class. The definition of messages and notes are defined in the various log charts throughout this appendix. The "devID" is the last three characters of the MAC address of the router's LAN port. The "cat" is the same as the category in the router's logs.

Table 167 SIP Logs

LOG MESSAGE	DESCRIPTION
SIP Registration Success by SIP:SIP Phone Number	The listed SIP account was successfully registered with a SIP register server.
SIP Registration Fail by SIP:SIP Phone Number	An attempt to register the listed SIP account with a SIP register server was not successful.
SIP UnRegistration Success by SIP:SIP Phone Number	The listed SIP account's registration was deleted from the SIP register server.
SIP UnRegistration Fail by SIP:SIP Phone Number	An attempt to delete the listed SIP account's registration from the SIP register server failed.

Table 168 RTP Logs

LOG MESSAGE	DESCRIPTION
Error, RTP init fail	The initialization of an RTP session failed.
Error, Call fail: RTP connect fail	A VoIP phone call failed because the RTP session could not be established.
Error, RTP connection cannot close	The termination of an RTP session failed.

Table 169 FSM Logs: Caller Side

LOG MESSAGE	DESCRIPTION
VoIP Call Start Ph[Phone Port Number] <- Outgoing Call Number	Someone used a phone connected to the listed phone port to initiate a VoIP call to the listed destination.
VoIP Call Established Ph[Phone Port] -> Outgoing Call Number	Someone used a phone connected to the listed phone port to make a VoIP call to the listed destination.
VoIP Call End Phone[Phone Port]	A VoIP phone call made from a phone connected to the listed phone port has terminated.

Table 170 FSM Logs: Callee Side

LOG MESSAGE	DESCRIPTION
VoIP Call Start from SIP[SIP Port Number]	A VoIP phone call came to the ZyXEL Device from the listed SIP number.
VoIP Call Established Ph[Phone Port] <- Outgoing Call Number	A VoIP phone call was set up from the listed SIP number to the ZyXEL Device.
VoIP Call End Phone[Phone Port]	A VoIP phone call that came into the ZyXEL Device has terminated.

Table 171 PSTN Logs

LOG MESSAGE	DESCRIPTION
PSTN Call Start	A PSTN call has been initiated.
PSTN Call End	A PSTN call has terminated.
PSTN Call Established	A PSTN call has been set up.

The following table shows RFC-2408 ISAKMP payload types that the log displays. Please refer to RFC 2408 for detailed information on each type. Table 172 RFC-2408 ISAKMP Payload Types

LOG DISPLAY	PAYLOAD TYPE
SA	Security Association
PROP	Proposal
TRANS	Transform
KE	Key Exchange
ID	Identification
CER	Certificate
CER_REQ	Certificate Request
HASH	Hash
SIG	Signature
NONCE	Nonce
NOTFY	Notification
DEL	Delete
VID	Vendor ID

Log Commands

Go to the command interpreter interface (Appendix J on page 393 explains how to access and use the commands).

Configuring What You Want the ZyXEL Device to Log

1 Use the sys logs load command to load the log setting buffer that allows you to configure which logs the ZyXEL Device is to record. 2 Use sys logs category to view a list of the log categories. Figure 221 Displaying Log Categories Example

Copyright (c) 1994 - 2004 ZyXEL Communications Corp.
ras> ?
Valid commands are:
sys exit ether wan
wlan ip bridge lan
radius 8021x dsp voiceradius 8021x
ras>

3 Use sys logs category followed by a log category to display the parameters that are available for the category. Figure 222 Displaying Log Parameters Example

ras> sys logs category access
Usage: [0:none/1:log/2:alert/3:both]
ras>

4 Use sys logs category followed by a log category and a parameter to decide what to record. Use 0 to not record logs for that category, 1 to record only logs for that category, 2 to record only alerts for that category, and 3 to record both logs and alerts for that category. Not every parameter is available with every category. 5 Use the sys logs save command to store the settings in the ZyXEL Device (you must do this in order to record logs).

Displaying Logs

- Use the sys logs display command to show all of the logs in the ZyXEL Device's log. - Use the sys logs category display command to show the log settings for all of the log categories. - Use the sys logs display [log category] command to show the logs in an individual ZyXEL Device log category. - Use the sys logs clear command to erase all of the ZyXEL Device's logs.

Log Command Example

This example shows how to set the ZyXEL Device to record the access logs and alerts and then view the results. Figure 223 Log Command Example

ras> sys logs load
ras> sys logs category access 3
ras> sys logs save
ras> sys logs display access
<h1 id="time-source-destination-notes">.time source destination notes</h1>
message
7|01/01/2000 09:40:13 |192.168.1.1:3 |192.168.1.33:1 |ACCESS FO
RWARD
Router reply ICMP packet: ICMP(type:3, code:1)
8|01/01/2000 09:40:07 |192.168.1.1:3 |192.168.1.33:1 |ACCESS FO
RWARD
Router reply ICMP packet: ICMP(type:3, code:1)
9|01/01/2000 09:40:04 |192.168.1.1:3 |192.168.1.33:1 |ACCESS FO
RWARD
Router reply ICMP packet: ICMP(type:3, code:1)
10|01/01/2000 09:40:04 |192.168.1.33:1199 |207.69.188.186:110 |ACCESS FO
RWARD
Firewall default policy: TCP (L to W)
11|01/01/2000 09:40:04 |192.168.1.1:53 |192.168.1.33:1200 |ACCESS FO
RWARD
none: UDP

APPENDIX J

Command Interpreter

The following describes how to use the command interpreter. Telnet to the ZyXEL Device and enter the password to use the commands. See the included disk or zyxel.com for more detailed information on these commands. Note: Use of undocumented commands or misconfiguration can damage the unit and possibly render it unusable.

Command Syntax

- The command keywords are in courier new font. - Enter the command keywords exactly as shown, do not abbreviate. - The required fields in a command are enclosed in angle brackets < . - The optional fields in a command are enclosed in square brackets [ ] . • The | symbol means or. For example, sys filter netbios config means that you must specify the type of netbios filter and whether to turn it on or off.

Command Usage

A list of valid commands can be found by typing help or ? at the command prompt. Always type the full command. Type exit to leave the commands when finished.

APPENDIX K

Internal SPTGEN

Internal SPTGEN Overview

Internal SPTGEN (System Parameter Table Generator) is a configuration text file useful for efficient configuration of multiple ZyXEL Devices. Internal SPTGEN lets you configure, save and upload multiple menus at the same time using just one configuration text file – eliminating the need to navigate and configure individual screens for each ZyXEL Device.

The Configuration Text File Format

All Internal SPTGEN text files conform to the following format:

<field identification number = field name = parameter values allowed = input>,

where is your input conforming to . The figure shown next is an example of an Internal SPTGEN text file. Figure 224 Configuration Text File Format: Column Descriptions

/ Menu 1 General Setup
10000000 = Configured <0 (No) | 1 (Yes)> = 1
10000001 = System Name <Str> = Your Device
10000002 = Location <Str> =
10000003 = Contact Person's Name <Str> =
10000004 = Route IP <0 (No) | 1 (Yes)> = 1
10000005 = Route IPX <0 (No) | 1 (Yes)> = 0
10000006 = Bridge <0 (No) | 1 (Yes)> = 0

Note: DO NOT alter or delete any field except parameters in the Input column. This appendix introduces Internal SPTGEN. All menus shown in this appendix are example menus meant to show SPTGEN usage. Actual menus for your product may differ.

Internal SPTGEN File Modification - Important Points to Remember

Each parameter you enter must be preceded by one “=” sign and one space. Some parameters are dependent on others. For example, if you disable the Configured field in menu 1 (see Figure 224 on page 395), then you disable every field in this menu. If you enter a parameter that is invalid in the Input column, the ZyXEL Device will not save the configuration and the command line will display the Field Identification Number. Figure 225 on page 396, shown next, is an example of what the ZyXEL Device displays if you enter a value other than “0” or “1” in the Input column of Field Identification Number 1000000 (refer to Figure 224 on page 395). Figure 225 Invalid Parameter Entered: Command Line Example

field value is not legal error:-1
ROM-t is not saved, error Line ID:10000000
reboot to get the original configuration
Bootbase Version: V2.02 | 2/22/2001 13:33:11
RAM: Size = 8192 Kbytes
FLASH: Intel 8M *2

The ZyXEL Device will display the following if you enter parameter(s) that are valid. Figure 226 Valid Parameter Entered: Command Line Example

Please wait for the system to write SPT text file(ROM-t)...
Bootbase Version: V2.02 | 2/22/2001 13:33:11
RAM: Size = 8192 Kbytes
FLASH: Intel 8M *2

Internal SPTGEN FTP Download Example

1 Launch your FTP application. 2 Enter "bin". The command "bin" sets the transfer mode to binary. 3 Get "rom-t" file. The command "get" transfers files from the ZyXEL Device to your computer. The name "rom-t" is the configuration filename on the ZyXEL Device. 4 Edit the "rom-t" file using a text editor (do not use a word processor). You must leave this FTP screen to edit. Figure 227 Internal SPTGEN FTP Download Example

c:\ftp 192.168.1.1
220 PPP FTP version 1.0 ready at Sat Jan 1 03:22:12 2000
User (192.168.1.1:(none)):
331 Enter PASS command
Password:
230 Logged in
ftp>bin
200 Type I OK
ftp> get rom-t
ftp>bye
c:\edit rom-t
(edit the rom-t text file by a text editor and save it)

Note: You can rename your "rom-t" file when you save it to your computer but it must be named "rom-t" when you upload it to your ZyXEL Device.

Internal SPTGEN FTP Upload Example

1 Launch your FTP application. 2 Enter "bin". The command "bin" sets the transfer mode to binary. 3 Upload your “rom-t” file from your computer to the ZyXEL Device using the “put” command. computer to the ZyXEL Device. 4 Exit this FTP application. Figure 228 Internal SPTGEN FTP Upload Example

c:\ftp 192.168.1.1
220 PPP FTP version 1.0 ready at Sat Jan 1 03:22:12 2000
User (192.168.1.1:(none)):
331 Enter PASS command
Password:
230 Logged in
ftp>bin
200 Type I OK
ftp> put rom-t
ftp>bye

Example Internal SPTGEN Screens

This section covers ZyXEL Device Internal SPTGEN screens. Table 173 Abbreviations Used in the Example Internal SPTGEN Screens Table

ABBREVIATION	MEANING
FIN	Field Identification Number
FN	Field Name
PVA	Parameter Values Allowed
INPUT	An example of what you may enter
*	Applies to the ZyXEL Device.

The following are the Internal SPTGEN menus. Table 174 Menu 1 General Setup

/ Menu 1 General Setup
FIN	FN	PVA	INPUT
10000000 =	Configured	<0 (No) | 1 (Yes)>	= 0
10000001 =	System Name		= Your Device
10000002 =	Location		=
10000003 =	Contact Person's Name		=
10000004 =	Route IP	<0 (No) | 1 (Yes)>	= 1
10000006 =	Bridge	<0 (No) | 1 (Yes)>	= 0

Table 175 Menu 3

/ Menu 3.1 General Ethernet Setup
FIN	FN	PVA	INPUT
30100001 =	Input Protocol filters Set 1		= 2
30100002 =	Input Protocol filters Set 2		= 256
30100003 =	Input Protocol filters Set 3		= 256
30100004 =	Input Protocol filters Set 4		= 256
30100005 =	Input device filters Set 1		= 256
30100006 =	Input device filters Set 2		= 256
30100007 =	Input device filters Set 3		= 256
30100008 =	Input device filters Set 4		= 256
30100009 =	Output protocol filters Set 1		= 256
30100010 =	Output protocol filters Set 2		= 256
30100011 =	Output protocol filters Set 3		= 256
30100012 =	Output protocol filters Set 4		= 256
30100013 =	Output device filters Set 1		= 256

Table 175 Menu 3

30100014 =	Output device filters Set 2		= 256
30100015 =	Output device filters Set 3		= 256
30100016 =	Output device filters Set 4		= 256
/ Menu 3.2 TCP/IP and DHCP Ethernet Setup
FIN	FN	PVA	INPUT
30200001 =	DHCP	<0 (None) | 1 (Server) | 2 (Relay)>	= 0
30200002 =	Client IP Pool Starting Address		= 192.168.1.33
30200003 =	Size of Client IP Pool		= 32
30200004 =	Primary DNS Server		= 0.0.0.0
30200005 =	Secondary DNS Server		= 0.0.0.0
30200006 =	Remote DHCP Server		= 0.0.0.0
30200008 =	IP Address		= 172.21.2.200
30200009 =	IP Subnet Mask		= 16
30200010 =	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
30200011 =	Version	<0 (Rip-1) | 1 (Rip-2B) | 2 (Rip-2M)>	= 0
30200012 =	Multicast	<0 (IGMP-v2) | 1 (IGMP-v1) | 2 (None)>	= 2
30200013 =	IP Policies Set 1 (1~12)		= 256
30200014 =	IP Policies Set 2 (1~12)		= 256
30200015 =	IP Policies Set 3 (1~12)		= 256
30200016 =	IP Policies Set 4 (1~12)		= 256
/ Menu 3.2.1 IP Alias Setup
FIN	FN	PVA	INPUT
30201001 =	IP Alias 1	<0 (No) | 1 (Yes)>	= 0
30201002 =	IP Address		= 0.0.0.0
30201003 =	IP Subnet Mask		= 0
30201004 =	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
30201005 =	Version	<0 (Rip-1) | 1 (Rip-2B) | 2 (Rip-2M)>	= 0

Table 175 Menu 3

30201006 =		IP Alias #1 Incoming protocol filters Set 1		= 256
30201007 =		IP Alias #1 Incoming protocol filters Set 2		= 256
30201008 =		IP Alias #1 Incoming protocol filters Set 3		= 256
30201009 =		IP Alias #1 Incoming protocol filters Set 4		= 256
30201010 =		IP Alias #1 Outgoing protocol filters Set 1		= 256
30201011 =		IP Alias #1 Outgoing protocol filters Set 2		= 256
30201012 =		IP Alias #1 Outgoing protocol filters Set 3		= 256
30201013 =		IP Alias #1 Outgoing protocol filters Set 4		= 256
30201014 =		IP Alias 2 <0 (No) | 1 (Yes)>		= 0
30201015 =		IP Address		= 0.0.0.0
30201016 =		IP Subnet Mask		= 0
30201017 =		RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
30201018 =		Version	<0 (Rip-1) | 1 (Rip-2B) | 2 (Rip-2M)>	= 0
30201019 =		IP Alias #2 Incoming protocol filters Set 1		= 256
30201020 =		IP Alias #2 Incoming protocol filters Set 2		= 256
30201021 =		IP Alias #2 Incoming protocol filters Set 3		= 256
30201022 =		IP Alias #2 Incoming protocol filters Set 4		= 256
30201023 =		IP Alias #2 Outgoing protocol filters Set 1		= 256
30201024 =		IP Alias #2 Outgoing protocol filters Set 2		= 256
30201025 =		IP Alias #2 Outgoing protocol filters Set 3		= 256
30201026 =		IP Alias #2 Outgoing protocol filters Set 4		= 256
*/ Menu 3.5 Wireless LAN Setup
	FIN	FN	PVA	INPUT
30500001 =		ESSID		Wireless

Table 175 Menu 3

30500002 =	Hide ESSID	<0 (No) | 1 (Yes)>	= 0
30500003 =	Channel ID	<1|2|3|4|5|6|7|8|9|10|11|12|13>	= 1
30500004 =	RTS Threshold	<0 ~ 2432>	= 2432
30500005 =	FRAG. Threshold	<256 ~ 2432>	= 2432
30500006 =	WEP	<0 (DISABLE) | 1(64-bit WEP) | 2(128-bit WEP)>	= 0
30500007 =	Default Key	<1|2|3|4>	= 0
30500008 =	WEP Key1		=
30500009 =	WEP Key2		=
30500010 =	WEP Key3		=
30500011 =	WEP Key4		=
30500012 =	Wlan Active	<0 (Disable) | 1 (Enable)>	= 0
*/ MENU 3.5.1 WLAN MAC ADDRESS FILTER
FIN	FN	PVA	INPUT
30501001 =	Mac Filter Active	<0 (No) | 1 (Yes)>	= 0
30501002 =	Filter Action	<0 (Allow) | 1 (Deny)>	= 0
30501003 =	Address 1		= 00:00:00:00:00:00
30501004 =	Address 2		= 00:00:00:00:00:00
30501005 =	Address 3		= 00:00:00:00:00:00
Continued	...		...
30501034 =	Address 32		= 00:00:00:00:00:00

Table 176 Menu 4 Internet Access Setup

/ Menu 4 Internet Access Setup
FIN	FN	PVA	INPUT
40000000 =	Configured	<0 (No) | 1 (Yes) >	= 1
40000001 =	ISP	<0 (No) | 1 (Yes) >	= 1
40000002 =	Active	<0 (No) | 1 (Yes) >	= 1
40000003 =	ISP's Name		= ChangeMe
40000004 =	Encapsulation	<2 (PPPOE) | 3 (RFC 1483) | 4 (PPPoA ) | 5 (ENET ENCAP) >	= 2
40000005 =	Multiplexing	<1 (LLC-based) | 2 (VC-based)	= 1
40000006 =	VPI #		= 0
40000007 =	VCI #		= 35
40000008 =	Service Name		= any
40000009 =	My Login		= test@pqa
40000010 =	My Password		= 1234
40000011 =	Single User Account	<0 (No) | 1 (Yes) >	= 1
40000012 =	IP Address Assignment	<0 (Static) | 1 (Dynamic) >	= 1
40000013 =	IP Address		= 0.0.0.0
40000014 =	Remote IP address		= 0.0.0.0
40000015 =	Remote IP subnet mask		= 0
40000016 =	ISP incoming protocol filter set 1		= 6
40000017 =	ISP incoming protocol filter set 2		= 256
40000018 =	ISP incoming protocol filter set 3		= 256
40000019 =	ISP incoming protocol filter set 4		= 256
40000020 =	ISP outgoing protocol filter set 1		= 256
40000021 =	ISP outgoing protocol filter set 2		= 256
40000022 =	ISP outgoing protocol filter set 3		= 256
40000023 =	ISP outgoing protocol filter set 4		= 256
40000024 =	ISP PPPoE idle timeout		= 0
40000025 =	Route IP	<0 (No) | 1 (Yes) >	= 1
40000026 =	Bridge	<0 (No) | 1 (Yes) >	= 0
40000027 =	ATM QoS Type	<0 (CBR) | (1 (UBR) >	= 1
40000028 =	Peak Cell Rate (PCR)		= 0
40000029 =	Sustain Cell Rate (SCR)		= 0
40000030 =	Maximum Burst Size(MBS)		= 0
40000031=	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
40000032=	RIP Version	<0 (Rip-1) | 1 (Rip-2B) | 2 (Rip-2M)>	= 0
40000033=	Nailed-up Connection	<0 (No) | 1 (Yes)>	= 0

Table 177 Menu 12

/ Menu 12.1.1 IP Static Route Setup
FIN		FN	PVA	INPUT
120101001 =		IP Static Route set #1, Name		=
120101002 =		IP Static Route set #1, Active	<0 (No) |1 (Yes)>	= 0
120101003 =		IP Static Route set #1, Destination IP address		= 0.0.0.0
120101004 =		IP Static Route set #1, Destination IP subnetmask		= 0
120101005 =		IP Static Route set #1, Gateway		= 0.0.0.0
120101006 =		IP Static Route set #1, Metric		= 0
120101007 =		IP Static Route set #1, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.2 IP Static Route Setup
FIN		FN	PVA	INPUT
120102001 =		IP Static Route set #2, Name		=
120102002 =		IP Static Route set #2, Active	<0 (No) |1 (Yes)>	= 0
120102003 =		IP Static Route set #2, Destination IP address		= 0.0.0.0
120102004 =		IP Static Route set #2, Destination IP subnetmask		= 0
120102005 =		IP Static Route set #2, Gateway		= 0.0.0.0
120102006 =		IP Static Route set #2, Metric		= 0
120102007 =		IP Static Route set #2, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.3 IP Static Route Setup
FIN		FN	PVA	INPUT
120103001 =		IP Static Route set #3, Name		=
120103002 =		IP Static Route set #3, Active	<0 (No) |1 (Yes)>	= 0
120103003 =		IP Static Route set #3, Destination IP address		= 0.0.0.0
120103004 =		IP Static Route set #3, Destination IP subnetmask		= 0
120103005 =		IP Static Route set #3, Gateway		= 0.0.0.0
120103006 =		IP Static Route set #3, Metric		= 0
120103007 =		IP Static Route set #3, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.4 IP Static Route Setup
FIN		FN	PVA	INPUT
120104001 =		IP Static Route set #4, Name		=
120104002 =		IP Static Route set #4, Active	<0 (No) |1 (Yes)>	= 0
120104003 =		IP Static Route set #4, Destination IP address		= 0.0.0.0
120104004 =		IP Static Route set #4, Destination IP subnetmask		= 0
120104005 =		IP Static Route set #4, Gateway		= 0.0.0.0
120104006 =		IP Static Route set #4, Metric		= 0
120104007 =		IP Static Route set #4, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.5 IP Static Route Setup
FIN		FN	PVA	INPUT
120105001 =		IP Static Route set #5, Name		=
120105002 =		IP Static Route set #5, Active	<0 (No) |1 (Yes)>	= 0
120105003 =		IP Static Route set #5, Destination IP address		= 0.0.0.0
120105004 =		IP Static Route set #5, Destination IP subnetmask		= 0
120105005 =		IP Static Route set #5, Gateway		= 0.0.0.0
120105006 =		IP Static Route set #5, Metric		= 0
120105007 =		IP Static Route set #5, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.6 IP Static Route Setup
FIN		FN	PVA	INPUT
120106001 =		IP Static Route set #6, Name		=
120106002 =		IP Static Route set #6, Active	<0 (No) |1 (Yes)>	= 0
120106003 =		IP Static Route set #6, Destination IP address		= 0.0.0.0
120106004 =		IP Static Route set #6, Destination IP subnetmask		= 0
120106005 =		IP Static Route set #6, Gateway		= 0.0.0.0
120106006 =		IP Static Route set #6, Metric		= 0
120106007 =		IP Static Route set #6, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.7 IP Static Route Setup
FIN		FN	PVA	INPUT
120107001 =		IP Static Route set #7, Name		=
120107002 =		IP Static Route set #7, Active	<0 (No) |1 (Yes)>	= 0
120107003 =		IP Static Route set #7, Destination IP address		= 0.0.0.0
120107004 =		IP Static Route set #7, Destination IP subnetmask		= 0
120107005 =		IP Static Route set #7, Gateway		= 0.0.0.0
120107006 =		IP Static Route set #7, Metric		= 0
120107007 =		IP Static Route set #7, Private	<0 (No) |1 (Yes)>	= 0
/ Menu 12.1.8 IP Static Route Setup
FIN		FN	PVA	INPUT
120108001 =		IP Static Route set #8, Name		=
120108002 =		IP Static Route set #8, Active	<0 (No) |1 (Yes)>	= 0
120108003 =		IP Static Route set #8, Destination IP address		= 0.0.0.0
120108004 =		IP Static Route set #8, Destination IP subnetmask		= 0
120108005 =		IP Static Route set #8, Gateway		= 0.0.0.0
120108006 =		IP Static Route set #8, Metric		= 0
120108007 =		IP Static Route set #8, Private	<0 (No) |1 (Yes)>	= 0
*/ Menu 12.1.9 IP Static Route Setup
FIN		FN	PVA	INPUT
120109001 =		IP Static Route set #9, Name		=
120109002 =		IP Static Route set #9, Active	<0 (No) |1 (Yes)>	= 0
120109003 =		IP Static Route set #9, Destination IP address		= 0.0.0.0
120109004 =		IP Static Route set #9, Destination IP subnetmask		= 0
120109005 =		IP Static Route set #9, Gateway		= 0.0.0.0
120109006 =		IP Static Route set #9, Metric		= 0
120109007 =		IP Static Route set #9, Private	<0 (No) |1 (Yes)>	= 0
*/ Menu 12.1.10 IP Static Route Setup
FIN		FN	PVA	INPUT
120110001 =		IP Static Route set #10, Name		=
120110002 =		IP Static Route set #10, Active	<0 (No) |1 (Yes)>	= 0
120110003 =		IP Static Route set #10, Destination IP address		= 0.0.0.0
120110004 =		IP Static Route set #10, Destination IP subnetmask		= 0
120110005 =		IP Static Route set #10, Gateway		= 0.0.0.0
120110006 =		IP Static Route set #10, Metric		= 0
120110007 =		IP Static Route set #10, Private	<0 (No) |1 (Yes)>	= 0
*/ Menu 12.1.11 IP Static Route Setup
FIN		FN	PVA	INPUT
120111001 =		IP Static Route set #11, Name		=
120111002 =		IP Static Route set #11, Active	<0 (No) | 1 (Yes) >	= 0
120111003 =		IP Static Route set #11, Destination IP address		= 0.0.0.0
120111004 =		IP Static Route set #11, Destination IP subnetmask		= 0
120111005 =		IP Static Route set #11, Gateway		= 0.0.0.0
120111006 =		IP Static Route set #11, Metric		= 0
120111007 =		IP Static Route set #11, Private	<0 (No) | 1 (Yes) >	= 0
*/ Menu 12.1.12 IP Static Route Setup
FIN		FN	PVA	INPUT
120112001 =		IP Static Route set #12, Name		=
120112002 =		IP Static Route set #12, Active	<0 (No) | 1 (Yes) >	= 0
120112003 =		IP Static Route set #12, Destination IP address		= 0.0.0.0
120112004 =		IP Static Route set #12, Destination IP subnetmask		= 0
120112005 =		IP Static Route set #12, Gateway		= 0.0.0.0
120112006 =		IP Static Route set #12, Metric		= 0
120112007 =		IP Static Route set #12, Private	<0 (No) | 1 (Yes) >	= 0
*/ Menu 12.1.13 IP Static Route Setup
FIN		FN	PVA	INPUT
120113001 =		IP Static Route set #13, Name		=
120113002 =		IP Static Route set #13, Active	<0 (No) | 1 (Yes) >	= 0
120113003 =		IP Static Route set #13, Destination IP address		= 0.0.0.0
120113004 =		IP Static Route set #13, Destination IP subnetmask		= 0
120113005 =		IP Static Route set #13, Gateway		= 0.0.0.0
120113006 =		IP Static Route set #13, Metric		= 0
	120113007 =	IP Static Route set #13, Private	<0 (No) | 1 (Yes) >	= 0
*/ Menu 12.1.14 IP Static Route Setup
FIN		FN	PVA	INPUT
120114001 =		IP Static Route set #14, Name		=
120114002 =		IP Static Route set #14, Active	<0 (No) | 1 (Yes) >	= 0
120114003 =		IP Static Route set #14, Destination IP address		= 0.0.0.0
120114004 =		IP Static Route set #14, Destination IP subnetmask		= 0
120114005 =		IP Static Route set #14, Gateway		= 0.0.0.0
120114006 =		IP Static Route set #14, Metric		= 0
120114007 =		IP Static Route set #14, Private	<0 (No) | 1 (Yes) >	= 0

Table 177 Menu 12 (continued)

*/ Menu 12.1.15 IP Static Route Setup
FIN	FN	PVA	INPUT
120115001 =	IP Static Route set #15, Name		=
120115002 =	IP Static Route set #15, Active	<0 (No) |1 (Yes)>	= 0
120115003 =	IP Static Route set #15, Destination IP address		= 0.0.0.0
120115004 =	IP Static Route set #15, Destination IP subnetmask		= 0
120115005 =	IP Static Route set #15, Gateway		= 0.0.0.0
120115006 =	IP Static Route set #15, Metric		= 0
120115007 =	IP Static Route set #15, Private	<0 (No) |1 (Yes)>	= 0
*/ Menu 12.1.16 IP Static Route Setup
FIN	FN	PVA	INPUT
120116001 =	IP Static Route set #16, Name		=
120116002 =	IP Static Route set #16, Active	<0 (No) |1 (Yes)>	= 0
120116003 =	IP Static Route set #16, Destination IP address		= 0.0.0.0
120116004 =	IP Static Route set #16, Destination IP subnetmask		= 0
120116005 =	IP Static Route set #16, Gateway		= 0.0.0.0
120116006 =	IP Static Route set #16, Metric		= 0
120116007 =	IP Static Route set #16, Private	<0 (No) |1 (Yes)>	= 0

Table 178 Menu 15 SUA Server Setup

/ Menu 15 SUA Server Setup
FIN	FN	PVA	INPUT
150000001 =	SUA Server IP address for default port		= 0.0.0.0
150000002 =	SUA Server #2 Active	<0 (No) | 1 (Yes)>	= 0
150000003 =	SUA Server #2 Protocol	<0 (All) | 6 (TCP) | 17 (U DP)>	= 0
150000004 =	SUA Server #2 Port Start		= 0
150000005 =	SUA Server #2 Port End		= 0
150000006 =	SUA Server #2 Local IP address		= 0.0.0.0
150000007 =	SUA Server #3 Active	<0 (No) | 1 (Yes)>	= 0
150000008 =	SUA Server #3 Protocol	<0 (All) | 6 (TCP) | 17 (U DP)>	= 0
150000009 =	SUA Server #3 Port Start		= 0
150000010 =	SUA Server #3 Port End		= 0
150000011 =	SUA Server #3 Local IP address		= 0.0.0.0
150000012 =	SUA Server #4 Active	<0 (No) | 1 (Yes)>	= 0
150000013 =	SUA Server #4 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000014 =	SUA Server #4 Port Start		= 0
150000015 =	SUA Server #4 Port End		= 0
150000016 =	SUA Server #4 Local IP address		= 0.0.0.0
150000017 =	SUA Server #5 Active	<0 (No) | 1 (Yes)>	= 0
150000018 =	SUA Server #5 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000019 =	SUA Server #5 Port Start		= 0
150000020 =	SUA Server #5 Port End		= 0
150000021 =	SUA Server #5 Local IP address		= 0.0.0.0
150000022 =	SUA Server #6 Active	<0 (No) | 1 (Yes)> = 0	= 0
150000023 =	SUA Server #6 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000024 =	SUA Server #6 Port Start		= 0
150000025 =	SUA Server #6 Port End		= 0
150000026 =	SUA Server #6 Local IP address		= 0.0.0.0
150000027 =	SUA Server #7 Active	<0 (No) | 1 (Yes)>	= 0
150000028 =	SUA Server #7 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0.0.0.0
150000029 =	SUA Server #7 Port Start		= 0
150000030 =	SUA Server #7 Port End		= 0
150000031 =	SUA Server #7 Local IP address		= 0.0.0.0
150000032 =	SUA Server #8 Active	<0 (No) | 1 (Yes)>	= 0
150000033 =	SUA Server #8 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000034 =	SUA Server #8 Port Start		= 0
150000035 =	SUA Server #8 Port End		= 0
150000036 =	SUA Server #8 Local IP address		= 0.0.0.0
150000037 =	SUA Server #9 Active	<0 (No) | 1 (Yes)>	= 0
150000038 =	SUA Server #9 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000039 =	SUA Server #9 Port Start		= 0
150000040 =	SUA Server #9 Port End		= 0
150000041 =	SUA Server #9 Local IP address		= 0.0.0.0
150000042 =	SUA Server #10 Active	<0 (No) | 1 (Yes)>	= 0
150000043 =	SUA Server #10 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000044 =	SUA Server #10 Port Start		= 0
150000045 =	SUA Server #10 Port End		= 0
150000046 =	SUA Server #10 Local IP address		= 0.0.0.0
150000047 =	SUA Server #11 Active	<0 (No) | 1 (Yes)>	= 0
150000048 =	SUA Server #11 Protocol	<0 (All) | 6 (TCP) | 17 (U DP)>	= 0
150000049 =	SUA Server #11 Port Start		= 0
150000050 =	SUA Server #11 Port End		= 0
150000051 =	SUA Server #11 Local IP address		= 0.0.0.0
150000052 =	SUA Server #12 Active	<0 (No) | 1 (Yes)>	= 0
150000053 =	SUA Server #12 Protocol	<0 (All) | 6 (TCP) | 17 (U DP)>	= 0
150000054 =	SUA Server #12 Port Start		= 0
150000055 =	SUA Server #12 Port End		= 0
150000056 =	SUA Server #12 Local IP address		= 0.0.0.0

Table 179 Menu 21.1 Filter Set #1

/ Menu 21 Filter set #1
FIN	FN	PVA	INPUT
210100001 =	Filter Set 1, Name		=
/ Menu 21.1.1.1 set #1, rule #1
FIN	FN	PVA	INPUT
210101001 =	IP Filter Set 1, Rule 1 Type	<2 (TCP/IP)>	= 2
210101002 =	IP Filter Set 1, Rule 1 Active	<0 (No) | 1 (Yes)>	= 1
210101003 =	IP Filter Set 1, Rule 1 Protocol		= 6
210101004 =	IP Filter Set 1, Rule 1 Dest IP address		= 0.0.0.0
210101005 =	IP Filter Set 1, Rule 1 Dest Subnet Mask		= 0
210101006 =	IP Filter Set 1, Rule 1 Dest Port		= 137
210101007 =	IP Filter Set 1, Rule 1 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210101008 =	IP Filter Set 1, Rule 1 Src IP address		= 0.0.0.0
210101009 =	IP Filter Set 1, Rule 1 Src Subnet Mask		= 0
210101010 =	IP Filter Set 1, Rule 1 Src Port		= 0
210101011 =	IP Filter Set 1, Rule 1 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210101013 =	IP Filter Set 1, Rule 1 Act Match	<1(check next) | 2 (forward) | 3 (drop)>	= 3
210101014 =	IP Filter Set 1, Rule 1 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.1.2 set #1, rule #2
FIN	FN	PVA	INPUT
210102001 =	IP Filter Set 1, Rule 2 Type	<2 (TCP/IP)>	= 2
210102002 =	IP Filter Set 1, Rule 2 Active	<0 (No) | 1 (Yes)>	= 1
210102003 =	IP Filter Set 1, Rule 2 Protocol		= 6
210102004 =	IP Filter Set 1, Rule 2 Dest IP address		= 0.0.0.0
210102005 =	IP Filter Set 1, Rule 2 Dest Subnet Mask		= 0
210102006 =	IP Filter Set 1, Rule 2 Dest Port		= 138
210102007 =	IP Filter Set 1, Rule 2 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210102008 =	IP Filter Set 1, Rule 2 Src IP address		= 0.0.0.0
210102009 =	IP Filter Set 1, Rule 2 Src Subnet Mask		= 0
210102010 =	IP Filter Set 1, Rule 2 Src Port		= 0
210102011 =	IP Filter Set 1, Rule 2 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210102013 =	IP Filter Set 1, Rule 2 Act Match	<1(check next) | 2 (forward) | 3 (drop)>	= 3
210102014 =	IP Filter Set 1, Rule 2 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.1.3 set #1, rule #3
FIN	FN	PVA	INPUT
210103001 =	IP Filter Set 1, Rule 3 Type	<2 (TCP/IP)>	= 2
210103002 =	IP Filter Set 1, Rule 3 Active	<0 (No) | 1 (Yes)>	= 1
210103003 =	IP Filter Set 1, Rule 3 Protocol		= 6
210103004 =	IP Filter Set 1, Rule 3 Dest IP address		= 0.0.0.0
210103005 =	IP Filter Set 1, Rule 3 Dest Subnet Mask		= 0
210103006 =	IP Filter Set 1, Rule 3 Dest Port		= 139
210103007 =	IP Filter Set 1, Rule 3 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210103008 =	IP Filter Set 1, Rule 3 Src IP address		= 0.0.0.0
210103009 =	IP Filter Set 1, Rule 3 Src Subnet Mask		= 0
210103010 =	IP Filter Set 1, Rule 3 Src Port		= 0
210103011 =	IP Filter Set 1, Rule 3 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210103013 =	IP Filter Set 1, Rule 3 Act Match	<1 (check next) | 2 (forward) | 3 (drop)	= 3
210103014 =	IP Filter Set 1, Rule 3 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)	= 1
/ Menu 21.1.1.4 set #1, rule #4
FIN	FN	PVA	INPUT
210104001 =	IP Filter Set 1, Rule 4 Type	<2 (TCP/IP)>	= 2
210104002 =	IP Filter Set 1, Rule 4 Active	<0 (No) | 1 (Yes)>	= 1
210104003 =	IP Filter Set 1, Rule 4 Protocol		= 17
210104004 =	IP Filter Set 1, Rule 4 Dest IP address		= 0.0.0.0
210104005 =	IP Filter Set 1, Rule 4 Dest Subnet Mask		= 0
210104006 =	IP Filter Set 1, Rule 4 Dest Port		= 137
210104007 =	IP Filter Set 1, Rule 4 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210104008 =	IP Filter Set 1, Rule 4 Src IP address		= 0.0.0.0
210104009 =	IP Filter Set 1, Rule 4 Src Subnet Mask		= 0
210104010 =	IP Filter Set 1, Rule 4 Src Port		= 0
210104011 =	IP Filter Set 1, Rule 4 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210104013 =	IP Filter Set 1, Rule 4 Act Match	<1 (check next) | 2 (forward) | 3 (drop)	= 3
210104014 =	IP Filter Set 1, Rule 4 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)	= 1
/ Menu 21.1.1.5 set #1, rule #5
FIN	FN	PVA	INPUT
210105001 =	IP Filter Set 1, Rule 5 Type	<2 (TCP/IP)>	= 2
210105002 =	IP Filter Set 1, Rule 5 Active	<0 (No) | 1 (Yes)>	= 1
210105003 =	IP Filter Set 1, Rule 5 Protocol		= 17
210105004 =	IP Filter Set 1, Rule 5 Dest IP address		= 0.0.0.0
210105005 =	IP Filter Set 1, Rule 5 Dest Subnet Mask		= 0
210105006 =	IP Filter Set 1, Rule 5 Dest Port		= 138
210105007 =	IP Filter Set 1, Rule 5 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210105008 =	IP Filter Set 1, Rule 5 Src IP Address		= 0.0.0.0
210105009 =	IP Filter Set 1, Rule 5 Src Subnet Mask		= 0
210105010 =	IP Filter Set 1, Rule 5 Src Port		= 0
210105011 =	IP Filter Set 1, Rule 5 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210105013 =	IP Filter Set 1, Rule 5 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210105014 =	IP Filter Set 1, Rule 5 Act Not Match	<1 (Check Next) | 2 (Forward) | 3 (Drop)>	= 1
/ Menu 21.1.1.6 set #1, rule #6
FIN	FN	PVA	INPUT
210106001 =	IP Filter Set 1, Rule 6 Type	<2 (TCP/IP)>	= 2
210106002 =	IP Filter Set 1, Rule 6 Active	<0 (No) | 1 (Yes)>	= 1
210106003 =	IP Filter Set 1, Rule 6 Protocol		= 17
210106004 =	IP Filter Set 1, Rule 6 Dest IP address		= 0.0.0.0
210106005 =	IP Filter Set 1, Rule 6 Dest Subnet Mask		= 0
210106006 =	IP Filter Set 1, Rule 6 Dest Port		= 139
210106007 =	IP Filter Set 1, Rule 6 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210106008 =	IP Filter Set 1, Rule 6 Src IP address		= 0.0.0.0
210106009 =	IP Filter Set 1, Rule 6 Src Subnet Mask		= 0
210106010 =	IP Filter Set 1, Rule 6 Src Port		= 0
210106011 =	IP Filter Set 1, Rule 6 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210106013 =	IP Filter Set 1, Rule 6 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210106014 =	IP Filter Set 1, Rule 6 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 2

Table 180 Menu 21.1 Filer Set #2,

/ Menu 21.1 filter set #2,
FIN	FN	PVA	INPUT
210200001 =	Filter Set 2, Nam		= NetBIOS_WAN
/ Menu 21.1.2.1 Filter set #2, rule #1
FIN	FN	PVA	INPUT
210201001 =	IP Filter Set 2, Rule 1 Type	<0 (none) | 2 (TCP/IP) >	= 2
210201002 =	IP Filter Set 2, Rule 1 Active	<0 (No) | 1 (Yes) >	= 1
210201003 =	IP Filter Set 2, Rule 1 Protocol		= 6
210201004 =	IP Filter Set 2, Rule 1 Dest IP address		= 0.0.0.0
210201005 =	IP Filter Set 2, Rule 1 Dest Subnet Mask		= 0
210201006 =	IP Filter Set 2, Rule 1 Dest Port		= 137
210201007 =	IP Filter Set 2, Rule 1 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater) >	= 1
210201008 =	IP Filter Set 2, Rule 1 Src IP address		= 0.0.0.0
210201009 =	IP Filter Set 2, Rule 1 Src Subnet Mask		= 0
210201010 =	IP Filter Set 2, Rule 1 Src Port		= 0
210201011 =	IP Filter Set 2, Rule 1 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater) >	= 0
210201013 =	IP Filter Set 2, Rule 1 Act Match	<1 (check next) | 2 (forward) | 3 (drop) >	= 3
210201014 =	IP Filter Set 2, Rule 1 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop) >	= 1
/ Menu 21.1.2.2 Filter set #2, rule #2
FIN	FN	PVA	INPUT
210202001 =	IP Filter Set 2, Rule 2 Type	<0 (none) | 2 (TCP/IP) >	= 2
210202002 =	IP Filter Set 2, Rule 2 Active	<0 (No) | 1 (Yes) >	= 1
210202003 =	IP Filter Set 2, Rule 2 Protocol		= 6
210202004 =	IP Filter Set 2, Rule 2 Dest IP address		= 0.0.0.0
210202005 =	IP Filter Set 2, Rule 2 Dest Subnet Mask		= 0
210202006 =	IP Filter Set 2, Rule 2 Dest Port		= 138
210202007 =	IP Filter Set 2, Rule 2 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210202008 =	IP Filter Set 2, Rule 2 Src IP address		= 0.0.0.0
210202009 =	IP Filter Set 2, Rule 2 Src Subnet Mask		= 0
210202010 =	IP Filter Set 2, Rule 2 Src Port		= 0
210202011 =	IP Filter Set 2, Rule 2 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210202013 =	IP Filter Set 2, Rule 2 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210202014 =	IP Filter Set 2, Rule 2 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.2.3 Filter set #2, rule #3
FIN	FN	PVA	INPUT
210203001 =	IP Filter Set 2, Rule 3 Type	<0 (none) | 2 (TCP/IP)>	= 2
210203002 =	IP Filter Set 2, Rule 3 Active	<0 (No) | 1 (Yes)>	= 1
210203003 =	IP Filter Set 2, Rule 3 Protocol		= 6
210203004 =	IP Filter Set 2, Rule 3 Dest IP address		= 0.0.0.0
210203005 =	IP Filter Set 2, Rule 3 Dest Subnet Mask		= 0
210203006 =	IP Filter Set 2, Rule 3 Dest Port		= 139
210203007 =	IP Filter Set 2, Rule 3 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210203008 =	IP Filter Set 2, Rule 3 Src IP address		= 0.0.0.0
210203009 =	IP Filter Set 2, Rule 3 Src Subnet Mask		= 0
210203010 =	IP Filter Set 2, Rule 3 Src Port		= 0
210203011 =	IP Filter Set 2, Rule 3 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210203013 =	IP Filter Set 2, Rule 3 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210203014 =	IP Filter Set 2, Rule 3 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.2.4 Filter set #2, rule #4
FIN	FN	PVA	INPUT
210204001 =	IP Filter Set 2, Rule 4 Type	<0 (none) | 2 (TCP/IP)>	= 2
210204002 =	IP Filter Set 2, Rule 4 Active		<0 (No) | 1 (Yes) > = 1
210204003 =	IP Filter Set 2, Rule 4 Protocol		= 17
210204004 =	IP Filter Set 2, Rule 4 Dest IP address		= 0.0.0.0
210204005 =	IP Filter Set 2, Rule 4 Dest Subnet Mask		= 0
210204006 =	IP Filter Set 2, Rule 4 Dest Port		= 137
210204007 =	IP Filter Set 2, Rule 4 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210204008 =	IP Filter Set 2, Rule 4 Src IP address		= 0.0.0.0
210204009 =	IP Filter Set 2, Rule 4 Src Subnet Mask		= 0
210204010 =	IP Filter Set 2, Rule 4 Src Port		= 0
210204011 =	IP Filter Set 2, Rule 4 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210204013 =	IP Filter Set 2, Rule 4 Act Match	<1(check next) | 2 (forward) | 3 (drop)>	= 3
210204014 =	IP Filter Set 2, Rule 4 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.2.5 Filter set #2, rule #5
FIN	FN	PVA	INPUT
210205001 =	IP Filter Set 2, Rule 5 Type	<0 (none) | 2 (TCP/IP)>	= 2
210205002 =	IP Filter Set 2, Rule 5 Active	<0 (No) | 1 (Yes)>	= 1
210205003 =	IP Filter Set 2, Rule 5 Protocol		= 17
210205004 =	IP Filter Set 2, Rule 5 Dest IP address		= 0.0.0.0
210205005 =	IP Filter Set 2, Rule 5 Dest Subnet Mask		= 0
210205006 =	IP Filter Set 2, Rule 5 Dest Port		= 138
210205007 =	IP Filter Set 2, Rule 5 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210205008 =	IP Filter Set 2, Rule 5 Src IP address		= 0.0.0.0
210205009 =	IP Filter Set 2, Rule 5 Src Subnet Mask		= 0
210205010 =	IP Filter Set 2, Rule 5 Src Port		= 0
210205011 =	IP Filter Set 2, Rule 5 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210205013 =	IP Filter Set 2, Rule 5 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210205014 =	IP Filter Set 2, Rule 5 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.2.6 Filter set #2, rule #6
FIN	FN	PVA	INPUT
210206001 =	IP Filter Set 2, Rule 6 Type	<0 (none) | 2 (TCP/IP)>	= 2
210206002 =	IP Filter Set 2, Rule 6 Active	<0 (No) | 1 (Yes)>	= 1
210206003 =	IP Filter Set 2, Rule 6 Protocol		= 17
210206004 =	IP Filter Set 2, Rule 6 Dest IP address		= 0.0.0.0
210206005 =	IP Filter Set 2, Rule 6 Dest Subnet Mask		= 0
210206006 =	IP Filter Set 2, Rule 6 Dest Port		= 139
210206007 =	IP Filter Set 2, Rule 6 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210206008 =	IP Filter Set 2, Rule 6 Src IP address		= 0.0.0.0
210206009 =	IP Filter Set 2, Rule 6 Src Subnet Mask		= 0
210206010 =	IP Filter Set 2, Rule 6 Src Port		= 0
210206011 =	IP Filter Set 2, Rule 6 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210206013 =	IP Filter Set 2, Rule 6 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210206014 =	IP Filter Set 2,Rule 6 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 2
241100005 =	FTP Server Access	<0(all) | 1 (none) | 2 (Lan) | 3 (Wan)>	= 0
241100006 =	FTP Server Secured IP address		= 0.0.0.0
241100007 =	WEB Server Port		= 80
241100008 =	WEB Server Access	<0(all) | 1 (none) | 2 (Lan) | 3 (Wan)>	= 0
241100009 =	WEB Server Secured IP address		= 0.0.0.0

Table 181 Menu 23 System Menus

*/ Menu 23.1 System Password Setup
FIN	FN	PVA	INPUT
230000000 =	System Password		= 1234
*/ Menu 23.2 System security: radius server
FIN	FN	PVA	INPUT
230200001 =	Authentication Server Configured	<0 (No) | 1 (Yes)>	= 1
230200002 =	Authentication Server Active	<0 (No) | 1 (Yes)>	= 1
230200003 =	Authentication Server IP Address		= 192.168.1.32
230200004 =	Authentication Server Port		= 1822
230200005 =	Authentication Server Shared Secret		= 1111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111111
230200006 =	Accounting Server Configured	<0 (No) | 1 (Yes)>	= 1
230200007 =	Accounting Server Active	<0 (No) | 1 (Yes)>	= 1
230200008 =	Accounting Server IP Address		= 192.168.1.44
230200009 =	Accounting Server Port		= 1823
230200010 =	Accounting Server Shared Secret		= 1234
*/ Menu 23.4 System security: IEEE802.1x
FIN	FN	PVA	INPUT
230400001 =	Wireless Port Control	<0 (Authentication Required) | 1 (No Access Allowed) | 2 (No Authentication Required)>	= 2
230400002 =	ReAuthentication Timer (in second)		= 555
230400003 =	Idle Timeout (in second)		= 999
230400004 =	Authentication Databases	<0 (Local User Database Only) |1 (RADIUS Only) |2 (Local, RADIUS) |3 (RADIUS, Local) >	= 1
230400005 =	Key Management Protocol	<0 (8021x) |1 (WPA) |2 (WPAPSK) >	= 0
230400006 =	Dynamic WEP Key Exchange	<0 (Disable) |1 (64-bit WEP) |2 (128-bit WEP) >	= 0
230400007 =	PSK =		=
230400008 =	WPA Mixed Mode	<0 (Disable) |1 (Enable) >	= 0
230400009 =	Data Privacy for Broadcast/Multicast packets	<0 (TKIP) |1 (WEP) >	= 0
230400010 =	WPA Broadcast/Multicast Key Update Timer		= 0

Table 182 Menu 24.11 Remote Management Control

/ Menu 24.11 Remote Management Control
FIN	FN	PVA	INPUT
241100001 =	TELNET Server Port		= 23
241100002 =	TELNET Server Access	<0 (all) | 1 (none) | 2 (Lan) | 3 (Wan)>	= 0
241100003 =	TELNET Server Secured IP address		= 0.0.0.0
241100004 =	FTP Server Port		= 21
241100005 =	FTP Server Access	<0 (all) | 1 (none) | 2 (Lan) | 3 (Wan)>	= 0
241100006 =	FTP Server Secured IP address		= 0.0.0.0
241100007 =	WEB Server Port		= 80
241100008 =	WEB Server Access	<0 (all) | 1 (none) | 2 (Lan) | 3 (Wan)>	= 0
241100009 =	WEB Server Secured IP address		= 0.0.0.0

Command Examples

The following are example Internal SPTGEN screens associated with the ZyXEL Device's command interpreter commands. Table 183 Command Examples

	FIN	FN	PVA	INPUT
/ci command (for annex a): wan adsl opencmd
FIN		FN	PVA	INPUT
990000001 =		ADSL OPMD	<0 (glite) | 1 (t1.413) | 2 (gdmt) | 3 (multimode)>	= 3
/ci command (for annex B): wan adsl opencmd
FIN		FN	PVA	INPUT
990000001 =		ADSL OPMD	<0 (etsi) | 1 (normal) | 2 (gdmt) | 3 (multimode)>	= 3

Index

A

AAL5 334 AbS 156 ACK Message 152 Address Assignment 109 Address Resolution Protocol (ARP) 112 ADSL standards 38 ADSL2 334 AH 217 AH Protocol 221 ALG 41, 149 alternative subnet mask notation 355 Analysis-by-Synthesis 156 Antenna 333 Any IP 39, 111 How it works 112 note 112 Any IP Setup 114 AP (Access Point) 363 Application Layer Gateway 41, 149 Application-level Firewalls 182 Applications Internet access 44 Asynchronous Transfer Mode 316 ATM AAL5 334 ATM Adaptation Layer 5 (AAL5) 94 ATM Adaptation Layer type 5 334 Attack Alert 209 Attack Types 186 Authentication Header 221 Auto Firmware Upgrade 39, 180 Automatic Log Out 51 Auto-negotiating Rate Adaptation 334 Auto-negotiation 38 Auto-provisioning 39, 180

B

Backup 305 Backup Type 105 Bandwidth Management 253 Bandwidth Manager Class Configuration 259 Bandwidth Manager Monitor 262 Bandwidth Manager Summary 257 Basic wireless security 68 Blocking Time 208 Brute-force Attack, 185 BSS 361 BW Budget 260 BYE Request 152

C

CA 368 Call Hold 169, 170 Call Service Mode 168, 170 Call Transfer 169, 171 Call Waiting 169, 171 Caller ID 336 CBR (Continuous Bit Rate) 101 CCK 43 Certificate Authority 368 Change Password at Login 50 Channel 363 Interference 363 Channel ID 126 Checking the Device's IP Address 179 Class of Service 162 Class of Service (CoS) 162 Client-server Protocol 152 CNG 336 Codec 156 Codecs 336 Coder/Decoder 156 Comfort Noise Generation 40, 164, 336 Complementary Code Keying Modulation 43 Configuration 108 Configuration File 301 Content Filtering 40, 211 Categories 211 Schedule 212 Trusted computers 213 URL keyword blocking 211 Content filtering 211 Copyright 3 CoS 162 CTS (Clear to Send) 364 Custom Ports Creating/Editing 202 Customized Services 202 Customized services 202

D

Data Confidentiality 216 Data Integrity 216 Data Origin Authentication 216 DBPSK 42 Default 307 Default LAN IP Address 49 Denial of Service 182, 183, 208 Destination Address 195 DH 236 DHCP 41, 108, 109, 263, 289 DHCP Client 41 DHCP Relay 41 DHCP Server 41 diagnostic 315 Differential Binary Phase Shift Keyed Modulation 42 Differential Quadrature Phase Shift Keying Modulation 42 Differentiated Services 162 Diffie-Hellman Key Groups 236 DiffServ 162 DiffServ Code Point (DSCP) 162 DiffServ Code Points 162 DiffServ Marking Rule 163 DNS 275 DNS Server For VPN Host 227 Domain Name 109, 289 Domain Name System 108 DoS 183 Basics 183 Types 184 DoS (Denial of Service) 39 DoS attacks, types of 184 DQPSK 42 DS Field 162 DSCPs 162 DSL line, reinitialize 317 DSLAM (Digital Subscriber Line Access Multiplexer) 44 DTMF 157 DTMF Detection and Generation 336 Dual-Tone MultiFrequency 157 Dynamic DNS 41, 263 Dynamic Host Configuration Protocol 41 Dynamic Jitter Buffer 40, 336 Dynamic Secure Gateway Address 223 Dynamic WEP Key Exchange 368 DYNDNS Wildcard 263

E

EAP Authentication 367 EAP-MD5 335 Echo Cancellation 41, 164, 336 E-Mail 139 E-mail Log Example 299 Emergency Numbers 164 Encapsulated Routing Link Protocol (ENET ENCAP) 93 Encapsulation 93, 217 ENET ENCAP 93 PPP over Ethernet 93 PPPoA 94 RFC 1483 94 Encapsulation Security Payload 221 Encryption 215, 369 ESP 217 ESP Protocol 221 ESS 362 Europe Type Call Service Mode 168 Extended Service Set 362 Extended Service Set IDentification 126 Extended wireless security 67 External Antenna 43 External RADIUS 335

F

F4/F5 OAM 334 Fairness-based Scheduler 255 FCC 4 Federal Communications Commission 4 Filename Conventions 301, 302 Firewall Access Methods 193 Address Type 201 Alerts 196 Anti-Probing 207 Creating/Editing Rules 199 Custom Ports 202 Enabling 196 Firewall Vs Filters 191 Guidelines For Enhancing Security 190 Introduction 182 LAN to WAN Rules 196 Policies 193 Rule Checklist 194 Rule Logic 194 Rule Security Ramifications 194 Types 181 When To Use 192 Firmware 301 firmware 301 upload 302 upload error 304 Flash Key 168 Flashing 168 Fragmentation Threshold 364 Frame Relay 44 Frequency Range 335 FTP 146, 267, 270 File Upload 311 FTP Restrictions 267, 302 Full Rate 339

G

G.168 41, 164, 336 G.711 156, 336 G.729 156, 336 G.992.1 334 G.992.3 334 G.992.4 334 G.992.5 334 General Setup 289 Graphical User Interface (GUI) 38 Graphics Icons 36

H

Half-Open Sessions 208 Hidden Node 363 Host 290 Housing 42 HTTP 182, 183, 184 HTTP (Hypertext Transfer Protocol) 302 Humidity 333

|

IANA 110 IANA (Internet Assigned Number Authority) 202 IBSS 361 ICMP echo 185 ID Type and Content 227 IEEE 802.11g 42, 43, 365 IEEE 802.11g Data Rates 42 IEEE 802.11g Modulation 42 IEEE 802.11g Wireless LAN 42, 43 IEEE 802.11i 43 IEEE 802.1Q VLAN 163 IGMP 111 IGMP Proxy 334 IGMP v1 334 IGMP v2 334 IKE Phases 234 Independent Basic Service Set 361 Initialization Vector (IV) 369 Inside Header 218 Install UPnP 279 Windows Me 279 Windows XP 281 Integrated Access Device 37 Internal Calls 179 Internal SPTGEN 395 FTP Upload Example 397 Points to Remember 395 Text File 395 Internet Access 38, 44 Internet access 57 Internet Access Setup 320 Internet access wizard setup 57 Internet Assigned Numbers AuthoritySee IANA 110 Internet Control Message Protocol (ICMP) 185 Internet Key Exchange 234 Internet Protocol Security 215 Internet Telephony Service Provider 44 IP Address 109, 146, 147 IP Address Assignment 95 ENET ENCAP 95 PPPoA or PPPoE 95 RFC 1483 95 IP Alias 42 IP Multicasting 334 IP Policy Routing (IPPR) 42 IP Pool 115 IP Pool Setup 108 IP Spoofing 184, 187 IP to IP Calls 45 IPSec 215 IPSec Algorithms 217, 221 IPSec and NAT 218 IPSec Architecture 216 IPSec Passthrough 335 IPSec Standard 39 IPSec VPN Capability 39 ISDN (Integrated Services Digital Network) 38 ITSP 44 ITU-T 164 ITU-T G.992.1 317

J

Jitter Buffer 40

K

Keep Alive 225 Key Fields For Configuring Rules 195

L

LAN Setup 93, 107 LAN TCP/IP 109 LAN to WAN Rules 196 LAND 184, 185 Listening Port 161 Log Out 51 Logs 295

M

MAC Address Filter Action 136 MAC Filter 136 Management Information Base (MIB) 272 Maximize Bandwidth Usage 255 Maximum Burst Size (MBS) 97, 102 Max-incomplete High 208 Max-incomplete Low 208 Media Bandwidth Management 40 Message Integrity Check (MIC) 369 Metric 96 Modem 36 Multicast 111 Multimedia 151 Multiple PVC Support 42 Multiple SIP Accounts 40 Multiple Voice Channels 40 Multiplexing 94 multiplexing 94 LLC-based 94 VC-based 94 Multiprotocol Encapsulation 94 My IP Address 222

N

Nailed-Up Connection 95 NAT 109, 146 Application 143 Definitions 141 How it works 142 Mapping Types 143 What it does 142 What NAT does 142 NAT (Network Address Translation) 141 NAT mode 145 NAT Sessions 335 NAT Traversal 277 NAT traversal 226 Negotiation Mode 235 NetBIOS commands 186 Network Address Translation (NAT) 40

0

OAM 334 OFDM 43 OK Response 152 One-Minute High 208 Operation Humidity 333 Operation Temperature 333 Orthogonal Frequency Division Multiplexing Modulation 43 Outside Header 218

P

Packet Filtering 191 Packet filtering When to use 192 Packet Filtering Firewalls 181 Pairwise Master Key (PMK) 369 PCM 156 Peak Cell Rate (PCR) 96, 102 Peer to Peer Calls 45 Peer-to-peer Calls 45 Perfect Forward Secrecy 236 Per-Hop Behavior 162 Permanent Virtual Circuits 334 PFS 236 PHB (Per-Hop Behavior) 163 Phone 164 Ping of Death 184 Point to Point Calls 45 Point to Point Protocol over ATM Adaptation Layer 5 (AAL5) 94 Point-to-point Calls 336 POP3 183, 184 Port Forwarding 335 Power Adaptor 336 Power Adaptor Specifications 336 Power Specification 333 PPP (Point-to-Point Protocol) Link Layer Protocol 334 PPP over ATM AAL5 334 PPP over Ethernet 334 PPPoE 93 Benefits 93 PPPoE (Point-to-Point Protocol over Ethernet) 41, 93 Preamble Mode 365 Pre-Shared Key 229 Priorities 257 Priority 260 Priority-based Scheduler 254 PSTN Call Setup Signaling 157 Public Switched Telephone Network 37 Pulse Code Modulation 156 Pulse Dialing 157 PVCs 334

Q

QoS 41, 162 Quality of Service 41, 162 Quality of Service (QOS) 41 Quick Dialing 336 Quick Start Guide 35, 49

R

RADIUS 335, 366 Shared Secret Key 367 RADIUS Message Types 366 RADIUS Messages 366 Reach-Extended ADSL 334 Real Time E-mail Alerts 335 Real time Transport Protocol 156 reinitialize the ADSL line 317 Related Documentation 35 Remote Management and NAT 268 Remote Management Limitations 267 REN 40 Reports and Logs 335 Reset Button 51 Resetting Your Device 51 Restore 305 Restore Configuration 310 RF (Radio Frequency) 43 RFC 1483 94, 334 RFC 1631 141 RFC 1889 156, 336 RFC 1890 336 RFC 2327 336 RFC 2364 334 RFC 2516 41, 334 RFC 2684 334 RFC 3261 336 Ringer Equivalence Number 40 RIPSee Routing Information Protocol 110 Romfile 301 Router 36 Routing Information Protocol 110 Direction 110 Version 110 RTCP 336 RTP 156, 336 RTS (Request To Send) 364 RTS Threshold 363, 364 Rules 196 Checklist 194 Key Fields 195 LAN to WAN 196 Logic 194

s

SA 215 Safety Warnings 5 Saving the State 187 Scheduler 254 SDP 336 Seamless Rate Adaptation 334 Secure Gateway Address 223 Security Association 215 Security In General 190 Security Parameter Index 239 Security Parameters 370 Security Ramifications 194 Server 143, 144, 292 Service 195 Service Set 126 Service Type 203, 320 Services 146 Session Description Protocol 336 Session Initiating Protocol 336 Session Initiation Protocol 151 Silence Suppression 40, 164, 336 Single User Account (SUA) 44 SIP 151 SIP Account 151 SIP Accounts 40 SIP ALG 41, 149 SIP ALG Passthrough 335 SIP Application Layer Gateway 41, 149 SIP Call Progression 152 SIP Client 152 SIP Identities 151 SIP INVITE Request 152 SIP Number 73, 151 SIP Proxy Server 153 SIP Redirect Server 154 SIP Register Server 154 SIP Server Address 73 SIP Servers 152 SIP Service Domain 74, 152 SIP URI 151 SIP User Agent 153 SIP Version 2 336 SIP, Authentication Password 74 SIP, Authentication User ID 74 SMTP Error Messages 299 Smurf 185, 186 SNMP 271, 334 Manager 272 MIBs 272 SOHO (Small Office/Home Office) 44 Source Address 195 Speed Dial 172, 179 SPI 239 Splitters 339 SRA 334 Stateful Inspection 39, 181, 182, 187 on Your ZyXEL Device 188 Process 188 Stateful Packet Inspection 335 Static Route 249 Storage Humidity 333 Storage Temperature 333 SUA 144 SUA (Single User Account) 144 SUA vs NAT 144 subnet 353 Subnet Mask 109, 201 subnet mask 355 subnetting 355 Supplementary Phone Services 168 Supplementary Services 168 Supporting Disk 35 Sustain Cell Rate (SCR) 102 Sustained Cell Rate (SCR) 96 SYN Flood 184, 185 SYN-ACK 185 Syntax Conventions 35 Syslog 206 System Name 290 System Parameter Table Generator 395 System Timeout 268

T

TCP Maximum Incomplete 208, 209 TCP Security 189 TCP/IP 183, 184 Teardrop 184 Telephone 36 Telnet 269 Temperature 333 Temporal Key Integrity Protocol (TKIP) 369 Text File Format 395 TFTP File Upload 312 TFTP and FTP over WAN 302 TFTP Restrictions 267, 302 Three-Way Conference 170, 171 Three-Way Handshake 184 Threshold Values 207 TLS 335 ToS 162 Traceroute 187 Traffic Redirect 103, 104 Traffic redirect 103, 106 Traffic shaping 96 Transparent Bridging 334 Transport Mode 218 Triangle 377 Triangle Route Solutions 378 TTLS 335 Tunnel Mode 218 Type Of Service 162

U

UBR (Unspecified Bit Rate) 101 UDP/ICMP Security 189 Uniform Resource Identifier 151 Universal Plug and Play 277 Application 277 Universal Plug and Play (UPnP) 41 Upload Firmware 311 UPnP 277 Forum 278 security issues 278 Upper Layer Protocols 189, 190 USA Type Call Service Mode 170 User Authentication 369 User Name 264 Using Speed Dial 179

V

VAD 40, 164, 336 VBR-nRT 101 VBR-RT 101 Virtual Channel Identifier (VCI) 94 virtual circuit (VC) 94 Virtual Local Area Network 163 Virtual Path Identifier (VPI) 94 Virtual Private Network 37, 39, 215 VLAN 163 VLAN Group 163 VLAN ID 163 VLAN ID Tags 163 Voice Activity Detection 40, 164, 336 Voice Channels 40 Voice Coding 156 VoIP 151 VoIP Standards Compliance 40 VPI & VCI 94 VPN 215 VPN Applications 216

W

WAN (Wide Area Network) 93 WAN to LAN Rules 196 Warranty Period 6 Web 268 Web Configurator 49, 190, 195 WEP (Wired Equivalent Privacy) 43 WEP Encryption 129 Wi-Fi Protected Access (WPA) 43 Wireless LAN MAC Address Filtering 43 WLAN Interference 363 Security Parameters 370 WWW 139

Z

Zero Configuration Internet Access 39 Zero configuration Internet access 98 ZyNOS 3, 302 ZyNOS (ZyXEL Network Operating System) 301 ZyNOS F/W Version 302 ZyXEL Network Operating System 3 ZyXEL\_s Firewall Introduction 182
