USER MANUAL P-2302HWL-P1 ZYXEL

P-2302HW/HWL-P1 Series

802.11b/g Wireless VoIP Station Gateway

User's Guide

Version 3.60

Edition 1

9/2006

ZyXEL

Copyright

Copyright © 2006 by ZyXEL Communications Corporation.

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without the prior written permission of ZyXEL Communications Corporation.

Published by ZyXEL Communications Corporation. All rights reserved.

Disclaimer

ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others. ZyXEL further reserves the right to make changes in any products described herein without notice. This publication is subject to change without notice.

Trademarks

ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

Certifications

Federal Communications Commission (FCC) Interference Statement

The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operations.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1 Reorient or relocate the receiving antenna.
2 Increase the separation between the equipment and the receiver.
3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4 Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

• The device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2). End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.
• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20~cm must be maintained between the antenna of this device and all persons.

注意！

依據 低功率電波輻射性電機管理辦法

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device has been designed for the WLAN 2.4 GHz network throughout the EC region and Switzerland, with restrictions in France.

This Class B digital apparatus complies with Canadian ICES-003.

Viewing Certifications

1 Go to http://www.zyxel.com.
2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3 Select the certification you wish to view from this page.

SafetyWarnings

For your safety, be sure to read and follow all warning notices and instructions.

• Do NOT use this product near water, for example, in a wet basement or near a swimming pool.
• Do NOT expose your device to dampness, dust or corrosive liquids.
• Do NOT store things on the device.
• Do NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel should service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device.
• Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in North America or 230V AC in Europe).
• Do NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power adaptor or cord.
• Do NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
• If the power adaptor or cord is damaged, remove it from the power outlet.
• Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.
• Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
• Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your device.
• Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord.
• Antenna Warning! This device meets ETSI and FCC certification requirements when using the included antenna(s). Only use the included antenna(s).

This product is recyclable. Dispose of it properly.

ZyXEL Limited Warranty

ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts or labor, and to whatever extent it shall deem necessary to restore the product or components to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty shall not apply if the product has been modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions.

Note

Repair or replacement, as provided under this warranty, is the exclusive remedy of the purchaser. This warranty is in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in no event be held liable for indirect or consequential damages of any kind to the purchaser.

To obtain the services of this warranty, contact ZyXEL's Service Center for your Return Material Authorization number (RMA). Products must be returned Postage Prepaid. It is recommended that the unit be insured when shipped. Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid. This warranty gives you specific legal rights, and you may also have other rights that vary from country to country.

Registration

Register your product online to receive e-mail notices of firmware upgrades and information at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.

Customer Support

Please have the following information ready when you contact customer support.

Product model and serial number.
Warranty Information.
- Date that you received your device.
- Brief description of the problem and the steps you took to solve it.

METHOD LOCATION	SUPPORT E-MAIL	TELEPHONE	WEB SITE	REGULAR MAIL
	SALES E-MAIL	FAX	FTP SITE
CORPORATE HEADQUARTERS (WORLDWIDE)	[e-mail]	[phone]	www.zyxel.com www.europe.zyxel.com	ZyXEL Communications Corp. 6 Innovation Road II Science Park Hsinchu 300 Taiwan
	[e-mail]	[phone]	ftp.zyxel.com ftp.europe.zyxel.com
COSTA RICA	[e-mail]	[phone]	www.zyxel.co.cr	ZyXEL Costa Rica Plaza Roble Escazú Etapa El Patio, Tercer Piso San José, Costa Rica
	[e-mail]	[phone]	ftp.zyxel.co.cr
CZECH REPUBLIC	[e-mail]	[phone]	www.zyxel.cz	ZyXEL Communications Czech s.r.o. Modranská 621 143 01 Praha 4 - Modrany Ceská Republika
	[e-mail]	[phone]
DENMARK	[e-mail]	[phone]	www.zyxel.dk	ZyXEL Communications A/S Columbusvej 2860 Soeborg Denmark
	[e-mail]	[phone]
FINLAND	[e-mail]	[phone]	www.zyxel.fi	ZyXEL Communications Oy Malminkaari 10 00700 Helsinki Finland
	[e-mail]	[phone]
FRANCE	[e-mail]	[phone]	www.zyxel.fr	ZyXEL France 1 rue des Vergers Bat. 1 / C 69760 Limonest France
		[phone]
GERMANY	[e-mail]	[phone]	www.zyxel.de	ZyXEL Deutschland GmbH. Adenauerstr. 20/A2 D-52146 Wuerselen Germany
	[e-mail]	[phone]
HUNGARY	[e-mail]	[phone]	www.zyxel.hu	ZyXEL Hungary 48, Zoldlomb Str. H-1025, Budapest Hungary
	[e-mail]	[phone]
KAZAKHSTAN	http://zyxel.kz/support	[phone]	www.zyxel.kz	ZyXEL Kazakhstan 43, Dostyk ave.,Office 414 Dostyk Business Centre 050010, Almaty Republic of Kazakhstan
	[e-mail]	[phone]
NORTH AMERICA	[e-mail]	1-800-255-4101	www.us.zyxel.com	ZyXEL Communications Inc. 1130 N. Miller St. Anaheim
	[e-mail]	[phone]	ftp.us.zyxel.com	CA 92806-2001 U.S.A.
NORWAY	[e-mail]	[phone]	www.zyxel.no	ZyXEL Communications A/S Nils Hansens vei 13 0667 Oslo Norway
	[e-mail]	[phone]
POLAND	[e-mail]	[phone]	www.pl.zyxel.com	ZyXEL Communications ul. Okzei 1A 03-715 Warszawa Poland
		[phone]
RUSSIA	http://zyxel.ru/support	[phone]	www.zyxel.ru	ZyXEL Russia Ostrovityanova 37a Str. Moscow, 117279 Russia
	[e-mail]	[phone]
SPAIN	[e-mail]	[phone]	www.zyxel.es	ZyXEL Communications Arte, 21 5thplanta 28033 Madrid Spain
	[e-mail]	[phone]
SWEDEN	[e-mail]	[phone]	www.zyxel.se	ZyXEL Communications A/S Sjöporten 4, 41764 Göteborg Sweden
	[e-mail]	[phone]
UKRAINE	[e-mail]	[phone]	www.ua.zyxel.com	ZyXEL Ukraine 13, Pimenenko Str. Kiev, 04050 Ukraine
	[e-mail]	[phone]
UNITED KINGDOM	[e-mail]	[phone] 08707 555779 (UK only)	www.zyxel.co.uk	ZyXEL Communications UK Ltd.,11 The Courtyard, Eastern Road, Bracknell, Berkshire, RG12 2XB, United Kingdom (UK)
	[e-mail]	[phone]	ftp.zyxel.co.uk

+” is the (prefix) number you enter to make an international telephone call.

Table of Contents

Copyright 3
Certifications 4
SafetyWarnings 6
ZyXEL Limited Warranty 8
Customer Support 9
Table of Contents 11
List of Figures 21
List of Tables 27
Preface 31
Chapter 1 Introducing the ZyXEL Device 33
1.1 Overview 33

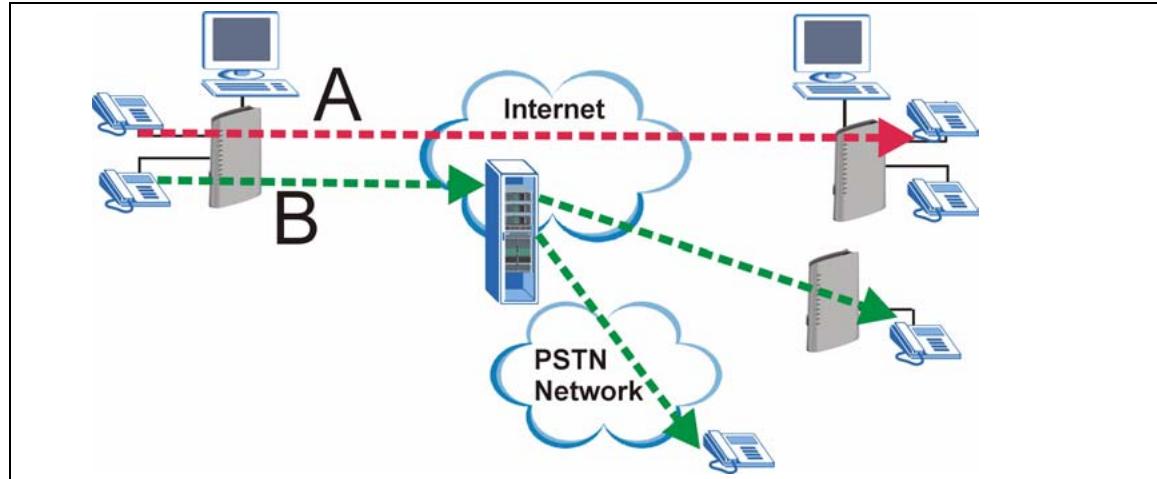

1.1.1 VoIP Features 33

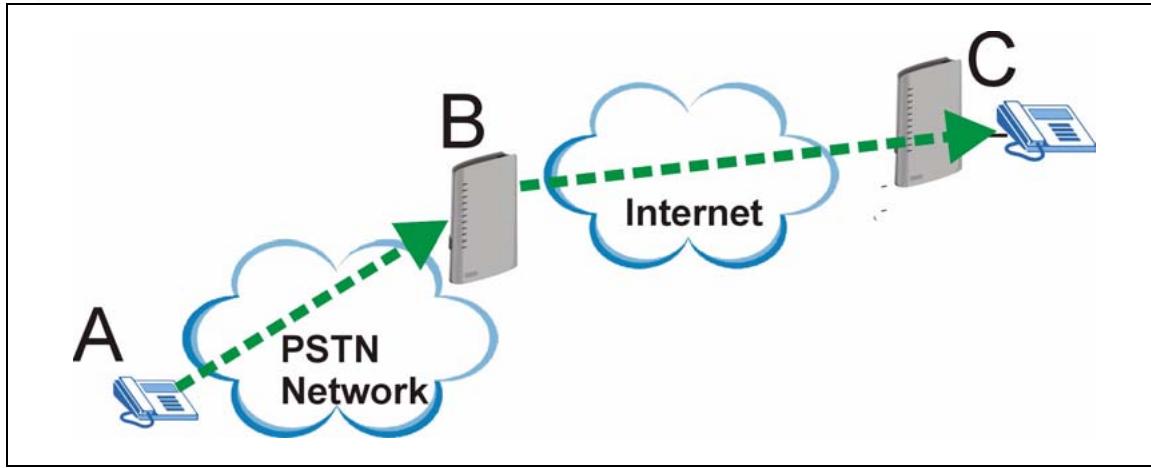

1.1.2 VoIP Trunking Gateway 34

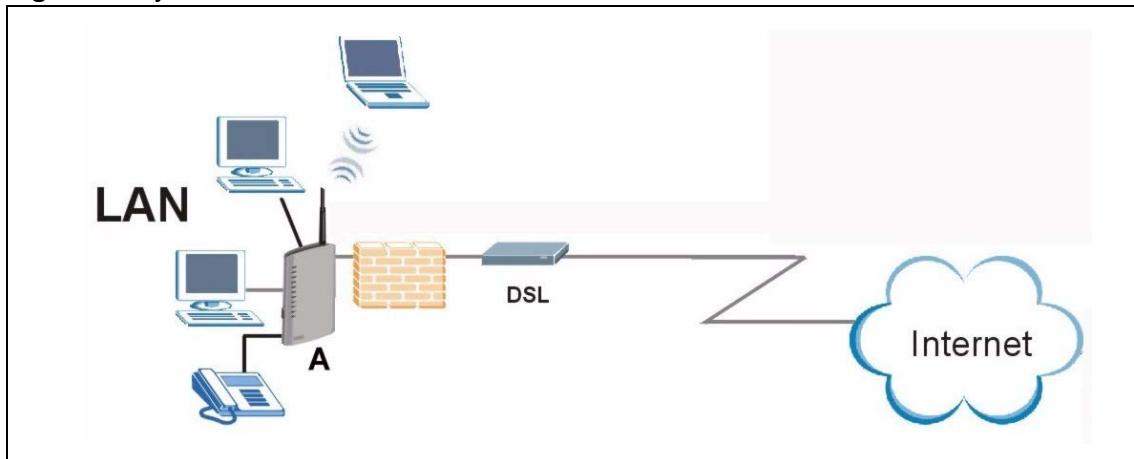

1.1.3 ZyXEL Device's Router Features 34

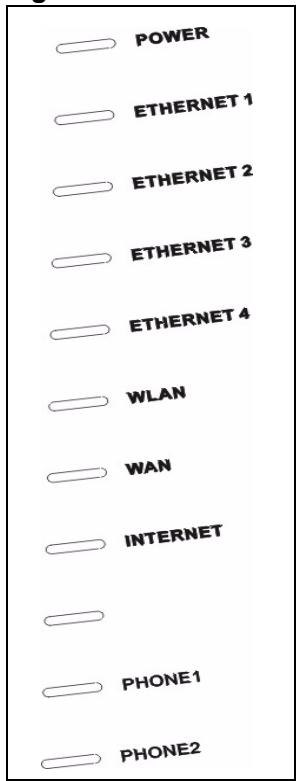

1.2 LEDs (Lights) 36
Chapter 2 Introducing the Web Configurator 39
2.1 Web Configurator Overview 39

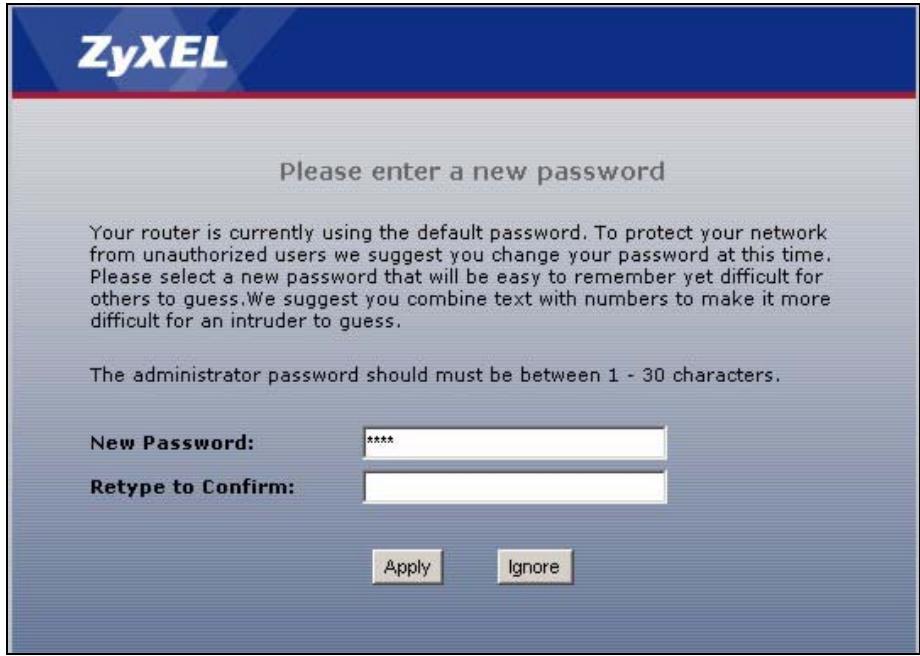

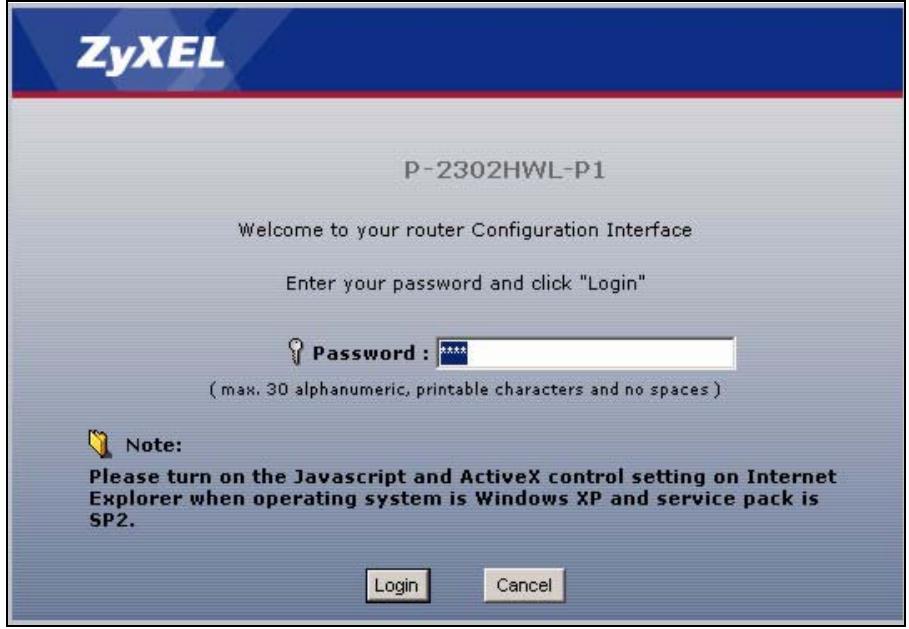

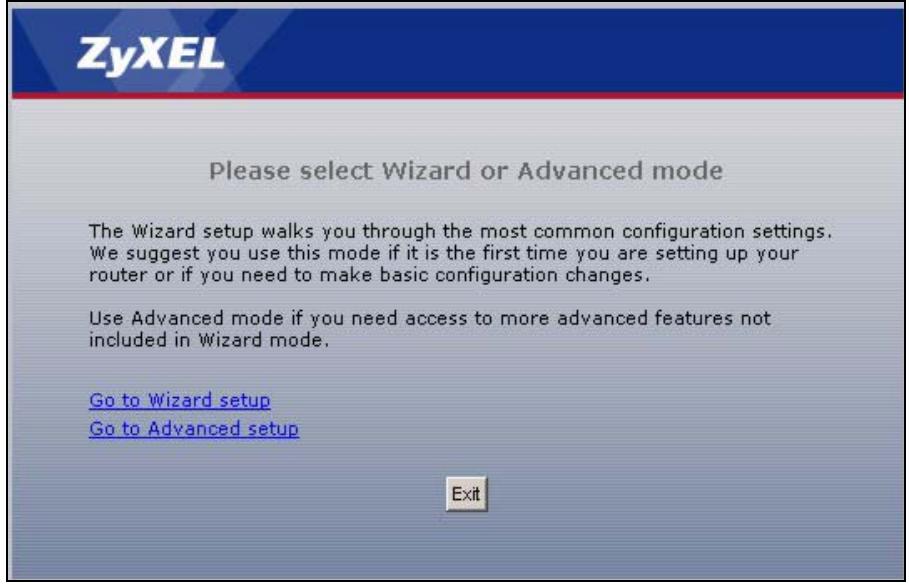

2.2 Accessing the Web Configurator 39
2.3 Resetting the ZyXEL Device 41

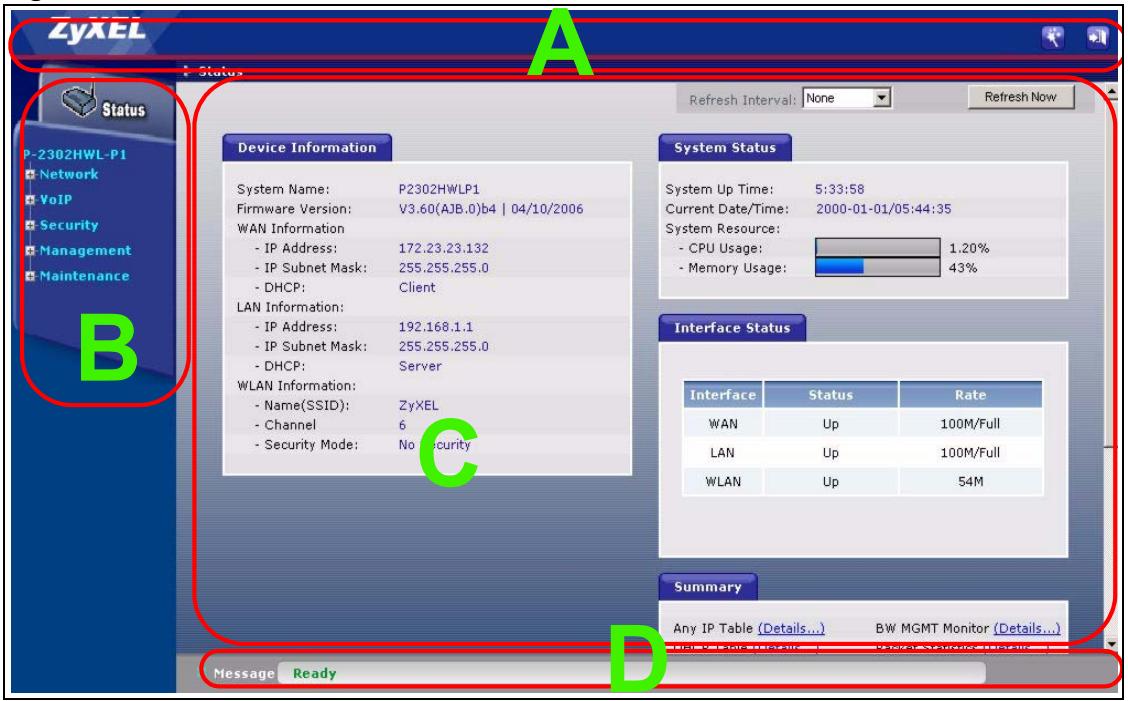

2.4 Web Configurator Main Screen 42
2.4.1 Title Bar 42
2.4.2 Navigation Panel 43
2.4.3 Main Window 45
2.4.4 Status Bar 45
Chapter 3 Wizard Setup 47

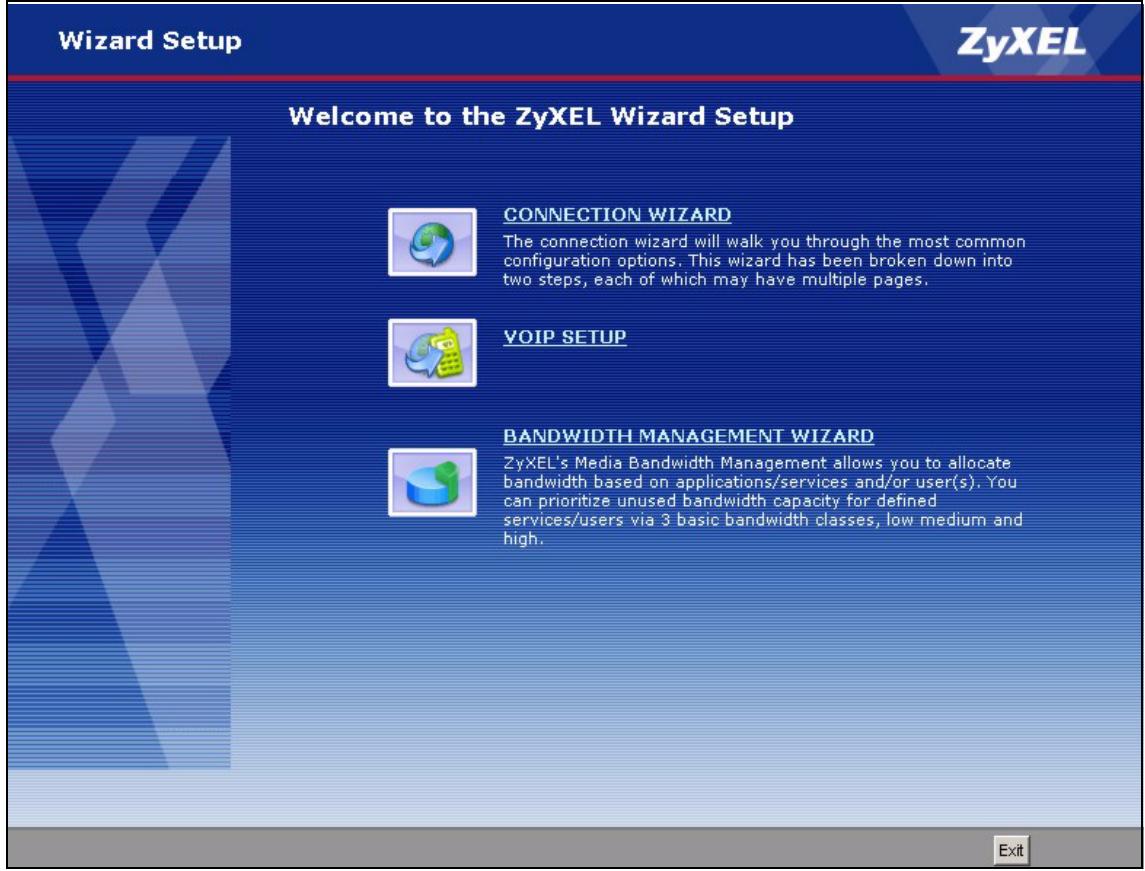

3.1 Main Wizard Screen 47
3.2 Connection Wizard 48

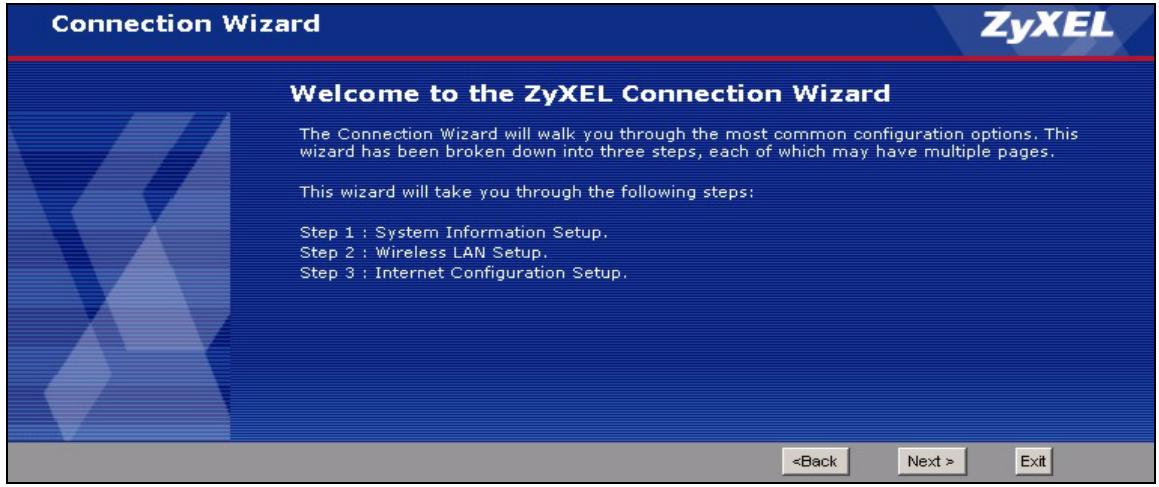

3.2.1 Welcome 49

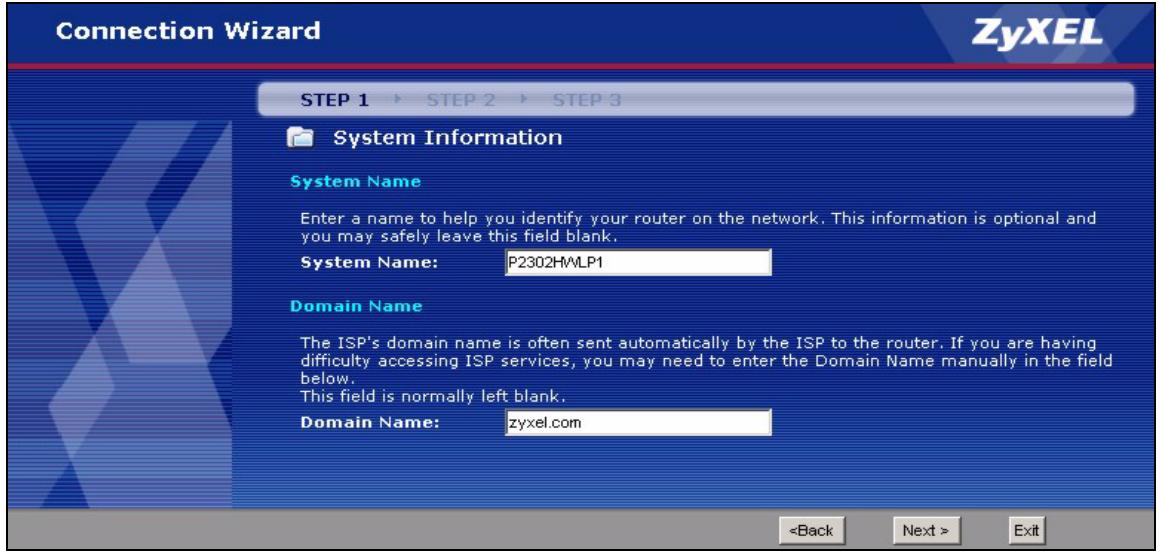

3.2.2 System Information 49
3.2.3 Wireless Network Setup 50

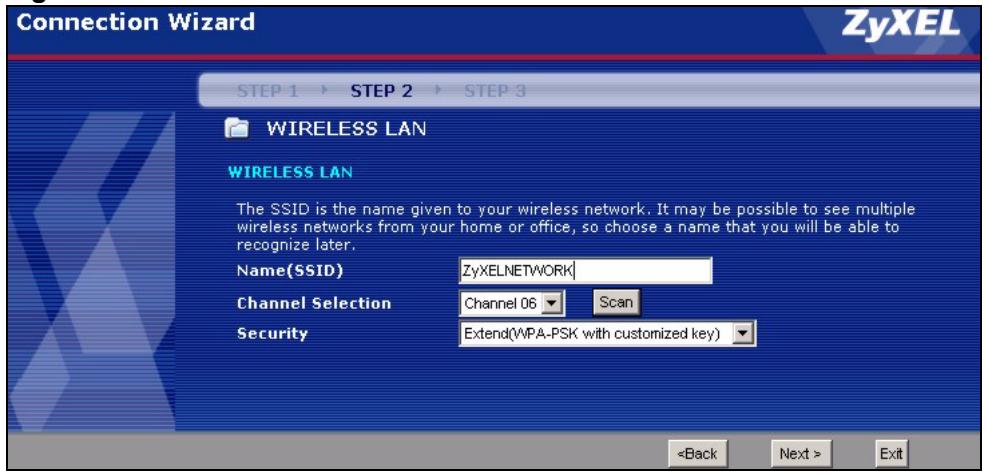

3.2.3.1 Wireless LAN - General Information 50

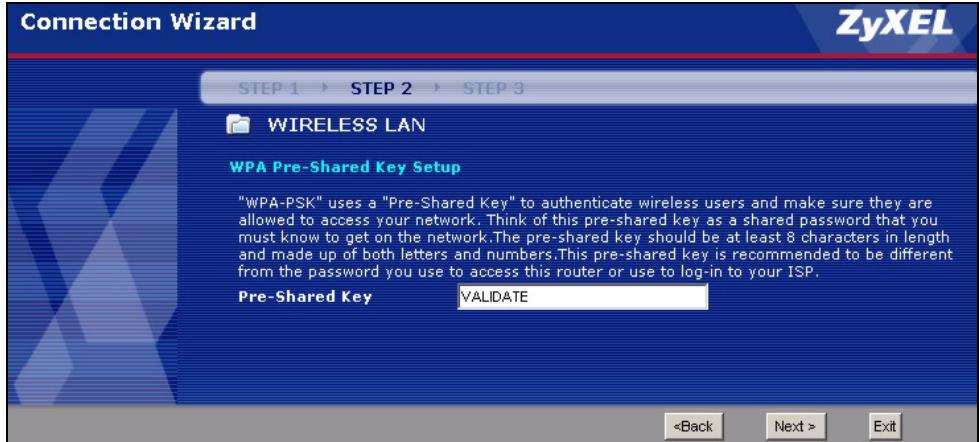

3.2.3.2 Manually Assign a WPA or WPA2 key 51

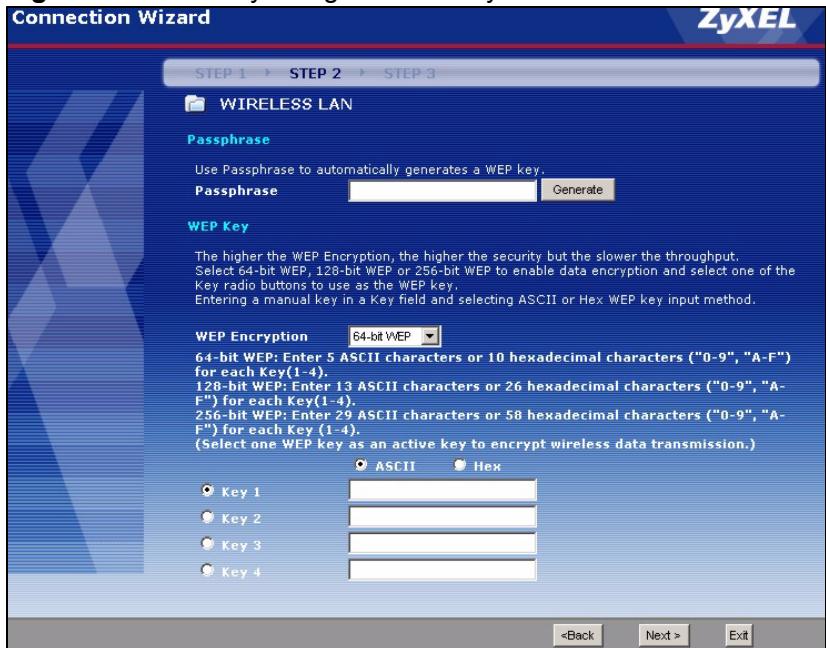

3.2.3.3 Manually Assign a WEP key 52

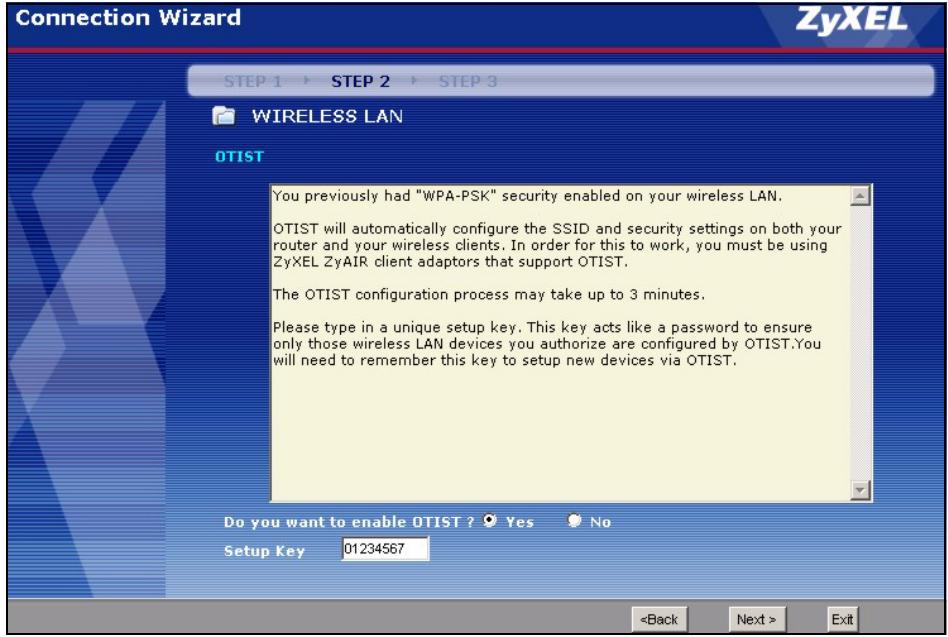

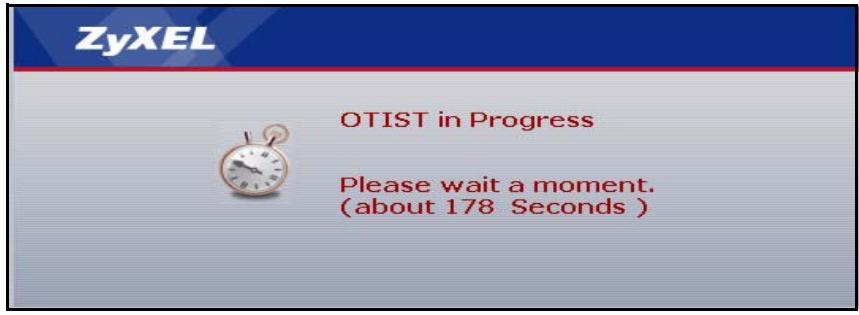

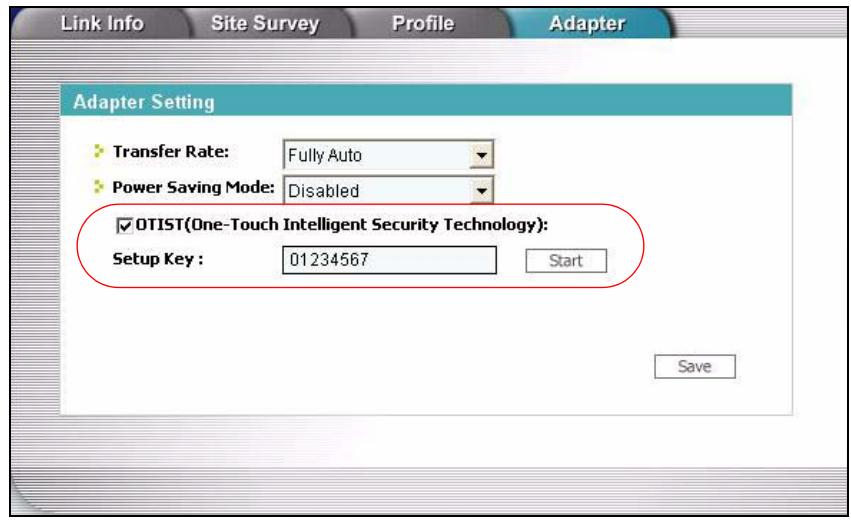

3.2.3.4 OTIST Screen 53

3.2.4 ISP Parameters 54

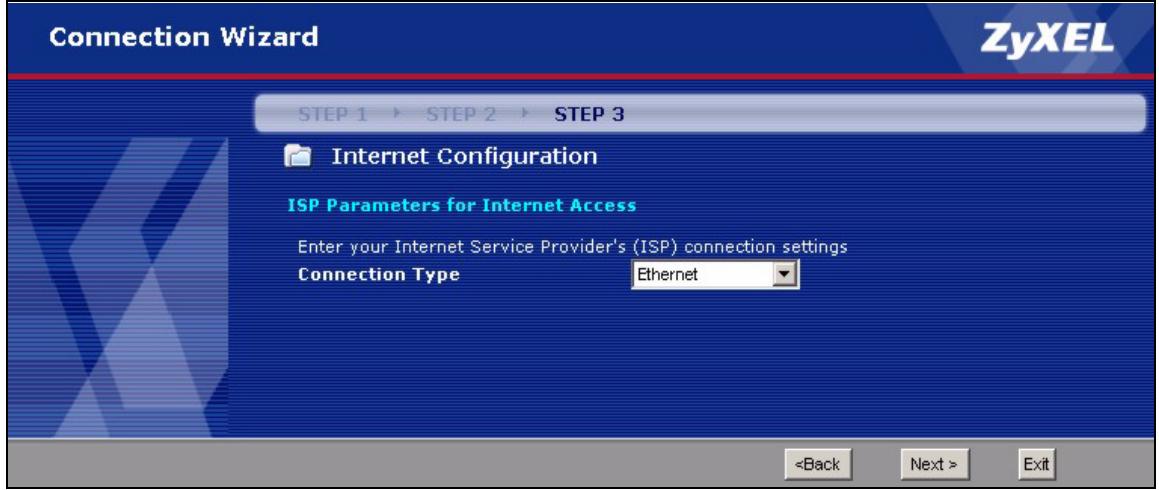

3.2.4.1 Ethernet 54

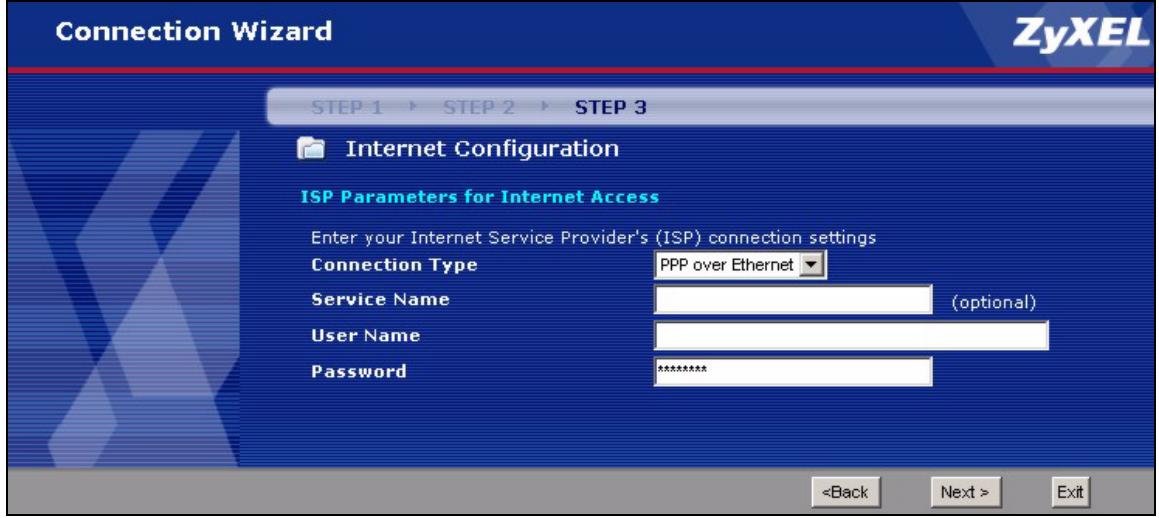

3.2.4.2 PPPoE 55

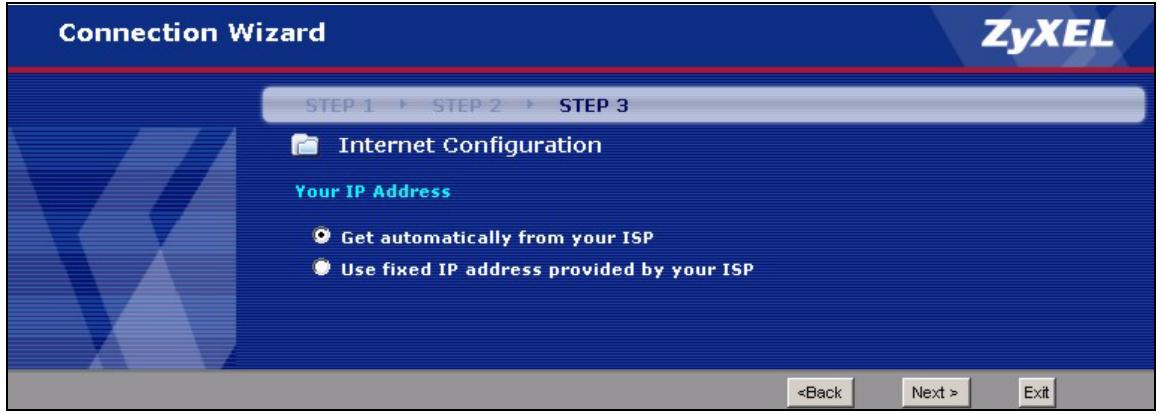

3.2.5 Your IP Address 57
3.2.6 WAN IP Address Assignment 57

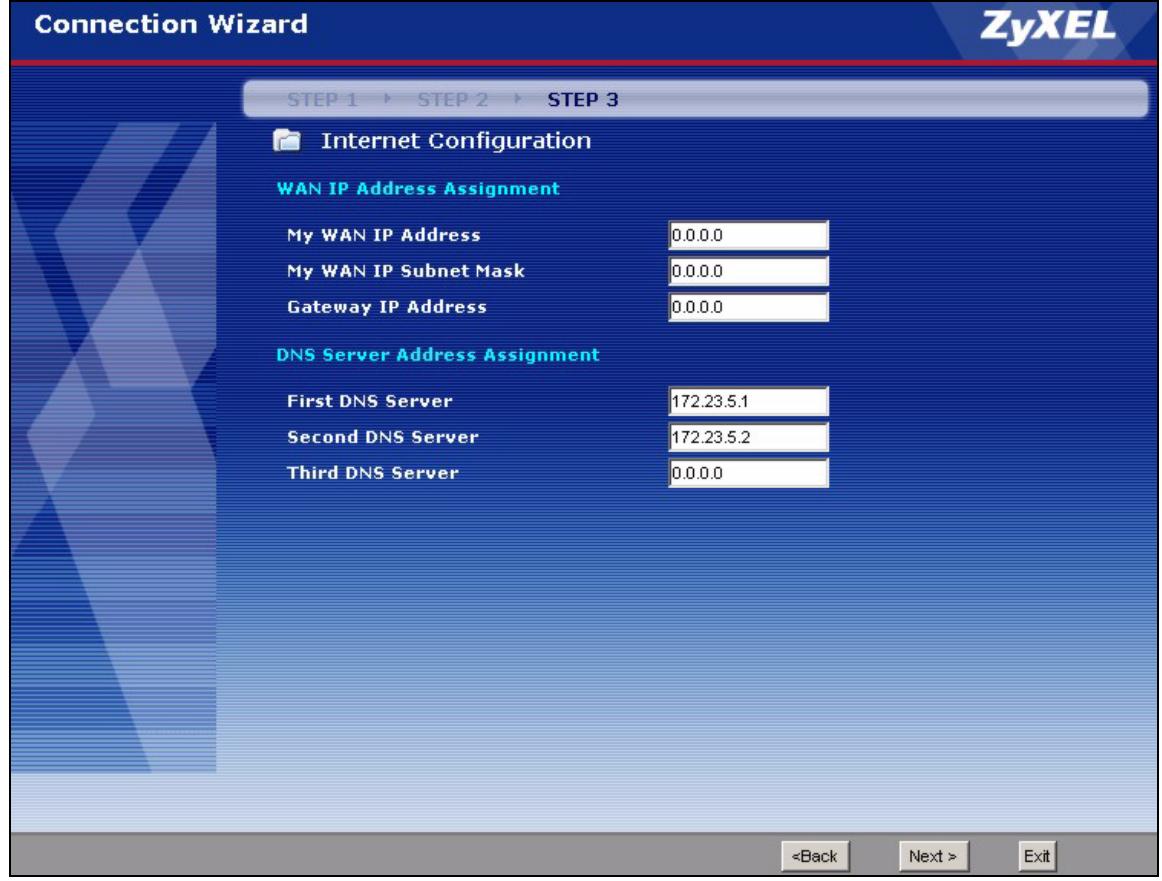

3.2.6.1 Ethernet 58
3.2.6.2 PPPoE 59

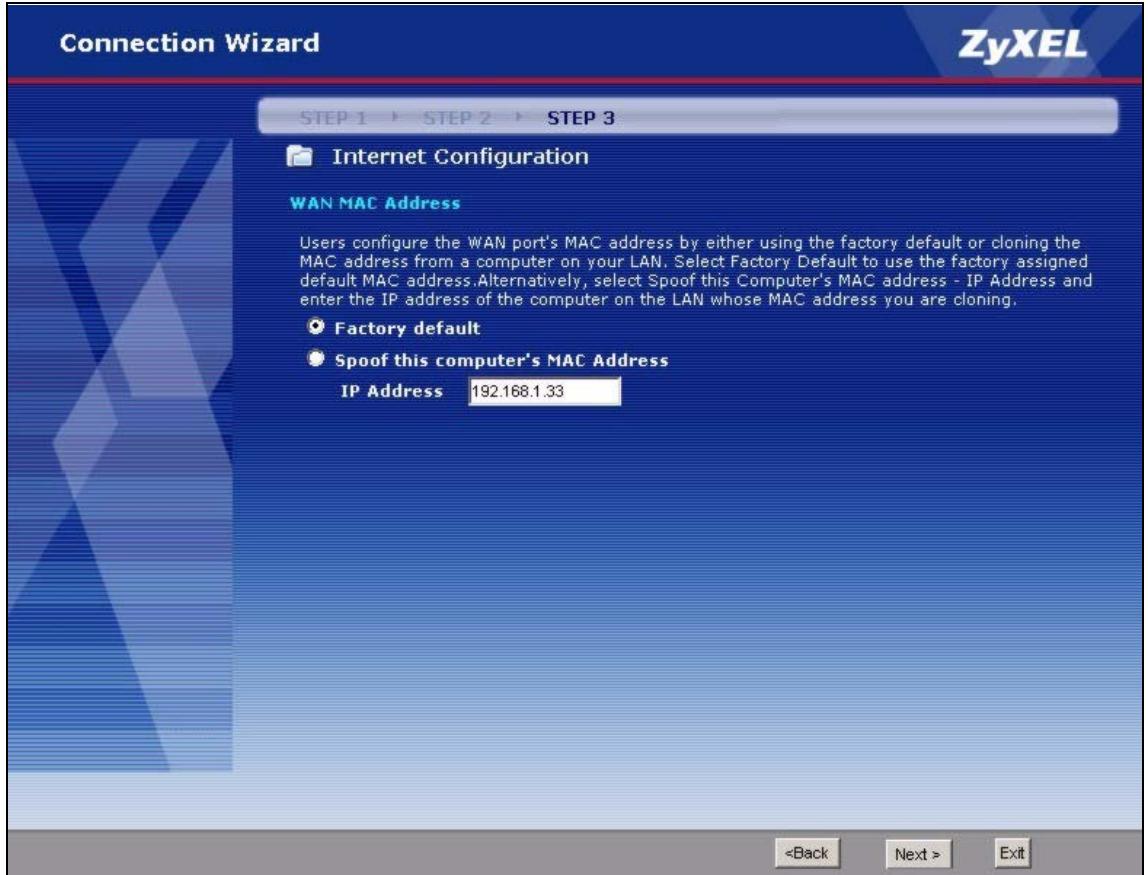

3.2.7 MAC Address 61
3.2.8 Finish 62

3.3 VoIP Setup Wizard 62

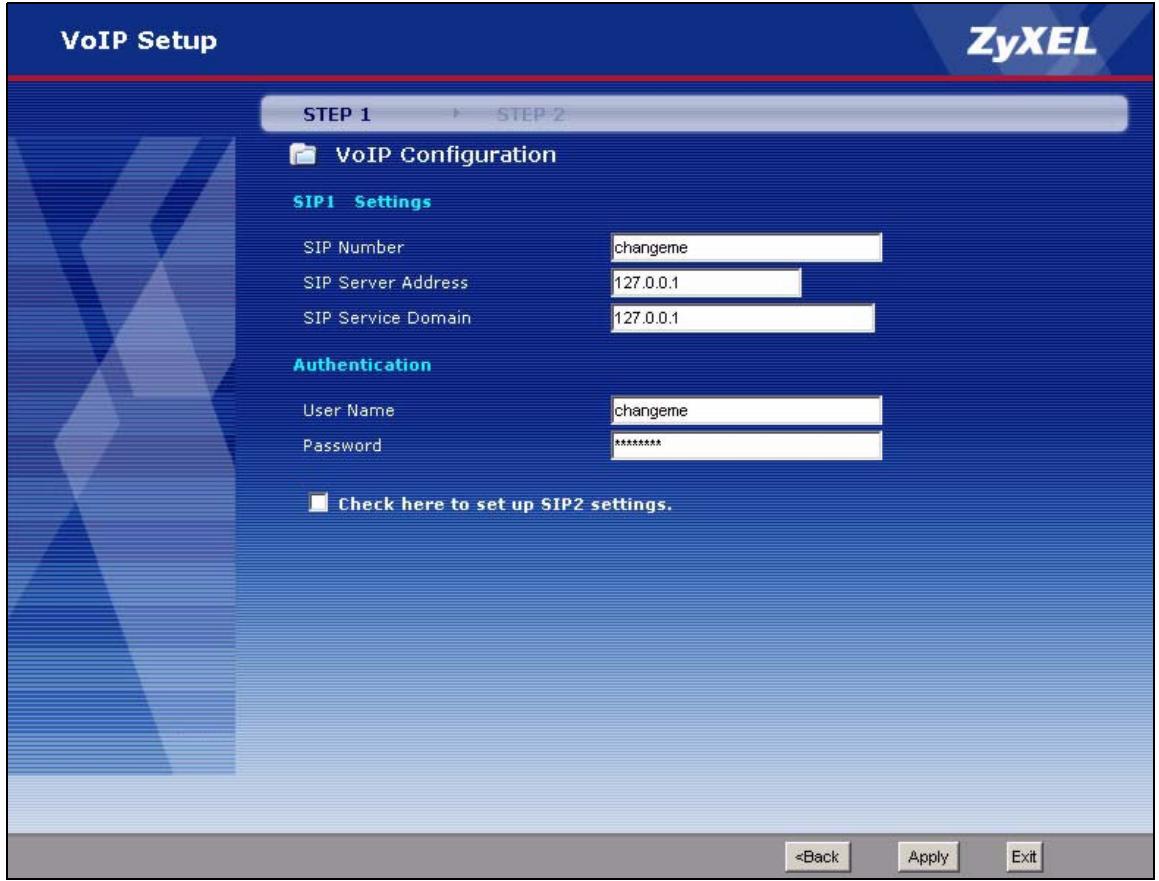

3.3.1 SIP Settings 63

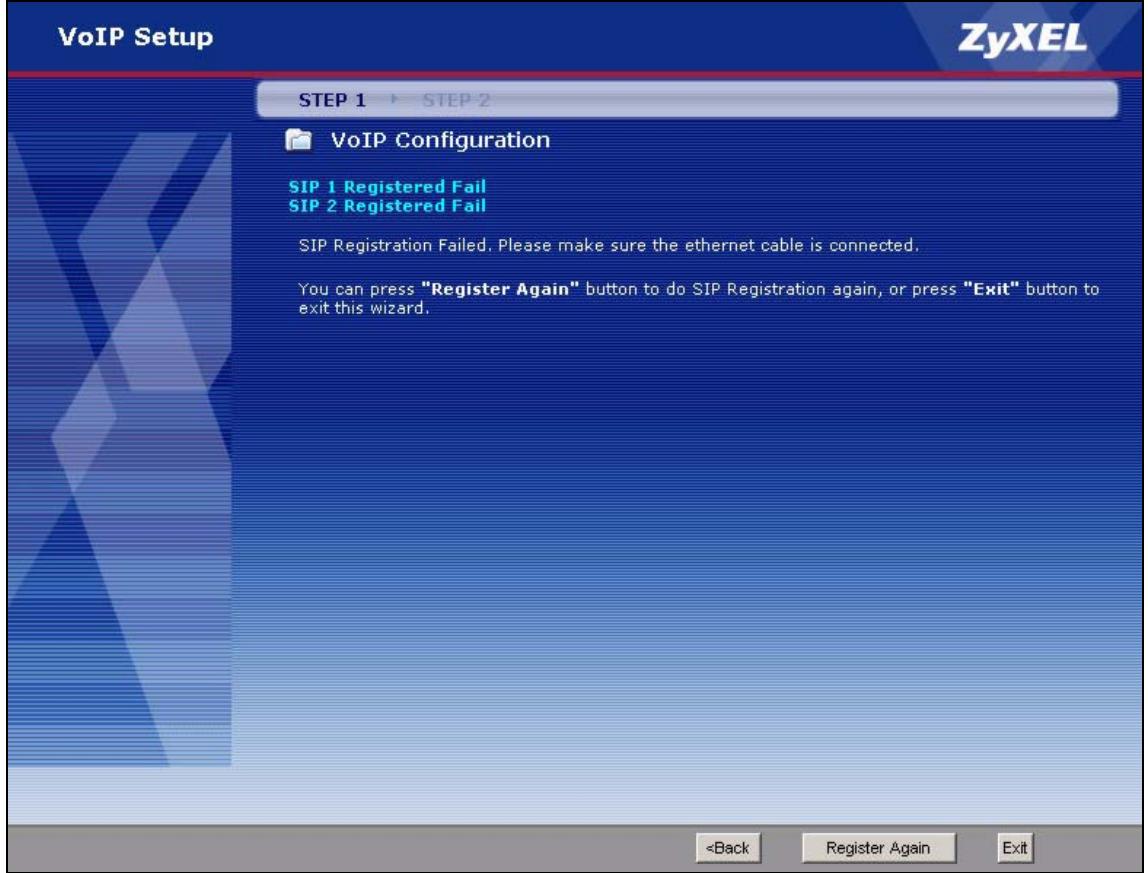

3.3.2 Registration Complete 64

3.4 Bandwidth Management Wizard 66

3.4.1 Welcome 67

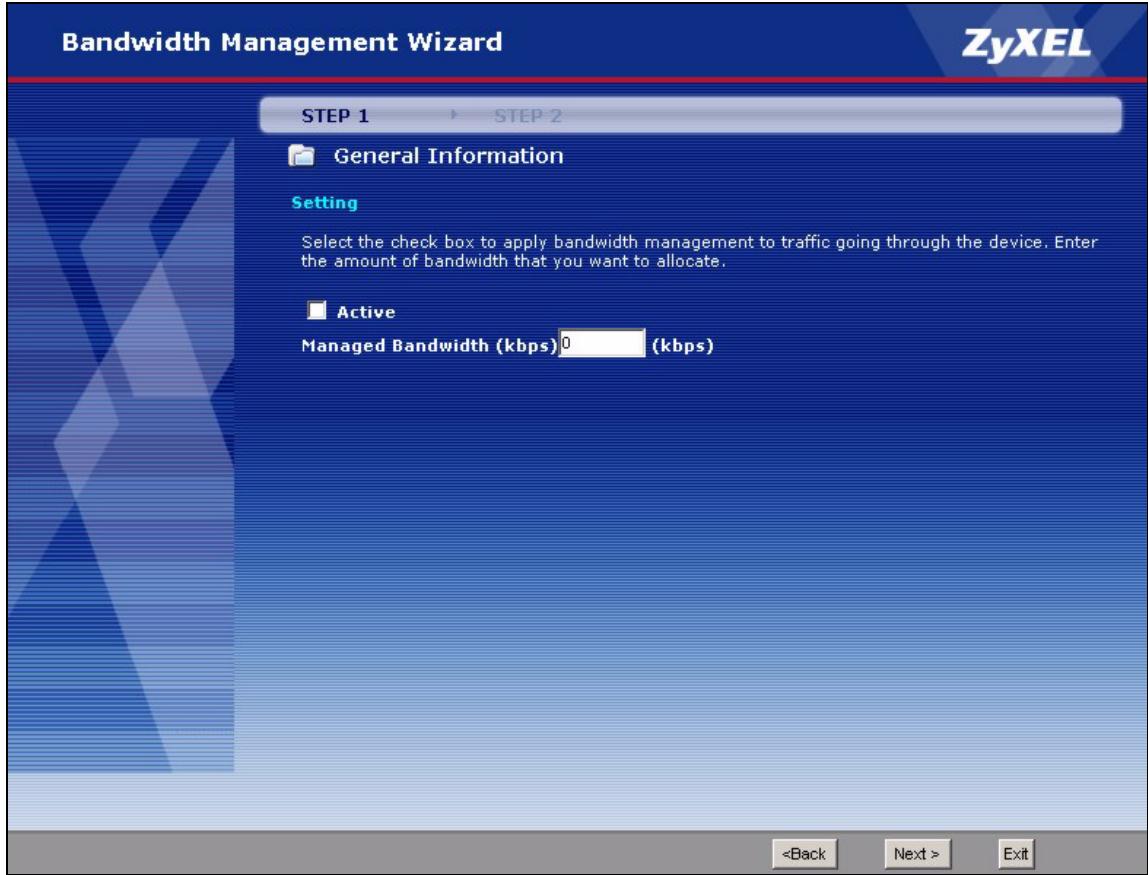

3.4.2 General Information 68

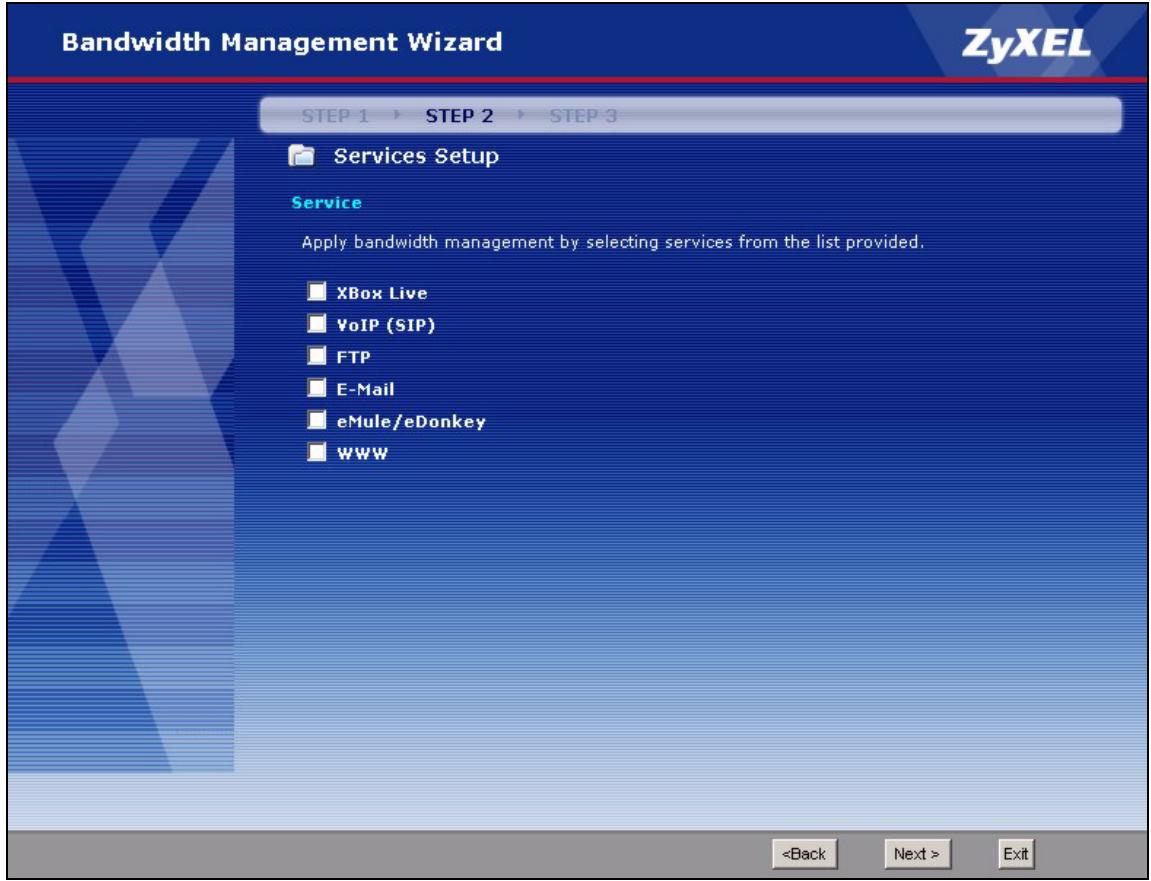

3.4.3 Services Setup 69

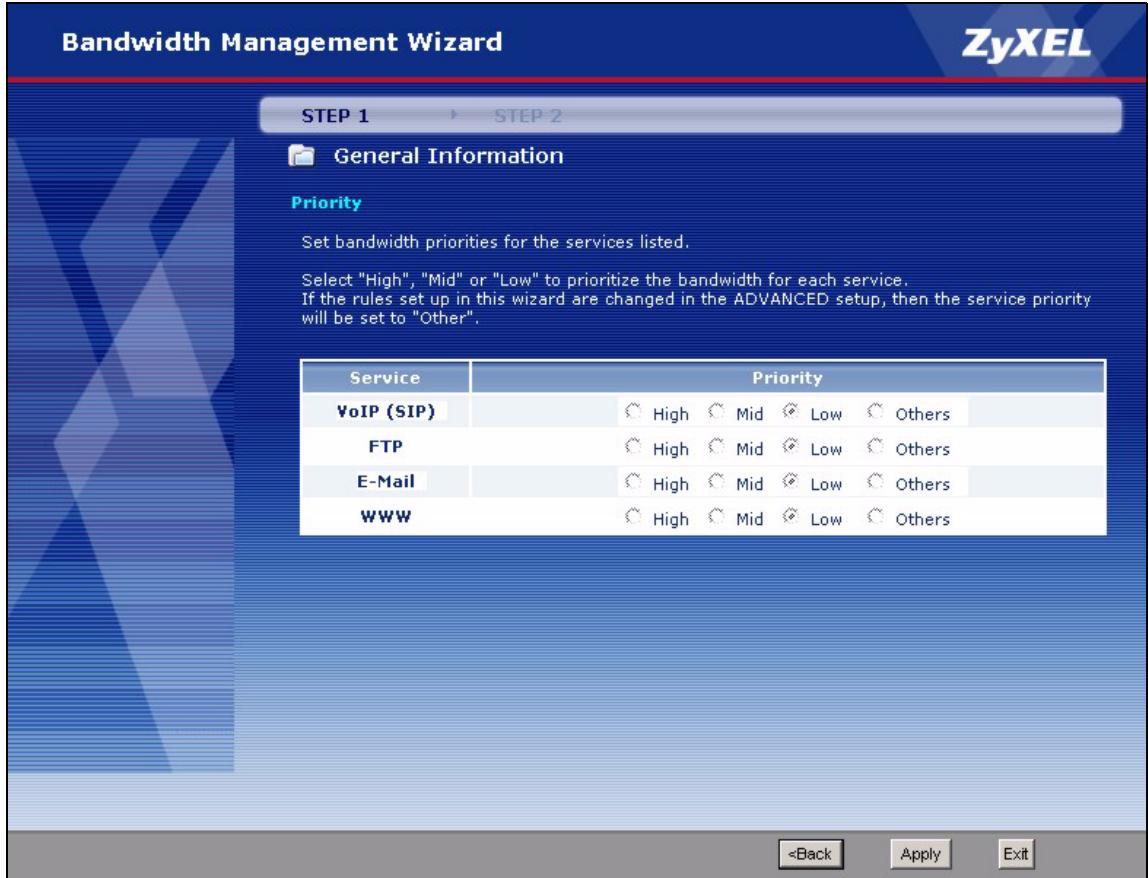

3.4.4 Priority Setup 70

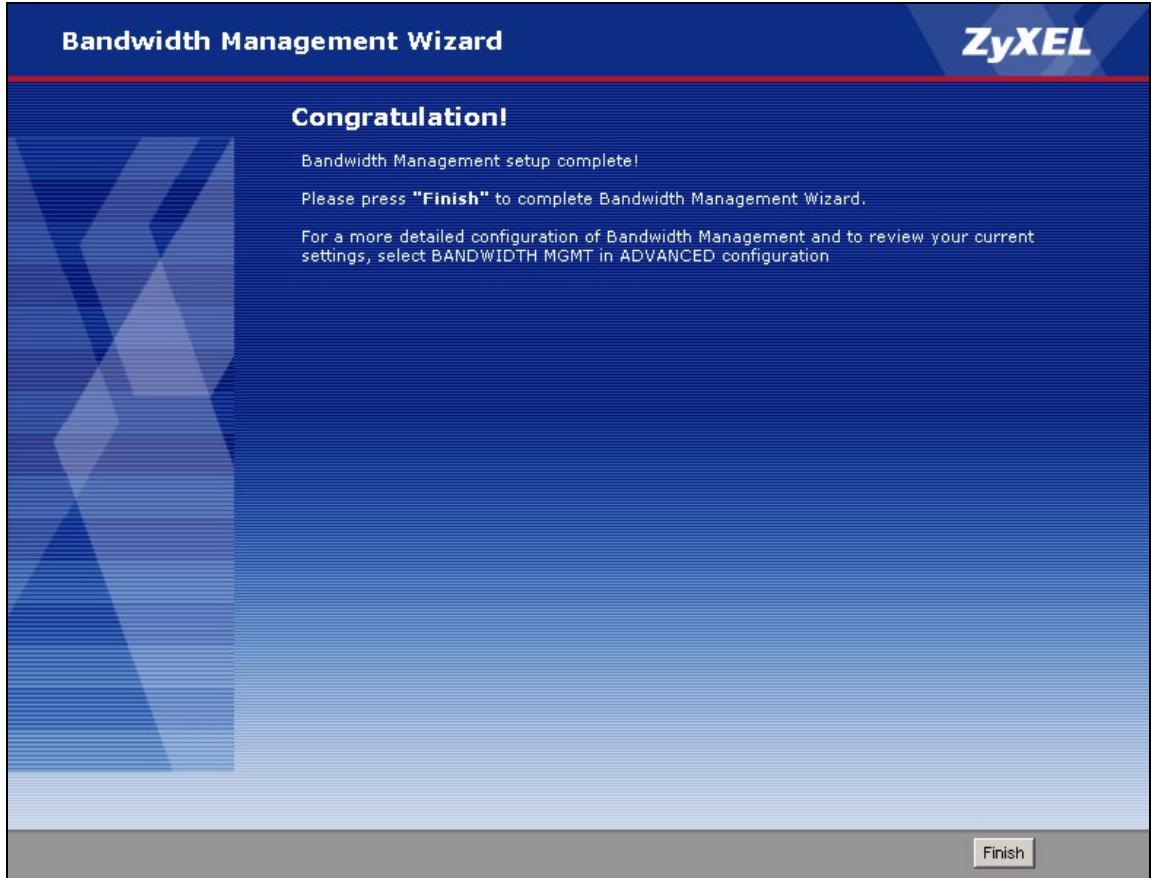

3.4.5 Finish 71

Chapter 4 Status Screens 73

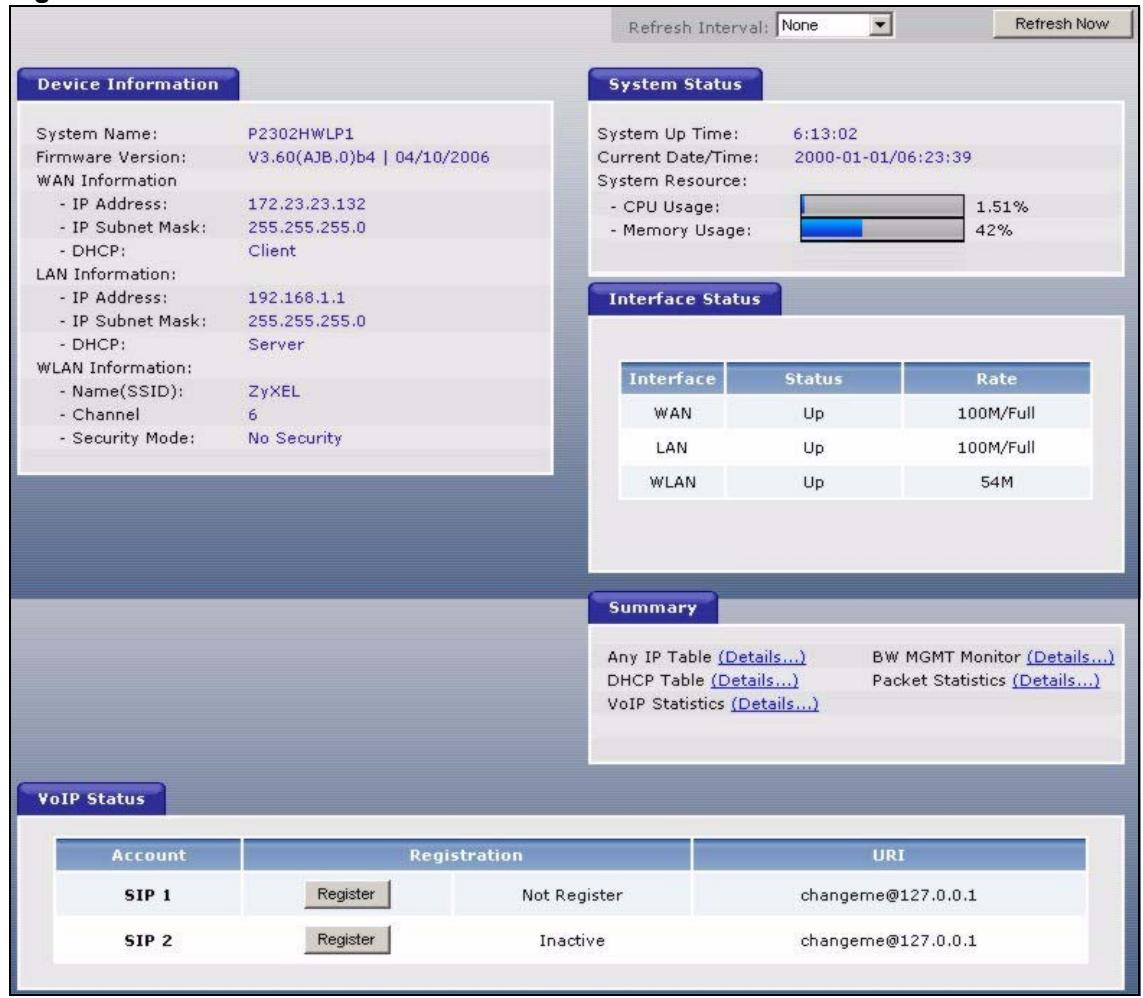

4.1 Status Screen 73

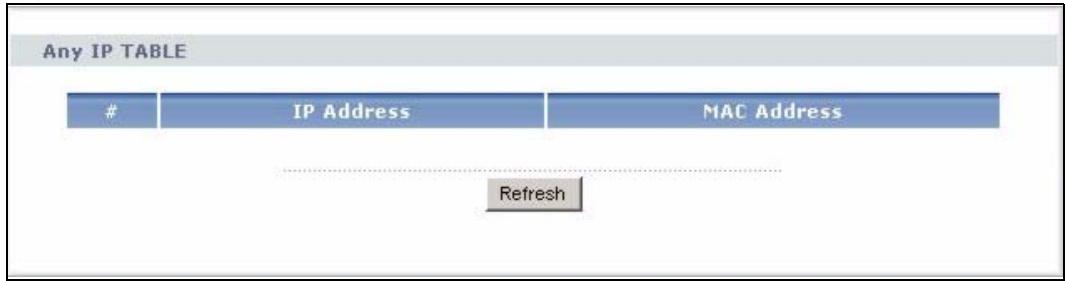

4.2 Any IP Table Window 77

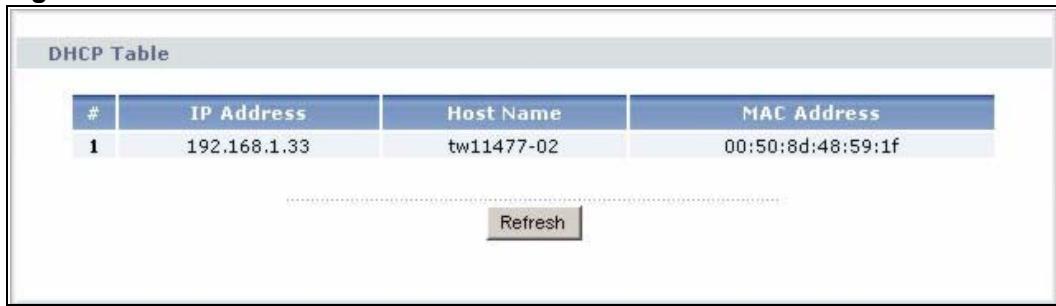

4.3 DHCP Table Window 77

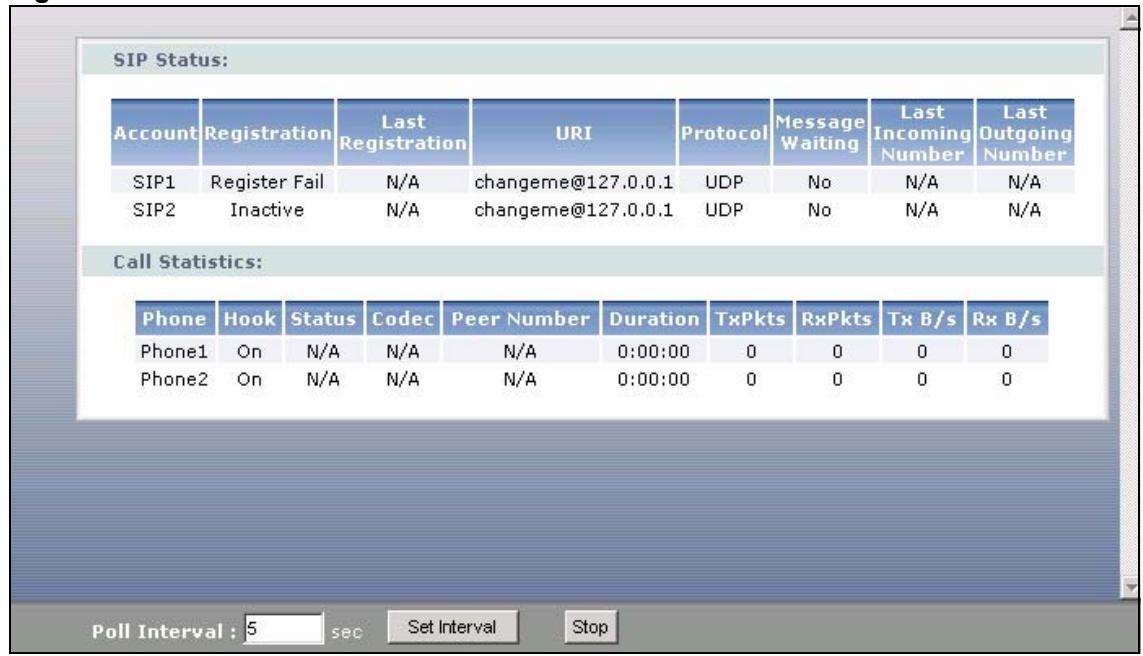

4.4 VoIP Statistics Window 78

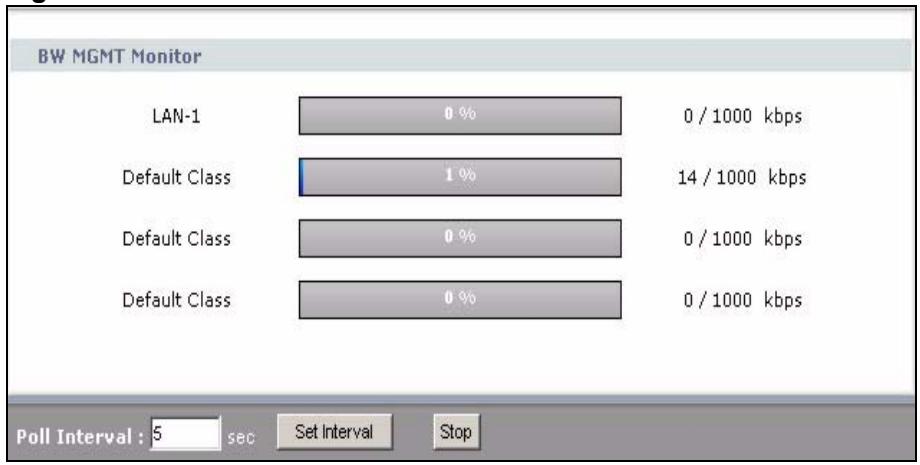

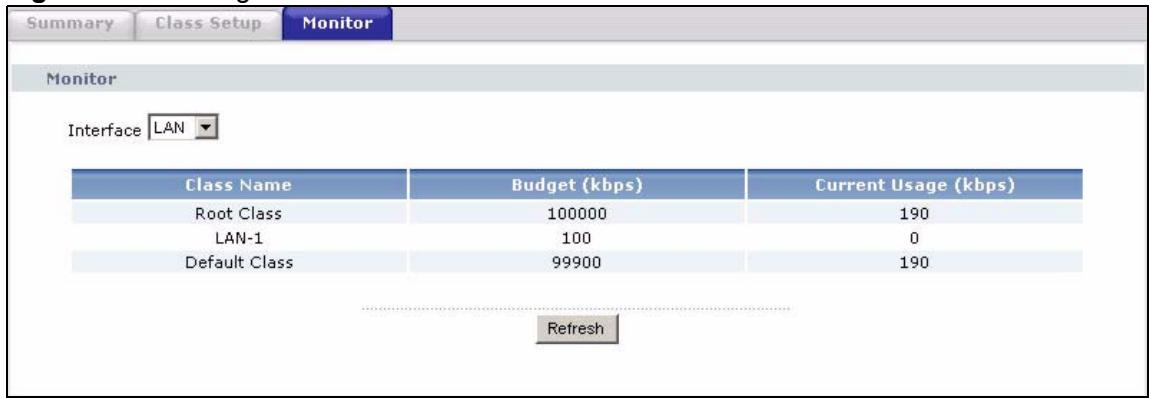

4.5 BW MGMT Monitor Window 80

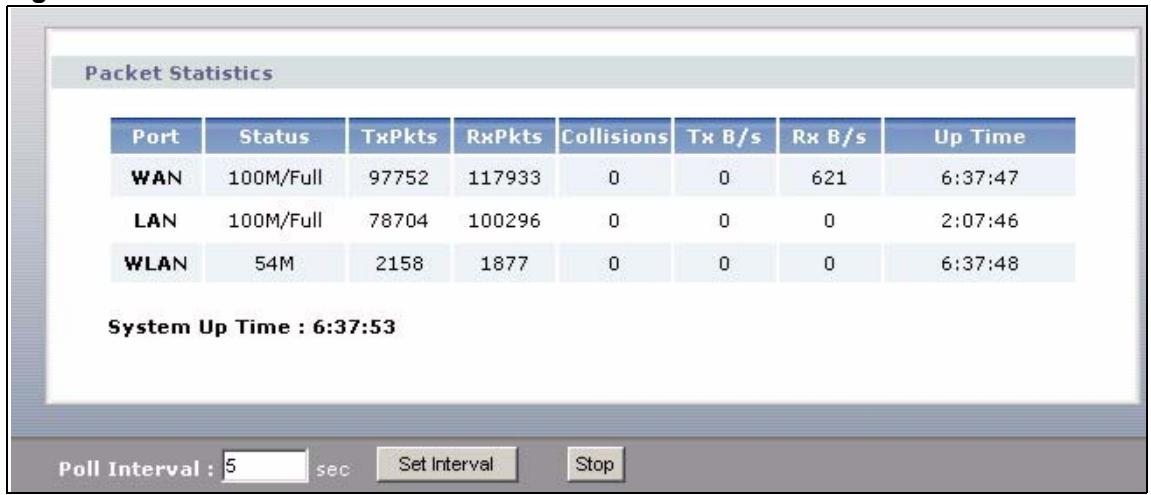

4.6 Packet Statistics Window 82

Chapter 5 Wireless LAN 85

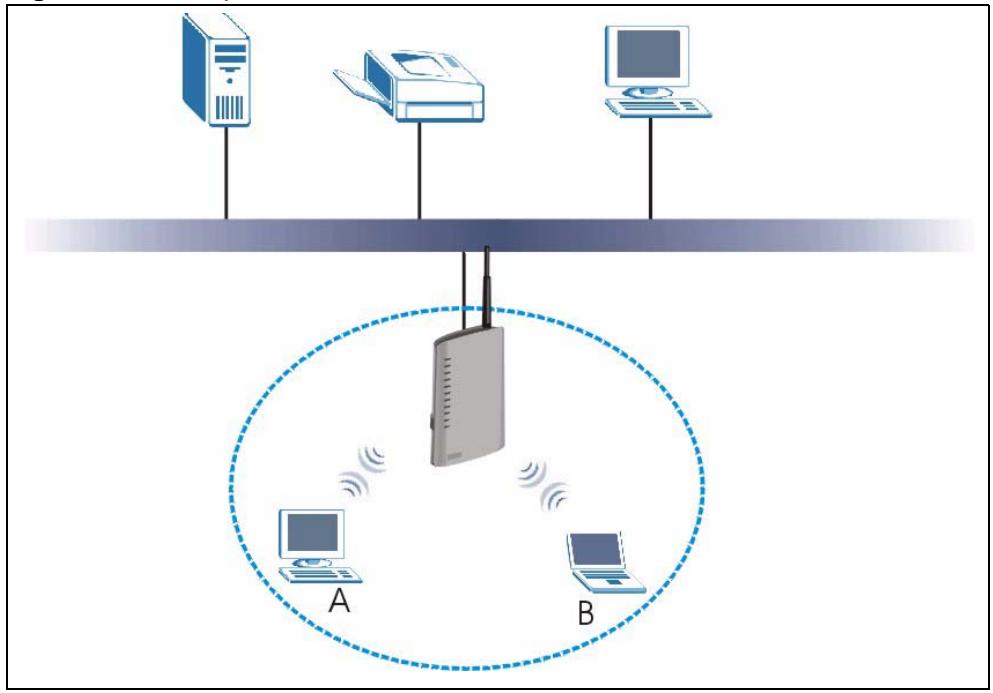

5.1 Wireless Network Overview 85
5.2 Wireless Security Overview 86

5.2.1 SSID .86
5.2.2 MAC Address Filter 86
5.2.3UserAuthentication 86
5.2.4 Encryption 87

5.2.5 One-Touch Intelligent Security Technology (OTIST) 88

5.3 Additional Wireless Terms 88

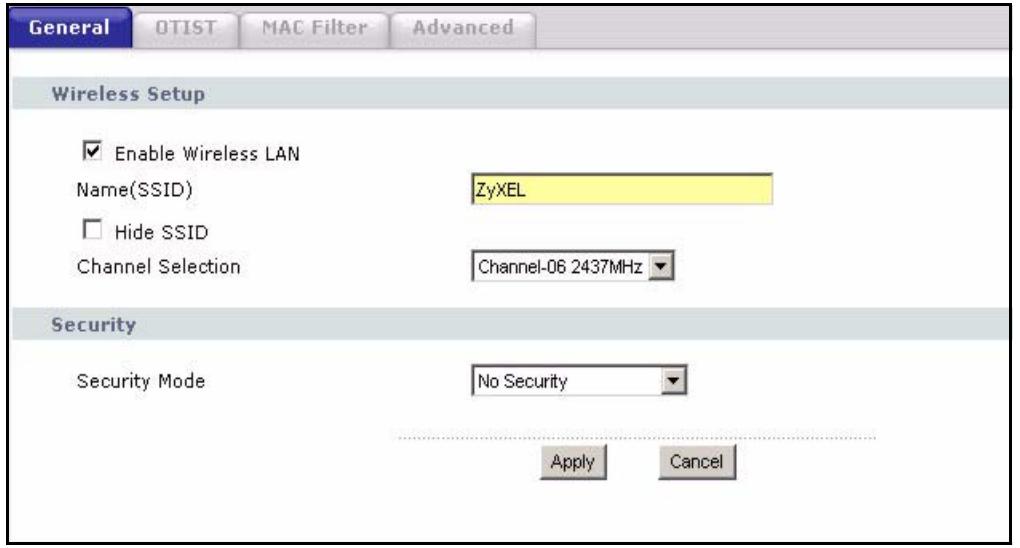

5.4 General WLAN Screen 88

5.4.1 No Security 89

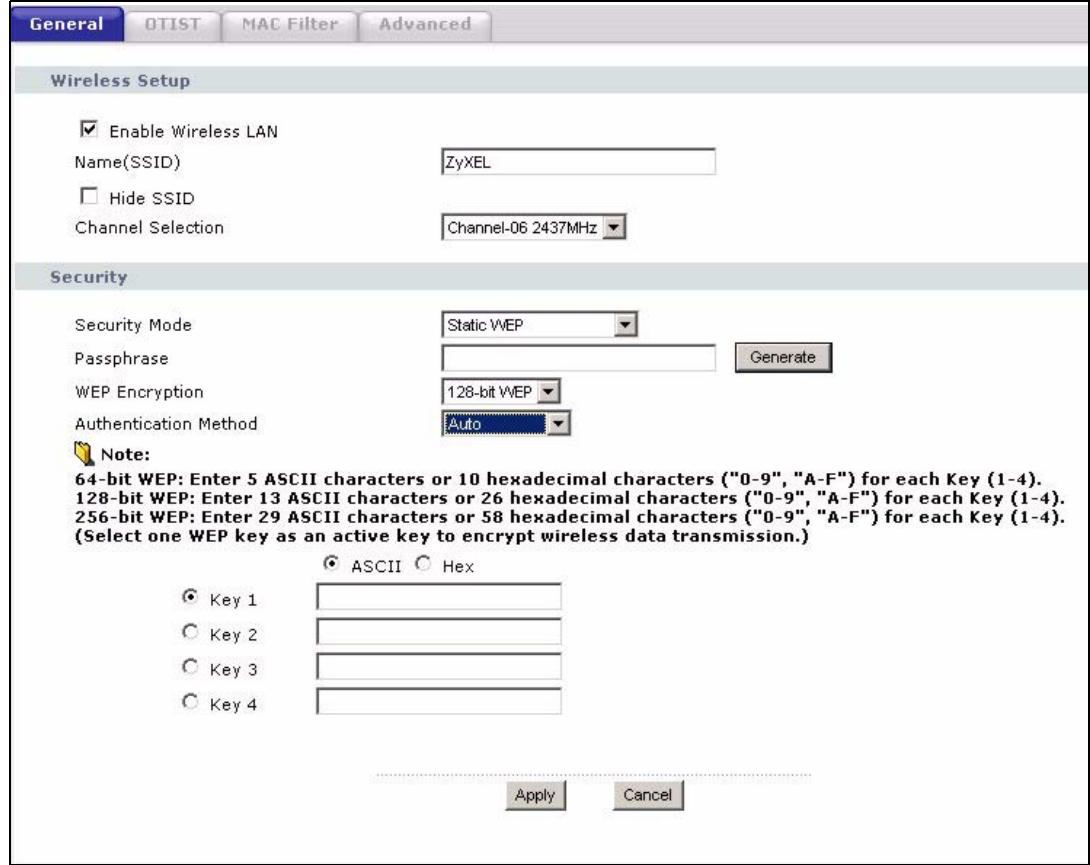

5.4.2 WEP Encryption Screen 90

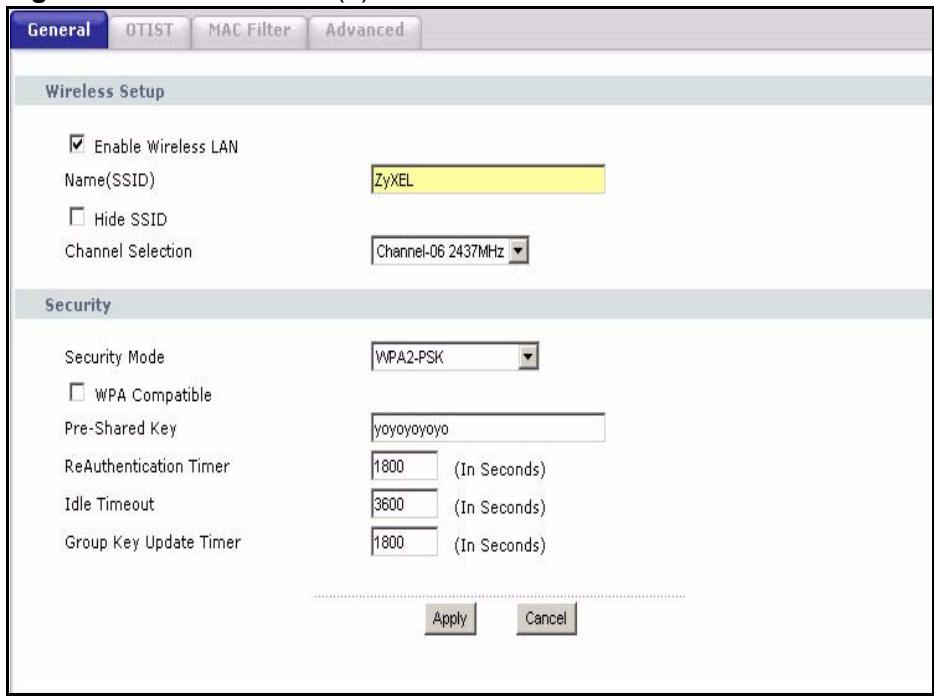

5.4.3 WPA(2)-PSK 92

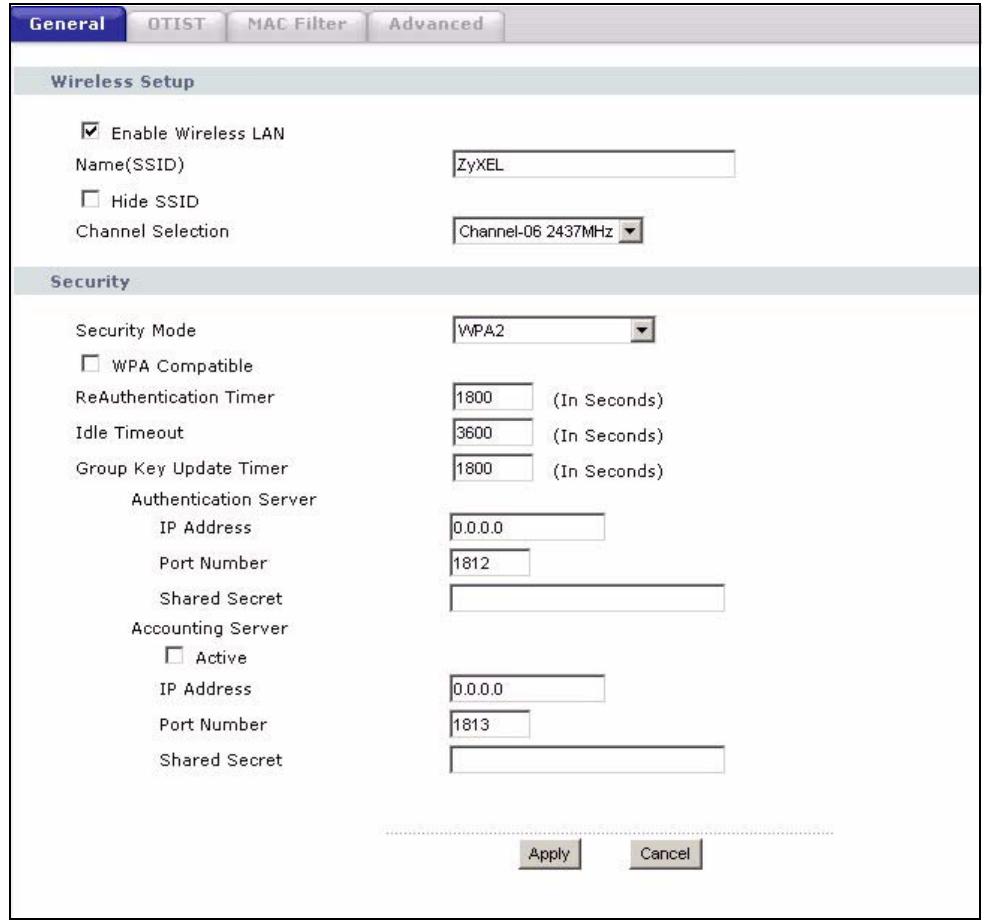

5.4.4 WPA(2) Authentication Screen 93

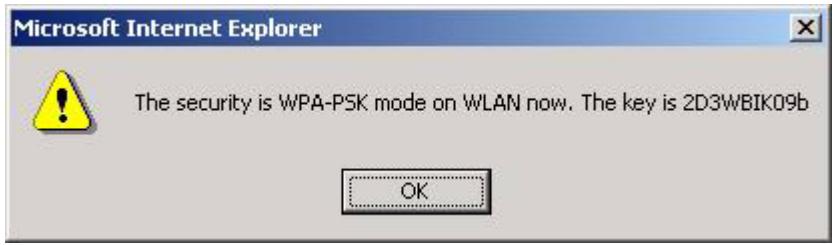

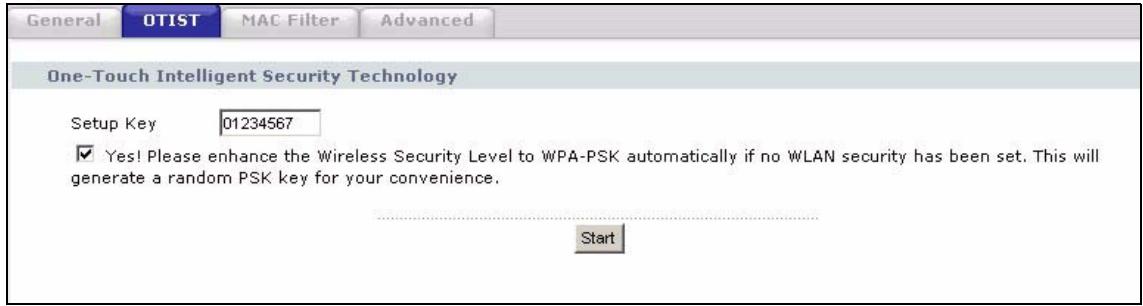

5.5 OTIST Screen 95

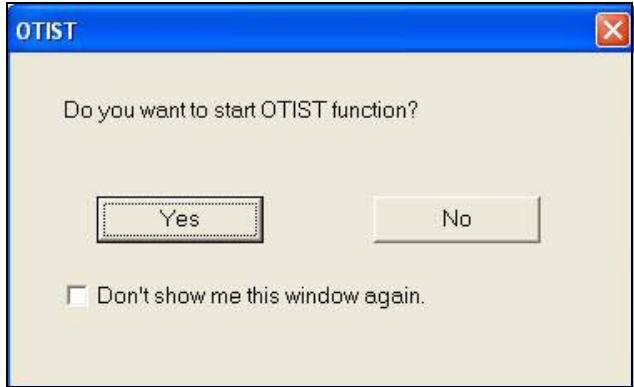

5.5.1 Notes on OTIST 97

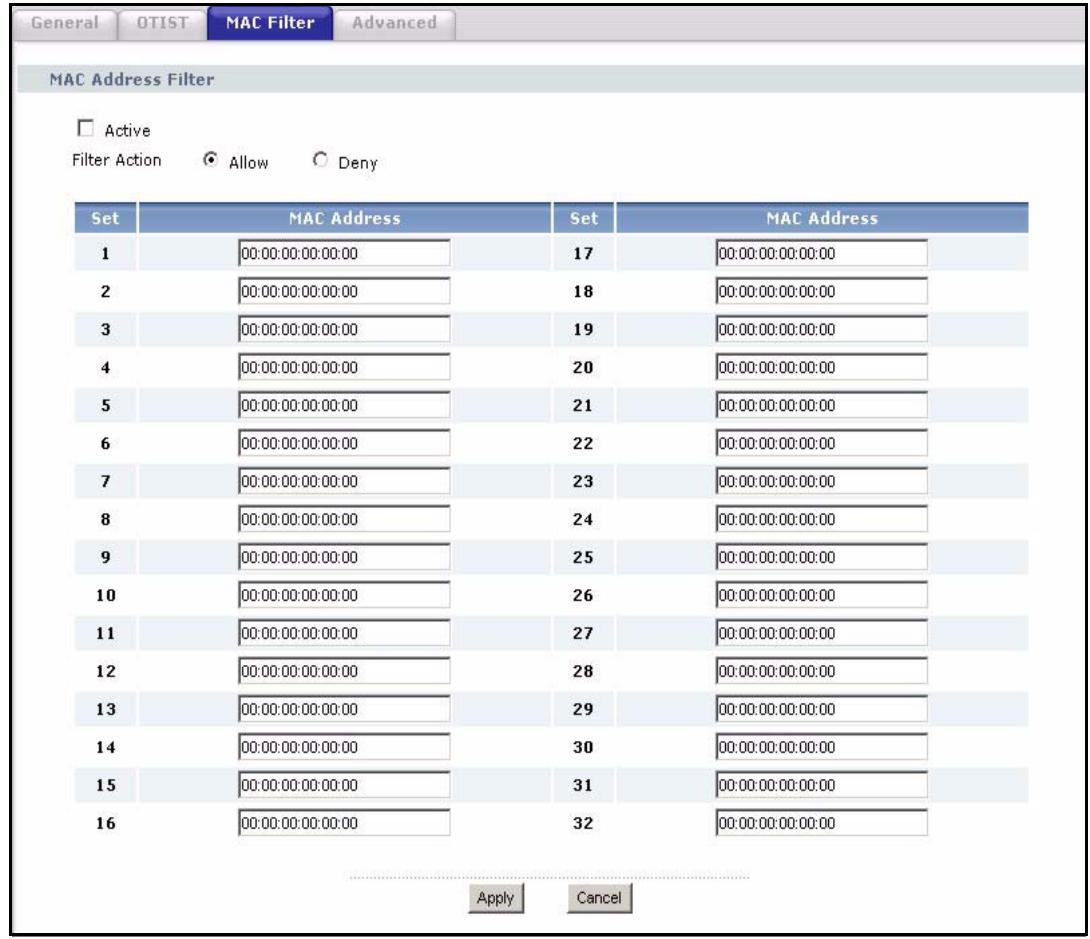

5.6 MAC Filter 97
5.7 Wireless LAN Advanced Setup 99

Chapter 6

WAN 101

6.1 WAN Overview 101

6.1.1 PPPoE Encapsulation 101
6.1.2 WAN IP Address Assignment 102
6.1.3 MAC Address 102
6.1.4 RIP Setup 102
6.1.5 DNS Server Address Assignment 103

6.2 WAN Screens 103

6.2.1 WAN Internet Connection Screen (Ethernet) 103

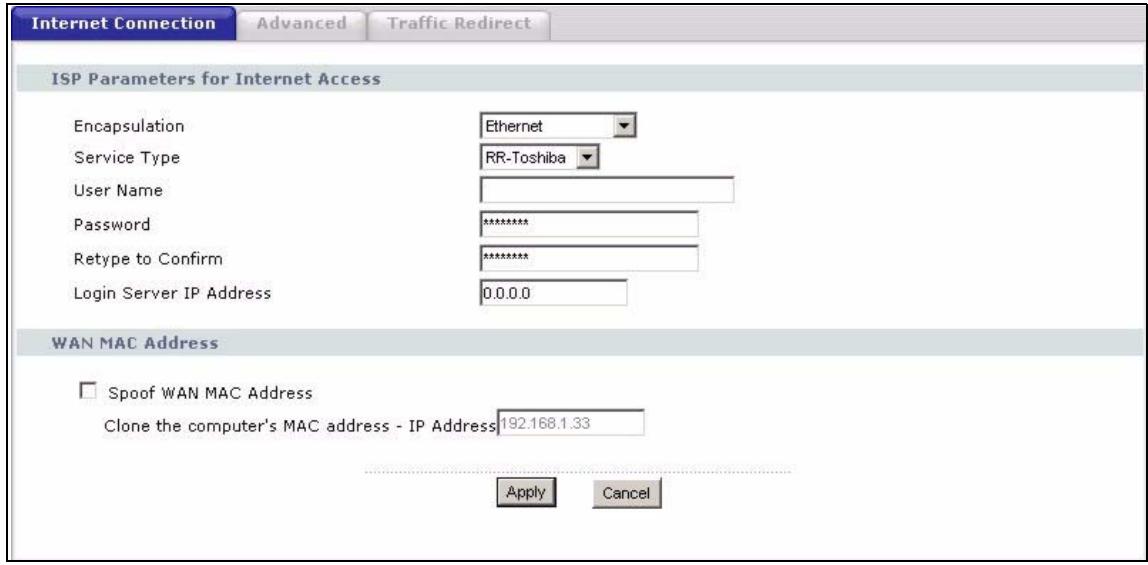

6.2.2 WAN Internet Connection Screen (Roadrunner) 105

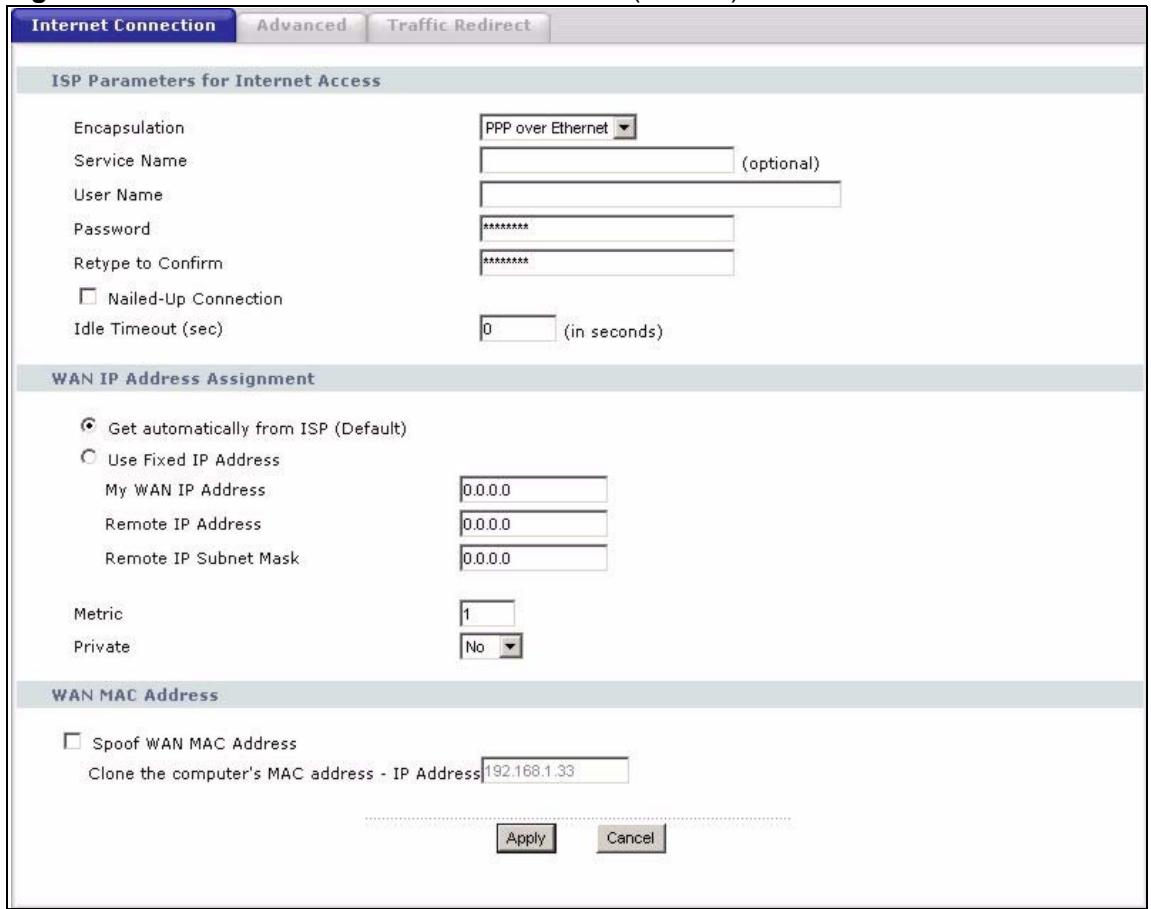

6.2.3 WAN Internet Connection Screen (PPPoE) 106

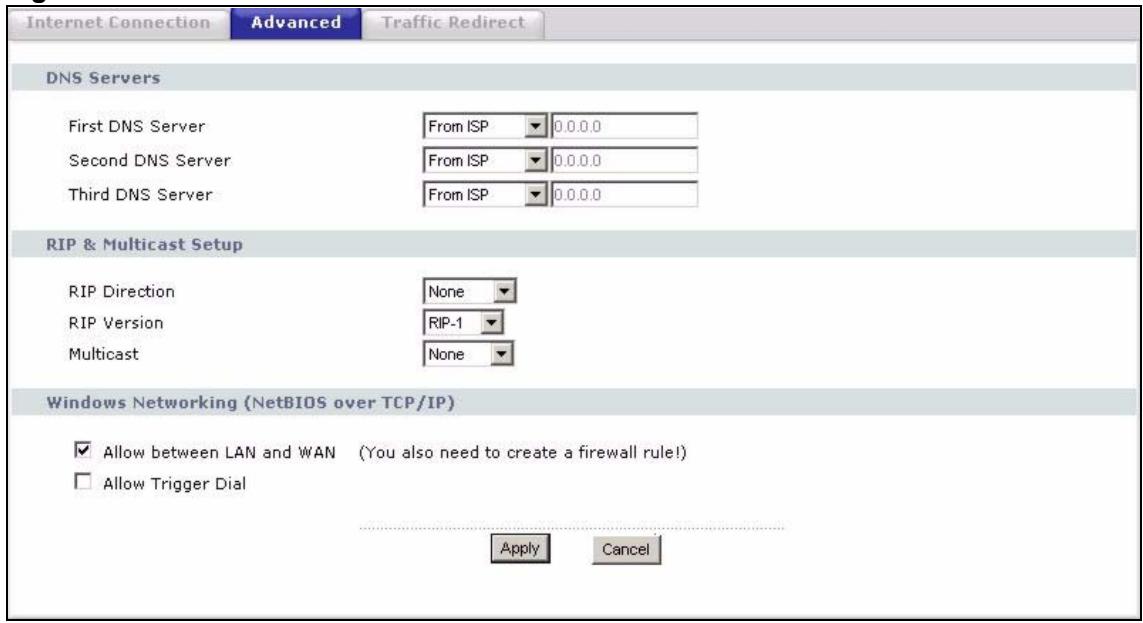

6.2.4 WAN Advanced Screen 108

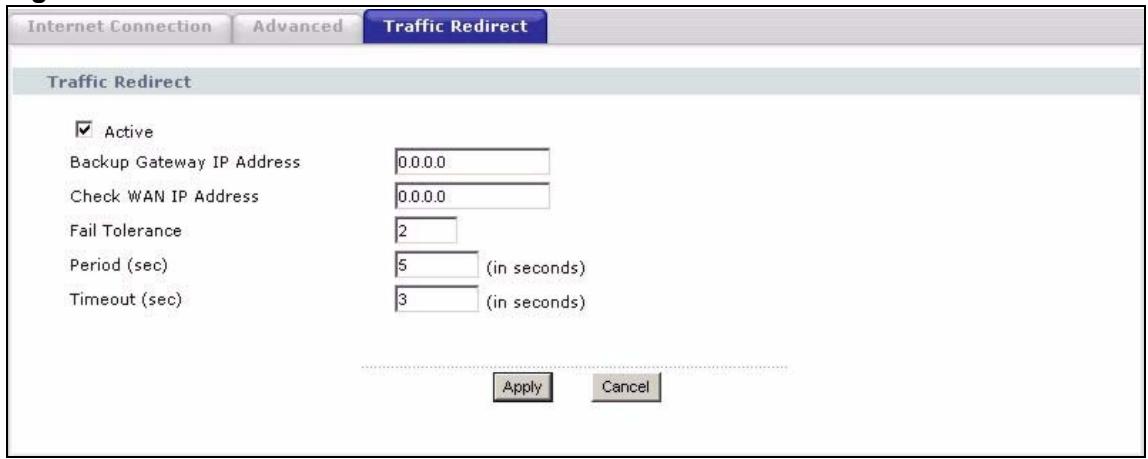

6.2.5 WAN Traffic Redirect Screen 110

Chapter 7

LAN 113

7.1 LAN Overview 113

7.1.1 IP Address and Subnet Mask 113
7.1.2 DHCP Setup 114
7.1.3 LAN TCP/IP 114
7.1.4 DNS Server Address 114
7.1.5 RIP Setup 115
7.1.6 Multicast 115
7.1.7 Any IP 116

7.2 LAN Screens 118

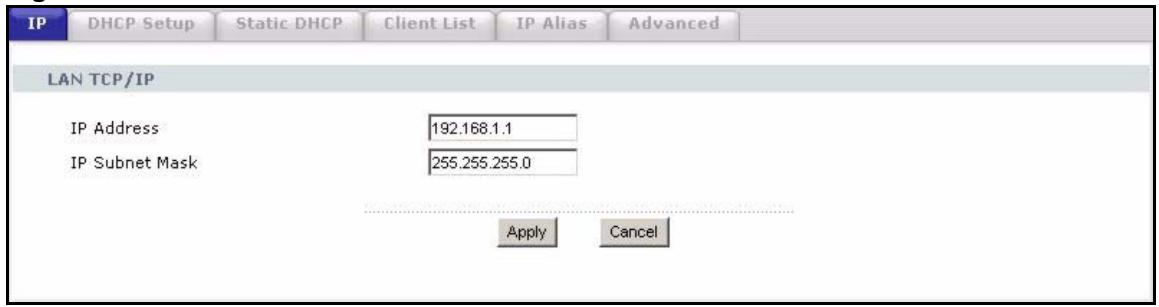

7.2.1 LAN IP Screen 118

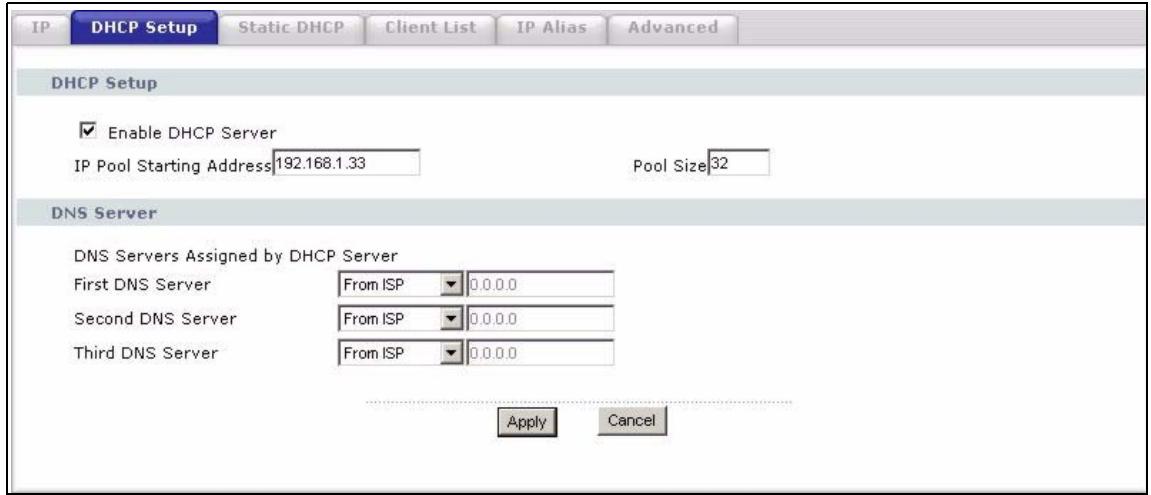

7.2.2 LAN DHCP Setup Screen 118

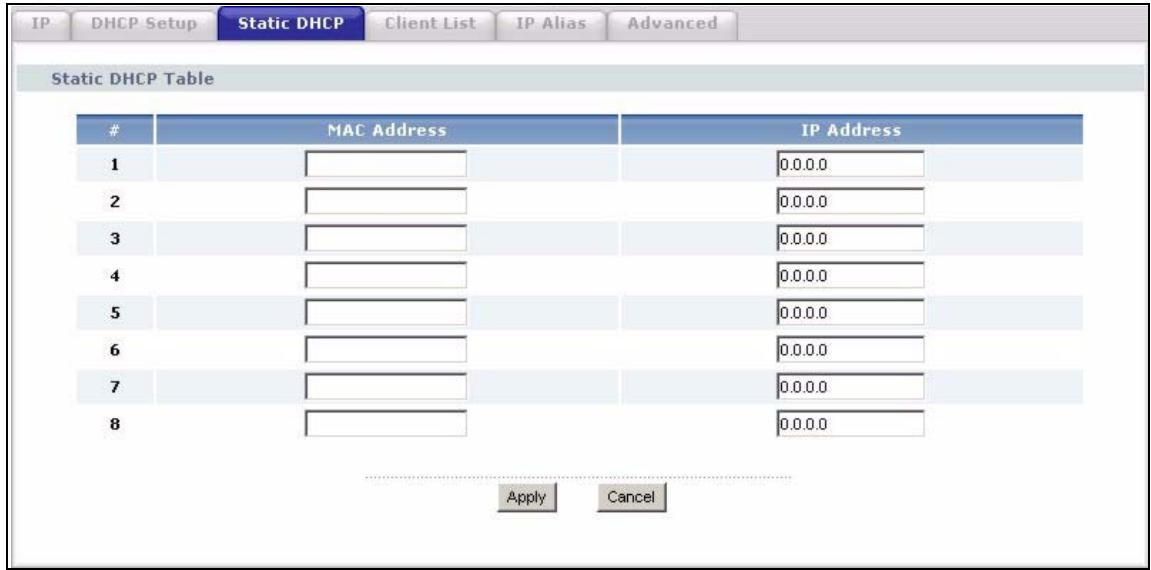

7.2.3 LAN Static DHCP Screen 119

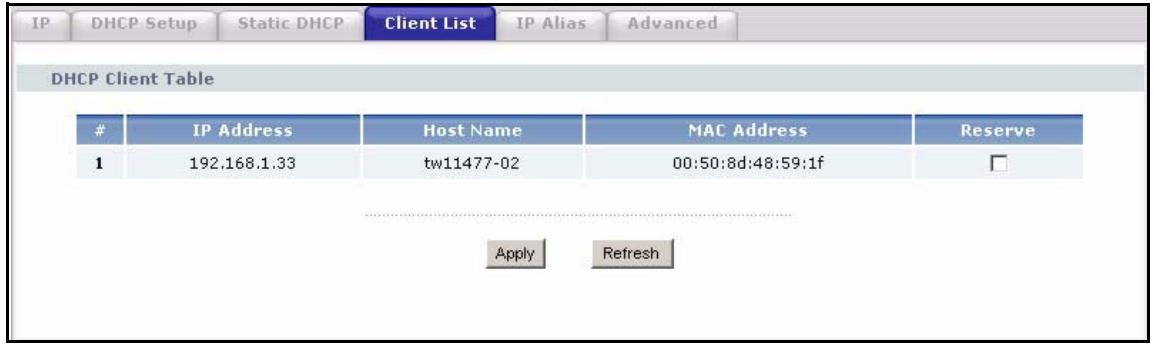

7.2.4 LAN Client List Screen 120
7.2.5 LAN IP Alias Screen 121

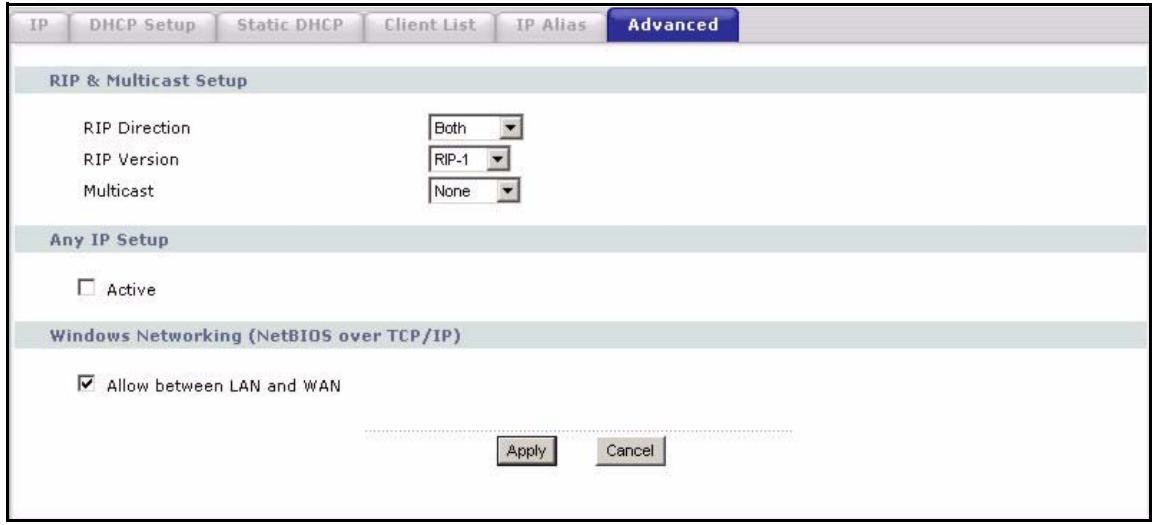

7.2.6 LAN Advanced Screen 123

Chapter 8

NAT 127

8.1 NAT Overview 127

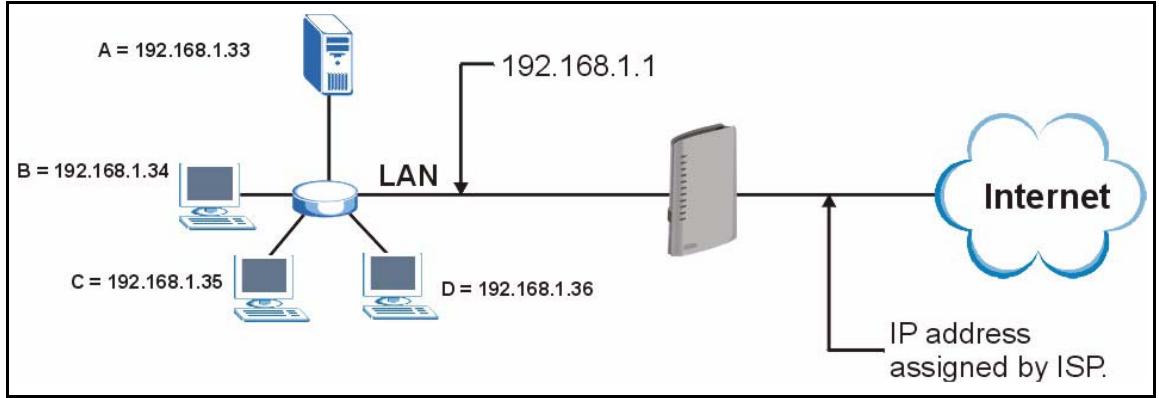

8.1.1 Port Forwarding: Services and Port Numbers 127
8.1.2 Trigger Port Forwarding 128
8.1.2.1 Trigger Port Forwarding Example 128
8.1.2.2 Two Points To Remember About Trigger Ports 129
8.1.3 SIP ALG 129

8.2 NAT Screens 129

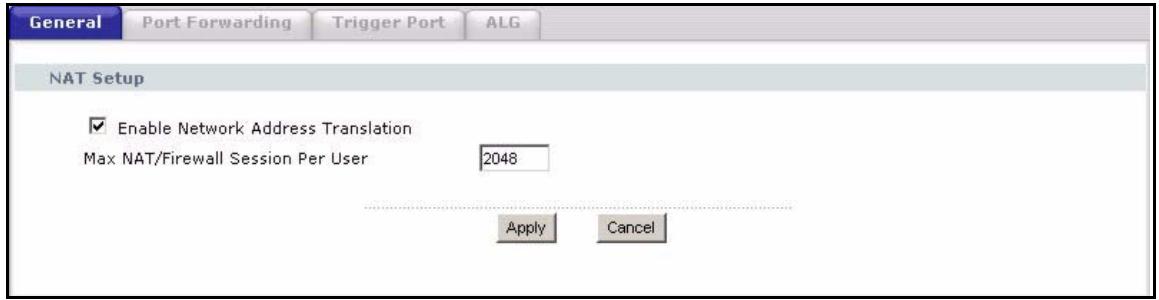

8.2.1 NAT General Screen 129

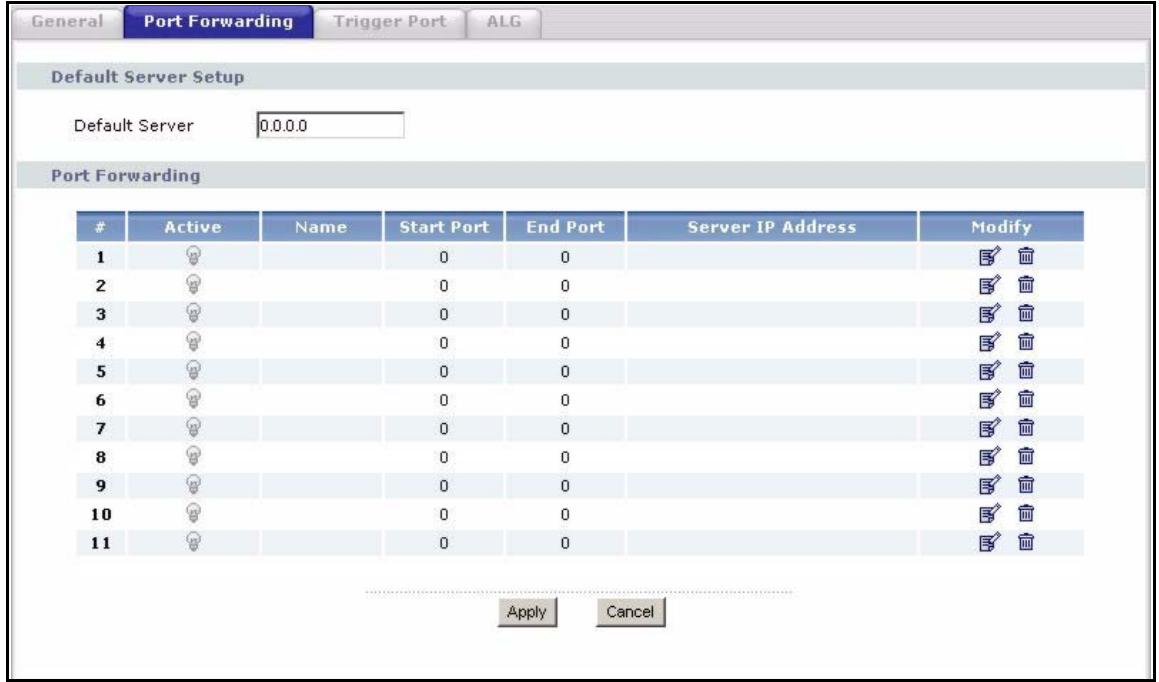

8.2.2 NAT Port Forwarding Screen 130

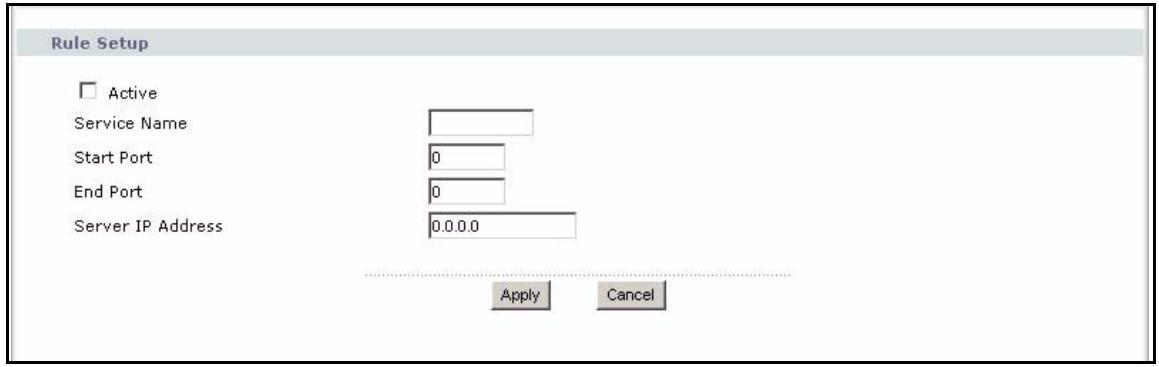

8.2.3 NAT Port Forwarding Edit Screen 132

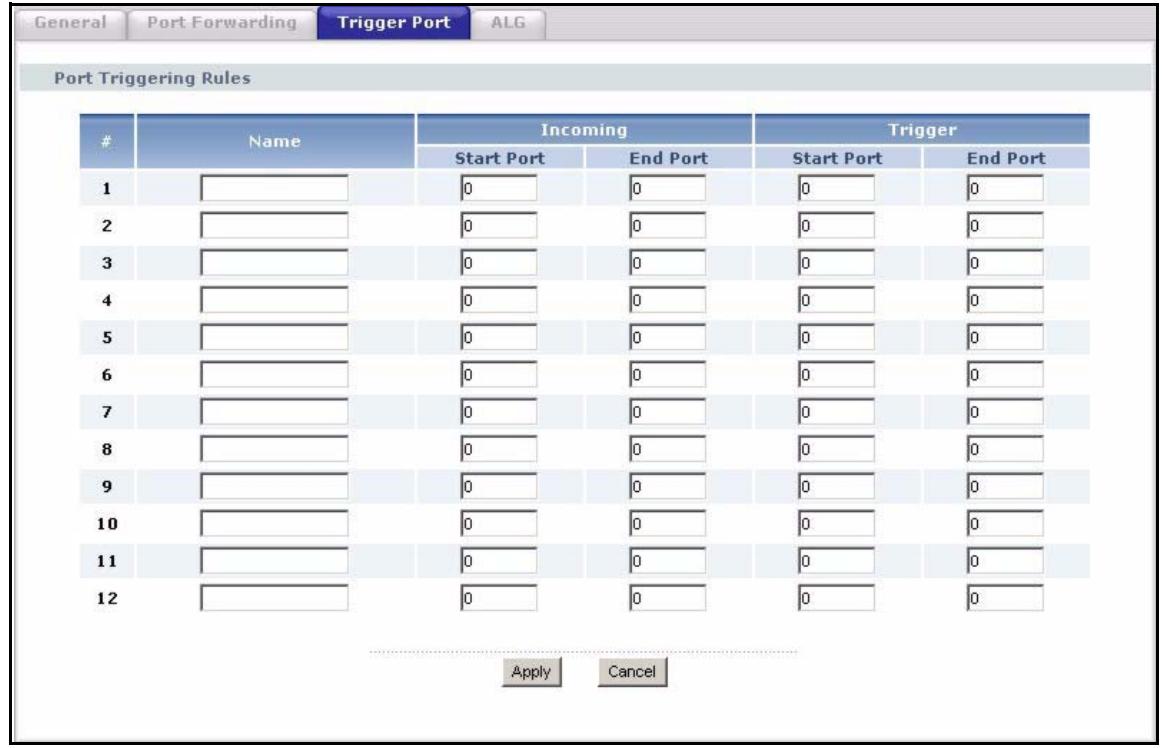

8.2.4 NAT Trigger Port Screen 132

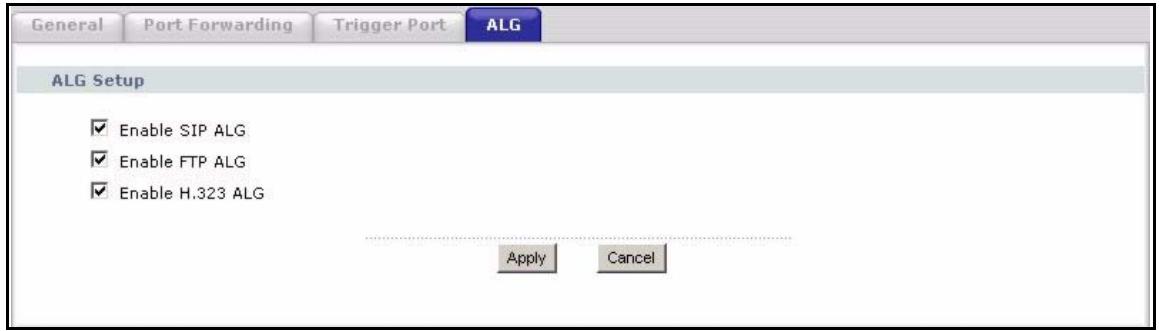

8.2.5 NAT ALG Screen 134

Chapter 9

SIP 135

9.1 SIP Overview 135

9.1.1 Introduction to VoIP 135
9.1.2 Introduction to SIP 135
9.1.3 SIP Identities 135

9.1.3.1 SIP Number 135
9.1.3.2 SIP Service Domain 136

9.1.4 SIP Call Progression 136

9.1.5 SIP Client Server 136

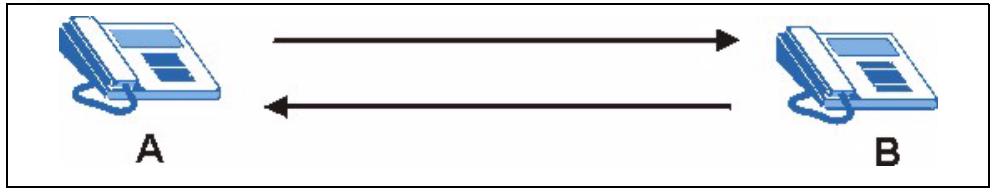

9.1.5.1 SIP User Agent 137

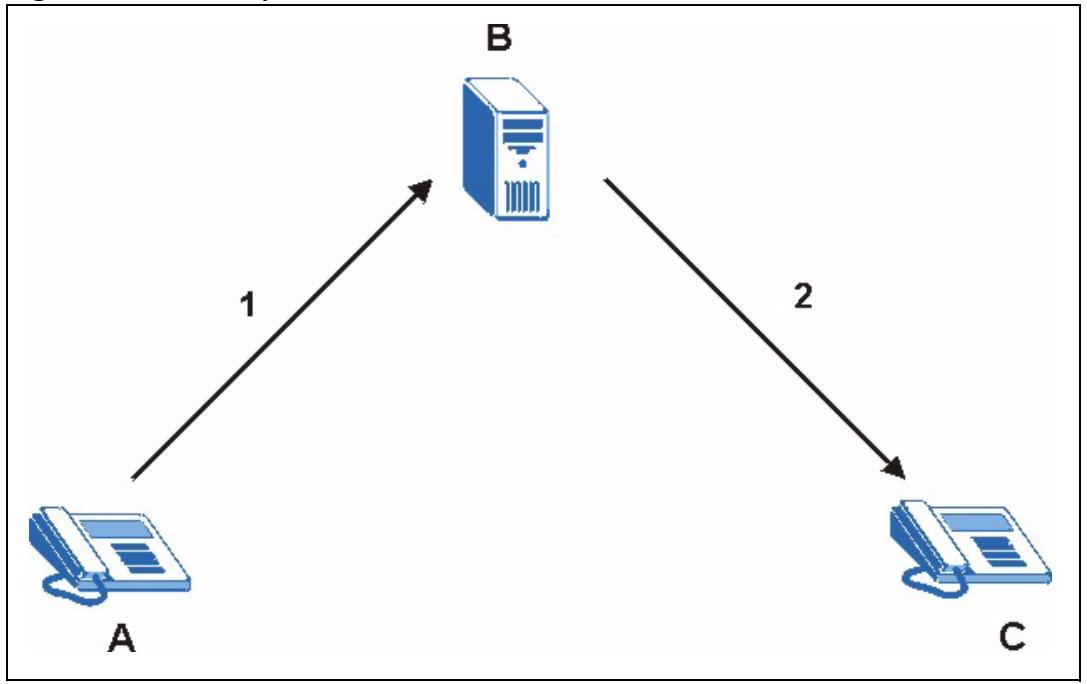

9.1.5.2 SIP Proxy Server 137

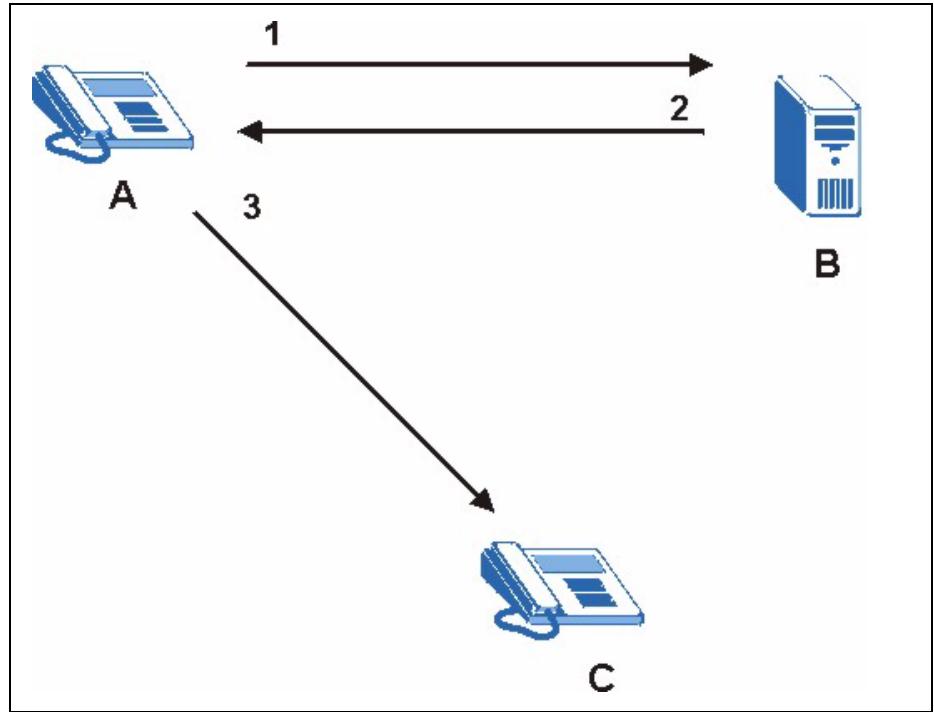

9.1.5.3 SIP Redirect Server 138
9.1.5.4 SIP Register Server 138

9.1.6 RTP 138

9.1.7 NAT and SIP 139

9.1.7.1 SIP ALG 139
9.1.7.2 Use NAT 139

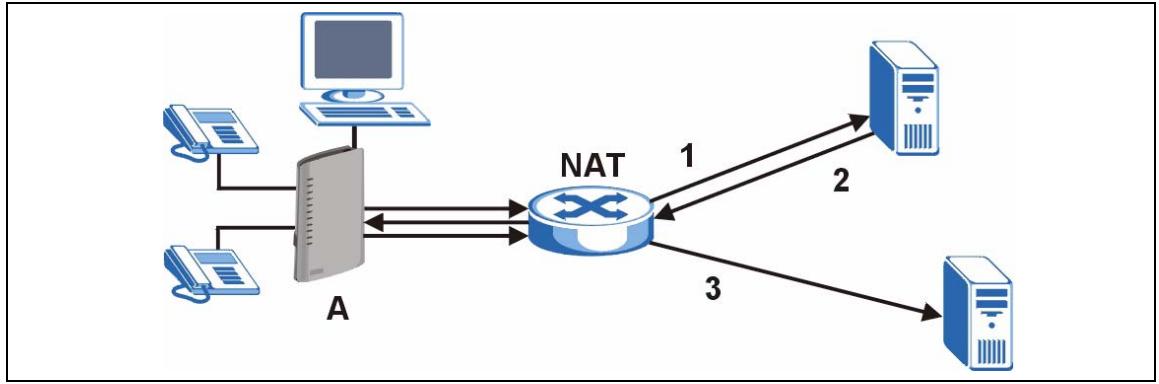

9.1.7.3 STUN 139
9.1.7.4 Outbound Proxy 140

9.1.8 Voice Coding 140

9.1.9 PSTN Call Setup Signaling 140

9.1.10 MWI (Message Waiting Indication) 141

9.1.11 Quality of Service (QoS) 141

9.1.11.1 Type of Service (ToS) 141
9.1.11.2 DiffServ 141

9.1.11.3 DSCP and Per-Hop Behavior 141
9.1.11.4 VLAN 142

9.2 SIP Screens 142

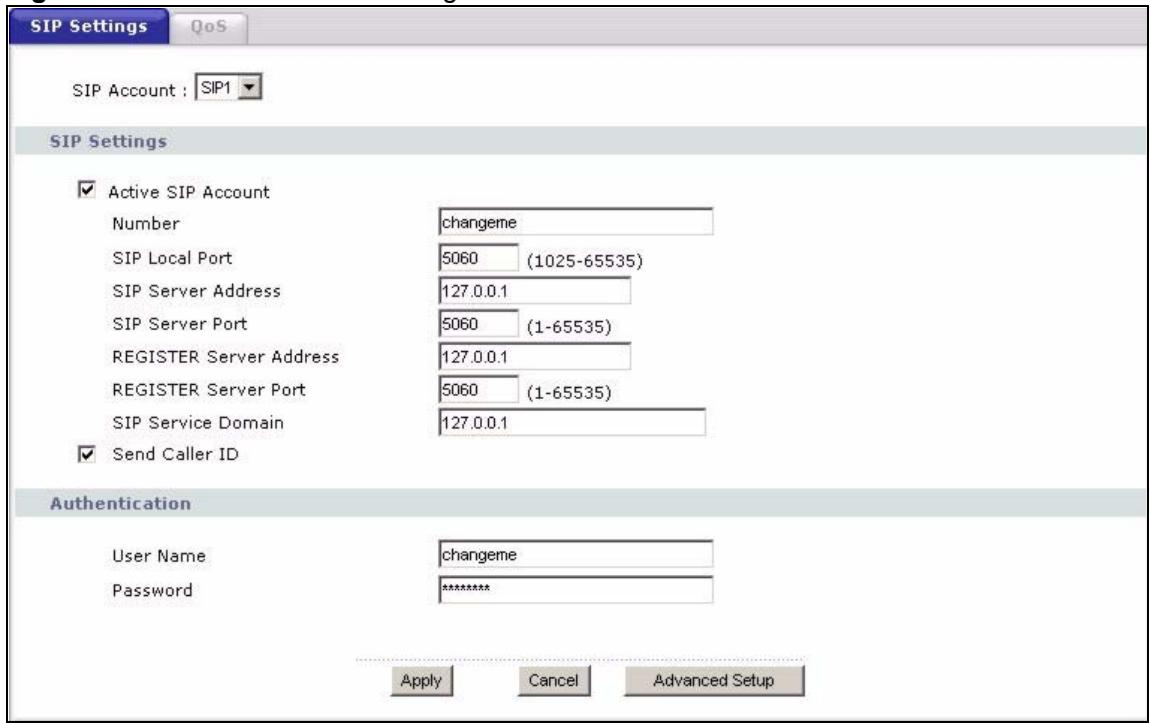

9.2.1 SIP Settings Screen 142

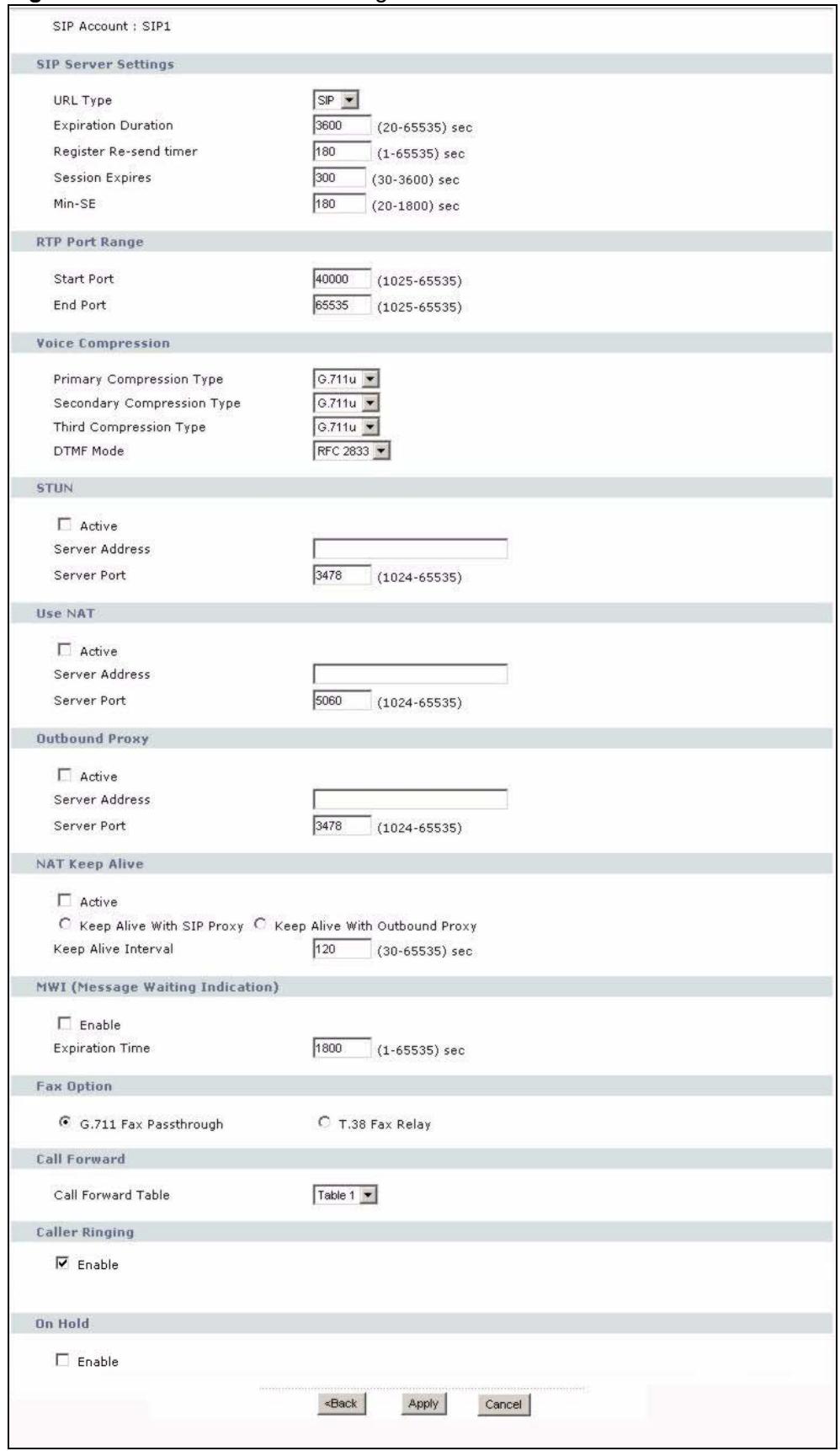

9.2.2 Advanced SIP Setup Screen 144

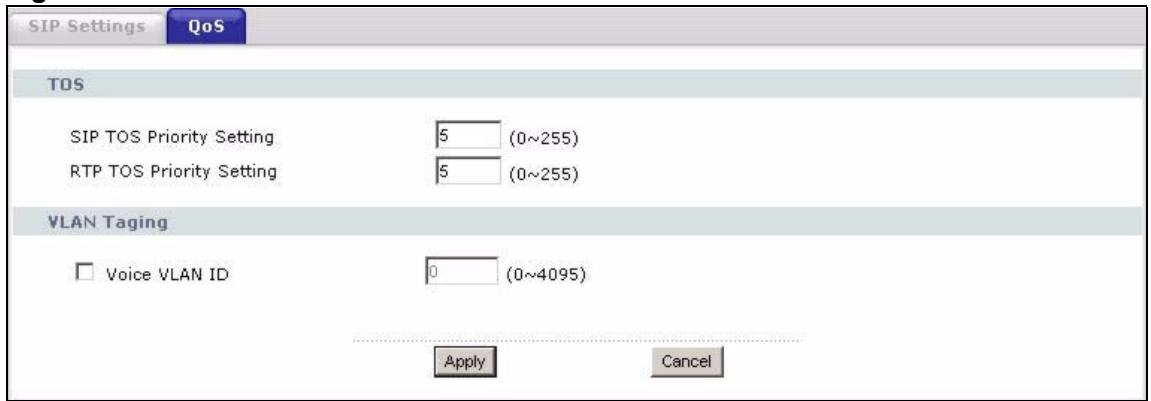

9.2.3 SIP QoS Screen 148

Chapter 10

Phone 151

10.1 Phone Overview 151

10.1.1 Voice Activity Detection/Silence Suppression/Comfort Noise 151
10.1.2 Echo Cancellation 151
10.1.3 Supplementary Phone Services Overview 151

10.1.3.1 The Flash Key 152
10.1.3.2 Europe Type Supplementary Phone Services 152
10.1.3.3 USA Type Supplementary Services 154

10.2 Phone Screens 155

10.2.1 Analog Phone Screen 155

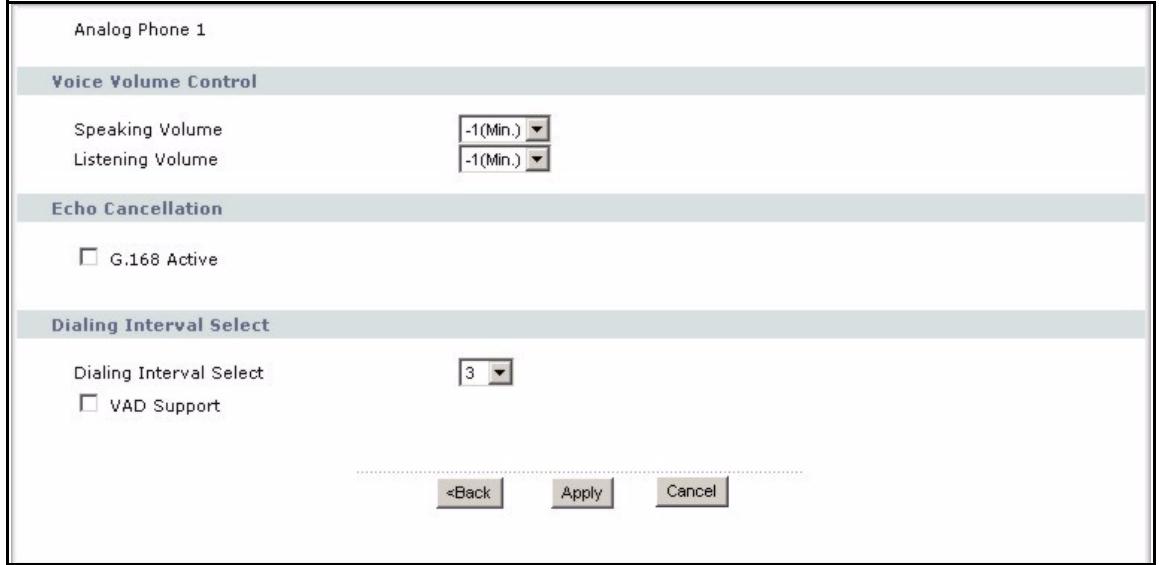

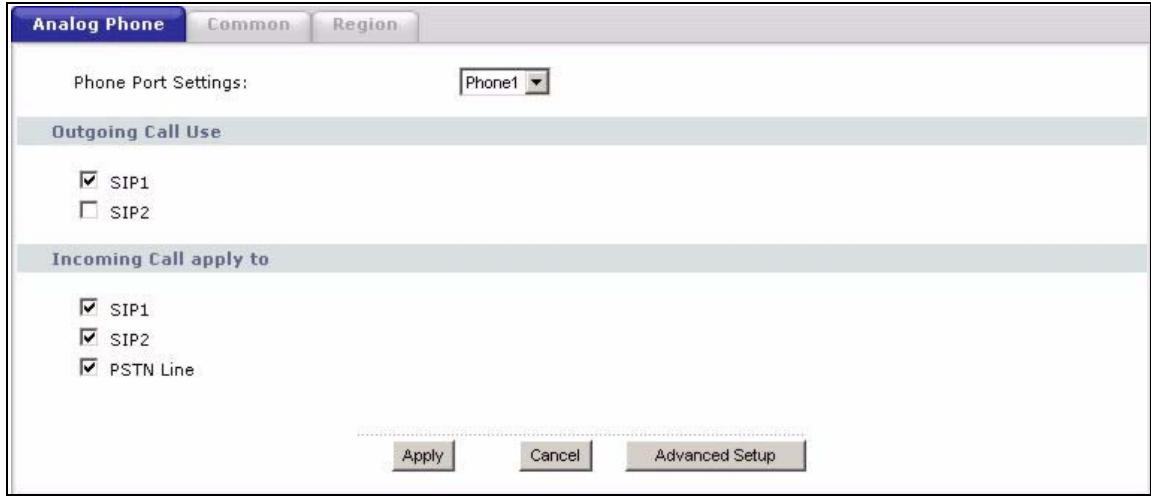

10.2.2 Advanced Analog Phone Setup Screen 156

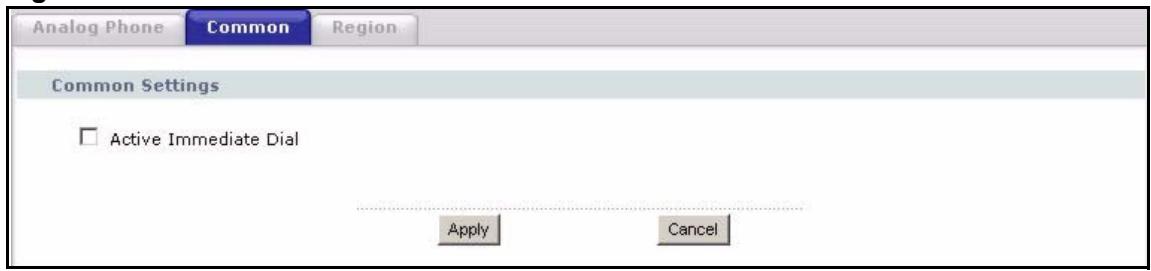

10.2.3 Common Phone Settings Screen 158

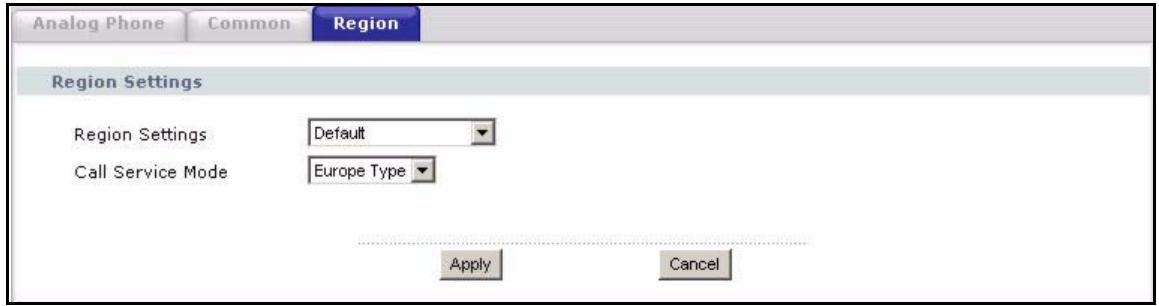

10.2.4 Phone Region Screen 158

Chapter 11

Phone Book 161

11.1 Phone Book Overview 161
11.2 Phone Book Screens 161

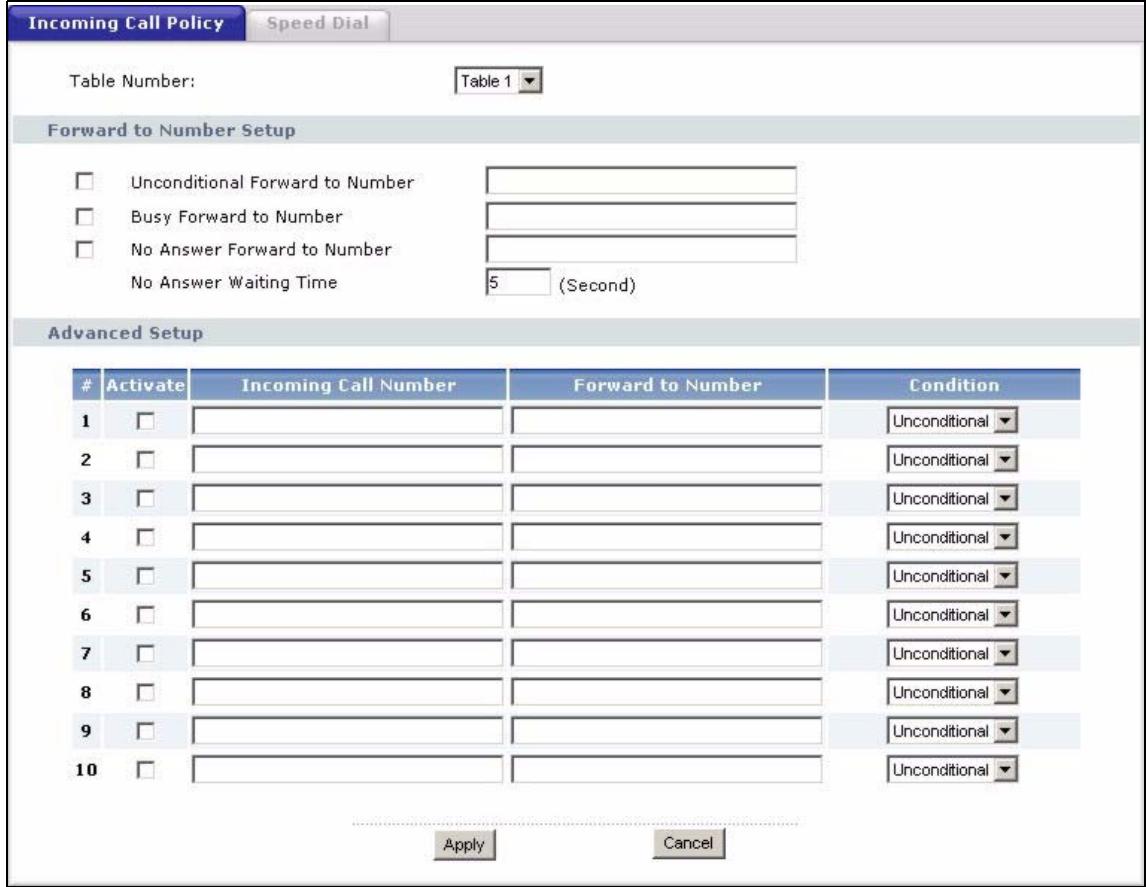

11.2.1 Incoming Call Policy Screen 161

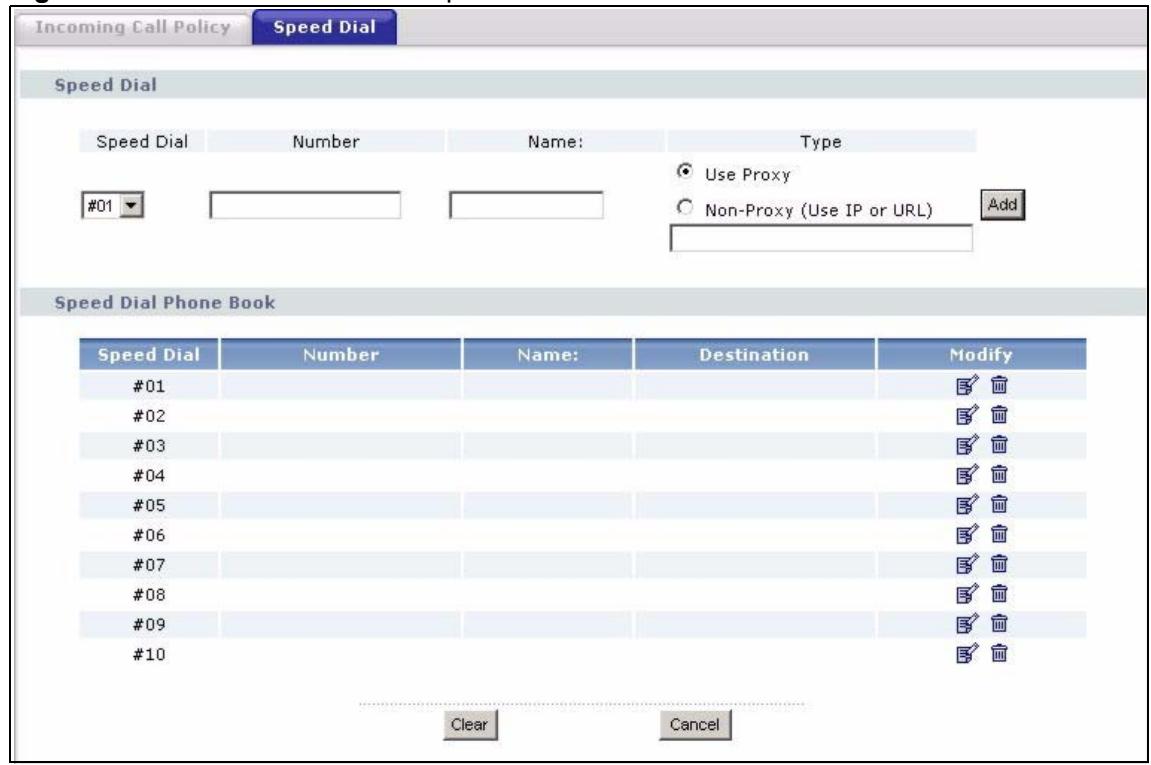

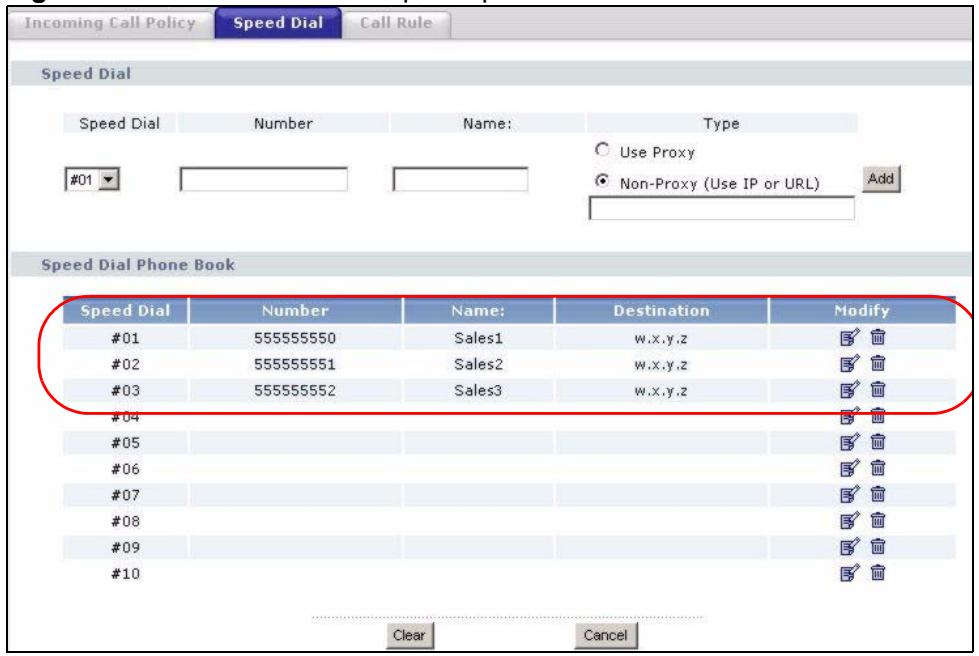

11.2.2 Speed Dial Screen 163

Chapter 12

PSTN Line 167

12.1 PSTN Line Overview 167

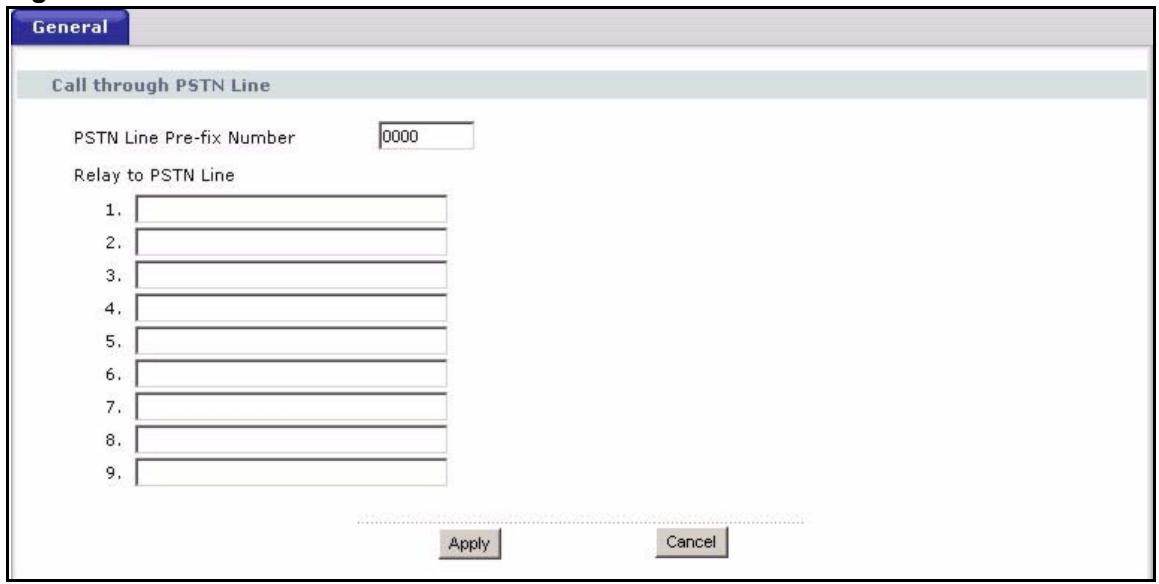

12.2 PSTN Line General Screen 167

Chapter 13

VoIP Trunking 169

13.1 VoIP Trunking Overview 169
13.2 VoIP Trunking and Security 169

13.2.1 Auto Attendant and Authentication 169

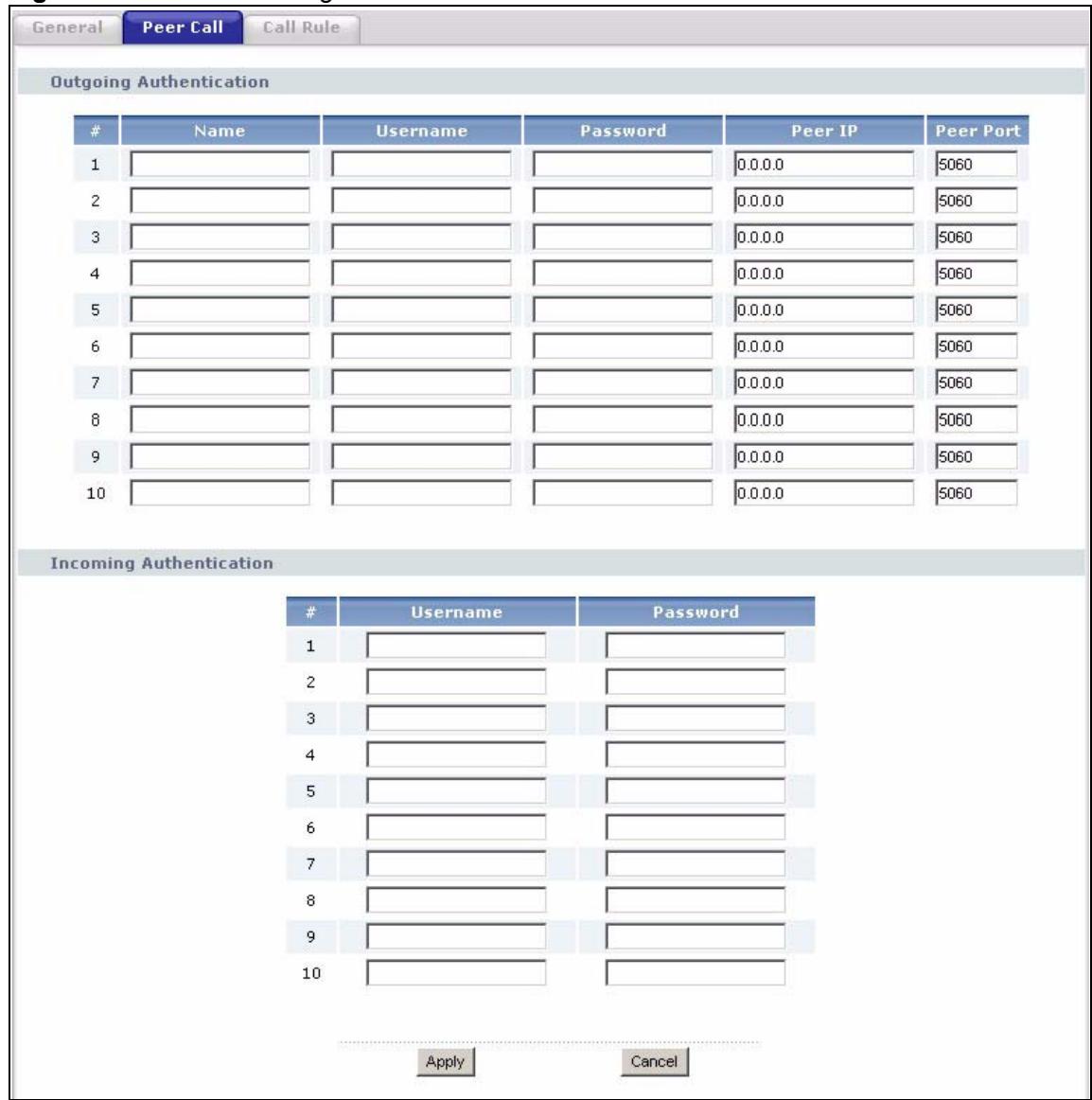

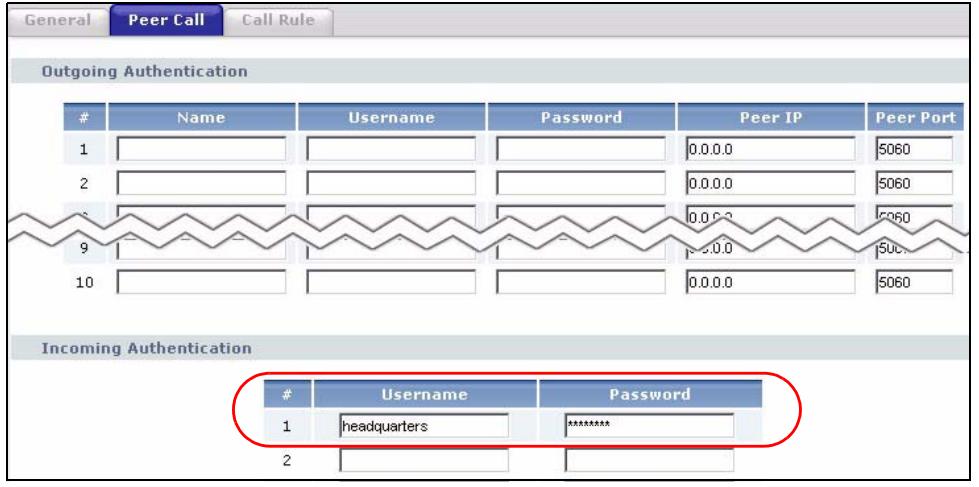

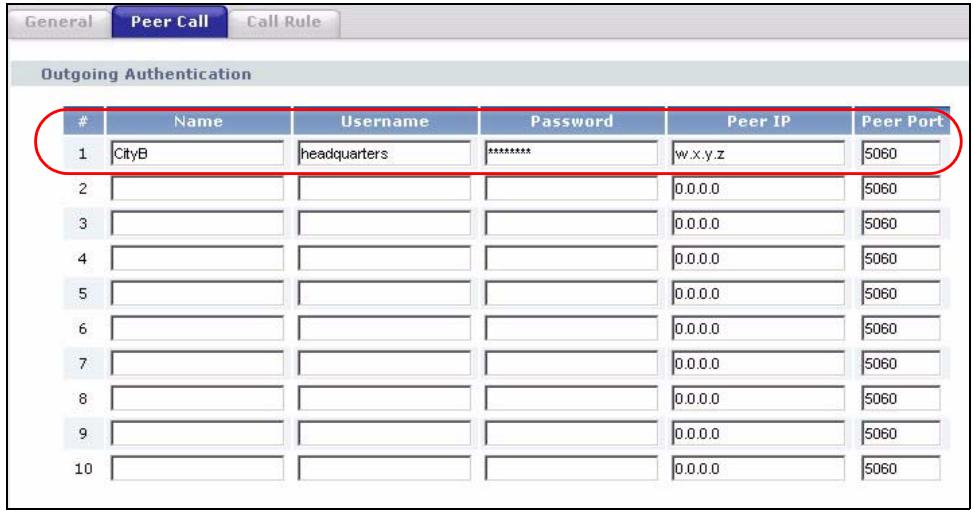

13.2.2 Peer Call Authentication 170

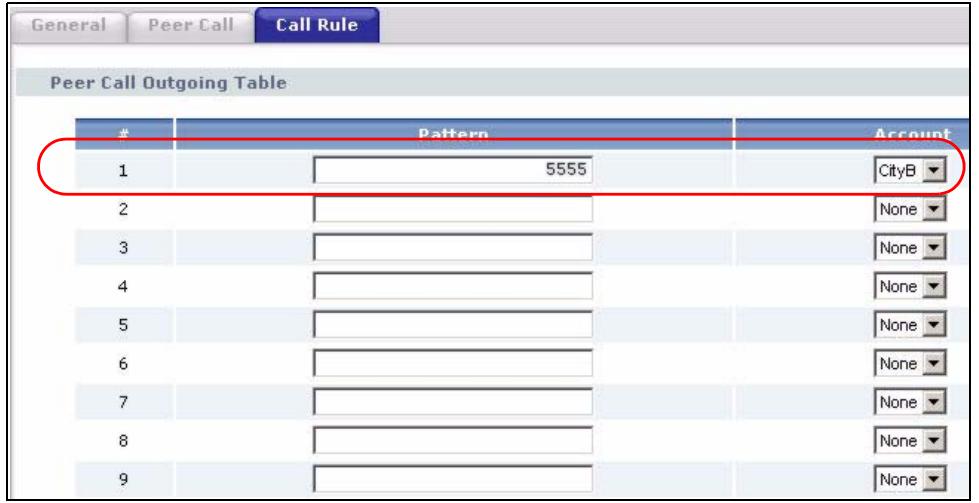

13.3 Call Rules 171
13.4 VoIP Trunking Scenarios 171
13.4.1 VoIP Phone To PSTN Phone 171

13.4.2 PSTN Phone To VoIP Phone 171

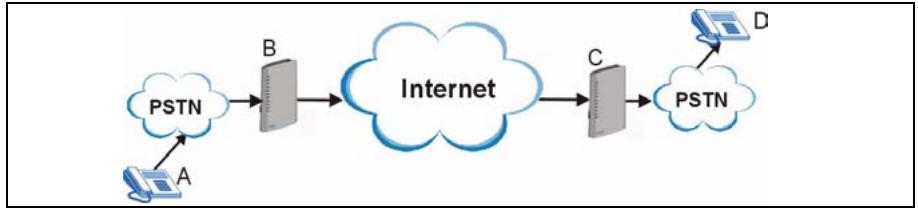

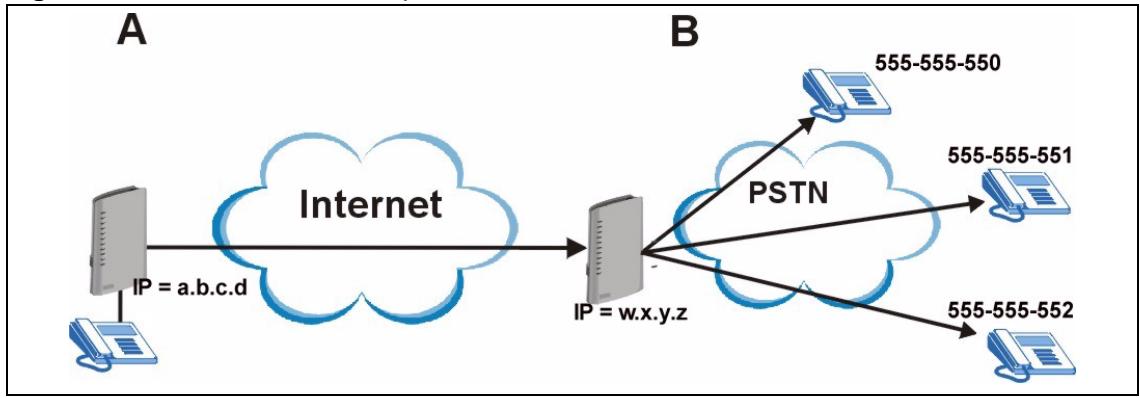

13.4.3 PSTN Phone To PSTN Phone via VoIP 172

13.5 Trunking General Screen 172
13.6 Trunking Peer Call Screen 173
13.7 Trunking Call Rule Screen 175
13.8 VoIP Trunking Example: VoIP to PSTN 177

13.8.1 Background Information 177
13.8.2 Configuration Details: Outgoing 177
13.8.3 Configuration Details: Incoming 178
13.8.4 Call Progression 179

13.9 VoIP Trunking Example: PSTN to PSTN via VoIP 180

13.9.1 Background Information 180
13.9.2 Configuration Details: Outgoing 180
13.9.3 Configuration Details: Incoming 182
13.9.4 Call Progression 183

Chapter 14

Firewall 185

14.1 Firewall Overview 185

14.1.1 Stateful Inspection Firewall 185
14.1.2 About the ZyXEL Device Firewall 185
14.1.3 Guidelines For Enhancing Security With Your Firewall 186
14.1.4 The Firewall, NAT and Remote Management 186

14.1.4.1 LAN-to-WAN rules 186
14.1.4.2 WAN-to-LAN rules 187

14.2 Triangle Route 187

14.2.1 The "Triangle Route" Problem 188
14.2.2 Solving the "Triangle Route" Problem 188

14.3 Firewall Screens 189

14.3.1 General Firewall Screen 189
14.3.2 Firewall Services Screen 190

Chapter 15

Content Filter 193

15.1 Content Filtering Overview 193
15.2 Content Filtering Screens 193

15.2.1 Content Filter Screen 193
15.2.2 Content Filter Schedule Screen 195

Chapter 16

Static Route 197

16.1 Static Route Overview 197
16.2 Static Route Screens 197

16.2.1 IP Static Route Screen 197
16.2.2 IP Static Route Edit Screen 198

Chapter 17

Bandwidth MGMT 201

17.1 Bandwidth Management Overview 201

17.1.1 Bandwidth Classes and Filters 201
17.1.2 Proportional Bandwidth Allocation 202
17.1.3 Application-based Bandwidth Management 202
17.1.4 Subnet-based Bandwidth Management 202
17.1.5 Application- and Subnet-based Bandwidth Management 202
17.1.6 Scheduler 203
17.1.7 Maximize Bandwidth Usage 203

17.1.7.1 Reserving Bandwidth for Non-Bandwidth Class Traffic 203
17.1.7.2 Maximize Bandwidth Usage Example 204
17.1.7.3 Priority-based Allotment of Unused and Unbudgeted Bandwidth 204
17.1.7.4 Fairness-based Allotment of Unused and Unbudgeted Bandwidth ... 205

17.1.8 Bandwidth Borrowing 205

17.1.8.1 Bandwidth Borrowing Example 206
17.1.8.2 Maximize Bandwidth Usage With Bandwidth Borrowing 206

17.1.9 Over Allotment of Bandwidth 206

17.2 Bandwidth Management Screens 207

17.2.1 Bandwidth Management Summary Screen 207
17.2.2 Bandwidth Class Setup Screen 210
17.2.3 Bandwidth Class Edit Screen 211
17.2.4 Bandwidth Monitor Screen 212

Chapter 18

Remote MGMT 215

18.1 Remote Management Overview 215

18.1.1 Remote Management Limitations 215
18.1.2 Remote Management and NAT 215
18.1.3 System Timeout 216

18.2 Remote Management Screens 216

18.2.1 WWW Screen 216
18.2.2 Telnet Screen 217
18.2.3 FTP Screen 217

18.3 SNMP 218

18.3.1 Supported MIBs 219
18.3.2 SNMP Traps 220
18.3.3 Configuring SNMP 220
18.3.4 DNS Screen 222

18.3.5 Security Screen 222

Chapter 19

UPnP 225

19.1 Introducing Universal Plug and Play 225

19.1.1 How do I know if I'm using UPnP? 225
19.1.2 NAT Traversal 225
19.1.3 Cautions with UPnP 225

19.2 UPnP and ZyXEL 226
19.3 UPnP Examples 226

19.3.1 Installing UPnP in Windows Example 226

19.3.1.1 Installing UPnP in Windows Me 226
19.3.1.2 Installing UPnP in Windows XP 228

19.3.2 Using UPnP in Windows XP Example 229

19.3.2.1 Auto-discover Your UPnP-enabled Network Device 229
19.3.2.2 Web Configurator Easy Access 233

19.4 UPnP General Screen 236

Chapter 20

System 239

20.1 System Features Overview 239

20.1.1 System Name 239
20.1.2 Domain Name 239
20.1.3 DNS Server Address Assignment 239
20.1.4 Dynamic DNS 240
20.1.5 Pre-defined NTP Time Servers List 240
20.1.6 Resetting the Time 241

20.2 System Screens 241

20.2.1 General System Screen 241
20.2.2 Dynamic DNS Screen 243
20.2.3 Time Setting Screen 244

Chapter 21

Logs 247

21.1 Logs Overview 247

21.1.1 Alerts 247
21.1.2 Syslog Logs 247

21.2 Logs Screens

21.2.1 View Log Screen 248
21.2.2 Log Settings Screen 249

21.3 Log Message Descriptions

Chapter 22

Tools 261

22.1 Tools Overview 261
22.1.1 ZyXEL Firmware 261
22.2 Tools Screens 261
22.2.1 Firmware Screen 261
22.2.2 Firmware Upload Screens 262
22.2.3 Configuration Screen 263
22.2.4Restore Configuration Screens 264
22.2.5 Restart Screen 265

Chapter 23

Troubleshooting 267

23.1 Problems Starting Up the ZyXEL Device 267
23.2 Problems with the LAN 267
23.3 Problems with the WAN 268
23.4 Problems Accessing the ZyXEL Device 268

23.4.1 Pop-up Windows, JavaScripts and Java Permissions 269
23.4.1.1 Internet Explorer Pop-up Blockers 269
23.4.1.2 JavaScripts 272
23.4.1.3 Java Permissions 274

23.5 Telephone Problems 275
23.6 Problems With Multiple SIP Accounts 276

23.6.1 Outgoing Calls 276
23.6.2 Incoming Calls 277

Appendix A

Product Specifications 279

Appendix B

Setting up Your Computer's IP Address 283

Appendix C

IP Addresses and Subnetting 297

Appendix D

SIP Passthrough 305

Appendix E

Internal SPTGEN 307

Appendix F

Services 323

Index 327

List of Figures

Figure 1 ZyXEL Device's VoIP Features 33

Figure 2 ZyXEL Device as a VoIP Trunking Gateway 34

Figure 3 ZyXEL Device's Router Features 34

Figure 4 LEDs 36

Figure 5 Login Screen 40

Figure 6 Change Password Screen 40

Figure 7 Select Mode Screen 41

Figure 8 Main Screen 42

Figure 9 Main Wizard Screen 48

Figure 10 Connection Wizard > Welcome 49

Figure 11 Connection Wizard > System Information 50

Figure 12 Wireless LAN 51

Figure 13 Manually Assign a WPA/WPA2 key 52

Figure 14 Manually Assign a WEP key 52

Figure 15 Manually Assign a WEP key 53

Figure 16 Connection Wizard > ISP Parameters (Ethernet) 55

Figure 17 Connection Wizard > ISP Parameters (PPPoE) 56

Figure 18 Connection Wizard > IP Address 57

Figure 19 Connection Wizard > IP Address (Ethernet) 58

Figure 20 Connection Wizard > IP Address (PPPoE) 60

Figure 21 Connection Wizard > MAC Address 61

Figure 22 Connection Wizard > Finish 62

Figure 23 VoIP Setup Wizard > SIP Settings 63

Figure 24 VoIP Setup Wizard > Registration Test 64

Figure 25 VoIP Setup Wizard > Registration Complete (Success) 65

Figure 26 VoIP Setup Wizard > Registration Complete (Fail) 66

Figure 27 Bandwidth Management Wizard > Welcome 67

Figure 28 Bandwidth Management Wizard > General Information 68

Figure 29 Bandwidth Management Wizard > Services Setup 69

Figure 30 Bandwidth Management Wizard > Priority Setup 70

Figure 31 Bandwidth Management Wizard > Finish 71

Figure 32 Status Screen 74

Figure 33 Any IP Table Window 77

Figure 34 DHCP Table Window 78

Figure 35 VoIP Statistics Window 79

Figure 36 BW MGMT Monitor Window 81

Figure 37 Packet Statistics Window 83

Figure 38 Example of a Wireless Network 85

Figure 39 Wireless LAN: General 89

Figure 40 Wireless: No Security 90

Figure 41 Wireless: Static WEP Encryption 91

Figure 42 Wireless: WPA(2)-PSK 92

Figure 43 Wireless: WPA(2) 93

Figure 44 Network > Wireless LAN > OTIST 95

Figure 45 Example: Wireless Client OTIST Screen 96

Figure 46 OTIST: Settings 96

Figure 47 OTIST: In Progress on the ZyXEL Device 96

Figure 48 OTIST: In Progress on the Wireless Device 97

Figure 49 Start OTIST? 97

Figure 50 MAC Address Filter 98

Figure 51 Advanced 99

Figure 52 Network > WAN > Internet Connection (Ethernet) 104

Figure 53 Network > WAN > Internet Connection (Roadrunner) 105

Figure 54 Network > WAN > Internet Connection (PPPoE) 107

Figure 55 Network > WAN > Advanced 109

Figure 56 Network > WAN > Traffic Redirect 111

Figure 57 Any IP Example 117

Figure 58 Network > LAN > IP 118

Figure 59 Network > LAN > DHCP Setup 119

Figure 60 Network > LAN > Static DHCP 120

Figure 61 Network > LAN > Client List 121

Figure 62 Network > LAN > IP Alias 122

Figure 63 Network > LAN > Advanced 124

Figure 64 Multiple Servers Behind NAT Example 128

Figure 65 Trigger Port Forwarding Process: Example 128

Figure 66 Network > NAT > General 130

Figure 67 Network > NAT > Port Forwarding 131

Figure 68 Network > NAT > Port Forwarding > Edit 132

Figure 69 Network > NAT > Trigger Port 133

Figure 70 Network > NAT > ALG 134

Figure 71 SIP User Agent 137

Figure 72 SIP Proxy Server 137

Figure 73 SIP Redirect Server 138

Figure 74 STUN 140

Figure 75 DiffServ: Differentiated Service Field 141

Figure 76 VoIP > SIP > SIP Settings 143

Figure 77 VoIP > SIP > SIP Settings > Advanced 145

Figure 78 VoIP > SIP > QoS 149

Figure 79 VoIP > Phone > Analog Phone 155

Figure 80 VoIP > Phone > Analog Phone > Advanced 157

Figure 81 VoIP > Phone > Common 158

Figure 82 VoIP > Phone > Region 159

Figure 83 VoIP > Phone Book > Incoming Call Policy 162

Figure 84 VoIP > Phone Book > Speed Dial 164

Figure 85 VoIP > PSTN Line > General 168

Figure 86 Peer Devices Connecting 170

Figure 87 VoIP Phone To PSTN Phone 171

Figure 88 PSTN Phone To VoIP Phone 172

Figure 89 PSTN Phone To PSTN Phone via VoIP 172

Figure 90 VoIP > Trunking > General 172

Figure 91 VoIP > Trunking > Peer Call 174

Figure 92 VoIP > Trunking > Call Rule 176

Figure 93 VoIP to PSTN Example 177

Figure 94 VoIP to PSTN Example - Speed Dial Screen 178

Figure 95 VoIP to PSTN Example - Outgoing Authentication 178

Figure 96 VoIP to PSTN Example - Incoming Authentication 179

Figure 97 PSTN to PSTN Example 180

Figure 98 PSTN to PSTN Example: General Configuration 181

Figure 99 PSTN to PSTN Example - Outgoing Authentication 181

Figure 100 PSTN to PSTN Example - Call Rule 182

Figure 101 PSTN to PSTN Example - Incoming Authentication 183

Figure 102 Firewall Rule Directions 186

Figure 103 Ideal Firewall Setup 187

Figure 104 "Triangle Route" Problem 188

Figure 105 IP Alias 189

Figure 106 Security > Firewall > General 190

Figure 107 Security > Firewall > Services 191

Figure 108 Security > Content Filter > Filter 194

Figure 109 Security > Content Filter > Schedule 195

Figure 110 Example of Static Routing Topology 197

Figure 111 Management > Static Route > IP Static Route 198

Figure 112 Management > Static Route > IP Static Route > Edit 199

Figure 113 Subnet-based Bandwidth Management Example 202

Figure 114 Management > Bandwidth MGMT > Summary 208

Figure 115 Management > Bandwidth MGMT > Class Setup 210

Figure 116 Management > Bandwidth MGMT > Class Setup > Edit 211

Figure 117 Management > Bandwidth MGMT > Monitor 213

Figure 118 Management > Remote MGMT > WWW 216

Figure 119 Management > Remote MGMT > Telnet 217

Figure 120 Management > Remote MGMT > FTP 218

Figure 121 SNMP Management Model 219

Figure 122 Management > Remote MGMT > SNMP 221

Figure 123 Management > Remote MGMT > DNS 222

Figure 124 Management > Remote MGMT > Security 223

Figure 125 Add/Remove Programs: Windows Setup: Communication 227

Figure 126 Add/Remove Programs: Windows Setup: Communication: Components 227

Figure 127 Network Connections 228

Figure 128 Windows Optional Networking Components Wizard 228

Figure 129 Networking Services 229

Figure 130 Network Connections 230

Figure 131 Internet Connection Properties 231

Figure 132 Internet Connection Properties: Advanced Settings 232

Figure 133 Internet Connection Properties: Advanced Settings: Add 232

Figure 134 System Tray Icon 233

Figure 135 Internet Connection Status 233

Figure 136 Network Connections 234

Figure 137 Network Connections: My Network Places 235

Figure 138 Network Connections: My Network Places: Properties: Example 236

Figure 139 Management > UPnP 237

Figure 140 Maintenance > System > General 242

Figure 141 Maintenance > System > Dynamic DNS 243

Figure 142 Maintenance > System > Time Setting 245

Figure 143 Maintenance > Logs > View Log 248

Figure 144 Maintenance > Logs > Log Settings 250

Figure 145 Maintenance > Tools > Firmware 262

Figure 146 Firmware Upload In Process 263

Figure 147 Network Temporarily Disconnected 263

Figure 148 Maintenance > Tools > Configuration 264

Figure 149 Configuration Upload Successful 265

Figure 150 Network Temporarily Disconnected 265

Figure 151 Maintenance > Tools > Restart 266

Figure 152 Maintenance > Tools > Restart > In Progress 266

Figure 153 Pop-up Blocker 270

Figure 154 Internet Options 270

Figure 155 Internet Options 271

Figure 156 Pop-up Blocker Settings 272

Figure 157 Internet Options 273

Figure 158 Security Settings - Java Scripting 273

Figure 159 Security Settings - Java 274

Figure 160 Java (Sun) 275

Figure 161 Outgoing Calls: Default 276

Figure 162 Outgoing Calls: Individual Configuration 276

Figure 163 Incoming Calls: Default 277

Figure 164 Incoming Calls: Individual Configuration 277

Figure 165 Windows 95/98/Me: Network: Configuration 284

Figure 166 Windows 95/98/Me: TCP/IP Properties: IP Address 285

Figure 167 Windows 95/98/Me: TCP/IP Properties: DNS Configuration 286

Figure 168 Windows XP: Start Menu 287

Figure 169 Windows XP: Control Panel 287

Figure 170 Windows XP: Control Panel: Network Connections: Properties 288

Figure 171 Windows XP: Local Area Connection Properties 288

Figure 172 Windows XP: Internet Protocol (TCP/IP) Properties 289

Figure 173 Windows XP: Advanced TCP/IP Properties 290

Figure 174 Windows XP: Internet Protocol (TCP/IP) Properties 291

Figure 175 Macintosh OS X: Apple Menu 292

Figure 176 Macintosh OS X: Network 292

Figure 177 Red Hat 9.0: KDE: Network Configuration: Devices 293

Figure 178 Red Hat 9.0: KDE: Ethernet Device: General 294

Figure 179 Red Hat 9.0: KDE: Network Configuration: DNS 294

Figure 180 Red Hat 9.0: KDE: Network Configuration: Activate 295

Figure 181 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0 295

Figure 182 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0 296

Figure 183 Red Hat 9.0: DNS Settings in resolv.conf 296

Figure 184 Red Hat 9.0: Restart Ethernet Card 296

Figure 185 Red Hat 9.0: Checking TCP/IP Properties 296

Figure 186 Configuration Text File Format: Column Descriptions 307

Figure 187 Invalid Parameter Entered: Command Line Example 308

Figure 188 Valid Parameter Entered: Command Line Example 308

Figure 189 Internal SPTGEN FTP Download Example 309

Figure 190 Internal SPTGEN FTP Upload Example 309

List of Tables

Table 1 LED Descriptions 36

Table 2 Web Configurator Icons in the Title Bar 43

Table 3 Navigation Panel Summary 43

Table 4 Main Wizard Screen 48

Table 5 Connection Wizard > Welcome 49

Table 6 Connection Wizard > System Information 50

Table 7 Wireless LAN Setup Wizard 2 51

Table 8 Manually Assign a WPA or WPA2 key 52

Table 9 Manually Assign a WEP key 53

Table 10 Manually Assign a WEP key 54

Table 11 Connection Wizard > ISP Parameters (Ethernet) 55

Table 12 Connection Wizard > ISP Parameters (PPPoE) 56

Table 13 Connection Wizard > IP Address 57

Table 14 Connection Wizard > IP Address (Ethernet) 58

Table 15 Connection Wizard > IP Address (PPPoE) 60

Table 16 Connection Wizard > MAC Address 61

Table 17 Connection Wizard > Finish 62

Table 18 VoIP Setup Wizard > SIP Settings 63

Table 19 VoIP Setup Wizard > Registration Complete (Success) 65

Table 20 VoIP Setup Wizard > Registration Complete (Fail) 66

Table 21 Bandwidth Management Wizard > Welcome 67

Table 22 Bandwidth Management Wizard > General Information 68

Table 23 Bandwidth Management Wizard > Services Setup 69

Table 24 Bandwidth Management Wizard > Priority Setup 70

Table 25 Bandwidth Management Wizard > Finish 71

Table 26 Status Screen 74

Table 27 Any IP Table Window 77

Table 28 DHCP Table Window 78

Table 29 VoIP Statistics Window 79

Table 30 BW MGMT Monitor Window 81

Table 31 Packet Statistics Window 83

Table 32 Types of Encryption for Each Type of Authentication 87

Table 33 Additional Wireless Terms 88

Table 34 Wireless LAN: General 89

Table 35 Wireless No Security 90

Table 36 Wireless: Static WEP Encryption 91

Table 37 Wireless: WPA(2)-PSK 92

Table 38 Wireless: WPA(2) 94

Table 39 Network > Wireless LAN > OTIST 95

Table 40 MAC Address Filter 98

Table 41 Wireless LAN: Advanced 99

Table 42 Private IP Address Ranges 102

Table 43 Network > WAN > Internet Connection (Ethernet) 104

Table 44 Network > WAN > Internet Connection (Roadrunner) 105

Table 45 Network > WAN > Internet Connection (PPPoE) 107

Table 46 Network > WAN > Advanced 109

Table 47 Network > WAN > Traffic Redirect 111

Table 48 Network > LAN > IP 118

Table 49 Network > LAN > DHCP Setup 119

Table 50 Network > LAN > Static DHCP 120

Table 51 Network > LAN > Client List 121

Table 52 Network > LAN > IP Alias 122

Table 53 Network > LAN > Advanced 124

Table 54 Network > NAT > General 130

Table 55 Network > NAT > Port Forwarding 131

Table 56 Network > NAT > Port Forwarding > Edit 132

Table 57 Network > NAT > Trigger Port 133

Table 58 Network > NAT > ALG 134

Table 59 SIP Call Progression 136

Table 60 VoIP > SIP > SIP Settings 143

Table 61 VoIP > SIP > SIP Settings > Advanced 146

Table 62 VoIP > SIP > QoS 149

Table 63 European Type Flash Key Commands 152

Table 64 USA Type Flash Key Commands 154

Table 65 VoIP > Phone > Analog Phone 155

Table 66 VoIP > Phone > Analog Phone > Advanced 157

Table 67 VoIP > Phone > Common 158

Table 68 VoIP > Phone > Region 159

Table 69 VoIP > Phone Book > Incoming Call Policy 162

Table 70 VoIP > Phone Book > Speed Dial 164

Table 71 VoIP > PSTN Line > General 168

Table 72 Matching Incoming and Outgoing Authentication 170

Table 73 Call Rules 171

Table 74 VoIP > Trunking > General 173

Table 75 VoIP > Trunking > Peer Call 174

Table 76 VoIP > Trunking > Call Rule 176

Table 77 VoIP Trunking Call Progression 179

Table 78 PSTN to PSTN: VoIP Trunking Call Progression 183

Table 79 Security > Firewall > General 190

Table 80 Security > Firewall > Services 191

Table 81 Security > Content Filter > Filter 194

Table 82 Security > Content Filter > Schedule 195

Table 83 Management > Static Route > IP Static Route 198

Table 84 Management > Static Route > IP Static Route > Edit 199

Table 85 Application and Subnet-based Bandwidth Management Example 202

Table 86 Maximize Bandwidth Usage Example 204

Table 87 Priority-based Allotment of Unused and Unbudgeted Bandwidth Example 204

Table 88 Fairness-based Allotment of Unused and Unbudgeted Bandwidth Example ......... 205

Table 89 Bandwidth Borrowing Example 206

Table 90 Over Allotment of Bandwidth Example 206

Table 91 Management > Bandwidth MGMT > Summary 208

Table 92 Management > Bandwidth MGMT > Class Setup 210

Table 93 Management > Bandwidth MGMT > Class Setup > Edit 211

Table 94 Management > Bandwidth MGMT > Monitor 213

Table 95 Management > Remote MGMT > WWW 216

Table 96 Management > Remote MGMT > Telnet 217

Table 97 Management > Remote MGMT > FTP 218

Table 98 SNMP Traps 220

Table 99 Remote Management: SNMP 221

Table 100 Management > Remote MGMT > DNS 222

Table 101 Management > Remote MGMT > Security 223

Table 102 Management > UPnP 237

Table 103 Pre-defined NTP Time Servers 240

Table 104 Maintenance > System > General 242

Table 105 Maintenance > System > Dynamic DNS 243

Table 106 Maintenance > System > Time Setting 245

Table 107 Syslog Logs 247

Table 108 Maintenance > Logs > View Log 248

Table 109 Maintenance > Logs > Log Settings 250

Table 110 System Error Logs 252

Table 111 System Maintenance Logs 252

Table 112 Access Control Logs 253

Table 113 TCP Reset Logs 253

Table 114 Packet Filter Logs 254

Table 115 ICMP Logs 254

Table 116 PPP Logs 255

Table 117 UPnP Logs 255

Table 118 Content Filtering Logs 255

Table 119 Attack Logs 256

Table 120 Remote Management Logs 257

Table 121 ICMP Notes 257

Table 122 SIP Logs 259

Table 123 RTP Logs 259

Table 124 Lifeline Logs 259

Table 125 Maintenance > Tools > Firmware 262

Table 126 Maintenance > Tools > Configuration 264

Table 127 Troubleshooting Starting Up Your Device 267

Table 128 Troubleshooting the LAN 267

Table 129 Troubleshooting the WAN 268

Table 130 Troubleshooting Accessing Your Device 268

Table 131 Troubleshooting Telephone 275

Table 132 Device Specifications 279

Table 133 Firmware Features 280

Table 134 Feature Specifications 281

Table 135 ZyXEL Device Power Adaptor Specifications 282

Table 136 Classes of IP Addresses 298

Table 137 Allowed IP Address Range By Class 298

Table 138 "Natural" Masks 299

Table 139 Alternative Subnet Mask Notation 299

Table 140 Two Subnets Example 300

Table 141 Subnet 1 300

Table 142 Subnet 2 301

Table 143 Subnet 1 301

Table 144 Subnet 2 302

Table 145 Subnet 3 302

Table 146 Subnet 4 302

Table 147 Eight Subnets 303

Table 148 Class C Subnet Planning 303

Table 149 Class B Subnet Planning 304

Table 150 Abbreviations Used in the Example Internal SPTGEN Screens Table 310

Table 151 Menu 1 General Setup 310

Table 152 Menu 3 310

Table 153 Menu 4 Internet Access Setup 314

Table 154 Menu 12 315

Table 155 Menu 15 SUA Server Setup 316

Table 156 Menu 21.1 Filter Set #1 317

Table 157 Menu 21.1 Filer Set #2 319

Table 158 Menu 23 System Menus 320

Table 159 Menu 24.11 Remote Management Control 321

Table 160 Command Examples 322

Table 161 Examples of Services 323

Preface

Congratulations on your purchase of the P-2302HW/HWL-P1 802.11b/g Wireless VoIP Station Gateway.

Your ZyXEL Device is easy to install and configure.

About This User's Guide

This User's Guide is designed to guide you through the configuration of your ZyXEL Device using the web configurator.

Related Documentation

Supporting Disk

Refer to the included CD for support documents.

• Quick Start Guide

The Quick Start Guide is designed to help you get up and running right away. It contains a detailed easy-to-follow connection diagram, and information on setting up your network and configuring for Internet access.

ZyXEL Web Site

Please go to http://www.zyxel.com for product news, firmware, updated documents, and other support materials.

User Guide Feedback

Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to [e-mail] or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.

Syntax Conventions

• "Enter" means for you to type one or more characters. "Select" or "Choose" means for you to use one of the predefined choices.
• Mouse action sequences are denoted by right angle brackets (>) . For example, "Start > Settings > Control Panel > System" means click the Start button, move the mouse over Settings, move the mouse over or click on Control Panel, and then click on System.
• "e.g.," is a shorthand for "for instance", and "i.e.," means "that is" or "in other words".
• The P-2302HW/HWL-P1 may be referred to as the "ZyXEL Device", the "router" or the "device" in this user's guide.

Graphics Icons Key

ZyXEL Device	Computer	Notebook Computer
Server	Switch	Router
Telephone	Modem	Trunking Gateway

CHAPTER 1 Introducing the ZyXEL Device

This chapter introduces the main applications and features of the ZyXEL Device.

1.1 Overview

This user's guide explains how to configure the following ZyXEL devices:

• The P-2302HW-P1 is a 4-port wireless router with Voice over IP (VoIP) communication capabilities that allow you to use a traditional analog telephone to make Internet calls. The P-2302HW-P1 is also a complete security solution with a robust firewall and content filtering.
• The P-2302HWL-P1 adds a Public Switched Telephone Network (PSTN) line feature which allows you to use your regular phone services and internet telephone services at the same time.

This user's guide refers to these models simply as the "ZyXEL Device". Please refer to Appendix A on page 279 for a complete list of features for your model.

1.1.1 VoIP Features

You can use the ZyXEL Device to make and receive VoIP telephone calls:

Figure 1 ZyXEL Device's VoIP Features

• Peer-to-Peer calls (A) - Use the ZyXEL Device to make a call to the recipient's IP address without using a SIP proxy server.
• Calls via a VoIP service provider (B) - The ZyXEL Device sends your call to a VoIP service provider's SIP server which forwards your calls to either VoIP or PSTN phones.

1.1.2 VoIP Trunking Gateway

VoIP trunking allows you to use your ZyXEL Device as a gateway between VoIP and PSTN networks.

Figure 2 ZyXEL Device as a VoIP Trunking Gateway

In this example, you use your analog phone (A) to call the ZyXEL Device (B). The ZyXEL Device changes the call into VoIP and sends it via the Internet to another VoIP phone(C).

1.1.3 ZyXEL Device's Router Features

Your ZyXEL Device provides shared Internet access through your existing Internet access gateway (company network, or your cable or DSL modem for example). Computers can connect to the ZyXEL Device's LAN ports (or wirelessly).

Figure 3 ZyXEL Device's Router Features

You can also configure firewall and content filtering on the ZyXEL Device for secure Internet access. When the firewall is on, all incoming traffic from the Internet to your network is blocked unless it is initiated from your network. This means that probes from the outside to your network are not allowed, but you can safely browse the Internet and download files.

Use content filtering to block access to specific web sites, with URL's containing keywords that you specify. You can define time periods and days during which content filtering is enabled and include or exclude particular computers on your network from content filtering. For example, you could block access to certain web sites for the kids.

Use bandwidth management to efficiently manage traffic on your network by giving priority to certain types of traffic and/or to particular computers. For example, you could make sure that the ZyXEL Device gives voice over Internet calls high priority, and/or limit bandwidth devoted to the boss's excessive file downloading.

1.2 LEDs (Lights)

The following graphic displays the labels of the LEDs.

Figure 4 LEDs

None of the LEDs are on if the ZyXEL Device is not receiving power.

Table 1 LED Descriptions

LED	COLOR	STATUS	DESCRIPTION
POWER	Green	On	The ZyXEL Device is receiving power and ready for use.
		Blinking	The ZyXEL Device is self-testing.
	Red	On	The ZyXEL Device detected an error while self-testing, or there is a device malfunction.
		Off	The ZyXEL Device is not receiving power.
ETHERNET 1-4	Green	On	The ZyXEL Device has an Ethernet connection with a computer.
		Blinking	The ZyXEL Device is sending/receiving data to /from the computer.
		Off	The ZyXEL Device does not have an Ethernet connection with a computer.
WLAN	Green	On	The wireless network is activated and is operating in IEEE 802.11b/g mode.
		Blinking	The ZyXEL Device is communicating with other wireless clients.
		OFF	The wireless network is not activated.

Table 1 LED Descriptions

LED	COLOR	STATUS	DESCRIPTION
WAN	Green	On	The ZyXEL Device has an Ethernet connection with the cable/DSL modem.
		Blinking	The ZyXEL Device is sending/receiving data to /from the cable/DSL modem.
		Off	The ZyXEL Device doesn't have an Ethernet connection with the cable/DSL modem.
INTERNET	Green	On	The ZyXEL Device has a working IP address.
	Red	On	The ZyXEL Device does not have a working IP address, but there is a network connection.
		Off	The ZyXEL Device does not detect any network connection.
Phone 1-2	Green	On	A SIP account on this phone port is registered.
		Blinking	The phone is off the hook.
	Orange	On	There is a voice message for a SIP account on this phone port. (The SIP account has to be registered first.)
		Blinking	The phone is off the hook, and there is a voice message for a SIP account on this phone port.
		Off	There are no SIP accounts registered on this phone port.

CHAPTER 2 Introducing the Web Configurator

This chapter describes how to access the ZyXEL Device web configurator and provides an overview of its screens.

2.1 Web Configurator Overview

The web configurator is an HTML-based management interface that allows easy ZyXEL Device setup and management via Internet browser. Use Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768 pixels.

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device. Web pop-up blocking is enabled by default in Windows XP SP (Service Pack) 2.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).

See the troubleshooting chapter if you want to make sure these functions are allowed in Internet Explorer or Netscape Navigator.

2.2 Accessing the Web Configurator

1 Make sure your ZyXEL Device hardware is properly connected and prepare your computer/computer network to connect to the ZyXEL Device (refer to the Quick Start Guide).
2 Launch your web browser.
3 Type "192.168.1.1" (the ZyXEL Device's default LAN IP address) as the URL. The Login screen appears.

Figure 5 Login Screen

4 Type "1234" (default) as the password, and click Login. In some versions, the default password appears automatically - if this is the case, click Login. The Change Password screen appears.

Figure 6 Change Password Screen

5 It is highly recommended to change your password. To change your password, type a new password, retype it to confirm it, and click Apply. Otherwise, click Ignore if you do not want to change your password right now. The Options screen should appear.

Figure 7 Select Mode Screen

6 In the Options screen,

• Click Go to Wizard setup if you are logging in for the first time or if you want to make basic changes. See Chapter 3 on page 47 for more information.
• Click Go to Advanced setup if you want to configure features that are not available in the wizards. The main screen appears. See Section 2.4 on page 42 for more information.
• Click Exit if you want to log out.

Note: For security reasons, the ZyXEL Device automatically logs you out if you do not use the web configurator for five minutes. If this happens, log in again.

2.3 Resetting the ZyXEL Device

Reset the ZyXEL Device in the following situations:

• You forgot your password.
• You cannot access the device using the web configurator. Check Troubleshooting in the Quick Start Guide to make sure you cannot access the device anymore.

If you reset the ZyXEL Device, you lose all of the changes you have made. The ZyXEL Device re-loads its default settings, and the password resets to "1234". You have to make all of your changes again.

Note: You will lose all of your changes when you push the RESET button.

To reset the ZyXEL Device,

1 Make sure the POWER LED is on and not blinking.

2 Press and hold the RESET button for ten seconds or until all the LEDs except for the WLAN begin to blink. Release the RESET button when the POWER LED begins to blink. The default settings have been restored.

If the ZyXEL Device restarts automatically, wait for the ZyXEL Device to finish restarting, and log in to the web configurator. The password is "1234". You have finished.

If the ZyXEL Device does not restart automatically, disconnect and reconnect the ZyXEL Device's power. Then, follow the directions above again.

2.4 Web Configurator Main Screen

Figure 8 Main Screen

As illustrated above, the main screen is divided into these parts:

A - title bar
- B - navigation panel
C - main window
D - status bar

2.4.1 Title Bar

The title bar provides some icons in the upper right corner.

The icons provide the following functions.

Table 2 Web Configurator Icons in the Title Bar

ICON	DESCRIPTION
	Wizards: Click this icon to open one of the web configurator wizards. See Chapter 3 on page 47 for more information.
	Logout: Click this icon to log out of the web configurator.

2.4.2 Navigation Panel

Use the menu items on the navigation panel to open screens to configure ZyXEL Device features. The following tables describe each menu item.

Table 3 Navigation Panel Summary

LINK	TAB	FUNCTION
Status		This screen contains administrative and system-related information.
Network
Wireless LAN	General	Use this screen to configure the wireless LAN settings and WLAN authentication/security settings.
	OTIST	Use this screen to assign your wireless security settings to wireless clients.
	MAC Filter	Use this screen to configure the ZyXEL Device to give exclusive access to specific wireless clients or exclude specific wireless clients from accessing the ZyXEL Device.
	Advanced	Use this screen to configure wireless features such as the transmission mode.
WAN	Internet Connection	Use this screen to set up ISP parameters, IP addresses, and MAC addresses.
	Advanced	Use this screen to set up DNS, RIP, multicast, and Windows Networking for your WAN port.
	Traffic Redirect	Use this screen to specify up a backup gateway in case the main one is not available.
LAN	IP	Use this screen to set up your LAN's IP address and subnet mask.
	DHCP Setup	Use this screen to configure the ZyXEL Device's DHCP server and DNS server settings.
	Static DHCP	Use this screen to assign static IP addresses to MAC addresses.
	Client List	Use this screen to look at which network clients are using the DHCP server.
	IP Alias	Use this screen to partition your LAN interface into subnets.
	Advanced	Use this screen to set up RIP, multicast, Any IP, and Windows Networking for your LAN port.
NAT	General	Use this screen to enable and disable NAT features.
	Port Forwarding	Use this screen to forward traffic to specific IP addresses based on the destination port.
	Trigger Port	Use this screen to change your ZyXEL Device's trigger port settings.
	ALG	Use this screen to enable and disable the ZyXEL Device's ALG.

Table 3 Navigation Panel Summary

LINK	TAB	FUNCTION
VoIP
SIP	SIP Settings	Use this screen to configure your ZyXEL Device's Voice over IP settings.
	QoS	Use this screen to configure your ZyXEL Device's Quality of Service settings.
Phone	Analog Phone	Use this screen to set up which SIP accounts use which phone ports for incoming and outgoing calls.
	Common	Use this screen to configure general phone port settings.
	Region	Use this screen to set up regional and call service settings.
Phone Book	Incoming Call Policy	Use this screen to set up call forwarding rules.
	Speed Dial	Use this screen to configure speed dial numbers for SIP phone numbers.
PSTN Line	General	Use this screen to configure your ZyXEL Device's settings for PSTN calls.
Trunking	General	Use this screen to enable trunking on your ZyXEL Device.
	Peer Call	Use this screen to configure peer device authentication for trunking calls.
	Call Rule	Use this screen to configure forwarding rules on your ZyXEL Device for trunking calls.
Security
Firewall	General	Use this screen to activate/deactivate the firewall and log packets related to firewall rules.
	Services	Use this screen to enable service blocking (LAN to WAN firewall rules).
Content Filter	Filter	Use this screen to block sites containing certain keywords in the URL.
	Schedule	Use this screen to set the days and times for the ZyXEL Device to performcontent filtering
Management
Static Route	IP Static Route	Use this screen to configure IP static routes.
BandwidthMGMT	Summary	Use this screen to enable bandwidth management on an interface and setthe maximum allowed bandwidth and scheduler for the interface.
	Class Setup	Use this screen to define bandwidth classes.
	Monitor	Use this screen to view bandwidth class statistics.
Remote MGMT	WWW	Use this screen to configure through which interface(s) and from which IPaddress(es) users can use HTTP to manage the ZyXEL Device.
	Telnet	Use this screen to configure through which interface(s) and from which IPaddress(es) users can use Telnet to manage the ZyXEL Device.
	FTP	Use this screen to configure through which interface(s) and from which IPaddress(es) users can use FTP to access the ZyXEL Device.
	SNMP	Use this screen to configure through which interface(s) and from which IPaddress(es) users can use SNMP to access the ZyXEL Device.
	DNS	Use this screen to configure through which interface(s) and from which IPaddress(es) users can send DNS queries to the ZyXEL Device.
	Security	Use this screen to change your anti-probing settings.
UPnP	General	Use this screen to enable UPnP on the ZyXEL Device.
Maintenance

Table 3 Navigation Panel Summary

LINK	TAB	FUNCTION
System	General	Use this screen to configure general system settings.
	Dynamic DNS	Use this screen to set up dynamic DNS.
	Time Setting	Use this screen to change your ZyXEL Device's time and date.
Logs	View Log	Use this screen to view the logs for the categories that you selected.
	Log Settings	Use this screen to change your ZyXEL Device's log settings.
Tools	Firmware	Use this screen to upload firmware to your ZyXEL Device.
	Configuration	Use this screen to backup and restore the configuration or reset the factory defaults to your ZyXEL Device.
	Restart	Use this screen to reboot the ZyXEL Device without turning the power off.

2.4.3 Main Window

The main window shows the screen you select in the navigation panel. It is discussed in more detail in the rest of this document.

Right after you log in, the Status screen is displayed. See Chapter 4 on page 73 for more information about the Status screen.

2.4.4 Status Bar

Check the status bar when you click Apply or OK to verify that the configuration has been updated.

CHAPTER 3

Wizard Setup

This chapter provides information on the wizards in the web configurator.

3.1 Main Wizard Screen

Use this screen to open one of the wizards in the ZyXEL Device. To access this screen, click Go to Wizard setup in the Login Options screen, or click the Wizard icon in the upper right corner of the main screen.

Figure 9 Main Wizard Screen

The following table describes the labels in this screen.

Table 4 Main Wizard Screen

LABEL	DESCRIPTION
CONNECTION WIZARD	Click this to open the Connection Wizard. See Section 3.2 on page 48.
VOIP SETUP	Click this to open the VoIP Setup Wizard. See Section 3.3 on page 62.
BANDWIDTH MANAGEMENT WIZARD	Click this to open the Bandwidth Management Wizard. See Section 3.4 on page 66.
Exit	Click this to close this screen and return to the main screen.

3.2 Connection Wizard

Use this wizard to set up your Internet connection. See Chapter 6 on page 101 for more information.

Note: You cannot use the Connection Wizard to set up your Internet connection in the following situations:

• You subscribe to a Roadrunner service.
• You use PPPoE encapsulation and the remote server cannot be discovered automatically.

In these cases, you must use the screens discussed in Chapter 6 on page 101.

Note: Some ISPs, such as Telstra, send UDP heartbeat packets to verify that the customer is still online. In this case, you have to create a WAN to LAN firewall rule for those packets. Contact your ISP to find the correct port number.

3.2.1 Welcome

Figure 10 Connection Wizard > Welcome

The following table describes the labels in this screen.

Table 5 Connection Wizard > Welcome

LABEL	DESCRIPTION
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.2 System Information

Note: Usually, you should just click Next in this screen.

Figure 11 Connection Wizard > System Information

The following table describes the labels in this screen.

Table 6 Connection Wizard > System Information

LABEL	DESCRIPTION
System Name	Enter your computer's "Computer Name". See Section 20.1 on page 239 for more information. This is for identification purposes, but some ISPs also check this field. This name can be up to 30 alphanumeric characters long. Spaces are not allowed, but dashes “-” and underscores “_” are accepted.
Domain Name	Enter the domain name entry that is sent to DHCP clients on the LAN. If you leave this blank, the domain name obtained from the ISP is used. Use up to 38 alphanumeric characters. Spaces are not allowed, but dashes “-” and periods "." are accepted.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.3 Wireless Network Setup

Use the following screens to set up your wireless LAN.

3.2.3.1 Wireless LAN - General Information

Configure your wireless settings in this screen, then click Next.

Figure 12 Wireless LAN

The following table describes the labels in this screen.

Table 7 Wireless LAN Setup Wizard 2

LABEL	DESCRIPTION
Name(SSID)	Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN. If you change this field on the ZyXEL Device, make sure all wireless stations use the same SSID in order to access the network.
Channel Selection	The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a channel. Select a channel ID that is not already in use by a neighboring device.
Security	Select Auto(WPA-PSK with self-generated key), if you want OTIST to configure a WPA key for you. Select Extend(WPA-PSK with customized key) or Extend(WPA2-PSK with customized key) to configure a Pre-Shared Key (WPA-PSK). Choose this option only if your wireless clients support WPA or WPA2. See Section 3.2.3.2 on page 51 for more information. Select Basic(WEP) to configure a WEP Key. See Section 3.2.3.3 on page 52 for more information. Select None to have no wireless LAN security configured and your network is accessible to any wireless networking device that is within range.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3.2.3.2 Manually Assign a WPA or WPA2 key

Choose Extend(WPA-PSK with customized key) or Extend(WPA2-PSK with customized key) in the Wireless LAN setup screen to set up a Pre-Shared Key.

Figure 13 Manually Assign a WPA/WPA2 key

The following table describes the labels in this screen.

Table 8 Manually Assign a WPA or WPA2 key

LABEL	DESCRIPTION
Pre-Shared Key	Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure wireless connection by configuring WPA in the wireless LAN screens. You need to configure an authentication server to do this.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3.2.3.3 Manually Assign a WEP key

Choose Basic(WEP) to setup WEP encryption parameters.

Figure 14 Manually Assign a WEP key

The following table describes the labels in this screen.

Table 9 Manually Assign a WEP key

LABEL	DESCRIPTION
Passphrase	Enter a Passphrase (up to 32 printable characters) and clicking Generate. The ZyXEL Device automatically generates a WEP key.
WEP Encryption	Select 64-bit WEP, 128-bit WEP or 256-bit WEP to specify data encryption. 64-bit WEP is the weakest encryption and 256-bit WEP is the strongest.
Key 1 - Key 4	The WEP key is used to encrypt data. Both the ZyXEL Device and the wireless stations must use the same WEP key for data transmission. You can set 4 different keys and make one of the keys active at a time. If you want to manually set the WEP key, enter any 5, 13 or 29 characters (ASCII string) or 10, 26 or 58 hexadecimal characters ("0-9", "A-F") for a 64-bit, 128-bit or 256-bit WEP key respectively.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3.2.3.4 OTIST Screen

This screen allows you to automatically configure security settings on your ZyXEL Device and the wireless clients that want to connect to it. See Section 5.2.5 on page 88 for more information on OTIST.

Figure 15 Manually Assign a WEP key

The following table describes the labels in this screen.

Table 10 Manually Assign a WEP key

LABEL	DESCRIPTION
Do you want to enable OTIST	Select Yes and the ZyXEL Device will automatically start OTIST once you finish the configuration wizard. Select No if you do not want to use OTIST. Note: You must Start OTIST in the ZyXEL Device and in the wireless device(s) within three minutes of each other. You can start OTIST in the wireless devices and the ZyXEL Device in any order.
Setup Key	Type a key (password) 8 ASCII characters long. Note: If you change the OTIST setup key in the ZyXEL Device, you must change it on the wireless devices too.
Back	Click Back to display the previous screen.
Next	Click Next to proceed to the next screen.
Exit	Click Exit to close the wizard screen without saving.

3.2.4 ISP Parameters

This screen depends on the Connection Type you select.

3.2.4.1 Ethernet

Note: You cannot use the Connection Wizard if you subscribe to a Roadrunner service. You must use the screens discussed in Chapter 6 on page 101 instead.

Figure 16 Connection Wizard > ISP Parameters (Ethernet)

The following table describes the labels in this screen.

Table 11 Connection Wizard > ISP Parameters (Ethernet)

LABEL	DESCRIPTION
Connection Type	Select Ethernet if you are connecting your ZyXEL Device to an existing network.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.4.2 PPPoE

Point-to-Point Protocol over Ethernet (PPPoE) functions as a dial-up connection. PPPoE is an IETF (Internet Engineering Task Force) standard specifying how a host personal computer interacts with a broadband modem (for example DSL, cable, wireless, etc.) to achieve access to high-speed data networks.

Note: You cannot use the Connection Wizard if the PPPoE remote server cannot be discovered automatically. You must use the screens discussed in Chapter 6 on page 101 instead.

Figure 17 Connection Wizard > ISP Parameters (PPPoE)

The following table describes the labels in this screen.

Table 12 Connection Wizard > ISP Parameters (PPPoE)

LABEL	DESCRIPTION
Connection Type	Select PPP over Ethernet.
Service Name	Enter the PPP service name provided by your ISP. If your ISP did not provide a service name, leave this field blank.
User Name	Enter the user name provided by your ISP.
Password	Enter the password provided by your ISP.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.5 Your IP Address

Figure 18 Connection Wizard > IP Address

The following table describes the labels in this screen.

Table 13 Connection Wizard > IP Address

LABEL	DESCRIPTION
Get automatically from your ISP	Select this if your ISP did not assign you a static IP address.
Use fixed IP address provided by your ISP	Select this if your ISP assigned you a static IP address.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.6 WAN IP Address Assignment

This screen appears if you select Use fixed IP address provided by your ISP in the previous screen. Use this screen to set up your static IP address. The fields depend on the Connection Type you select in the ISP Parameters screen.

3.2.6.1 Ethernet

Figure 19 Connection Wizard > IP Address (Ethernet)

The following table describes the labels in this screen.

Table 14 Connection Wizard > IP Address (Ethernet)

LABEL	DESCRIPTION
My WAN IP Address	Enter the IP address provided by your ISP.
My WAN IP Subnet Mask	Enter the subnet mask provided by your ISP.
Gateway IP Address	Enter the gateway provided by your ISP. If your ISP did not provide one, leave it blank.
DNS Server Address Assignment (if applicable)DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice versa. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it. The ZyXEL Device uses a system DNS server (in the order you specify here) to resolve domain names for VPN, DDNS and the time server.

Table 14 Connection Wizard > IP Address (Ethernet)

LABEL	DESCRIPTION
First DNS Server	Select From ISP if your ISP dynamically assigns DNS server information. (In this case, the ISP assigns the WAN IP address too. See Network > WAN > Internet Connection.) The field to the right is read-only, and it displays the IP address provided by your ISP.
Second DNS Server	Select User-Defined if you have the IP address of a DNS server. You might get it from your ISP or from your network. Enter the IP address in the field to the right.
Third DNS Server	Select None if you do not want to use this DNS server. If you select None for all of the DNS servers, you must use IP addresses to configure the ZyXEL Device and to access the Internet.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.6.2 PPPoE

Note: You cannot use the Connection Wizard if the PPPoE remote server cannot be discovered automatically.

Figure 20 Connection Wizard > IP Address (PPPoE)

The following table describes the labels in this screen.

Table 15 Connection Wizard > IP Address (PPPoE)

LABEL	DESCRIPTION
My WAN IP Address	Enter the IP address provided by your ISP.
First DNS Server Second DNS Server Third DNS Server	Select From ISP if your ISP dynamically assigns DNS server information. (In this case, the ISP assigns the WAN IP address too. See Network > WAN > Internet Connection.) The field to the right is read-only, and it displays the IP address provided by your ISP. Select User-Defined if you have the IP address of a DNS server. You might get it from your ISP or from your network. Enter the IP address in the field to the right. Select None if you do not want to use this DNS server. If you select None for all of the DNS servers, you must use IP addresses to configure the ZyXEL Device and to access the Internet.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.7 MAC Address

Figure 21 Connection Wizard > MAC Address

The following table describes the labels in this screen.

Table 16 Connection Wizard > MAC Address

LABEL	DESCRIPTION
Factory default	Select this if you want to use the default MAC address for the ZyXEL Device.
Spoof this computer's MAC Address	Select this if you do not want to use the default MAC address for the ZyXEL Device.
IP Address	This field is enabled if you select Spoof WAN MAC Address. Enter the IP address of the computer whose MAC address you want the ZyXEL Device to use instead of the default MAC address.
< Back	Click this to go to the previous screen.
Next >	Click this to configure the ZyXEL Device and go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.2.8 Finish

Figure 22 Connection Wizard > Finish

The following table describes the labels in this screen.

Table 17 Connection Wizard > Finish

LABEL	DESCRIPTION
Go to Bandwidth Management Wizard (optional)	Click this to start the Bandwidth Management Wizard. See Section 3.4 on page 66.
Finish	Click this to close this screen and return to the main screen.

3.3 VoIP Setup Wizard

Use this wizard to set up your VoIP account(s). Leave the default settings in fields if your VoIP service provider (the company that lets you make phone calls over the Internet) did not provide any information. See Chapter 9 on page 135 for more information.

Note: You must have a SIP account before you can use this wizard.

3.3.1 SIP Settings

Figure 23 VoIP Setup Wizard > SIP Settings

The following table describes the labels in this screen.

Table 18 VoIP Setup Wizard > SIP Settings

LABEL	DESCRIPTION
SIP1 Settings SIP2 Settings
SIP Number	Enter your SIP number. In the full SIP URI (like [e-mail]), this is the part before the @ symbol. You can use up to 127 printable ASCII characters.
SIP Server Address	Enter the IP address or domain name of the SIP server provided by your VoIP service provider. You can use up to 95 printable ASCII characters. It does not matter whether the SIP server is a proxy, redirect or register server.
SIP Service Domain	Enter the SIP service domain name. In the full SIP URI (like [e-mail]), this is the part after the @ symbol. You can use up to 127 printable ASCII Extended set characters.
Authentication
UserID	Enter the user name for registering this SIP account, exactly as it was given to you. You can use up to 95 printable ASCII characters.
Password	Enter the user name for registering this SIP account, exactly as it was given to you. You can use up to 95 printable ASCII Extended set characters.

Table 18 VoIP Setup Wizard > SIP Settings

LABEL	DESCRIPTION
Check here to set up SIP2 settings	This field is available in the SIP1 Settings screen. Select this if you want to set up the SIP2 account, as well as the SIP1 account.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen. If you select Check here to set up SIP2 settings, the SIP Settings screen appears again for SIP2. Otherwise, the ZyXEL Device tries to register your SIP account(s). The following screen appears. Figure 24 VoIP Setup Wizard > Registration Test
	ZyXEL
	SIP Registration Test in Process Please wait a moment. about 2 Seconds
	Wait until it finishes.
Exit	Click this to close this screen and return to the main screen.

3.3.2 Registration Complete

This screen depends on whether or not the ZyXEL Device successfully registered your SIP account(s).

Figure 25 VoIP Setup Wizard > Registration Complete (Success)

The following table describes the labels in this screen.

Table 19 VoIP Setup Wizard > Registration Complete (Success)

LABEL	DESCRIPTION
Return to Wizard Main Page	Click this to open the main wizard screen. See Section 3.1 on page 47.
Go to Advanced Setup page	Click this to close this screen and return to the main screen.
Finish	Click this to close this screen and return to the main screen.

If the ZyXEL Device cannot register your SIP account(s), see the Quick Start Guide for troubleshooting suggestions.

Figure 26 VoIP Setup Wizard > Registration Complete (Fail)

The following table describes the labels in this screen.

Table 20 VoIP Setup Wizard > Registration Complete (Fail)

LABEL	DESCRIPTION
< Back	Click this to go to the previous screen.
Register Again	Click this if you want the ZyXEL Device to try to register your SIP account(s) again.
Exit	Click this to close this screen and return to the main screen. The ZyXEL Device saves the information you provided.

3.4 Bandwidth Management Wizard

Use this wizard to control how much traffic can pass through your ZyXEL Device and the priority of each service (application) that can use it. Each service you select is guaranteed a small amount of bandwidth. The remaining bandwidth is divided by priority. If one service has higher priority than another, then the first service uses as much of the remaining bandwidth as it needs. If there is no more bandwidth for the second service, then it waits. If you do not select a service in this wizard (or if you do not find a particular service), the service can still use bandwidth, but it does not have any guaranteed amount and it has the lowest priority. See Chapter 17 on page 201 for more information.

3.4.1 Welcome

Figure 27 Bandwidth Management Wizard > Welcome

The following table describes the labels in this screen.

Table 21 Bandwidth Management Wizard > Welcome

LABEL	DESCRIPTION
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.4.2 General Information

Figure 28 Bandwidth Management Wizard > General Information

The following table describes the labels in this screen.

Table 22 Bandwidth Management Wizard > General Information

LABEL	DESCRIPTION
Active	Select this to enable bandwidth management. Bandwidth management applies to all traffic flowing through the router.
Managed Bandwidth (kbps)	Enter the total amount of traffic the device can send to the WAN. It is recommended to set this speed to what the device connected to the WAN can handle. For example, set this field to 1000 kbps if a broadband device connected to the WAN port has a maximum speed of 1000 kbps. This does not affect the total amount of traffic the device can send to the LAN. See Management > Bandwidth MGMT > Summary to do this.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.4.3 Services Setup

Figure 29 Bandwidth Management Wizard > Services Setup

The following table describes the labels in this screen.

Table 23 Bandwidth Management Wizard > Services Setup

LABEL	DESCRIPTION
Service	Select the service(s) that should have higher priority when bandwidth is allocated. If you do not select a service or if you do not see it in the list, the service can still use bandwidth. However, it has the lowest priority. Note: You must select at least one service in this screen. Each service you select (except WWW) becomes a LAN sub-class and a WAN sub-class in Management > Bandwidth MGMT > Class Setup. If you select WWW, it only becomes a LAN sub-class.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.4.4 Priority Setup

Figure 30 Bandwidth Management Wizard > Priority Setup

The following table describes the labels in this screen.

Table 24 Bandwidth Management Wizard > Priority Setup

LABEL	DESCRIPTION
Service	This column displays each service you selected in the previous screen.
Priority	Set the priority of each service. If a service has higher priority than other services, then it can use as much remaining bandwidth as it needs. If there is no more bandwidth left, other services have to wait. Select Others only if you want to set up the sub-class manually in the Bandwidth Class Edit Screen.
< Back	Click this to go to the previous screen.
Next >	Click this to go to the next screen.
Exit	Click this to close this screen and return to the main screen.

3.4.5 Finish

Figure 31 Bandwidth Management Wizard > Finish

The following table describes the labels in this screen.

Table 25 Bandwidth Management Wizard > Finish

LABEL	DESCRIPTION
Finish	Click this to close this screen and return to the main screen.

CHAPTER 4 Status Screens

Use the Status screens to look at the current status of the device, system resources, interfaces (LAN and WAN), and SIP accounts. You can also register and unregister SIP accounts. The Status screen also provides detailed information from Any IP and DHCP and statistics from VoIP, bandwidth management, and traffic.

4.1 Status Screen

Use this screen to look at the current status of the device, system resources, interfaces (LAN and WAN), and SIP accounts. You can also register and unregister SIP accounts.

Click Status to open this screen.

Figure 32 Status Screen

Each field is described in the following table.

Table 26 Status Screen

LABEL	DESCRIPTION
Refresh Interval	Enter how often you want the ZyXEL Device to update this screen.
Refresh Now	Click this to update this screen immediately.
Device Information
System Name	This field displays the ZyXEL Device system name. It is used for identification. You can change this in the Configuration Wizard or Maintenance > System > General screen.
Firmware Version	This field displays the current version of the firmware inside the ZyXEL Device. It also shows the date the firmware version was created. You can change the firmware version by uploading new firmware in Maintenance > Tools > Firmware.
WAN Information
IP Address	This field displays the current IP address of the ZyXEL Device in the WAN.
IP Subnet Mask	This field displays the current subnet mask in the WAN.

Table 26 Status Screen

LABEL	DESCRIPTION
DHCP	This field displays what DHCP services the ZyXEL Device is using in the WAN. Choices are: Client - The ZyXEL Device is a DHCP client in the WAN. Its IP address comes from a DHCP server on the WAN. None - The ZyXEL Device is not using any DHCP services in the WAN. It has a static IP address. If you are not using Roadrunner on Ethernet, you can change this in Network > WAN. If you are using Roadrunner on Ethernet, this is controlled by Roadrunner.
LAN Information
IP Address	This field displays the current IP address of the ZyXEL Device in the LAN.
IP Subnet Mask	This field displays the current subnet mask in the LAN.
DHCP	This field displays what DHCP services the ZyXEL Device is providing to the LAN. Choices are: Server - The ZyXEL Device is a DHCP server in the LAN. It assigns IP addresses to other computers in the LAN. None - The ZyXEL Device is not providing any DHCP services to the WAN. You can change this in Network > LAN > DHCP Setup.
WLAN Information
SSID	This is the descriptive name used to identify the ZyXEL Device in the wireless LAN. Click this to go to the screen where you can change it.
Channel	This is the channel number used by the ZyXEL Device now.
Security Mode	This displays the security mode currently being used on the wireless network.
System Status
System Up Time	This field displays how long the ZyXEL Device has been running since it last started up. The ZyXEL Device starts up when you plug it in, when you restart it (Maintenance > Tools > Restart), or when you reset it (see Section 2.3 on page 41).
Current Date/Time	This field displays the current date and time in the ZyXEL Device. You can change this in Maintenance > System > Time Setting.
System Resource
CPU Usage	This field displays what percentage of the ZyXEL Device's processing ability is currently used. When this percentage is close to 100%, the ZyXEL Device is running at full load, and the throughput is not going to improve anymore. If you want some applications to have more throughput, you should turn off other applications (for example, using bandwidth management; see Chapter 17 on page 201.
Memory Usage	This field displays what percentage of the ZyXEL Device's memory is currently used. Usually, this percentage should not increase much. If memory usage does get close to 100%, the ZyXEL Device is probably becoming unstable, and you should restart the device. See Section 22.2.5 on page 265, or turn off the device (unplug the power) for a few seconds.
Interface Status
Interface	This column displays each interface the ZyXEL Device has.
Status	This field indicates whether or not the ZyXEL Device is using the interface. Up - The ZyXEL Device is using the interface. Down - The ZyXEL Device is not using the interface.

Table 26 Status Screen

LABEL	DESCRIPTION
Rate	If the interface uses Ethernet encapsulation, this column displays the port speed and the Ethernet duplex setting. Duplex settings are:Full - The ZyXEL Device is using full-duplex Ethernet.Half - The ZyXEL Device is using half-duplex Ethernet.You cannot change the Ethernet duplex setting in the ZyXEL Device.If this interface uses PPPoE encapsulation, this column displays the port speed and the status of the call.Down - The connection is not available.Dial - The ZyXEL Device is making the call.Idle - The call is connected.Drop - The ZyXEL Device is ending the call.The LAN interface always uses Ethernet encapsulation. You can change the encapsulation of the WAN interface in Network > WAN > Internet Connection.For the WLAN interface, it displays the transmission rate when WLAN is enabled or N/A when WLAN is disabled.
Summary
Any IP Table	Click (Details ...) to open the Any IP Table window. See Section 4.2 on page 77.
DHCP Table	Click (Details ...) to open the DHCP Table window. See Section 4.3 on page 77.
VoIP Statistics	Click (Details ...) to open the VoIP Statistics window. See Section 4.4 on page 78.
BW MGMT Monitor	Click (Details ...) to open the BW MGMT Monitor window. See Section 4.5 on page 80.
Packet Statistics	Click (Details ...) to open the Packet Statistics window. See Section 4.6 on page 82.
VoIP Status
Account	This column displays each SIP account in the ZyXEL Device.
Registration	This field displays the current registration status of the SIP account. You have to register SIP accounts with a SIP server to use VoIP.If the SIP account is already registered with the SIP server,Click Unregister to delete the SIP account's registration in the SIP server. This does not cancel your SIP account, but it deletes the mapping between your SIP identity and your IP address or domain name.The second field displays Registered.If the SIP account is not registered with the SIP server,Click Register to have the ZyXEL Device attempt to register the SIP account with the SIP server.The second field displays the reason the account is not registered.Inactive - The SIP account is not active. You can activate it in VoIP > SIP > SIP Settings.Not Register - The SIP account is active, but you have not tried to register it yet.Register Fail - The last time the ZyXEL Device tried to register the SIP account with the SIP server, the attempt failed.
URI	This field displays the account number and service domain of the SIP account. You can change these in VoIP > SIP > SIP Settings.

4.2 Any IP Table Window

This screen displays the IP address of each computer that is using the ZyXEL Device via the any IP feature. To access this screen, open the Status screen (see Section 4.1 on page 73), and click (Details ...) next to Any IP Table.

Figure 33 Any IP Table Window

Each field is described in the following table.

Table 27 Any IP Table Window

LABEL	DESCRIPTION
#	This field is a sequential value. It is not associated with a specific entry.
IP Address	This field displays the IP address of each computer that is using the ZyXEL Device but is in a different subnet than the ZyXEL Device.
MAC Address	This field displays the MAC address of the computer that is using the ZyXEL Device but is in a different subnet than the ZyXEL Device.
Refresh	Click this to update this screen.

4.3 DHCP Table Window

This screen displays information about computers that received an IP address from the ZyXEL Device. To access this screen, open the Status screen (see Section 4.1 on page 73), and click (Details ...) next to DHCP Table.

Figure 34 DHCP Table Window

Each field is described in the following table.

Table 28 DHCP Table Window

LABEL	DESCRIPTION
#	This field is a sequential value. It is not associated with a specific entry.
IP Address	This field displays the IP address the ZyXEL Device assigned to a computer in the network.
Host Name	This field displays the system name of the computer to which the ZyXEL Device assigned the IP address.
MAC Address	This field displays the MAC address of the computer to which the ZyXEL Device assigned the IP address.
Refresh	Click this to update this screen.

4.4 VoIP Statistics Window

This screen displays SIP registration information, status of calls and VoIP traffic statistics. To access this screen, open the Status screen (see Section 4.1 on page 73), and click (Details ...) next to VoIP Statistics.

Figure 35 VoIP Statistics Window

Each field is described in the following table.

Table 29 VoIP Statistics Window

LABEL	DESCRIPTION
SIP Status
Account	This column displays each SIP account in the ZyXEL Device.
Registration	This field displays the current registration status of the SIP account. You can change this in the Status screen. Registered - The SIP account is registered with a SIP server. Register Fail - The last time the ZyXEL Device tried to register the SIP account with the SIP server, the attempt failed. The ZyXEL Device automatically tries to register the SIP account when you turn on the ZyXEL Device or when you activate it. Inactive - The SIP account is not active. You can activate it in VoIP > SIP > SIP Settings.
Last Registration	This field displays the last time you successfully registered the SIP account. It displays N/A if you never successfully registered this account.
URI	This field displays the account number and service domain of the SIP account. You can change these in VoIP > SIP > SIP Settings.
Protocol	This field displays the transport protocol the SIP account is currently using.
Message Waiting	This field indicates whether or not there are any messages waiting for the SIP account.
Last Incoming Number	This field displays the last number that called the SIP account. It displays N/A if no number has ever dialed the SIP account.
Last Outgoing Number	This field displays the last number the SIP account called. It displays N/A if the SIP account has never dialed a number.
Call Statistics
Phone	This field displays each phone port in the ZyXEL Device.

Table 29 VoIP Statistics Window

LABEL	DESCRIPTION
Hook	This field indicates whether the phone is on the hook or off the hook. On - The phone is hanging up or already hung up. Off - The phone is dialing, calling, or connected.
Status	This field displays the current status of each call. DIAL - The ZyXEL Device is dialing the current call. RING - The phone is ringing because there is an incoming call. Process - The call is connected and in process. DROP - The ZyXEL Device is hanging up (disconnecting) the current call. DISC - The ZyXEL Device has hung up. N/A - There is no phone connected to this phone port.
Codec	This field displays the type of voice compression used in the current call.
Peer Number	If the current call is a peer-to-peer call, this field displays the SIP number of the other party. Otherwise, it displays N/A.
Duration	This field displays how long the current call has lasted.
Tx Pkts	This field displays the number of packets the ZyXEL Device has transmitted in the current call.
Rx Pkts	This field displays the number of packets the ZyXEL Device has received in the current call.
Tx B/s	This field displays how quickly the ZyXEL Device has transmitted packets in the current call. The rate is the number of kilobits transmitted one second before the last time the screen updated (refreshed).
Rx B/s	This field displays how quickly the ZyXEL Device has received packets in the current call. The rate is the number of kilobits received one second before the last time the screen updated (refreshed).
Poll Interval	Enter how often you want the ZyXEL Device to update this screen, and click Set Interval.
Set Interval	Click this to make the ZyXEL Device update the screen based on the amount of time you specified in Poll Interval.
Stop	Click this to make the ZyXEL Device stop updating the screen.

4.5 BW MGMT Monitor Window

This screen displays information regarding the amount of traffic going through the ZyXEL Device. To access this screen, open the Status screen (see Section 4.1 on page 73), and click (Details ...) next to BW MGMT Monitor.

Figure 36 BW MGMT Monitor Window

The types of traffic shown in this screen do not depend on your settings in the Bandwidth Management Wizard or in Bandwidth MGMT. Each field is described in the following table.

Table 30 BW MGMT Monitor Window

LABEL	DESCRIPTION
LAN-VoIP (SIP)	This field displays how much SIP traffic is going to the LAN each second. The rate is the number of kilobits that went to the LAN one second before the last time the screen updated (refreshed).
LAN-FTP	This field displays how much FTP traffic is going to the LAN each second. The rate is the number of kilobits that went to the LAN one second before the last time the screen updated (refreshed).
LAN-E-Mail	This field displays how much e-mail went to the LAN each second. The rate is the number of kilobits that went to the LAN one second before the last time the screen updated (refreshed).
LAN-WWW	This field displays how much web traffic went to the LAN each second. The rate is the number of kilobits that went to the LAN one second before the last time the screen updated (refreshed).
Default Class	This field displays how much traffic that is not allocated to any sub-class went to the LAN each second. The rate is the number of kilobits that went to the LAN one second before the last time the screen updated (refreshed). This might include SIP traffic, FTP traffic, e-mail, or web traffic, depending on what traffic is allocated to sub-classes. You can change what traffic is allocated to sub-classes in Management > Bandwidth MGMT > Class Setup.
WAN-VoIP (SIP)	This field displays how much SIP traffic went to the WAN each second. The rate is the number of kilobits that went to the WAN one second before the last time the screen updated (refreshed).
WAN-FTP	This field displays how much FTP traffic went to the WAN each second. The rate is the number of kilobits that went to the WAN one second before the last time the screen updated (refreshed).
WAN-E-Mail	This field displays how much e-mail went to the WAN each second. The rate is the number of kilobits that went to the WAN one second before the last time the screen updated (refreshed).

Table 30 BW MGMT Monitor Window

LABEL	DESCRIPTION
Default Class	This field displays how much traffic that is not allocated to any sub-class went to the WAN each second. The rate is the number of kilobits that went to the WAN one second before the last time the screen updated (refreshed). This might include SIP traffic, FTP traffic, e-mail, or web traffic, depending on what traffic is allocated to sub-classes. You can change what traffic is allocated to sub-classes in Management > Bandwidth MGMT > Class Setup.
Poll Interval	Enter how often you want the ZyXEL Device to update this screen, and click Set Interval.
Set Interval	Click this to make the ZyXEL Device update the screen based on the amount of time you specified in Poll Interval.
Stop	Click this to make the ZyXEL Device stop updating the screen.

4.6 Packet Statistics Window

This screen displays the status of ports, system up time and statistics regarding traffic through the ZyXEL Device. To access this screen, open the Status screen (see Section 4.1 on page 73), and click (Details ...) next to Packet Statistics.

Figure 37 Packet Statistics Window

Each field is described in the following table.

Table 31 Packet Statistics Window

LABEL	DESCRIPTION
Port	This field displays each port in the ZyXEL Device.
Status	If the port is not connected to anything, this field displays Down.If the interface uses Ethernet encapsulation, this field displays the port speed and the Ethernet duplex setting. Duplex settings are:Full - The ZyXEL Device is using full-duplex Ethernet.Half - The ZyXEL Device is using half-duplex Ethernet.You cannot change the Ethernet duplex setting in the ZyXEL Device.If this interface uses PPPoE encapsulation, this field displays the port speed and the status of the call.Down - The connection is not available.Dial - The ZyXEL Device is making the call.Idle - The call is connected.Drop - The ZyXEL Device is ending the call.The LAN interface always uses Ethernet encapsulation. You can change the encapsulation of the WAN interface in Network > WAN > Internet Connection.
Tx Pkts	This field displays the number of packets the ZyXEL Device has transmitted from the port.
Rx Pkts	This field displays the number of packets the ZyXEL Device has received from the port.
Collisions	This field displays the number of collisions detected by the port.
Tx B/s	This field displays how quickly the ZyXEL Device has transmitted packets from the port. The rate is the number of bytes transmitted one second before the last time the screen updated (refreshed).
Rx B/s	This field displays how quickly the ZyXEL Device has received packets from the port. The rate is the number of bytes received one second before the last time the screen updated (refreshed).
Up Time	This is the total amount of time the port has been connected.

Table 31 Packet Statistics Window

LABEL	DESCRIPTION
System Up Time	This field displays how long the ZyXEL Device has been running since it last started up. The ZyXEL Device starts up when you plug it in, when you restart it (Maintenance > Tools > Restart), or when you reset it (see Section 2.3 on page 41).
Poll Interval	Enter how often you want the ZyXEL Device to update this screen, and click Set Interval.
Set Interval	Click this to make the ZyXEL Device update the screen based on the amount of time you specified in Poll Interval.
Stop	Click this to make the ZyXEL Device stop updating the screen.

CHAPTER 5 Wireless LAN

This chapter discusses how to configure the wireless network settings in your ZyXEL Device.

5.1 Wireless Network Overview

The following figure provides an example of a wireless network.

Figure 38 Example of a Wireless Network

The wireless network is the part in the blue circle. In this wireless network, devices A and B use the access point (AP) to interact with the other devices (such as the printer) or with the Internet. Your ZyXEL Device is the AP.

Every wireless network must follow these basic guidelines.

• Every device in the same wireless network must use the same SSID.

The SSID is the name of the wireless network. It stands for Service Set IDentity.

• If two wireless networks overlap, they should use a different channel.

Like radio stations or television channels, each wireless network uses a specific channel, or frequency, to send and receive information.

• Every device in the same wireless network must use security compatible with the AP.

Security stops unauthorized devices from using the wireless network. It can also protect the information that is sent in the wireless network.

5.2 Wireless Security Overview

The following sections introduce different types of wireless security you can set up in the wireless network.

5.2.1 SSD

Normally, the ZyXEL Device acts like a beacon and regularly broadcasts the SSID in the area. You can hide the SSID instead, in which case the ZyXEL Device does not broadcast the SSID. In addition, you should change the default SSID to something that is difficult to guess.

This type of security is fairly weak, however, because there are ways for unauthorized wireless devices to get the SSID. In addition, unauthorized wireless devices can still see the information that is sent in the wireless network.

5.2.2 MAC Address Filter

Every device that can use a wireless network has a unique identification number, called a MAC address. A MAC address is usually written using twelve hexadecimal characters; for example, 00A0C5000002 or 00:A0:C5:00:00:02. To get the MAC address for each device in the wireless network, see the device's User's Guide or other documentation.

You can use the MAC address filter to tell the ZyXEL Device which devices are allowed or not allowed to use the wireless network. If a device is allowed to use the wireless network, it still has to have the correct information (SSID, channel, and security). If a device is not allowed to use the wireless network, it does not matter if it has the correct information.

This type of security does not protect the information that is sent in the wireless network. Furthermore, there are ways for unauthorized wireless devices to get the MAC address of an authorized device. Then, they can use that MAC address to use the wireless network.

5.2.3 User Authentication

You can make every user log in to the wireless network before they can use it. This is called user authentication. However, every device in the wireless network has to support IEEE 802.1x to do this.

For wireless networks, user names and passwords for each user can be stored in a RADIUS server.

1. Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks. These kinds of wireless devices might not have MAC addresses.
2. Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.

Unauthorized wireless devices can still see the information that is sent in the wireless network, even if they cannot use the wireless network. Furthermore, there are ways for unauthorized wireless users to get a valid user name and password. Then, they can use that user name and password to use the wireless network.

5.2.4 Encryption

Wireless networks can use encryption to protect the information that is sent in the wireless network. Encryption is like a secret code. If you do not know the secret code, you cannot understand the message.

The types of encryption you can choose depend on the type of authentication. (See section 5.2.3 on page 86 for information about this.)

Table 32 Types of Encryption for Each Type of Authentication

Weakest Strongest	No Authentication	RADIUS Server
	None
	Static WEP
	WPA-PSK	WPA
	WPA2-PSK	WPA2

For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If users do not log in to the wireless network, you can choose no encryption, Static WEP, WPA-PSK, or WPA2-PSK.

Usually, you should set up the strongest encryption that every device in the wireless network supports. For example, suppose you have a wireless network with the ZyXEL Device. The ZyXEL Device does not have a local user database, and you do not have a RADIUS server. Therefore, there is no authentication. Suppose the wireless network has two devices. Device A only supports WEP, and device B supports WEP and WPA. Therefore, you should set up Static WEP in the wireless network.

Note: It is recommended that wireless networks use WPA-PSK, WPA, or stronger encryption. IEEE 802.1x and WEP encryption are better than none at all, but it is still possible for unauthorized wireless devices to figure out the original information pretty quickly.

When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option (WPA compatible) to support WPA as well. In this case, if some of the devices support WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the type of wireless network login) and select the WPA compatible option in the ZyXEL Device.

Many types of encryption use a key to protect the information in the wireless network. The longer the key, the stronger the encryption. Every device in the wireless network must have the same key.

5.2.5 One-Touch Intelligent Security Technology (OTIST)

With ZyXEL's OTIST, you set up the SSID and the encryption (WEP or WPA-PSK) on the ZyXEL Device. Then, the ZyXEL Device transfers them to the devices in the wireless networks. As a result, you do not have to set up the SSID and encryption on every device in the wireless network.

The devices in the wireless network have to support OTIST, and they have to be in range of the ZyXEL Device when you activate it. See section 5.5 on page 95 for more details.

5.3 Additional Wireless Terms

The following table describes wireless network terms and acronyms used in the ZyXEL Device.

Table 33 Additional Wireless Terms

TERM	DESCRIPTION
RTS/CTS Threshold	In a wireless network which covers a large area, wireless devices are sometimes not aware of each other's presence. This may cause them to send information to the AP at the same time and result in information colliding and not getting through. By setting this value lower than the default value, the wireless devices must sometimes get permission to send information to the ZyXEL Device. The lower the value, the more often the devices must get permission. If this value is greater than the fragmentation threshold value (see below), then wireless devices never have to get permission to send information to the ZyXEL Device.
Authentication	The process of verifying whether a wireless device is allowed to use the wireless network.
Max. Frame Burst	Enable this to improve the performance of both pure IEEE 802.11g and mixed IEEE 802.11b/g networks. Maximum Frame Burst sets the maximum time that the ZyXEL Device transmits IEEE 802.11g wireless traffic only.
Fragmentation Threshold	A small fragmentation threshold is recommended for busy networks, while a larger threshold provides faster performance if the network is not very busy.

5.4 General WLAN Screen

Use this screen to enable the wireless network, assign the SSID and configure security settings on the ZyXEL Device. This screen changes depending on the security you select.

Note: If you are configuring the ZyXEL Device from a computer connected to the wireless LAN and you change the ZyXEL Device's SSID or WEP settings, you will lose your wireless connection when you press Apply to confirm. You must then change the wireless settings of your computer to match the ZyXEL Device's new settings.

Click Network > Wireless LAN to open the Wireless LAN General screen.

Figure 39 Wireless LAN: General

The following table describes the general wireless LAN labels in this screen.

Table 34 Wireless LAN: General

LABEL	DESCRIPTION
Enable Wireless LAN	Click the check box to activate wireless LAN.
Name(SSID)	(Service Set IDentity) The SSID identifies the Service Set with which a wireless station is associated. Wireless stations associating to the access point (AP) must have the same SSID. Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless LAN.Note: If you are configuring the ZyXEL Device from a computer connected to the wireless LAN and you change the ZyXEL Device's SSID or WEP settings, you will lose your wireless connection when you press Apply to confirm. You must then change the wireless settings of your computer to match the ZyXEL Device's new settings.
Hide SSID	Select this check box to hide the SSID in the outgoing beacon frame so a station cannot obtain the SSID through scanning using a site survey tool.
Channel Selection	If two wireless networks overlap, they should use a different channel.Like radio stations or television channels, each wireless network uses a specific channel, or frequency, to send and receive information SELECT a channel from the drop-down list box.
Security Mode	See the following sections for more details about this field.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

5.4.1 No Security

Select No Security to allow wireless stations to communicate with the access points without any data encryption.

Note: If you do not enable any wireless security on your ZyXEL Device, your network is accessible to any wireless networking device that is within range.

Figure 40 Wireless: No Security

The following table describes the labels in this screen.

Table 35 Wireless No Security

LABEL	DESCRIPTION
Security Mode	Choose No Security from the drop-down list box.

5.4.2 WEP Encryption Screen

Use this screen to enable and configure WEP encryption. Click Network > Wireless LAN to display the General screen and select Static WEP from the Security Mode list.

Figure 41 Wireless: Static WEP Encryption

The following table describes the wireless LAN security labels in this screen.

Table 36 Wireless: Static WEP Encryption

LABEL	DESCRIPTION
Security Mode	Choose Static WEP from the drop-down list box.
Passphrase	Enter a Passphrase (up to 32 printable characters) and clicking Generate. The ZyXEL Device automatically generates a WEP key.
WEP Encryption	Select 64-bit WEP, 128-bit WEP or 256-bit WEP to specify data encryption.
Authentication Method	This field specifies whether the wireless clients have to provide the WEP key to login to the wireless client. Keep this setting at Auto or Open System unless you want to force a key verification before communication between the wireless client and the ZyXEL Device occurs. Select Shared Key to force the clients to provide the WEP key prior to communication.
Key 1 - Key 4	The WEP key is used to encrypt data. Both the ZyXEL Device and the wireless stations must use the same WEP key for data transmission. You can set 4 different keys and make one of the keys active at a time. If you want to manually set the WEP key, enter any 5, 13 or 29 characters (ASCII string) or 10, 26 or 58 hexadecimal characters ("0-9", "A-F") for a 64-bit, 128-bit or 256-bit WEP key respectively.

5.4.3 WPA(2)-PSK

In order to configure and enable WPA-PSK authentication; click Network > Wireless LAN to display the General screen. Select WPA-PSK or WPA2-PSK from the Security Mode list.

Figure 42 Wireless: WPA(2)-PSK

The following table describes the wireless LAN security labels in this screen.

Table 37 Wireless: WPA(2)-PSK

LABEL	DESCRIPTION
Security Mode	Choose WPA-PSK or WPA2-PSK from the drop-down list box.
WPA Compatible	This field is only available for WPA2-PSK. Select this if you want the ZyXEL Device to support WPA-PSK and WPA2-PSK simultaneously.
Pre-Shared Key	The encryption mechanisms used for WPA(2) and WPA(2)-PSK are the same. The only difference between the two is that WPA(2)-PSK uses a simple common password, instead of user-specific credentials.Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including spaces and symbols).
ReAuthentication Timer (in seconds)	Specify how often wireless stations have to resend usernames and passwords in order to stay connected. Enter a time interval between 10 and 9999 seconds. The default time interval is 1800 seconds (30 minutes).Note: If wireless station authentication is done using a RADIUS server, the reauthentication timer on the RADIUS server has priority.

Table 37 Wireless: WPA(2)-PSK

LABEL	DESCRIPTION
Idle Timeout	The ZyXEL Device automatically disconnects a wireless station from the wired network after a period of inactivity. The wireless station needs to enter the username and password again before access to the wired network is allowed. The default time interval is 3600 seconds (or 1 hour).
Group Key Update Timer	The Group Key Update Timer is the rate at which the AP (if using WPA(2)-PSK key management) or RADIUS server (if using WPA key management) sends a new group key out to all clients. The re-keying process is the WPA equivalent of automatically changing the WEP key for an AP and all stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is also supported in WPA-PSK mode. The ZyXEL Device default is 1800 seconds (30 minutes).

5.4.4 WPA(2) Authentication Screen

In order to configure and enable WPA Authentication; click the Wireless LAN link under Network to display the Wireless screen. Select WPA or WPA2 from the Security list.

Figure 43 Wireless: WPA(2)

The following table describes the wireless LAN security labels in this screen.

Table 38 Wireless: WPA(2)

LABEL	DESCRIPTION
Security Mode	Choose WPA or WPA2 from the drop-down list box.
WPA Compatible	This field is only available for WPA2. Select this if you want the ZyXEL Device to support WPA and WPA2 simultaneously.
ReAuthentication Timer (in seconds)	Specify how often wireless stations have to resend usernames and passwords in order to stay connected. Enter a time interval between 10 and 9999 seconds. The default time interval is 1800 seconds (30 minutes).Note: If wireless station authentication is done using a RADIUS server, the reauthentication timer on the RADIUS server has priority.
Idle Timeout	The ZyXEL Device automatically disconnects a wireless station from the wired network after a period of inactivity. The wireless station needs to enter the username and password again before access to the wired network is allowed. The default time interval is 3600 seconds (or 1 hour).
Group Key Update Timer	The Group Key Update Timer is the rate at which the AP (if using WPA-PSK key management) or RADIUS server (if using WPA key management) sends a new group key out to all clients. The re-keying process is the WPA equivalent of automatically changing the WEP key for an AP and all stations in a WLAN on a periodic basis. Setting of the Group Key Update Timer is also supported in WPA-PSK mode. The ZyXEL Device default is 1800 seconds (30 minutes).
Authentication Server
IP Address	Enter the IP address of the external authentication server in dotted decimal notation.
Port Number	Enter the port number of the external authentication server. The default port number is 1812.You need not change this value unless your network administrator instructs you to do so with additional information.
Shared Secret	Enter a password (up to 31 alphanumeric characters) as the key to be shared between the external authentication server and the ZyXEL Device.The key must be the same on the external authentication server and your ZyXEL Device. The key is not sent over the network.
Accounting Server (optional)
IP Address	Enter the IP address of the external accounting server in dotted decimal notation.
Port Number	Enter the port number of the external accounting server. The default port number is 1813.You need not change this value unless your network administrator instructs you to do so with additional information.
Shared Secret	Enter a password (up to 31 alphanumeric characters) as the key to be shared between the external accounting server and the ZyXEL Device.The key must be the same on the external accounting server and your ZyXEL Device. The key is not sent over the network.

5.5 OTIST Screen

Use this screen to set up and start OTIST on the ZyXEL Device in your wireless network. To open this screen, click Network > Wireless LAN > OTIST.

Figure 44 Network > Wireless LAN > OTIST

The following table describes the labels in this screen.

Table 39 Network > Wireless LAN > OTIST

LABEL	DESCRIPTION
Setup Key	Type a key (password) 8 ASCII characters long.
	Note: If you change the OTIST setup key in the ZyXEL Device, you must change it on the wireless devices too.
Yes!	Select this if you want the ZyXEL Device to automatically generate a pre-shared key for the wireless network. Before you do this, click Network > Wireless LAN > General and set the Security Mode to No Security. Clear this if you want the ZyXEL Device to use a pre-shared key that you enter. Before you do this, click Network > Wireless LAN > General, set the Security Mode to WPA-PSK, and enter the Pre-Shared Key.
Start	Click Start to activate OTIST and transfer settings. The process takes three minutes to complete.
	Note: You must click Start in the ZyXEL Device and in the wireless device(s) within three minutes of each other. You can start OTIST in the wireless devices and the ZyXEL Device in any order.

Before you click Start, you should enable OTIST on all the OTIST-enabled devices in the wireless network. For most devices, follow these steps.

1 Start the ZyXEL utility
2 Click the Adapter tab.
3 Select the OTIST check box, and enter the same Setup Key as the ZyXEL Device.
4 Click Save.

Figure 45 Example: Wireless Client OTIST Screen

To start OTIST in the device, click Start in this screen.

Note: You must click Start in the ZyXEL Device and in the wireless device(s) within three minutes of each other. You can start OTIST in the wireless devices and the ZyXEL Device in any order.

After you click Start in the ZyXEL Device, the following screen appears (in the ZyXEL Device).

Figure 46 OTIST: Settings

You can use the key in this screen to set up WPA-PSK encryption manually for non-OTIST devices in the wireless network.

Review the settings, and click OK. The ZyXEL Device begins transferring OTIST settings. The following screens appear in the ZyXEL Device and in the wireless devices.

Figure 47 OTIST: In Progress on the ZyXEL Device

Figure 48 OTIST: In Progress on the Wireless Device

These screens close when the transfer is complete.

5.5.1 Notes on OTIST

1 If you enable OTIST in a wireless device, you see this screen each time you start the utility. Click Yes to search for an OTIST-enabled AP (in other words, the ZyXEL Device).

Figure 49 Start OTIST?

2 If an OTIST-enabled wireless device loses its wireless connection for more than ten seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually have the wireless device search for an OTIST-enabled AP, there is no timeout; click Cancel in the OTIST progress screen to stop the search.)
3 After the wireless device finds an OTIST-enabled AP, you must click Start in the ZyXEL Device's Network > Wireless LAN > OTIST screen or hold in the Reset button on the ZyXEL Device for one or two seconds to transfer the settings again.
4 If you change the SSID or the keys on the ZyXEL Devices after using OTIST, you need to run OTIST again or enter them manually in the wireless device(s).
5 If you configure OTIST to generate a WPA-PSK key, this key changes each time you run OTIST. Therefore, if a new wireless device joins your wireless network, you need to run OTIST on the AP and ALL wireless devices again.

5.6 MAC Filter

Use this screen to change your ZyXEL Device's MAC filter settings, click Network > Wireless LAN > MAC Filter. The screen appears as shown.

Figure 50 MAC Address Filter

The following table describes the labels in this menu.

Table 40 MAC Address Filter

LABEL	DESCRIPTION
MAC Address Filter
Active	Select the check box to enable MAC address filtering.
Filter Action	Define the filter action for the list of MAC addresses in the MAC Address table. Select Deny to block access to the ZyXEL Device, MAC addresses not listed will be allowed to access the ZyXEL Device Select Allow to permit access to the ZyXEL Device, MAC addresses not listed will be denied access to the ZyXEL Device.
Set	This is the index number of the MAC address.
MAC Address	Enter the MAC addresses of the wireless station that are allowed or denied access to the ZyXEL Device in these address fields. Enter the MAC addresses in a valid MAC address format, that is, six hexadecimal character pairs, for example, 12:34:56:78:9a:bc.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

5.7 Wireless LAN Advanced Setup

Use this screen to configure advanced wireless settings, click the Advanced Setup button in the General screen. The screen appears as shown.

Figure 51 Advanced

The following table describes the labels in this screen.

Table 41 Wireless LAN: Advanced

LABEL	DESCRIPTION
Wireless Advanced Setup
RTS/CTS Threshold	Enter a value between 0 and 2432.
Fragmentation Threshold	It is the maximum data fragment size that can be sent. Enter a value between 256 and 2432.
802.11 Mode	Select 802.11b to allow only IEEE 802.11b compliant WLAN devices to associate with the ZyXEL Device. Select 802.11g to allow only IEEE 802.11g compliant WLAN devices to associate with the ZyXEL Device. Select 802.11b/g to allow either IEEE 802.11b or IEEE 802.11g compliant WLAN devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL Device might be reduced.
Apply	Click Apply to save your changes back to the ZyXEL Device.
Cancel	Click Cancel to reload the previous configuration for this screen.

CHAPTER 6

WAN

Use these screens to set up the ZyXEL Device on the WAN.

6.1 WAN Overview

You can configure the Internet connection, DNS servers, and how the ZyXEL Device sends routing information using RIP. In addition, you can set up a backup gateway in case the default gateway is not available.

6.1.1 PPPoE Encapsulation

The ZyXEL Device supports PPPoE (Point-to-Point Protocol over Ethernet). PPPoE is an IETF standard (RFC 2516) specifying how a personal computer (PC) interacts with a broadband modem (DSL, cable, wireless, etc.) connection. The PPP over Ethernet option is for a dial-up connection using PPPoE.

For the service provider, PPPoE offers an access and authentication method that works with existing access control systems (for example Radius).

One of the benefits of PPPoE is the ability to let you access one of multiple network services, a function known as dynamic service selection. This enables the service provider to easily create and offer new IP services for individuals.

Operationally, PPPoE saves significant effort for both you and the ISP or carrier, as it requires no specific configuration of the broadband modem at the customer site.

By implementing PPPoE directly on the ZyXEL Device (rather than individual computers), the computers on the LAN do not need PPPoE software installed, since the ZyXEL Device does that part of the task. Furthermore, with NAT, all of the LANs' computers will have access.

6.1.2 WAN IP Address Assignment

Every computer on the Internet must have a unique IP address. If your networks are isolated from the Internet, for instance, only between your two branch offices, you can assign any IP addresses to the hosts without problems. However, the Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of IP addresses specifically for private networks.

Table 42 Private IP Address Ranges

10.0.0.0	-	10.255.255.255
172.16.0.0	-	172.31.255.255
192.168.0.0	-	192.168.255.255

You can obtain your IP address from the IANA, from an ISP or have it assigned by a private network. If you belong to a small organization and your Internet access is through an ISP, the ISP can provide you with the Internet addresses for your local networks. On the other hand, if you are part of a much larger organization, you should consult your network administrator for the appropriate IP addresses.

Note: Regardless of your particular situation, do not create an arbitrary IP address; always follow the guidelines above. For more information on address assignment, please refer to RFC 1597, Address Allocation for Private Intermets and RFC 1466, Guidelines for Management of IP Address Space.

6.1.3 MAC Address

Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:A0:C5:00:00:02.

The WAN MAC address section allows users to configure the WAN port's MAC address by either using the factory default or cloning your computer's MAC address. Choose Factory Default to select the factory assigned default MAC Address.

Otherwise, click Spoof this computer's MAC address - IP Address and enter the IP address of your computer. Once it is successfully configured, the address will be copied to the rom file (ZyNOS configuration file). It will not change unless you change the setting or upload a different ROM file. It is recommended that you clone the MAC address prior to hooking up the WAN Port.

6.1.4 RIP Setup

See Section 7.1.5 on page 115.

6.1.5 DNS Server Address Assignment

The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave this blank, the domain name obtained by DHCP from the ISP is used. While you must enter the host name (System Name) on each individual computer, the domain name can be assigned from the ZyXEL Device via DHCP.

Use DNS (Domain Name System) to map a domain name to its corresponding IP address and vice versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it.

The ZyXEL Device can get the DNS server addresses in the following ways.

1 The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you sign up. If your ISP gives you DNS server addresses, enter them in the DNS Server fields in the SYSTEM General screen.
2 If the ISP did not give you DNS server information, leave the DNS Server fields in the SYSTEM General screen set to 0.0.0.0 for the ISP to dynamically assign the DNS server IP addresses.

6.2 WAN Screens

6.2.1 WAN Internet Connection Screen (Ethernet)

Use this screen to set up an Ethernet connection (no Roadrunner service) with the ISP. To access this screen, click Network > WAN > Internet Connection.

Figure 52 Network > WAN > Internet Connection (Ethernet)

Note: Some ISPs, such as Telstra, send UDP heartbeat packets to verify that the customer is still online. In this case, create a WAN to LAN firewall rule for those packets. Contact your ISP to find the correct port number.

Each field is described in the following table.

Table 43 Network > WAN > Internet Connection (Ethernet)

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Encapsulation	Select Ethernet.
Service Type	Select Standard.
WAN IP Address Assignment
Get automatically from ISP	Select this if your ISP did not assign you a static IP address.
Use Fixed IP Address	Select this if your ISP assigned you a static IP address.
IP Address	Enter the IP address provided by your ISP.
IP Subnet Mask	Enter the subnet mask provided by your ISP.
Gateway IP Address	Enter the gateway provided by your ISP. If your ISP did not provide one, leave it blank.
WAN MAC Address
Spoof WAN MAC Address	Select this if you do not want to use the default MAC address for the ZyXEL Device.

Table 43 Network > WAN > Internet Connection (Ethernet)

LABEL	DESCRIPTION
Clone the computer's MAC address - IP Address	This field is enabled if you select Spoof WAN MAC Address. Enter the IP address of the computer whose MAC address you want the ZyXEL Device to use instead of the default MAC address.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

6.2.2 WAN Internet Connection Screen (Roadrunner)

Use this screen to set up an Ethernet connection using Roadrunner service with the ISP. To access this screen, click Network > WAN > Internet Connection.

Figure 53 Network > WAN > Internet Connection (Roadrunner)

Each field is described in the following table.

Table 44 Network > WAN > Internet Connection (Roadrunner)

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Encapsulation	Select Ethernet.
Service Type	Select the Roadrunner service provided by your ISP.
UserID	Enter the user name provided by your ISP.
Password	Enter the password provided by your ISP.
Retype to Confirm	Retype your password to make sure you entered it correctly.
Login Server IP Address	Enter the IP address of the login server provided by your ISP.

Table 44 Network > WAN > Internet Connection (Roadrunner)

LABEL	DESCRIPTION
WAN MAC Address
Spoof WAN MAC Address	Select this if you do not want to use the default MAC address for the ZyXEL Device.
Clone the computer's MAC address - IP Address	This field is enabled if you select Spoof WAN MAC Address. Enter the IP address of the computer whose MAC address you want the ZyXEL Device to use instead of the default MAC address.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

6.2.3 WAN Internet Connection Screen (PPPoE)

Use this screen to set up a PPPoE connection with the ISP. To access this screen, click Network > WAN > Internet Connection.

Figure 54 Network > WAN > Internet Connection (PPPoE)

Each field is described in the following table.

Table 45 Network > WAN > Internet Connection (PPPoE)

LABEL	DESCRIPTION
ISP Parameters for Internet Access
Encapsulation	Select PPP over Ethernet.
Service Name	Enter the PPP service name provided by your ISP. If your ISP did not provide a service name, leave this field blank.
UserID	Enter the user name provided by your ISP.
Password	Enter the password provided by your ISP.
Retype to Confirm	Retype your password to make sure you entered it correctly.
Nailed-Up Connection	Select this if you do not want the ZyXEL Device to time out when the connection is idle for too long.
Idle Timeout	This field is enabled if you do not select Nailed-Up Connection. Enter the number of seconds that the connection should be idle before the ZyXEL Device automatically disconnects. Enter zero if you do not want the ZyXEL Device to automatically disconnect. (This is the same as selecting Nailed-Up Connection.)
WAN IP Address Assignment

Table 45 Network > WAN > Internet Connection (PPPoE)

LABEL	DESCRIPTION
Get automatically from ISP	Select this if your ISP did not assign you a static IP address.
Use Fixed IP Address	Select this if your ISP assigned you a static IP address.
My WAN IP Address	Enter the IP address provided by your ISP.
Remote IP Address	Enter the IP address your ISP provided for the remote (peer) server.
Remote IP Subnet Mask	Enter the subnet mask your ISP provided for the remote server.
Metric	Usually, you should keep the default value. This field is related to RIP. See Chapter 7 on page 113 for more information. The metric represents the "cost of transmission". A router determines the best route for transmission by choosing a path with the lowest "cost". The smaller the metric, the lower the "cost". RIP uses hop count as the measurement of cost, where 1 is for a directly-connected network. The metric must be 1-15; if you use a value higher than 15, the routers assume the link is down.
Private	Usually, you should keep the default value. This field is related to RIP. See Chapter 7 on page 113 for more information. This field determines whether or not the ZyXEL Device includes the route to this remote node in its RIP broadcasts. If you select Yes, this route is not included in RIP broadcast. If you select No, the route to this remote node is propagated to other hosts through RIP broadcasts.
WAN MAC Address
Spoof WAN MAC Address	Select this if you do not want to use the default MAC address for the ZyXEL Device.
Clone the computer's MAC address - IP Address	This field is enabled if you select Spoof WAN MAC Address. Enter the IP address of the computer whose MAC address you want the ZyXEL Device to use instead of the default MAC address.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

6.2.4 WAN Advanced Screen

Use this screen to set up DNS servers, RIP, and Windows Networking policies for the WAN. To access this screen, click Network > WAN > Advanced.

Figure 55 Network > WAN > Advanced

Each field is described in the following table.

Table 46 Network > WAN > Advanced

LABEL	DESCRIPTION
DNS Servers	DNS (Domain Name System) manages the relationships between domain names and IP addresses. Without a DNS server, you must know the IP address of the computer you want to access before you access it.
First DNS Server Second DNS Server Third DNS Server	Select From ISP if your ISP dynamically assigns DNS server information. (In this case, the ISP assigns the WAN IP address too. See Network > WAN > Internet Connection.) The field to the right is read-only, and it displays the IP address provided by your ISP. Select User-Defined if you have the IP address of a DNS server. You might get it from your ISP or from your network. Enter the IP address in the field to the right. Select None if you do not want to use this DNS server. If you select None for all of the DNS servers, you must use IP addresses to configure the ZyXEL Device and to access the Internet.
RIP & Multicast Setup
RIP Direction	RIP (Routing Information Protocol) allows a router to exchange routing information with other routers. Use this field to control how much routing information the ZyXEL Device sends and receives on the subnet. None - The ZyXEL Device does not send or receive routing information on the subnet. Both - The ZyXEL Device sends and receives routing information on the subnet. In Only - The ZyXEL Device only receives routing information on the subnet. Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version	Select which version of RIP the ZyXEL Device uses when it sends or receives information on the subnet. RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information. RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information. RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.

Table 46 Network > WAN > Advanced

LABEL	DESCRIPTION
Multicast	Select which version of IGMP the ZyXEL Device uses to support multicasting on the LAN. Multicast packets are sent to a group of computers on the LAN and are an alternative to unicast packets (packets sent to one computer) and broadcast packets (packets sent to every computer).None - The ZyXEL Device does not support multicasting.IGMP-v1 - The ZyXEL Device supports IGMP version 1.IGMP-v2 - The ZyXEL Device supports IGMP version 2.Multicast can improve overall network performance. However, it requires extra processing and generates more network traffic. In addition, other computers on the WAN have to support the same version of IGMP.
Windows Networking (NetBIOS over TCP/IP)
Allow between LAN and WAN	Select this check box if you want the ZyXEL Device to send NetBIOS (Network Basic Input/Output System) packets between the LAN and WAN. You should also make sure that NetBIOS packets are not blocked in Security > Firewall > Services.NetBIOS packets are TCP or UDP packets that enable a computer to connect to and communicate with computers on other networks. It may sometimes be necessary to allow NetBIOS packets to pass through the ZyXEL Device in order to allow computers on the LAN to find computers on the WAN and vice versa.This is the same setting you can set in Network > LAN > Advanced.
Allow Trigger Dial	Select this if you want to allow NetBIOS packets to initiate calls.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

6.2.5 WAN Traffic Redirect Screen

Use this screen to specify a backup gateway in case the default gateway (your ISP) is not available. To access this screen, click Network > WAN > Traffic Redirect.

Figure 56 Network > WAN > Traffic Redirect

Each field is described in the following table.

Table 47 Network > WAN > Traffic Redirect

LABEL	DESCRIPTION
Active	Select this to set up a backup gateway in case the default gateway is not available. (For example, this might happen if the Internet connection goes down.) Clear this if you do not have a backup gateway.
Backup Gateway IP Address	Enter the IP address of the backup gateway. The ZyXEL Device automatically uses this gateway if the default gateway is not available anymore.
Check WAN IP Address	Enter the IP address of a reliable nearby computer the ZyXEL Device uses to test whether or not the default gateway is available anymore. For example, use one of your ISP's DNS server addresses. If you enter 0.0.0.0, the test fails each time.
Fail Tolerance	Enter the number of consecutive times the ZyXEL Device may attempt and fail to find the reliable nearby computer at Check WAN IP Address before it starts using the backup gateway. 2 - 5 are typical choices.
Period (sec)	Enter the number of seconds between attempts to find the reliable nearby computer at Check WAN IP Address. 5 - 60 are typical choices.
Timeout (sec)	Enter the number of seconds the ZyXEL Device waits for a response from the reliable nearby computer at Check WAN IP Address before the attempt is a failure. 3 - 50 are typical choices, but this number should be less than the Period.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 7

LAN

Use these screens to set up the ZyXEL Device on the LAN. You can configure its IP address and subnet mask, DHCP services, and other subnets. You can also control how the ZyXEL Device sends routing information using RIP, and you can enable and disable Any IP.

7.1 LAN Overview

A Local Area Network (LAN) is a shared communication system to which many computers are attached. A LAN is usually a computer network limited to the immediate area, such as the same building or floor of a building.

7.1.1 IP Address and Subnet Mask

Similar to the way houses on a street share a common street name, so too do computers on a LAN share one common network number.

Where you obtain your network number depends on your particular situation. If the ISP or your network administrator assigns you a block of registered IP addresses, follow their instructions in selecting the IP addresses and the subnet mask.

If the ISP did not explicitly give you an IP network number, then most likely you have a single user account and the ISP will assign you a dynamic IP address when the connection is established. If this is the case, it is recommended that you select a network number from 192.168.0.0 to 192.168.255.0 and you must enable the Network Address Translation (NAT) feature of the ZyXEL Device. The Internet Assigned Number Authority (IANA) reserved this block of addresses specifically for private use; please do not use any other number unless you are told otherwise. Let's say you select 192.168.1.0 as the network number; which covers 254 individual addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other words, the first three numbers specify the network number while the last number identifies an individual computer on that network.

Once you have decided on the network number, pick an IP address that is easy to remember, for instance, 192.168.1.1, for your ZyXEL Device, but make sure that no other device on your network is using that IP address.

The subnet mask specifies the network number portion of an IP address. Your ZyXEL Device will compute the subnet mask automatically based on the IP address that you entered. You don't need to change the subnet mask computed by the ZyXEL Device unless you are instructed to do otherwise.

7.1.2 DHCP Setup

DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual clients to obtain TCP/IP configuration at start-up from a server. You can configure the ZyXEL Device as a DHCP server or disable it. When configured as a server, the ZyXEL Device provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have another DHCP server on your LAN, or else each computer must be manually configured.

The ZyXEL Device is pre-configured with a pool of IP addresses for the DHCP clients (DHCP Pool). See the product specifications in the appendices. Do not assign static IP addresses from the DHCP pool to your LAN computers.

These parameters should work for the majority of installations. If your ISP gives you explicit DNS server address(es), read the embedded web configurator help regarding what fields need to be configured.

7.1.3 LAN TCP/IP

The ZyXEL Device has built-in DHCP server capability that assigns IP addresses and DNS servers to systems that support DHCP client capability.

The LAN parameters of the ZyXEL Device are preset in the factory with the following values:

• IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
• DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.

These parameters should work for the majority of installations. If your ISP gives you explicit DNS server address(es), read the embedded web configurator help regarding what fields need to be configured.

7.1.4 DNS Server Address

DNS (Domain Name System) is for mapping a domain name to its corresponding IP address and vice versa. The DNS server is extremely important because without it, you must know the IP address of a machine before you can access it. The DNS server addresses that you enter in the DHCP setup are passed to the client machines along with the assigned IP address and subnet mask.

There are two ways that an ISP disseminates the DNS server addresses. The first is for an ISP to tell a customer the DNS server addresses, usually in the form of an information sheet, when s/he signs up. If your ISP gives you the DNS server addresses, enter them in the DNS Server fields in DHCP Setup, otherwise, leave them blank.

Some ISPs choose to pass the DNS servers using the DNS server extensions of PPP IPCP (IP Control Protocol) after the connection is up. If your ISP did not give you explicit DNS servers, chances are the DNS servers are conveyed through IPCP negotiation. The ZyXEL Device supports the IPCP DNS server extensions through the DNS proxy feature.

If the Primary and Secondary DNS Server fields in the LAN Setup screen are not specified, for instance, left as 0.0.0.0, the ZyXEL Device tells the DHCP clients that it itself is the DNS server. When a computer sends a DNS query to the ZyXEL Device, the ZyXEL Device forwards the query to the real DNS server learned through IPCP and relays the response back to the computer.

Please note that DNS proxy works only when the ISP uses the IPCP DNS server extensions. It does not mean you can leave the DNS servers out of the DHCP setup under all circumstances. If your ISP gives you explicit DNS servers, make sure that you enter their IP addresses in the LAN Setup screen. This way, the ZyXEL Device can pass the DNS servers to the computers and the computers can query the DNS server directly without the ZyXEL Device's intervention.

7.1.5 RIP Setup

RIP (Routing Information Protocol) allows a router to exchange routing information with other routers. The RIP Direction field controls the sending and receiving of RIP packets. When set to:

• Both - the ZyXEL Device will broadcast its routing table periodically and incorporate the RIP information that it receives.
• In Only - the ZyXEL Device will not send any RIP packets but will accept all RIP packets received.
• Out Only - the ZyXEL Device will send out RIP packets but will not accept any RIP packets received.
• None - the ZyXEL Device will not send any RIP packets and will ignore any RIP packets received.

The Version field controls the format and the broadcasting method of the RIP packets that the ZyXEL Device sends (it recognizes both formats when receiving). RIP-1 is universally supported; but RIP-2 carries more information. RIP-1 is probably adequate for most networks, unless you have an unusual network topology.

Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being that RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.

7.1.6 Multicast

Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1 recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to a group of hosts on the network - not everybody and not just 1.

IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group - it is not used to carry user data. IGMP version 2 (RFC 2236) is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in wide use. If you would like to read more detailed information about interoperability between IGMP version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address

224.0.0.0 is not assigned to any group and is used by IP multicast computers. The address 224.0.0.1 is used for query messages and is assigned to the permanent group of all IP hosts (including gateways). All hosts must join the 224.0.0.1 group in order to participate in IGMP. The address 224.0.0.2 is assigned to the multicast routers group.

The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-v2). At start up, the ZyXEL Device queries all directly connected networks to gather group membership. After that, the ZyXEL Device periodically updates this information. IP multicasting can be enabled/disabled on the ZyXEL Device LAN and/or WAN interfaces in the web configurator (LAN; WAN). Select None to disable IP multicasting on these interfaces.

7.1.7 Any IP

Traditionally, you must set the IP addresses and the subnet masks of a computer and the ZyXEL Device to be in the same subnet to allow the computer to access the Internet (through the ZyXEL Device). In cases where your computer is required to use a static IP address in another network, you may need to manually configure the network settings of the computer every time you want to access the Internet via the ZyXEL Device.

With the Any IP feature and NAT enabled, the ZyXEL Device allows a computer to access the Internet without changing the network settings (such as IP address and subnet mask) of the computer, when the IP addresses of the computer and the ZyXEL Device are not in the same subnet. Whether a computer is set to use a dynamic or static (fixed) IP address, you can simply connect the computer to the ZyXEL Device and access the Internet.

The following figure depicts a scenario where a computer is set to use a static private IP address in the corporate environment. In a residential house where a ZyXEL Device is installed, you can still use the computer to access the Internet without changing the network settings, even when the IP addresses of the computer and the ZyXEL Device are not in the same subnet.

Figure 57 Any IP Example

The Any IP feature does not apply to a computer using either a dynamic IP address or a static IP address that is in the same subnet as the ZyXEL Device's IP address.

Note: You must enable NAT to use the Any IP feature on the ZyXEL Device.

Address Resolution Protocol (ARP) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address, also known as a Media Access Control or MAC address, on the local area network. IP routing table is defined on IP Ethernet devices (the ZyXEL Device) to decide which hop to use, to help forward data along to its specified destination.

The following lists out the steps taken, when a computer tries to access the Internet for the first time through the ZyXEL Device.

1 When a computer (which is in a different subnet) first attempts to access the Internet, it sends packets to its default gateway (which is not the ZyXEL Device) by looking at the MAC address in its ARP table.
2 When the computer cannot locate the default gateway, an ARP request is broadcast on the LAN.
3 The ZyXEL Device receives the ARP request and replies to the computer with its own MAC address.
4 The computer updates the MAC address for the default gateway to the ARP table. Once the ARP table is updated, the computer is able to access the Internet through the ZyXEL Device.
5 When the ZyXEL Device receives packets from the computer, it creates an entry in the IP routing table so it can properly forward packets intended for the computer.

After all the routing information is updated, the computer can access the ZyXEL Device and the Internet as if it is in the same subnet as the ZyXEL Device.

7.2 LAN Screens

7.2.1 LAN IP Screen

Use this screen to set up the ZyXEL Device's IP address and subnet mask. To access this screen, click Network > LAN > IP.

Figure 58 Network > LAN > IP

Each field is described in the following table.

Table 48 Network > LAN > IP

LABEL	DESCRIPTION
IP Address	Enter the IP address of the ZyXEL Device on the LAN.
	Note: This field is the IP address you use to access the ZyXEL Device on the LAN. If the web configurator is running on a computer on the LAN, you lose access to the web configurator as soon as you change this field and click Apply. You can access the web configurator again by typing the new IP address in the browser.
IP Subnet Mask	Enter the subnet mask of the LAN.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

7.2.2 LAN DHCP Setup Screen

Use this screen to enable, disable, and configure the DHCP server in the ZyXEL Device. To access this screen, click Network > LAN > DHCP Setup.

Figure 59 Network > LAN > DHCP Setup

Each field is described in the following table.

Table 49 Network > LAN > DHCP Setup

LABEL	DESCRIPTION
DHCP Setup
Enable DHCP Server	Select this if you want the ZyXEL Device to be the DHCP server on the LAN. As a DHCP server, the ZyXEL Device assigns IP addresses to DHCP clients on the LAN and provides the subnet mask and DNS server information.
IP Pool Starting Address	Enter the IP address from which the ZyXEL Device begins allocating IP addresses, if you have not specified an IP address for this computer in Network > LAN > Static DHCP.
Pool Size	Enter the number of IP addresses to allocate. This number must be at least one and is limited by a subnet mask of 255.255.255.0 (regardless of the subnet the ZyXEL Device is in). For example, if the IP Pool Start Address is 10.10.10.10, the ZyXEL Device can allocate up to 10.10.10.254, or 245 IP addresses.
DNS Server
First DNS Server Second DNS Server Third DNS Server	Specify the IP addresses of a maximum of three DNS servers that the network can use. The ZyXEL Device provides these IP addresses to DHCP clients. You can specify these IP addresses two ways.From ISP - provide the DNS servers provided by the ISP on the WAN port.User Defined - enter a static IP address.DNS Relay - this setting will relay DNS information from the DNS server obtained by the ZyXEL Device.None - no DNS service will be provided by the ZyXEL Device.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

7.2.3 LAN Static DHCP Screen

Note: This screen has no effect if the DHCP server is not enabled. You can enable it in Network > LAN > DHCP Setup.

Use this screen to make the ZyXEL Device assign a specific IP address to a specific computer on the LAN. To access this screen, click Network > LAN > Static DHCP.

Figure 60 Network > LAN > Static DHCP

Each field is described in the following table.

Table 50 Network > LAN > Static DHCP

LABEL	DESCRIPTION
#	This field is a sequential value. It is not associated with a specific entry.
MAC Address	Enter the MAC address of the computer to which you want the ZyXEL Device to assign the same IP address.
IP Address	Enter the IP address you want the ZyXEL Device to assign to the computer.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

7.2.4 LAN Client List Screen

Note: This screen is empty if the DHCP server is not enabled. You can enable it in Network > LAN > DHCP Setup.

Use this screen to look at the IP addresses the ZyXEL Device has assigned to DHCP clients on the LAN. To access this screen, click Network > LAN > Client List.

Figure 61 Network > LAN > Client List

Each field is described in the following table.

Table 51 Network > LAN > Client List

LABEL	DESCRIPTION
#	This field is a sequential value. It is not associated with a specific entry.
IP Address	This field displays the IP address the ZyXEL Device assigned to the computer.
Host Name	This field displays the system name of the computer to which the ZyXEL Device assigned the IP address.
MAC Address	This field displays the MAC address of the computer to which the ZyXEL Device assigned the IP address.
Reserve	Select this if you always want to assign this IP address to this MAC address. Then, click Apply. The ZyXEL Device creates an entry in the LAN Static DHCP screen. See Section 7.2.2 on page 118.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Refresh	Click this to set every field in this screen to its last-saved value.

7.2.5 LAN IP Alias Screen

Use this screen to add subnets on the LAN port. You can also control what routing information is sent and received by each subnet. To access this screen, click Network > LAN > IP Alias.

Figure 62 Network > LAN > IP Alias

Each field is described in the following table.

Table 52 Network > LAN > IP Alias

LABEL	DESCRIPTION
IP Alias 1
IP Alias 1	Select this to add the specified subnet to the LAN port.
IP Address	Enter the IP address of the ZyXEL Device on the subnet.
IP Subnet Mask	Enter the subnet mask of the subnet.
RIP Direction	Use this field to control how much routing information the ZyXEL Device sends and receives on the subnet. None - The ZyXEL Device does not send or receive routing information on the subnet. Both - The ZyXEL Device sends and receives routing information on the subnet. In Only - The ZyXEL Device only receives routing information on the subnet. Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version	Select which version of RIP the ZyXEL Device uses when it sends or receives information on the subnet. RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information. RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information. RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
IP Alias 2
IP Alias 2	Select this to add the specified subnet to the LAN port.
IP Address	Enter the IP address of the ZyXEL Device on the subnet.
IP Subnet Mask	Enter the subnet mask of the subnet.

Table 52 Network > LAN > IP Alias

LABEL	DESCRIPTION
RIP Direction	Use this field to control how much routing information the ZyXEL Device sends and receives on the subnet. None - The ZyXEL Device does not send or receive routing information on the subnet. Both - The ZyXEL Device sends and receives routing information on the subnet. In Only - The ZyXEL Device only receives routing information on the subnet. Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version	Select which version of RIP the ZyXEL Device uses when it sends or receives information on the subnet. RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information. RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information. RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

7.2.6 LAN Advanced Screen

Use this screen to add subnets on the LAN port. You can also control what routing information is sent and received by each subnet. To access this screen, click Network > LAN > Advanced.

Figure 63 Network > LAN > Advanced

Each field is described in the following table.

Table 53 Network > LAN > Advanced

LABEL	DESCRIPTION
RIP & Multicast Setup
RIP Direction	Use this field to control how much routing information the ZyXEL Device sends and receives on the subnet. None - The ZyXEL Device does not send or receive routing information on the subnet. Both - The ZyXEL Device sends and receives routing information on the subnet. In Only - The ZyXEL Device only receives routing information on the subnet. Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version	Select which version of RIP the ZyXEL Device uses when it sends or receives information on the subnet. RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information. RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information. RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
Multicast	You do not have to enable multicastasting to use RIP-2M. (See RIP Version.) Select which version of IGMP the ZyXEL Device uses to support multicastasting on the LAN. Multicasting sends packets to some computers on the LAN and is an alternative to unicast (sending packets to one computer) and broadcasting (sending packets to every computer). None - The ZyXEL Device does not support multicastasting. IGMP-v1 - The ZyXEL Device supports IGMP version 1. IGMP-v2 - The ZyXEL Device supports IGMP version 2. Multicasting can improve overall network performance. However, it requires extra processing and generates more network traffic. In addition, other computers on the LAN have to support the same version of IGMP.
Any IP Setup
Active	Select this if you want to let computers on different subnets use the ZyXEL Device.
Windows Networking	NetBIOS over TCP/IP

Table 53 Network > LAN > Advanced

LABEL	DESCRIPTION
Allow between LAN and WAN	Select this check box if you want the ZyXEL Device to send NetBIOS (Network Basic Input/Output System) packets between the LAN and WAN. You should also make sure that NetBIOS packets are not blocked in Security > Firewall > Services. NetBIOS packets are TCP or UDP packets that enable a computer to connect to and communicate with computers on other networks. It may sometimes be necessary to allow NetBIOS packets to pass through the ZyXEL Device in order to allow computers on the LAN to find computers on the WAN and vice versa. This is the same setting you can set in Network > WAN > Advanced.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 8 NAT

This chapter discusses how to configure NAT on the ZyXEL Device.

8.1 NAT Overview

Use these screens to configure port forwarding and trigger ports for the ZyXEL Device. You can also enable and disable SIP, FTP, and H.323 ALG.

8.1.1 Port Forwarding: Services and Port Numbers

A NAT server set is a list of inside (behind NAT on the LAN) servers, for example, web or FTP, that you can make accessible to the outside world even though NAT makes your whole inside network appear as a single machine to the outside world.

Use the Network > NAT > Port Forwarding screen to forward incoming service requests to the server(s) on your local network. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. The port number identifies a service; for example, web service is on port 80 and FTP on port 21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers.

In addition to the servers for specified services, NAT supports a default server. A service request that does not have a server explicitly designated for it is forwarded to the default server. If the default is not defined, the service request is simply discarded.

See Appendix F on page 323 for examples of services.

For example., let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A in the example), port 80 to another (B in the example) and assign a default server IP address of 192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP assigns the WAN IP address. The NAT network appears as a single host on the Internet.

Figure 64 Multiple Servers Behind NAT Example

8.1.2 Trigger Port Forwarding

Some services use a dedicated range of ports on the client side and a dedicated range of ports on the server side. With regular port forwarding you set a forwarding port in NAT to forward a service (coming in from the server on the WAN) to the IP address of a computer on the client side (LAN). The problem is that port forwarding only forwards a service to a single LAN IP address. In order to use the same service on a different LAN computer, you have to manually replace the LAN computer's IP address in the forwarding port with another LAN computer's IP address,

Trigger port forwarding solves this problem by allowing computers on the LAN to dynamically take turns using the service. The ZyXEL Device records the IP address of a LAN computer that sends traffic to the WAN to request a service with a specific port number and protocol (a "trigger" port). When the ZyXEL Device's WAN port receives a response with a specific port number and protocol ("incoming" port), the ZyXEL Device forwards the traffic to the LAN IP address of the computer that sent the request. After that computer's connection for that service closes, another computer on the LAN can use the service in the same manner. This way you do not need to configure a new IP address each time you want a different LAN computer to use the application.

8.1.2.1 Trigger Port Forwarding Example

The following is an example of trigger port forwarding.

Figure 65 Trigger Port Forwarding Process: Example

1 Jane requests a file from the Real Audio server (port 7070).
2 Port 7070 is a "trigger" port and causes the ZyXEL Device to record Jane's computer IP address. The ZyXEL Device associates Jane's computer IP address with the "incoming" port range of 6970-7170.
3 The Real Audio server responds using a port number ranging between 6970-7170.
4 The ZyXEL Device forwards the traffic to Jane's computer IP address.
5 Only Jane can connect to the Real Audio server until the connection is closed or times out. The ZyXEL Device times out in three minutes with UDP (User Datagram Protocol), or two hours with TCP/IP (Transfer Control Protocol/Internet Protocol).

8.1.2.2 Two Points To Remember About Trigger Ports

1 Trigger events only happen on data that is coming from inside the ZyXEL Device and going to the outside.
2 If an application needs a continuous data stream, that port (range) will be tied up so that another computer on the LAN can't trigger it.

8.1.3 SIP ALG

Some NAT routers may include a SIP Application Layer Gateway (ALG). A SIP ALG allows SIP calls to pass through NAT by examining and translating IP addresses embedded in the data stream. When the ZyXEL Device registers with the SIP register server, the SIP ALG translates the ZyXEL Device's private IP address inside the SIP data stream to a public IP address. You do not need to use STUN or an outbound proxy (see Chapter 9 on page 135) if your ZyXEL Device is behind a SIP ALG.

8.2 NAT Screens

8.2.1 NAT General Screen

Use this screen to enable and disable NAT and to allocate memory for NAT and firewall rules. To access this screen, click Network > NAT > General.

Figure 66 Network > NAT > General

Each field is described in the following table.

Table 54 Network > NAT > General

LABEL	DESCRIPTION
NAT Setup
Enable Network Address Translation	Select this if you want to use port forwarding, trigger ports, or any of the ALG.
Max NAT/Firewall Session Per User	When computers use peer to peer applications, such as file sharing applications, they may use a large number of NAT sessions. If you do not limit the number of NAT sessions a single client can establish, this can result in all of the available NAT sessions being used. In this case, no additional NAT sessions can be established, and users may not be able to access the Internet. Each NAT session establishes a corresponding firewall session. Use this field to limit the number of NAT/firewall sessions each client computer can establish through the ZyXEL Device. If your network has a small number of clients using peer to peer applications, you can raise this number to ensure that their performance is not degraded by the number of NAT sessions they can establish. If your network has a large number of users using peer to peer applications, you can lower this number to ensure no single client is using all of the available NAT sessions.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

8.2.2 NAT Port Forwarding Screen

Use this screen to look at the current port-forwarding rules in the ZyXEL Device, and to enable, disable, activate, and deactivate each one. You can also set up a default server to handle ports not covered by rules. To access this screen, click Network > NAT > Port Forwarding.

Figure 67 Network > NAT > Port Forwarding

Each field is described in the following table.

Table 55 Network > NAT > Port Forwarding

LABEL	DESCRIPTION
Default Server Setup
Default Server	Enter the IP address of the server to which the ZyXEL Device should forward packets for ports that are not specified in the Port Forwarding section below or in the Management > Remote MGMT screens. Enter 0.0.0.0 if you want the ZyXEL Device to discard these packets instead.
Port Forwarding
#	This field is a sequential value, and it is not associated with a specific rule. The sequence is important, however. The ZyXEL Device checks each rule in order, and it only follows the first one that applies.
Active	Select this to enable this rule. Clear this to disable this rule.
Name	This field displays the name of the rule. It does not have to be unique.
Start Port	This field displays the beginning of the range of port numbers forwarded by this rule.
End Port	This field displays the end of the range of port numbers forwarded by this rule. If it is the same as the Start Port, only one port number is forwarded.
Server IP Address	This field displays the IP address of the server to which packet for the selected port(s) are forwarded.
Modify	This column provides icons to edit and delete rules. To edit a rule, click the Edit icon next to the rule. The NAT Port Forwarding Edit screen appears. To delete a rule, click the Remove icon next to the rule. All the information in the rule returns to the default settings.

Table 55 Network > NAT > Port Forwarding

LABEL	DESCRIPTION
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

8.2.3 NAT Port Forwarding Edit Screen

Use this screen to activate, deactivate, and edit each port-forwarding rule in the ZyXEL Device. To access this screen, click an Edit icon in Network > NAT > Port Forwarding.

Figure 68 Network > NAT > Port Forwarding > Edit

Each field is described in the following table.

Table 56 Network > NAT > Port Forwarding > Edit

LABEL	DESCRIPTION
Active	Select this to enable this rule. Clear this to disable this rule.
Service Name	Enter a name to identify this rule. You can use 1 - 31 printable ASCII characters, or you can leave this field blank. It does not have to be a unique name.
Start Port End Port	Enter the port number or range of port numbers you want to forward to the specified server. To forward one port number, enter the port number in the Start Port and End Port fields. To forward a range of ports, • enter the port number at the beginning of the range in the Start Port field • enter the port number at the end of the range in the End Port field.
Server IP Address	Enter the IP address of the server to which to forward packets for the selected port number(s). This server is usually on the LAN.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

8.2.4 NAT Trigger Port Screen

Use this screen to maintain port-triggering rules in the ZyXEL Device. To access this screen, click Network > NAT > Trigger Port.

Figure 69 Network > NAT > Trigger Port

Each field is described in the following table.

Table 57 Network > NAT > Trigger Port

LABEL	DESCRIPTION
Name	Enter a name to identify this rule. You can use 1 - 15 printable ASCII characters, or you can leave this field blank. It does not have to be a unique name.
Incoming
Start Port End Port	Enter the incoming port number or range of port numbers you want to forward to the IP address the ZyXEL Device records. To forward one port number, enter the port number in the Start Port and End Port fields. To forward a range of ports, • enter the port number at the beginning of the range in the Start Port field • enter the port number at the end of the range in the End Port field. If you want to delete this rule, enter zero in the Start Port and End Port fields.
Trigger
Start Port End Port	Enter the outgoing port number or range of port numbers that makes the ZyXEL Device record the source IP address and assign it to the selected incoming port number(s). To select one port number, enter the port number in the Start Port and End Port fields. To select a range of ports, • enter the port number at the beginning of the range in the Start Port field • enter the port number at the end of the range in the End Port field. If you want to delete this rule, enter zero in the Start Port and End Port fields.

Table 57 Network > NAT > Trigger Port

LABEL	DESCRIPTION
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to discard your changes.

8.2.5 NAT ALG Screen

Use this screen to enable and disable SIP (VoIP), FTP (file transfer), and H.323 (audio-visual) ALG in the ZyXEL Device. To access this screen, click Network > NAT > ALG.

Figure 70 Network > NAT > ALG

Each field is described in the following table.

Table 58 Network > NAT > ALG

LABEL	DESCRIPTION
Enable SIP ALG	Select this to make sure SIP (VoIP) works correctly with port-forwarding and port-triggering rules.
Enable FTP ALG	Select this to make sure FTP (file transfer) works correctly with port-forwarding and port-triggering rules.
Enable H.323 ALG	Select this to make sure H.323 (audio-visual programs, such as NetMeeting) works correctly with port-forwarding and port-triggering rules.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to discard your most recent changes.

CHAPTER 9 SIP

Use these screens to set up your SIP accounts and to configure QoS settings.

9.1 SIP Overview

9.1.1 Introduction to VoIP

VoIP (Voice over IP) is the sending of voice signals over the Internet Protocol. This allows you to make phone calls and send faxes over the Internet at a fraction of the cost of using the traditional circuit-switched telephone network. You can also use servers to run telephone service applications like PBX services and voice mail. Internet Telephony Service Provider (ITSP) companies provide VoIP service. A company could alternatively set up an IP-PBX and provide it's own VoIP service.

Circuit-switched telephone networks require 64 kilobits per second (kbps) in each direction to handle a telephone call. VoIP can use advanced voice coding techniques with compression to reduce the required bandwidth.

9.1.2 Introduction to SIP

The Session Initiation Protocol (SIP) is an application-layer control (signaling) protocol that handles the setting up, altering and tearing down of voice and multimedia sessions over the Internet.

SIP signaling is separate from the media for which it handles sessions. The media that is exchanged during the session can use a different path from that of the signaling. SIP handles telephone calls and can interface with traditional circuit-switched telephone networks.

9.1.3 SIP Identities

A SIP account uses an identity (sometimes referred to as a SIP address). A complete SIP identity is called a SIP URI (Uniform Resource Identifier). A SIP account's URI identifies the SIP account in a way similar to the way an e-mail address identifies an e-mail account. The format of a SIP identity is SIP-Number@SIP-Service-Domain.

9.1.3.1 SIP Number

The SIP number is the part of the SIP URI that comes before the "@” symbol. A SIP number can use letters like in an e-mail address ([e-mail] for example) or numbers like a telephone number ([e-mail] for example).

9.1.3.2 SIP Service Domain

The SIP service domain of the VoIP service provider (the company that lets you make phone calls over the Internet) is the domain name in a SIP URI. For example, if the SIP address is [e-mail], then “VoIP-provider.com” is the SIP service domain.

9.1.4 SIP Call Progression

The following figure displays the basic steps in the setup and tear down of a SIP call. A calls B.

Table 59 SIP Call Progression

A		B
1. INVITE
		2. Ringing
		3. OK
4. ACK
	5. Dialogue (voice traffic)
6. BYE
		7. OK

A sends a SIP INVITE request to B. This message is an invitation for B to participate in a SIP telephone call.

3 B sends a response indicating that the telephone is ringing.
4 B sends an OK response after the call is answered.
5 A then sends an ACK message to acknowledge that B has answered the call.
6 Now A and B exchange voice media (talk).
7 After talking, A hangs up and sends a BYE request.
8 B replies with an OK response confirming receipt of the BYE request and the call is terminated.

9.1.5 SIP Client Server

SIP is a client-server protocol. A SIP client is an application program or device that sends SIP requests. A SIP server responds to the SIP requests.

When you use SIP to make a VoIP call, it originates at a client and terminates at a server. A SIP client could be a computer or a SIP phone. One device can act as both a SIP client and a SIP server.

9.1.5.1 SIP User Agent

A SIP user agent can make and receive VoIP telephone calls. This means that SIP can be used for peer-to-peer communications even though it is a client-server protocol. In the following figure, either A or B can act as a SIP user agent client to initiate a call. A and B can also both act as a SIP user agent to receive the call.

Figure 71 SIP User Agent

9.1.5.2 SIP Proxy Server

A SIP proxy server receives requests from clients and forwards them to another server.

In the following example, you want to use client device A to call someone who is using client device C.

1 The client device (A in the figure) sends a call invitation to the SIP proxy server (B).
2 The SIP proxy server forwards the call invitation to C.

Figure 72 SIP Proxy Server

9.1.5.3 SIP Redirect Server

A SIP redirect server accepts SIP requests, translates the destination address to an IP address and sends the translated IP address back to the device that sent the request. Then the client device that originally sent the request can send requests to the IP address that it received back from the redirect server. Redirect servers do not initiate SIP requests.

In the following example, you want to use client device A to call someone who is using client device C.

1 Client device A sends a call invitation for C to the SIP redirect server (B).
2 The SIP redirect server sends the invitation back to A with C's IP address (or domain name).
3 Client device A then sends the call invitation to client device C.

Figure 73 SIP Redirect Server

9.1.5.4 SIP Register Server

A SIP register server maintains a database of SIP identity-to-IP address (or domain name) mapping. The register server checks your user name and password when you register.

9.1.6 RTP

When you make a VoIP call using SIP, the RTP (Real time Transport Protocol) is used to handle voice data transfer. See RFC 1889 for details on RTP.

9.1.7 NAT and SIP

The ZyXEL Device must register its public IP address with a SIP register server. If there is a NAT router between the ZyXEL Device and the SIP register server, the ZyXEL Device probably has a private IP address. The ZyXEL Device lists its IP address in the SIP message that it sends to the SIP register server. NAT does not translate this IP address in the SIP message. The SIP register server gets the ZyXEL Device's IP address from inside the SIP message and maps it to your SIP identity. If the ZyXEL Device has a private IP address listed in the SIP message, the SIP server cannot map it to your SIP identity. See Chapter 8 on page 127 for more information about NAT.

Use a SIP ALG (Application Layer Gateway), Use NAT, STUN, or outbound proxy to allow the ZyXEL Device to list its public IP address in the SIP messages.

9.1.7.1 SIP ALG

See Section 8.1.3 on page 129.

9.1.7.2 Use NAT

If you know the NAT router's public IP address and SIP port number, you can use the Use NAT feature to manually configure the ZyXEL Device to use a them in the SIP messages. This eliminates the need for STUN or a SIP ALG.

You must also configure the NAT router to forward traffic with this port number to the ZyXEL Device.

9.1.7.3 STUN

STUN (Simple Traversal of User Datagram Protocol (UDP) through Network Address Translators) allows the ZyXEL Device to find the presence and types of NAT routers and/or firewalls between it and the public Internet. STUN also allows the ZyXEL Device to find the public IP address that NAT assigned, so the ZyXEL Device can embed it in the SIP data stream. STUN does not work with symmetric NAT routers or firewalls. See RFC 3489 for details on STUN.

The following figure shows how STUN works.

1 The ZyXEL Device (A) sends SIP packets to the STUN server (B).
2 The STUN server (B) finds the public IP address and port number that the NAT router used on the ZyXEL Device's SIP packets and sends them to the ZyXEL Device.
3 The ZyXEL Device uses the public IP address and port number in the SIP packets that it sends to the SIP server (C).

Figure 74 STUN

9.1.7.4 Outbound Proxy

Your VoIP service provider may host a SIP outbound proxy server to handle all of the ZyXEL Device's VoIP traffic. This allows the ZyXEL Device to work with any type of NAT router and eliminates the need for STUN or a SIP ALG. Turn off a SIP ALG on a NAT router in front of the ZyXEL Device to keep it from retranslating the IP address (since this is already handled by the outbound proxy server).

9.1.8 Voice Coding

A codec (coder/decoder) codes analog voice signals into digital signals and decodes the digital signals back into voice signals. The ZyXEL Device supports the following codecs.

• G.711 is a Pulse Code Modulation (PCM) waveform codec. PCM measures analog signal amplitudes at regular time intervals and converts them into bits. G.711 provides very good sound quality but requires 64kbps of bandwidth.
• G.729 is an Analysis-by-Synthesis (AbS) hybrid waveform codec that uses a filter based on information about how the human vocal tract produces sounds. G.729 provides good sound quality and reduces the required bandwidth to 8kbps.

9.1.9 PSTN Call Setup Signaling

PSTNs (Public Switched Telephone Networks) use DTMF or pulse dialing to set up telephone calls.

Dual-Tone Multi-Frequency (DTMF) signaling uses pairs of frequencies (one lower frequency and one higher frequency) to set up calls. It is also known as Touch Tone®. Each of the keys on a DTMF telephone corresponds to a different pair of frequencies.

Pulse dialing sends a series of clicks to the local phone office in order to dial numbers.

9.1.10 MWI (Message Waiting Indication)

Enable Message Waiting Indication (MWI) enables your phone to give you a message—waiting (beeping) dial tone when you have one or more voice messages. Your VoIP service provider must have a messaging system that sends message-waiting-status SIP packets as defined in RFC 3842.

9.1.11 Quality of Service (QoS)

Quality of Service (QoS) refers to both a network's ability to deliver data with minimum delay and the networking methods used to provide bandwidth for real-time multimedia applications.

9.1.11.1 Type of Service (ToS)

Network traffic can be classified by setting the ToS (Type Of Service) values at the data source (for example, at the ZyXEL Device) so a server can decide the best method of delivery, that is the least cost, fastest route and so on.

9.1.11.2 DiffServ

DiffServ is a class of service (CoS) model that marks packets so that they receive specific per-hop treatment at DiffServ-compliant network devices along the route based on the application types and traffic flow. Packets are marked with DiffServ Code Points (DSCPs) indicating the level of service desired. This allows the intermediary DiffServ-compliant network devices to handle the packets differently depending on the code points without the need to negotiate paths or remember state information for every flow. In addition, applications do not have to request a particular service or give advanced notice of where the traffic is going.¹

9.1.11.3 DSCP and Per-Hop Behavior

DiffServ defines a new DS (Differentiated Services) field to replace the Type of Service (TOS) field in the IP header. The DS field contains a 2-bit unused field and a 6-bit DSCP field which can define up to 64 service levels. The following figure illustrates the DS field.

Figure 75 DiffServ: Differentiated Service Field

DSCP (6-bit)

Unused (2-bit)

DSCP is backward compatible with the three precedence bits in the ToS octet so that non-DiffServ compliant, ToS-enabled network device will not conflict with the DSCP mapping.

The DSCP value determines the forwarding behavior, the PHB (Per-Hop Behavior), that each packet gets across the DiffServ network. Based on the marking rule, different kinds of traffic can be marked for different priorities of forwarding. Resources can then be allocated according to the DSCP values and the configured policies.

9.1.11.4 VLAN

Virtual Local Area Network (VLAN) allows a physical network to be partitioned into multiple logical networks. Only stations within the same group can communicate with each other.

Your ZyXEL Device can add IEEE 802.1Q VLAN ID tags to voice frames that it sends to the network. This allows the ZyXEL Device to communicate with a SIP server that is a member of the same VLAN group. Some ISPs use the VLAN tag to identify voice traffic and give it priority over other traffic.

9.2 SIP Screens

9.2.1 SIP Settings Screen

Use this screen to maintain basic information about each SIP account. Your VoIP service provider (the company that lets you make phone calls over the Internet) should provide this. You can also enable and disable each SIP account. To access this screen, click VoIP > SIP > SIP Settings.

Figure 76 VolP > SIP > SIP Settings

Each field is described in the following table.

Table 60 VoIP > SIP > SIP Settings

LABEL	DESCRIPTION
SIP Account	Select the SIP account you want to see in this screen. If you change this field, the screen automatically refreshes.
SIP Settings
Active SIP Account	Select this if you want the ZyXEL Device to use this account. Clear it if you do not want the ZyXEL Device to use this account.
Number	Enter your SIP number. In the full SIP URI, this is the part before the @ symbol. You can use up to 127 printable ASCII characters.
SIP Local Port	Enter the ZyXEL Device's listening port number, if your VoIP service provider gave you one. Otherwise, keep the default value.
SIP Server Address	Enter the IP address or domain name of the SIP server provided by your VoIP service provider. You can use up to 95 printable ASCII characters. It does not matter whether the SIP server is a proxy, redirect or register server.
SIP Server Port	Enter the SIP server's listening port number, if your VoIP service provider gave you one. Otherwise, keep the default value.
REGISTER Server Address	Enter the IP address or domain name of the SIP register server, if your VoIP service provider gave you one. Otherwise, enter the same address you entered in the SIP Server Address field. You can use up to 95 printable ASCII characters.
REGISTER Server Port	Enter the SIP register server's listening port number, if your VoIP service provider gave you one. Otherwise, enter the same port number you entered in the SIP Server Port field.
SIP Service Domain	Enter the SIP service domain name. In the full SIP URI, this is the part after the @ symbol. You can use up to 127 printable ASCII Extended set characters.

Table 60 VoIP > SIP > SIP Settings

LABEL	DESCRIPTION
Send Caller ID	Select this if you want to send identification when you make VoIP phone calls.Clear this if you do not want to send identification.
Authentication
UserID	Enter the user name for registering this SIP account, exactly as it was given to you.You can use up to 95 printable ASCII characters.
Password	Enter the user name for registering this SIP account, exactly as it was given to you.You can use up to 95 printable ASCII Extended set characters.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.
Advanced Setup	Click this to edit the advanced settings for this SIP account. The Advanced SIP Setup screen appears.

9.2.2 Advanced SIP Setup Screen

Use this screen to maintain advanced settings for each SIP account. To access this screen, click Advanced Setup in VoIP > SIP > SIP Settings.

Figure 77 VoIP > SIP > SIP Settings > Advanced

Each field is described in the following table.

Table 61 VoIP > SIP > SIP Settings > Advanced

LABEL	DESCRIPTION
SIP Account	This field displays the SIP account you see in this screen.
SIP Server Settings
URL Type	Select whether or not to include the SIP service domain name when the ZyXEL Device sends the SIP number.SIP - include the SIP service domain nameTEL - do not include the SIP service domain name
Expiration Duration	Enter the number of seconds your SIP account is registered with the SIP register server before it is deleted. The ZyXEL Device automatically tries to re-register your SIP account when one-half of this time has passed. (The SIP register server might have a different expiration.)
Register Re-send timer	Enter the number of seconds the ZyXEL Device waits before it tries again to register the SIP account, if the first try failed or if there is no response.
Session Expires	Enter the number of seconds the conversation can last before the call is automatically disconnected. Usually, when one-half of this time has passed, the ZyXEL Device or the other party updates this timer to prevent this from happening.
Min-SE	Enter the minimum number of seconds the ZyXEL Device accepts for a session expiration time when it receives a request to start a SIP session. If the request has a shorter time, the ZyXEL Device rejects it.
RTP Port Range
Start Port End Port	Enter the listening port number(s) for RTP traffic, if your VoIP service provider gave you this information. Otherwise, keep the default values.To enter one port number, enter the port number in the Start Port and End Port fields.To enter a range of ports, • enter the port number at the beginning of the range in the Start Port field • enter the port number at the end of the range in the End Port field.
Voice Compression	Select the type of voice coder/decoder (codec) that you want the ZyXEL Device to use. G.711 provides higher voice quality but requires more bandwidth (64 kbps).• G.711A is typically used in Europe.• G.711u is typically used in North America and Japan.In contrast, G.729 only requires 8 kbps.The ZyXEL Device must use the same codec as the peer. When two SIP devices start a SIP session, they must agree on a codec.Note: In order to use the VoIP trunking feature you must set the Primary Compression Type to G.729.
Primary Compression Type	Select the ZyXEL Device's first choice for voice coder/decoder.
Secondary Compression Type	Select the ZyXEL Device's second choice for voice coder/decoder. Select None if you only want the ZyXEL Device to accept the first choice.
Third Compression Type	This field is disabled if Secondary Compression Type is None.Select the ZyXEL Device's third choice for voice coder/decoder. Select None if you only want the ZyXEL Device to accept the first or second choice.

Table 61 VoIP > SIP > SIP Settings > Advanced

LABEL	DESCRIPTION
DTMF Mode	Control how the ZyXEL Device handles the tones that your telephone makes when you push its buttons. You should use the same mode your VoIP service provider uses.RFC 2833 - send the DTMF tones in RTP packetsPCM - send the DTMF tones in the voice data stream. This method works best when you are using a codec that does not use compression (like G.711). Codecsthat use compression (like G.729) can distort the tones.SIP INFO - send the DTMF tones in SIP messagesNote: In order to use the VoIP trunking feature you must set DTMFMode to SIP INFO.
STUN
Active	Select this if all of the following conditions are satisfied.• There is a NAT router between the ZyXEL Device and the SIP server.The NAT router is not a SIP ALG.Your VoIP service provider gave you an IP address or domain name for a STUN server.Otherwise, clear this field.
Server Address	Enter the IP address or domain name of the STUN server provided by your VoIP service provider.
Server Port	Enter the STUN server's listening port, if your VoIP service provider gave you one.Otherwise, keep the default value.
Use NAT
Active	Select this if you want the ZyXEL Device to send SIP traffic to a specific NAT router. You must also configure the NAT router to forward traffic with the specified port to the ZyXEL Device. This eliminates the need for STUN or a SIP ALG.
Server Address	Enter the public IP address or domain name of the NAT router.
Server Port	Enter the port number that your SIP sessions use with the public IP address of the NAT router.
Outbound Proxy
Active	Select this if your VoIP service provider has a SIP outbound server to handle voice calls. This allows the ZyXEL Device to work with any type of NAT router and eliminates the need for STUN or a SIP ALG. Turn off any SIP ALG on a NAT router in front of the ZyXEL Device to keep it from retranslating the IP address (since this is already handled by the outbound proxy server).
Server Address	Enter the IP address or domain name of the SIP outbound proxy server.
Server Port	Enter the SIP outbound proxy server's listening port, if your VoIP service provider gave you one. Otherwise, keep the default value.
NAT Keep Alive
Active	Select this to stop NAT routers between the ZyXEL Device and SIP server (a SIP proxy server or outbound proxy server) from dropping the SIP session. The ZyXEL Device does this by sending SIP notify messages to the SIP server based on the specified interval.
Keep Alive with SIP Proxy	Select this if the SIP server is a SIP proxy server.
Keep Alive with Outbound Proxy	Select this if the SIP server is an outbound proxy server. You must enable Outbound Proxy to use this.

Table 61 VoIP > SIP > SIP Settings > Advanced

LABEL	DESCRIPTION
Keep Alive Interval	Enter how often (in seconds) the ZyXEL Device should send SIP notify messages to the SIP server.
MWI (Message Waiting Indication)
Enable	Select this if you want to hear a waiting (beeping) dial tone on your phone when you have at least one voice message. Your VoIP service provider must support this feature.
Expiration Time	Keep the default value, unless your VoIP service provider tells you to change it. Enter the number of seconds the SIP server should provide the message waiting service each time the ZyXEL Device subscribes to the service. Before this time passes, the ZyXEL Device automatically subscribes again.
Fax Option	This field controls how the ZyXEL Device handles fax messages.
G.711 Fax Passthrough	Select this if the ZyXEL Device should use G.711 to send fax messages. The peer devices must also use G.711.
T.38 Fax Relay	Select this if the ZyXEL Device should send fax messages as UDP or TCP/IP packets through IP networks. This provides better quality, but it may have interoperability problems. The peer devices must also use T.38.
Call Forward
Call Forward Table	Select which call forwarding table you want the ZyXEL Device to use for incoming calls. You set up these tables in VoIP > Phone Book > Incoming Call Policy.
Caller Ringing
Enable	Check this box if you want people to hear a recording when they call you.
On Hold
Enable	Check this box if you want people to hear a recording when you put them on hold.
<Back	Click this to return to the SIP Settings screen without saving your changes.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

9.2.3 SIP QoS Screen

Use this screen to maintain ToS and VLAN settings for the ZyXEL Device. To access this screen, click VoIP > SIP > QoS.

Figure 78 VoIP > SIP > QoS

Each field is described in the following table.

Table 62 VoIP > SIP > QoS

LABEL	DESCRIPTION
SIP TOS Priority Setting	Enter the priority for SIP voice transmissions. The ZyXEL Device creates Type of Service priority tags with this priority to voice traffic that it transmits.
RTP TOS Priority Setting	Enter the priority for RTP voice transmissions. The ZyXEL Device creates Type of Service priority tags with this priority to RTP traffic that it transmits.
Voice VLAN ID	Select this if the ZyXEL Device has to be a member of a VLAN to communicate with the SIP server. Ask your network administrator, if you are not sure. Enter the VLAN ID provided by your network administrator in the field on the right. Your LAN and gateway must be configured to use VLAN tags. Otherwise, clear this field.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 10 Phone

Use these screens to configure the phones you use to make phone calls.

10.1 Phone Overview

You can configure the volume, echo cancellation and VAD settings for each individual phone port on the ZyXEL Device. You can also select which SIP account to use for making outgoing calls.

10.1.1 Voice Activity Detection/Silence Suppression/Comfort Noise

Voice Activity Detection (VAD) detects whether or not speech is present. This lets the ZyXEL Device reduce the bandwidth that a call uses by not transmitting "silent packets" when you are not speaking.

When using VAD, the ZyXEL Device generates comfort noise when the other party is not speaking. The comfort noise lets you know that the line is still connected as total silence could easily be mistaken for a lost connection.

10.1.2 Echo Cancellation

G.168 is an ITU-T standard for eliminating the echo caused by the sound of your voice reverberating in the telephone receiver while you talk.

10.1.3 Supplementary Phone Services Overview

Supplementary services such as call hold, call waiting, call transfer and so on, are generally available from your VoIP service provider. The ZyXEL Device supports the following services:

Call Hold
Call Waiting
Making a Second Call
Call Transfer
- Call Forwarding
Three-Way Conference
- Internal Calls

Note: To take full advantage of the supplementary phone services available through the ZyXEL Device's phone ports, you may need to subscribe to the services from your VoIP service provider.

10.1.3.1 The Flash Key

Flashing means to press the hook for a short period of time (a few hundred milliseconds) before releasing it. On newer telephones, there should be a "flash" key (button) that generates the signal electronically. If the flash key is not available, you can tap (press and immediately release) the hook by hand to achieve the same effect. However, using the flash key is preferred since the timing is much more precise. The ZyXEL Device may interpret manual tapping as hanging up if the duration is too long

You can invoke all the supplementary services by using the flash key.

10.1.3.2 Europe Type Supplementary Phone Services

This section describes how to use supplementary phone services with the Europe Type Call Service Mode. Commands for supplementary services are listed in the table below.

After pressing the flash key, if you do not issue the sub-command before the default sub-command timeout (2 seconds) expires or issue an invalid sub-command, the current operation will be aborted.

Table 63 European Type Flash Key Commands

COMMAND	SUB-COMMAND	DESCRIPTION
Flash		Put a current call on hold to place a second call. Switch back to the call (if there is no second call).
Flash	0	Drop the call presently on hold or reject an incoming call which is waiting for answer.
Flash	1	Disconnect the current phone connection and answer the incoming call or resume with caller presently on hold.
Flash	2	1. Switch back and forth between two calls. 2. Put a current call on hold to answer an incoming call. 3. Separate the current three-way conference call into two individual calls (one is on-line, the other is on hold).
Flash	3	Create three-way conference connection.
Flash	*98#	Transfer the call to another phone.

10.1.3.2.1 European Call Hold

Call hold allows you to put a call (A) on hold by pressing the flash key.

If you have another call, press the flash key and then "2" to switch back and forth between caller A and B by putting either one on hold.

Press the flash key and then "0" to disconnect the call presently on hold and keep the current call on line.

Press the flash key and then "1" to disconnect the current call and resume the call on hold.

If you hang up the phone but a caller is still on hold, there will be a remind ring.

10.1.3.2.2 European Call Waiting

This allows you to place a call on hold while you answer another incoming call on the same telephone (directory) number.

If there is a second call to a telephone number, you will hear a call waiting tone. Take one of the following actions.

• Reject the second call.

Press the flash key and then press "0".

• Disconnect the first call and answer the second call.

Either press the flash key and press "1", or just hang up the phone and then answer the phone after it rings.

• Put the first call on hold and answer the second call.

Press the flash key and then "2".

10.1.3.2.3 European Call Transfer

Do the following to transfer an incoming call (that you have answered) to another phone.

1 Press the flash key to put the caller on hold.
2 When you hear the dial tone, dial “*98#” followed by the number to which you want to transfer the call, to operate the Intercom.
3 After you hear the ring signal or the second party answers it, hang up the phone.

10.1.3.2.4 European Three-Way Conference

Use the following steps to make three-way conference calls.

1 When you are on the phone talking to someone, place the flash key to put the caller on hold and get a dial tone.
2 Dial a phone number directly to make another call.
3 When the second call is answered, press the flash key and press "3" to create a three-way conversation.
4 Hang up the phone to drop the connection.
5 If you want to separate the activated three-way conference into two individual connections (one is on-line, the other is on hold), press the flash key and press “2”.

10.1.3.3 USA Type Supplementary Services

This section describes how to use supplementary phone services with the USA Type Call Service Mode. Commands for supplementary services are listed in the table below.

After pressing the flash key, if you do not issue the sub-command before the default sub-command timeout (2 seconds) expires or issue an invalid sub-command, the current operation will be aborted.

Table 64 USA Type Flash Key Commands

COMMAND	SUB-COMMAND	DESCRIPTION
Flash		Put a current call on hold to place a second call. After the second call is successful, press the flash key again to have a three-way conference call. Put a current call on hold to answer an incoming call.
Flash	*98#	Transfer the call to another phone.

10.1.3.3.1 USA Call Hold

Call hold allows you to put a call (A) on hold by pressing the flash key.

If you have another call, press the flash key to switch back and forth between caller A and B by putting either one on hold.

If you hang up the phone but a caller is still on hold, there will be a remind ring.

10.1.3.3.2 USA Call Waiting

This allows you to place a call on hold while you answer another incoming call on the same telephone (directory) number.

If there is a second call to your telephone number, you will hear a call waiting tone.

Press the flash key to put the first call on hold and answer the second call.

10.1.3.3.3 USA Call Transfer

Do the following to transfer an incoming call (that you have answered) to another phone.

1 Press the flash key to put the caller on hold.
2 When you hear the dial tone, dial " 98# ” followed by the number to which you want to transfer the call. to operate the Intercom.
3 After you hear the ring signal or the second party answers it, hang up the phone.

10.1.3.3.4 USA Three-Way Conference

Use the following steps to make three-way conference calls.

1 When you are on the phone talking to someone, place the flash key to put the caller on hold and get a dial tone.
2 Dial a phone number directly to make another call.
3 When the second call is answered, press the flash key, wait for the sub-command tone and press “3” to create a three-way conversation.
4 Hang up the phone to drop the connection.
5 If you want to separate the activated three-way conference into two individual connections (one is on-line, the other is on hold), press the flash key, wait for the sub-command tone and press “2”.

10.2 Phone Screens

10.2.1 Analog Phone Screen

Use this screen to control which SIP accounts and PSTN line each phone uses. To access this screen, click VoIP > Phone > Analog Phone.

Figure 79 VoIP > Phone > Analog Phone

Each field is described in the following table.

Table 65 VoIP > Phone > Analog Phone

LABEL	DESCRIPTION
Phone Port Settings	Select the phone port you want to see in this screen. If you change this field, the screen automatically refreshes.
Outgoing Call Use
SIP1	Select this if you want this phone port to use the SIP1 account when it makes calls. If you select both SIP accounts, the ZyXEL Device tries to use the SIP account which was registered last.

Table 65 VoIP > Phone > Analog Phone

LABEL	DESCRIPTION
SIP2	Select this if you want this phone port to use the SIP2 account when it makes calls. If you select both SIP accounts, the ZyXEL Device tries to use the SIP account which was registered last.
Incoming Call apply to
SIP1	Select this if you want to receive phone calls for the SIP1 account on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.
SIP2	Select this if you want to receive phone calls for the SIP2 account on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.
PSTN Line	Select this if you want to receive phone calls from the PSTN line (that do not use the Internet) on this phone port. If you select more than one source for incoming calls, there is no way to distinguish between them when you receive phone calls.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.
Advanced Setup	Click this to edit the advanced settings for this phone port. The Advanced Analog Phone Setup screen appears.

10.2.2 Advanced Analog Phone Setup Screen

Use this screen to edit advanced settings for each phone port. To access this screen, click Advanced Setup in VoIP > Phone > Analog Phone.

Figure 80 VoIP > Phone > Analog Phone > Advanced

Each field is described in the following table.

Table 66 VoIP > Phone > Analog Phone > Advanced

LABEL	DESCRIPTION
Analog Phone	This field displays the phone port you see in this screen.
Voice Volume Control
Speaking Volume	Enter the loudness that the ZyXEL Device uses for speech that it sends to the peer device. -1 is the quietest, and 1 is the loudest.
Listening Volume	Enter the loudness that the ZyXEL Device uses for speech that it receives from the peer device. -1 is the quietest, and 1 is the loudest.
Echo Cancellation
G.168 Active	Select this if you want to eliminate the echo caused by the sound of your voice reverberating in the telephone receiver while you talk.
Dialing Interval Select
Dialing Interval Select	Enter the number of seconds the ZyXEL Device should wait after you stop dialing numbers before it makes the phone call. The value depends on how quickly you dial phone numbers. If you select Active Immediate Dial in VoIP > Phone > Common, you can press the pound key (#) to tell the ZyXEL Device to make the phone call immediately, regardless of this setting.
VAD Support	Select this if the ZyXEL Device should stop transmitting when you are not speaking. This reduces the bandwidth the ZyXEL Device uses.
<Back	Click this to return to the Analog Phone screen without saving your changes.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

10.2.3 Common Phone Settings Screen

Use this screen to activate and deactivate immediate dialing. To access this screen, click VoIP > Phone > Common.

Figure 81 VoIP > Phone > Common

Each field is described in the following table.

Table 67 VoIP > Phone > Common

LABEL	DESCRIPTION
Active Immediate Dial	Select this if you want to use the pound key (#) to tell the ZyXEL Device to make the phone call immediately, instead of waiting the number of seconds you selected in the Dialing Interval Select in VoIP > Phone > Analog Phone. If you select this, dial the phone number, and then press the pound key if you don't want to wait. The ZyXEL Device makes the call immediately.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

10.2.4 Phone Region Screen

Use this screen to maintain settings that often depend on which region of the world the ZyXEL Device is in. To access this screen, click VoIP > Phone > Region.

Figure 82 VolP > Phone > Region

Each field is described in the following table.

Table 68 VoIP > Phone > Region

LABEL	DESCRIPTION
Region Settings	Select the place in which the ZyXEL Device is located. Do not select Default.
Call Service Mode	Select the mode for supplementary phone services (call hold, call waiting, call transfer and three-way conference calls) that your VoIP service provider supports. Europe Type - use supplementary phone services in European mode USA Type - use supplementary phone services American mode You might have to subscribe to these services to use them. Contact your VoIP service provider.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 11 Phone Book

Use these screens to maintain call-forwarding rules and speed-dial settings.

11.1 Phone Book Overview

Speed dial provides shortcuts for dialing frequently used (VoIP) phone numbers. It is also required if you want to make peer-to-peer calls. In peer-to-peer calls, you call another VoIP device directly without going through a SIP server. In the ZyXEL Device, you must set up a speed dial entry in the phone book in order to do this. Select Non-Proxy (Use IP or URL) in the Type column and enter the callee's IP address or domain name. The ZyXEL Device sends SIP INVITE requests to the peer VoIP device when you use the speed dial entry.

You do not need to configure a SIP account in order to make a peer-to-peer VoIP call.

11.2 Phone Book Screens

11.2.1 Incoming Call Policy Screen

Use this screen to maintain rules for handling incoming calls. You can block, redirect, or accept them. To access this screen, click VoIP > Phone Book > Incoming Call Policy.

Figure 83 VoIP > Phone Book > Incoming Call Policy

You can create two sets of call-forwarding rules. Each one is stored in a call-forwarding table. Each field is described in the following table.

Table 69 VoIP > Phone Book > Incoming Call Policy

LABEL	DESCRIPTION
Table Number	Select the call-forwarding table you want to see in this screen. If you change this field, the screen automatically refreshes.
Forward to Number Setup	The ZyXEL Device checks these rules, in the order in which they appear, after it checks the rules in the Advanced Setup section.
Unconditional Forward to Number	Select this if you want the ZyXEL Device to forward all incoming calls to the specified phone number, regardless of other rules in the Forward to Number section. Specify the phone number in the field on the right.
Busy Forward to Number	Select this if you want the ZyXEL Device to forward incoming calls to the specified phone number if the phone port is busy. Specify the phone number in the field on the right. If you have call waiting, the incoming call is forwarded to the specified phone number if you reject or ignore the second incoming call.
No Answer Forward to Number	Select this if you want the ZyXEL Device to forward incoming calls to the specified phone number if the call is unanswered. (See No Answer Waiting Time.) Specify the phone number in the field on the right.
No Answer Waiting Time	This field is used by the No Answer Forward to Number feature and No Answer conditions below. Enter the number of seconds the ZyXEL Device should wait for you to answer an incoming call before it considers the call is unanswered.

Table 69 VoIP > Phone Book > Incoming Call Policy

LABEL	DESCRIPTION
Advanced Setup	The ZyXEL Device checks these rules before it checks the rules in the Forward to Number section.
#	This field is a sequential value, and it is not associated with a specific rule. The sequence is important, however. The ZyXEL Device checks each rule in order, and it only follows the first one that applies.
Activate	Select this to enable this rule. Clear this to disable this rule.
Incoming Call Number	Enter the phone number to which this rule applies.
Forward to Number	Enter the phone number to which you want to forward incoming calls from the Incoming Call Number. You may leave this field blank, depending on the Condition.
Condition	Select the situations in which you want to forward incoming calls from the Incoming Call Number, or select an alternative action. Unconditional - The ZyXEL Device immediately forwards any calls from the Incoming Call Number to the Forward to Number. Busy - The ZyXEL Device forwards any calls from the Incoming Call Number to the Forward to Number when your SIP account already has a call connected. No Answer - The ZyXEL Device forwards any calls from the Incoming Call Number to the Forward to Number when the call is unanswered. (See No Answer Waiting Time.) Block - The ZyXEL Device rejects calls from the Incoming Call Number. Accept - The ZyXEL Device allows calls from the Incoming Call Number. You might create a rule with this condition if you do not want incoming calls from someone to be forwarded by rules in the Forward to Number section.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

11.2.2 Speed Dial Screen

You have to create speed-dial entries if you want to make peer-to-peer calls or call SIP numbers that use letters. You can also create speed-dial entries for frequently-used SIP phone numbers. Use this screen to add, edit, or remove speed-dial entries. To access this screen, click VoIP > Phone Book > Speed Dial.

Figure 84 VoIP > Phone Book > Speed Dial

Each field is described in the following table.

Table 70 VoIP > Phone Book > Speed Dial

LABEL	DESCRIPTION
Speed Dial	Use this section to create or edit speed-dial entries.
Speed Dial	Select the speed-dial number you want to use for this phone number.
Number	Enter the SIP number you want the ZyXEL Device to call when you dial the speed-dial number.
Name	Enter a name to identify the party you call when you dial the speed-dial number. You can use up to 127 printable ASCII characters.
Type	Select Use Proxy if you want to use one of your SIP accounts to call this phone number. Select Non-Proxy (Use IP or URL) if you want to use a different SIP server or if you want to make a peer-to-peer call. In this case, enter the IP address or domain name of the SIP server or the other party in the field below.
Add	Click this to use the information in the Speed Dial section to update the Speed Dial Phone Book section.
Speed Dial Phone Book	Use this section to look at all the speed-dial entries and to erase them.
Speed Dial	This field displays the speed-dial number you should dial to use this entry. You should dial the numbers the way they appear in the screen.
Number	This field displays the SIP number the ZyXEL Device calls when you dial the speed-dial number.
Name	This field displays the name of the party you call when you dial the speed-dial number.

Table 70 VoIP > Phone Book > Speed Dial

LABEL	DESCRIPTION
Destination	This field is blank, if the speed-dial entry uses one of your SIP accounts. Otherwise, this field shows the IP address or domain name of the SIP server or other party. (This field corresponds with the Type field in the Speed Dial section.)
Modify	Use this field to edit or erase the speed-dial entry. Click the Edit icon to copy the information for this speed-dial entry into the Speed Dial section, where you can change it. Click the Remove icon to erase this speed-dial entry.
Clear	Click this to erase all the speed-dial entries.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 12 PSTN Line

This chapter applies to P-2302HWL-P1 models only. Use this screen to set up the PSTN line used to make regular phone calls. These phone calls do not use the Internet.

12.1 PSTN Line Overview

With the Public Switched Telephone Network (PSTN) line, you can make and receive regular phone calls. Use a prefix number to make a regular call. When the ZyXEL Device does not have power, you can make regular calls without dialing a prefix number.

You can also specify phone numbers that should always use the regular phone service (without having to dial a prefix number). Do this for emergency numbers (like those for contacting police, fire or emergency medical services).

Note: When the ZyXEL Device does not have power, only the phone connected to the PHONE 1 port can be used for making calls. Ensure you know which phone this is, so that in case of emergency you can make outgoing calls.

12.2 PSTN Line General Screen

Use this screen to set up the PSTN line you use to make regular phone calls. To access this screen, click VoIP > PSTN Line > General.

Figure 85 VoIP > PSTN Line > General

Each field is described in the following table.

Table 71 VoIP > PSTN Line > General

LABEL	DESCRIPTION
PSTN Line Pre-fix Number	Enter 1 - 7 telephone keys (0 - 9, #, *) you dial before you dial the phone number, if you want to make a regular phone call while one of your SIP accounts is registered. These numbers tell the ZyXEL Device that you want to make a regular phone call. It is not recommended to use the # key, however, because it is also used in Immediate Dial. (See VoIP > Phone > Common.)
Relay to PSTN Line	Enter phone numbers (for regular calls, not VoIP calls) that you want to dial without the prefix number. For example, you should enter emergency numbers. The number (1 - 9) is not a speed-dial number. It is just a sequential value that is not associated with any phone number.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 13 Volp Trunking

Use these screens to configure VoIP trunking on your ZyXEL Device.

13.1 VoIP Trunking Overview

VoIP trunking connects an IP network (like the Internet) and the Public Switched Telephone Network (PSTN). PSTN includes the world's circuit-switched telephone network which is composed of fixed and mobile telephones. VoIP trunking allows you to create VoIP links which PSTN (Public Switched Telephone Network) callers can use to:

• Make phone calls via the Internet - Make a PSTN call to the ZyXEL Device and it forwards the call to any SIP based VoIP phone.
• Save on long distance calls - The ZyXEL Device creates a VoIP link which can be used to connect to a PSTN phone in another country, province, region and so on.

Similarly, VoIP callers can:

• Make calls to PSTN subscribers at reduced cost - Connect to the ZyXEL Device via VoIP and the ZyXEL Device forwards the call to a PSTN phone.

Creating a link over the IP network requires two VoIP devices. VoIP trunking scenarios vary depending on how the VoIP devices work together and how they receive or forward PSTN calls. The following sections describe the details of VoIP trunking.

13.2 VoIP Trunking and Security

Your ZyXEL Device provides two types of authentication to prevent unauthorized callers from using it for VoIP trunking.

13.2.1 Auto Attendant and Authentication

Auto attendant is the ZyXEL Device's name for a service which controls settings specific to VoIP trunking. Most importantly it controls authentication for VoIP trunking. Auto attendant authentication is similar to using a calling card with a PIN (Personal Identification Number). Your ZyXEL Device can be configured so that it prompts callers to enter a PIN (via the phone pad) in order to process any call forwarding requests.

Other settings controlled by the auto attendant include a time limit to decide whether you want to forward a call from the ZyXEL Device or call the phone directly connected to the ZyXEL Device. When you call into your ZyXEL Device you can request to forward a call to another phone number simply by dialing that number. If you don't dial any number within a specified time limit (for example 5 seconds) then the phone directly connected to the ZyXEL Device rings. It also controls the time limit you have between dialing digits of a phone number.

13.2.2 Peer Call Authentication

VoIP devices can make peer calls to each other by using the IP address instead of a SIP number to establish a call. The advantage of this is that you do not need to pay a VoIP service provider. VoIP devices that connect using an IP address are referred to here as peer devices. A local peer device is where the VoIP call originates and a remote peer device is where the VoIP call ends. In the following figure, local peer device (A) connects to a remote peer device (B) via the IP address of B.

Figure 86 Peer Devices Connecting

A peer-to-peer call doesn't require any authentication, however, authentication is required when you request the remote peer device to forward a call. The remote peer device has a list of accounts, each consisting of a username and password, which are allowed to use the remote peer device to forward calls. These accounts make up an incoming authentication list.

The local peer device has a corresponding list of outgoing authentication accounts. These accounts consist of the IP address of a remote peer device, the port number to communicate over as well as a username and password to use for authentication. An outgoing authentication account must match an incoming authentication account's username and password in order for the remote device to forward calls. The following table shows example entries for incoming and outgoing authentication. The bolded entries must match in order for authentication between two peer devices to occur.

Table 72 Matching Incoming and Outgoing Authentication

ACCOUNT DETAILS	LOCAL PEER DEVICE	REMOTE PEER DEVICE
Outgoing Authentication
Username	localDeviceA	localDeviceB
Password	passwordA	passwordB
Incoming Authentication
Username	userone	localDeviceA
Password	userpassword	passwordA

13.3 Call Rules

Call rules automate the forwarding of calls, first to a remote peer device and then to PSTN phones. This is used when you make frequent calls to several PSTN numbers in the same geographic area that start with the same numbers (for example an area code). If there is a remote peer device in that area, you can set up a VoIP link to it and have it forward the calls to PSTN phones. This works by configuring a pattern that the ZyXEL Device can recognize. A pattern is just the initial string of digits shared by the phone numbers. The following table shows the relationship between the phone numbers you want to call, the pattern you want to configure and the rule you want to set up.

Table 73 Call Rules

FREQUENTLY CALLED PSTN NUMBERS	PATTERN	CALL RULE
1-555-555-4321	1555	Set up a peer call to a remote peer device to forward calls starting with the numbers 1555.
1-555-544-5678
1-555-432-8888
1-111-555-4321	1111	Set up a peer call to a remote peer device to forward calls starting with the numbers 1111.
1-111-544-5678
1-111-432-8888

13.4 VoIP Trunking Scenarios

There are several different VoIP trunking scenarios.

13.4.1 VoIP Phone To PSTN Phone

A VoIP phone A makes a call to the ZyXEL Device B via VoIP. B forwards the call to a PSTN phone C. A can be an analog phone connected to the ZyXEL Device or any other phone capable of making calls over the IP network.

Figure 87 VoIP Phone To PSTN Phone

13.4.2 PSTN Phone To VoIP Phone

A PSTN phone A makes a call to the ZyXEL Device B. B connects A to a VoIP phone C over the IP network.

Figure 88 PSTN Phone To VoIP Phone

13.4.3 PSTN Phone To PSTN Phone via VoIP

A PSTN phone A makes a call to the ZyXEL Device B. B connects to a peer device C and C forwards the call to a PSTN phone D.

Figure 89 PSTN Phone To PSTN Phone via VoIP

13.5 Trunking General Screen

Use this screen to enable VoIP trunking, click VoIP > Trunking > General.

Note: VoIP trunking requires the following additional configuration in the VoIP > SIP > SIP Settings > Advanced Setup screen: Voice Compression field needs to be set to G.729 and DTMF Mode field needs to be set to SIP INFO.

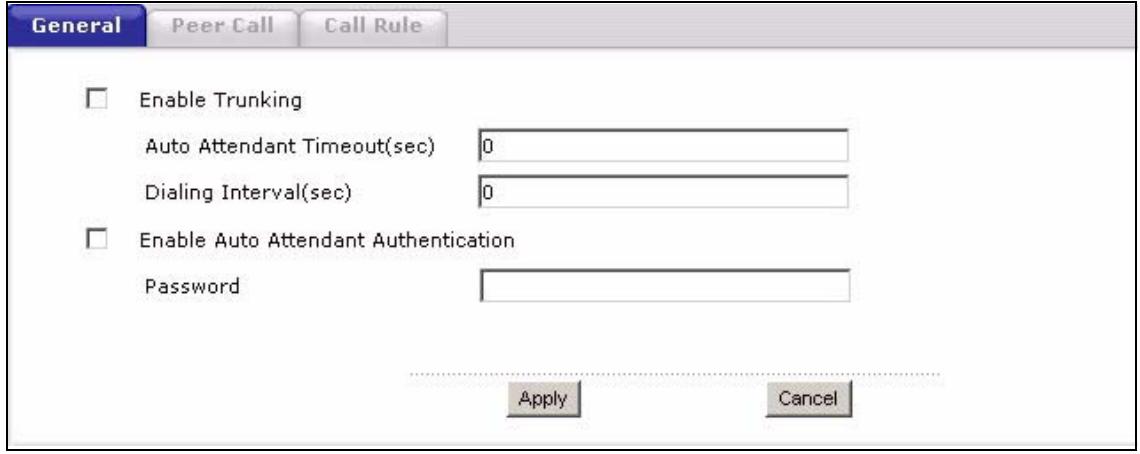

Figure 90 VoIP > Trunking > General

Each field is described in the following table.

Table 74 VoIP > Trunking > General

LABEL	DESCRIPTION
Enable Trunking	Select this to turn on VoIP trunking on your ZyXEL Device.
Auto Attendant Timeout(sec)	This is the setting which determines how long the ZyXEL Device waits for a caller to enter a phone number when it receives the call. Enter the number of seconds before the Auto Attendant times out. The default value is 10 seconds and entering 0 does not change the default. Enter a value from 1 to 255 seconds.When the auto attendant times out, the phone directly connected to the ZyXEL Device rings.
Dialing Interval(sec)	Enter the number of seconds the ZyXEL Device should wait after you stop dialing numbers before it makes the phone call. The value depends on how quickly you dial phone numbers. The default value is 3 seconds and entering 0 does not change the default. Enter a value from 1 to 255 seconds.
Enable Auto Attendant Authentication	Select this to enable authentication for calls coming into your ZyXEL Device. This is similar to enabling a PIN (Personal Identification Number) that callers must enter to forward calls via your ZyXEL Device.
Password	This is the PIN callers have to enter via their phone pad when dialing into your ZyXEL Device to forward calls through it. Enter a number between 1 and 32 digits long.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to reset the fields.

13.6 Trunking Peer Call Screen

Use this screen to set up outgoing authentication accounts for forwarding calls through peer devices and incoming authentication accounts for forwarding calls from peer devices. To access this screen, click VoIP > Trunking > Peer Call.

Figure 91 VoIP > Trunking > Peer Call

Each field is described in the following table.

Table 75 VoIP > Trunking > Peer Call

LABEL	DESCRIPTION
Outgoing Authentication	You need to set up accounts for the peer devices you use in VoIP trunking. This is the IP address of the remote peer device, as well as the username and password needed to authenticate with the remote peer device.
#	This is an index number of your outgoing authentication accounts.
Name	Enter a descriptive name for the remote peer device of this account. For example, if the peer device is located in London, you might enter London as the account name. This name is used when you configure call rules in the VoIP > Trunking > Call Rules screen.
Username	Enter the username needed to authenticate at the remote peer device. The remote peer device must have the same username in an incoming authentication entry in order to authenticate your connection. Enter up to 32 alphanumeric characters.
Password	Enter the corresponding password for the username you entered. The remote peer device must have the same password in an incoming authentication entry in order to authenticate your connection. Enter up to 32 alphanumeric characters.
Peer IP	Enter the IP address of the remote peer device which you want to connect to.
Peer Port	Enter the port number through which your ZyXEL Device will connect to the remote peer device. The default value is the standard port for VoIP communication. Do not change this value unless the remote peer device does not follow the standard.
Incoming Authentication	You can set up multiple accounts which are allowed to use your ZyXEL Device for VoIP trunking. When peer devices want to forward calls through your ZyXEL Device, this is the list your ZyXEL Device checks to see if the user has the right to complete the call.
#	This is the index number of the incoming authentication accounts.
Username	Enter a username for the account. This username is used to authenticate peer devices forwarding calls through the ZyXEL Device. Enter up to 32 alphanumeric characters.
Password	Enter the password for the corresponding username. This password is used to authenticate peer devices calling the ZyXEL Device. Enter up to 32 alphanumeric characters.
Apply	Click this to apply your settings to the ZyXEL Device.
Cancel	Click this to reset the fields to their last saved values.

13.7 Trunking Call Rule Screen

Use this screen to set up rules that determine which peer VoIP device your call will be forwarded to. To access this screen, click VoIP > Trunking > Call Rule.

Figure 92 VoIP > Trunking > Call Rule

Each field is described in the following table.

Table 76 VoIP > Trunking > Call Rule

LABEL	DESCRIPTION
#	This is a read-only index number of the call rules.
Pattern	A Pattern is used when you call your ZyXEL Device from a PSTN phone and want to use it to create a VoIP link to a remote peer device which will forward the call to a PSTN phone.A Pattern is a string of digits your ZyXEL Device uses to determine whether or not to send the call to a peer VoIP device. For example, if you want to use trunking to call phone numbers which start with the number “555”, then enter 555 in this field. Enter up to 32 numeric characters.If the number you dial does not match any of the patterns you configured, then you can still use your ZyXEL Device to forward calls to VoIP phones. Simply dial the SIP number of the VoIP phone you want to call.
Account	Select the outgoing authentication account you set up in the Peer Call screen. This account is used to direct your call to the correct remote peer device and to authenticate you.Select None to disable this forwarding rule.
Apply	Click this to apply your settings to the ZyXEL Device.
Cancel	Click this to reset the fields.

13.8 VoIP Trunking Example: VoIP to PSTN

This example shows how to configure VoIP to PSTN trunking to save on long distance calls.

13.8.1 Background Information

A company has its headquarters in city A and a branch office in city B. The headquarters often needs to call salespeople employed at the branch office. The sales employees often work away from the office and have PSTN phones (mobile or land based). The two offices have VoIP trunking devices and want to use VoIP trunking to save on calls from the headquarters to their sales team. The head office has a public IP address a.b.c.d and the branch office has a public IP address w.x.y.z.

Figure 93 VoIP to PSTN Example

The proposed solution is to establish a peer-to-peer call between the two ZyXEL Devices and have the branch office ZyXEL Device forward calls to the sales team members via PSTN.

13.8.2 Configuration Details: Outgoing

The ZyXEL Device (at headquarters) from which the call originates needs to have the following configuration settings:

1 Speed dial entries need to be set up for the numbers headquarters wants to call. The destination field of these entries is the IP address of the branch office ZyXEL Device. This must be a non-proxy IP address. The numbers are the phone numbers of the sales team members. This can be configured in the VoIP > Phone Book > Speed Dial screen.

Figure 94 VoIP to PSTN Example - Speed Dial Screen

2 An outgoing authentication account needs to be configured. This account consists of the IP address and port number of the branch office ZyXEL Device as well as the username and password for authentication. This username and password must match the incoming authentication account username and password on the branch office ZyXEL Device. The name of this rule is "CityB" referring to the branch office ZyXEL Device. In this example the username is "headquarters" and the password is "password". This can be configured in the VoIP > Trunking > Peer Call screen.

Figure 95 VoIP to PSTN Example - Outgoing Authentication

13.8.3 Configuration Details: Incoming

The branch office ZyXEL Device needs to have an incoming authentication account configured. This consists of a username and password. This account must match the username and password of the outgoing authentication account of the headquarters' ZyXEL Device. This can be configured in the VoIP > Trunking > Peer Call screen.

Figure 96 VoIP to PSTN Example - Incoming Authentication

13.8.4 Call Progression

The advantage of this kind of VoIP trunking is that once all the configuration is completed, the caller just has to dial a speed dial entry from a phone connected to their ZyXEL Device and the peer devices take care of the rest. This is what happens when headquarters wants to call their Sales1 employee, which is the first entry in the speed dial screen.

Table 77 VoIP Trunking Call Progression

HEADQUARTERS	BRANCH OFFICE	SALES1
A person at A dials #01 from the phone connected to the ZyXEL Device.
The ZyXEL Device at A inspects the number and connects to the remote peer device at B.
The remote peer device inspects the number and requests authentication in order to forward the call.
The ZyXEL Device at A sends outgoing authentication to the remote peer device.
The remote peer device confirms that the username and password match an account in its incoming authentication list.
	The remote peer device forwards the call to Sales1.
Sales1 picks up and the call commences.

13.9 VoIP Trunking Example: PSTN to PSTN via VoIP

This example shows how to configure a PSTN to PSTN call with a VoIP link. It also shows how call rules can be used to automate VoIP trunking.

13.9.1 Background Information

A company has its headquarters in two different cities. The sales manager (A) from headquarters often needs to call salespeople (D) employed at the branch office. The sales manager often works away from the headquarters office and the sales employees often work away from the branch office. The sales manager and the sales employees have PSTN phones (mobile or land based). The two offices have VoIP trunking devices. The sales manager wants to use VoIP trunking to save on calls to his sales team. The head office has a ZyXEL Device (B) with a PSTN line (tel: [phone]) connected to it. The branch office has a ZyXEL Device (C) with a public IP address w.x.y.z. The sales employee (D) has a PSTN phone with the number 555-555-4321.

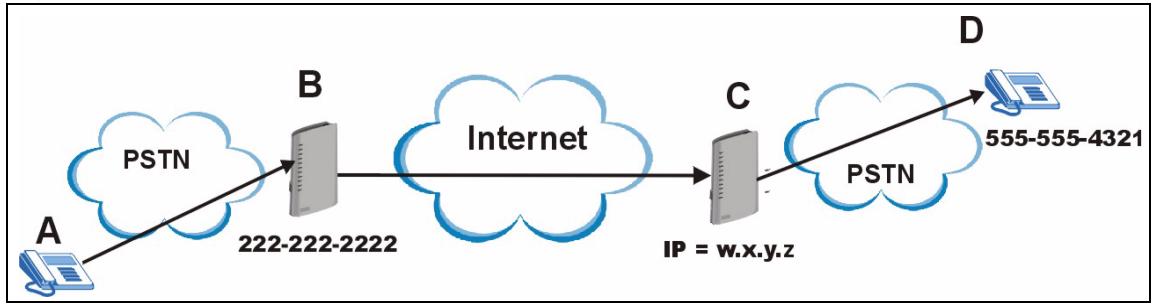

Figure 97 PSTN to PSTN Example

The proposed solution is to configure a call rule which will allow the sales manager to call into the headquarters via PSTN, establish a VoIP link between the two ZyXEL Devices and have the remote peer device forward calls to the sales employees via PSTN.

13.9.2 Configuration Details: Outgoing

The ZyXEL Device (at headquarters) from which the VoIP link originates needs to have the following configuration settings:

1 Auto attendant authentication needs to be enabled for PSTN calls coming into the headquarters' ZyXEL Device. This ensures that no unauthorized callers use VoIP trunking. In this example the PIN (Personal Identification Number) is set to 12345. The settings dealing with dialing interval and a timeout period are left at default. The ZyXEL Device waits 10 seconds (after initial connection between PSTN caller and the ZyXEL Device) for the PSTN caller to initiate VoIP trunking by dialing another number. It waits 3 seconds between dialing digits before it determines that the entire phone number is entered. These settings can be configured in the VoIP > Trunking > General screen.

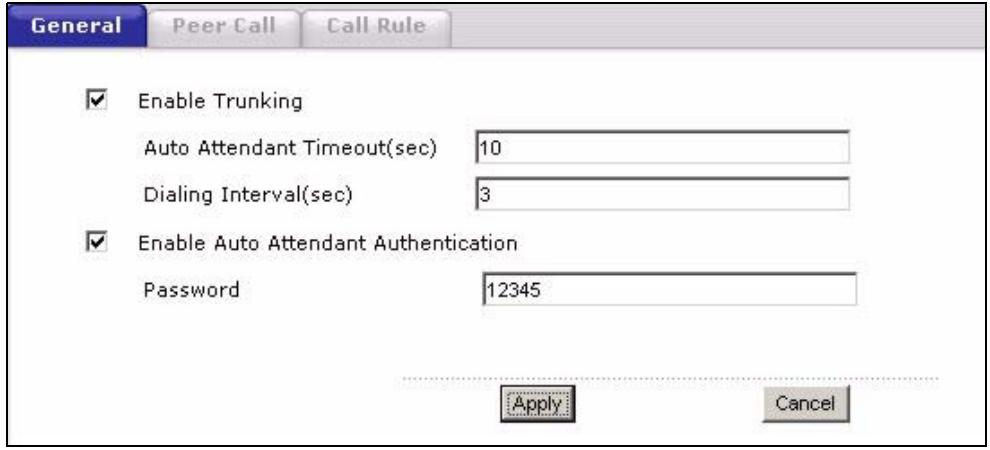

Figure 98 PSTN to PSTN Example: General Configuration

2 An outgoing authentication account needs to be configured. This account consists of the IP address and port number of the branch office ZyXEL Device as well as the username and password for authentication. This username and password must match the incoming authentication account username and password on the branch office ZyXEL Device. The name of this account is "CityB" referring to the branch office ZyXEL Device. In this example the username is "headquarters" and the password is "password". This can be configured in the VoIP > Trunking > Peer Call screen.

Figure 99 PSTN to PSTN Example - Outgoing Authentication

3 A call rule needs to be created. This rule tells the ZyXEL Device which remote peer device it should connect to in order to complete the call. This rule is composed of a pattern and an account name. This pattern is simply the first several digits of the number you want the remote device to connect to. In this example this is the first 4 digits (5555) of Sales1 telephone number. The account name is the name of the outgoing authentication account created in the Speed Dial screen (CityB). This setting can be configured in the VoIP > Trunking > Call Rule screen.

Figure 100 PSTN to PSTN Example - Call Rule

13.9.3 Configuration Details: Incoming

The branch office ZyXEL Device needs to have an incoming authentication account configured. This consists of a username and password. This account must match the username and password of the outgoing authentication account of the headquarters' ZyXEL Device. This can be configured in the VoIP > Trunking > Peer Call screen.

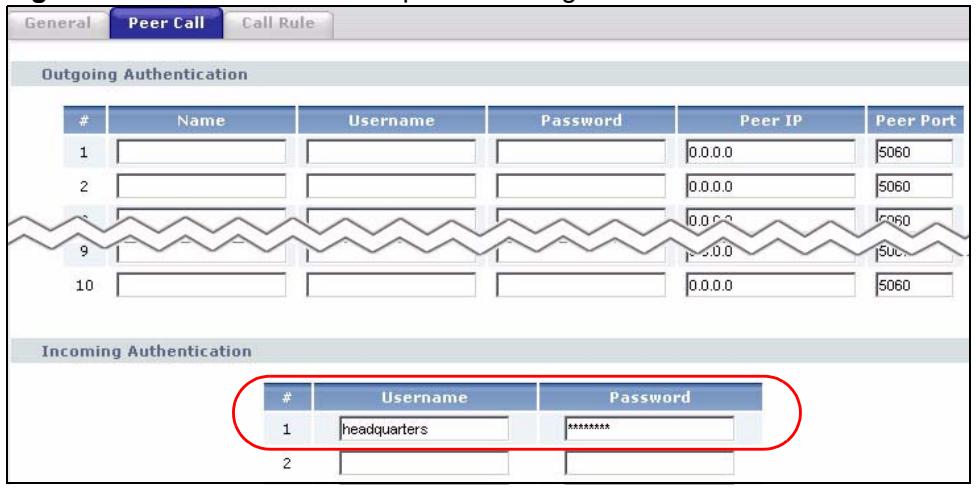

Figure 101 PSTN to PSTN Example - Incoming Authentication

13.9.4 Call Progression

The call is initiated by the manager dialing into the headquarter's ZyXEL Device via PSTN. In this scenario a VoIP link is established between headquarters and the branch office and then the call is forwarded to Sales1 using PSTN.

Table 78 PSTN to PSTN: VoIP Trunking Call Progression

MANAGER	HEADQUARTERS	BRANCH OFFICE	SALES1
The manager dials the PSTN number of the headquarters' ZyXEL Device. (222-222-2222)
The ZyXEL Device receives the call and sends a ringback alert tone to indicate to the caller that VoIP trunking is enabled.
The manager dials the PSTN number of Sales1 (555-555-1234).
The ZyXEL Device prompts the manager to enter the PIN in order to allow VoIP trunking.
The manager dials the PIN (12345).
	The ZyXEL Device confirms the password and allows for VoIP trunking. The ZyXEL Device inspects the phone number against call rules. Since the number starts with the pattern (5555), it uses the account (CityB) associated with this pattern to connect the call to the remote peer device at the branch office.
	The remote peer device inspects the number and requests authentication in order to forward the call.
	The ZyXEL Device at A sends outgoing authentication to the remote peer device.
	The remote peer device confirms that the username and password match an account in its incoming authentication list.
		The remote peer device forwards the call to Sales1.
Sales1 picks up and the call commences.

CHAPTER 14

Firewall

Use these screens to enable, configure and disable the firewall that protects your ZyXEL Device and your LAN from unwanted or malicious traffic.

14.1 Firewall Overview

The networking term "firewall" is a system or group of systems that enforces an access-control policy between two networks. It may also be defined as a mechanism used to protect a trusted network from an untrusted network. Of course, firewalls cannot solve every security problem. A firewall is one of the mechanisms used to establish a network security perimeter in support of a network security policy. It should never be the only mechanism or method employed. For a firewall to guard effectively, you must design and deploy it appropriately. This requires integrating the firewall into a broad information-security policy. In addition, specific policies must be implemented within the firewall itself.

14.1.1 Stateful Inspection Firewall

Stateful inspection firewalls restrict access by screening data packets against defined access rules. They make access control decisions based on IP address and protocol. They also "inspect" the session data to assure the integrity of the connection and to adapt to dynamic protocols. These firewalls generally provide the best speed and transparency; however, they may lack the granular application level access control or caching that some proxies support. Firewalls, of one type or another, have become an integral part of standard security solutions for enterprises.

14.1.2 About the ZyXEL Device Firewall

The ZyXEL Device firewall is a stateful inspection firewall and is designed to protect against Denial of Service attacks when activated. The ZyXEL Device's purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The ZyXEL Device can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.

The ZyXEL Device is installed between the LAN and a broadband modem connecting to the Internet. This allows it to act as a secure gateway for all data passing between the Internet and the LAN.

The ZyXEL Device has one Ethernet WAN port and four Ethernet LAN ports, which are used to physically separate the network into two areas. The WAN (Wide Area Network) port attaches to the broadband (cable or DSL) modem to the Internet.

The LAN (Local Area Network) port attaches to a network of computers, which needs security from the outside world. These computers will have access to Internet services such as e-mail, FTP and the World Wide Web. However, "inbound access" is not allowed (by default) unless the remote host is authorized to use a specific service.

14.1.3 Guidelines For Enhancing Security With Your Firewall

1 Change the default password via web configurator.
2 Think about access control before you connect to the network in any way, including attaching a modem to the port.
3 Limit who can access your router.
4 Don't enable any local service (such as telnet or FTP) that you don't use. Any enabled service could present a potential security risk. A determined hacker might be able to find creative ways to misuse the enabled services to access the firewall or the network.
5 For local services that are enabled, protect against misuse. Protect by configuring the services to communicate only with specific peers, and protect by configuring rules to block packets for the services at specific interfaces.
6 Protect against IP spoofing by making sure the firewall is active.
7 Keep the firewall in a secured (locked) room.

14.1.4 The Firewall, NAT and Remote Management

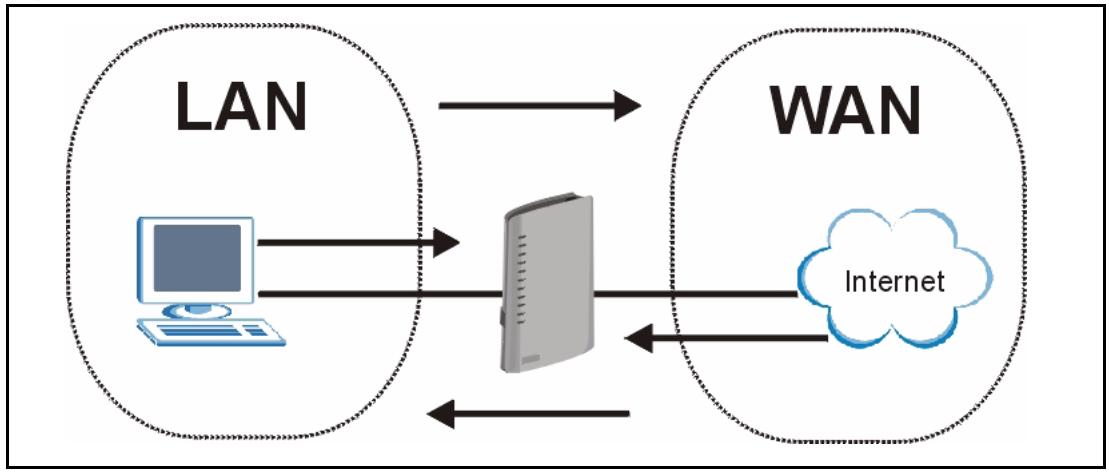

Figure 102 Firewall Rule Directions

14.1.4.1 LAN-to-WAN rules

LAN-to-WAN rules are local network to Internet firewall rules. The default is to forward all traffic from your local network to the Internet.

You can block certain LAN-to-WAN traffic in the Services screen (click the Services tab). All services displayed in the Blocked Services list box are LAN-to-WAN firewall rules that block those services originating from the LAN.

Blocked LAN-to-WAN packets are considered alerts. Alerts are "higher priority logs" that include system errors, attacks and attempted access to blocked web sites. Alerts appear in red in the View Log screen. You may choose to have alerts e-mailed immediately in the Log Settings screen.

LAN-to-LAN/ZyXEL Device means the LAN to the ZyXEL Device LAN interface. This is always allowed, as this is how you manage the ZyXEL Device from your local computer.

14.1.4.2 WAN-to-LAN rules

WAN-to-LAN rules are Internet to your local network firewall rules. The default is to block all traffic from the Internet to your local network.

How can you forward certain WAN to LAN traffic? You may allow traffic originating from the WAN to be forwarded to the LAN by:

• Configuring NAT port forwarding rules.
• Configuring WAN or LAN & WAN access for services in the Remote Management screens. When you allow remote management from the WAN, you are actually configuring WAN-to-WAN/ZyXEL Device firewall rules. WAN-to-WAN/ZyXEL Device firewall rules are Internet to the ZyXEL Device WAN interface firewall rules. The default is to block all such traffic. When you decide what WAN-to-LAN packets to log, you are in fact deciding what WAN-to-LAN and WAN-to-WAN/ZyXEL Device packets to log.

Forwarded WAN-to-LAN packets are not considered alerts.

14.2 Triangle Route

When the firewall is on, your ZyXEL Device acts as a secure gateway between your LAN and the Internet. In an ideal network topology, all incoming and outgoing network traffic passes through the ZyXEL Device to protect your LAN against attacks.

Figure 103 Ideal Firewall Setup

14.2.1 The "Triangle Route" Problem

A traffic route is a path for sending or receiving data packets between two Ethernet devices. You may have more than one connection to the Internet (through one or more ISPs). If an alternate gateway is on the LAN (and its IP address is in the same subnet as the ZyXEL Device's LAN IP address), the "triangle route" (also called asymmetrical route) problem may occur. The steps below describe the "triangle route" problem.

1 A computer on the LAN initiates a connection by sending out a SYN packet to a receiving server on the WAN.
2 The ZyXEL Device reroutes the SYN packet through Gateway A on the LAN to the WAN.
3 The reply from the WAN goes directly to the computer on the LAN without going through the ZyXEL Device.

As a result, the ZyXEL Device resets the connection, as the connection has not been acknowledged.

Figure 104 "Triangle Route" Problem

14.2.2 Solving the "Triangle Route" Problem

If you have the ZyXEL Device allow triangle route sessions, traffic from the WAN can go directly to a LAN computer without passing through the ZyXEL Device and its firewall protection.

Another solution is to use IP alias. IP alias allows you to partition your network into logical sections over the same Ethernet interface. Your ZyXEL Device supports up to three logical LAN interfaces with the ZyXEL Device being the gateway for each logical network.

It's like having multiple LAN networks that actually use the same physical cables and ports. By putting your LAN and Gateway A in different subnets, all returning network traffic must pass through the ZyXEL Device to your LAN. The following steps describe such a scenario.

1 A computer on the LAN initiates a connection by sending a SYN packet to a receiving server on the WAN.
2 The ZyXEL Device reroutes the packet to Gateway A, which is in Subnet 2.

3 The reply from the WAN goes to the ZyXEL Device.
4 The ZyXEL Device then sends it to the computer on the LAN in Subnet 1.

Figure 105 IP Alias

14.3 Firewall Screens

14.3.1 General Firewall Screen

Use this screen to configure the basic settings for your firewall. To access this screen, click Security > Firewall > General.

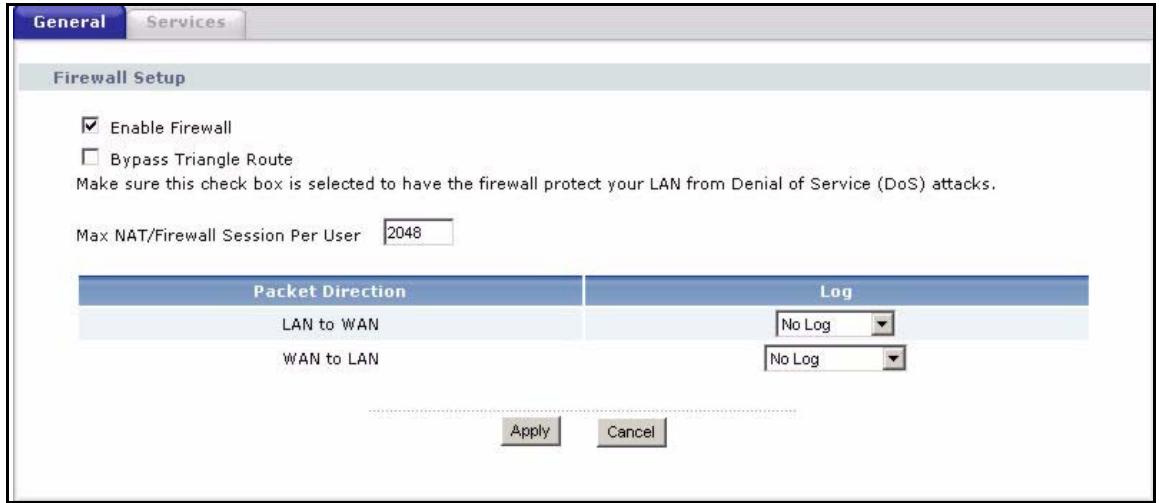

Figure 106 Security > Firewall > General

Each field is described in the following table.

Table 79 Security > Firewall > General

LABEL	DESCRIPTION
Enable Firewall	Select this to activate the firewall. TheZyXEL Device controls access and protects against Denial of Service (DoS) attacks when the firewall is activated.
Bypass Triangle Route	Select this if you want to let some traffic from the WAN go directly to a computer in the LAN without passing through theZyXEL Device. See the appendices for more information about triangle route topology.
Max NAT/Firewall Session Per User	Select the maximum number of NAT rules and firewall rules theZyXEL Device enforces at one time. TheZyXEL Device automatically allocates memory for the maximum number of rules, regardless of whether or not there is a rule to enforce. This is the same number you enter in Network >NAT >General.
Packet Direction	This field displays each direction that packets pass through theZyXEL Device.
Log	Select the situations in which you want to create log entries for firewall events.No Log - do not create any log entriesLog Restricted - (LAN to WAN only) create log entries when packets are blockedLog Forwarded - (WAN to LAN only) create log entries when packets are forwardedLog All - create log entries for every packet
Apply	Click this to save your changes and to apply them to theZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

14.3.2 Firewall Services Screen

Use this screen to enable service blocking, to set up the date and time service blocking is effective, and to maintain the list of services you want to block. To access this screen, click Security > Firewall > Services.

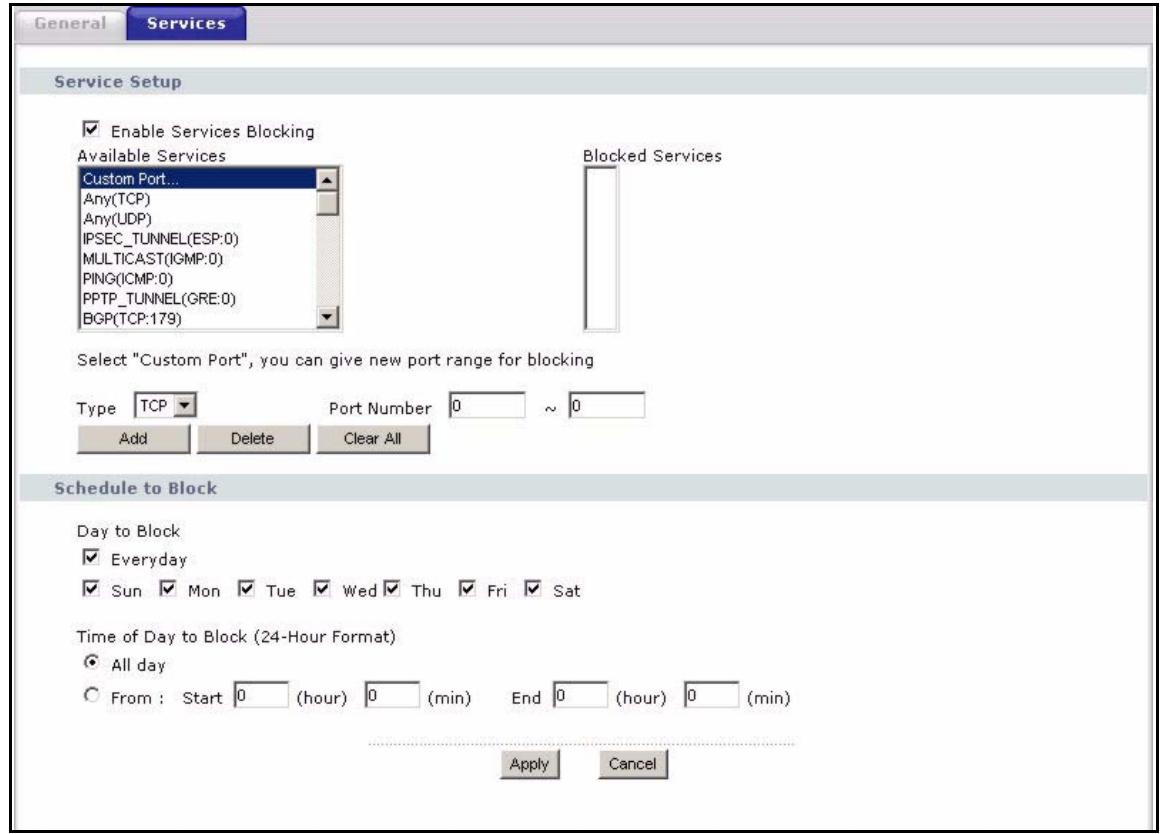

Figure 107 Security > Firewall > Services

Each field is described in the following table.

Table 80 Security > Firewall > Services

LABEL	DESCRIPTION
Service Setup
Enable Services Blocking	Select this to activate service blocking. The Schedule to Block section controls what days and what times service blocking is actually effective, however.
Available Services	This is a list of pre-defined services (destination ports) you may prohibit your LAN computers from using. Select the port you want to block, and click Add to add the port to the Linked Services field.A custom port is a service that is not available in the pre-defined Available Services list. You must define it using the Type and Port Number fields. See Appendix F on page 323 for some examples of services.
Blocked Services	This is a list of services (ports) that are inaccessible to computers on your LAN when service blocking is effective. To remove a service from this list, select the service, and click Delete.
Type	Select TCP or UDP, based on which one the custom port uses.
Port Number	Enter the range of port numbers that defines the service. For example, suppose you want to define the Gnutella service. Select TCP type and enter a port range of 6345-6349.
Add	Click this to add the selected service in Available Services to the Linked Services list.
Delete	Select a service in the Linked Services, and click this to remove the service from the list.

Table 80 Security > Firewall > Services

LABEL	DESCRIPTION
Clear All	Click this to remove all the services in the Restricted Services list.
Schedule to Block
Day to Block	Select which days of the week you want the service blocking to be effective.
Time of Day to Block	Select what time each day you want service blocking to be effective. Enter times in 24-hour format; for example, 3:00pm should be entered as 15:00.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 15 Content Filter

Use these screens to create and enforce policies that restrict access to the Internet based on content.

15.1 Content Filtering Overview

Internet content filtering allows you to create and enforce Internet access policies tailored to their needs. Content filtering is the ability to block certain web features or websites with specific URL keywords.

The ZyXEL Device can block web features such as ActiveX controls, Java applets, cookies and disable web proxies. The ZyXEL Device also allows you to define time periods and days during which the ZyXEL Device performs content filtering.

15.2 Content Filtering Screens

15.2.1 Content Filter Screen

Use this screen to set up a trusted IP address, which web features are restricted, and which keywords are blocked when content filtering is effective. To access this screen, click Security > Content Filter > Filter.

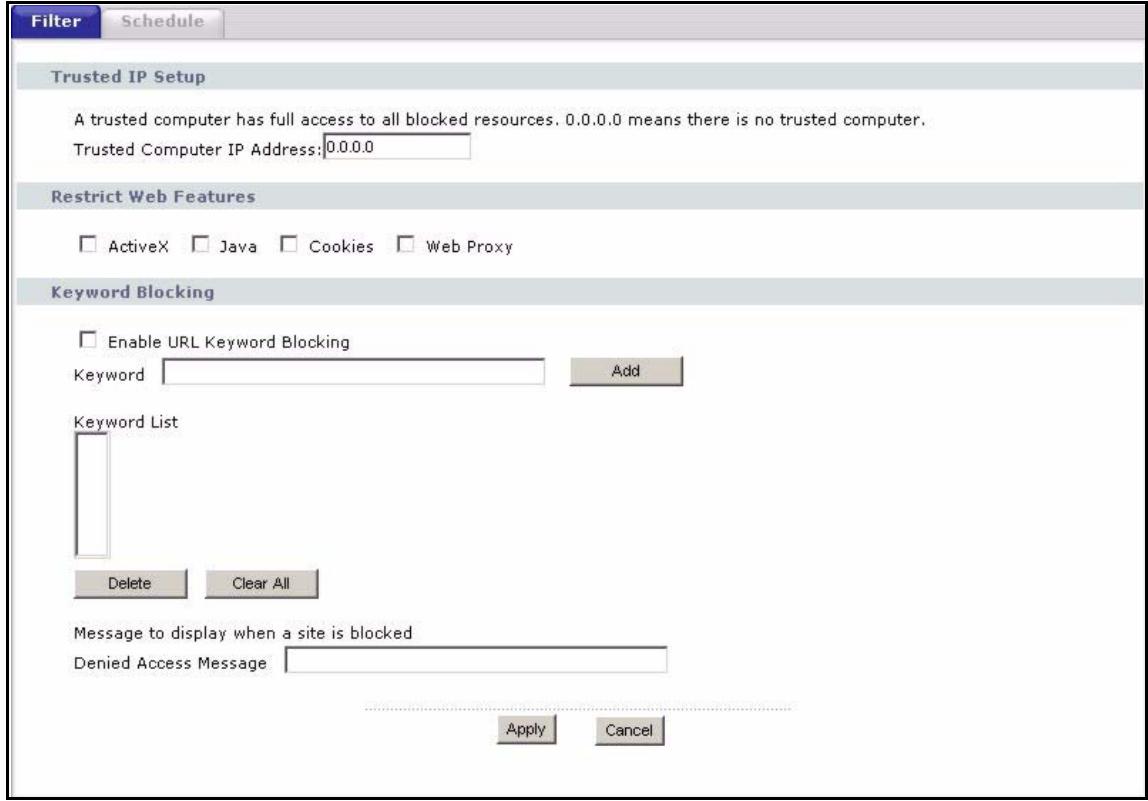

Figure 108 Security > Content Filter > Filter

Each field is described in the following table.

Table 81 Security > Content Filter > Filter

LABEL	DESCRIPTION
Trusted IP Setup
Trusted Computer IP Address	You can allow a specific computer to access all Internet resources without the restrictions you set in these screens. Enter the IP address of the trusted computer.
Restrict Web Features	Select the web features you want to disable. If a user downloads a page with a restricted feature, that part of the web page appears blank or grayed out. ActiveX - This is a tool for building dynamic and active Web pages and distributed object applications. When you visit an ActiveX Web site, ActiveX controls are downloaded to your browser, where they remain in case you visit the site again. Java - This is used to build downloadable Web components or Internet and intranet business applications of all kinds. Cookies - This is used by Web servers to track usage and to provide service based on ID. Web Proxy - This is a server that acts as an intermediary between a user and the Internet to provide security, administrative control, and caching service. When a proxy server is located on the WAN, it is possible for LAN users to avoid content filtering restrictions.
Keyword Blocking
Enable URL Keyword Blocking	Select this if you want the ZyXEL Device to block Web sites based on words in the web site address. For example, if you block the keyword bad, http://www.websites.com/bad.html is blocked.
Keyword	Type a keyword you want to block in this field. You can use up to 64 printable ASCII characters. There is no wildcard character, however.

Table 81 Security > Content Filter > Filter

LABEL	DESCRIPTION
Add	Click this to add the specified Keyword to the Keyword List. You can enter up to 64 keywords.
Keyword List	This field displays the keywords that are blocked when Enable URL Keyword Blocking is selected. To delete a keyword, select it, click Delete, and click Apply.
Delete	Click Delete to remove the selected keyword in the Keyword List. The keyword disappears after you click Apply.
Clear All	Click this button to remove all of the keywords in the Keyword List.
Denied Access Message	Enter the message that is displayed when the ZyXEL Device's content filter feature blocks access to a web site.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

15.2.2 Content Filter Schedule Screen

Use this screen to set up the schedule when content filtering is effective. To access this screen, click Security > Content Filter > Schedule.

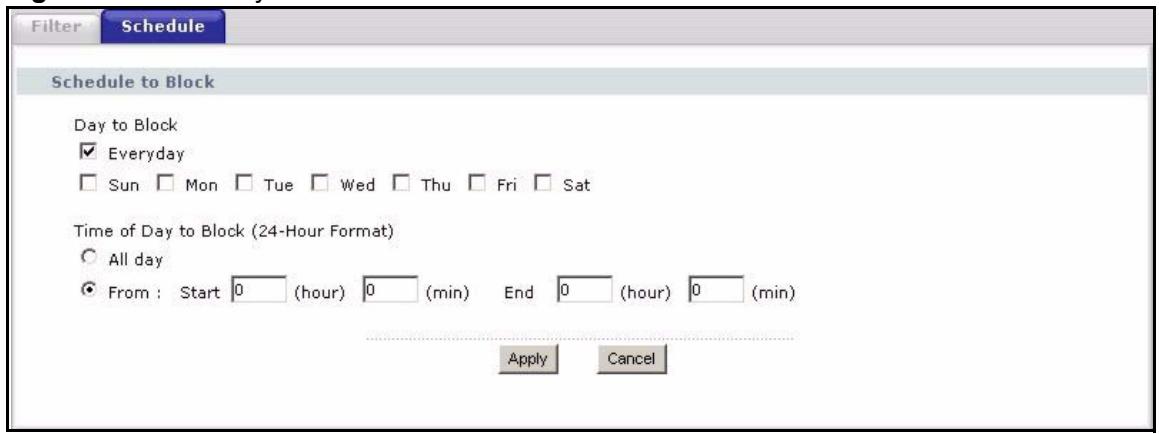

Figure 109 Security > Content Filter > Schedule

Each field is described in the following table.

Table 82 Security > Content Filter > Schedule

LABEL	DESCRIPTION
Day to Block	Select which days of the week you want content filtering to be effective.
Time of Day to Block	Select what time each day you want content filtering to be effective. Enter times in 24-hour format; for example, 3:00pm should be entered as 15:00.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 16 Static Route

Use these screens to configure static routes in the ZyXEL Device.

16.1 Static Route Overview

Each remote node specifies only the network to which the gateway is directly connected, and the ZyXEL Device has no knowledge of the networks beyond. For instance, the ZyXEL Device knows about network N2 in the following figure through remote node Router 1. However, the ZyXEL Device is unable to route a packet to network N3 because it doesn't know that there is a route through the same remote node Router 1 (via gateway Router 2). The static routes are for you to tell the ZyXEL Device about the networks beyond the remote nodes.

Figure 110 Example of Static Routing Topology

16.2 Static Route Screens

16.2.1 IP Static Route Screen

Use this screen to look at static routes in the ZyXEL Device. To access this screen, click Management > Static Route > IP Static Route.

Note: The first static route is the default route and cannot be modified or deleted.

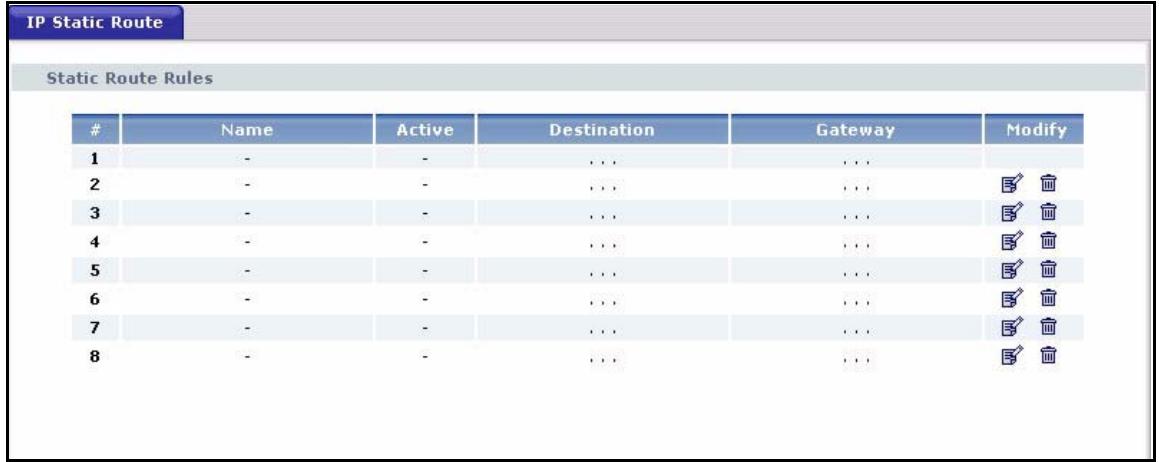

Figure 111 Management > Static Route > IP Static Route

Each field is described in the following table.

Table 83 Management > Static Route > IP Static Route

LABEL	DESCRIPTION
#	This field is a sequential value, and it is not associated with a specific rule. The sequence is important, however. The ZyXEL Device checks each rule in order, and it only follows the first one that applies.
Name	This field displays the name that describes the static route.
Active	This field shows whether this static route is active (Yes) or not (No).
Destination	This field displays the destination IP address(es) that this static route affects.
Gateway	This field displays the IP address of the gateway to which the ZyXEL Device should send packets for the specified Destination. The gateway is a router or a switch on the same network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.
Modify	Use this field to edit or erase the static route. Click the Edit icon to open the IP Static Route Edit screen for this static route. Click the Remove icon to erase this static route.

16.2.2 IP Static Route Edit Screen

Use this screen to edit a static route in the ZyXEL Device. To access this screen, click an Edit icon in Management > Static Route > IP Static Route.

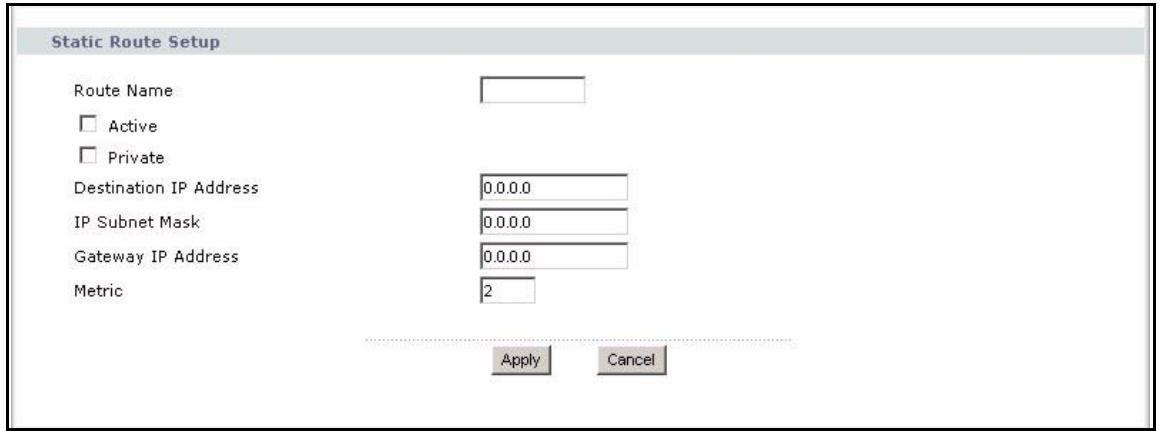

Figure 112 Management > Static Route > IP Static Route > Edit

Each field is described in the following table.

Table 84 Management > Static Route > IP Static Route > Edit

LABEL	DESCRIPTION
Route Name	Enter the name of the static route.
Active	Select this if you want the static route to be used. Clear this if you do not want the static route to be used.
Private	Select this if you do not want the ZyXEL Device to tell other routers about this static route. For example, you might select this if the static route is in your LAN. Clear this if you want the ZyXEL Device to tell other routers about this static route.
Destination IP Address	Enter one of the destination IP addresses that this static route affects.
IP Subnet Mask	Enter the subnet mask that defines the range of destination IP addresses that this static route affects. If this static route affects only one IP address, enter 255.255.255.255.
Gateway IP Address	Enter the IP address of the gateway to which the ZyXEL Device should send packets for the specified Destination. The gateway is a router or a switch on the same network segment as the device's LAN or WAN port. The gateway helps forward packets to their destinations.
Metric	Usually, you should keep the default value. This field is related to RIP. See Chapter 7 on page 113 for more information. The metric represents the "cost of transmission". A router determines the best route for transmission by choosing a path with the lowest "cost". The smaller the metric, the lower the "cost". RIP uses hop count as the measurement of cost, where 1 is for a directly-connected network. The metric must be 1-15; if you use a value higher than 15, the routers assume the link is down.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to return to the previous screen without saving your changes.

CHAPTER 17 Bandwidth MGMT

Use these screens to manage the amount of traffic the ZyXEL Device routes through each interface.

17.1 Bandwidth Management Overview

Bandwidth management allows you to allocate an interface's outgoing capacity to specific types of traffic. It can also help you make sure that the ZyXEL Device forwards certain types of traffic (especially real-time applications) with minimum delay. With the use of real-time applications such as Voice-over-IP (VoIP) increasing, the requirement for bandwidth allocation is also increasing.

Bandwidth management addresses questions such as:

• Who gets how much access to specific applications?
• What priority level should you give to each type of traffic?
• Which traffic must have guaranteed delivery?
• How much bandwidth should be allotted to guarantee delivery?

Bandwidth management also allows you to configure the allowed output for an interface to match what the network can handle. This helps reduce delays and dropped packets at the next routing device. For example, you can set the WAN interface speed to 1024 kbps (or less) if the broadband device connected to the WAN port has an upstream speed of 1024 kbps.

17.1.1 Bandwidth Classes and Filters

Use bandwidth classes and sub-classes to allocate specific amounts of bandwidth capacity (bandwidth budgets). Configure a bandwidth filter to define a bandwidth class (or sub-class) based on a specific application and/or subnet. Use the Bandwidth Class Setup Screen to set up a bandwidth class's name, bandwidth allotment, and bandwidth filter. You can configure up to one bandwidth filter per bandwidth class. You can also configure bandwidth classes without bandwidth filters. However, it is recommended that you configure sub-classes with filters for any classes that you configure without filters. The ZyXEL Device leaves the bandwidth budget allocated and unused for a class that does not have a filter or sub-classes with filters. View your configured bandwidth classes and sub-classes in the Bandwidth Class Setup Screen.

The total of the configured bandwidth budgets for sub-classes cannot exceed the configured bandwidth budget speed of the parent class.

17.1.2 Proportional Bandwidth Allocation

Bandwidth management allows you to define how much bandwidth each class gets; however, the actual bandwidth allotted to each class decreases or increases in proportion to actual available bandwidth.

17.1.3 Application-based Bandwidth Management

You can create bandwidth classes based on individual applications (like VoIP, Web, FTP, E-mail and Video for example).

17.1.4 Subnet-based Bandwidth Management

You can create bandwidth classes based on subnets. The following figure shows LAN subnets. You could configure one bandwidth class for subnet A and another for subnet B.

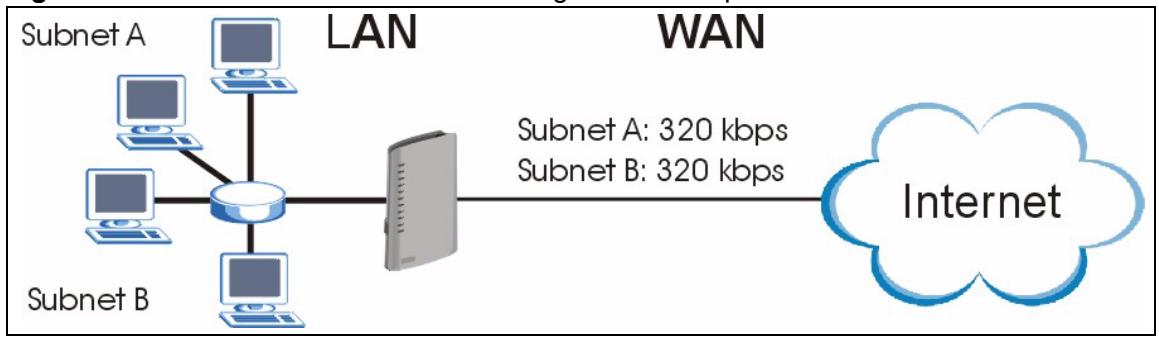

Figure 113 Subnet-based Bandwidth Management Example

17.1.5 Application- and Subnet-based Bandwidth Management

You could also create bandwidth classes based on a combination of a subnet and an application. The following example table shows bandwidth allocations for application specific traffic from separate LAN subnets.

Table 85 Application and Subnet-based Bandwidth Management Example

TRAFFIC TYPE	FROM SUBNET A	FROM SUBNET B
VoIP	64 Kbps	64 Kbps
Web	64 Kbps	64 Kbps
FTP	64 Kbps	64 Kbps
E-mail	64 Kbps	64 Kbps
Video	64 Kbps	64 Kbps

17.1.6 Scheduler

The scheduler divides up an interface's bandwidth among the bandwidth classes. The ZyXEL Device has two types of schedulers: fairness-based and priority-based.

With the priority-based scheduler, the ZyXEL Device forwards traffic from bandwidth classes according to the priorities that you assign to the bandwidth classes. The larger a bandwidth class's priority number is, the higher the priority. Assign real-time applications (like those using audio or video) a higher priority number to provide smoother operation.

The ZyXEL Device divides bandwidth equally among bandwidth classes when using the fairness-based scheduler; thus preventing one bandwidth class from using all of the interface's bandwidth.

17.1.7 Maximize Bandwidth Usage

This option allows the ZyXEL Device to divide up any available bandwidth on the interface (including unallocated bandwidth and any allocated bandwidth that a class is not using) among the bandwidth classes that require more bandwidth.

When you enable maximize bandwidth usage, the ZyXEL Device first makes sure that each bandwidth class gets up to its bandwidth allotment. Next, the ZyXEL Device divides up an interface's available bandwidth (bandwidth that is unbudgeted or unused by the classes) depending on how many bandwidth classes require more bandwidth and on their priority levels. When only one class requires more bandwidth, the ZyXEL Device gives extra bandwidth to that class.

When multiple classes require more bandwidth, the ZyXEL Device gives the highest priority classes the available bandwidth first (as much as they require, if there is enough available bandwidth), and then to lower priority classes if there is still bandwidth available. The ZyXEL Device distributes the available bandwidth equally among classes with the same priority level.

17.1.7.1 Reserving Bandwidth for Non-Bandwidth Class Traffic

Do the following three steps to configure the ZyXEL Device to allow bandwidth for traffic that is not defined in a bandwidth filter.

1 Leave some of the interface's bandwidth unbudgeted.
2 Do not enable the interface's Maximize Bandwidth Usage option.
3 Do not enable bandwidth borrowing on the sub-classes (see Section 17.1.8 on page 205).

17.1.7.2 Maximize Bandwidth Usage Example

Here is an example of a ZyXEL Device that has maximize bandwidth usage enabled on an interface. The following table shows each bandwidth class's bandwidth budget. The classes are set up based on subnets. The interface is set to 10240 kbps. Each subnet is allocated 2048 kbps. The unbudgeted 2048 kbps allows traffic not defined in any of the bandwidth filters to go out when you do not select the maximize bandwidth option.

Table 86 Maximize Bandwidth Usage Example

BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: 2048 kbps
	Sales: 2048 kbps
	Marketing: 2048 kbps
	Research: 2048 kbps

The ZyXEL Device divides up the unbudgeted 2048 kbps among the classes that require more bandwidth. If the administration department only uses 1024 kbps of the budgeted 2048 kbps, the ZyXEL Device also divides the remaining 1024 kbps among the classes that require more bandwidth. Therefore, the ZyXEL Device divides a total of 3072 kbps of unbudgeted and unused bandwidth among the classes that require more bandwidth.

17.1.7.3 Priority-based Allotment of Unused and Unbudgeted Bandwidth

The following table shows the priorities of the bandwidth classes and the amount of bandwidth that each class gets.

Table 87 Priority-based Allotment of Unused and Unbudgeted Bandwidth Example

BANDWIDTH CLASSES, PRIORITIES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: Priority 4, 1024 kbps
	Sales: Priority 6, 3584 kbps
	Marketing: Priority 6, 3584 kbps
	Research: Priority 5, 2048 kbps

Suppose that all of the classes except for the administration class need more bandwidth.

• Each class gets up to its budgeted bandwidth. The administration class only uses 1024 kbps of its budgeted 2048 kbps.

• The sales and marketing are first to get extra bandwidth because they have the highest priority (6). If they each require 1536 kbps or more of extra bandwidth, the ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused bandwidth equally between the sales and marketing departments (1536 kbps extra to each for a total of 3584 kbps for each) because they both have the highest priority level.

• Research requires more bandwidth but only gets its budgeted 2048 kbps because all of the unbudgeted and unused bandwidth goes to the higher priority sales and marketing classes.

17.1.7.4 Fairness-based Allotment of Unused and Unbudgeted Bandwidth

The following table shows the amount of bandwidth that each class gets.

Table 88 Fairness-based Allotment of Unused and Unbudgeted Bandwidth Example

BANDWIDTH CLASSES AND ALLOTMENTS
Root Class: 10240 kbps	Administration: 1024 kbps
	Sales: 3072 kbps
	Marketing: 3072 kbps
	Research: 3072 kbps

Suppose that all of the classes except for the administration class need more bandwidth.

Each class gets up to its budgeted bandwidth. The administration class only uses 1024 kbps of its budgeted 2048 kbps.
- The ZyXEL Device divides the total 3072 kbps total of unbudgeted and unused bandwidth equally among the other classes. 1024 kbps extra goes to each so the other classes each get a total of 3072 kbps

17.1.8 Bandwidth Borrowing

Bandwidth borrowing allows a sub-class to borrow unused bandwidth from its parent class, whereas maximize bandwidth usage allows any bandwidth class to borrow any unused or unbudgeted bandwidth on the whole interface.

Enable bandwidth borrowing on a sub-class to allow the sub-class to use the parent class's unused bandwidth. The parent class's unused bandwidth is given to the highest priority subclass first (see Section 17.1.8.1 on page 206).

The total of the bandwidth allotments for sub-classes cannot exceed the bandwidth allotment of the parent class. The ZyXEL Device uses the scheduler to divide the parent class's unused bandwidth among the sub-classes that have bandwidth borrowing enabled.

17.1.8.1 Bandwidth Borrowing Example

Here is an example of bandwidth management with classes configured for bandwidth borrowing. The classes are set up based on departments and individuals within certain departments.

Table 89 Bandwidth Borrowing Example

BANDWIDTH CLASSES AND BANDWIDTH BORROWING SETTINGS
Root Class:	Administration: Borrowing Enabled
	Sales: Borrowing Disabled
	Marketing: Borrowing Enabled
	Research: Borrowing Enabled

• The Sales class cannot borrow unused bandwidth from the Root class because the Sales class has bandwidth borrowing disabled.

17.1.8.2 Maximize Bandwidth Usage With Bandwidth Borrowing

If you configure both maximize bandwidth usage (on the interface) and bandwidth borrowing (on individual sub-classes), the ZyXEL Device functions as follows.

1 The ZyXEL Device sends traffic according to each bandwidth class's bandwidth budget.
2 The ZyXEL Device assigns a parent class's unused bandwidth to its sub-classes that have more traffic than their budgets and have bandwidth borrowing enabled. The ZyXEL Device gives priority to sub-classes of higher priority and treats classes of the same priority equally.
3 The ZyXEL Device assigns any remaining unused or unbudgeted bandwidth on the interface to any class that requires it. The ZyXEL Device gives priority to classes of higher priority and treats classes of the same level equally.
4 If the bandwidth requirements of all of the traffic classes are met and there is still some unbudgeted bandwidth, the ZyXEL Device assigns it to traffic that does not match any of the classes.

17.1.9 Over Allotment of Bandwidth

You can set the bandwidth management speed for an interface higher than the interface's actual transmission speed. Higher priority traffic gets to use up to its allocated bandwidth, even if it takes up all of the interface's available bandwidth. This could stop lower priority traffic from being sent. The following is an example.

Table 90 Over Allotment of Bandwidth Example

BANDWIDTH CLASSES, ALLOTMENTS	PRIORITY
Actual outgoing bandwidth available on the interface: 1000 kbps

Table 90 Over Allotment of Bandwidth Example

BANDWIDTH CLASSES, ALLOTMENTS		PRIORITY
Root Class: 1500 kbps (same as Speed setting)	VoIP traffic (Service = SIP): 500 Kbps	High
	NetMeeting traffic (Service = H.323): 500 kbps	High
	FTP (Service = FTP): 500 Kbps	Medium

If you use VoIP and NetMeeting at the same time, the device allocates up to 500 Kbps of bandwidth to each of them before it allocates any bandwidth to FTP. As a result, FTP can only use bandwidth when VoIP and NetMeeting do not use all of their allocated bandwidth.

Suppose you try to browse the web too. In this case, VoIP, NetMeeting and FTP all have higher priority, so they get to use the bandwidth first. You can only browse the web when VoIP, NetMeeting, and FTP do not use all 1000 Kbps of available bandwidth.

17.2 Bandwidth Management Screens

17.2.1 Bandwidth Management Summary Screen

Use this screen to enable bandwidth management on an interface and to set the maximum allowed bandwidth and the scheduler for the interface. You can also enable or disable maximize bandwidth usage. To access this screen, click Management > Bandwidth MGMT > Summary.

Figure 114 Management > Bandwidth MGMT > Summary

Each field is described in the following table.

Table 91 Management > Bandwidth MGMT > Summary

LABEL	DESCRIPTION
LAN
Active	Select this to enable bandwidth management on the LAN. Bandwidth management applies to all traffic flowing out of the router through the LAN, regardless of the traffic's source.Traffic redirect or IP alias may cause LAN-to-LAN traffic to pass through the ZyXEL Device and be managed by bandwidth management.
Speed	Enter the amount of bandwidth for this interface that you want to allocate using bandwidth management.The recommendation is to set this speed to match the interface's actual transmission speed. For example, set the LAN interface speed to 10000 kbps if your Internet connection has an upstream transmission speed of 10 Mbps.You can set this number higher than the interface's actual transmission speed. This will stop lower priority traffic from being sent if higher priority traffic uses all of the actual bandwidth.You can also set this number lower than the interface's actual transmission speed. If you do not enable Maximize Bandwidth Usage, this will cause the ZyXEL Device to not use some of the interface's available bandwidth.This field is not affected by the Bandwidth Management Wizard.
Scheduler	Select Priority-Based to give preference to bandwidth classes with higher priorities. Select Fairness-Based to treat all bandwidth classes equally.
MaximizeBandwidth Usage	Select this if you want the ZyXEL Device to divide any unallocated and unused bandwidth among bandwidth classes that require bandwidth. Clear this if you want to reserve bandwidth for traffic that does not match a bandwidth class or if you want to limit the speed of this interface.

Table 91 Management > Bandwidth MGMT > Summary

LABEL	DESCRIPTION
WAN
Active	Select this to enable bandwidth management on the WAN. Bandwidth management applies to all traffic flowing out of the router through the WAN, regardless of the traffic's source.
Speed	Enter the amount of bandwidth for this interface that you want to allocate using bandwidth management.The recommendation is to set this speed to match the interface's actual transmission speed. For example, set the WAN interface speed to 1000 kbps if your Internet connection has an upstream transmission speed of 1 Mbps.You can set this number higher than the interface's actual transmission speed. This will stop lower priority traffic from being sent if higher priority traffic uses all of the actual bandwidth.You can also set this number lower than the interface's actual transmission speed. If you do not enable Max Bandwidth Usage, this will cause the ZyXEL Device to not use some of the interface's available bandwidth.This field is not affected by the Bandwidth Management Wizard.
Scheduler	Select Priority-Based to give preference to bandwidth classes with higher priorities. Select Fairness-Based to treat all bandwidth classes equally.
Maximize Bandwidth Usage	Select this if you want the ZyXEL Device to divide any unallocated and unused bandwidth among bandwidth classes that require bandwidth. Clear this if you want to reserve bandwidth for traffic that does not match a bandwidth class or if you want to limit the speed of this interface.
WLAN
Active	Select this to enable bandwidth management on the WLAN. Bandwidth management applies to all traffic flowing out of the router through the WLAN, regardless of the traffic's source.
Speed	Enter the amount of bandwidth for this interface that you want to allocate using bandwidth management.The recommendation is to set this speed to match the interface's actual transmission speed. For example, set the WLAN interface speed to 1000 kbps if your Internet connection has an upstream transmission speed of 1 Mbps.You can set this number higher than the interface's actual transmission speed. This will stop lower priority traffic from being sent if higher priority traffic uses all of the actual bandwidth.You can also set this number lower than the interface's actual transmission speed. If you do not enable Max Bandwidth Usage, this will cause the ZyXEL Device to not use some of the interface's available broadband.This field is not affected by the Bandwidth Management Wizard.
Scheduler	Select Priority-Based to give preference to bandwidth classes with higher priorities. Select Fairness-Based to treat all bandwidth classes equally.
Maximize Bandwidth Usage	Select this if you want the ZyXEL Device to divide any unallocated and unused bandwidth among bandwidth classes that require bandwidth. Clear this if you want to reserve bandwidth for traffic that does not match a bandwidth class or if you want to limitthe speed of this interface.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

17.2.2 Bandwidth Class Setup Screen

Use this screen to look at the configured bandwidth classes by individual interface. Each interface has a permanent root class. The bandwidth budget of the root class is equal to the speed you configured on the interface (see Section 17.2.1 on page 207). There is a default class for all the bandwidth in the Root Class that is not allocated to bandwidth classes.

Note: For each interface, you must enable bandwidth management before you can configure classes.

To access this screen, click Management > Bandwidth MGMT > Class Setup.

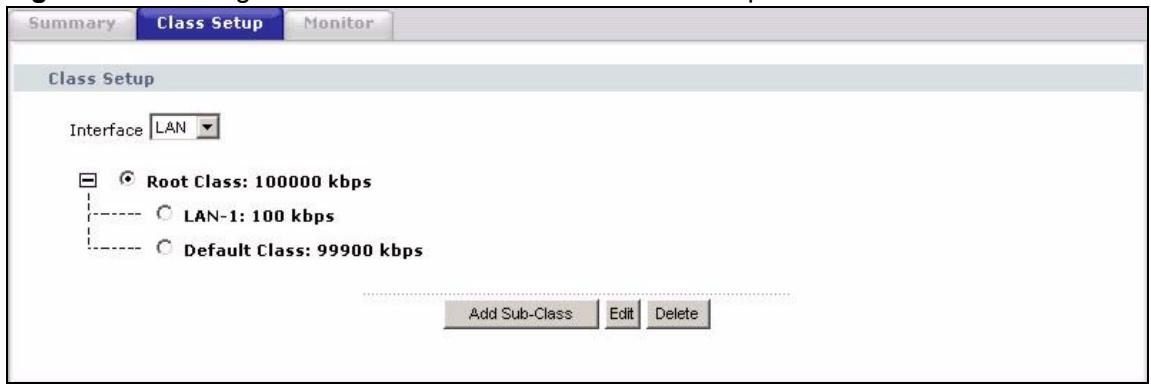

Figure 115 Management > Bandwidth MGMT > Class Setup

Each field is described in the following table.

Table 92 Management > Bandwidth MGMT > Class Setup

LABEL	DESCRIPTION
Class Setup
Interface	Select the interface for which you wish to set up classes.Bandwidth management controls outgoing traffic on an interface, not incoming. In order to limit the download bandwidth of the LAN users, set the bandwidth management class on the LAN. In order to limit the upload bandwidth, set the bandwidth management class on the corresponding WAN interface.
Root Class	In this section, you can look at each class and its allocated bandwidth. Select the class to which you want to add a sub-class, which you want to edit, or which you want to delete.If you used the Bandwidth Management Wizard, each service you selected (except WWW) becomes a LAN sub-class and a WAN sub-class in this screen.WWW only becomes a LAN sub-class.
Add Sub-Class	Click this to add a sub-class to the selected class.
Edit	Click this to configure the selected class. You cannot edit the root class. The Bandwidth Class Edit screen appears.
Delete	Click this to delete the selected class and all its sub-classes. You cannot delete the root class.

17.2.3 Bandwidth Class Edit Screen

Use this screen to configure a bandwidth management class.

Note: For each interface, you must enable bandwidth management before you can configure classes.

To access this screen, click Add Sub-Class in Management > Bandwidth MGMT > Class Setup.

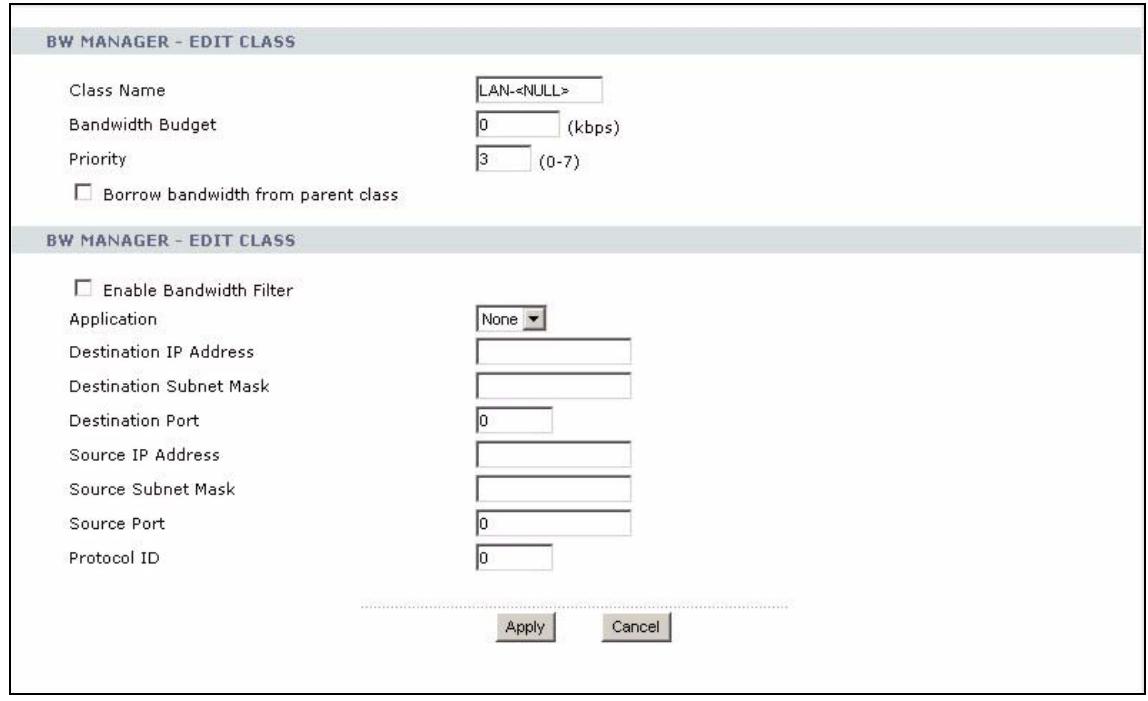

Figure 116 Management > Bandwidth MGMT > Class Setup > Edit

See Appendix F on page 323 for examples of services for which you might create bandwidth classes. Each field is described in the following table.

Table 93 Management > Bandwidth MGMT > Class Setup > Edit

LABEL	DESCRIPTION
	This section lets you set the budget and priority for this class.
Class Name	Finish the auto-generated name, or enter a descriptive name up to 20 alphanumeric characters long. Spaces are allowed.
Bandwidth Budget	Enter the maximum bandwidth for the class, in kbps. The recommendation is 20 - 20000 kbps for each class.
Priority	Enter the priority of this class. The higher the number, the higher the priority. Legal values are 0 - 7. The default setting is 3.

Table 93 Management > Bandwidth MGMT > Class Setup > Edit

LABEL	DESCRIPTION
Borrow bandwidth from parent class	Select this option to allow a sub-class to borrow bandwidth from its parent class if the parent class is not using up its bandwidth budget.Bandwidth borrowing is governed by the priority of the sub-classes. That is, a sub-class with the highest priority (7) is the first to borrow bandwidth from its parent class.Do not select this for the classes directly below the root class if you want to leave bandwidth available for other traffic types (see Section 17.1.7.1 on page 203) or you want to set the interface's speed to match what the next device in network can handle (see the Speed field description in the Bandwidth Management Summary Screen).
	This section lets you set criteria that are used to identify which traffic is managed in this class and which traffic is not managed in this class. If you leave the default value in a field, there is no restriction for that criteria.
Enable Bandwidth Filter	Select this if you want the ZyXEL Device to use at least one of the following filter criteria when it manages bandwidth. You must enter a value in at least one of the following fields. (The Subnet Mask fields are only available when you enter the destination or source IP address.)
Application	Select a pre-defined application. If you select a predefined application, do not set up the other filter criteria.FTP (File Transfer Program) enables fast transfer of files, including large files that may not be possible by e-mail. Select this to configure the bandwidth filter for FTP traffic.SIP (Session Initiation Protocol) is a signaling protocol used in Internet telephony, instant messaging, events notification and conferencing. The ZyXEL Device supports SIP traffic pass-through. Select this to configure this bandwidth filter for SIP traffic. This makes it easier to manage bandwidth for SIP traffic and is useful, for example, when there is a VoIP (Voice over Internet Protocol) device on your LAN.
Destination IP Address	Enter the destination IP address.
Destination Subnet Mask	This field is effective if you specify a Destination IP Address.Enter the destination subnet mask.
Destination Port	Enter the destination port number.
Source IP Address	Enter the source IP address.
Source Subnet Mask	This field is effective if you specify a Source IP Address.Enter the source subnet mask.
Source Port	Enter the source port number.
Protocol ID	Enter the IP protocol number (service type); for example, 1 for ICMP, 6 for TCP or 17 for UDP.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

17.2.4 Bandwidth Monitor Screen

Use this screen to look at the device's bandwidth usage and allocation. To access this screen, click Management > Bandwidth MGMT > Monitor.

Figure 117 Management > Bandwidth MGMT > Monitor

Each field is described in the following table.

Table 94 Management > Bandwidth MGMT > Monitor

LABEL	DESCRIPTION
Interface	Select the interface at which you want to look in this screen.
Class Name	This field displays the name of each bandwidth class in the selected interface. The Default Class represents all the bandwidth in the Root Class that is not allocated to bandwidth classes. If you do not select Maximize bandwidth usage in the Bandwidth Management Summary Screen, the ZyXEL Device uses the bandwidth in this default class to only send traffic that does not match any of the bandwidth classes. If you allocate all the root class's bandwidth to bandwidth classes, the Default Class still displays a budget of 2 kbps, the minimum amount of bandwidth that can be assigned to a bandwidth class.
Budget (kbps)	This field displays the amount of bandwidth allocated to each bandwidth class.
Current Usage (kbps)	This field displays the amount of bandwidth that each bandwidth class is using.
Refresh	Click Refresh to update the screen.

CHAPTER 18 Remote MGMT

Use these screens to control which computers can use which services to access the ZyXEL Device on each interface.

18.1 Remote Management Overview

Remote management allows you to determine which services/protocols can access which ZyXEL Device interface (if any) from which computers.

You may manage your ZyXEL Device from a remote location via:

• Internet (WAN only)
  ALL (LAN and WAN)
  LAN only
• Neither (Disable).

To disable remote management of a service, select Disable in the corresponding Server Access field.

You may only have one remote management session running at a time. The ZyXEL Device automatically disconnects a remote management session of lower priority when another remote management session of higher priority starts. The priorities for the different types of remote management sessions are as follows.

1 Telnet
2 HTTP

18.1.1 Remote Management Limitations

Remote management over LAN or WAN will not work when:

1 You have disabled that service in one of the remote management screens.
2 The IP address in the Secured Client IP field does not match the client IP address. If it does not match, the ZyXEL Device will disconnect the session immediately.
3 There is already another remote management session with an equal or higher priority running. You may only have one remote management session running at one time.

18.1.2 Remote Management and NAT

When NAT is enabled:

• Use the ZyXEL Device's WAN IP address when configuring from the WAN.
• Use the ZyXEL Device's LAN IP address when configuring from the LAN.

18.1.3 System Timeout

There is a default system management idle timeout of five minutes (three hundred seconds). The ZyXEL Device automatically logs you out if the management session remains idle for longer than this timeout period. The management session does not time out when a statistics screen is polling. You can change the timeout period in the SYSTEM General screen.

18.2 Remote Management Screens

18.2.1 WWW Screen

Use this screen to control HTTP access to your ZyXEL Device. To access this screen, click Management > Remote MGMT > WWW.

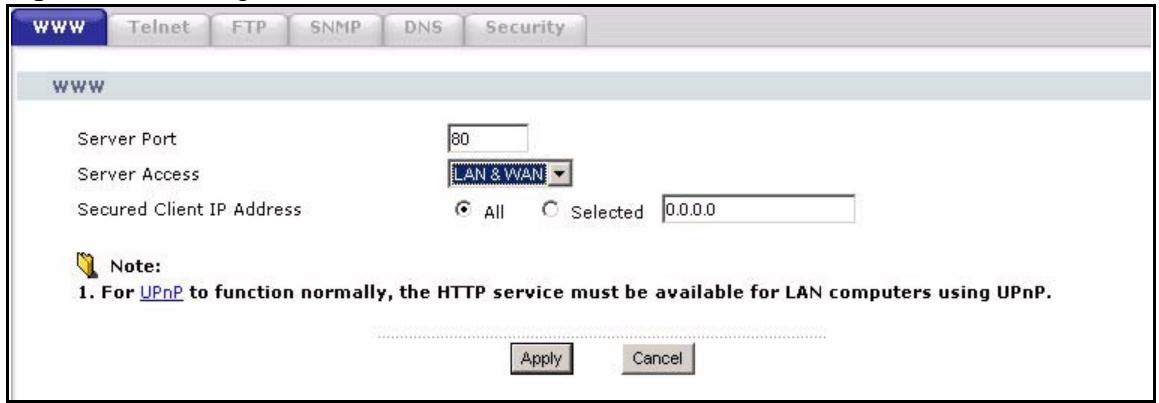

Figure 118 Management > Remote MGMT > WWW

Each field is described in the following table.

Table 95 Management > Remote MGMT > WWW

LABEL	DESCRIPTION
Server Port	Enter the port number this service can use to access the ZyXEL Device. The computer must use the same port number.
Server Access	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP Address	Select All to allow any computer to access the ZyXEL Device using this service. Select Selected to only allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

18.2.2 Telnet Screen

Use this screen to control Telnet access to your ZyXEL Device. To access this screen, click Management > Remote MGMT > Telnet.

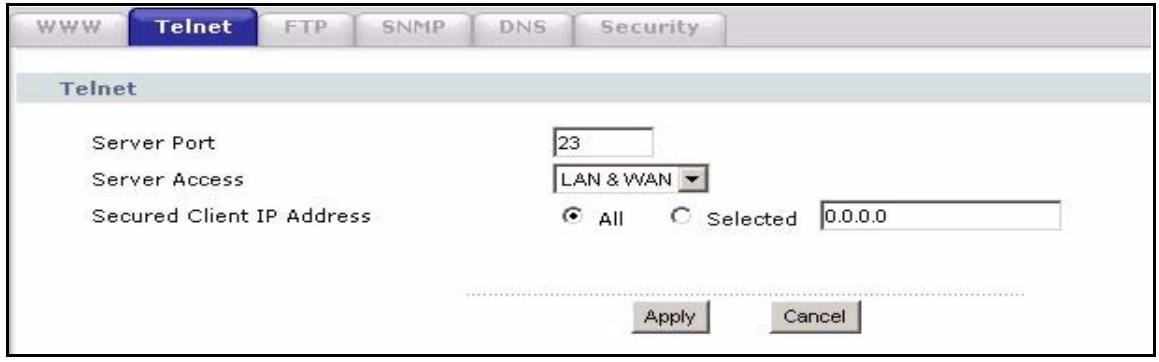

Figure 119 Management > Remote MGMT > Telnet

Each field is described in the following table.

Table 96 Management > Remote MGMT > Telnet

LABEL	DESCRIPTION
Server Port	Enter the port number this service can use to access the ZyXEL Device. The computer must use the same port number.
Server Access	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP Address	Select All to allow any computer to access the ZyXEL Device using this service. Select Selected to only allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

18.2.3 FTP Screen

Use this screen to control FTP access to your ZyXEL Device. To access this screen, click Management > Remote MGMT > FTP.

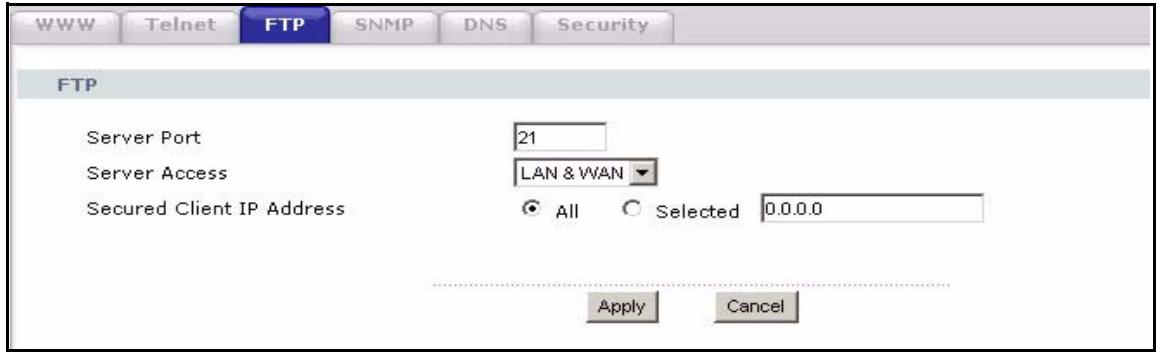

Figure 120 Management > Remote MGMT > FTP

Each field is described in the following table.

Table 97 Management > Remote MGMT > FTP

LABEL	DESCRIPTION
Server Port	Enter the port number this service can use to access the ZyXEL Device. The computer must use the same port number.
Server Access	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP Address	Select All to allow any computer to access the ZyXEL Device using this service. Select Selected to only allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

18.3 SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. Your ZyXEL Device supports SNMP agent functionality, which allows a manager station to manage and monitor the ZyXEL Device through the network. The ZyXEL Device supports SNMP version one (SNMPv1) and version two (SNMPv2). The next figure illustrates an SNMP management operation.

Note: SNMP is only available if TCP/IP is configured.

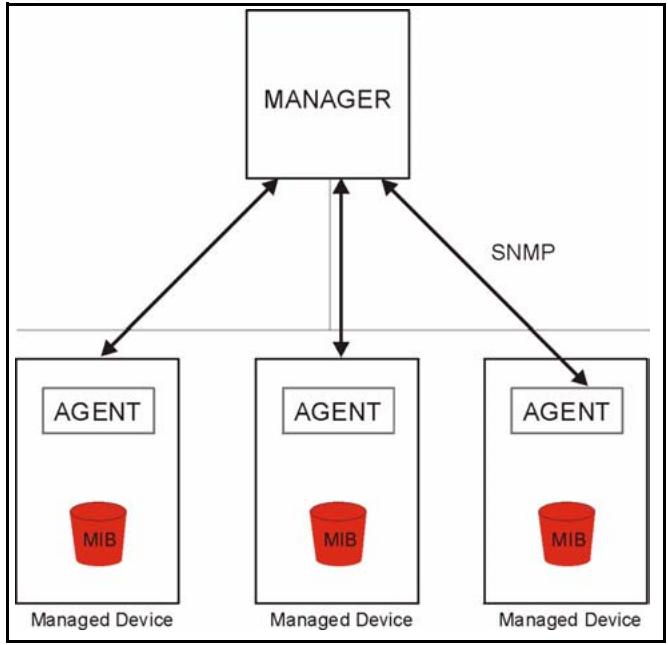

Figure 121 SNMP Management Model

An SNMP managed network consists of two main types of component: agents and a manager.

An agent is a management software module that resides in a managed device (the ZyXEL Device). An agent translates the local management information from the managed device into a form compatible with SNMP. The manager is the console through which network administrators perform network management functions. It executes applications that control and monitor managed devices.

The managed devices contain object variables/managed objects that define each piece of information to be collected about a device. Examples of variables include such as number of packets received, node port status etc. A Management Information Base (MIB) is a collection of managed objects. SNMP allows a manager and agents to communicate for the purpose of accessing these objects.

SNMP itself is a simple request/response protocol based on the manager/agent model. The manager issues a request and the agent returns responses using the following protocol operations:

• Get - Allows the manager to retrieve an object variable from the agent.
• GetNext - Allows the manager to retrieve the next object variable from a table or list within an agent. In SNMPv1, when a manager wants to retrieve all elements of a table from an agent, it initiates a Get operation, followed by a series of GetNext operations.
• Set - Allows the manager to set values for object variables within an agent.
• Trap - Used by the agent to inform the manager of some events.

18.3.1 Supported MIBs

The ZyXEL Device supports MIB II that is defined in RFC-1213 and RFC-1215. The focus of the MIBs is to let administrators collect statistical data and monitor status and performance.

18.3.2 SNMP Traps

The ZyXEL Device will send traps to the SNMP manager when any one of the following events occurs:

Table 98 SNMP Traps

TRAP #	TRAP NAME	DESCRIPTION
0	coldStart (defined in RFC-1215)	A trap is sent after booting (power on).
1	warmStart (defined in RFC-1215)	A trap is sent after booting (software reboot).
4	authenticationFailure (defined in RFC-1215)	A trap is sent to the manager when receiving any SNMP get or set requirements with the wrong community (password).
6	whyReboot (defined in ZYXEL-MIB)	A trap is sent with the reason of restart before rebooting when the system is going to restart (warm start).
6a	For intentional reboot:	A trap is sent with the message "System reboot by user!" if reboot is done intentionally, (for example, download new files, Cl command "sys reboot", etc.).
6b	For fatal error:	A trap is sent with the message of the fatal code if the system reboots because of fatal errors.

18.3.3 Configuring SNMP

To change your ZyXEL Device's SNMP settings, click Advanced > Remote MGMT > SNMP. The screen appears as shown.

Use this screen to control SNMP access to your ZyXEL Device. To access this screen, click Management > Remote MGMT > SNMP.

Figure 122 Management > Remote MGMT > SNMP

The following table describes the labels in this screen.

Table 99 Remote Management: SNMP

LABEL	DESCRIPTION
SNMP Configuration
Get Community	Enter the Get Community, which is the password for the incoming Get and GetNext requests from the management station. The default is public and allows all requests.
Set Community	Enter the Set community, which is the password for incoming Set requests from the management station. The default is public and allows all requests.
Trap Community	Type the trap community, which is the password sent with each trap to the SNMP manager. The default is public and allows all requests.
Trap Destination	Type the IP address of the station to send your SNMP traps to.
SNMP
Service Port	You may change the server port number for a service if needed, however you must use the same port number in order to use that service for remote management.
Service Access	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP Address	A secured client is a “trusted” computer that is allowed to communicate with the ZyXEL Device using this service. Select All to allow any computer to access the ZyXEL Device using this service. Choose Selected to just allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click Apply to save your customized settings and exit this screen.
Cancel	Click Cancel to begin configuring this screen afresh.

18.3.4 DNS Screen

Use this screen to control DNS access to your ZyXEL Device. To access this screen, click Management > Remote MGMT > DNS.

Figure 123 Management > Remote MGMT > DNS

Each field is described in the following table.

Table 100 Management > Remote MGMT > DNS

LABEL	DESCRIPTION
Service Port	This field is read-only. This field displays the port number this service uses to access the ZyXEL Device. The computer must use the same port number.
Service Access	Select the interface(s) through which a computer may access the ZyXEL Device using this service.
Secured Client IP Address	Select All to allow any computer to access the ZyXEL Device using this service. Select Selected to only allow the computer with the IP address that you specify to access the ZyXEL Device using this service.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

18.3.5 Security Screen

Use this screen to control how your ZyXEL Device responds to other types of requests. To access this screen, click Management > Remote MGMT > Security.

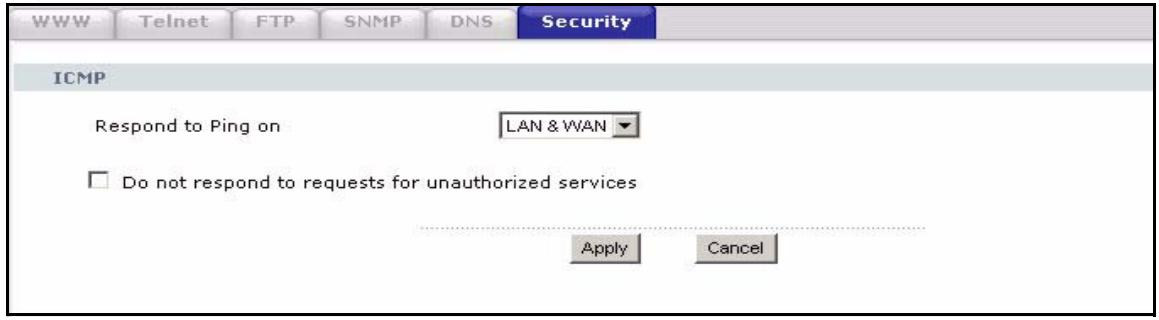

Figure 124 Management > Remote MGMT > Security

Each field is described in the following table.

Table 101 Management > Remote MGMT > Security

LABEL	DESCRIPTION
Respond to Ping on	Select the interface(s) on which the ZyXEL Device should respond to incoming ping requests. Disable - the ZyXEL Device does not respond to any ping requests. LAN - the ZyXEL Device only responds to ping requests received from the LAN. WAN - the ZyXEL Device only responds to ping requests received from the WAN. LAN & WAN - the ZyXEL Device responds to ping requests received from the LAN or the WAN.
Do not respond to requests for unauthorized services	Select this to prevent outsiders from discovering your ZyXEL Device by sending requests to unsupported port numbers. If an outside user attempts to probe an unsupported port on your ZyXEL Device, an ICMP response packet is automatically returned. This allows the outside user to know the ZyXEL Device exists. Your ZyXEL Device supports anti-probing, which prevents the ICMP response packet from being sent. This keeps outsiders from discovering your ZyXEL Device when unsupported ports are probed. If you clear this, your ZyXEL Device replies with an ICMP Port Unreachable packet for a port probe on unused UDP ports and with a TCP Reset packet for a port probe on unused TCP ports.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 19

UPnP

Use this screen to set up UPnP.

19.1 Introducing Universal Plug and Play

Universal Plug and Play (UPnP) is a distributed, open networking standard that uses TCP/IP for simple peer-to-peer network connectivity between devices. A UPnP device can dynamically join a network, obtain an IP address, convey its capabilities and learn about other devices on the network. In turn, a device can leave a network smoothly and automatically when it is no longer in use.

19.1.1 How do I know if I'm using UPnP?

UPnP hardware is identified as an icon in the Network Connections folder (Windows XP). Each UPnP compatible device installed on your network will appear as a separate icon. Selecting the icon of a UPnP device will allow you to access the information and properties of that device.

19.1.2 NAT Traversal

UPnP NAT traversal automates the process of allowing an application to operate through NAT. UPnP network devices can automatically configure network addressing, announce their presence in the network to other UPnP devices and enable exchange of simple product and service descriptions. NAT traversal allows the following:

• Dynamic port mapping
• Learning public IP addresses
• Assigning lease times to mappings

Windows Messenger is an example of an application that supports NAT traversal and UPnP.

See Chapter 8 on page 127 for further information about NAT.

19.1.3 Cautions with UPnP

The automated nature of NAT traversal applications in establishing their own services and opening firewall ports may present network security issues. Network information and configuration may also be obtained and modified by users in some network environments.

All UPnP-enabled devices may communicate freely with each other without additional configuration. Disable UPnP if this is not your intention.

19.2 UPnP and ZyXEL

ZyXEL has achieved UPnP certification from the Universal Plug and Play Forum UPnP™ Implementers Corp. (UIC). ZyXEL's UPnP implementation supports Internet Gateway Device (IGD) 1.0.

See the following sections for examples of installing and using UPnP.

19.3 UPnP Examples

19.3.1 Installing UPnP in Windows Example

This section shows how to install UPnP in Windows Me and Windows XP.

19.3.1.1 Installing UPnP in Windows Me

Follow the steps below to install the UPnP in Windows Me.

1 Click Start and Control Panel. Double-click Add/Remove Programs.
2 Click on the Windows Setup tab and select Communication in the Components selection box. Click Details.

Figure 125 Add/Remove Programs: Windows Setup: Communication

3 In the Communications window, select the Universal Plug and Play check box in the Components selection box.

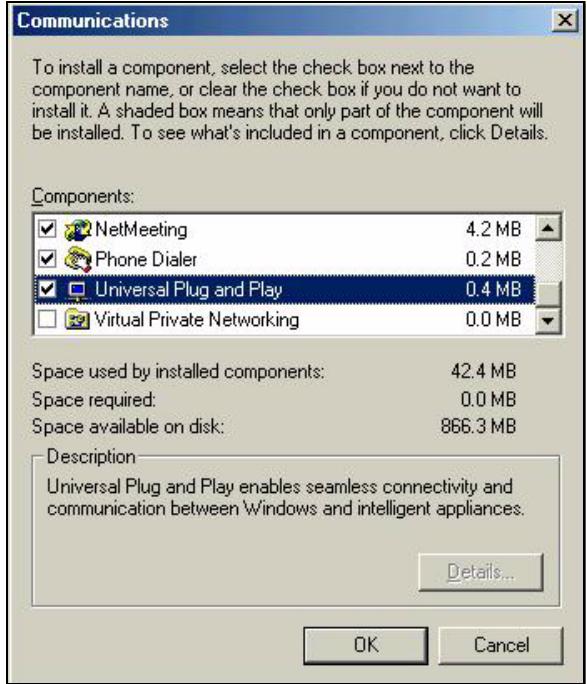

Figure 126 Add/Remove Programs: Windows Setup: Communication: Components

4 Click OK to go back to the Add/Remove Programs Properties window and click Next.
5 Restart the computer when prompted.

19.3.1.2 Installing UPnP in Windows XP

Follow the steps below to install the UPnP in Windows XP.

1 Click Start and Control Panel.
2 Double-click Network Connections.
3 In the Network Connections window, click Advanced in the main menu and select Optional Networking Components ...

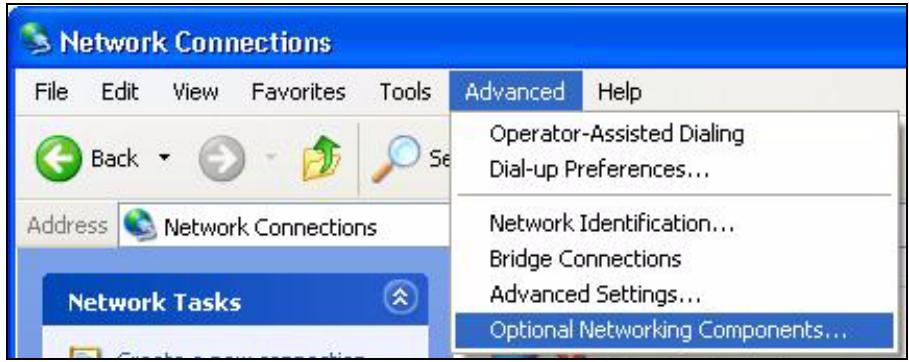

Figure 127 Network Connections

4 The Windows Optional Networking Components Wizard window displays. Select Networking Service in the Components selection box and click Details.

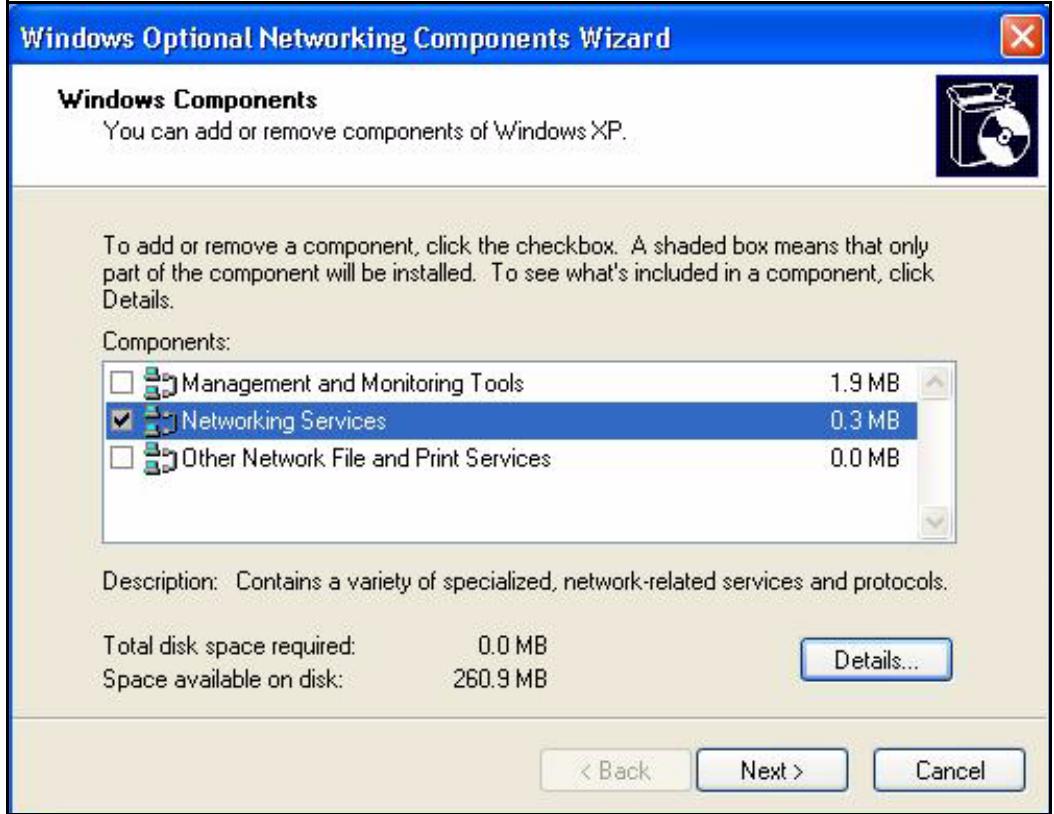

Figure 128 Windows Optional Networking Components Wizard

5 In the Networking Services window, select the Universal Plug and Play check box.

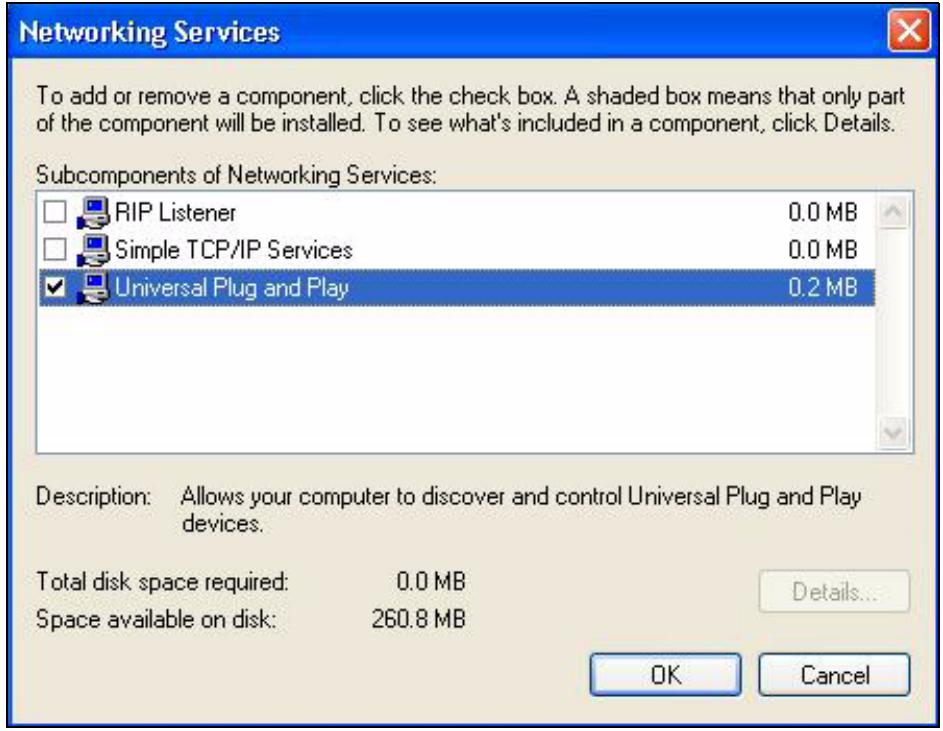

Figure 129 Networking Services

6 Click OK to go back to the Windows Optional Networking Component Wizard window and click Next.

19.3.2 Using UPnP in Windows XP Example

This section shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the ZyXEL Device.

Make sure the computer is connected to a LAN port of the ZyXEL Device. Turn on your computer and the ZyXEL Device.

19.3.2.1 Auto-discover Your UPnP-enabled Network Device

1 Click Start and Control Panel. Double-click Network Connections. An icon displays under Internet Gateway.
2 Right-click the icon and select Properties.

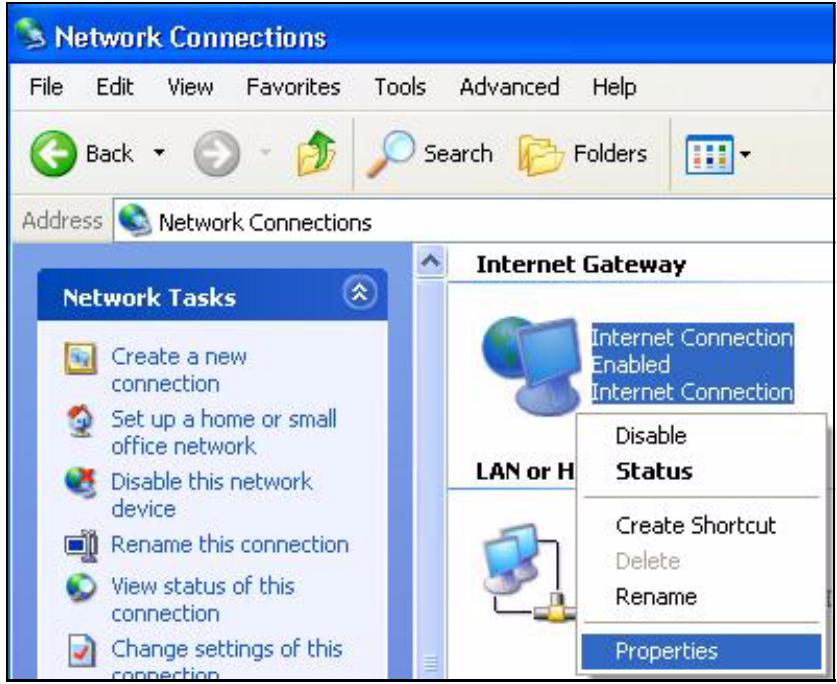

Figure 130 Network Connections

3 In the Internet Connection Properties window, click Settings to see the port mappings there were automatically created.

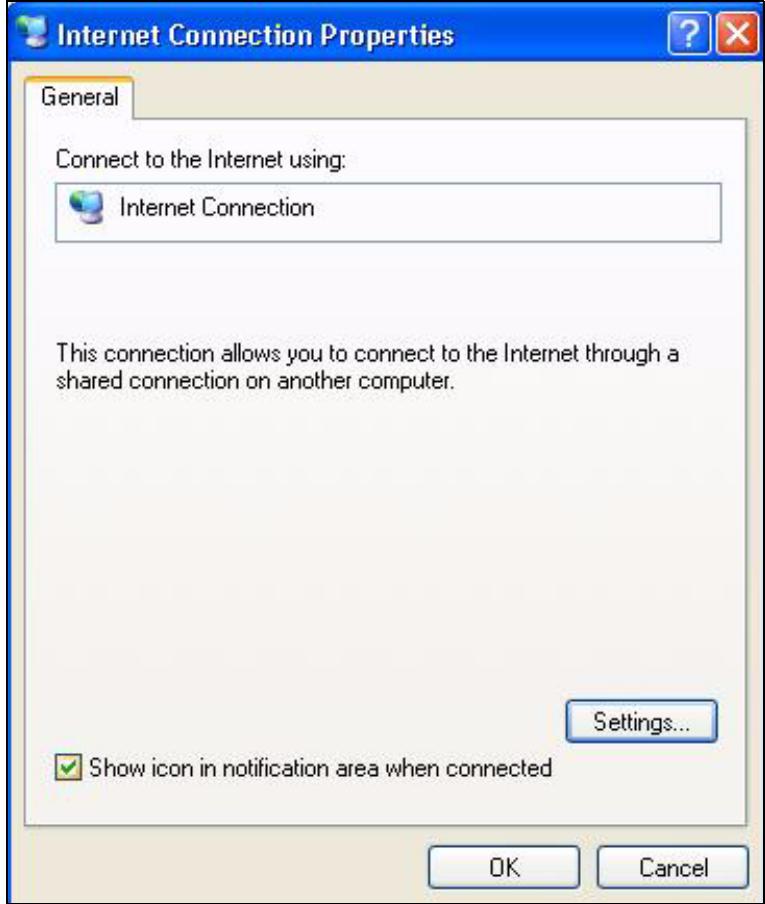

Figure 131 Internet Connection Properties

4 You may edit or delete the port mappings or click Add to manually add port mappings.

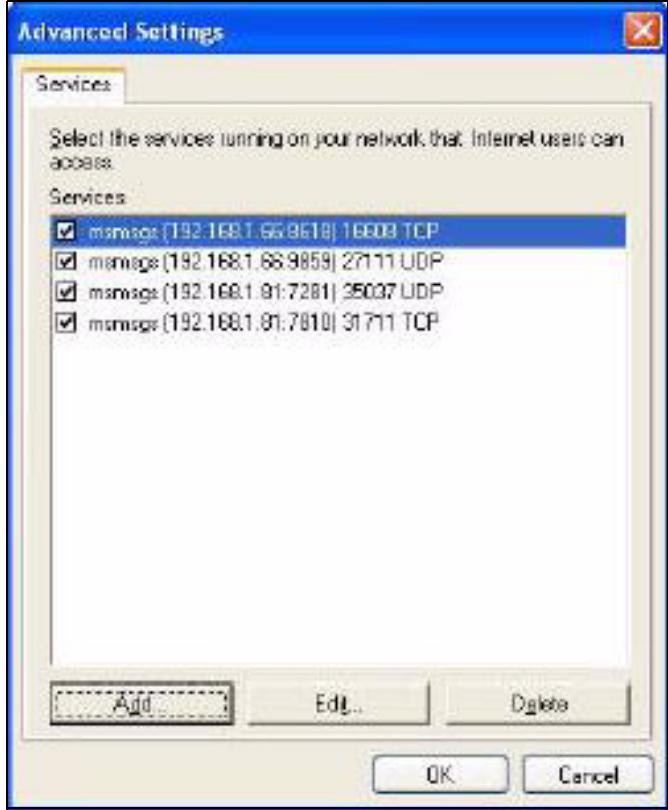

Figure 132 Internet Connection Properties: Advanced Settings

Figure 133 Internet Connection Properties: Advanced Settings: Add

5 When the UPnP-enabled device is disconnected from your computer, all port mappings will be deleted automatically.
6 Select Show icon in notification area when connected option and click OK. An icon displays in the system tray.

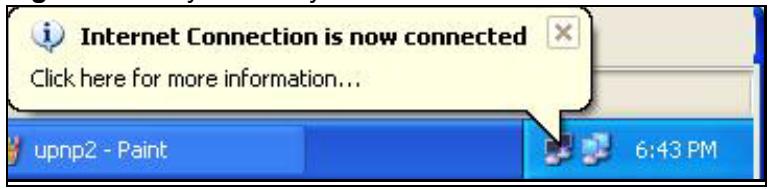

Figure 134 System Tray Icon

7 Double-click on the icon to display your current Internet connection status.

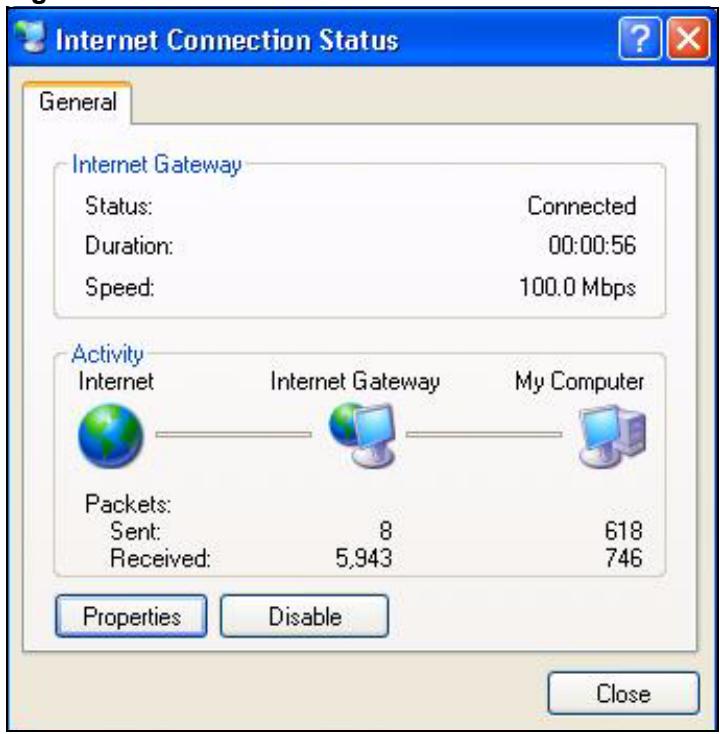

Figure 135 Internet Connection Status

19.3.2.2 Web Configurator Easy Access

With UPnP, you can access the web-based configurator on the ZyXEL Device without finding out the IP address of the ZyXEL Device first. This comes helpful if you do not know the IP address of the ZyXEL Device.

Follow the steps below to access the web configurator.

1 Click Start and then Control Panel.
2 Double-click Network Connections.
3 Select My Network Places under Other Places.

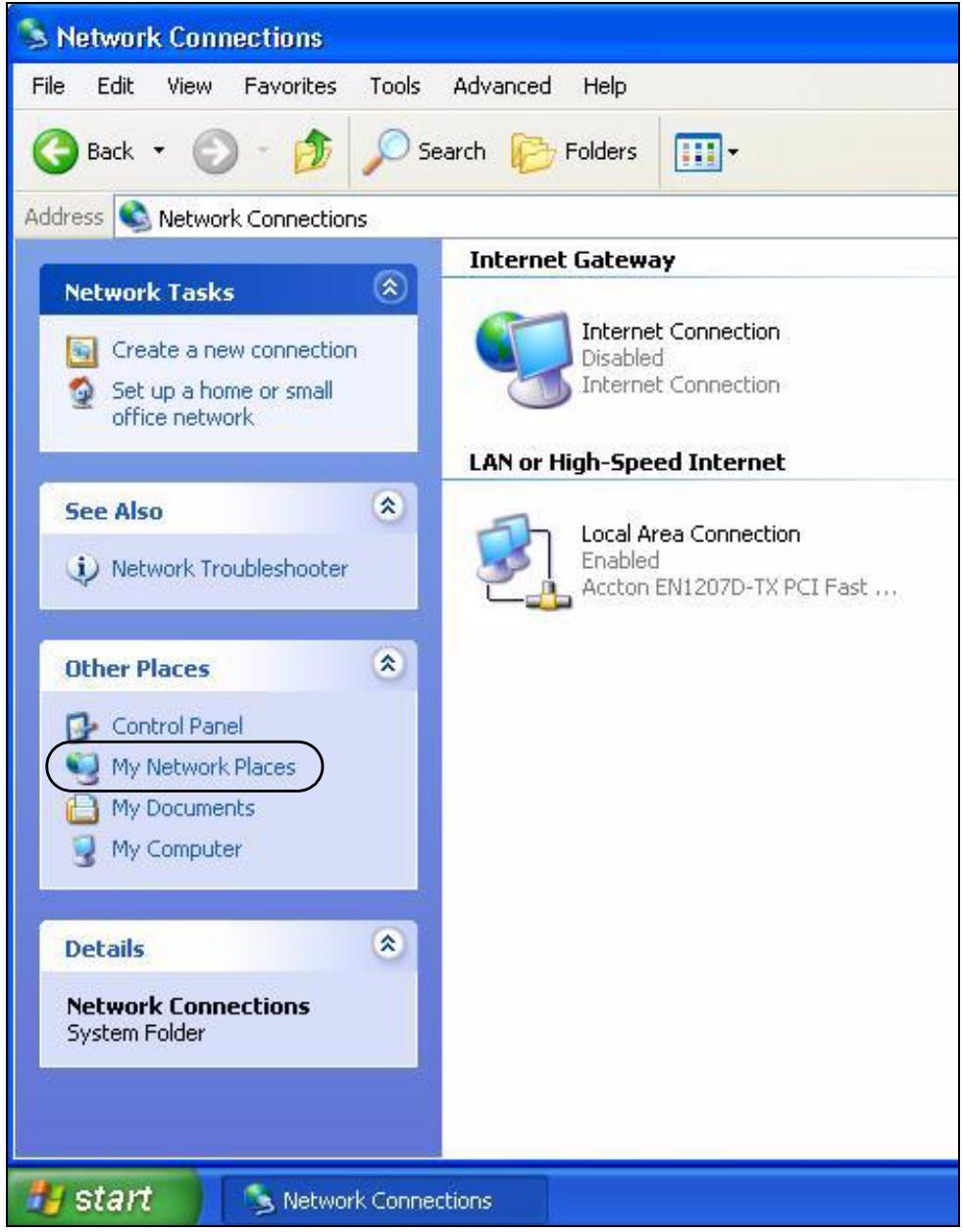

Figure 136 Network Connections

4 An icon with the description for each UPnP-enabled device displays under Local Network.
5 Right-click on the icon for your ZyXEL Device and select Invoke. The web configurator login screen displays.

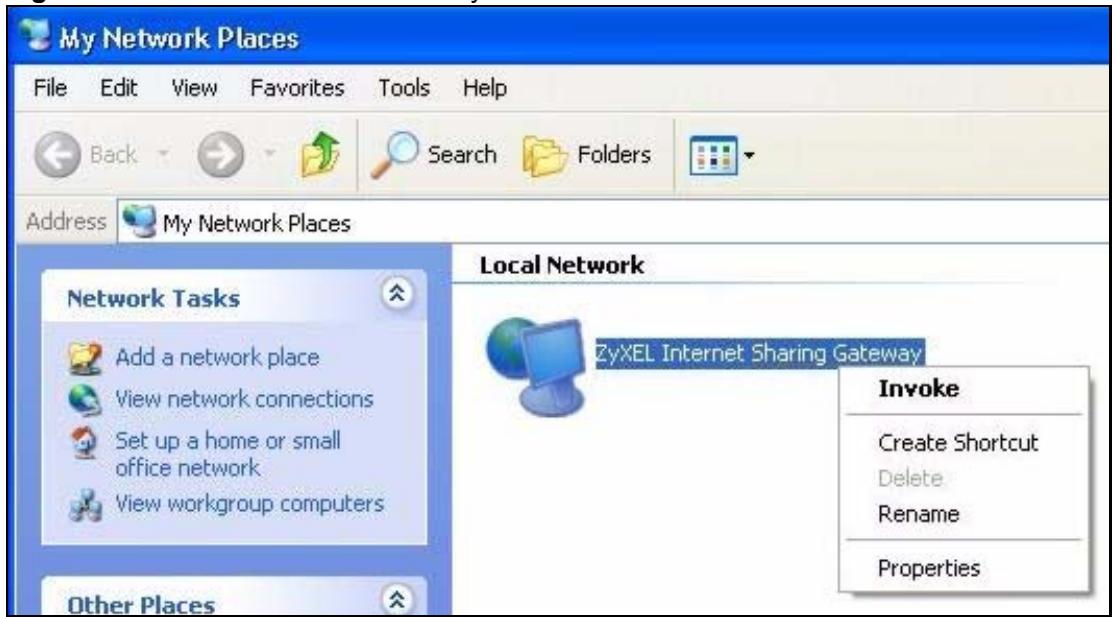

Figure 137 Network Connections: My Network Places

6 Right-click on the icon for your ZyXEL Device and select Properties. A properties window displays with basic information about the ZyXEL Device.

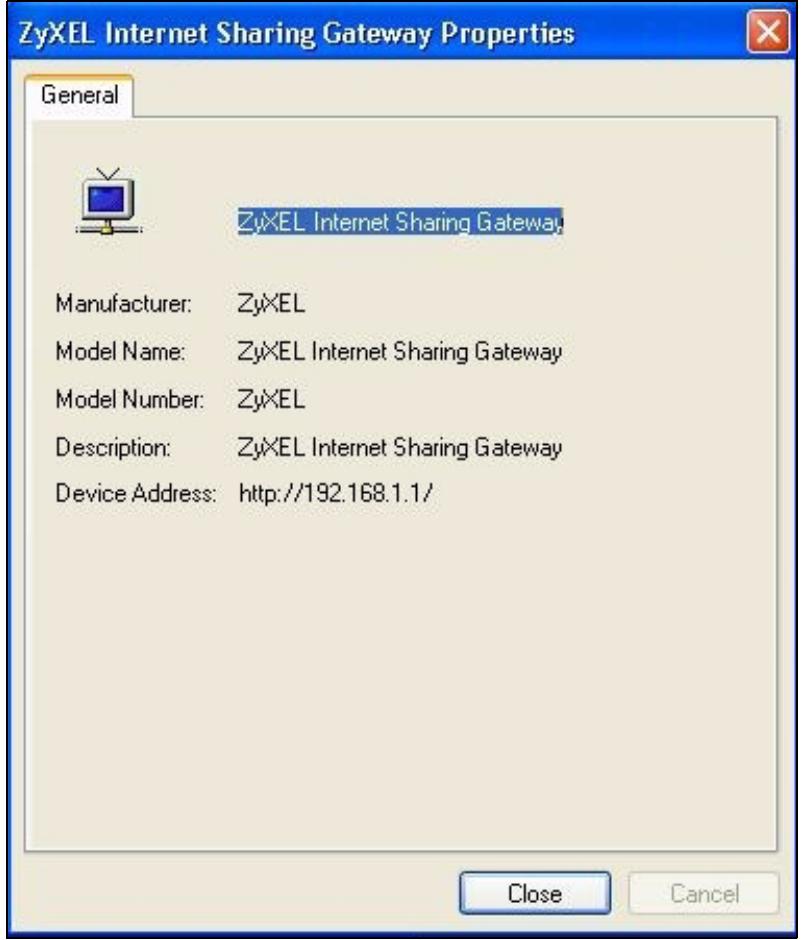

Figure 138 Network Connections: My Network Places: Properties: Example

19.4 UPnP General Screen

Use this screen to set up UPnP in your ZyXEL Device. To access this screen, click Management > UPnP.

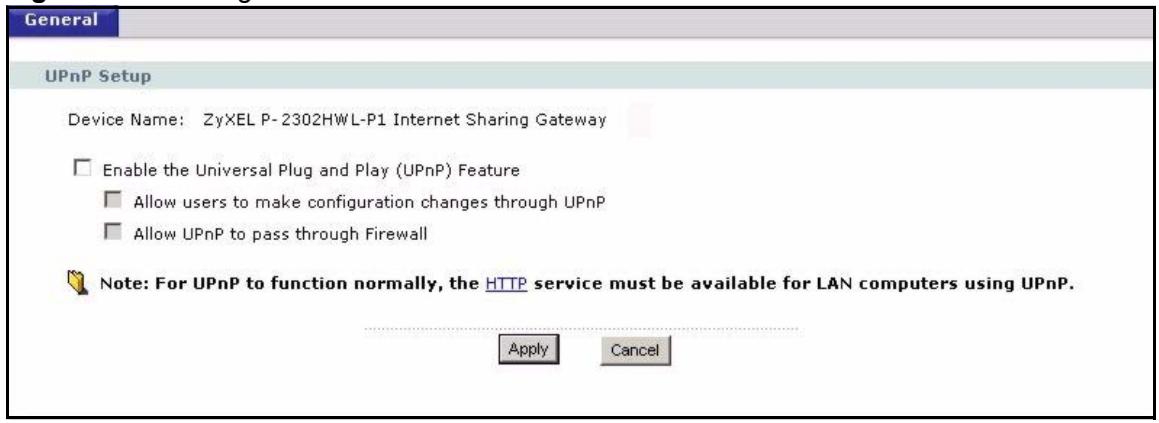

Figure 139 Management > UPnP

Each field is described in the following table.

Table 102 Management > UPnP

LABEL	DESCRIPTION
Device Name	This field identifies your device in UPnP applications.
Enable the Universal Plug and Play (UPnP) Feature	Select this to activate UPnP. Be aware that anyone could use a UPnP application to open the web configurator's login screen without entering the ZyXEL Device's IP address. You still have to enter the password, however.
Allow users to make configuration changes through UPnP	Select this to allow UPnP-enabled applications to automatically configure the ZyXEL Device so that they can communicate through the ZyXEL Device. For example, using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application.
Allow UPnP to pass through Firewall	Select this to allow traffic from UPnP-enabled applications to bypass the firewall. Clear this if you want the firewall to check UPnP application packets (for example, MSN packets).
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 20

System

Use this screen to set up general system settings, change the system mode, change the password, configure the DDNS server settings, and set the current date and time.

20.1 System Features Overview

20.1.1 System Name

System Name is for identification purposes. However, because some ISPs check this name you should enter your computer's "Computer Name".

• In Windows 95/98 click Start, Settings, Control Panel, Network. Click the Identification tab, note the entry for the Computer Name field and enter it as the System Name.
• In Windows 2000, click Start, Settings and Control Panel and then double-click System. Click the Network Identification tab and then the Properties button. Note the entry for the Computer name field and enter it as the System Name.
• In Windows XP, click Start, My Computer, View system information and then click the Computer Name tab. Note the entry in the Full computer name field and enter it as the ZyXEL Device System Name.

20.1.2 Domain Name

The Domain Name entry is what is propagated to the DHCP clients on the LAN. If you leave this blank, the domain name obtained by DHCP from the ISP is used. While you must enter the host name (System Name) on each individual computer, the domain name can be assigned from the ZyXEL Device via DHCP.

20.1.3 DNS Server Address Assignment

Use DNS (Domain Name System) to map a domain name to its corresponding IP address and vice versa, for instance, the IP address of www.zyxel.com is 204.217.0.2. The DNS server is extremely important because without it, you must know the IP address of a computer before you can access it.

The ZyXEL Device can get the DNS server addresses in the following ways.

1 The ISP tells you the DNS server addresses, usually in the form of an information sheet, when you sign up. If your ISP gives you DNS server addresses, enter them in the DNS Server fields in the SYSTEM General screen.
2 If the ISP did not give you DNS server information, leave the DNS Server fields in the SYSTEM General screen set to 0.0.0.0 for the ISP to dynamically assign the DNS server IP addresses.

20.1.4 Dynamic DNS

Dynamic DNS allows you to update your current dynamic IP address with one or many dynamic DNS services so that anyone can contact you (in NetMeeting, CU-SeeMe, etc.). You can also access your FTP server or Web site on your own computer using a domain name (for instance myhost.dhs.org, where myhost is a name of your choice) that will never change instead of using an IP address that changes each time you reconnect. Your friends or relatives will always be able to call you even if they don't know your IP address.

First of all, you need to have registered a dynamic DNS account with www.dyndns.org. This is for people with a dynamic IP from their ISP or DHCP server that would still like to have a domain name. The Dynamic DNS service provider will give you a password or key.

Enabling the wildcard feature for your host causes *.yourhost.dyndns.org to be aliased to the same IP address as yourhost.dyndns.org. This feature is useful if you want to be able to use, for example, www.yourhost.dyndns.org and still reach your hostname.

Note: If you have a private WAN IP address, then you cannot use Dynamic DNS.

20.1.5 Pre-defined NTP Time Servers List

The ZyXEL Device uses the following pre-defined list of NTP time servers if you do not specify a time server or it cannot synchronize with the time server you specified.

Note: The ZyXEL Device can use this pre-defined list of time servers regardless of the Time Protocol you select.

When the ZyXEL Device uses the pre-defined list of NTP time servers, it randomly selects one server and tries to synchronize with it. If the synchronization fails, then the ZyXEL Device goes through the rest of the list in order from the first one tried until either it is successful or all the pre-defined NTP time servers have been tried.

Table 103 Pre-defined NTP Time Servers

ntp1.cs.wisc.edu

ntp1.gbg.netnod.se

ntp2.cs.wisc.edu

tock.usno.navy.mil

ntp3.cs.wisc.edu

ntp.cs.strath.ac.uk

Table 103 Pre-defined NTP Time Servers

ntp1.sp.se

time1.stupi.se

tick.stdtime.gov.tw

tock.stdtime.gov.tw

time.stdtime.gov.tw

20.1.6 Resetting the Time

The ZyXEL Device resets the time in the following instances:

• When the ZyXEL Device starts up.
• When you click Apply in the Time Setting Screen.
  24-hour intervals after starting.

20.2 System Screens

20.2.1 General System Screen

Use this screen to set up the ZyXEL Device's system name, domain name, idle timeout, and administrator password. To access this screen, click Maintenance > System > General.

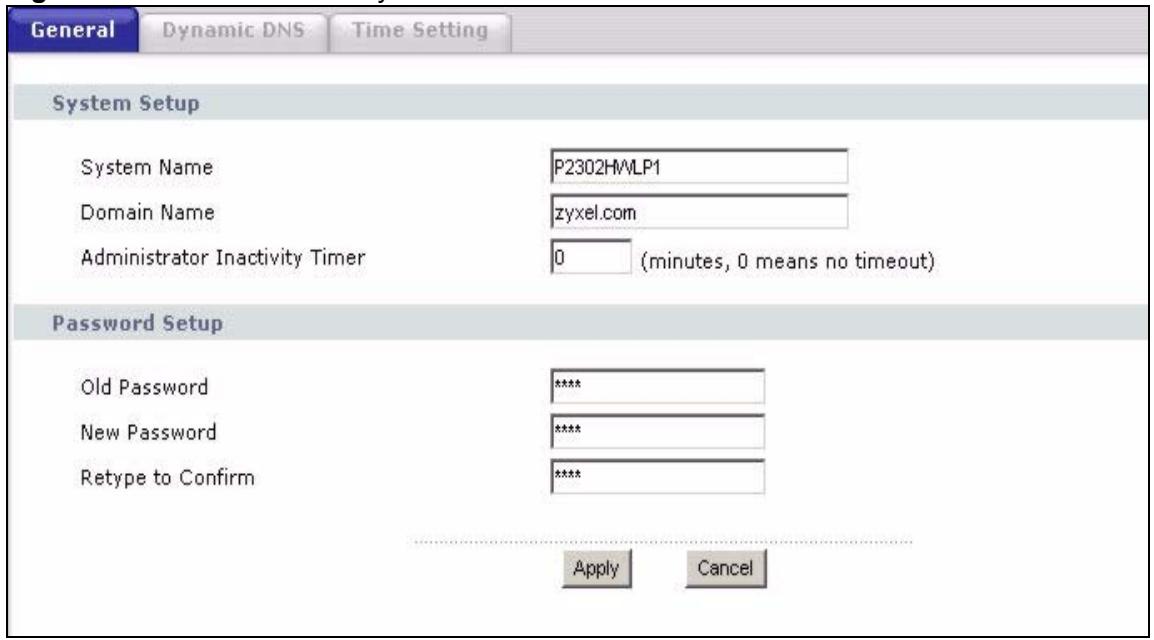

Figure 140 Maintenance > System > General

Each field is described in the following table.

Table 104 Maintenance > System > General

LABEL	DESCRIPTION
System Setup
System Name	Enter your computer's "Computer Name". This is for identification purposes, but some ISPs also check this field. This name can be up to 30 alphanumeric characters long. Spaces are not allowed, but dashes “-” and underscores “_” are accepted.
Domain Name	Enter the domain name entry that is propagated to DHCP clients on the LAN. If you leave this blank, the domain name obtained from the ISP is used. Use up to 38 alphanumeric characters. Spaces are not allowed, but dashes “-” and periods “.” are accepted.
Administrator Inactivity Timer	Enter the number of minutes a management session can be left idle before the session times out. After it times out, you have to log in again. A value of "0" means a management session never times out, no matter how long it has been left idle. This is not recommended. Long idle timeouts may have security risks. The default is five minutes.
Password Setup
Old Password	Enter the current password you use to access the ZyXEL Device.
New Password	Enter the new password for the ZyXEL Device. You can use up to 30 characters. As you type the password, the screen displays an asterisk (*) for each character you type.
Retype to Confirm	Type the new password again.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

20.2.2 Dynamic DNS Screen

Use this screen to set up the ZyXEL Device as a dynamic DNS client. To access this screen, click Maintenance > System > Dynamic DNS.

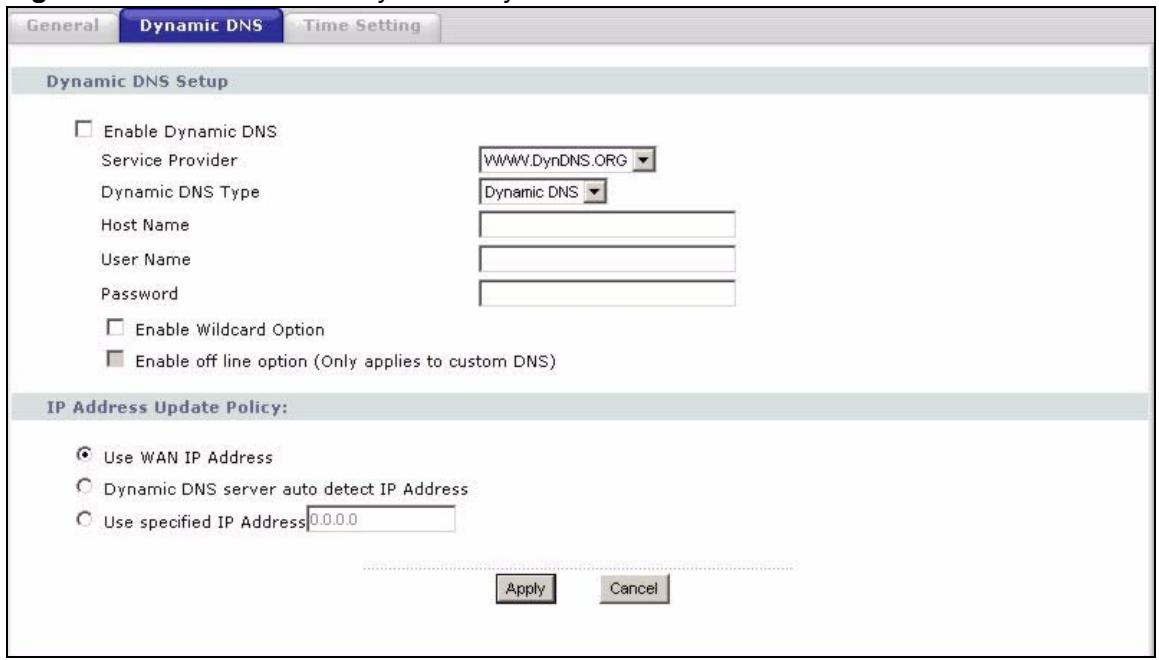

Figure 141 Maintenance > System > Dynamic DNS

Each field is described in the following table.

Table 105 Maintenance > System > Dynamic DNS

LABEL	DESCRIPTION
Dynamic DNS Setup
Enable Dynamic DNS	Select this to use dynamic DNS.
Service Provider	Select the name of your Dynamic DNS service provider.
Dynamic DNS Type	Select the type of service that you are registered for from your Dynamic DNS service provider.
Host Name	Enter the host name. You can specify up to two host names, separated by a comma ("",").
User Name	Enter your user name.
Password	Enter the password assigned to you.
Enable Wildcard Option	Select this to enable the DynDNS Wildcard feature.
Enable offline option	This field is available when CustomDNS is selected in the DDNS Type field. Select this if your Dynamic DNS service provider redirects traffic to a URL that you can specify while you are off line. Check with your Dynamic DNS service provider.
IP Address Update Policy

Table 105 Maintenance > System > Dynamic DNS

LABEL	DESCRIPTION
Use WAN IP Address	Select this if you want the ZyXEL Device to update the domain name with the WAN port's IP address.
Dynamic DNS server auto detect IP address	Select this if you want the DDNS server to update the IP address of the host name(s) automatically. Select this option when there are one or more NAT routers between the ZyXEL Device and the DDNS server.Note: The DDNS server may not be able to detect the proper IP address if there is an HTTP proxy server between the ZyXEL Device and the DDNS server.
Use specified IP address	Select this if you want to use the specified IP address with the host name(s). Then, specify the IP address. Use this option if you have a static IP address.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

20.2.3 Time Setting Screen

Use this screen to set the date, time, and time zone in the ZyXEL Device. To access this screen, click Maintenance > System > Time Setting.

Figure 142 Maintenance > System > Time Setting

Each field is described in the following table.

Table 106 Maintenance > System > Time Setting

LABEL	DESCRIPTION
Current Time and Date	This section displays the current date and time.
Time and Date Setup
Manual	Select this if you want to specify the current date and time in the fields below.
New Time	Enter the new time in this field, and click Apply.
New Date	Enter the new date in this field, and click Apply.
Get from Time Server	Select this if you want to use a time server to update the current date and time in the ZyXEL Device.
Time Protocol	Select the time service protocol that your time server uses. Check with your ISP or network administrator, or use trial-and-error to find a protocol that works.Daytime (RFC 867) - This format is day/month/year/time zone.Time (RFC 868) - This format displays a 4-byte integer giving the total number of seconds since 1970/1/1 at 0:0:0.NTP (RFC 1305) - This format is similar to Time (RFC 868).
Time Server Address	Enter the IP address or URL of your time server. Check with your ISP or network administrator if you are unsure of this information.
Time Zone Setup
Time Zone	Select the time zone at your location.

Table 106 Maintenance > System > Time Setting

LABEL	DESCRIPTION
Daylight Savings	Select this if your location uses daylight savings time. Daylight savings is a period from late spring to early fall when many places set their clocks ahead of normal local time by one hour to give more daytime light in the evening.
Start Date	Enter which hour on which day of which week of which month daylight-savings time starts.
End Date	Enter which hour on the which day of which week of which month daylight-savings time ends.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

CHAPTER 21 Logs

Use these screens to look at log entries and alerts and to configure the ZyXEL Device's log and alert settings.

21.1 Logs Overview

For a list of log messages, see Section 21.3 on page 252.

21.1.1 Alerts

An alert is a type of log that warrants more serious attention. Some categories such as System Errors consist of both logs and alerts.

21.1.2 Syslog Logs

There are two types of syslog: event logs and traffic logs. The device generates an event log when a system event occurs, for example, when a user logs in or the device is under attack. The device generates a traffic log when a "session" is terminated. A traffic log summarizes the session's type, when it started and stopped the amount of traffic that was sent and received and so on. An external log analyzer can reconstruct and analyze the traffic flowing through the device after collecting the traffic logs.

Table 107 Syslog Logs

LOGMESSAGE	DESCRIPTION
Event Log: <Facility*8 + Severity>Mon dd hr:mm:ss hostname src="<srcIP:srcPort>" dst="<dstIP:dstPort>" msg="<msg>" note="<note>" devID="<mac address>" cat="<category>"	This message is sent by the system ("RAS" displays as the system name if you haven't configured one) when the router generates a syslog. The facility is defined in the Log Settings screen. The severity is the log's syslog class. The definition of messages and notes are defined in the various log charts throughout this chapter. The "devID" is the MAC address of the router's LAN port. The "cat" is the same as the category in the router's logs.
Traffic Log: <Facility*8 + Severity>Mon dd hr:mm:ss hostname src="<srcIP:srcPort>" dst="<dstIP:dstPort>" msg="Traffic Log" note="Traffic Log" devID="<mac address>" cat="Traffic Log" duration=seconds sent=sentBytes rcvd=receiveBytes dir="/from:to/" proto=IPProtocolID proto="serviceName"	This message is sent by the device when the connection (session) is closed. The facility is defined in the Log Settings screen. The severity is the traffic log type. The message and note always display "Traffic Log". The "proto" field lists the service name. The "dir" field lists the incoming and outgoing interfaces ("LAN:LAN", "LAN:WAN", "LAN:DEV" for example).

21.2 Logs Screens

21.2.1 View Log Screen

Use this screen to look at log entries and alerts. Alerts are written in red. To access this screen, click Maintenance > Logs > View Log.

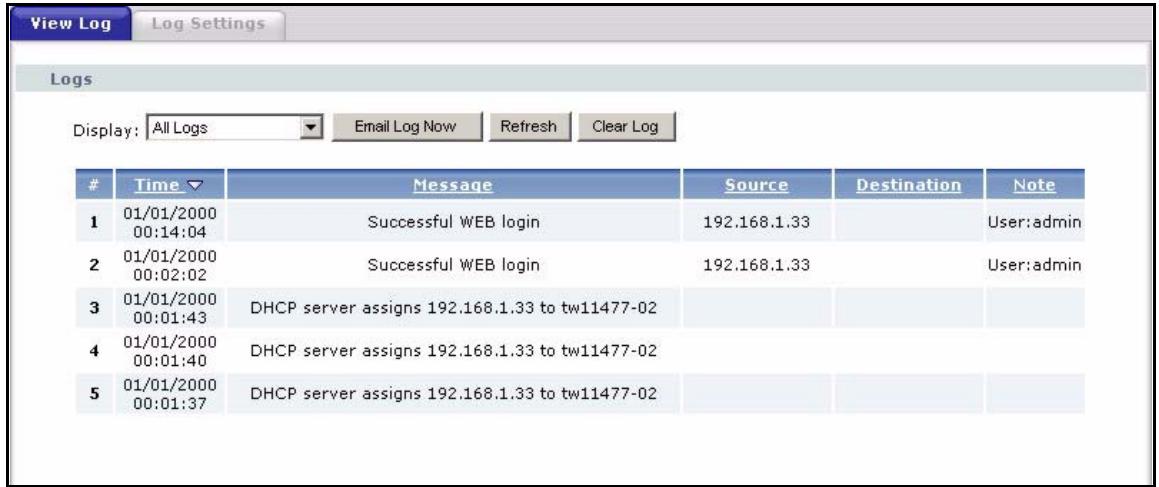

Figure 143 Maintenance > Logs > View Log

Click a column header to sort log entries in descending (later-to-earlier) order. Click again to sort in ascending order. The small triangle next to a column header indicates how the table is currently sorted (pointing downward is descending; pointing upward is ascending). Each field is described in the following table.

Table 108 Maintenance > Logs > View Log

LABEL	DESCRIPTION
Display	Select a category whose log entries you want to view. To view all logs, select All Logs. The list of categories depends on what log categories are selected in the Log Settings page.
Email Log Now	Click this to send the log screen to the e-mail address specified in the Log Settings page.
Refresh	Click Refresh to renew the log screen.
Clear Log	Click Clear Log to clear all the log entries, regardless of what is shown on the log screen.
#	This field is a sequential value, and it is not associated with a specific log entry.
Time	This field displays the time the log was recorded.
Message	This field displays the reason for the log. See Section 21.3 on page 252.
Source	This field displays the source IP address and the port number of the incoming packet. In many cases, some or all of this information may not be available.
Destination	This field lists the destination IP address and the port number of the incoming packet. In many cases, some or all of this information may not be available.
Note	This field displays additional information about the log entry.

21.2.2 Log Settings Screen

Use this screen to configure where the ZyXEL Device sends logs and alerts, the schedule for sending logs, and which logs and alerts are sent or recorded.

To access this screen, click Maintenance > Logs > Log Settings.

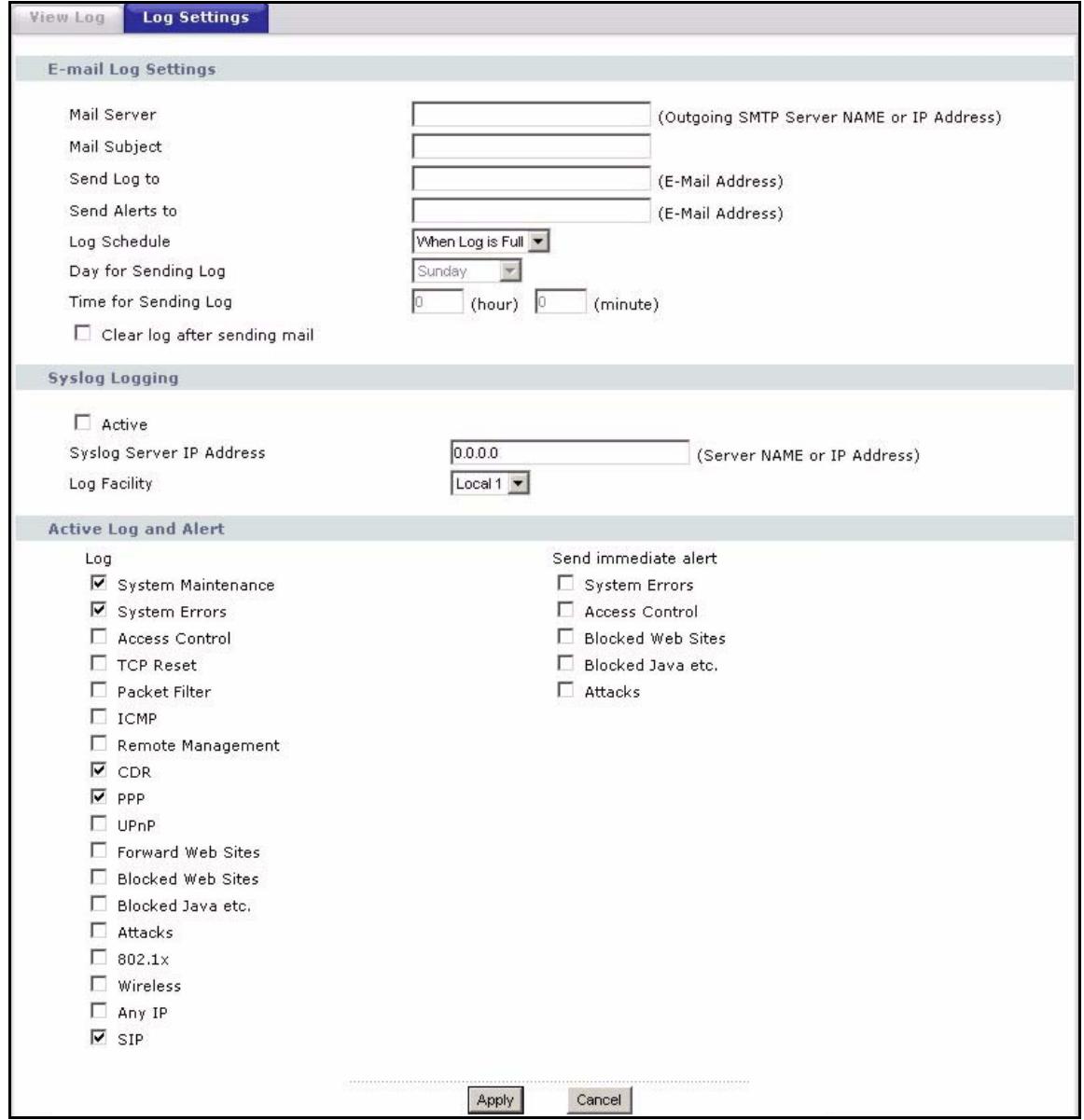

Figure 144 Maintenance > Logs > Log Settings

Each field is described in the following table.

Table 109 Maintenance > Logs > Log Settings

LABEL	DESCRIPTION
E-mail Log Settings
Mail Server	Enter the server name or the IP address of the mail server the ZyXEL Device should use to e-mail logs and alerts. Leave this field blank if you do not want to send logs or alerts by e-mail.
Mail Subject	Enter the subject line used in e-mail messages the ZyXEL Device sends.
Send Log to	Enter the e-mail address to which log entries are sent by e-mail. Leave this field blank if you do not want to send logs by e-mail.

Table 109 Maintenance > Logs > Log Settings

LABEL	DESCRIPTION
Send Alerts to	Enter the e-mail address to which alerts are sent by e-mail. Leave this field blank if you do not want to send alerts by e-mail.
Log Schedule	Select the frequency with which the ZyXEL Device should send log messages by e-mail.DailyWeeklyHourlyWhen Log is FullNone.If the Weekly or the Daily option is selected, specify a time of day when the E-mail should be sent. If the Weekly option is selected, then also specify which day of the week the E-mail should be sent. If the When Log is Full option is selected, an alert is sent when the log fills up. If you select None, no log messages are sent.
Day for Sending Log	This field is only available when you select Weekly in the Log Schedule field SELECT which day of the week to send the logs.
Time for Sending Log	This field is only available when you select Daily or Weekly in the Log Schedule field.Enter the time of day in 24-hour format (for example 23:00 equals 11:00 pm) to send the logs.
Clear log after sending mail	Select this to clear all logs and alert messages after logs are sent by e-mail.
Syslog Logging	Syslog logging sends a log to an external syslog server used to store logs.
Active	Select this to enable syslog logging.
Syslog Server IP Address	Enter the server name or IP address of the syslog server that logs the selected categories of logs.
Log Facility	Select a location. The log facility allows you to log the messages in different files in the syslog server. See the documentation of your syslog for more details.
Active Log and Alert
Log	Select the categories of logs that you want to record.
Send immediate alert	Select the categories of alerts that you want the ZyXEL Device to send immediately.
Apply	Click this to save your changes and to apply them to the ZyXEL Device.
Cancel	Click this to set every field in this screen to its last-saved value.

21.3 Log Message Descriptions

The following tables provide descriptions of example log messages.

Table 110 System Error Logs

LOGMESSAGE	DESCRIPTION
WAN connection is down.	The WAN connection is down. You cannot access the network through this interface.
%s exceeds the max. number of session per host!	This attempt to create a NAT session exceeds the maximum number of NAT session table entries allowed to be created per host.

Table 111 System Maintenance Logs

LOGMESSAGE	DESCRIPTION
Time synchronization is successful	The device has adjusted its time based on information from the time server.
Time synchronization failed	The device failed to get information from the time server.
WAN interface gets IP: %s	The WAN interface got a new IP address from the DHCP or PPPoE server.
DHCP client IP expired	A DHCP client's IP address has expired.
DHCP server assigns %s	The DHCP server assigned an IP address to a client.
Successful WEB login	Someone has logged on to the device's web configurator interface.
WEB login failed	Someone has failed to log on to the device's web configurator interface.
Successful TELNET login	Someone has logged on to the router via telnet.
TELNET login failed	Someone has failed to log on to the router via telnet.
Successful FTP login	Someone has logged on to the device via ftp.
FTP login failed	Someone has failed to log on to the device via ftp.
NAT Session Table is Full!	The maximum number of NAT session table entries has been exceeded and the table is full.
Time initialized by Datetime server: %s	The device got the time and date from the Datetime server.
Time initialized by Time server	The device got the time and date from the time server.
Time initialized by NTP server	The device got the time and date from the NTP server.
Failed to sync with Daytime server: %s	The device was not able to connect to the Daytime server.
Failed to sync with Time server: %s	The device was not able to connect to the Time server.
Failed to sync with NTP server: %s	The device was not able to connect to the NTP server.
Too large ICMP packet has been dropped	The device dropped an ICMP packet that was too large.
Configuration Change: PC = 0x%x, Task ID = 0x%x	The device is saving configuration changes.

Table 112 Access Control Logs

LOGMESSAGE	DESCRIPTION
Firewall default policy: [TCP | UDP | IGMP | ESP | GRE | OSPF ] <Packet Direction>	Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access matched the default policy and was blocked or forwarded according to the default policy's setting.
Firewall rule [NOT] match: [TCP | UDP | IGMP | ESP | GRE | OSPF ] <Packet Direction>, <rule:%d>	Attempted TCP/UDP/IGMP/ESP/GRE/OSPF access matched (or did not match) a configured firewall rule (denoted by its number) and was blocked or forwarded according to the rule.
Triangle route packet forwarded: [TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall allowed a triangle route session to pass through.
Packet without a NAT table entry blocked: [TCP | UDP | IGMP | ESP | GRE | OSPF ]	The router blocked a packet that didn't have a corresponding NAT table entry.
Router sent blocked web site message: TCP	The router sent a message to notify a user that the router blocked access to a web site that the user requested.
Exceed maximum sessions per host (%d).	The device blocked a session because the host's connections exceeded the maximum sessions per host.

Table 113 TCP Reset Logs

LOGMESSAGE	DESCRIPTION
Under SYN flood attack, sent TCP RST	The router sent a TCP reset packet when a host was under a SYN flood attack (the TCP incomplete count is per destination host.)
Exceed TCP MAX incomplete, sent TCP RST	The router sent a TCP reset packet when the number of TCP incomplete connections exceeded the user configured threshold. (the TCP incomplete count is per destination host.)
Peer TCP state out of order, sent TCP RST	The router sent a TCP reset packet when a TCP connection state was out of order.Note: The firewall refers to RFC793 Figure 6 to check the TCP state.
Firewall session time out, sent TCP RST	The router sent a TCP reset packet when a dynamic firewall session timed out.The default timeout values are as follows:ICMP idle timeout: 3 minutesUDP idle timeout: 3 minutesTCP connection (three way handshaking) timeout: 270 secondsTCP FIN-wait timeout: 2 MSL (Maximum Segment Lifetime set in the TCP header).TCP idle (established) timeout (s): 150 minutesTCP reset timeout: 10 seconds
Exceed MAX incomplete, sent TCP RST	The router sent a TCP reset packet when the number of incomplete connections (TCP and UDP) exceeded the user-configured threshold. (Incomplete count is for all TCP and UDP connections through the firewalI.)Note: When the number of incomplete connections (TCP + UDP) > "Maximum Incomplete High", the router sends TCP RST packets for TCP connections and destroys TOS (firewall dynamic sessions) until incomplete connections < "Maximum Incomplete Low".
Access block, sent TCP RST	The router sends a TCP RST packet and generates this log if you turn on the firewall TCP reset mechanism (via Cl command: sys firewall tcprst).

Table 114 Packet Filter Logs

LOGMESSAGE	DESCRIPTION
[TCP | UDP | ICMP | IGMP | Generic ] packet filter matched (set: %d, rule: %d)	Attempted access matched a configured filter rule (denoted by its set and rule number) and was blocked or forwarded according to the rule.

For type and code details, see Table 121 on page 257.

Table 115 ICMP Logs

LOGMESSAGE	DESCRIPTION
Firewall default policy: ICMP <Packet Direction>, <type:%d>, <code:%d>	ICMP access matched the default policy and was blocked or forwarded according to the user's setting.
Firewall rule [NOT] match: ICMP <Packet Direction>, <rule:%d>, <type:%d>, <code:%d>	ICMP access matched (or didn't match) a firewall rule (denoted by its number) and was blocked or forwarded according to the rule.
Triangle route packet forwarded: ICMP	The firewall allowed a triangle route session to pass through.
Packet without a NAT table entry blocked: ICMP	The router blocked a packet that didn't have a corresponding NAT table entry.
Unsupported/out-of-order ICMP: ICMP	The firewall does not support this kind of ICMP packets or the ICMP packets are out of order.
Router reply ICMP packet: ICMP	The router sent an ICMP reply packet to the sender.

Table 116 PPP Logs

LOGMESSAGE	DESCRIPTION
ppp:LCP Starting	The PPP connection's Link Control Protocol stage has started.
ppp:LCP Opening	The PPP connection's Link Control Protocol stage is opening.
ppp:CHAP Opening	The PPP connection's Challenge Handshake Authentication Protocol stage is opening.
ppp:IPCP Starting	The PPP connection's Internet Protocol Control Protocol stage is starting.
ppp:IPCP Opening	The PPP connection's Internet Protocol Control Protocol stage is opening.
ppp:LCP Closing	The PPP connection's Link Control Protocol stage is closing.
ppp:IPCP Closing	The PPP connection's Internet Protocol Control Protocol stage is closing.

Table 117 UPnP Logs

LOGMESSAGE	DESCRIPTION
UPnP pass through Firewall	UPnP packets can pass through the firewall.

Table 118 Content Filtering Logs

LOGMESSAGE	DESCRIPTION
%s: Keyword blocking	The content of a requested web page matched a user defined keyword.
%s: Not in trusted web list	The web site is not in a trusted domain, and the router blocks all traffic except trusted domain sites.
%s: Forbidden Web site	The web site is in the forbidden web site list.
%s: Contains ActiveX	The web site contains ActiveX.
%s: Contains Java applet	The web site contains a Java applet.
%s: Contains cookie	The web site contains a cookie.
%s: Proxy mode detected	The router detected proxy mode in the packet.
%s: Trusted Web site	The web site is in a trusted domain.
Cannot get the IP address of content filtering external database via DNS query.	The ZyXEL Device cannot get the IP address of the external content filtering via DNS query.
External content filtering license key is invalid.	The external content filtering license key is invalid.

For type and code details, see Table 121 on page 257.

Table 119 Attack Logs

LOGMESSAGE	DESCRIPTION
attack [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	The firewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF attack.
attack ICMP (type:%d, code:%d)	The firewall detected an ICMP attack.
land [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	Thefirewall detected a TCP/UDP/IGMP/ESP/GRE/OSPF land attack.
land ICMP (type:%d, code:%d)	Thefirewall detected an ICMP land attack.
ip spoofing - WAN [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	Thefirewall detected an IP spoofing attack on the WAN port.
ip spoofing - WAN ICMP (type:%d, code:%d)	Thefirewall detected an ICMP IP spoofing attack on the WAN port.
icmp echo : ICMP (type:%d, code:%d)	Thefirewall detected an ICMP echo attack.
syn flood TCP	Thefirewall detected a TCP syn flood attack.
ports scan TCP	Thefirewall detected a TCP port scan attack.
teardrop TCP	Thefirewall detected a TCP teardrop attack.
teardrop UDP	Thefirewall detected an UDP teardrop attack.
teardrop ICMP (type:%d, code:%d)	Thefirewall detected an ICMP teardrop attack.
illegal command TCP	Thefirewall detected a TCP illegal command attack.
NetBIOS TCP	Thefirewall detected a TCP NetBIOS attack.
ip spoofing - no routing entry [ TCP | UDP | IGMP | ESP | GRE | OSPF ]	Thefirewall classified a packet with no source routing entry as an IP spoofing attack.
ip spoofing - no routing entry ICMP (type:%d, code:%d)	Thefirewall classified an ICMP packet with no source routing entry as an IP spoofing attack.
vulnerability ICMP (type:%d, code:%d)	Thefirewall detected an ICMP vulnerability attack.
traceroute ICMP (type:%d, code:%d)	The firewall detected an ICMP traceroute attack.
ports scan UDP	The firewall detected a UDP port scan attack.
Firewall sent TCP packet in response to DoS attack TCP	Thefirewall sent TCP packet in response to a DoS attack
ICMP Source Quench ICMP	Thefirewall detected an ICMP Source Quench attack.
ICMP Time Exceed ICMP	Thefirewall detected an ICMP Time Exceed attack.
ICMP Destination Unreachable ICMP	Thefirewall detected an ICMP Destination Unreachable attack.
ping of death.ICMP	Thefirewall detected an ICMP ping of death attack.
smurf ICMP	Thefirewall detected an ICMP smurf attack.

Table 120 Remote Management Logs

LOGMESSAGE	DESCRIPTION
Remote Management: FTP denied	Attempted use of FTP service was blocked according to remote management settings.
Remote Management: TELNET denied	Attempted use of TELNET service was blocked according to remote management settings.
Remote Management: HTTP or UPnP denied	Attempted use of HTTP or UPnP service was blocked according to remote management settings.
Remote Management: WWW denied	Attempted use of WWW service was blocked according to remote management settings.
Remote Management: HTTPS denied	Attempted use of HTTPS service was blocked according to remote management settings.
Remote Management: SSH denied	Attempted use of SSH service was blocked according to remote management settings.
Remote Management: ICMP Ping response denied	Attempted use of ICMP service was blocked according to remote management settings.
Remote Management: DNS denied	Attempted use of DNS service was blocked according to remote management settings.

Table 121 ICMP Notes

TYPE	CODE	DESCRIPTION
0		Echo Reply
	0	Echo reply message
3		Destination Unreachable
	0	Net unreachable
	1	Host unreachable
	2	Protocol unreachable
	3	Port unreachable
	4	A packet that needed fragmentation was dropped because it was set to Don't Fragment (DF)
	5	Source route failed
4		Source Quench
	0	A gateway may discard internet datagrams if it does not have the buffer space needed to queue the datagrams for output to the next network on the route to the destination network.
5		Redirect
	0	Redirect datagrams for the Network
	1	Redirect datagrams for the Host
	2	Redirect datagrams for the Type of Service and Network
	3	Redirect datagrams for the Type of Service and Host
8		Echo
	0	Echo message
11		Time Exceeded
	0	Time to live exceeded in transit
	1	Fragment reassembly time exceeded
12		Parameter Problem
	0	Pointer indicates the error
13		Timestamp
	0	Timestamp request message
14		Timestamp Reply
	0	Timestamp reply message
15		Information Request
	0	Information request message
16		Information Reply
	0	Information reply message

Table 122 SIP Logs

LOGMESSAGE	DESCRIPTION
SIP Registration Success by SIP:SIP Phone Number	The listed SIP account was successfully registered with a SIP register server.
SIP Registration Fail by SIP:SIP Phone Number	An attempt to register the listed SIP account with a SIP register server was not successful.
SIP UnRegistration Success by SIP:SIP Phone Number	The listed SIP account's registration was deleted from the SIP register server.
SIP UnRegistration Fail by SIP:SIP Phone Number	An attempt to delete the listed SIP account's registration from the SIP register server failed.

Table 123 RTP Logs

LOGMESSAGE	DESCRIPTION
Error, RTP init fail	The initialization of an RTP session failed.
Error, Call fail: RTP connect fail	A VoIP phone call failed because the RTP session could not be established.
Error, RTP connection cannot close	The termination of an RTP session failed.

Table 124 Lifeline Logs

LOGMESSAGE	DESCRIPTION
PSTN Call Start	A PSTN call has been initiated.
PSTN Call End	A PSTN call has terminated.
PSTN Call Established	A PSTN call has been set up.

CHAPTER 22

Tools

Use these screens to upload new firmware, back up and restore the configuration, and restart the ZyXEL Device.

22.1 Tools Overview

22.1.1 ZyXEL Firmware

Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a "(.*.\bin" extension, e.g., "zyxel.bin". The upload process uses HTTP (Hypertext Transfer Protocol) and may take up to two minutes. After a successful upload, the system will reboot.

Note: Only use firmware for your ZyXEL Device's specific model. Refer to the label on the bottom of your ZyXEL Device.

22.2 Tools Screens

22.2.1 Firmware Screen

Use this screen to upload new firmware to the ZyXEL Device. To access this screen, click Maintenance > Tools > Firmware.

Note: Only use firmware for your ZyXEL Device's specific model. Refer to the label on the bottom of your ZyXEL Device.

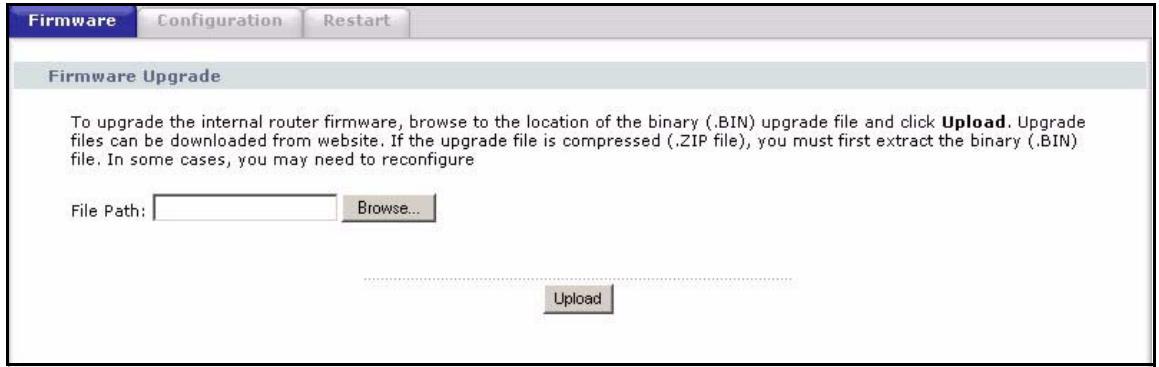

Figure 145 Maintenance > Tools > Firmware

Each field is described in the following table.

Table 125 Maintenance > Tools > Firmware

LABEL	DESCRIPTION
File Path	Enter the location of the .bin file you want to upload, or click Browse... to find it. You must decompress compressed (.zip) files before you can upload them.
Browse...	Click this to find the .bin file you want to upload.
Upload	Click this to begin uploading the selected file. This may take up to two minutes. See Section 22.2.2 on page 262 for more information about this process. Note: Do not turn off the device while firmware upload is in progress!

22.2.2 Firmware Upload Screens

Note: Do not turn off the device while firmware upload is in progress!

When the ZyXEL Device starts to upload firmware, the Firmware Upload in Process screen appears.

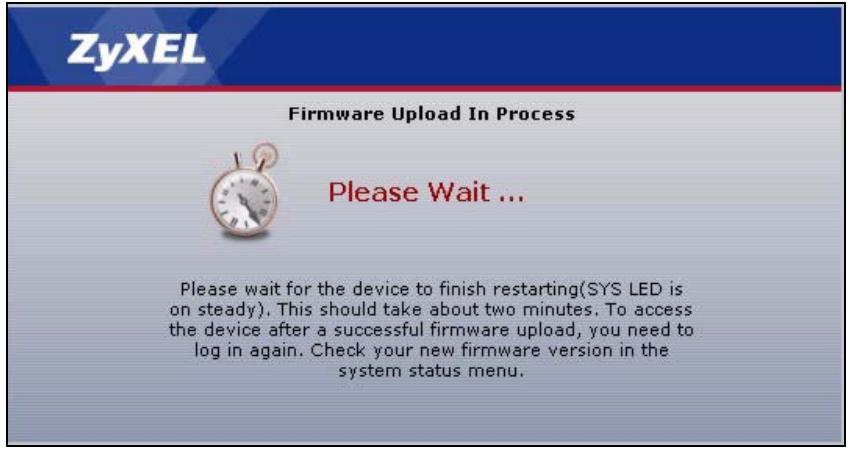

Figure 146 Firmware Upload In Process

The process usually takes about two minutes. The device automatically restarts in this time. This causes a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 147 Network Temporarily Disconnected

After two minutes, log in again, and check your new firmware version in the Status screen. You might have to open a new browser to log in.

If the upload is not successful, an error screen appears.

Click Return to go back to the Firmware Screen.

22.2.3 Configuration Screen

Use this screen to back up or restore the configuration of the ZyXEL Device. You can also use this screen to reset the ZyXEL Device to the factory default settings. To access this screen, click Maintenance > Tools > Configuration.

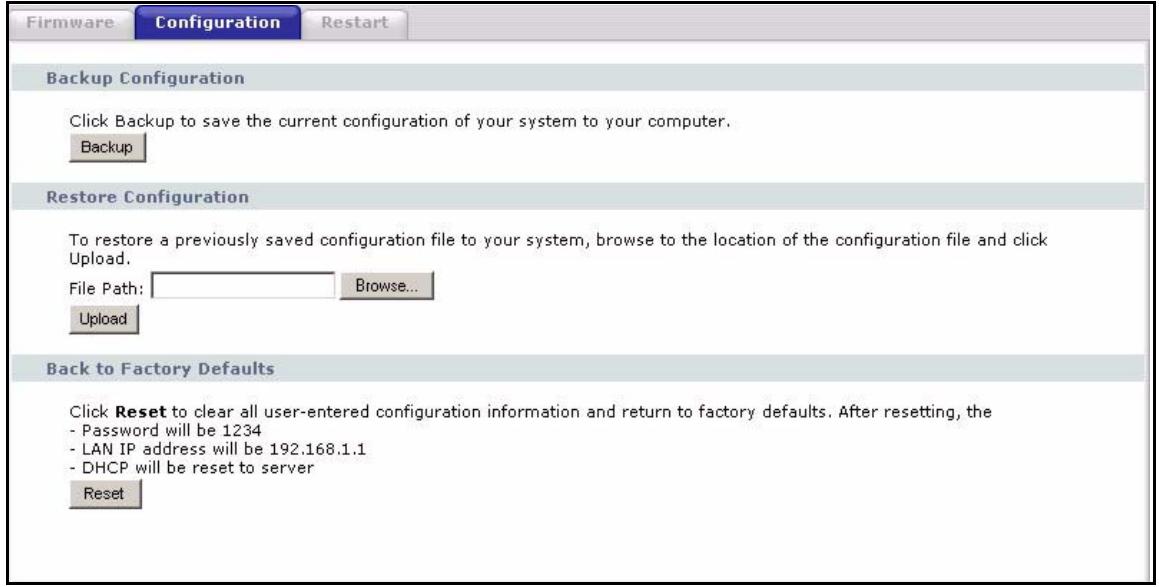

Figure 148 Maintenance > Tools > Configuration

Each field is described in the following table.

Table 126 Maintenance > Tools > Configuration

LABEL	DESCRIPTION
Backup Configuration
Backup	Click this to save the ZyXEL Device's current configuration to a file on your computer. Once your device is configured and functioning properly, it is highly recommended that you back up your configuration file before making configuration changes. The backup configuration file is useful if you need to return to your previous settings.
Restore Configuration
File Path	Enter the location of the file you want to upload, or click Browse... to find it.
Browse	Click this to find the file you want to upload.
Upload	Click this to restore the selected configuration file. See Section 22.2.4 on page 264 for more information about this.Note: Do not turn off the device while configuration file upload is in progress.
Back to Factory Defaults
Reset	Click this to clear all user-entered configuration information and return the ZyXEL Device to its factory defaults. There is no warning screen.

22.2.4 Restore Configuration Screens

Note: Do not turn off the device while configuration file upload is in progress.

When the ZyXEL Device has finished restoring the selected configuration file, the following screen appears.

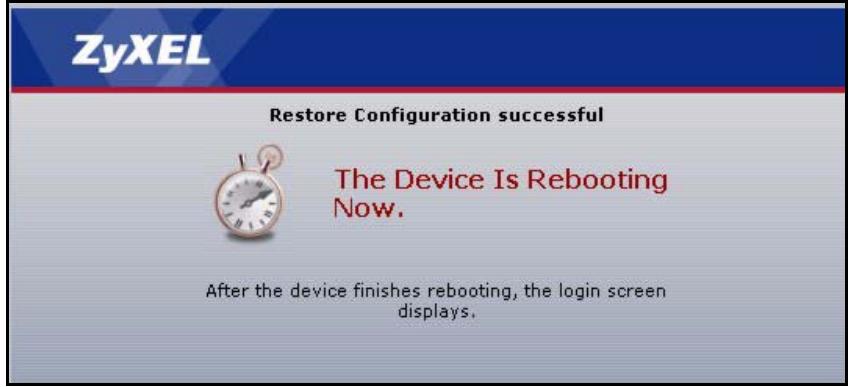

Figure 149 Configuration Upload Successful

The device now automatically restarts. This causes a temporary network disconnect. In some operating systems, you may see the following icon on your desktop.

Figure 150 Network Temporarily Disconnected

If the ZyXEL Device's IP address is different in the configuration file you selected, you may need to change the IP address of your computer to be in the same subnet as that of the default management IP address (192.168.5.1). See your Quick Start Guide or the appendices for details on how to set up your computer's IP address.

You might have to open a new browser to log in again.

If the upload was not successful, an error screen appears.

Click Return to go back to the Configuration Screen.

22.2.5 Restart Screen

Use this screen to reboot the ZyXEL Device without turning the power off. To access this screen, click Maintenance > Tools > Restart.

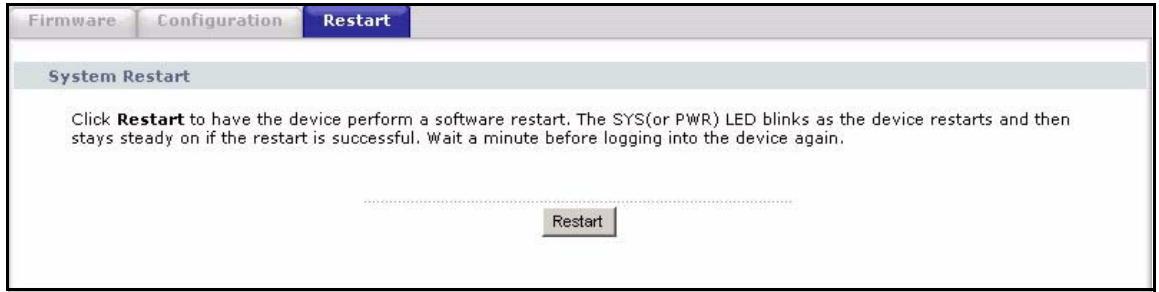

Figure 151 Maintenance > Tools > Restart

This does not affect the ZyXEL Device's configuration. When you click Restart, the following screen appears.

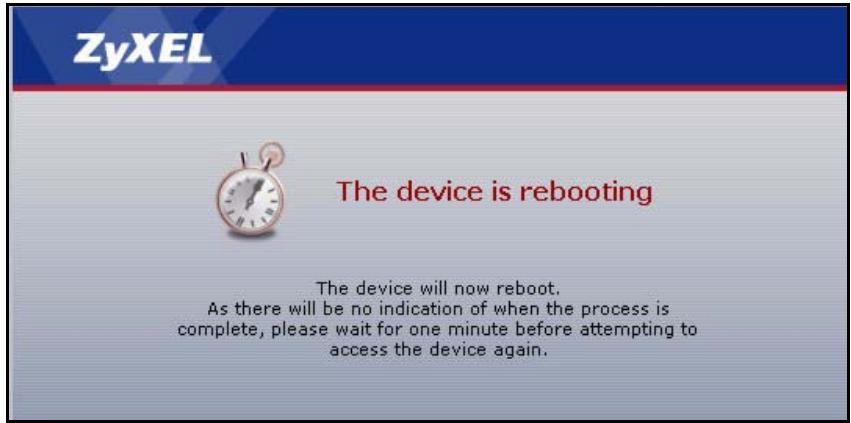

Figure 152 Maintenance > Tools > Restart > In Progress

Wait one minute for the device to finish restarting. Then, you can log in again.

CHAPTER 23 Troubleshooting

This chapter covers potential problems and the corresponding remedies.

23.1 Problems Starting Up the ZyXEL Device

Table 127 Troubleshooting Starting Up Your Device

PROBLEM	CORRECTIVE ACTION
None of the LEDs turn on when I turn on the ZyXEL Device.	Make sure that the ZyXEL Device's power adaptor is connected to the ZyXEL Device and plugged in to an appropriate power source. Make sure that the ZyXEL Device and the power source are both turned on. Turn the ZyXEL Device off and on. If the error persists, you may have a hardware problem. In this case, you should contact your vendor.

23.2 Problems with the LAN

Table 128 Troubleshooting the LAN

PROBLEM	CORRECTIVE ACTION
The ETHERNET lights do not turn on.	Check your Ethernet cable connections (refer to the Quick Start Guide for details). Check for faulty Ethernet cables.
	Make sure your computer's Ethernet Card is working properly.
I cannot access the ZyXEL Device from the LAN.	If Any IP is disabled, make sure that the IP address and the subnet mask of the ZyXEL Device and your computer(s) are on the same subnet.

23.3 Problems with the WAN

Table 129 Troubleshooting the WAN

PROBLEM	CORRECTIVE ACTION
The WAN light is off.	Check the Ethernet cable and connections between the ZyXEL Device WAN port and DSL modem or switch that it is connected to.
I cannot get a WAN IP address from the ISP. (The INTERNET light is red.)	The ISP provides the WAN IP address after authenticating you. Authentication may be through the user name and password, the MAC address or the host name. The username and password apply to PPPoE encapsulation only. Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct case). Refer to Section 6.1.1 on page 101.
I cannot access the Internet.	Make sure the ZyXEL Device is turned on and connected to the network. Verify your WAN settings. Refer to Chapter 6 on page 101. Make sure you entered the correct user name and password.
The Internet connection disconnects.	If you use PPPoE encapsulation, check the idle time-out setting. Refer to Section 6.2.3 on page 106. Contact your ISP.

23.4 Problems Accessing the ZyXEL Device

Table 130 Troubleshooting Accessing Your Device

PROBLEM	CORRECTIVE ACTION
I cannot access the ZyXEL Device.	The default password is “1234”. Make sure that you enter the correct password. If you have changed the password and have now forgotten it, you will need to upload the default configuration file. This restores all of the factory defaults including the password.

Table 130 Troubleshooting Accessing Your Device

PROBLEM	CORRECTIVE ACTION
I cannot access the web configurator.	Make sure that there is not a telnet session running.Use the ZyXEL Device's WAN IP address when configuring from the WAN. Refer to the instructions on checking your WAN connection.Use the ZyXEL Device's LAN IP address when configuring from the LAN. Refer to for instructions on checking your LAN connection.Your computer's and the ZyXEL Device's IP addresses must be on the same subnet for LAN access.If you changed the ZyXEL Device's LAN IP address, then enter the new one as the URL.See the following section to check that pop-up windows, JavaScripts and Java permissions are allowed.
	You may also need to clear your Internet browser's cache.In Internet Explorer, click Tools and then Internet Options to open the Internet Options screen.In the General tab, click Delete Files. In the pop-up window, select the Delete all offline content check box and click OK. Click OK in the Internet Options screen to close it.If you disconnect your computer from one device and connect it to another device that has the same IP address, your computer's ARP (Address Resolution Protocol) table may contain an entry that maps the management IP address to the previous device's MAC address).In Windows, use arp -d at the command prompt to delete all entries in your computer's ARP table.
I cannot remotely manage the ZyXEL Device from the LAN or WAN.	Refer to Chapter 19 on page 225 for scenarios when remote management may not be possible.Use the ZyXEL Device's WAN IP address when configuring from the WAN.Use the ZyXEL Device's LAN IP address when configuring from the LAN.

23.4.1 Pop-up Windows, JavaScripts and Java Permissions

In order to use the web configurator you need to allow:

• Web browser pop-up windows from your device.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).

Note: Internet Explorer 6 screens are used here. Screens for other Internet Explorer versions may vary.

23.4.1.1 Internet Explorer Pop-up Blockers

You may have to disable pop-up blocking to log into your device.

Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or allow pop-up blocking and create an exception for your device's IP address.

1 In Internet Explorer, select Tools, Pop-up Blocker and then select Turn Off Pop-up Blocker.

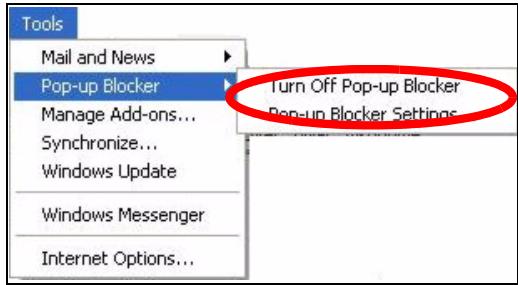

Figure 153 Pop-up Blocker

You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the Privacy tab.

1 In Internet Explorer, select Tools, Internet Options, Privacy.
2 Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This disables any web pop-up blockers you may have enabled.

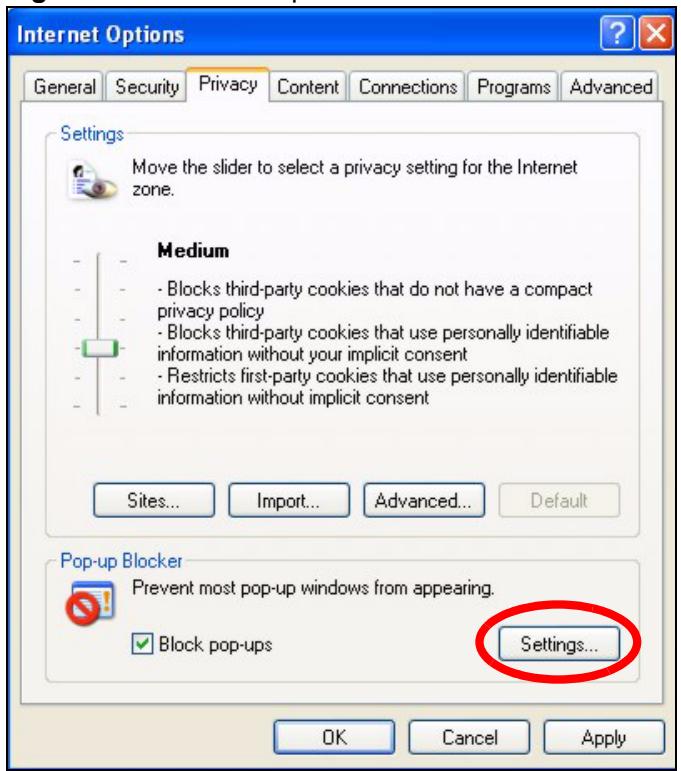

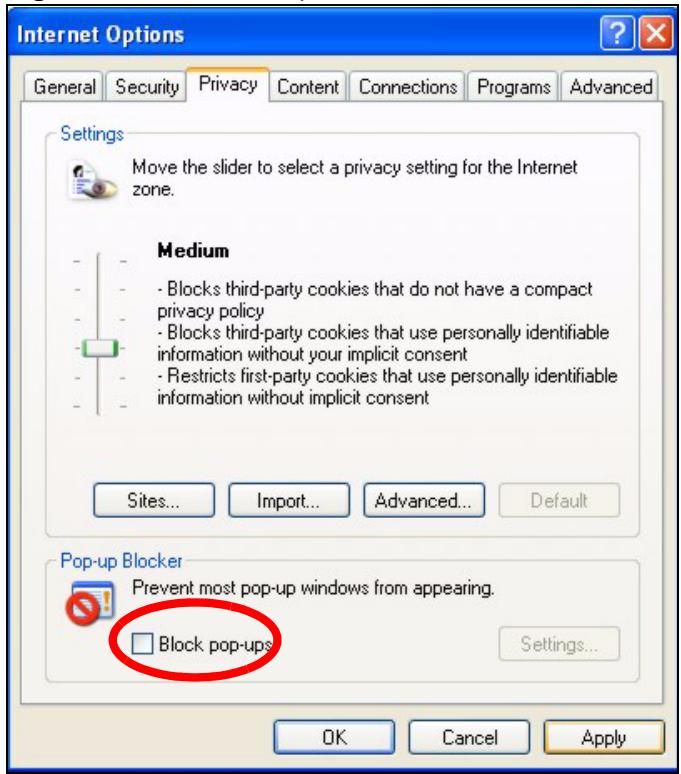

Figure 154 Internet Options

3 Click Apply to save this setting.

23.4.1.1.2 Enable pop-up Blockers with Exceptions

Alternatively, if you only want to allow pop-up windows from your device, see the following steps.

1 In Internet Explorer, select Tools, Internet Options and then the Privacy tab.
2 Select Settings...to open the Pop-up Blocker Settings screen.

Figure 155 Internet Options

3 Type the IP address of your device (the web page that you do not want to have blocked) with the prefix "http://". For example, http://192.168.1.1.
4 Click Add to move the IP address to the list of Allowed sites.

Figure 156 Pop-up Blocker Settings

5 Click Close to return to the Privacy screen.
6 Click Apply to save this setting.

If pages of the web configurator do not display properly in Internet Explorer, check that JavaScripts are allowed.

1 In Internet Explorer, click Tools, Internet Options and then the Security tab.

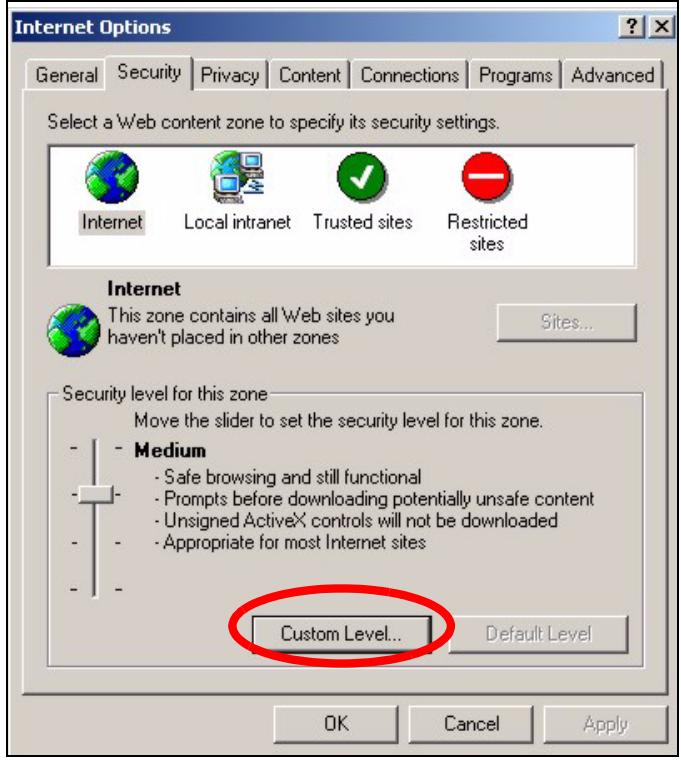

Figure 157 Internet Options

2 Click the Custom Level... button.
3 Scroll down to Scripting.
4 Under Active scripting make sure that Enable is selected (the default).
5 Under Scripting of Java applets make sure that Enable is selected (the default).
6 Click OK to close the window.

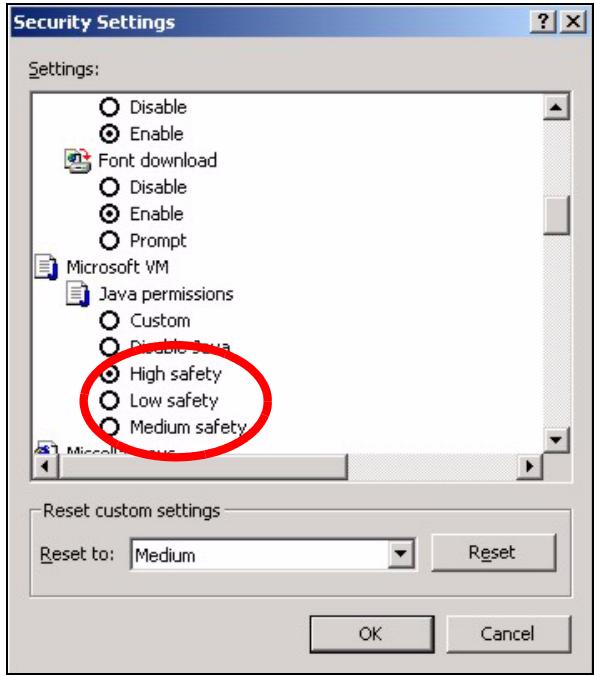

Figure 158 Security Settings - Java Scripting

23.4.1.3 Java Permissions

1 From Internet Explorer, click Tools, Internet Options and then the Security tab.
2 Click the Custom Level... button.
3 Scroll down to Microsoft VM.
4 Under Java permissions make sure that a safety level is selected.
5 Click OK to close the window.

Figure 159 Security Settings - Java

1 From Internet Explorer, click Tools, Internet Options and then the Advanced tab.
2 make sure that Use Java 2 for under Java (Sun) is selected.
3 Click OK to close the window.

Figure 160 Java (Sun)

23.5 Telephone Problems

Table 131 Troubleshooting Telephone

PROBLEM	CORRECTIVE ACTION
The telephone port won't work or the telephone lacks a dial tone.	Check the telephone connections and telephone wire. Make sure you have the VoIP SIP Settings screen properly configured.
I can access the Internet, but cannot make VoIP calls.	Make sure you have the VoIP SIP Settings screen properly configured. One of the PHONE lights should come on. Make sure that your telephone is connected to the corresponding PHONE port. You can also check the VoIP status in the Status screen. If the VoIP settings are correct, use speed dial to make peer-to-peer calls. If you cannot make a call using speed dial, there may be something wrong with the SIP server, contact your VoIP service provider.
I cannot call from one of the ZyXEL Device's phone ports to the other phone port.	You cannot call the SIP number of the SIP account that you are using to make a call. The ZyXEL Device generates a busy tone and does not attempt to establish a call if the SIP number you dial matches the outgoing SIP number of the phone port you are using. For example, if you set Phone 1 to use SIP account 1 and set Phone 2 to use SIP account 2, then you can use Phone 1 to call to SIP account 2's SIP number or Phone 2 to call to SIP account 1's SIP number.

23.6 Problems With Multiple SIP Accounts

You can set up two SIP accounts on your ZyXEL Device and your ZyXEL Device is equipped with two phone ports. By default your ZyXEL Device uses SIP account 1 with both phone ports for outgoing calls, and it uses SIP accounts 1 and 2 for incoming calls. With this setting, you always use SIP account 1 for your outgoing calls and you cannot distinguish which SIP account the calls are coming in through. If you want to control the use of different dialing plans for accounting purposes or other reasons, you need to configure your phone ports in order to control which SIP account you are using when placing or receiving calls.

23.6.1 Outgoing Calls

The following figure represents the default behavior of your ZyXEL Device when two SIP accounts are configured and you are using two phones. When you place a call from phone 1 or phone 2, the ZyXEL Device will use SIP account 1.

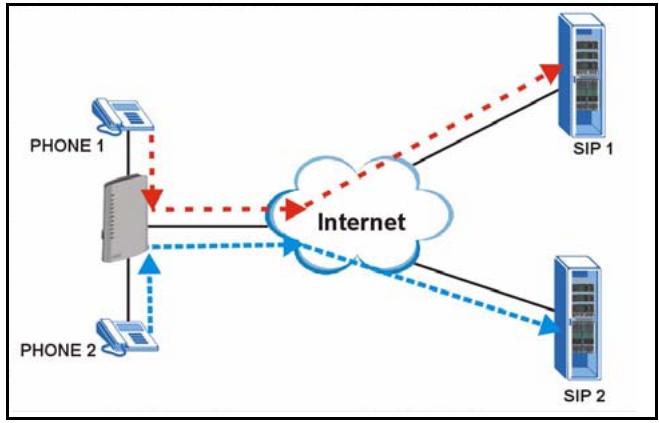

Figure 161 Outgoing Calls: Default

In the next example, phone port 1 is configured to use SIP account 1 and phone port 2 is configured to use SIP account 2. In this case, every time you place a call through phone port 1, you are using your SIP account 1. Similarly, every time you place a call through phone port 2, you are using your SIP account 2. To apply these configuration changes you need to configure the Analog Phone screen. See Section 10.2 on page 155.

Figure 162 Outgoing Calls: Individual Configuration

23.6.2 Incoming Calls

The following example shows the default behavior of your ZyXEL Device for incoming calls when two SIP accounts are configured and you are using two phones. When a call comes in from your SIP account 1, the phones connected to both phone port 1 and phone port 2 ring. Similarly, when a call comes in from your SIP account 2, the phones connected to both phone port 1 and phone port 2 ring. In either case you are not sure which SIP account the call is coming from.

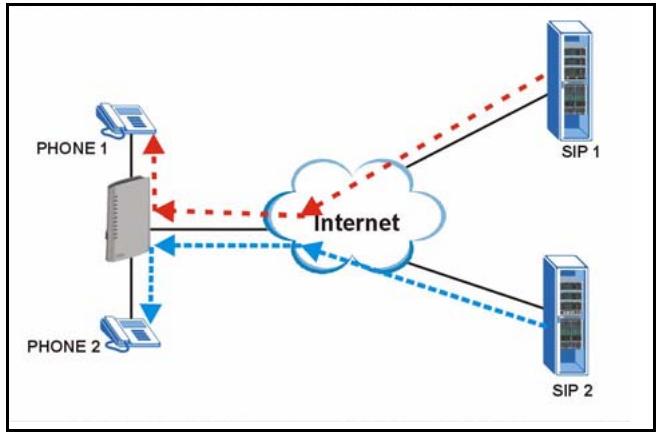

Figure 163 Incoming Calls: Default

In the next example, phone port 1 is configured to use SIP account 1 and phone port 2 is configured to use SIP account 2 for incoming calls. In this case, every time you receive a call from your SIP account 1, the phone connected to phone port 1 rings. Similarly, every time you receive a call from your SIP account 2, the phone connected to phone port 2 rings. To apply these configuration changes you need to configure the Analog Phone screen. See Section 10.2 on page 155.

Figure 164 Incoming Calls: Individual Configuration

APPENDIX A

Product Specifications

See also the introduction chapter for a general overview of the key features.

Specification Tables

Table 132 Device Specifications

Default IP Address	192.168.1.1
Default Management Subnet Mask	255.255.255.0 (24 bits)
Default Password	1234
Dimensions	215.5mm (High) x 147.5mm (Wide) x 56.5mm (Deep) x
Weight	437 g
WAN Port	One RJ-45, 10/100Mbps Half / Full Auto-negotiation, Auto-crossover Ethernet port
Ethernet Ports	Four RJ-45, 10/100Mbps Half / Full Auto-negotiation, Auto-crossover Ethernet ports
Phone Ports	Two FXS (Foreign Exchange Station) POTS ports
Feeding Voltage	On hook: -48V; Minimum Voltage: -20V Off hook: -24V
Ringing Voltage	40V RMS at 5 REN 40V RMS at 3 REN
Line Port (P-2302HWL-P1 only)	One FXO (Foreign Exchange Office) lifeline port
Operation Temperature	0° C ~ 40° C
Storage Temperature	-30° ~ 60° C
Operation Humidity	20% ~ 95% RH
Storage Humidity	20% ~ 95% RH

Table 133 Firmware Features

FEATURE	DESCRIPTION
Device Management	Use the web configurator to easily configure the rich range of features on the ZyXEL Device.
Firmware Upgrade	Download new firmware (when available) from the ZyXEL web site and use the web configurator, an FTP or a TFTP tool to put it on the ZyXEL Device.Note: Only upload firmware for your specific model!
IEEE 802.11g Wireless LAN	The ZyXEL Device can serve as an IEEE 802.11g wireless access point. Expand your network by allowing IEEE 802.11g and IEEE 802.11b devices to connect to your network.
Wireless Security	The ZyXEL Device supports WEP encryption for basic security as well as WPA and WPA2 security standards.You can also use OTIST to easily configure your wireless security on both your ZyXEL Device and compatible wireless clients.
MAC Address Filter	Allow or deny access to your wired or wireless network based on the MAC addresses of the computers communicating with your network.
Any IP	The Any IP feature allows a computer to access the Internet and the ZyXEL Device without changing the network settings (such as IP address and subnet mask) of the computer, when the IP addresses of the computer and the ZyXEL Device are not in the same subnet.
Configuration Backup & Restoration	Make a copy of the ZyXEL Device's configuration and put it back on the ZyXEL Device later if you decide you want to revert back to an earlier configuration.
Network Address Translation (NAT)	Each computer on your network must have its own unique IP address.Use NAT to convert a single public IP address to multiple private IP addresses for the computers on your network.
Port Forwarding	If you have a server (mail or web server for example) on your network, then use this feature to let people access it from the Internet.
DHCP (Dynamic Host Configuration Protocol)	Use this feature to have the ZyXEL Device assign IP addresses, an IP default gateway and DNS servers to computers on your network.
Dynamic DNS Support	With Dynamic DNS (Domain Name System) support, you can use a fixed URL, www.zyxel.com for example, with a dynamic IP address. You must register for this service with a Dynamic DNS service provider.
IP Multicast	IP Multicast is used to send traffic to a specific group of computers. The ZyXEL Device supports versions 1 and 2 of IGMP (Internet Group Management Protocol) used to join multicast groups (see RFC 2236).
IP Alias	IP Alias allows you to subdivide a physical network into logical networks over the same Ethernet interface with the ZyXEL Device itself as the gateway for each subnet.
Time and Date	Get the current time and date from an external server when you turn on your ZyXEL Device. You can also set the time manually. These dates and times are then used in logs.
Logging and Tracing	Use packet tracing and logs for troubleshooting. You can send logs from the ZyXEL Device to an external UNIX syslog server.
PPPoE	PPPoE mimics a dial-up over Ethernet Internet access connection.
Universal Plug and Play (UPnP)	The ZyXEL Device can communicate with other UPnP enabled devices in a network.

Table 134 Feature Specifications

Voice Functions	SIP (RFC 3261) version 2 SDP (RFC 2327) RTP (RFC 1889) RTCP (RFC 1890) G.168 Echo Cancellation VAD (Voice Activity Detection) Silence Suppression CNG (Comfort Noise Generation) QoS Supports TOS and Diffserv Tagging Compression: G.711 (PCM), G.729 (ADPCM) Loop Start Signaling Support Modem and Fax Tone Detection and Pass Through DTMF Detection Point to Point Calling (Direct IP to IP Calling) Speed Dial Phonebook Lifeline Support (P-2602HWL-P1 only) Support NAT Traversal / RFC 3489- IETF Simple Traversal of UDP Through NAT (STUN) Caller ID Dialing Type: Tone, Pulse (Auto detection) Tip/ring polarity reversal VoIP Trunking
Wireless	WEP key authentication WPA-PSK security WPA/WPA2 security IEEE 802.11g (compatible with IEEE 802.11b) MAC address filtering OTIST (One Touch Intelligent Security Technology)
Protocol Support	PPP over Ethernet (RFC 2516) Transparent bridging for unsupported network layer protocols. DHCP Client
Management	Embedded Web Configurator CLI (Command Line Interpreter) Remote Management via Telnet or Web FTP/TFTP for firmware downloading, configuration backup and restoration Syslog Built-in Diagnostic Tools for FLASH memory, RAM and LAN port
Firewall	Stateful Packet Inspection. Prevent Denial of Service attacks such as Ping of Death, SYN Flood, LAND, Smurf etc. Real time E-mail alerts. Reports and logs.
Content Filtering	Service blocking. Web page blocking by URL keyword.
NAT/SUA	Port Forwarding 2048 NAT sessions Multimedia application. PPTP under NAT/SUA. IPSec passthrough SIP ALG passthrough.
Static Routes	8 IP

Power Adaptor Specifications

Table 135 ZyXEL Device Power Adaptor Specifications

NORTH AMERICAN PLUG STANDARDS
AC Power Adapter Model	AA-161A
Input Power	AC 120Volts/60Hz/26W max
Output Power	AC 16Volts/1.0A
Power Consumption	15 Watt Max.
Safety Standards	UL, CUL (ANSI/UL 1310, CAN/CSA-C22.2 No. 223)
EUROPEAN PLUG STANDARDS
AC Power Adapter Model	AA-161ABN
Input Power	AC 240Volts/50Hz/140mA
Output Power	AC 16Volts/1.0A
Power Consumption	15 Watt Max.
Safety Standards	ITS-GS, CE (EN 60950-1)
UNITED KINGDOM PLUG STANDARDS
AC Power Adapter Model	AA-161AD
Input Power	AC 240Volts/50Hz/140mA
Output Power	AC 16Volts/1.0A
Power Consumption	15 Watt Max.
Safety Standards	ITS-GS (BS EN 60950-1)
AUSTRALIA AND NEW ZEALAND PLUG STANDARDS
AC Power Adapter Model	AA-161AE
Input Power	AC 240Volts/50Hz/140mA
Output Power	AC 16Volts/1.0A
Power Consumption	15 Watt Max.
Safety Standards	DOFT (AS/NZS 60950, AS/NZS 3112:1-2)

APPENDIX B Setting up Your Computer's IP Address

All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed.

Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and all versions of UNIX/LINUX include the software components you need to install and use TCP/IP on your computer. Windows 3.1 requires the purchase of a third-party TCP/IP application package.

TCP/IP should already be installed on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

After the appropriate TCP/IP components are installed, configure the TCP/IP settings in order to "communicate" with your network.

Windows 95/98/Me

Click Start, Settings, Control Panel and double-click the Network icon to open the Network window.

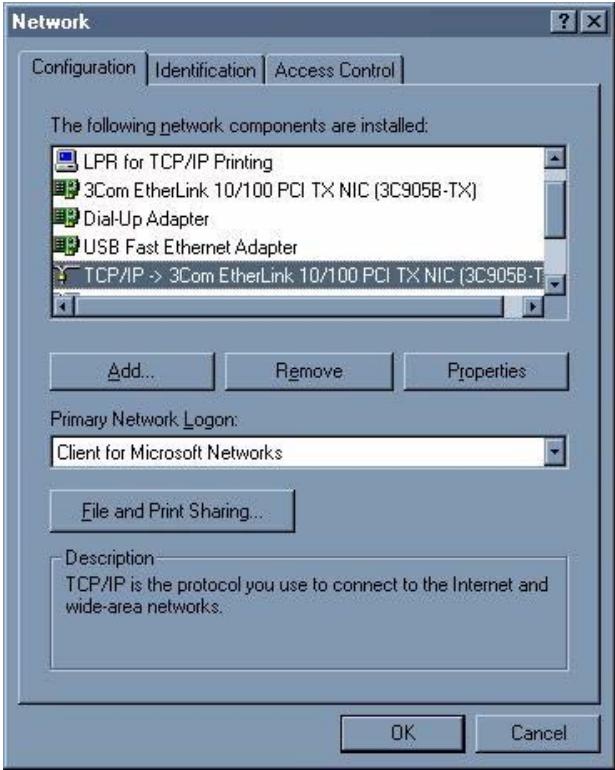

Figure 165 Windows 95/98/Me: Network: Configuration

Installing Components

The Network window Configuration tab displays a list of installed components. You need a network adapter, the TCP/IP protocol and Client for Microsoft Networks.

If you need the adapter:

1 In the Network window, click Add.
2 Select Adapter and then click Add.
3 Select the manufacturer and model of your network adapter and then click OK.

If you need TCP/IP:

1 In the Network window, click Add.
2 Select Protocol and then click Add.
3 Select Microsoft from the list of manufacturers.
4 Select TCP/IP from the list of network protocols and then click OK.

If you need Client for Microsoft Networks:

1 Click Add.
2 Select Client and then click Add.

3 Select Microsoft from the list of manufacturers.
4 Select Client for Microsoft Networks from the list of network clients and then click OK.
5 Restart your computer so the changes you made take effect.

Configuring

1 In the Network window Configuration tab, select your network adapter's TCP/IP entry and click Properties
2 Click the IP Address tab.

• If your IP address is dynamic, select Obtain an IP address automatically.
• If you have a static IP address, select Specify an IP address and type your information into the IP Address and Subnet Mask fields.

Figure 166 Windows 95/98/Me: TCP/IP Properties: IP Address

3 Click the DNS Configuration tab.

• If you do not know your DNS information, select Disable DNS.
• If you know your DNS information, select Enable DNS and type the information in the fields below (you may not need to fill them all in).

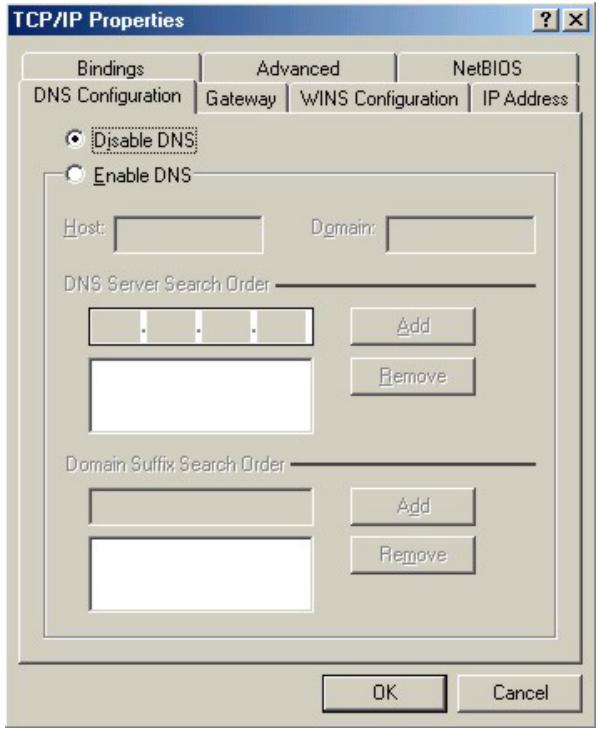

Figure 167 Windows 95/98/Me: TCP/IP Properties: DNS Configuration

4 Click the Gateway tab.

• If you do not know your gateway's IP address, remove previously installed gateways.
• If you have a gateway IP address, type it in the New gateway field and click Add.

5 Click OK to save and close the TCP/IP Properties window.
6 Click OK to close the Network window. Insert the Windows CD if prompted.
7 Restart your computer when prompted.

Verifying Settings

1 Click Start and then Run.
2 In the Run window, type "winipcfg" and then click OK to open the IP Configuration window.
3 Select your network adapter. You should see your computer's IP address, subnet mask and default gateway.

Windows 2000/NT/XP

The following example figures use the default Windows XP GUI theme.

1 Click start (Start in Windows 2000/NT), Settings, Control Panel.

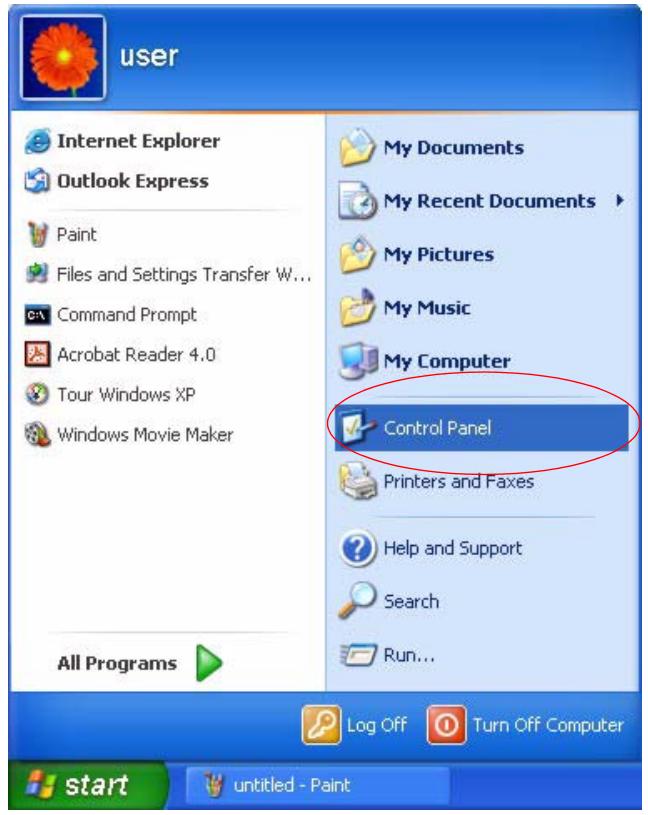

Figure 168 Windows XP: Start Menu

2 In the Control Panel, double-click Network Connections (Network and Dial-up Connections in Windows 2000/NT).

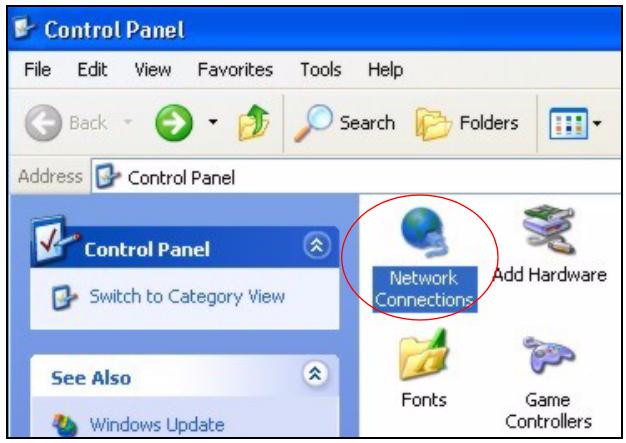

Figure 169 Windows XP: Control Panel

3 Right-click Local Area Connection and then click Properties.

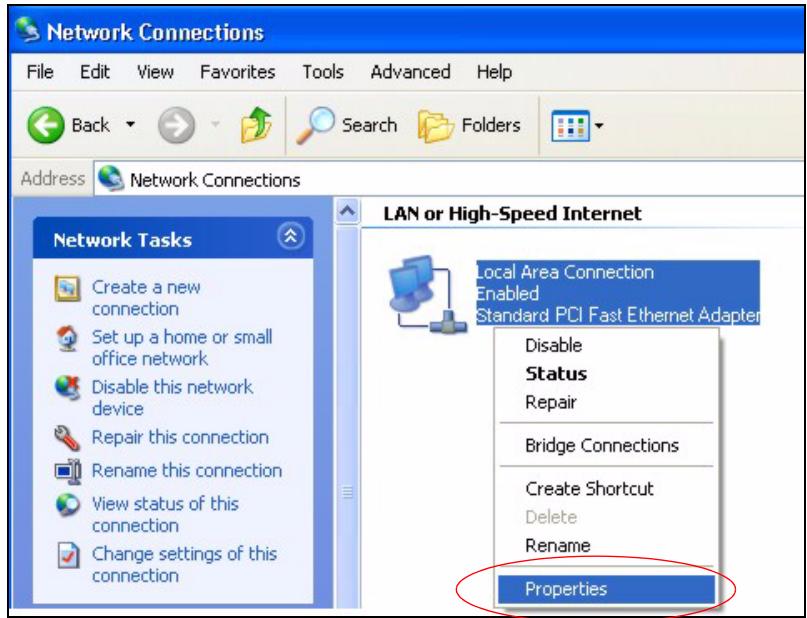

Figure 170 Windows XP: Control Panel: Network Connections: Properties

4 Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and then click Properties.

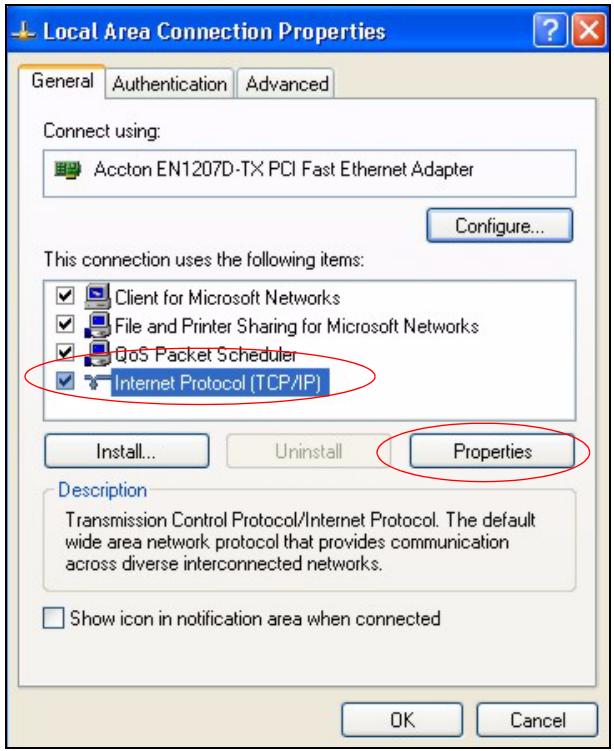

Figure 171 Windows XP: Local Area Connection Properties

5 The Internet Protocol TCP/IP Properties window opens (the General tab in Windows XP).

If you have a dynamic IP address click Obtain an IP address automatically.

• If you have a static IP address click Use the following IP Address and fill in the IP address, Subnet mask, and Default gateway fields.
• Click Advanced.

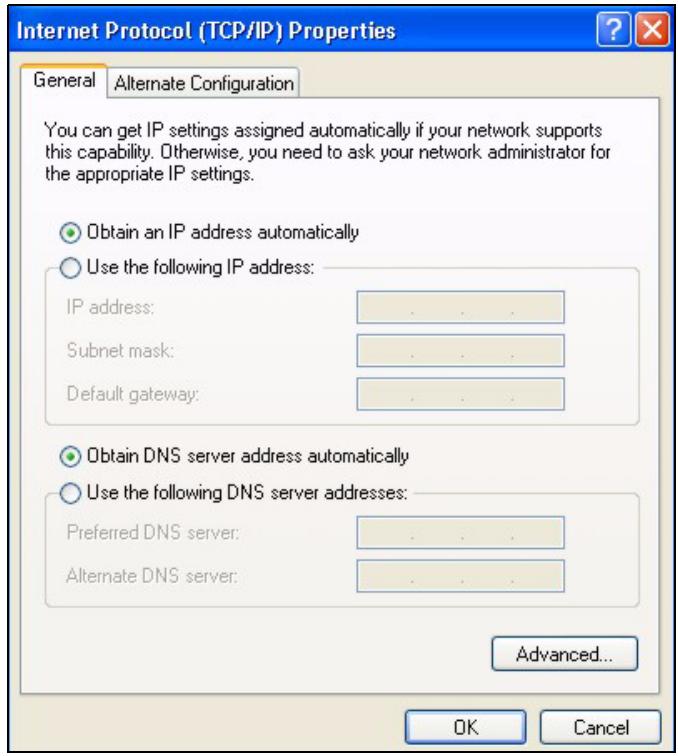

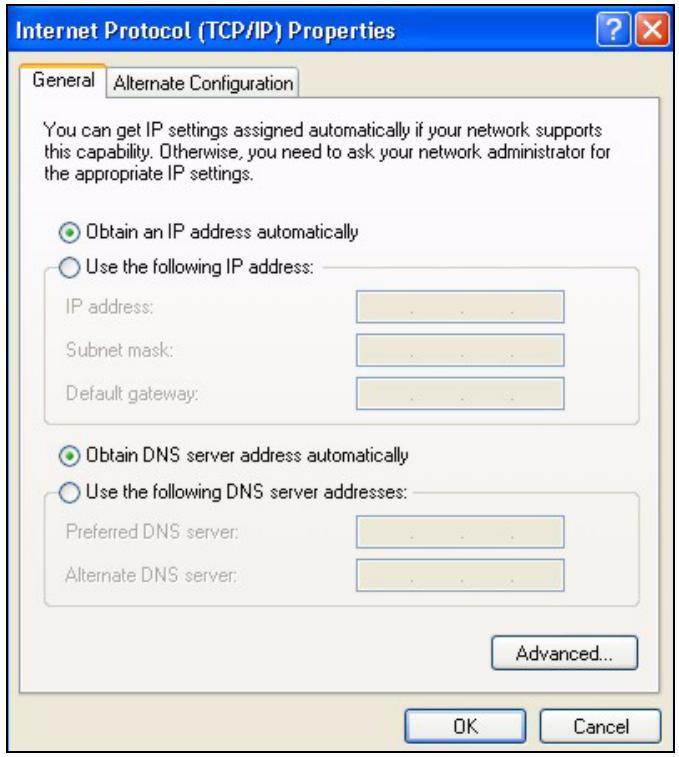

Figure 172 Windows XP: Internet Protocol (TCP/IP) Properties

6 If you do not know your gateway's IP address, remove any previously installed gateways in the IP Settings tab and click OK.

Do one or more of the following if you want to configure additional IP addresses:

In the IP Settings tab, in IP addresses, click Add.
- In TCP/IP Address, type an IP address in IP address and a subnet mask in Subnet mask, and then click Add.
- Repeat the above two steps for each IP address you want to add.
- Configure additional default gateways in the IP Settings tab by clicking Add in Default gateways.
- In TCP/IP Gateway Address, type the IP address of the default gateway in Gateway. To manually configure a default metric (the number of transmission hops), clear the Automatic metric check box and type a metric in Metric.
- Click Add.
- Repeat the previous three steps for each default gateway you want to add.
- Click OK when finished.

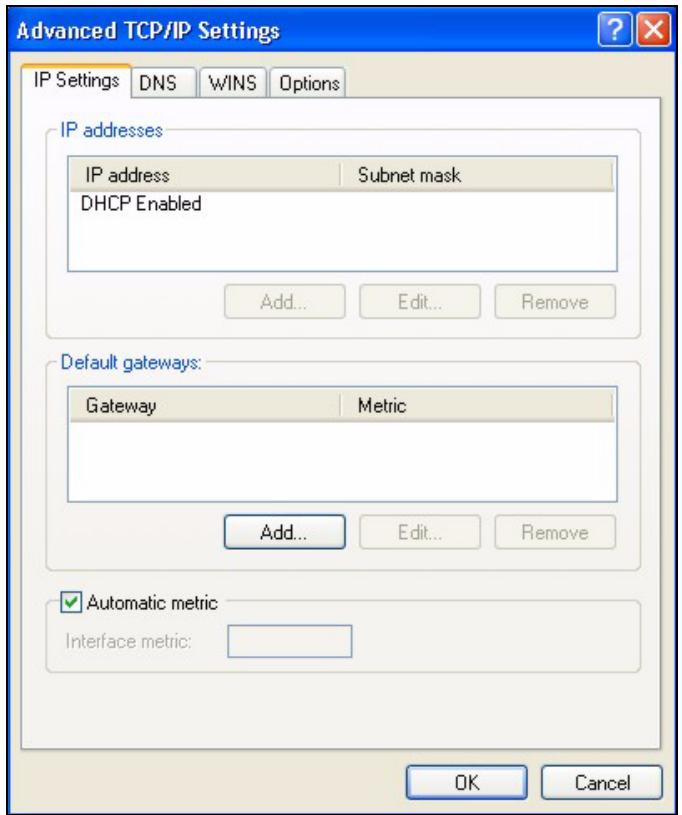

Figure 173 Windows XP: Advanced TCP/IP Properties

7 In the Internet Protocol TCP/IP Properties window (the General tab in Windows XP):

• Click Obtain DNS server address automatically if you do not know your DNS server IP address(es).
• If you know your DNS server IP address(es), click Use the following DNS server addresses, and type them in the Preferred DNS server and Alternate DNS server fields.

If you have previously configured DNS servers, click Advanced and then the DNS tab to order them.

Figure 174 Windows XP: Internet Protocol (TCP/IP) Properties

8 Click OK to close the Internet Protocol (TCP/IP) Properties window.
9 Click Close (OK in Windows 2000/NT) to close the Local Area Connection Properties window.
10 Close the Network Connections window (Network and Dial-up Connections in Windows 2000/NT).
11Restart your computer (if prompted).

Verifying Settings

1 Click Start, All Programs, Accessories and then Command Prompt.
2 In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can also open Network Connections, right-click a network connection, click Status and then click the Support tab.

Macintosh OS X

1 Click the Apple menu, and click System Preferences to open the System Preferences window.

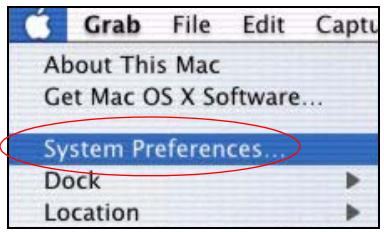

Figure 175 Macintosh OS X:Apple Menu

2 Click Network in the icon bar.

• Select Automatic from the Location list.
• Select Built-in Ethernet from the Show list.
• Click the TCP/IP tab.

3 For dynamically assigned settings, select Using DHCP from the Configure list.

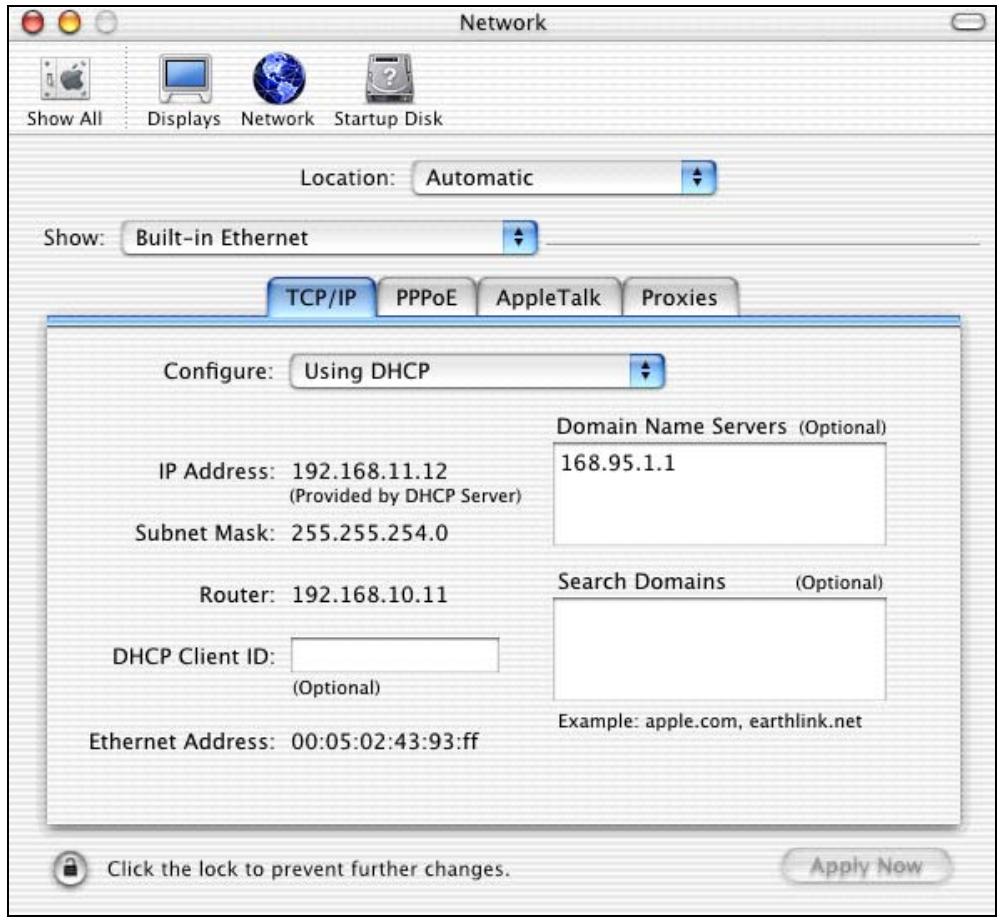

Figure 176 Macintosh OS X: Network

4 For statically assigned settings, do the following:

From the Configure box, select Manually.
Type your IP address in the IP Address box.
- Type your subnet mask in the Subnet mask box.
- Type the IP address of your gateway in the Router address box.

5 Click Apply Now and close the window.

6 Restart your computer (if prompted).

Verifying Settings

Check your TCP/IP properties in the Network window.

Linux

This section shows you how to configure your computer's TCP/IP settings in Red Hat Linux 9.0. Procedure, screens and file location may vary depending on your Linux distribution and release version.

Note: Make sure you are logged in as the root administrator.

Using the K Desktop Environment (KDE)

Follow the steps below to configure your computer IP address using the KDE.

1 Click the Red Hat button (located on the bottom left corner), select System Setting and click Network.

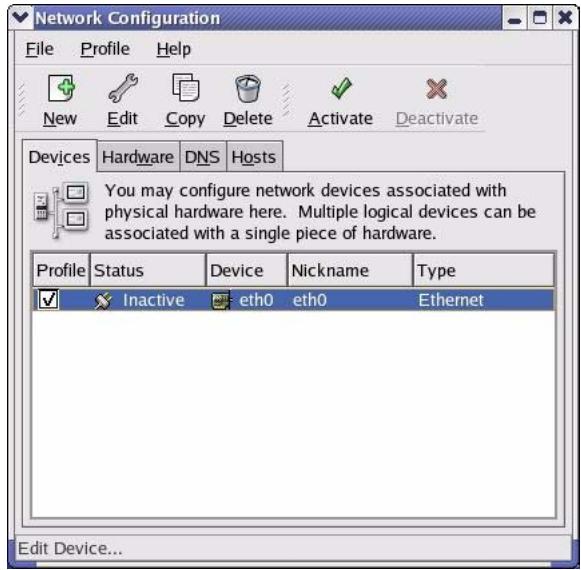

Figure 177 Red Hat 9.0: KDE: Network Configuration: Devices

2 Double-click on the profile of the network card you wish to configure. The Ethernet Device General screen displays as shown.

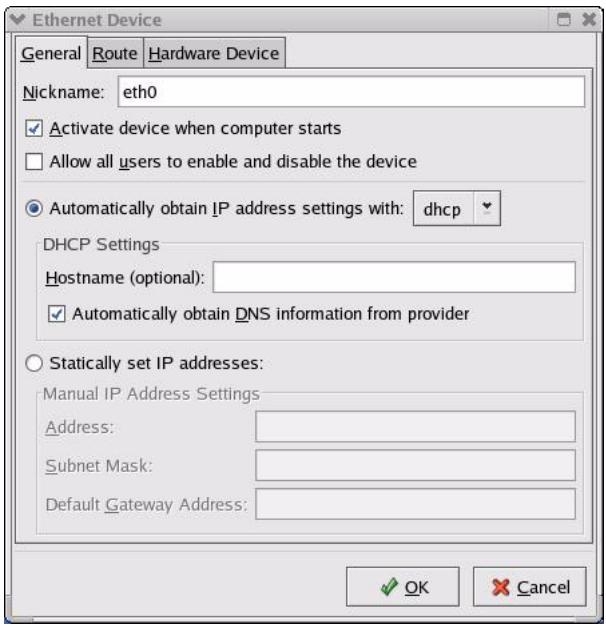

Figure 178 Red Hat 9.0: KDE: Ethernet Device: General

• If you have a dynamic IP address, click Automatically obtain IP address settings with and select dhcp from the drop down list.
• If you have a static IP address, click statically set IP Addresses and fill in the Address, Subnet mask, and Default Gateway Address fields.

3 Click OK to save the changes and close the Ethernet Device General screen.
4 If you know your DNS server IP address(es), click the DNS tab in the Network Configuration screen. Enter the DNS server information in the fields provided.

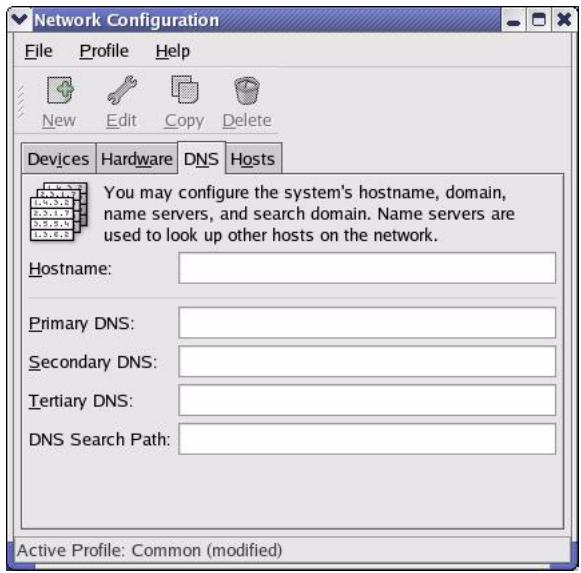

Figure 179 Red Hat 9.0: KDE: Network Configuration: DNS

5 Click the Devices tab.

6 Click the Activate button to apply the changes. The following screen displays. Click Yes to save the changes in all screens.

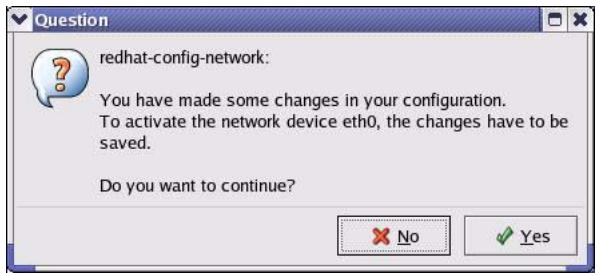

Figure 180 Red Hat 9.0: KDE: Network Configuration: Activate

Figure 181 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0

7 After the network card restart process is complete, make sure the Status is Active in the Network Configuration screen.

Using Configuration Files

Follow the steps below to edit the network configuration files and set your computer IP address.

1 Assuming that you have only one network card on the computer, locate the ifconfig-eth0 configuration file (where eth0 is the name of the Ethernet card). Open the configuration file with any plain text editor.

• If you have a dynamic IP address, enter dhcpp in the BOOTPROTO= field. The following figure shows an example.

DEVICE eth0
ONBOOT yes
BOOTPROTO dhcp
USERCTL no
PEERDNS yes
TYPE Ethernet

• If you have a static IP address, enter static in the BOOTPROTO= field. Type IPADDR= followed by the IP address (in dotted decimal notation) and type NETMASK= followed by the subnet mask. The following example shows an example where the static IP address is 192.168.1.10 and the subnet mask is 255.255.255.0.

Figure 182 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0

DEVICE eth0
ONBOOT yes
BOOTPROTO static
IPADDR = 192.168.1.10 NETMASK = 255.255.255.0 USERCTL no
PEERDNS yes
TYPE Ethernet

2 If you know your DNS server IP address(es), enter the DNS server information in the resolv.conf file in the /etc directory. The following figure shows an example where two DNS server IP addresses are specified.

Figure 183 Red Hat 9.0: DNS Settings in resolv.conf

nameserver 172.23.5.1
nameserver 172.23.5.2

3 After you edit and save the configuration files, you must restart the network card. Enter./network restart in the /etc/rc.d/init.d directory. The following figure shows an example.

Figure 184 Red Hat 9.0: Restart Ethernet Card

[root@localhost init.d]# network restart Shutting down interface eth0: [OK] Shutting down loopback interface: [OK] Setting network parameters: [OK] Bringing up loopback interface: [OK] Bringing up interface eth0: [OK]

Verifying Settings

Enter ifconfig in a terminal screen to check your TCP/IP properties.

Figure 185 Red Hat 9.0: Checking TCP/IP Properties

[root@localhost]# ifconfig
eth0 Link encaps:Ethernet HWaddr 00:50:BA:72:5B:44 inlet addr:172.23.19.129 Bcast:172.23.19.255 Mask:255.255.255.0 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:717 errors:0 dropped:0 overruns:0 frame:0 TX packets:13 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:100 RX bytes:730412 (713.2 Kb) TX bytes:1570 (1.5 Kb) Interrupt:10 Base address:0x1000
[root@localhost]#

APPENDIX C

IP Addresses and Subnetting

This appendix introduces IP addresses, IP address classes and subnet masks. You use subnet masks to subdivide a network into smaller logical networks.

Introduction to IP Addresses

An IP address has two parts: the network number and the host ID. Routers use the network number to send packets to the correct network, while the host ID identifies a single device on the network.

An IP address is made up of four octets, written in dotted decimal notation, for example, 192.168.1.1. (An octet is an 8-digit binary number. Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or 0 to 255 in decimal.)

There are several classes of IP addresses. The first network number (192 in the above example) defines the class of IP address. These are defined as follows:

Class A: 0 to 127
Class B: 128 to 191
Class C: 192 to 223
Class D: 224 to 239
Class E: 240 to 255

IP Address Classes and Hosts

The class of an IP address determines the number of hosts you can have on your network.

• In a class A address the first octet is the network number, and the remaining three octets are the host ID.
• In a class B address the first two octets make up the network number, and the two remaining octets make up the host ID.
• In a class C address the first three octets make up the network number, and the last octet is the host ID.

The following table shows the network number and host ID arrangement for classes A, B and C.

Table 136 Classes of IP Addresses

IP ADDRESS	OCTET 1	OCTET 2	OCTET 3	OCTET 4
Class A	Network number	Host ID	Host ID	Host ID
Class B	Network number	Network number	Host ID	Host ID
Class C	Network number	Network number	Network number	Host ID

An IP address with host IDs of all zeros is the IP address of the network (192.168.1.0 for example). An IP address with host IDs of all ones is the broadcast address for that network (192.168.1.255 for example). Therefore, to determine the total number of hosts allowed in a network, deduct two as shown next:

• A class C address (1 host octet: 8 host bits) can have 2^8 - 2 , or 254 hosts.
• A class B address (2 host octets: 16 host bits) can have 2^16 - 2 , or 65534 hosts.

A class A address (3 host octets: 24 host bits) can have 2^24 - 2 hosts, or approximately 16 million hosts.

IP Address Classes and Network ID

The value of the first octet of an IP address determines the class of an address.

Class A addresses have a 0 in the leftmost bit.
Class B addresses have a 1 in the leftmost bit and a 0 in the next leftmost bit.
Class C addresses start with 1 1 0 in the first three leftmost bits.
- Class D addresses begin with 1 1 1 0. Class D addresses are used for multicasting, which is used to send information to groups of computers.
- There is also a class E. It is reserved for future use.

The following table shows the allowed ranges for the first octet of each class. This range determines the number of subnets you can have in a network.

Table 137 Allowed IP Address Range By Class

CLASS	ALLOWED RANGE OF FIRST OCTET (BINARY)	ALLOWED RANGE OF FIRST OCTET (DECIMAL)
Class A	00000000 to 01111111	0 to 127
Class B	10000000 to 10111111	128 to 191
Class C	11000000 to 11011111	192 to 223
Class D	11100000 to 11101111	224 to 239
Class E(reserved)	11110000 to 11111111	240 to 255

Subnet Masks

A subnet mask is used to determine which bits are part of the network number, and which bits are part of the host ID (using a logical AND operation).

A subnet mask has 32 bits. If a bit in the subnet mask is a "1" then the corresponding bit in the IP address is part of the network number. If a bit in the subnet mask is "0" then the corresponding bit in the IP address is part of the host ID.

Subnet masks are expressed in dotted decimal notation just like IP addresses. The "natural" masks for class A, B and C IP addresses are as follows.

Table 138 "Natural" Masks

CLASS	NATURAL MASK
A	255.0.0.0
B	255.255.0.0
C	255.255.255.0

Subnetting

With subnetting, the class arrangement of an IP address is ignored. For example, a class C address no longer has to have 24 bits of network number and 8 bits of host ID. With subnetting, some of the host ID bits are converted into network number bits.

By convention, subnet masks always consist of a continuous sequence of ones beginning from the leftmost bit of the mask, followed by a continuous sequence of zeros, for a total number of 32 bits.

Since the mask is always a continuous number of ones beginning from the left, followed by a continuous number of zeros for the remainder of the 32 bit mask, you can simply specify the number of ones instead of writing the value of each octet. This is usually specified by writing a “/” followed by the number of bits in the mask after the address.

For example, 192.1.1.0 /25 is equivalent to saying 192.1.1.0 with mask 255.255.255.128.

The following table shows all possible subnet masks for a class "C" address using both notations.

Table 139 Alternative Subnet Mask Notation

SUBNET MASK	SUBNET MASK “1” BITS	LAST OCTET BIT VALUE	DECIMAL
255.255.255.0	/24	0000 0000	0
255.255.255.128	/25	1000 0000	128
255.255.255.192	/26	1100 0000	192
255.255.255.224	/27	1110 0000	224
255.255.255.240	/28	1111 0000	240
255.255.255.248	/29	1111 1000	248
255.255.255.252	/30	1111 1100	252

The first mask shown is the class "C" natural mask. Normally if no mask is specified it is understood that the natural mask is being used.

Example: Two Subnets

As an example, you have a class "C" address 192.168.1.0 with subnet mask of 255.255.255.0.

Table 140 Two Subnets Example

IP/SUBNET MASK	NETWORK NUMBER	HOST ID
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask	255.255.255.	0
Subnet Mask (Binary)	11111111.11111111.11111111.	00000000

The first three octets of the address make up the network number (class "C").

To make two networks, divide the network 192.168.1.0 into two separate subnets by converting one of the host ID bits of the IP address to a network number bit. The "borrowed" host ID bit can be either "0" or "1" thus giving two subnets; 192.168.1.0 with mask 255.255.255.128 and 192.168.1.128 with mask 255.255.255.128.

Note: In the following charts, shaded/bolded last octet bit values indicate host ID bits "borrowed" to make network ID bits. The number of "borrowed" host ID bits determines the number of subnets you can have. The remaining number of host ID bits (after "borrowing") determines the number of hosts you can have on each subnet.

Table 141 Subnet 1

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask	255.255.255.	128
Subnet Mask (Binary)	11111111.11111111.11111111.	10000000
Subnet Address: 192.168.1.0	Lowest Host ID: 192.168.1.1
Broadcast Address: 192.168.1.127	Highest Host ID: 192.168.1.126

Table 142 Subnet 2

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	128
IP Address (Binary)	11000000.10101000.00000001.	10000000
Subnet Mask	255.255.255.	128
Subnet Mask (Binary)	11111111.11111111.11111111.	10000000
Subnet Address: 192.168.1.128	Lowest Host ID: 192.168.1.129
Broadcast Address: 192.168.1.255	Highest Host ID: 192.168.1.254

Host IDs of all zeros represent the subnet itself and host IDs of all ones are the broadcast address for that subnet, so the actual number of hosts available on each subnet in the example above is 2^7 - 2 or 126 hosts for each subnet.

192.168.1.0 with mask 255.255.255.128 is the subnet itself, and 192.168.1.127 with mask 255.255.255.128 is the directed broadcast address for the first subnet. Therefore, the lowest IP address that can be assigned to an actual host for the first subnet is 192.168.1.1 and the highest is 192.168.1.126. Similarly the host ID range for the second subnet is 192.168.1.129 to 192.168.1.254.

Example: Four Subnets

The above example illustrated using a 25-bit subnet mask to divide a class "C" address space into two subnets. Similarly to divide a class "C" address into four subnets, you need to "borrow" two host ID bits to give four possible combinations (00, 01, 10 and 11). The subnet mask is 26 bits (1111111.1111111.1111111.1100000) or 255.255.255.192. Each subnet contains 6 host ID bits, giving 2^6-2 or 62 hosts for each subnet (all zeroes is the subnet itself, all ones is the broadcast address on the subnet).

Table 143 Subnet 1

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	0
IP Address (Binary)	11000000.10101000.00000001.	00000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.0	Lowest Host ID: 192.168.1.1
Broadcast Address: 192.168.1.63	Highest Host ID: 192.168.1.62

Table 144 Subnet 2

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	64
IP Address (Binary)	11000000.10101000.00000001.	01000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.64	Lowest Host ID: 192.168.1.65
Broadcast Address: 192.168.1.127	Highest Host ID: 192.168.1.126

Table 145 Subnet 3

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	128
IP Address (Binary)	11000000.10101000.00000001.	10000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.128	Lowest Host ID: 192.168.1.129
Broadcast Address: 192.168.1.191	Highest Host ID: 192.168.1.190

Table 146 Subnet 4

IP/SUBNET MASK	NETWORK NUMBER	LAST OCTET BIT VALUE
IP Address	192.168.1.	192
IP Address (Binary)	11000000.10101000.00000001.	11000000
Subnet Mask (Binary)	11111111.11111111.11111111.	11000000
Subnet Address: 192.168.1.192	Lowest Host ID: 192.168.1.193
Broadcast Address: 192.168.1.255	Highest Host ID: 192.168.1.254

Example Eight Subnets

Similarly use a 27-bit mask to create eight subnets (000, 001, 010, 011, 100, 101, 110 and 111).

The following table shows class C IP address last octet values for each subnet.

Table 147 Eight Subnets

SUBNET	SUBNET ADDRESS	FIRST ADDRESS	LAST ADDRESS	BROADCAST ADDRESS
1	0	1	30	31
2	32	33	62	63
3	64	65	94	95
4	96	97	126	127
5	128	129	158	159
6	160	161	190	191
7	192	193	222	223
8	224	225	254	255

The following table is a summary for class "C" subnet planning.

Table 148 Class C Subnet Planning

NO. “BORROWED” HOST BITS	SUBNET MASK	NO. SUBNETS	NO. HOSTS PER SUBNET
1	255.255.255.128 (/25)	2	126
2	255.255.255.192 (/26)	4	62
3	255.255.255.224 (/27)	8	30
4	255.255.255.240 (/28)	16	14
5	255.255.255.248 (/29)	32	6
6	255.255.255.252 (/30)	64	2
7	255.255.255.254 (/31)	128	1

Subnetting With Class A and Class B Networks.

For class "A" and class "B" addresses the subnet mask also determines which bits are part of the network number and which are part of the host ID.

A class “B” address has two host ID octets available for subnetting and a class “A” address has three host ID octets (see Table 136 on page 298) available for subnetting.

The following table is a summary for class "B" subnet planning.

Table 149 Class B Subnet Planning

NO. “BORROWED” HOST BITS	SUBNET MASK	NO. SUBNETS	NO. HOSTS PER SUBNET
1	255.255.128.0 (/17)	2	32766
2	255.255.192.0 (/18)	4	16382
3	255.255.224.0 (/19)	8	8190
4	255.255.240.0 (/20)	16	4094
5	255.255.248.0 (/21)	32	2046
6	255.255.252.0 (/22)	64	1022
7	255.255.254.0 (/23)	128	510
8	255.255.255.0 (/24)	256	254
9	255.255.255.128 (/25)	512	126
10	255.255.255.192 (/26)	1024	62
11	255.255.255.224 (/27)	2048	30
12	255.255.255.240 (/28)	4096	14
13	255.255.255.248 (/29)	8192	6
14	255.255.255.252 (/30)	16384	2
15	255.255.255.254 (/31)	32768	1

APPENDIX D SIP Passthrough

Enabling/Disabling the SIP ALG

You can turn off the ZyXEL Device SIP ALG to avoid retranslating the IP address of an existing SIP device that is using STUN. If you want to use STUN with a SIP client device (a SIP phone or IP phone for example) behind the ZyXEL Device, use the ip alg disable ALG_SIP command to turn off the SIP ALG.

Signaling Session Timeout

Most SIP clients have an "expire" mechanism indicating the lifetime of signaling sessions. The SIP UA sends registration packets to the SIP server periodically and keeps the session alive in the ZyXEL Device.

If the SIP client does not have this mechanism and makes no call during the ZyXEL Device SIP timeout default (60 minutes), the ZyXEL Device SIP ALG drops any incoming calls after the timeout period. You can use the ip alg sipttimeout command to change the timeout value.

Audio Session Timeout

If no voice packets go through the SIP ALG before the timeout period default (5 minutes) expires, the SIP ALG does not drop the call but blocks all voice traffic and deletes the audio session. You cannot hear anything and you will need to make a new call to continue your conversation.

APPENDIX E Internal SPTGEN

This appendix introduces Internal SPTGEN. All menus shown in this appendix are example menus meant to show SPTGEN usage. Actual menus for your product may differ.

Internal SPTGEN Overview

Internal SPTGEN (System Parameter Table Generator) is a configuration text file useful for efficient configuration of multiple ZyXEL Devices. Internal SPTGEN lets you configure, save and upload multiple menus at the same time using just one configuration text file - eliminating the need to navigate and configure individual screens for each ZyXEL Device. You can use FTP to get the Internal SPTGEN file. Then edit the file in a text editor and use FTP to upload it again to the same device or another one. See the following sections for details.

The Configuration Text File Format

All Internal SPTGEN text files conform to the following format:

<field identification number = field name = parameter values allowed = input>,

where (<\mathrm{input}>) is your input conforming to (<\mathrm{parameter}> values allowed>.

The figure shown next is an example of an Internal SPTGEN text file.

Figure 186 Configuration Text File Format: Column Descriptions
/Menu1General Setup
10000000 = Configured <0(No) | 1(Yes)> = 1
10000001 = System Name = Your Device
10000002 = Location = 10000003 = Contact Person's Name = 10000004 = Route IP <0(No) | 1(Yes)> = 1
10000005 = Route IPX <0(No) | 1(Yes)> = 0
10000006 = Bridge <0(No) | 1(Yes)> = 0

Note: DO NOT alter or delete any field except parameters in the Input column.

This appendix introduces Internal SPTGEN. All menus shown in this appendix are example menus meant to show SPTGEN usage. Actual menus for your product may differ.

Internal SPTGEN File Modification - Important Points to Remember

Each parameter you enter must be preceded by one “=” sign and one space.

Some parameters are dependent on others. For example, if you disable the Configured field in menu 1 (see Figure 186 on page 307), then you disable every field in this menu.

If you enter a parameter that is invalid in the Input column, the ZyXEL Device will not save the configuration and the command line will display the Field Identification Number. Figure 187 on page 308, shown next, is an example of what the ZyXEL Device displays if you enter a value other than "0" or "1" in the Input column of Field Identification Number 1000000 (refer to Figure 186 on page 307).

Figure 187 Invalid Parameter Entered: Command Line Example

field value is not legal error:-1
ROM-t is not saved, error Line ID:10000000
reboot to get the original configuration
Bootbase Version: V2.02 | 2/22/2001 13:33:11
RAM: Size = 8192 Kbytes
FLASH: Intel 8M *2

The ZyXEL Device will display the following if you enter parameter(s) that are valid.

Figure 188 Valid Parameter Entered: Command Line Example

Please wait for the system to write SPT text file(ROM-t)... Bootbase Version: V2.02 | 2/22/2001 13:33:11 RAM: Size = 8192 Kbytes FLASH: Intel 8M *2

Internal SPTGEN FTP Download Example

1 Launch your FTP application.
2 Enter "bin". The command "bin" sets the transfer mode to binary.
3 Get "rom-t" file. The command "get" transfers files from the ZyXEL Device to your computer. The name "rom-t" is the configuration filename on the ZyXEL Device.
4 Edit the "rom-t" file using a text editor (do not use a word processor). You must leave this FTP screen to edit.

Figure 189 Internal SPTGEN FTP Download Example

c:\ftp 192.168.1.1
220 PPP FTP version 1.0 ready at Sat Jan 1 03:22:12 2000
User (192.168.1.1:(none)):
331 Enter PASS command
Password:
230 Logged in
ftp>bin
200 Type I OK
ftp> get rom-t
ftp>bye
c:\edit rom-t
edit the rom-t text file by a text editor and save it)

Note: You can rename your "rom-t" file when you save it to your computer but it must be named "rom-t" when you upload it to your ZyXEL Device.

Internal SPTGEN FTP Upload Example

1 Launch your FTP application.
2 Enter "bin". The command "bin" sets the transfer mode to binary.
3 Upload your "rom-t" file from your computer to the ZyXEL Device using the "put" command. computer to the ZyXEL Device.
4 Exit this FTP application.

Figure 190 Internal SPTGEN FTP Upload Example

c:\ftp 192.168.1.1
220 PPP FTP version 1.0 ready at Sat Jan 1 03:22:12 2000
User (192.168.1.1:(none)):
331 Enter PASS command
Password:
230 Logged in
ftp>bin
200 Type I OK
ftp> put rom-t
ftp>bye

Example Internal SPTGEN Menus

This section provides example Internal SPTGEN menus.

Table 150 Abbreviations Used in the Example Internal SPTGEN Screens Table

ABBREVIATION	MEANING
FIN	Field Identification Number
FN	Field Name
PVA	Parameter Values Allowed
INPUT	An example of what you may enter
*	Applies to the ZyXEL Device.

Table 151 Menu 1 General Setup

/ Menu 1 General Setup
FIN	FN	PVA	INPUT
10000000 =	Configured	<0 (No) | 1 (Yes)>	= 0
10000001 =	System Name	<Str>	= Your Device
10000002 =	Location	<Str>	=
10000003 =	Contact Person's Name	<Str>	=
10000004 =	Route IP	<0 (No) | 1 (Yes)>	= 1
10000006 =	Bridge	<0 (No) | 1 (Yes)>	= 0

Table 152 Menu 3

/ Menu 3.1 General Ethernet Setup
FIN	FN	PVA	INPUT
30100001 =	Input Protocol filters Set 1		= 2
30100002 =	Input Protocol filters Set 2		= 256
30100003 =	Input Protocol filters Set 3		= 256
30100004 =	Input Protocol filters Set 4		= 256
30100005 =	Input device filters Set 1		= 256
30100006 =	Input device filters Set 2		= 256
30100007 =	Input device filters Set 3		= 256
30100008 =	Input device filters Set 4		= 256
30100009 =	Output protocol filters Set 1		= 256
30100010 =	Output protocol filters Set 2		= 256
30100011 =	Output protocol filters Set 3		= 256

Table 152 Menu 3

30100012 =	Output protocol filters Set 4		= 256
30100013 =	Output device filters Set 1		= 256
30100014 =	Output device filters Set 2		= 256
30100015 =	Output device filters Set 3		= 256
30100016 =	Output device filters Set 4		= 256
/ Menu 3.2 TCP/IP and DHCP Ethernet Setup
FIN	FN	PVA	INPUT
30200001 =	DHCP	<0 (None) | 1 (Server) | 2 (Relay)>	= 0
30200002 =	Client IP Pool Starting Address		= 192.168.1.33
30200003 =	Size of Client IP Pool		= 32
30200004 =	Primary DNS Server		= 0.0.0.0
30200005 =	Secondary DNS Server		= 0.0.0.0
30200006 =	Remote DHCP Server		= 0.0.0.0
30200008 =	IP Address		= 172.21.2.200
30200009 =	IP Subnet Mask		= 16
30200010 =	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
30200011 =	Version	<0 (Rip-1) | 1 (Rip-2B) | 2 (Rip-2M)>	= 0
30200012 =	Multicast	<0 (IGMP-v2) | 1 (IGMP-v1) | 2 (None)>	= 2
30200013 =	IP Policies Set 1 (1~12)		= 256
30200014 =	IP Policies Set 2 (1~12)		= 256
30200015 =	IP Policies Set 3 (1~12)		= 256
30200016 =	IP Policies Set 4 (1~12)		= 256
/ Menu 3.2.1 IP Alias Setup
FIN	FN	PVA	INPUT
30201001 =	IP Alias 1	<0 (No) | 1 (Yes)>	= 0
30201002 =	IP Address		= 0.0.0.0
30201003 =	IP Subnet Mask		= 0
30201004 =	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0

Table 152 Menu 3

30201005 =	Version	<0 (Rip-1) | 1 (Rip-2B) |2 (Rip-2M)>	= 0
30201006 =	IP Alias #1 Incoming protocol filters Set 1		= 256
30201007 =	IP Alias #1 Incoming protocol filters Set 2		= 256
30201008 =	IP Alias #1 Incoming protocol filters Set 3		= 256
30201009 =	IP Alias #1 Incoming protocol filters Set 4		= 256
30201010 =	IP Alias #1 Outgoing protocol filters Set 1		= 256
30201011 =	IP Alias #1 Outgoing protocol filters Set 2		= 256
30201012 =	IP Alias #1 Outgoing protocol filters Set 3		= 256
30201013 =	IP Alias #1 Outgoing protocol filters Set 4		= 256
30201014 =	IP Alias 2 <0 (No) | 1 (Yes)>		= 0
30201015 =	IP Address		= 0.0.0.0
30201016 =	IP Subnet Mask		= 0
30201017 =	RIP Direction	<0 (None) | 1 (Both) | 2 (In Only) | 3 (Out Only)>	= 0
30201018 =	Version	<0 (Rip-1) | 1 (Rip-2B) |2 (Rip-2M)>	= 0
30201019 =	IP Alias #2 Incoming protocol filters Set 1		= 256
30201020 =	IP Alias #2 Incoming protocol filters Set 2		= 256
30201021 =	IP Alias #2 Incoming protocol filters Set 3		= 256
30201022 =	IP Alias #2 Incoming protocol filters Set 4		= 256
30201023 =	IP Alias #2 Outgoing protocol filters Set 1		= 256
30201024 =	IP Alias #2 Outgoing protocol filters Set 2		= 256
30201025 =	IP Alias #2 Outgoing protocol filters Set 3		= 256
30201026 =	IP Alias #2 Outgoing protocol filters Set 4		= 256

Table 152 Menu 3

	FIN	FN	PVA	INPUT
30500001 =		ESSID		Wireless
30500002 =		Hide ESSID	<0 (No) |1 (Yes)>	= 0
30500003 =		Channel ID	<1|2|3|4|5|6|7|8|9|10|11|12|13>	= 1
30500004 =		RTS Threshold	<0 ~ 2432>	= 2432
30500005 =		FRAG. Threshold	<256 ~ 2432>	= 2432
30500006 =		WEP	<0 (DISABLE) |1 (64-bit WEP)| 2 (128-bit WEP)>	= 0
30500007 =		Default Key	<1|2|3|4>	= 0
30500008 =		WEP Key1		=
30500009 =		WEP Key2		=
30500010 =		WEP Key3		=
30500011 =		WEP Key4		=
30500012 =		Wlan Active	<0 (Disable) |1 (Enable)>	= 0
30500013 =		Wlan 4X Mode	<0 (Disable) |1 (Enable)>	= 0
*/ MENU 3.5.1 WLAN MAC ADDRESS FILTER
FIN		FN	PVA	INPUT
30501001 =		Mac Filter Active	<0 (No) |1 (Yes)>	= 0
30501002 =		Filter Action	<0 (Allow) |1 (Deny)>	= 0
30501003 =		Address 1		= 00:00:00:00:00:00
30501004 =		Address 2		= 00:00:00:00:00:00
30501005 =		Address 3		= 00:00:00:00:00:00
Continued		...		...
30501034 =		Address 32		= 00:00:00:00:00:00

Table 153 Menu 4 Internet Access Setup

/ Menu 4 Internet Access Setup
FIN	FN	PVA	INPUT
40000000 =	Configured	<0 (No) |1 (Yes)>	= 1
40000001 =	ISP	<0 (No) |1 (Yes)>	= 1
40000002 =	Active	<0 (No) |1 (Yes)>	= 1
40000003 =	ISP's Name		= ChangeMe
40000004 =	Encapsulation	<2 (PPPOE) |3 (RFC 1483) |4 (PPPoA) |5 (ENET ENCAP)>	= 2
40000005 =	Multiplexing	<1 (LLC-based) |2 (VC-based)	= 1
40000006 =	VPI #		= 0
40000007 =	VCI #		= 35
40000008 =	Service Name	<Str>	= any
40000009 =	My Login	<Str>	= test@pqa
40000010 =	My Password	<Str>	= 1234
40000011 =	Single User Account	<0 (No) |1 (Yes)>	= 1
40000012 =	IP Address Assignment	<0 (Static) |1 (Dynamic)>	= 1
40000013 =	IP Address		= 0.0.0.0
40000014 =	Remote IP address		= 0.0.0.0
40000015 =	Remote IP subnet mask		= 0
40000016 =	ISP incoming protocol filter set 1		= 6
40000017 =	ISP incoming protocol filter set 2		= 256
40000018 =	ISP incoming protocol filter set 3		= 256
40000019 =	ISP incoming protocol filter set 4		= 256
40000020 =	ISP outgoing protocol filter set 1		= 256
40000021 =	ISP outgoing protocol filter set 2		= 256
40000022 =	ISP outgoing protocol filter set 3		= 256
40000023 =	ISP outgoing protocol filter set 4		= 256
40000024 =	ISP PPPoE idle timeout		= 0
40000025 =	Route IP	<0 (No) |1 (Yes)>	= 1
40000026 =	Bridge	<0 (No) |1 (Yes)>	= 0
40000027 =	ATM QoS Type	<0 (CBR) | (1 (UBR)>	= 1
40000028 =	Peak Cell Rate (PCR)		= 0
40000029 =	Sustain Cell Rate (SCR)		= 0
40000030 =	Maximum Burst Size(MBS)		= 0
40000031=	RIP Direction	<0(None) | 1(Both) | 2(In Only) | 3(Out Only)>	= 0
40000032=	RIP Version	<0 (Rip-1) | 1 (Rip-2B) |2 (Rip-2M)>	= 0
40000033=	Nailed-up Connection	<0 (No) | 1 (Yes)>	= 0

Table 154 Menu 12

/ Menu 12.1.1 IP Static Route Setup
FIN	FN	PVA	INPUT
120101001 =	IP Static Route set #1, Name
120101002 =	IP Static Route set #1, Active
120101003 =	IP Static Route set #1, Destination
	IP address
120101004 =	IP Static Route set #1, Destination
	IP subnetmask
120101005 =	IP Static Route set #1, Gateway
120101006 =	IP Static Route set #1, Metric
120101007 =	IP Static Route set #1, Private
/ Menu 12.1.2 IP Static Route Setup
FIN	FN	PVA	INPUT
120108001 =	IP Static Route set #8, Name
120108002 =	IP Static Route set #8, Active
120108003 =	IP Static Route set #8, Destination
	IP address
120108004 =	IP Static Route set #8, Destination
	IP subnetmask
120108005 =	IP Static Route set #8, Gateway
120108006 =	IP Static Route set #8, Metric
120108007 =	IP Static Route set #8, Private

Table 155 Menu 15 SUA Server Setup

/ Menu 15 SUA Server Setup
FIN	FN	PVA	INPUT
150000001 =	SUA Server IP address for default port		= 0.0.0.0
150000002 =	SUA Server #2 Active	<0 (No) | 1 (Yes)>	= 0
150000003 =	SUA Server #2 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0
150000004 =	SUA Server #2 Port Start		= 0
150000005 =	SUA Server #2 Port End		= 0
150000006 =	SUA Server #2 Local IP address		= 0.0.0.0
150000007 =	SUA Server #3 Active	<0 (No) | 1 (Yes)>	= 0
150000008 =	SUA Server #3 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0
150000009 =	SUA Server #3 Port Start		= 0
150000010 =	SUA Server #3 Port End		= 0
150000011 =	SUA Server #3 Local IP address		= 0.0.0.0
150000012 =	SUA Server #4 Active	<0 (No) | 1 (Yes)>	= 0
150000013 =	SUA Server #4 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0
150000014 =	SUA Server #4 Port Start		= 0
150000015 =	SUA Server #4 Port End		= 0
150000016 =	SUA Server #4 Local IP address		= 0.0.0.0
150000017 =	SUA Server #5 Active	<0 (No) | 1 (Yes)>	= 0
150000018 =	SUA Server #5 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0
150000019 =	SUA Server #5 Port Start		= 0
150000020 =	SUA Server #5 Port End		= 0
150000021 =	SUA Server #5 Local IP address		= 0.0.0.0
150000022 =	SUA Server #6 Active	<0 (No) | 1 (Yes)> = 0	= 0
150000023 =	SUA Server #6 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0
150000024 =	SUA Server #6 Port Start		= 0
150000025 =	SUA Server #6 Port End		= 0
150000026 =	SUA Server #6 Local IP address		= 0.0.0.0
150000027 =	SUA Server #7 Active	<0 (No) | 1 (Yes)>	= 0
150000028 =	SUA Server #7 Protocol	<0 (A11) | 6 (TCP) | 17 (UDP)>	= 0.0.0.0
150000029 =	SUA Server #7 Port Start		= 0
150000030 =	SUA Server #7 Port End		= 0
150000031 =	SUA Server #7 Local IP address		= 0.0.0.0
150000032 =	SUA Server #8 Active	<0 (No) | 1 (Yes)>	= 0
150000033 =	SUA Server #8 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000034 =	SUA Server #8 Port Start		= 0
150000035 =	SUA Server #8 Port End		= 0
150000036 =	SUA Server #8 Local IP address		= 0.0.0.0
150000037 =	SUA Server #9 Active	<0 (No) | 1 (Yes)>	= 0
150000038 =	SUA Server #9 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000039 =	SUA Server #9 Port Start		= 0
150000040 =	SUA Server #9 Port End		= 0
150000041 =	SUA Server #9 Local IP address		= 0.0.0.0
150000042 =	SUA Server #10 Active	<0 (No) | 1 (Yes)>	= 0
150000043 =	SUA Server #10 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000044 =	SUA Server #10 Port Start		= 0
150000045 =	SUA Server #10 Port End		= 0
150000046 =	SUA Server #10 Local IP address		= 0.0.0.0
150000047 =	SUA Server #11 Active	<0 (No) | 1 (Yes)>	= 0
150000048 =	SUA Server #11 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000049 =	SUA Server #11 Port Start		= 0
150000050 =	SUA Server #11 Port End		= 0
150000051 =	SUA Server #11 Local IP address		= 0.0.0.0
150000052 =	SUA Server #12 Active	<0 (No) | 1 (Yes)>	= 0
150000053 =	SUA Server #12 Protocol	<0 (All) | 6 (TCP) | 17 (UDP)>	= 0
150000054 =	SUA Server #12 Port Start		= 0
150000055 =	SUA Server #12 Port End		= 0
150000056 =	SUA Server #12 Local IP address		= 0.0.0.0

Table 156 Menu 21.1 Filter Set #1

/ Menu 21 Filter set #1
FIN	FN	PVA	INPUT
210100001 =	Filter Set 1, Name
/ Menu 21.1.1.1 set #1, rule #1
FIN	FN	PVA	INPUT
210101001 =	IP Filter Set 1,Rule 1 Type
210101002 =	IP Filter Set 1,Rule 1 Active	<0 (No) | 1 (Yes)>	= 1
210101003 =	IP Filter Set 1,Rule 1 Protocol		= 6
210101004 =	IP Filter Set 1,Rule 1 Dest IP address		= 0.0.0.0
210101005 =	IP Filter Set 1,Rule 1 Dest Subnet Mask		= 0
210101006 =	IP Filter Set 1,Rule 1 Dest Port		= 137
210101007 =	IP Filter Set 1,Rule 1 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210101008 =	IP Filter Set 1,Rule 1 Src IP address		= 0.0.0.0
210101009 =	IP Filter Set 1,Rule 1 Src Subnet Mask		= 0
210101010 =	IP Filter Set 1,Rule 1 Src Port		= 0
210101011 =	IP Filter Set 1,Rule 1 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210101013 =	IP Filter Set 1,Rule 1 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210101014 =	IP Filter Set 1,Rule 1 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.1.2 set #1, rule #2
FIN	FN	PVA	INPUT
210102001 =	IP Filter Set 1,Rule 2 Type	<2 (TCP/IP)>	= 2
210102002 =	IP Filter Set 1,Rule 2 Active	<0 (No) | 1 (Yes)>	= 1
210102003 =	IP Filter Set 1,Rule 2 Protocol		= 6
210102004 =	IP Filter Set 1,Rule 2 Dest IP address		= 0.0.0.0
210102005 =	IP Filter Set 1,Rule 2 Dest Subnet Mask		= 0
210102006 =	IP Filter Set 1,Rule 2 Dest Port		= 138
210102007 =	IP Filter Set 1,Rule 2 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210102008 =	IP Filter Set 1,Rule 2 Src IP address		= 0.0.0.0
210102009 =	IP Filter Set 1,Rule 2 Src Subnet Mask		= 0
210102010 =	IP Filter Set 1,Rule 2 Src Port		= 0
210102011 =	IP Filter Set 1,Rule 2 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210102013 =	IP Filter Set 1,Rule 2 Act Match	<1(check next) | 2 (forward) | 3 (drop)>	= 3
210102014 =	IP Filter Set 1,Rule 2 Act Not Match	<1(check next) | 2 (forward) | 3 (drop)>	= 1

Table 157 Menu 21.1 Filer Set #2

/ Menu 21.1 filter set #2,
FIN	FN	PVA	INPUT
210200001 =	Filter Set 2, Nam		= NetBIOS_WAN
/ Menu 21.1.2.1 Filter set #2, rule #1
FIN	FN	PVA	INPUT
210201001 =	IP Filter Set 2, Rule 1 Type	<0 (none) | 2 (TCP/IP)>	= 2
210201002 =	IP Filter Set 2, Rule 1 Active	<0 (No) | 1 (Yes)>	= 1
210201003 =	IP Filter Set 2, Rule 1 Protocol		= 6
210201004 =	IP Filter Set 2, Rule 1 Dest IP address		= 0.0.0.0
210201005 =	IP Filter Set 2, Rule 1 Dest Subnet Mask		= 0
210201006 =	IP Filter Set 2, Rule 1 Dest Port		= 137
210201007 =	IP Filter Set 2, Rule 1 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210201008 =	IP Filter Set 2, Rule 1 Src IP address		= 0.0.0.0
210201009 =	IP Filter Set 2, Rule 1 Src Subnet Mask		= 0
210201010 =	IP Filter Set 2, Rule 1 Src Port		= 0
210201011 =	IP Filter Set 2, Rule 1 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210201013 =	IP Filter Set 2, Rule 1 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210201014 =	IP Filter Set 2, Rule 1 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 1
/ Menu 21.1.2.2 Filter set #2, rule #2
FIN	FN	PVA	INPUT
210202001 =	IP Filter Set 2, Rule 2 Type	<0 (none) | 2 (TCP/IP)>	= 2
210202002 =	IP Filter Set 2, Rule 2 Active	<0 (No) | 1 (Yes)>	= 1
210202003 =	IP Filter Set 2, Rule 2 Protocol		= 6
210202004 =	IP Filter Set 2, Rule 2 Dest IP address		= 0.0.0.0
210202005 =	IP Filter Set 2, Rule 2 Dest Subnet Mask		= 0
210202006 =	IP Filter Set 2, Rule 2 Dest Port		= 138
210202007 =	IP Filter Set 2, Rule 2 Dest Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 1
210202008 =	IP Filter Set 2, Rule 2 Src IP address		= 0.0.0.0
210202009 =	IP Filter Set 2, Rule 2 Src Subnet Mask		= 0
210202010 =	IP Filter Set 2,Rule 2 Src Port		= 0
210202011 =	IP Filter Set 2, Rule 2 Src Port Comp	<0 (none) | 1 (equal) | 2 (not equal) | 3 (less) | 4 (greater)>	= 0
210202013 =	IP Filter Set 2, Rule 2 Act Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 3
210202014 =	IP Filter Set 2, Rule 2 Act Not Match	<1 (check next) | 2 (forward) | 3 (drop)>	= 1

Table 158 Menu 23 System Menus

*/ Menu 23.1 System Password Setup
FIN	FN	PVA	INPUT
230000000 =	System Password		= 1234
*/ Menu 23.2 System security: radius server
FIN	FN	PVA	INPUT
230200001 =	Authentication Server Configured	<0 (No) | 1 (Yes)>	= 1
230200002 =	Authentication Server Active	<0 (No) | 1 (Yes)>	= 1
230200003 =	Authentication Server IP Address		= 192.168.1.32
230200004 =	Authentication Server Port		= 1822
230200005 =	Authentication Server Shared Secret		= 1111111111111111111111111111111
230200006 =	Accounting Server Configured	<0 (No) | 1 (Yes)>	= 1
230200007 =	Accounting Server Active	<0 (No) | 1 (Yes)>	= 1
230200008 =	Accounting Server IP Address		= 192.168.1.44
230200009 =	Accounting Server Port		= 1823
230200010 =	Accounting Server Shared Secret		= 1234
*/ Menu 23.4 System security: IEEE802.1x
FIN	FN	PVA	INPUT
230400001 =	Wireless Port Control	<0 (Authentication Required) |1 (No Access Allowed) |2 (No Authentication Required)>	= 2
230400002 =	ReAuthentication Timer (in second)		= 555
230400003 =	Idle Timeout (in second)		= 999
230400004 =	Authentication Databases	<0 (Local User Database Only) |1 (RADIUS Only) |2 (Local, RADIUS) |3 (RADIUS, Local)>	= 1
230400005 =	Key Management Protocol	<0 (8021x) |1 (WPA) |2 (WPAPSK)>	= 0
230400006 =	Dynamic WEP Key Exchange	<0 (Disable) |1 (64-bit WEP) |2 (128-bit WEP)>	= 0
230400007 =	PSK =		=
230400008 =	WPA Mixed Mode	<0 (Disable) |1 (Enable)>	= 0
230400009 =	Data Privacy for Broadcast/Multicast packets	<0 (TKIP) |1 (WEP)>	= 0
230400010 =	WPA Broadcast/Multicast Key Update Timer		= 0

Table 159 Menu 24.11 Remote Management Control

/ Menu 24.11 Remote Management Control
FIN	FN	PVA	INPUT
241100001 =	TELNET Server Port		= 23
241100002 =	TELNET Server Access	<0 (all) | 1 (none) | 2 (lan) | 3 (Wan)>	= 0
241100003 =	TELNET Server Secured IP address		= 0.0.0.0
241100004 =	FTP Server Port		= 21
241100005 =	FTP Server Access	<0 (all) | 1 (none) | 2 (lan) | 3 (Wan)>	= 0
241100006 =	FTP Server Secured IP address		= 0.0.0.0
241100007 =	WEB Server Port		= 80
241100008 =	WEB Server Access	<0 (all) | 1 (none) | 2 (lan) | 3 (Wan)>	= 0
241100009 =	WEB Server Secured IP address		= 0.0.0.0

Command Examples

The following are example Internal SPTGEN screens associated with the ZyXEL Device's command interpreter commands.

Table 160 Command Examples

	FIN	FN	PVA	INPUT
/ci command (for annex a): wan adsl opencmd
FIN		FN	PVA	INPUT
99000001 =		ADSL OPMD	<0 (glite) |1 (t1.413) |2 (gdmt) |3 (multimode)>	= 3
/ci command (for annex B): wan adsl opencmd
FIN		FN	PVA	INPUT
99000001 =		ADSL OPMD	<0 (etsi) |1 (normal) |2 (gdmt) |3 (multimode)>	= 3

APPENDIX F

Services

The following table lists some commonly-used services and their associated protocols and port numbers.

• Name: This is a short, descriptive name for the service. You can use this one or create a different one, if you like.
• Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the service uses the same port number with TCP and UDP. If this is USER-DEFINED, the Port(s) is the IP protocol number, not the port number.

• Port(s): This value depends on the Protocol.

• If the Protocol is TCP, UDP, or TCP/UDP, this is the IP port number.
  If the Protocol is USER, this is the IP protocol number.

• Description: This is a brief explanation of the applications that use this service or the situations in which this service is used.

Table 161 Examples of Services

NAME	PROTOCOL	PORT(S)	DESCRIPTION
AH(IPSEC_TUNNEL)	User-Defined	51	The IPSEC AH (Authentication Header) tunneling protocol uses this service.
AIM	TCP	5190	AOL's Internet Messenger service.
AUTH	TCP	113	Authentication protocol used by some servers.
BGP	TCP	179	Border Gateway Protocol.
BOOTP_CLIENT	UDP	68	DHCP Client.
BOOTP_SERVER	UDP	67	DHCP Server.
CU-SEEME	TCP/UDP	7648	A popular videoconferencing solution from White Pines Software.
	TCP/UDP	24032
DNS	TCP/UDP	53	Domain Name Server, a service that matches web names (e.g. www.zyxel.com) to IP numbers.
ESP(IPSEC_TUNNEL)	User-Defined	50	The IPSEC ESP (Encapsulation Security Protocol) tunneling protocol uses this service.
FINGER	TCP	79	Finger is a UNIX or Internet related command that can be used to find out if a user is logged on.
FTP	TCP	20	File Transfer Program, a program to enable fast transfer of files, including large files that may not be possible by e-mail.
	TCP	21
H.323	TCP	1720	NetMeeting uses this protocol.
HTTP	TCP	80	Hyper Text Transfer Protocol - a client/server protocol for the world wide web.
HTTPS	TCP	443	HTTPS is a secured http session often used in e-commerce.
ICMP	User-Defined	1	Internet Control Message Protocol is often used for diagnostic purposes.
ICQ	UDP	4000	This is a popular Internet chat program.
IGMP (MULTICAST)	User-Defined	2	Internet Group Multicast Protocol is used when sending packets to a specific group of hosts.
IKE	UDP	500	The Internet Key Exchange algorithm is used for key distribution and management.
IMAP4	TCP	143	The Internet Message Access Protocol is used for e-mail.
IMAP4S	TCP	993	This is a more secure version of IMAP4 that runs over SSL.
IRC	TCP/UDP	6667	This is another popular Internet chat program.
MSN Messenger	TCP	1863	Microsoft Networks' messenger service uses this protocol.
NetBIOS	TCP/UDP	137	The Network Basic Input/Output System is used for communication between computers in a LAN.
	TCP/UDP	138
	TCP/UDP	139
	TCP/UDP	445
NEW-ICQ	TCP	5190	An Internet chat program.
NEWS	TCP	144	A protocol for news groups.
NFS	UDP	2049	Network File System - NFS is a client/server distributed file service that provides transparent file sharing for network environments.
NNTP	TCP	119	Network News Transport Protocol is the delivery mechanism for the USENET newsgroup service.
PING	User-Defined	1	Packet INternet Groper is a protocol that sends out ICMP echo requests to test whether or not a remote host is reachable.
POP3	TCP	110	Post Office Protocol version 3 lets a client computer get e-mail from a POP3 server through a temporary connection (TCP/IP or other).
POP3S	TCP	995	This is a more secure version of POP3 that runs over SSL.
PPTP	TCP	1723	Point-to-Point Tunneling Protocol enables secure transfer of data over public networks. This is the control channel.
PPTP_TUNNEL (GRE)	User-Defined	47	PPTP (Point-to-Point Tunneling Protocol) enables secure transfer of data over public networks. This is the data channel.
RCMD	TCP	512	Remote Command Service.
REAL=AUDIO	TCP	7070	A streaming audio service that enables real time sound over the web.
REXEC	TCP	514	Remote Execution Daemon.
RLOGIN	TCP	513	Remote Login.
ROADRUNNER	TCP/UDP	1026	This is an ISP that provides services mainly for cable modems.
RTELNET	TCP	107	Remote Telnet.
RTSP	TCP/UDP	554	The Real Time Streaming (media control) Protocol (RTSP) is a remote control for multimedia on the Internet.
SFTP	TCP	115	The Simple File Transfer Protocol is an old way of transferring files between computers.
SMTP	TCP	25	Simple Mail Transfer Protocol is the message-exchange standard for the Internet. SMTP enables you to move messages from one e-mail server to another.
SMTPS	TCP	465	This is a more secure version of SMTP that runs over SSL.
SNMP	TCP/UDP	161	Simple Network Management Program.
SNMP-TRAPS	TCP/UDP	162	Traps for use with the SNMP (RFC:1215).
SQL-NET	TCP	1521	Structured Query Language is an interface to access data on many different types of database systems, including mainframes, midrange systems, UNIX systems and network servers.
SSDP	UDP	1900	The Simple Service Discovery Protocol supports Universal Plug-and-Play (UPnP).
SSH	TCP/UDP	22	Secure Shell Remote Login Program.
STRM WORKS	UDP	1558	Stream Works Protocol.
SYSLOG	UDP	514	Syslog allows you to send system logs to a UNIX server.
TACACS	UDP	49	Login Host Protocol used for (Terminal Access Controller Access Control System).
TELNET	TCP	23	Telnet is the login and terminal emulation protocol common on the Internet and in UNIX environments. It operates over TCP/IP networks. Its primary function is to allow users to log into remote host systems.
TFTP	UDP	69	Trivial File Transfer Protocol is an Internet file transfer protocol similar to FTP, but uses the UDP (User Datagram Protocol) rather than TCP (Transmission Control Protocol).
VDOLIVE	TCP	7000	A videoconferencing solution. The UDP port number is specified in the application.
	UDP	user-defined

Index

A

access point (AP) 85

Address Resolution Protocol (ARP) 117

alert settings 247

ALG 139

enabling SIP/FTP/H.323 134

ALG (Application Layer Gateway) 129

allocate bandwidth capacity 201

alternative subnet mask notation 299

analog phone setup 155, 156

analog phone, advanced settings 156

analog phone, region selection 159

AP (Access Point) 85

application based bandwidth management 202

Application Layer Gateway (ALG) 129

Auto Attendant

configuration 173

security 169

Auto Attendant, VoIP trunking 173

auto-discovering UPnP-enabled network devices 229

automatic log out 41

B

backup gateway 110

bandwidth borrowing 205 example 206

bandwidth management 201 and VoIP 201

application based 202

borrowing 205, 206, 212

budget 201, 204, 210, 211

class setup 210

classes 201, 202, 203, 205, 206

configuration 201, 207

edit classes 211

example 204

fairness-based 205

filter 201, 203, 212

interfaces 201, 210

maximization 203

maximizing 204, 208

monitoring 212

over allotment of bandwidth 206

overview 201

predefined services 69

priority 201, 203, 204, 206, 208, 211

proportional allocation 202

reserving bandwidth 203

schedule 203, 208

subset-based 202

wizard 48, 66

basic wireless security 52

blinking LEDs 36

blocking

ActiveX controls 193

cookies 193

Java applets 193

web features 193

blocking access to Internet 193

C

callforwarding151

call hold 151, 152, 154

call rules, VoIP trunking 171

call transfer 151, 153, 154

call waiting 151, 153, 154

calling with the power off 167

certifications 4

notices 5

viewing 5

change password 40

changing the password 242

channel 85

circuit-switched telephone networks 135

Class of Service (CoS) 141

classes, bandwidth management 201, 203

client server, SIP 136

codecs 146

codecs (coder/decoder) 140

comfort noise, phone feature 151

common services 323

conditions for incoming calls 163

configuration backup 263

configuration text file 307

configuring time settings 241

connection wizard 47

exceptrons 49

contact information 9

content filter 193, 195

configuration 194

schedule 195

conventions 31

copyright 3

CoS (Class of Service) 141

customer support 9

D

Daytime RFC 867 245

DDNS 240

DDNS (Dynamic DNS) 239

default

LAN IP address 39, 114

management IP address 279

management subnet mask 279

password 40, 279

Denial of Service attack 185

DHCP 239, 240

client list 121

enable/disable 114

server 114, 119

DHCP (Dynamic Host Configuration Protocol) 114

DHCP clients 239, 281

DiffServ 141,281

DiffServ Code Points 141

DiffServ Code Points, See DSCPs 141

DiffServ marking rule 142

dimensions 279

disclaimer 3

DNS 114, 119

and IP addresses 114

remote management 222

DNS (Domain Name System) 103

DNS servers 103

domain name 239

Domain Name System, See DNS 103

DSCPs (DiffServ Code Points) 141

DTME 147

DTMF (Dual-Tone Multi-Frequency) 140

Dual-Tone Multi-Frequency, See DTMF 140

Dynamic DNS (DDNS) 239

E

echo cancellation 157

echo cancellation, phone feature 151

emergency numbers, PSTN 167

encapsulation

Ethernet 55, 103, 105, 127

PPPoE 55,101,106

encryption key 87

encryption, wireless 87

error logging 247

ESSID (Extended Service Set IDentification) 89

Ethernet 49, 55

Ethernet encapsulation 103, 127

Ethernet ports 279

Europe type call service mode 152

event logs 247

Extended Service Set IDentification (ESSID) 89

F

factory defaults 264

fairness based bandwidth management 205

fax passthrough 148, 281

fax relay 148

FCC interference statement 4

feedback, for User's Guide 31

filter

bandwidth management 201

firewall 185, 186, 187, 188, 189

and NAT 186, 190

and remote management 186

blocking services 187, 190

configuration 189

default settings 186

Denial of Service 185

overview 185

rules 186

specify ports 191

stateful inspection 185

triangle route 187

ZyXEL Device features 185

firmware 261

firmware upgrade 261

firmware upload process 263

flash key, description 152

flash key, usage 152, 153

flashing, phone feature 152

Foreign Exchange Office (FXO) 279

Foreign Exchange Station (FXS) 279

FTP 215, 240

remote management 217

FTP restrictions 215

FXO (Foreign Exchange Office) 279

FXS (Foreign Exchange Station) 279

G

G.168 151, 157

G.168 Echo Cancellation 281

G.711 146

G.711, waveform codec 140, 281

G.729 146

G.729, AbS hybrid waveform codec 140, 281

1

IANA, IP address 102

IEEE 802.11b 99

IEEE 802.11g 99

IGMP (Internet Group Multicast Protocol) 115

immediate dial, phone feature 158

incoming call policy 161

incoming call, SIP accounts 155, 156

install UPnP 226

Windows Me 226

Windows XP 228

interfaces

bandwidth management 201, 210

remote management 215

internal calls 151

internal SPTGEN 307

example text file 307

FTP upload example 309

points to remember 308

Internet access 34

Internet access issues 268

Internet Telephony Service Provider (ITSP) 135

IP

address classes 298

IP address 113

and Any IP 116

assignments 283

commuters 116

DNS 114

IP alias 121

LAN 118

setting up 283

WAN 102

IP alias 121

ISP

and LAN 113

DNS servers 103, 114

ISP (Internet Service Provider) 101

ITSP(Internet Telephony Service Provider 135

ITU-T, standard 151

J

Java permissions 39, 269

JavaScripts 39,269

L

LAN

add subnets 121

advanced settings 123

and remote management 215

IP address 113, 118

IP alias 121

NetBios 125

static IP address 120

subset mask 113, 118

troubleshooting 267

LAN (Local Area Network) 113

LAN-to-WAN rules, firewall 187

LEDs 36,267

not working 267

limits for remote management 215

log messages 252

log out 41

log settings 248, 249

login screen 39, 40

logs 247

logs, event 247

logs, traffic 247

M

MAC address 102

spoofing 102

MAC address filter 97

MAC address filter and WLAN 86

management features 281

Management Information Base (MIB) 219

management IP address 279

maximize bandwidth usage 203, 204, 208

model types 33

monitoring bandwidth usage 212

multicast 109, 115

multimedia, and SIP 135

MWI 147

MWI (Message Waiting Indication) 141

N

NAT 128, 129, 139

and firewall130,186,190

and remote management 215

and STUN 139

and VoIP 139, 147

portforwarding132

server sets 127, 131

sessions 130

trigger port 133

NAT (Network Address Translation) 130

NAT traversal, and UPnP 225

natural mask, subnets 299

NetBIOS 125

NetBIOS (Network Basic Input/Output System) 110

Network Address Translation, See also NAT 130

network ID 298

network security 185, 193

NTP RFC 1305 245

NTP time servers 240

0

operation humidity 279

operation temperature 279

OTIST 88,95

and wireless clients 53, 96

starting 95

OTIST (One Touch Intelligent Security Technology) 53

outbound proxy server 140

outgoing call, SIP accounts 155, 156

P

password 279

changing 40, 242

pattern, VoIP trunking 171

PBX services 135

PCM (Pulse Code Modulation) 140

peer call authentication 170

peer devices 170

Peer IP 175

Peer Port 175

peer-to-peer calls 33, 161, 170

phone book 161, 163

phone ports 279

PIN, for VoIP trunking 169

pop-up blocking 39

pop-windows

enabling 269

portforwarding127,132

portforwarding,portnumbers127

portforwarding,services127

port numbers 127

ports 36

and services 323

firewall 191

power off, calling 167

PPPoE 55,101

benefits 101

PPPoE encapsulation 106

problems with device 267

product registration 8

proportional allocation of bandwidth 202

protocol support 281

proxy server, SIP 137

PSK (Pre-Shared Key) 51

PSTN (Public Switched Telephone Networks) 140

PSTN line 167

PSTN line, assignment 156

PSTN to VoIP link 169

PSTN, pre-fix number setup 168

Public Switched Telephone Networks, See PSTN 140

Pulse Code Modulation (PCM) 140

pulse dialing 140

Q

QoS 281

settings 148

QoS (Quality of Service) 141

Quality of Service, See QoS 141

Quick Start Guide 31

R

Real time Transport Protocol (RTP) 138

redirect server, SIP 138

region selection, phone 159

registration

product 8

related documentation 31

relay to PSTN line 168

remote management 215

and LAN 215

and NAT 215

and WAN 215

configuration 217, 218, 219, 220, 221, 222

DNS 222

FTP 217

interfaces 215

limits 215

priority 215

protocols 215

secured client 221

security 222

services 215

session limits 215

SNMP 218, 219, 220, 221

systemtimeout216

Telnet 216

troubleshooting 269

WWW 217

required bandwidth, and VoIP 140

resetting to factory defaults 41

respond to ping, disable 222

restart 261, 265

restore configuration 261, 263, 264

restrict web features 194

RFC 1305 245

RFC 867 245

RFC 868 245

RIP

direction 115

version 115

RIP (Routing Information Protocol) 109, 115

Roadrunner 105

root class, bandwidth management 210

router features 34

routing information 113, 115

RTP (Real time Transport Protocol) 138

rules for incoming calls 161

s

safety warnings 6

Scheduler 208

scheduling

bandwidth management 203

security

alert settings 247

and remote management 222

and UPnP 225

content filtering 193

firewall 185

stateful inspection 185

security and wireless networks 85

security guidelines 186

services 127,323

Session Initiation Protocol (SIP), See SIP 135

silence suppression, phone feature 151, 281

silent packets, and VAD 151

SIP

account 143

account assignments 155, 156

accounts 135

advanced server settings 146

advanced settings 144

call progression 136

client 136

client server 136

identities 135

numbers 135

phone book 161

proxy server 137

redirect server 138

register server 138

server 143

servers 136

service domain 136

settings 63, 142

speed dial 163

troubleshooting 276

URI (Uniform Resource Identifier) 135

user agent 137

SIP (Session Initiation Protocol) 135

SIP ALG 129

SIP Application Layer Gateway, See also SIP ALG 129

SNMP 218

manager 219

MIBs 219

remote management 218, 219, 220, 221

traps 220

versions supported 218

solving problems with device 267

sound quality, and VoIP 140

specification tables 279

speed dial 161, 163

spoofing MAC address 102

SSID 86, 88

and OTIST 88

broadcast 86

hiding 86

SSID (Service Set Identity) 85

stateful inspection, and firewall 185

static IP address assignment 120

static WEP 90

status indicators 36

storage humidity 279

storage temperature 279

STUN 139

subset 297

example 300

subset mask 113, 299

LAN 118

subset-based

bandwidth management 202

subsetting 299

suggestions 31

supplementary phone services 151

syntax conventions 31

system name 239

system timeout for remote management 216

T

Telnet

remote management 216

TFTP restrictions 215

three-way conference 153, 154

time

configuration 241

Time RFC 868 245

time servers 240

tools 261

ToS 281

settings 148

ToS (Type of Service) 141

trademarks 3

traffic logs 247

traffic redirect 110

triangle route 188

solution 188

triangle route, firewall 187

trigger port 133

trigger port forwarding 128

process 128

troubleshooting 267, 268, 269

phone issues 275

SIP account configuration 276

trunking, VoIP 169

trusted computers

content filtering 194

Type Of Service, See ToS 141

types of models 33

U

Universal Plug and Play, See UPnP 225

UPnP 237

and NAT 225

and security 225

and the ZyXEL Device 226

application 225

auto-discovery 229

forum 226

installing example 226

overview 225

UPnP (Universal Plug and Play) 225

USA type call service mode 154

user agent, SIP 137

User's Guide feedback 31

V

VAD 157, 281

silent packets 151

VAD (Voice Activity Detection) 151

VLAN group 142

VLAN ID tags 142

VLAN tag 142

VLAN tagging settings 149

VLAN, and VoIP 142

Voice Activity Detection, See VAD 151

voice coding 140

voice functions 281

voice mail 135

Voice over IP (VoIP), See VoIP 135

voice volume control 157

VoIP 136

and bandwidth management 201

and NAT 139, 147

and sound quality 140

and STUN 139

and VLANs 149

phone book 161

required bandwidth 140

setup wizard 48

SIP settings 142

troubleshooting 275

VoIP features 33

VoIP links 169

VoIP trunking 34, 169

call rules 171

example 177

incoming authentication 170

outgoing authentication 170

peer call setup 174

requirements 172

scenarios 171

security 169, 173

volume control 157

advanced settings 99

and user authentication 86

encryption 87

MAC address filter 86, 97

mode 99

OTIST 88,95

RADIUS 86, 93

security 90, 92, 93

WLAN (Wireless Local Area Network) 50

WPA 51, 93

WPA2 51, 93

compatibility with WPA 87

WPA-PSK 51, 92

W

WAN 101

advanced settings 108

and firewall110,186

and MAC address 102

and remote management 215

DNS servers 103

encapsulation 103, 106

IP address assignment 102

Roadrunner 105

traffic redirect 110

troubleshooting 268

WAN (Wide Area Network) 101

WAN-to-LAN rules, firewall 187

warranty 8

note 8

waveform codec 140

web browser issues 269

web configurator 39

remote management 217, 218, 219, 220, 221, 222

requirements 39

weight 279

WEP 90

WEP key 52

wireless networks 85

wireless security 52

OTIST 53

WPA 93

WPA2 93

WPA-PSK 51

wizard 47

bandwidth management 48, 66

connection 48

VoIP 48

wireless 50

WLAN 85
